TSC Auto ID Technology RFWRN WiFi abgn module User Manual RF WRN UserMan 20161115

TSC Auto ID Technology Co., Ltd. WiFi abgn module RF WRN UserMan 20161115

(RF-WRN) UserMan_20161115

i
M/N：Alpha-2R、PR20、GR20、CN-20、BP-20、TSC-20
All models can be WIFI version or BT version.
USER’S
MANUAL
Al
p
ha-2R Series
Direct Thermal Portable Printer
ii
Copyright Information
©2016 TSC Auto ID Technology Co., Ltd,
The copyright in this manual, the software and firmware in the printer
described therein are owned by TSC Auto ID Technology Co., Ltd, All
rights reserved.
CG Triumvirate is a trademark of Agfa Corporation. CG Triumvirate Bold
Condensed font is under license from the Monotype Corporation. Windows
is a registered trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.
Information in this document is subject to change without notice and does
not represent a commitment on the part of TSC Auto ID Technology Co.
No part of this manual may be reproduced or transmitted in any form or by
any means, for any purpose other than the purchaser’s personal use,
without the expressed written permission of TSC Auto ID Technology Co.
iii
Agency Compliance and Approvals
EN 55032 Class B
EN 55024
FCC part 15B, Class B
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
AS/NZS CISPR 22 Class B
AS/NZS CISPR 32 Class B
EN 60950-1
NOM-019-SCFI-1998
10 C.F.R. Section 430.23(aa) (Appendix Y to Subpart B of part 430)
Energy Star for Imaging Equipment 2.0
iv
Important safety instructions:
1. Read all of these instructions and keep them for later use.
2. Follow all warnings and instructions on the product.
3. Disconnect the power plug from the AC outlet before cleaning or if fault happened.
Do not use liquid or aerosol cleaners. Using a damp cloth is suitable for cleaning.
4. The mains socket shall be installed near the equipment and easily accessible.
5. The unit must be protected against moisture.
6. Ensure the stability when installing the device, Tipping or dropping could cause
damage.
7. Make sure to follow the correct power rating and power type indicated on marking
label provided by manufacture.
8. Please refer to user manual for maximum operation ambient temperature.
WARNING:
Hazardous moving parts, keep fingers and other body parts away.
CAUTION:
(For equipment with RTC (CR2032) battery or rechargeable battery pack)
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the Instructions as below.
1. DO NOT throw the battery in fire.
2. DO NOT short circuit the contacts.
3. DO NOT disassemble the battery.
4. DO NOT throw the battery in municipal waste.
5. The symbol of the crossed out wheeled bin indicates that the battery should not be
placed in municipal waste.
Caution:Theprintheadmaybehotandcouldcausesevereburns.Allowthe
printheadtocool.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
v
RF exposure warning (Wi-Fi)
This equipment must be installed and operated in accordance with provided
instructions and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be providing with antenna
installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
SAR Value: 0.736 W/kg
RF exposure warning (For Bluetooth)
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must not be co-located or operating in conjunction with any other
antenna or transmitter.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a
manner such that the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with the IC Specific
Absorption Rate (“SAR”) limits when installed in specific host products operated in
portable exposure conditions. (For Wi-Fi)
This device has also been evaluated and shown compliant with the IC RF Exposure
limits under portable exposure conditions. (antennas are less than 20 cm of a
person's body). (For Bluetooth)
Canada, avis de l'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003
et RSS-210.
vi
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne
doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence,
notamment les interférences qui peuvent affecter son fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil sans fil est inférieure à la limite
d'exposition aux fréquences radio de l'Industry Canada (IC). Utilisez l’appareil sans fil
de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specific
Absorption Rate – Taux d'absorption spécifique) par l'IC lorsqu'il est connecté à des
dispositifs hôtes spécifiques opérant dans des conditions d’utilisation mobile. (Pour le
Wi-Fi)
Ce périphérique a également été évalué et démontré conforme aux limites
d'exposition radio-fréquence par l'IC pour des utilisations par des opérateurs mobiles
(les antennes sont à moins de 20 cm du corps d'une personne). (Pour le Bluetooth)
NCC 警語:
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。(即低功率電波輻射性電機管理辦法第十二
條)
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或
工業、科學及醫療用電波輻射性電機設備之干擾。(即低功率電波輻射性電機管理辦法
第十四條)
vii
Contents
1.Introduction ........................................................................................................... 1
1.1 Product Introduction ........................................................................................... 1
1.2 Product Features ................................................................................................. 2
1.2.1 Printer Standard Features ....................................................................... 2
1.2.2 Printer Optional Features ........................................................................ 3
1.3 General Specifications ............................................................................... 4
1.4 Print Specifications ..................................................................................... 5
1.5 Media Specifications ........................................................................................... 5
2.Operations Overview ............................................................................................ 6
2.1 Unpacking and Inspection .................................................................................. 6

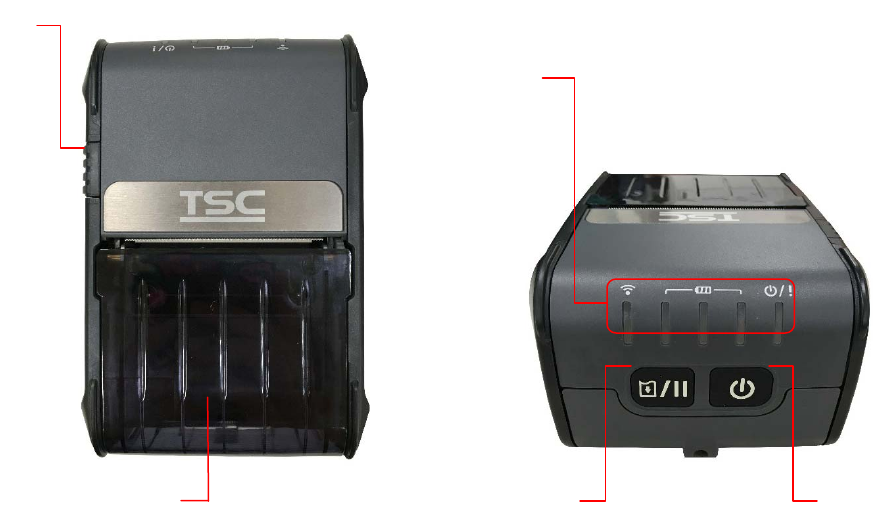

2.2 Printer Overview .................................................................................................. 7
2.2.1 Front View ................................................................................................. 7
2.2.2 Interior View .............................................................................................. 8
2.2.3 Rear View .................................................................................................. 9
2.3 Operator control ................................................................................................. 10

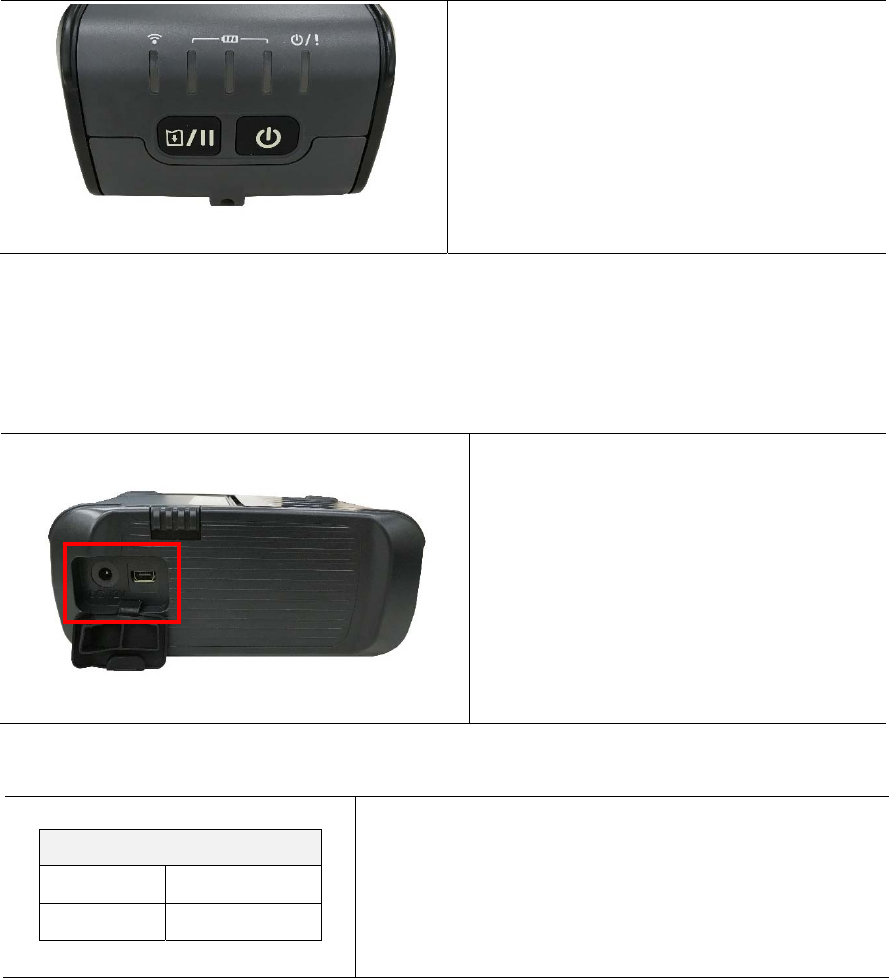

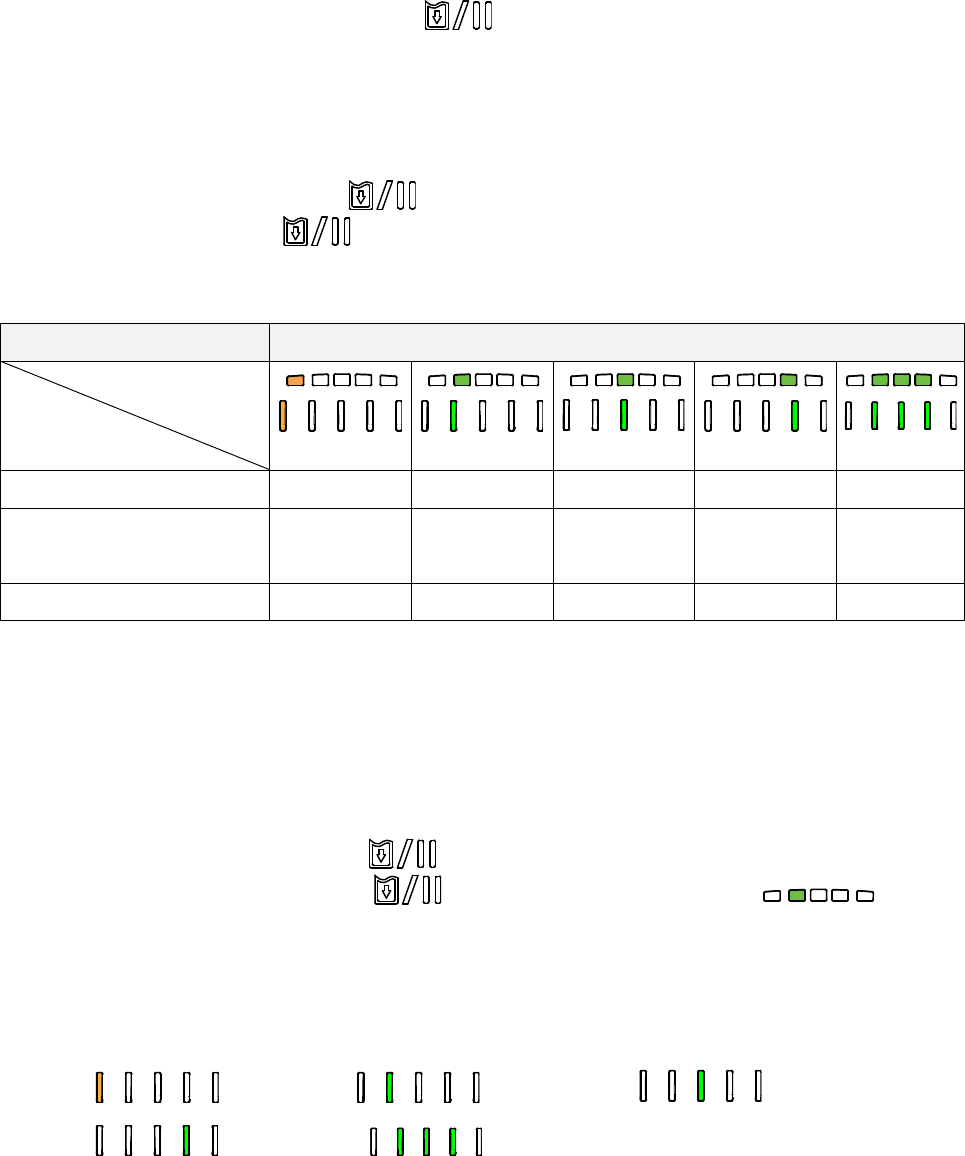

2.3.1 LED Indication and Keys ....................................................................... 10
3.Setup .................................................................................................................... 12
3.1 Install the Battery ............................................................................................... 12
3.2 Charge the Battery ............................................................................................. 13

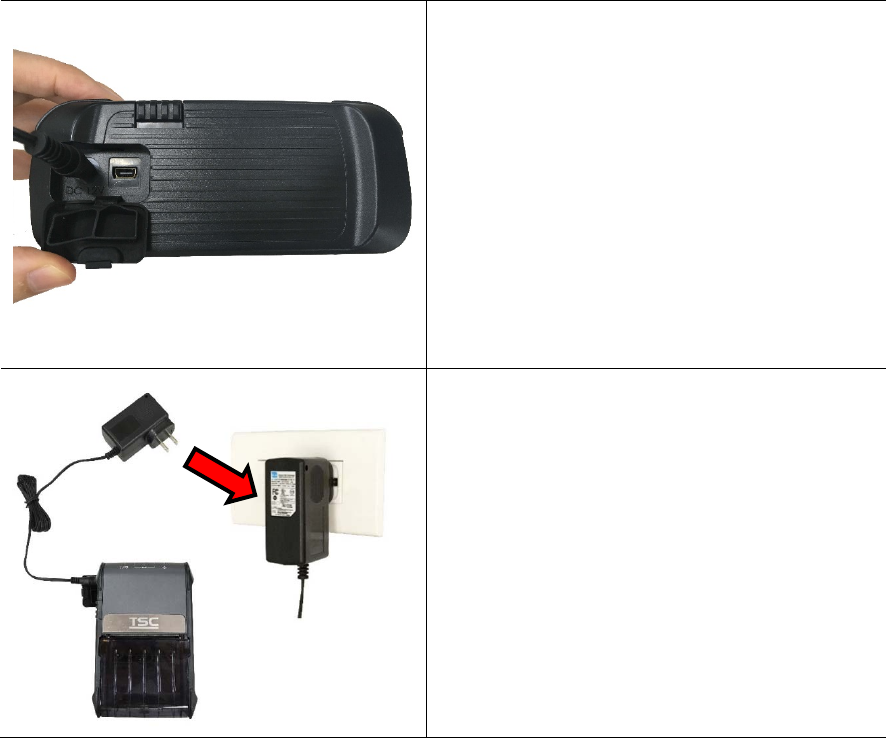

3.2.1 Charge the Battery ................................................................................. 13

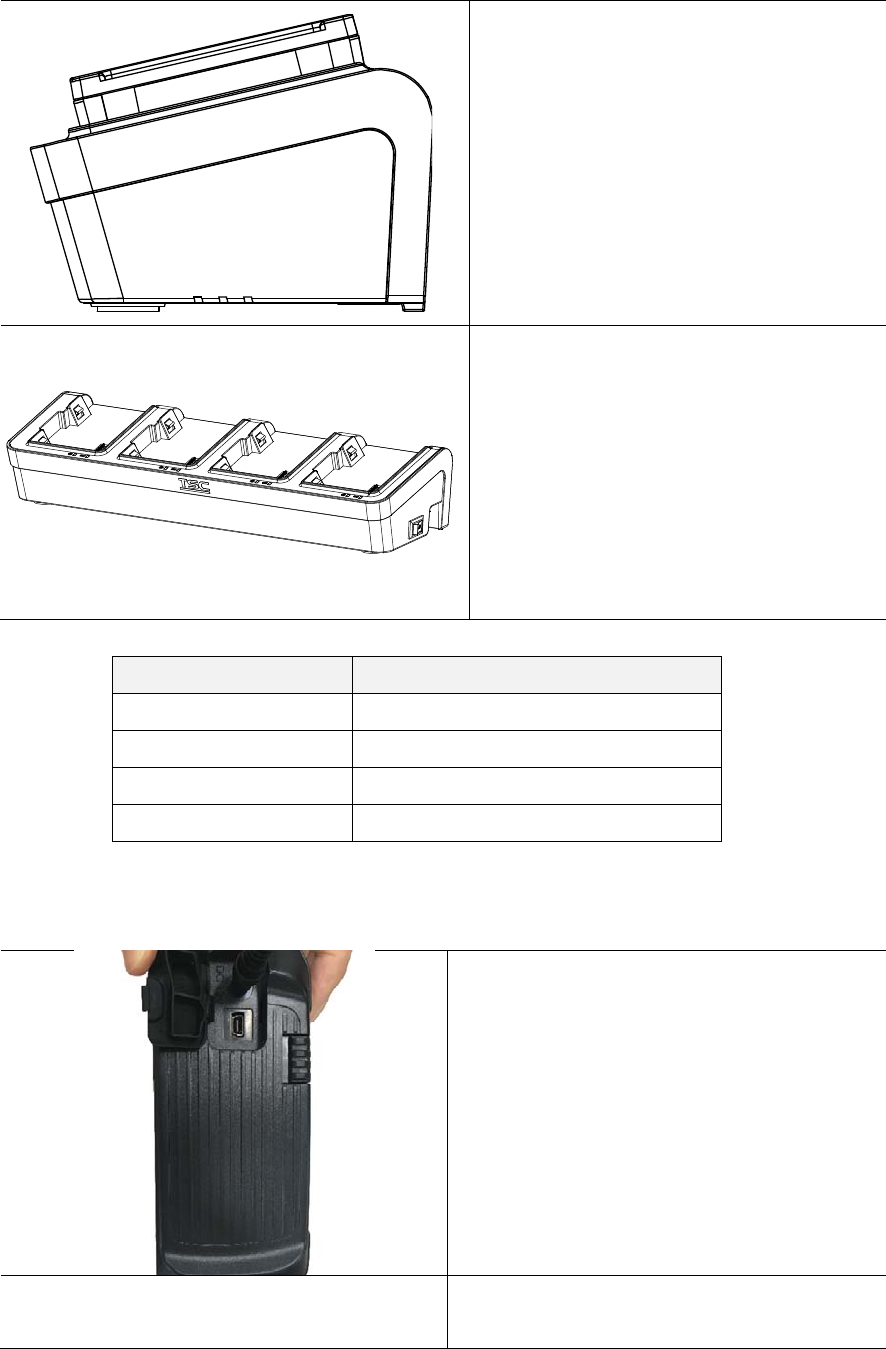

3.2.2 Charge by Charger Station (Optional) .................................................. 14
3.2.3 Charge by Vehicle Power Adaptor (Optional) ...................................... 15
3.3 Communicate ..................................................................................................... 16
3.3.1 Connecting with the Communication Cable ........................................ 16
3.3.2Connecting with Bluetooth (Optional) ................................................. 16
3.4 Loading the Media ............................................................................................. 17
4.Accessories ......................................................................................................... 18
4.1Install the Belt Clip ............................................................................................ 18
5. Power-on Utilities ................................................................................................. 19
5.1Media Sensor Calibration ................................................................................. 19

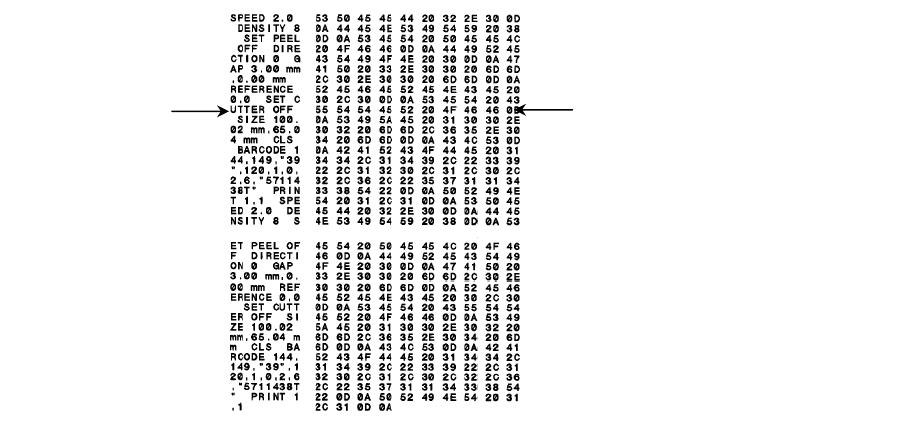

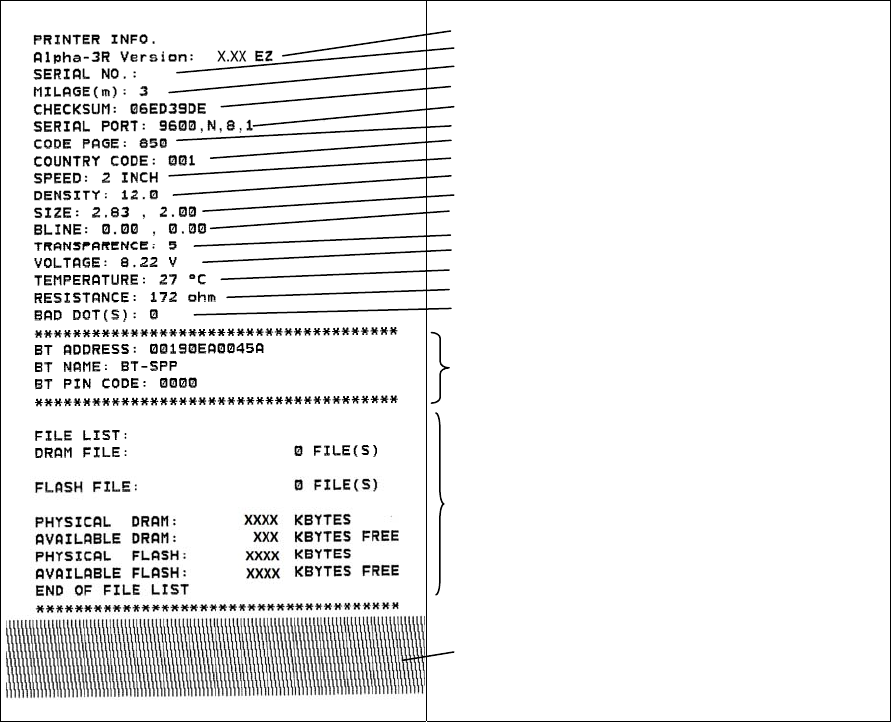

5.2Self-test and Dump Mode ................................................................................. 19
5.3Printer Initialization ........................................................................................... 23
5.Diagnostic Tool ................................................................................................... 24
5.1Start the Diagnostic Tool .................................................................................. 24

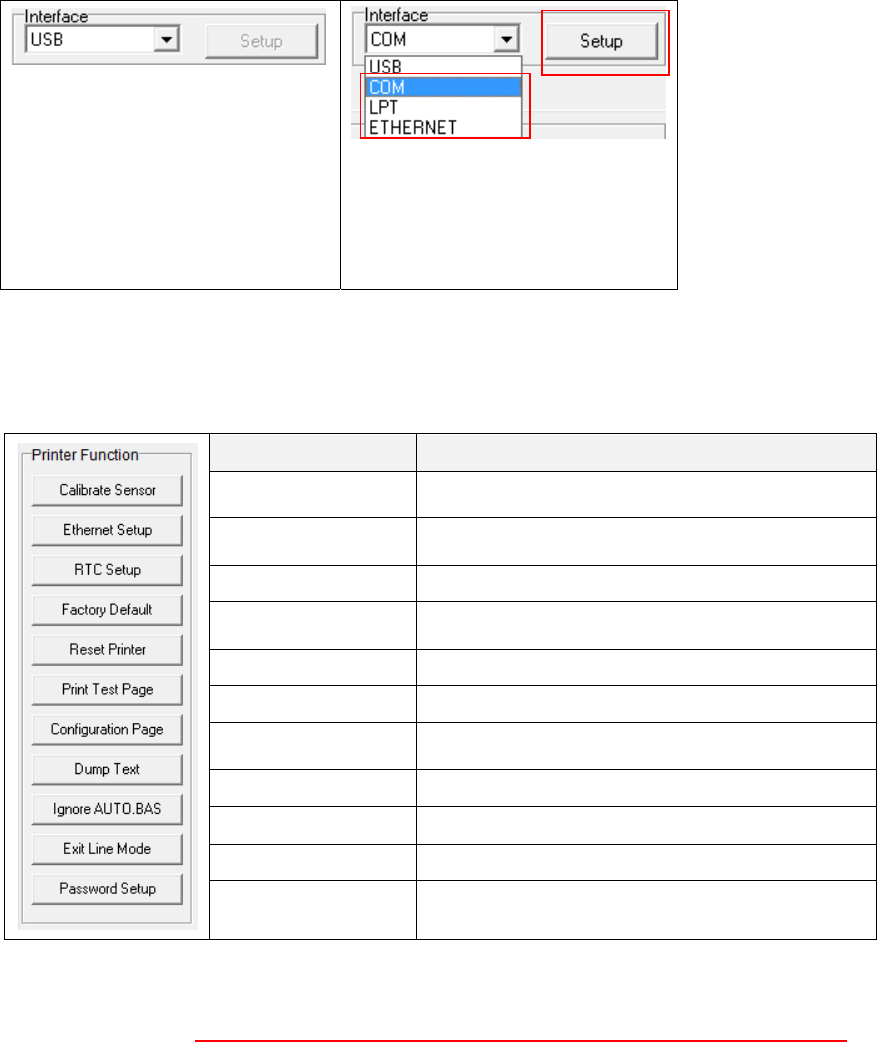

5.2Printer Function ................................................................................................. 25
viii

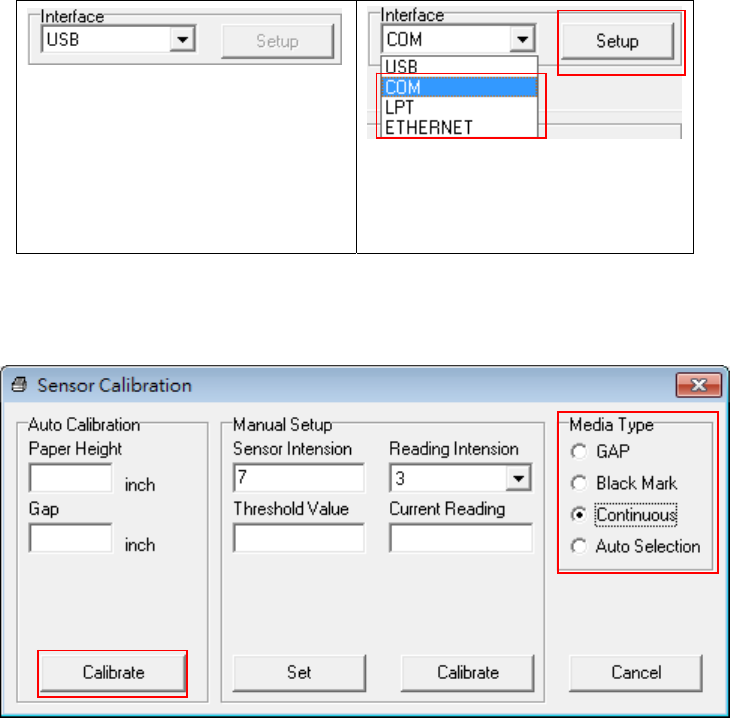

5.3Calibrating Media Sensor by Diagnostic Tool ................................................ 26
6.3.1 Auto Calibration ..................................................................................... 26

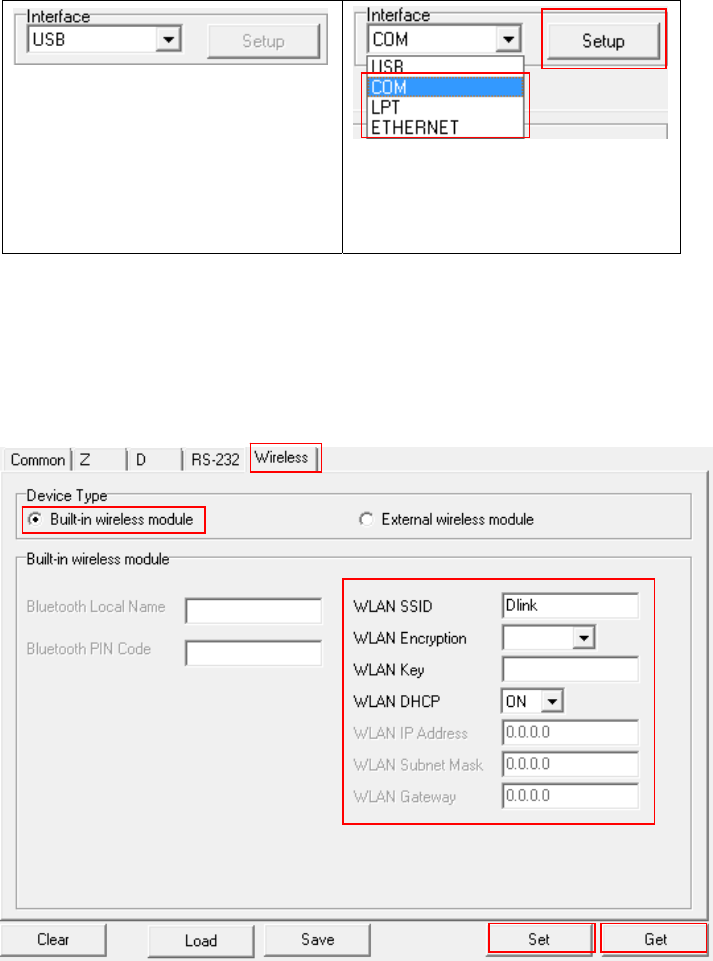

5.4Setting Wi-Fi by Diagnostic Tool (Optional) ................................................... 27

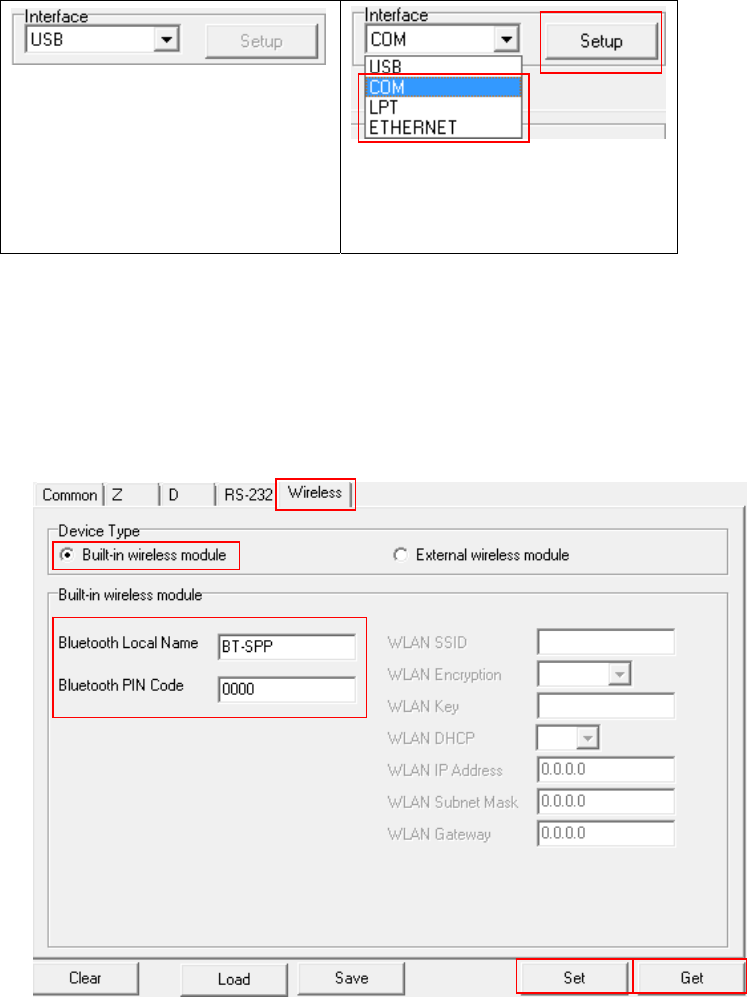

5.5Setting Bluetooth by Diagnostic Tool (Optional) ........................................... 28
6.Troubleshooting .................................................................................................. 29
7.1 Common Problems ............................................................................................ 29

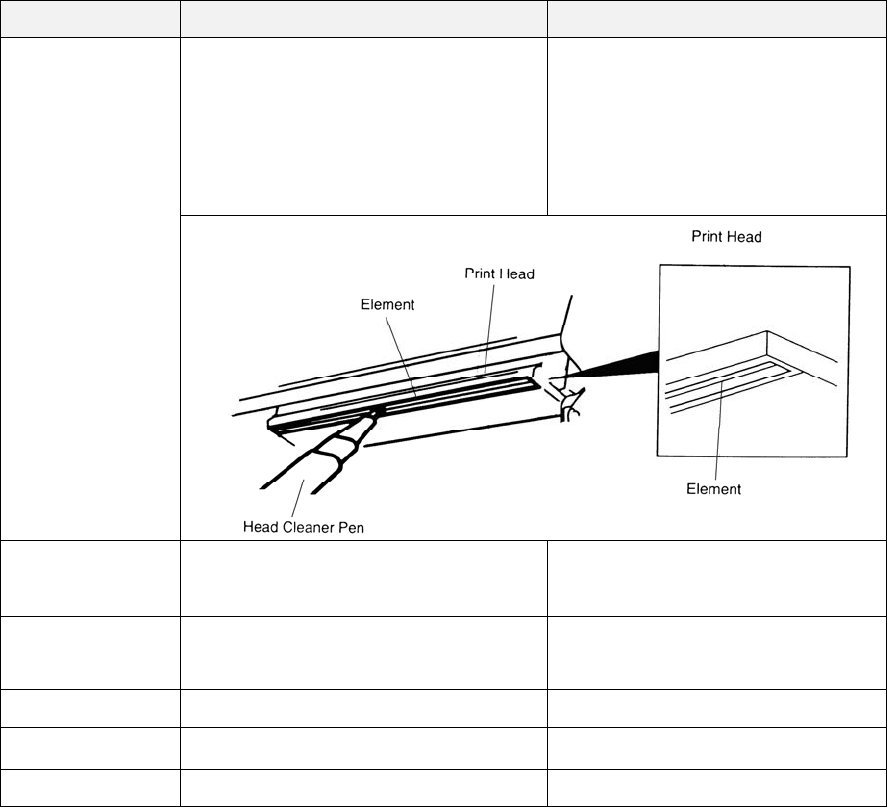

7.Maintenance ........................................................................................................ 30
Revise History .......................................................................................................... 31
1. Introduction
1.1 Product Introduction
Thank you very much for purchasing TSC bar code printer.
Enjoy TSC’s reputation for cost-efficient, high durability printers with the Alpha-2R
economical printer. The Alpha-2R is a comfortable, light-weight printer capable of
working with any mobile printing application where you need quick, simple
receipts/labels on demand.
Our Alpha-2R is designed for a rough life, inside the IP54-rated environmental case to
resist dust and water and with its rubber over-mold design prepared to take up to a five
foot fall and keep printing.
These small and light printers can be worn comfortably for a full shift, without interfering
with the user’s tasks. Use USB, or optional Bluetooth, 802.11 a/b/g/n Wireless or Serial
to connect to a mobile computer or even a smart phone and produce clear
easy-to-read receipts hour after hour.
This document provides an easy reference for operating the Alpha-2R.
The online version of the Programmer's manual, or more information can be
downloaded from service and support website as an Adobe Acrobat Reader file.
To print label formats, please refer to the instructions provided with your labeling
software; if you need to write the custom programs, please refer to the TSPL/TSPL2
programming manual that can be found on the accessories or on TSC website at
http://www.tscprinters.com.
− Applications
Direct store deliveries (DSD)
Field repair/installation
Mobile point of sale
Parking citations
Mobile ticketing
Onboard transportation ticketing
Utility billing/meter reading
2
1.2 Product Features
1.2.1 Printer Standard Features
The printer offers the following standard features.
Product standard feature
Direct thermal printing (receipts, linerless)
Black mark reflective sensor
Head open sensor
3 operation buttons (On/off, feed/pause, and cover-open buttons)
2 Buttons (Power, Feed and Pause)
5 LEDs:
1 * States (green), Error (red)
3 * Battery capacity
green * 2
green * 1 or orange * 1 (charging)
1* RF
Mini type USB 2.0 (High speed mode)
64 MB DDR2 DRAM (support expandable to 128 MB)
128 MB Flash memory (support expandable to 256 MB)
32-bit RISC high performance processor (Model: 9G25)
Fonts and bar codes can be printed in any one of the four directions (0,
90,180, 270 degree)
8 alpha-numeric bitmap fonts
One Monotype Imaging® CG Triumvirate Bold Condensed scalable font
Built-in Monotype True Type Font engine
Downloadable fonts from PC to printer memory
Downloadable firmware upgrades
3
Text, bar code, graphics/image printing (Please refer to the TSPL/TSPL2
programming manual for supporting code page)
Supported bar code Supported image
1D bar code 2D bar code
BITMAP,
BMP,
PCX
(Max. 256 colors
graphics)
Code128 subsets
A.B.C,Code128UCC,
EAN128, Interleave 2 of
5,Code 39,Code 93,
EAN-13, EAN-8,
Codabar, POSTNET,
UPC-A, UPC-E, EAN
and UPC 2(5) digits,
MSI, PLESSEY, China
Post, ITF14, EAN14,
Code 11, TELPEN,
PLANET, Code 49,
Deutsche Post
Identcode, Deutsche
Post Leitcode,
LOGMARS
CODABLOCK F
mode, DataMatrix,
Maxicode, PDF-417,
Aztec,
MicroPDF417, QR
code, RSS Barcode
(GS1 Databar)
1.2.2 Printer Optional Features
The printer offers the following optional features.
Product option feature User
options
Factory
options
802.11 a/b/g/n wireless ○
Bluetooth V4.2 + EDR ○
Bluetooth V4.0 HS ( w/ Wi-Fi ) (host & device)
Note : BT 4.2 & 4.0, backward compatible to 2.1 ○
Users can choose either one of the BT versions listed above.
TSPL-EZ, CPCL or ESC-POS emulation
○
1 bay battery charger station ○
4 bay batteries charger station ○
Vehicle power adapter ○
IP54-rated environmental case ○
Mini type USB to RS232 (serial) converter cable ○
Mini type USB cable ○
DC-DC adapter (charging) ○
4
1.3 General Specifications
General Specifications
Physical dimensions 89.3 mm (W) 134.8 mm (H) x 56.9 mm (D)
Enclosure Plastic
Weight (w/ battery) 350 g
Electrical Internal charging capability (batter-in)
12VDC automobile cigarette lighter plug
Auto-switching AC adapter
External charging capability (battery-out)
1 bay battery charger station
- Input: 100 ~ 240VAC
- Output: 12 VDC, 1.5 A
4 bay batteries charger station
- Input: 100 ~ 240VAC
- Output: 12 VDC, 1.5 A
Environmental
condition
Operation Temperature : -20 ~ 50˚C (14 ~ 122˚F)
Note :
1. Normal temperature 25℃→ low-temperature 0℃ (decrease
5℃/min)→low-temperature -20℃(decrease 5℃/min)
2. In low-temperature -20℃, it’s unallowable to print bold black
bar continuously.不可連續列印粗黑BAR
Charging Temperature : 0 ~ 40˚C (32 ~ 104˚F)
Storage Temperature: -30 ~ 70 ˚C (-22 ~ 158˚F)
Relative Humidity:
- Operation: 10% to 90% non-condensing
- Storage: 10% to 90% non-condensing
IP54 w/ protective case
IP42 w/o protective case
Drop 1.2m (4ft)
Drop 1.5m (5 ft) w/ IP54-rated environmental case
5
1.4 Print Specifications
Print Specifications Alpha-2R
Print head resolution 203 dots/inch (8 dots/mm)
Printing method Direct thermal
Dot size 0.125 x 0.125 mm
(width x length) (1 mm = 8 dots)
Print speed Max. 4 ips (102 mm/sec), include linerless mode
(inches per second) 2, 3 ips for peeler mode
Max. print width 48 mm (1.89")
Max. print length Continuous receipt paper : 2286 mm (90”)
Printout bias Vertical: 1 mm max.
Horizontal: 1 mm max.
1.5 Media Specifications
Media Specifications Alpha-2R
Media roll capacity Label: 50 mm
Media type Continuous, die-cut, receipt,black bar,
and black mark
Media wound type Outside wound
Media length 12.7 mm (0.5”) ~ 2286 mm (90”)
Tear mode : 50.8 mm ( 2.0”)
Media width
w/o adapter : 58 mm
*w/ adapter (standard for linerless mode):
50.8 mm and 25.4 mm
ID core: 10.2 mm (0.4")
Media thickness
Receipt : 0.05 mm to 0.10 mm (2 mil to 4
mil)
Label : ~ 0.14 mm (~ 5.5 mil)
Linerless : 2 mil to 3 mil (0.05 mm to 0.08
mm)
Note: Please locate the black mark on the printing side when using black mark continuous label.
6
2. Operations Overview
2.1 Unpacking and Inspection
This printer has been specially packaged to withstand damage during shipping. Please
carefully inspect the packaging and printer upon receiving the bar code printer. Please
retain the packaging materials in case you need to reship the printer.
Unpacking the printer, the following items are included in the carton.
One printer unit
One Li-ion battery
One Windows labeling software CD disk (no driver CD disk)
One quick installation guide
One Auto-switching AC adapter
One belt clip
If any parts are missing, please contact the Customer Service Department of your
purchased reseller or distributor.
7
2.2 Printer Overview
2.2.1 Front View
1. Media cover release button
2. Media cover
3. LED indicator
4. Feed/stop button
5. Power on/off button
3
45
1
2
8
2.2.2 Interior View
1. Tear edge
2. Print head
3. Media holder
4. Platen roller
5. Black mark sensor
2
3
4
5
1
9
2.2.3 Rear View

1. Li-ion Battery
2. Battery open clasp
3. USB interface
4. Power jack
5. Interface cover
1
2
3
4
5
10
2.3 Operator control
2.3.1 LED Indication and Keys
1. Power on/off button
2. Printer status LED indicator
3. Battery charge level LED indicator
4. Wireless status LED indicator
5. Feed/ Pause button
Keys Function
1. Press and hold for 2-3 seconds to turn on the printer.
2. Press and hold for 2-3 seconds to turn off the printer.
1. Ready status: Feed one label
2. Printing status: Pause the print job
2
1
3
4
5
11
LED Status Indication
Printer status LED
indicator
Off Printer is ready
Green (blinking) Printer is paused
Red (solid) Media cover is open
Red (blinking) Printer error
Green (blinking every two
seconds)
Sleeping states
(S-states)/ entered the
sleep mode after stop
working over 2 mins.
Battery status LED
indicator
Green (blinking) Recharge the battery
Amber (solid) Battery is charging
Green (blinking every two
seconds)
Sleeping states
(S-states)/ entered the
sleep mode after stop
working over 2 mins.
Green
(solid)
Full charged
2/3 charged level
1/3 charged level
Wireless status LED
indicator
Blue (solid) Wireless device is ready
Blue (blinking) Wireless device is
communicating
12
3. Setup
3.1 Install the Battery
1. Insert the left side to install the
battery at the rear of the printer.
2. Push the right side of the battery
clasp and lock the battery.
Battery safety warning:
DO NOT throw the battery in fire. DO NOT short circuit the contacts.
DO NOT disassemble the battery. DO NOT throw the battery in municipal waste.
The symbol of the crossed out wheeled bin ( ) indicates that the battery should not
be placed in municipal waste.
PUSH
13
3.2 Charge the Battery
It takes 2 to 3 hours to fully charge the battery before the first time usage. The lifetime
of the battery is 300 times for charge/discharge cycles.
3.2.1 Charge the Battery
1. Open the interface cover and plug the
power cord in to the power jack.
Note:
Please switch OFF printer power prior to
plug in the power cord to printer power
jack.
When the battery is charging, please do
not remove the battery from the printer,
otherwise, please re-plug the power cord
into a power outlet.
2. Plug the power cord into a properly
power outlet.
14
3. When the battery is charging, the
color of battery status LED indicator is
solid amber.
Note:
When charging over 2 ~ 3 hours, the
battery is completely charged and the
amber of LED indicator will be off.
3.2.2 Charge by Charger Station (Optional)
1. Plug the power cord to the power
jack on the charger station.
2. Install the battery in the charger
station then push the battery clasp
to lock it.
15
3. Plug the power cord into a
properly power outlet.
Note:
The four bay batteries charger is also
available for purchase.
LED Color Description
Green / Solid Battery is completely charged
Red / Solid Battery is charging
Red / Blinking Battery charging error
Off No battery
3.2.3 Charge by Vehicle Power Adaptor (Optional)
1. Open the interface cover and plug
the power cord to the power jack.
2. Plug the vehicle power adaptor
into the car cigarette lighter socket.
16
3.3 Communicate
3.3.1 Connecting with the Communication Cable
* USB to USB Cable (Optional)
Open the interface cover and
connect the printer to the computer
with USB cable.
3.3.2 Connecting with Bluetooth (Optional)
Default
Name BT-SPP
PIN 0000
Turn on the printer and make sure the Bluetooth
of device is opened.
Note:
Please refer to section 6.5 to change the name of
default and PIN.
17
3.4 Loading the Media
1. Open the printer media cover by
pressing the media cover release
button.
2. Place the media roll at the correct
side, and pull out enough paper over
the tear edge.
3. Press the media cover to close it
and make sure the media cover
closed correctly.
18
4. Accessories
4.1 Install the Belt Clip
1. Lock the belt clip on the hole
above the battery.
2. Press the ball on the belt clip to
the hole as pictured.
3. After reinstalled the battery, the
printer can be hung on the belt.
19
5.Power‐onUtilities
There are three power-on utilities to set up and test printer hardware. These utilities are
activated by pressing FEED button ( ) then turning on the printer power
simultaneously and release the button at different positions of LED indicator.
Please follow the steps below for different power-on utilities.
1. Turn off the printer power switch.
2. Hold on the FEED button ( ) then turn on the power switch.
3. Release the button ( ) when LED indicates with different positions for different
functions.
Power on utilities The positions of LED light will be changed as following pattern:
LED
Functions
(Solid) (5 blinks) (5 blinks)
(5 blinks) (Solid green)
1. Media sensor calibration Release
2. Self-test and enter dump
mode
Release
3. Printer initialization Release
5.1 Media Sensor Calibration
Please follow the steps below to calibrate the media sensor.
1. Turn off the power switch.
2. Hold on the FEED button ( ) then turn on the power switch.
3. Release the FEED button ( ) when the indicator becomes and
blinking. (Any green will do during the 5 blinks)
It will calibrate the black mark sensor sensitivity.
The LEDs will be changed as following order:
(amber) (5 blinks) (5 blinks)
(5 blinks) (solid green)
5.2 Self-test and Dump Mode
Please follow the steps below.
20
1. Turn off the power switch.
2. Hold on the FEED button ( ) then turn on the power switch.
3. Release the FEED button ( ) when the indicator becomes and
blinking. (Any green will do during the 5 blinks)
The LEDs will be changed as following order:
(amber) (5 blinks) (5 blinks)
(5 blinks) (solid green)
4. It calibrates the sensor and measures the media length and prints internal settings
then enter the dump mode.
5. Turn off / on the power to resume printer for normal printing.
Self-test
Printer will print the printer configuration after media sensor calibration. Self-test
printout can be used to check if there is any dot damage on the heater element,
printer configurations and available memory space.
21
Printer model name & Main board firmware version
Printer serial number
Printed mileage
Main board firmware checksum
Serial port setting
Code page
Country code
Print speed
Print darkness
Label size (width, height)
Black mark (vertical gap, offset)
Sensor sensitivity
Battery voltage
Print head temperature
Print head average resistance
Bad dots of print head
Bluetooth settings information (option)
File management information
Print head test pattern
Dump mode
Printer will enter dump mode after printing printer configuration. In the dump mode,
all characters will be printed in 2 columns as following. The left side characters are
received from your system and right side data are the corresponding hexadecimal
value of the characters. It allows users or engineers to verify and debug the
program.
22
Note:
1. Dump mode requires 3” wide paper width.
2. Turn off / on the power to resume printer for normal printing.
ASCII Data Hex decimal data related to left
column of ASCII data
23
5.3 Printer Initialization
Printer initialization is used to clear DRAM and restore printer settings to defaults.
Printer initialization is activated by the following procedures.
1. Turn off the power switch.
2. Hold on the FEED button then turn on the power switch.
3. Release the FEED button when the indicator blinking. (Any green will do during the
5 blinks).
Printer configuration will be restored to defaults as below after initialization.
Parameter Default setting
Speed 50.8 mm/sec (2 ips)
Density 8
Media Width 2.83” (72 mm)
Media Height 4” (101.5 mm)
Sensor Type Black mark sensor (As paper end sensor)
Black Mark Setting As paper end sensor
Print Direction 0
Reference Point 0,0 (upper left corner)
Offset 0
Serial Port Settings 9600 bps, none parity, 8 data bits, 1 stop bit
Code Page 850
Country Code 001
Clear Flash Memory No
IP Address DHCP

24
5. Diagnostic Tool
TSC’s Diagnostic Utility is an integrated tool incorporating features that enable you to
explore a printer’s settings/status; change a printer’s settings; download graphics,
fonts and firmware; create a printer bitmap font; and send additional commands to a
printer. With the aid of this powerful tool, you can review printer status and settings in
an instant, which makes it much easier to troubleshoot problems and other issues.
5.1 Start the Diagnostic Tool
1. Double click on the Diagnostic tool icon to start the software.
2. There are four features (Printer Configuration, File Manager, Bitmap Font Manager,
Command Tool) included in the Diagnostic utility.
Features tab
Printer functions
Interface
Printer Status
Printer setup
25
5.2 Printer Function
1. Select the PC interface connected with bar code printer.
The default interface setting is
USB interface. If USB interface
is connected with printer, no
other settings need to be
changed in the interface field.
2. Click the “Printer Function” button to setup.
3. The detail functions in the Printer Function Group are listed as below.
Function Description
Calibrate Sensor Calibrate the sensor specified in the Printer Setup
group media sensor field
Ethernet Setup Setup the IP address, subnet mask, gateway for
the on board Ethernet
RTC Setup Synchronize printer Real Time Clock with PC
Factory Default Initialize the printer and restore the settings to
factory default. (Please refer section 5.3)
Reset Printer Reboot printer
Print Test Page Print a test page
Configuration Page Print printer configuration (Please refer section
5.2)
Dump Text To activate the printer dump mode.
Ignore AUTO.BAS Ignore the downloaded AUTO.BAS program
Exit Line Mode Exit line mode.
Password Setup Set the password to protect the settings
For more information about Diagnostic Tool, please refer to the diagnostic utility quick start
guide on TSC website at Downloads \ Manuals \ Utilities \ Diagnostic utility quick start guide.
1
2
26
5.3 Calibrating Media Sensor by Diagnostic Tool
6.3.1 Auto Calibration
1. Make sure the media is already installed and media cover is closed. (Please refer to
section 3.4)
2. Turn on the printer power switch.
3. Open Diagnostic tool and set interface. (The default setting is USB)
The default interface setting is
USB interface. If USB interface
is connected with printer, no
other settings need to be
changed in the interface field.
4. Click the “Calibrate Sensor” button.
5. Select the media type and click the “Calibrate” button.
Note:
The Alpha-2R can only support continuous, die-cut, receipt, black bar, and black mark media
type.
1
2
1
2
27
5.4 Setting Wi-Fi by Diagnostic Tool (Optional)
1. Make sure the media is already installed and media cover is closed. (Please refer
to section 3.4)
2. Turn on the printer power switch.
3. Open Diagnostic tool and set interface. (The default setting is USB)
The default interface setting is
USB interface. If USB interface
is connected with printer, no
other settings need to be
changed in the interface field.
4. Select “Wireless” tab and “Built-in wireless module” item.
5. Enter and select the new WLAN settings in the editor.
6. Press “Set” button to set the new settings to the printer.
7. Press “Get” button to make sure WLAN is set properly.
Note:
* The printer connects with the computer via USB cable or RS-232 cable, which are option.
(* Diagnostic tool higher than V1.50 and the firmware higher than V1.22 can support this
function.)
1
2
3
4
1
2
5
28
5.5 Setting Bluetooth by Diagnostic Tool (Optional)
1. Make sure the media is already installed and media cover is closed. (Please refer
to section 3.4)
2. Turn on the printer power switch.
3. Open Diagnostic tool and set interface. (The default setting is USB)
The default interface setting is
USB interface. If USB interface
is connected with printer, no
other settings need to be
changed in the interface field.
4. Select “Wireless” tab and “Built-in wireless module” item.
5. Enter the new BT Local Name or BT PIN Code in the editor.
6. Press “Set” button to set the new BT name or BT PIN code of the printer.
7. Press “Get” button to get back the settings. Make sure the Bluetooth module
settings are set properly.
Note:
* The printer connects with the computer via USB cable or RS-232 cable, which are option.
* Diagnostic tool higher than V1.50 and the firmware higher than V1.22 can support this
function. (need double check)
1
2
3
4
1
2
5
29
6. Troubleshooting
7.1 Common Problems
The following guide lists the most common problems that may be encountered when operating
this bar code printer. If the printer still does not function after all suggested solutions have been
invoked, please contact the Customer Service Department of your purchased reseller or
distributor for assistance.
Problem Possible Cause Recovery Procedure
Power indicator does not
illuminate
* The battery is not properly
installed.
* The battery is dead.
* Reinstall the battery.
* Switch the printer on.
* Charge the battery.
- The printer status from
DiagTool shows “Head
Open”.
* The printer carriage is open. * Please close the print carriage.
- The printer status from
DiagTool shows “Out of
Paper”.
* Running out of media roll.
* The media is installed
incorrectly.
* Black mark sensor is not
calibrated.
* Supply a new media roll.
* Please refer to the steps on section 3.4 to
reinstall the media roll.
* Calibrate the black mark sensor.
- The printer status from
DiagTool shows “Paper Jam”.
* Black mark sensor is not set
properly.
* Make sure media size is set
properly.
* Media may be stuck inside
the printer mechanism.
* Calibrate the black mark sensor.
* Set media size correctly.
Memory full
( FLASH / DRAM )
* The space of FLASH/DRAM
is full.
* Delete unused files in the FLASH/DRAM.
Poor Print Quality
* Media is loaded incorrectly
* Dust or adhesive
accumulation on the print
head.
* Print density is not set
properly.
* Print head element is
damaged.
* Reload the supply.
* Clean the print head.
* Clean the platen roller.
* Adjust the print density and print speed.
* Run printer self-test and check the print
head test pattern if there is dot missing in
the pattern.
* Change proper media roll.
Missing printing on the left or
right side of label * Wrong label size setup. * Set the correct label size.
Gray line on the blank label * The print head is dirty.
* The platen roller is dirty.
* Clean the print head.
* Clean the platen roller.
Irregular printing
* The printer is in Hex Dump
mode.
* The RS-232 setting is
incorrect.
* Turn off and on the printer to skip the
dump mode.
* Re-set the Rs-232 setting.
30
7. Maintenance
This session presents the clean tools and methods to maintain your printer.
1. Please use one of following material to clean the printer.
Cotton swab
Lint-free cloth
Vacuum / Blower brush
100% Ethanol or Isopropyl Alcohol
2. The cleaning process is described as following,
Printer Part Method Interval
Print Head
1. Always turn off the printer before
cleaning the print head.
2. Allow the print head to cool for a
minimum of one minute.
3. Use a cotton swab and 100%
Ethanol or Isopropyl Alcohol to
clean the print head surface.
Clean the print head when
changing a new label roll
Platen Roller 1. Turn the power off.
2. Rotate the platen roller and wipe it
thoroughly with water.
Clean the platen roller when
changing a new label roll
Tear Bar/Peel
Bar
Use the lint-free cloth with 100%
ethanol to wipe it. As needed
Sensor Compressed air or vacuum Monthly
Exterior Wipe it with water-dampened cloth As needed
Interior Brush or vacuum As needed
Note:
Do not touch printer head by hand. If you touch it careless, please use ethanol to clean
it.
Please use 100% Ethanol or Isopropyl Alcohol. DO NOT use medical alcohol, which
may damage the printer head.
Regularly clean the print head and supply sensors once change a new ribbon to keep
printer performance and extend printer life.
31
Revise History
Date Content Editor
Corporate Headquarters Li Ze Plant
9F., No.95, Minquan Rd., Xindian Dist., No.35, Sec. 2, Ligong 1st Rd., Wujie Township,
New Taipei City 23141, Taiwan (R.O.C.) Yilan County 26841, Taiwan (R.O.C.)
TEL: +886-2-2218-6789 TEL: +886-3-990-6677
FAX: +886-2-2218-5678 FAX: +886-3-990-5577
Web site: www.tscprinters.com
E-mail: printer_sales@tscprinters.com
tech_support@tscprinters.com
TSC Auto ID Technology Co., Ltd.

Navigation menu
