1. FCC Statement
2. Manual

Manual

Medio P101-WIFI

User's Guide

Revision 1.0

February 2006

Medio P101-WIFI

2/42 Revision 1.0 February 2006

Publishing Information

Disclaimer and Limitation of Liability

All information herein is either public information or is the property of and owned solely by TAGSYS who shall have and

keep the sole right to file patent applications or any other kind of intellectual property protection in connection with such

information.

Nothing herein shall be construed as implying or granting to you any rights, by license, grant or otherwise, under any

intellectual and/or industrial property rights of or concerning any of TAGSYS’ information.

This document can be used for informational, non-commercial, internal and personal use only provided that:

 the copyright notice below, the confidentiality and proprietary legend and this full warning notice appear in all copies.

 this document shall not be posted on any network computer or broadcast in any media and no modification of any

part of this document shall be made.

Use for any other purpose is expressly prohibited and may result in severe civil and criminal liabilities.

The information contained in this document is provided “AS IS” without any warranty of any kind. Unless otherwise

expressly agreed in writing, TAGSYS makes no warranty as to the value or accuracy of information contained herein.

The document could include technical inaccuracies or typographical errors. Changes are periodically added to the

information herein. Furthermore, TAGSYS reserves the right to make any change or improvement in the specifications

data, information, and the like described herein, at any time.

Therefore TAGSYS assumes no liability and is not responsible for customer applications or product or software which

include TAGSYS products.

TAGSYS HEREBY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH REGARD TO THE INFORMATION

CONTAINED HEREIN, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT SHALL TAGSYS BE LIABLE, WHETHER

IN CONTRACT, TORT OR OTHERWISE, FOR ANY INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OR ANY

DAMAGES WHATSOEVER INCLUDING BUT NOT LIMITED TO DAMAGES RESULTING FROM LOSS OF USE,

DATA, PROFITS, REVENUES, OR CUSTOMERS, ARISING OUT OF OR IN CONNECTION WITH THE USE OR

PERFORMANCE OF INFORMATION CONTAINED IN THIS DOCUMENT.

TAGSYS does not and shall not warrant that this product/system/equipment will be resistant to all possible attacks, and

shall not incur, and disclaims, any liability in this respect. Even if each product is compliant with current security

standards in force on the date of their design, security mechanisms' resistance necessarily evolves according to the

state-of-the-art in security and notably under the emergence of new attacks. Under no circumstances shall TAGSYS be

held liable for any third party actions, and in particular in case of any successful attack against systems or equipment

incorporating TAGSYS products.

TAGSYS disclaims any liability with respect to security for direct, indirect, incidental or consequential damages that result

from any use of its products. It is further stressed that independent testing and verification by the person using the

product is particularly encouraged, especially in any application in which defective, incorrect, or insecure functioning

could result in damage to persons or property, denial of service, or loss of privacy.

Microsoft, Visual C++, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft

Corporation in the U.S.A. and/or other countries.

I-Code is a registered trademark of Philips.

Tag-It is a registered trademark of Texas Instruments.

Printed in France.

TAGSYS – 180 Chemin de St Lambert, 13821 LA PENNE SUR HUVEAUNE, France.

Tel: +33 (0)4.91.27.57.00 / Fax: +33 (0)4.91.27.57.01

Document Reference: DOC12070A0

Read This First

Welcome to the TAGSYS range of products operating at the 13.56 MHz frequency. This range of

products is used to implement high-quality RFID systems for demanding applications.

This document provides information about how to install and use the Medio P101-WIFI reader.

Audience

This document requires familiarity with RFID technology. It is intended for people in charge of

installing and using the product.

Conventions

Symbol Meaning

CAUTION: A note that advises users that a specific action could result in the loss of data or

damage the hardware.

WARNING: A note that advises users that a specific action may result in physical harm.

A note that provides additional information that helps the user perform a task or obtain the

best performance from the product.

Abbreviations and Acronyms

AFI Application Family Identifier

AON All Or None

API Application Programming Interface

ASK Amplitude Shift Keying

CPU Central Processing Unit

CRC Cyclic Redundancy Check

DLL Dynamic-Link Library

DPU Digital Processing Unit

DSFID Data Storage Format Identifier

DSP Digital Signal Processor

EAS Electronic Article Surveillance

ETX End of Text

HPI Host Port Interface

I/O Input/Output

IFD Interface Device

LED Light Emitting Diode

Medio P101-WIFI

4/42 Revision 1.0 February 2006

LSB Least Significant Bit

MSB Most Significant Bit

OS Operating System

PC Personal Computer

PCB Printed Circuit Board

RAM Random Access Memory

RF Radio Frequency

RFID Radio Frequency IDentification

RFU Reserved for Future Use

RPU Radio Processing Unit

RTC Real Time Clock

RTF Reader Talks First

SAM Security Access Module

STX Start of Text

TTF Tag Talks First

TTL Transistor-Transistor Logic

TTY TeleTYpe

UID Unique Identifier

Glossary

Anti-Collision Tag capability making it readable while other tags are present in the RF field.

Antenna An aerial that receives and/or transmits radio frequency signals. Aerials are

manufactured in a variety of forms, shapes and sizes.

Baud A unit of measure of data transmission speed representing the number of signal changes per

second.

BNC Connector Cylindrical metal connector with a copper core that is located at the tip of a

coaxial cable, and is used to connect cables together. It attaches by pushing and twisting the outer

cylinder on to two locking pins.

Coupler See Reader.

Data Storage Format Identifier Identifies the structure of the data stored in the tag.

Digital Signal Processor This part of the Radio Processing Unit (RPU) performs real-time tag

decoding and manages the Medio L200 configuration.

Dynamic-Link Library Executable routines that are stored as separate files with DLL extensions

and executed only when needed by the program.

Host Port Interface Interface used to access the DSP memory.

IEC Connector Three-pin connector used on sockets that carry mains electricity to the computer.

All PCs use a male IEC connector and mains lead with a female IEC connector.

Interrogation Pulse A signal transmitted by the coupler to activate the tag’s transponder.

Read This First

February 2006 Revision 1.0 5/42

Monitoring Port Parallel Port granting access to the HPI. It communicates directly with the Radio

Processing Unit

Multi-Read See Anti-Collision

Nibble Half a byte (4 bits)

Packaged Reader A reader in its casing.

Phase Shift Difference of phase between the 13.56 MHz field emitted by two antennas. This

feature is dedicated to rotating field applications and three-dimensional volume tag detection.

Protocol A set of rules governing a particular function, such as the flow of data/information in a

communication system (communication between a tag and a reader or a reader and a PC or host

computer).

Radio Frequency Identification System (RFID) An automatic identification and data capture

system comprising one or more readers and one or more tags in which data transfer is achieved by

means of suitable modulated inductive or radiating electromagnetic carriers.

Radio Processing Unit This unit controls the main features of the Medio L200, such as the RF

channels, the multiplexer and the tag decoding.

Reader Electronic system for the communication between tags and host computers.

Reader Talks First Chip protocol for exchanges between the reader and the chip, whereby the

chip waits for a command from the reader to which it responds.

RS-232 Electronic Industries Association (EIA) standard for serial interfaces between computers

and peripherals which defines the function, the electrical characteristics and the timing of signals.

RS-485 Electronic Industries Association (EIA) standard for multipoint, differential data

transmission. It allows multiple nodes to communicate bi-directionally over 1 or 2 twisted pairs.

Smart Label See Tag

Tag Small, flexible label from the 13.56 MHz TAGSYS product line. A tag is made of a chip

connected to an etched antenna.

Tag Talks First Chip protocol for exchanges between the reader and the chip, whereby the tag

sends information continuously, without waiting for a specific command from the reader.

Transceiver A combined transmitter and receiver.

Transponder A combined receiver/transmitter that automatically transmits a signal when a ‘trigger’

is received by it. The trigger is often a pulse, called an interrogation pulse.

Wi-Fi (or Wi-fi, WiFi, Wifi, wifi) is a set of product compatibility standards for wireless local area

networks (WLAN) based on the IEEE 802.11 specifications. New standards beyond the 802.11

specifications, such as 802.16(WiMAX), are currently in the works and offer many enhancements,

anywhere from longer range to greater transfer speeds.

Medio P101-WIFI

6/42 Revision 1.0 February 2006

If you need assistance

Please contact your nearest TAGSYS sales representative or the TAGSYS welcome desk at:

Telephone: +33 (0)4 91 27 57 00

Fax: +33 (0)4 91 27 57 01

E-Mail: info@tagsys.net

Website: http://www.tagsysrfid.com/

Contact for Comments

We welcome your feedback to help us provide high quality documentation.

For technical comments, please contact our welcome desk:

Telephone: +33 (0)4 91 27 57 00

Fax: +33 (0)4 91 27 57 01

E-Mail: info@tagsysrfid.com

Please remember to quote the Document Reference Number DOC12070A0, your job title and your

company.

Quality Issues

TAGSYS implements stringent quality controls at all stages of its manufacturing process. However,

should you find a defect with this product, please notify your TAGSYS Quality Service

representative using the dedicated Product Return Form.

Telephone: +33 (0)4 91 27 57 36

Fax: +33 (0)4 91 27 57 02

Read This First

February 2006 Revision 1.0 7/42

Table of Contents

Publishing Information________________________________________________________________ 2

Disclaimer and Limitation of Liability _________________________________________________________ 2

Read This First _______________________________________________________________________ 3

Audience___________________________________________________________________________________ 3

Conventions _______________________________________________________________________________ 3

Abbreviations and Acronyms ________________________________________________________________ 3

Glossary ___________________________________________________________________________________ 4

If you need assistance ______________________________________________________________________ 6

Contact for Comments ______________________________________________________________________ 6

Quality Issues ______________________________________________________________________________ 6

1 For Your Safety ___________________________________________________________________ 9

1.1 General Use___________________________________________________________________________ 9

1.2 Care and Maintenance _________________________________________________________________ 9

1.3 Important Safety Information __________________________________________________________ 10

1.3.1 Operating Environment _______________________________________________________________________ 10

2 Certification _____________________________________________________________________ 11

2.1 Occupational Health __________________________________________________________________ 11

2.2 Regulatory Notices ___________________________________________________________________ 11

2.2.1 In Europe (EC and RTTE Directives)____________________________________________________________ 11

2.2.2 In USA (FCC Directive) _______________________________________________________________________ 12

2.2.3 In Canada___________________________________________________________________________________ 12

3 Introduction _____________________________________________________________________ 13

3.1 Product Description __________________________________________________________________ 13

3.2 Medio P101-WIFI Key Features ________________________________________________________ 13

3.3 Delivery _____________________________________________________________________________ 14

4 Installing the Reader _____________________________________________________________ 15

4.1 Reader Connections __________________________________________________________________ 15

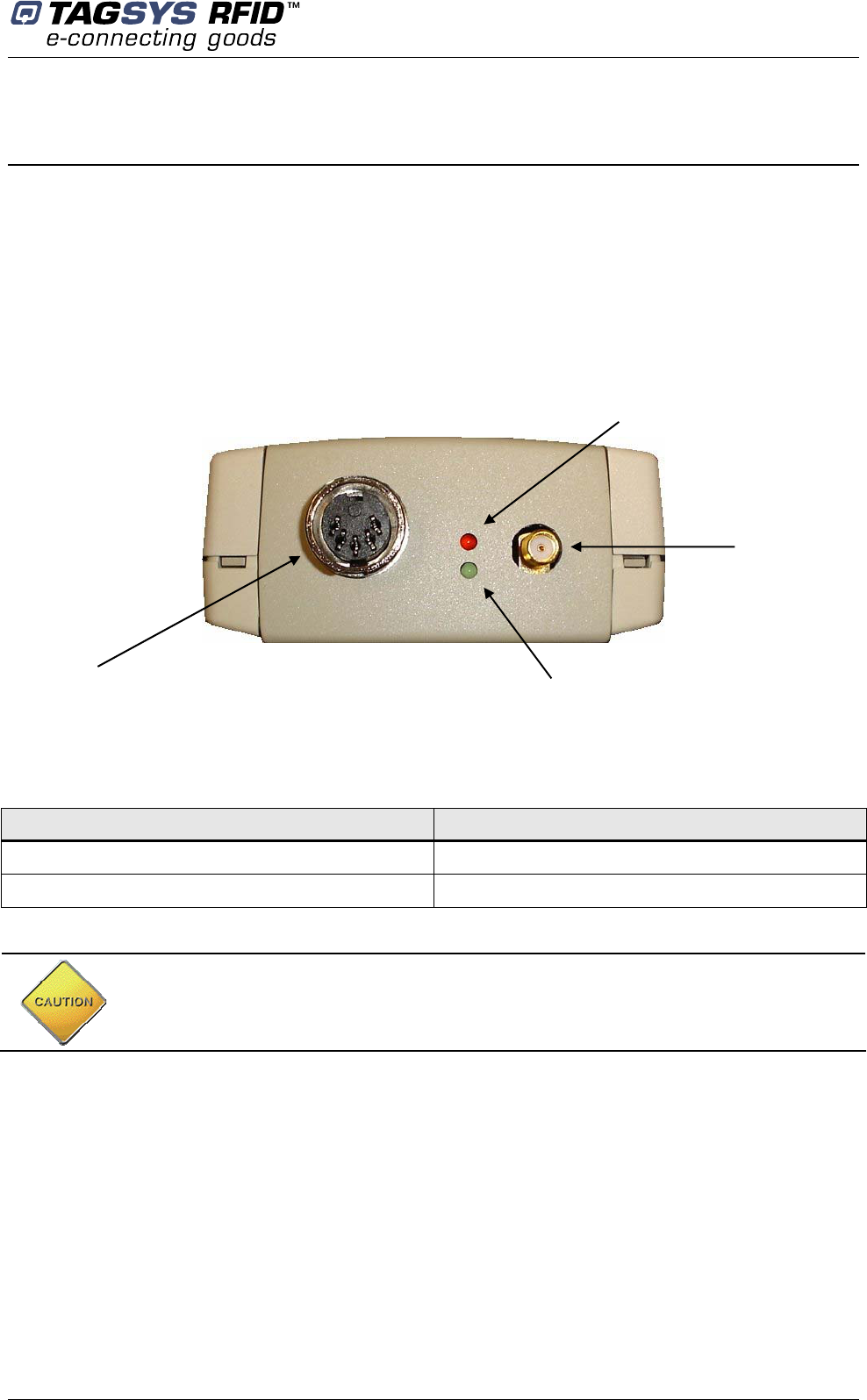

4.1.1 Front Panel__________________________________________________________________________________ 15

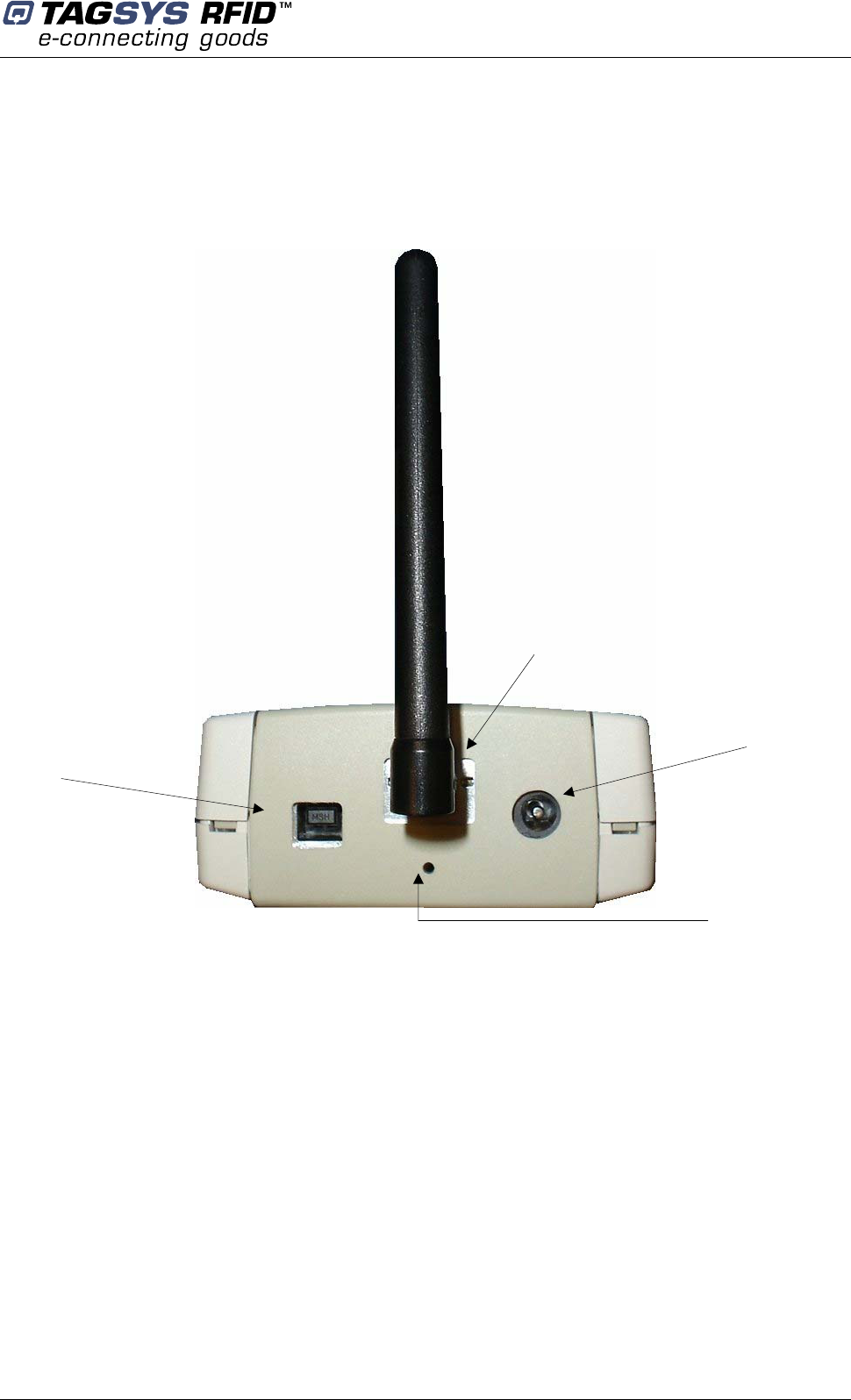

4.1.2 Rear Panel __________________________________________________________________________________ 17

4.2 Communicate with WIFI Interface ______________________________________________________ 18

4.2.1 WIFI Module Description ______________________________________________________________________ 19

4.2.2 Default Reader Network Settings _______________________________________________________________ 21

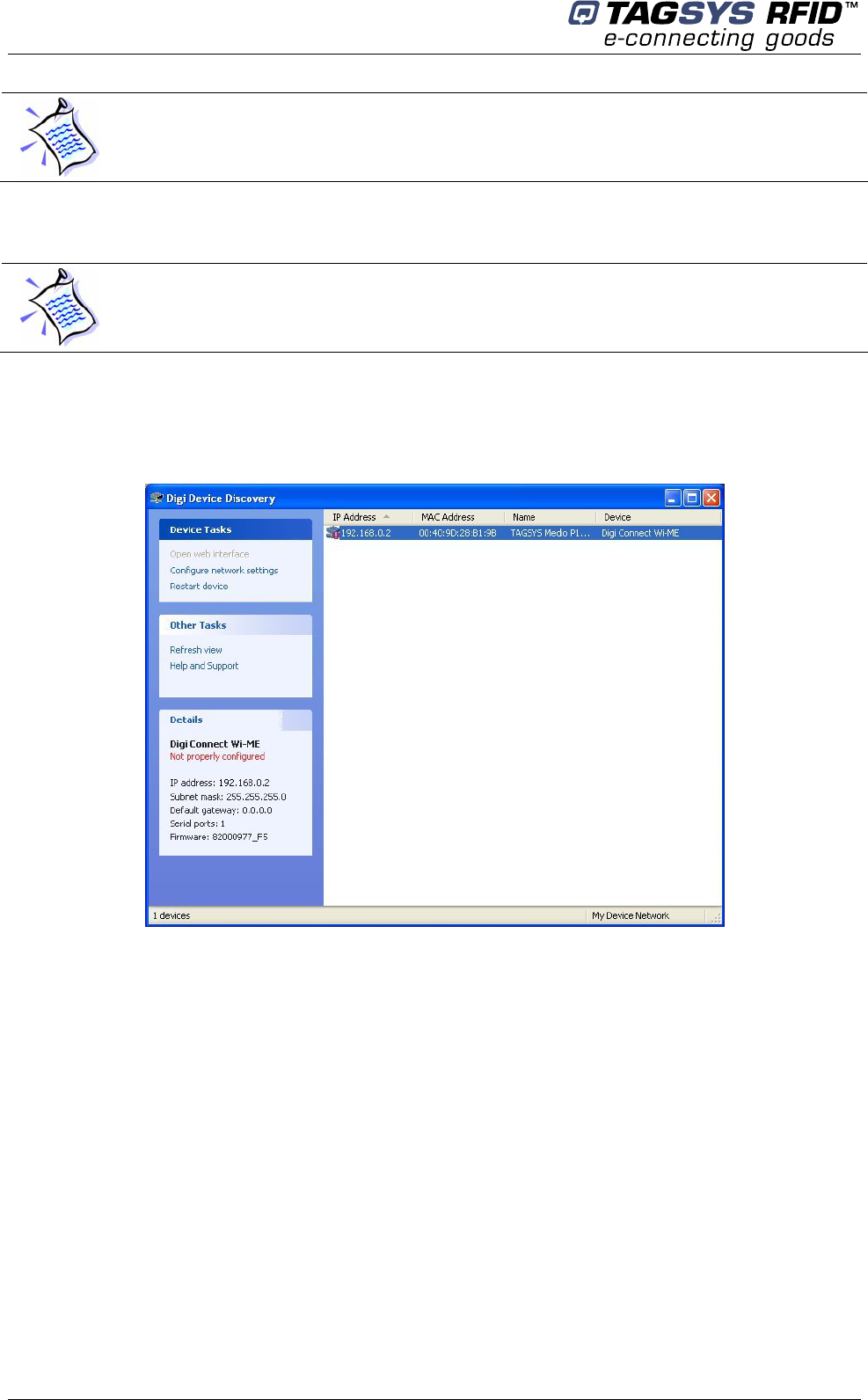

4.2.3 ADDP procedure (Advanced DigiConnect Discovery Device)_______________________________________ 22

4.3 Communicate with the USB Interface __________________________________________________ 24

4.3.1 Window 98® USB Drivers Installation ___________________________________________________________ 24

4.3.2 Windows XP USB Drivers Installation ___________________________________________________________ 25

5 Px Explorer ______________________________________________________________________ 26

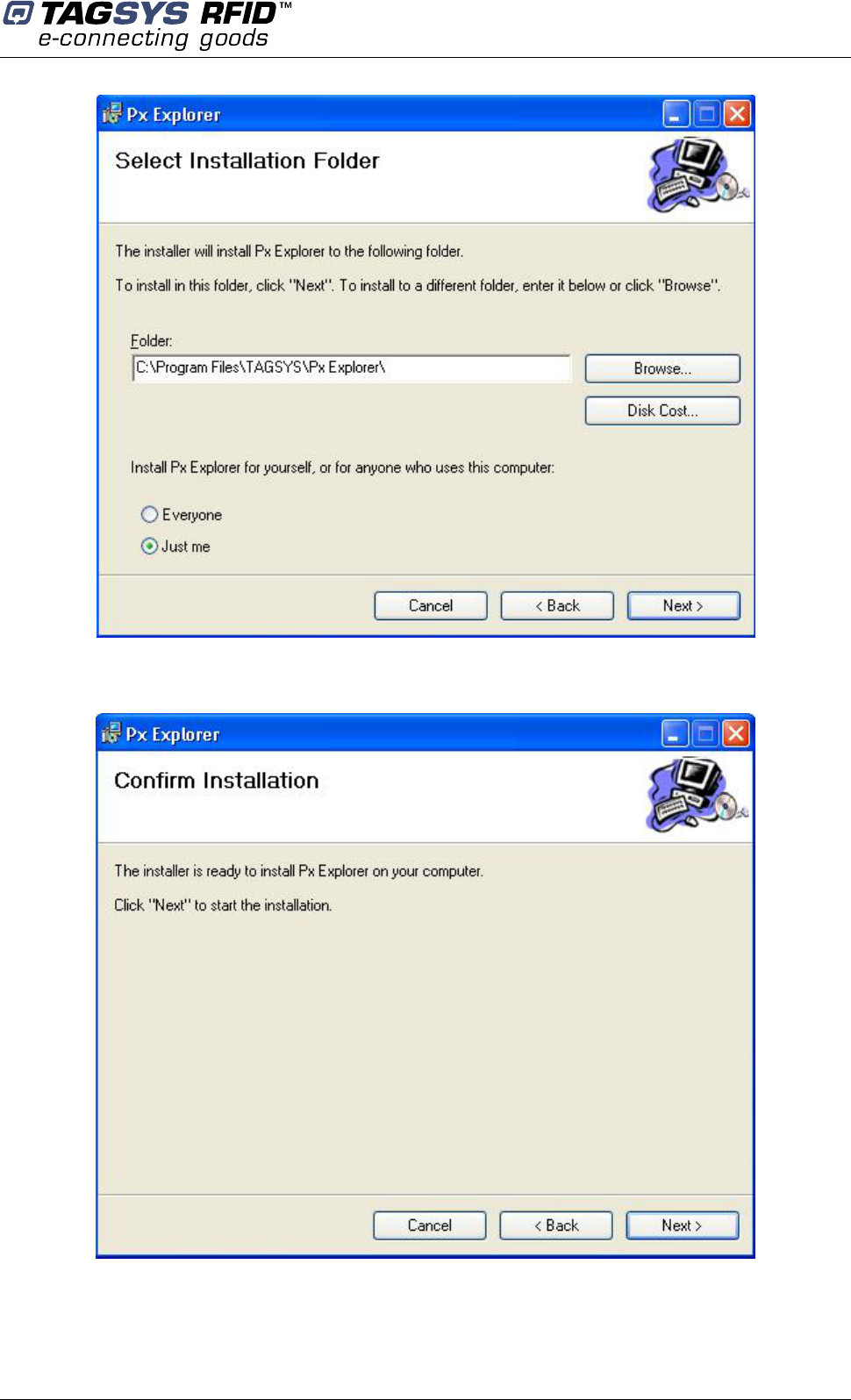

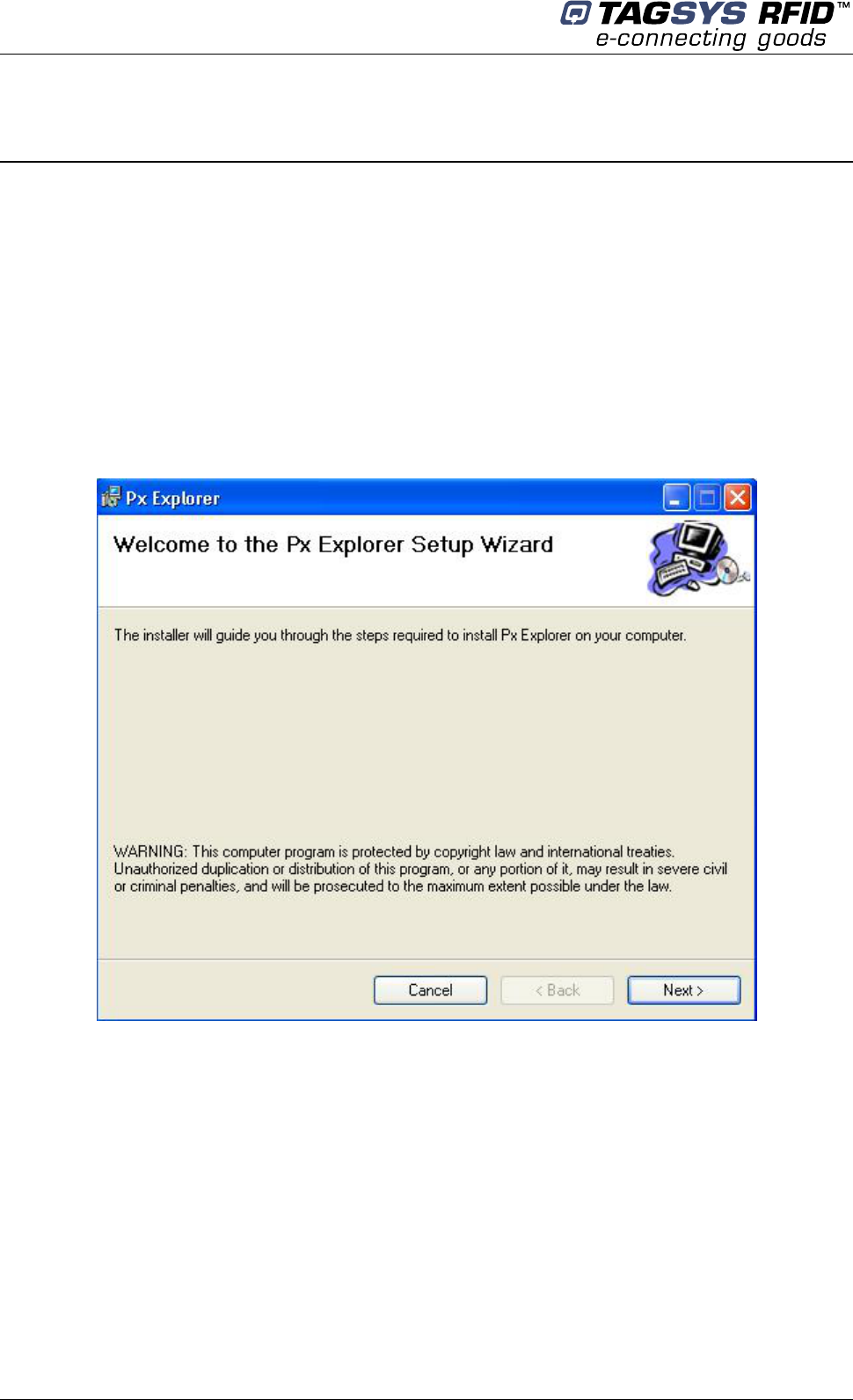

5.1 Installing Px Explorer_________________________________________________________________ 26

5.2 Running Px Explorer _________________________________________________________________ 28

5.2.1 USB Communication _________________________________________________________________________ 28

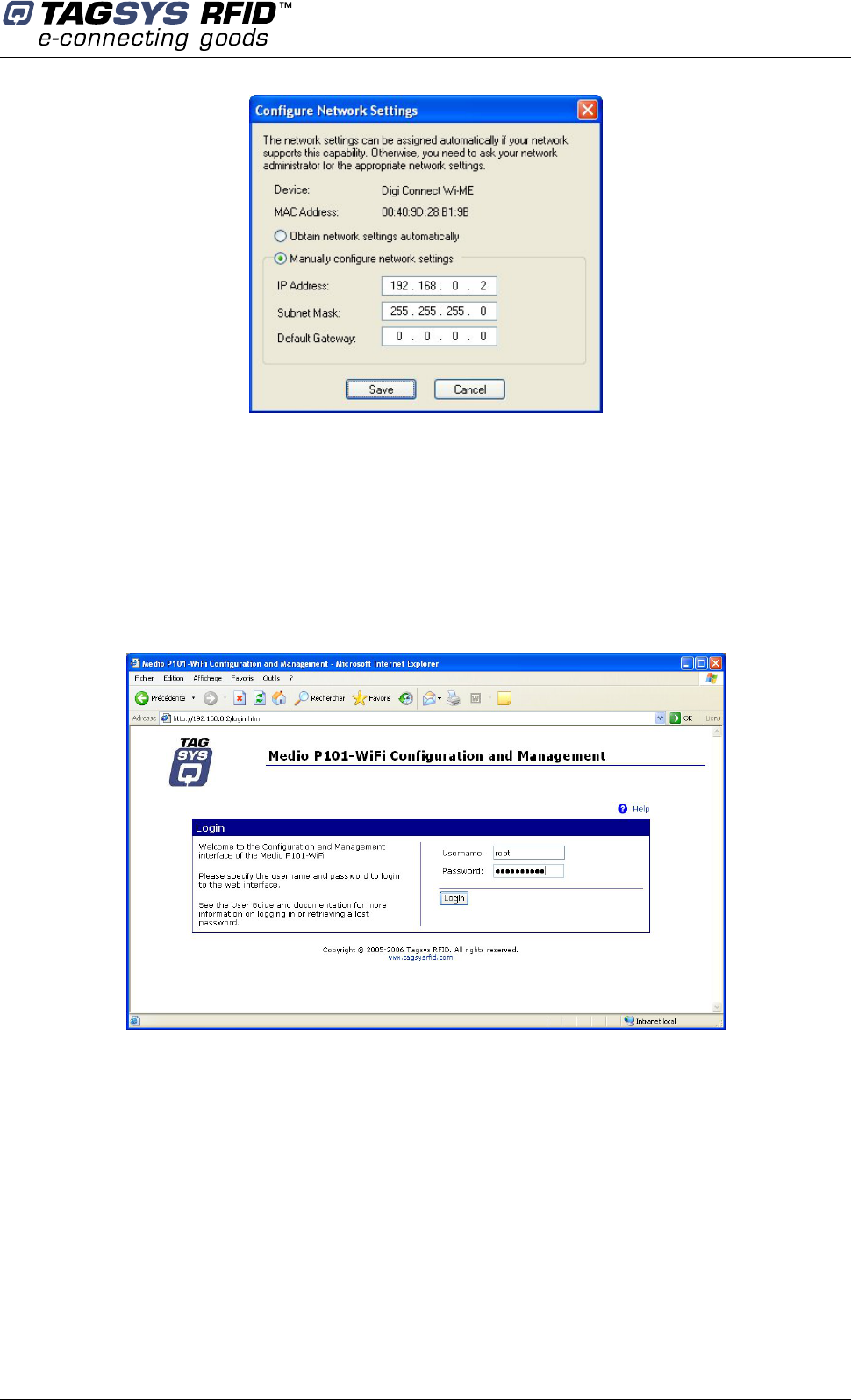

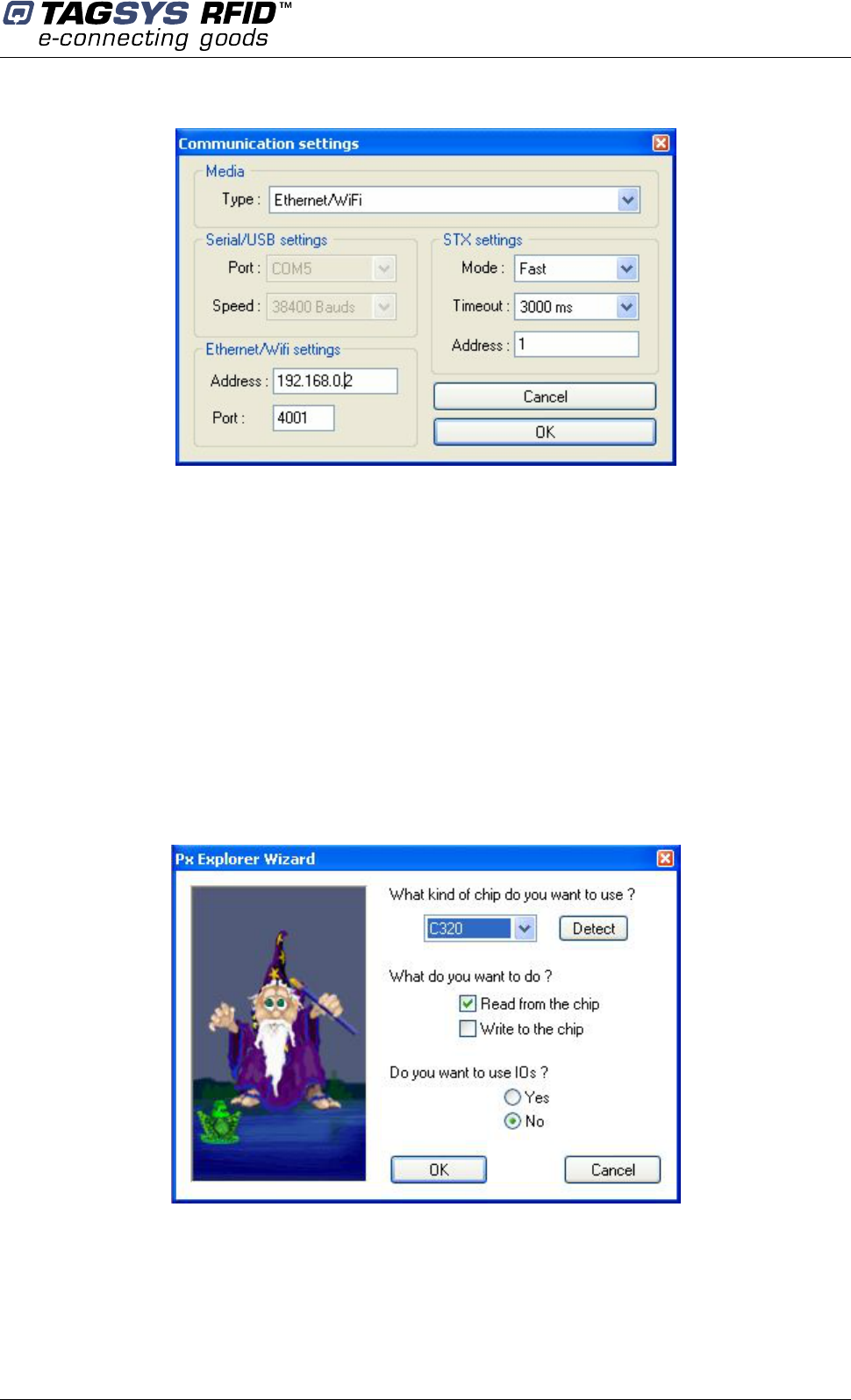

5.2.2 WIFI Communication _________________________________________________________________________ 28

5.3 Reading and Writing a Tag ____________________________________________________________ 29

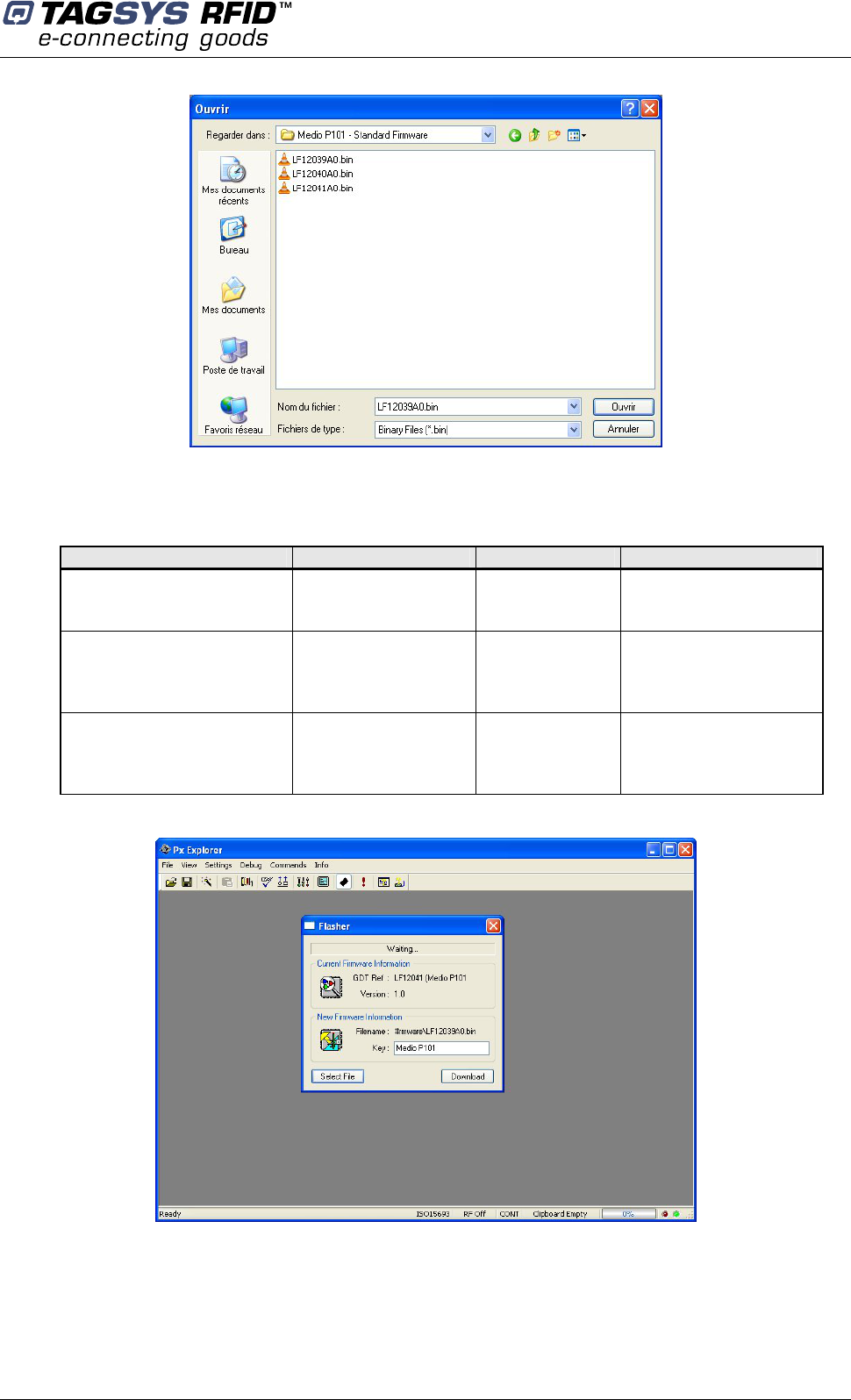

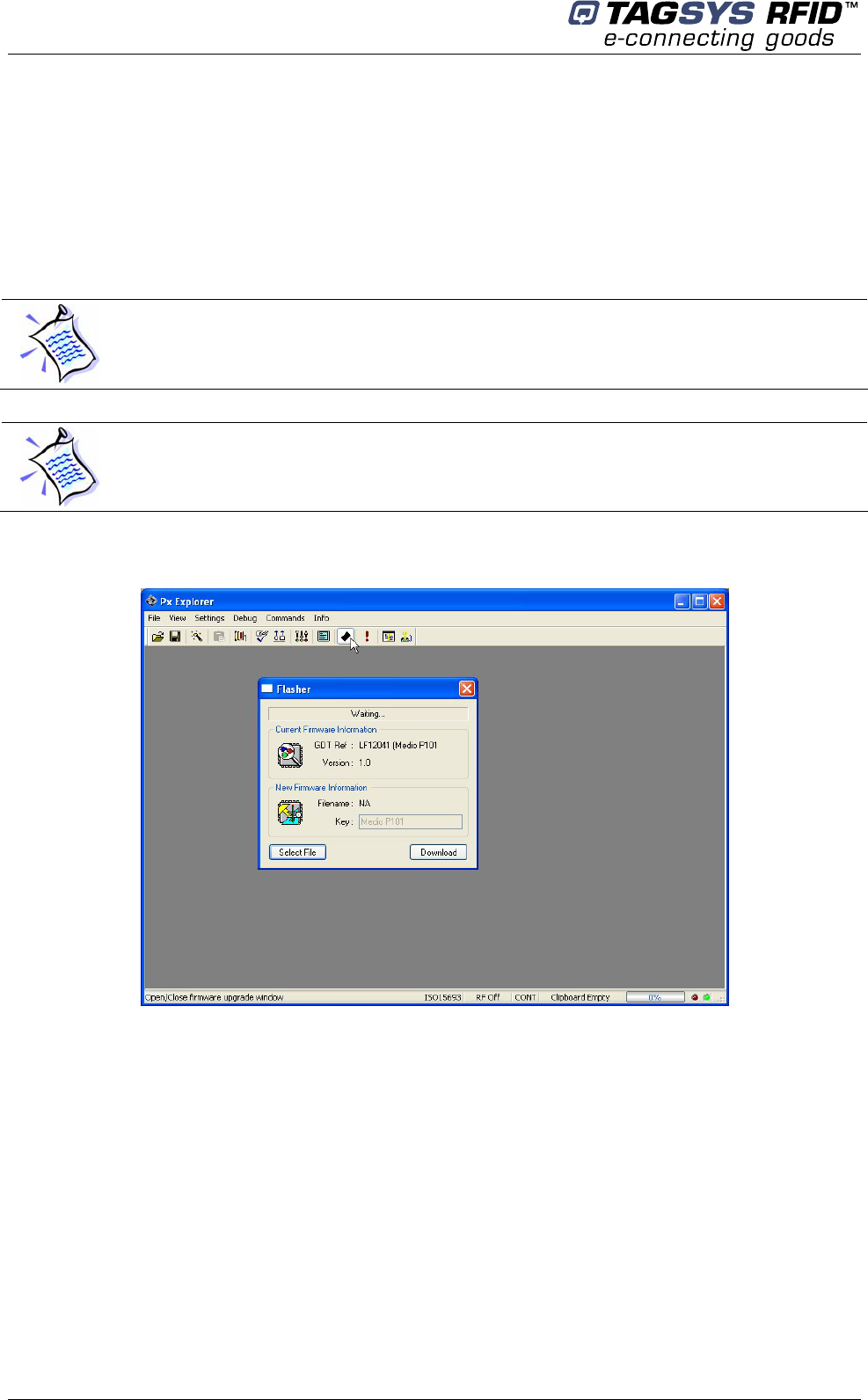

5.4 Downloading a firmware ______________________________________________________________ 30

6 Stand-alone Mode________________________________________________________________ 32

Medio P101-WIFI

8/42 Revision 1.0 February 2006

6.1 Stand-alone Mode Features ___________________________________________________________ 32

6.1.1 Customized ASCII Message Format ____________________________________________________________ 33

6.1.2 Repetition Option ____________________________________________________________________________ 33

6.1.3 Trigger Input_________________________________________________________________________________ 34

6.1.4 Output Settings ______________________________________________________________________________ 34

6.2 Stand-alone Mode Settings____________________________________________________________ 34

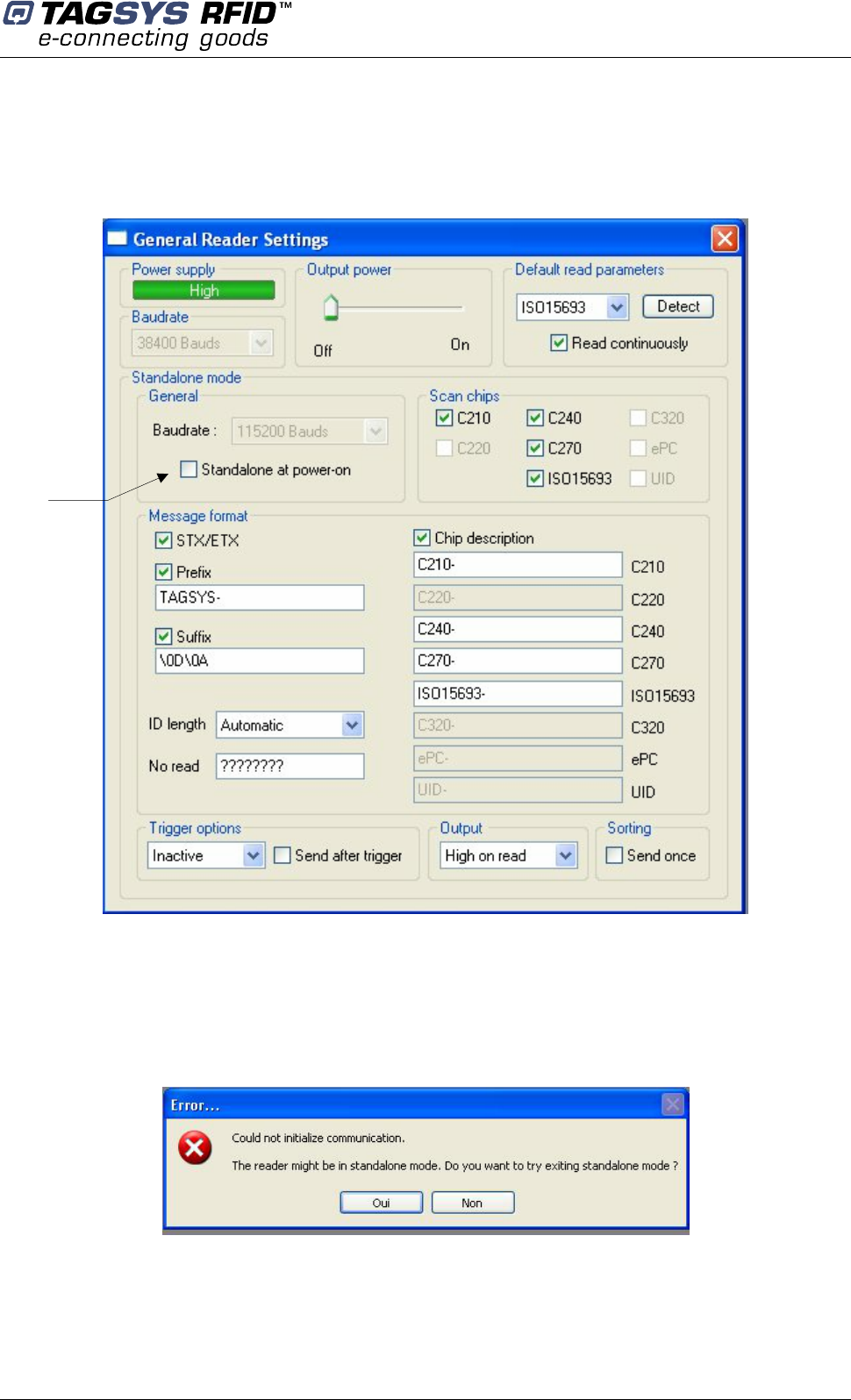

6.2.1 Using Px Explorer ____________________________________________________________________________ 35

6.3 Disabling Stand-alone Mode___________________________________________________________ 35

7 Connecting Peripheral Devices____________________________________________________ 36

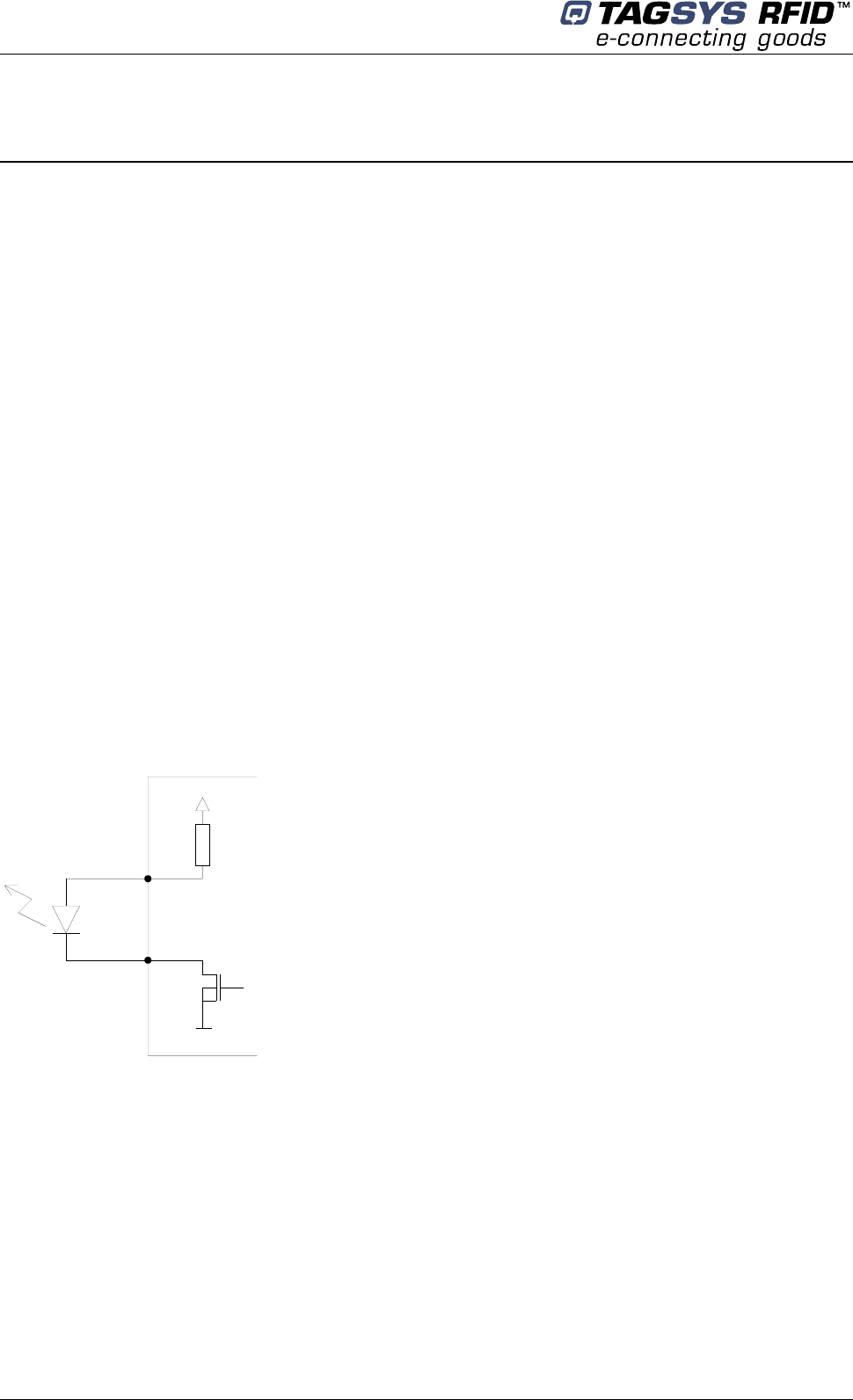

7.1 Using the Universal Input pin__________________________________________________________ 36

7.2 Using the Universal Output pin ________________________________________________________ 36

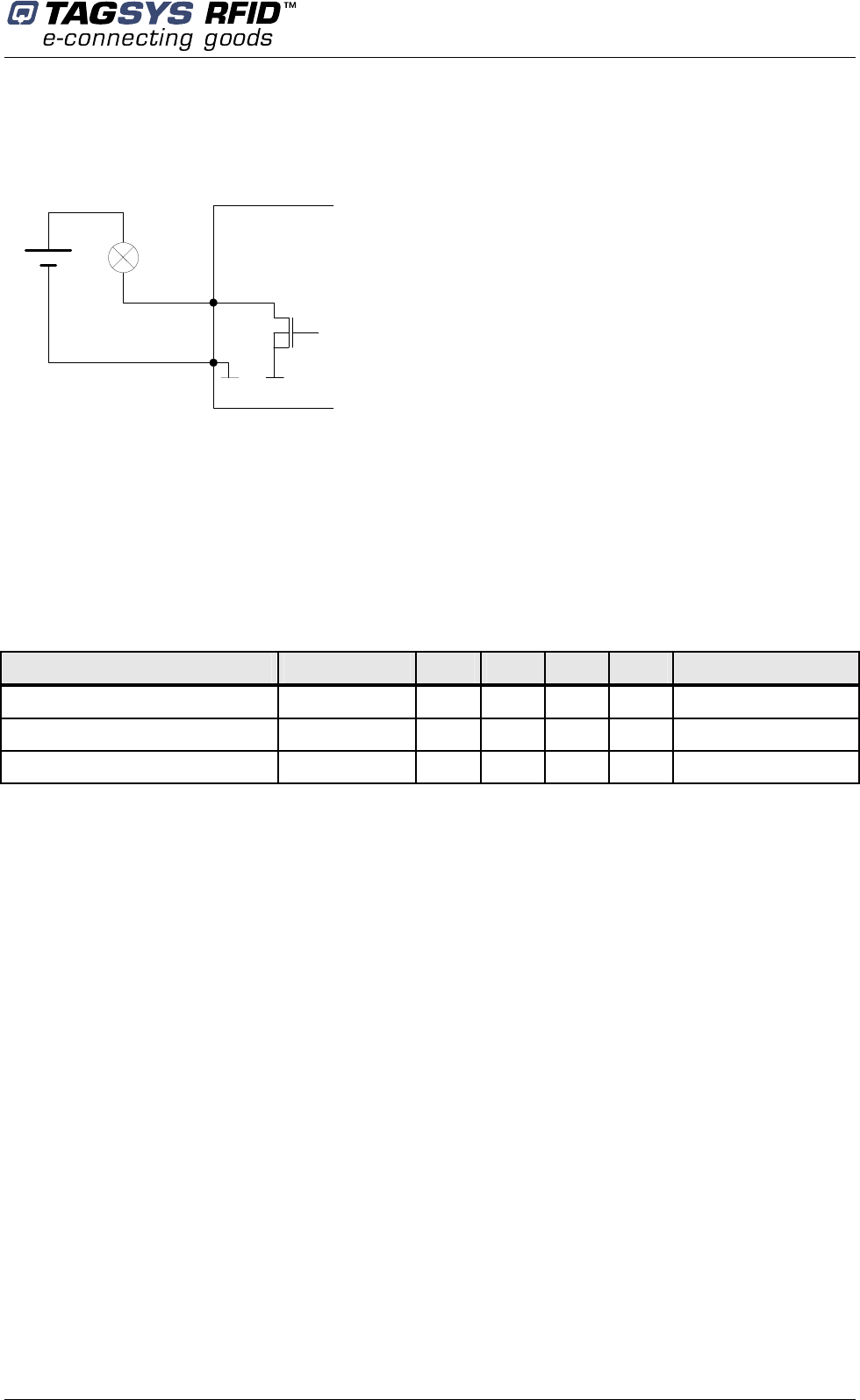

7.2.1 Output Wiring________________________________________________________________________________ 36

7.3 I/O Electrical Signal Requirements_____________________________________________________ 37

8 Technical Specifications__________________________________________________________ 38

9 Electrical Characteristics _________________________________________________________ 39

9.1 Absolute Maximum Ratings ___________________________________________________________ 39

9.2 DC Characteristics ___________________________________________________________________ 39

10 Warranty Conditions____________________________________________________________ 40

10.1 Warranty___________________________________________________________________________ 40

10.2 Warranty Exclusions________________________________________________________________ 40

10.2.1 General Provisions ___________________________________________________________________________ 41

10.2.2 How to Return Defective Products ______________________________________________________________ 41

For Your Safety

February 2006 Revision 1.0 9/42

1 For Your Safety

1.1 General Use

The Medio P101-WIFI is designed to be reliable and to provide years of trouble-free service.

Please observe the following general tips:

 Take care not to scratch the device. Keep the device clean. When working with the device,

use only TAGSYS-approved accessories.

 This device is not waterproof and should not be exposed to rain or moisture. Under extreme

conditions, water may enter the circuitry.

 Protect the device from extreme temperatures. For example, do not place the device in a

windowed area where the sun may cause extreme temperatures, and keep it away from

heaters and other heat sources.

 Do not store or use the device in any location that is extremely dusty, damp, or wet.

 Use a soft, damp cloth to clean the device. If the surface of the device becomes soiled,

clean it with a soft cloth moistened with a diluted window-cleaning solution.

1.2 Care and Maintenance

This device is a product of superior design and should be handled with care. The suggestions

below will further increase the lifetime of this device.

• Keep the device and all parts and accessories out of the reach of small children.

• Keep the device dry. Precipitation, humidity and liquids contain minerals that will corrode

electronic circuits.

• Do not use or store the device in dusty, dirty areas. Its moving parts can be damaged.

• Do not store in hot areas. High temperatures can shorten the life of electronic devices,

damage batteries and warp or melt certain plastics.

• Do not store in cold areas. When the device warms up (to its normal temperature), moisture

can form inside the device, which may damage electronic circuit boards.

• Do not attempt to open the device. Non-professional handling of the device may damage it.

• Handle the device with care. Shocks may break internal circuit boards.

• Do not clean the device with harsh chemicals, cleaning solvents or strong detergents.

Gently wipe the device with a soft cloth slightly dampened in a mild soap-and-water

solution.

• Do not paint the device. Paint may clog the device’s moving parts and prevent proper

operation. Paint with metallic contents may limit device performances.

• If the device or any accessory are not working properly, take it to your nearest qualified

TAGSYS representative.

Medio P101-WIFI

10/42 Revision 1.0 February 2006

1.3 Important Safety Information

1.3.1 Operating Environment

When connecting the device or any accessory to another device, read its user’s guide for detailed

safety instructions. Do not connect incompatible products.

As with all RF equipment, users are advised that the equipment should only be used in its normal

operating position.

Certification

February 2006 Revision 1.0 11/42

2 Certification

2.1 Occupational Health

TAGSYS Medio P101-WIFI reader has been designed and tested to be in conformity with the

European Standard EN 50364 “Limitation of human exposure to electromagnetic fields from

devices used in Electronic Article Surveillance (EAS), Radio Frequency Identification (RFID) and

similar applications” in conjunction with the European Standard EN 50357 describing how to

evaluate the exposure level.

2.2 Regulatory Notices

An RFID system typically composed of an RF emission device such as the Medio P101-WIFI

connected to an antenna is subject to national regulations that may differ by country.

One important item to consider is the maximum permissible magnetic field intensity at a distance of

10 meters from the antenna that must not exceed 42 dBµA/m in Europe and 38 dBµA/m in US.

The Medio P101-WIFI meets these limits.

2.2.1 In Europe (CE and RTTE Directives)

The Medio P101-WIFI (connected to L-W1 or TR-HA1or LSA3 or Aero LI antenna) complies with

the European EMC directive. (CE Declaration of Conformity granted)

The Medio P101-WIFI (connected to L-W1 or TR-HA1or LSA3 or Aero LI antenna) complies with

the requirements of the Telecommunication Terminal Equipment Act (FTEG) and the RTTE

Directive 1995/5/CE.

It is the responsibility of the TAGSYS Reseller to install the Medio P101-WIFI as described in this

User’s Guide or TAGSYS Documentation.

Any modification of the Medio P101-WIFI is prohibited without the written consent of TAGSYS.

Unauthorized modification may void the conformity of the equipment to CE and RTTE Directives

and will void the TAGSYS warranty.

It is the responsibility of the CIT (Certified Integrators by TAGSYS) to install the Medio P101-

WIFI as described in this User’s Guide or in TAGSYS Documentation.

If the Medio P101-WIFI is further integrated in a different product, it is the responsibility of

the manufacturer of this complementary product to obtain the required approvals for this

product.

Medio P101-WIFI

12/42 Revision 1.0 February 2006

2.2.2 In USA (FCC Directive)

Medio P101-WIFI

WARNING TO USERS IN THE UNITED STATES

FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO

INTERFERENCE STATEMENT 47 CFR Section 15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and if not installed and used in accordance with the instructions

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

▪ Reorient or relocate the receiving antenna.

▪ Increase the separation between the equipment and receiver.

▪ Connect the equipment into an outlet on a circuit different to that to which the receiver is

connected.

▪ Consult the dealer or an experienced radio/TV technician for help.

NO UNAUTHORIZED MODIFICATIONS

47 CFR Section 15.21

CAUTION: This equipment may not be modified, altered, or changed in any way without signed

written permission from TAGSYS SA. Unauthorized modification may void the equipment

authorization from the FCC and will void the TAGSYS warranty.

ANTENNA REQUIREMENT

47 CFR Section 15.203

CAUTION: This equipment must be professionally installed. The installer shall be responsible for

ensuring that the proper antenna is employed so that the limits in this part are not exceeded. Non-

professional installation or installation of the equipment with an improper antenna may void the

equipment authorization from the FCC and will void the TAGSYS warranty.

The Medio P101-WIFI (equipped with L-W1 and TR-HA1 antennas) has been designed to comply

with FCC 47 CFR Part 15 Rules.

Operation is subject to the following two conditions: (1) The system devices may not cause harmful

interference, and (2) The library system devices must accept any interference received, including

interference that may cause undesired operation.

2.2.3 In Canada

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations

Introduction

February 2006 Revision 1.0 13/42

3 Introduction

3.1 Product Description

The Medio P101-WIFI is a Medium Range 13.56 MHz RFID reader designed for Library, Textile

Rental and I&L applications. The Medio P101-WIFI has been designed to be used in combination

with L-W1 and TR-HA1 antennas that comply with FCC and CE rules and L-SA3 and Aero-LI

antennas that comply with CE rules. The Medio P101-WIFI can decode C210, C220, C240, C320,

C370(ISO 15693), C270(I-Code1)and I-Code ePC and I-Code UID tags.

Due to its small size, the Medio P101-WIFI can be used either in desktop configuration or easily

integrated in self check stations.

The Medio P101-WIFI is equipped with the following communication interfaces:

• USB 1.1 communication link (prioritary)

• WIFI (Raw TCP serial communication)

3.2 Medio P101-WIFI Key Features

Table 1: Medio P101-WIFI Key Features

Description Medio P101-WIFI

Operating Frequency 13.56 MHz

Firmware Chips

Library C220, C320, C370(ISO 15693)

Textile

rental

C210, C240, C270(Philips I

Code1), C370(ISO15693)

Compatibility

(depends on application

firmware)

I&L

C270 (Philips I-Code1), C370

(ISO15693), I-Code EPC/I-

Code UID

Serial Link USB 1.1 or WIFI raw TCP serial

communication

Firmware Downloadable Yes

Medio P101-WIFI

14/42 Revision 1.0 February 2006

3.3 Delivery

The Medio P101-WIFI Tag Reader kit contains the following items:

Table 2: Package Contents

Quantity Item

1 Medio P101-WIFI reader

1 WIFI antenna

1 SMA/BNC adaptor

1 Set of rubber feet

1 USB cable

1 I/O connector

1 Wall fixing accessory

1 12 V power supply

1 CD-ROM including:

• Medio P101-WIFI User’s Guide, Command Set

• USB drivers for Win32 X86 platforms

• User-friendly Px Explorer software provided for test and debug operations on

Windows® 9x, NT®, 2000 and XP platforms

• TAGSYS Software Development Kits including

o Medio STX Dll package

o Library SDK including Dlls and ActiveX control

o Java Package

• Digiconnect WIFI module integration kit

• Adobe Acrobat reader version 6&7

1 Welcome Letter / Product Return Form

Installing the Reader

February 2006 Revision 1.0 15/42

4 Installing the Reader

This section describes how to install the Medio P101-WIFI reader.

4.1 Reader Connections

4.1.1 Front Panel

The front panel is dedicated to RF and I/O connectors:

Figure 1: Front panel

• RF antenna connector:

Any of the following antennas can be connected to the standard SMA connector:

Antennas that apply to FCC&CE rules Antennas that apply to CE rules

• L-W1 • Aero LI

• TR-HA1 • L-SA3

WIFI antenna cannot be plugged to RF connector (plugs don’t match)

I/O

connector Green Led

Red Led

RF antenna

connector

Medio P101-WIFI

16/42 Revision 1.0 February 2006

• Leds

The red LED lights on or blinks when the reader is ready to communicate with the host system and

acts as follow:

Power supply

voltage Value RF capability Red LED status

< 5.20 V off

Insufficient 5.2 V < x < 6.9 V No Fast blinking

Low 7 V < x < 8.9 V Degraded Fast blinking

Medium 9.0 V < x < 10.2 V Slow blinking

High > 10.3 V Correct On

During firmware downloading the red Led is blinking.

Operating voltage range fits with a correct RF capability.

The green Led is turned on when the output I/O connector is active.

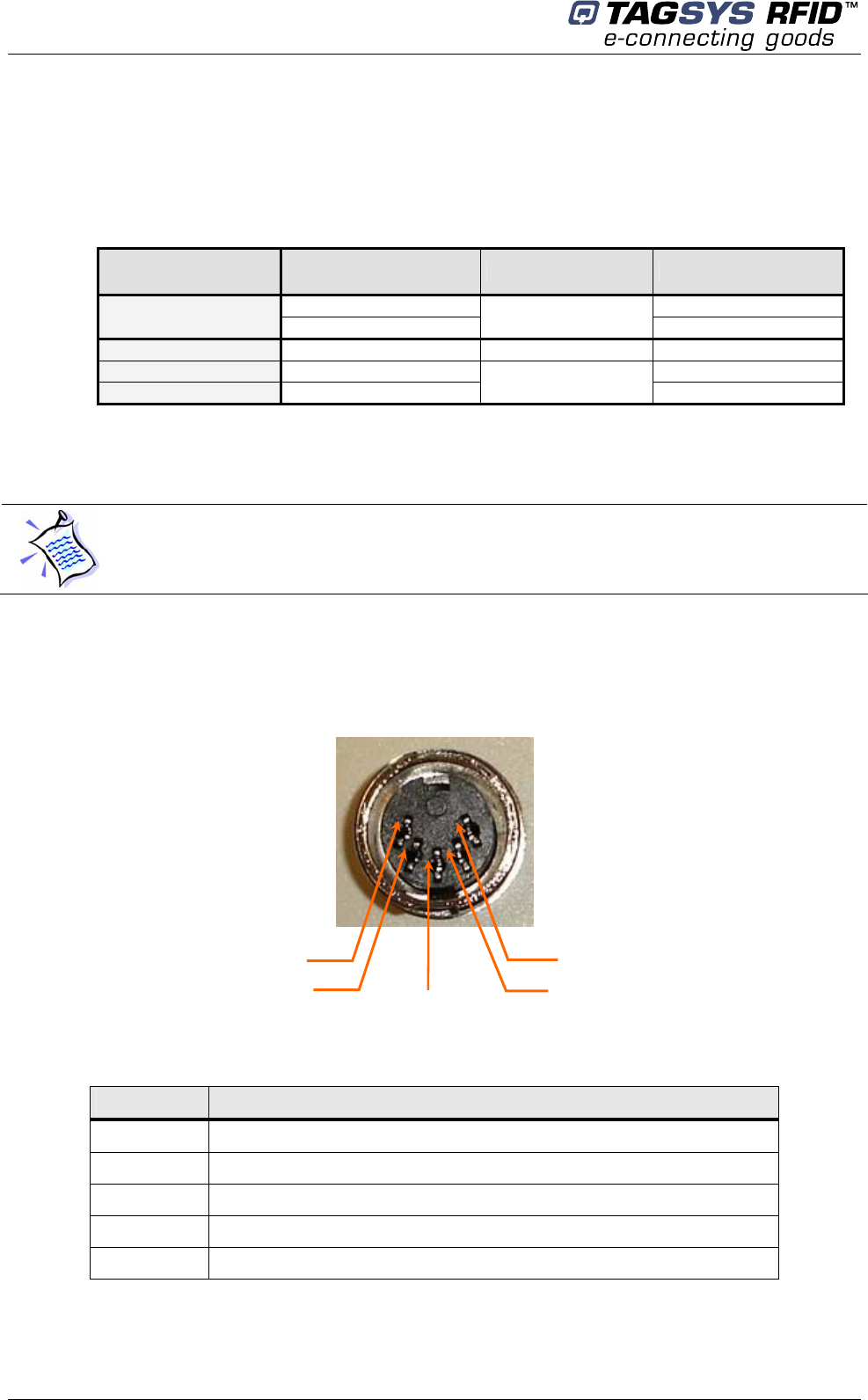

• I/O connector

Table 2: J3 Wiring

Pin number Signals

1 Output

2 Supply output (12V with 470 Ω serial resistor)

3 Universal input

4 Ground

5 Ground

# 2

Installing the Reader

February 2006 Revision 1.0 17/42

4.1.2 Rear Panel

The rear panel is dedicated to power supply and communication connectors.

Figure 3: Rear panel

• Power Supply Connector J2

2.5mm Jack type (positive connection on the center pin)

• WIFI module connector

Reverse polarity SMA connector for WIFI antenna (Please see Chapter 4.2, for more details)

• Reset button

Reset button only used for WIFI module (Please see Chapter 4.2 for more details)

• USB connector

USB connector type B

USB

connector

12V DC

Power supply

connector

Reset button for

WIFI module

WIFI antenna

WIFI module

Medio P101-WIFI

18/42 Revision 1.0 February 2006

When USB communication link is active (plugged and powered) the WIFI module is turned

off.

4.2 Communicate with WIFI Interface

Preliminary checking:

- USB cable must be unplugged to ensure that the WiFi Module is turned on

- WiFi antenna must be correctly connected to the rear panel

The embedded WiFi module is the DigiConnect Wi-ME. Any information on this module is available

on the CDROM in the directory “\DigiConnect IntegrationKit\Documentation” or on the DigiConnect

WEB pages at “www.digi.com”.

Please read the DigiConnect User’s Guide to have an overview of the module characteristics.

The following explanations will give you the first steps to run the reader. Advanced functionalities

can be found in the DigiConnect User’s Guide.

Before you power the reader up you must plug the WIFI antenna provided with the Medio

P101-WIFI product

This FCC Part 15 radio device operates on a non-interference basis with other devices

operating at this frequency when using the supplied antenna. Any changes or modification to

this product not expressly approved by TAGSYS could void the user’s authority to operate

the device.

You cannot connect any RF antennas to this connector (plugs don’t match)

Installing the Reader

February 2006 Revision 1.0 19/42

4.2.1 WIFI Module Description

• Characteristics

Parameter Value

Standard IEEE 802.11b

Frequency 2.4 GHz

Data Rate Up to 11 Mbps with automatic fallback

Modulation CCK (11/5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)

Transmit Power 16 dBm typical

Receive sensitivity -82 dBm for 11 Mbps, -92 dBm for 1Mbps

• LED description

LED Color Description

Network Link Yellow

This LED stays on continuously when a WIFI access point is

engaged.

It blinks when no access point is available after device start

up.

Note that this LED is turned off during device starting up.

Network Activity Green This LED monitors the network traffic. It turns on when any

traffic is detected.

Network Activity LED

Network Link LED

Reset Button

Medio P101-WIFI

20/42 Revision 1.0 February 2006

• Reset Procedure

To reset the WIFI module 2 procedures are available:

- Reboot the device: it is used to reinitialize the communication with the access point.

- Reset the device to TAGSYS default factory settings: it is used when you can no more

communicate with the reader due to wrong WIFI settings.

Both reset procedures are available by software via the WEB or TELNET interface.

Reset Description

Reboot While the reader is supplied, push the reset button with a thin object and

release it. Wait for the reader start up.

Reset To

TAGSYS Factory

defaults

This procedure reset the entire device configuration (including network

settings) to the TAGSYS factory defaults.

- Unplug the reader power supply

- Push the reset button

- Plug the reader power supply

- Keep the reset button pressed until the yellow LED blinks once and

3 times.

- Release the reset button

- Unplug the power supply and plug it again

- Wait for reader start up.

Installing the Reader

February 2006 Revision 1.0 21/42

• RF Exposure Statement

The Medio P101-WIFI module complies with the RF exposure limits for humans as called out

in RSS-102. It exempt from RF evaluation based on its operating frequency of 2.4 GHz, and

effective radiated power less than the 3 watt requirement for a mobile device (>20 cm

separation) operating at 2.4 GHz.

• Safety Statements

- Do not touch or move the WIFI antenna while the unit is transmitting or receiving

- Do not hold the reader such that the antenna is very close to or touching the head

(especially face or eyes), while transmitting.

- Do not operate a portable transmitter near unshielded blasting caps or in an explosive

environment unless it is a type especially qualified for such use.

4.2.2 Default Reader Network Settings

You will not be able to configure any network setting before the reader is not engaged with your

access point.

It depends to you to engage the reader with your access point correctly first. You should use a

specific network to initialize the reader network accordingly your final network.

The mandatory information you need are the following:

- the reader is compliant with IEEE 802.11b. Please check your access point is able to

support this standard (access point configuration “b or g” or “b only”)

- SSID of the reader is TAGSYSRFID and the access point must be set accordingly

- No encryption is used to communicate with the reader

The SSID and the Encryption status can be changed afterward.

Additionally, the default settings for the reader network configuration are :

- DHCP : Off

- Static IP Address : 192.168.0.2

- Subnet Mask : 255.255.255.0

- Default Gateway : 0.0.0.0

- SSID : TAGSYSRFID

- Available to any wireless network

- Country : United States

- Channel : Auto-scan

- Network Authentication : Open System

- Data Encryption : Open System

You can now configure your access point to engage the reader or follow the ADDP procedure to

change the basic network IP settings.

Medio P101-WIFI

22/42 Revision 1.0 February 2006

If you decide to configure your access point to meet the default settings of the reader, you can

check your system is operational by pinging the reader using then “ping 192.168.0.2” MSDOS

command prompt.

4.2.3 ADDP procedure (Advanced DigiConnect Discovery Device)

Firewalls may block ADDP broadcast protocol. Please turn your firewall off for initialization to

avoid issues (This includes Windows XP firewall)

Run “\DigiConnect Integration Kit\dgdiscvr.exe” program available on the product CDROM. The

following window pops up:

If no reader appears in the Discovery windows, check that:

- no firewall program is running

- the reader is properly engaged with its access point

- the access point is properly linked to your PC

If the reader is not properly configured, double-click on the device. The following window pops up:

Installing the Reader

February 2006 Revision 1.0 23/42

Select the correct Static IP, Subnet mask and Default Gateway or check the automatic setting in

case a DHCP protocol is available on your network.

Then, click Save. The reader starts to rebooting and the window closes.

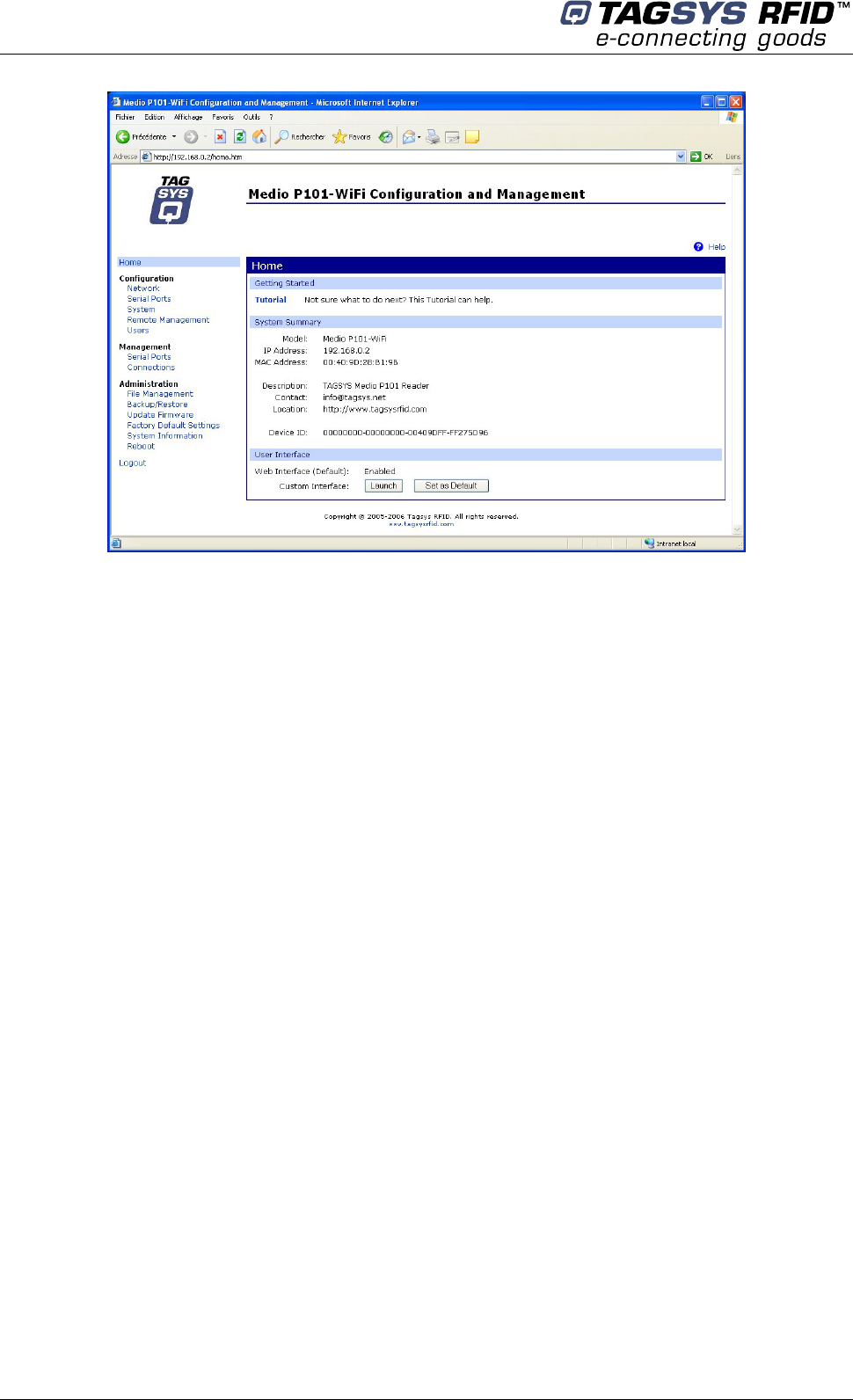

Back to the main window, double-click once again on the device. The WEB interface opens in the

Internet Explorer browser (caution to the proxy settings of your internet browser connection, it must

be set to allow access to this device).

Log on to the configuration WEB page device:

- username : root

- password : tagsysrfid

Follow DigiConnect WI-ME user’s guide to configure the device.

Medio P101-WIFI

24/42 Revision 1.0 February 2006

4.3 Communicate with the USB Interface

At first connection to the PC USB port, Windows® will detect the TAGSYS Medio P101-WIFI

reader and will ask you for drivers installation. USB drivers are located into the USB Drivers folder

on the product CD-Rom.

Two drivers must be installed:

- The first one is the direct driver, which provides direct access to USB device via a dynamic

link library (DLL).

- The second one is the virtual COM port (VCP) driver. The VCP driver emulates a standard

PC COM port.

4.3.1 Window 98® USB Drivers Installation

Power up and connect your Medio P101-WIFI to a spare USB port on your PC. This should bring

up a “Building Driver Information Database” followed by the Windows Add New Hardware Wizard.

Click “Next” to proceed with the installation

 Select “Search for the best driver for your device” and then click “Next”

 Select “Specify a location” and click the Browse button to select the USB Drivers folder on

the Product CR-Rom. Once the files have been located, click “Next” to proceed with the

installation

 Click “Next” to install the device

 Windows® should then display a message indicating that the installation was successful.

Click “Finish” to complete the installation.

To confirm that the installation has completed successfully, open the Device Manager and select

“View devices by type”. The TAGSYS Medio P101 appears as a USB device connected to a USB

port

The next step is to install the VCP drivers.

Power up and connect your Medio P101-WIFI to a spare USB port on your PC. This should bring

up a “Building Driver Information Database” followed by the Windows Add New Hardware Wizard.

Installing the Reader

February 2006 Revision 1.0 25/42

 Select “Search for the best driver for your device” and then click “Next”

 Select “Specify a location” and click the Browse button to select the USB Drivers folder on

the Product CR-Rom. Once the files have been located, click “Next” to proceed with the

installation

 Click “Next” to install the device

 Windows® should then display a message that the installation of the serial converter driver

was successful. The COM port emulation driver must now be installed. Click “Finish” to

complete the installation.

To confirm that the installation has completed successfully, open the Device Manager and select

“View > devices by type”. The TAGSYS Medio P101 appears as an additional COM port.

4.3.2 Windows XP USB Drivers Installation

Power up and connect your Medio P101-WIFI to a spare USB port on your PC. This will launch the

Windows Found New hardware Wizard

 Select “No, not this time” and click next to proceed with the installation

 Select “Install from a list or specific location (Advanced)” and then click “Next”

 Select “Search for the best driver in these locations” and click the Browse button to select

the TAGSYS USB Drivers folder on the Product CR-Rom. Then click “Next” to proceed.

 Windows should then display a message indicating that the installation was successful.

Click Finish to complete the installation

To confirm that the installation has completed successfully, open the Device Manager and select

“View > Devices by type”. The TAGSYS Medio P101 appears as a USB device connected to a

USB port.

The next step is to install the VCP drivers.

Power up and connect your Medio P101-WIFI to a spare USB port on your PC. This will launch the

Windows Found New Hardware Wizard

 Select “No, not this time” and click next to proceed with the installation

 Select “Install from a list or specific location (Advanced)” and then click “Next”

 Select “Search for the best driver in these locations” and click the Browse button to select

the USB Drivers folder on the Product CR-Rom. Then click “Next” to proceed.

 Windows should then display a message indicating that the installation was successful.

Click Finish to complete the installation. This has installed the serial converter. The COM

port emulation driver must be installed after this has completed.

 After clicking “Finish”, the Found New Hardware Wizard will continue by installing the COM

port emulation driver.

To confirm that the installation has completed successfully, open the Device Manager and select

“View > Devices by type”. The TAGSYS Medio P101 appears as an additional COM port.

When the USB cable is plugged and communication is active, the WIFI module is turned off.

Medio P101-WIFI

26/42 Revision 1.0 February 2006

5 Px Explorer

The Medio P101-WIFI reader is delivered with the Px Explorer software tool intended to easily

setup the reader, test it and perform reading and writing operations according to the antenna and

type of tag to be used. In addition, Px Explorer can display additional information such as the

Product Reference and Firmware version and revision. This section describes how to start with Px

Explorer.

5.1 Installing Px Explorer

To install Px Explorer software, insert the product CD-ROM into the disk drive on your PC and run

the Setup from the Medio P101 - Software Suite\Tools\Px Explorer 1-5-7 folder and click “Next”

Click the “Browse” button if you want to choose a specific installation folder.

Px Explorer

February 2006 Revision 1.0 27/42

Once the correct folder is selected, click “Next”

Click “Next” to start the installation process. A shortcut will be created on your desktop and a

program group will be created in the start menu.

Medio P101-WIFI

28/42 Revision 1.0 February 2006

5.2 Running Px Explorer

5.2.1 USB Communication

Before launching Px Explorer be sure which COM port number is assigned to the TAGSYS Medio

P101-WIFI reader. Open the Device Manager and select “View > Devices by type”.

The COM port number is assigned to the Medio P101.

Power up the Medio P101-WIFI and connect the USB cable to both your PC and the Medio P101-

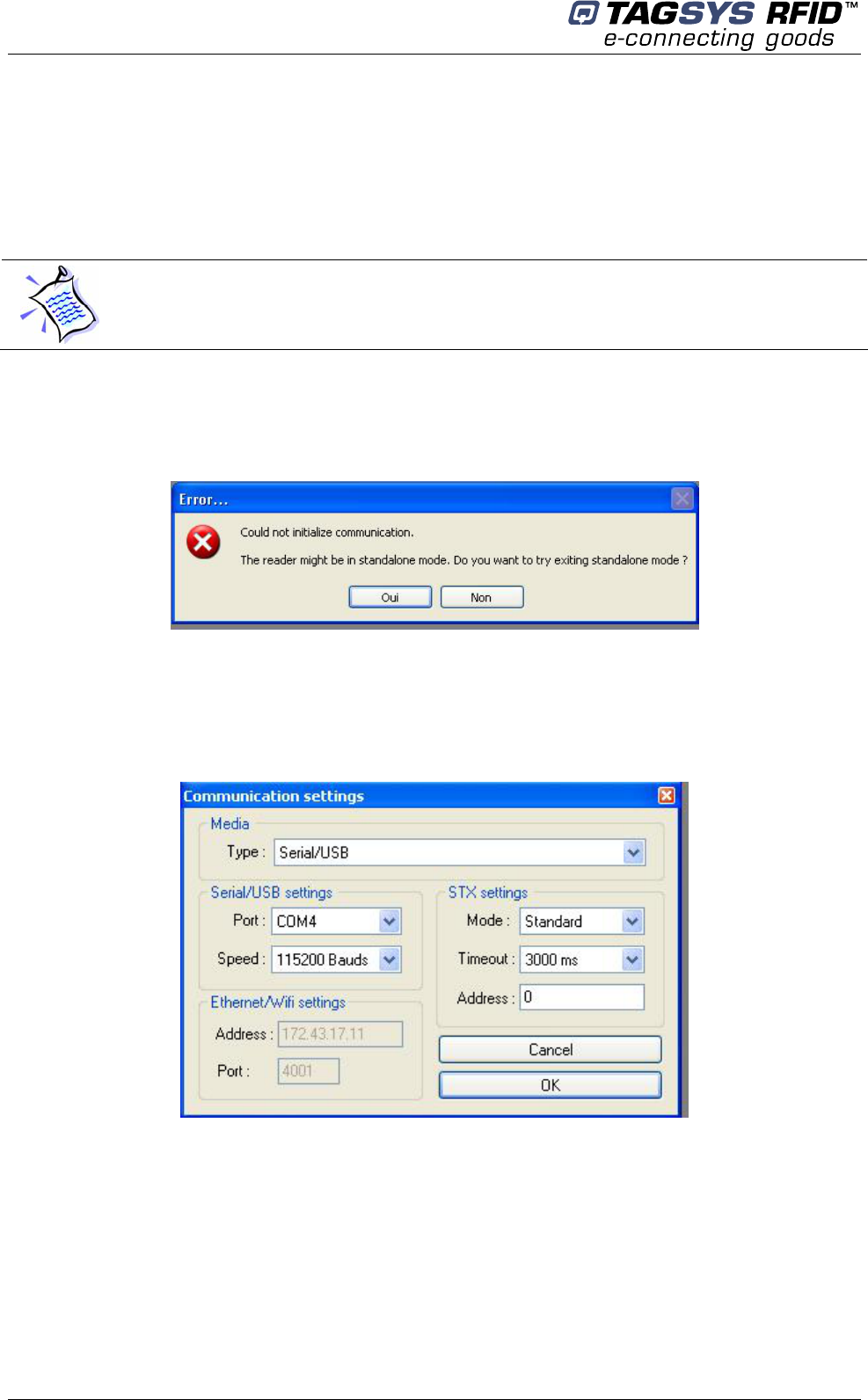

WIFI. Run Px Explorer. If the following window is displayed click yes.

Open the Communication Settings window (CTRL+C) and check the type of the media, the COM

port number and the communication speed. The default communication speed for the Medio P101-

WIFI is 115200 Bauds.

Set the STX setting mode to Fast to increase performances and click OK. Now Px Explorer is

ready to communicate with your Medio P101-WIFI.

5.2.2 WIFI Communication

Before running Px Explorer, be sure that the Medio P101-WIFI module is power up and correctly

engaged with the WIFI access point (or router) connected to the host system network.

Open the communication setting window (CRTL+C) and check that the media type is selected to

Ethernet/WIFI as shown below.

Px Explorer

February 2006 Revision 1.0 29/42

Enter the correct reader IP address.

Check the port number value and change it to the correct value in case the default raw TCP port

value of the Medio P101-WIFI reader has been modified.

Set the STX setting mode to Fast to increase performances and click OK.

5.3 Reading and Writing a Tag

Px Explorer includes a Wizard function used to guide you each step of how to read or program a

tag. We recommend using the Wizard function for users who are not familiar with all Px Explorer

capabilities and features.

Click on the Wizard icon (magic wand) to open the Px Explorer Wizard dialog box.

Select the type of chip from the drop–down menu or place the tag on the antenna and click the

“Detect “ button to automatically detect the tag type.

Select the desired operation (Read or Write) and then click OK. All the necessary windows to

perform the desired action will be automatically displayed on the screen.

Medio P101-WIFI

30/42 Revision 1.0 February 2006

For more details concerning Px Explorer select the info menu and click Help (CTRL+H) to display

the Px Explorer User’s Guide.

5.4 Downloading a firmware

Use Px Explorer to download a new firmware. When a communication is established with the

reader, click on the upgrade firmware button

By default Library firmware is already loaded.

The firmware upgrade can be done either using the USB or WIFI communication interface.

The flasher window pops up. Click on select file and go to the directory “\Medio P101 - Standard

Firmware” on the CDROM or to any other directory containing Medio P101 compatible firmware

(.bin files)

Px Explorer

February 2006 Revision 1.0 31/42

Select the firmware you want to download.

Standard firmwares are:

Firmware File Name Key Compatible chips

Library LF12039xx.bin Medio P101

C220

C320

C370 (ISO 15693)

Industry and Logistics

(I&L) LF12040xx.bin Medio P101

C270 (ICode 1)

C370 (ISO 15693)

EPc

UID

Textile Rental LF12041xx.bin Medio P101

C210

C240

C270 (ICode 1)

C370 (ISO 15693)

Verify the Key of the firmware to be able to download it. Key for standard firmware is “Medio P101”

(with a space character between Medio and P101). For non standard firmware, a key will be

supplied with.

Click on Download button and wait until the download is complete.

Medio P101-WIFI

32/42 Revision 1.0 February 2006

6 Stand-alone Mode

Stand-alone Mode is designed to use the reader without using any command set. While in this

mode, the reader is limited to tag reading.

The reader sends the tag ID to the Host System using ASCII protocol via the Reader-to-Host

interface.

ASCII protocol is used in order to provide hexadecimal data that can be read by a variety of

terminal programs (e.g. Microsoft® HyperTerminal).

6.1 Stand-alone Mode Features

Table 3 lists the available Stand-alone mode features.

Table 3: Available Features in Stand-alone Mode

Features TR-P101

Customized tag type reading

compatibility

(depending on downloaded

application firmware)

C210

C240

C220

C270 (ICode1)

C320

C370 (ISO15693)

I-Code ePC/I-Code UID

Serial Communication Type USB 1.1

WIFI (Raw TCP serial communication)

Repetition Option Available

Customized ASCII message format

STX/ETX Characters

Header String

Chip Description String

ID String (variable length)

End of Message String

Input Trigger Available

Output for active trigger information Available

Output for tag reading information Available

Stand-alone Mode

February 2006 Revision 1.0 33/42

6.1.1 Customized ASCII Message Format

When a tag is read, its data are transmitted to the host in the form of an ASCII character frame.

Table 4: Customized ASCII Message Format (TAGSYS RFID Tag is read)

Start of Text

Header

String

Chip

Description

String

End of

Message

String

End of Text

Description <STX>

(0x02)

“TAGSYS-“

(Default) Chip name <CR/LF>

(Default)

<ETX>

(0x03)

C210 2 to 16 characters

C240 2 to 16 characters

C220 2 to 10 characters

C270 2 to 16 characters

C320 2 to 16 characters

C370 (ISO

15693) 2 to 16 characters

ePC 2 to 24 characters

Size

character

0 to 16

characters

0 to 16

characters

UID 2 to 10 characters

0 to 16

characters

character

TR-P101 Optional Optional Optional Required Optional Optional

Medio P101-WIFI reader can decode all chips in Stand-alone mode. Only the ID field is retrieved in

the return ASCII message. All other fields are optional. The ID field length is programmable; the

default lengths are given in Table 5.

Table 5: Default ID Field Lengths

Chip Type Default ID Field Length

C210 chip 16 (Total memory)

C240 chip 16 (Block 0 Page 0)

C220 chip 10 (Lockable memory)

C270 chip 16 (Block 0 and Block 1)

C320 chip 16 (Block 0)

C370 chip (ISO 15693) 16 (UID)

ePC 24 (Block 0 to 11)

UID 10 (UID block 14 to 18)

6.1.2 Repetition Option

The reader constantly attempts to read any chips present in the field. When a chip ID is detected,

the reader can send the information to the host in one of 2 modes:

1. In “Repeated Read” mode, the reader returns a chip’s ID to the host with each successful

read operation.

Medio P101-WIFI

34/42 Revision 1.0 February 2006

2. In “Read Once” mode, the reader only returns the ID of a chip if the previous read

corresponds to a different chip, or if all reading attempts have failed 4 times (this feature

makes it possible to detect a chip’s potential exit out of the field).

6.1.3 Trigger Input

When the trigger capability is enabled, a trigger state is used to start and stop the RF scanning.

The trigger is connected to the input of the reader.

Depending on the reply settings of the trigger, the ASCII message can be sent during the trigger

activity (Repeated Read mode and Read Once mode are available) or at the end of the trigger. In

this last case, a message is always sent to the host system:

 if a tag has been read, the message contains its ID,

 if a tag has not been read, the message contains a No Message string (that can be defined)

as shown in Table 6.

Table 6: Customized ASCII Message Format (TAGSYS RFID Tag is not read)

Start of Text Header String No Tag Found

String End of Message

String End of Text

Description <STX>

(0x02)

“TAGSYS-“

(Default)

“????????“

(Default)

<CR/LF>

(Default)

<ETX>

(0x03)

Size 1

character

0 to 16

characters

0 to 16

characters

0 to 16

characters

character

Status Optional Optional Required Optional Optional

6.1.4 Output Settings

The output of the reader can be used to monitor the trigger activity or the successful reads.

6.2 Stand-alone Mode Settings

Stand-alone Mode can be set in one of two ways while the reader is in Normal Operating mode

• By using the Px Explorer software provided with the reader

• By using “Set Stand-alone Mode” command followed by a “Reset Reader” command. For

more information, refer to the Medio P101-WIFI Command Set document.

Stand-alone Mode

February 2006 Revision 1.0 35/42

6.2.1 Using Px Explorer

Run the Px Explorer software. In the Settings menu, select General Reader Settings

6.3 Disabling Stand-alone Mode

The Medio P101-WIFI can be reset in Standard mode in one of two ways as described below:

• Use the Px Explorer software provided with the reader and click Yes when the following

window is displayed

• Send the 'S' character using a console interface (for example, HyperTerminal).

Enable

Standalone

mode at next

power on

Medio P101-WIFI

36/42 Revision 1.0 February 2006

7 Connecting Peripheral Devices

7.1 Using the Universal Input pin

The reader input can be driven by a voltage source from 0V up to 25V referring to the input ground.

A relay (open chain transistor, switch…) can also be used to connect the input pin and its ground.

- Low level input voltage is defined to be in the range of 0 to 1.5V

- High level input voltage is defined to be in the range of 3 to 25V

7.2 Using the Universal Output pin

The output pin is an open drain power transistor that can drive a current up to 6A. When activated,

the power transistor connects the output pin and its ground.

The output transistor is protected against heating and current overload. If an overload happens, the

output stops driving current automatically. The output must be turned off to be re-activated.

7.2.1 Output Wiring

Example: Connecting a LED to the Output

+12V (Input voltage)

Pin 1

Pin 2

470 Ohms

The LED’s cathode is connected to the

Output pin and its anode to the Output Supply

Pin. Note that the Output supply selector is

configured to deliver 5V to supply the LED.

The internal serial resistor limits the current

delivered to the LED.

Connecting Peripheral Devices

February 2006 Revision 1.0 37/42

Example: Connecting a load using an external power

Pin 4

Pin 1

The external power must be less than 25V

7.3 I/O Electrical Signal Requirements

Table 7 provides the electrical DC characteristics.

Table 7: I/O Interface Pins - Electrical Characteristics

Parameters Conditions Min. Typ. Max. Unit Note

Input Voltage Low 0 2 V

Input Voltage High 3 25 V

Output Current 6 A

Medio P101-WIFI

38/42 Revision 1.0 February 2006

8 Technical Specifications

Table 8: Medio P101-WiFi Technical Specifications

Reference Medio L-P101

Size (L x W x H) 154 x 84 x 38 mm (TOPTEC 154F)

Weight 250 g (with WiFi Antenna)

DC power 12 VDC +/- 10% Typical

Chip compatibility (depending on

downloaded firmware type)

C210

C240

C220 (Folio 20)

C320 (Folio 320)

ISO 15693 (Folio 370)

I-Code ePC

I-Code UID

Communication interface USB 1.1

WIFI (IEEE 802.11b)

RF Output Power 1.2 W Typical

Power consumption 4.5 W

Operating temperature 0° to +55°C

Storage temperature -20° to +70°C

Mechanical fixation Accessories for TOPTEC 154F boxes (Manufacturer : OKW)

Conformity

ETSI 300-330 European Radio compliance

EN 50364

FCC part 15 in combination with TR-HA1 and L-W1 antennas

Communication protocol TAGSYS-specific STXE-2

Electrical Characteristics

February 2006 Revision 1.0 39/42

9 Electrical Characteristics

This chapter provides information about AC and DC characteristics for all pins. It also gives timing

characteristics for the different interfaces.

9.1 Absolute Maximum Ratings

Parameter Value

Ambient Operating Temperature 0°C to +55°C

Storage Temperature -20°C to +70°C

Supply Voltage with respect to GND 25 V

Total Power Dissipation 4.5 W

Total Power Dissipation on Antenna 1.2 W

9.2 DC Characteristics

Value Description Max. Typ. Min. Unit

VSupply Supply Voltage 13.2 12 10.8 V

IRFOff

Supply Current – RFOff – USB Plugged (VSupply =

12V) 50 45 40 mA

USB 273

IRFOn Supply Current ( RFOn, Dummy Load

50Ohm, VSupply = 12V) WIFI 383

TR-HA1 383 mA

L-W1 393 mA

IRFOn

Supply Current

(RFOn, VSupply = 12V, Antenna connected,

WIFI Communication) LSA-3 384 mA

IOpen

Supply Current

(RFOn, No connection on RF Connector, WiFi

Communication)

352 mA

TOp Operating Tempature 0 55 °C

VUSB Supply Voltage on USB cable 5.25 5 4.35 V

IUsb Supply Current on USB cable - 340 - µA

UVOH D+/D- Static Output high 3.6 2.8 V

UVOL D+/D- Static Output low 0.3 0 V

UVSE Single Ended Rx Threshold 2.0 0.8 V

UVCOM Differential Common Mode 2.5 0.8 V

UVDIF Differential Input sensitivity 0.2 V

ZDRV Driver Output impedance 44 29 Ohm

Input Voltage Low 2 0 V

Input Voltage High 25 3 V

Output Current 6 A

Medio P101-WIFI

40/42 Revision 1.0 February 2006

10 Warranty Conditions

10.1 Warranty

TAGSYS warrants that this Product shall comply with the functional specifications set forth herein

for a period of one year from the date of delivery to the Buyer.

This warranty is valid for the original Buyer of the Product and is not assignable or transferable to

any other party.

TAGSYS cannot be responsible in any way for, and disclaims any liability in connection with the

operation or performance of:

 any product in which the Product is incorporated;

 any equipment not supplied by TAGSYS which is attached to or used in connection with the

Product; or

 the Product with any equipment

This warranty does only cover the Product to the exclusion of any such other equipment.

Optimal operation and performance of the Product are obtained by using TAGSYS’ readers, by

applying TAGSYS installation guidelines and by having your installation reviewed by a TAGSYS’

technical consultant.

TAGSYS warranty does not cover the installation, maintenance or service of the Product and is

strictly limited to the replacement of Products considered as defective by TAGSYS and returned

according to the return procedure defined below; in such case, TAGSYS will, at TAGSYS’ option,

either replace every defective Product by one new Product or refund the purchase price paid by

Buyer to TAGSYS for the defective Product.

10.2 Warranty Exclusions

 Defects or damages resulting from storage of the Product under conditions which do not

comply with TAGSYS specifications or normal usage

 Defects or damages resulting from use of the Product in abnormal conditions (abnormal

conditions being defined as any conditions exceeding the ones stated in the product

specifications).

 Defects or damages from misuse, accident or neglect.

 Defects from improper testing, operation, maintenance or installation.

 Defects from alteration, modification except modifications or adjustments specifically described

in this Product reference guide, adjustment or repair, or any attempt to do any of the foregoing,

by anyone other than TAGSYS.

 Any action on Product that prevents TAGSYS from performing an inspection and test of the

Product in case of a warranty claim.

 Tampering with or abuse of the Product.

 Any use or incorporation by the Buyer or a third party of TAGSYS' Product into life saving or life

support devices or systems, or any related products, TAGSYS expressly excludes any liability

for such use.

Warranty Conditions

February 2006 Revision 1.0 41/42

10.2.1 General Provisions

This warranty sets forth the full extent of TAGSYS responsibility regarding the Product.

In any event, TAGSYS warranty is strictly limited to (at TAGSYS’ sole option) the replacement or

refund of the Products purchase price to TAGSYS, of Products considered as defective by

TAGSYS.

The remedy provided above is in lieu and to the exclusion of all other remedies, obligations or

liabilities on the part of TAGSYS for damages, whether in contract, tort or otherwise, and including

but not limited to, damages for any defects in the Products or for any injury, damage, or loss

resulting from such defects or from any work done in connection therewith or for consequential

loss, whether based upon lost goodwill, lost resale profits, impairment of other goods or arising

from claims by third parties or otherwise.

TAGSYS disclaims any explicit warranty not provided herein and any implied warranty, guaranty or

representation as to performance, quality and absence of hidden defects, and any remedy for

breach of contract, which but for this provision, might arise by implication, operation of law, custom

of trade or course of dealing, including implied warranties of merchantability and fitness for a

particular purpose.

10.2.2 How to Return Defective Products

The Buyer shall notify TAGSYS of the defects within 15 working days after the defects are

discovered.

Defective Products must be returned to TAGSYS after assignment by a TAGSYS Quality

Department representative of an RMA (Return Material Authorization) number. No Products shall

be returned without their proof of purchase and without the acceptance number relating to the

return procedure.

All Products shall be returned with a report from the Buyer stating the complete details of the

alleged defect.

Call +33 4 91 27 57 36 for return authorization and shipping address.

If returned Products prove to be non-defective, a charge will be applied to cover TAGSYS’ analysis

cost and shipping costs.

If the warranty does not apply for returned Products (due to age, or application of a warranty

exclusion clause), a quote for replacement will be issued, and no replacement will be granted until

a valid purchase order is received. If no purchase order is received within 30 days after the date of

TAGSYS quote, TAGSYS will return the products and charge the analysis cost and shipping costs.

All replaced Products shall become the property of TAGSYS.

The Product Return Form is included on the following page. This form should accompany any

product you need to return to TAGSYS for analysis in the event of a problem.

Medio P101-WIFI

42/42 Revision 1.0 February 2006

Product Return Form

Customer Profile:

Company: ................................................................

Address:...................................................................

.................................................................................

City & State:.............................................................

Zip Code: .................................................................

Country: ...................................................................

Contact Name: .......................................................

Contact e-mail: ......................................................

Contact Phone: ......................................................

Contact Fax:...........................................................

Order identification:

Product Name:.........................................................

Order Number (OEF):..............................................

Invoice Number: .....................................................

Return Quantity: ....................................................

Order identification:

Product Name:.........................................................

Order Number (OEF):..............................................

Reason for return:

……………………………………………………………………………………………………………………

To inform TAGSYS of this return, please email it to

RMA@tagsys.net

Address to ship the product with this document attached:

TAGSYS

QUALITY DEPARTMENT

180, chemin de Saint Lambert

13821 La Penne sur Huveaune France

To inform TAGSYS of this return, please also fax it to your Customer Service Representative

+33 4-9127-5701

Return Procedure

The product returned will go through stringent quality controls.

A final analysis report will be sent to you as soon as possible.

Please contact your Quality Service representative for further details at

+33 (0) 4 91 27 57 36
