Teletronics TT900 TT Bridge Router User Manual IP3K Rev TT900

Teletronics International Inc TT Bridge Router IP3K Rev TT900

User Manual

1
TT™900
User Manual
802.11b/g 200mW
2
Table of Contents
Disclaimers ………………………….………….….…….……….….………........3
Introduction ……………………………………………………………………….4
Product Features ………………………………………………………………...5
Product Specifications ………………………………………………………….5
Installation ………………………………………………………………..………10
Configuring windows for IP Networking ……………………………………11
Web Configuration Interface ………………………………………………….13
Client Bridge Mode …………………….………….…….………………………13
Access Point Mode …………………………………………………………...…30
Appendix A: Warranty Policy ……………………………………………...…..50
Appendix B: RMA Policy …………………………………………………...…..51
Appendix C: Regulatory Information ……………………………………...…52
Appendix D: Contact Information ………………………………………...…..54
Appendix E: WDS Explained ……………………………………………...…..55
Appendix F: TT900 Upgrade FAQ …….…………………...…...……………..57
Appendix G: Antenna Diversity ……………………………………………....59
Appendix H: Troubleshooting ………………………………………………...60
Appendix I: Key Requirement Chart.…………………..……………………..61
Appendix J: Glossary ……………………………………..……………………62
3
Disclaimers
No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation or adaptation) without written permission from the copyright owner.
All other trademarks and registered trademarks are the property of their respective owners.
Statement of Conditions
We may make improvements or changes in the product described in this documentation at any time. The information
regarding the product in this manual is subject to change without notice.
We assume no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages
with the furnishing, performance or use of this manual or equipment supplied with it, even if the suppliers have been advised
about the possibility of such damages.
Electronic Emission Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired operation.
FCC INFORMATION
The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment usage generates radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communication. However, there is no grantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The equipment is for home or office use.
IMPORTANT NOTE
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the
antenna and your body and must not be co-located or operating in conjunction with any other antenna or transmitter.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
4
Introduction
The TT900 is Teletronics’s answer to the ever growing demand for higher bandwidth and security in a wireless network
environment. It is based on a brand new redesigned platform that not only offers faster performance and capacity but
also supports all current pre IEEE 802.11i wireless security standards. The TT900 is housed in a weather-proof NEMA
4 enclosure, supports high power 802.11 b/g radio, industrial grade construction, multiple antenna options, surge
protection on the radio and PoE (Power Over Ethernet) adaptor, and RoHS compliance.

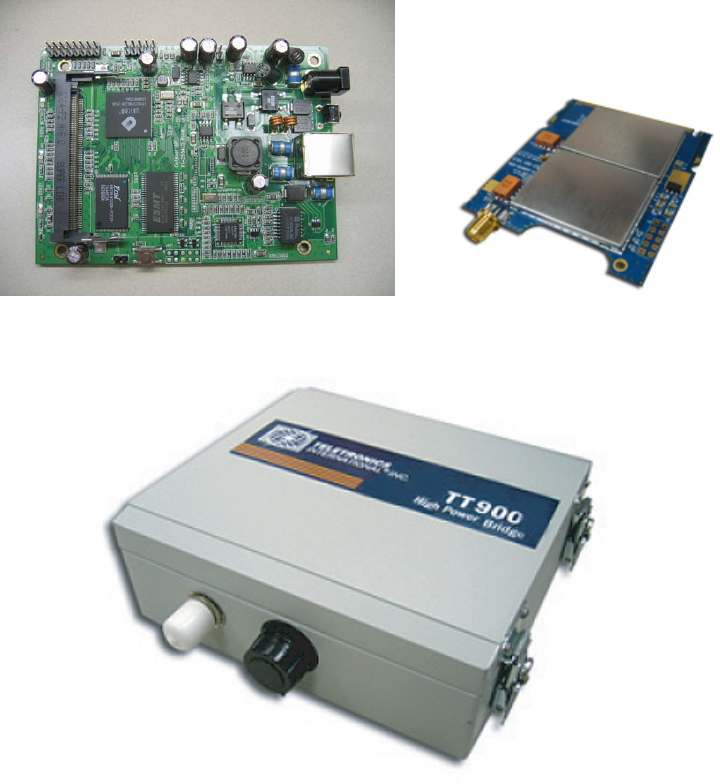

TT5800 Product Photos
TT900 PCB
IEEE 802.11a miniPCI Card
TT900 Enclosure (Die Cast Aluminum NEMA 4 Box)
5
Product Features
• Compact size for small enterprise or system integrate service market
• Compliant with IEEE 802.11b/g specifications
• Supports 64/128-bit WEP, WPA and IEEE802.1x
• Intelligent firmware upgrade via Web browser
• Built-in Web-based utility for easy configuration from any Web browser
• Support POE (IEEE 802.3af) function
• Supports wireless bridging and MAC address filtering
• Provide 10/100M, auto sensing MDI/MDI-X Ethernet port
• EzManager Support
Product Specifications
Main Chips
• CPU: Ubicom IP3023
• Radio: Supports 802.11b/g Atheros AR5414
Mechanical
• Chassis Dimension (W x D x L): 7.5” x 2.75”x 9”
Board Specifications
Specification Description
Network Standard IEEE 802.11 b/g, IEEE 802.3, IEEE802.3x
Ethernet 10/100BaseT Ethernet, Auto MDI/MDI-X
Network Architecture Infrastructure; Ad-Hoc
MAC CSMA/CA
Status Indicators POWER, Wireless LAN(RF),Ethernet LAN, Receives Signal
Strength(RSS)
Push Button Reset to Default Button
6
Radio Specifications
• IEEE 802.11b/g 2.4 GHz mini-PCI card
Specification Description
Chipset MAC/BB Processor Atheros AR5414
Power Consumption IEEE 802.11b TX: ~1100 mA RX: ~600 mA
IEEE 802.11g TX: ~1100 mA RX: ~600 mA
Antenna Connector
SMA connector
Output Power
IEEE 802.11b:
• 23dBm (± 1.5dB) @ 1Mbps
• 22dBm (± 1.5dB) @ 2Mbps
• 21dBm (± 1.5dB) @ 5.5Mbps
• 20dBm (± 1.5dB) @ 11Mbps
IEEE 802.11g:
• 23dBm (±1.5dB) @ 54Mbps
• 22dBm (±1.5dB) @ 48Mbps
• 21dBm (±1.5dB) @ 36Mbps
• 20dBm (±1.5dB) @ 1~24 Mbps
Receiver Sensitivity
IEEE 802.11b/g
Sensitivity @ 8% Packet Error Rate
• 54Mbps:-72dBm
• 6Mbps:-92dBm
Modulation
IEEE 802.11b (DSSS)
• 5.5/11 Mbps (CCK)
• 2 Mbps (DQPSK)
• 1 Mbps (DBPSK)
IEEE 802.11g (OFDM/DSSS)
• 48/54 Mbps (QAM-64)
• 24/36 Mbps (QAM-16)
• 12/18 Mbps (QPSK)
• 6/9 Mbps (BPSK)
• 5.5/11Mbps (CCK)
• 2Mbps (DQPSK)
• 1Mbps (DBPSK)
Operating Frequency
• USA(FCC): 902 MHz ~ 928 MHz
7
LED Definition (Optional)
Item Specification
ON (Red) Power on
Power Off No power
On (Yellow) Connected
Off Not connected
RF(WLAN)
Blinking(Green) Connected and transmitting
On (Green) Connected
Off Not connected
LAN
Blinking(Green) Connected and transmitting
Blinking left to
right Not connected (Scanning for AP)
Received Signal Strength
Indicator (RSSI)
On Connected, indicating Received Signal
Strength.
Software Specification
Item Specification
Bridge Features
• Universal Bridging
• MAC Address Cloning
• RTS Threshold/Fragmentation Threshold
• Infrastructure or Ad-Hoc Mode
• Non-IP Traffic Bridging
Security Features
• 64-Bit/128-Bit WEP Encryption
• WPA Personal Using TKIP or AES
• WPA Enterprise Using TKIP or AES
• 802.1x Authenticator
• Cisco LEAP Support
• MAC Address Filter
Management Features
• Web Access (Username/Password Protected)
• Static IP
• Automatic Device Discovery & Configuration
• SNMP v1, DHCP and PPPoE (Ethernet or Wireless)
• Firmware Upgrade via Web Browser
• Transmit Power Adjustment
External AC Power Adapter
Item Specification
Input Voltage 110-240VAC
Line Frequency 50/60Hz
Power Output to M/B 48VDC, 1A
8
Environmental
Item Specification
Operating Temperature -20 C to 70 C (-4 F to 158 F),
10 to 90% (non-condensing)
Storage Temperature -25 C to 80 C (-13 F to 176 F),
10 to 90% (non-condensing)
Standards / Regulatory Compliance
• CE, FCC
Product Kit Part Listing
1. TT900 802.11b/g PCBA (1)
2. IEEE 802.11b/g mini-PCI radio card (1)
3. Power over Ethernet Injector (1)
4. 48VDC Power Adapter (1)
5. Ethernet Cable (2)
6. Waterproof RJ-45 Connector (1)
7. Mounting Hardware (1)
8. User Manual
Note: If any item listed above is damaged or missing, please contact your dealer immediately.
System Requirements
• Any desktop or laptop with an Ethernet interface
• TCP/IP protocol suite installed
• Standard CAT5 Ethernet cables with RJ45 connectors
• Internet Explorer 5.0 or later / Firefox 1.0 or higher
Note:
Professional must install this device.
End-user cannot set the functionality by hardware or software from one to another directly.
End-user can adjust output power through a drop down menu, but cannot adjust the output power over the 
applicati on.
The EUT will be settled output power not greater than the application by Manufacturer.
Installation of this device should be accomplished only by a qualified wireless LAN system installer who is:
• Knowledgeable of the use. Installation and configuration procedures and associated networking components.
• Knowledgeable of each system component’s equipment User and Installation Guide.
• Knowledgeable of the installation procedures, safety, and code requirements for the site’s antenna, antenna 
mast, antenna cabling, and installation. TELETRONICS highly recommends that the antenna installation be 
performed by a qualified antenna installation professional.
The intended use is generally not for the general public. It is generally for industry/commercial use.
The device cannot be sold retail, to the general public or by mall order. It must be sold to dealers or have strict 
marketing control.
The intended use is generally not for the general public. It is generally for industry/commercial use.
