Telit Communications S p A WE865D Wi-Fi 802.11 b/g Module User Manual Software Manual
Telit Communications S.p.A. Wi-Fi 802.11 b/g Module Software Manual
Contents
- 1. Hardware Manual
- 2. Software Manual
Software Manual
![](/img.php?id=1022527&img=bg1.png)
WE865-DUAL SW User Guide
1vv0300788 Rev. 0 08/08/08
![](/img.php?id=1022527&img=bg2.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 2 of 48
Disclaimer
The information contained in this document is the proprietary information of Telit Communications
S.p.A. and its affiliates (“TELIT”).
The contents are confidential and any disclosure to persons other than the officers, employees, agents
or subcontractors of the owner or licensee of this document, without the prior written consent of Telit,
is strictly prohibited.
Telit makes every effort to ensure the quality of the information it makes available. Notwithstanding the
foregoing, Telit does not make any warranty as to the information contained herein, and does not
accept any liability for any injury, loss or damage of any kind incurred by use of or reliance upon the
information.
Telit disclaims any and all responsibility for the application of the devices characterized in this
document, and notes that the application of the device must comply with the safety standards of the
applicable country, and where applicable, with the relevant wiring rules.
Telit reserves the right to make modifications, additions and deletions to this document due to
typographical errors, inaccurate information, or improvements to programs and/or equipment at any
time and without notice.
Such changes will, nevertheless be incorporated into new editions of this document.
All rights reserved.
© 2008 Telit Communications S.p.A.
![](/img.php?id=1022527&img=bg3.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 3 of 48
Applicable Products
Product Part Number
WE865-DUAL 3990400528
![](/img.php?id=1022527&img=bg4.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 4 of 48
Contents
1Introduction ...................................................................................................................................... 6
1.1Scope ........................................................................................................................................................ 6
1.2Audience .................................................................................................................................................. 6
1.3Contact Information, Support ............................................................................................................... 6
1.4Open Source Licenses ............................................................................................................................. 6
1.4.1Linux Wireless Tools ........................................................................................................................................... 6
1.4.2Wpa Supplicant .................................................................................................................................................... 7
1.4.3CSR Linux WiFi Driver ....................................................................................................................................... 7
1.5Product Overview ................................................................................................................................... 8
1.6Document Organization ......................................................................................................................... 8
1.7Text Conventions .................................................................................................................................... 9
1.8Related Documents ................................................................................................................................. 9
1.9Document History ................................................................................................................................... 9
2WE865-DUAL architecture ............................................................................................................ 10
2.1Hardware ............................................................................................................................................... 10
2.2Software ................................................................................................................................................. 10

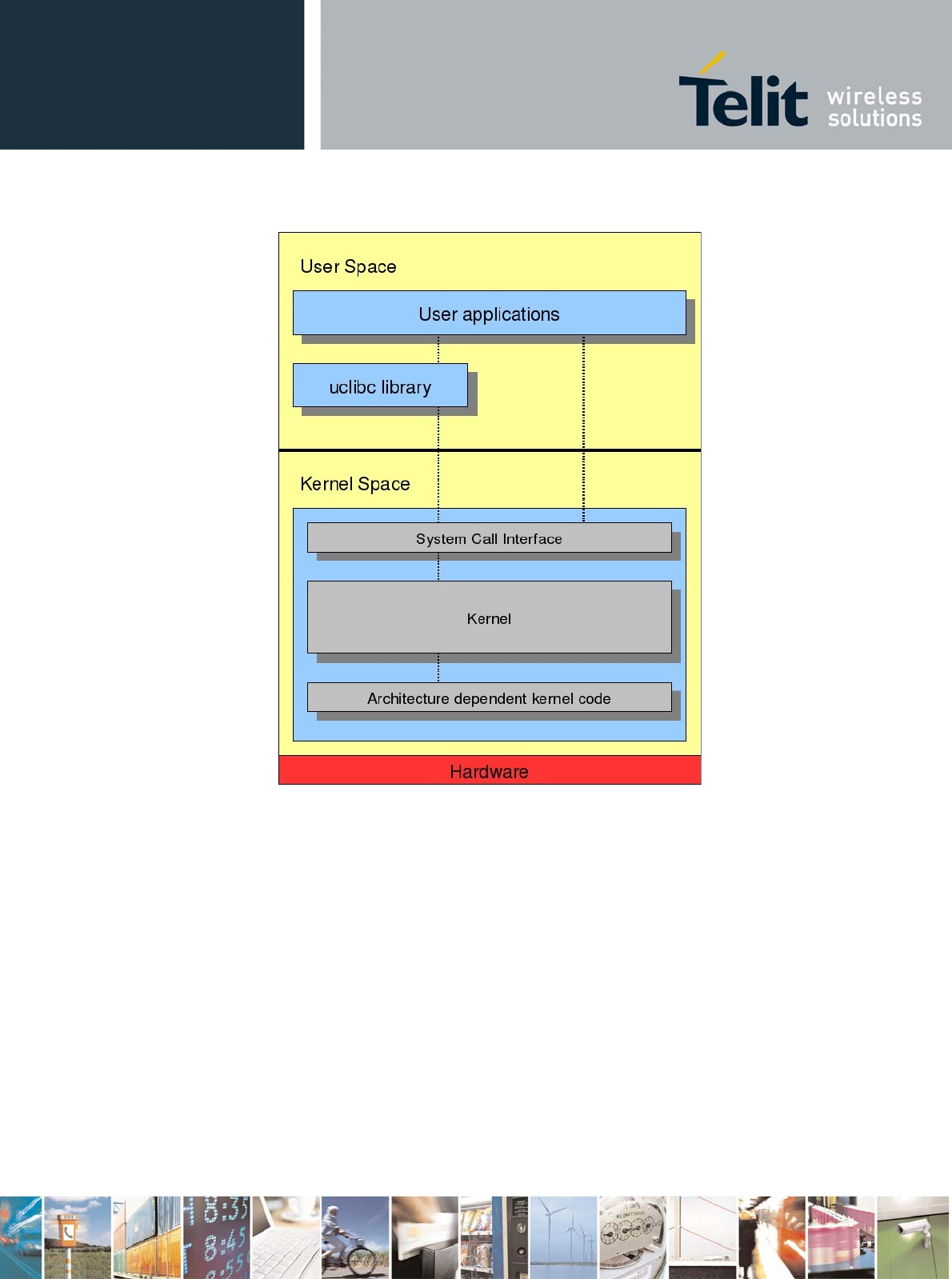

2.2.1Linux OS overview ............................................................................................................................................ 10
2.2.2Linux WiFi software framework........................................................................................................................ 12
3Connecting WE865-DUAL to PRO3 .............................................................................................. 14
4Configuring WE865-DUAL ........................................................................................................... 15

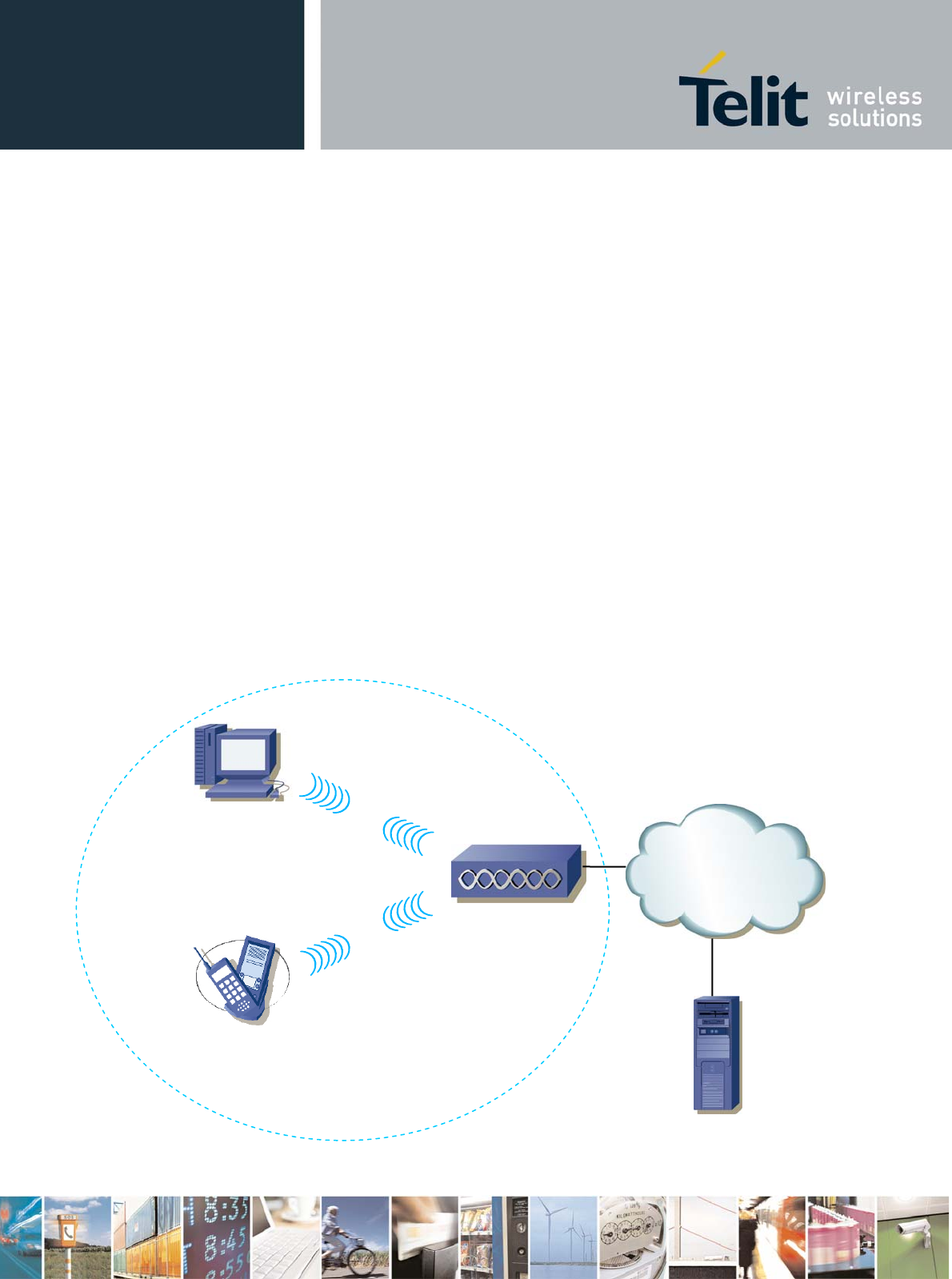

4.1Typical IEEE 802.11 network scenario .............................................................................................. 15
4.2WE865-DUAL Setup ............................................................................................................................ 16
4.2.1WiFi Package Downloading .............................................................................................................................. 16
4.2.2Loading the WiFi Driver .................................................................................................................................... 18
4.2.3Configuring the WiFi Network Interface ........................................................................................................... 19
4.2.4Auto-Setup at system startup ............................................................................................................................. 22
5Commands summary ...................................................................................................................... 23
5.1Wireless Tools examples ...................................................................................................................... 24
5.2WiFi Security examples........................................................................................................................ 24
6Wireless Tools ................................................................................................................................. 25
6.1iwconfig .................................................................................................................................................. 25
6.2iwlist ....................................................................................................................................................... 33
![](/img.php?id=1022527&img=bg5.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 5 of 48
6.3ifrename ................................................................................................................................................. 35
6.4iwevent ................................................................................................................................................... 37
6.5iwgetid .................................................................................................................................................... 39
7WPA/WPA2 Security ...................................................................................................................... 41
7.1Configuring wpa_supplicant ............................................................................................................... 41
7.2Running wpa_supplicant ..................................................................................................................... 43
7.3wpa_cli ................................................................................................................................................... 43
8Appendix ......................................................................................................................................... 45
8.1WPA/WPA2 (IEEE 802.11i) ................................................................................................................ 45
8.1.1Personal Mode (PSK) ........................................................................................................................................ 45
8.1.2Enterprise Mode ................................................................................................................................................. 45
8.2WPA Supplicant ................................................................................................................................... 45
8.2.1Supported features ............................................................................................................................................. 46
8.2.2Source code architecture .................................................................................................................................... 47
9Acronyms and Abbreviations ......................................................................................................... 48
![](/img.php?id=1022527&img=bg6.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 6 of 48
1 Introduction
1.1 Scope
This user guide serves the following purpose:
Describes WE865-DUAL software architecture
Describes how software developers can use the functions of the WiFi software package to
configure and manage the WE865-DUAL wireless interface
1.2 Audience
This User Guide is intended for software developers who develop applications on the GE863-PRO³
module for configuring and managing WE865-DUAL wireless module.
1.3 Contact Information, Support
Our aim is to make this guide as helpful as possible. Keep us informed of your comments and
suggestions for improvements.
For general contact, technical support, report documentation errors and to order manuals, contact
Telit’s Technical Support Center at:
TS-EMEA@telit.com or http://www.telit.com/en/products/technical-support-center/contact.php
Telit appreciates feedback from the users of our information.
1.4 Open Source Licenses
WiFi software package is made up of different Open Source Software licensed as follows.
1.4.1 Linux Wireless Tools
Linux Wireless Extensions and Wireless Tools are Open Source projects released under GPL (GNU
GENERAL PUBLIC LICENSE) v.2, sponsored by Hewlett Packard through Jean Tourrilhes’
contribution since 1996, and build with the contribution of many Linux users all over the world.
For further information about GNU License please have a look at http://www.gnu.org/copyleft/gpl.html.
![](/img.php?id=1022527&img=bg7.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 7 of 48
Wireless Tools project site: http://www.hpl.hp.com/personal/Jean_Tourrilhes/Linux/Tools.html
1.4.2 Wpa Supplicant
WPA Supplicant is free software; it can be redistributed and/or modified under the terms of the GNU
General Public License version 2 as published by the Free Software Foundation.
For further information about GNU License please have a look at http://www.gnu.org/copyleft/gpl.html.
Alternatively, this software may be distributed, used, and modified under the terms of BSD license.
Jouni Malinen’s wpa_supplicant official project site: http://hostap.epitest.fi/wpa_supplicant/.
1.4.3 CSR Linux WiFi Driver
CSR Linux WiFi driver is licensed as follows:
SOFTWARE LICENCE AGREEMENT FOR UNIFI LINUX DRIVER SOURCE CODE
By receiving this software, the customer (YOU) accepts the terms and
conditions herein.
GRANT OF LICENCE
Cambridge Silicon Radio Limited, hereafter referred to as CSR, grants
YOU a worldwide royalty-free nonexclusive licence to use and
distribute this software including source code under the following
conditions:
1) The source will only be used in conjunction with projects that
use CSR UniFi chips.
2) YOU will provide the source code of any bug fixes to the software
back to CSR under the same terms as to which CSR provides the
original software to YOU.
3) CSR does not accept liability for any bugs in the software.
LIMITATION OF LIABILITY
CSR makes no warranties as to the fitness for purpose, merchantability
or function of this software. CSR accepts no responsibility for the use
of the software. CSR accepts no liability for consequential loss. CSR
does not warrant or provide any indemnification with respect to
intellectual property infringement claims for third party claims.
EXTENTS
Where there are other agreements between YOU and CSR, the restrictions
imposed by the other agreements shall be additive, and where there is
conflict between agreements, any restrictions in agreements shall take
precedence over grants made by this agreement, with the specific
exception of other agreements granting distribution rights over this
software.
GOVERNING LAW
These Terms and the supply of the Products by CSR are governed by
English law, and YOU agree to resolve all disputes exclusively in the
English Courts, but without prejudice to our right to seek injunctive or
other relief in any court of competent jurisdiction world-wide.
![](/img.php?id=1022527&img=bg8.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 8 of 48
1.5 Product Overview
The WE865-DUAL is a dual-mode Wi-Fi short range wireless companion product to the GE863-PRO³
device family. Based on the processing power of dual 60MHz RISC processor cores, the WE865-
DUAL is a versatile and powerful addition to any GE863-PRO³-based design instantly adding the
power of Wi-Fi communications and the versatility of the SDIO interface.
1.6 Document Organization
This manual contains the following chapters:
• “Chapter 1, Introduction” provides a scope for this manual, target audience, technical contact
information, and text conventions.
• “Chapter 2, WE865-DUAL architecture” describes the general hardware and software
architecture for WE865-DUAL-GE863-PRO system.

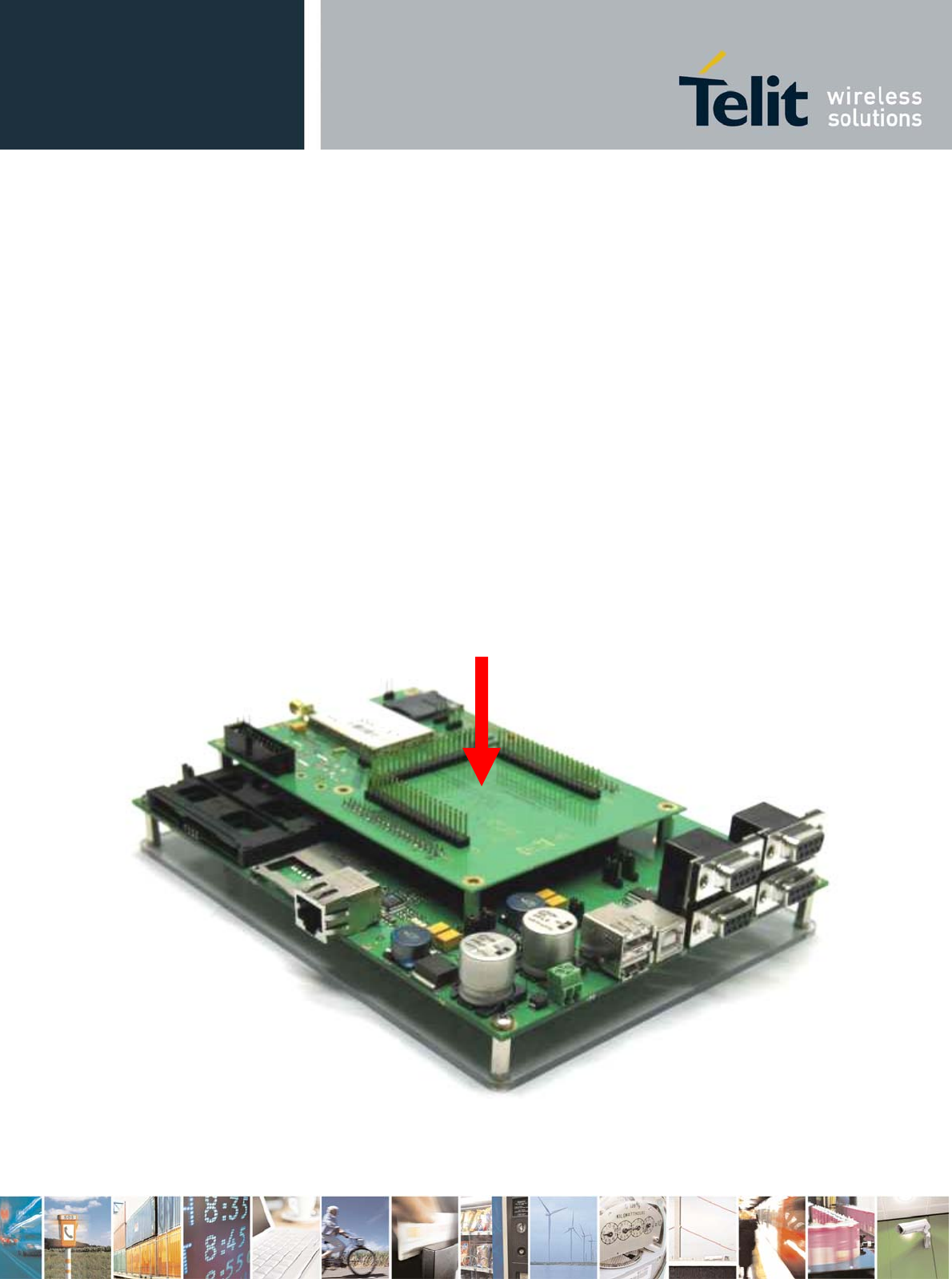

• “Chapter 3, Connecting WE865-DUAL to PRO3” describes how to connect WE865-DUAL
interface board to GE863-PRO³.
• “Chapter 4, Configuring WE865-DUAL” provides some basic concepts on IEEE 802.11
Wireless Networks and describes how to configure WE865-DUAL.
• “Chapter 5, Commands summary” provides a list and some examples on the most commonly
used shell commands for configuring WE865-DUAL.
• “Chapter 6, Wireless Tools” provides a reference to the commands used to configure and
manage WE865-DUAL.
• “Chapter 7, WPA/WPA2 Security” provides a reference to wpa_supplicant and wpa_cli tools
used to configure and manage WPA/WPA2 security modes.
• “Chapter 8, Appendix” provides an in depth view of IEEE 802.11i WPA/WPA2 and
wpa_supplicant.
• “Chapter 9, Acronyms and Abbreviations” provides definition for all the acronyms and
abbreviations used in this guide.
How to Use
If you are new to this product, it is highly recommended to start by reading through
TelitGE863PRO3Linux Development Environment User Guide and TelitGE863PRO3Linux SW User
Guide manuals and this document in their entirety in order to understand the concepts and specific
features provided by the built in software of the GE863-PRO3.
![](/img.php?id=1022527&img=bg9.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 9 of 48
1.7 Text Conventions
This section lists the paragraph and font styles used for the various types of information presented in
this user guide.
Format Content
Courier Linux shell commands at command prompt.
1.8 Related Documents
The following documents are related to this user guide:
[1] TelitGE863-PRO³ Hardware User Guide 1vv0300773a
[2] TelitGE863PRO3 EVK User Guide 1VV0300776
[3] TelitGE863PRO3 Linux SW User Guide 1vv0300781
[4] TelitGE863PRO3Linux Development Environment User Guide1VV0300780
[5] TelitWE865-DUAL Product Description
[6] TelitWE865-DUAL Hardware User Guide
All documentation can be downloaded from Telit’s official web site www.telit.com if not otherwise
indicated.
1.9 Document History
R
Re
ev
vi
is
si
io
on
n
D
Da
at
te
e
C
Ch
ha
an
n
g
ge
es
s
ISSUE #0 08/08/08 First Release
![](/img.php?id=1022527&img=bga.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 10 of 48
2 WE865-DUAL architecture
2.1 Hardware
WE865-DUAL WiFi module is connected and communicates with GE863-PRO³ through an SDIO
interface. For further hardware information please refer to [1] , [2] , [5] and [6]
2.2 Software
Studying Linux Operating System and Linux WiFi Software Framework is important to better
understand how WE865-DUAL can be configured and controlled.
Below you can find a high level description of Linux OS Architecture and the different software layers
involved in WE865-DUAL control.
2.2.1 Linux OS overview
The kernel is the central part of the GNU/Linux operating system: its main task is to manage system’s
resources in order to make the hardware and the software to communicate. A kernel usually deals
with process management (including inter-process communication), memory management and device
management.
The Linux kernel belongs to the family of Unix-like operating system kernel; created in 1991, it has
been developed in the years by a huge number of contributors worldwide, becoming one of the most
common and versatile kernel for embedded systems.
Below there is a picture representing, from a high level perspective, the architecture of a GNU/Linux
operating system.
![](/img.php?id=1022527&img=bgb.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 11 of 48
Two regions can be identified:
1) User space: where the user applications are executed.
2) Kernel space: where the kernel (with all its components such as device drivers) works.
These two regions are separated and have different memory address spaces; there are several
methods for user/kernel interaction:
• Using the System Call Interface that connects to the kernel and provides the mechanism to
communicate between the user-space application and the kernel through the C library.
• Using kernel calls directly from application code leaping over the C library.
• Using the virtual filesystem /proc.
The ordinary C library in Linux system is the glibc. Uclibc is a C library mainly targeted for developing
embedded Linux systems; despite being much smaller than the glibc it almost has all its features
(including shared libraries and threading), making easy to port applications from glibc to uclibc.
The Linux kernel architecture-independent code stays on the top of platform specific code for the
GE863-PRO³ board: this code allows exploiting all the hardware features of the GE863-PRO³.
![](/img.php?id=1022527&img=bgc.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 12 of 48
2.2.2 Linux WiFi software framework
WE865-DUAL Linux WiFi package is made up of different components:
WiFi Driver – WE865-DUAL Linux WiFi device driver
Wireless Tools – Set of tools for configuring and managing WE865-DUAL
Wpa Supplicant – Tool for configuring and managing WPA/WPA2 security
WE865-DUAL WiFi module is controlled, under Linux OS, by the means of a WiFi device driver loaded
into Kernel Space.
WE865-DUAL functionalities are made available to User Space applications through Linux Wireless
Extensions (WE), kernel space generic APIs allowing a driver to expose to the user space
configuration and statistics specific to common Wireless LANs.
Customer applications can control/configure WE865-DUAL through simple system calls to shell
commands such as Wireless Tools and Wpa Supplicant.

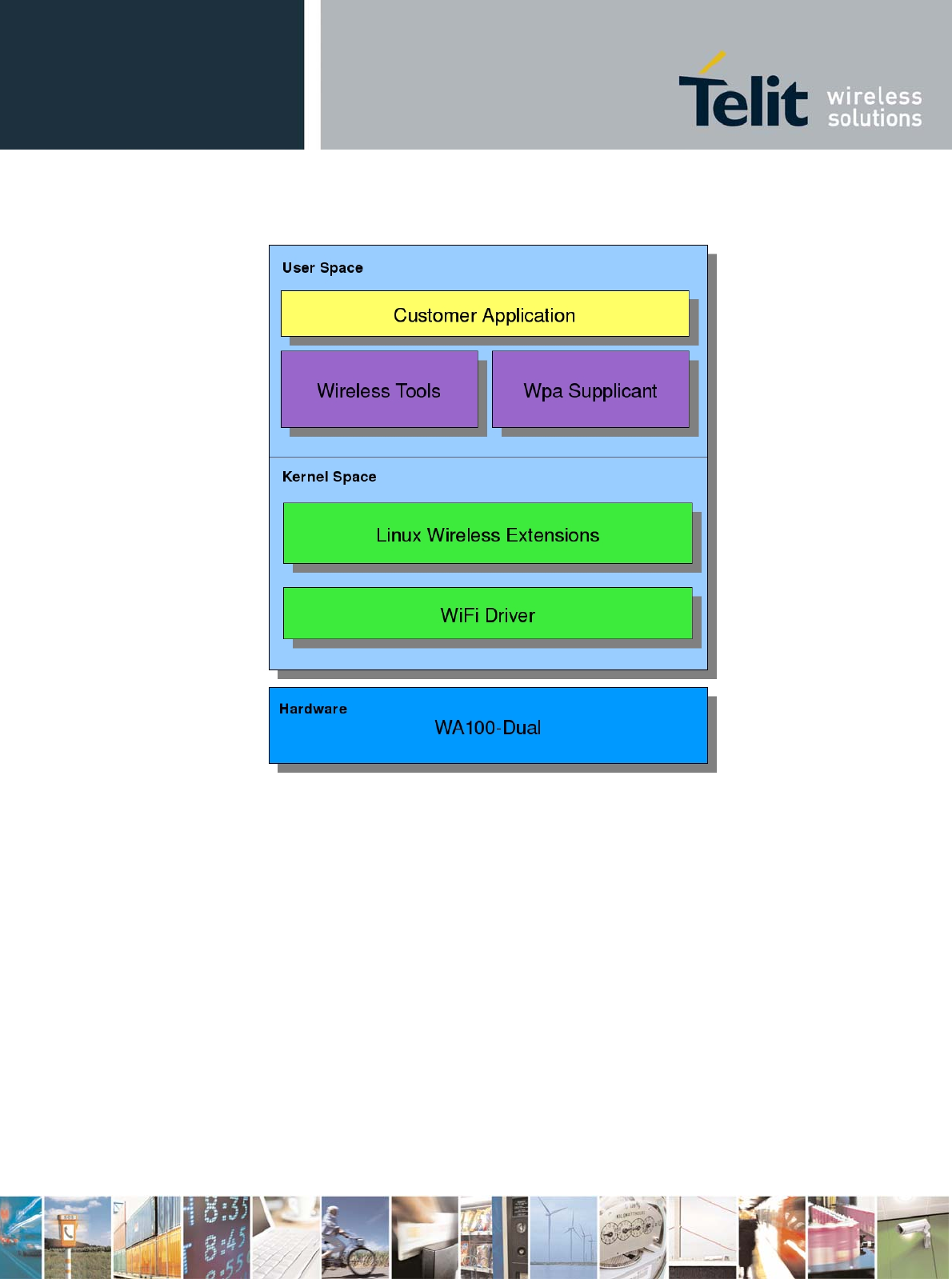

The image below shows the software framework used to configure and control WE865-DUAL.
![](/img.php?id=1022527&img=bgd.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 13 of 48
![](/img.php?id=1022527&img=bge.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 14 of 48
3 Connecting WE865-DUAL to PRO3
Prior to any use WE865-DUAL interface board must be correctly connected to GE863-PRO3 as shown
below.
Please Note: to disable WE865-DUAL internal voltage regulators PL101 and PL102 jumpers must be
closed (see [6] for further information).
![](/img.php?id=1022527&img=bgf.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 15 of 48
4 Configuring WE865-DUAL
In order to better understand how to configure WE865-DUAL wifi module it is very important to read
the introduction in typical wireless networks configurations and devices involved.
4.1 Typical IEEE 802.11 network scenario
A typical wireless network is mainly made up of clients and Access Points (AP).
Clients (such as PCs, PDAs, laptops, VOIP phones, etc.) connect to an AP. The AP usually connects
to a wired network and can relay data between wireless devices and wired devices.
Connection between clients and the AP can be secured enabling different encryption modes like WEP,
WPA and WPA2 (IEEE 802.11i). Enterprise wireless LANs usually use RADIUS authentication servers
along with encryption in order to have as strong as possible WiFi connections. When WPA/WPA2
encryption is used, we talk about WPA-Personal in non Enterprise environments, and WPA-Enterprise
otherwise. For further information about WPA and WPA2 (IEEE 802.11i) see 8.1 paragraph.
PC
Mobile
Applications
Wired
LAN
Wireless
LAN
Access Point
RADIUS
Authentication
Server
![](/img.php?id=1022527&img=bg10.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 16 of 48
When clients connect to each other through an AP, as shown above, they operate in
Managed/Infrastructure mode.
Another WiFi network topology that allows clients to directly connect to each other without APs
forming a peer-to-peer link is called Ad-Hoc.
4.2 WE865-DUAL Setup
4.2.1 WiFi Package Downloading
Before setting up WE865-DUAL, the components of the WiFi Package must be downloaded onto
GE863-PRO³ filesystem.
If you don’t have WE865-DUAL WiFi Package yet, you can download it from Telit’s official web site
Download Zone http://www.telit.com/en/products/download-zone.php.
Connect the GE863-PRO³ to your host system via serial cable (use Debug port of the EVK, for further
details refer to document [2]). Open a terminal program (such as Hyperterminal) on your host system
and use for the connection the following parameters:
Bits per second: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: None

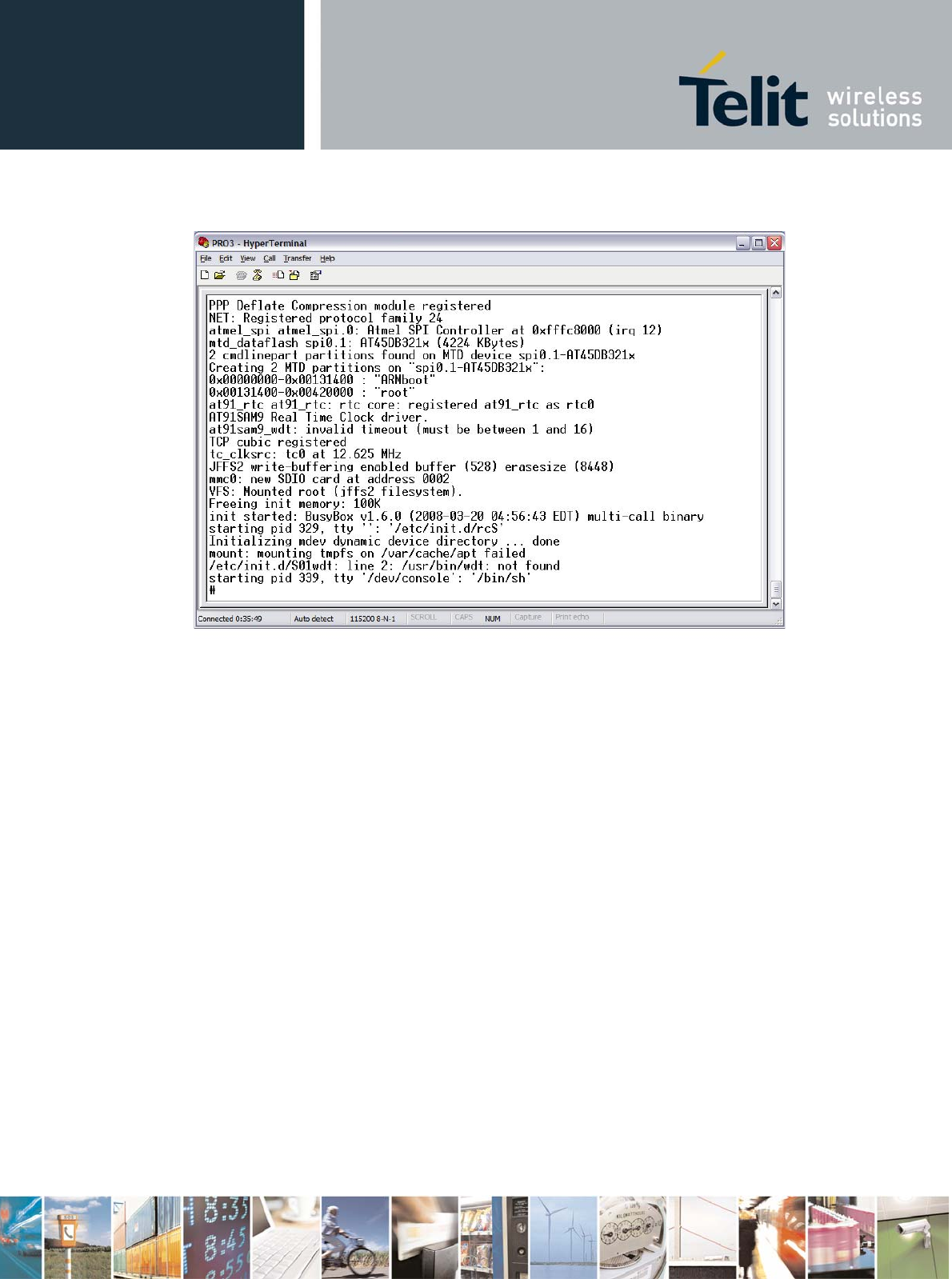

Turn the GE863-PRO³ on. Once the system startup has finished, the terminal will display the shell
prompt as shown below.
![](/img.php?id=1022527&img=bg11.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 17 of 48
Start Colinux and make sure the Ethernet on USB connection via USB port is correctly configured as
shown in [4] .
Now start Eclipse and download the following files onto GE863-PRO³ filesystem as shown in [4] :
WiFi Driver:
- loader.xbv
- sta.xbv
- ufmib.dat
- unifi_manager
- unifi_sdio.ko
- unififw
Wireless Tools:
- iwconfig
- iwlist
- ifrename
- iwevent
- iwgetid
- libiw.so.29
Wpa Supplicant:
- wpa_supplicant
- wpa_cli
![](/img.php?id=1022527&img=bg12.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 18 of 48
Now create the /lib/firmware/ and /lib/firmware/unifi-sdio-0/ folders:
# mkdir /lib/firmware/
# mkdir /lib/firmware/unifi-sdio-0
Now move the downloaded files from the download folder to the right destination folder.
Supposing you are into the download folder, type:
For WiFi driver:
# mv unifi_sdio.ko /lib/
# mv *.xbv ufmib.dat /lib/firmware/unifi-sdio-0/
# mv unifi_manager unififw /usr/sbin/
For Wireless Tools:
# mv iwconfig iwlist ifrename iwevent iwgetid /usr/sbin/
# mv libiw.so.29 /lib/
For Wpa Supplicant:
# mv wpa_supplicant wpa_cli /usr/sbin/
4.2.2 Loading the WiFi Driver

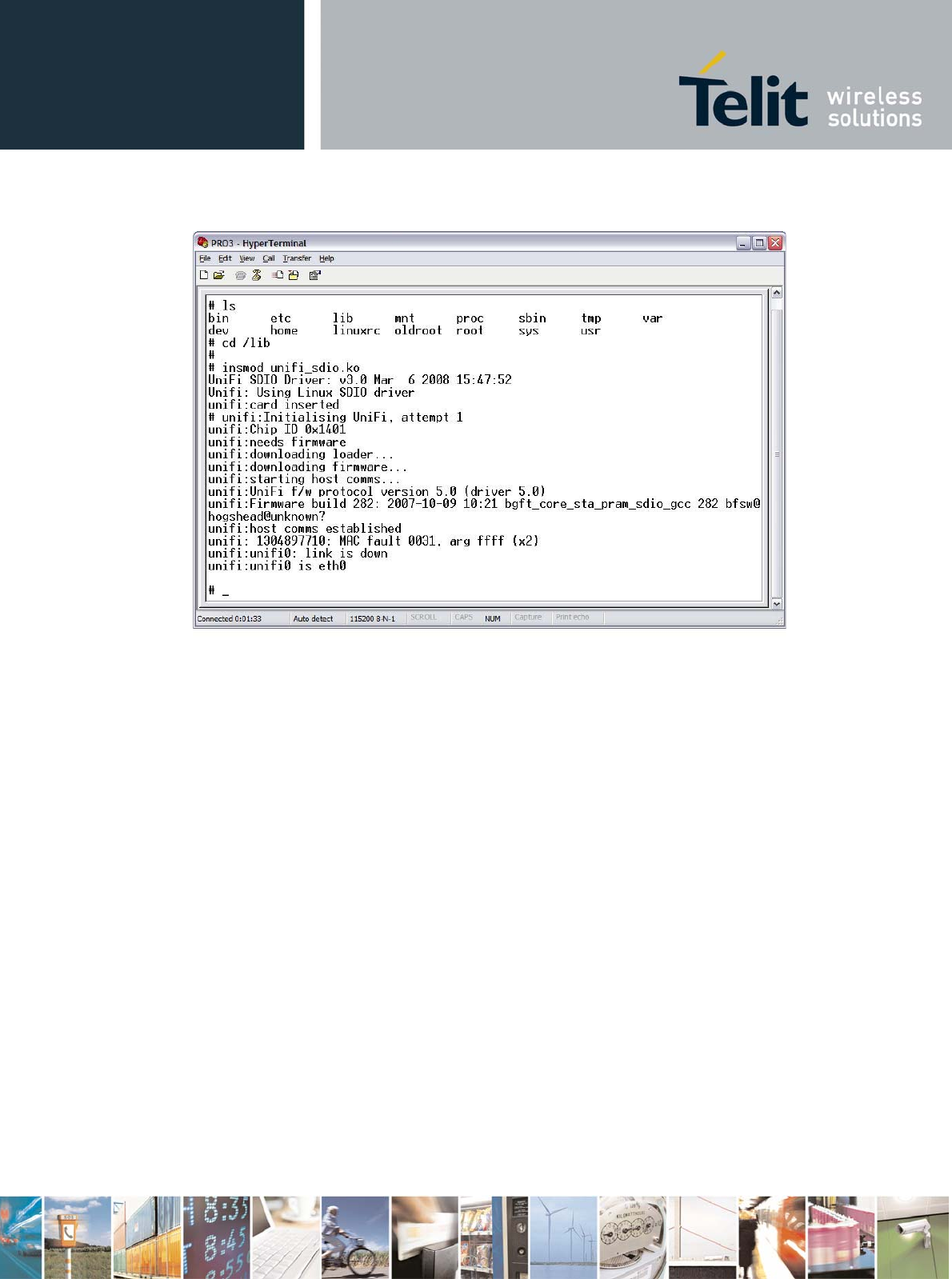

Go to /lib folder and load the WE865-DUAL wifi driver as shown below:
# cd /lib
# insmod unifi_sdio.ko
![](/img.php?id=1022527&img=bg13.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 19 of 48
Once the wifi driver has been successfully loaded the eth0 network interface is available.
4.2.3 Configuring the WiFi Network Interface

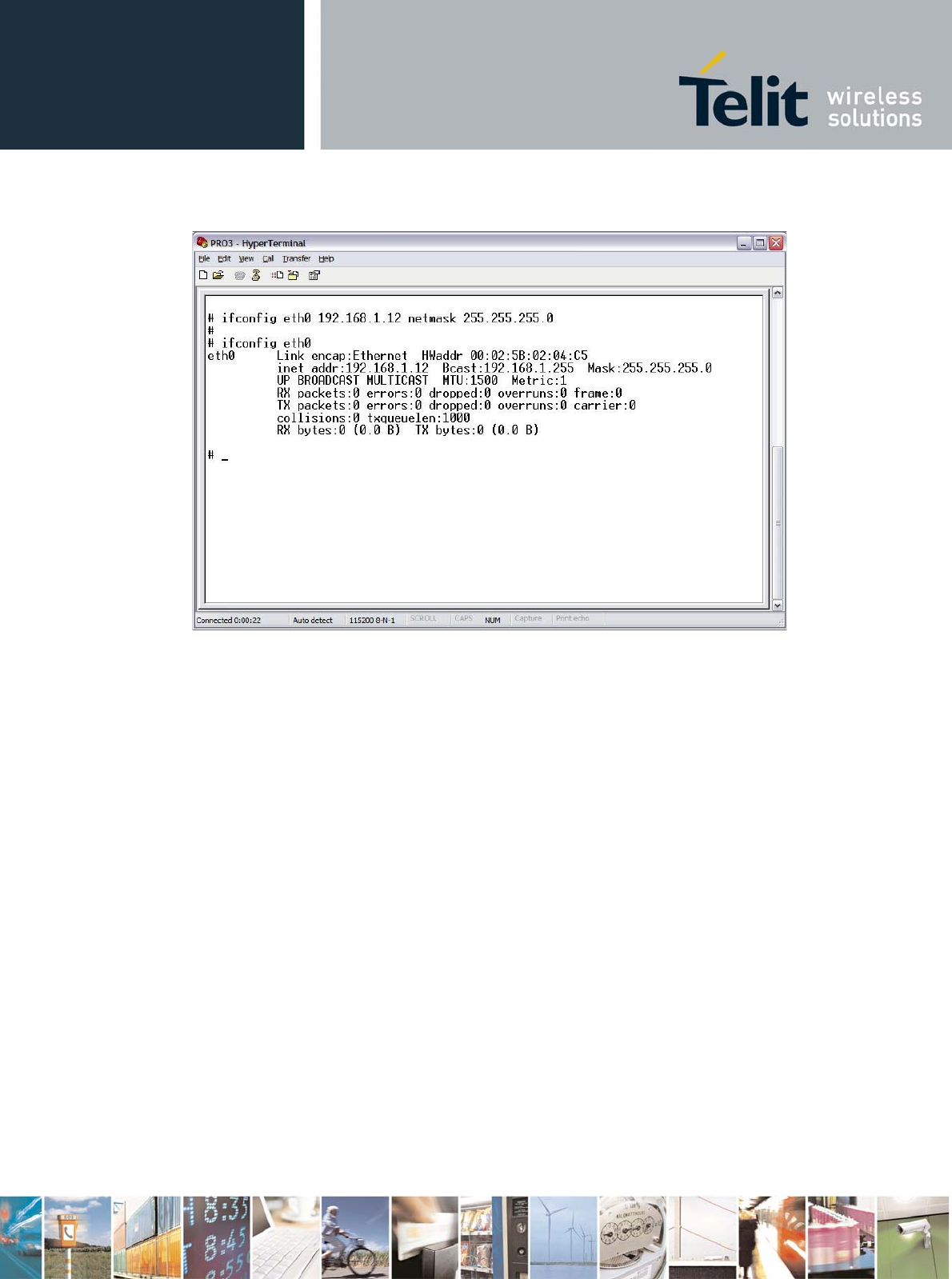

An IP address can now be assigned to the eth0 wifi network interface. For example, to assign the IP
address 192.168.1.12 to the device, with a netmask 255.255.255.0, type:
# ifconfig eth0 192.168.1.12 netmask 255.255.255.0
Then eth0 can be activated:
# ifconfig eth0 up
![](/img.php?id=1022527&img=bg14.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 20 of 48

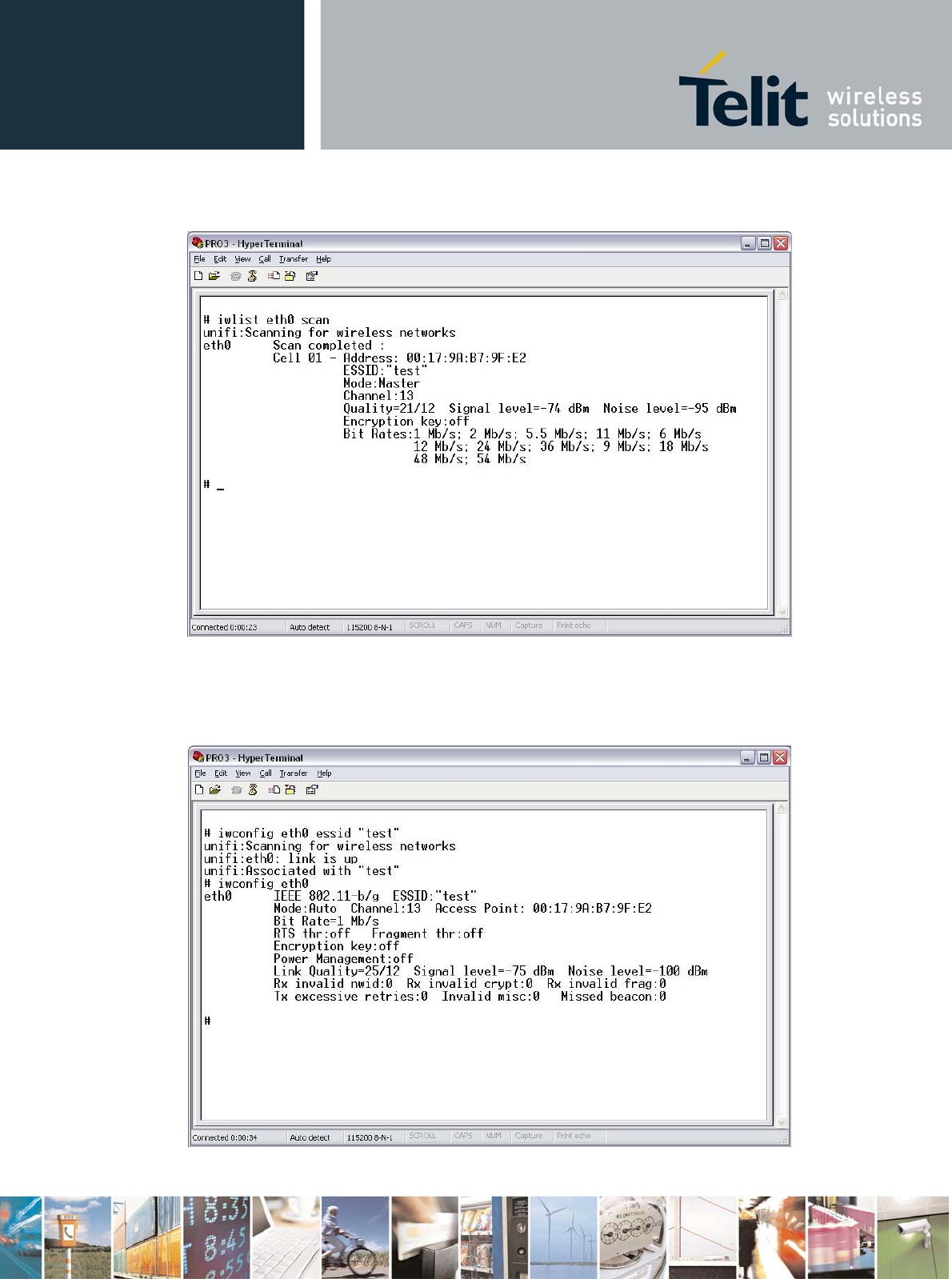

Once the eth0 network interface has been activated it is possible, for example, to perform a scanning
of wifi networks as shown below:
# iwlist eth0 scan
![](/img.php?id=1022527&img=bg15.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 21 of 48
Then it is also possible to associate with a specific SSID:
# iwconfig eth0 essid "test"
![](/img.php?id=1022527&img=bg16.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 22 of 48
For further information about wifi specific parameters configuration and WE865-DUAL management
please refer to paragraphs 5, 6 and 7.
4.2.4 Auto-Setup at system startup
It is possible to automatically perform all the steps shown above at system startup.
A startup script as the one shown below has to be written:
insmod /lib/unifi_sdio.ko
sleep 15
ifconfig eth0 192.168.1.12 netmask 255.255.255.0
ifconfig eth0 up
The first line loads the wifi driver, the second adds a 15 seconds delay to let the driver to be loaded.
The last two lines set an IP address and activate the wifi interface.
The startup script has to be saved as “S03” into /etc/init.d system folder.
![](/img.php?id=1022527&img=bg17.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 23 of 48
5 Commands summary
All the specific wifi parameters for WE865-DUAL can be configured and controlled through Wireless
Tools and Wpa Supplicant.
Wireless Tools (iwconfig, iwlist, ifrename, iwevent and iwgetid) and WPA Supplicant, simple linux shell
commands, can be used for example to perform scanning and association to a wireless network
and/or to set the desired operating mode and to manage WPA security modes and related settings.
The table below shows examples of the most commonly used shell commands.
Functionality Shell Commands
(Wireless Tools, WPA Supplicant)
WiFi Network Info
WiFi network Scanning iwlist eth0 scan
AP Statistics Collecting iwconfig eth0
WiFi Interface Settings iwconfig eth0
iwconfig eth0
WiFi MAC Protocol Used iwconfig eth0
WiFi Channel Used iwconfig eth0 or iwlist eth0 frequency
Associated AP MAC Address iwconfig eth0
WiFi Operating Mode Used iwconfig eth0
Network Interfaces Names ifconfig
WiFi Network Interfaces Names iwconfig
iwconfig
WiFi Interface Config
WiFi Interface IP Setting ifconfig eth0 192.168.1.12 netmask
255.255.255.0
Managed/Infrastructure Mode Setting iwconfig eth0 mode Managed
Ad-Hoc Mode Setting iwconfig eth0 mode Ad-Hoc
WiFi Channel Setting iwconfig eth0 channel 3
WiFi Bitrate Setting iwconfig eth0 rate 11M
ESSID Associating iwconfig eth0 essid "test"
WiFi Security
Config
WEP Key Setting iwconfig eth0 key s:password
WEP Encryption Setting iwconfig eth0 key restricted
WPA/WPA2 Encryption Setting wpa_supplicant -Dunifi -ieth0
-c/etc/wpa_supplicant.conf -d
All the shell commands seen above can be used from source code performing system calls.
![](/img.php?id=1022527&img=bg18.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 24 of 48
5.1 Wireless Tools examples
Some examples on how to use Wireless Tools from system calls:
system(“iwconfig eth0 essid \"My Network\””);
system(“iwconfig eth0 mode Ad-Hoc”);
system(“iwconfig eth0 channel 3”);
system(“iwconfig eth0 rate 11M”);
5.2 WiFi Security examples
Some examples on how to use wpa_supplicant and wpa_cli from system calls:
system(“wpa_supplicant –Dunifi -ieth0 -c/etc/wpa_supplicant.conf –d”);
system(“wpa_cli status”);
system(“wpa_cli disconnect”);
system(“wpa_cli reconnect”);
![](/img.php?id=1022527&img=bg19.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 25 of 48
6 Wireless Tools
Linux Wireless Tools (WT) is a set of tools allowing to configure and manage WE865-DUAL by linux
command shell.
Wireless Tools package includes the following executables:
iwconfig manipulates the basic wireless parameters
iwlist allows to initiate scanning and list frequencies, bit-rates, encryption keys...
ifrename allows to name interfaces based on various static criteria
iwevent allows to display wireless events
iwgetid shows the ESSID or NWID of the specified device
Please have a look to paragraph 1.4.1 for information about Wireless Tools License.
The following paragraphs describe WT commands as shown in man pages.
6.1 iwconfig
iwconfig is similar to ifconfig, but is dedicated to the wireless interfaces. It is used to set the
parameters of the network interface which are specific to the wireless operation (for example: the
frequency). Iwconfig can also be used to display those parameters, and the wireless statistics
(extracted from /proc/net/wireless).
All these parameters and statistics are device dependent. Each driver will provide only some of them
depending on hardware support, and the range of values may change. Please refer to the man page
of each device for details.
Synopsis
iwconfig [interface]
iwconfig interface [essid X] [nwid N] [mode M] [freq F]
[channel C][sens S ][ap A ][nick NN ]
[rate R] [rts RT] [frag FT] [txpower T]
[enc E] [key K] [power P] [retry R]
[commit]
iwconfig –help
iwconfig –version
![](/img.php?id=1022527&img=bg1a.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 26 of 48
Parameters
essid
Set the ESSID (or Network Name - in some products it may also be called Domain ID). The
ESSID is used to identify cells which are part of the same virtual network.
As opposed to the AP Address or NWID which define a single cell, the ESSID defines a
group of cells connected via repeaters or infrastructure, where the user may roam
transparently. With some cards, you may disable the ESSID checking (ESSID promiscuous)
with off or any (and on to reenable it).
If the ESSID of your network is one of the special keywords (off, on or any), you should use --
to escape it.
Examples:
iwconfig eth0 essid any
iwconfig eth0 essid "My Network"
iwconfig eth0 essid -- "ANY"
nwid/domain
Set the Network ID (in some products it may also be called Domain ID). As all adjacent
wireless networks share the same medium, this parameter is used to differentiate them
(create logical collocated networks) and identify nodes belonging to the same cell.
This parameter is only used for pre-802.11 hardware, the 802.11 protocol uses the ESSID
and AP Address for this function.
With some cards, you may disable the Network ID checking (NWID promiscuous) with off
(and on to enable it again).
Examples:
iwconfig eth0 nwid AB34
iwconfig eth0 nwid off
nick[name]
Set the nickname, or the station name. Some 802.11 products do define it, but this is not
used as far as the protocols (MAC, IP, TCP) are concerned and completely useless as far as
configuration goes. Only some wireless diagnostic tools may use it.
Example:
iwconfig eth0 nickname "My Linux Node"
mode Set the operating mode of the device, which depends on the network topology.
The mode can be:
o Ad-Hoc (network composed of only one cell and without Access Point)
o Managed (node connects to a network composed of many Access Points, with
roaming)
o Master (the node is the synchronization master or acts as an Access Point)
o Repeater (the node forwards packets between other wireless nodes)
o Secondary (the node acts as a backup master/repeater)
![](/img.php?id=1022527&img=bg1b.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 27 of 48
o Monitor (the node is not associated with any cell and passively monitor all packets on
the frequency)
o Auto.
Examples:
iwconfig eth0 mode Managed
iwconfig eth0 mode Ad-Hoc
freq/channel
Set the operating frequency or channel in the device. A value below 1000 indicates a channel
number, a value greater than 1000 is a frequency in Hz. You may append the suffix k, M or G
to the value (for example, "2.46G" for 2.46 GHz frequency), or add enough '0'.
Channels are usually numbered starting at 1, and you may use iwlist to get the total number
of channels, list the available frequencies, and display the current frequency as a channel.
Depending on regulations, some frequencies/channels may not be available.
When using Managed mode, most often the Access Point dictates the channel and the driver
may refuse the setting of the frequency. In Ad-Hoc mode, the frequency setting may only be
used at initial cell creation, and may be ignored when joining an existing cell.
You may also use off or auto to let the card pick up the best channel (when supported).
Examples:
iwconfig eth0 freq 2422000000
iwconfig eth0 freq 2.422G
iwconfig eth0 channel 3
iwconfig eth0 channel auto
ap Force the card to register to the Access Point given by the address, if it is possible. This
address is the cell identity of the Access Point, as reported by wireless scanning, which may
be different from its network MAC address. If the wireless link is point to point, set the
address of the other end of the link. If the link is ad-hoc, set the cell identity of the ad-hoc
network.
When the quality of the connection goes too low, the driver may revert back to automatic
mode (the card selects the best Access Point in range).
You may also use off to re-enable automatic mode without changing the current Access
Point, or you may use any or auto to force the card to associate again with the currently best
Access Point.
Examples:
iwconfig eth0 ap 00:60:1D:01:23:45
iwconfig eth0 ap any
iwconfig eth0 ap off
rate/bit[rate]
For cards supporting multiple bit rates, set the bit-rate in b/s. The bit-rate is the speed at
which bits are transmitted over the medium, the user speed of the link is lower due to medium
sharing and various overhead.
![](/img.php?id=1022527&img=bg1c.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 28 of 48
You may append the suffix k, M or G to the value (decimal multiplier: 10^3, 10^6 and 10^9
b/s), or add enough '0'. Values below 1000 are card specific, usually an index in the bit-rate
list. Use auto to select automatic bit-rate mode (fallback to lower rate on noisy channels),
which is the default for most cards, and fixed to revert back to fixed setting. If you specify a
bit-rate value and append auto, the driver will use all bit-rates lower and equal than this value.
Examples:
iwconfig eth0 rate 11M
iwconfig eth0 rate auto
iwconfig eth0 rate 5.5M auto
txpower
For cards supporting multiple transmit powers, sets the transmit power in dBm. If W is the
power in Watt, the power in dBm is P= 30 + 10.log(W). If the value is postfixed by mW, it will
be automatically converted to dBm.
In addition, on and off enable and disable the radio, and auto and fixed enable and disable
power control (if those features are available).
Examples:
iwconfig eth0 txpower 15
iwconfig eth0 txpower 30mW
iwconfig eth0 txpower auto
iwconfig eth0 txpower off
sens
Set the sensitivity threshold. This define how sensitive is the card to poor operating conditions
(low signal, interference).
Positive values are assumed to be the raw value used by the hardware or a percentage,
negative values are assumed to be dBm.
Depending on the hardware implementation, this parameter may control various functions.
On modern cards, this parameter usually control handover/roaming threshold, the lowest
signal level for which the hardware remains associated with the current Access Point. When
the signal level goes below this threshold the card starts looking for a new/better Access
Point. Some cards may use the number of missed beacons to trigger this. For high density of
Access Points, a higher threshold make sure the card is always associated with the best AP,
for low density of APs, a lower threshold minimize the number of failed handoffs.
On more ancient card this parameter usually controls the defer threshold, the lowest signal
level for which the hardware considers the channel busy. Signal levels above this threshold
make the hardware inhibits its own transmission whereas signals weaker than this are
ignored and the hardware is free to transmit. This is usually strongly linked to the receive
threshold, the lowest signal level for which the hardware attempts packet reception. Proper
setting of these thresholds prevents the card to waste time on background noise while still
receiving weak transmissions. A modern design seems to control those thresholds
automatically.
Examples:
iwconfig eth0 sens -80
![](/img.php?id=1022527&img=bg1d.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 29 of 48
iwconfig eth0 sens 2
retry Most cards have MAC retransmissions, and some allow setting the behaviour of the retry
mechanism.
To set the maximum number of retries, enter limit `value'. This is an absolute value (without
unit). To set the maximum length of time the MAC should retry, enter lifetime `value'. By
defaults, this value in seconds, append the suffix m or u to specify values in milliseconds or
microseconds.
You can also add the min and max modifiers. If the card supports automatic mode, they
define the bounds of the limit or life-time. Some other cards define different values depending
on packet size, for example in 802.11 min limit is the short retry limit (non RTS/CTS packets).
Examples:
iwconfig eth0 retry 16
iwconfig eth0 retry lifetime 300m
iwconfig eth0 retry min limit 8
rts[_threshold]
RTS/CTS adds a handshake before each packet transmission to make sure that the channel
is clear. This adds overhead, but increases performance in case of hidden nodes or a large
number of active nodes. This parameter sets the size of the smallest packet for which the
node sends RTS; a value equal to the maximum packet size disables the mechanism. You
may also set this parameter to auto, fixed or off.
Examples:
iwconfig eth0 rts 250
iwconfig eth0 rts off
frag[mentation_threshold]
Fragmentation allows splitting an IP packet in a burst of smaller fragments transmitted on the
medium. In most cases this adds overhead, but in a very noisy environment this reduces the
error penalty and allows packets to get through interference bursts.
This parameter sets the maximum fragment size which is always lower than the maximum
packet size.
This parameter may also control Frame Bursting available on some cards, the ability to send
multiple IP packets together. This mechanism would be enabled if the fragment size is larger
than the maximum packet size.
You may also set this parameter to auto, fixed or off.
Examples:
iwconfig eth0 frag 512
iwconfig eth0 frag off
key/enc[ryption]
Used to manipulate encryption or scrambling keys and security mode.
![](/img.php?id=1022527&img=bg1e.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 30 of 48
To set the current encryption key, just enter the key in hex digits as XXXX-XXXX-XXXX-
XXXX or XXXXXXXX. To set a key other than the current key, prepend or append [index] to
the key itself (this won't change which is the active key). You can also enter the key as an
ASCII string by using the s: prefix. Passphrase is currently not supported.
To change which key is the currently active key just enter [index] (without entering any key
value).
OFF and ON disables and enables again encryption.
The security mode may be open or restricted, and its meaning depends on the card used.
With most cards, in open mode no authentication is used and the card may also accept non-
encrypted sessions, whereas in restricted mode only encrypted sessions are accepted and
the card will use authentication if available.
If you need to set multiple keys, or set a key and change the active key, you need to use
multiple key directives. Arguments can be put in any order; the last one will take precedence.
Examples:
iwconfig eth0 key 0123-4567-89
iwconfig eth0 key [3] 0123-4567-89
iwconfig eth0 key s:password [2]
iwconfig eth0 key [2]
iwconfig eth0 key open
iwconfig eth0 key off
iwconfig eth0 key restricted [3] 0123456789
iwconfig eth0 key 01-23 key 45-67 [4] key [4]
power Used to manipulate power management scheme parameters and mode.
To set the period between wake ups, enter period `value'. To set the timeout before going
back to sleep enter timeout ‘value'. You can also add the min and max modifiers. By default,
those values are in seconds, append the suffix m or u to specify values in milliseconds or
microseconds. Sometimes, those values are without units (number of beacon periods, dwell
or similar).
OFF and ON disables and enables again power management. Finally, you may set the power
management mode to all (receive all packets), unicast (receive unicast packets only, discard
multicast and broadcast) and multicast (receive multicast and broadcast only, discard unicast
packets).
Examples:
iwconfig eth0 power period 2
iwconfig eth0 power 500m unicast
iwconfig eth0 power timeout 300u all
iwconfig eth0 power off
iwconfig eth0 power min period 2 power max period 4
![](/img.php?id=1022527&img=bg1f.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 31 of 48
commit Some cards may not apply changes done through Wireless Extensions immediately (they
may wait to aggregate the changes or apply it only when the card is brought up via ifconfig).
This command (when available) forces the card to apply all pending changes.
This is normally not needed, because the card will eventually apply the changes, but can be
useful for debugging.
Display
For each device which supports wireless extensions, iwconfig will display the name of the MAC
protocol used (name of device for proprietary protocols), the ESSID (Network Name), the NWID, the
frequency (or channel), the sensitivity, the mode of operation, the Access Point address, the bit-rate,
the RTS threshold, the fragmentation threshold, the encryption key and the power management
settings (depending on availability).
The parameters displayed have the same meaning and values as the parameters you can set, please
refer to the previous part for a detailed explanation of them.
Some parameters are only displayed in short/abbreviated form (such as encryption). You may use
iwlist to get all the details.
Some parameters have two modes (such as bitrate). If the value is prefixed by `=', it means that the
parameter is fixed and forced to that value, if it is prefixed by ‘:', the parameter is in automatic mode
and the current value is shown (and may change).
Access Point/Cell
An address equal to 00:00:00:00:00:00 means that the card failed to associate with an
Access Point (most likely a configuration issue). The Access Point parameter will be shown
as Cell in ad-hoc mode (for obvious reasons), but otherwise works the same.
If /proc/net/wireless exists, iwconfig will also display its content. Note that those values will
depend on the driver and the hardware specifics, so you need to refer to your driver
documentation for proper interpretation of those values.
Link quality
Overall quality of the link. May be based on the level of contention or interference, the bit or
frame error rate, how good the received signal is, some timing synchronisation, or other
hardware metric. This is an aggregate value, and depends totally on the driver and hardware.
Signal level
Received signal strength (RSSI - strength of received signal). May be arbitrary units or dBm,
iwconfig uses driver meta information to interpret the raw value given by /proc/net/wireless
and display the proper unit or maximum value (using 8 bit arithmetic). In Ad-Hoc mode, this
may be undefined and you should use iwspy.
![](/img.php?id=1022527&img=bg20.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 32 of 48
Noise level
Background noise level (when no packet is transmitted). Similar comments as for Signal level.
Rx invalid nwid
Number of packets received with a different NWID or ESSID. Used to detect configuration,
problems or adjacent network existence (on the same frequency).
Rx invalid crypt
Number of packets that the hardware was not able to decrypt. This can be used to detect
invalid encryption settings.
Rx invalid frag
Number of packets for which the hardware was not able to properly re-assemble the link layer
fragments (most likely one was missing).
Tx excessive retries
Number of packets that the hardware failed to deliver. Most MAC protocols will retry the
packet a number of times before giving up.
Invalid misc
Other packets lost in relation with specific wireless operations.
Missed beacon
Number of periodic beacons from the Cell or the Access Point we have missed. Beacons are
sent at regular intervals to maintain the cell coordination; failure to receive them usually
indicates that the card is out of range.
![](/img.php?id=1022527&img=bg21.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 33 of 48
6.2 iwlist
iwlist is used to display some additional information from a wireless network interface that is not
displayed by iwconfig. The main argument is used to select a category of information, iwlist displays in
detailed form all information related to this category, including information already shown by iwconfig.
Synopsis
iwlist interface scanning
iwlist interface frequency
iwlist interface rate
iwlist interface key
iwlist interface power
iwlist interface txpower
iwlist interface retry
iwlist interface event
iwlist --help
iwlist --version
Parameters
scan[ning]
Give the list of Access Points and Ad-Hoc cells in range, and optionally a whole bunch of
information about them (ESSID, Quality, Frequency, Mode...). The type of information
returned depends on what the card supports.
Triggering scanning is a privileged operation (root only) and normal users can only read left-
over scan results. By default, the way scanning is done (the scope of the scan) will be
impacted by the current setting of the driver. Also, this command is supposed to take extra
arguments to control the scanning behaviour, but this is currently not implemented.
freq[uency]/channel
Give the list of available frequencies in the device and the number of defined channels.
Please note that usually the driver returns the total number of channels and only the
frequencies available in the present locale, so there is no one-to-one mapping between
frequencies displayed and channel numbers.
rate/bit[rate]
List the bit-rates supported by the device.
key/enc[ryption]
List the encryption key sizes supported and display all the encryption keys available in the
device.
power List the various Power Management attributes and modes of the device.
![](/img.php?id=1022527&img=bg22.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 34 of 48
txpower
List the various Transmit Powers available on the device.
retry List the transmit retry limits and retry lifetime on the device.
ap/accesspoint/peers
Give the list of Access Points in range, and optionally the quality of link to them. This feature
is obsolete and now deprecated in favour of scanning support (above), and most drivers don't
support it.
Some drivers may use this command to return a specific list of Peers or Access Points, such
as the list of Peers associated/registered with the card. See your driver documentation for
details.
event List the wireless events supported by the device.
--version
Display the version of the tools, as well as the recommended and current Wireless
Extensions version for the tool and the various wireless interfaces.
![](/img.php?id=1022527&img=bg23.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 35 of 48
6.3 ifrename
ifrename is a tool allowing you to assign a consistent name to each of your network interface.
By default, interface names are dynamic, and each network interface is assigned the first available
name (eth0, eth1...). The order network interfaces are created may vary. For built-in interfaces, the
kernel boot time enumeration may vary. For removable interface, the user may plug them in any order.
Ifrename allow the user to decide what name a network interface will have. Ifrename can use a variety
of selectors to specify how interface names match the network interfaces on the system, the most
common selector is the interface MAC address.
Ifrename must be run before interfaces are brought up, which is why it's mostly useful in various
scripts (init, hotplug) but is seldom used directly by the user. By default, ifrename renames all present
system interfaces using mappings defined in /etc/iftab.
Synopsis
ifrename [-c configfile] [-p] [-d] [-u] [-v] [-V] [-D]
ifrename [-c configfile] [-i interface] [-n newname]
Parameters
-c configfile
Set the configuration file to be used (by default /etc/iftab). The configuration file defines the
mapping between selectors and interface names, and is described in iftab.
If configfile is "-", the configuration is read from stdin.
-p Probe (load) kernel modules before renaming interfaces. By default ifrename only check
interfaces already loaded, and doesn't auto-load the required kernel modules. This option
enables smooth integration with system not loading modules before calling ifrename.
-d Enable various Debian specific hacks. Combined with -p, only modules for interfaces
specified in /etc/network/interface are loaded.
-i interface
Only rename the specified interface as opposed to all interfaces on the system. The new
interface name is printed.
-n newname
![](/img.php?id=1022527&img=bg24.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 36 of 48
When used with -i, specify the new name of the interface. The list of mappings from the
configuration file is bypassed, the interface specified with -i is renamed directly to newname.
The new name may be a wildcard containing a single '*'.
When used without -i, rename interfaces by using only mappings that would rename them to
newname. The new name may not be a wildcard. This use of ifrename is discouraged,
because inefficient (-n without -i). All the interfaces of the system need to be processed at
each invocation, therefore in most case it is not faster than just letting ifrename renaming all
of them (without both -n and -i).
-t Enable name takeover support. This allow interface name swapping between two or more
interfaces.
Takeover enables an interface to 'steal' the name of another interface. This works only with
kernel 2.6.X and if the other interface is down. Consequently, this is not compatible with
Hotplug. The other interface is assigned a random name, but may be renamed later with
'ifrename'.
The number of takeovers is limited to avoid circular loops, and therefore some complex multi-
way name swapping situations may not be fully processed.
In any case, name swapping and the use of this feature is discouraged, and you are invited to
choose unique and unambiguous names for your interfaces...
-u Enable udev output mode. This enables proper integration of ifrename in the udev framework,
udevd will use ifrename to assign interface names present in /etc/iftab. In this mode the
output of ifrename can be parsed directly by udevd as an IMPORT action. This requires udev
version 107 or later.
-D Dry-run mode. Ifrename won't change any interface, it will only print new interface name, if
applicable, and return.
In dry-run mode, interface name wildcards are not resolved. New interface name is printed,
even if it is the same as the old name.
Be also aware that some selectors can only be read by root, for example those based on
ethtool), and will fail silently if run by a normal user. In other words, dry-run mode under a
standard user may not give the expected result.
-V Verbose mode. Ifrename will display internal results of parsing its configuration file and
querying the interfaces selectors.
Combined with the dry-run option, this is a good way to debug complex configurations or
trivial problems.
![](/img.php?id=1022527&img=bg25.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 37 of 48
6.4 iwevent
iwevent displays Wireless Events received through the RTNetlink socket. Each line displays the
specific Wireless Event which describes what has happened on the specified wireless interface.
This command doesn't take any arguments.
Synopsis
iwevent
Display
There are two classes of Wireless Events.
The first class is events related to a change of wireless settings on the interface (typically done
through iwconfig or a script calling iwconfig). Only settings that could result in a disruption of
connectivity are reported. The events currently reported are changing one of the following settings:
Network ID
SSID
Frequency
Mode
Encryption
All those events will be generated on all wireless interfaces by the kernel wireless subsystem (but only
if the driver has been converted to the new driver API).
The second class of events are events generated by the hardware, when something happens or a
task has been finished. Those events include:
New Access Point/Cell address
The interface has joined a new Access Point or Ad-Hoc Cell, or lost its association with it.
This is the same address that is reported by iwconfig.
Scan request completed
A scanning request has been completed, results of the scan are available (see iwlist).
Tx packet dropped
A packet directed at this address has been dropped because the interface believes this node
doesn't answer anymore (usually maximum of MAC level retry exceeded). This is usually an
early indication that the node may have left the cell or gone out of range, but it may be due to
fading or excessive contention.
Custom driver event
![](/img.php?id=1022527&img=bg26.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 38 of 48
Event specific to the driver. Please check the driver documentation.
Registered node
The interface has successfully registered a new wireless client/peer. Will be generated mostly
when the interface acts as an Access Point (mode Master).
Expired node
The registration of the client/peer on this interface has expired. Will be generated mostly
when the interface acts as an Access Point (mode Master).
Spy threshold crossed
The signal strength for one of the addresses in the spy list went under the low threshold or
went above the high threshold.
Most wireless drivers generate only a subset of those events, not all of them, the exact list depends on
the specific hardware/driver combination. Please refer to driver documentation for details on when
they are generated, and use iwlist(8) to check what the driver supports.
![](/img.php?id=1022527&img=bg27.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 39 of 48
6.5 iwgetid
iwgetid is used to find out the NWID, ESSID or AP/Cell Address of the wireless network that is
currently used. The information reported is the same as the one shown by iwconfig, but iwgetid is
easier to integrate in various scripts.
By default, iwgetid will print the ESSID of the device, and if the device doesn't have any ESSID it will
print its NWID.
The default formatting output is pretty-print.
Synopsis
iwgetid [interface] [--raw] [--scheme] [--ap] [--freq]
[--mode] [--protocol] [--channel]
Parameters
--raw This option disables pretty-printing of the information. This option is orthogonal to the other
options (except --scheme), so with the appropriate combination of options you can print the
raw ESSID, AP Address or Mode.
This format is ideal when storing the result of iwgetid as a variable in Shell or Perl scripts or to
pass the result as an argument on the command line of iwconfig.
--scheme
This option is similar to the previous one, it disables pretty-printing of the information and
removes all characters that are not alphanumeric (like space, punctuation and control
characters).
The resulting output is a valid Pcmcia scheme identifier (that may be used as an argument of
the command cardctl scheme). This format is also ideal when using the result of iwgetid as a
selector in Shell or Perl scripts, or as a file name.
--ap Display the MAC address of the Wireless Access Point or the Cell.
--freq Display the current frequency or channel used by the interface.
--channel
Display the current channel used by the interface. The channel is determined using the
current frequency and the frequency list provided by the interface.
--mode Display the current mode of the interface.
--protocol
![](/img.php?id=1022527&img=bg28.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 40 of 48
Display the protocol name of the interface. This allows identifying all the cards that are
compatible with each other and accept the same type of configuration.
This can also be used to check Wireless Extension support on the interface, as this is the
only attribute that all drivers supporting Wireless Extension are mandated to support.
![](/img.php?id=1022527&img=bg29.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 41 of 48
7 WPA/WPA2 Security
wpa_supplicant is a user space program used to set and manage wireless connections secured
through WPA/WPA2 both Personal and Enterprise. All the parameters used to secure the wifi
connection can be set into /etc/wpa_supplicant.conf configuration file.
wpa_supplicant can be simply run through a command shell.
wpa_supplicant implements a control interface that can be used by external programs such as wpa_cli
to control the operations of the wpa_supplicant itself and to get status information and event
notifications.
For further information about wpa_supplicant supported WPA/IEEE 802.11i features and Enterprise
modes please have a look to paragraph 8.2.
Please have a look to paragraph 1.4.2 for information about wpa_supplicant/wpa_cli License.
7.1 Configuring wpa_supplicant
wpa_supplicant is configured using a text file that lists all accepted networks and security policies,
including pre-shared keys. See example configuration file, wpa_supplicant.conf, for detailed
information about the configuration format and supported fields. wpa_supplicant.conf configuration file
should be saved into /etc/ folder.
wpa_supplicant configuration can also be changed by the means of wpa_cli as shown in 7.3.
Simple example configurations files:
For WPA Personal:
ctrl_interface=/var/run/wpa_supplicant
network={
ssid="example wpa network"
key_mgmt=WPA-PSK
proto=WPA
pairwise=TKIP
group=TKIP
psk="secret passphrase"
}
For WPA2 Personal:
![](/img.php?id=1022527&img=bg2a.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 42 of 48
ctrl_interface=/var/run/wpa_supplicant
network={
ssid="example wpa2 network"
key_mgmt=WPA-PSK
proto=WPA2
pairwise=CCMP
group=CCMP
psk="secret passphrase"
}
For WPA+WPA2 Personal:
ctrl_interface=/var/run/wpa_supplicant
network={
ssid="example wpa_wpa2 network"
key_mgmt=WPA-PSK
proto=WPA WPA2
pairwise=TKIP CCMP
group=TKIP CCMP
psk="secret passphrase"
}
For WPA/WPA2 Enterprise using EAP-TLS:
ctrl_interface=/var/run/wpa_supplicant
network={
ssid="example wpa2-eap network"
key_mgmt=WPA-EAP
proto=WPA WPA2
pairwise=TKIP CCMP
group=TKIP CCMP
eap=TLS
ca_cert="/etc/cert/ca.pem"
private_key="/etc/cert/user.p12"
private_key_passwd="PKCS#12 passhrase"
}
![](/img.php?id=1022527&img=bg2b.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 43 of 48
7.2 Running wpa_supplicant
wpa_supplicant can be run simply typing:
# wpa_supplicant –Dunifi -ieth0 -c/etc/wpa_supplicant.conf –d
7.3 wpa_cli
wpa_cli is a tool that can be used to control the operations of the wpa_supplicant and to get status
information and event notifications.
Synopsis:
wpa_cli [-p<path to ctrl sockets>] [-i<ifname>] [-hvB] [-a<action file>]
[-P<pid file>] [-g<global ctrl>] [command..]
-h = help (show this usage text)
-v = shown version information
-a = run in daemon mode executing the action file based on events from
wpa_supplicant
-B = run a daemon in the background
Parameters:
status [verbose] = get current WPA/EAPOL/EAP status
mib = get MIB variables (dot1x, dot11)
help = show this usage help
interface [ifname] = show interfaces/select interface
level <debug level> = change debug level
license = show full wpa_cli license
logoff = IEEE 802.1X EAPOL state machine logoff
logon = IEEE 802.1X EAPOL state machine logon
set = set variables (shows list of variables when run without arguments)
pmksa = show PMKSA cache
reassociate = force reassociation
reconfigure = force wpa_supplicant to re-read its configuration file
preauthenticate <BSSID> = force preauthentication
identity <network id> <identity> = configure identity for an SSID
password <network id> <password> = configure password for an SSID
new_password <network id> <password> = change password for an SSID
pin <network id> <pin> = configure pin for an SSID
otp <network id> <password> = configure one-time-password for an SSID
passphrase <network id> <passphrase> = configure private key passphrase for an SSID
![](/img.php?id=1022527&img=bg2c.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 44 of 48
bssid <network id> <BSSID> = set preferred BSSID for an SSID
list_networks = list configured networks
select_network <network id> = select a network (disable others)
enable_network <network id> = enable a network
disable_network <network id> = disable a network
add_network = add a network
remove_network <network id> = remove a network
set_network <network id> <variable> <value> = set network variables (shows list of variables when
run without arguments)
get_network <network id> <variable> = get network variables
save_config = save the current configuration
disconnect = disconnect and wait for reassociate/reconnect command before connecting
reconnect = like reassociate, but only takes effect if already disconnected
scan = request new BSS scan
scan_results = get latest scan results
get_capability <eap/pairwise/group/key_mgmt/proto/auth_alg> = get capabilies
ap_scan <value> = set ap_scan parameter
stkstart <addr> = request STK negotiation with <addr>
terminate = terminate wpa_supplicant
![](/img.php?id=1022527&img=bg2d.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 45 of 48
8 Appendix
8.1 WPA/WPA2 (IEEE 802.11i)
Wi-Fi Protected Access (WPA and WPA2) is a class of systems to secure Wi-Fi networks.
It was created in response to several serious weaknesses researchers had found in the previous
system, Wired Equivalent Privacy (WEP).
WPA implements the majority of the IEEE 802.11i standard, and was intended as an intermediate
measure to take the place of WEP while 802.11i was prepared.
WPA2 implements the mandatory elements of 802.11i. In particular, it introduces a new AES-based
algorithm, CCMP, that is considered fully secure.
8.1.1 Personal Mode (PSK)
Personal mode (also known as Pre-shared key mode, PSK) is designed for home and small office
networks that don't require the complexity of an IEEE 802.1X authentication server. Each user must
enter a passphrase to access the network. The passphrase may be from 8 to 63 printable ASCII
characters or 64 hexadecimal digits (256 bits). If you choose to use the ASCII characters, a hash
function reduces it from 504 bits (63 characters * 8 bits/character) to 256 bits (using also the SSID).
The passphrase may be stored on the user's computer at their discretion under most operating
systems to avoid re-entry. The passphrase must remain stored in the Wi-Fi access point.
8.1.2 Enterprise Mode
Enterprise networks may use WPA/WPA2 along with 802.1X, an IEEE standard for port-based
Network Access Control, to make WiFi security stronger.
IEEE 802.1X provides authentication to devices wanting to join a wireless network, establishing a
point-to-point connection or preventing access if authentication fails.
Enterprise wireless LANs usually use RADIUS authentication servers to perform IEEE 802.1X
authentication using EAP (Extensible Authentication Protocol) authentication frameworks.
8.2 WPA Supplicant
wpa_supplicant is the IEEE 802.1X/WPA component that is used in the client stations and is designed
to be a "daemon" program that runs in the background and acts as the backend component controlling
the wireless connection. It implements key negotiation with a WPA Authenticator and it controls the
roaming and IEEE 802.11.
![](/img.php?id=1022527&img=bg2e.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 46 of 48
Following steps are used when associating with an AP using WPA:
• wpa_supplicant requests the kernel driver to scan neighbouring BSSes
• wpa_supplicant selects a BSS based on its configuration
• wpa_supplicant requests the kernel driver to associate with the chosen BSS
• if WPA-EAP: integrated IEEE 802.1X Supplicant completes EAP authentication with the
authentication server (proxy by the Authenticator in the AP)
• If WPA-EAP: master key is received from the IEEE 802.1X Supplicant
• If WPA-PSK: wpa_supplicant uses PSK as the master session key
• wpa_supplicant completes WPA 4-Way Handshake and Group Key Handshake with the
Authenticator (AP). WPA2 has integrated the initial Group Key Handshake into the 4-Way
Handshake.
• wpa_supplicant configures encryption keys for unicast and broadcast
• normal data packets can be transmitted and received
8.2.1 Supported features
Both WPA-Personal and WPA-Enterprise are supported.
Supported WPA/IEEE 802.11i features
• WPA-PSK ("WPA-Personal")
• WPA with EAP (e.g., with RADIUS authentication server) ("WPA-Enterprise")
• key management for CCMP, TKIP, WEP104, WEP40
• WPA and full IEEE 802.11i/RSN/WPA2
• RSN: PMKSA caching, pre-authentication
Supported EAP methods (IEEE 802.1X Supplicant)
• EAP-TLS
• EAP-PEAP/MSCHAPv2 (both PEAPv0 and PEAPv1)
• EAP-PEAP/TLS (both PEAPv0 and PEAPv1)
• EAP-PEAP/GTC (both PEAPv0 and PEAPv1)
• EAP-PEAP/OTP (both PEAPv0 and PEAPv1)
• EAP-PEAP/MD5-Challenge (both PEAPv0 and PEAPv1)
• EAP-TTLS/EAP-MD5-Challenge
• EAP-TTLS/EAP-GTC
• EAP-TTLS/EAP-OTP
• EAP-TTLS/EAP-MSCHAPv2
• EAP-TTLS/EAP-TLS
• EAP-TTLS/MSCHAPv2
• EAP-TTLS/MSCHAP
• EAP-TTLS/PAP
• EAP-TTLS/CHAP
• EAP-SIM
![](/img.php?id=1022527&img=bg2f.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 47 of 48
• EAP-AKA
• EAP-PSK
• EAP-FAST
• EAP-PAX
• EAP-SAKE
• EAP-IKEv2
• EAP-GPSK (experimental)
8.2.2 Source code architecture
wpa_supplicant
Frontend control interface
wpa_cli
Event loop
Ctrl i/f
Configuration
L2 packet
Driver
events
Driver i/f
unifi
Kernel Network Device
Driver
WPA/WPA2
State machine
EAPOL State
machine
EAP State machine
Crypto TLS
EAPOL
and
pre-auth
from kernel
EAP METHODS
EAP-TLS
EAP-PEAP
EAP-TTLS
EAP-GTC
EAP-SIM
EAP-PSK
EAP-PAX
EAP-MD5
EAP-OTP
EAP-AKA
EAP-FAST
EAP-MSCHAPv2
others
![](/img.php?id=1022527&img=bg30.png)
WE865-DUAL Software User Guide
1vv0300788 Rev. 0 08/08/08
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 48 of 48
9 Acronyms and Abbreviations
AES Advanced Encryption Standard
AP Access Point
CCMP Counter Mode with Cipher Block Chaining Message Authentication Code Protocol
EAP Extensible Authentication Protocol
LAN Local Area Network
OS Operating System
PC Personal Computer
PDA Personal Digital Assistant
PSK Pre-Shared Key
RADIUS Remote Authentication Dial In User Service
RISC Reduced Instruction Set Computer
SDIO Secure Digital Input Output
VOIP Voice Over IP
WEP Wired Equivalent Privacy
WPA/WPA2 Wi-Fi Protected Access
