Telit Mobile Terminals S p A SAT550 TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST User Manual TECHNICAL MANUAL

Telit Mobile Terminals S.p.A. TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST TECHNICAL MANUAL

TECHNICAL MANUAL

Telital GS/GSM
DUAL MODE USER TERMINAL
TECHNICAL
MANUAL
Code: 1–vv0300361
Rev. 1
Jul. 19, 1999
REV SUBJECT OF MODIFICATION DATE SIGNATURE
REVISION INDEX
TECHNICAL MANUAL
Telital GS/GSM
DUAL MODE USER TERMINAL
MOD.
1 Updated to HW revision 1 19.07.99
INDEX
CAP TITLE REV
1 INTRODUCTION 1
2 MECHANICAL VIEW 0
3 TECHNICAL SPECIFICATIONS 1
4 LIST OF MODIFICATIONS 1
5 BLOCK DIAGRAMS 0
6 ELECTRIC DIAGRAMS 1
7 PARTS LIST 0
8 PHOTOS AND ASSEMBLIES 0
9 USER GUIDE 0
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 2
1 INTRODUCTION
The Telital GS/GSM Dual Mode User Terminal is an handheld cellular radiotelephone
operating under the terrestrial GSM 900 MHz / satellite Globalstar system at frequen-
cies over 1,5GHz at public radiotelephone network.
The design and development of the Telital GS/GSM Dual Mode User Terminal is in line
with the following documents:
TBR19 - Editon 5 – European digital cellular telecommunications system (Phase II);
Attachment requirements for Global System for Mobile communications (GSM) mobile
stations; access.
TBR20 - Editon 3 – European digital cellular telecommunications system (Phase II);
Attachment requirements for Global System for Mobile communications (GSM) mobile
stations; Telephony.
TBR41 - Edition 1 – Satellite Personal Communications Networks (S–PCN); Mobile
Earth Stations (MESs), including handheld earth stations, for S–PCN in the 1,6/2,4 GHz
bands under the Mobile Satellite Service (MSS); Terminal essential requirements.
Qualcomm specifications 80–25015–1 X6 date 07.09.97
This apparatus is composed of the following accessories:
– Universal Battery charger;
– Data Terminal Adapter;
– Car Kit.
These accessories are described on dedicated user manuals.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 2 of 2
1.1 DIFFERENCES BETWEEN HW REVISION 0 AND HW REVISION 1
The differences between the HW release 0 and the HW release 1 are the following:
CS710C Changed microphone from Electret to BOSUNG;
The following components are added: C166, C164.
CS680B The following components are changed: C18, C19, R25, C113, R31, U11
The following components are added: R133, C64, R130, TP42, TP43.
For a detailed description of changes see Parag.4 List of modifications.
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1

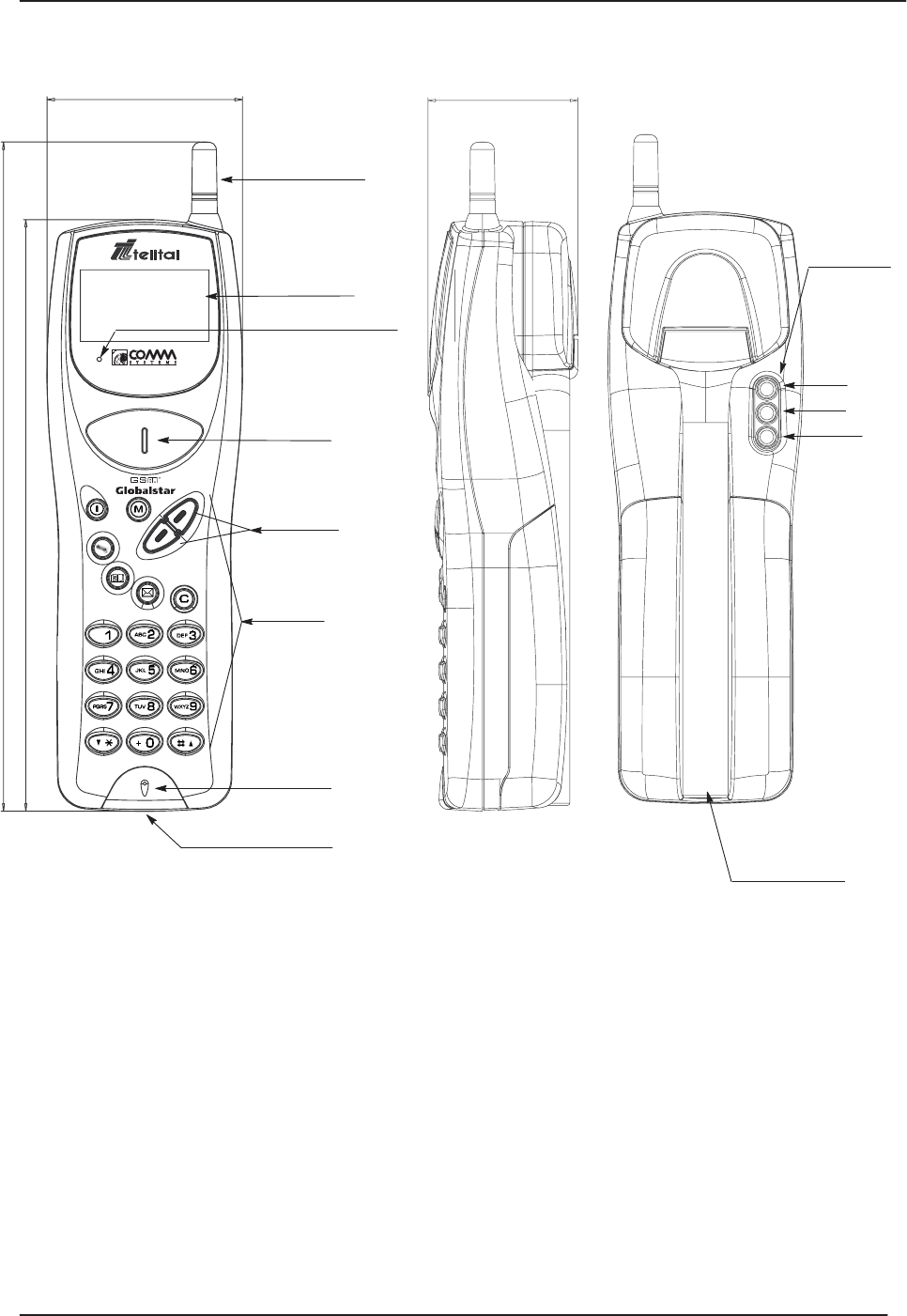

2 MECHANICAL VIEW

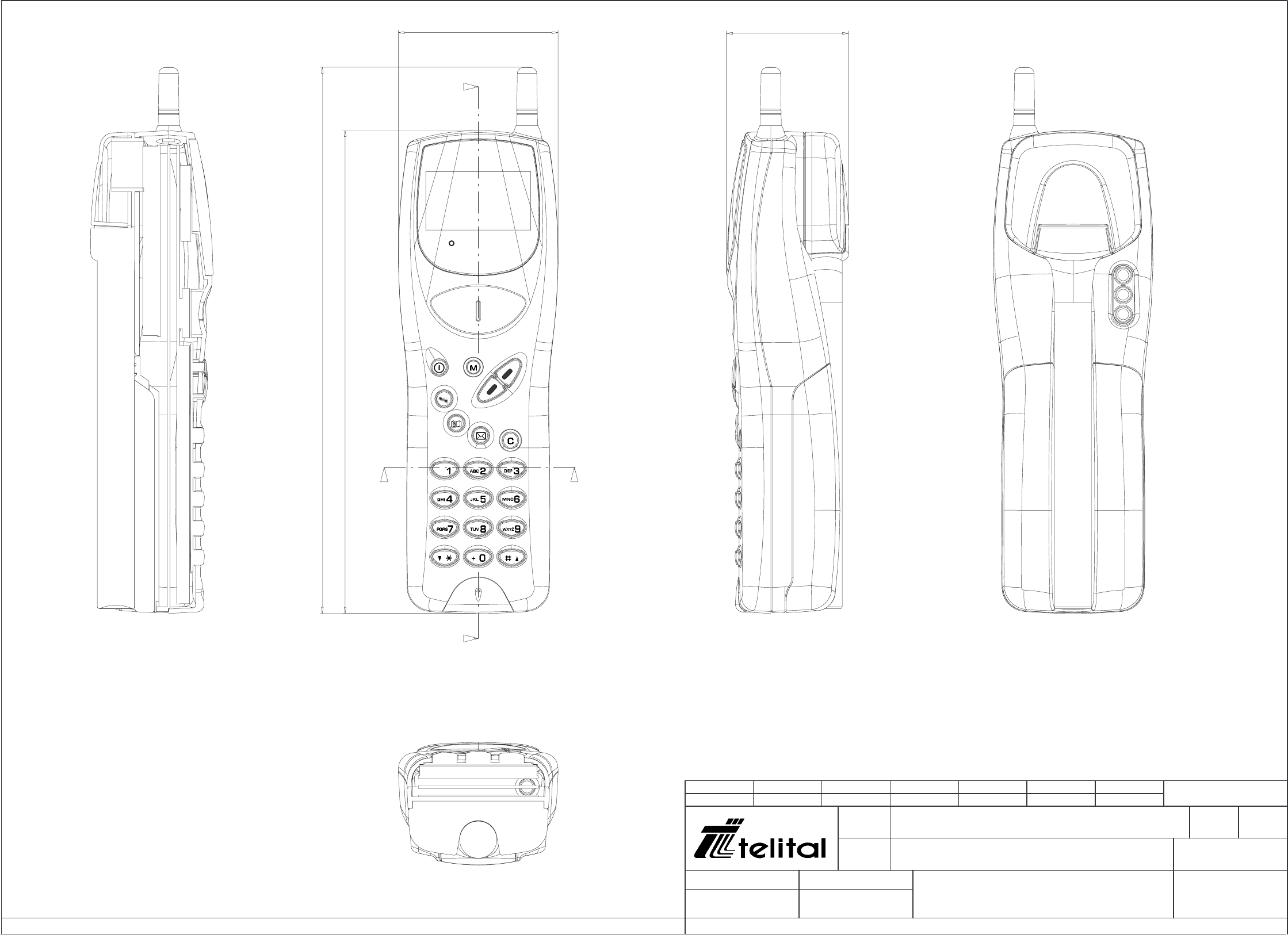

2.1 Mechanical view Telital GS/GSM Dual Mode User Terminal
Dis. Verif.
Progetto
Denominazione dell’oggetto: CODICE
N.fogli
Sostituisce il N.
Foglio
Valido da:
Data
MODIFICA
Scala:
DATA
Toll.gen.
Materiale:
Annotazioni:
Il presente disegno a termini di legge non deve essere utilizzato per la costruzione del particolare ne’ riprodotto o reso pubblico senza il nostro permesso scritto.
0080
Lucà
26.03.99
1:1 11
MECHANICAL VIEW TELITAL GS/GSM DMUT 40080NT10032
A
A
BB
SECTION A–A
SECTION B–B
198
50
65.5
224
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 13
3 TECHNICAL SPECIFICATIONS
The scope of this document is to summarize the technical characteristics of the Telital
GS/GSM Dual Mode User Terminal.
For detailed informations refer to TECHNICAL SPECIFICATION code 30080ST10010A.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 2 of 13
3.1 Operating frequencies
3.1.1 GSM
The GSM operating frequencies are:
TX frequencies: 890.2 914.8 MHz
RX frequencies: 935.2 959.8 MHz
The channel (ARFCN) are numbered from 1 to 124 and frequency offset between TX and
RX frequency is 45 MHz.
3.1.2 GLOBALSTAR
The satellite operating frequencies are the standard Globalstar frequencies.
TX frequencies: 1618.11 MHz
Bandwidth: 15.99MHz
Channel bandwidth: 1.23MHz
Minimum channel shift: 30KHz
Number of shift: 0 511
Number of preferred channels: 13
Preferred channels: 4, 45, 86, 127, 168, 209, 250,
291, 332, 373, 414, 455, 496.
Rx frequencies: 2491.77 MHz
Bandwidth: 15.99MHz
Channel bandwidth: 1.23MHz
Minimum channel shift: 123KHz
Number of shift: 0 127
Number of preferred channels: 13
Preferred channels: 3, 13, 23, 33, 43, 53, 63, 73,
83, 93, 103, 113, 123.
3.2 Transmitter output power
3.2.1 GSM
a) RF power on 50 Ohm
The GSM section of the DMUT is a class 4 radiotelephone according to standard ETSI reg-
ulation that fix the limit at 2 Watts (+33dBm) on 50 Ohm;
In normal test conditions the transmitter nominal power range is between +31.5 dBm and
+32.5 dBm on 50 Ohm.
With a supply voltage range between 6.7V and 8.4V and temperature range between
–10°C and +55°C the transmitter power range is between +30.5 dBm and +32.5 dBm on
50 Ohm.
b) ERP power
Not supplied in the GSM specification.
The EIRP power will be measured in anechoic chamber.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 3 of 13
3.2.2 GLOBALSTAR
Output power >23 dBm
+26 dBm
3.3 Reference sensitivity
3.3.1 GSM
Sensitivity on 50 Ohm
The sensitivity is according to the GSM specification for the class 4 portable terminal;
The standard ETSI regulation para 6 fix a limit of –102dBm.
The goal limit is –104 dBm for an Rx Quality < 0.2 – 0.4%.
3.3.2 GLOBALSTAR
Ref. Qualcomm specifications 80–25015–1 X6.
3.4 Antenna
3.4.1 GSM
The antenna for the GSM band is ALLGON 3576.2
3.4.2 Globalstar

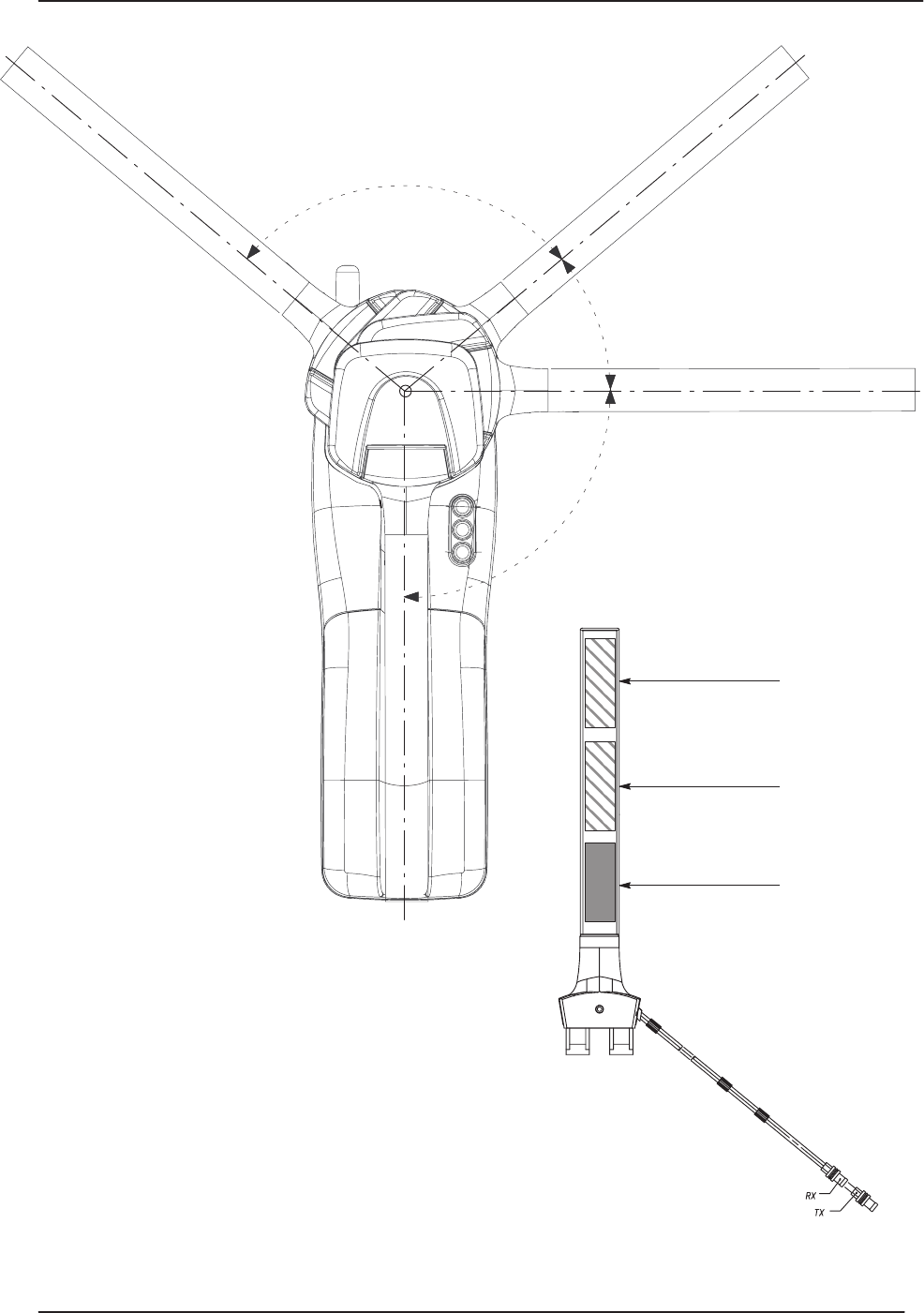

The antenna for the satellite Globalstar band is composed of more parts and is assembled
on the telephone in way that can rotate on 4 positions.
The satellite antenna in its rotating stalk contains an LNA for the Rx section, the receiving
part Rx and the transmitting part Tx.
An optical sensor assembled on the body of the telephone under the antenna rotor, acti-
vates the satellite transmission when the antenna is rotated in the positions 1, 2 and 3. In
the intermediary positions the transmitter of the satellite section is always disabled.
In the position 0 the telephone works only on the GSM band.
The rotation of the antenna is prevented over the position 3.
3.5 Audio characteristics
3.5.1 Microphone
The telephone uses a microphone PRIMO type EM131S2B2.
This is inserted in a rubber gasket.
3.5.1.1 Microphone sensitivity
The typical level is 3mV typical with a –4.7dBPa signal SPL at f=1kHz
3.5.1.1.1 Microphone electric level
The typical level is >570mVrms with signal AF of 3mV @ f=1kHz.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 4 of 13
3.5.1.1.2 Microphone distorsion
The typical level is <2% with range of frequency 300Hz to 3400Hz.
3.5.1.2 Buzzer
The Buzzer used into the DMUT is the MUT–03A STAR.
3.5.1.2.1 Acoustic pressure of the buzzer
The value of acoustic pressure is –41dBV.
3.6Device voltage supply
Nominal voltage 7.4 V
Working range 7 V B 8.4 V
Power off voltage range: 6.8V
3.6.1 Power consumption
The following table lists the estimated current that flows from the 7.2V battery with a
switching circuit efficiency h=0.85. The values are expressed in mA.
GSM Baseband G*Baseband GSM Radio G* Radio Total
GSM Mode : RxTx
@ Tx level=5 83 3.84 262 0.84 349.68
GSM Mode : idle 10.2 3.84 1.4 0.84 16.28
G* Mode : RxTx 60 219.6 1.56 664.44 945.0
G* Mode : idle @slot=1 10.2 129 1.56 97.44 238.2
G* Mode : idle @slot=0.2 10.2 26.4 1.56 19.44 57.6
3.6.2 Battery pack and battery life
The DMUT will be power supplied by a PP35 1350mAh battery pack composed of two Li
Ion rechargeable serial elements.
3.6.2.1 Battery life in GSM mode
Operative mode Rx/Tx* Idle
Battery life 3.86h 83h
* @ Tx level=5
3.6.2.2 Battery life in Globalstar mode
Operative mode Rx/Tx Idle
Battery life 1.43h 5.66h @slot = 1
23.43h @slot = 0.2
In conversation: 5.5 hrs
In idle: 70 hrs
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 5 of 13

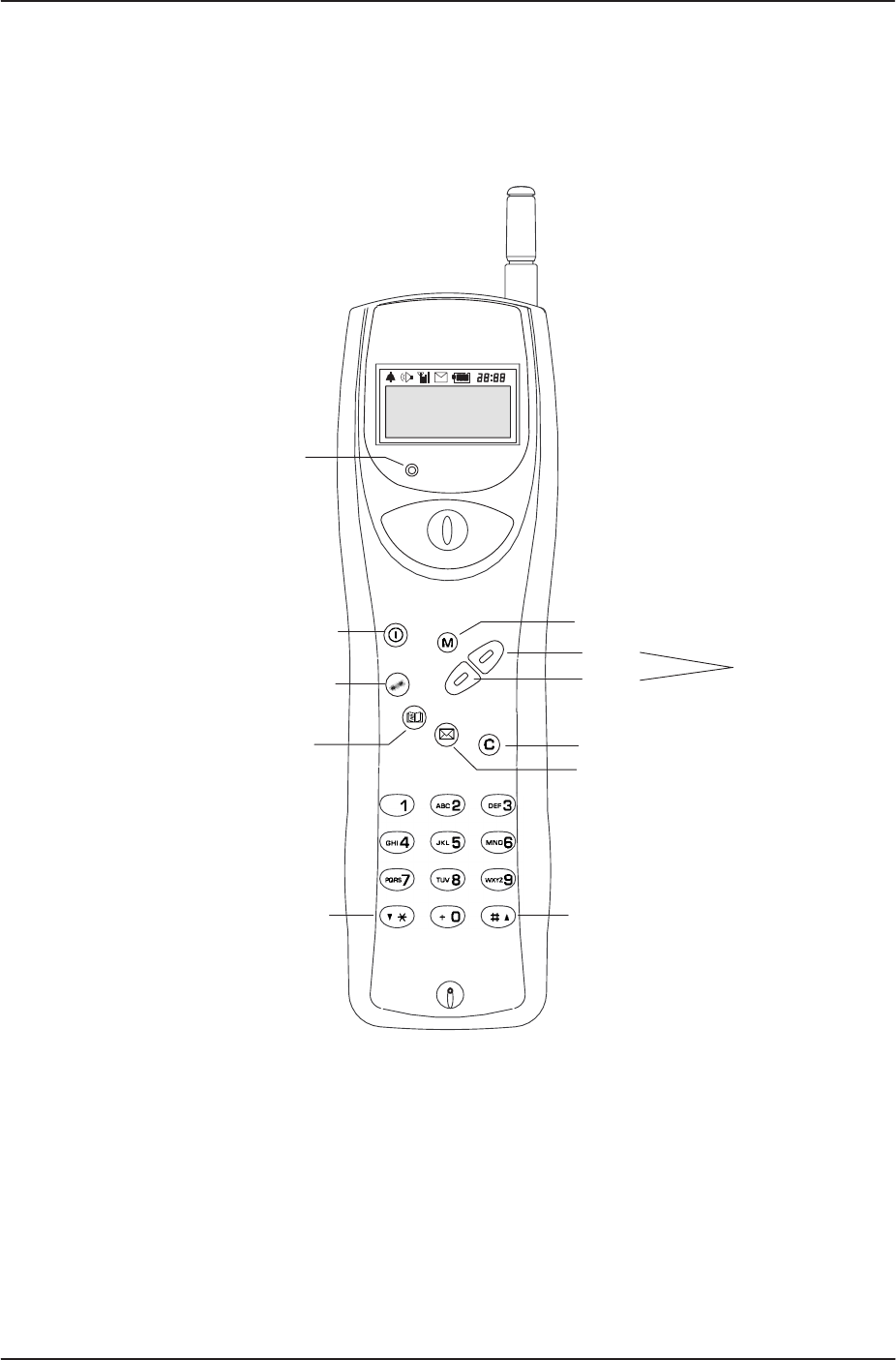

3.7 Keypad
The keypad is composed by 20 keys and lighted with 12 leds.
The key functions, related to the specific operative conditions, are shortly listed on the table
below.
Key Function
END function to terminate a call;
SEND function to answer an incoming call;
Mode Switch to define the DMUT operating mode;
M Function MENU to enter in the DMUT operative menu;
Character and number cancellation in edit mode;
Note Book function;
SMS menu;
DMUT power ON/OFF;
Menu scroll–up function;
Menu scroll–down function;
1...9 Alphanumeric keys
3.8 Display
Type SEK1054B5A EPSON LCD, FSTN, positive, reflective, graphic.
The display will be backlighted with six leds.
3.9 Data service
Use of a Data Terminal Adapter for the following functions:
Full emulation of analog modem to allows the compatibility with the existent data commu-
nication programs.
Class 1 (EIA/TIA 578) and class 2 (TR29.2) command for compatibility with fax.
Max data rate 9600 bit/s.
In Globalstar mode the DTA will support the data service as described on the Globalstar
standard specifications.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 6 of 13
3.10Software functionality and user interface
The software installed in the DMUT supports all the functions in table.
Radio interface Radio Protocol Phase 2
Speech Coding Full Rating
SIM SIM 3/5 volt
SIM Toolkit compliant GSM 11.14
The functionalities supported by the user interface of the telephone are phase 2 and are
listed as follows:
Management of local security, with SIM Lock, keyboard lock and security code request
at power–up;
Call control function, with call duration, cost indication and UDUB function;
Volume control and ringer setting function, ringer and signaling tones with possibility
of activation of alarm also with telephone powered off;
Display management with contrast level regulation and duration of backlight;
Messages visualized setup in ready state and its language, visualization of the IMEI and
the software release of the telephone;
Font Management uppercase/lowercase and international (no Chinese);
SIM related functions, as the activation/deactivation of the numbers in notebook FDN,
ADN and PIN. Extension to the PIN2 of the possibility of insertion of PUK2 in case of lock.
The telephone supports besides the functionalities of class 2 of the SIM Application Toolkit
with the implementation of the relative commands and procedures at MMI level. Imple-
mentation of two levels SIM lock.
Tones Management DTMF;
Clock Management with time and alert activation indications for the wake–up service and
for the programmed telephone power–up;
Indication of the call status and service availability;
Automatic call of busy number and automatic answer;
Visualization and selection of the GSM providers;
Management of the Supplementary Services (SS) of Call Barring (with related indica-
tion, also for SMS), Call Forwarding (with related indication), Advice of Charge, Calling Line
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 7 of 13
Identification Presentation, Calling Line Identification Restriction, Unstructured SS Mobile
Originated, Call Waiting, other party Call Waiting Indication, Call Hold, other party Hold /
Retrieved Indication, Multi Party;
Short Message Service Mobile Terminated with signaling of new incoming SMS, reading
and SIM full, Mobile Originated with writing, storing in SIM and dispatch, Cell Broadcast
compatible with CB–DRX (discontinuous reception) for energy saving.
Special Features, as the list of the incoming not answered calls;
Indications on the battery status through predefined icon on the display with tabs show-
ing the charge level, bitmap on graphic area indicating the state of charge in progress, best
terminated or failed for damaged battery and indication of the battery pack temperature
during the charge.
Management of the language of menu interface. It is possible to set the DMUT from
the language menu up to 16 languages.
Currently the available languages are: Italian, English, German, French, Polish, Norwe-
gian, Spanish, Greek, Hungarian, Czech, Portuguese.

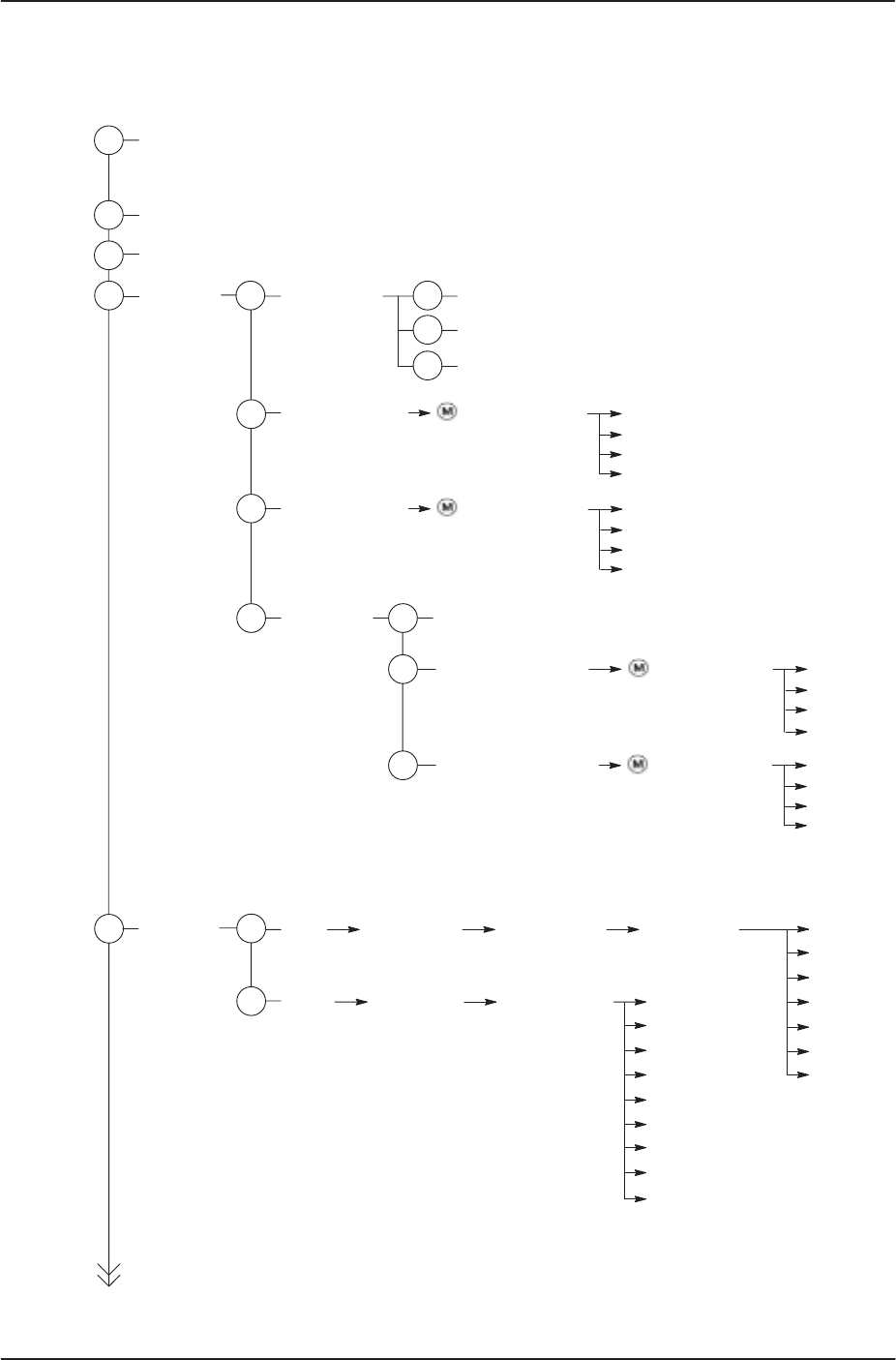

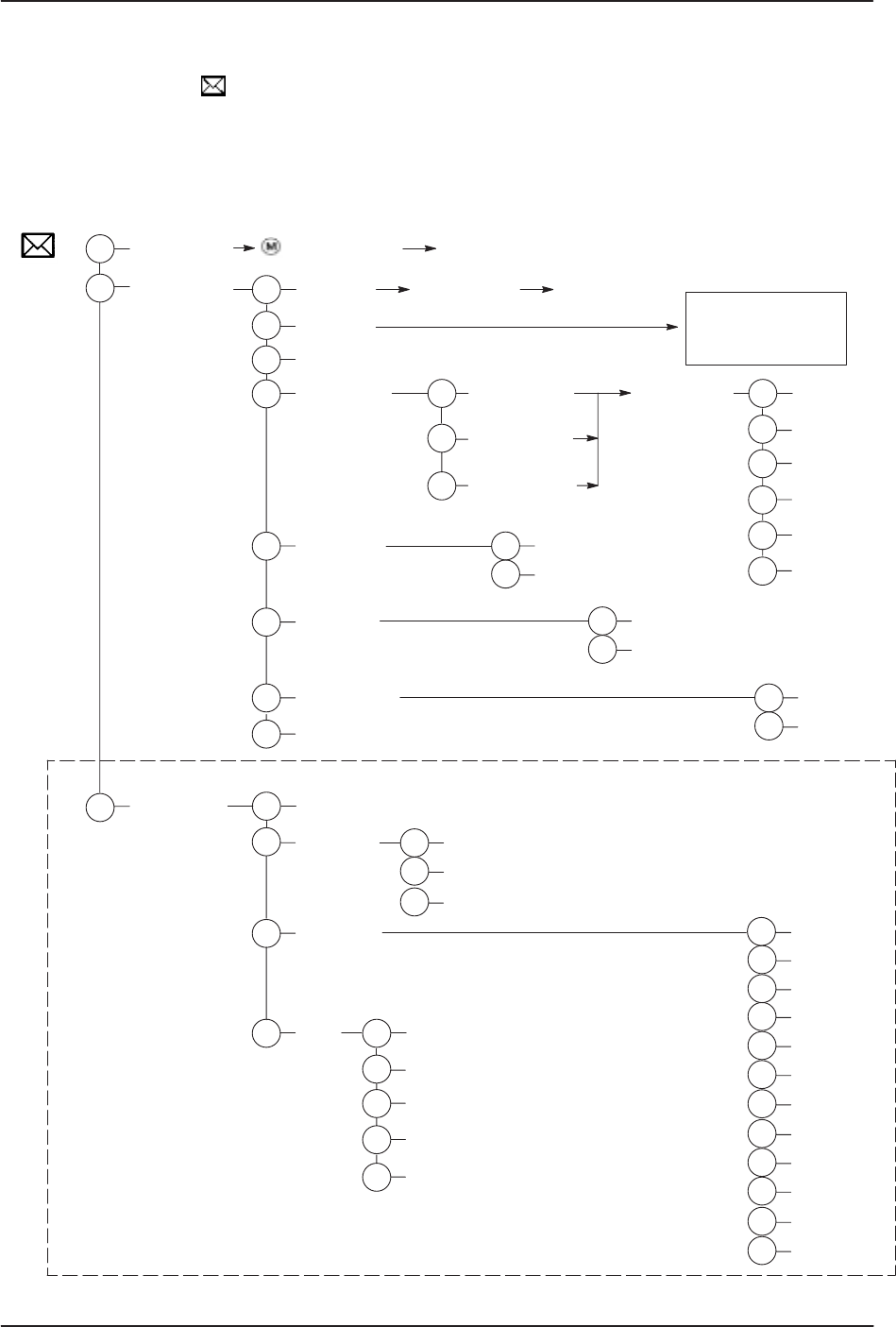

The user interface of the telephone is structured in the following menus:
Main menu pressing the ”M” key and divided in the following submenus: ”Own number”,
”Missed calls”, ”Call divert”, ”Clock”, ”Settings”, ”Security”, ”GSM Networks”, ”Call control”,
”Information”.
When a Proactive SIM is inserted, it is available the SIM Toolkit menu identified by number
item 0 whose elements are determined by the service provider;
SMS Menù, accessible with the key, containing all related functions for the messages
SMS management;
Call related menù, available only during a call, which allows the access to the call related
Services and other possible functions only in this state.
Phone book menu, accessible pressing the ”M” key and pressing again for a long time
the same ”M” key.
It makes available the functions for the transfer between ADN and FDN, the insertion of
new records, the cancellation of the records and the visualization of the information related
to the phonebook stored on the SIM;
Customizable Menù. At any level of the main menù it is associated a number that can be
used to made a fast selection of a menu or submenu item.
3.10.1 Clock
The internal clock besides the normal visualization of the time, allows to set the alarm and
the telephone power–up.
The clock is autonomously powered by a not rechargeable lithium battery with autonomy
of about 5 years.
3.10.2 Vehicularization
For the vehicularization of the DMUT is used a CAR–KIT.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 8 of 13
3.11 Electrical interface
3.11.1 Bottom connector
The 20 pin bottom connector SO2 HIROSE MQ168–QC–20P/4 allows the DMUT inter-
facement with the accessories as Car Kit, Battery charger, Data Terminal Adapter.
The four pins from 21 to 24 allows the connection of battery pack.
PIN NAME A/D IN/OUT DESCRIPTION
1 +VBATT A IN +10.4V from battery charger
2 DM_TX D OUT TX serial line debug monitor G*edge
3 DM_RX D IN RX serial line debug monitor G* edge
4 DM_RTS D OUT Request To Send debug monitor G*edge
5 DM_CTS D IN Clear To Send debug monitor G*edge
6 DATA_GS_TX D OUT Data transmission line in G* mode
7 DATA_GS_RX D IN Data reception line in G*mode
8 GSM_TX D OUT Data transmission and monitor line in GSM
mode
9 GSM_RX D IN Data reception and monitor line in GSM
mode
10 AXE D IN External device connection signal
11 SW_BATT A OUT Power supplied to external device con-
nected with AXE = 0 V
12 CAR_PCM_CLK D OUT CLOCK PCM connection to CAR KIT
13 CAR_PCM_DOUT D OUT Data OUT PCM connection to CAR KIT
14 CAR_PCM_DIN D IN Data IN PCM connection to CAR KIT
15 CAR_PCM_SYNC D OUT SYNC PCM connection to CAR KIT
16 GS/GSM D OUT Signalling for the DMUT operative mode
GSM or G*
17 ON–OFF D IN Signal for DMUT remote power on
18 CAR_AUDIO_IN D IN Analog audio from CAR KIT
19 CAR_AUDIO_OUT –––– Analog Audio to CAR KIT
20 GND A –––– Ground
21 NTC A –––– Pin used for reading the internal tempera-
ture of battery pack by an NTC or other
sensor.
22 GND A –––– Ground Battery pack
23 +VBATT –––– Positive Battery pack
24 SPARE ––––
Legend: A: Analog; D: Digital 0 3V CMOS
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 9 of 13
3.11.2 SIM
The DMUT uses a SIM card type ”PLUG–IN”.
The following table list the signals of SIM connector.
PIN NAME A/D IN/OUT DESCRIPTION
1 C1,CCVCC A IN SIM 5Vcc power supply.
2C2, RST D OUT RESET command active high coming from uP and
managed by the program protocols.
3 C3,CCLK D OUT CLOCK supplied from uP for data management.
4 C5,GND A IN SIM circuit ground termination.
5 C6,NC ––– ––– Not Connected.
6 C7,I/O D IN/OUT Input/output data for the SIM.
3.11.3 Test connector
This connector allows the connection of DMUT with test equipments for the maintenance,
and production test.
ELCO connector Torson 2 x 5pins vertical SMD low profile.
P/N 23–5016–2005–10–081. The following table list the signals of test connector.
PIN NOME A/D IN/OUT DESCRIPTION
1 WAKEUP D IN Signal for remote power on.
2 RST D IN Reset
3 TXD1 D OUT Data transmission from 80386 serial line #1
4 RXD1 D IN Data reception to 80386 serial line #1
5 GND A –– Ground
6 DWLD D IN Download in G* mode enabled
7 INT3 D IN Not used
8 GSM_TX_DATA D OUT Data transmission and monitor line in GSM
mode
9 GSM_RX_DATA D IN Data reception and monitor line in GSM
mode
10 +VBATT A –– Positive 7.4V power supply
Legenda: A: Analogico; D: Digitale 0 3V CMOS
3.11.4 RF signals connector
The DMUT has three coaxial connectors to made the connection with the following:
– Band L external antenna (Tx satellite)
– Band S external antenna (Rx satellite)
– GSM external antenna (Tx /Rx)
3.11.5 DAI connector
Pads on pcb.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 10 of 13
3.12 Physical characteristics
3.13 Dimensions
Lenght: 224 mm
Width: 65.5 mm
Thickness: 50 mm
3.14 Weight
400g battery pack included.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 11 of 13
3.15 Figures
198
65.5 50
Display LCD
Mode selection Led
Earpiece
Key pad
Microphone
Soft keys
Bottom connector
Antenna GSM
Antenna G*
Car kit
connector
224
GSM
RX
TX

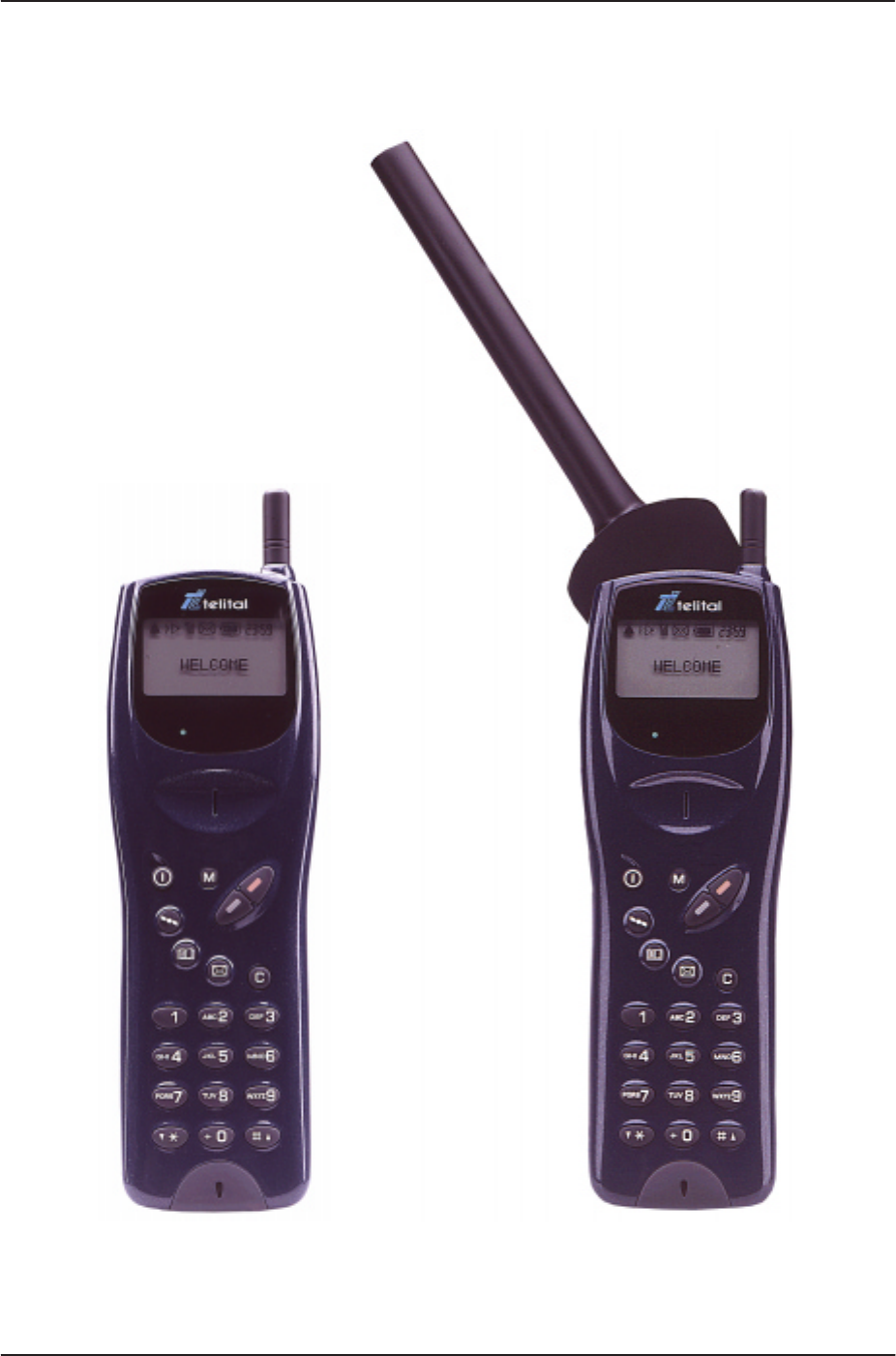

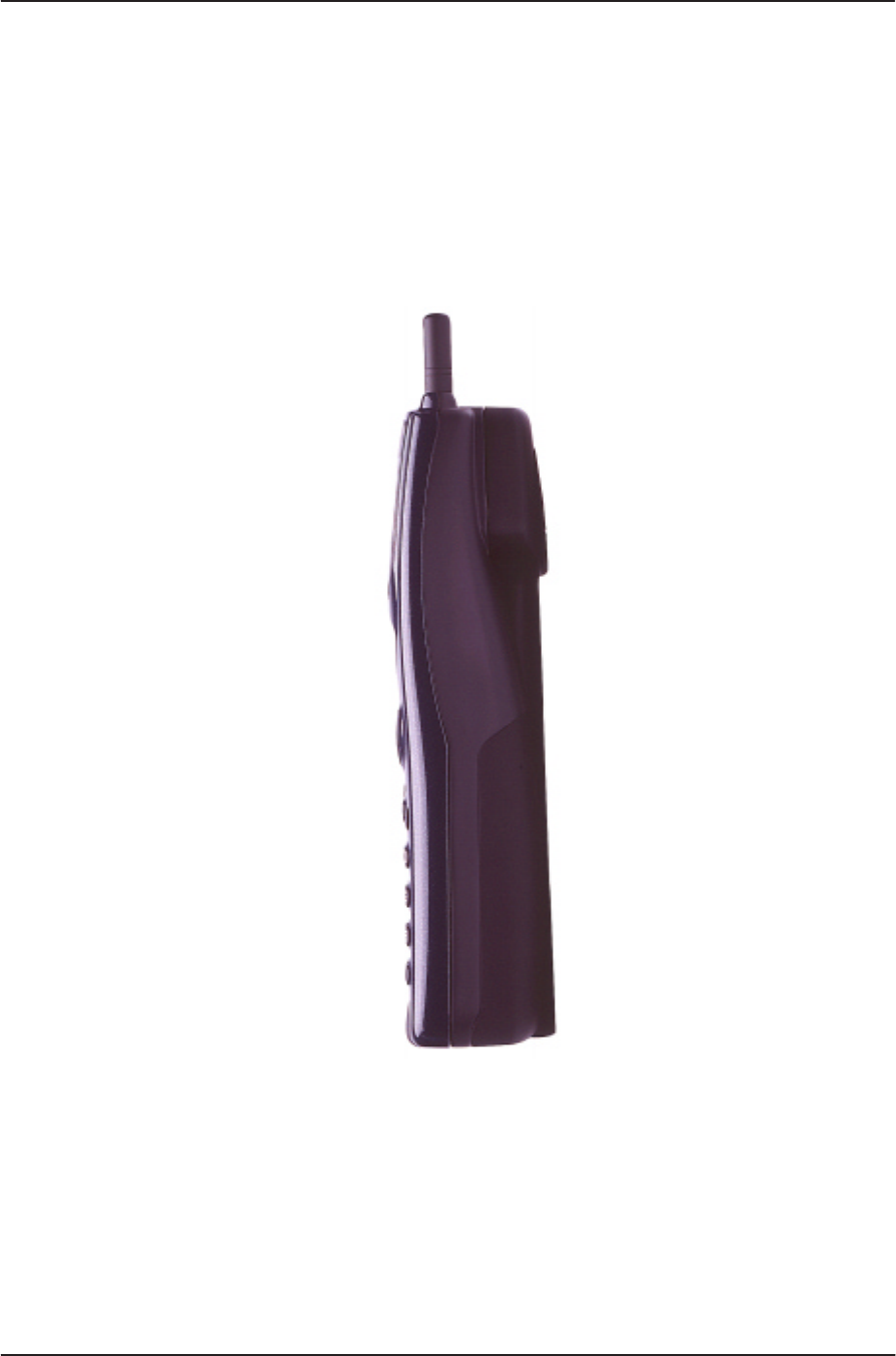

Figure 1 DMUT Assembly
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 12 of 13
Figure 2 Globalstar Satellite antenna
90_
40_
100_
0
1
2
3
Tx Antenna
Rx Antenna
RX LNA
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 13 of 13

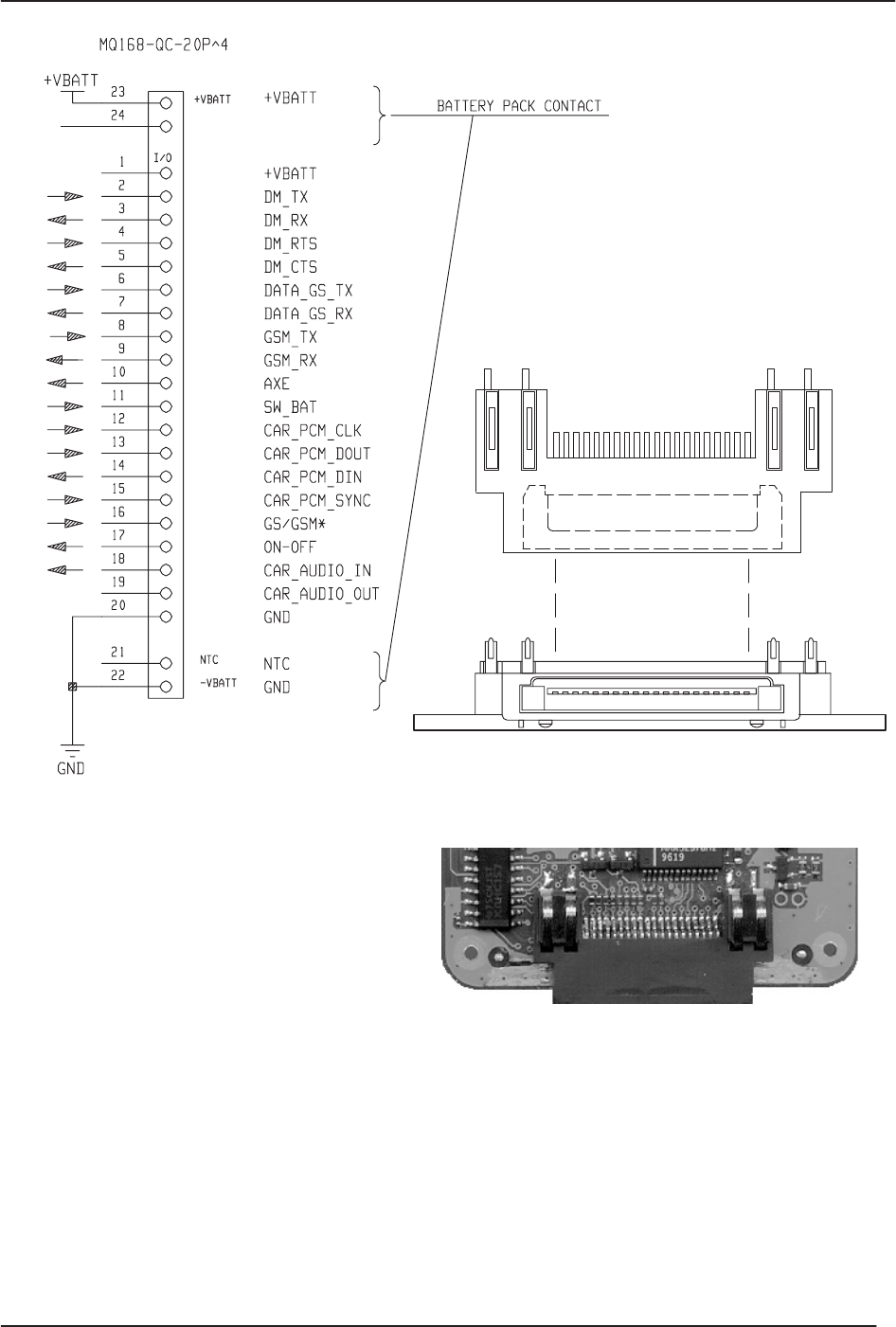

Figure 3 Bottom connector signals overview
23
24
1
20
21
22
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1
4 LIST OF MODIFICATIONS

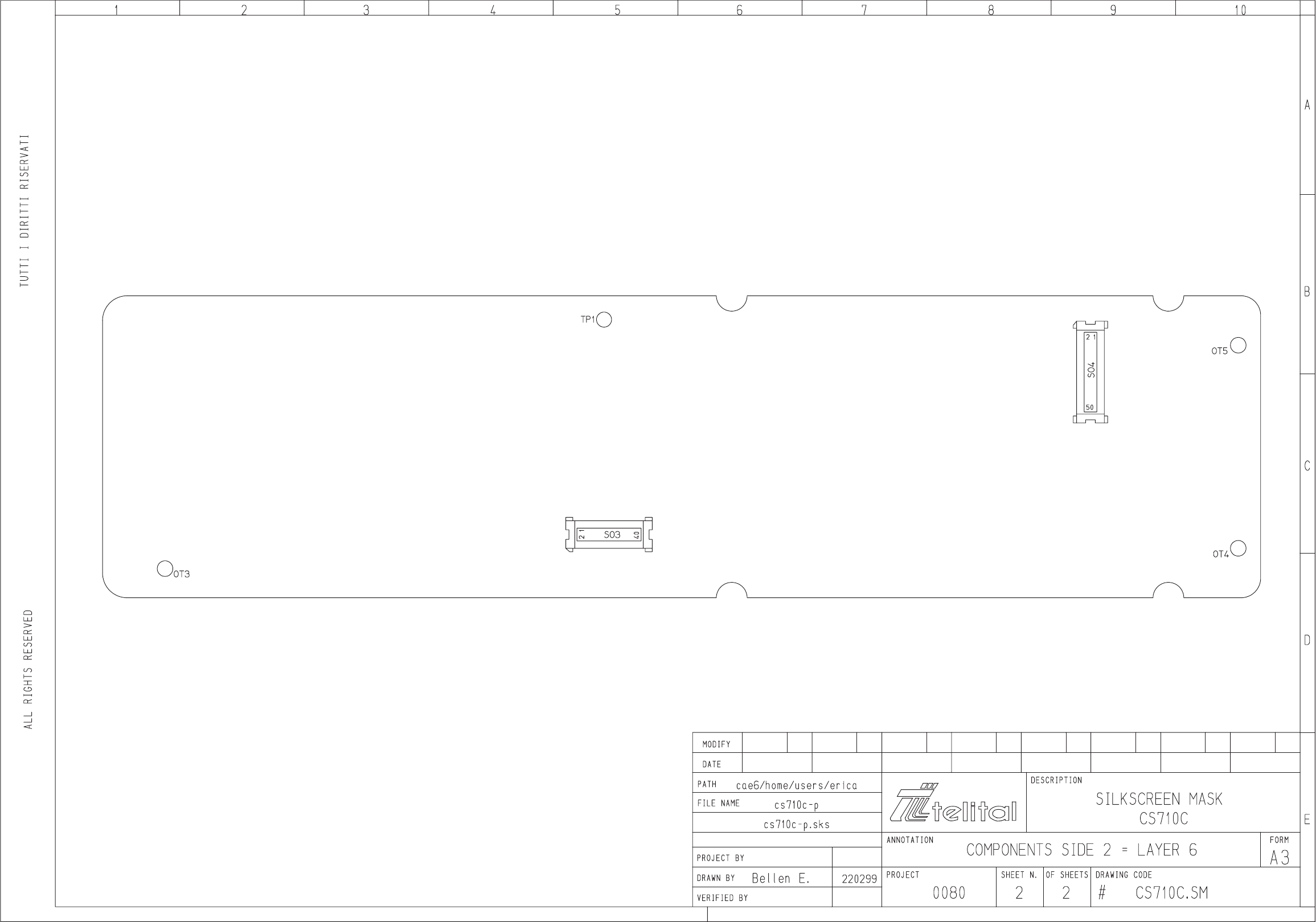

List of modification of CS710c circuit board 2000100267
List of modification of CS680b circuit board 2000100256
List of modification of CS661c circuit board 2000100257
List of modification of CS760 circuit board 2000100201
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 4
INDEX OF MODIFICATIONS CS710c
DESCRIPTION: GSM RADIO & DISPLAY ASSY CS710c Ver.22.02.99
CODE: 2-000100267
N_ASSY CODE PROP
MOD
ID DATE MODIFICATION DESCRIPTION
1 2000100267 2685 *a 29.06.99 Added C166 22pF
added C164 "do not mount"
2 2000100267 2673 - 23.06.99 Change microphone from Electret to Bosung
OB-22L40-C33
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 2 of 4
INDEX OF MODIFICATIONS CS680b
DESCRIPTION: BB GLOBALSTAR & GSM ASSY CS680b Ver.20.01.99
CODE: 2-000100256
N_ASSY CODE PROP
MOD
ID DATE MODIFICATION DESCRIPTION
1 2000100256 2675 *a 23.06.99 Added R130 "Do not mount",
added TP42,
added TP43,
Change C18 from "Do not mount" to 10pF,
Change C19 from "Do not mount" to 10pF,
Change value of R25 from 1.8K to 3.3K,
Change connection of C113.
2 2000100256 2688 *b 30.06.99 Added R133,
added C64,
change value of R31 from 10K to 1.8K
change U11 from TC4W53FU to ADG719BRT
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 3 of 4

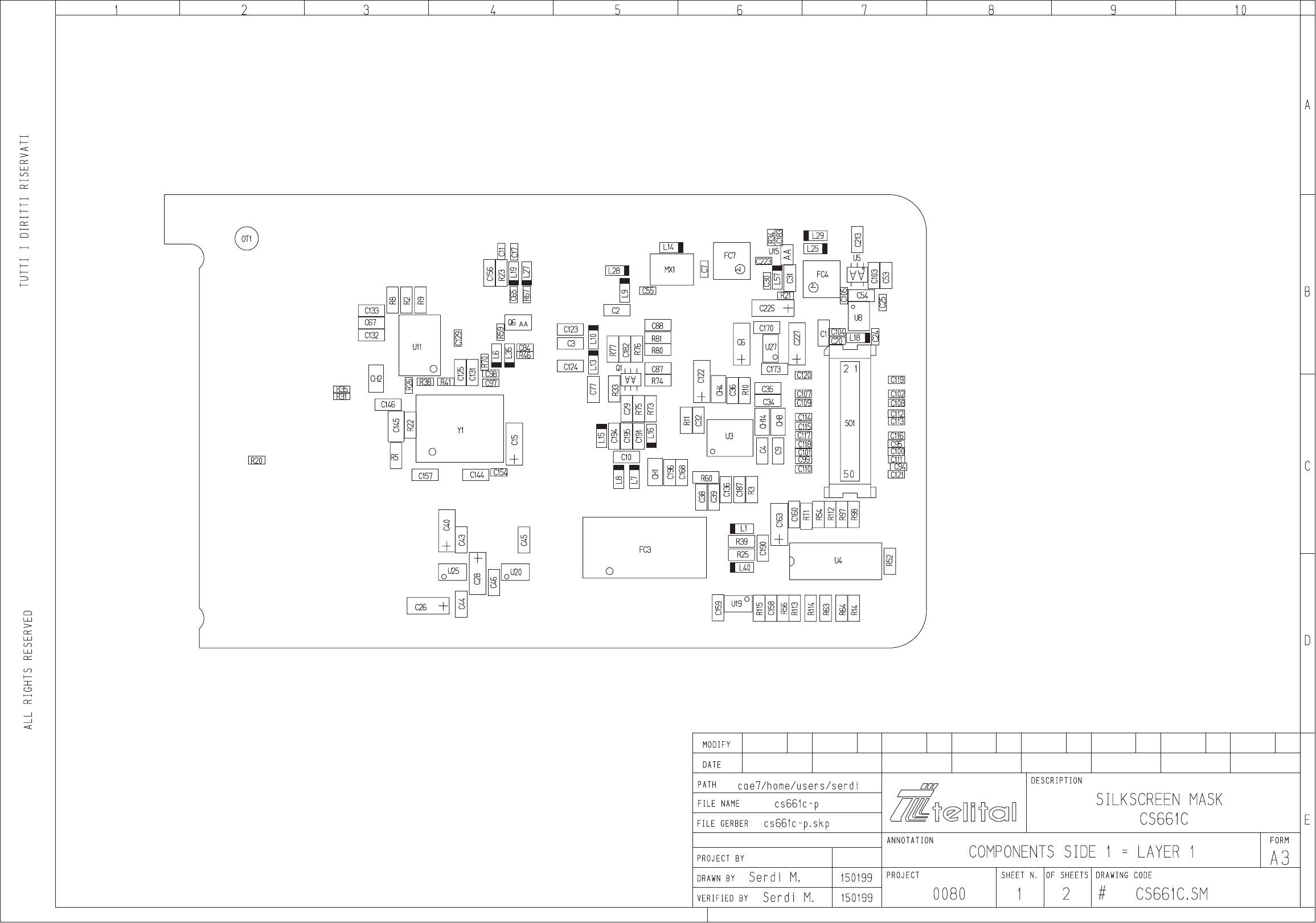

INDEX OF MODIFICATIONS CS661c

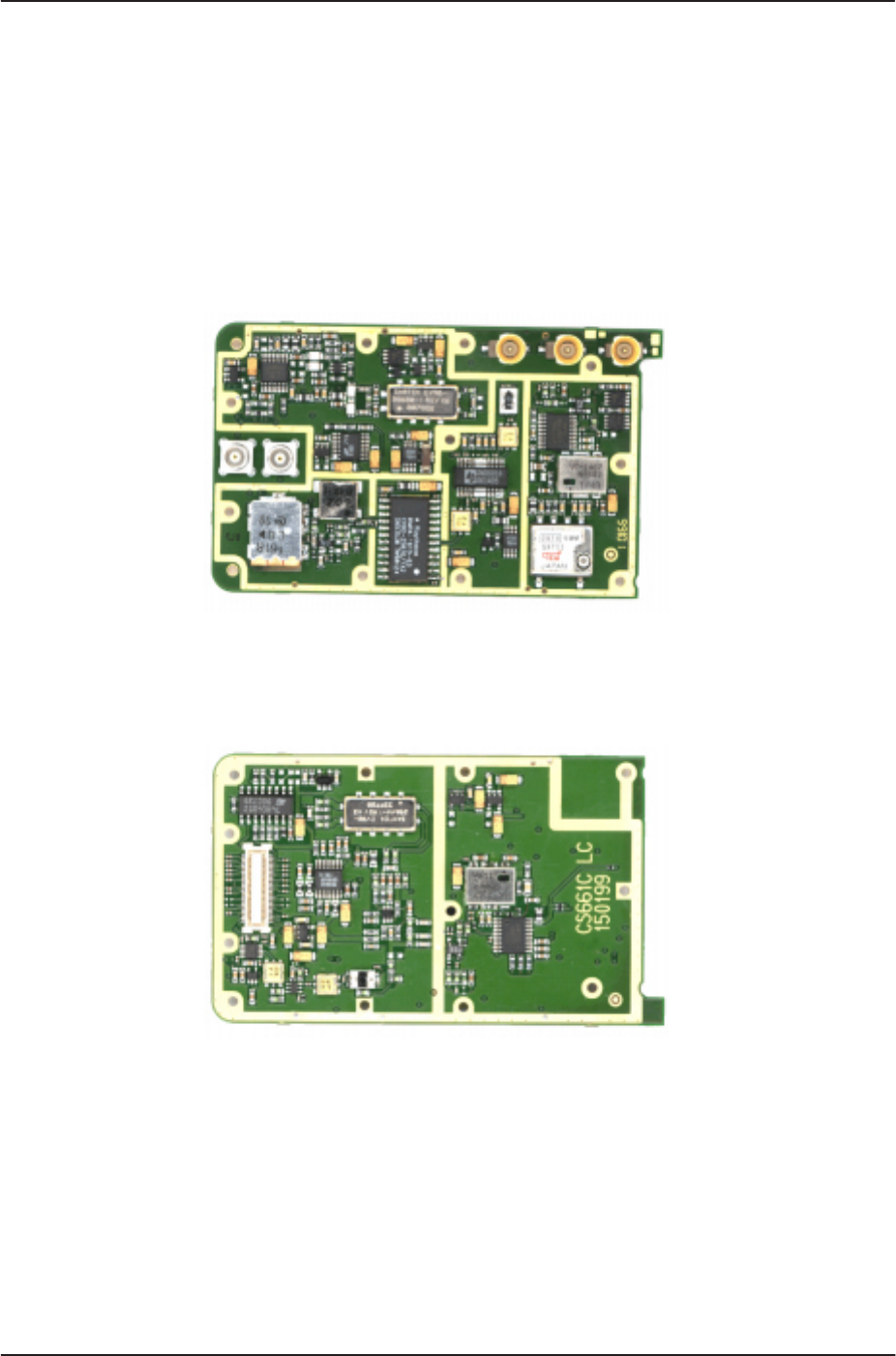

DESCRIPTION: RADIO G* ASSY CS661c Ver.15.01.99
CODE: 2-000100257
N_ASSY CODE PROP
MOD
ID DATE MODIFICATION DESCRIPTION
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 4 of 4

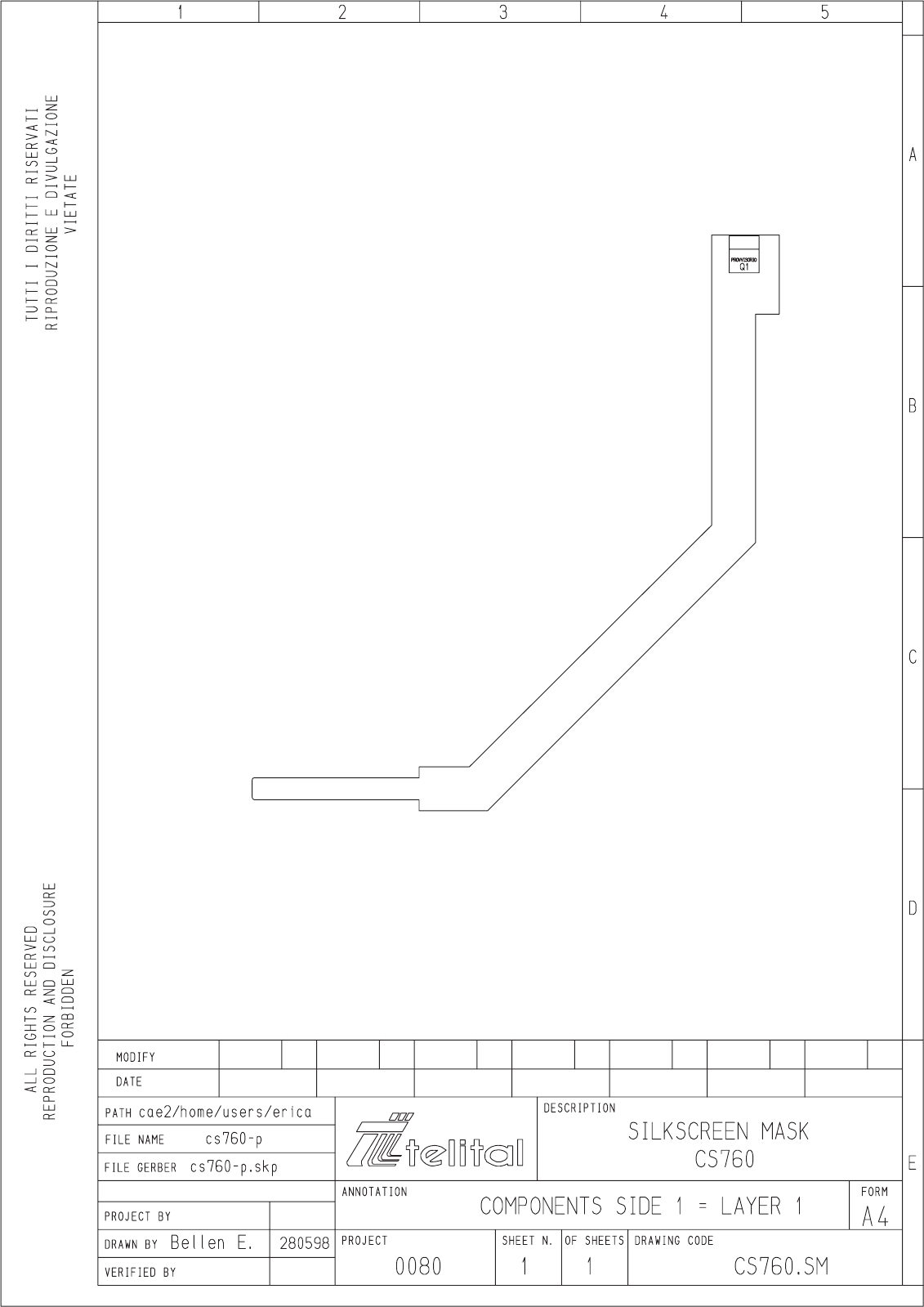

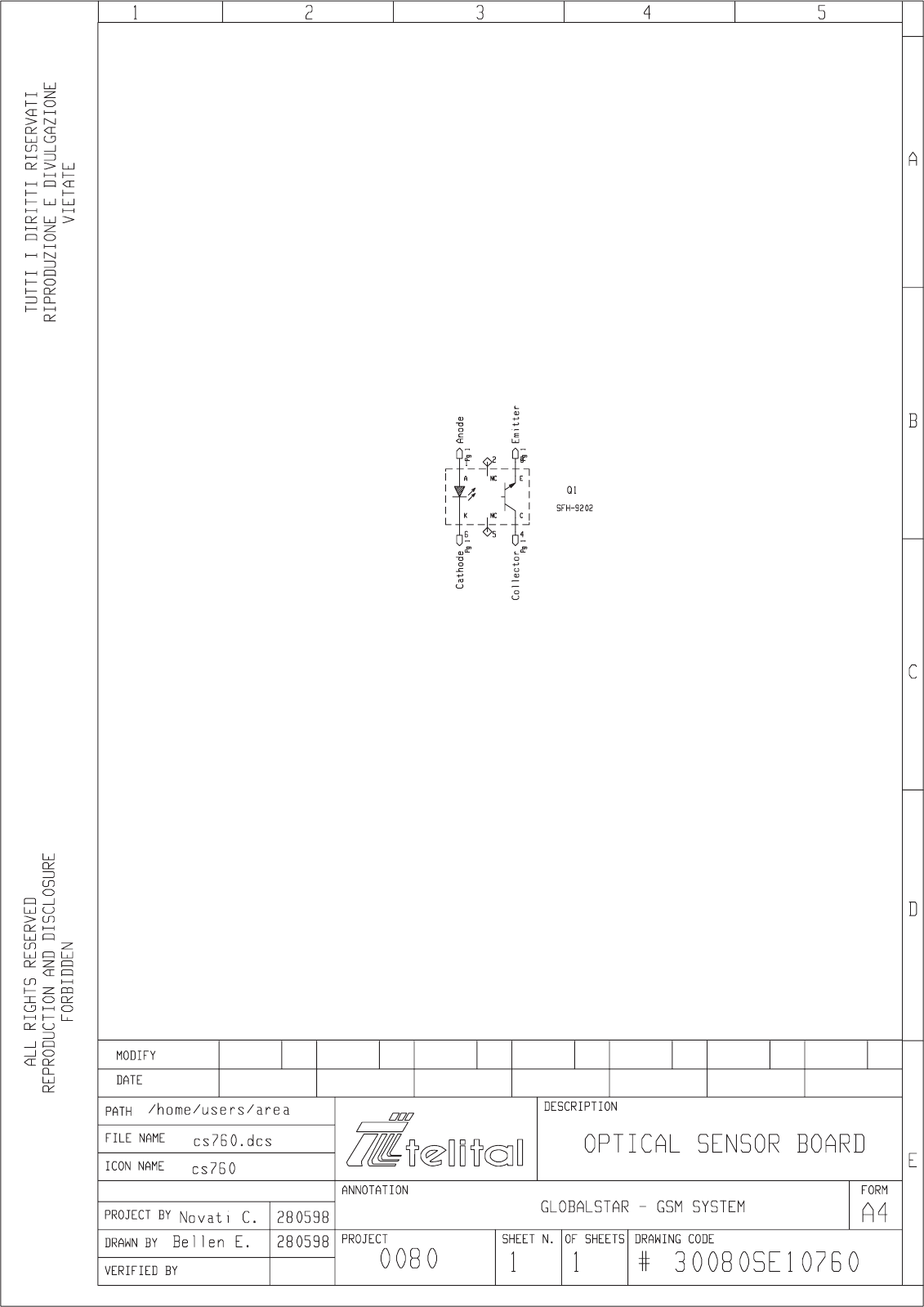

INDEX OF MODIFICATIONS CS760
DESCRIPTION: OPTICAL SENSOR CS760 Ver.28.05.98
CODE: 2-000100201
N_ASSY CODE PROP
MOD
ID DATE MODIFICATION DESCRIPTION
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 7
5 BLOCK DIAGRAMS
5.1 HANDSET LAYOUT
5.2 GSM SECTION
5.3 GSM RF LAYOUT
5.4 G* SECTION
5.5 RF G* SECTION
5.6 POWER SUPPLY LAYOUT

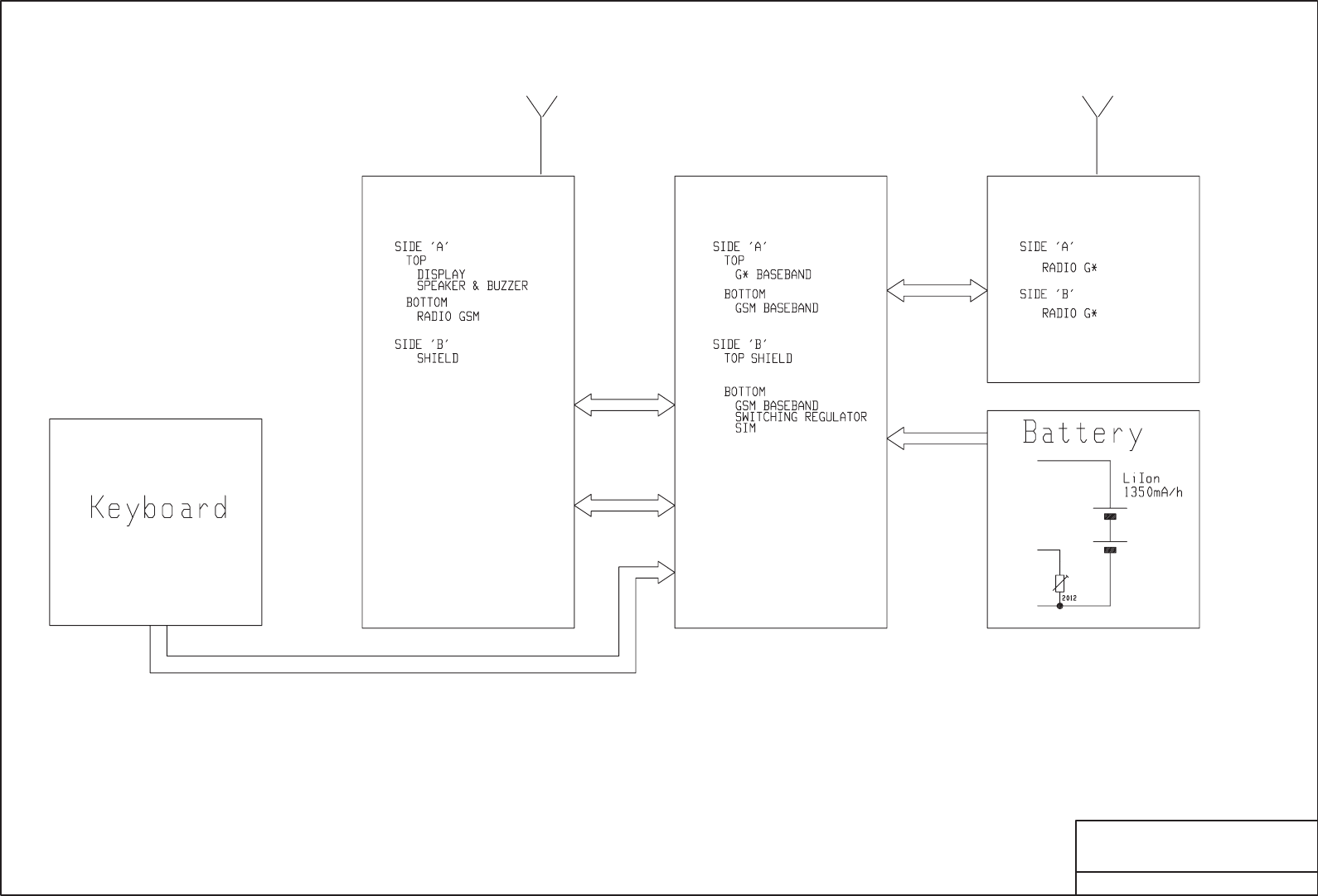

HANDSET LAYOUT
GS/GSM DMUT
CS710 CS680 CS661
Page 2 of 7
TX
RX

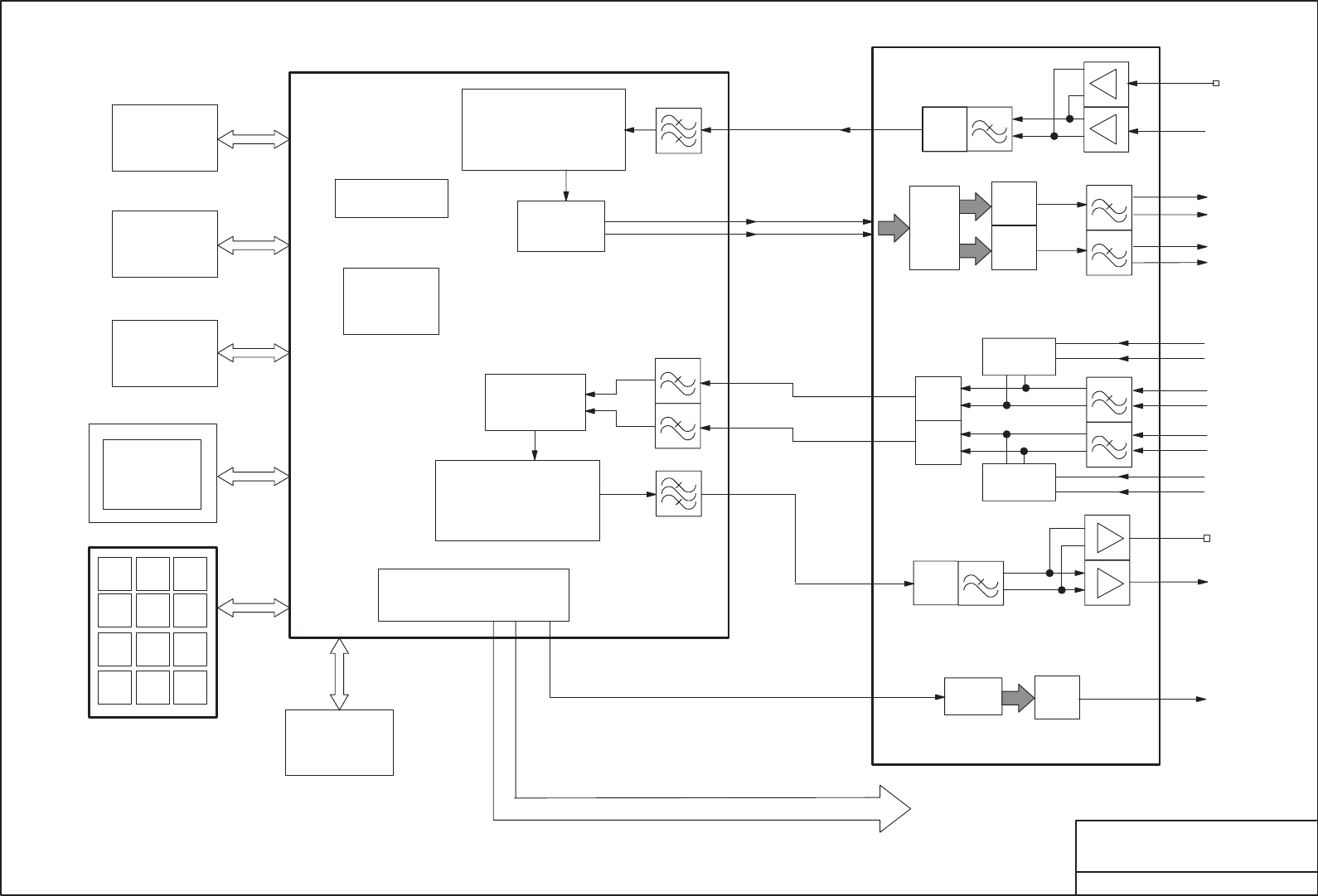

GSM SECTION
GS/GSM DMUT
Page 3 of 7
SIM–CARD
PMB2800
DISPLAY
123
456
789
*0#
FLASH
RAM
RF CONTROL
GAIM PMB2905
EEPROM
80C166
A51/52
Full–rate
Speech & Channel
Encoding
GMSK
Equalization
Full–rate
Speech & Channel
Decoding
System Interface DAC
DAC
DAC
DAC
ADC
ADC
ADC
Latch
Latch TX Ramp
EXT EAR
Battery
Q RX
I RX
Battery
Q TX
I TX
EXT MIC
Switch
Switch
MIC – GSM
EAR – GSM
GSM RF LAYOUT
GS/GSM DMUT
GSM
PLL_DATA
GSM_EXT_ANT
90
f
f/2
90
Fix PLL
f/2
f
:64
:65
1.8GHz
890...915MHz
TX ramp
I_TX
Q_TX
90
f
f/2
%1
%3
Q_RX
I_RX
Loop Filter
IF VCO
492MHz
PMB 2240
PMB 2409
935..960 MHz
246 MHz
LNA
DATA
REGISTER
DATA
REGISTER
f
f/R
f
f/N
F
V
PMB 2409
PMB 2307
RF VCO
1136.2..1205.8MHz
Loop Filter
Loop Filter
890..915MHz
LC filter
SAW filter
492MHz
VCTCXO
13MHz
AFC
BFP420
MHW2908
BAT62
TS922
SAW filterSAW filter
HWYN
202
Page 4 of 7
G* SECTION
GS/GSM DMUT
Audio
Codec
MIC – GSM
EAR – GSM
Page 5 of 7

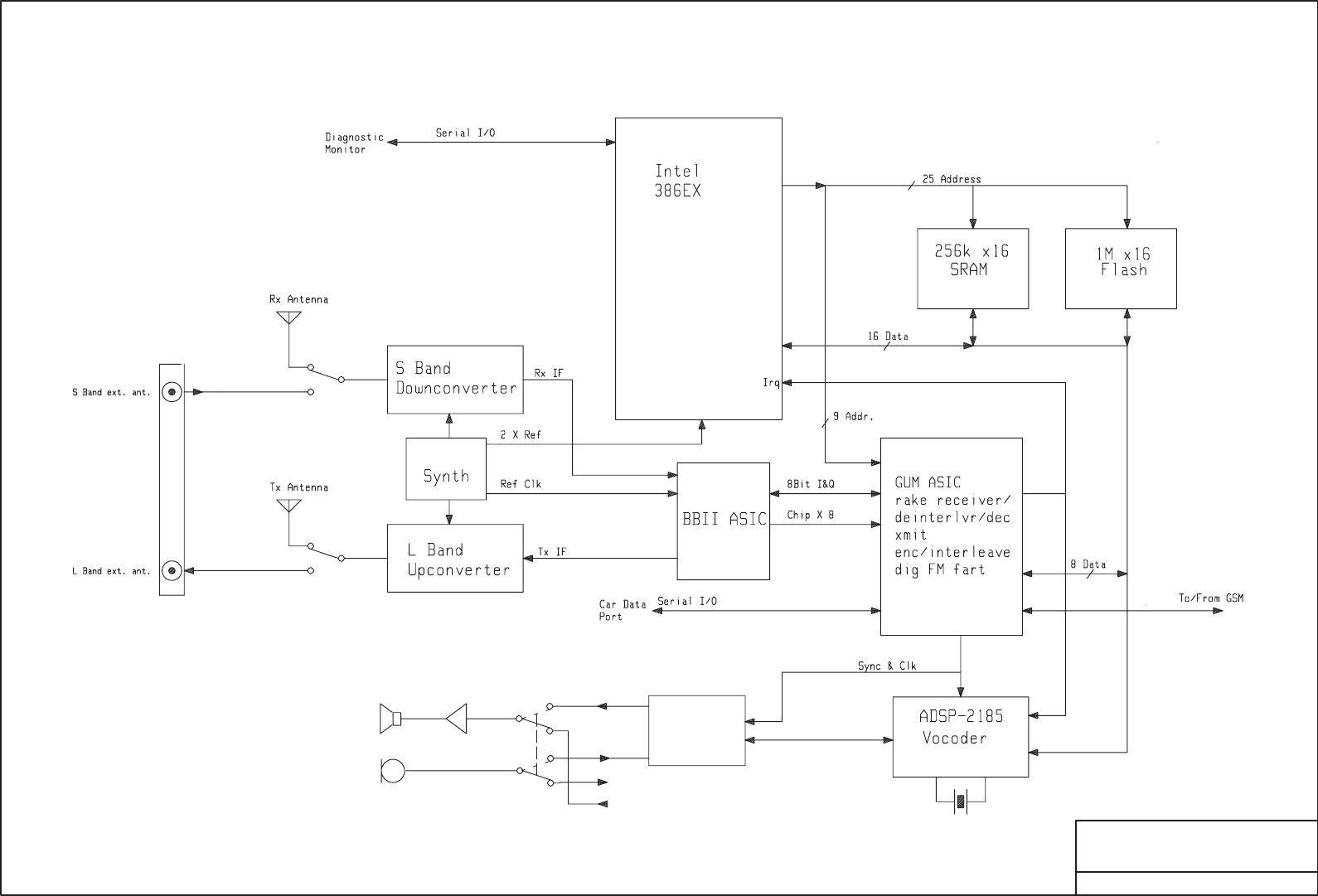

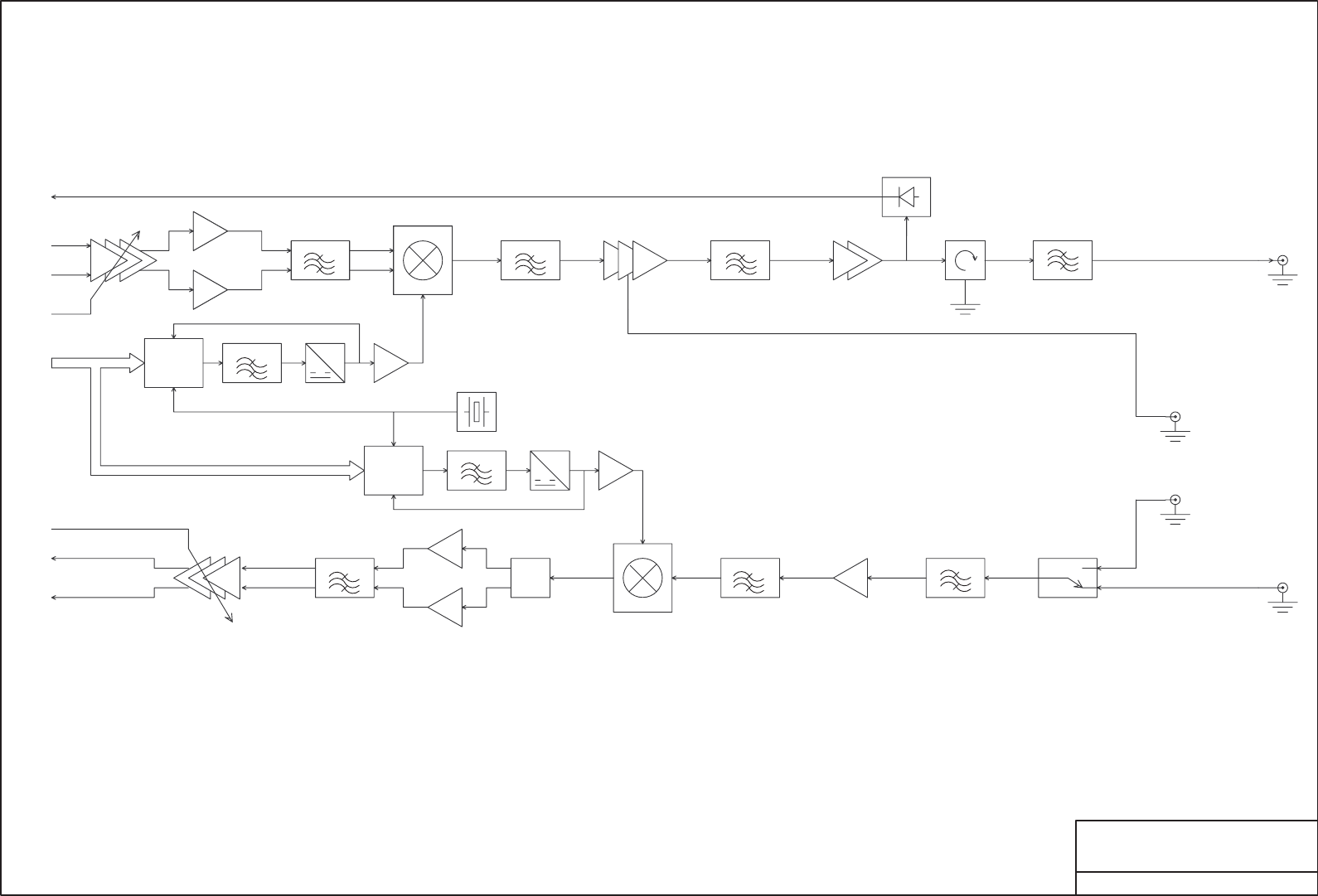

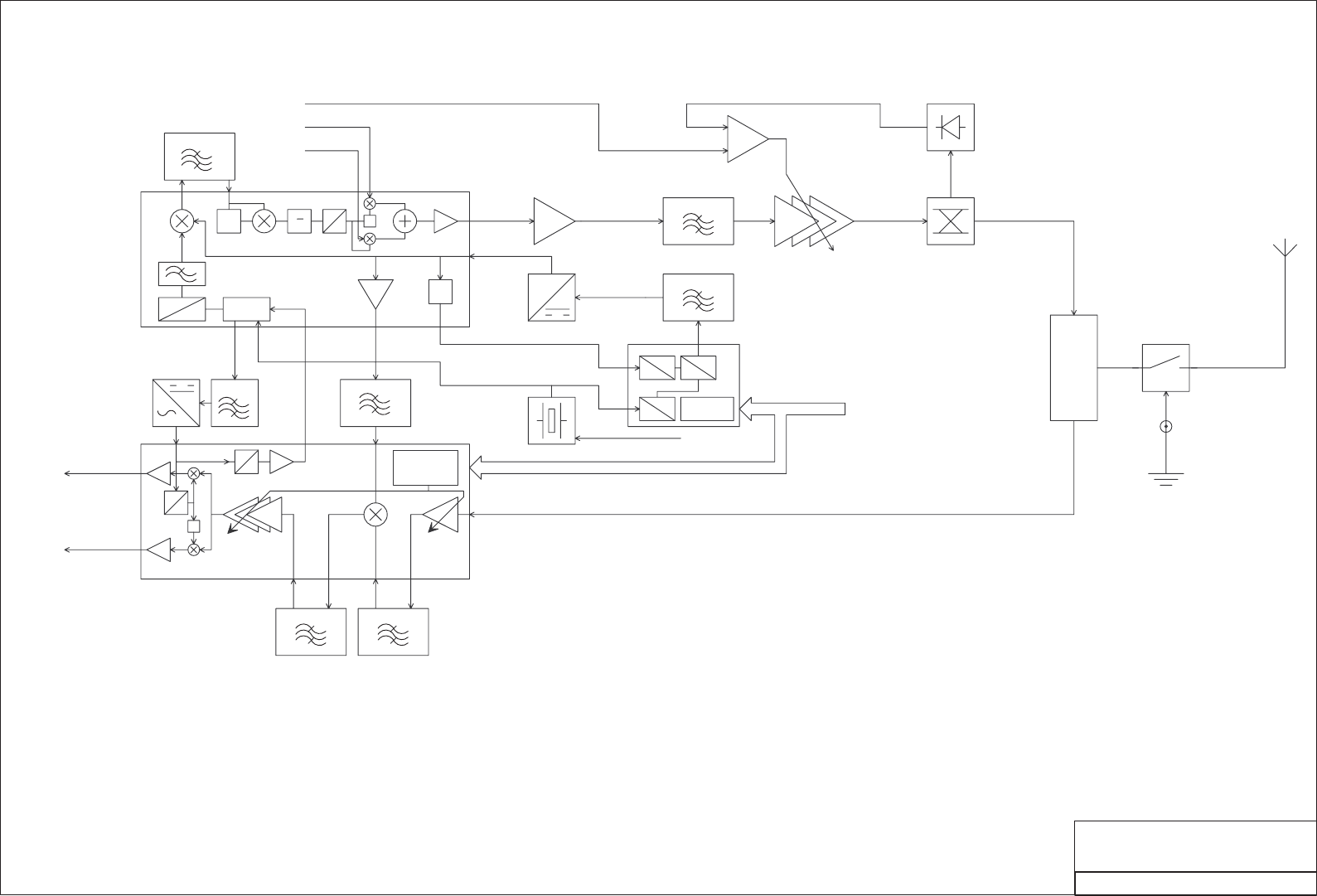

RF G* SECTION
U8
Q_TX
I_TX
TX_AGC
RX_AGC
Q_RX
I_RX
PWR_DEC
PLL_DATA
GS
GS_EXT_ANT_TX
TX PLL
LMX2330
RX PLL
LMX2330
LOOP Filter
LOOP Filter
TX VCO
RX VCO
KGF
1522
KGF
1522
TX AGC
CD90 14050 BFS
482A
BFS
482B
BFS
482B
BFS
482A
IF SAW Filter
130.38MHz TX MIXER 1610.73..1625.49
2259.51..2274.27MHz
1480.35..1495.11MHz
SLM 180A
AND6014 1610.73..1625.49
SAFC1618 SAFC1618
RI21107K SI 71NR DFC31R61
HSMS 2825
TX DRIVER POWER AMPL
TCXO
19.68MHz
RX ANT SWITCH
CXG 1022
2484.39..2499.15 MHz2484.39..2499.15 MHz
SAFC2491SAFC2491
LNA2
MGA 85563
RX MIXER
SLM 1905
BALUN
244.88MHz
244.88MHz
IF SAW Filter
RX AGC
CD90 24056
GS_EXT_ANT_RX
GS_ANT_TX
GS_ANT_RX
GS/GSM DMUT
Page 6 of 7

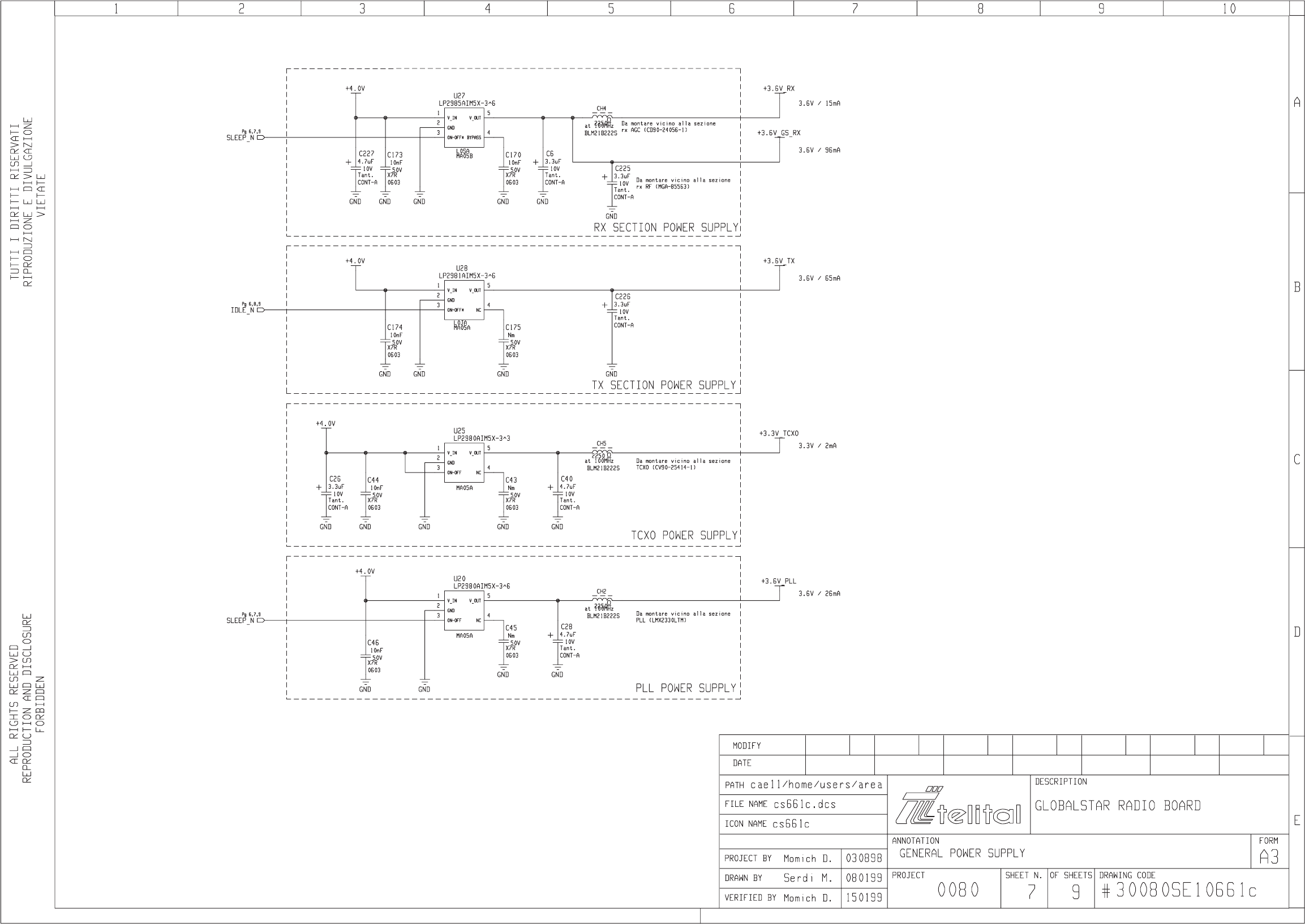

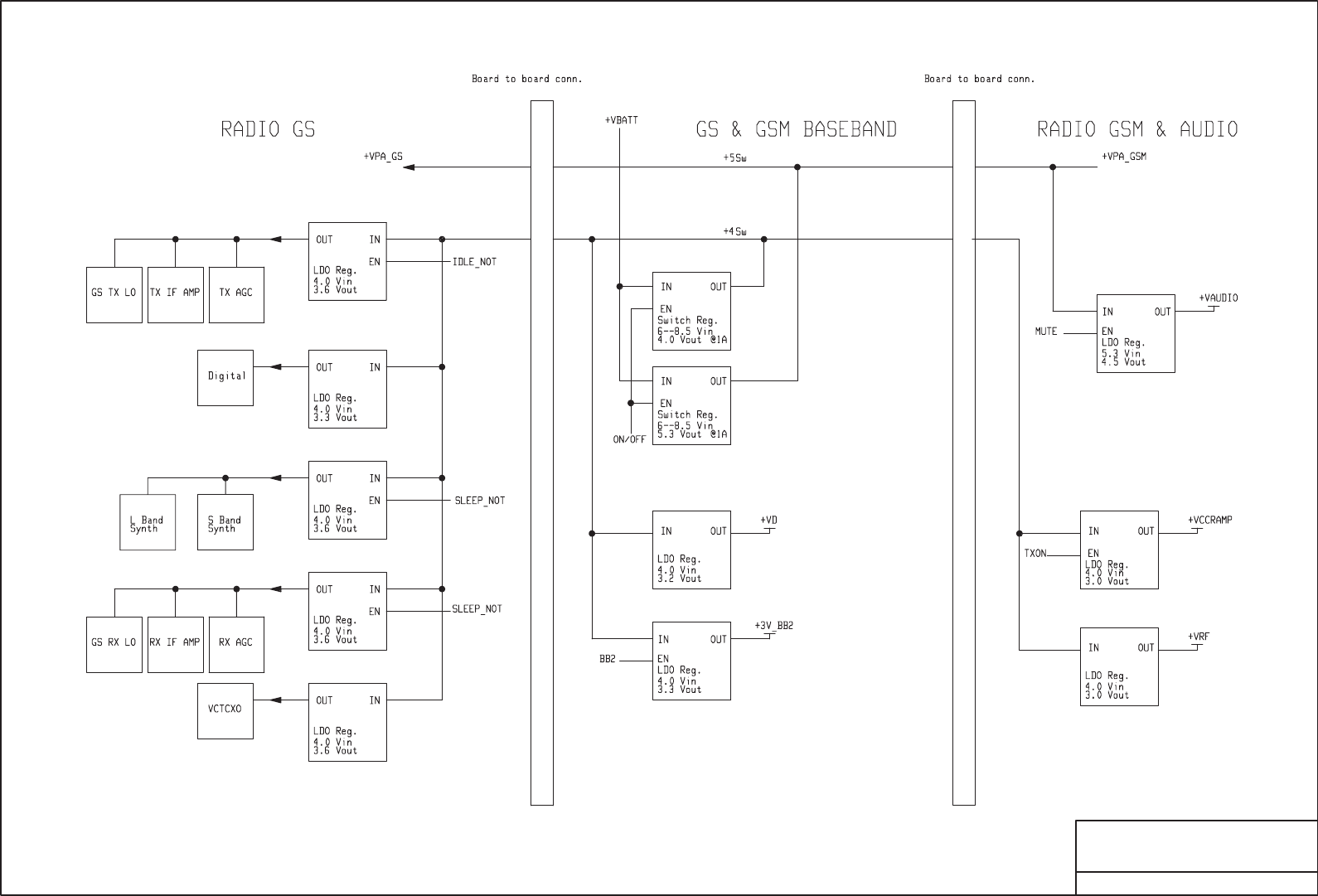

POWER SUPPLY LAYOUT
GS/GSM DMUT
Page 7 of 7
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1
6 ELECTRIC DIAGRAMS

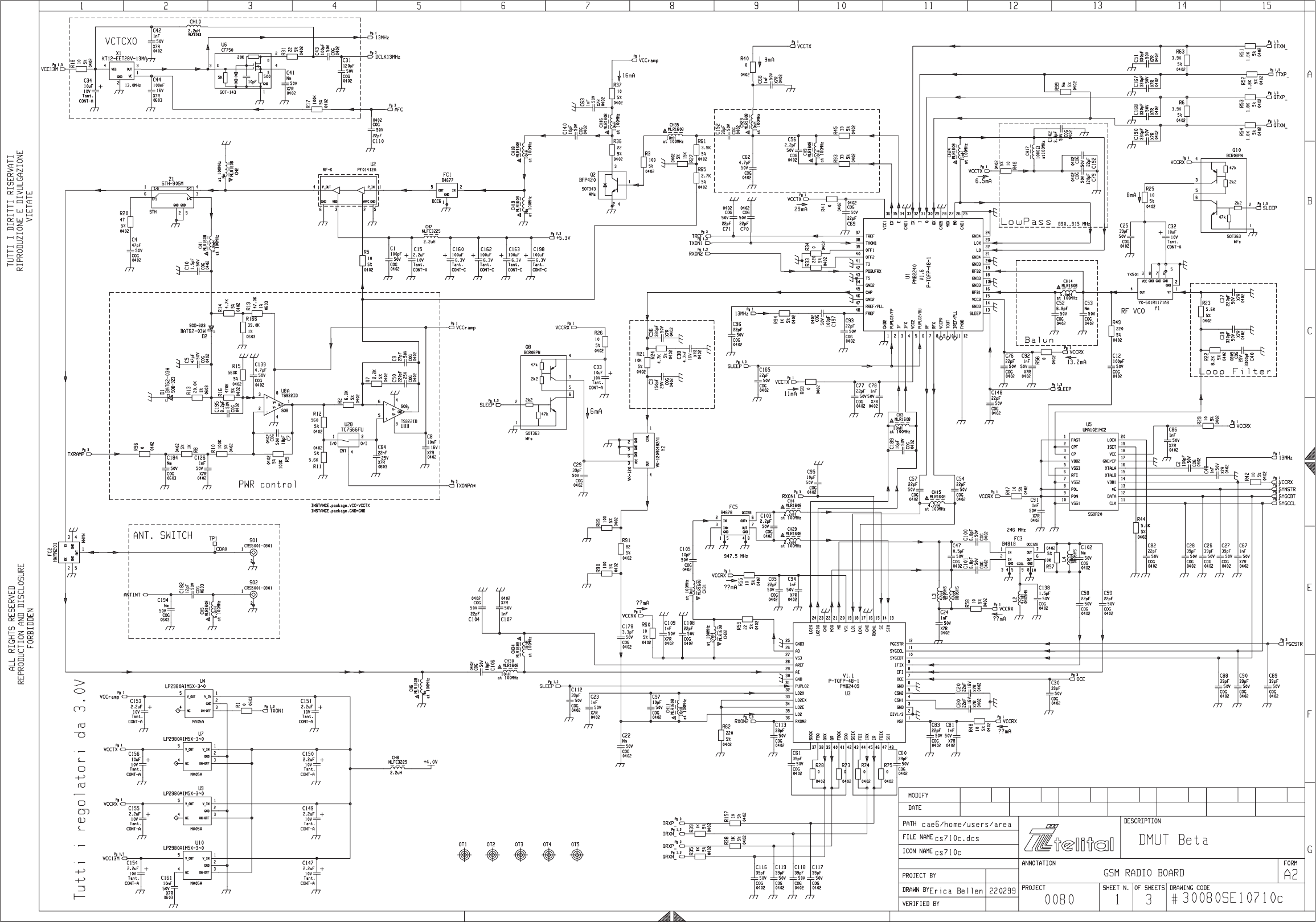

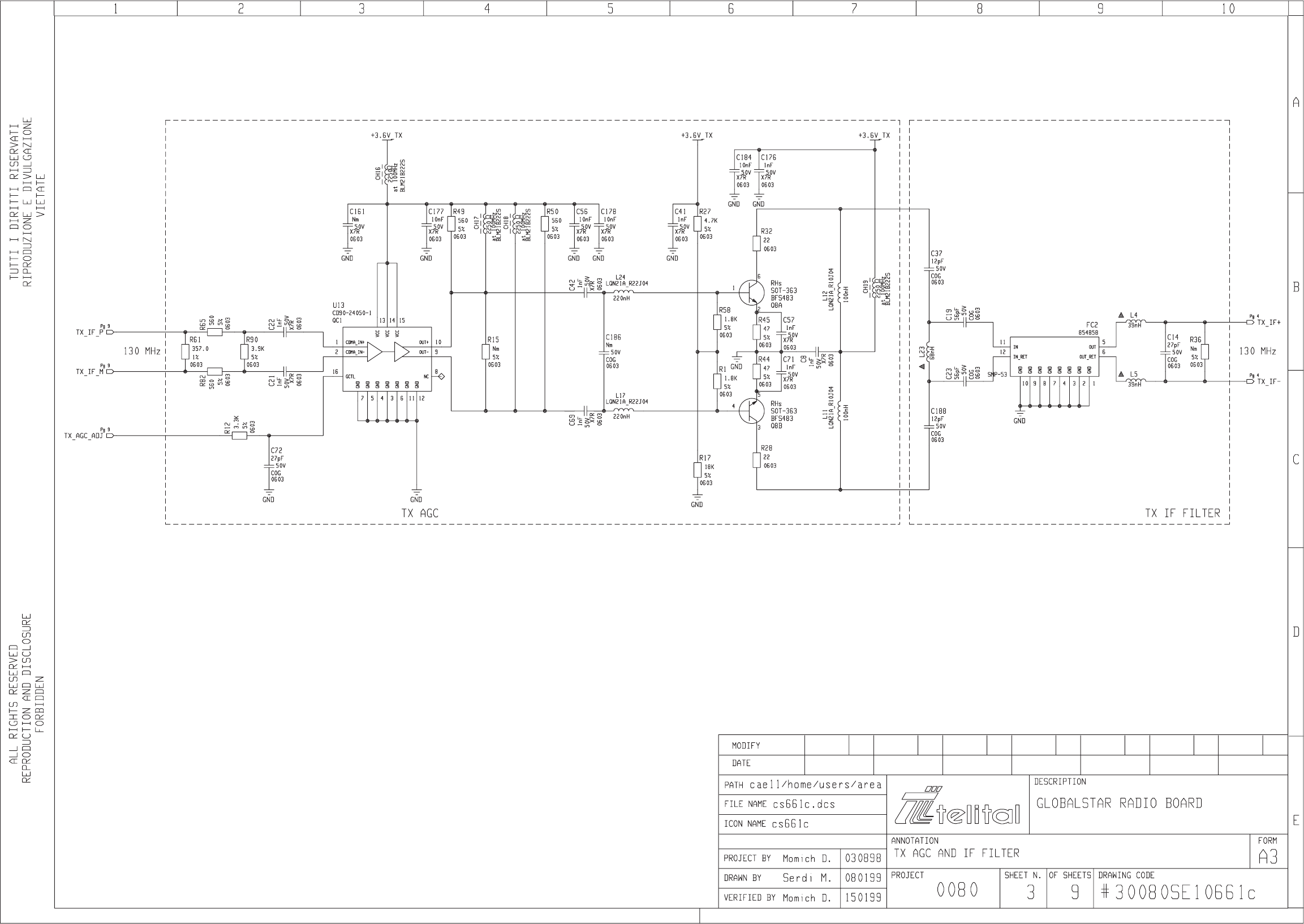

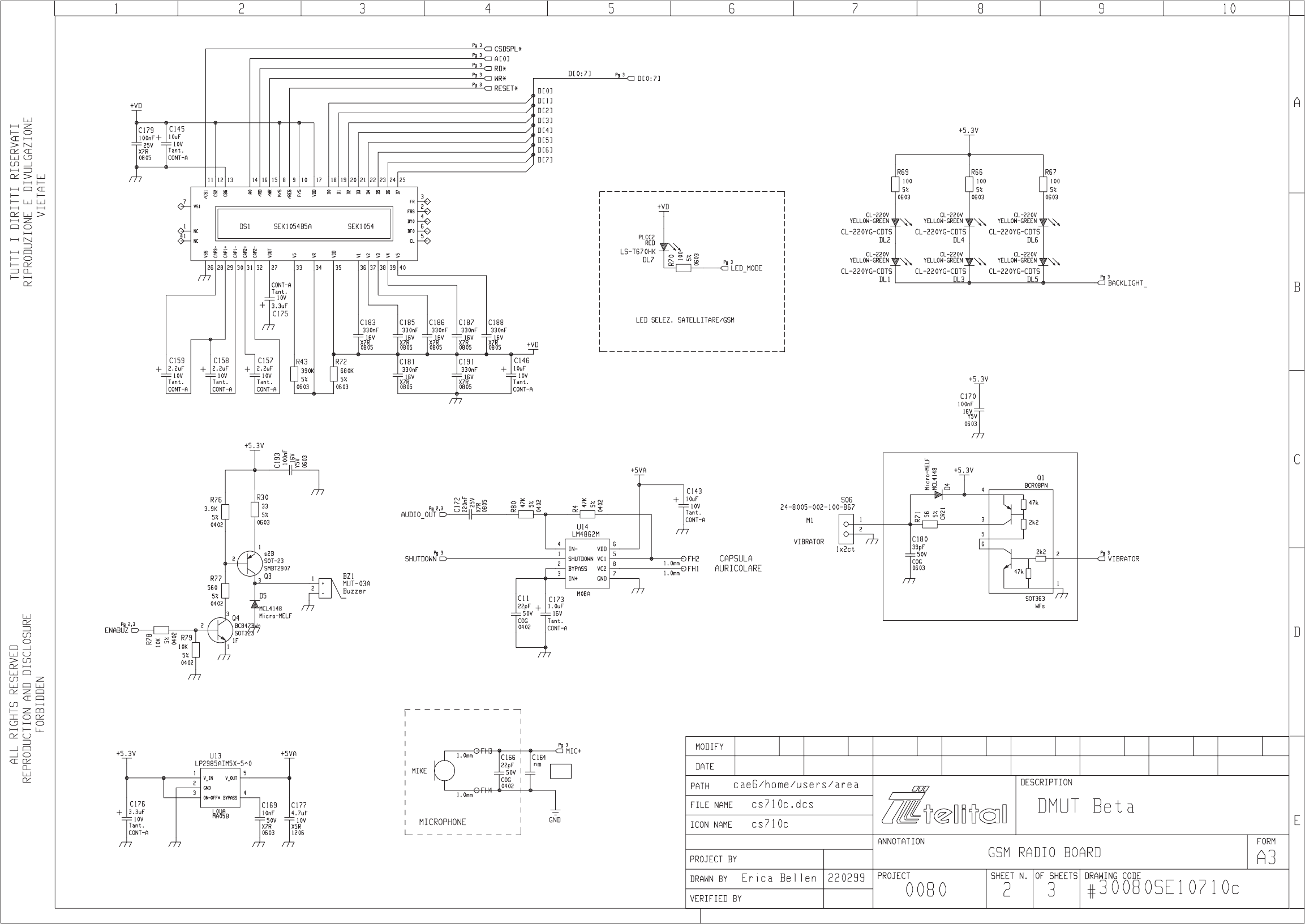

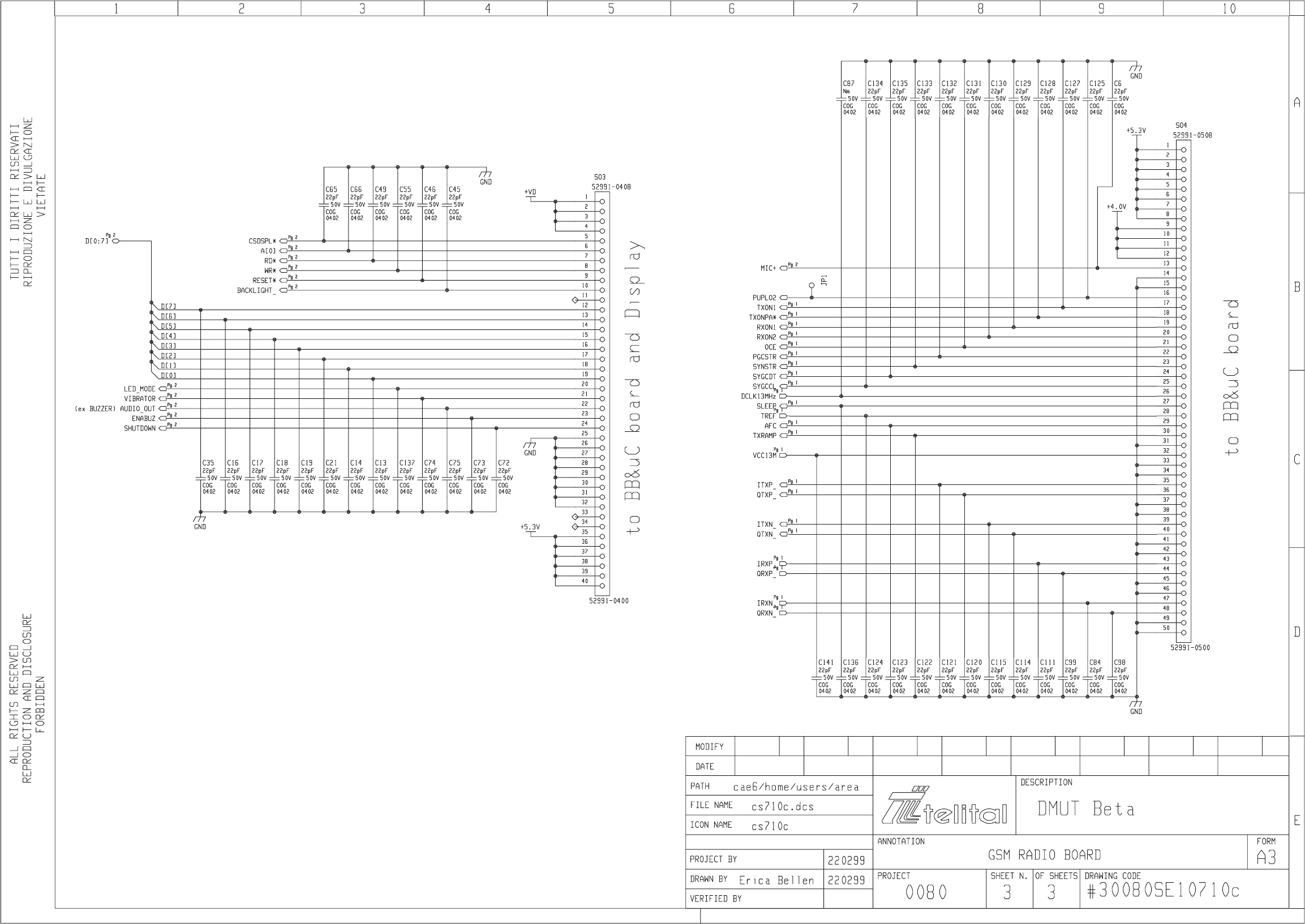

Electric diagram CS710c GSM Radio board page 1/3 30080SE10710c
Electric diagram CS710c GSM Radio board page 2/3 30080SE10710c
Electric diagram CS710c GSM Radio board page 3/3 30080SE10710c

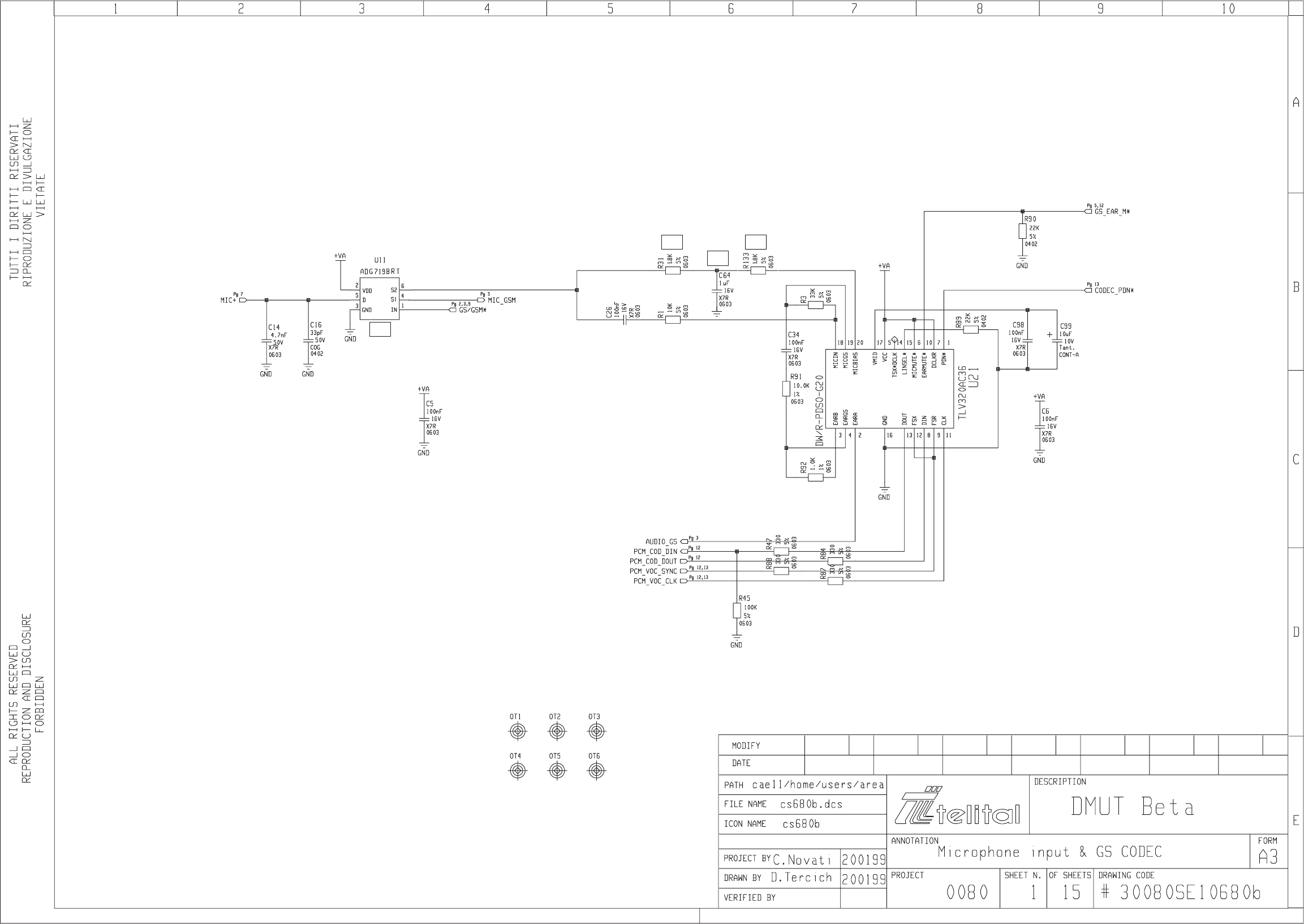

Electric diagram CS680b Microphone Input & GS codec 1/15 30080SE10680b

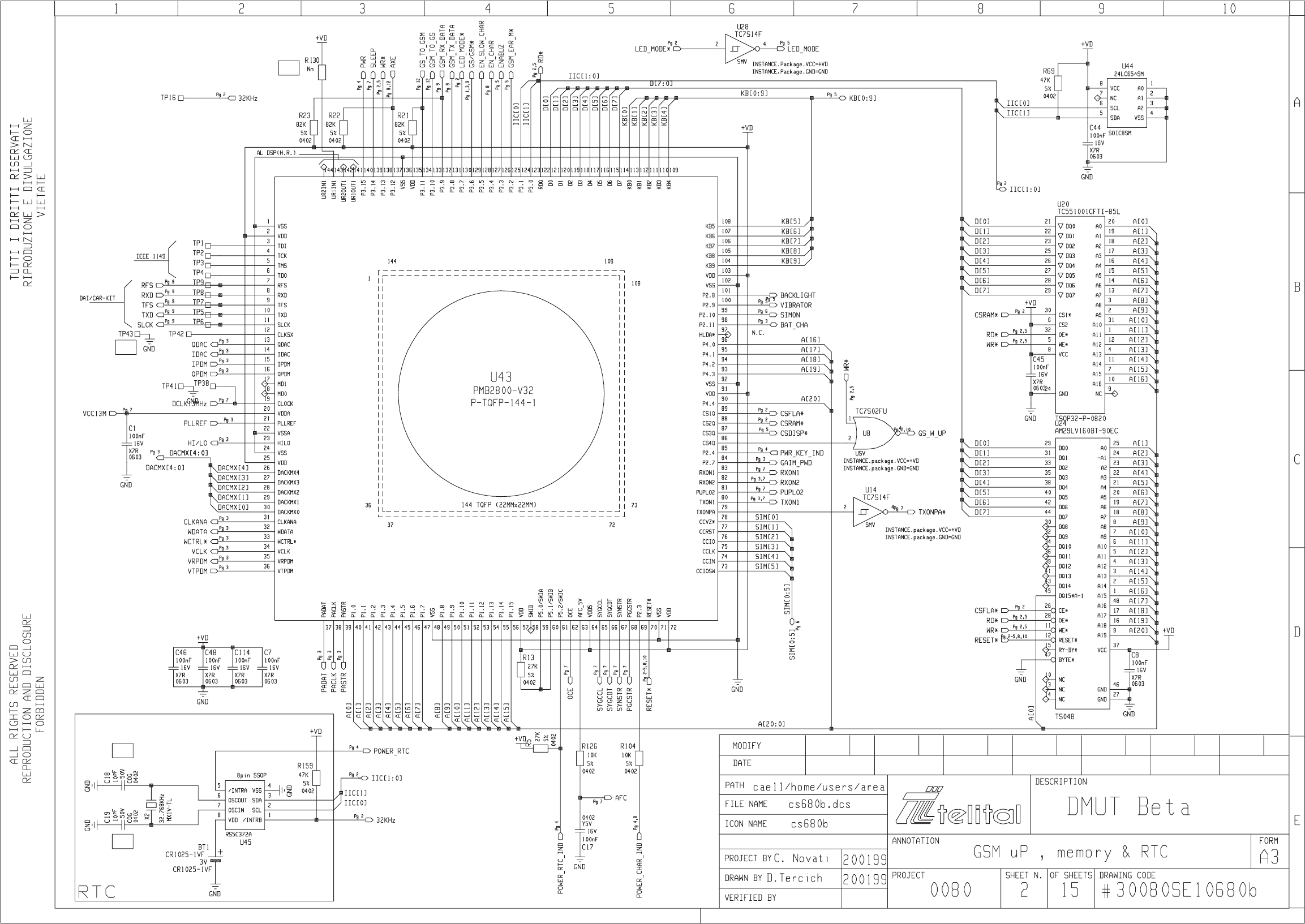

Electric diagram CS680b GSM uP, memory & RTC 2/15 30080SE10680b

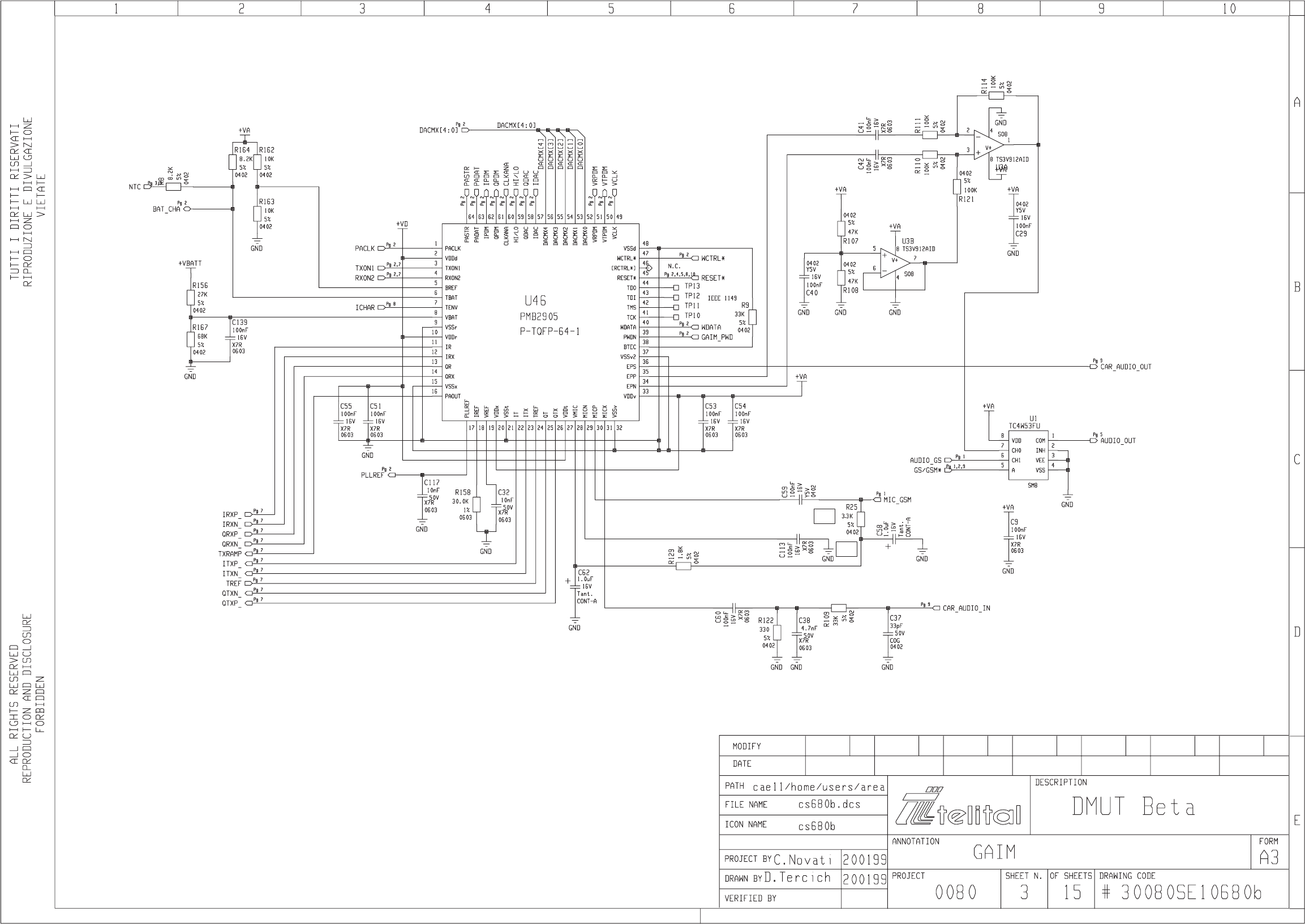

Electric diagram CS680b GAIM 3/15 30080SE10680b

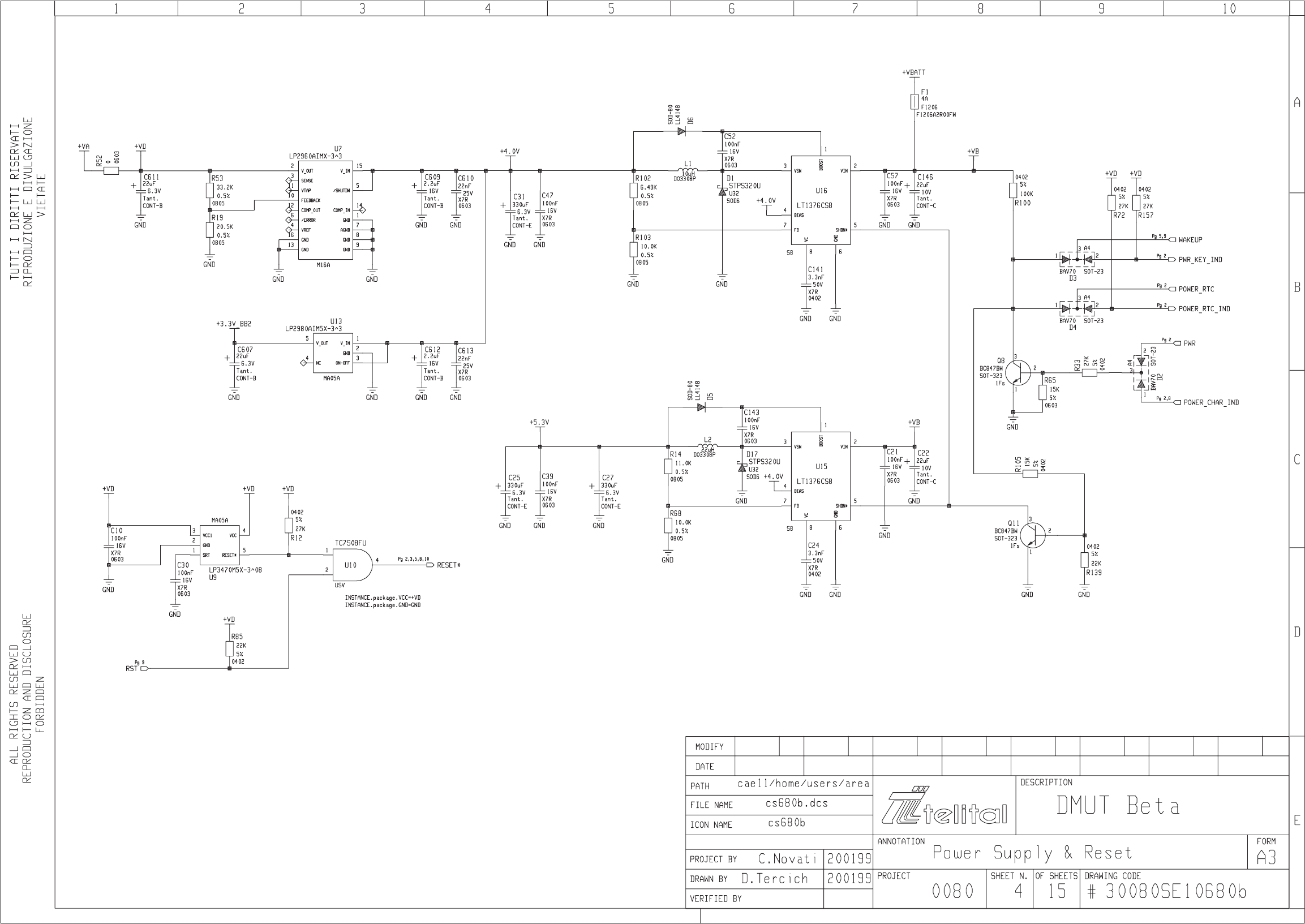

Electric diagram CS680b Power Supply & Reset 4/15 30080SE10680b

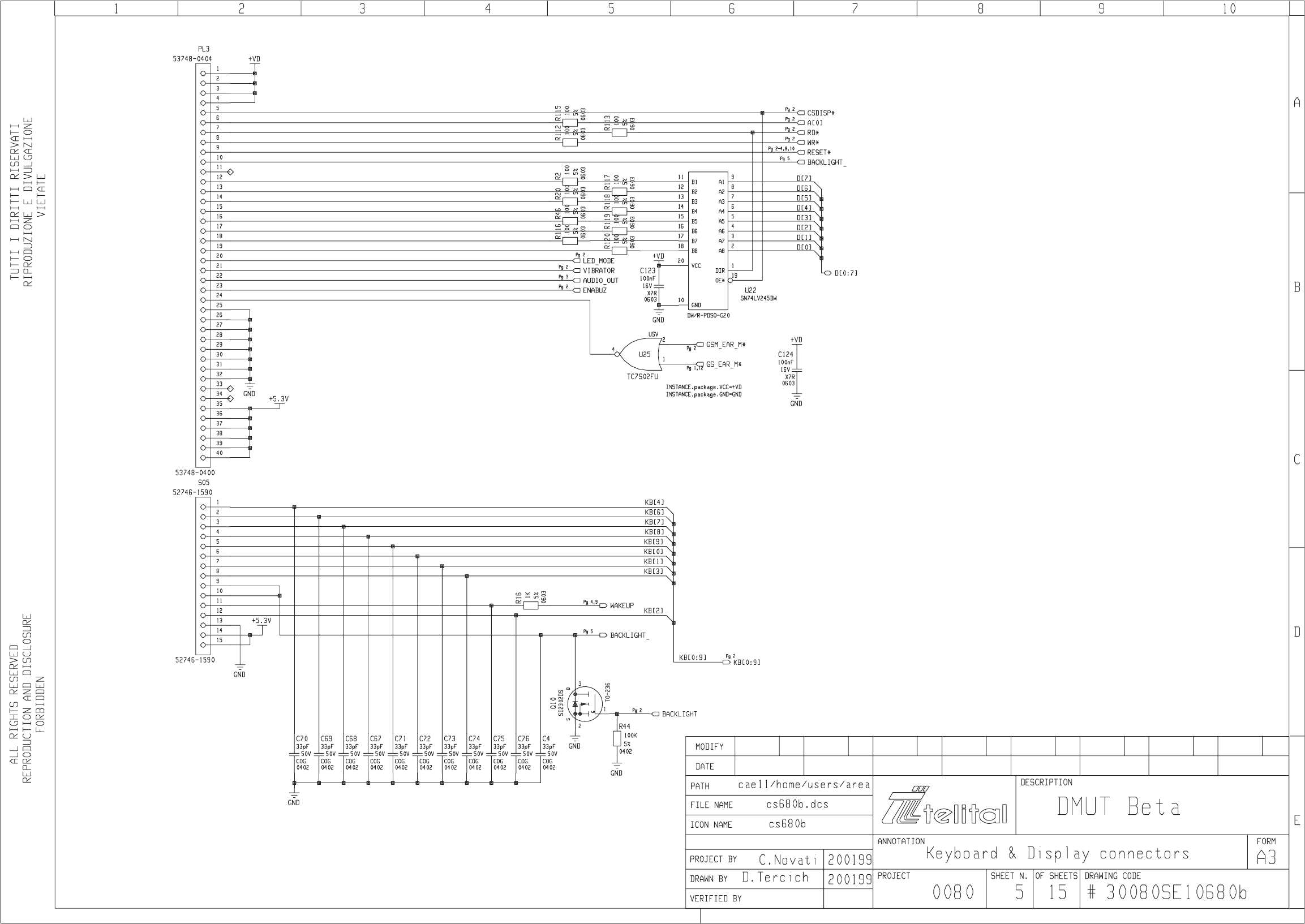

Electric diagram CS680b Keyboard & display connectors 5/15 30080SE10680b

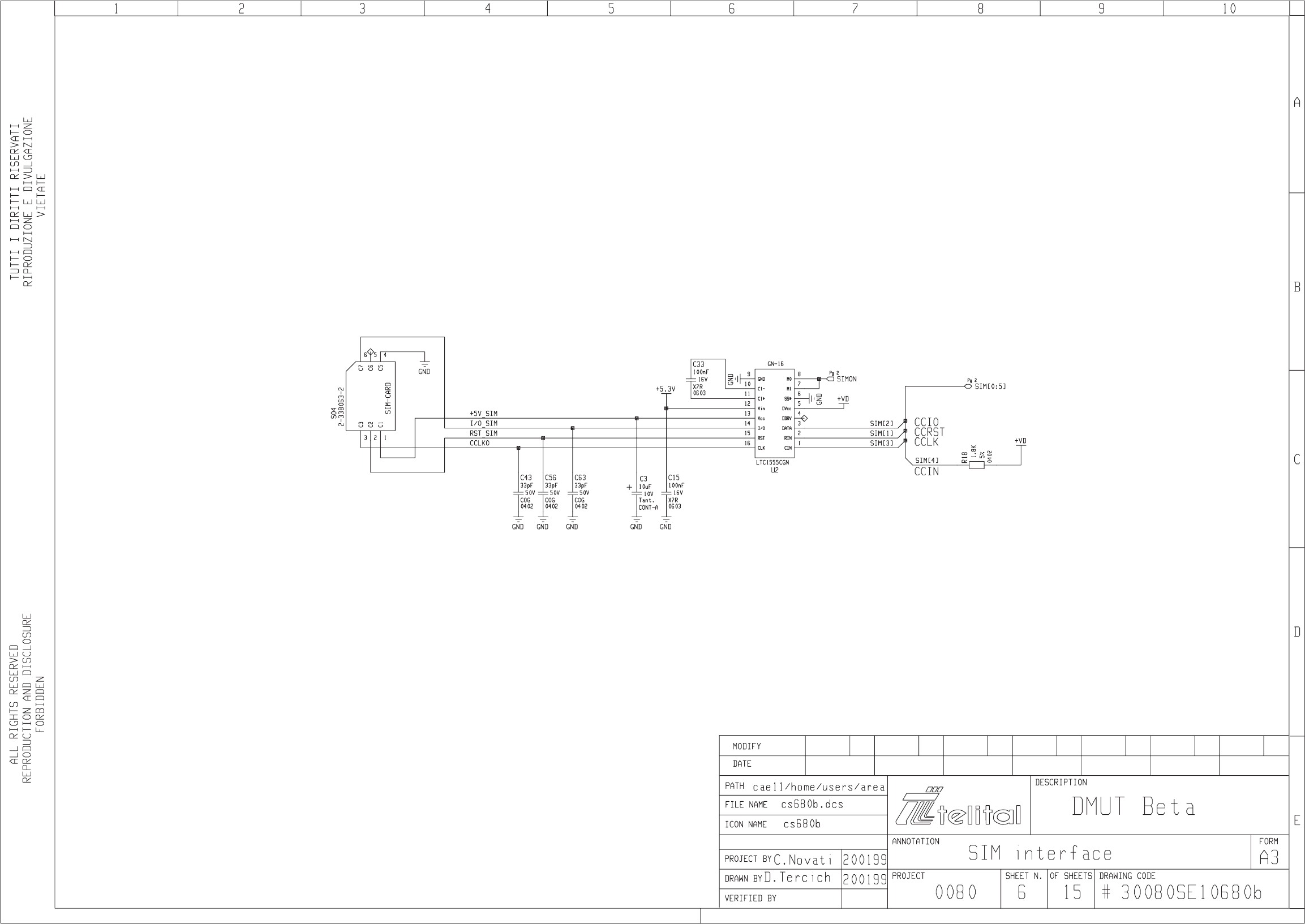

Electric diagram CS680b SIM interface 6/15 30080SE10680b

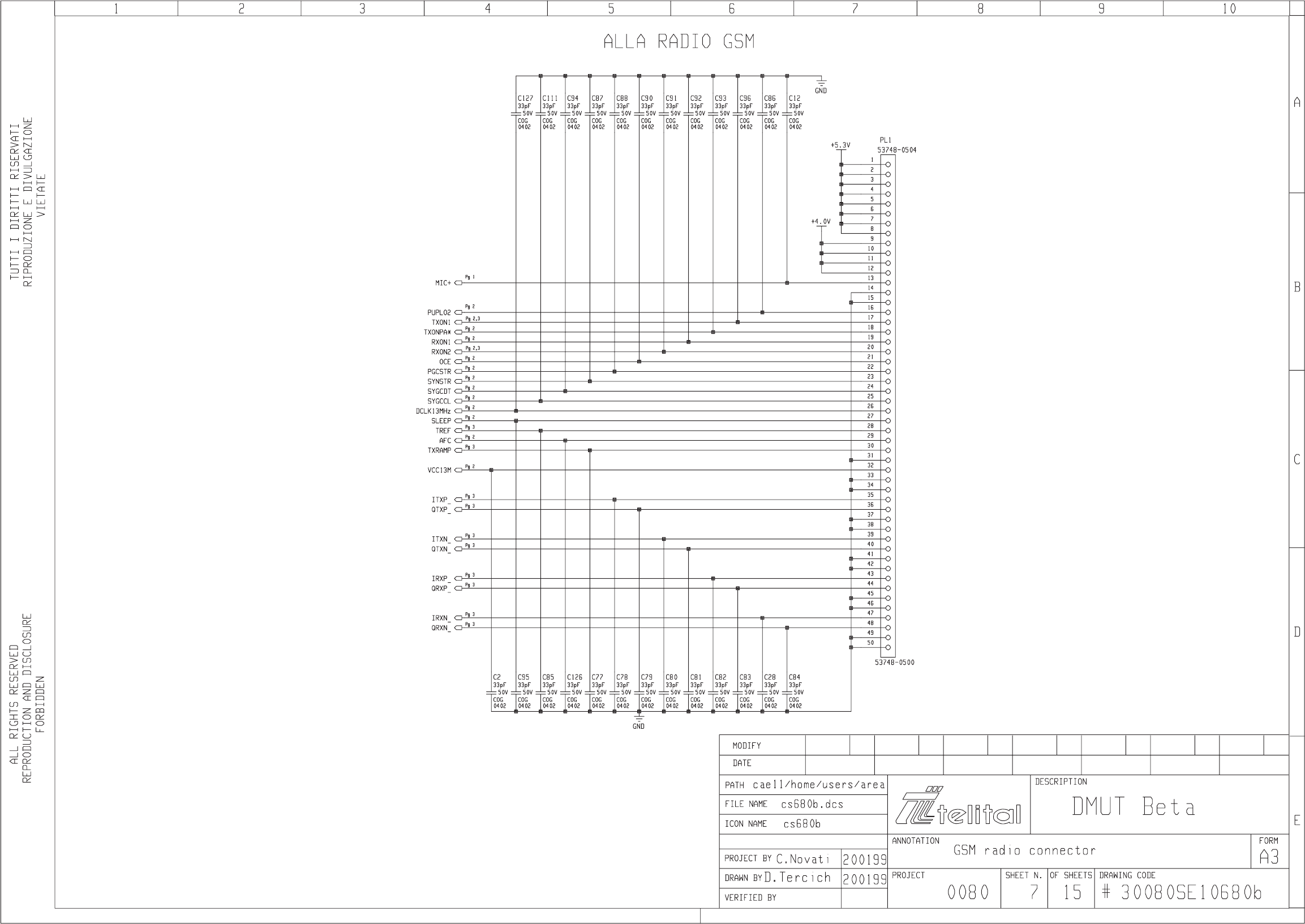

Electric diagram CS680b GSM radio connector 7/15 30080SE10680b

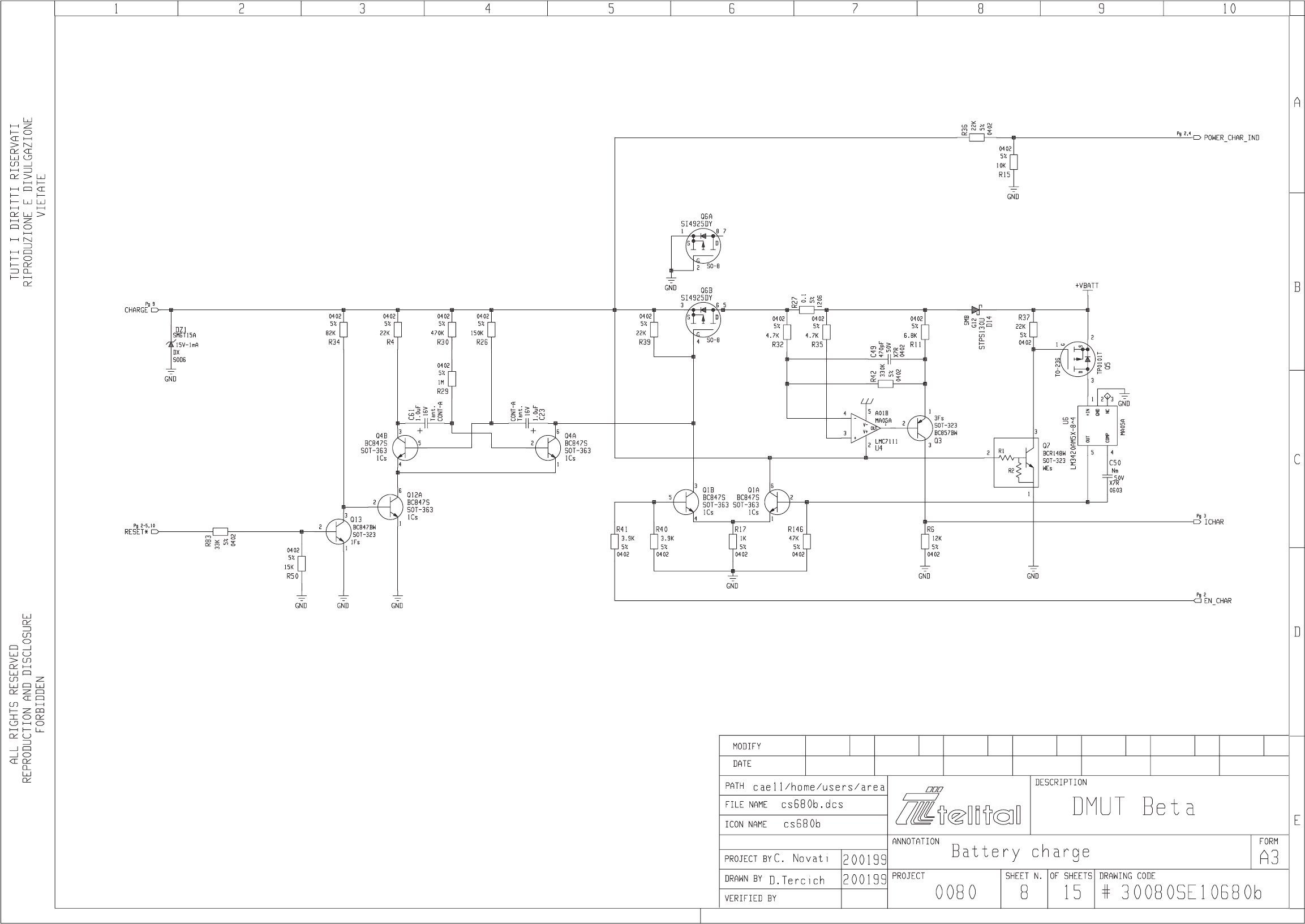

Electric diagram CS680b Battery charge 8/15 30080SE10680b

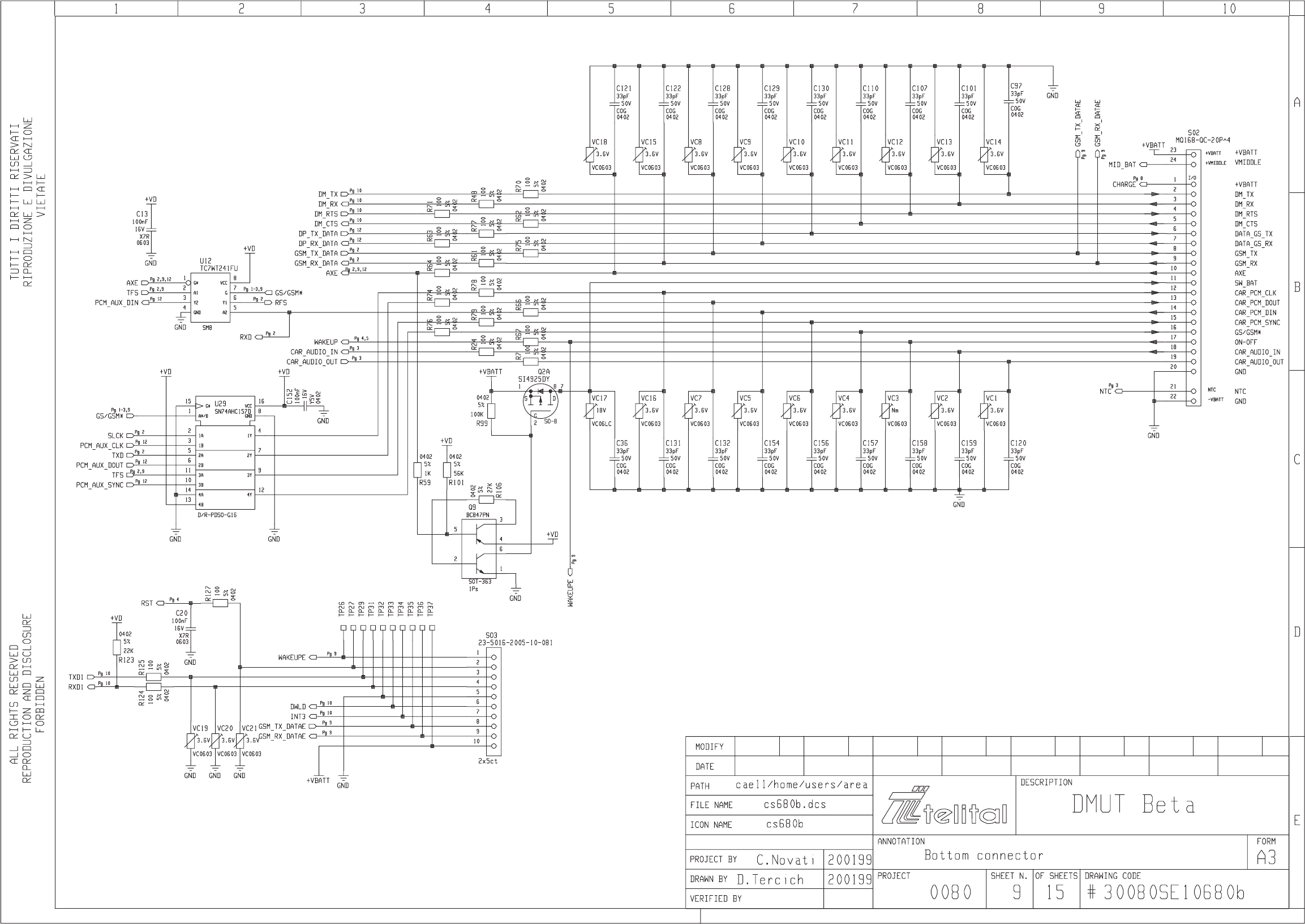

Electric diagram CS680b Bottom connector 9/15 30080SE10680b

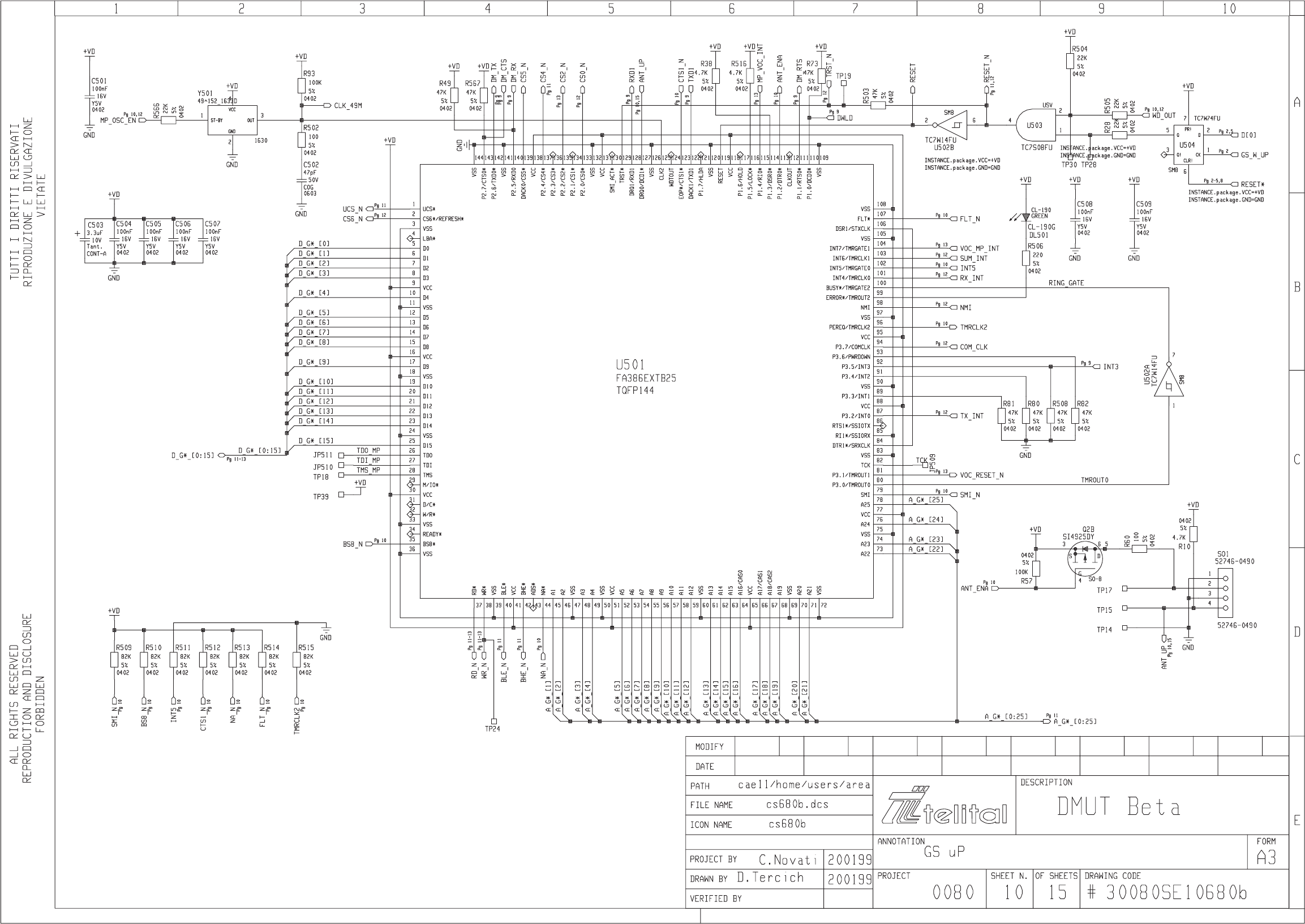

Electric diagram CS680b GS uP 10/15 30080SE10680b

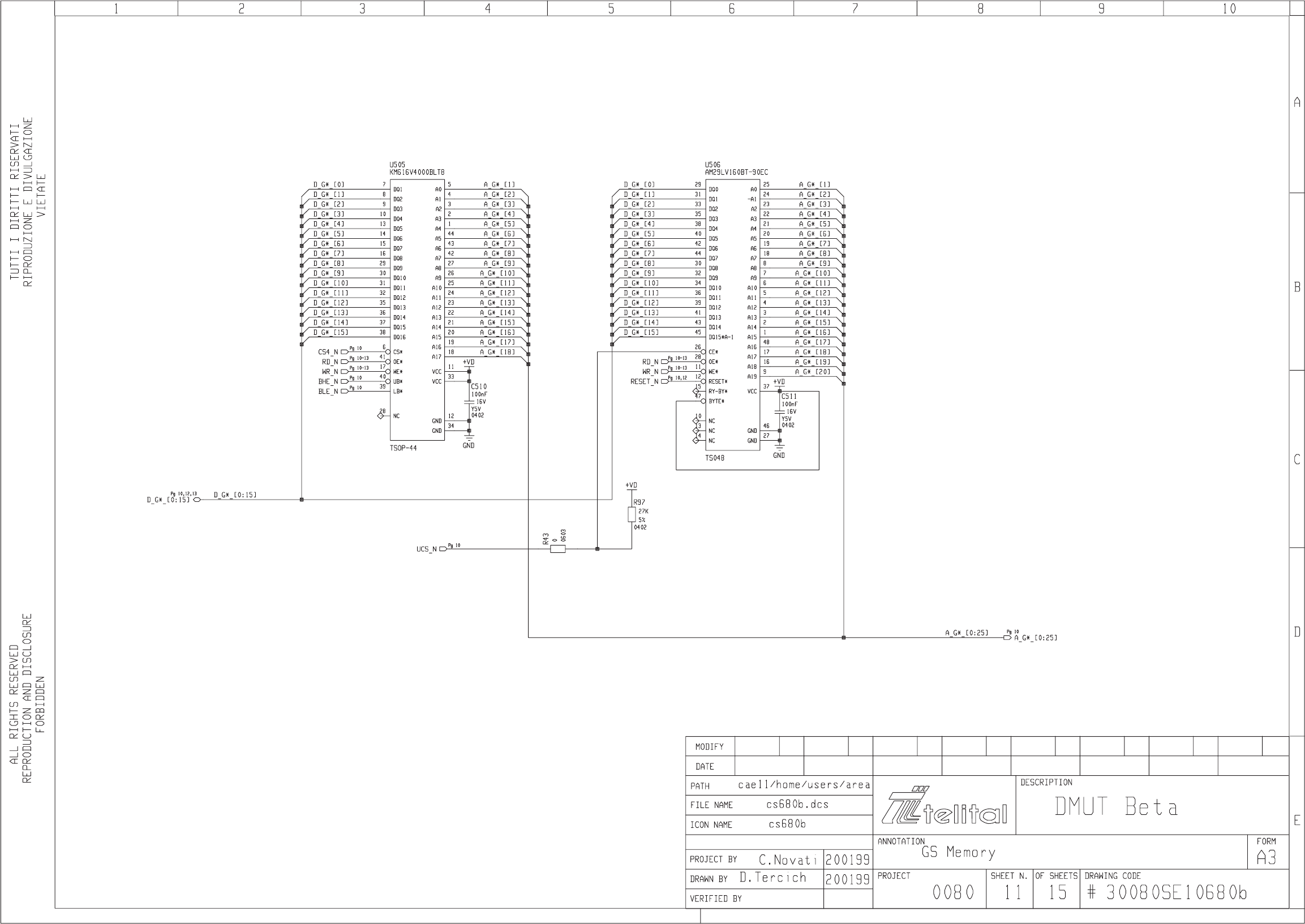

Electric diagram CS680b GS uP 11/15 30080SE10680b

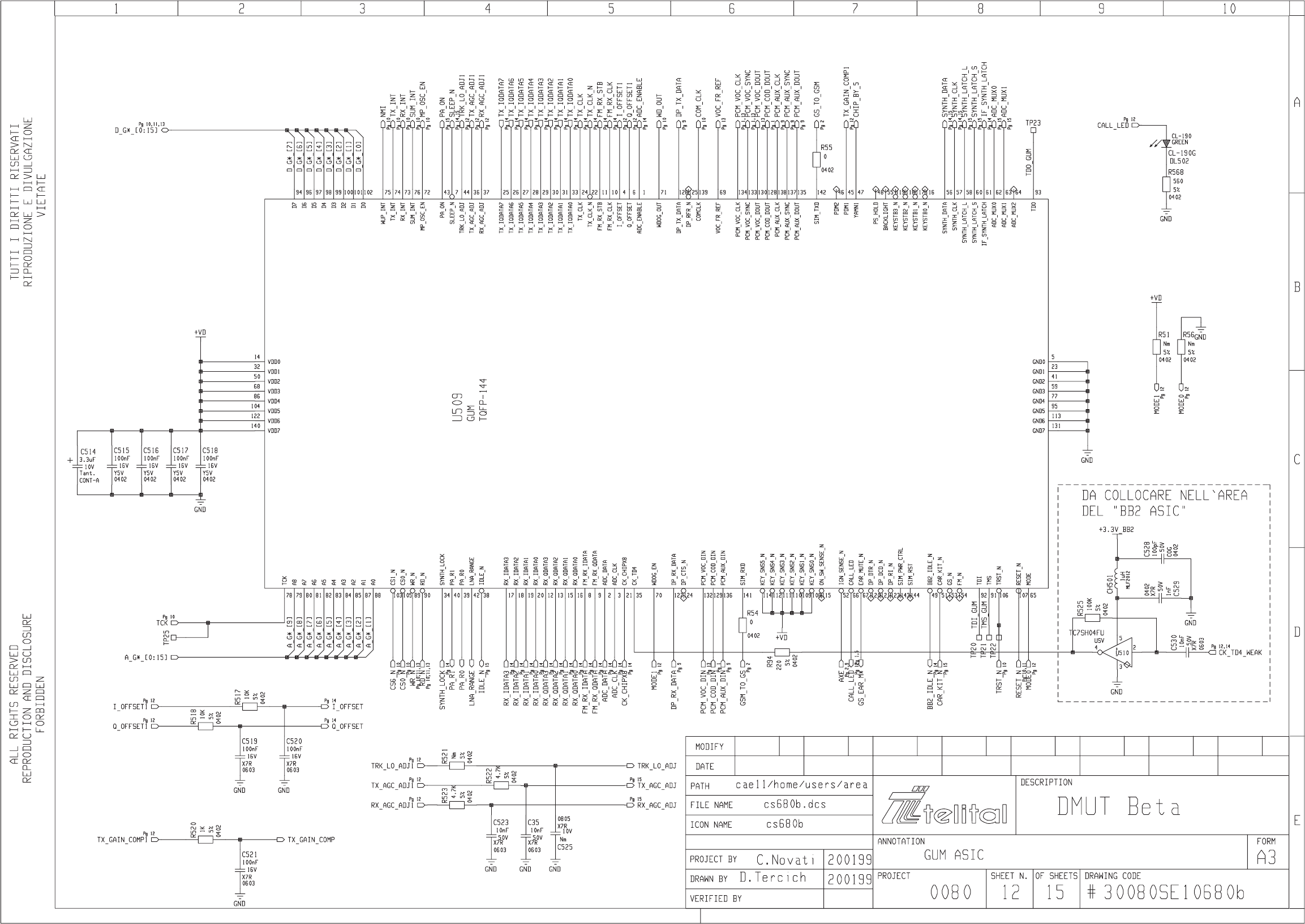

Electric diagram CS680b GUM ASIC 12/15 30080SE10680b

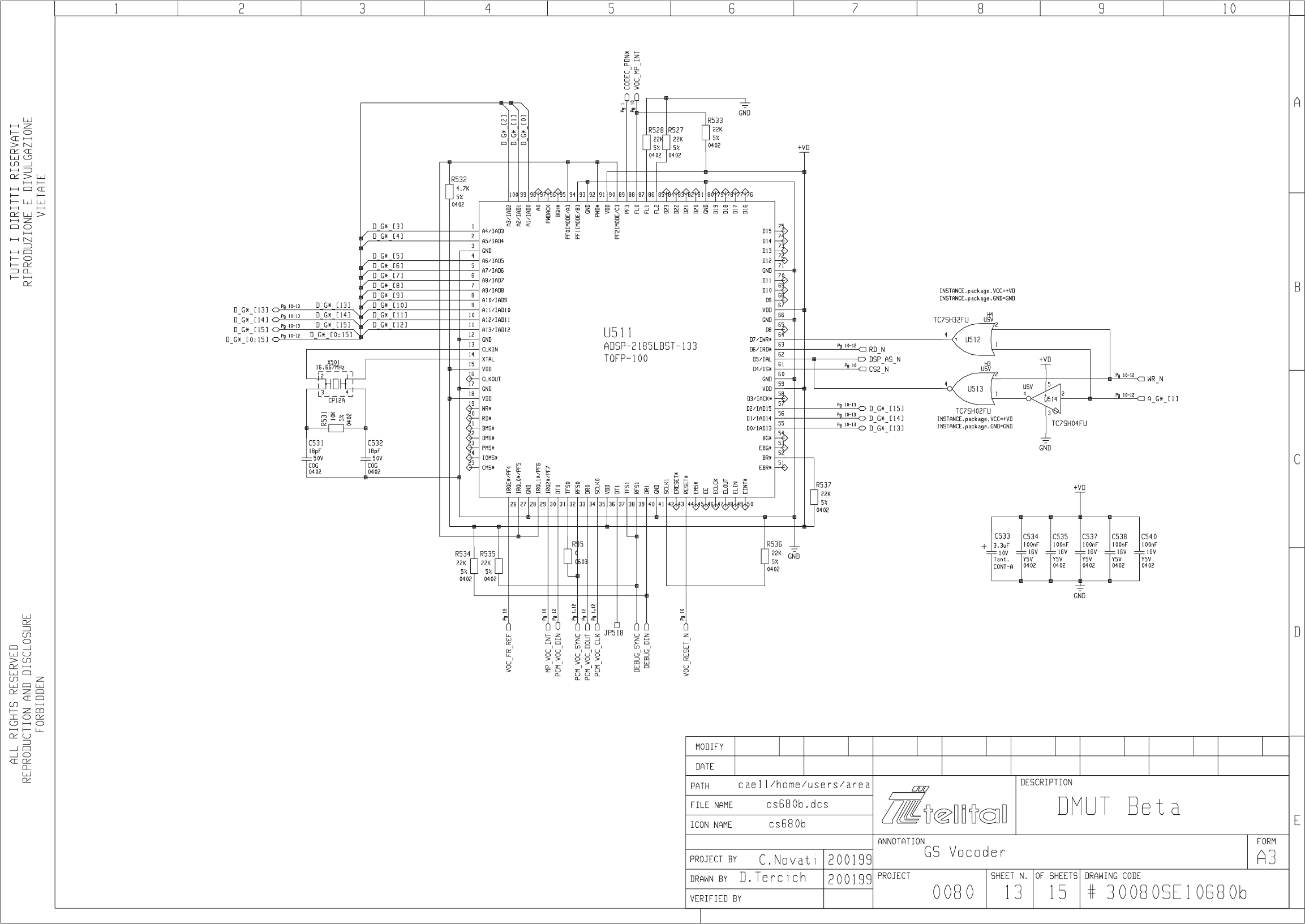

Electric diagram CS680b GS vocoder 13/15 30080SE10680b

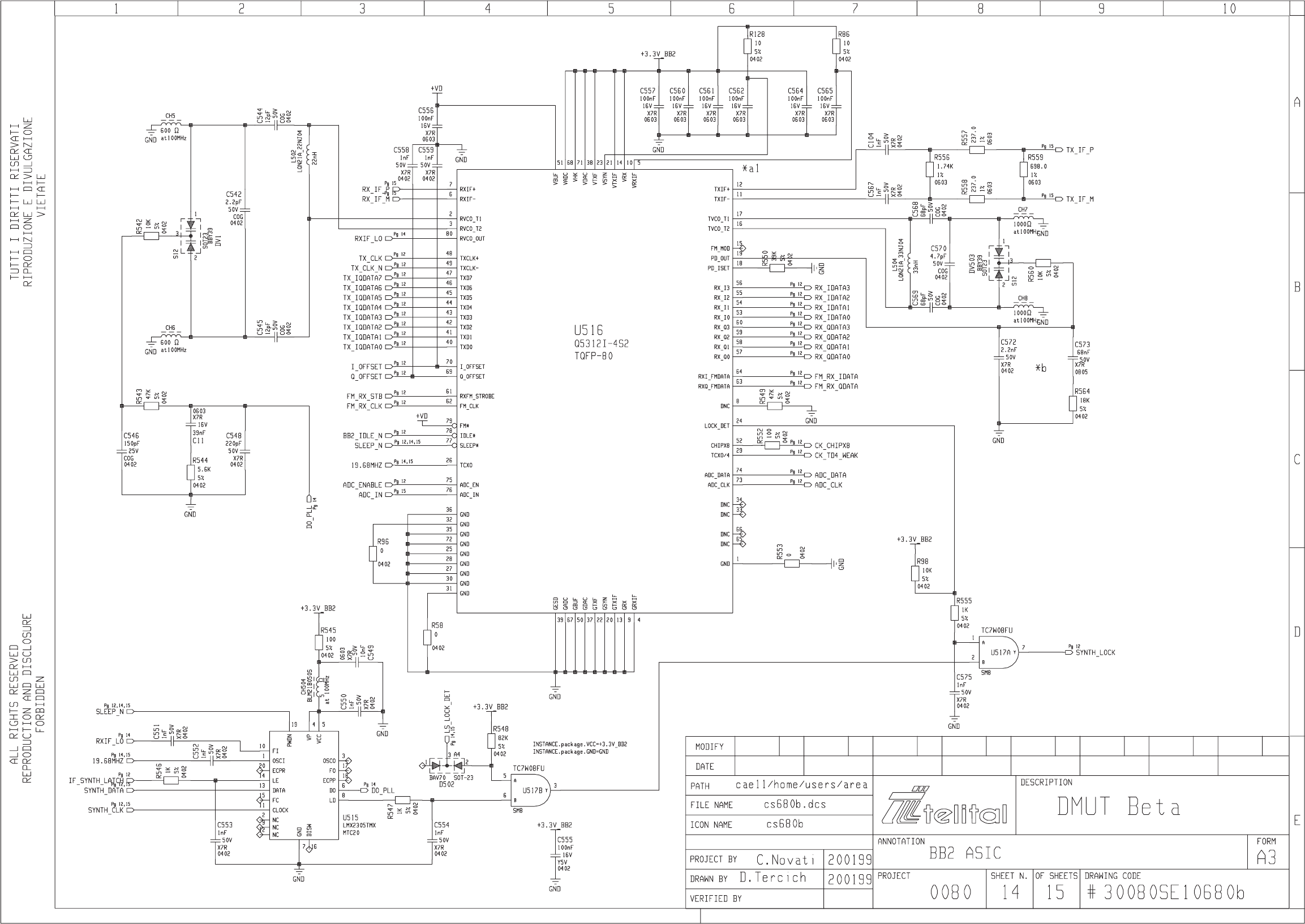

Electric diagram CS680b BB2 ASIC 14/15 30080SE10680b

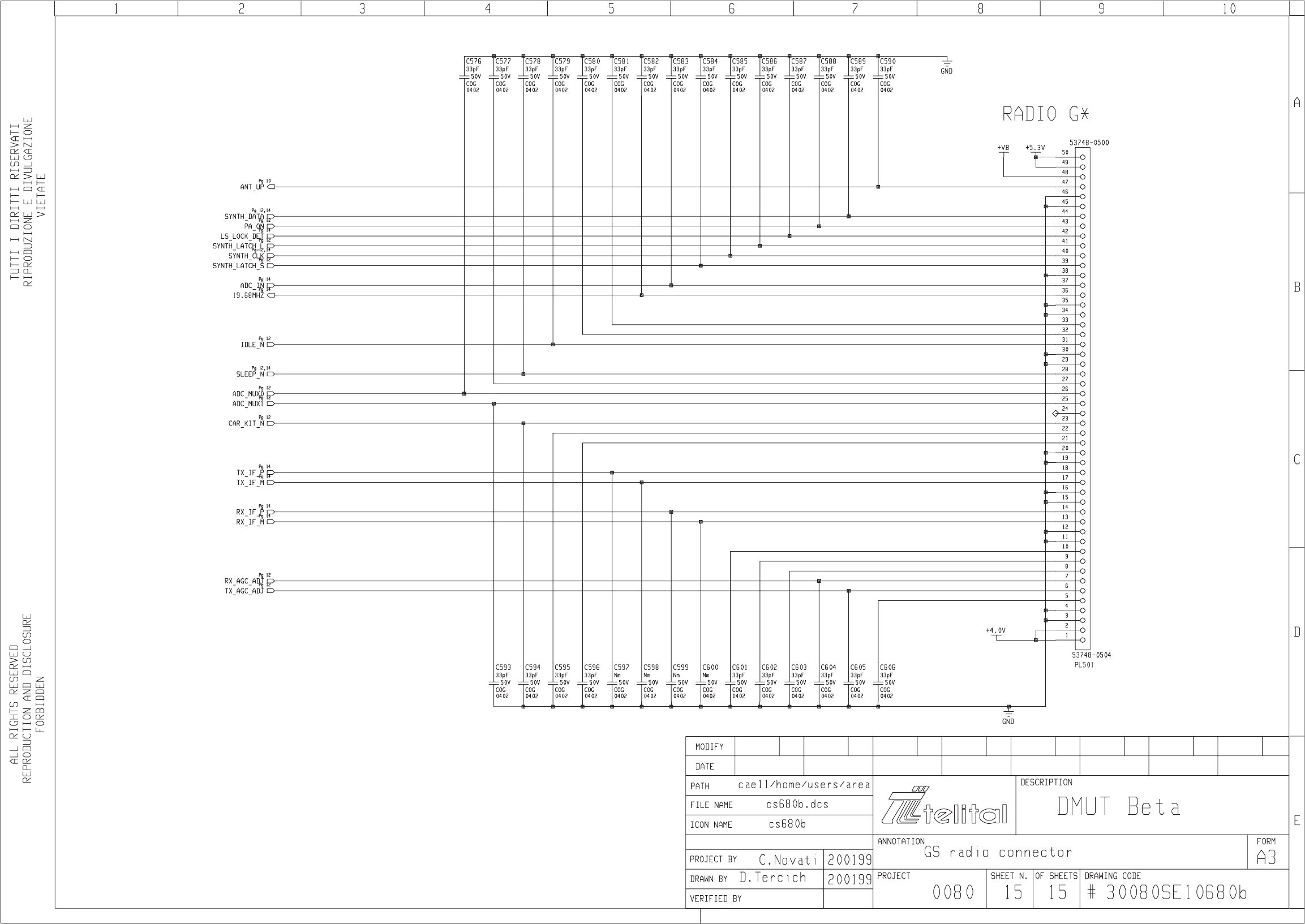

Electric diagram CS680b GS radio connector 15/15 30080SE10680b

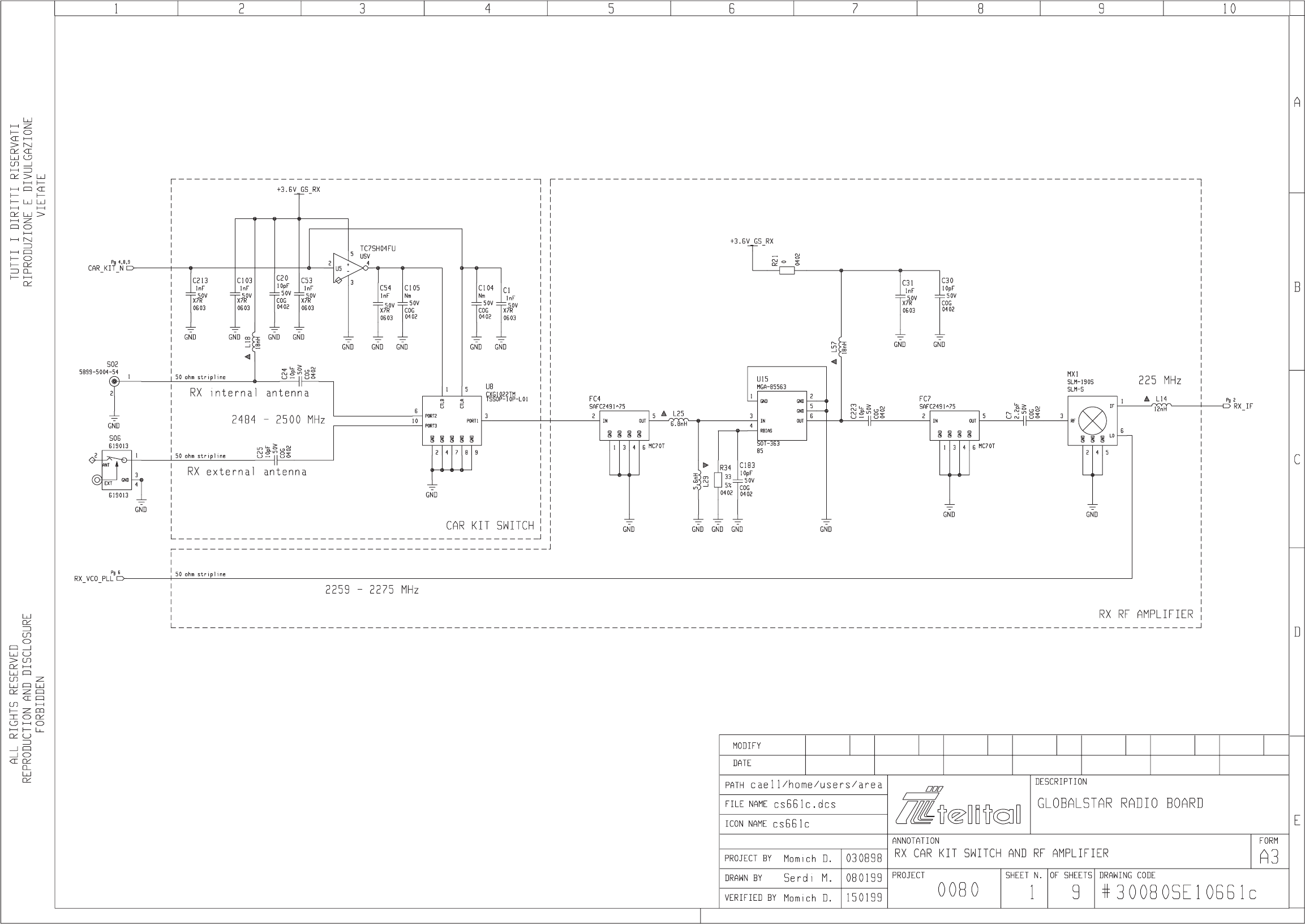

Electric diagram CS661c Rx car kit switch & RF ampl. 1/9 30080SE10661c

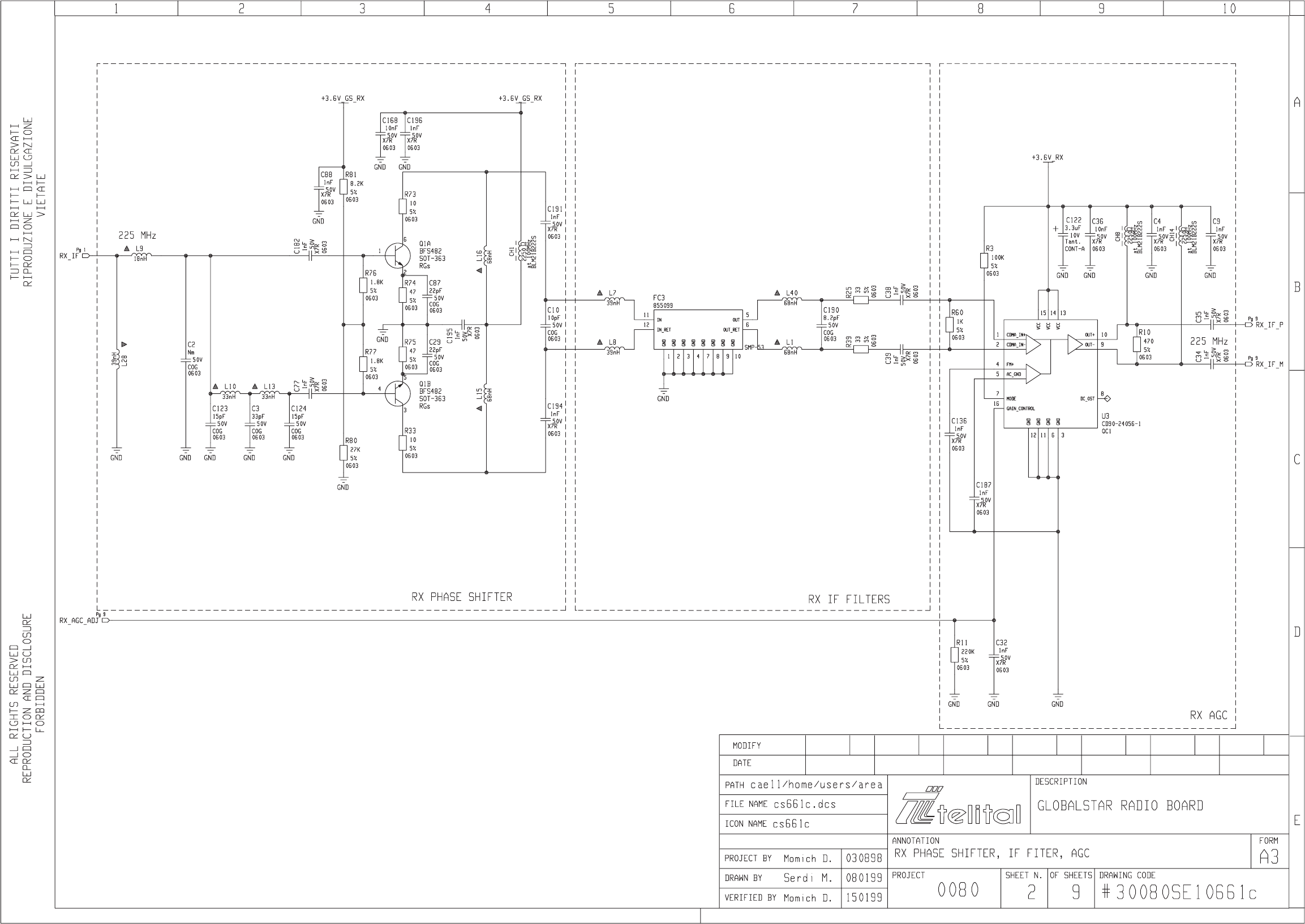

Electric diagram CS661c Rx phase shifter, IF filter, AGC 2/9 30080SE10661c
Electric diagram CS661c Tx AGC and IF filter 3/9 30080SE10661c

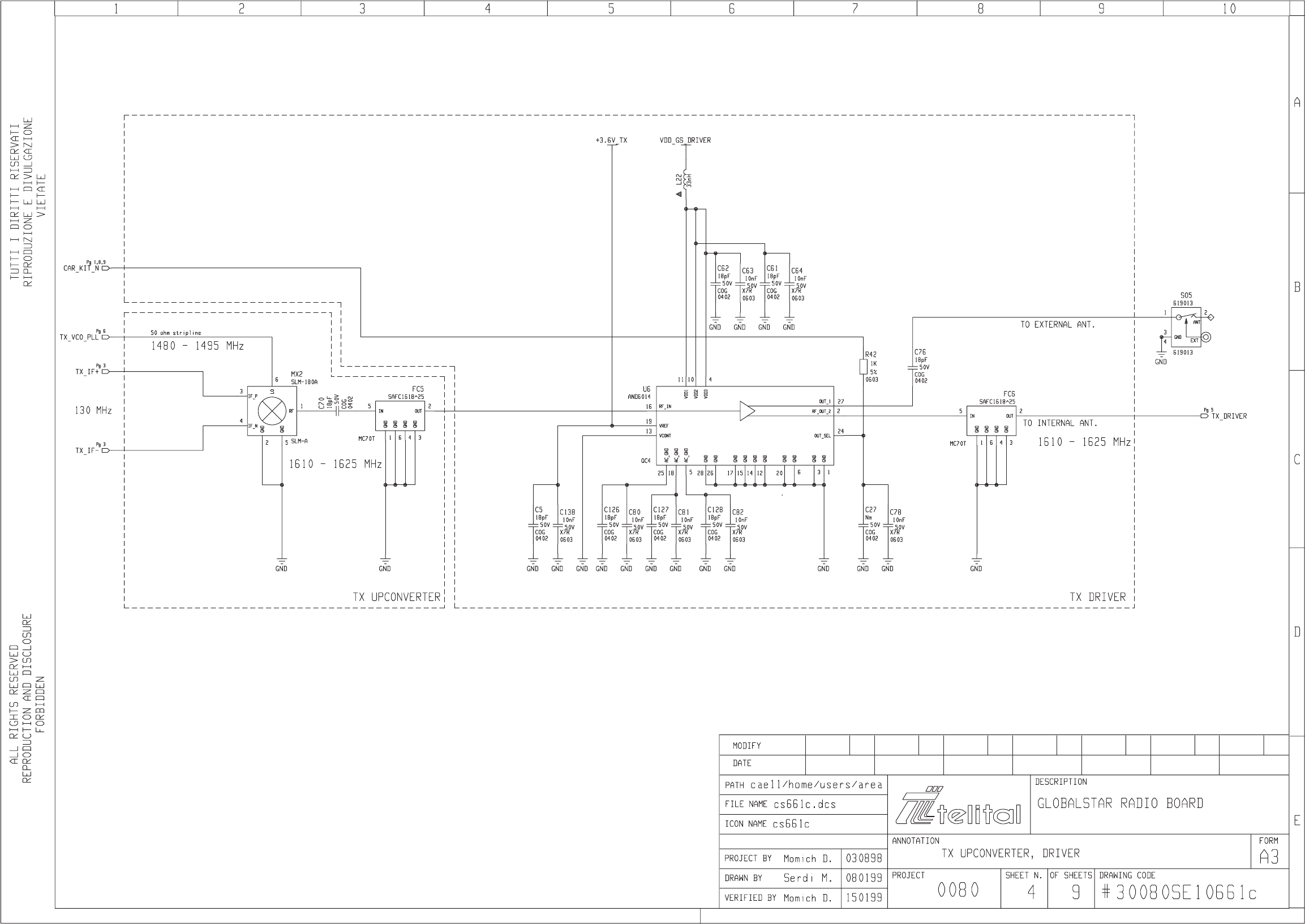

Electric diagram CS661c Tx upconverter, driver 4/9 30080SE10661c

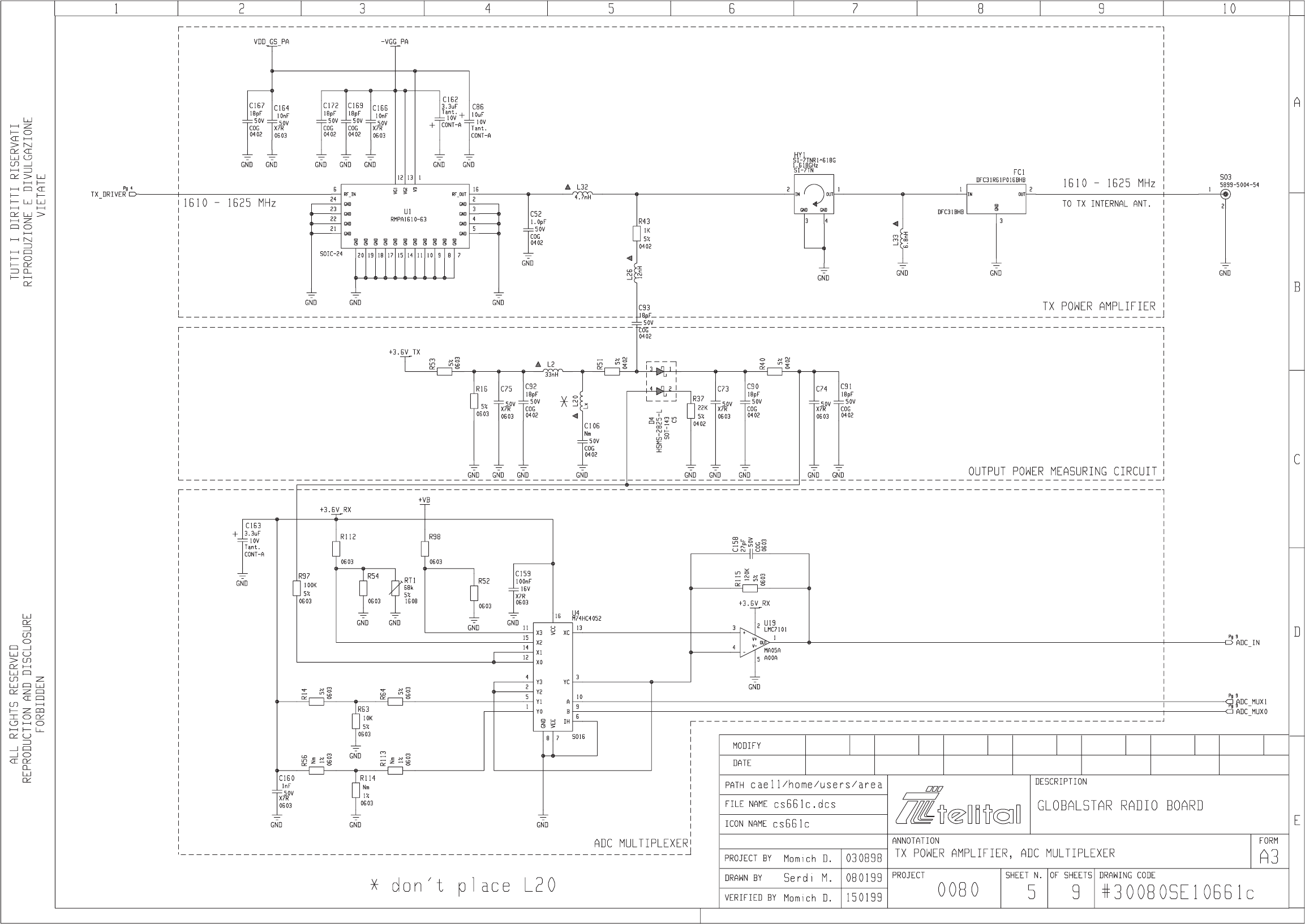

Electric diagram CS661c Tx power amplif, ADC multiplexer 5/9 30080SE10661c

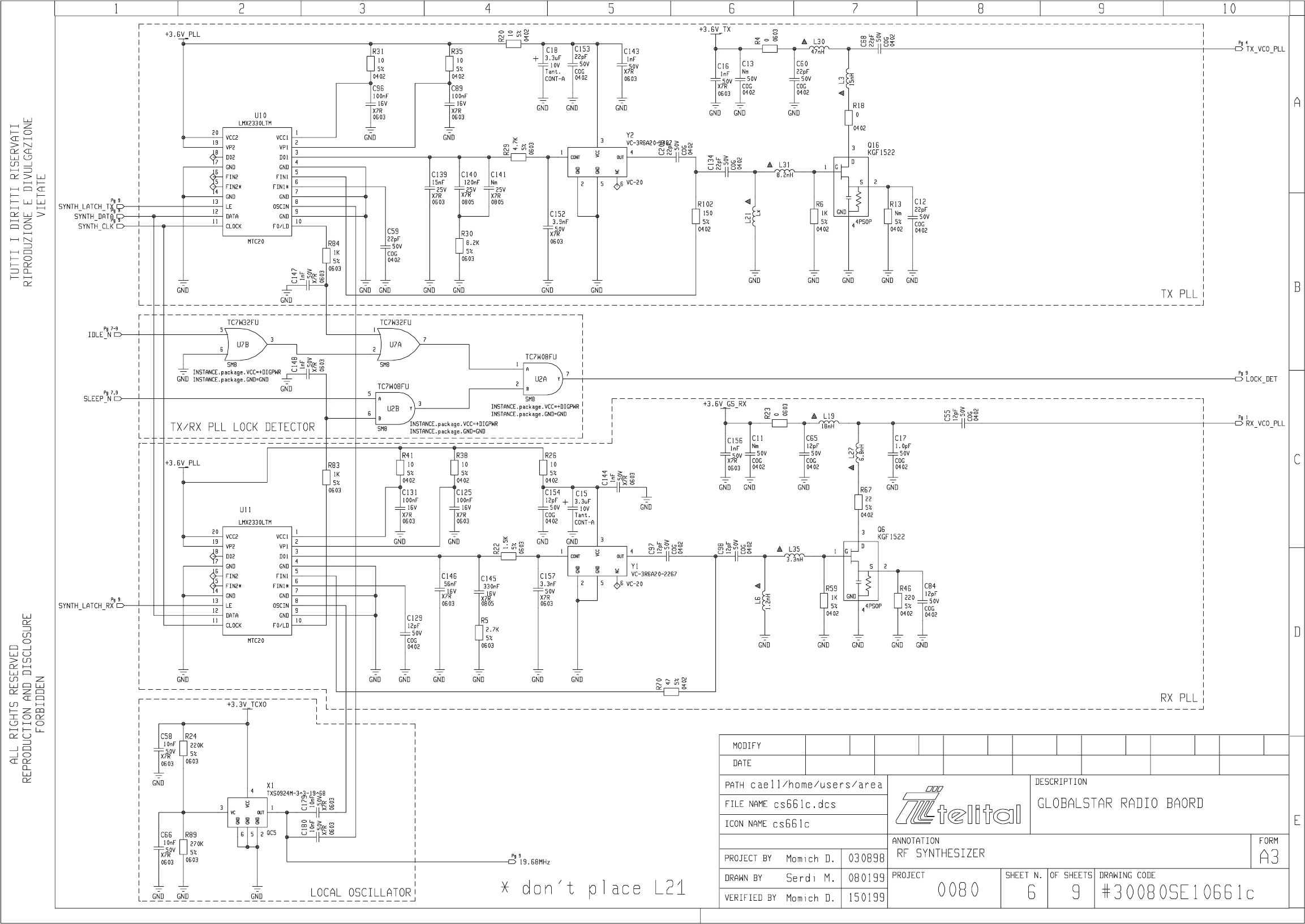

Electric diagram CS661c RF synthesizer 6/9 30080SE10661c
Electric diagram CS661c General Power Supply 7/9 30080SE10661c

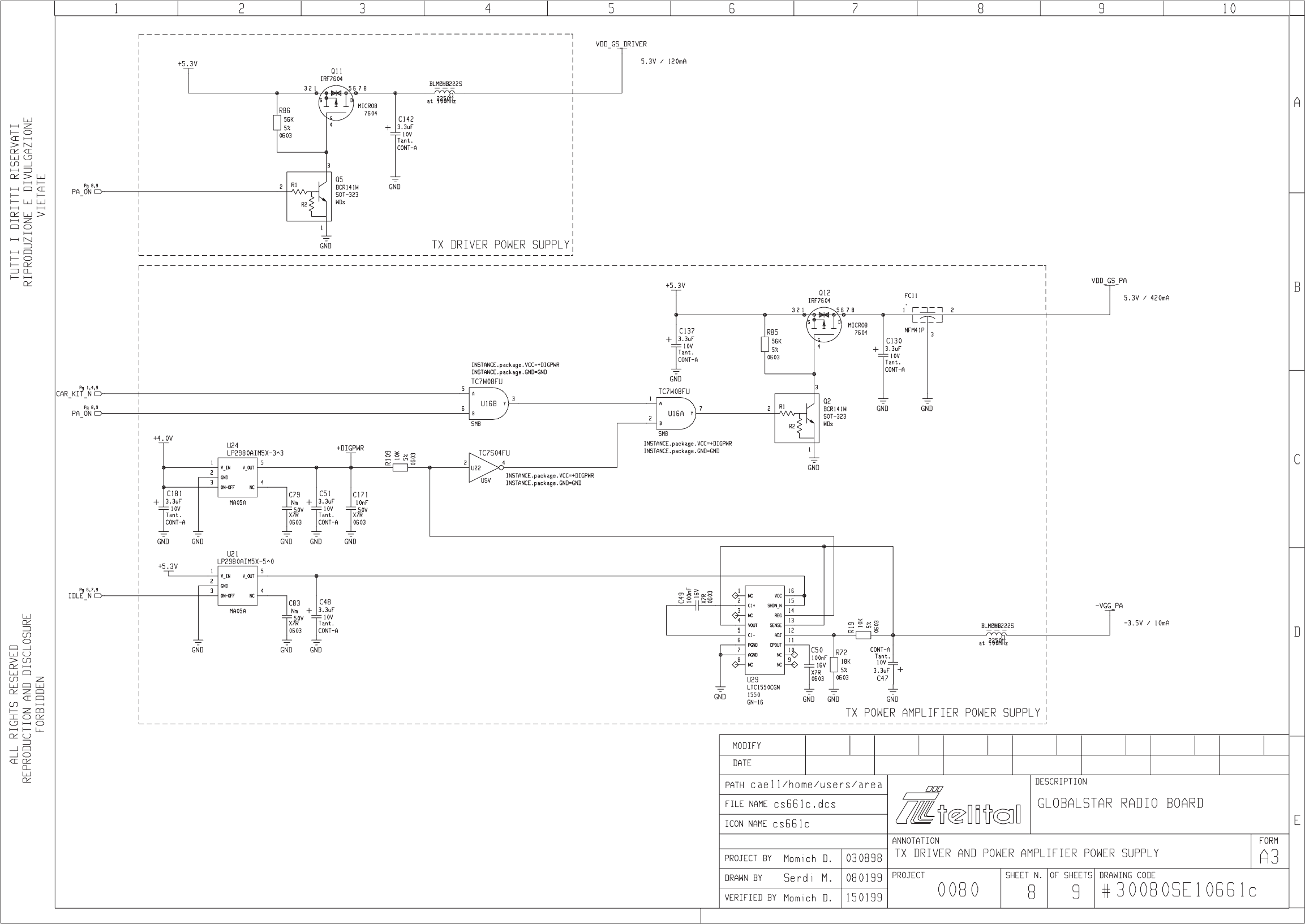

Electric diagram CS661c Tx drv. & power ampl. p.supp 8/9 30080SE10661c

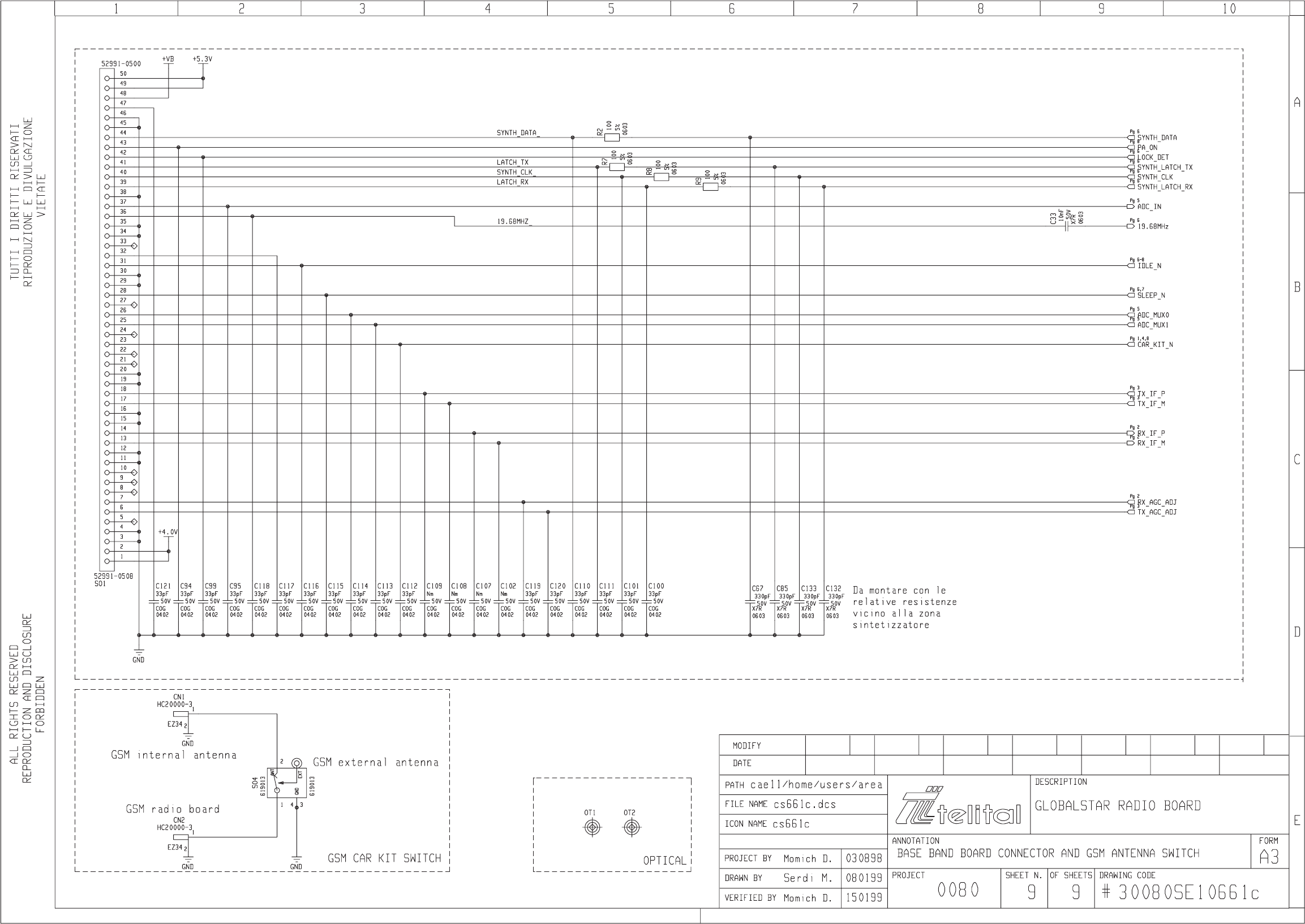

Electric diagram CS661c BB connector & GSM ant. switch 9/9 30080SE10661c
Electric diagram CS760 Optical Sensor Board 1/1 30080SE10760
*a
2685 *a
29.06.99
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
2688 *b
30.06.99
*b *b
*b
*b
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
*a
2675 *a
23.06.99
*a
*a
*a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
2675 *a
23.06.99
*a
*a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
MODULO RF–RADIO SCHEMA ELETTRICO P.1
30069SE00503a
3.3k
a*
820 220pF
a* a*
10k
a*
12k
a*
220pF 220pF
a* a*
150k
56k
27k
5%
a* a*
a*
a* 5%
68k
270k
5%
a*
68k
5%
a*
b*
2409
26.01.99
a* b*
2430
25.02.99
b*
2430 b*
05.02.99
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1
7 PARTS LIST
Bill of materials GSM Radio & display assy cs710c code: 2–000100267
Bill of materials BB Globalstar & GSM assy cs680b code: 2–000100256
Bill of materials Radio GS assy cs661c code: 2–000100257
Bill of materials Optical Sensor cs760 code: 2–000100201
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 1
Data creazione distinta 22/02/99
Data di stampa 29/03/99 Data ultima modifica 22/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr.progetto: 0080
1 01 2000400267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 LATO PTH PZ 1,00000 rif. dis. 1
.2 01 2000200267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 LATO PRIM SMD PZ 1,00000 rif. dis. 1
..3 01 2000300267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 LATO SEC SMD PZ 1,00000 rif. dis. 1
...4 01 1ff0100710c BASETTA C/S RADIO & DISP GSM VERS 22.02.99 PZ 1,00000 rif. dis. 1
...4 01 1vv0200268fpe ETICHETTA ACRILATO BIANCO H6 L20 3 PISTE TT.26.0002 PZ 1,00000 rif. dis. 2
...4 01 1ff0600089ml CONN F CSTP 50 VIE VERT SMD P–0.5 52991–0508 PZ 1,00000 SO4
...4 01 1ff0600129ml CONN F CSTP 40 VIE VERT SMD P–0.5 52991–0408 PZ 1,00000 SO3
..3 01 1aa0100106ky RES SMD 0 OHM JUMPER1/16W 0603 CJ10–000–D PZ 1,00000 R1
..3 01 1aa0100111ky RES SMD 33 R 5% 1/16W 0603 CR10–330J–T PZ 1,00000 R30
..3 01 1aa0100113ky RES SMD 100 R 5% 1/16W 0603 CR10–101J–T PZ 4,00000 R66 R67 R69 R70
..3 01 1aa0100203ky RES SMD 56 R 5% 1/10W 0805 CR21–560J–T PZ 1,00000 R71
..3 01 1aa0100361ky RES SMD 10 R 5% 1/16W 0402 CR05–100J–H PZ 13,00000 R5 R18 R25 R26 R29 R37 R42 R46 R47 R48
R55 R58 R60
..3 01 1aa0100362ky RES SMD 22 R 5% 1/16W 0402 CR05–220J–H PZ 3,00000 R31 R36 R59
..3 01 1aa0100364ky RES SMD 33 R 5% 1/16W 0402 CR05–330J–H PZ 2,00000 R45 R93
..3 01 1aa0100365ky RES SMD 47 R 5% 1/16W 0402 CR05–470J–H PZ 1,00000 R20
..3 01 1aa0100370ky RES SMD 220 R 5% 1/16W 0402 CR05–221J–H PZ 3,00000 R33 R49 R62
..3 01 1aa0100373ky RES SMD 560 R 5% 1/16W 0402 CR05–561J–H PZ 2,00000 R12 R77
..3 01 1aa0100374ky RES SMD 1 K 5% 1/16W 0402 CR05–102J–H PZ 6,00000 R8 R35 R38 R39 R94 R157
..3 01 1aa0100375ky RES SMD 1.8 K 5% 1/16W 0402 CR05–182J–H PZ 4,00000 R51 R52 R53 R54
..3 01 1aa0100376ky RES SMD 2.7 K 5% 1/16W 0402 CR05–272J–H PZ 1,00000 R65
..3 01 1aa0100377ky RES SMD 4.7 K 5% 1/16W 0402 CR05–472J–H PZ 2,00000 R14 R24
..3 01 1aa0100378ky RES SMD 5.6 K 5% 1/16W 0402 CR05–562J–H PZ 3,00000 R11 R23 R44
..3 01 1aa0100379ky RES SMD 6.8 K 5% 1/16W 0402 CR05–682J–H PZ 1,00000 R2
..3 01 1aa0100380ky RES SMD 10 K 5% 1/16W 0402 CR05–103J–H PZ 4,00000 R21 R57 R78 R79
..3 01 1aa0100382ky RES SMD 15 K 5% 1/16W 0402 CR05–153J–H PZ 1,00000 R27
..3 01 1aa0100388ky RES SMD 47 K 5% 1/16W 0402 CR05–473J–H PZ 2,00000 R4 R80
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 2
Data creazione distinta 22/02/99
Data di stampa 29/03/99 Data ultima modifica 22/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr.progetto: 0080
..3 01 1aa0100390ky RES SMD 100 K 5% 1/16W 0402 CR05–104J–H PZ 3,00000 R9 R10 R17
..3 01 1aa0100394ky RES SMD 470 K 5% 1/16W 0402 CR05–474J–H PZ 1,00000 R16
..3 01 1aa0100395ky RES SMD 560 K 5% 1/16W 0402 CR05–564J–H PZ 1,00000 R15
..3 01 1aa0100398ky RES SMD 100 R 5% 1/16W 0402 CR05–101J–H PZ 3,00000 R3 R89 R90
..3 01 1aa0100400ky RES SMD 3.9 K 5% 1/16W 0402 CR05–392J–H PZ 4,00000 R6 R61 R63 R76
..3 01 1aa0100406ky RES SMD 8.2 K 5% 1/16W 0402 CR05–822J–H PZ 1,00000 R22
..3 01 1aa0100407ky RES SMD 0 OHM JUMPER1/16W 0402 CJ05–000J–H PZ 10,00000 R28 R34 R40 R41 R56 R68 R73 R74 R75 R96
..3 01 1aa0100432ky RES SMD 20.0 K 1% 1/16W 0603 CR10–2002F–T PZ 1,00000 R13
..3 01 1aa0100462ky RES SMD 39.0 K 1% 1/16W 0603 CR10–3902F–T PZ 1,00000 R166
..3 01 1aa0100463ky RES SMD 47.0 K 1% 1/16W 0603 CR10–4702F–T PZ 1,00000 R19
..3 01 1aa0100465ky RES SMD 2.2 K 5% 1/16W 0402 CR05–222J–H PZ 1,00000 R7
..3 01 1aa0100485ky RES SMD 82 R 5% 1/16W 0402 CR05–820J–H PZ 1,00000 R91
..3 01 1aa0100555ky RES SMD 390 K 5% 1/16W 0603 CR10–394J–T PZ 1,00000 R43
..3 01 1aa0100556ky RES SMD 680 K 5% 1/16W 0603 CR10–684J–T PZ 1,00000 R72
..3 01 1bb0100072av COND CER SMD 39 pF COG 0603 5% 50V 06035A390JAT4A PZ 1,00000 C180
..3 01 1bb0100083ky COND CER SMD 10 nF X7R 0603 10% 50V CM105X7R103K50AL PZ 2,00000 C161 C169
..3 01 1bb0100084ky COND CER SMD 22 nF X7R 0603 10% 25V CM105X7R223K25AL PZ 1,00000 C64
..3 01 1bb0100117av COND CER SMD 12 pF COG 0603 5% 50V 06035A120JAT2L PZ 1,00000 C182
..3 01 1bb0100166ky COND CER SMD 100 nF X7R 0805 10% 25V CM21X7R104K25AT PZ 1,00000 C179
..3 01 1bb0100185av COND CER SMD 100 nF Y5V 0603 20% 16V 0603YG104MAT2L PZ 2,00000 C170 C193
..3 01 1bb0100188ky COND CER SMD 1.5pF COG 0402 +–0.25pF 50V CM05CG1R5C50AH PZ 2,00000 C10 C138
..3 01 1bb0100190ky COND CER SMD 10 pF COG 0402 +–0.5pF 50V CM05CG100D50AH PZ 6,00000 C95 C97 C105 C106 C140 C189
..3 01 1bb0100192ky COND CER SMD 22 pF COG 0402 5% 50V CM05CG220J50AH PZ 64,00000 C6 C11 C13 C14 C16 C17 C18 C19 C21 C35
C45 C46 C49 C54 C55 C57 C58 C59 C65 C66
C69 C70 C71 C72 C73 C74 C75 C76 C77 C82
C83 C84 C85 C93 C96 C98 C99 C104 C108
C110 C111 C114 C115 C120 C121 C122 C123
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 3
Data creazione distinta 22/02/99
Data di stampa 29/03/99 Data ultima modifica 22/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr.progetto: 0080
C124 C125 C127 C128 C129 C130 C131 C132
C133 C134 C135 C136 C137 C141 C148 C165
C192
..3 01 1bb0100193ky COND CER SMD 27 pF COG 0402 5% 50V CM05CG270J50AH PZ 1,00000 C9
..3 01 1bb0100195ky COND CER SMD 39 pF COG 0402 5% 50V CM05CG390J50AH PZ 18,00000 C25 C26 C27 C28 C29 C30 C60 C61 C88 C89
C90 C112 C113 C116 C117 C118 C119 C152
..3 01 1bb0100196ky COND CER SMD 47 pF COG 0402 5% 50V CM05CG470J50AH PZ 2,00000 C4 C5
..3 01 1bb0100199ky COND CER SMD 100 pF COG 0402 5% 50V CM05CG101J50AH PZ 5,00000 C1 C2 C12 C43 C197
..3 01 1bb0100200ky COND CER SMD 220 pF X7R 0402 10% 50V CM05X7R221K50AH PZ 1,00000 C37
..3 01 1bb0100202ky COND CER SMD 1 nF X7R 0402 10% 50V CM05X7R102K50AH PZ 16,00000 C23 C24 C42 C48 C63 C67 C68 C78 C81 C86
C91 C92 C94 C107 C109 C126
..3 01 1bb0100204ky COND CER SMD 10 nF X7R 0402 10% 16V CM05X7R103K16AH PZ 1,00000 C8
..3 01 1bb0100205ky COND CER SMD 220 nF X7R 0805 10% 25V CM21X7R224K25AT PZ 1,00000 C172
..3 01 1bb0100206ky COND CER SMD 330 nF X7R 0805 10% 16V CM21X7R334K16AT PZ 7,00000 C181 C183 C185 C186 C187 C188 C191
..3 01 1bb0100208ky COND CER SMD 100 nF X7R 0603 10% 16V CM105X7R104K16AT PZ 1,00000 C44
..3 01 1bb0100210ky COND CER SMD 150 pF COG 0402 5% 25V CM05CG151J25VAH PZ 1,00000 C3
..3 01 1bb0100211ky COND CER SMD 4.7nF X7R 0402 10% 16V CM05X7R472K16AH PZ 1,00000 C38
..3 01 1bb0100220ky COND CER SMD 18 pF COG 0402 5% 50V CM05CG180J50AH PZ 1,00000 C7
..3 01 1bb0100222ky COND CER SMD 4.7pF COG 0402 +–.25pF 50V CM05CG4R7C50AH PZ 2,00000 C62 C139
..3 01 1bb0100223ky COND CER SMD 0.5pF COG 0402 +–0.25pF 50V CM05CG0R5C50AH PZ 1,00000 C47
..3 01 1bb0100224ky COND CER SMD 2.2pF COG 0402 +–0.25pF 50V CM05CG2R2C50AH PZ 2,00000 C56 C103
..3 01 1bb0100226ky COND CER SMD 6.8pF COG 0402 +–0.5pF 50V CM05CG6R8D50AH PZ 3,00000 C52 C100 C101
..3 01 1bb0100229ky COND CER SMD 22 nF X7R 0402 10% 16V CM05X7R223K16H PZ 2,00000 C20 C80
..3 01 1bb0100230ky COND CER SMD 8.2pF COG 0402 +–0.5pF 50V CM05CG8R2D50AH PZ 1,00000 C195
..3 01 1bb0100232ky COND CER SMD 120 pF COG 0402 5% 50V CM05CG121J50AH PZ 2,00000 C31 C79
..3 01 1bb0100235ky COND CER SMD 3.3pF COG 0402 +–0.25pF 50V CM05CG3R3C50AH PZ 2,00000 C142 C178
..3 01 1bb0100237ky COND CER SMD 330 pF X7R 0402 10% 50V CM05X7R331K50AH PZ 6,00000 C36 C39 C51 C167 C168 C190
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 4
Data creazione distinta 22/02/99
Data di stampa 29/03/99 Data ultima modifica 22/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr.progetto: 0080
..3 01 1bb0100260ky COND CER SMD 3.3nF COG 0805 5% 25V CM21CG332J25AT PZ 1,00000 C40
..3 01 1bb0100266ky COND CER SMD 4.7uF X5R 1206 10% 10V CM316X5R475K10AT PZ 1,00000 C177
..3 01 1bb0100297ky COND CER SMD 220 pF COG 0402 5% 25V CM05CG221J25VAH PZ 1,00000 C50
..3 01 1bb0500011ky COND TANT SMD 2.2 uF 10V 20% Asize TAJA225M010S PZ 11,00000 C15 C147 C149 C150 C151 C153 C154 C155
C157 C158 C159
..3 01 1bb0500051ky COND TANT SMD 10 uF 10V 20% Asize TAJA106M010R PZ 7,00000 C32 C33 C34 C143 C145 C146 C156
..3 01 1bb0500060ky COND TANT SMD 1.0 uF 16V 20% Asize TAJA105M016R PZ 1,00000 C173
..3 01 1bb0500075av COND TANT SMD 100 uF 6.3V 20% Csize TPS LOW ESR TPS–C107M006R0150 PZ 4,00000 C160 C162 C163 C198
..3 01 1bb0500078ky COND TANT SMD 3.3 uF 10V 20% Asize TAJA335M010R PZ 2,00000 C175 C176
..3 01 1cc0100045td INDUT SMD 2.2 uH 10% Qmin30 30mA MLF2012A2R2KL PZ 1,00000 CH10
..3 01 1cc0100060td INDUT SMD 5.6 nH +–0.5nH Qmin 8 500mA MLR1608M5N6DT PZ 1,00000 CH14
..3 01 1cc0100061td INDUT SMD 6.8 nH +–0.5nH Qmin 8 500mA MLR1608M6N8DT PZ 2,00000 CH1 CH5
..3 01 1cc0100063td INDUT SMD 10 nH 10% Qmin 8 300mA MLR1608M10NKT PZ 9,00000 CH3 CH9 CH11 CH16 CH18 CH23 CH30 CH31
CH35
..3 01 1cc0100065td INDUT SMD 15 nH 10% Qmin 8 300mA MLR1608M15NKT PZ 1,00000 CH24
..3 01 1cc0100068td INDUT SMD 4.7 nH +–0.3nH Qmin 8 500mA MLR1608M4N7ST PZ 1,00000 CH15
..3 01 1cc0100074td INDUT SMD 27 nH 10% Qmin 8 300mA MLR1608M27NKT PZ 1,00000 CH32
..3 01 1cc0100090td INDUT SMD 2.2 nH +–0.3nH Qmin 8 500mA MLR1608M2N2ST PZ 2,00000 CH4 CH29
..3 01 1cc0100128mu INDUT SMD EMI SUPPRESSOR 0.85 R 100mA BLM11B102SPT PZ 1,00000 CH17
..3 01 1cc0100134td INDUT SMD 18 nH 10% Qmin 8 300mA MLR1608M18NKT PZ 1,00000 CH34
..3 01 1cc0100137td INDUT SMD 2.2 uH 20% Qref5 340mA NLFC322522T–2R2M PZ 2,00000 CH7 CH8
..3 01 1cc0100144co INDUT SMD 47 nH 5% Qmin60 500mA SIZE 0805 0805HS–470TJBC PZ 3,00000 L1 L2 L3
..3 01 1cc0100146co INDUT SMD 68 nH 5% Qmin60 500mA SIZE 0805 0805HS–680TJBC PZ 1,00000 L4
..3 01 1dd0100118na CI ANALOG M08A 400 mW AUDIO POWER AMPLIFIER LM4862MX PZ 1,00000 U14
..3 01 1dd0100131na CI ANALOG MA05A MK L02A ULTRA LOW–DROPOUT VOLTAGE REG LP2980AIM5X–3.0 PZ 4,00000 U4 U7 U9 U10
..3 01 1dd0100133si CI ANALOG P–TQFP–48–1 GSM/PNC/PCS–RECEIVER PMB2409 V1.1 PZ 1,00000 U3
..3 01 1dd0100134si CI ANALOG P–TQFP–48 GSM PCN TRANSMITTER FOR COMM PMB2240 V1.6 PZ 1,00000 U1
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 5
Data creazione distinta 22/02/99
Data di stampa 29/03/99 Data ultima modifica 22/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

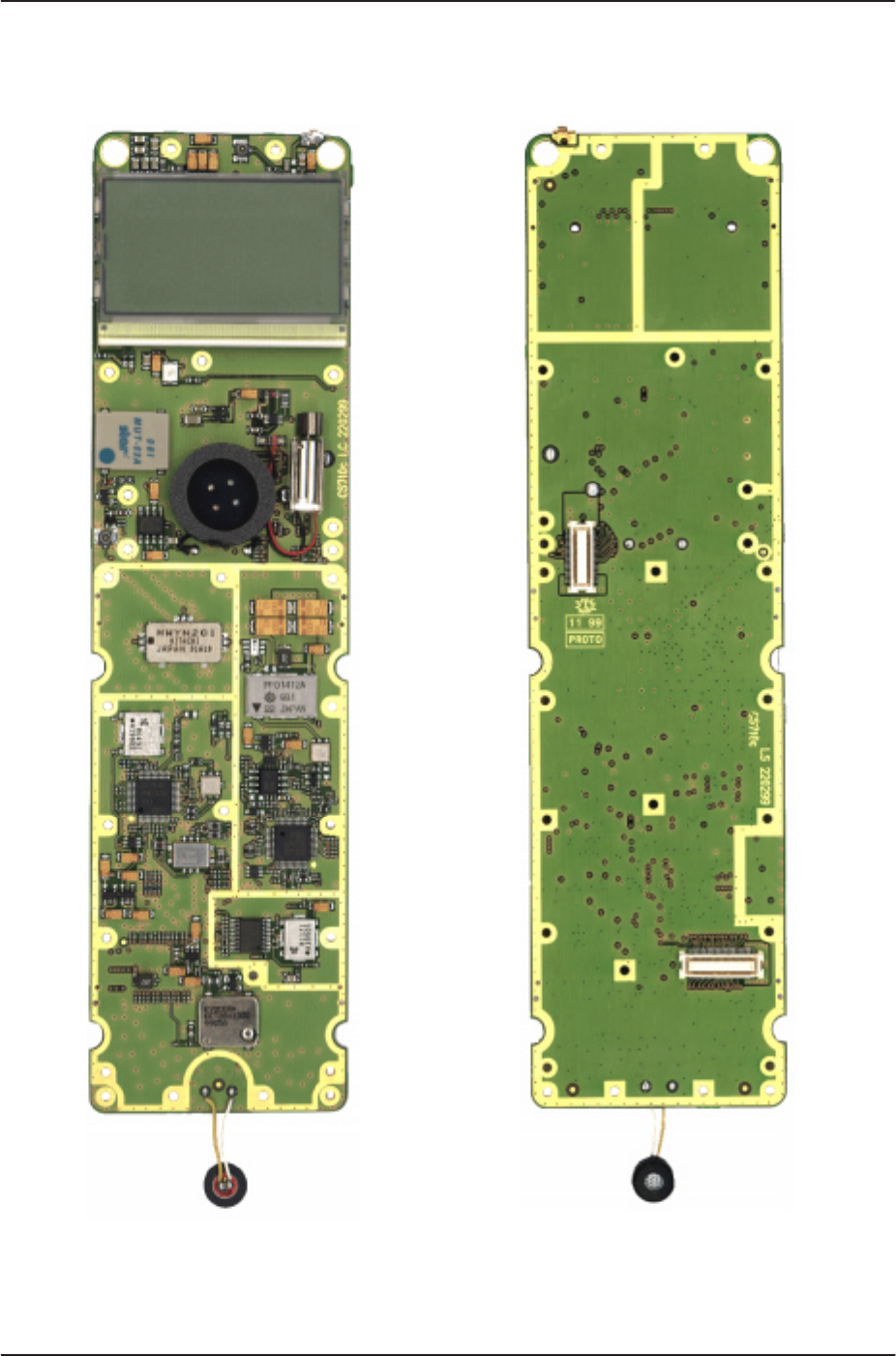

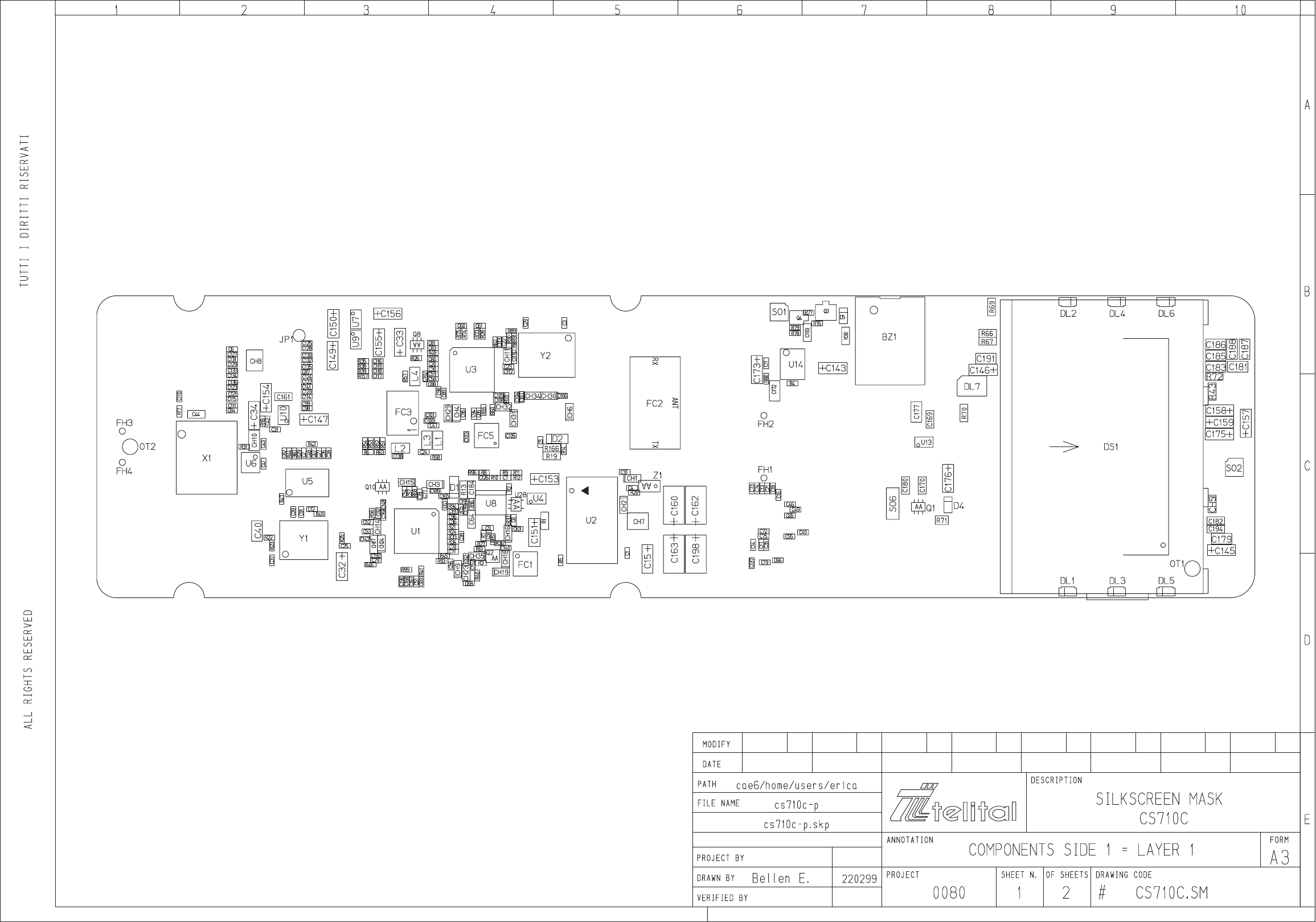

Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr.progetto: 0080
..3 01 1dd0100145sg CI ANALOG TS922IDT SO8 RAIL–TO–RAIL DUAL OPERAT AMPL TS922IDT PZ 1,00000 U8
..3 00 1dd0100150to CI ANALOG TC7S66FU–TE85L USV SINGLE ANALOG SWITCH TC7S66FU–TE85L PZ 1,00000 U28
..3 01 1dd0100158ph CI ANALOG UMA1021M/C2 LOW–VOLT FREQ SINTHES. SSOP20 UMA1021M/C2 PZ 1,00000 U5
..3 01 1dd0100204na CI ANALOG LP2985 5V MA05B 150 mA ULTRA LOW–DROPOUT REGULATOR LP2985AIM5X–5.0 PZ 1,00000 U13 2444
..3 01 1dd0500022hc MODULO RF PF01412A 890–915MHz RF–K SMD V/DD MAX10V Pout 4.5W PF01412A–TB PZ 1,00000 U2
..3 01 1ff0400034smk CONN RF COASSIALE F DA C/S SMD SERIE TC–3 (3GHz) CRS5001–0801 PZ 2,00000 SO1 SO2
..3 01 1ff0600141lcc CONN F CSTP 2 VIE VERT SMD P–1.27 46NYLON 24–8005–002–100–867 PZ 1,00000 SO6
..3 01 1kk0400010str BUZZER MAGNETICO SMD 3 V MUT–03A PZ 1,00000 BZ1
..3 01 1ll0500017si FILTRO SAW TX LOW–LOSS BF677 DCC6 890–915MHz SMD GSM B39901–B4677–Z610 PZ 1,00000 FC1
..3 01 1ll0500019si FILTRO SAW IF LOW–LOSS B4818 QCC12B 246MHz SMD GSM B39251–B4818–Z910 PZ 1,00000 FC3
..3 01 1ll0500025si FILTRO SAW RX LOW–LOSS 947.5 MHz B39951–B4678–Z810 PZ 1,00000 FC5
..3 01 1ll1000004hc DUPLEXER SAW TX902.5MHz/RX947 .5MHz BW 2.5MHz SMD GSM HWYN201 PZ 1,00000 FC2
..3 01 1ll1200003hc ACCOPPIATORE DIREZIONAL RF SMD 800–1000MHZ STH STH–90SM PZ 1,00000 Z1
..3 01 1mm0300018ky MODULO VCO 492MHz SMD 2.6V VK–120R0492A1 PZ 1,00000 Y2
..3 01 1mm0300019ky MODULO VCTCXO KT12 13.0MHz SMD 2.85V KT12–EET28V–13.000M–TA PZ 1,00000 X1
..3 01 1mm0300021ky MODULO VCO 1136–1206MHz SMD 2.6V YK–501R1171A3W YK–501R1171A3W PZ 1,00000 Y1
..3 01 1nn0100037si TRANS NPN BFP420 SOT343 Q62702–F1591 PZ 1,00000 Q2
..3 01 1nn0100048ph TRANS NPN BC847BW SOT323 45V 100mA BC847BW PZ 1,00000 Q4
..3 01 1nn0200017si TRANS PNP+NPN BCR08PN SOT363 MK WFs 50V 0.1A Q62702–C2486 PZ 3,00000 Q1 Q8 Q10
..3 01 1nn0200023si TRANS PNP SMBT2907 SOT23 40V 600mA 330mW Q68000–A6501 PZ 1,00000 Q3
..3 01 1nnqf27500si TRANS GASFET CF750 SOT143 MK MXMMIC 8v 0.08A Q62702–F1391 PZ 1,00000 U6
..3 01 1pp0100038ctd DIODO LED GIALLO VERDE SMD CL–220YG–C D–TS CL–220YG–CD–TS PZ 6,00000 DL1 DL2 DL3 DL4 DL5 DL6
..3 01 1pp0100039si DIODO LED ROSSO LS T670–HK P–LCC–2 2.5/12.5mcd/10mA 635nm Q62703Q2309 PZ 1,00000 DL7
..3 01 1yy0300019tmc DIODO SEGN MCL4148 MICRO–MELF VR/75V FC 0.2A 0.5W MCL4148TR PZ 2,00000 D4 D5
..3 01 1yy0700002si DIODO SCHOT BAT62–03W SOD323 MK 40V Q62702–A1028 PZ 2,00000 D1 D2
..3 01 1xxzz99002 COMPONENTE DA NON MONTARE PZ 11,00000 C184 C22 C53 C87 C102 C41 C194 R99 CH2
CH6 CH19
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 6
Data creazione distinta 22/02/99
Data di stampa 29/03/99 Data ultima modifica 22/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr.progetto: 0080
.2 01 1gg4200054 SUPPORTO VIBRATORE DIS1270 PZ 1,00000 rif. dis. 2
.2 01 1ee0700003sam MOTORE DC SM–0613A2 1.3VDC 60mA CON FILI AWG32 L35+CONNET SM–0613A2 PZ 1,00000 M1
.2 01 1pp0300010psn LCD MODULO DOT MATRIX 97x32 PIXEL GRAFICO+SIMBOLI SEK1054B5A PZ 1,00000 DS1
.2 01 2000800187 DIFFUSORE PER LCD ASSIEMATO PZ 1,00000 rif. dis. 3
..3 01 1gg9000022 DIFFUSORE LCD DIS1063 POLICARBONATO TRASPARENTE PZ 1,00000 rif. dis. 1
..3 01 1vv0200277 ETICHETTA RIFLETT.DIFF.LCD PV 150 PVC BIANCO MAT ICI SP0.2MM DIS1143 PZ 1,00000 rif. dis. 2
..3 01 1vv0200271 ETICHETTA BIADESIVA 468 MP TRASPARENTE (3M) DIS1125 PZ 6,00000 rif. dis. 3
.2 01 1kk0100015kr CAPSULA AUDIO DINAMICA 150ohm CON FILI L 25mm PRESTAGNATI KR–201W–25 PZ 1,00000 rif. dis. 4
.2 01 1hh2500003 ISOLATORE A DISCO BIADESIVO 0753 D–11MM PZ 1,00000 rif. dis. 5
.2 01 1hh2200056 CONTATTO ANTENNA RAME–BERILIO SEMICRUDO DORATO DIS1349 PZ 1,00000 rif. dis. 6
.2 01 1kk0200012pc MICROFONO ELECTRET CONDENSER +1nF+2x20mm FILO EM131S2B2 PZ 1,00000 rif. dis. 7
.2 01 1gg1500048 PROTEZIONE PER MICROFONO DIS1098 EPDM 45 SHORE PZ 1,00000 rif. dis. 8
.2 01 1gg3200046 SCHERMO MODULO RADIO DIS1229 PZ 1,00000 rif. dis. 9
.2 01 1hh0700025tps VITE ACCIAIO TC CR M 1.6x 4 ZINCATO NERO B911604002 PZ 7,00000 rif. dis.10
––––––––––
381,00000
*** FINE STAMPA ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 1
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

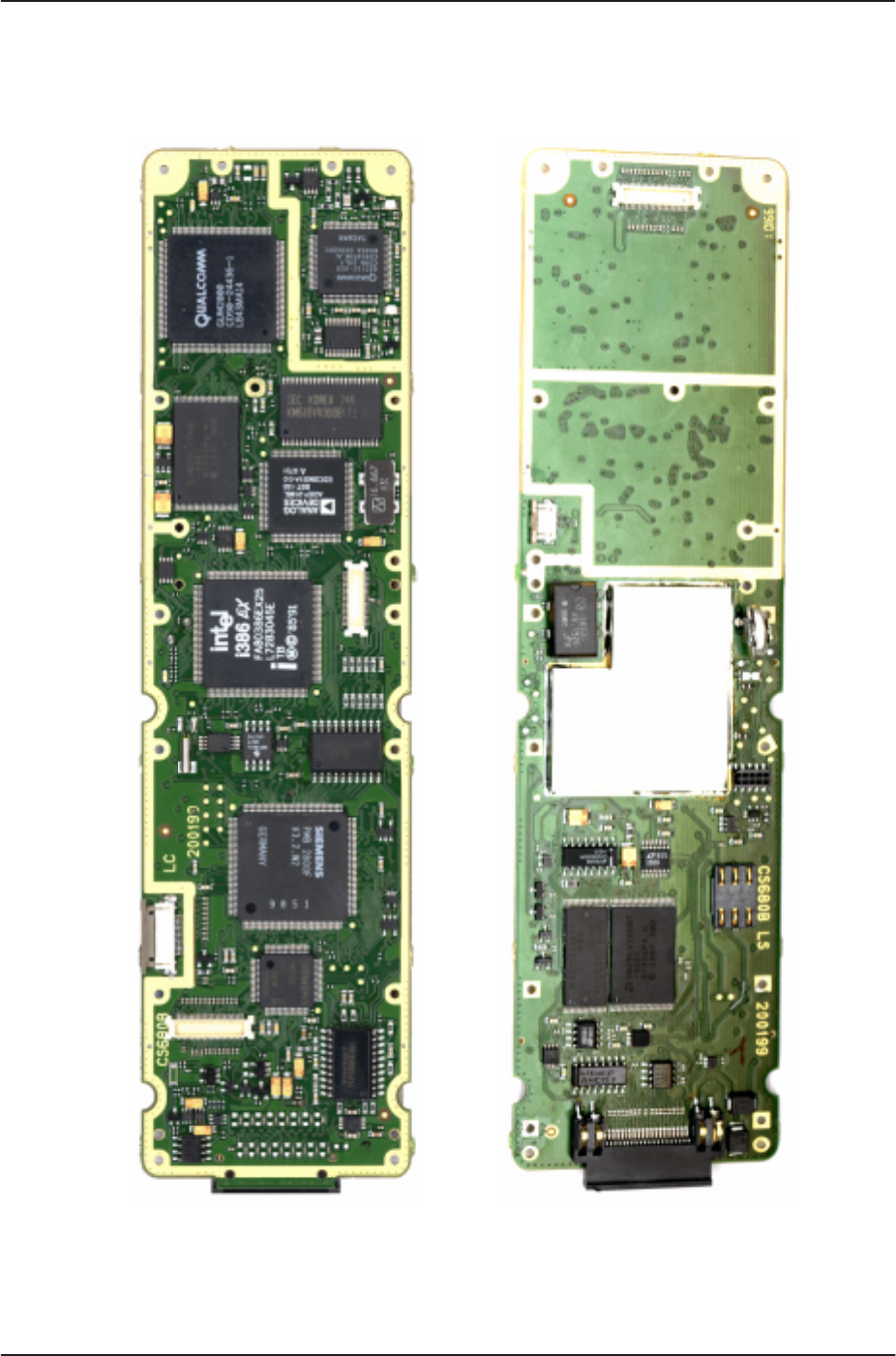

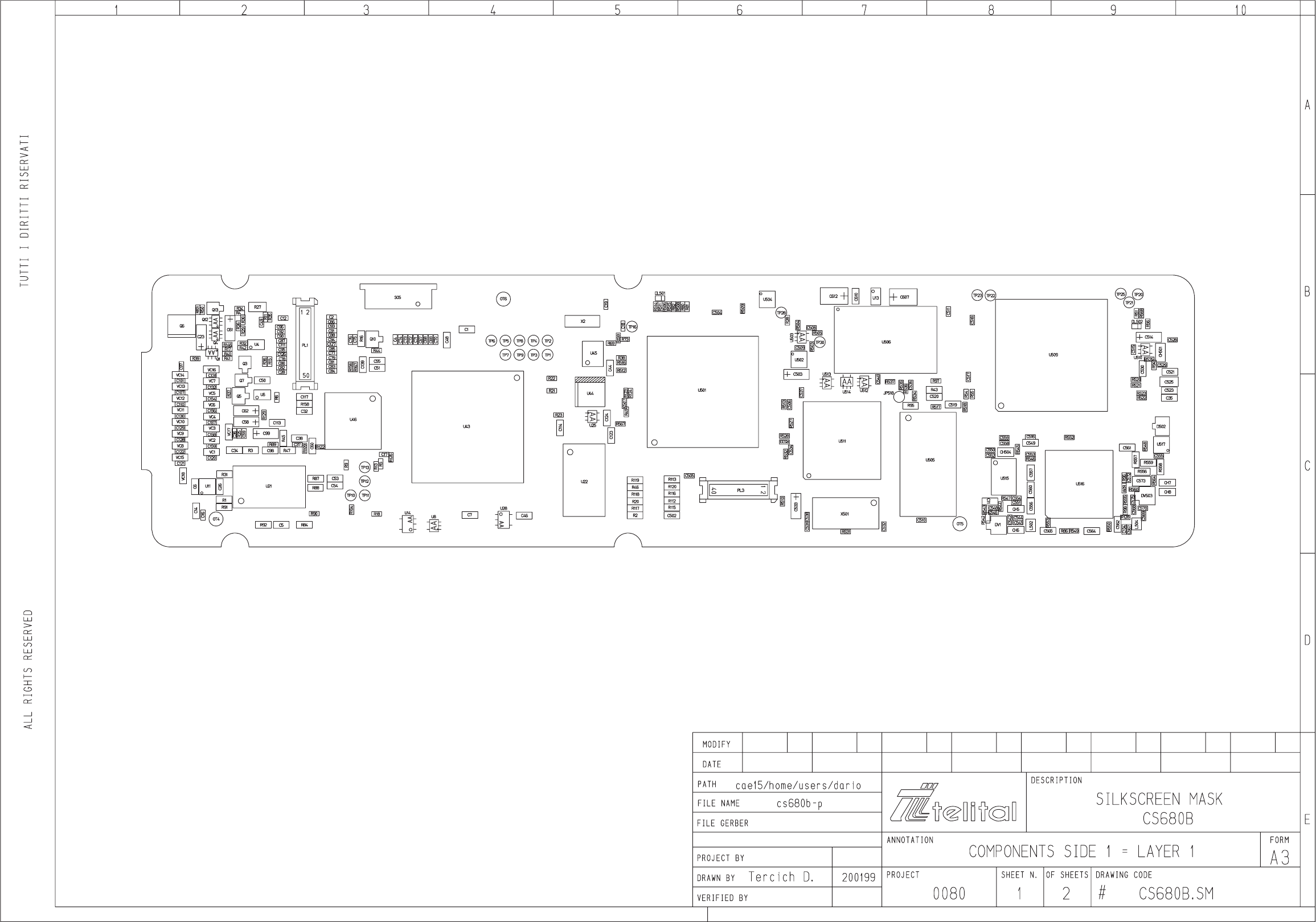

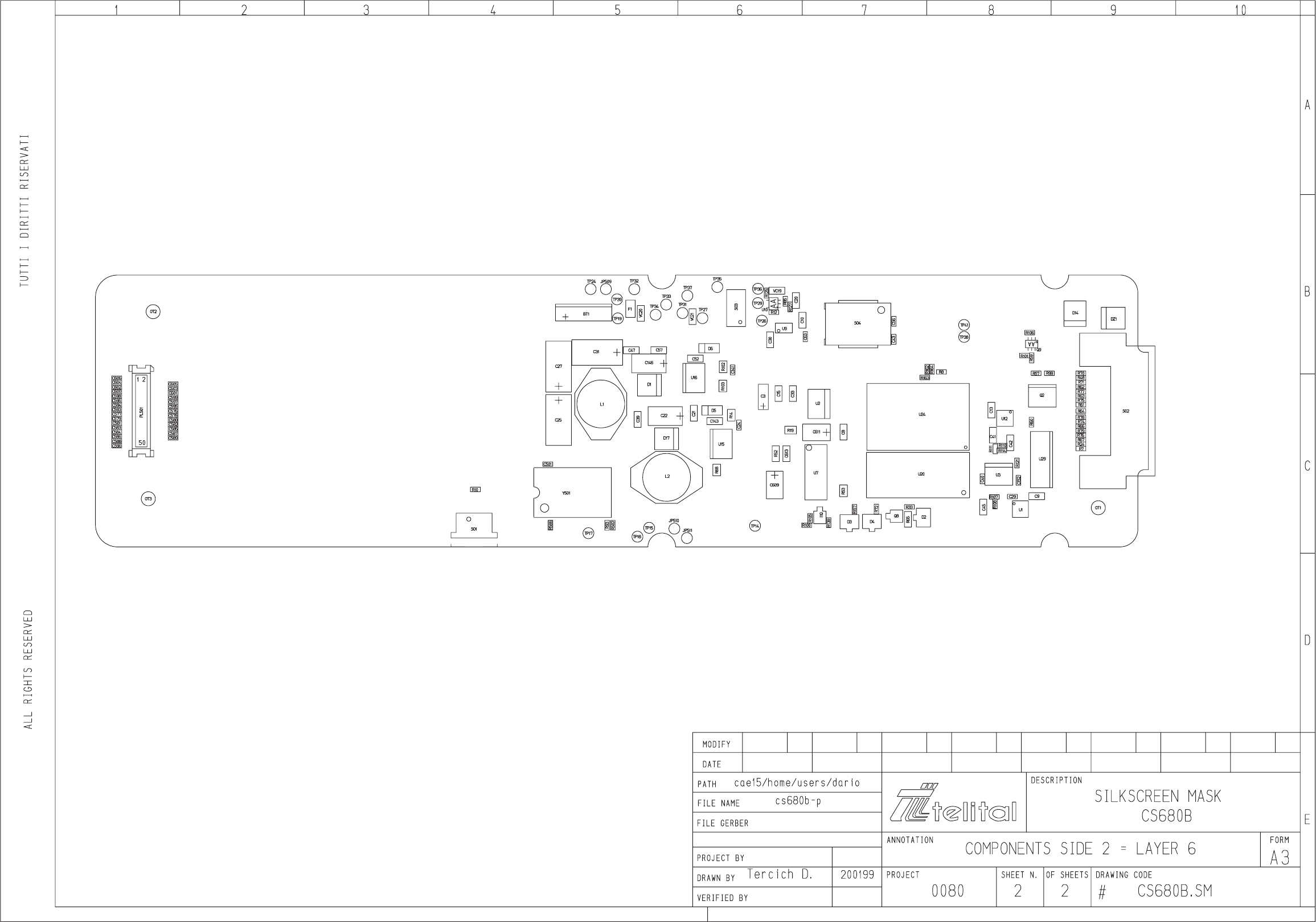

Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
1 01 2000400256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 LATO PTH PZ 1,00000 rif. dis. 1
.2 01 2000200256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 LATO PRIM SMD PZ 1,00000 rif. dis. 1
..3 01 2000300256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 LATO SEC SMD PZ 1,00000 rif. dis. 1
...4 01 1ff0100680b BASETTA C/S BB G* & BB GSM VERS 20.01.99 PZ 1,00000 rif. dis. 1
...4 01 1vv0200268fpe ETICHETTA ACRILATO BIANCO H6 L20 3 PISTE TT.26.0002 PZ 1,00000 rif. dis. 2
...4 01 1aa0100106ky RES SMD 0 OHM JUMPER1/16W 0603 CJ10–000–D PZ 1,00000 R52
...4 01 1aa0100139ky RES SMD 15 K 5% 1/16W 0603 CR10–153J–D PZ 1,00000 R65
...4 01 1aa0100374ky RES SMD 1 K 5% 1/16W 0402 CR05–102J–H PZ 1,00000 R59
...4 01 1aa0100377ky RES SMD 4.7 K 5% 1/16W 0402 CR05–472J–H PZ 1,00000 R10
...4 01 1aa0100380ky RES SMD 10 K 5% 1/16W 0402 CR05–103J–H PZ 2,00000 R162 R163
...4 01 1aa0100382ky RES SMD 15 K 5% 1/16W 0402 CR05–153J–H PZ 1,00000 R105
...4 01 1aa0100384ky RES SMD 22 K 5% 1/16W 0402 CR05–223J–H PZ 3,00000 R85 R139 R566
...4 01 1aa0100385ky RES SMD 27 K 5% 1/16W 0402 CR05–273J–H PZ 5,00000 R12 R33 R72 R106 R157
...4 01 1aa0100388ky RES SMD 47 K 5% 1/16W 0402 CR05–473J–H PZ 2,00000 R107 R108
...4 01 1aa0100390ky RES SMD 100 K 5% 1/16W 0402 CR05–104J–H PZ 8,00000 R57 R93 R99 R100 R110 R111 R114 R121
...4 01 1aa0100398ky RES SMD 100 R 5% 1/16W 0402 CR05–101J–H PZ 21,00000 R7 R24 R48 R60 R61 R62 R63 R64 R66 R67
R70 R71 R74 R75 R76 R77 R78 R79 R125
R127 R502
...4 01 1aa0100406ky RES SMD 8.2 K 5% 1/16W 0402 CR05–822J–H PZ 2,00000 R8 R164
...4 01 1aa0100454ky RES SMD 56 K 5% 1/16W 0402 CR05–563J–H PZ 1,00000 R101
...4 01 1aa0100470ky RES SMD 20.5 K0.5% 1/10W 0805 CR21–2052D–T PZ 1,00000 R19
...4 01 1aa0100471ky RES SMD 33.2 K0.5% 1/10W 0805 CR21–3322D–T PZ 1,00000 R53
...4 01 1aa0100472ky RES SMD 6.49K0.5% 1/10W 0805 CR21–6491D–T PZ 1,00000 R102
...4 01 1aa0100473ky RES SMD 10.0 K0.5% 1/10W 0805 CR21–1002D–T PZ 2,00000 R68 R103
...4 01 1aa0100475ky RES SMD 11.0 K0.5% 1/10W 0805 CR21–1102D–T PZ 1,00000 R14
...4 01 1aa0800006av VARISTORE SMD 3.6 VDC VC060303A100T PZ 3,00000 VC19 VC20 VC21
...4 01 1aafw73212av FUSIB SMD 2 A 32V 1206 F1206A2R00FWTR PZ 1,00000 F1
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 2
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
...4 01 1bb0100084ky COND CER SMD 22 nF X7R 0603 10% 25V CM105X7R223K25AL PZ 1,00000 C613
...4 01 1bb0100194ky COND CER SMD 33 pF COG 0402 5% 50V CM05CG330J50AH PZ 28,00000 C43 C56 C63 C576 C577 C578 C579 C580
C581 C582 C583 C584 C585 C586 C587 C588
C589 C590 C593 C594 C595 C596 C601 C602
C603 C604 C605 C606
...4 01 1bb0100203ky COND CER SMD 3.3nF X7R 0402 10% 50V CM05X7R332K50AH PZ 2,00000 C24 C141
...4 01 1bb0100208ky COND CER SMD 100 nF X7R 0603 10% 16V CM105X7R104K16AT PZ 17,00000 C8 C9 C10 C13 C15 C20 C21 C30 C33 C39
C41 C42 C45 C47 C52 C57 C143
...4 01 1bb0100228ky COND CER SMD 100 nF Y5V 0402 –20+80% 16V CM05Y5V104Z16VAH PZ 4,00000 C29 C40 C152 C501
...4 01 1bb0500025ky COND TANT SMD 2.2 uF 16V 20% Bsize TAJB225M016R PZ 1,00000 C609
...4 01 1bb0500051ky COND TANT SMD 10 uF 10V 20% Asize TAJA106M010R PZ 1,00000 C3
...4 01 1bb0500053ky COND TANT SMD 22 uF 6.3V 20% Bsize TAJB226M006R PZ 1,00000 C611
...4 01 1bb0500066av COND TANT SMD 22 uF 10V 20% Csize TAJC226M010R PZ 2,00000 C22 C146
...4 01 1bb0500080av COND TANT SMD 330 uF 6.3V 20% Esize TPS LOW ESR TPS–E337M006S0100 PZ 3,00000 C25 C27 C31
...4 01 1cc0100155co INDUT SMD 10 uH 20% DCR.09 ISAT 2.4A DO3308SERIES DO3308P–103 PZ 1,00000 L1
...4 01 1cc0100156co INDUT SMD 22 uH 20% DCR.19 ISAT 1.6A DO3308SERIES DO3308P–223 PZ 1,00000 L2
...4 01 1dd0100099sg CI ANALOG TS3V912–AIDT SO8 DUAL OPERATIONAL AMPLIFIER PZ 1,00000 U3
...4 01 1dd0100155na CI ANALOG LP3470M5X–3.08 MA05A POWER ON RESET CIRCUIT LP3470M5X–3.08 PZ 1,00000 U9
...4 00 1dd0100157li CI ANALOG LTC1555CGN GN16 STEP UP/DOWN CHARGE PUMP CONVERTER LTC1555CGN–30430 PZ 1,00000 U2
...4 01 1dd0100164na CI ANALOG LP2960AI M16A 0.5A LOW–DROPOUT REGULATORS LP2960AIMX–3.3 PZ 1,00000 U7
...4 00 1dd0100170li CI ANALOG LT1376CS8 S8 STEP DOWN SWITCHING REGULATOR LT1376CS8 PZ 2,00000 U15 U16
...4 01 1dd0200020to CI DG TC7S08FU TE85L SSOP5–PA MK E2 2–INPUT AND GATE PZ 1,00000 U10
...4 01 1dd0200026to CI DG TC4W53FU TE12 SSOP8–P MK 4W53 2–CHANNEL MULTIP/DEMULT. PZ 1,00000 U1
...4 01 1dd0200070tx CI DG D/R–PDSO–G16 QUADR 2–L TO 1–L DATA SEL/MPX SN74AHC157DR PZ 1,00000 U29
...4 01 1dd0200078to CI DG CMOS NON INVERTED THREE STATE OUTPUT SM8 TC7WT241FU PZ 1,00000 U12
...4 01 1dd0300056to CI MEM TC551001CFTI–85L TSOP32 P0820 131.072WORDSx8BIT SR(EL) TC551001CFTI–85L PZ 1,00000 U20
...4 01 1dd0300075ad CI MEM AM29LV160BT 90EC TS048 16MEGABIT SECTOR FLASH MEMORY AM29LV160BT–90EC PZ 1,00000 U24
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 3
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
...4 01 1ff0600088ml CONN M CSTP 50 VIE VERT SMD P–0.5 53748–0504 PZ 1,00000 PL501
...4 01 1ff0600113hi CONN F CSTP 20 VIE + 4 VIE DC SMD (QUALCOMM CODE CV90–25378) MQ168–QC–20P/4 PZ 1,00000 S02
...4 01 1ff0600135ml CONN F CSTP 4 VIE ORIZ ZIF FFC/FPC P–0.5 H–2 CONTAT SOTTO 52746–0490 PZ 1,00000 SO1
...4 01 1ff0600136lcc CONN F CSTP 2x5 VIE VERT SMD P–1.27 H–2.21 LOW PROFILE 23–5016–2005–10–081 PZ 1,00000 SO3
...4 01 1ff1500004am CONN PER SIM–CARD 6 CT SMT 2–338063–2 PZ 1,00000 SO4
...4 01 1mm0100040nd QUARZO 49.152 MHZ CASE 1630D SMD CRYSTAL CLOCK OSCILLATOR 1633D–A49.152 PZ 1,00000 Y501
...4 01 1nn0100047si TRANS NPN+PNP BC847PN SOT363 Q62702–C2374 PZ 1,00000 Q9
...4 01 1nn0500009tmc TRANS MOSFET P Si4925DY SO8 DUAL P–CHANNEL 30–V(D–S) Si4925DY–T1 PZ 1,00000 Q2
...4 01 1nnqa28472si TRANS NPN BC847BW SOT323 MK1Fs 45V 100mA B–250 Q62702–C2305 PZ 2,00000 Q8 Q11
...4 01 1yy0300017tmc DIODO SEGN LL4148–GS08 SOD80 70V 0.3A 0.5W PZ 2,00000 D5 D6
...4 01 1yy0700007sg DIODO SCHOT STPS320U SOD6 MK U32 20V 3A PZ 2,00000 D1 D17
...4 01 1yy0700019sg DIODO SCHOT STPS130U SMB MK G12 30V 1A STPS130U PZ 1,00000 D14
...4 01 1yy0800006sg DIODO STR SM6T15A SOD6 V/BR 14.3MIN IPP 28A TRANSIL SM6T15A PZ 1,00000 DZ1
...4 01 1yyda30070si DIODO SEGN BAV70 SOT23 MK JJ 70V I/F 330 mA Q68000–A6622 PZ 3,00000 D2 D3 D4
...4 01 1xxzz99002 COMPONENTE DA NON MONTARE PZ 4,00000 C597 C598 C599 C600
..3 01 1aa0100106ky RES SMD 0 OHM JUMPER1/16W 0603 CJ10–000–D PZ 2,00000 R43 R95
..3 01 1aa0100113ky RES SMD 100 R 5% 1/16W 0603 CR10–101J–T PZ 11,00000 R2 R20 R46 R112 R113 R115 R116 R117
R118 R119 R120
..3 01 1aa0100117ky RES SMD 330 R 5% 1/16W 0603 CR10–331J–T PZ 4,00000 R47 R84 R87 R88
..3 01 1aa0100123ky RES SMD 1 K 5% 1/16W 0603 CR10–102J–D PZ 1,00000 R16
..3 01 1aa0100135ky RES SMD 10 K 5% 1/16W 0603 CR10–103J–D PZ 2,00000 R1 R31
..3 01 1aa0100145ky RES SMD 33 K 5% 1/16W 0603 CR10–333J–D PZ 1,00000 R3
..3 01 1aa0100151ky RES SMD 100 K 5% 1/16W 0603 CR10–104J–D PZ 1,00000 R45
..3 01 1aa0100361ky RES SMD 10 R 5% 1/16W 0402 CR05–100J–H PZ 2,00000 R86 R128
..3 01 1aa0100370ky RES SMD 220 R 5% 1/16W 0402 CR05–221J–H PZ 2,00000 R94 R506
..3 01 1aa0100373ky RES SMD 560 R 5% 1/16W 0402 CR05–561J–H PZ 1,00000 R568
..3 01 1aa0100374ky RES SMD 1 K 5% 1/16W 0402 CR05–102J–H PZ 5,00000 R17 R520 R546 R547 R555
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 4
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
..3 01 1aa0100375ky RES SMD 1.8 K 5% 1/16W 0402 CR05–182J–H PZ 3,00000 R18 R25 R129
..3 01 1aa0100377ky RES SMD 4.7 K 5% 1/16W 0402 CR05–472J–H PZ 7,00000 R32 R35 R38 R516 R522 R523 R532
..3 01 1aa0100378ky RES SMD 5.6 K 5% 1/16W 0402 CR05–562J–H PZ 1,00000 R544
..3 01 1aa0100379ky RES SMD 6.8 K 5% 1/16W 0402 CR05–682J–H PZ 1,00000 R11
..3 01 1aa0100380ky RES SMD 10 K 5% 1/16W 0402 CR05–103J–H PZ 9,00000 R15 R98 R104 R126 R517 R518 R531 R542
R560
..3 01 1aa0100381ky RES SMD 12 K 5% 1/16W 0402 CR05–123J–H PZ 1,00000 R6
..3 01 1aa0100382ky RES SMD 15 K 5% 1/16W 0402 CR05–153J–H PZ 1,00000 R50
..3 01 1aa0100383ky RES SMD 18 K 5% 1/16W 0402 CR05–183J–H PZ 1,00000 R564
..3 01 1aa0100384ky RES SMD 22 K 5% 1/16W 0402 CR05–223J–H PZ 17,00000 R4 R28 R36 R37 R39 R85 R90 R123 R504
R505 R527 R528 R533 R534 R535 R536 R537
..3 01 1aa0100385ky RES SMD 27 K 5% 1/16W 0402 CR05–273J–H PZ 4,00000 R5 R13 R97 R156
..3 01 1aa0100386ky RES SMD 33 K 5% 1/16W 0402 CR05–333J–H PZ 3,00000 R9 R83 R109
..3 01 1aa0100387ky RES SMD 39 K 5% 1/16W 0402 CR05–393J–H PZ 1,00000 R550
..3 01 1aa0100388ky RES SMD 47 K 5% 1/16W 0402 CR05–473J–H PZ 13,00000 R49 R69 R73 R80 R81 R82 R146 R159 R503
R508 R543 R549 R567
..3 01 1aa0100389ky RES SMD 68 K 5% 1/16W 0402 CR05–683J–H PZ 1,00000 R167
..3 01 1aa0100390ky RES SMD 100 K 5% 1/16W 0402 CR05–104J–H PZ 2,00000 R44 R525
..3 01 1aa0100394ky RES SMD 470 K 5% 1/16W 0402 CR05–474J–H PZ 1,00000 R30
..3 01 1aa0100396ky RES SMD 1 M 5% 1/16W 0402 CR05–105J–H PZ 1,00000 R29
..3 01 1aa0100398ky RES SMD 100 R 5% 1/16W 0402 CR05–101J–H PZ 3,00000 R124 R545 R552
..3 01 1aa0100399ky RES SMD 82 K 5% 1/16W 0402 CR05–823J–H PZ 12,00000 R21 R22 R23 R34 R509 R510 R511 R512
R513 R514 R515 R548
..3 01 1aa0100400ky RES SMD 3.9 K 5% 1/16W 0402 CR05–392J–H PZ 2,00000 R40 R41
..3 01 1aa0100407ky RES SMD 0 OHM JUMPER1/16W 0402 CJ05–000J–H PZ 5,00000 R54 R55 R58 R96 R553
..3 01 1aa0100453ky RES SMD 330 K 5% 1/16W 0402 CR05–334J–H PZ 1,00000 R42
..3 01 1aa0100455ky RES SMD 150 K 5% 1/16W 0402 CR05–154J–H PZ 1,00000 R26
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 5
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
..3 01 1aa0100467ky RES SMD 0.1 R 5% 1/2W 1206 LR32–R100J–T PZ 1,00000 R27
..3 01 1aa0100476ky RES SMD 237 R 1% 1/16W 0603 CR10–2370F–T PZ 2,00000 R557 R558
..3 01 1aa0100478ky RES SMD 698 R 1% 1/16W 0603 CR10–6980F–T PZ 1,00000 R559
..3 01 1aa0100480ky RES SMD 1.0 K 1% 1/16W 0603 CR10–102F–T PZ 1,00000 R92
..3 01 1aa0100481ky RES SMD 1.74K 1% 1/16W 0603 CR10–1741F–T PZ 1,00000 R556
..3 01 1aa0100482ky RES SMD 10.0 K 1% 1/16W 0603 CR10–103F–T PZ 1,00000 R91
..3 01 1aa0100486ky RES SMD 30.0 K 1% 1/16W 0603 CR10–303F–T PZ 1,00000 R158
..3 01 1aa0100494ky RES SMD 330 R 5% 1/16W 0402 CR05–331J–H PZ 1,00000 R122
..3 01 1aa0800004av VARISTORE SMD 18V/DC L–1.6xW–0.8xSP–0.9 VC06LC18X500 PZ 1,00000 VC17
..3 01 1aa0800006av VARISTORE SMD 3.6 VDC VC060303A100T PZ 16,00000 VC1 VC2 VC4 VC5 VC6 VC7 VC8 VC9 VC10
VC11 VC12 VC13 VC14 VC15 VC16 VC18
..3 01 1bb0100073av COND CER SMD 47 pF COG 0603 5% 50V 06035A470JAT2L PZ 1,00000 C502
..3 01 1bb0100082av COND CER SMD 4.7nF X7R 0603 10% 50V 06035C472KAT2L PZ 2,00000 C14 C38
..3 01 1bb0100084ky COND CER SMD 22 nF X7R 0603 10% 25V CM105X7R223K25AL PZ 1,00000 C610
..3 01 1bb0100155av COND CER SMD 10 nF X7R 0603 10% 50V 06035C103KAT2A PZ 6,00000 C32 C35 C117 C523 C530 C549
..3 01 1bb0100184av COND CER SMD 68 nF X7R 0805 10% 50V 08055C683KAT2L PZ 1,00000 C573
..3 01 1bb0100191ky COND CER SMD 12 pF COG 0402 5% 50V CM05CG120J50AH PZ 2,00000 C544 C545
..3 01 1bb0100194ky COND CER SMD 33 pF COG 0402 5% 50V CM05CG330J50AH PZ 56,00000 C2 C4 C12 C16 C28 C36 C37 C67 C68 C69
C70 C71 C72 C73 C74 C75 C76 C77 C78 C79
C80 C81 C82 C83 C84 C85 C86 C87 C88 C90
C91 C92 C93 C94 C95 C96 C97 C101 C107
C110 C111 C120 C121 C122 C126 C127 C128
C129 C130 C131 C132 C154 C156 C157 C158
C159
..3 01 1bb0100198ky COND CER SMD 68 pF COG 0402 5% 50V CM05CG680J50AH PZ 2,00000 C568 C569
..3 01 1bb0100199ky COND CER SMD 100 pF COG 0402 5% 50V CM05CG101J50AH PZ 1,00000 C528
..3 01 1bb0100200ky COND CER SMD 220 pF X7R 0402 10% 50V CM05X7R221K50AH PZ 1,00000 C548
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 6
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
..3 01 1bb0100201ky COND CER SMD 470 pF X7R 0402 10% 50V CM05X7R471K50AH PZ 1,00000 C49
..3 01 1bb0100202ky COND CER SMD 1 nF X7R 0402 10% 50V CM05X7R102K50AH PZ 11,00000 C104 C529 C550 C551 C552 C553 C554 C558
C559 C567 C575
..3 01 1bb0100208ky COND CER SMD 100 nF X7R 0603 10% 16V CM105X7R104K16AT PZ 30,00000 C1 C5 C6 C7 C26 C34 C44 C46 C48 C51 C53
C54 C55 C60 C98 C113 C114 C123 C124
C139 C519 C520 C521 C556 C557 C560 C561
C562 C564 C565
..3 01 1bb0100209ky COND CER SMD 2.2nF X7R 0402 10% 50V CM05X7R222K50AH PZ 1,00000 C572
..3 01 1bb0100210ky COND CER SMD 150 pF COG 0402 5% 25V CM05CG151J25VAH PZ 1,00000 C546
..3 01 1bb0100220ky COND CER SMD 18 pF COG 0402 5% 50V CM05CG180J50AH PZ 2,00000 C531 C532
..3 01 1bb0100222ky COND CER SMD 4.7pF COG 0402 +–.25pF 50V CM05CG4R7C50AH PZ 1,00000 C570
..3 01 1bb0100224ky COND CER SMD 2.2pF COG 0402 +–0.25pF 50V CM05CG2R2C50AH PZ 1,00000 C542
..3 01 1bb0100228ky COND CER SMD 100 nF Y5V 0402 –20+80% 16V CM05Y5V104Z16VAH PZ 20,00000 C17 C59 C504 C505 C506 C507 C508 C509
C510 C511 C515 C516 C517 C518 C534 C535
C537 C538 C540 C555
..3 01 1bb0100293ky COND CER SMD 39 nF X7R 0603 10% 16V CM105X7R393K16AT PZ 1,00000 C11
..3 01 1bb0500025ky COND TANT SMD 2.2 uF 16V 20% Bsize TAJB225M016R PZ 1,00000 C612
..3 01 1bb0500051ky COND TANT SMD 10 uF 10V 20% Asize TAJA106M010R PZ 1,00000 C99
..3 01 1bb0500053ky COND TANT SMD 22 uF 6.3V 20% Bsize TAJB226M006R PZ 1,00000 C607
..3 01 1bb0500060ky COND TANT SMD 1.0 uF 16V 20% Asize TAJA105M016R PZ 4,00000 C23 C58 C61 C62
..3 01 1bb0500078ky COND TANT SMD 3.3 uF 10V 20% Asize TAJA335M010R PZ 3,00000 C503 C514 C533
..3 01 1cc0100043td INDUT SMD 1 uH 20% Qmin25 50mA MLF2012A1R0ML PZ 1,00000 CH501
..3 01 1cc0100128mu INDUT SMD EMI SUPPRESSOR 0.85 R 100mA BLM11B102SPT PZ 2,00000 CH7 CH8
..3 01 1cc0100153mu INDUT SMD 22 nH 5% Qmin30 720mA LQN21A22NJ04 PZ 1,00000 L502
..3 01 1cc0100154mu INDUT SMD 33 nH 5% Qmin40 570mA LQN21A33NJ04 PZ 1,00000 L504
..3 01 1cc0100191mu INDUT SMD EMI SUPPRESSOR 0.65 R 200mA BLM11B601SPT PZ 2,00000 CH5 CH6
..3 01 1cclh01050mu INDUT SMD 0.2 R/DC BLM21B050S PT 0.5A IMPED 5R A 100MHz PZ 1,00000 CH504
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 7
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
..3 00 1dd0100121na CI ANALOG MTC20 PLL FREQ SYNTH FOR RF PERS COM LMX2305TMX PZ 1,00000 U515
..3 01 1dd0100151na CI ANALOG MA05A CMOS OP.AMP RAIL TO RAIL IN OUT LMC7111BIM5X PZ 1,00000 U4
..3 01 1dd0100162na CI ANALOG LM3420–8.4 MA05A LITHIUM–ION BAT CHARGE CONTROL LM3420AM5X–8.4 PZ 1,00000 U6
..3 01 1dd0100163na CI ANALOG LP2980AI MA05A 50mA ULTRA LOW–DROPOUT REGULATOR LP2980AIM5X–3.3 PZ 1,00000 U13
..3 01 1dd0200017to CI DG TC7S14F TE85L SSOP5–P MK EA SCHMITT INVERTER PZ 2,00000 U14 U28
..3 01 1dd0200020to CI DG TC7S08FU TE85L SSOP5–PA MK E2 2–INPUT AND GATE PZ 1,00000 U503
..3 01 1dd0200021to CI DG TC7S02FU TE85L SSOP5–PA MK E3 2–INPUT NOR GATE PZ 2,00000 U8 U25
..3 01 1dd0200026to CI DG TC4W53FU TE12 SSOP8–P MK 4W53 2–CHANNEL MULTIP/DEMULT. PZ 1,00000 U11
..3 01 1dd0200028to CI DG TC7W08FU TE12L SSOP8–P MK 7W08 DUAL 2–INPUT AND GATE PZ 1,00000 U517
..3 01 1dd0200032to CI DG TC7W14FU TE12L SSOP8P MK 7W14 SCHMITT INVERTER PZ 1,00000 U502
..3 01 1dd0200033to CI DG TC7W74FU TE12L SSOP8P MK 7W74 D–TY FLIPFLOP/PRESET &CLR PZ 1,00000 U504
..3 01 1dd0200065to CI DG TC7SH04FU SSOP5–P–A MK H5 HIGH SPEED CMOS INVERTER TC7SH04FU PZ 2,00000 U510 U514
..3 01 1dd0200067to CI DG SSOP–P–A MK H4 CMOS 2–INPUT OR GATE TC7SH32FU PZ 1,00000 U512
..3 01 1dd0200071rch CI DG RS5C372A 8PIN SSOP I2C–BUS INTERF REAL TIME CLOCK RS5C372A–E2 PZ 1,00000 U45
..3 01 1dd0200073tx CI DG SN74LV245DW R–PDSO–G20 OCTAL BUS TRANSCEIVER SN74LV245DW PZ 1,00000 U22
..3 01 1dd0200080to CI DG CMOS 2–INPUT NOR GATE USV TC7SH02FU PZ 1,00000 U513
..3 01 1dd0300036mcc CI MEM 24LC65TI/SM SOIC8SM 64K 2.5V CMOS SMART SER.EEPROM PZ 1,00000 U44
..3 01 1dd0300052ss CI MEM TSOP–44 256Kx16BIT LOW POWER CMOS SRAM KM616V4000BLT8 PZ 1,00000 U505
..3 01 1dd0300075ad CI MEM AM29LV160BT 90EC TS048 16MEGABIT SECTOR FLASH MEMORY AM29LV160BT–90EC PZ 1,00000 U506
..3 01 1dd0400036qlc CI uP TQFP–144 GLOBALSTAR USER MODEM ASIC 80–70049–1 X1 PZ 1,00000 U509
..3 01 1dd0400037tx CI uP DW/R–PDSO–G20 3–V VOICE–BAND AUDIO PROCESSOR TLV320AC36IDW PZ 1,00000 U21
..3 01 1dd0400038si CI uP PMB2800 v3.2 w2 P–TQFP– 144–1 GOLD BB PROCES HI–GOLD Q67257H63 PZ 1,00000 U43
..3 01 1dd0400039si CI uP PMB2905 v5.2 P–TQFP–64–1 GSM ANALOG INTERFACE MODULE Q67007A7006 PZ 1,00000 U46
..3 01 1dd0400042nlg CI uP ADSP–2185L TQFP100 DSP MICROCOMPUTER ADSP–2185LBST–133 PZ 1,00000 U511
..3 01 1dd0400043in CI uP FA80386EXTB25 TQFP–144 386 EX EMBEDDED MICROPROCESSOR FA80386EXTB25 PZ 1,00000 U501
..3 01 1dd0400052qlc CI uP TQFP–80 ANALOG BASEBAND PROCESSOR Q5312I–4S2TR PZ 1,00000 U516
..3 01 1ff0600088ml CONN M CSTP 50 VIE VERT SMD P–0.5 53748–0504 PZ 1,00000 PL1
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 8
Data creazione distinta 22/01/99
Data di stampa 29/03/99 Data ultima modifica 22/01/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100256 MODULO BB G* & BB GSM CS680B VERS 20.01.99 Nr.progetto: 0080
..3 01 1ff0600123ml CONN F CSTP 15 VIE ORIZ ZIF FFC/FPC P–0.5 H–2 CONTAT.SOTTO 52746–1590 PZ 1,00000 SO5
..3 01 1ff0600128ml CONN M CSTP 40 VIE VERT SMD P–0.5 53748–0404 PZ 1,00000 PL3
..3 01 1mm0100028mcy QUARZO 32.768 KHz CASE SMD P–2.5 6.1x2 10pF30ppm MX1V–TL 32.768KHz PZ 1,00000 X2
..3 01 1mm0100033nd QUARZO 16.667 MHZ CASE CP12A SMD CP12A–16.667MHZ PZ 1,00000 X501
..3 01 1nn0100043si TRANS NPN BCR148W SOT323 Q62702–C2291 PZ 1,00000 Q7
..3 01 1nn0100045si TRANS NPN BC847S SOT363 Q62702–C2372 PZ 3,00000 Q1 Q4 Q12
..3 01 1nn0500004tmc TRANS MOSFET P TP0101T SOT23 M K PO R/DS0.650HM V/DS–12V0.23W TP0101T–T1 PZ 1,00000 Q5
..3 01 1nn0500009tmc TRANS MOSFET P Si4925DY SO8 DUAL P–CHANNEL 30–V(D–S) Si4925DY–T1 PZ 1,00000 Q6
..3 01 1nn0600012sc TRANS MOSFET N SI2302DS TO–236 V/DS20V R/DS .085R SI2302DS–T1 PZ 1,00000 Q10
..3 01 1nnqa28472si TRANS NPN BC847BW SOT323 MK1Fs 45V 100mA B–250 Q62702–C2305 PZ 1,00000 Q13
..3 01 1nnqa28572si TRANS PNP BC857BW SOT323 MK2Fs 45V 100mA B–250 Q62702–C2294 PZ 1,00000 Q3
..3 01 1pp0100037ctd DIODO LED VERDE SMD COLORATO 5.0–20.0 mcd/20mA 567nm DIFFUS CL–190G–CD–T PZ 2,00000 DL501 DL502
..3 01 1yyda30070si DIODO SEGN BAV70 SOT23 MK JJ 70V I/F 330 mA Q68000–A6622 PZ 1,00000 D502
..3 01 1yydv03901ph DIODO VARICAP BBY39 SOT23 MK S121.6–2.0pF Vr 28V(DUE DIODI) PZ 2,00000 DV1 DV503
..3 01 1xxzz99002 COMPONENTE DA NON MONTARE PZ 8,00000 C50 C525 C18 C19 R51 R56 R521 VC3
.2 01 1gg3200048 SCHERMO BB GSM G* DIS1348 PZ 1,00000 rif. dis. 2
.2 01 1qq0100025tbt BATTERIA 3V 32mAh LITIO A BOTTONE PER CS D–10.0xH–2.5MM CR1025–1VF PZ 1,00000 BT1
––––––––––
528,00000
*** FINE STAMPA ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 1
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

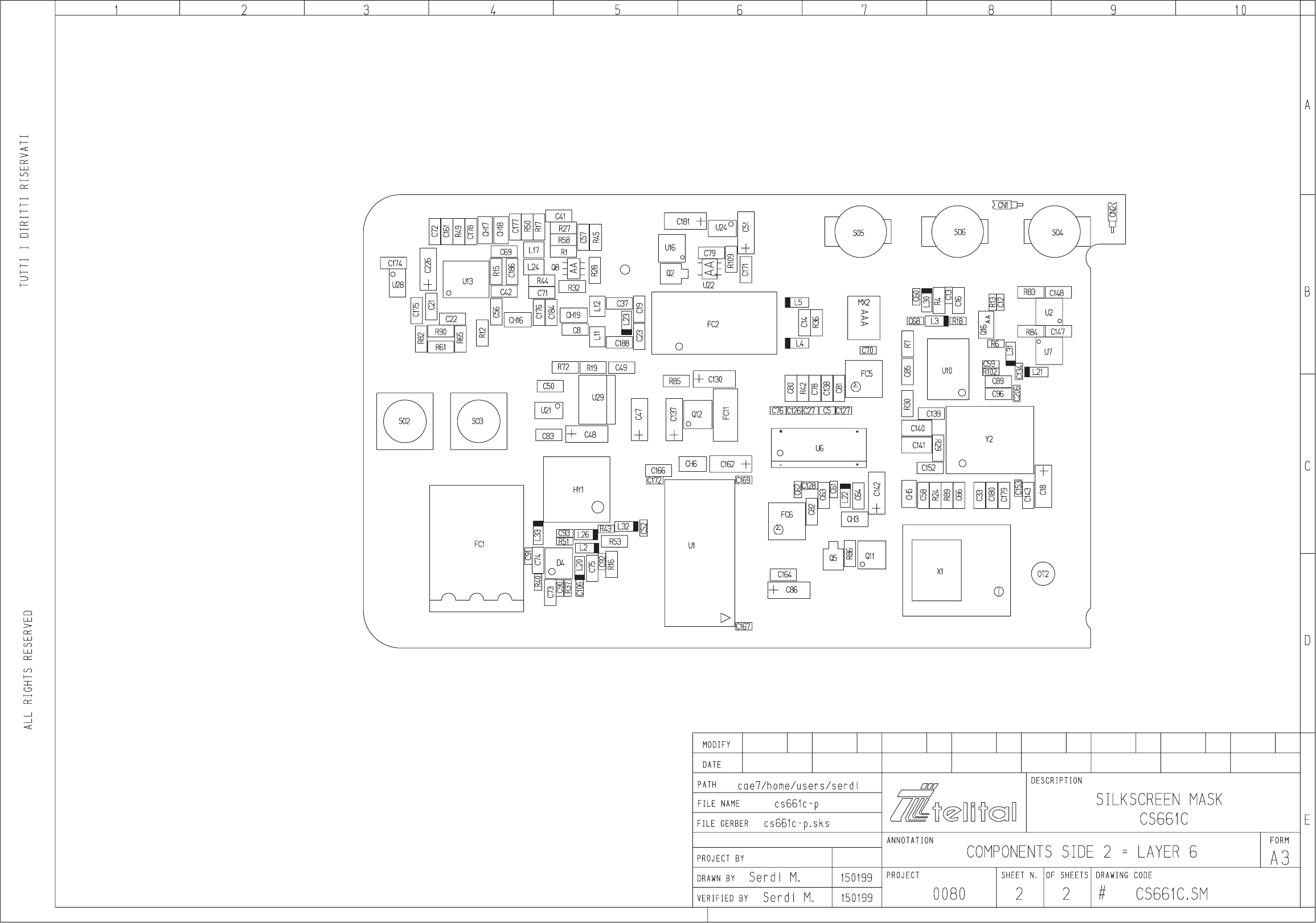

Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
1 01 2000400257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 LATO PTH PZ 1,00000 rif. dis. 1 2430
.2 01 2000200257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 LATO PRIM SMD PZ 1,00000 rif. dis. 1
..3 01 2000300257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 LATO SEC SMD PZ 1,00000 rif. dis. 1
...4 01 1ff0100661c BASETTA C/S RADIO GLOBALSTAR VERS 15.01.99 PZ 1,00000 rif. dis. 1
...4 01 1vv0200268fpe ETICHETTA ACRILATO BIANCO H6 L20 3 PISTE TT.26.0002 PZ 1,00000 rif. dis. 2
...4 01 1aa0100106ky RES SMD 0 OHM JUMPER1/16W 0603 CJ10–000–D PZ 1,00000 R4 2406
...4 01 1aa0100110ky RES SMD 22 R 5% 1/16W 0603 CR10–220J–T PZ 2,00000 R28 R32 2406
...4 01 1aa0100113ky RES SMD 100 R 5% 1/16W 0603 CR10–101J–T PZ 1,00000 R7
...4 01 1aa0100120ky RES SMD 560 R 5% 1/16W 0603 CR10–561J–D PZ 4,00000 R49 R50 R65 R82
...4 01 1aa0100122ky RES SMD 820 R 5% 1/16W 0603 CR10–821J–T PZ 1,00000 R16 2409
...4 01 1aa0100123ky RES SMD 1 K 5% 1/16W 0603 CR10–102J–D PZ 3,00000 R42 R83 R84
...4 01 1aa0100126ky RES SMD 1.8 K 5% 1/16W 0603 CR10–182J–T PZ 2,00000 R1 R58
...4 01 1aa0100129ky RES SMD 3.3 K 5% 1/16W 0603 CR10–332J–T PZ 2,00000 R12 R53 2409
...4 01 1aa0100130ky RES SMD 3.9 K 5% 1/16W 0603 CR10–392J–T PZ 1,00000 R90
...4 01 1aa0100131ky RES SMD 4.7 K 5% 1/16W 0603 CR10–472J–D PZ 2,00000 R27 R29
...4 01 1aa0100134ky RES SMD 8.2 K 5% 1/16W 0603 CR10–822J–T PZ 1,00000 R30
...4 01 1aa0100135ky RES SMD 10 K 5% 1/16W 0603 CR10–103J–D PZ 2,00000 R19 R109
...4 01 1aa0100141ky RES SMD 18 K 5% 1/16W 0603 CR10–183J–T PZ 2,00000 R17 R72
...4 01 1aa0100148ky RES SMD 56 K 5% 1/16W 0603 CR10–563J–D PZ 2,00000 R85 R86
...4 01 1aa0100154ky RES SMD 220 K 5% 1/16W 0603 CR10–224J–T PZ 1,00000 R24
...4 01 1aa0100155ky RES SMD 270 K 5% 1/16W 0603 CR10–274J–T PZ 1,00000 R89
...4 01 1aa0100241ky RES SMD 47 R 5% 1/16W 0603 CR10–470J–T PZ 2,00000 R44 R45
...4 01 1aa0100369ky RES SMD 150 R 5% 1/16W 0402 CR05–151J–H PZ 1,00000 R102
...4 01 1aa0100374ky RES SMD 1 K 5% 1/16W 0402 CR05–102J–H PZ 2,00000 R6 R43
...4 01 1aa0100380ky RES SMD 10 K 5% 1/16W 0402 CR05–103J–H PZ 1,00000 R51 2409
...4 01 1aa0100381ky RES SMD 12 K 5% 1/16W 0402 CR05–123J–H PZ 1,00000 R40 2409
...4 01 1aa0100384ky RES SMD 22 K 5% 1/16W 0402 CR05–223J–H PZ 1,00000 R37 2409
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 2
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
...4 01 1aa0100407ky RES SMD 0 OHM JUMPER1/16W 0402 CJ05–000J–H PZ 1,00000 R18
...4 01 1aa0100490ky RES SMD 357 R 1% 1/16W 0603 CR10–3570F–T PZ 1,00000 R61
...4 01 1bb0100070av COND CER SMD 27 pF COG 0603 5% 50V 06035A270JAT2L PZ 2,00000 C14 C72
...4 01 1bb0100081av COND CER SMD 1 nF X7R 0603 10% 50V 06035C102KAT4A PZ 13,00000 C8 C16 C21 C22 C41 C42 C57 C69 C71 C143 2409
C147 C148 C176
...4 01 1bb0100117av COND CER SMD 12 pF COG 0603 5% 50V 06035A120JAT2L PZ 2,00000 C37 C188
...4 01 1bb0100155av COND CER SMD 10 nF X7R 0603 10% 50V 06035C103KAT2A PZ 20,00000 C33 C56 C58 C63 C64 C66 C78 C80 C81 C82
C138 C164 C166 C171 C174 C177 C178 C179
C180 C184
...4 01 1bb0100158av COND CER SMD 220 pF COG 0603 5% 50V 06035A221JAT2L PZ 3,00000 C73 C74 C75 2409
...4 01 1bb0100187ky COND CER SMD 1.0pF COG 0402 +–0.25pF 50V CM05CG1R0C50AH PZ 1,00000 C52
...4 01 1bb0100192ky COND CER SMD 22 pF COG 0402 5% 50V CM05CG220J50AH PZ 7,00000 C12 C59 C60 C68 C134 C153 C206
...4 01 1bb0100208ky COND CER SMD 100 nF X7R 0603 10% 16V CM105X7R104K16AT PZ 4,00000 C49 C50 C89 C96
...4 01 1bb0100220ky COND CER SMD 18 pF COG 0402 5% 50V CM05CG180J50AH PZ 15,00000 C5 C61 C62 C70 C76 C90 C91 C92 C93 C126
C127 C128 C167 C169 C172
...4 01 1bb0100242av COND CER SMD 56 pF COG 0603 5% 50V 06035A560JAT4A PZ 2,00000 C19 C23
...4 01 1bb0100245av COND CER SMD 330 pF X7R 0603 10% 50V 06035C331KAT4A PZ 1,00000 C85
...4 01 1bb0100247av COND CER SMD 3.9 nF X7R 0603 10% 50V 06035C392KAT4A PZ 1,00000 C152
...4 01 1bb0100268ky COND CER SMD 15 nF X7R 0603 10% 25V CM105X7R153K25AT PZ 1,00000 C139
...4 01 1bb0100286av COND CER SMD 120 nF X7R 0805 10% 25V 08053C124KAT2A PZ 1,00000 C140
...4 01 1bb0500051ky COND TANT SMD 10 uF 10V 20% Asize TAJA106M010R PZ 1,00000 C86
...4 01 1bb0500078ky COND TANT SMD 3.3 uF 10V 20% Asize TAJA335M010R PZ 10,00000 C18 C47 C48 C51 C130 C137 C142 C162
C181 C226
...4 01 1cc0100095mu INDUT SMD 100 nH 5% Qmin40 540mA LQN21AR10J04 PZ 2,00000 L11 L12
...4 01 1cc0100096mu INDUT SMD 220 nH 5% Qmin35 240mA LQN21AR22J04 PZ 2,00000 L17 L24
...4 01 1cc0100129mu INDUT SMD EMI SUPPRESSOR 0.8 R 200mA BLM21B222SPT PZ 7,00000 CH3 CH5 CH6 CH16 CH17 CH18 CH19
...4 01 1cc0100130mu INDUT SMD EMI SUPPRESSOR 50 V 2 A NFM41P11C204T1 PZ 1,00000 FC11
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 3
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
...4 01 1cc0100164mu INDUT SMD 6.8 nH +/–5% Qmin12 300mA LQG11A6N8J00T1 PZ 1,00000 L33
...4 01 1cc0100165mu INDUT SMD 8.2 nH +/–5% Qmin12 300mA LQG11A8N2J00T1 PZ 1,00000 L31
...4 01 1cc0100166mu INDUT SMD 15 nH +/–5% Qmin12 300mA LQG11A15NJ00T1 PZ 1,00000 L3
...4 01 1cc0100168mu INDUT SMD 33 nH +/–5% Qmin12 300mA LQG11A33NJ00T1 PZ 2,00000 L2 L22
...4 01 1cc0100169mu INDUT SMD 39 nH +/–5% Qmin12 300mA LQG11A39NJ00T1 PZ 2,00000 L4 L5
...4 01 1cc0100170mu INDUT SMD 47 nH +/–5% Qmin12 300mA LQG11A47NJ00T1 PZ 1,00000 L30
...4 01 1cc0100171mu INDUT SMD 68 nH +/–5% Qmin12 300mA LQG11A68NJ00T1 PZ 1,00000 L23
...4 01 1cc0100190mu INDUT SMD 12 nH +/–5% Qmin12 300mA LQG11A12NJ00T1 PZ 1,00000 L26
...4 01 1cc0100201mu INDUT SMD 4.7 nH +/–0.3nH Qmin12 300mA LQG11A4N7S00T1 PZ 1,00000 L32
...4 01 1dd0100136li CI ANALOG LTC1550CGN GN–16 LOW NOISE SWT REG VOLT INVERT LTC1550CGN–TR PZ 1,00000 U29
...4 00 1dd0100137na CI ANALOG MTC20 PLL FREQ SYNTH FOR RF PERS COM LMX2330LTMX PZ 1,00000 U10
...4 01 1dd0100139ryt CI ANALOG 1600–1630MHz MMIC PA QUALCOMM CODE CV90–25670–1 RMPA1610–63 PZ 1,00000 U1
...4 01 1dd0100140qlc CI ANALOG QC1 TX AGC AMPLIFIER CDMA/FM CD90–24050–1 Q5505I–1M–TR PZ 1,00000 U13
...4 01 1dd0100148ndc CI ANALOG AND6014 QC4 STEP AMP QUALCOMM CODE CV90–22627–4 AND6014 PZ 1,00000 U6
...4 01 1dd0100163na CI ANALOG LP2980AI MA05A 50mA ULTRA LOW–DROPOUT REGULATOR LP2980AIM5X–3.3 PZ 1,00000 U24
...4 01 1dd0100175na CI ANALOG LP2980AI MA05A 50mA ULTRA LOW–DROPOUT REGULATOR LP2980AIM5X–5.0 PZ 1,00000 U21
...4 01 1dd0100196na CI ANALOG LP2981 MA05A MK L0JA 100mA ULTRA LOW–DROPOUT REGUL LP2981AIM5X–3.6 PZ 1,00000 U28
...4 01 1dd0200024to CI DG TC7S04FU TE85L SSOP5–PA MK E5 INVERTER PZ 1,00000 U22
...4 01 1dd0200028to CI DG TC7W08FU TE12L SSOP8–P MK 7W08 DUAL 2–INPUT AND GATE PZ 2,00000 U2 U16
...4 01 1dd0200030to CI DG TC7W32FU TE12 SSOP8–P MK 7W32 DUAL 2–INPUT OR GATE PZ 1,00000 U7
...4 01 1ff0400037am CONN RF DA C/S SMD CON SWITCH 0–619013–1 PZ 3,00000 SO4 SO5 SO6
...4 01 1ff0400042mcm CONN RF OSX F C/S VERT 5899–5004–54 5899–5004–54 PZ 2,00000 SO2 SO3
...4 01 1ll0200014mu FILTRO DIEL 1610.0MHz BW 16MHz SMD QUALCOMM CODE CV90–25422–2 DFC31R61P016BHB PZ 1,00000 FC1
...4 01 1ll0500022swt FILTRO SAW TX 130.38MHz QUALCOMM CODE CV90–25680–1 854858 PZ 1,00000 FC2
...4 01 1ll0500024mu FILTRO SAW TX S–BAND 1618.25MH QUALCOMM CODE CV90–25235–1 SAFC1618.25 PZ 2,00000 FC5 FC6
...4 01 1ll0900001hc CIRCOLATORE 1618MHz SI–7TNR1.618G–T PZ 1,00000 HY1
...4 01 1ll1300003hc DOUBLE BALANCED MIXER SLM–A IF 130.38 MHz SLM–180A PZ 1,00000 MX2
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 4
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
...4 01 1mm0300013twn MODULO VCTCXO 19.68MHz SMD TXS0924M–3.3/19.68 PZ 1,00000 X1
...4 01 1mm0300014fu MODULO VCO TX 1500MHz 3.8V SMD QUALCOMM CODE CV90–25237–1 VC–3R6A20–1487 PZ 1,00000 Y2
...4 01 1nn0100038si TRANS NPN BCR141W SOT323 Q62702–C2288 PZ 2,00000 Q2 Q5
...4 01 1nn0100046si TRANS NPN BFS483 SOT363 Q62702–F1574 PZ 1,00000 Q8
...4 01 1nn0400001ok TRANS GASFET 4PSOP 3v 5mA KGF1522 PZ 1,00000 Q16
...4 01 1nn0500007ir TRANS MOSFET P MICRO8 V/DS–20V R/DS .09R IRF7604TR PZ 2,00000 Q11 Q12
...4 01 1yy0700013hp DIODO SCHOT HSMS–2825–L31 SOT–143–L HSMS–2825–L31 PZ 1,00000 D4
...4 01 1xxzz99002 COMPONENTE DA NON MONTARE PZ 14,00000 C13 C27 C79 C83 C106 C141 C161 C175 2430
C186 L20 L21 R13 R15 R36
..3 01 1aa0100106ky RES SMD 0 OHM JUMPER1/16W 0603 CJ10–000–D PZ 1,00000 R23
..3 01 1aa0100108ky RES SMD 10 R 5% 1/16W 0603 CR10–100J–D PZ 2,00000 R33 R73
..3 01 1aa0100111ky RES SMD 33 R 5% 1/16W 0603 CR10–330J–T PZ 2,00000 R25 R39
..3 01 1aa0100113ky RES SMD 100 R 5% 1/16W 0603 CR10–101J–T PZ 3,00000 R2 R8 R9
..3 01 1aa0100119ky RES SMD 470 R 5% 1/16W 0603 CR10–471J–D PZ 1,00000 R10
..3 01 1aa0100123ky RES SMD 1 K 5% 1/16W 0603 CR10–102J–D PZ 1,00000 R60
..3 01 1aa0100125ky RES SMD 1.5 K 5% 1/16W 0603 CR10–152J–T PZ 1,00000 R22
..3 01 1aa0100126ky RES SMD 1.8 K 5% 1/16W 0603 CR10–182J–T PZ 2,00000 R76 R77
..3 01 1aa0100128ky RES SMD 2.7 K 5% 1/16W 0603 CR10–272J–T PZ 1,00000 R5
..3 01 1aa0100134ky RES SMD 8.2 K 5% 1/16W 0603 CR10–822J–T PZ 1,00000 R81
..3 01 1aa0100135ky RES SMD 10 K 5% 1/16W 0603 CR10–103J–D PZ 1,00000 R63
..3 01 1aa0100144ky RES SMD 27 K 5% 1/16W 0603 CR10–273J–T PZ 2,00000 R80 R112 2409
..3 01 1aa0100148ky RES SMD 56 K 5% 1/16W 0603 CR10–563J–D PZ 1,00000 R64 2409
..3 01 1aa0100149ky RES SMD 68 K 5% 1/16W 0603 CR10–683J–T PZ 2,00000 R52 R54 2409
..3 01 1aa0100151ky RES SMD 100 K 5% 1/16W 0603 CR10–104J–D PZ 2,00000 R3 R97
..3 01 1aa0100152ky RES SMD 150 K 5% 1/16W 0603 CR10–154J–T PZ 1,00000 R14 2409
..3 01 1aa0100154ky RES SMD 220 K 5% 1/16W 0603 CR10–224J–T PZ 1,00000 R11
..3 01 1aa0100155ky RES SMD 270 K 5% 1/16W 0603 CR10–274J–T PZ 1,00000 R98 2409
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 5
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
..3 01 1aa0100241ky RES SMD 47 R 5% 1/16W 0603 CR10–470J–T PZ 2,00000 R74 R75
..3 01 1aa0100249ky RES SMD 120 K 5% 1/16W 0603 CR10–124J–T PZ 1,00000 R115
..3 01 1aa0100361ky RES SMD 10 R 5% 1/16W 0402 CR05–100J–H PZ 6,00000 R20 R26 R31 R35 R38 R41
..3 01 1aa0100362ky RES SMD 22 R 5% 1/16W 0402 CR05–220J–H PZ 1,00000 R67
..3 01 1aa0100364ky RES SMD 33 R 5% 1/16W 0402 CR05–330J–H PZ 1,00000 R34
..3 01 1aa0100365ky RES SMD 47 R 5% 1/16W 0402 CR05–470J–H PZ 1,00000 R70
..3 01 1aa0100370ky RES SMD 220 R 5% 1/16W 0402 CR05–221J–H PZ 1,00000 R46
..3 01 1aa0100374ky RES SMD 1 K 5% 1/16W 0402 CR05–102J–H PZ 1,00000 R59
..3 01 1aa0100407ky RES SMD 0 OHM JUMPER1/16W 0402 CJ05–000J–H PZ 1,00000 R21
..3 01 1aa0600010mu RES NTC SMD 68 K 5% 1608 NTH5G1M41B683J04TH PZ 1,00000 RT1
..3 01 1bb0100067av COND CER SMD 10 pF COG 0603 5% 50V 06035A100JAT2L PZ 1,00000 C10
..3 01 1bb0100068av COND CER SMD 15 pF COG 0603 5% 50V 06035A150JAT2L PZ 2,00000 C123 C124
..3 01 1bb0100070av COND CER SMD 27 pF COG 0603 5% 50V 06035A270JAT2L PZ 1,00000 C158
..3 01 1bb0100071av COND CER SMD 33 pF COG 0603 5% 50V 06035A330JAT4A PZ 1,00000 C3
..3 01 1bb0100081av COND CER SMD 1 nF X7R 0603 10% 50V 06035C102KAT4A PZ 25,00000 C1 C4 C9 C31 C32 C34 C35 C38 C39 C53
C54 C77 C88 C103 C136 C144 C156 C160
C182 C187 C191 C194 C195 C196 C213
..3 01 1bb0100094av COND CER SMD 8.2pF COG 0603 +–0.5 pF 50V 06035A8R2DAT2L PZ 1,00000 C190
..3 01 1bb0100155av COND CER SMD 10 nF X7R 0603 10% 50V 06035C103KAT2A PZ 6,00000 C36 C44 C46 C168 C170 C173
..3 01 1bb0100187ky COND CER SMD 1.0pF COG 0402 +–0.25pF 50V CM05CG1R0C50AH PZ 1,00000 C17
..3 01 1bb0100190ky COND CER SMD 10 pF COG 0402 +–0.5pF 50V CM05CG100D50AH PZ 6,00000 C20 C24 C25 C30 C183 C223
..3 01 1bb0100191ky COND CER SMD 12 pF COG 0402 5% 50V CM05CG120J50AH PZ 7,00000 C55 C65 C84 C97 C98 C129 C154
..3 01 1bb0100194ky COND CER SMD 33 pF COG 0402 5% 50V CM05CG330J50AH PZ 17,00000 C94 C95 C99 C100 C101 C110 C111 C112
C113 C114 C115 C116 C117 C118 C119 C120
C121
..3 01 1bb0100206ky COND CER SMD 330 nF X7R 0805 10% 16V CM21X7R334K16AT PZ 1,00000 C145
..3 01 1bb0100208ky COND CER SMD 100 nF X7R 0603 10% 16V CM105X7R104K16AT PZ 3,00000 C125 C131 C159
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 6
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
..3 01 1bb0100217av COND CER SMD 56 nF X7R 0603 10% 16V 0603YC563KAT2A PZ 1,00000 C146
..3 01 1bb0100224ky COND CER SMD 2.2pF COG 0402 +–0.25pF 50V CM05CG2R2C50AH PZ 1,00000 C7
..3 01 1bb0100245av COND CER SMD 330 pF X7R 0603 10% 50V 06035C331KAT4A PZ 3,00000 C67 C132 C133
..3 01 1bb0100255ky COND CER SMD 3.3 nF X7R 0603 10% 50V CM105X7R332K50AT PZ 1,00000 C157
..3 01 1bb0100289ky COND CER SMD 22 pF COG 0603 5% 50V CM105CG220J50VAT PZ 2,00000 C29 C87
..3 01 1bb0500050ky COND TANT SMD 4.7 uF 10V 20% Asize TAJA475M010R PZ 3,00000 C28 C40 C227
..3 01 1bb0500078ky COND TANT SMD 3.3 uF 10V 20% Asize TAJA335M010R PZ 6,00000 C6 C15 C26 C122 C163 C225
..3 01 1cc0100129mu INDUT SMD EMI SUPPRESSOR 0.8 R 200mA BLM21B222SPT PZ 5,00000 CH1 CH2 CH4 CH8 CH14
..3 01 1cc0100162mu INDUT SMD 3.3 nH +/–0.3nH Qmin12 300mA LQG11A3N3S00T1 PZ 1,00000 L35
..3 01 1cc0100163mu INDUT SMD 5.6 nH +/–0.3nH Qmin12 300mA LQG11A5N6S00T1 PZ 1,00000 L29
..3 01 1cc0100164mu INDUT SMD 6.8 nH +/–5% Qmin12 300mA LQG11A6N8J00T1 PZ 2,00000 L25 L27
..3 01 1cc0100167mu INDUT SMD 18 nH +/–5% Qmin12 300mA LQG11A18NJ00T1 PZ 4,00000 L9 L18 L19 L57
..3 01 1cc0100168mu INDUT SMD 33 nH +/–5% Qmin12 300mA LQG11A33NJ00T1 PZ 2,00000 L10 L13
..3 01 1cc0100169mu INDUT SMD 39 nH +/–5% Qmin12 300mA LQG11A39NJ00T1 PZ 3,00000 L7 L8 L28
..3 01 1cc0100171mu INDUT SMD 68 nH +/–5% Qmin12 300mA LQG11A68NJ00T1 PZ 4,00000 L1 L15 L16 L40
..3 01 1cc0100184mu INDUT SMD 1.2 nH +/–0.3nH Qmin12 300mA LQG11A1N2S00T1 PZ 1,00000 L6
..3 01 1cc0100190mu INDUT SMD 12 nH +/–5% Qmin12 300mA LQG11A12NJ00T1 PZ 1,00000 L14
..3 00 1dd0100137na CI ANALOG MTC20 PLL FREQ SYNTH FOR RF PERS COM LMX2330LTMX PZ 1,00000 U11
..3 01 1dd0100138na CI ANALOG MA05A LOW POWER OP.AMP RAIL TO RAIL LMC7101AIM5X PZ 1,00000 U19
..3 01 1dd0100141qlc CI ANALOG QC1 RX AGC AMPLIFIER CD90–24056–1 Q5500I–1M–TR PZ 1,00000 U3
..3 01 1dd0100146hp CI ANALOG MGA–85563–TR1 S0T363 LOW NOISE GAAS MMIC AMPLIFIER MGA–85563–TR1 PZ 1,00000 U15
..3 01 1dd0100163na CI ANALOG LP2980AI MA05A 50mA ULTRA LOW–DROPOUT REGULATOR LP2980AIM5X–3.3 PZ 1,00000 U25
..3 01 1dd0100200na CI ANALOG LP2985AI MA05B 150mA ULTRA LOW–DROPOUT REGULATOR LP2985AIM5X–3.6 PZ 1,00000 U27
..3 01 1dd0100201na CI ANALOG LP2980AI MA05A 50mA ULTRA LOW–DROPOUT REGULATOR LP2980AIM5X–3.6 PZ 1,00000 U20
..3 01 1dd0200065to CI DG TC7SH04FU SSOP5–P–A MK H5 HIGH SPEED CMOS INVERTER TC7SH04FU PZ 1,00000 U5
..3 01 1dd0200074sg CI DG M74HC4052M1R SO16 4 DUAL CHAN ANOLOG MULTI/DEMULTIPLEX M74HC4052M1R PZ 1,00000 U4
..3 01 1dd0500021sy MOD RF SPDT ANTENNA SWITCH TSSOP–10P–L01 SMD CXG1022TM PZ 1,00000 U8
*** SEGUE ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 7
Data creazione distinta 28/01/99
Data di stampa 29/03/99 Data ultima modifica 09/02/99
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100257 MODULO RADIO GLOBALSTAR CS661C VERS 15.01.99 Nr.progetto: 0080
..3 01 1ff0600089ml CONN F CSTP 50 VIE VERT SMD P–0.5 52991–0508 PZ 1,00000 SO1
..3 01 1ll0500021swt FILTRO SAW RX 224.88MHz QUALCOMM CODE CV90–25644–1 855099 PZ 1,00000 FC3
..3 01 1ll0500023mu FILTRO SAW RX S–BAND 2491.75MH QUALCOMM CODE CV90–25223–1 SAFC2491.75 PZ 2,00000 FC4 FC7
..3 01 1ll1300001hc SINGLE BALANCED MIXER SLM190 IF 100–400 MHz SLM–190S PZ 1,00000 MX1
..3 01 1mm0300015fu MODULO VCO RX 2280MHz 3.8V SMD QUALCOMM CODE CV90–25236–1 VC–3R6A20–2267 PZ 1,00000 Y1 2435
..3 01 1nn0100040si TRANS NPNx2 BFS482 SOT363 Q62702–F1573 PZ 1,00000 Q1
..3 01 1nn0400001ok TRANS GASFET 4PSOP 3v 5mA KGF1522 PZ 1,00000 Q6
..3 01 1xxzz99002 COMPONENTE DA NON MONTARE PZ 13,00000 C2 C11 C43 C45 C102 C104 C105 C107 C108
C109 R56 R113 R114
.2 01 1gg3200047 SCHERMO MODULO RADIO PER SATELLITARE DIS1228 PZ 1,00000 rif. dis. 2
.2 01 1hh0700025tps VITE ACCIAIO TC CR M 1.6x 4 ZINCATO NERO B911604002 PZ 3,00000 rif. dis. 3
––––––––––
386,00000
*** FINE STAMPA ***
TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 1
Data creazione distinta 01/06/98
Data di stampa 29/03/99 Data ultima modifica 01/06/98
Data di validita’ 29/03/99 Revisione Validita‘
Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantita‘ Riferimento schema PdM
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Assieme 01 2000100201 BASETTA SENSORE OTTICO CS760 VERS 28.05.98 Nr.progetto: 0080
1 01 1ff0100760 BASETTA C/S OPT SENSOR BOARD VERS 28.05.98 PZ 1,00000 rif. dis. 1
1 01 1pp0700001si SENSORE OTTICO SFH–9202 SMD LIGHT REFLECTION SWITCH Q62702–P5039 PZ 1,00000 Q1
––––––––––
2,00000
*** FINE STAMPA ***
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1
8 PHOTOS AND ASSEMBLIES
Photos
Telital GS/GSM Dual Mode User Terminal Final assembly front view
Telital GS/GSM Dual Mode User Terminal Final assembly rear view
Telital GS/GSM Dual Mode User Terminal Final assembly lateral view
GSM Radio & Display assy CS710c
BB Globalstar & GSM assy CS680b
Radio G* assy CS661c
Optical Sensor CS760
Modules assembly
Assembly GSM Radio & Display assy CS710c code: 2–000100267
Assembly BB Globalstar & GSM assy CS680b code: 2–000100256
Assembly Radio G* assy CS661c code: 2–000100257
Assembly Optical Sensor CS760 code: 2–000100201
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 7
Telital GS/GSM Dual Mode User Terminal Final assembly front view
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 2 of 7

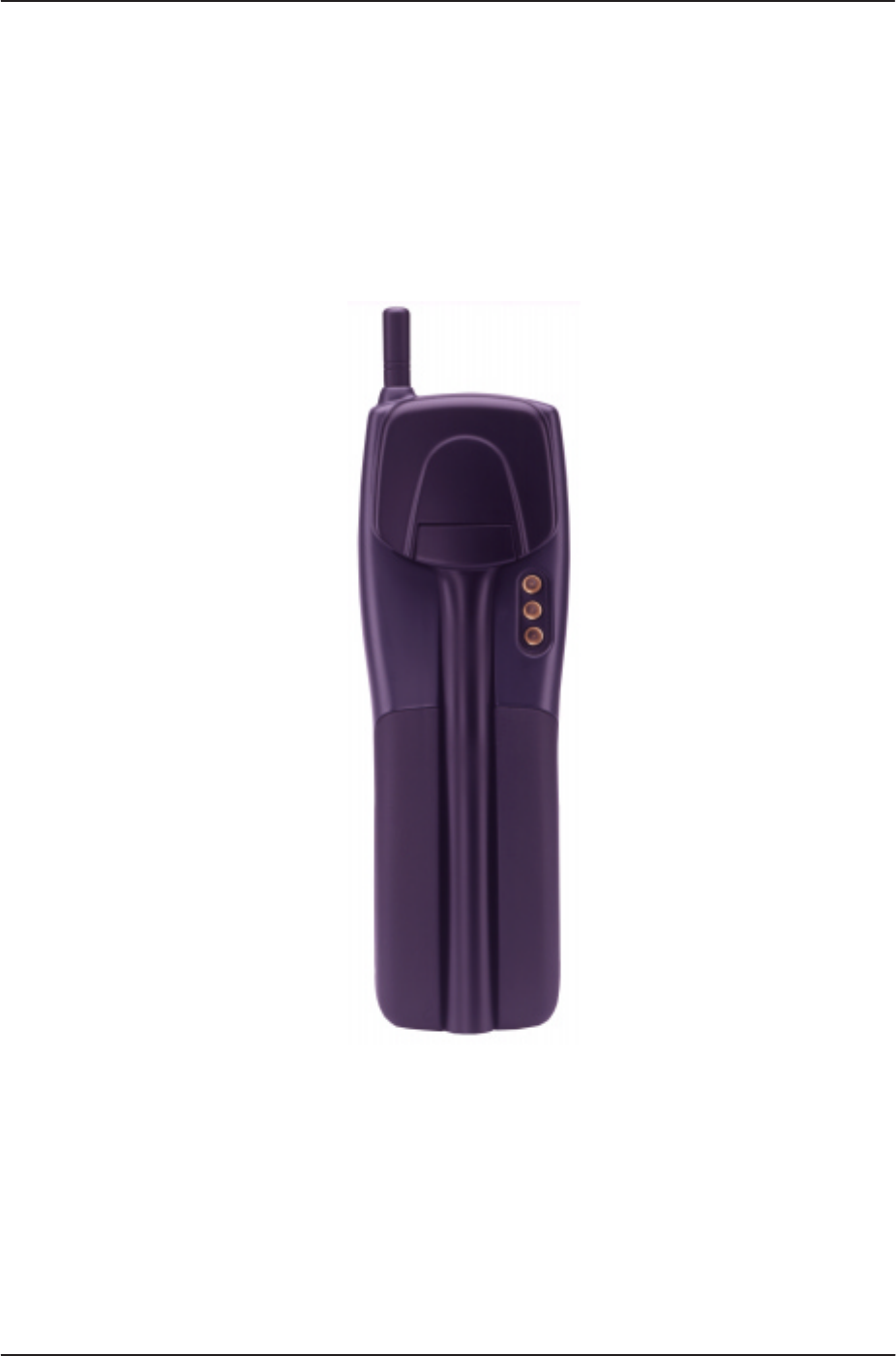

Telital GS/GSM Dual Mode User Terminal Final assembly rear view
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 3 of 7
Telital GS/GSM Dual Mode User Terminal Final assembly lateral view
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 4 of 7
GSM Radio & Display assy CS710c
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 5 of 7
BB Globalstar & GSM assy CS680b
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 6 of 7
Radio G* assy CS661c Primary layer
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 7 of 7

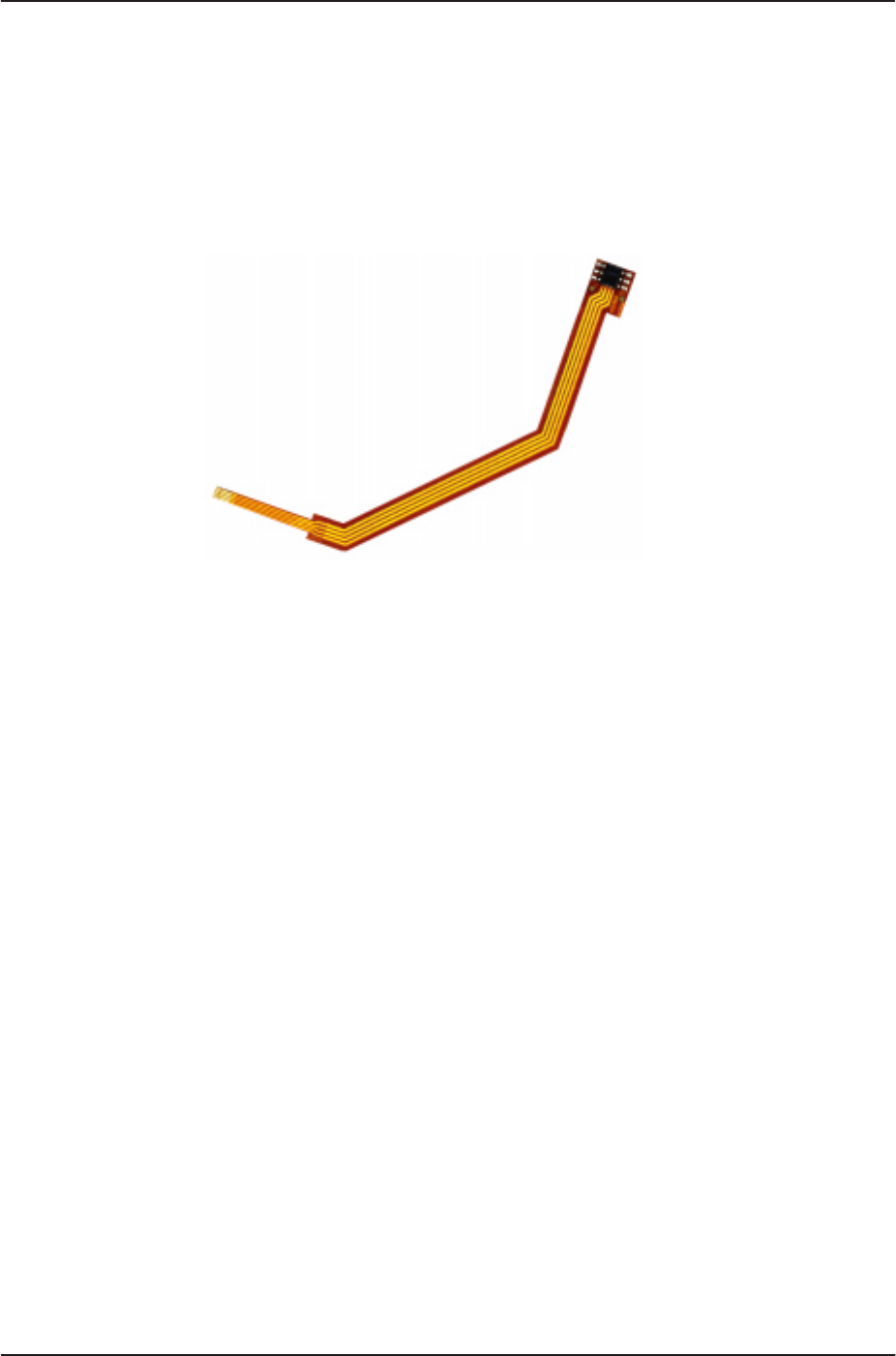

Optical Sensor CS760
Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1
9 USER GUIDE
Telital DMUT User Guide
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page1of12
9.1 General
This guide provides all the necessary information for the correct use of the
GS–GSM DMUT.
Figure 1 show the DMUT with a brief description of keys function.
Figure 1
End
Phone Book
Scroll Scroll
Clear
Menu
Send
Power
SMS
GS/GSM mode selection
GS/GSM Status Led
Soft Keys
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page2of12
9.1.1 Display and indications
The display show all status and menu of GS–GSM DMUT during the operations.
Icons and bitmaps tells to the user all situations and operating modes, telephone
numbers, messages, battery charge status, time and other useful informations
(see fig. 2).

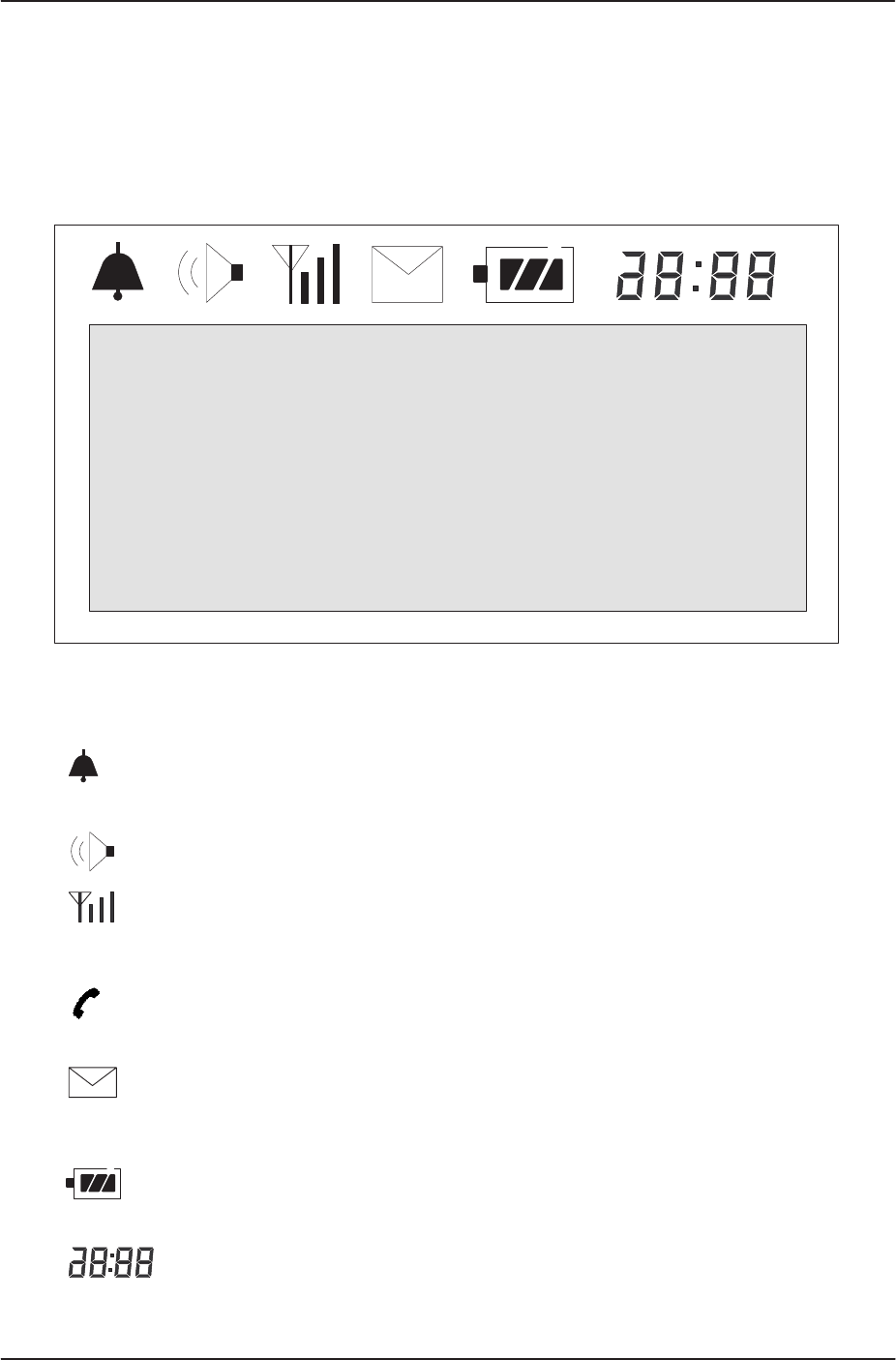

Figure 2
GRAPHIC AREA
9.1.1.1 Icons
This icon indicates a programmed alarm.
This icon blinking, indicates an alarm time–out
This icon indicates an Hands–free device (car kit) connected.
This icon indicates the received signal intensity both in GS and GSM
mode. The number of active bar indicates the signal intensity.
This icon displayed in the graphic area indicates an active
conversation.
This icon indicates the SMS function activation and voice mailbox
messages presence.
This icon indicates the battery charge status.
Clock
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page3of12
9.1.1.2 Status indications
The status of the dual mode telephone will be given by a led on the front panel and
icons on LCD display graphic area.
LED status ON = GS operating mode;
LED status OFF = GSM operating mode;
Icon on Display for the ”GS Maintenance Required” indication;
Icon on Display for the ”GS Lock” indication.
9.1.2 Battery charger
The DMUT have a rechargeable Lithium ion battery pack and a battery charger.
When the battery charge level becomes low, the icon shows this status and
when the icon empty is blinking, is necessary to connect the battery charger
to the DMUT.
The graphic symbol is shown when the telephone is operating during a battery
charge operation.
The bitmap . is shown during a battery charge operation with the
DMUT turned off.
9.1.3 Car kit
The car kit option allows to connect the DMUT to the vehicle with battery charge
and hands free functionality.
9.1.4 Operation
9.1.4.1 Minimal functionality
The following operations allows to turn on the DMUT, place a call and then turn
off the DMUT.
. Insert your plug–in SIM card into the slot
.Press (POWER) for 1 second to switch on the unit
If PIN is enabled:
PIN>
SOS
If inserted PIN is correct the unit starts network auto search.
In G* mode the following will be displayed:
Searching GW
...
In GSM mode the following will be displayed:
Net Search
** GS/GSM DMUT **
at the end of the search the following will be displayed:
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page4of12
Net Provider
** GS/GSM DMUT **
where the first line indicates the antenna icon (flashing during network auto
search) followed by radio signal intensity (up to 4 bars) and the second line the
name of the network operator, or the gateway ID and then the service provider
name in G* mode.
If inserted PIN is wrong the following will be displayed:
PIN>
Remain X retries
where X on the second line indicates the number of possibilities left to retry correct
PIN entering.
If the wrong PIN is entered for three times the following will be displayed:
PUK>
Remain X retries
.Key in * 05 *, the 8 PUK digits provided by the network operator, press
* (new PIN) * (new PIN) and then #.
Warning: If you cannot remember your PUK code or you enter a wrong one for
10 times, you have no other possibility but that of contacting the network operator
who issued your SIM card.
If you inserted the correct PUK appeares a success graphic symbol that indicates
that PUK is valid and then the operative mask.
Now you can place and receive calls.
.To switch off the unit: press and release (POWER).
The following ”Good Bye” graphic screen will be displayed:
Good Bye!
.To place a call: dial the number and press (SEND).
Mistakes in digiting have to be corrected by pressing shortly " C" key.
If you keep " C" key pressed for longer time, all digits will be cancelled.
.Emergency calls can be placed also if the SIM card is not inserted.
.To receive a call: Press (SEND) or any other key if programmed in the menu.
When using the handset: pick up the handset.
.To end a call: Press (END).
.To adjust listening level: Press and long during conversation.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page5of12

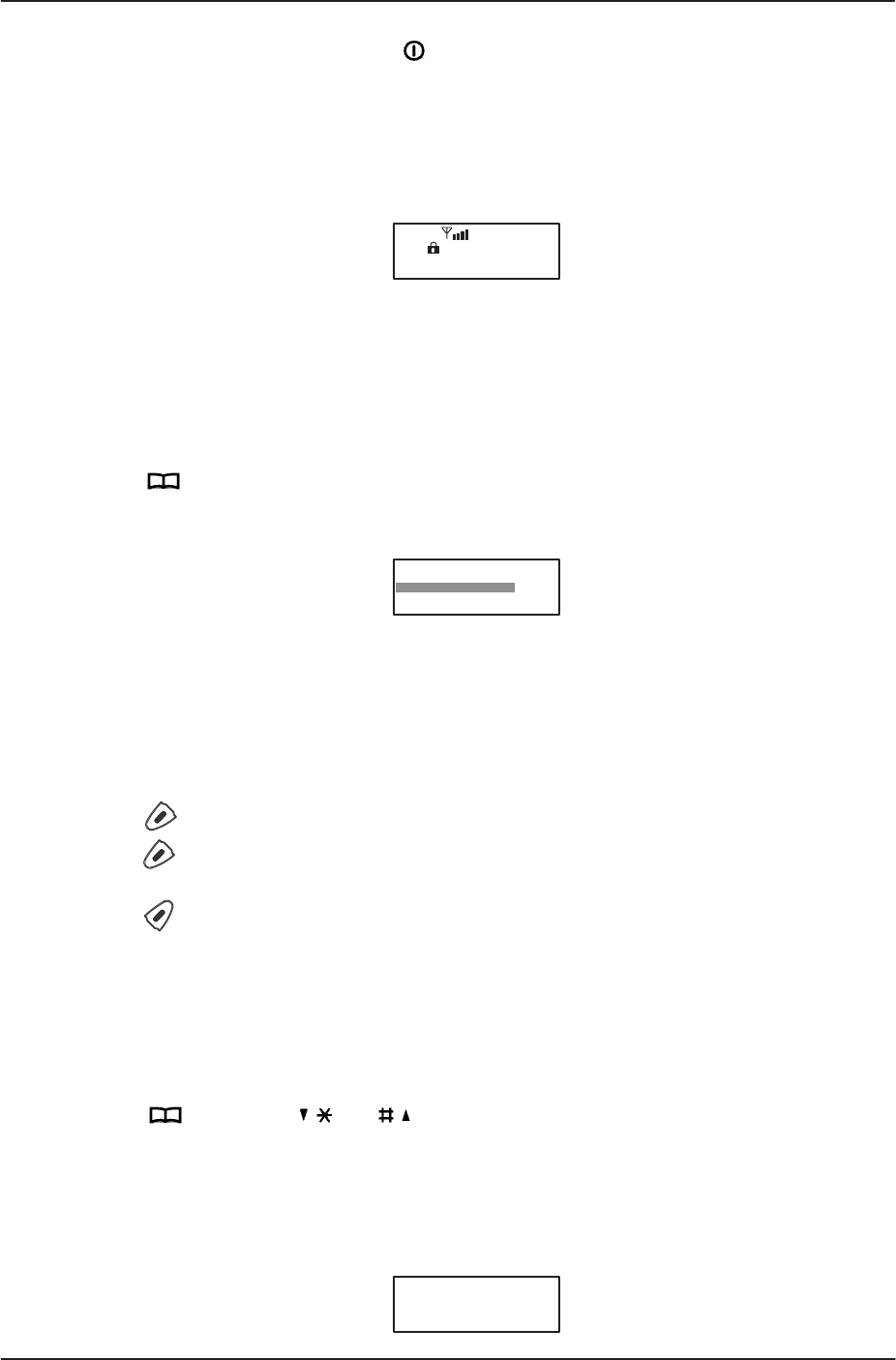

.Mute function: Keep pressed (POWER) for more than 1 second during
conversation.
.Keypad lock: Keep # pressed for 2 seconds: selected function will be displayed
by lock symbol. Keep press the same key for 2 seconds and press the key "5" to
unlock keypad.
Net Provider
9.1.5 Phone book
9.1.5.1 Storing a number
.Key in the number to be stored. By pressing "C" the last digit will be cancelled; if
you press "C" for longer time all digits will be cancelled.
.Press .
The following screen will be displayed:
Enter name
.Key in the name: keep the alphanumeric key pressed until the desired letter
appears on the display.
Key " 1 " contains the space and special characters, whereas key"*"switches
between capital and small letters.
.Press (SEND) to store your selection in the first free memory location and
press (SEND) to confirm.
.Press (END) to exit from phone book without save any number.
9.1.5.2 Recalling a number from phone book
.Press XX and #, where XX is the desired memory location number,
or:
.Press and with or scroll through all the allocated memories in
alphabetical order or by telephone number order or by memory location order.
The search criteria is defined by pressing the "M" key corresponding to
">>"symbol on display.
The following screen will be displayed during a phone book operations:
Name mem
Number
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page6of12
By pressing ”C” the last character will be cancelled, and if you keep ”C” pressed
for longer time all characters will be cancelled.
.When the desired location appears on the display, press (SEND) to place the
call.
When recalling a memory location not available on the SIM card the following will
be displayed:
No record
New record?
ADN Memories: Available memory locations in SIM card. Available quantity
depends on the SIM card you have chosen.
FDN Memories: Also contained in the SIM card with same features as ADN
memories. Activation of FDN memories must be performed from the menu and
by entering the PIN2 code which is not always supplied by the network operator.
9.1.6 Function menu
.Press "M" key followed by the number key corresponding with the desired menu
number or,
.Press "M" key to going to the menu.
.Press and or press the "M" key to browse the menus.
.Confirm the access on the desired menu by pressing (SEND) key.
.To exit from menu without save the settings press (END) key.
.To exit from menu and save the settings press (SEND) key.
If a ”Proactive” SIM is inserted into a DMUT, a menu item 0 will be displayed.
By selecting this item, access will be given to the SIM Toolkit services supplied by
the network operator.
After 3 minutes of inactivity on the menu operations, the operative condition will
be automatically restored.
The following diagrams show the function menu structure.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page7of12
Own number
Missed calls
Call divert
MENU
3
2
DivMissedCalls Choose forward If busy
If not reachable
If no reply
All missed calls
Divert always Choose forward All teleservice
Speech
Fax
Data async
4Clock Set
Alarm
1
2
1
2
31Fast divert 1
2
3
On
Off
Parameters
Cancel 1All
2Div missed calls
3Unconditional Divert
Choose forward If busy
If not reachable
If no reply
Choose forward All teleservice
Speech
Fax
Data async
4
Cancel
Cancel
All missed calls
Set Enter time Enter Date Enter Day
Enter time Choose days Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Everyday
Never
<Sunday>
<Monday>
<Tuesday>
<Wednesday>
<Thursday>
<Friday>
<Saturday>
SIM Toolkit menu
0
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page8of12

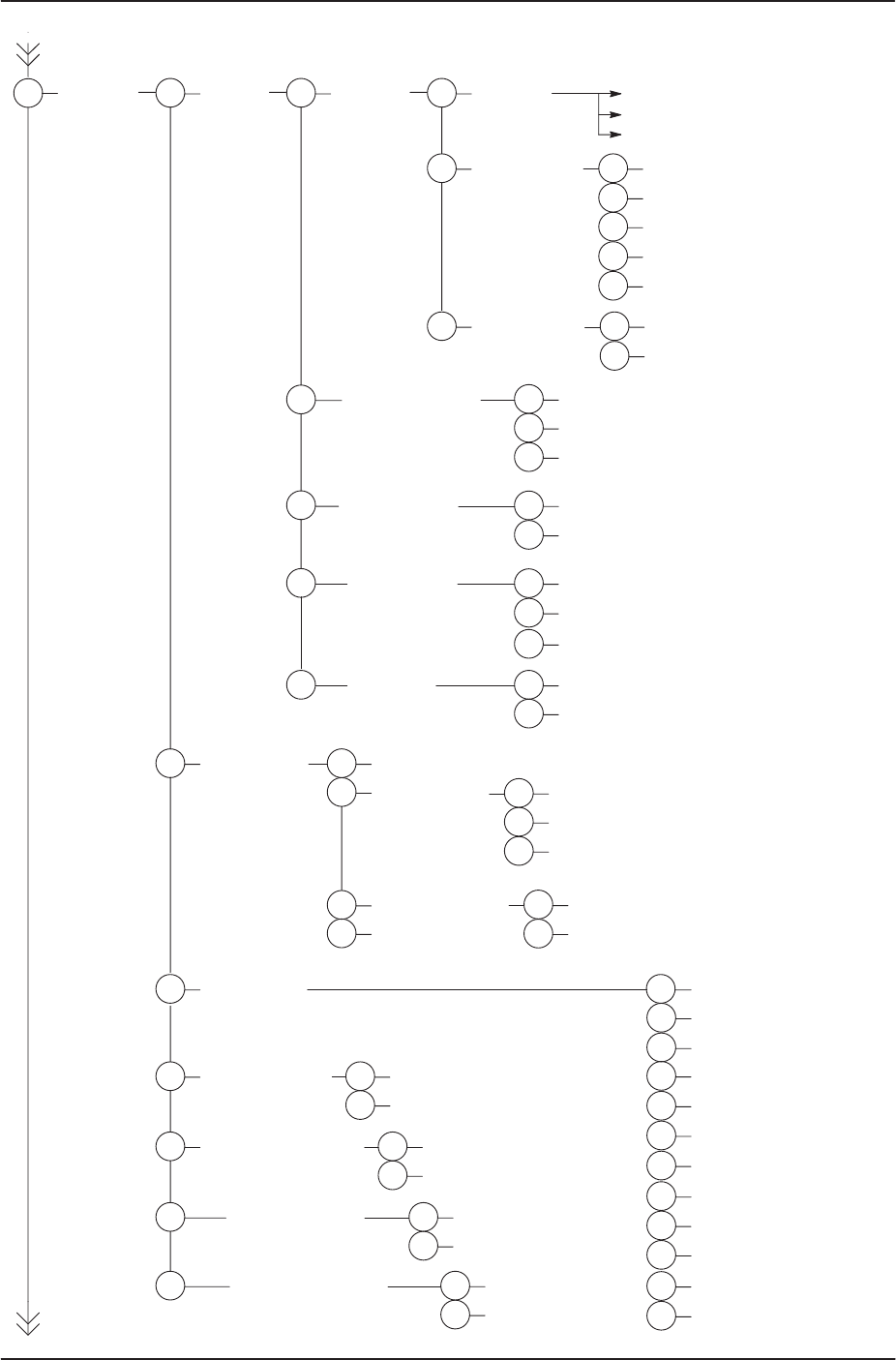

MENU
5Settings 1Audio 1Ringing 1Tone
2Volume
3Vibro-Call
(1 4 ) Standard 1 4
(5 8) Melody 1 4
9) User defined
Off
1
2
3
4
5
Low
Medium
High
Incremental
On
1
2Off
2Keypad-Volume Off
1
2
3
Low
High
3Warning tones On
1
2Off
5DTMF On
1
2Off
2Display Brightness
1
2
3
4
Bright. length
PersonalMessag
Contrast
Off
1
2
3
Short
Long
3Language English
1
2
3
4
Deutsch
Italiano
Francais
5Espanol
12 Automatic
4Auto answer On
1
2Off
5Any key answer On
1
2Off
6Call waiting On
1
2Off
7Keyboard lock On
1
2Off
4Service Beep On
1
3Off
OnlyNoServ
2
Fixed
1
2Rotating
6Norsk
7ELLENICA
8Magyar
9Polsk
10 cestina
11 Portugues
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page9of12

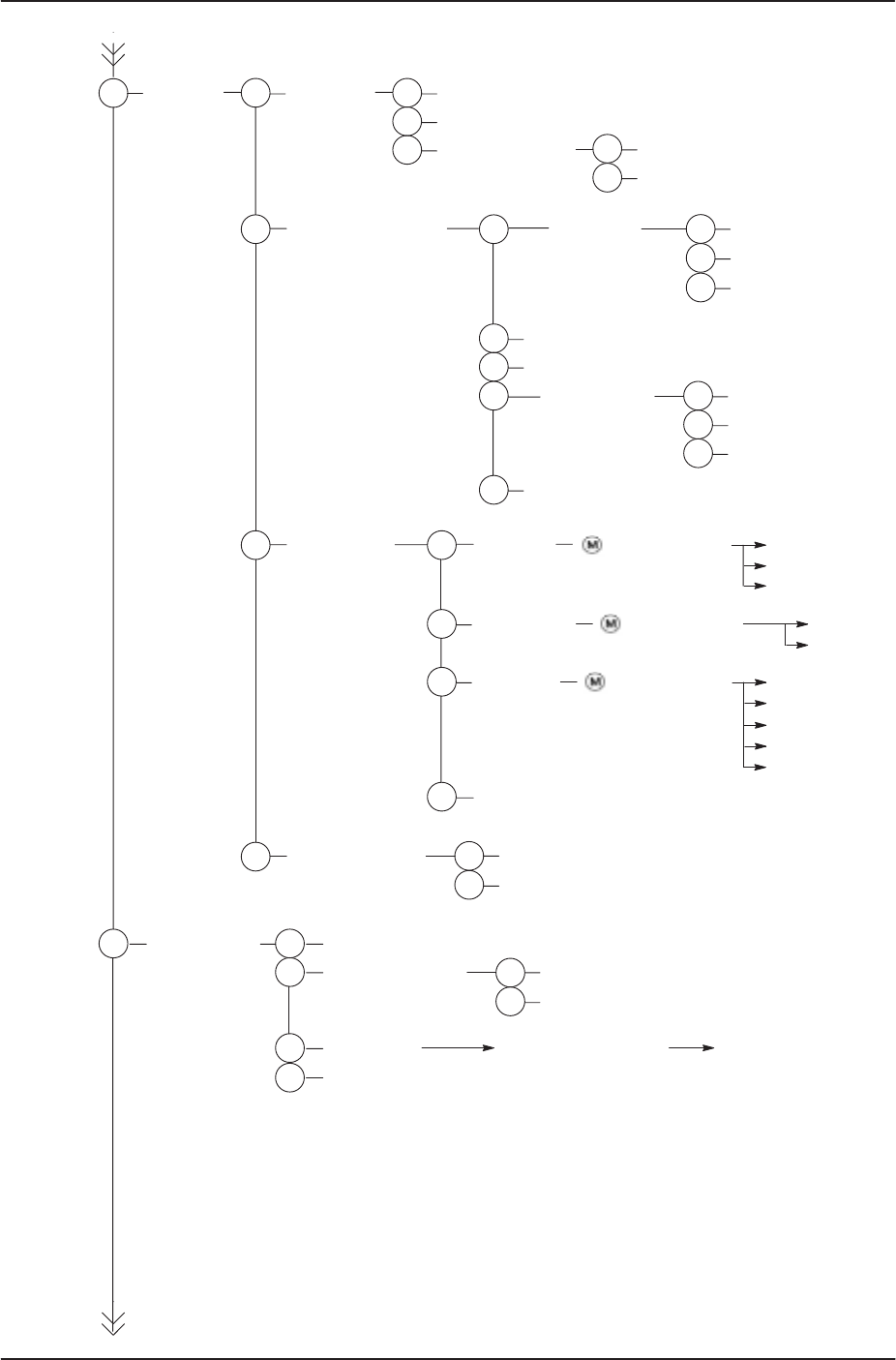

MENU
6Security 1Pin control 1Change PIN 1
2Change PIN 2
3PIN request Enabled
1
2Disabled
2Phone security
Enter
Security code...
1Type
2Clear SIM list
3Change code
On
1
2Off
4Autoblock
5Restore default
On
1
2Off
3SIM list
3Call barring 1Outgoing
2Incoming
3Cancel
4Change code
Choose forward Outgoing calls
International
Only to home
3Change code
Choose forward Incoming calls
Call if abroad
Choose forward Incoming calls
Call if abroad
Outgoing calls
International
Only to home
4Fixed dialling On
1
2Off
7GSM networks 1Search network
2Auto selection
3Network list
4Home network
On
1
2Off
Preferred nets 1 16 Available nets 1 16
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page 10 of 12

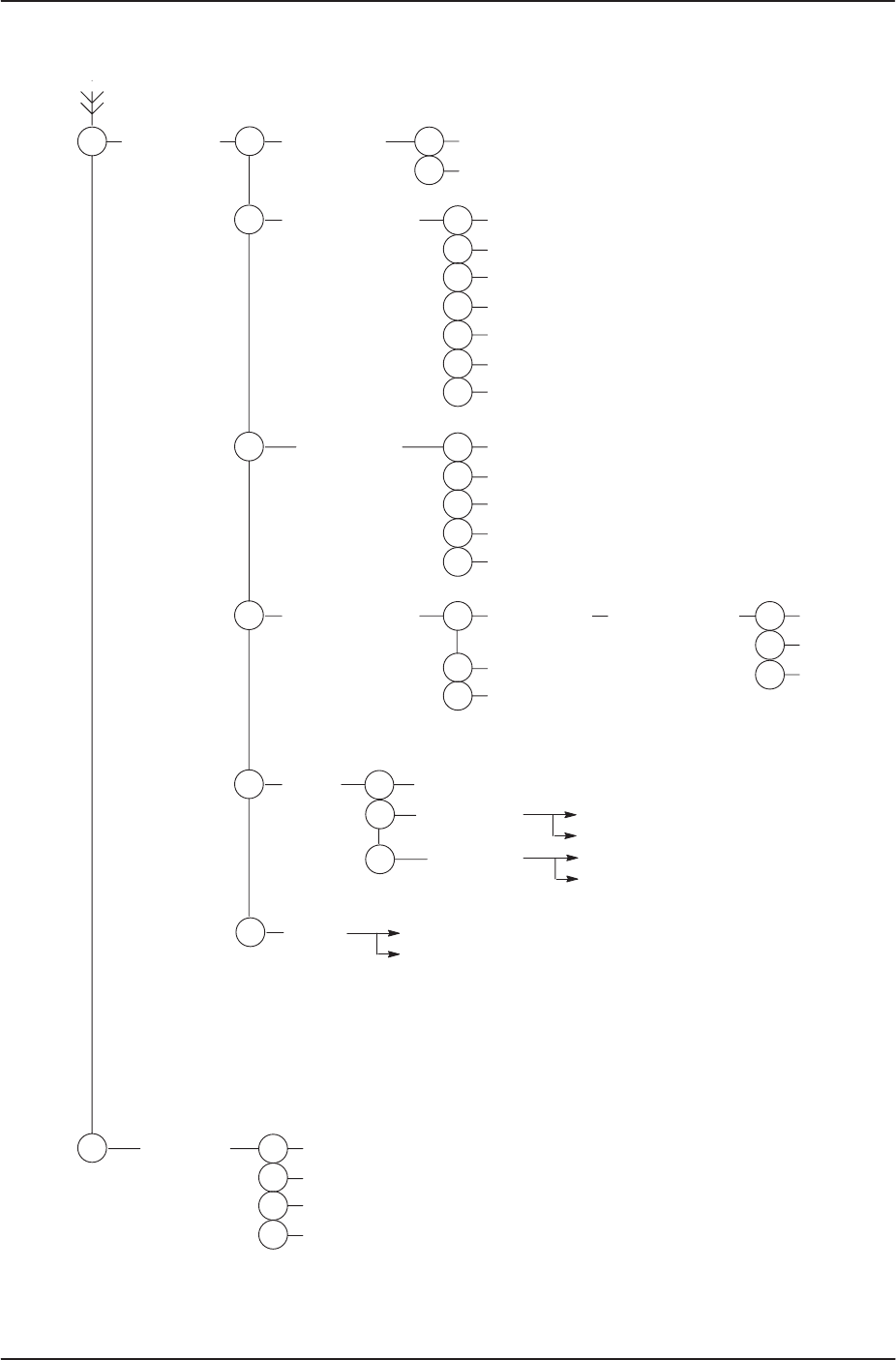

MENU
8Call control
9Information
1Minute beep
2Call duration 1
2
On
1
2Off
3
4
5
6
7
Last call
Incoming home
Incoming roam
Outgoing home
Outgoing roam
Total time
Clear timers
3Charge rate 1
2
3
4
5
Last call
All calls cost
Cost control
Reset
Units account
4Trans. own no. 1
2
3
For all calls
Transmit
Don't transmit
Restrict. control 1Transmit
2Don't transmi
3Net Default
1
2
3
4
IMEI
Software
SIM info
Total life
5CUG 1CUG Index
2
3
Suppr. CUG
Suppr. OA
ON
OFF
ON
OFF
6NITZ Enabled
Disabled
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page 11 of 12
9.1.6.1 SMS menu
Pressing the is available the SMS (Short Message Service) menu.
This menu allows to send and receive short text messages (SMS), to receive mes-
sages from the network operator and other supported services.
The following diagram show the SMS menu structure.
Call mailbox
Messages
SMS
MENU
Write new
Received
Written
Parameters
Autodelete
Reply path
2
3
4
5
6
1
21
Choose forward Mailbox number
Status report
7
SMS center n. Message:
nndd/mm/yy hh:mm
From:
message:
SMS center
User defined
Phone param.
2
3
1Select param. Name
SMS-Center no.
Validity
2
3
1
Destination
4
Protocol Id
5
6Set default
On
1
2Off
Activate
1
2Deactivate
On
1
2Off
Broadcast
3Message
Activation
Languages
List
2
3
4
1
On
1
2Off
District
Flashes
Weather
2
3
1
Index
4
Active only if DMUT is operating in GSM mode.
Information
8
3Auto display
5 - 10 Empty
5
English
1
2
3
4
Deutsch
Italiano
Francais
5Espanol
12 Automatic
6Norsk
7ELLENICA
8Magyar
9Polsk
10 cestina
11 Portugues
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page 12 of 12

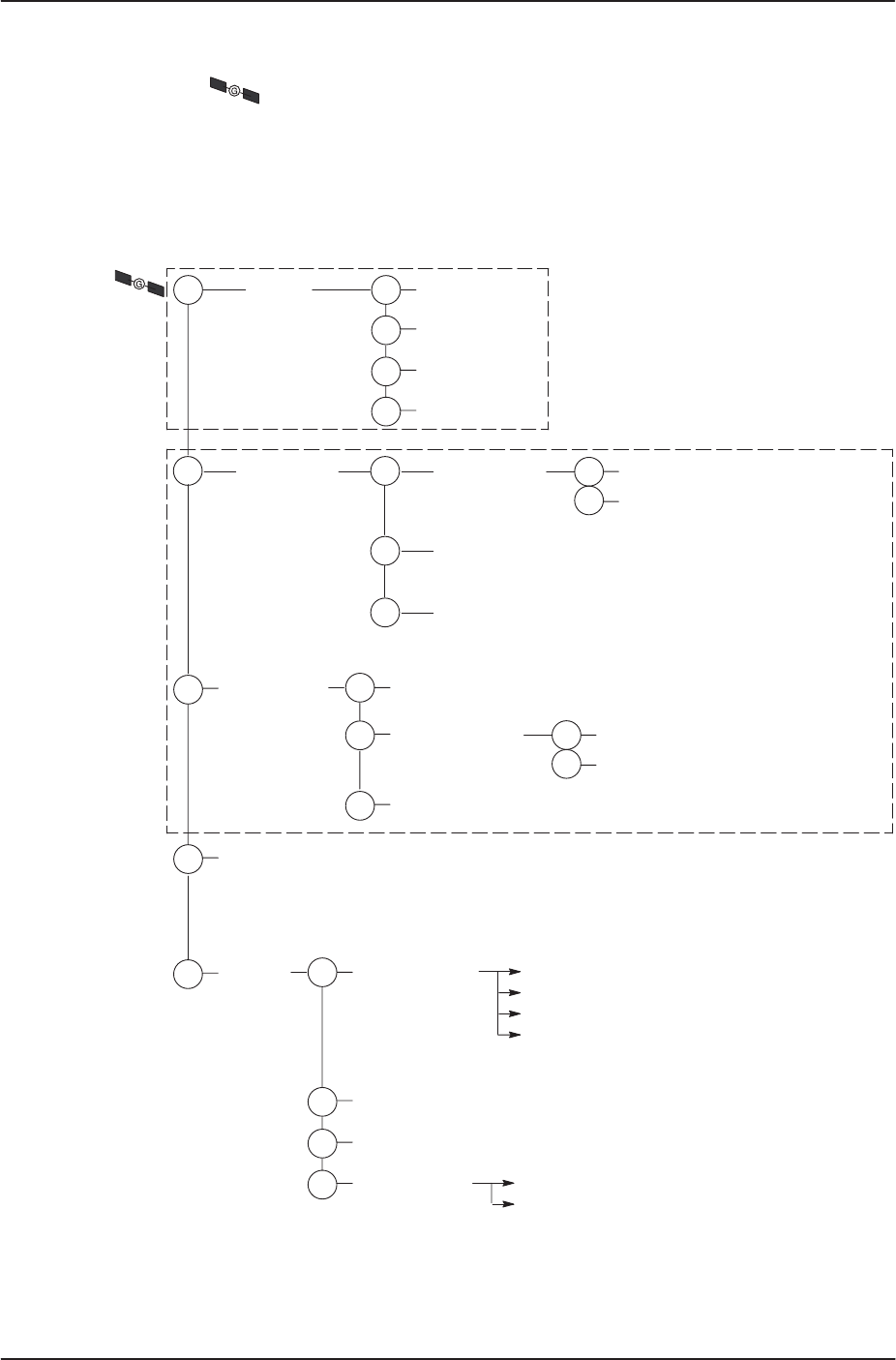

9.1.6.2 Globalstar Menu
Pressing the key is available the Globalstar menu.
This menu partially active only in idle mode, allows to manually select the way of
operating at power on of the DMUT.
The following diagram show the MS menu structure.
Mode
MODE
SELECTION
MENU
1
2Positioning
Active only if DMUT is operating in GS mode.
GS only
GSM only
1
2
GS preferred
3
GSM preferred
4
Active only if DMUT is operating in IDLE mode.
Error display
1
Position
2
On
1
2Off
GS service
3Search network
Auto selection
1
2
Network list
3
On
1
2Off
Local Time
4
Last Pos.
3
Tes t
5Start test call
End test call
1
2
Markov stats
3
MARKOV 9600
LOOPBACK 9600
LOOPBACK 4800
Satellite Info
4Enable
Disable
MARKOV 4800

Navigation menu
