TECHNICAL SPEC
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 13
3 TECHNICAL SPECIFICATIONS
The scope of this document is to summarize the technical characteristics of the Telital
GS/GSM Dual Mode User Terminal.
For detailed informations refer to TECHNICAL SPECIFICATION code 30080ST10010A.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 2 of 13
3.1 Operating frequencies
3.1.1 GSM
The GSM operating frequencies are:
TX frequencies: 890.2 914.8 MHz
RX frequencies: 935.2 959.8 MHz
The channel (ARFCN) are numbered from 1 to 124 and frequency offset between TX and
RX frequency is 45 MHz.
3.1.2 GLOBALSTAR
The satellite operating frequencies are the standard Globalstar frequencies.
TX frequencies: 1618.11 MHz
Bandwidth: 15.99MHz
Channel bandwidth: 1.23MHz
Minimum channel shift: 30KHz
Number of shift: 0 511
Number of preferred channels: 13
Preferred channels: 4, 45, 86, 127, 168, 209, 250,
291, 332, 373, 414, 455, 496.
Rx frequencies: 2491.77 MHz
Bandwidth: 15.99MHz
Channel bandwidth: 1.23MHz
Minimum channel shift: 123KHz
Number of shift: 0 127
Number of preferred channels: 13
Preferred channels: 3, 13, 23, 33, 43, 53, 63, 73,
83, 93, 103, 113, 123.
3.2 Transmitter output power
3.2.1 GSM
a) RF power on 50 Ohm
The GSM section of the DMUT is a class 4 radiotelephone according to standard ETSI reg-
ulation that fix the limit at 2 Watts (+33dBm) on 50 Ohm;
In normal test conditions the transmitter nominal power range is between +31.5 dBm and
+32.5 dBm on 50 Ohm.
With a supply voltage range between 6.7V and 8.4V and temperature range between
–10°C and +55°C the transmitter power range is between +30.5 dBm and +32.5 dBm on
50 Ohm.
b) ERP power
Not supplied in the GSM specification.
The EIRP power will be measured in anechoic chamber.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 3 of 13
3.2.2 GLOBALSTAR
Output power >23 dBm
+26 dBm
3.3 Reference sensitivity
3.3.1 GSM
Sensitivity on 50 Ohm
The sensitivity is according to the GSM specification for the class 4 portable terminal;
The standard ETSI regulation para 6 fix a limit of –102dBm.
The goal limit is –104 dBm for an Rx Quality < 0.2 – 0.4%.
3.3.2 GLOBALSTAR
Ref. Qualcomm specifications 80–25015–1 X6.
3.4 Antenna
3.4.1 GSM
The antenna for the GSM band is ALLGON 3576.2

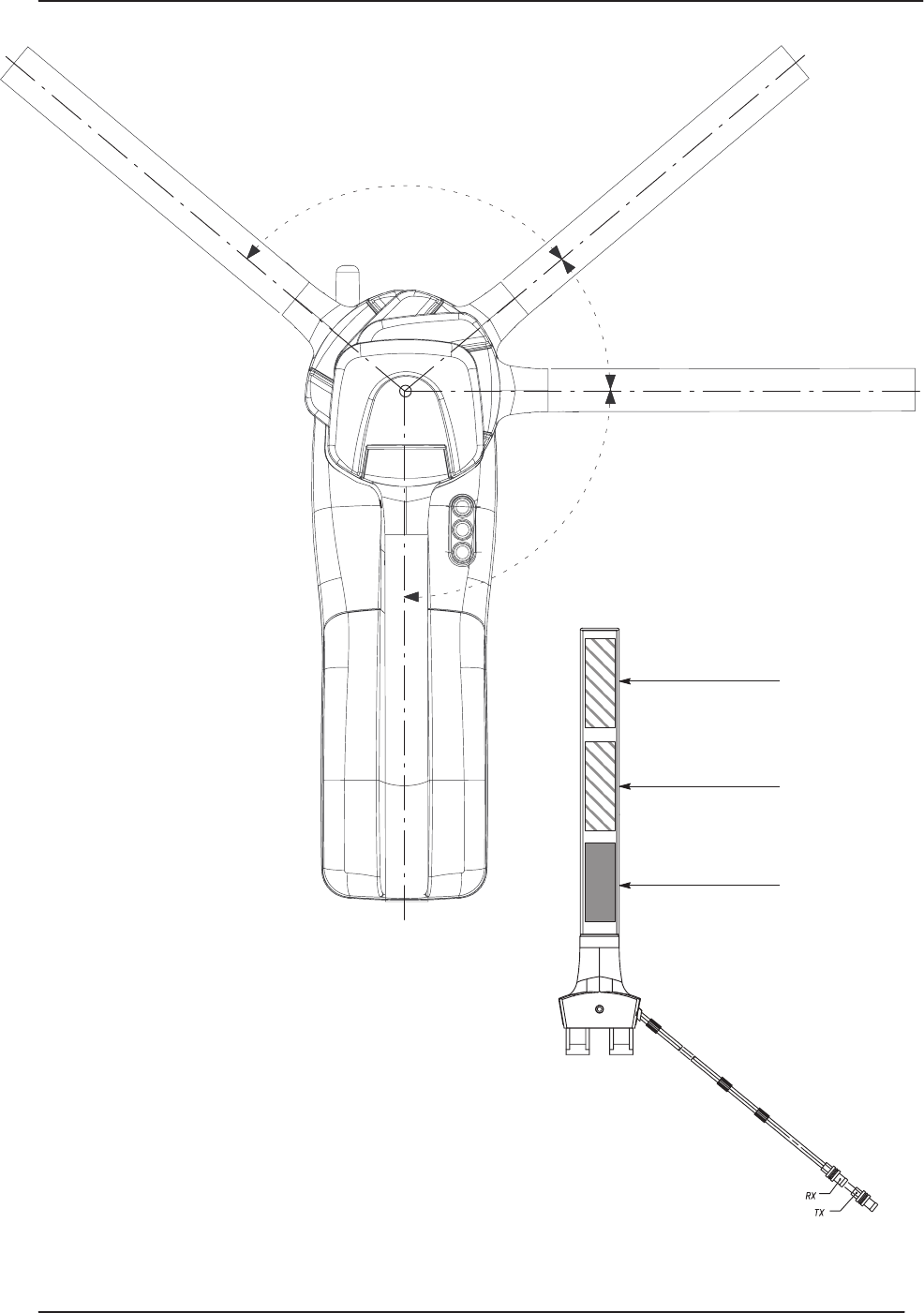

3.4.2 Globalstar
The antenna for the satellite Globalstar band is composed of more parts and is assembled
on the telephone in way that can rotate on 4 positions.
The satellite antenna in its rotating stalk contains an LNA for the Rx section, the receiving
part Rx and the transmitting part Tx.
An optical sensor assembled on the body of the telephone under the antenna rotor, acti-
vates the satellite transmission when the antenna is rotated in the positions 1, 2 and 3. In
the intermediary positions the transmitter of the satellite section is always disabled.
In the position 0 the telephone works only on the GSM band.
The rotation of the antenna is prevented over the position 3.
3.5 Audio characteristics
3.5.1 Microphone
The telephone uses a microphone PRIMO type EM131S2B2.
This is inserted in a rubber gasket.
3.5.1.1 Microphone sensitivity
The typical level is 3mV typical with a –4.7dBPa signal SPL at f=1kHz
3.5.1.1.1 Microphone electric level
The typical level is >570mVrms with signal AF of 3mV @ f=1kHz.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 4 of 13
3.5.1.1.2 Microphone distorsion
The typical level is <2% with range of frequency 300Hz to 3400Hz.
3.5.1.2 Buzzer
The Buzzer used into the DMUT is the MUT–03A STAR.
3.5.1.2.1 Acoustic pressure of the buzzer
The value of acoustic pressure is –41dBV.
3.6Device voltage supply
Nominal voltage 7.4 V
Working range 7 V 8.4 V
Power off voltage range: 6.8V
3.6.1 Power consumption
The following table lists the estimated current that flows from the 7.2V battery with a
switching circuit efficiency =0.85. The values are expressed in mA.
GSM Baseband G*Baseband GSM Radio G* Radio Total
GSM Mode : RxTx
@ Tx level=5 83 3.84 262 0.84 349.68
GSM Mode : idle 10.2 3.84 1.4 0.84 16.28
G* Mode : RxTx 60 219.6 1.56 664.44 945.0
G* Mode : idle @slot=1 10.2 129 1.56 97.44 238.2
G* Mode : idle @slot=0.2 10.2 26.4 1.56 19.44 57.6
3.6.2 Battery pack and battery life
The DMUT will be power supplied by a PP35 1350mAh battery pack composed of two Li
Ion rechargeable serial elements.
3.6.2.1 Battery life in GSM mode
Operative mode Rx/Tx* Idle
Battery life 3.86h 83h
* @ Tx level=5
3.6.2.2 Battery life in Globalstar mode
Operative mode Rx/Tx Idle
Battery life 1.43h 5.66h @slot = 1
23.43h @slot = 0.2
In conversation: 5.5 hrs
In idle: 70 hrs
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 5 of 13

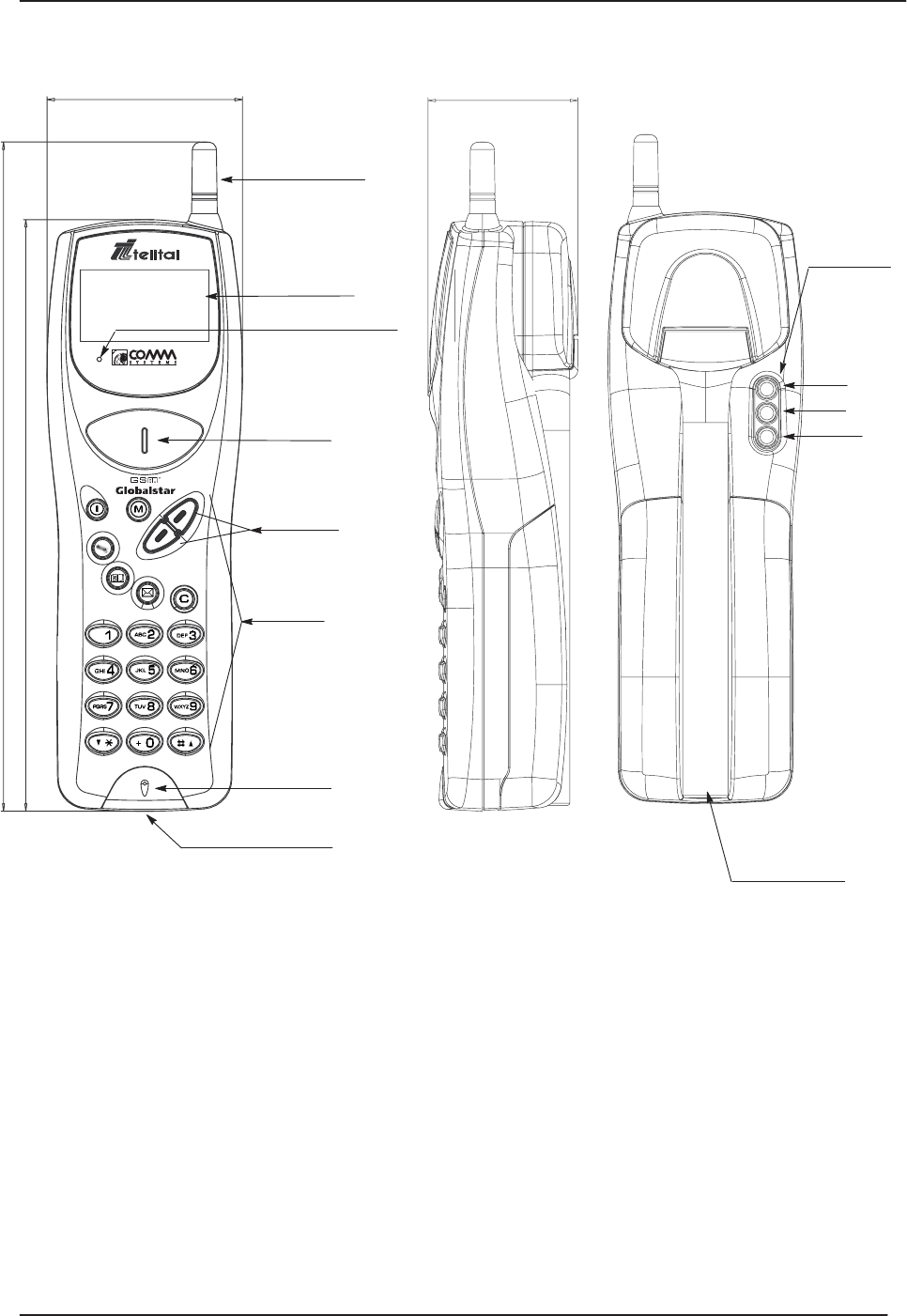

3.7 Keypad
The keypad is composed by 20 keys and lighted with 12 leds.
The key functions, related to the specific operative conditions, are shortly listed on the table
below.

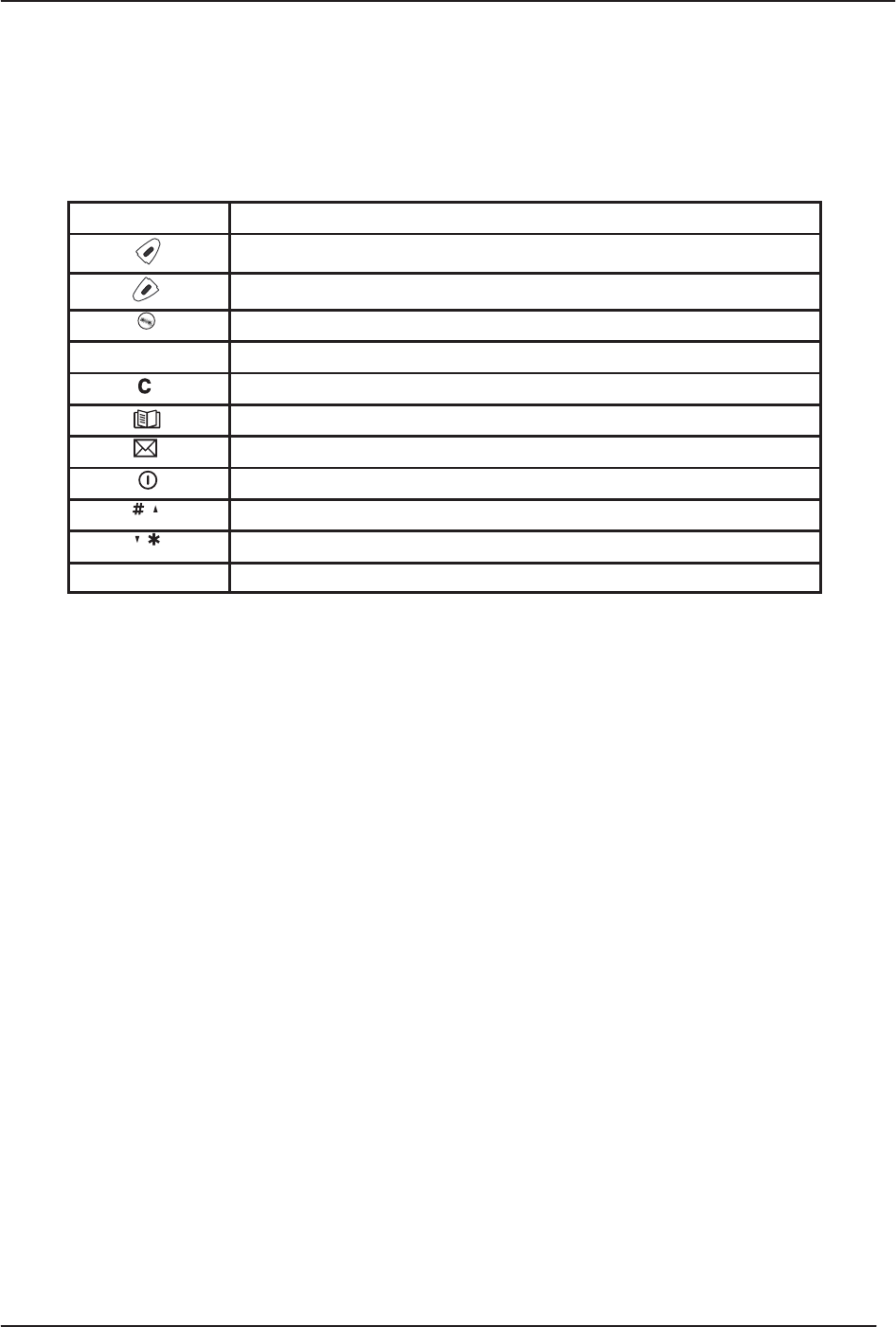

Key Function
END function to terminate a call;
SEND function to answer an incoming call;
Mode Switch to define the DMUT operating mode;
M Function MENU to enter in the DMUT operative menu;
Character and number cancellation in edit mode;
Note Book function;
SMS menu;
DMUT power ON/OFF;
Menu scroll–up function;
Menu scroll–down function;
1...9 Alphanumeric keys
3.8 Display
Type SEK1054B5A EPSON LCD, FSTN, positive, reflective, graphic.
The display will be backlighted with six leds.
3.9 Data service
Use of a Data Terminal Adapter for the following functions:
Full emulation of analog modem to allows the compatibility with the existent data commu-
nication programs.
Class 1 (EIA/TIA 578) and class 2 (TR29.2) command for compatibility with fax.
Max data rate 9600 bit/s.
In Globalstar mode the DTA will support the data service as described on the Globalstar
standard specifications.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 6 of 13
3.10Software functionality and user interface
The software installed in the DMUT supports all the functions in table.
Radio interface Radio Protocol Phase 2
Speech Coding Full Rating
SIM SIM 3/5 volt
SIM Toolkit compliant GSM 11.14
The functionalities supported by the user interface of the telephone are phase 2 and are
listed as follows:
Management of local security, with SIM Lock, keyboard lock and security code request
at power–up;
Call control function, with call duration, cost indication and UDUB function;
Volume control and ringer setting function, ringer and signaling tones with possibility
of activation of alarm also with telephone powered off;
Display management with contrast level regulation and duration of backlight;
Messages visualized setup in ready state and its language, visualization of the IMEI and
the software release of the telephone;
Font Management uppercase/lowercase and international (no Chinese);
SIM related functions, as the activation/deactivation of the numbers in notebook FDN,
ADN and PIN. Extension to the PIN2 of the possibility of insertion of PUK2 in case of lock.
The telephone supports besides the functionalities of class 2 of the SIM Application Toolkit
with the implementation of the relative commands and procedures at MMI level. Imple-
mentation of two levels SIM lock.
Tones Management DTMF;
Clock Management with time and alert activation indications for the wake–up service and
for the programmed telephone power–up;
Indication of the call status and service availability;
Automatic call of busy number and automatic answer;
Visualization and selection of the GSM providers;
Management of the Supplementary Services (SS) of Call Barring (with related indica-
tion, also for SMS), Call Forwarding (with related indication), Advice of Charge, Calling Line
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 7 of 13
Identification Presentation, Calling Line Identification Restriction, Unstructured SS Mobile
Originated, Call Waiting, other party Call Waiting Indication, Call Hold, other party Hold /
Retrieved Indication, Multi Party;
Short Message Service Mobile Terminated with signaling of new incoming SMS, reading
and SIM full, Mobile Originated with writing, storing in SIM and dispatch, Cell Broadcast
compatible with CB–DRX (discontinuous reception) for energy saving.
Special Features, as the list of the incoming not answered calls;
Indications on the battery status through predefined icon on the display with tabs show-
ing the charge level, bitmap on graphic area indicating the state of charge in progress, best
terminated or failed for damaged battery and indication of the battery pack temperature
during the charge.
Management of the language of menu interface. It is possible to set the DMUT from
the language menu up to 16 languages.
Currently the available languages are: Italian, English, German, French, Polish, Norwe-
gian, Spanish, Greek, Hungarian, Czech, Portuguese.
The user interface of the telephone is structured in the following menus:
Main menu pressing the ”M” key and divided in the following submenus: ”Own number”,
”Missed calls”, ”Call divert”, ”Clock”, ”Settings”, ”Security”, ”GSM Networks”, ”Call control”,
”Information”.
When a Proactive SIM is inserted, it is available the SIM Toolkit menu identified by number
item 0 whose elements are determined by the service provider;
SMS Menù, accessible with the key, containing all related functions for the messages
SMS management;
Call related menù, available only during a call, which allows the access to the call related
Services and other possible functions only in this state.
Phone book menu, accessible pressing the ”M” key and pressing again for a long time
the same ”M” key.
It makes available the functions for the transfer between ADN and FDN, the insertion of
new records, the cancellation of the records and the visualization of the information related
to the phonebook stored on the SIM;
Customizable Menù. At any level of the main menù it is associated a number that can be
used to made a fast selection of a menu or submenu item.
3.10.1 Clock
The internal clock besides the normal visualization of the time, allows to set the alarm and
the telephone power–up.
The clock is autonomously powered by a not rechargeable lithium battery with autonomy
of about 5 years.
3.10.2 Vehicularization
For the vehicularization of the DMUT is used a CAR–KIT.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 8 of 13
3.11 Electrical interface

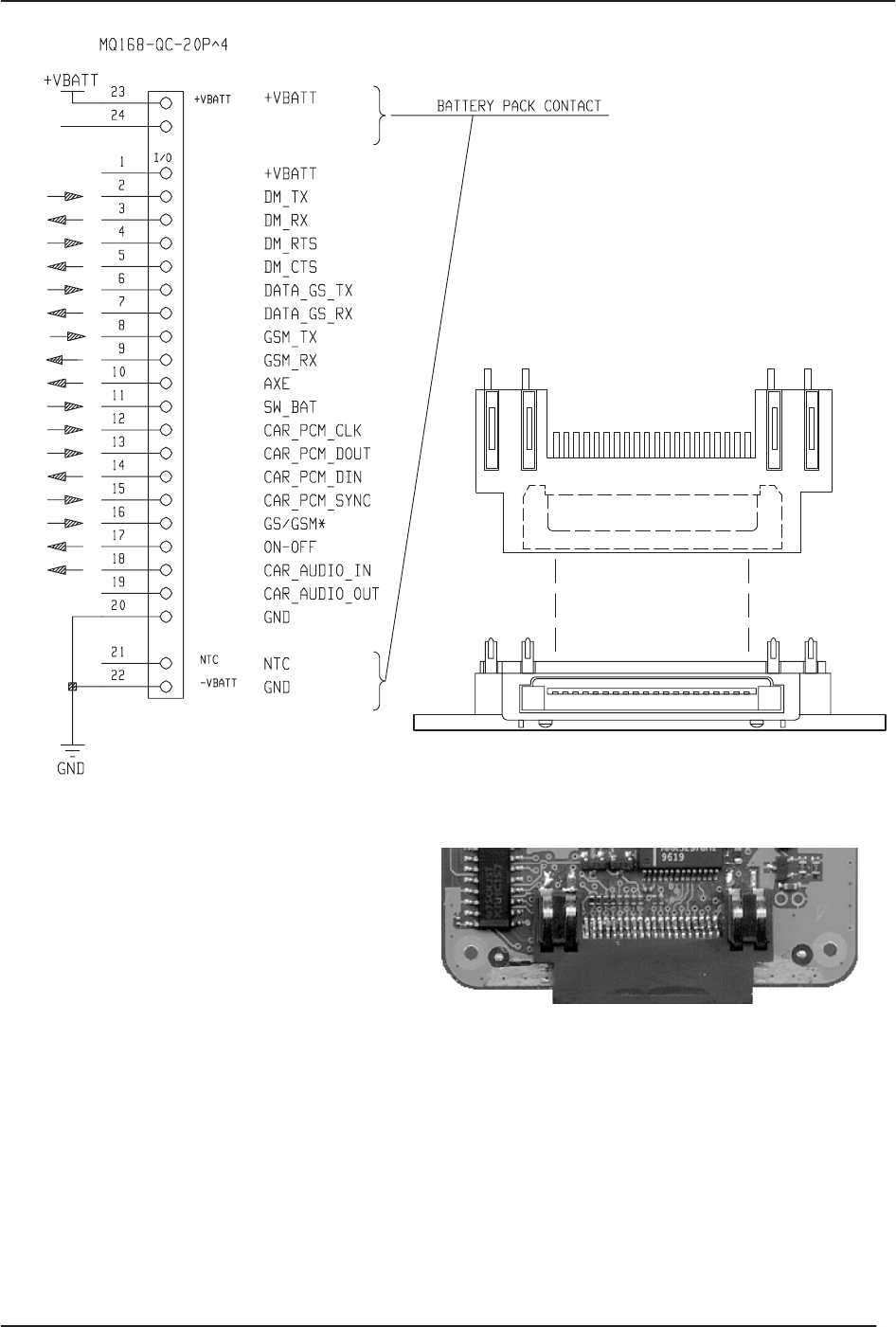

3.11.1 Bottom connector
The 20 pin bottom connector SO2 HIROSE MQ168–QC–20P/4 allows the DMUT inter-
facement with the accessories as Car Kit, Battery charger, Data Terminal Adapter.
The four pins from 21 to 24 allows the connection of battery pack.
PIN NAME A/D IN/OUT DESCRIPTION
1 +VBATT A IN +10.4V from battery charger
2 DM_TX D OUT TX serial line debug monitor G*edge
3 DM_RX D IN RX serial line debug monitor G* edge
4 DM_RTS D OUT Request To Send debug monitor G*edge
5 DM_CTS D IN Clear To Send debug monitor G*edge
6 DATA_GS_TX D OUT Data transmission line in G* mode
7 DATA_GS_RX D IN Data reception line in G*mode
8 GSM_TX D OUT Data transmission and monitor line in GSM
mode
9 GSM_RX D IN Data reception and monitor line in GSM
mode
10 AXE D IN External device connection signal
11 SW_BATT A OUT Power supplied to external device con-
nected with AXE = 0 V
12 CAR_PCM_CLK D OUT CLOCK PCM connection to CAR KIT
13 CAR_PCM_DOUT D OUT Data OUT PCM connection to CAR KIT
14 CAR_PCM_DIN D IN Data IN PCM connection to CAR KIT
15 CAR_PCM_SYNC D OUT SYNC PCM connection to CAR KIT
16 GS/GSM D OUT Signalling for the DMUT operative mode
GSM or G*
17 ON–OFF D IN Signal for DMUT remote power on
18 CAR_AUDIO_IN D IN Analog audio from CAR KIT
19 CAR_AUDIO_OUT – –––– Analog Audio to CAR KIT
20 GND A –––– Ground
21 NTC A –––– Pin used for reading the internal tempera-
ture of battery pack by an NTC or other
sensor.
22 GND A –––– Ground Battery pack
23 +VBATT – –––– Positive Battery pack
24 SPARE – ––––
Legend: A: Analog; D: Digital 0 3V CMOS
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 9 of 13
3.11.2 SIM
The DMUT uses a SIM card type ”PLUG–IN”.
The following table list the signals of SIM connector.
PIN NAME A/D IN/OUT DESCRIPTION
1 C1,CCVCC A IN % !#&
2C2, RST D OUT "$ #
& " "!
3 C3,CCLK D OUT !# # " "
4 C5,GND A IN #" # " "
5 C6,NC ––– ––– " "
6 C7,I/O D IN/OUT #"#"#" " "
3.11.3 Test connector
This connector allows the connection of DMUT with test equipments for the maintenance,
and production test.
ELCO connector Torson 2 x 5pins vertical SMD low profile.
P/N 23–5016–2005–10–081. The following table list the signals of test connector.
PIN NOME A/D IN/OUT DESCRIPTION
1 WAKEUP D IN Signal for remote power on.
2 RST D IN Reset
3 TXD1 D OUT Data transmission from 80386 serial line #1
4 RXD1 D IN Data reception to 80386 serial line #1
5 GND A –– Ground
6 DWLD D IN Download in G* mode enabled
7 INT3 D IN Not used
8 GSM_TX_DATA D OUT Data transmission and monitor line in GSM
mode
9 GSM_RX_DATA D IN Data reception and monitor line in GSM
mode
10 +VBATT A –– Positive 7.4V power supply
Legenda: A: Analogico; D: Digitale 0 3V CMOS
3.11.4 RF signals connector
The DMUT has three coaxial connectors to made the connection with the following:
– Band L external antenna (Tx satellite)
– Band S external antenna (Rx satellite)
– GSM external antenna (Tx /Rx)
3.11.5 DAI connector
Pads on pcb.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 10 of 13
3.12 Physical characteristics
3.13 Dimensions
Lenght: 224 mm
Width: 65.5 mm
Thickness: 50 mm
3.14 Weight
400g battery pack included.
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 11 of 13
3.15 Figures
198
65.5 50
Display LCD
Mode selection Led
Earpiece
Key pad
Microphone
Soft keys
Bottom connector
Antenna GSM
Antenna G*
Car kit
connector
224
GSM
RX
TX
Figure 1 DMUT Assembly
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 12 of 13
Figure 2 Globalstar Satellite antenna
90
40
100
0
1
2
3
Tx Antenna
Rx Antenna
RX LNA
Rev. 1Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 13 of 13
Figure 3 Bottom connector signals overview
23
24
1
20
21
22
