Telit Mobile Terminals S p A SAT550 TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST User Manual DMUT USER GUIDE

Telit Mobile Terminals S.p.A. TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST DMUT USER GUIDE

DMUT USER GUIDE

Rev. 0Telital S.p.A.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL
Page 1 of 1
9 USER GUIDE
Telital DMUT User Guide
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page1of12
9.1 General
This guide provides all the necessary information for the correct use of the
GS–GSM DMUT.

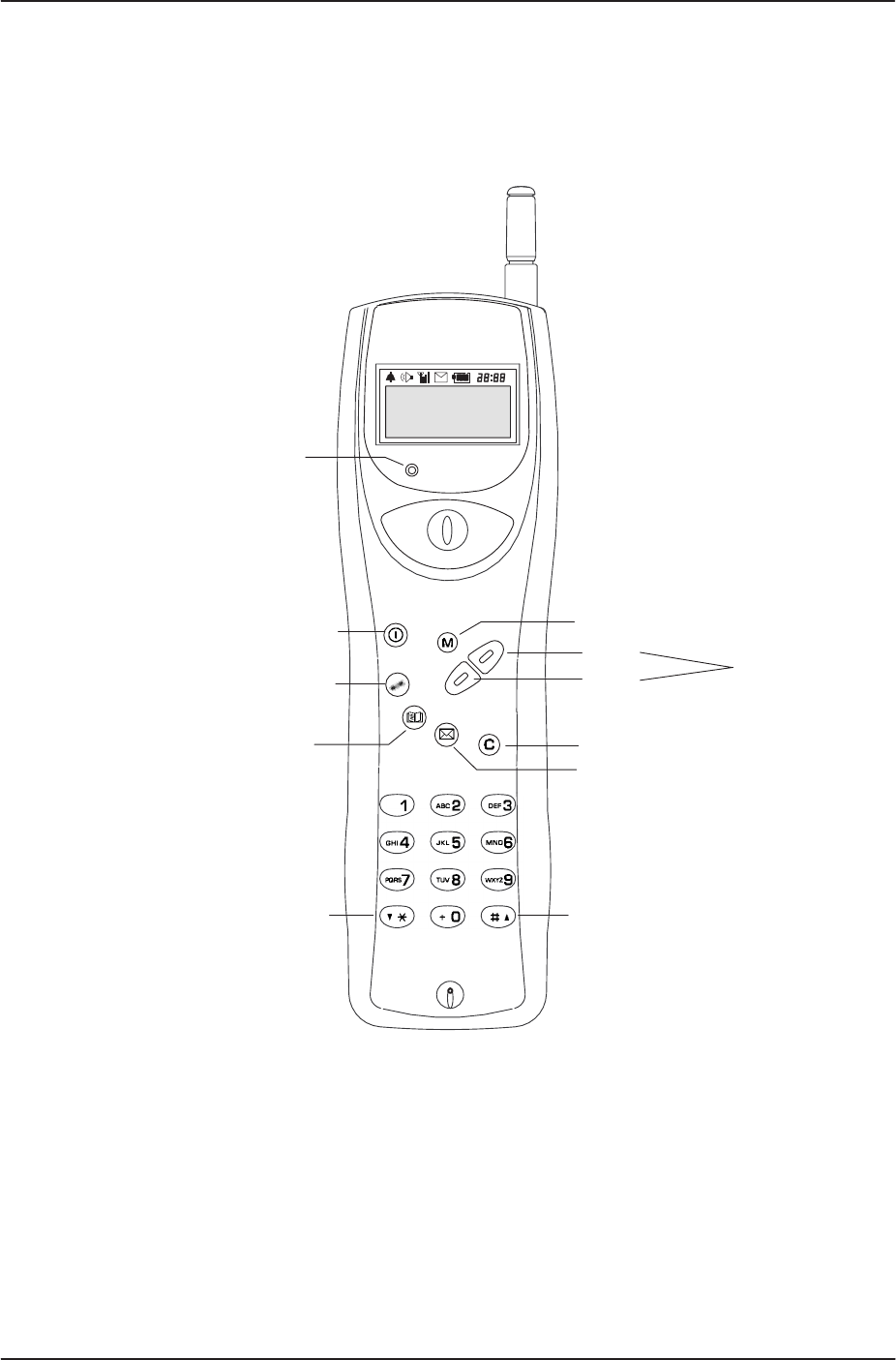

Figure 1 show the DMUT with a brief description of keys function.
Figure 1
End
Phone Book
Scroll Scroll
Clear
Menu
Send
Power
SMS
GS/GSM mode selection
GS/GSM Status Led
Soft Keys
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page2of12

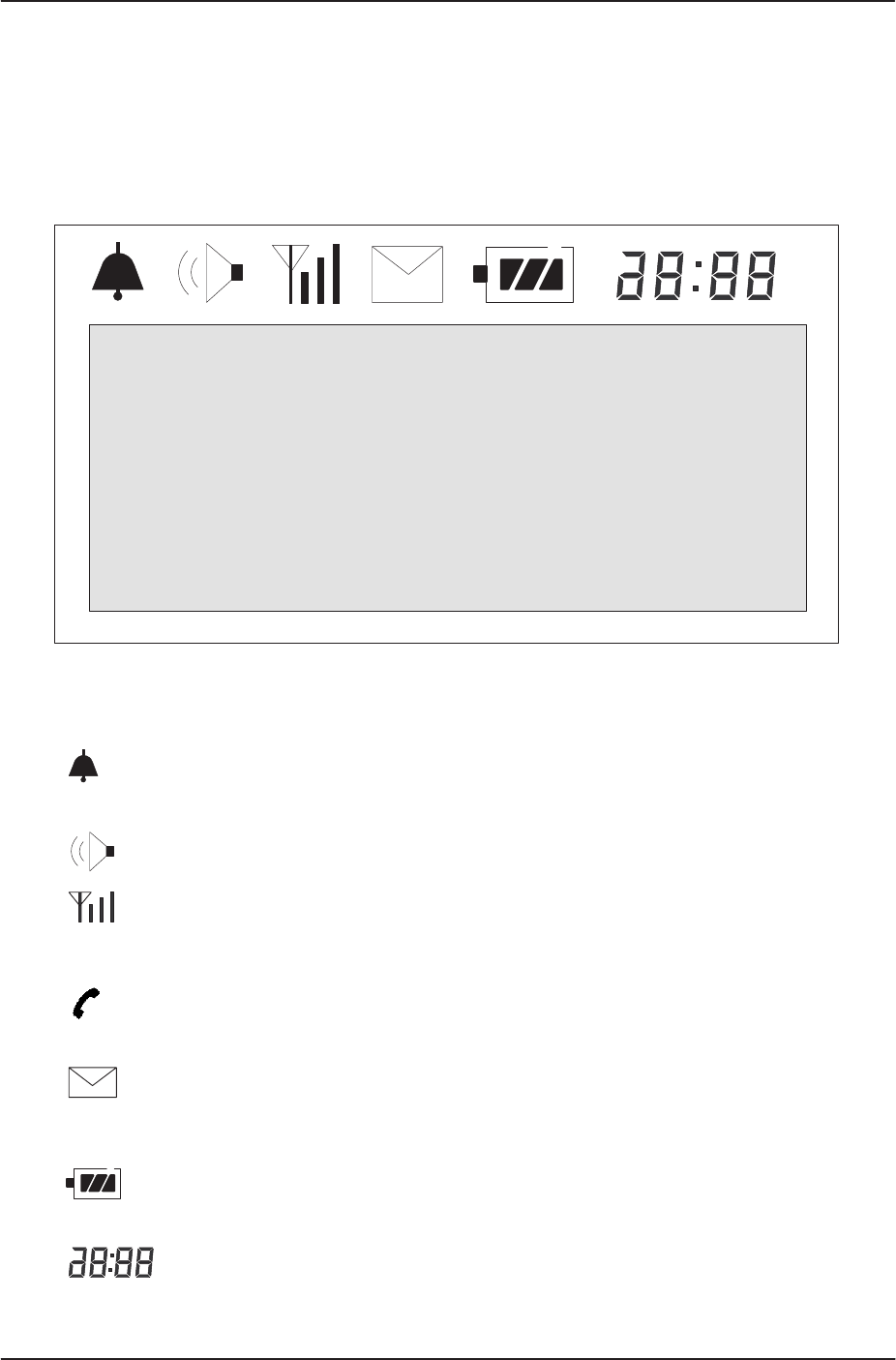

9.1.1 Display and indications
The display show all status and menu of GS–GSM DMUT during the operations.
Icons and bitmaps tells to the user all situations and operating modes, telephone
numbers, messages, battery charge status, time and other useful informations
(see fig. 2).
Figure 2
GRAPHIC AREA
9.1.1.1 Icons
This icon indicates a programmed alarm.
This icon blinking, indicates an alarm time–out
This icon indicates an Hands–free device (car kit) connected.
This icon indicates the received signal intensity both in GS and GSM
mode. The number of active bar indicates the signal intensity.
This icon displayed in the graphic area indicates an active
conversation.
This icon indicates the SMS function activation and voice mailbox
messages presence.
This icon indicates the battery charge status.
Clock
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page3of12
9.1.1.2 Status indications
The status of the dual mode telephone will be given by a led on the front panel and
icons on LCD display graphic area.
LED status ON = GS operating mode;
LED status OFF = GSM operating mode;
Icon on Display for the ”GS Maintenance Required” indication;
Icon on Display for the ”GS Lock” indication.
9.1.2 Battery charger
The DMUT have a rechargeable Lithium ion battery pack and a battery charger.
When the battery charge level becomes low, the icon shows this status and
when the icon empty is blinking, is necessary to connect the battery charger
to the DMUT.
The graphic symbol is shown when the telephone is operating during a battery
charge operation.
The bitmap . is shown during a battery charge operation with the
DMUT turned off.
9.1.3 Car kit
The car kit option allows to connect the DMUT to the vehicle with battery charge
and hands free functionality.
9.1.4 Operation
9.1.4.1 Minimal functionality
The following operations allows to turn on the DMUT, place a call and then turn
off the DMUT.
. Insert your plug–in SIM card into the slot
.Press (POWER) for 1 second to switch on the unit
If PIN is enabled:
PIN>
SOS
If inserted PIN is correct the unit starts network auto search.
In G* mode the following will be displayed:
Searching GW
...
In GSM mode the following will be displayed:
Net Search
** GS/GSM DMUT **
at the end of the search the following will be displayed:
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page4of12
Net Provider
** GS/GSM DMUT **
where the first line indicates the antenna icon (flashing during network auto
search) followed by radio signal intensity (up to 4 bars) and the second line the
name of the network operator, or the gateway ID and then the service provider
name in G* mode.
If inserted PIN is wrong the following will be displayed:
PIN>
Remain X retries
where X on the second line indicates the number of possibilities left to retry correct
PIN entering.
If the wrong PIN is entered for three times the following will be displayed:
PUK>
Remain X retries
.Key in * 05 *, the 8 PUK digits provided by the network operator, press
* (new PIN) * (new PIN) and then #.
Warning: If you cannot remember your PUK code or you enter a wrong one for
10 times, you have no other possibility but that of contacting the network operator
who issued your SIM card.
If you inserted the correct PUK appeares a success graphic symbol that indicates
that PUK is valid and then the operative mask.
Now you can place and receive calls.
.To switch off the unit: press and release (POWER).
The following ”Good Bye” graphic screen will be displayed:
Good Bye!
.To place a call: dial the number and press (SEND).
Mistakes in digiting have to be corrected by pressing shortly " C" key.
If you keep " C" key pressed for longer time, all digits will be cancelled.
.Emergency calls can be placed also if the SIM card is not inserted.
.To receive a call: Press (SEND) or any other key if programmed in the menu.
When using the handset: pick up the handset.
.To end a call: Press (END).
.To adjust listening level: Press and long during conversation.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page5of12

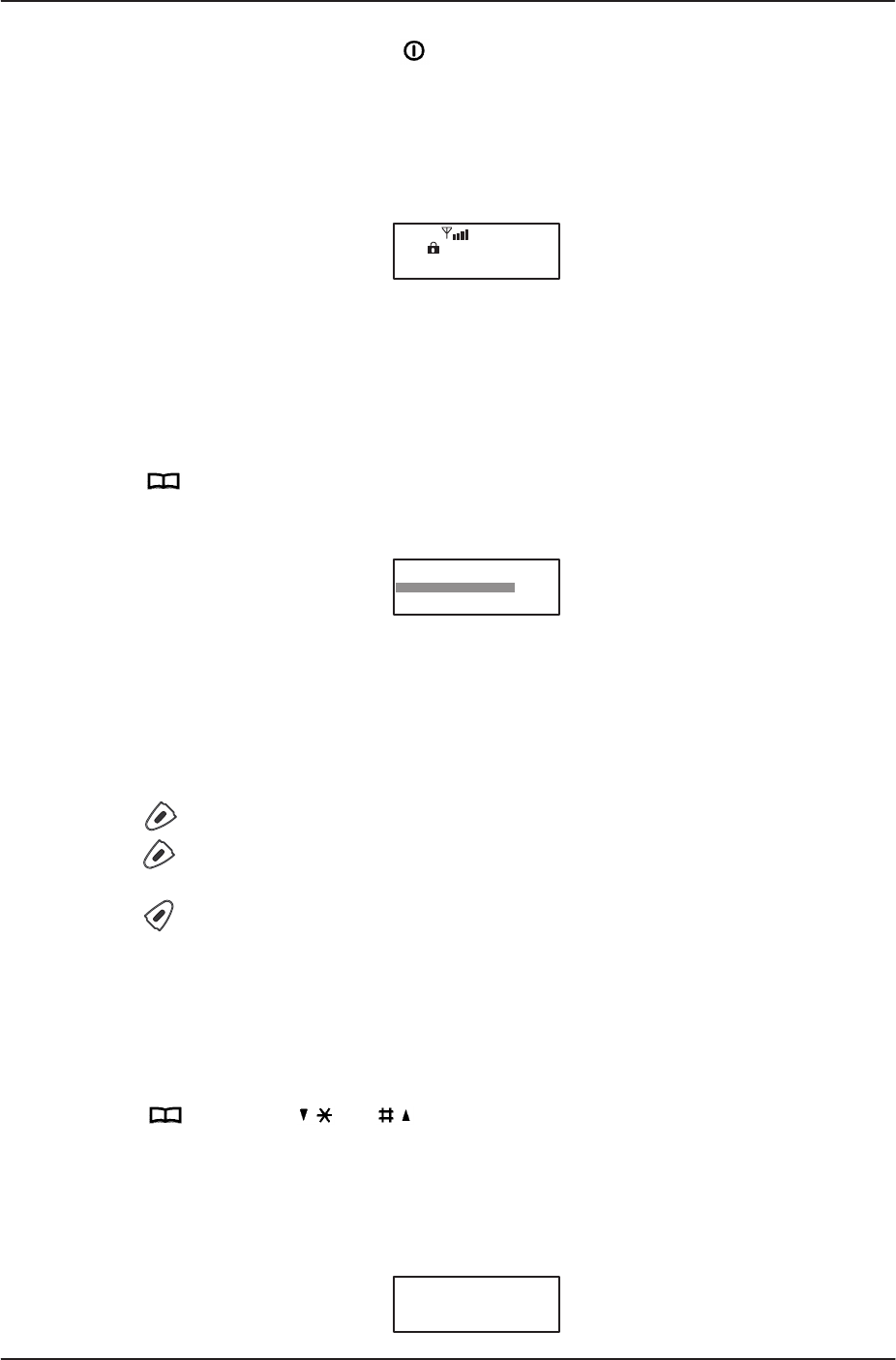

.Mute function: Keep pressed (POWER) for more than 1 second during
conversation.
.Keypad lock: Keep # pressed for 2 seconds: selected function will be displayed
by lock symbol. Keep press the same key for 2 seconds and press the key "5" to
unlock keypad.
Net Provider
9.1.5 Phone book
9.1.5.1 Storing a number
.Key in the number to be stored. By pressing "C" the last digit will be cancelled; if
you press "C" for longer time all digits will be cancelled.
.Press .
The following screen will be displayed:
Enter name
.Key in the name: keep the alphanumeric key pressed until the desired letter
appears on the display.
Key " 1 " contains the space and special characters, whereas key"*"switches
between capital and small letters.
.Press (SEND) to store your selection in the first free memory location and
press (SEND) to confirm.
.Press (END) to exit from phone book without save any number.
9.1.5.2 Recalling a number from phone book
.Press XX and #, where XX is the desired memory location number,
or:
.Press and with or scroll through all the allocated memories in
alphabetical order or by telephone number order or by memory location order.
The search criteria is defined by pressing the "M" key corresponding to
">>"symbol on display.
The following screen will be displayed during a phone book operations:
Name mem
Number
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page6of12
By pressing ”C” the last character will be cancelled, and if you keep ”C” pressed
for longer time all characters will be cancelled.
.When the desired location appears on the display, press (SEND) to place the
call.
When recalling a memory location not available on the SIM card the following will
be displayed:
No record
New record?
ADN Memories: Available memory locations in SIM card. Available quantity
depends on the SIM card you have chosen.
FDN Memories: Also contained in the SIM card with same features as ADN
memories. Activation of FDN memories must be performed from the menu and
by entering the PIN2 code which is not always supplied by the network operator.
9.1.6 Function menu
.Press "M" key followed by the number key corresponding with the desired menu
number or,
.Press "M" key to going to the menu.
.Press and or press the "M" key to browse the menus.
.Confirm the access on the desired menu by pressing (SEND) key.
.To exit from menu without save the settings press (END) key.
.To exit from menu and save the settings press (SEND) key.
If a ”Proactive” SIM is inserted into a DMUT, a menu item 0 will be displayed.
By selecting this item, access will be given to the SIM Toolkit services supplied by
the network operator.
After 3 minutes of inactivity on the menu operations, the operative condition will
be automatically restored.

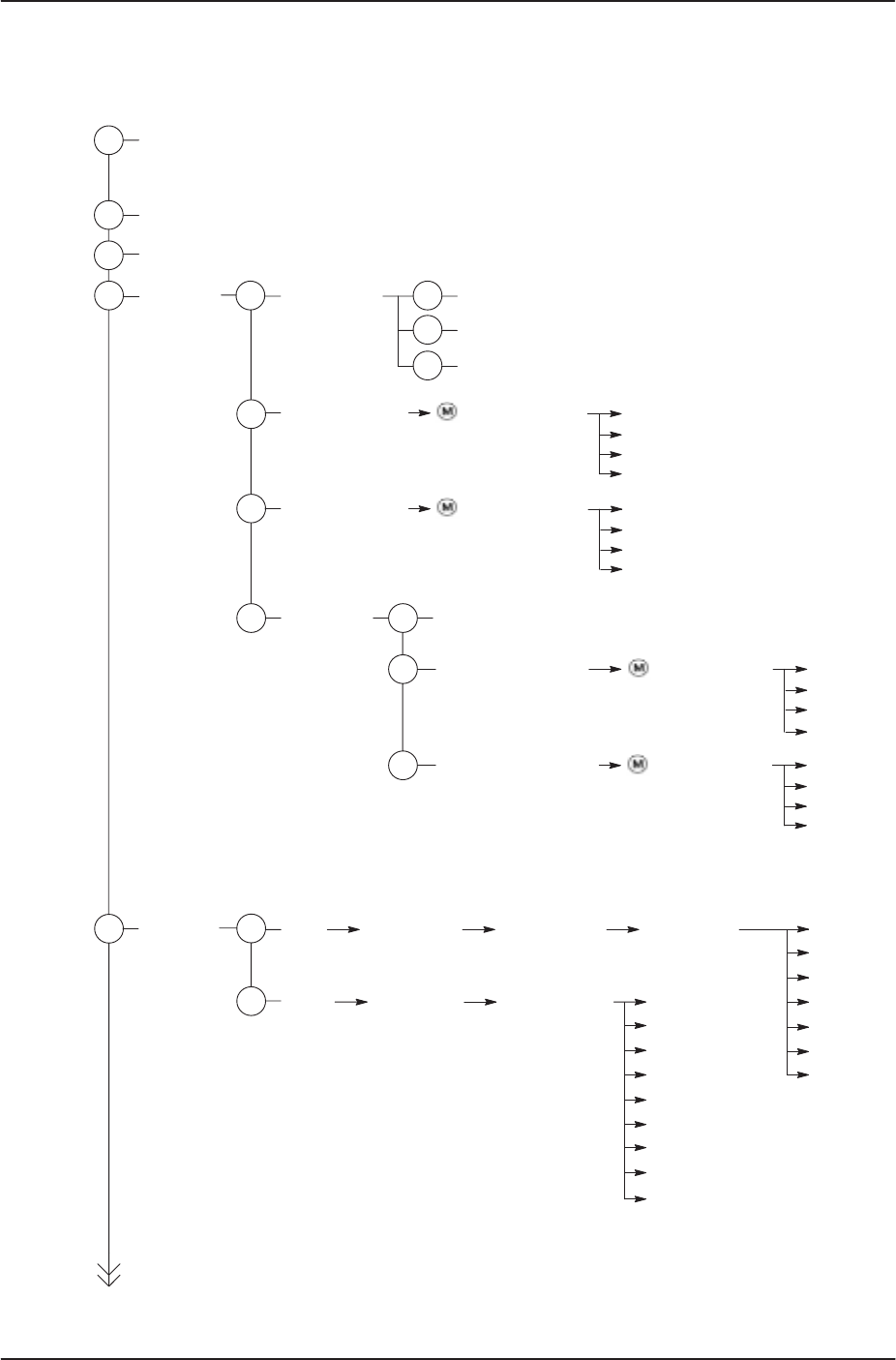

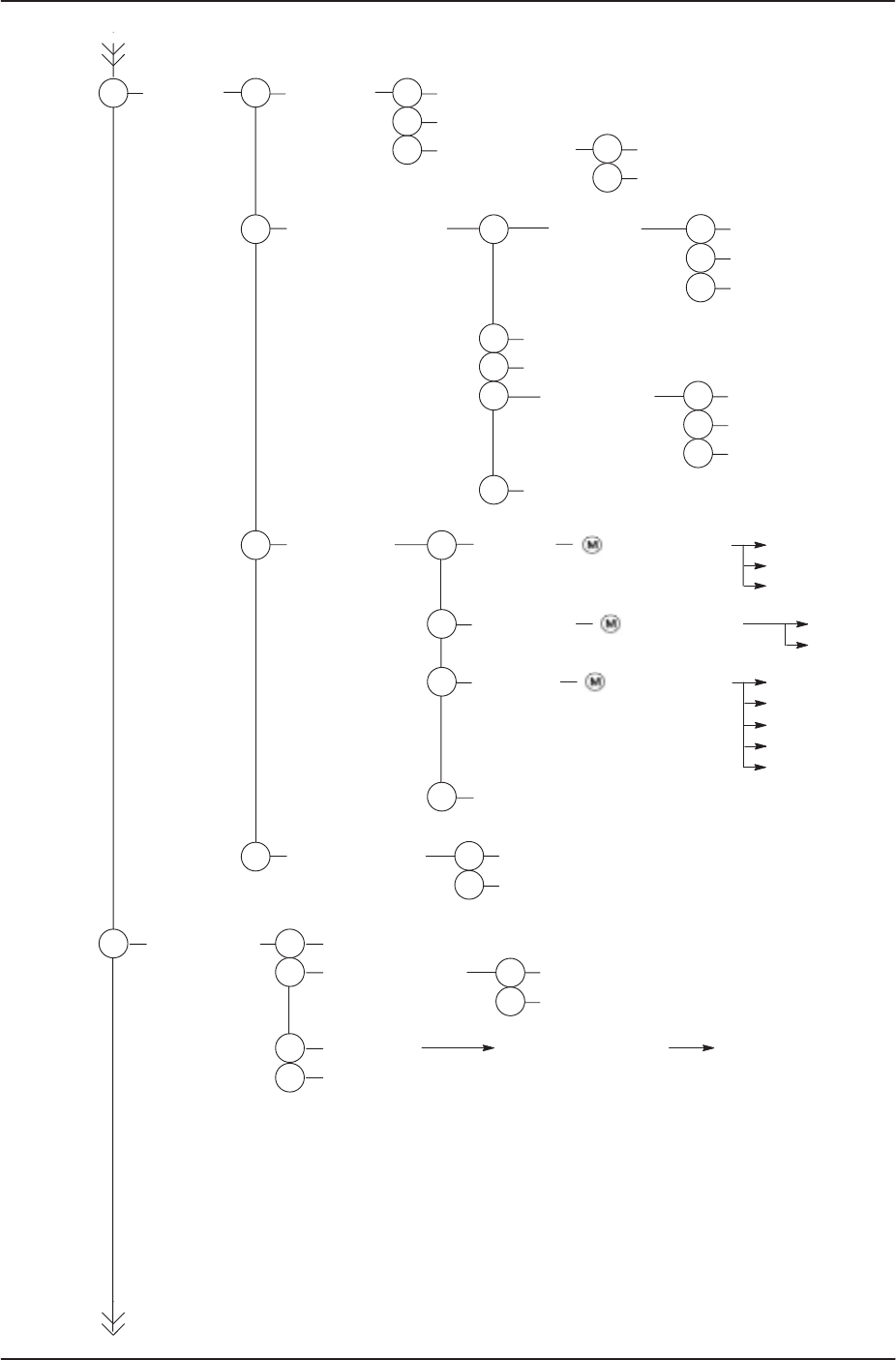

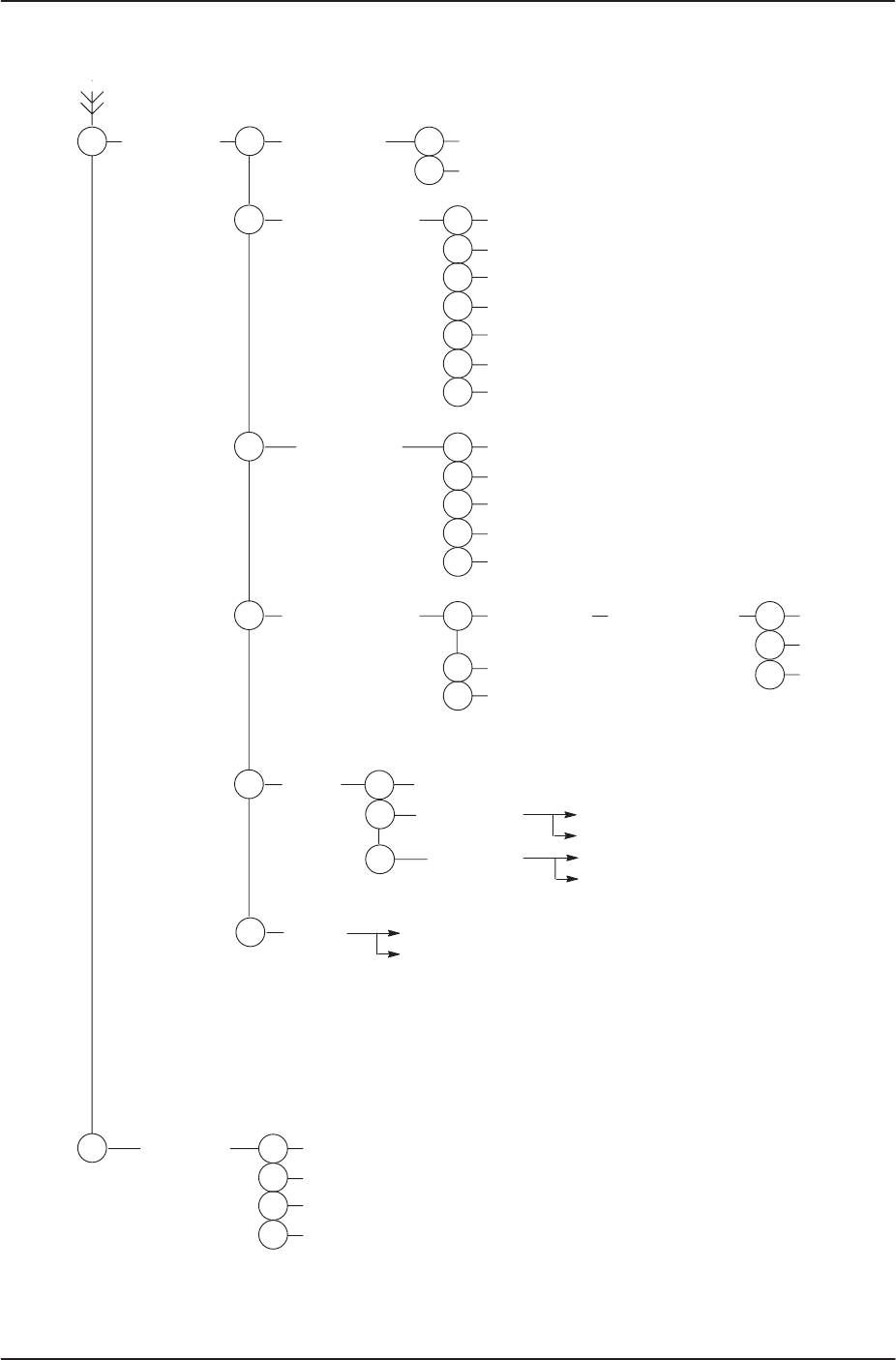

The following diagrams show the function menu structure.
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page7of12
Own number
Missed calls
Call divert
MENU
3
2
DivMissedCalls Choose forward If busy
If not reachable
If no reply
All missed calls
Divert always Choose forward All teleservice
Speech
Fax
Data async
4Clock Set
Alarm
1
2
1
2
31Fast divert 1
2
3
On
Off
Parameters
Cancel 1All
2Div missed calls
3Unconditional Divert
Choose forward If busy
If not reachable
If no reply
Choose forward All teleservice
Speech
Fax
Data async
4
Cancel
Cancel
All missed calls
Set Enter time Enter Date Enter Day
Enter time Choose days Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Everyday
Never
<Sunday>
<Monday>
<Tuesday>
<Wednesday>
<Thursday>
<Friday>
<Saturday>
SIM Toolkit menu
0
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page8of12

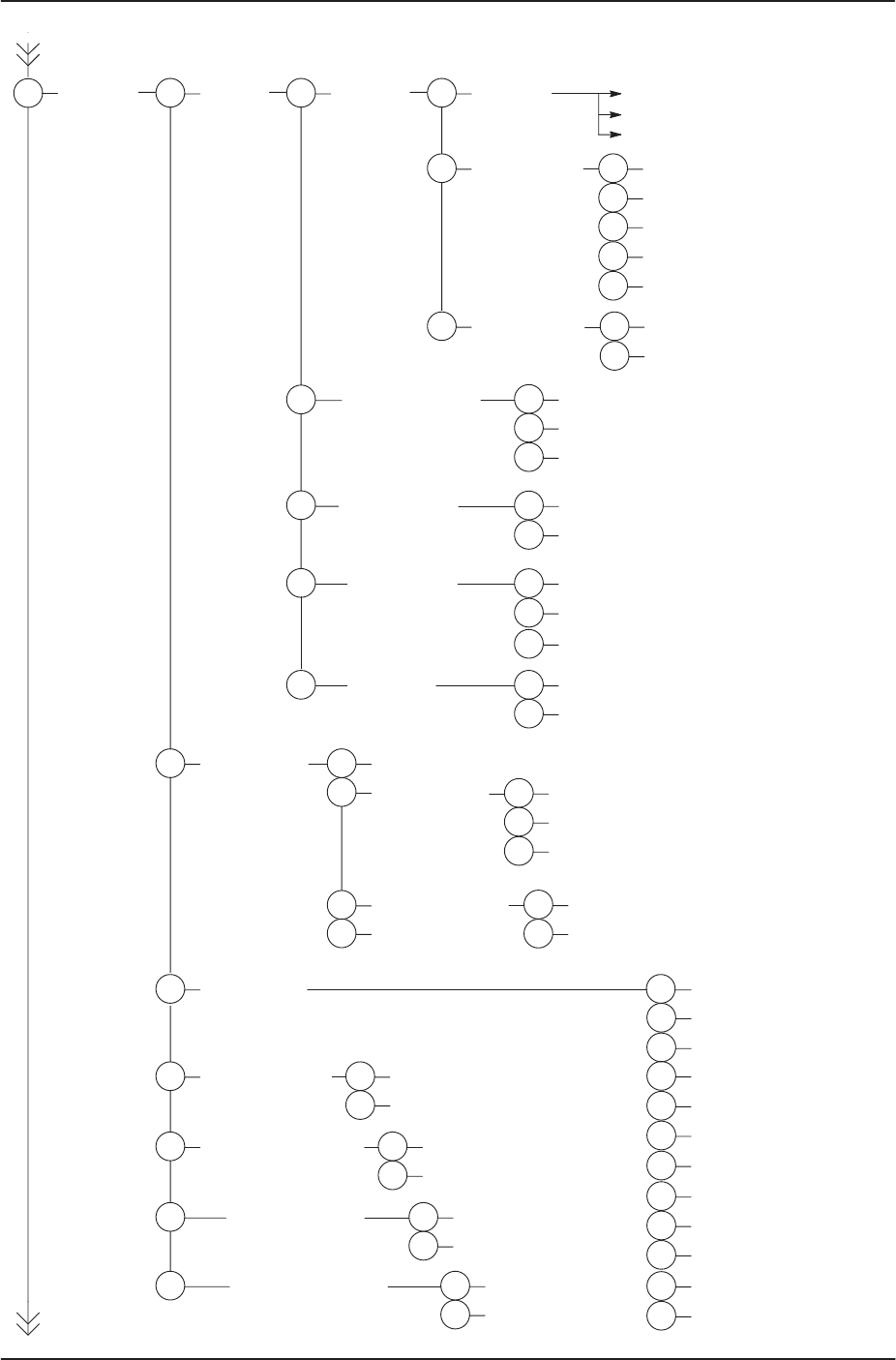

MENU
5Settings 1Audio 1Ringing 1Tone
2Volume
3Vibro-Call
(1 4 ) Standard 1 4
(5 8) Melody 1 4
9) User defined
Off
1
2
3
4
5
Low
Medium
High
Incremental
On
1
2Off
2Keypad-Volume Off
1
2
3
Low
High
3Warning tones On
1
2Off
5DTMF On
1
2Off
2Display Brightness
1
2
3
4
Bright. length
PersonalMessag
Contrast
Off
1
2
3
Short
Long
3Language English
1
2
3
4
Deutsch
Italiano
Francais
5Espanol
12 Automatic
4Auto answer On
1
2Off
5Any key answer On
1
2Off
6Call waiting On
1
2Off
7Keyboard lock On
1
2Off
4Service Beep On
1
3Off
OnlyNoServ
2
Fixed
1
2Rotating
6Norsk
7ELLENICA
8Magyar
9Polsk
10 cestina
11 Portugues
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page9of12

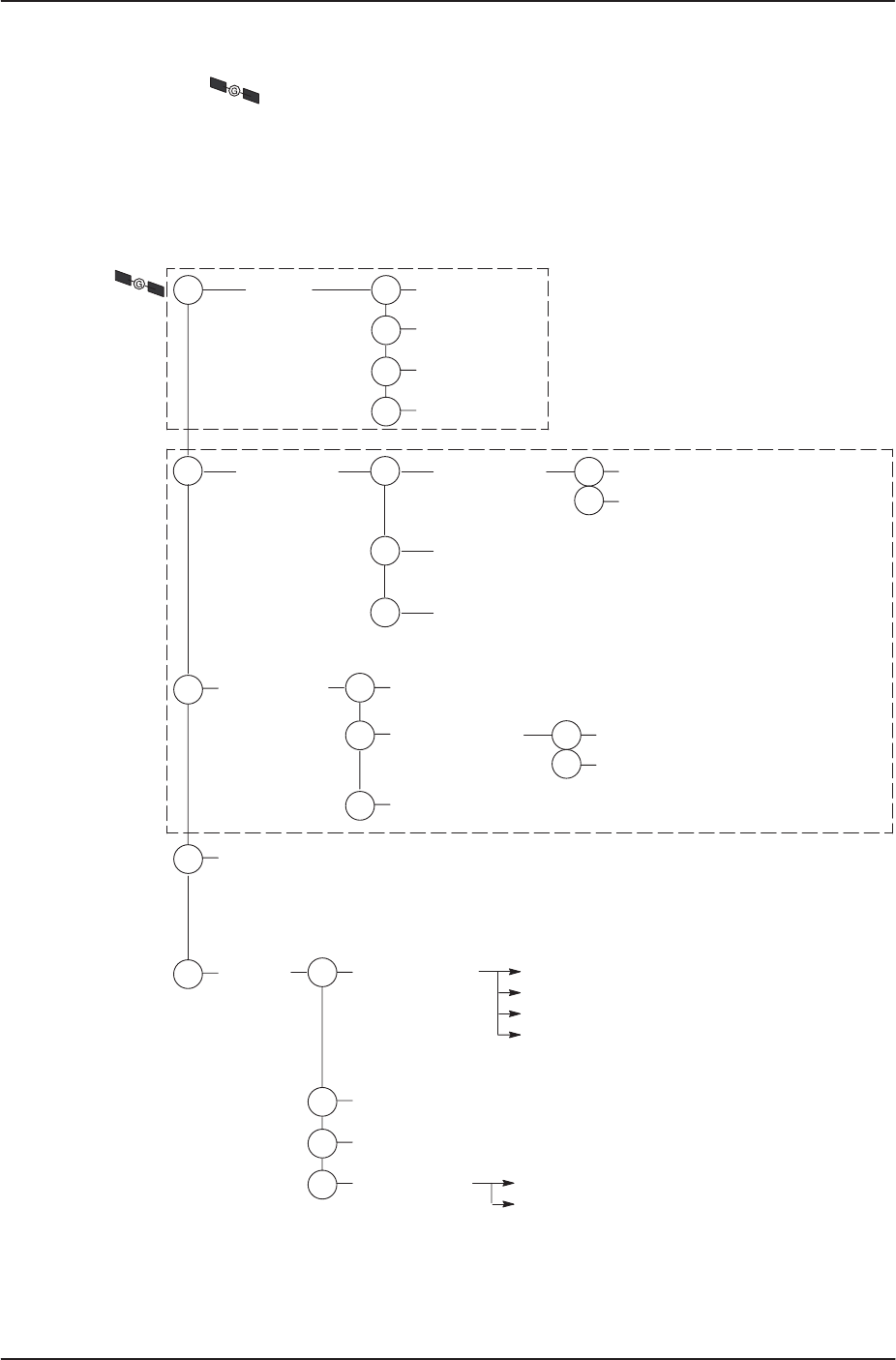

MENU
6Security 1Pin control 1Change PIN 1
2Change PIN 2
3PIN request Enabled
1
2Disabled
2Phone security
Enter
Security code...
1Type
2Clear SIM list
3Change code
On
1
2Off
4Autoblock
5Restore default
On
1
2Off
3SIM list
3Call barring 1Outgoing
2Incoming
3Cancel
4Change code
Choose forward Outgoing calls
International
Only to home
3Change code
Choose forward Incoming calls
Call if abroad
Choose forward Incoming calls
Call if abroad
Outgoing calls
International
Only to home
4Fixed dialling On
1
2Off
7GSM networks 1Search network
2Auto selection
3Network list
4Home network
On
1
2Off
Preferred nets 1 16 Available nets 1 16
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page 10 of 12
MENU
8Call control
9Information
1Minute beep
2Call duration 1
2
On
1
2Off
3
4
5
6
7
Last call
Incoming home
Incoming roam
Outgoing home
Outgoing roam
Total time
Clear timers
3Charge rate 1
2
3
4
5
Last call
All calls cost
Cost control
Reset
Units account
4Trans. own no. 1
2
3
For all calls
Transmit
Don't transmit
Restrict. control 1Transmit
2Don't transmi
3Net Default
1
2
3
4
IMEI
Software
SIM info
Total life
5CUG 1CUG Index
2
3
Suppr. CUG
Suppr. OA
ON
OFF
ON
OFF
6NITZ Enabled
Disabled
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page 11 of 12

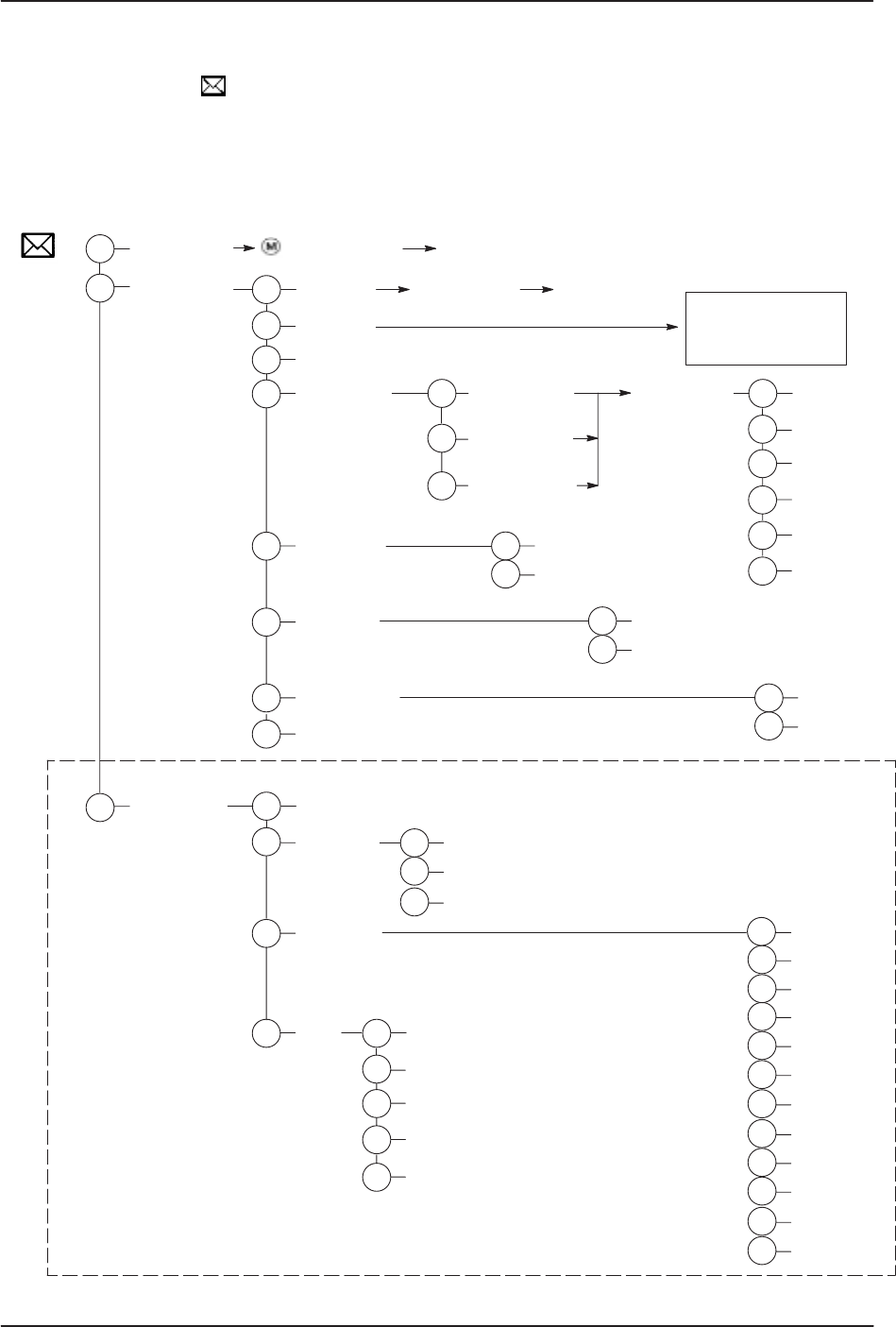

9.1.6.1 SMS menu
Pressing the is available the SMS (Short Message Service) menu.
This menu allows to send and receive short text messages (SMS), to receive mes-
sages from the network operator and other supported services.
The following diagram show the SMS menu structure.
Call mailbox
Messages
SMS
MENU
Write new
Received
Written
Parameters
Autodelete
Reply path
2
3
4
5
6
1
21
Choose forward Mailbox number
Status report
7
SMS center n. Message:
nndd/mm/yy hh:mm
From:
message:
SMS center
User defined
Phone param.
2
3
1Select param. Name
SMS-Center no.
Validity
2
3
1
Destination
4
Protocol Id
5
6Set default
On
1
2Off
Activate
1
2Deactivate
On
1
2Off
Broadcast
3Message
Activation
Languages
List
2
3
4
1
On
1
2Off
District
Flashes
Weather
2
3
1
Index
4
Active only if DMUT is operating in GSM mode.
Information
8
3Auto display
5 - 10 Empty
5
English
1
2
3
4
Deutsch
Italiano
Francais
5Espanol
12 Automatic
6Norsk
7ELLENICA
8Magyar
9Polsk
10 cestina
11 Portugues
TECHNICAL MANUAL
GS/GSM
DUAL MODE USER TERMINAL Rev. 0
Telital S.p.A.
Page 12 of 12
9.1.6.2 Globalstar Menu
Pressing the key is available the Globalstar menu.
This menu partially active only in idle mode, allows to manually select the way of
operating at power on of the DMUT.
The following diagram show the MS menu structure.
Mode
MODE
SELECTION
MENU
1
2Positioning
Active only if DMUT is operating in GS mode.
GS only
GSM only
1
2
GS preferred
3
GSM preferred
4
Active only if DMUT is operating in IDLE mode.
Error display
1
Position
2
On
1
2Off
GS service
3Search network
Auto selection
1
2
Network list
3
On
1
2Off
Local Time
4
Last Pos.
3
Test
5Start test call
End test call
1
2
Markov stats
3
MARKOV 9600
LOOPBACK 9600
LOOPBACK 4800
Satellite Info
4Enable
Disable
MARKOV 4800

Navigation menu
