CREW GUIDE
TABLE OF CONTENTS
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
2
Coca-Cola Freestyle Dispenser
Overview and Use
Coca-Cola Freestyle Dispenser
Introduction .......................................... 3 – 4
Power the Dispenser On/Off...................... 5
Pour a Beverage ........................................ 6
Use the ADA Interface ................................ 7
Daily Tasks
Conduct a Taste Test .................................. 8
Check and Refill Ice .................................. 9
Check Cartridge Level ............................ 10
Change a Cartridge ........................ 11 – 12
Check and Change High
Fructose Corn Syrup (HFCS 65) .............. 13
Check Non-Nutritive
Sweetener Blend (NNS)............................ 14
Change Non-Nutritive
Sweetener Blend (NNS)............................ 15
Preparing for Daily Cleaning Tasks ........ 16

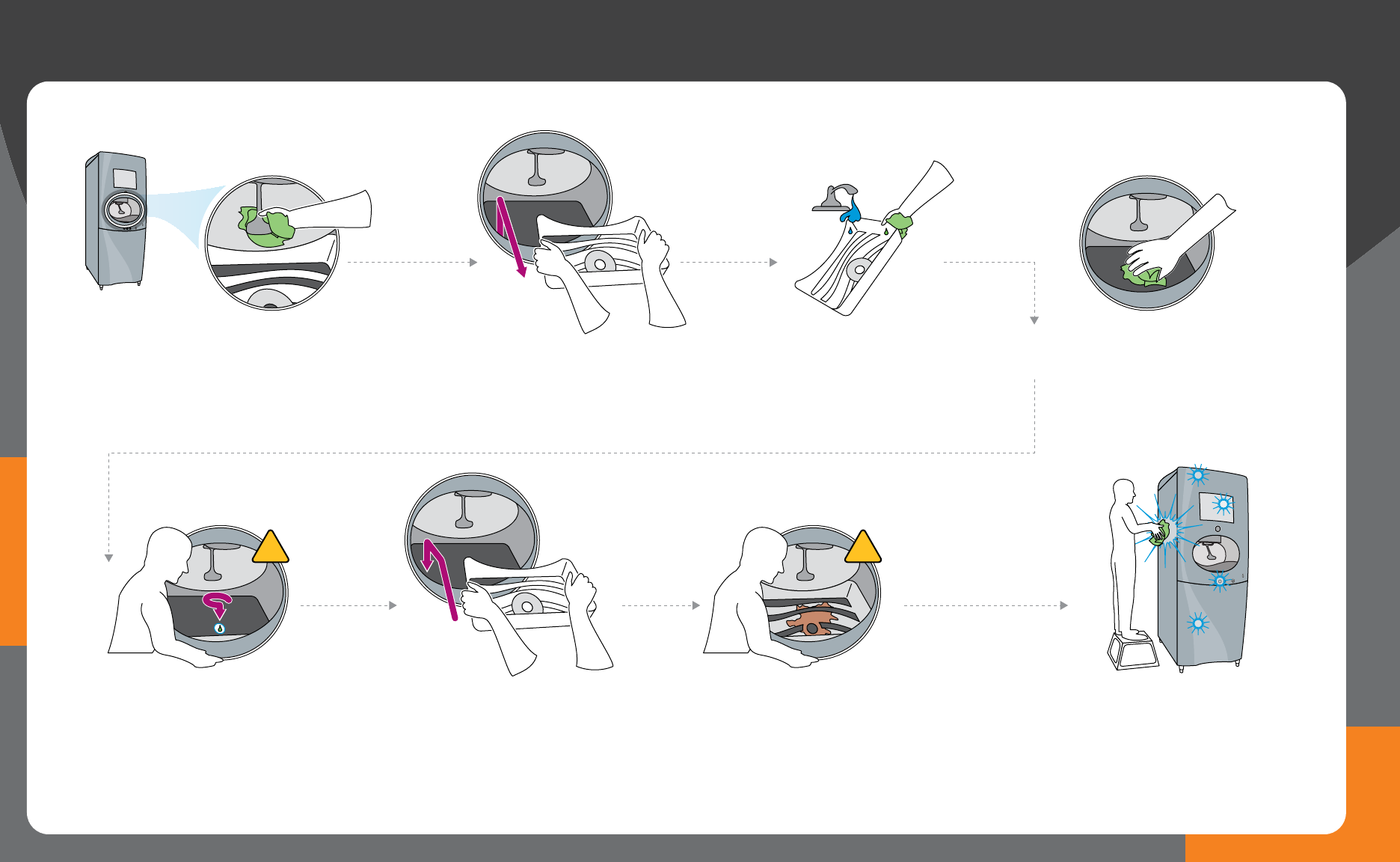

Clean Nozzle ............................................ 17
Clean Ice Lever, Cup Rest,
Drip Tray and Exterior Surfaces .............. 18
Weekly Tasks
Clean NNS Compartment
and Connector ........................................ 19
Clean Ice Chute ...................................... 20
Monthly Tasks
Clean Ice Bin ............................................ 21
Manager Tasks
Lock the Dispenser .................................. 22
Unlock the Dispenser .............................. 23
Troubleshooting
Troubleshooting................................ 24 – 26
Frequently Asked Questions (FAQ’s)
FAQ’s .......................................................... 27
123456123456123456
Daily Tasks (continued)
COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE | INTRODUCTION
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
3
Pour Button 3
Nozzle 4
Ice Lever 5
Drip Tray 6
Cup Rest 7
RFID Reader 8
ADA Interface 9
1 Ice Bin Lid
Touch Screen 2

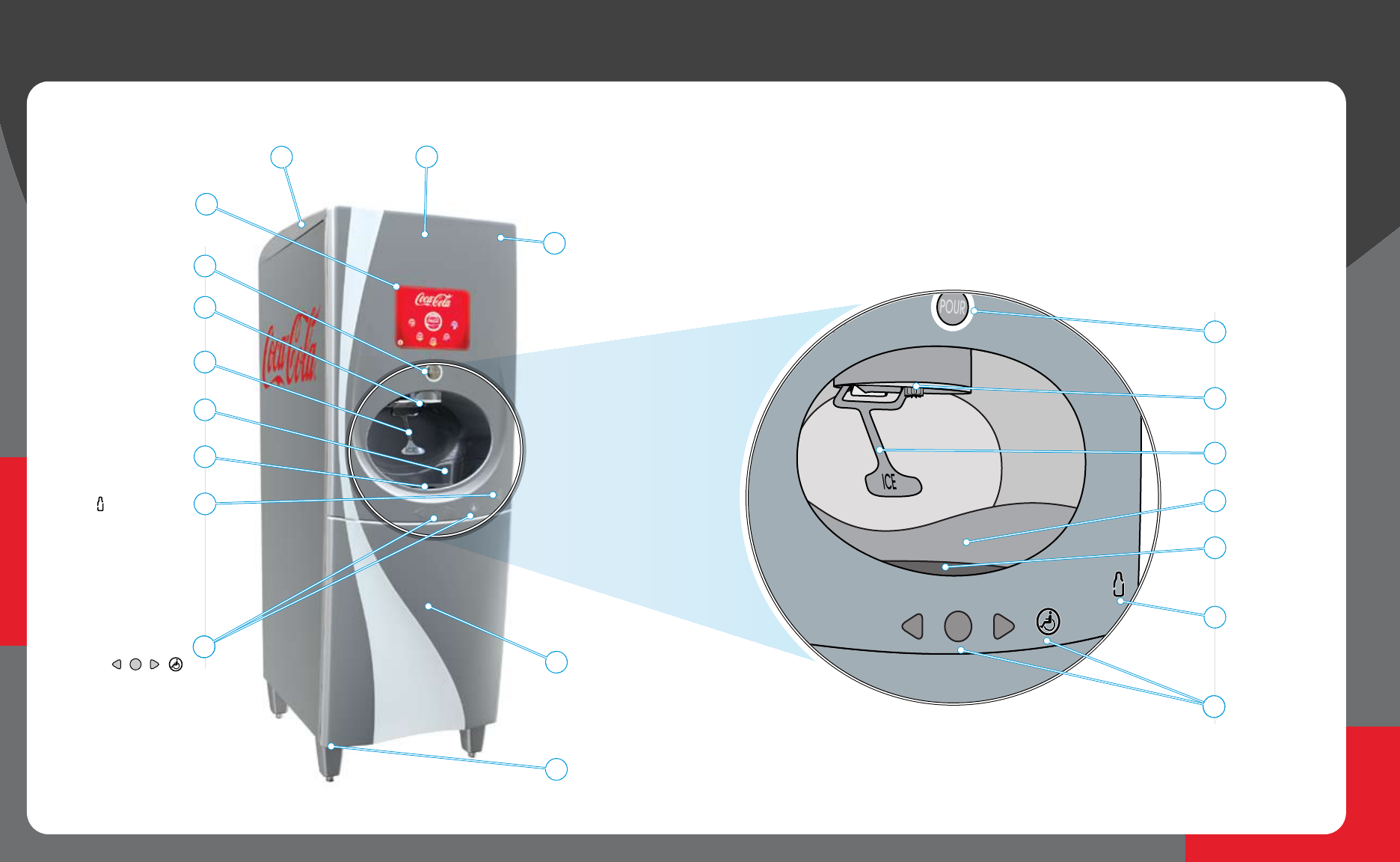

Freestyle Dispenser: Exterior
3 Pour Button
4 Nozzle
5 Ice Lever
6 Drip Tray
7 Cup Rest
8 RFID Reader
9 ADA Interface
10 Upper Door
11 Status Indicator Light
12 Lower Door
13 Manual Door Release
COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE | INTRODUCTION
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
4

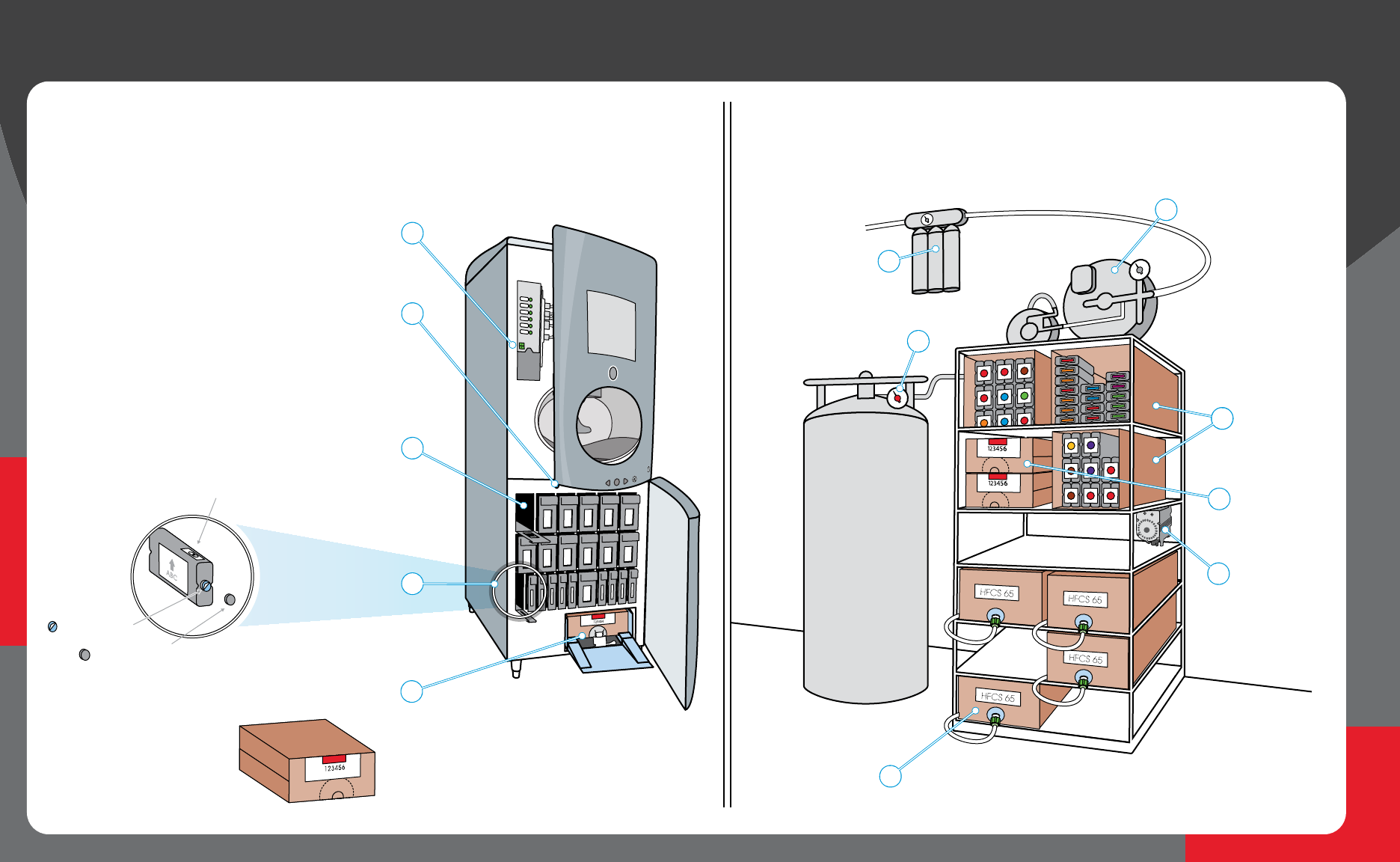

Interior Components Backroom Components
123456123456123456
Manual On/O Switch 1
Upper Door Release Latch 2
Double Cartridge Slot 3
Single Cartridge Slot 4
Non-Nutritive Sweetener Blend (NNS) 5
RFID Tag
Cartridge Seal
Cartridge Cap
7 Water Booster
Carbon Dioxide (CO2) Gauge 8
Water Filtration System 6
HFCS 65 12
9 Cartridge Storage
10 NNS Storage
11 BIB Pump
COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE | POWER ThE DISPENSER ON/OFF
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
5
1 Open the lower door
in one of 3 ways.
2 Lower door opens.
4 Locate and press the
power button “on” or
“off” as applicable.
5 Close door securely.
A
Scan a cartridge
over the RFID Reader.
B
Scan a Manager Key Card
over the RFID Reader.
C
Insert a long, thin, sturdy tool
(such as an Allen wrench)
in the small hole at the
bottom of the lower door.
CAUTION:
Only use this method if the door
cannot be opened by scanning
a cartridge or Manager Key Card
over the RFID Reader.
3 Press the upper door
release button.
CAUTION: DO NOT power on or off the Coca-Cola Freestyle dispenser unless told to do so in this guide, or by a Coca-Cola technician.
Pour a Beverage
WATER
Minute
Maid
LEMONADE
Light
This screen appears when
unit has not been used for
a period of time.
To choose a beverage,
touch the screen anywhere.

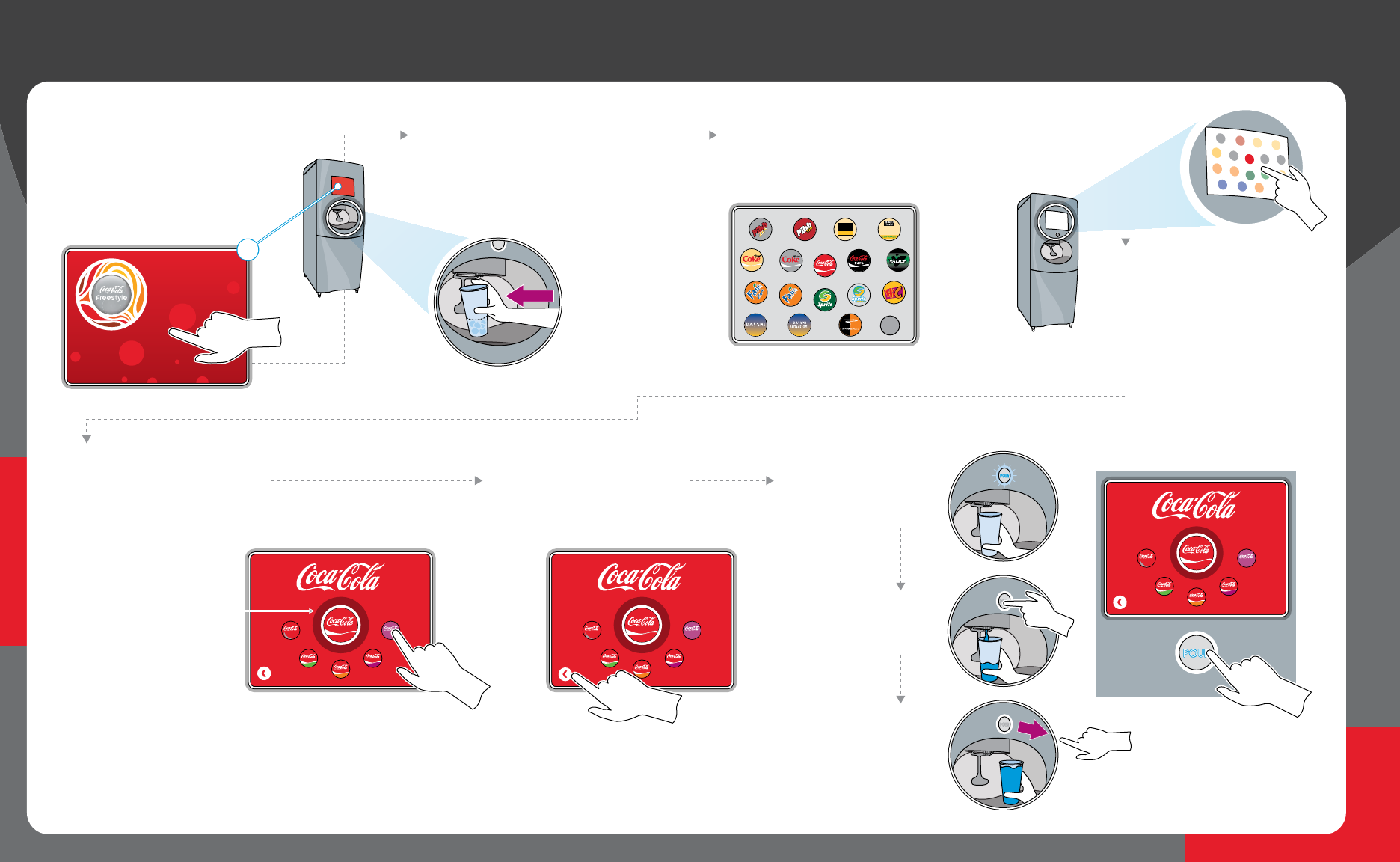

1 Place cup against ice lever
and push to dispense ice.
Coca-Cola recommends
1/3 cup of ice.
2 This screen appears
when the screen is touched
or the ice lever is pressed.
3 Touch beverage
brand / flavor.
Note: touch screen will
reset after 8 seconds if
a drink is not poured.
Touch screen to begin.
4 This screen appears
when a specific
brand is selected.
5 To change beverage
selection, touch the
back button.
6 Pulsing lighted
POUR button
indicates ready
to pour.
Press and hold
POUR button to
dispense drink.
Release POUR
button when
desired fill level
is reached.
Pulsing lighted
ring on the screen
indicates selected
beverage choice.
Touch secondary
flavor (if desired).
COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE | POUR A BEvERAGE
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
6

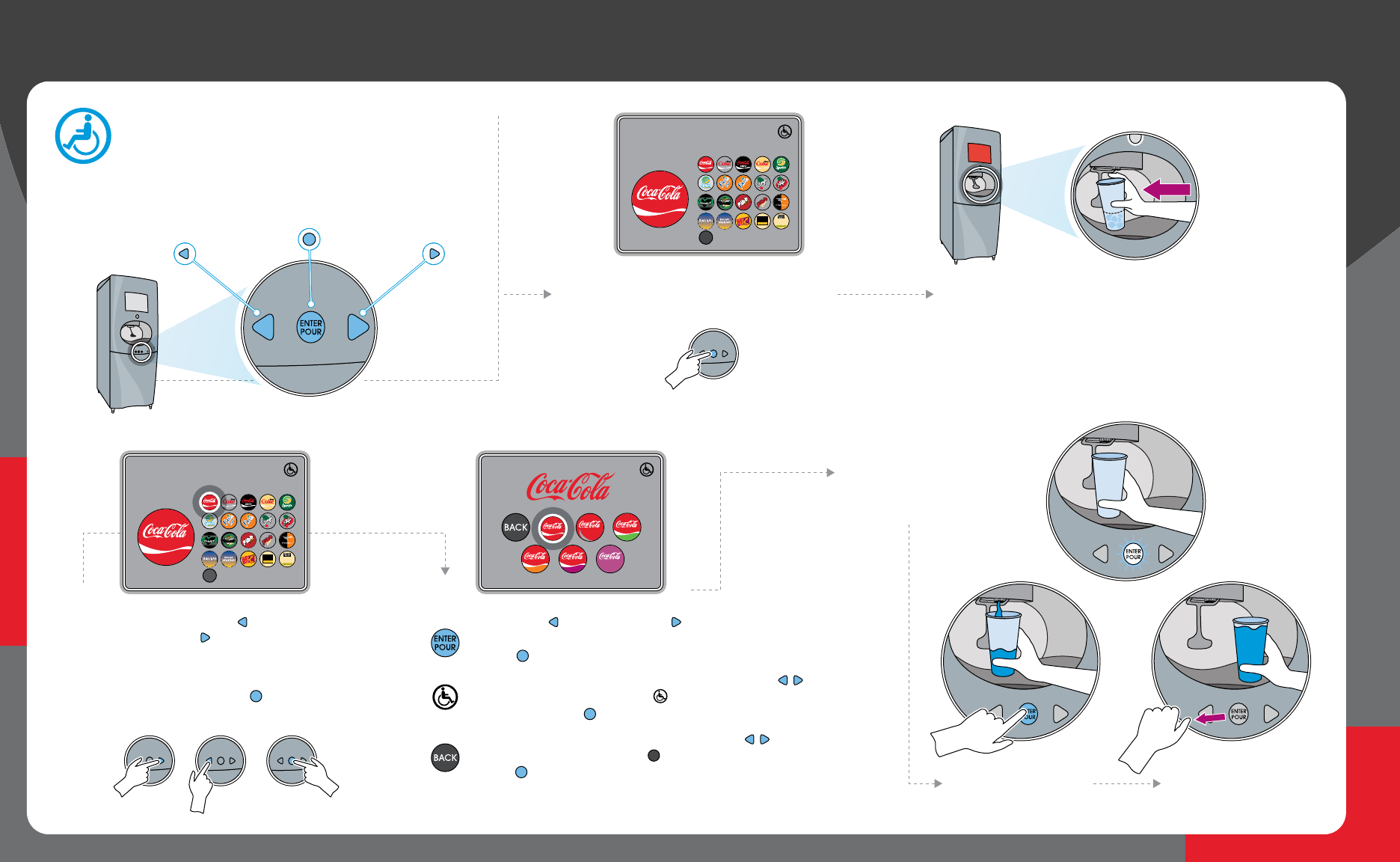

The ADA interface allows people with disabilities (such
as those in wheelchairs) to use the Coca-Cola Freestyle
dispenser without having to reach the touch screen.
Left Arrow
Enter/Pour Button
Right Arrow
There are three buttons on the ADA Interface.
1 To begin, press the Enter/Pour
button to show the ADA screen.
2 Place cup against ice lever
and push to dispense ice.
Coca-Cola recommends
1/3 cup of ice.
Minute
Maid
Light
WATER
3 Use the Left Arrow and
Right Arrow buttons to scroll
through available brands. A ring
will appear around the active brand.
Press the Enter/Pour button
to make a selection.
Press and hold the
Enter/Pour button to
dispense drink.
Release the Enter/Pour
button when desired fill
level is reached.
WATER
Minute
Maid
Light
4
Use the Left and Right Arrow Buttons to scroll
through the available brand flavors. Press the Enter/Pour
Button to make a selection.
To leave the ADA interface, use the Arrow Buttons
to navigate to the Exit Button , then press the
Enter/Pour Button (or touch the Exit Button on screen).
To go back a screen, use the Arrow Buttons to
navigate to the Back Button , then press the Menu
Button (or touch the Back Button on screen).
5 The pulsing lighted
Enter/Pour button
indicates ready to pour.
COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE | USE ThE ADA INTERFACE
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
7
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | CONDUCT A TASTE TEST
8
Is the drink cold?
Is it carbonated?
Does it taste right?

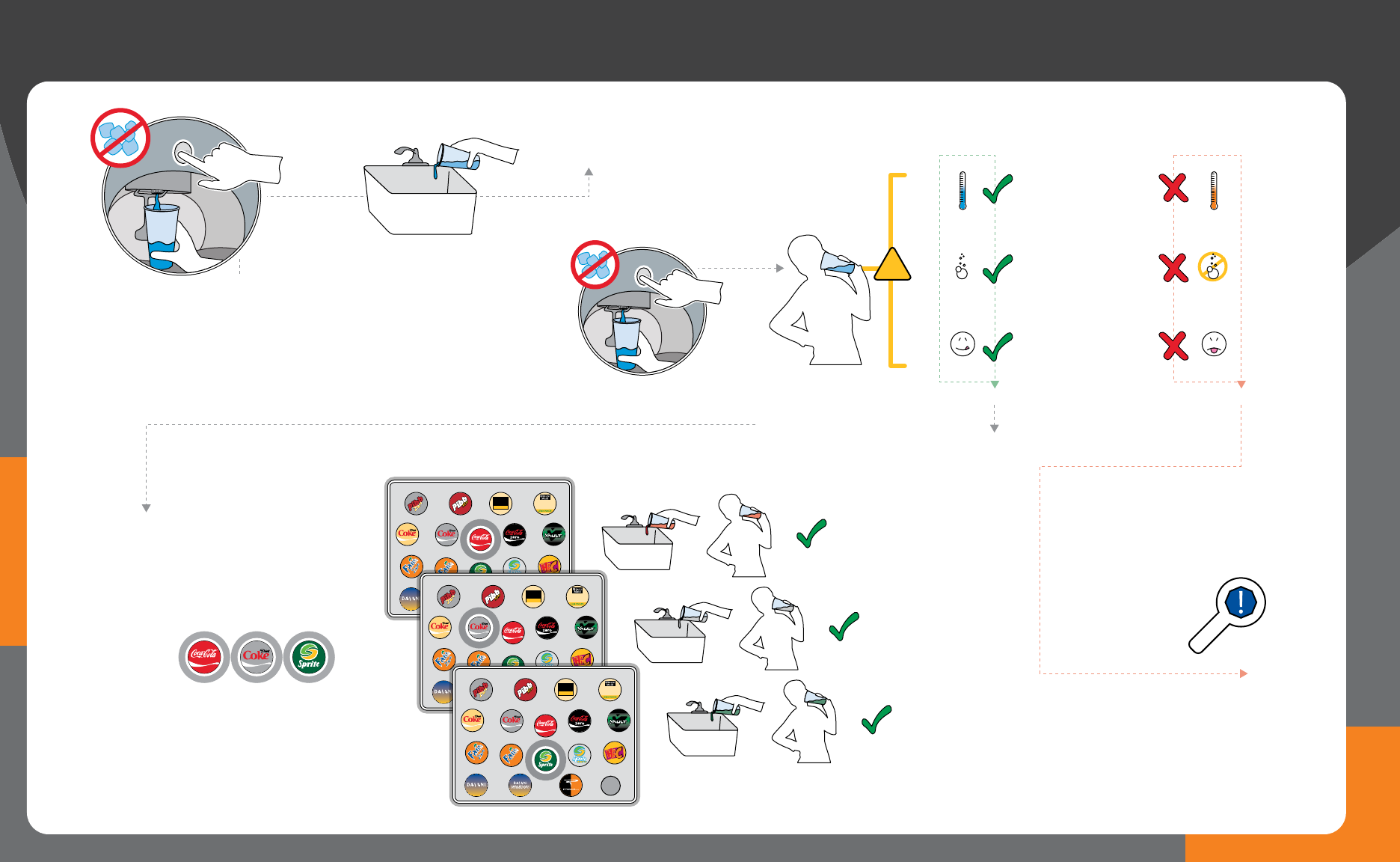

1 To perform a taste test
before serving customers,
fill a cup with 8 ounces of
a carbonated soft drink —
without ice — and discard.
2 Fill a cup with 8 ounces of the
same flavor carbonated soft
drink — again without ice —
and taste.
3 Repeat steps 1 and 2 for
the three main brands
offered on the dispenser:
Coca-Cola, Diet Coke
and Sprite.
?

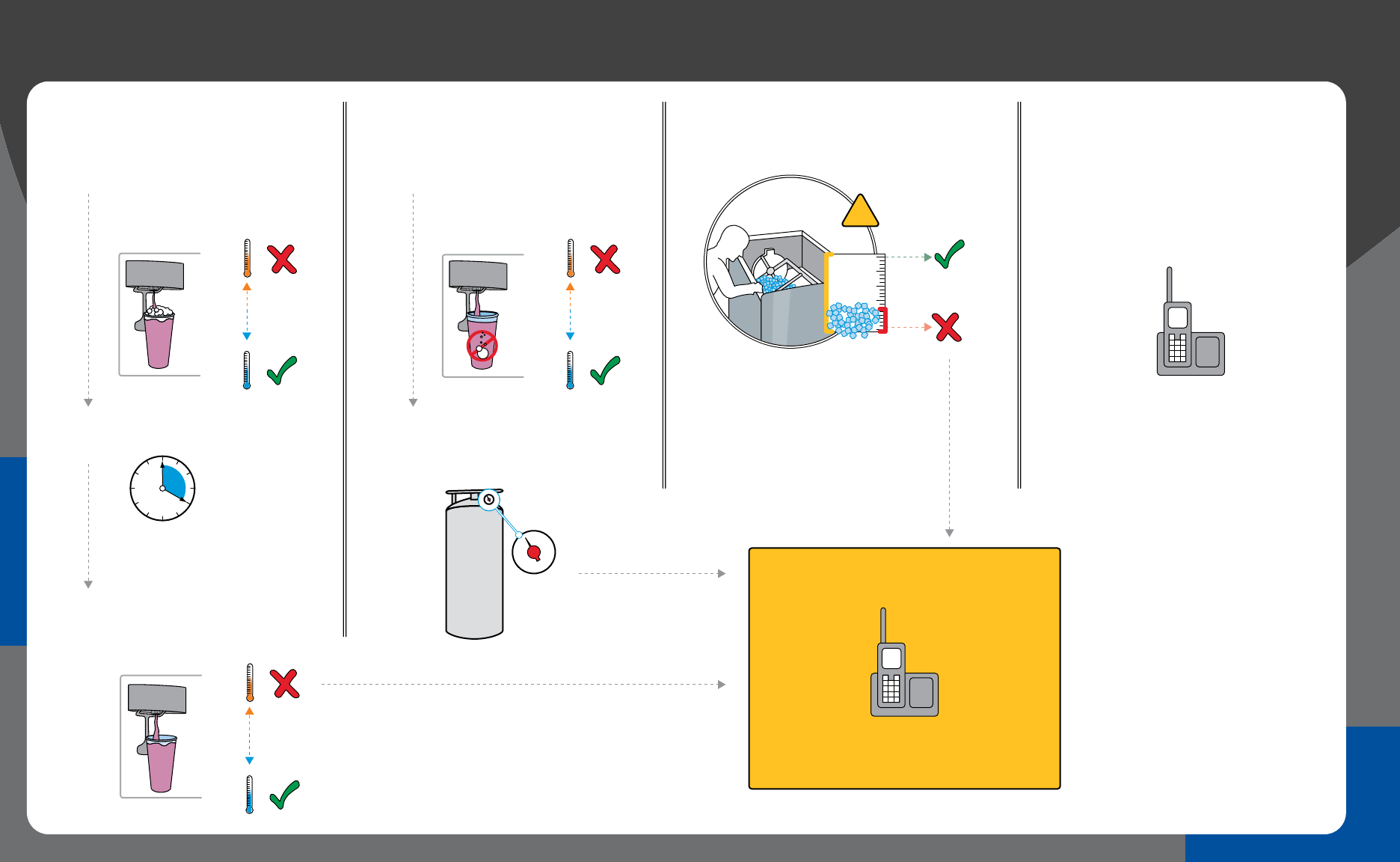

Troubleshooting
If the soft drink is warm, flat
or has an off-taste or odor,
refer to “Troubleshooting”
on page 25 of this guide
for assistance.
WATER
Minute
Maid
LEMONADE
Light
WATER
Minute
Maid
LEMONADE
Light
WATER
Minute
Maid
LEMONADE
Light
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChECk AND REFILL ICE
9

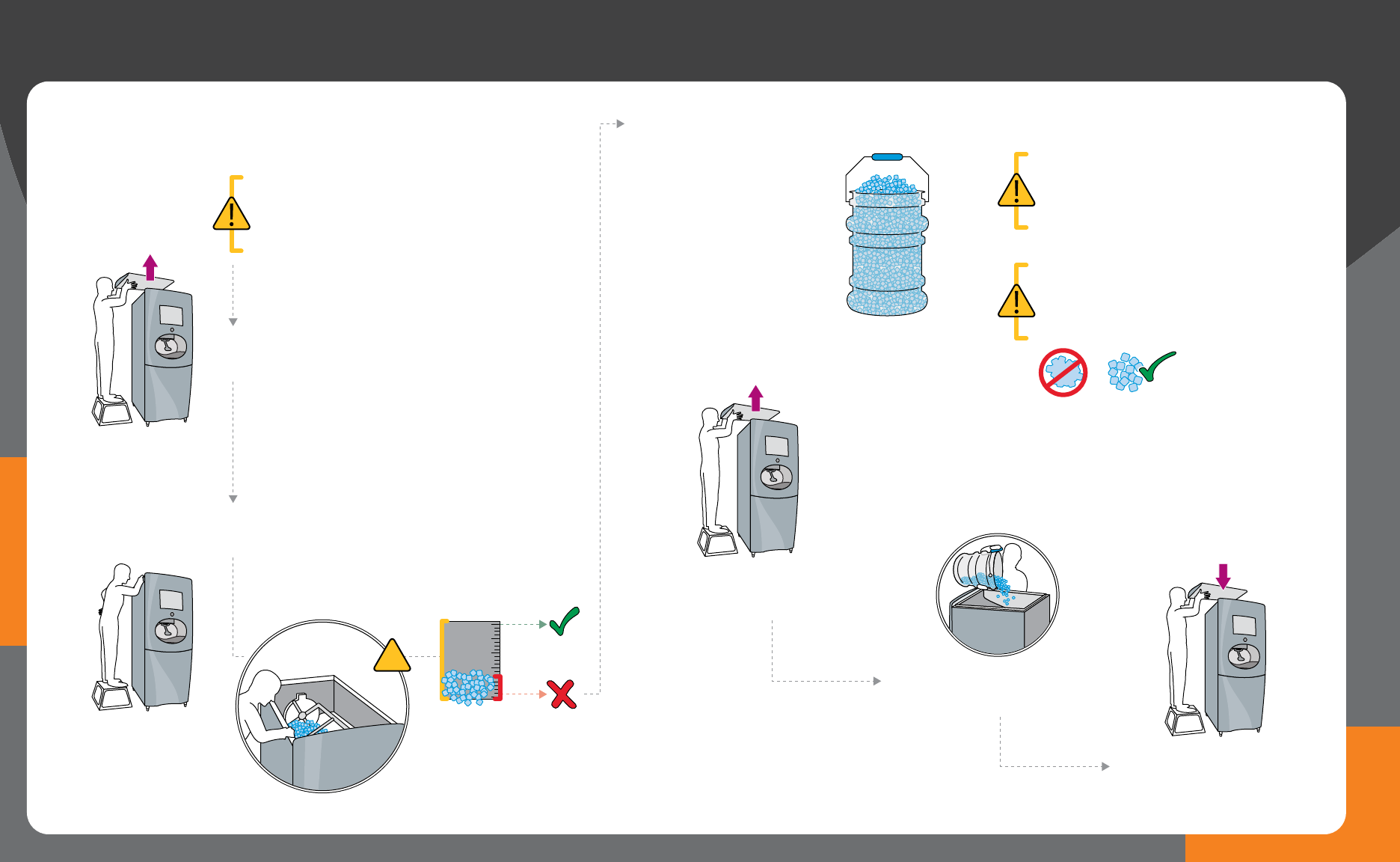

Check Ice Level Refill Ice
CAUTION:
If there is an ice maker on top of the
Coca-Cola Freestyle dispenser, follow
established procedures for checking
the ice level.
CAUTION:
Follow store safety
procedures when lifting
anything heavy, like ice.
CAUTION:
Large chunks can
damage the Coca-Cola
Freestyle dispenser.
1 Stand on a step stool to reach,
lift and remove ice bin lid.
2 Check to see if ice is in full
contact with the cold plate at
the bottom of the ice bin, and
the ice bin is at least 1/3 full.
1 Fill a bucket with ice.
2 Stand on a step stool to reach,
lift and remove ice bin lid.
3 Pour ice into ice bin;
repeat as needed to fill bin.
4 Replace ice bin lid.
?
1/3
2/3
Full
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChECk CARTRIDGE LEvEL
10
10
WATER
Minute
Maid
LEMONADE
Light

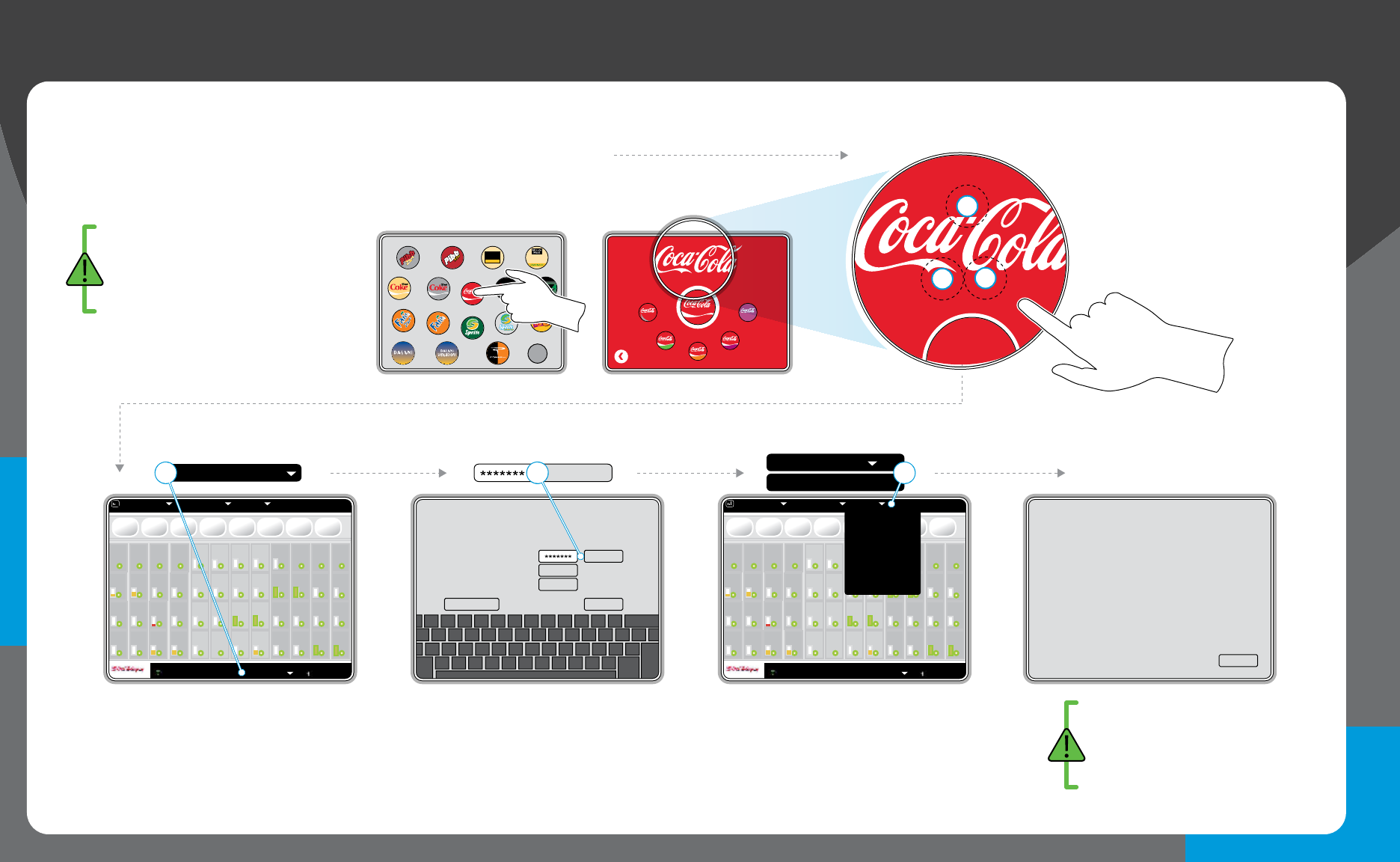

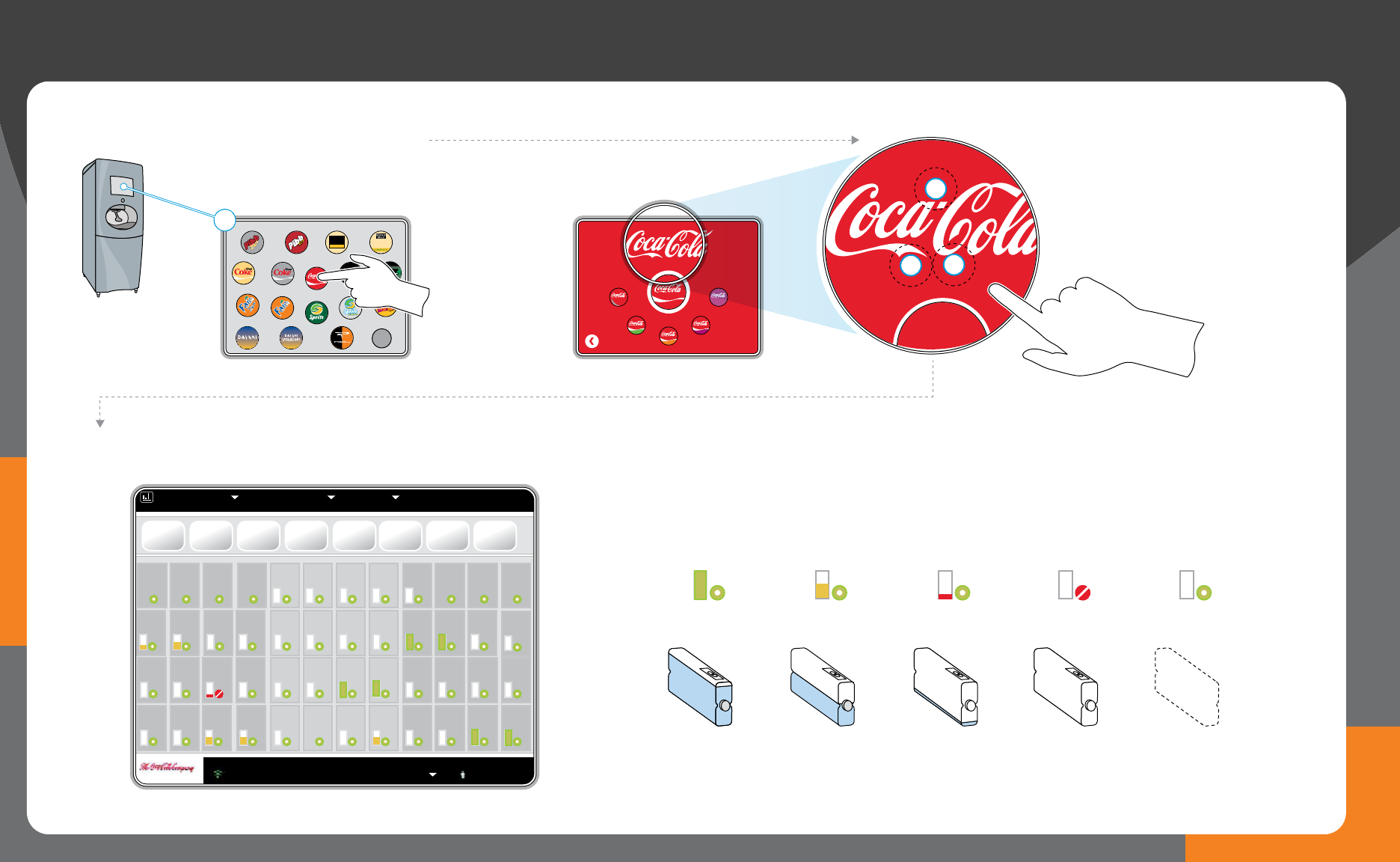

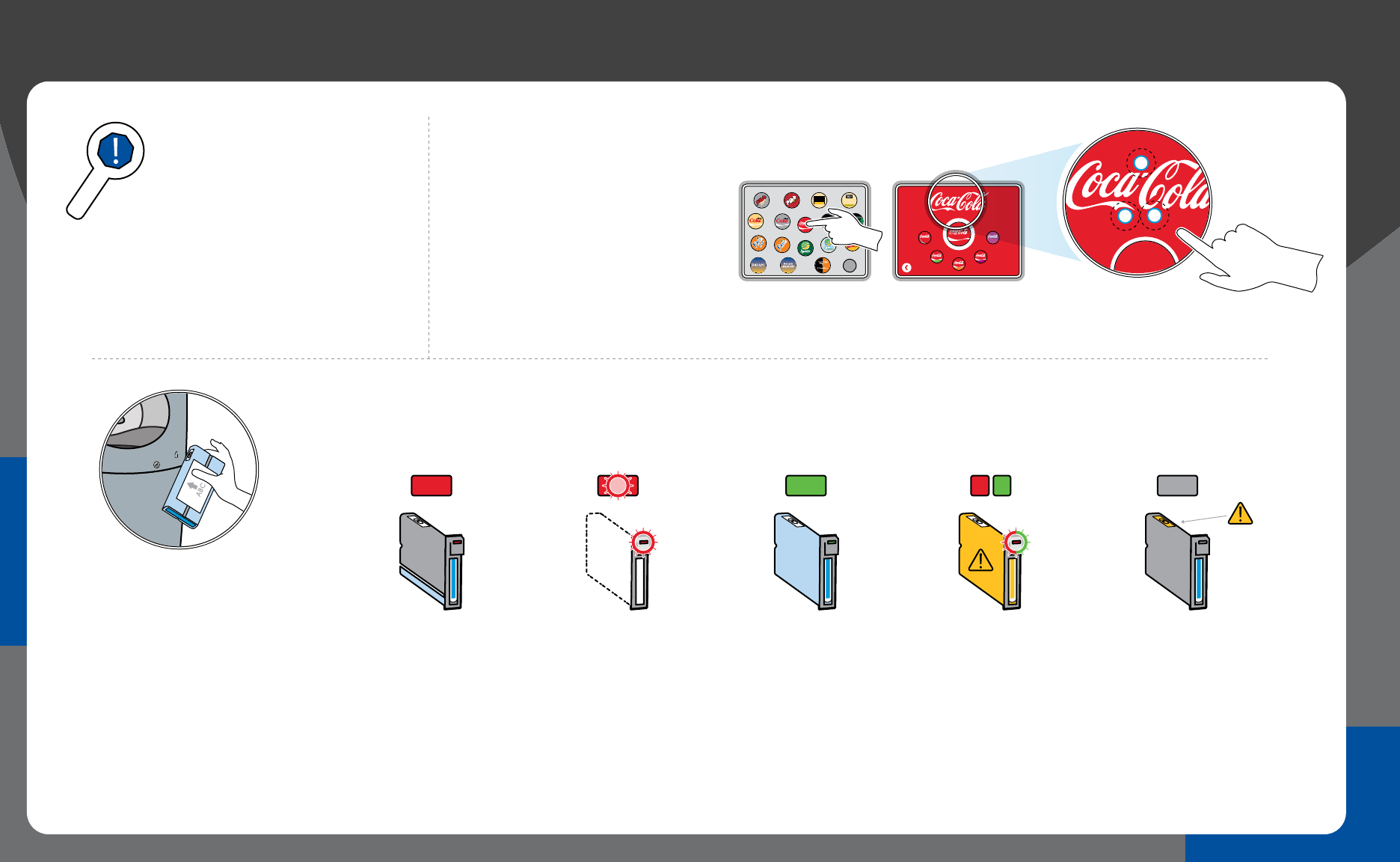

1 Touch the Coca-Cola brand
image on the screen. 2 Touch the three (3) areas of the
Coca-Cola image in the order
shown to access“Crew Mode”
on the touch screen.
3 Check cartridge gauge levels.
1
23
HFCS Water Ice Carb Water Product
Agitation
Switches and
Locks
Lighting User Interface
A
Open
B
Open
C
Open
D
Open
A
Grape
B
Peach
C
HCA
D
HCB
A
Orange
B
Lemon
C
Lime
D
Vanilla
A
Raspberry
B
Cherry
C
Fruitpunch
D
Strawberry
B
Open
C
Open
D
Open
C
MMlemonade
A
Fanta
B
Dansani
C
TeaBaseA
D
TeaBaseB
A
PoweradeA
B
PoweradeB
C
PoweradeOpt
A
NNS
B
SpriteB
A
SpriteA
D
MMlemonade
D
PoweradeOpt
B
CokeB
C
CFDietCokeA
A
PibbA
B
PibbB
D
BarqsB
A
Antifoam
B
Open
C
VaultA
A
CokeA
B
DietCokeB
A
DietCokeA
D
CFDietCokeB
C
CokeZeroA
D
CokeZeroB
C
BarqsA
D
VaultB
Operating System System Configuration Service Menu
User Mode: Crew
Consumer View
High / Full No CartridgeEmpty / Sold OutHalf-Empty Very Low
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChANGE A CARTRIDGE
11

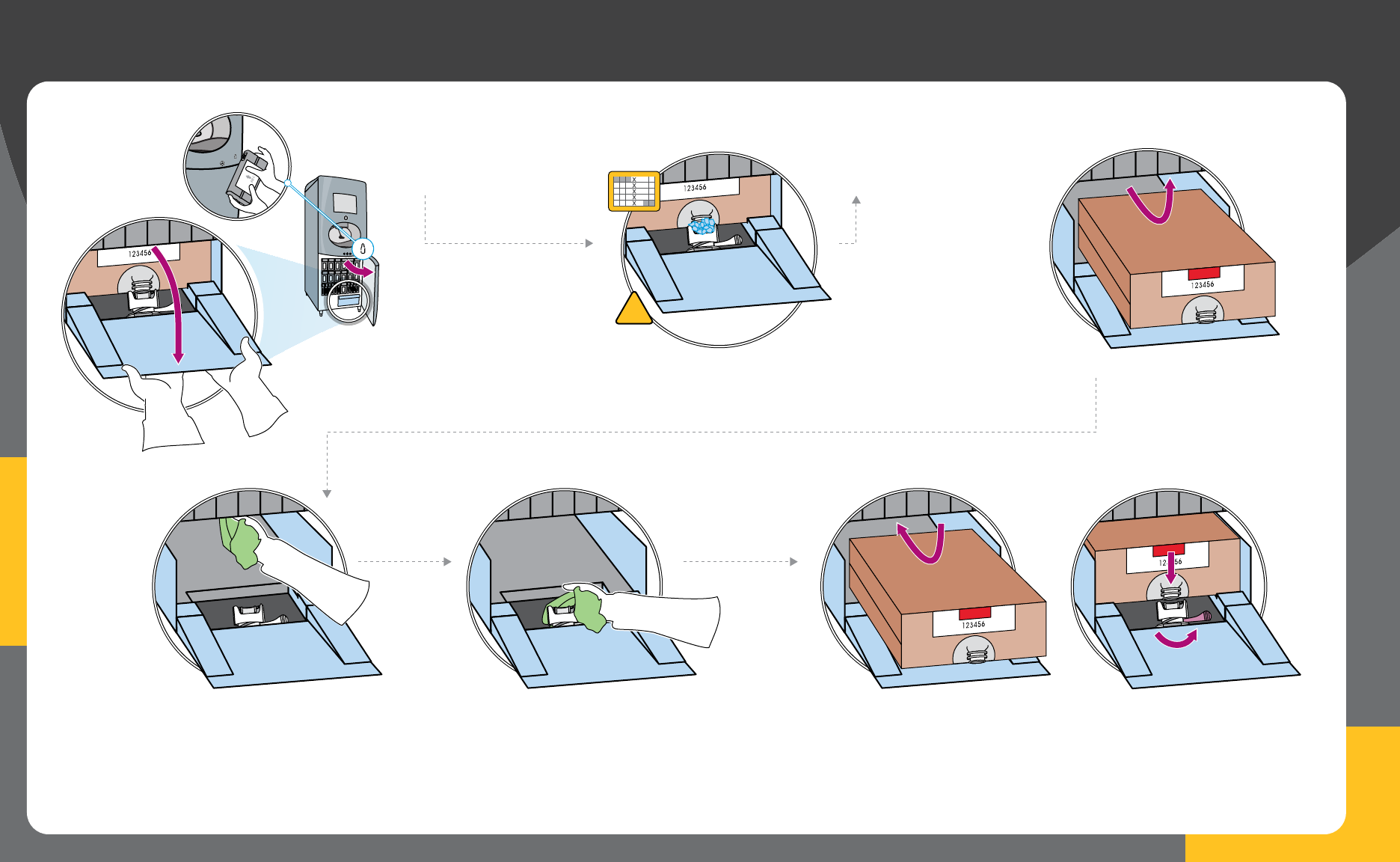

1 Scan cartridge with RFID
tag facing the RFID reader
on the upper door. 2 Find cartridge to change.
All empty cartridges are
red; the one just scanned
will flash red for 10 seconds.
3 Open cartridge slot door
(door pulls down).

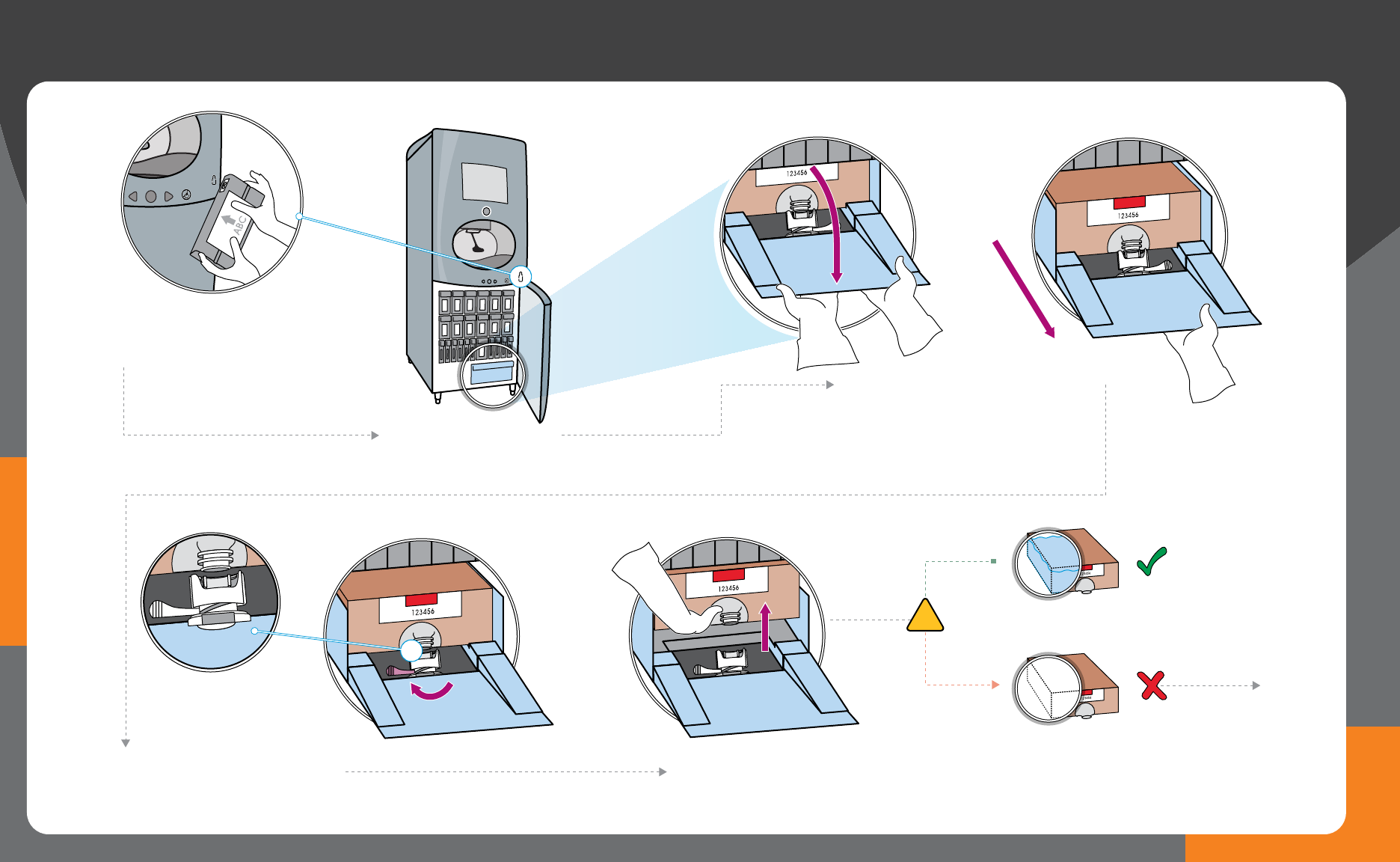

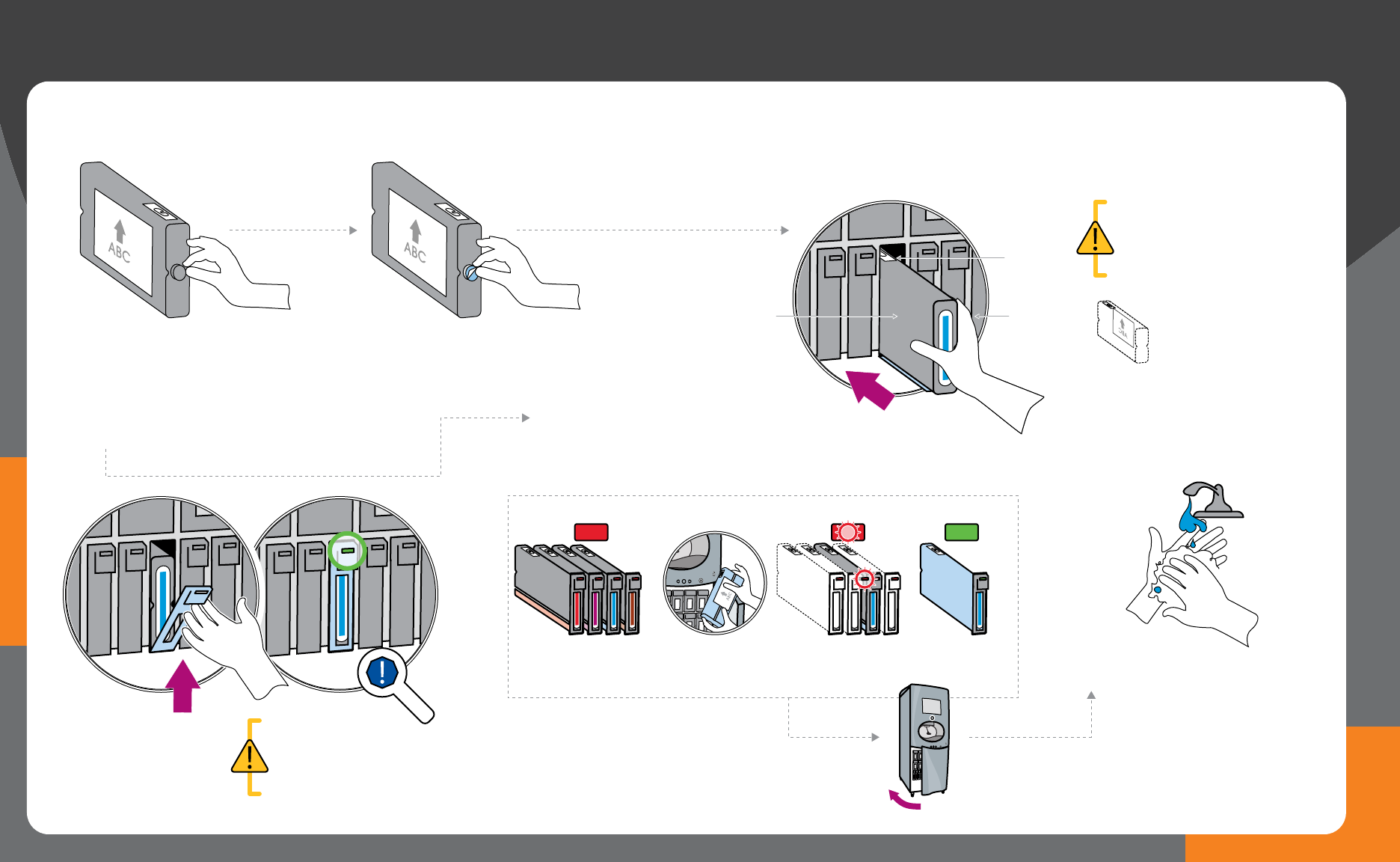

4 Empty cartridge will
come out partially.
Remove the cartridge.
6 Inspect the cartridge
overflow area for any
excess drips or fluid.
CAUTION:
Lower door will
release open.
5 Use an approved sanitizer
solution and a clean cloth to
clean the overflow area.

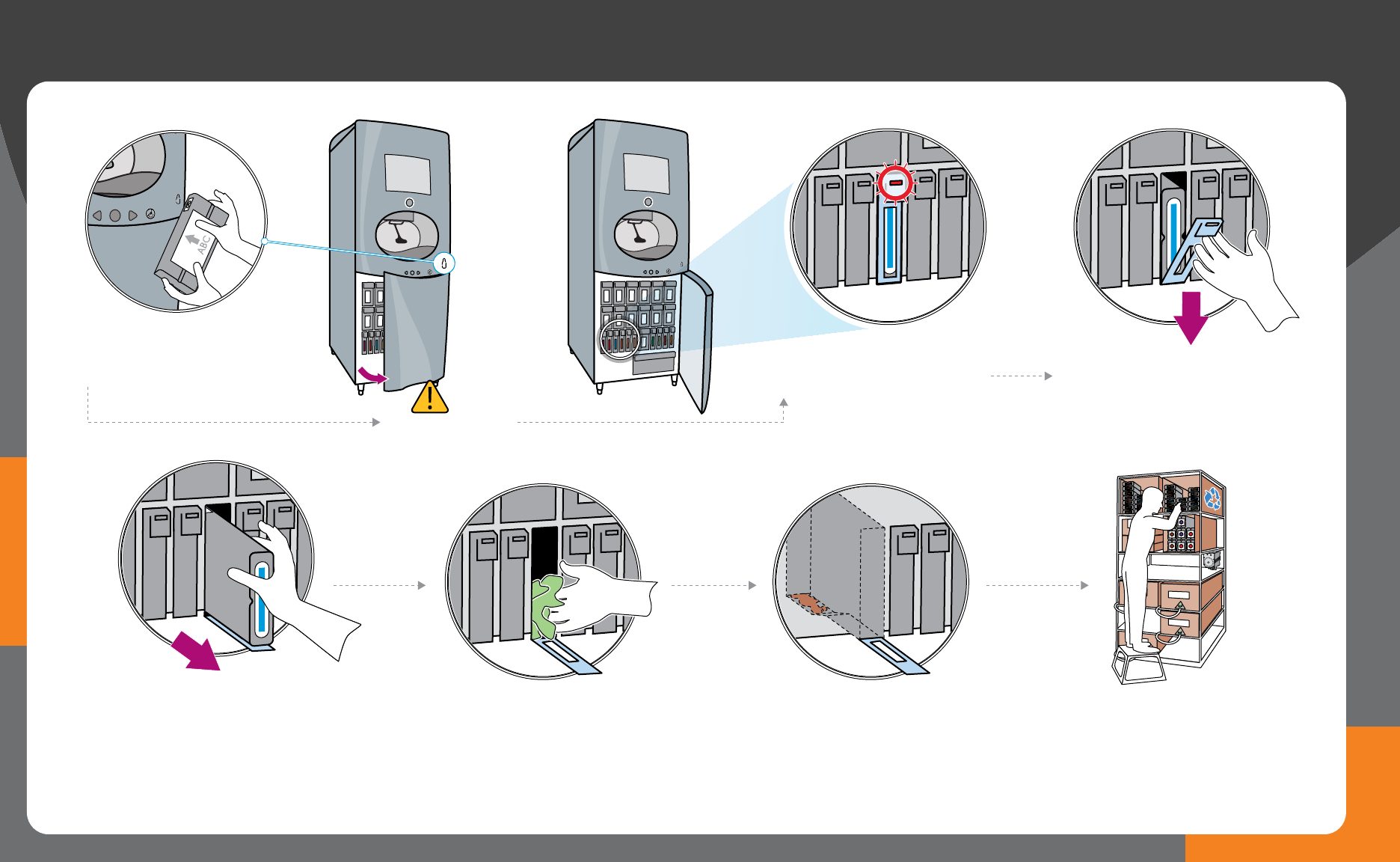

7 Place the empty cartridges
in a storage box.
Empty cartridges will be picked up
by a courier each week and returned
to Coca-Cola for recycling.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChANGE A CARTRIDGE (continued)
12
8 Remove cap from
new cartridge. 9 Remove paper seal from
the new cartridge by
grabbing the tab and
peeling back.
11 Close the slot door to push the cartridge
in the rest of the way. The light on the slot
will turn solid green if installed correctly.
12 If more cartridges need to be
replaced, scan the next cartridge
over the RFID reader. The slot for the
scanned cartridge will blink.
13 If the contents of a cartridge
get on your hands, wash them
right away to prevent staining.
If the contents of a cartridge
spill on the floor or inside of the
Coca-Cola Freestyle dispenser,
clean the areas right away.
10 Insert cartridge in the slot with the RFID tag facing in.
The label on the side of the cartridge should be
facing up. Gently push the cartridge until the slot
door is engaged.
CAUTION:
If the light does not turn solid green, refer
to page 24 in the “Troubleshooting”
section for additional information.
Cartridge installed
correctly.
Solid Green
Empty cartridges. Choose a cartridge
to replace and scan
a new cartridge.
Solid Red
Find the slot
and change
cartridges.
Flashing RedScan
Close the lower door when finished.
Cartridge Back Cartridge Front
RFID Tag
CAUTION:
Do not force or push
the cartridge once the
slot door is engaged.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChECk AND ChANGE hFCS 65
13
Change HFCS 65Check HFCS 65

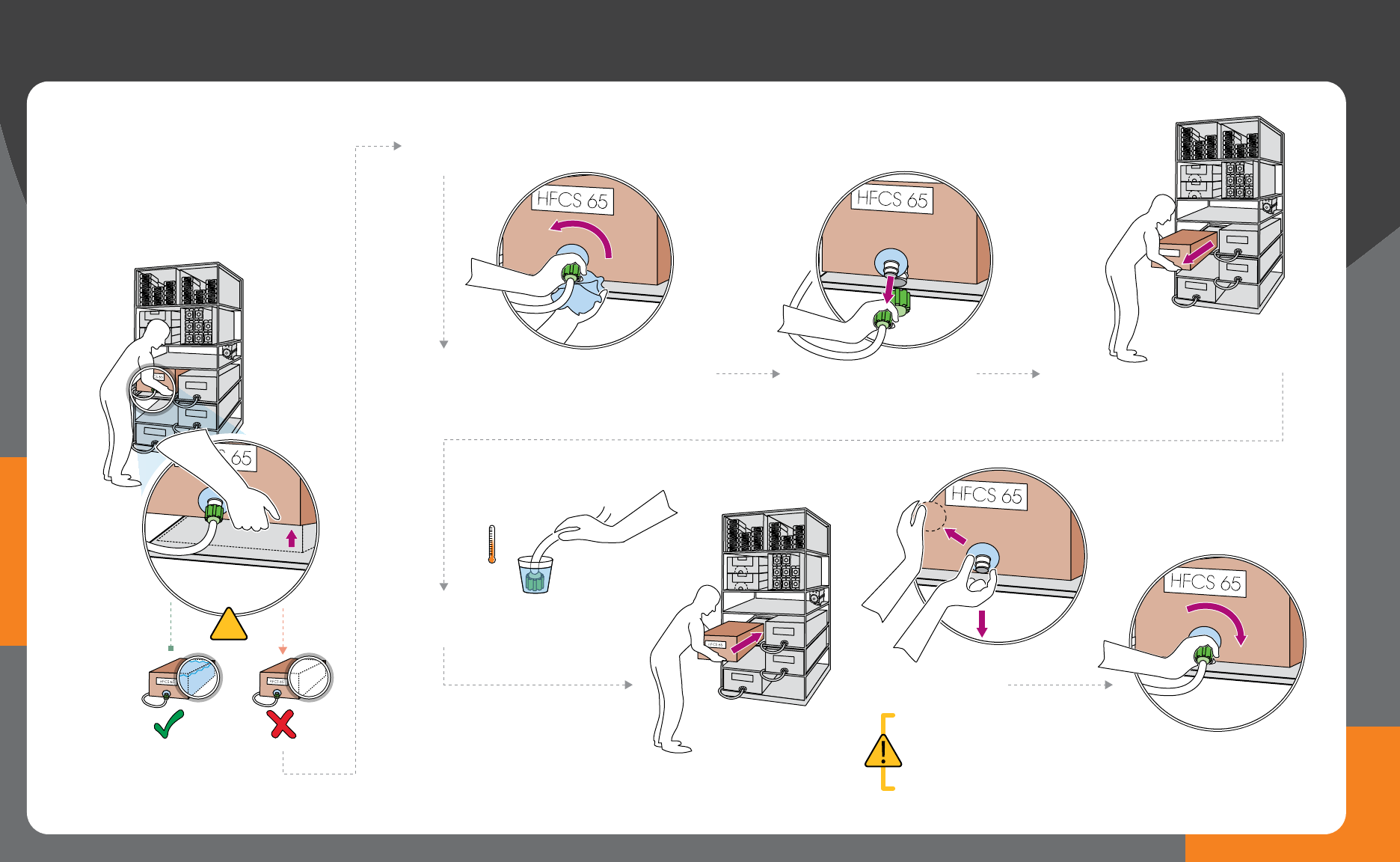

1 Lift the HFCS 65 box to see
how much product is left.
1 Hold a cloth beneath the connector
to catch any spills. Turn connector
counter-clockwise to loosen.
2 Remove connector
from the HFCS 65 box. 3 Remove the empty HFCS 65
box from the rack.
5 Place new box of
HFCS 65 on rack.
CAUTION:
Do not use
sharp objects
to open the box. 6 Attach the connector
to the fitment and turn
clockwise to tighten.
4 Rinse the connector in
a cup of warm water.
WARM
Open the box and
pull out the fitment.
?
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChECk NON-NUTRITIvE SWEETENER BLEND (NNS)
14
1 Open the lower door by
scanning a cartridge or
a Manager Key Card
over the RFID reader. 3 Pull down front door of NNS
compartment, slide tray out.
2 Locate NNS
compartment.
4 Release lever from right to left. 5 Lift NNS box and feel
bag inside to determine
product level.
123456123456123456
123456123456123456
?
123456123456123456
123456123456123456
123456
123456123456
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | ChANGE NON-NUTRITIvE SWEETENER BLEND (NNS)
15
246810
1 Open the
lower door by
scanning a
cartridge or a
Manager Key
Card over the
RFID reader.
2 Pull down front door
of NNS compartment,
slide tray out.
3 Release lever
from right to left. 4 Remove empty
NNS package.
11 Slide the tray back into
the compartment.
Lift up the door to close.
Close the lower door
when finished.
10 Move lever from
the left to the
right to secure.
5 If prompted on the
touch screen, enter
the six digit code
from the top of the
new NNS box.
7 Use an approved
sanitizer solution and a
clean cloth to clean the
connector area on the
compartment door.
8 Remove cap
from the new
NNS package.
Place box in the compartment with the
arrows on the package facing down.
9 Attach the NNS
connector into
the fitting.
123456123456123456
123456123456123456
123456123456123456
123456123456123456
123456123456123456
123456123456123456
123456123456123456
123456123456123456
123456123456123456
246810
246810
246810
246810
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | PREPARING FOR DAILY CLEANING TASkS
16

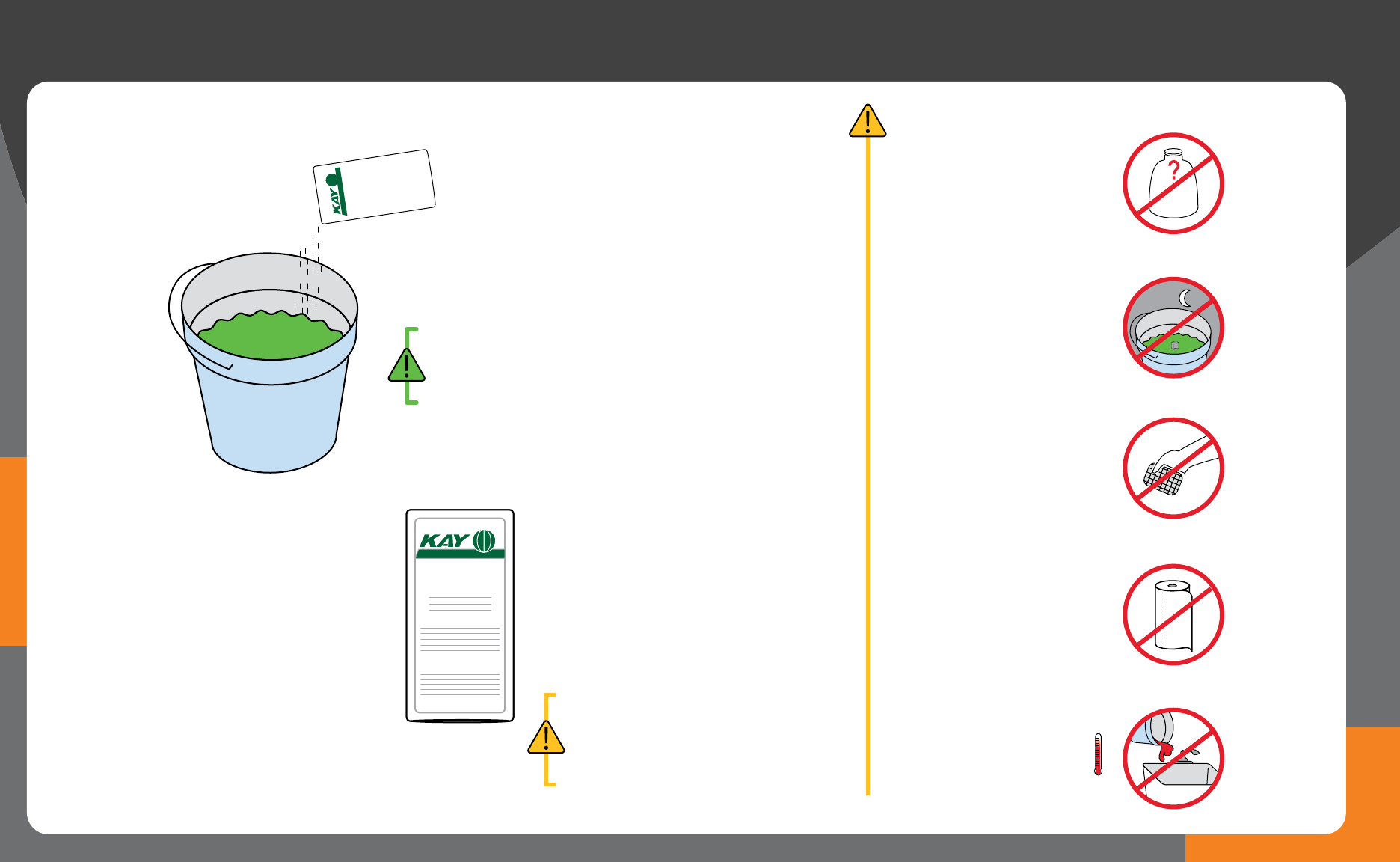

KAY-5
Sanitizer
Coca-Cola recommends Kay-5®
Sanitizer, or a comparable
food-grade chlorine sanitizer.
If using Kay-5 brand, add 1 oz.
packets of Kay-5 to 2.5 gallons
of clean warm water in a clean,
5-gallon bucket.
CAUTION:
DO NOT use bleach,
dish detergent, or any
unapproved chemicals!
DO NOT soak any
parts overnight.
DO NOT use scouring pads, steel
wool or any abrasive material.
It will scratch the surface and
result in rusting/pitting.
DO NOT use paper towels.
They may break apart
and clog the drain.
DO NOT pour hot liquids
(>125˚F–51.6˚C)
into the drain.
CAUTION:
When using a chlorinated
detergent other than Kay-5,
follow the instructions to
produce a 100ppm chlorine
sanitizer solution.
KAY-5
Sanitizer
HOT
TIP:
Kay-5 Sanitizer, cleaning brush
and replacement nozzle can be
ordered by calling 1-888-538-2653.
Prepare a 100ppm chlorine
sanitizer solution for daily
cleaning tasks.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | CLEAN NOzzLE
17

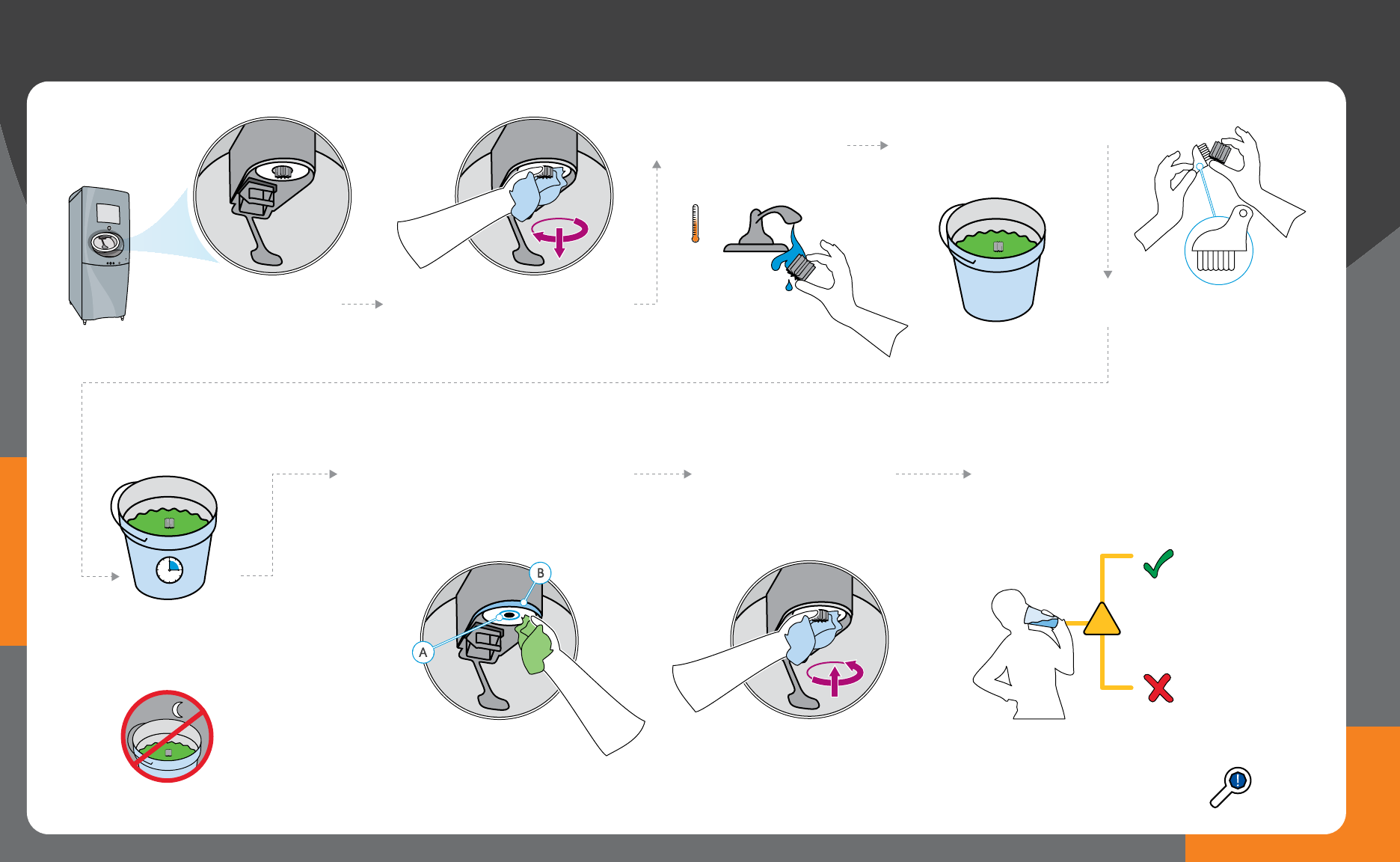

2 Using a cloth to protect fingers
twist nozzle counter-clockwise,
and then pull down to remove.
1 Locate the nozzle.
8 Allow the nozzle to air
dry. Use a cloth to put
the nozzle back in place,
and then turn clockwise
to lock.
3 Place the nozzle in a
clean sink and rinse with
warm, drinkable water.
4 Place the nozzle in
the prepared
sanitizer solution.
7 Use a clean brush or cloth and the
rest of the sanitizer solution to wipe
underneath the valve where the
nozzle connects (A), as well as the
chrome cover (B) of the nozzle area.
9 Conduct a taste test by following
the steps outlined on the “Conduct
a Taste Test” page 8.
CAUTION:
DO NOT soak
nozzle overnight.
WARM
6 Soak the nozzle in
the sanitizer solution
for 15 minutes.
15
5 Scrub the nozzle using
the brush shown.
?
If drink taste is
satisfactory, the
nozzle cleaning
task is complete.
If an off-taste is
noted, refer to
“Troubleshooting”on
pages 25-26 of this
guide for assistance.
Troubleshooting
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
DAILY TASkS | CLEAN ICE LEvER, CUP REST, DRIP TRAY AND ExTERIOR SURFACES
18
? ?
1 Using a clean cloth and
approved sanitizer
solution, wash the ice
lever and allow solution
to run down the drain.
2 Remove the cup rest. 3 Wash the cup rest in a
sink using an approved
sanitizing solution.
4 Wash the drip tray using a
clean cloth and an approved
sanitizing solution. Rinse and
allow sanitizing solution to run
down the drain.
8 Using a clean cloth and approved
sanitizer solution, wipe all exterior surfaces,
including upper and lower cabinet doors,
touch screen, and ADA interface area.
5 Ensure the drain
empties properly. 6 Replace the cup
rest in the drip tray. 7 Check the cup rest
periodically throughout
the day and clean
as needed.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
WEEkLY TASkS | CLEAN NNS COmPARTmENT AND CONNECTOR
19
123456123456123456
123456123456123456
?
1 This cleaning task
should be completed
on a weekly basis.
This task should also be
done whenever you
notice crystals forming
on the NNS connector.
2 Remove the NNS box
from compartment.
Refer to “Change Non
Nutritive Sweetener
Blend (NNS)” on page
19 for instructions.
3 Use a clean cloth and
sanitizer solution to clean
the NNS compartment.
4 Use a clean cloth and
sanitizer solution to clean
the NNS connector.
5 Return the NNS box to the
compartment and reconnect it.
Refer to “Change Non Nutritive
Sweetener Blend (NNS)” on page
15 for instructions.
123456123456123456
123456123456123456
123456123456123456
123456123456123456
123456123456123456
COCA-COLA FREESTYLE DISPENSER CREW GUIDE

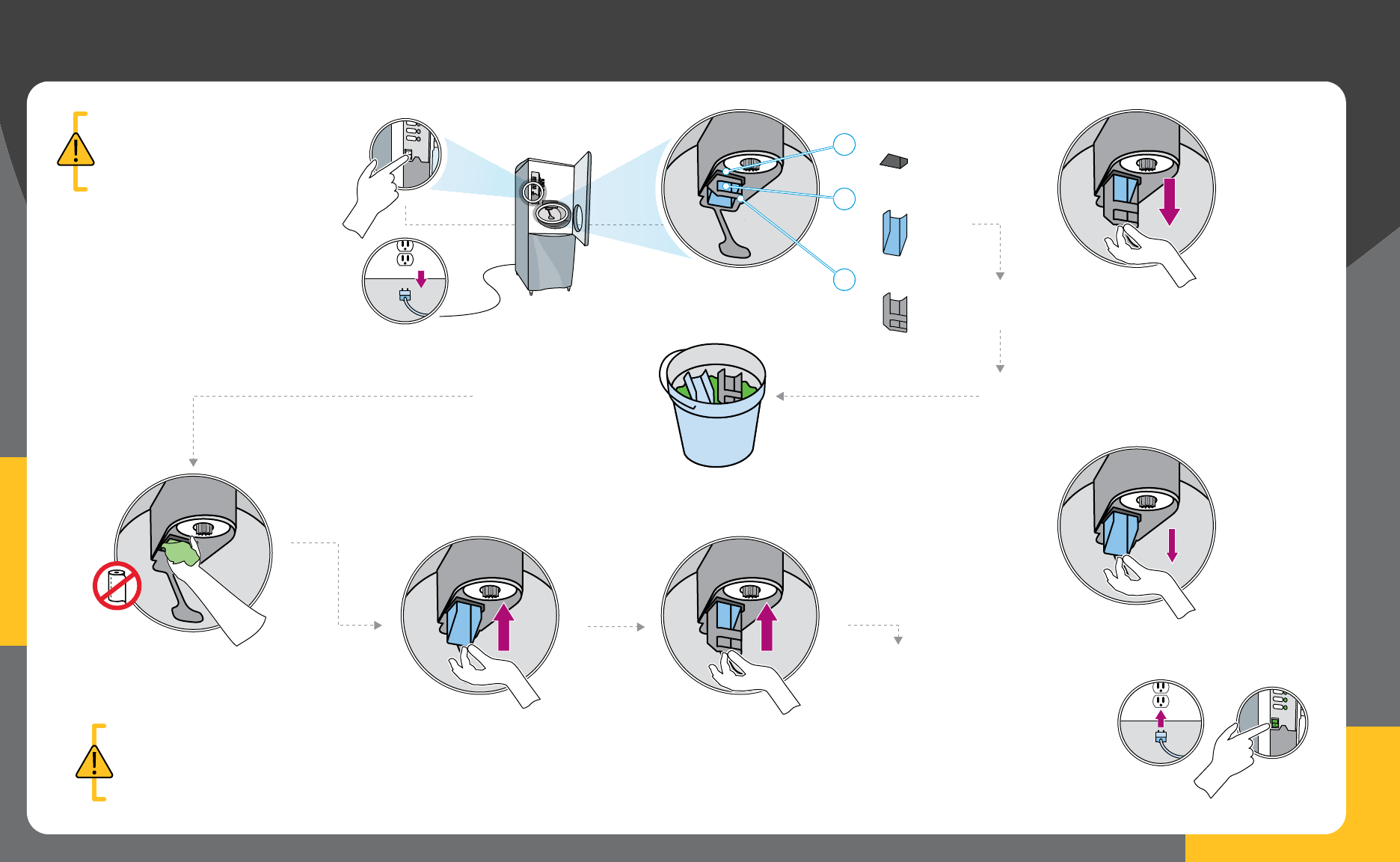

WEEkLY TASkS | CLEAN ICE ChUTE
20
2 Remove the lower chute by carefully
pulling on the front lip of the lower chute.
It should disengage and pull forward.
3 Remove the upper chute by carefully
pulling on the upper lip of the upper chute.
It should disengage and pull forward.
5 Use a clean, sanitized
towel or cloth to wipe the
ice chute body area.
6 Reinstall the upper ice
chute by pushing up and
into the ice chute body
until a click sound is made.
7 Reinstall the lower ice chute
by pushing up and into the
bottom of the upper ice chute
until a click sound is made.

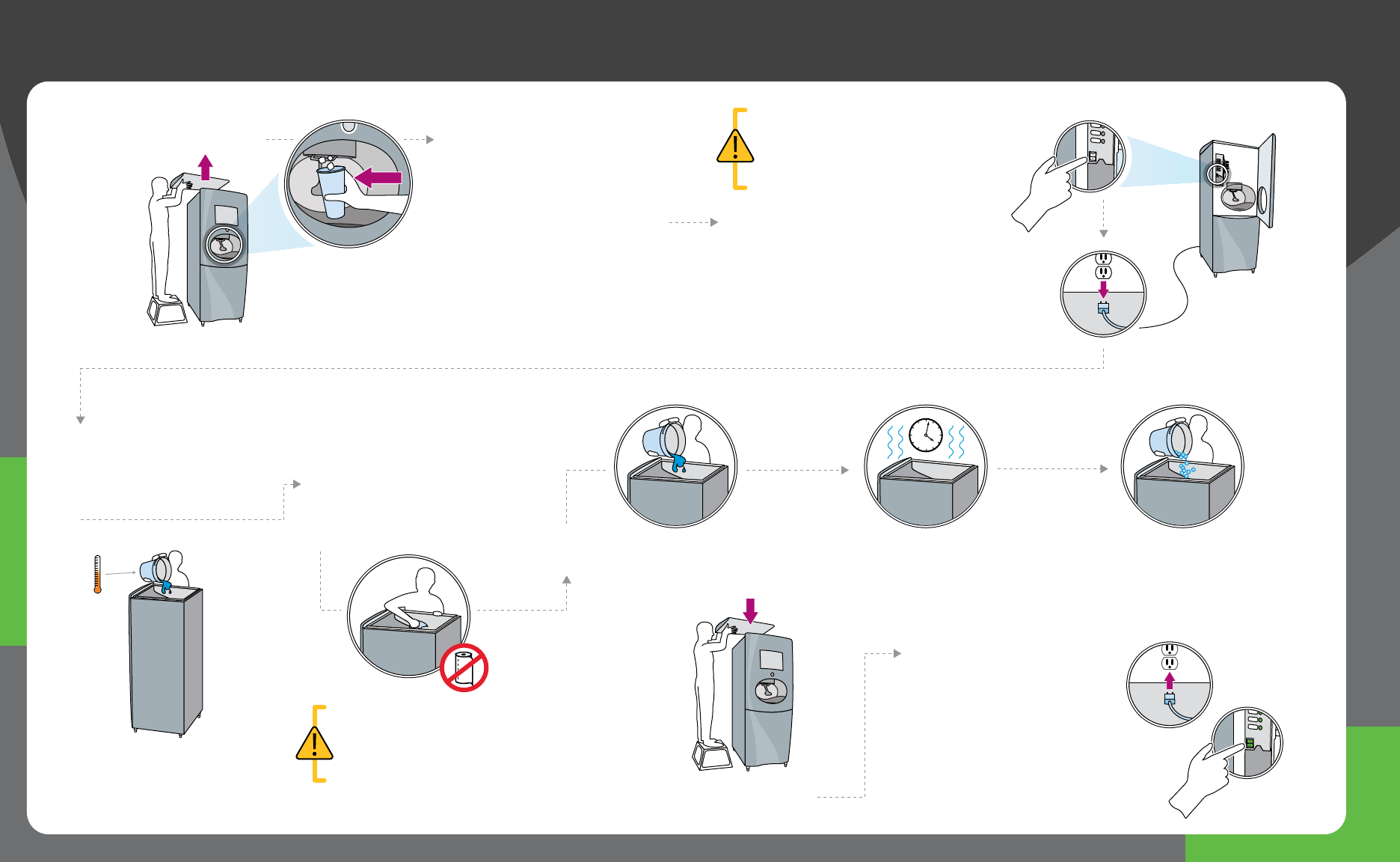

1 Turn off power to the dispenser.
Refer to “Power the Dispenser
On/Off” on page 5 for instructions.
Unplug the unit.
To make sure that no mechanical
parts move during cleaning.
CAUTION:
If there is an ice maker on top of the
Coca-Cola Freestyle dispenser, follow
established procedures for cleaning
the ice bin.
8 Plug the unit back in to the
electrical outlet.
Turn on power to
the dispenser.
Test to ensure the dispenser
is operating properly.
Refer to “Power the Dispenser On/Off”
on page 5 for instructions.
CAUTION:
DO NOT use paper towels.
They may break apart and
clog the ice bin.
4 Wash upper and
lower chute with
sanitizing solution.
3 Ice Chute Body
2 Upper Ice Chute
1 Lower Ice Chute
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
mONThLY TASkS | CLEAN ICE BIN
21
2 Empty the ice bin by
pressing the ice lever and
dispensing ice out the chute
until the ice bin is empty.
It is recommended that this
task be completed when the
ice level is already low, so
there isn’t much in the bin to
empty out.
4 Rinse the inside of the ice
bin with warm water until
all ice pieces are gone.
CAUTION:
DO NOT use paper towels.
They may break apart and
clog the ice bin.
5 Soak a clean cloth or towel
in warm sanitizer solution
and then wipe the insides
of the ice bin.
6 Rinse the ice bin thoroughly
with clean water. 7 Allow the ice bin to air dry
before refilling with ice.
1 Remove the ice bin lid.
9 Replace the ice bin lid.
WARM
8 Refill the unit with ice.
Refer to “Check and Refill Ice”
on page 9 for instructions.
CAUTION:
If there is an ice maker on top of the
Coca-Cola Freestyle dispenser, follow
established procedures for cleaning
the ice bin.
3 Turn off power to the dispenser.
Refer to “Power the Dispenser
On/Off” on page 5 for instructions.
Unplug the unit.
To make sure that no mechanical
parts move during cleaning.
10 Plug the unit back in to
the electrical outlet.
Turn on power to
the dispenser.
Refer to “Power the
Dispenser On/Off” on page 5
for instructions.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
mANAGER TASkS | LOCk ThE DISPENSER
22
NOTE:
If you have lost the Manager
Password provided during
installation, please call
1-888-538-2653 for assistance.

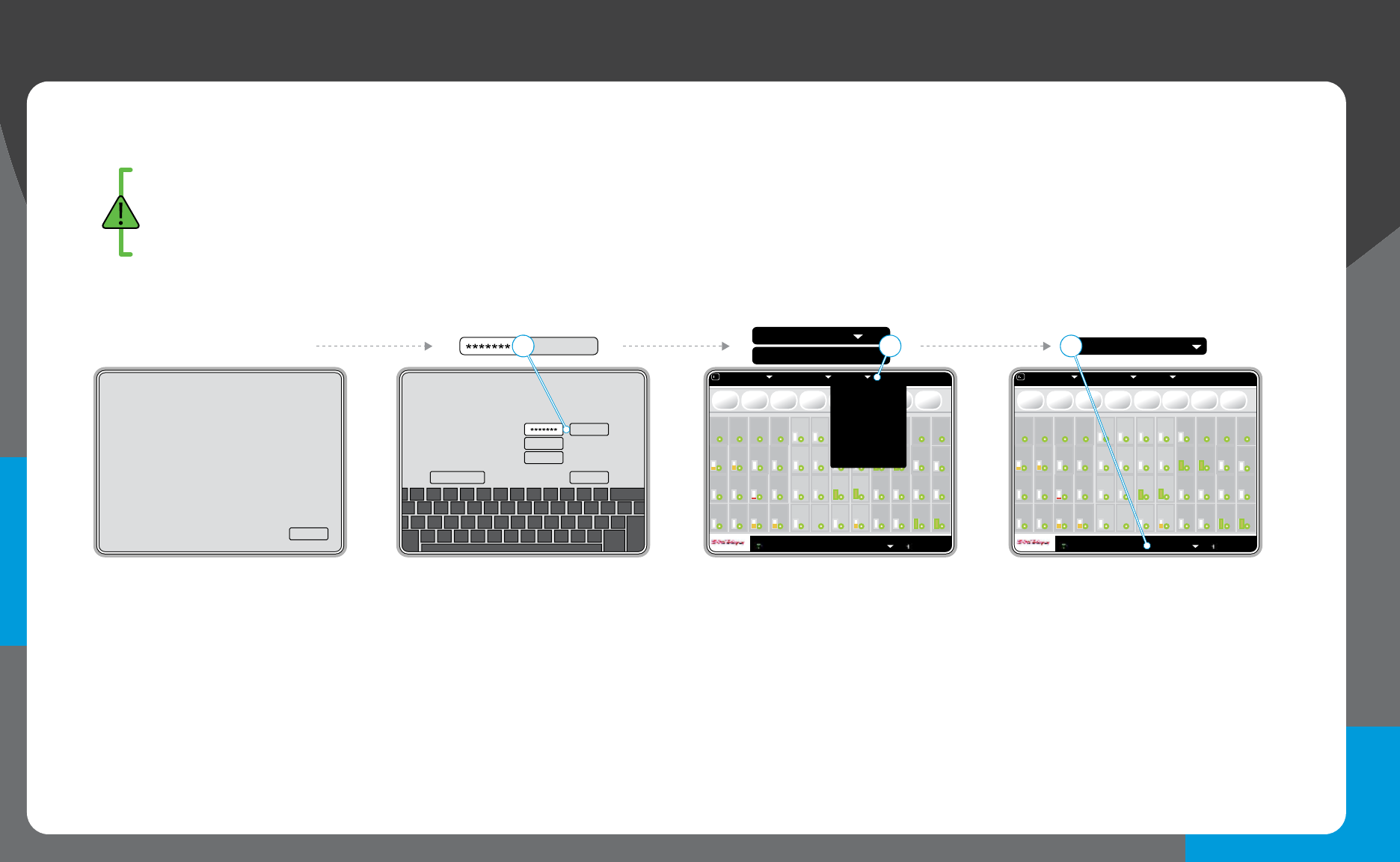

Managers can lock the
Coca-Cola Freestyle dispenser
to prevent drinks from being
poured without having to
manually power off the unit.
1 Touch the Coca-Cola brand
image on the screen.
3 Touch the Current Mode area
at the bottom of the screen and
select Manager Mode.
2 Touch the three (3) areas of the
Coca-Cola image in the order
shown to access “Crew Mode”
on the touch screen.
HFCS Water Ice Carb Water Product
Agitation
Switches and
Locks
Lighting User Interface
A
Open
B
Open
C
Open
D
Open
A
Grape
B
Peach
C
HCA
D
HCB
A
Orange
B
Lemon
C
Lime
D
Vanilla
A
Raspberry
B
Cherry
C
Fruitpunch
D
Strawberry
B
Open
C
Open
D
Open
C
MMlemonade
A
Fanta
B
Dansani
C
TeaBaseA
D
TeaBaseB
A
PoweradeA
B
PoweradeB
C
PoweradeOpt
A
NNS
B
SpriteB
A
SpriteA
D
MMlemonade
D
PoweradeOpt
B
CokeB
C
CFDietCokeA
A
PibbA
B
PibbB
D
BarqsB
A
Antifoam
B
Open
C
VaultA
A
CokeA
B
DietCokeB
A
DietCokeA
D
CFDietCokeB
C
CokeZeroA
D
CokeZeroB
C
BarqsA
D
VaultB
Operating System System Configuration Service Menu
User Mode: Manager
Consumer View
HFCS Water Ice Carb Water Product
Agitation
Switches and
Locks
Lighting User Interface
A
Open
B
Open
C
Open
D
Open
A
Grape
B
Peach
C
HCA
D
HCB
A
Orange
B
Lemon
C
Lime
D
Vanilla
A
Raspberry
B
Cherry
C
Fruitpunch
D
Strawberry
B
Open
C
Open
D
Open
C
MMlemonade
A
Fanta
B
Dansani
C
TeaBaseA
D
TeaBaseB
A
PoweradeA
B
PoweradeB
C
PoweradeOpt
A
NNS
B
SpriteB
A
SpriteA
D
MMlemonade
D
PoweradeOpt
B
CokeB
C
CFDietCokeA
A
PibbA
B
PibbB
D
BarqsB
A
Antifoam
B
Open
C
VaultA
A
CokeA
B
DietCokeB
A
DietCokeA
D
CFDietCokeB
C
CokeZeroA
D
CokeZeroB
C
BarqsA
D
VaultB
Date and Time
Display Module Parameters
Choose Logging Target Location
Recycle RFID Tag
Revert to Default Image
Treat NNS as Super pump
Lock Dispenser
Operating System System Configuration Service Menu
User Mode: Manager
Consumer View
ZXCVBNM, . /
ASDFGHJKL; ’
Q W E RTYU I OP[ ]
1234567890-—
Enter
CancelVirtual Keypad
Manager Access
Enter the Password to access
Manager Interface:
Tech ID:
Work order Number:
4 Using the Virtual Keypad, enter the
Manager password provided for
your location, and then press Enter.
5 Touch Service Menu,
then select Lock Dispenser.
NOTE:
If the screen is touched
during Lock Dispenser mode,
a warning will appear.
The dispenser will
remained locked until
unlocked by a manager.
User Mode: Manager Enter
Service Menu
Lock Dispenser
WATER
Minute
Maid
LEMONADE
Light
1
23
Login
You are in Lock Dispenser mode. Please press
“Login” button to unlock the system.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
mANAGER TASkS | UNLOCk ThE DISPENSER
23
1 Touch Login.4 To return to Crew Mode, touch
Manager Mode and select
Crew Mode from the menu.
2 Using the Virtual Keypad, enter the
Manager password provided for
your location, and then press Enter.
3 Touch Service Menu,
then select Unlock Dispenser.
NOTE:
If the screen is touched
during Lock Dispenser mode,
a warning will appear.
HFCS Water Ice Carb Water Product
Agitation
Switches and
Locks
Lighting User Interface
A
Open
B
Open
C
Open
D
Open
A
Grape
B
Peach
C
HCA
D
HCB
A
Orange
B
Lemon
C
Lime
D
Vanilla
A
Raspberry
B
Cherry
C
Fruitpunch
D
Strawberry
B
Open
C
Open
D
Open
C
MMlemonade
A
Fanta
B
Dansani
C
TeaBaseA
D
TeaBaseB
A
PoweradeA
B
PoweradeB
C
PoweradeOpt
A
NNS
B
SpriteB
A
SpriteA
D
MMlemonade
D
PoweradeOpt
B
CokeB
C
CFDietCokeA
A
PibbA
B
PibbB
D
BarqsB
A
Antifoam
B
Open
C
VaultA
A
CokeA
B
DietCokeB
A
DietCokeA
D
CFDietCokeB
C
CokeZeroA
D
CokeZeroB
C
BarqsA
D
VaultB
Operating System System Configuration Service Menu
User Mode: Crew
Consumer View
HFCS Water Ice Carb Water Product
Agitation
Switches and
Locks
Lighting User Interface
A
Open
B
Open
C
Open
D
Open
A
Grape
B
Peach
C
HCA
D
HCB
A
Orange
B
Lemon
C
Lime
D
Vanilla
A
Raspberry
B
Cherry
C
Fruitpunch
D
Strawberry
B
Open
C
Open
D
Open
C
MMlemonade
A
Fanta
B
Dansani
C
TeaBaseA
D
TeaBaseB
A
PoweradeA
B
PoweradeB
C
PoweradeOpt
A
NNS
B
SpriteB
A
SpriteA
D
MMlemonade
D
PoweradeOpt
B
CokeB
C
CFDietCokeA
A
PibbA
B
PibbB
D
BarqsB
A
Antifoam
B
Open
C
VaultA
A
CokeA
B
DietCokeB
A
DietCokeA
D
CFDietCokeB
C
CokeZeroA
D
CokeZeroB
C
BarqsA
D
VaultB
Date and Time
Display Module Parameters
Choose Logging Target Location
Recycle RFID Tag
Revert to Default Image
Treat NNS as Super pump
Unlock Dispenser
Operating System System Configuration Service Menu
User Mode: Manager
Consumer View
ZXCVBNM, . /
ASDFGHJKL; ’
Q W E RTYU I OP[ ]
1234567890-—
Enter
CancelVirtual Keypad
Manager Access
Enter the Password to access
Manager Interface:
Tech ID:
Work order Number:
User Mode: Crew
Enter
Service Menu
Unlock Dispenser
Login
You are in Lock Dispenser mode. Please press
“Login” button to unlock the system.
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
TROUBLEShOOTING
24
If you have a problem with the
Coca-Cola Freestyle dispenser,
first use the troubleshooting steps in
this guide to try to fix the problem.
If you are unable to fix the problem
yourself, call 1-888-538-2653
for assistance.
Please note any error codes
displayed on the dispenser and have
your store phone number and
address available when you call.

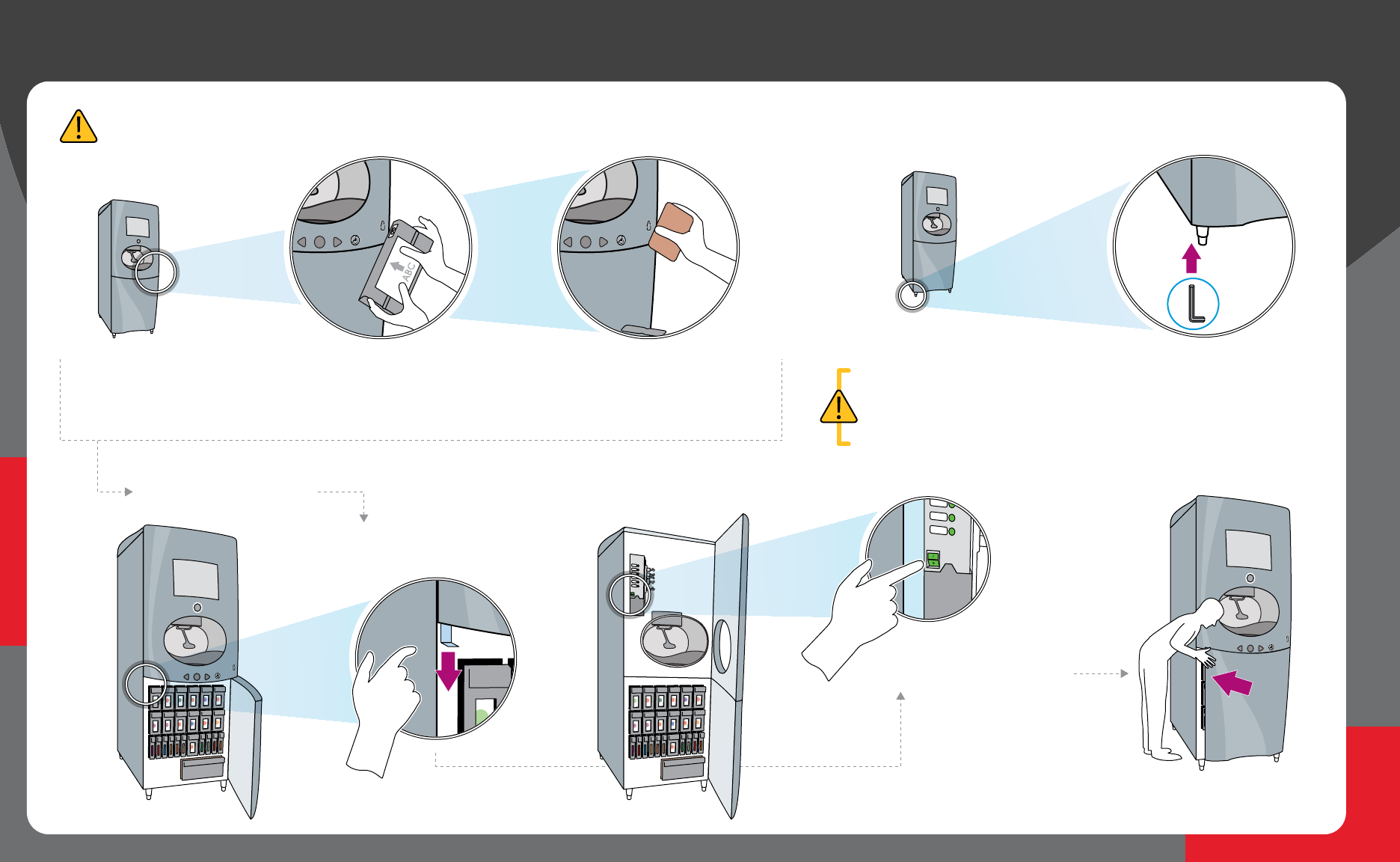

Status Lights
The status lights on each of the
cartridge slots in the dispenser cabinet
illuminate and flash or remain solid to
indicate different information
The lower dispenser door must be
opened to view the status lights. You
may need to refer to this chart when
changing cartridges.
Accessing the
Crew Interface
Enter Crew Mode to check cartridge
levels by touching the “triangle” on
the Coke screen.
Refer to “Check Cartridge Level”
on page 10 for instructions.
Cartridge in the slot
is empty, but it is not
the cartridge that
was just scanned.
Solid Red
The slot associated
with the cartridge
that was just
scanned.
Flashing Red
An incorrect
cartridge has been
inserted in the slot.
Alternating
Red/Green
(along with beep and
on-screen message)
No tag is being read
by the RFID reader.
Possible causes for
this would include:
No RFID tag on the cartridge.
A damaged RFID tag
on the cartridge.
A damaged RFID Reader.
Off
Cartridge installed
correctly.
Solid Green
WATER
Minute
Maid
Light
1
23
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
TROUBLEShOOTING (continued)
25
Warm Drinks
Sold Out” Indicators
on Touch Screen
A brand is sold out when it
appears “gray” on the screen.
The Coca-Cola brand is sold
out in the examples shown here.
Refer to “Change a Cartridge”
on page 11 for instructions
on replacing cartridges.
WATER
Minute
Maid
LEMONADE
Light
Vanilla

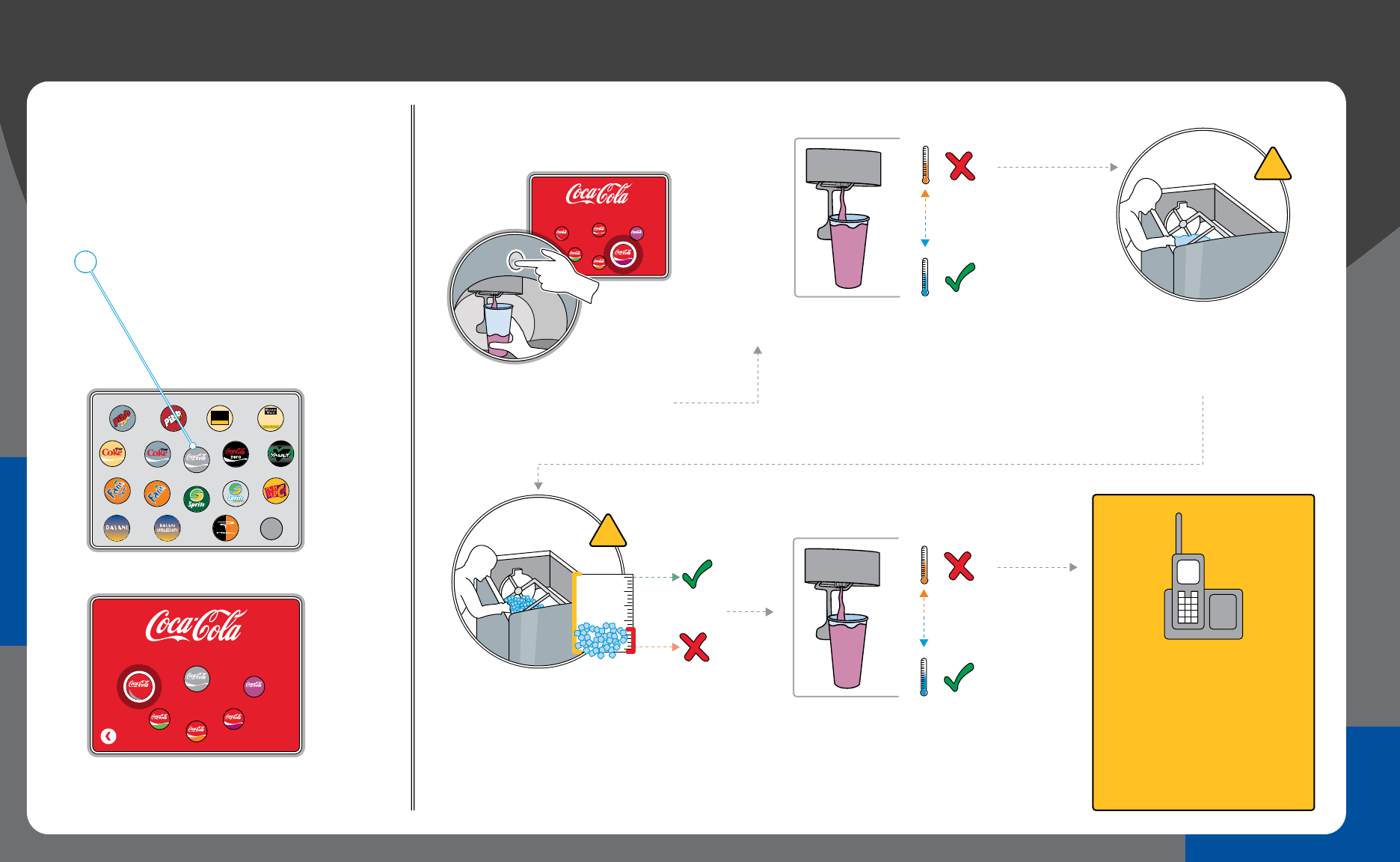

1 Dispense any flavor drink
without ice and discard.
2 Dispense the same drink again without
ice and check the beverage temperature
with a digital thermometer.
The temperature of the soft drink should
be less than 40º Fahrenheit/4.4º Celsius.
3 Open the ice bin and
look for melted ice.
Drain any standing water.
4 Make sure the ice bin is
at least 1/3 full and that
ice is in contact with the
cold plate at the
bottom of the ice bin.
If the problem persists, call
1-888-538-2653 for assistance.
Please note any error codes
displayed on the dispenser,
and have your store phone
number and address
available when you call.
&s#
?
?
1/3
2/3
Full
5 Dispense the same drink again without
ice and check the beverage temperature
with a digital thermometer.
The temperature of the soft drink should
be less than 40º Fahrenheit/4.4º Celsius.
&s#
“
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
TROUBLEShOOTING (continued)
26
No Ice Dispensing
1 Check ice bin for ice,
and refill if necessary.
Refer to “Check and
Refill Ice” on page 9
for instructions.
?
1/3
2/3
Full
1 Check beverage temperature
as outlined in “Troubleshooting,
Warm Drinks” on page 25.
If the problem persists,
call 1-888-538-2653 for assistance.
Please note any error codes displayed on the
dispenser, and have your store phone
number and address available when you call.
4 If you experience problems that
are either not described in this
guide, or cannot be resolved
with basic troubleshooting, call
1-888-538-2653 for assistance.
Please note any error codes
displayed on the dispenser,
and have your store phone
number and address available
when you call.
Foamy Drinks
2 Wait 20 minutes.
20
&s#
Other Problems
3 Check beverage
temperature again.
&s#
1 Check beverage temperature
as outlined in “Troubleshooting,
Warm Drinks” on page 25.
Flat Drinks
&s#
2 Check CO2
pressure to ensure
it reads 75 PSI.
75
PSI
COCA-COLA FREESTYLE DISPENSER CREW GUIDE
FREqUENTLY ASkED qUESTIONS (FAq’S)
27
GENERAL QUESTIONS
Q. What is the Coca-Cola Freestyle dispenser?
A. The Coca-Cola Freestyle dispenser is the first in a family of new dispensers
that uses micro-dosing technology to offer more than 100 sparkling and
still beverage brands from a single freestanding unit. The new unit has
approximately the same footprint as today’s six-or eight-valve dispensers.
Q. How does the Coca-Cola Freestyle dispenser work?
A. It creates branded beverages by creating a precise recipe of concentrated
ingredients with water and sweetener. The proprietary micro-dosing nozzle
blends the beverage at the point where it is dispensed.
Q. What is the drink quality of the Coca-Cola Freestyle dispenser?
A. Because the beverage components are stored separately until the moment
of dispensing, each drink poured is fresh tasting and aromatic. The micro-dosing
and nozzle technologies enable the Coca-Cola Freestyle dispenser to recreate
specific brand formulas, so the consumer essentially receives a drink that is
made to order.
Q. How is the Coca-Cola Freestyle dispenser different from today’s
fountain dispenser?
A. It does not use syrup. Rather, the Coca-Cola Freestyle dispenser mixes
concentrated flavors with sweetener and water at the nozzle to make
beverages. Ingredients are stored in the dispenser cabinet itself.
Q. What is micro-dosing?
A. Micro-dosing is a technology used to pump and meter fluids with a high
degree of accuracy. It is commonly used in medical applications.
Q. How was the Coca-Cola Freestyle dispenser designed?
A. The equipment was thoughtfully designed from the inside out, taking into
consideration the interaction experiences of the consumer, customer and
technician. The goal was to communicate the heritage of the Company as
the original fountain beverage company, while also exceeding consumer
expectations in an increasingly digital world.
QUESTIONS CREW MEMBERS MAY HAVE
Q. Can I put a Coke cartridge in another slot if I am out of the other flavor?
A. No. Each slot is dedicated to a particular drink ingredient, flavor or
sweetener. If you do place the incorrect cartridge in a slot, the RFID reader
will not recognize the cartridge. This ensures there is no cross-contamination
in the tubing, and protects consumers who may have an allergy to a
particular ingredient.
Q. I need to order cartridges. What is the ordering process?
A. Cartridges can be ordered quickly and easily on the Coca-Cola SmartTM
website, which is: http://cokesmart.coke.com.
You will need to register for an account before you can login and place your
first order. The registration process is described in the Coca-Cola Smart Start
guide that was sent to you prior to installation.
QUESTIONS CONSUMERS MAY HAVE
Q. How many Coca-Cola brands and flavor options are available on the
Coca-Cola Freestyle dispenser?
A. 100+ sparkling and still brands can be served from the Coca-Cola Freestyle
dispenser. Freestyle offers a wide range of categories, including diet and light
sparkling beverages, flavored waters, sports drinks, lemonades, and the
complete Coca-Cola trademark family - Coca-Cola, Diet Coke, Coke Zero and
Caffeine Free Diet Coke.
Q. Are all of these brands available in supermarkets or other retail locations?
A. Many of these offerings are available at retail, but some have been
created for this new dispenser only. If you are curious about which brands
are available at retail, send us an e-mail at
https://secure.thecocacolacompany.com/ssldocs/mail/eQuery_other.shtml.
Q. What if I want something I don't see here?
A. You can provide feedback to The Coca-Cola Company by going to
www.CokeFeedback.com.
Regulatory Compliance:
FCC Class A Warning
RADIO AND TELEVISION INTERFERENCE
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This device has been designed to operate with only the antenna listed below, and having a maximum gain of -3 dB. Antennas not included in this list or having a gain greater than
-3 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
0008-273-elc-2m-31047-060 Easy Access Antenna
* In order to maintain compliance with FCC regulations shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely
to result in interference to radio & television reception.
* To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that permitted for successful communication.
Changes and Modifications not expressly approved by The Coca-Cola Company can void your authority to operate this equipment under Federal Communications Commissions rules.
