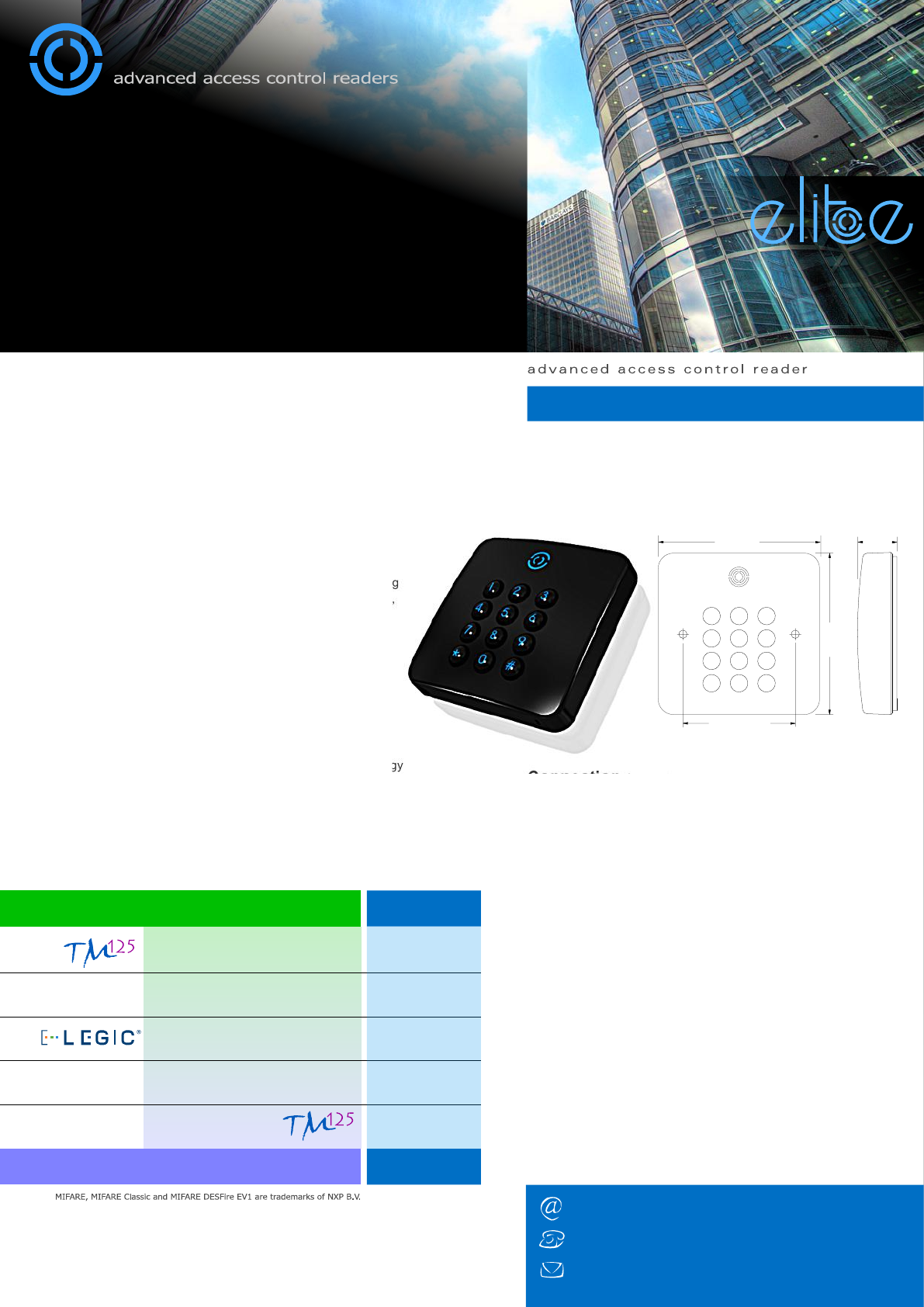

Third Millennium Systems RX60 RX160 RFID Contactless Proximity Reader User Manual User guide 1
Third Millennium Systems Ltd. RX160 RFID Contactless Proximity Reader User guide 1
Contents
User guide 1
Third Millennium Systems Ltd
18 / 19 Torfaen Business Centre
Panteg Way, New Inn
PONTYPOOL NP4 0LS
United Kingdom
Product Features
The ELITE series RX1K advanced access control reader features an
integral keypad and is designed for surface mounting directly to most
plain wall finishes and also fits onto a UK or EU electrical backbox.
This powerfully secure and innovative reader has a beautifully clean
aesthetic and features an RGB LED that can be applied to many
applications, e.g. colour coded access levels, migration status or
mood lighting.
The unit is moulded using tough polycarbonate/ABS plastic and
includes a shadow line backplate, a subtle design feature that makes
the reader appear to float on the wall.
100-02110-G
Standard Part
Numbers
technologies available with this reader
available in gloss BLACK or WHITE
RX1K80
RX1K60
RX1K90
RX1K90 Plus
RX1K00
MIFARE® Classic
MIFARE® DESFire® EV1
MIFARE® DESFire® EV1
Advant / Prime
Prox Compatible
+
Specification
© 2014 Third Millennium Systems Ltd
registered in England & Wales No. 3199053
www.tm-readers.com
+44 (0) 1495 751 992
info@tm-readers.com
third millennium
•UK design and manufacture
•High gloss finish in BLACK or WHITE
•Slim profile
•RGB LED
•Fully encapsulated electronics
•Wide range of output formats
•5 year limited warranty
•Read range up to 10cm (4 inches)
Connection (screw terminal)
1 - +Vdc Supply voltage (+5Vdc to +16Vdc)
2 - DATA1 / CLK Wiegand or Clock/Data output
3 - DATA0 / DAT Wiegand or Clock/Data output
4 - GREEN Green LED control input
5 - RED Red LED control input
6 - BUZZER Buzzer control input
7 - TMPR / CP Tamper or Card Present output
8 - 0V Supply voltage ground
9 - TTL TX TTL transmit line
10 - TTL RX TTL receive line
Mechanical
Dimensions: 87mm x 87mm x 21mm (3.4 x 3.4 x 0.8 inches)
Housing: Moulded polycarbonate/ABS
Mounting: Wall surface
Environmental
Operating Temperature: -20°C to +60°C
Humidity: 0 - 100% RHNC
Ingress Protection: IP65
Electrical
Voltage: +5Vdc to +16Vdc
Current: 250mA typical
Data Voltage: Rest >4Vdc / Active <1Vdc
Data Output: Wiegand, Clock & Data, Custom Outputs
Indication: 1 RGB LED + (RGB illuminated keypad)
Sounder: Integral speaker
Interfacing
The reader supports a wide variety of output formats allowing
it to be used in most access control and related applications,
e.g. time and attendance, cashless vending etc.
The combination of an integral speaker, an RGB LED, three
control inputs and a variety of LED/buzzer/external control
options provide a flexible platform to give the right user
interface configuration for your project.
Quality Design
Third Millennium has nearly 20 years of award-winning
experience in the design and manufacture of RFID technology
and the delivery of world class, state-of-the-art access control
projects with our many global partners.
RX1K
87mm
3.4 inches
21mm
0.8 inch
87mm
3.4 inches
60.3mm UK/EU
2.37 inches
