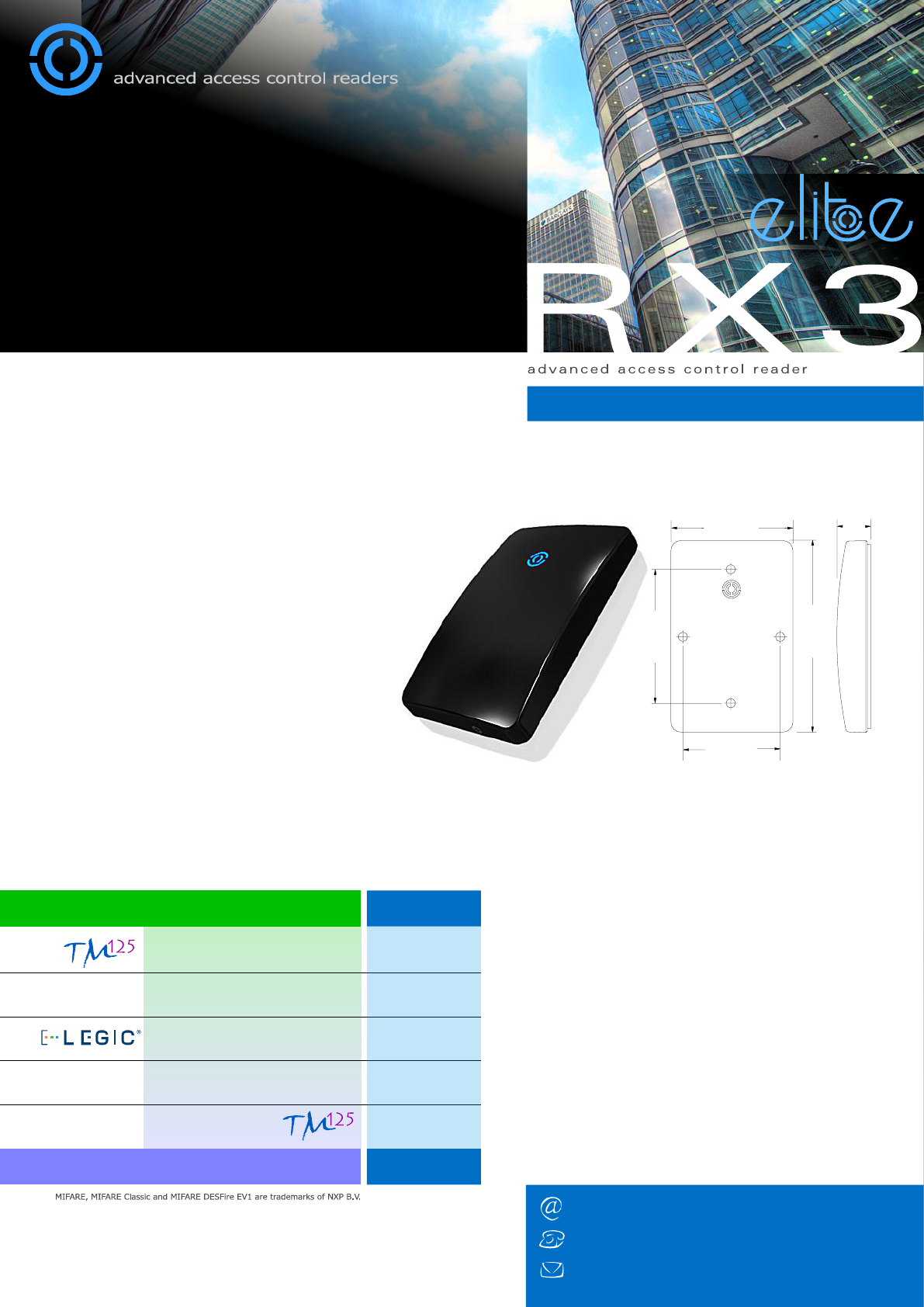

Product Features
The ELITE series RX3 advanced access control reader is
designed for surface mounting directly to most plain wall finishes,
and also fits onto a US, UK or EU electrical backbox.
This powerfully secure and innovative reader has a beautifully
clean aesthetic and features an RGB LED that can be applied to
many applications, e.g. colour coded access levels, migration
status or mood lighting.
The unit is moulded using tough polycarbonate/ABS plastic and
includes a shadow line backplate, a subtle design feature that
makes the reader appear to float on the wall.
100-02154-F
Standard Part
Numbers
technologies available with this reader
available in gloss BLACK or WHITE
RX380
RX360
RX390
RX390 Plus
RX300
MIFARE® Classic
MIFARE® DESFire® EV1
MIFARE® DESFire® EV1
Advant / Prime
Prox Compatible
+
Specification
© 2014 Third Millennium Systems Ltd
registered in England & Wales No. 3199053
www.tm-readers.com
+44 (0) 1495 751 992
info@tm-readers.com
third millennium
•UK design and manufacture
•High gloss finish in BLACK or WHITE
•Slim profile
•RGB LED
•Fully encapsulated electronics
•Wide range of output formats
•5 year limited warranty
•Read range up to 10cm (4 inches)
Connection (screw terminal)
1 - +Vdc Supply voltage (+5Vdc to +16Vdc)
2 - DATA1 / CLK Wiegand or Clock/Data output
3 - DATA0 / DAT Wiegand or Clock/Data output
4 - GREEN Green LED control input
5 - RED Red LED control input
6 - BUZZER Buzzer control input
7 - TMPR / CP Tamper or Card Present output
8 - 0V Supply voltage ground
9 - TTL TX TTL transmit line
10 - TTL RX TTL receive line
Mechanical
Dimensions: 120mm x 76mm x 21mm (4.2 x 3.0 x 0.8 inches)
Housing: Moulded polycarbonate/ABS
Mounting: Wall surface
Environmental
Operating Temperature: -20°C to +60°C
Humidity: 0 - 100% RHNC
Ingress Protection: IP65
Electrical
Voltage: +5Vdc to +16Vdc
Current: 250mA typical
Data Voltage: Rest >4Vdc / Active <1Vdc
Data Output: Wiegand, Clock & Data, Custom Outputs
Indication: 1 RGB LED
Sounder: Integral speaker
Interfacing
The reader supports a wide variety of output formats allowing
it to be used in most access control and related applications,
e.g. time and attendance, cashless vending etc.
The combination of an integral speaker, an RGB LED, three
control inputs and a variety of LED/buzzer/external control
options provide a flexible platform to give the right user
interface configuration for your project.
Quality Design
Third Millennium has nearly 20 years of award-winning
experience in the design and manufacture of RFID technology
and the delivery of world class, state-of-the-art access control
projects with our many global partners.
120mm
4.7 inches
21mm
0.8 inch
76mm
3.0 inches
83.3mm
3.3 inches
60.3mm UK/EU
2.4 inches
