SAILOR 6280/6281 AIS System
Installation manual
SAILOR 6280/6281 AIS System
Installation manual
Document number: 98-137573-A
Release date: June 28, 2013
ii 98-137573-A
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this product and the
accompanying documentation is disclaimed by Thrane & Thrane. The information in this manual is
provided for information purposes only, is subject to change without notice and may contain errors or
inaccuracies. Manuals issued by Thrane & Thrane are periodically revised and updated. Anyone relying on
this information should acquire the most current version e.g. from cobham.com/satcom or from the
distributor. Thrane & Thrane is not responsible for the content or accuracy of any translations or
reproductions, in whole or in part, of this manual from any other source.
Thrane & Thrane A/S trading as Cobham SATCOM.
Copyright
© 2013 Thrane & Thrane A/S. All rights reserved.
Trademark acknowledgements
•SAILOR is a registered trademark of Thrane & Thrane A/S in the European Union, the United States of
America and other countries.
• Other product and company names mentioned in this manual may be trademarks or trade names of
their respective owners.
• This product contains Android™ software (a Google Inc. trademark).
GPL notification
The software included in this product contains copyrighted software that is licensed under the GPL/LGPL.
The verbatim licenses can be found online at:
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
You may obtain the complete corresponding source code from us for a period of three years after our last
shipment of this product, which will be no earlier than 2021, by sending a money order or check for DKK
50 to:
SW Technology/GPL Compliance,
Thrane & Thrane A/S,
Lundtoftegaardsvej 93D
2800 Lyngby
DENMARK
Please write "source for product SAILOR 6282 AIS Transponder" in the memo line of your payment. This
offer is valid to anyone in receipt of this information.
![](/img.php?id=2082849&img=bg5.png)
98-137573-A iii
Safety summary
Observe the following general safety precautions during all phases of operation, service and repair of this
equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual
violates safety standards of design, manufacture and intended use of the equipment. Cobham SATCOM
assumes no liability for the customer's failure to comply with these requirements.
Ground the equipment
To minimise shock hazard, connect the SAILOR 6282 AIS Transponder to an electrical ground and follow
the cable instructions.
RF exposure hazards and instructions
The SAILOR unit generates electromagnetic RF energy when transmitting. To ensure that you and those
around you are not exposed to excessive amounts of energy and to avoid health hazards from excessive
exposure to RF energy, all persons must be at least 1 ft (0.25 m) away from the antenna when the unit is
transmitting.
Warranty limitation
IMPORTANT - The SAILOR 6285 GPS Antenna – Active is a sealed waterproof unit (classified IPx6 &
IPx8). To create and maintain its waterproof integrity it was assembled in a controlled environment using
special equipment. The SAILOR 6282 AIS Transponder is not a user maintainable unit, and under no
circumstances should the unit be opened except by authorized personnel. Unauthorized opening of the
unit will invalidate the warranty.
Installation and service
Installation and general service must be done by skilled service personnel.
Compass safe distance
Compass safe distance: 55 cm (standard magnetic compass), 45 cm (Emergency magnetic compass)
from the SAILOR 6282 AIS Transponder.
iv 98-137573-A
Preface
Approvals
The SAILOR 6282 AIS Transponder fulfills the requirements of the Marine Equipment Directive 96/98/EC
with 8th amend 2012/32/EU and is intended for use in maritime environment.
The SAILOR 6282 AIS Transponder is approved to MED 2011/75/EU and fulfills the requirements in the
standards: IEC 61993-2 (2012), IEC 60945 ed.4 (2002), ITU-R M.1371-4, IEC 61162-1 (2010),
IEC61162-2 (1999), IEC61162-450 (2011).
The SAILOR 6282 AIS Transponder is approved to FCC CFR47 part 80 with USCG approval no.
165.155/EC0168/BABT/MED000046/EC0575.
The SAILOR 6282 AIS Transponder is approved to IC and fulfills the requirements in RSS-182.
The approvals of the SAILOR 6282 AIS Transponder are constantly monitored. New national approvals
will be applied for and granted and new test standards may come into force. Therefore the above list may
not be complete. Contact your authorized dealer for more information.
98-137573-A v
Training information
The SAILOR 6282 AIS Transponder is designed for occupational use only and is also classified as such. It
must only be used in the course of employment by individuals aware of the hazards as well as the way to
minimize those hazards.
The unit is thus NOT intended for use in an uncontrolled environment by general public. The SAILOR
6282 AIS Transponder has been tested and complies with the FCC RF exposure limits for Occupational
Use Only. The unit also complies with the following guidelines and standards regarding RF energy and
electromagnetic energy levels including the recommended levels for human exposure:
• FCC OET Bulletin 65 Supplement C, evaluating compliance with FCC guidelines for human exposure to
radio frequency electromagnetic fields.
• American National Standards Institute (C95.1) IEEE standard for safety levels with respect to human
exposure to radio frequency electromagnetic fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3) IEEE recommended practice for the measurement of
potentially hazardous electromagnetic fields - RF and microwaves.
Below is a description of the RF exposure hazards and instructions in safe operation of the unit within the
FCC RF exposure limits established for it.
Warning
Your SAILOR unit generates electromagnetic RF (radio frequency) energy when it is transmitting. To
ensure that you and those around you are not exposed to excessive amounts of that energy (beyond FCC
allowable limits for occupational use) and thus to avoid health hazards from excessive exposure to RF
energy, FCC OET bulletin 65 establishes a Maximum Permissible Exposure (MPE) radius of 1 ft. (0.25 m)
for the maximum power of your unit (12.5 W selected) with a half wave omni-directional antenna having
a maximum gain of 3 dB (5.2 dBi). This means all persons must be at least 1 ft. (0.25 m) away from the
antenna when the unit is transmitting.
Alerte de Sécurité
Dangers liés á l'exposition aux fréquences radio et instructions. Conformément á la réglementation
d'industrie Canada, le present radio emetteur ne peut fonctionner qu'avec une antenne de type
omnidirectionelle, demi-onde ou d'un gain maximale de 3 dB, approuvée par Industrie Canada. Pour
éviter les risques pour la santé dûs á une exposition excessive aux champs de fréquences radio, une
distance minimale de 25 cm est nécessaire entre l'utilisateur et le radio-émetteur.
Installation
The SAILOR 6282 AIS Transponder is designed for installation by a skilled service person.

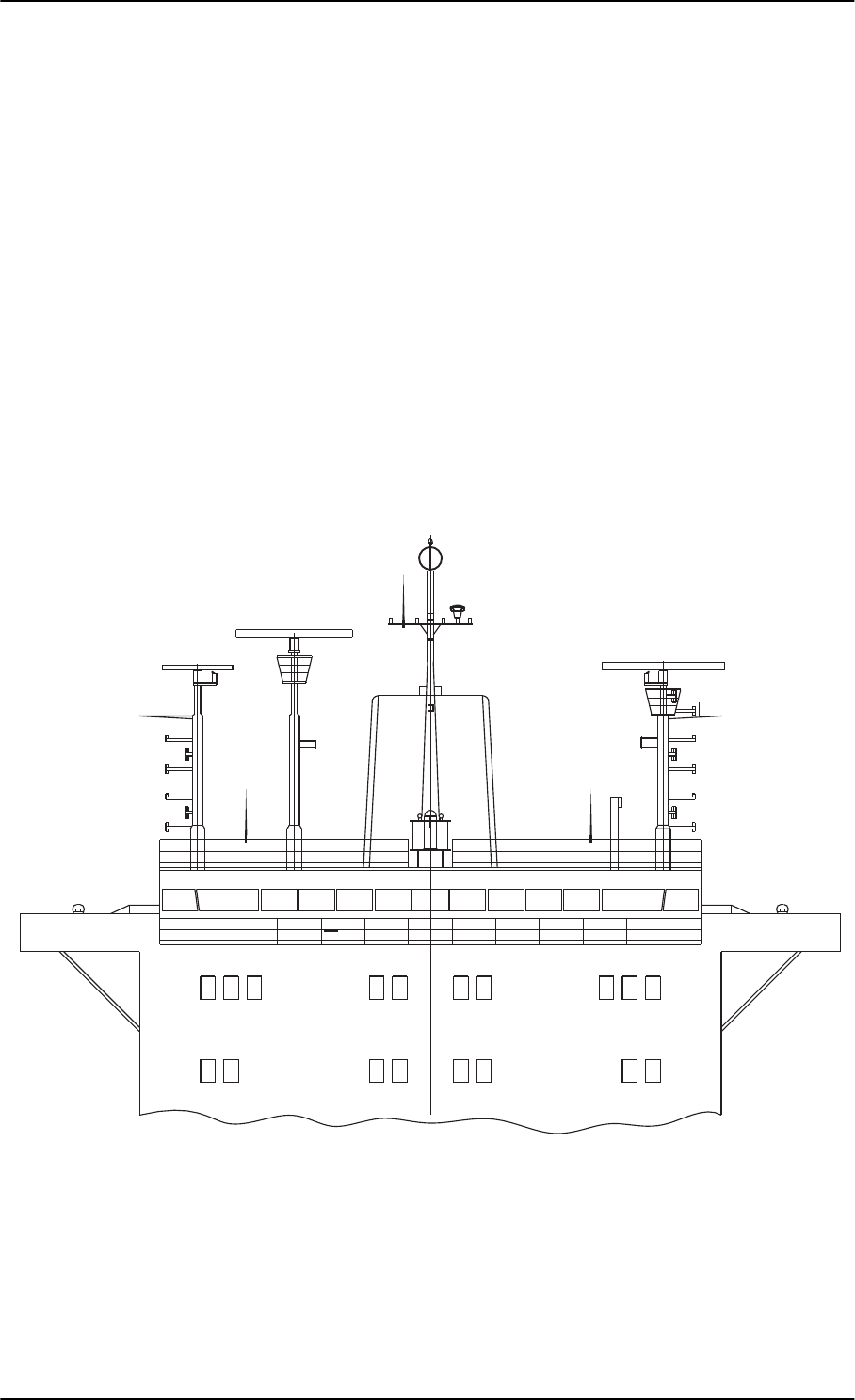

1. An omni-directional antenna with a maximum power gain of 5.2 dBi must be mounted at least 7.6 ft.
(2.25 m) above the highest deck where people may be staying during radio transmissions. The
distance is to be measured vertically from the lowest point of the antenna. This provides the minimum
separation distance which is in compliance with RF exposure requirements and is based on the MPE
radius of 1 ft. (0.25 m) plus the 6.6 ft. (2 m) height of an adult.
2. On vessels that cannot fulfill requirements in item 1, the antenna must be mounted so that its lowest
point is at least 1 ft. (0.25 m) vertically above the heads of people on deck and all persons must be
outside the 1 ft. (0.25 m) MPE radius during radio transmission.
• Always mount the antenna at least 1ft (0.25 m) from possible human access.
![](/img.php?id=2082849&img=bg8.png)
vi 98-137573-A
• Never touch the antenna when transmitting
• Use only authorized SAILOR accessories.
3. If the antenna has to be placed in public areas or near people with no awareness of the radio
transmission, the antenna must be placed at a distance not less than 6 ft. (1.8 m) from possible human
access.
Failure to observe any of these warnings may cause you or other people to exceed FCC RF exposure
limits or create other dangerous conditions.
Record of Revisions
Rev. Description Release Date Initials
A Original document 28 June 2013 UFO
![](/img.php?id=2082849&img=bg9.png)
98-137573-A vii
Table of contents
Chapter 1 About this manual
1.1 Intended readers ..............................................................................................................1-1
1.2 Manual overview ...............................................................................................................1-1
1.3 Related documentation ...............................................................................................1-1
1.4 Precautions ............................................................................................................................1-2
Chapter 2 Introduction
2.1 Introduction to AIS ........................................................................................................2-1
2.1.1 Overview ..................................................................................................................................2-1
2.1.2 AIS applications and purpose ........................................................................................2-2
2.1.3 AIS classes ..............................................................................................................................2-3
2.2 SAILOR 6280/6281 AIS System ............................................................................2-3

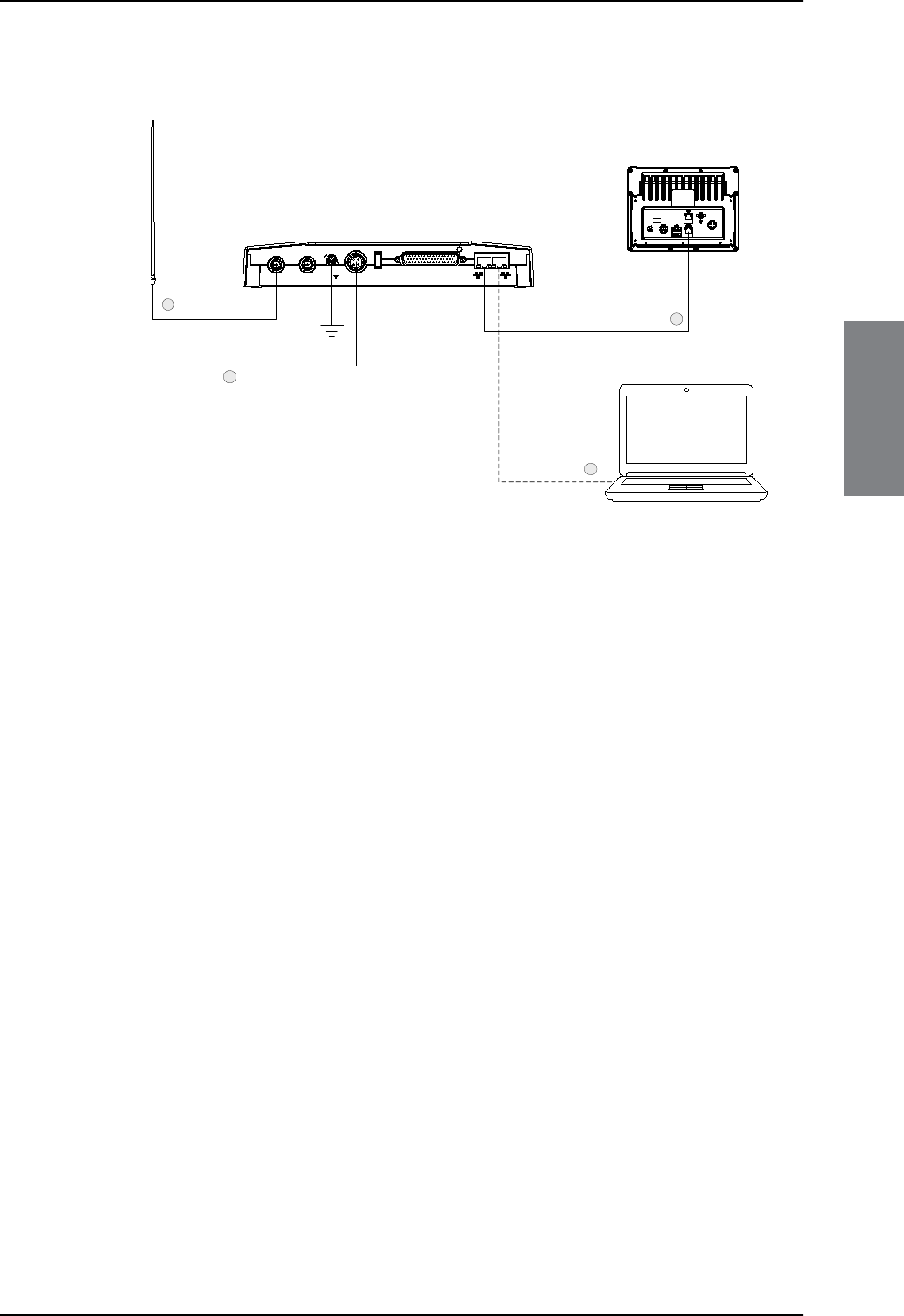

2.2.1 Overview of a SAILOR 6281 AIS Basic System ....................................................2-3
2.2.2 Features ...................................................................................................................................2-4
2.3 System components .......................................................................................................2-5

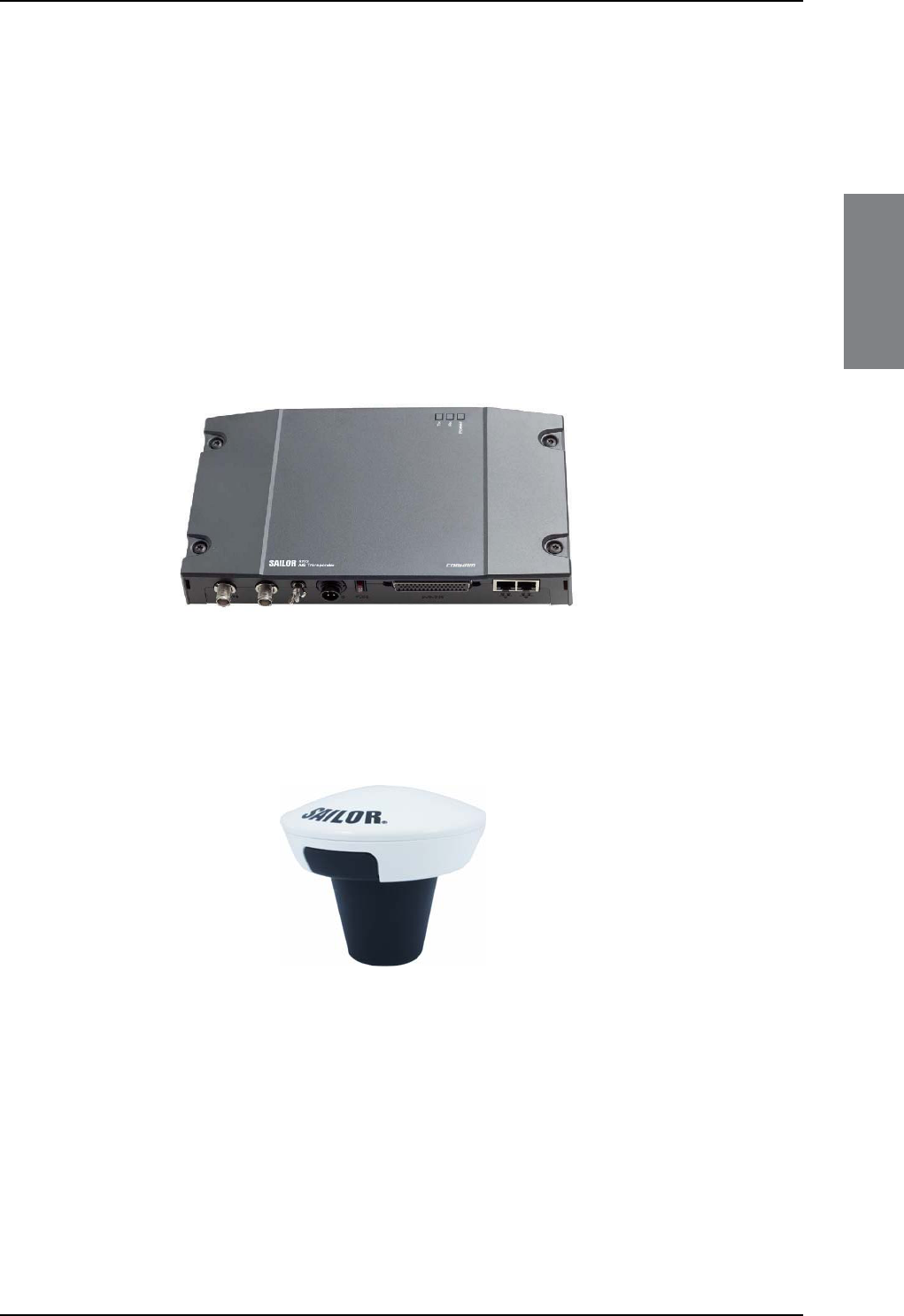

2.3.1 SAILOR 6282 AIS Transponder ....................................................................................2-5
2.3.2 SAILOR 6285 GPS Antenna - Active ..........................................................................2-5
2.3.3 SAILOR 6004 Control panel ...........................................................................................2-6

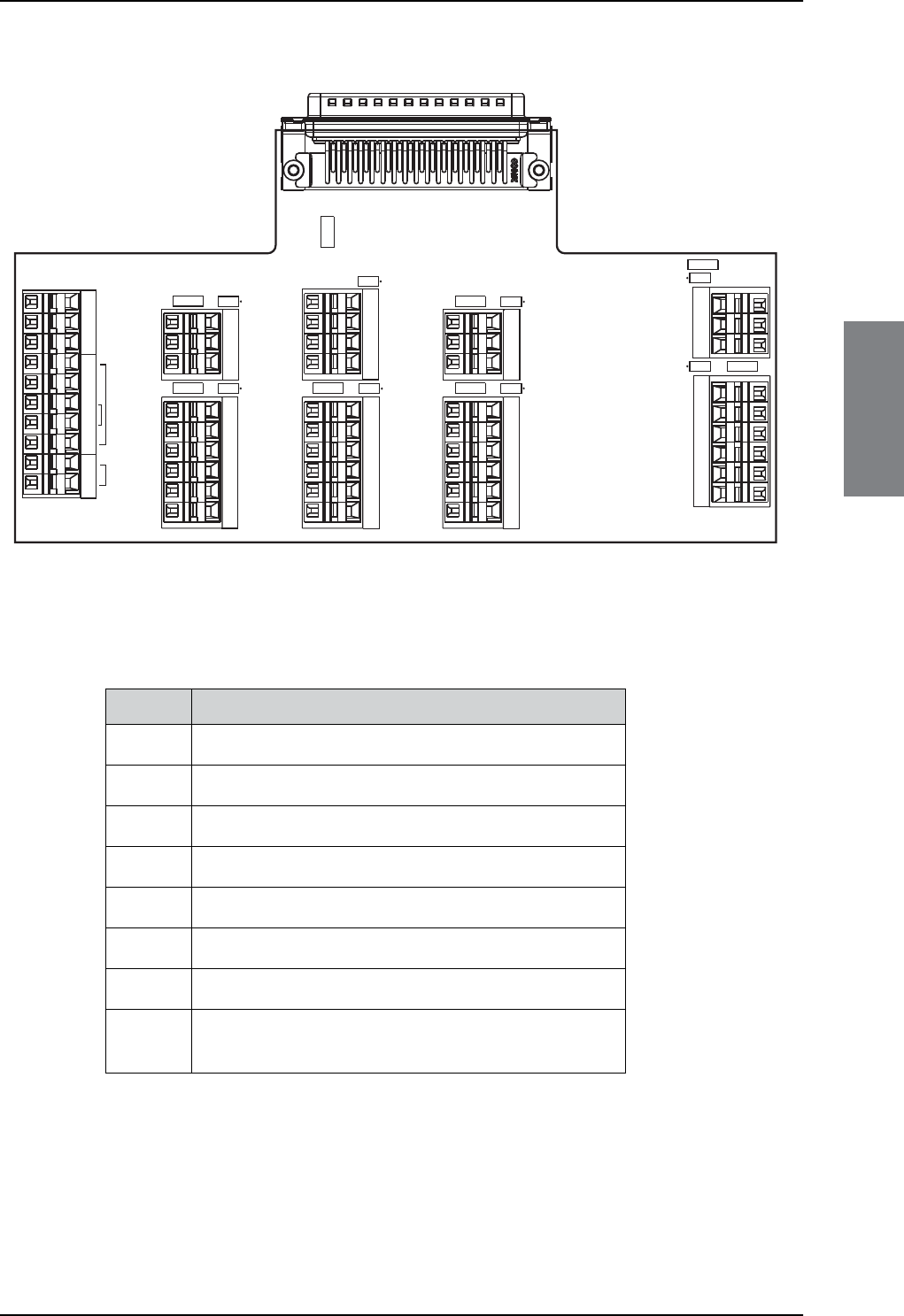

2.3.4 SAILOR 6283 AIS Connection Box and Wall Tray (optional) ........................2-6
2.4 Part numbers and options .........................................................................................2-7
2.4.1 Applicable part numbers ..................................................................................................2-7
2.4.2 Accessories .............................................................................................................................2-7
Chapter 3 Installation
3.1 Unpacking and initial inspection ..........................................................................3-1
3.1.1 Unpacking ...............................................................................................................................3-1
3.1.2 Initial inspection ..................................................................................................................3-1
3.2 VHF and GPS antenna installation ......................................................................3-2
3.2.1 Combined VHF and GPS antenna ................................................................................3-2
3.2.2 Cable requirements ............................................................................................................3-3
3.2.3 VHF RX/TX antenna ............................................................................................................3-4
3.2.4 SAILOR 6285 GPS Antenna - Active ..........................................................................3-5
3.3 Physical installation of the SAILOR 6280 AIS System .......................3-6

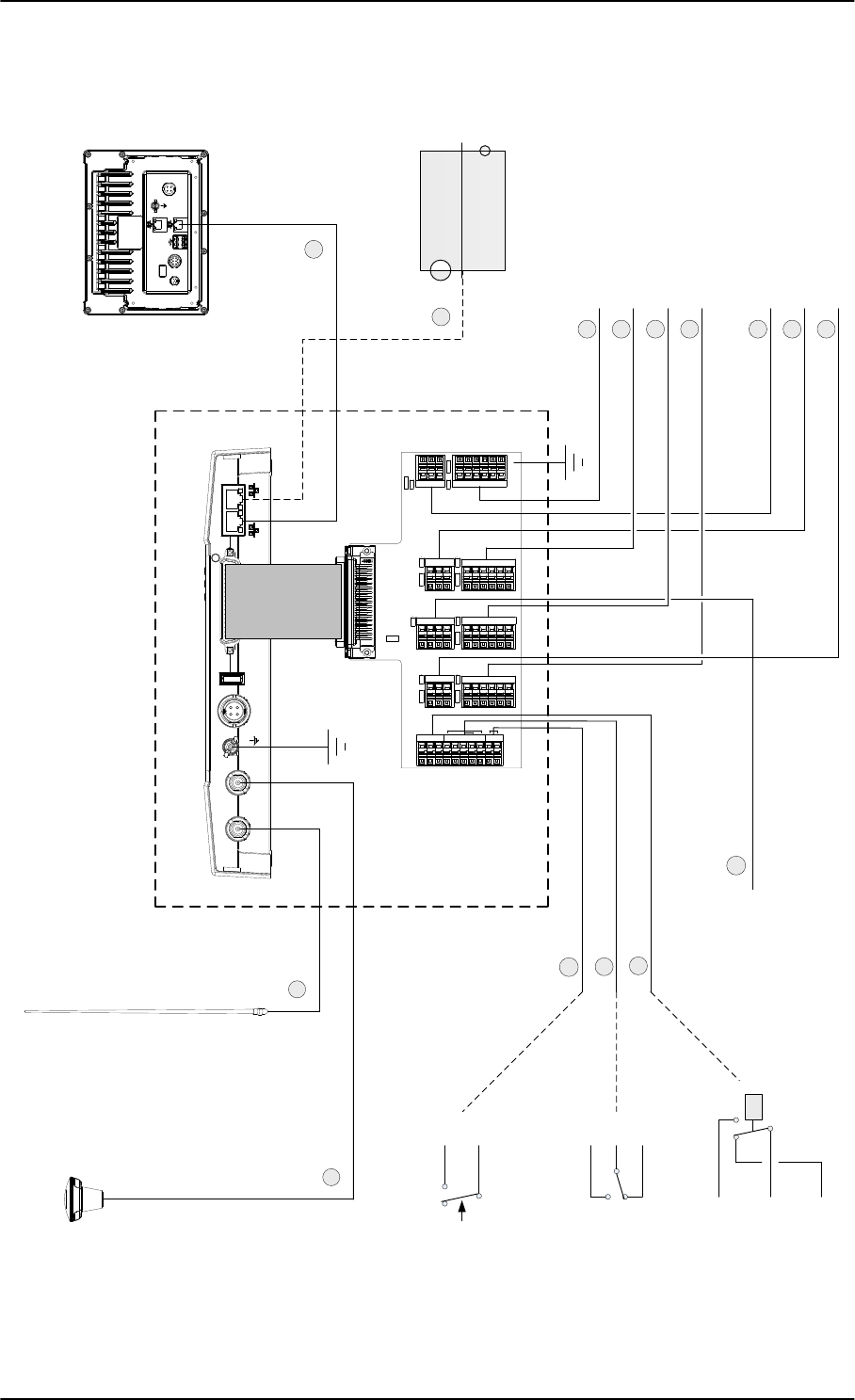

3.3.1 SAILOR 6280 AIS System - wiring ...........................................................................3-10
3.3.2 Cable specifications ........................................................................................................3-11
3.4 Physical installation of the SAILOR 6281 AIS System ....................3-12
3.4.1 SAILOR 6181 AIS Basic System - wiring ...............................................................3-16
![](/img.php?id=2082849&img=bga.png)
Table of contents
viii 98-137573-A
3.5 Physical installation of the SAILOR 6004 Control panel ................3-17
Chapter 4 Interface description
4.1 Power .........................................................................................................................................4-1
4.1.1 Connecting DC power .......................................................................................................4-2
4.2 Sensor input .........................................................................................................................4-3

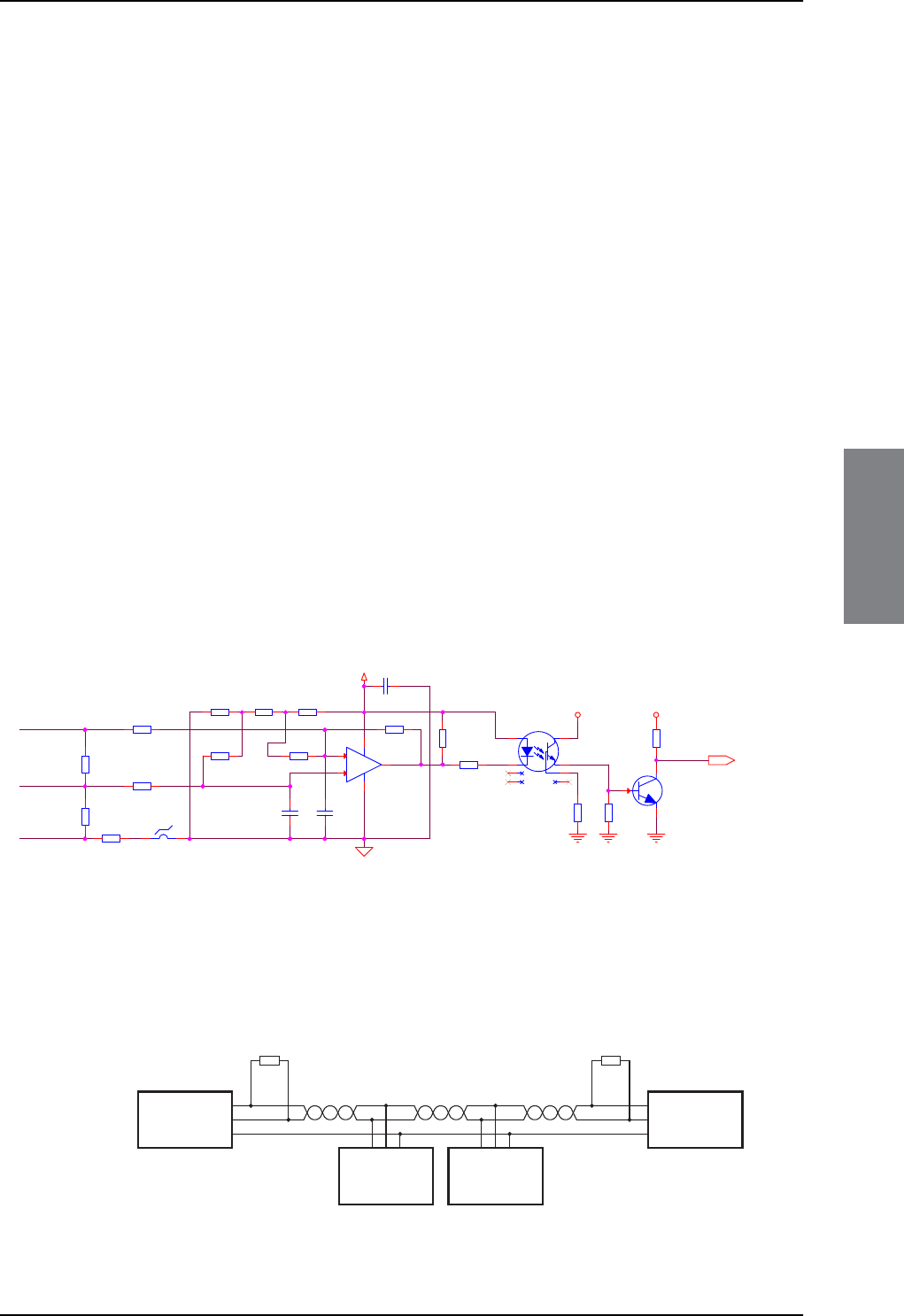

4.2.1 Electrical characteristics ...................................................................................................4-3
4.2.2 Sensor configuration .........................................................................................................4-4
4.2.3 Position (GNS, RMC, DTM, GGA) .................................................................................4-4
4.2.4 Heading (HDT) ......................................................................................................................4-5
4.2.5 Rate of Turn (ROT) ..............................................................................................................4-5
4.2.6 Log (VBW) ...............................................................................................................................4-5
4.3 Presentation Interfaces ..............................................................................................4-6
4.3.1 Overview ..................................................................................................................................4-6
4.3.2 Electrical Characteristics ..................................................................................................4-7
4.3.3 Configuration of the Presentation Interfaces .......................................................4-7
4.3.4 Pilot plug connection ........................................................................................................4-8
4.4 Alarm relay ............................................................................................................................4-9
4.5 Low power forced control (gas alarm) 1 W ..................................................4-9
4.6 Blue sign input .................................................................................................................4-10
4.6.1 Electrical interface ...........................................................................................................4-10
4.6.2 Configuration of Blue sign input ...............................................................................4-11
4.7 Ethernet interfaces ......................................................................................................4-11
4.7.1 Ethernet configuration ..................................................................................................4-11
Chapter 5 Configuration
5.1 Start up .....................................................................................................................................5-1
5.1.1 To Power on and off ..........................................................................................................5-1
5.1.2 Dim and night mode ..........................................................................................................5-1
5.2 AIS app installation and system settings ......................................................5-2
5.2.1 System app .............................................................................................................................5-2
5.2.2 AIS app – daily use .............................................................................................................5-4
5.3 Service Interface ..............................................................................................................5-4
5.3.1 Accessing the Service Interface ...................................................................................5-4

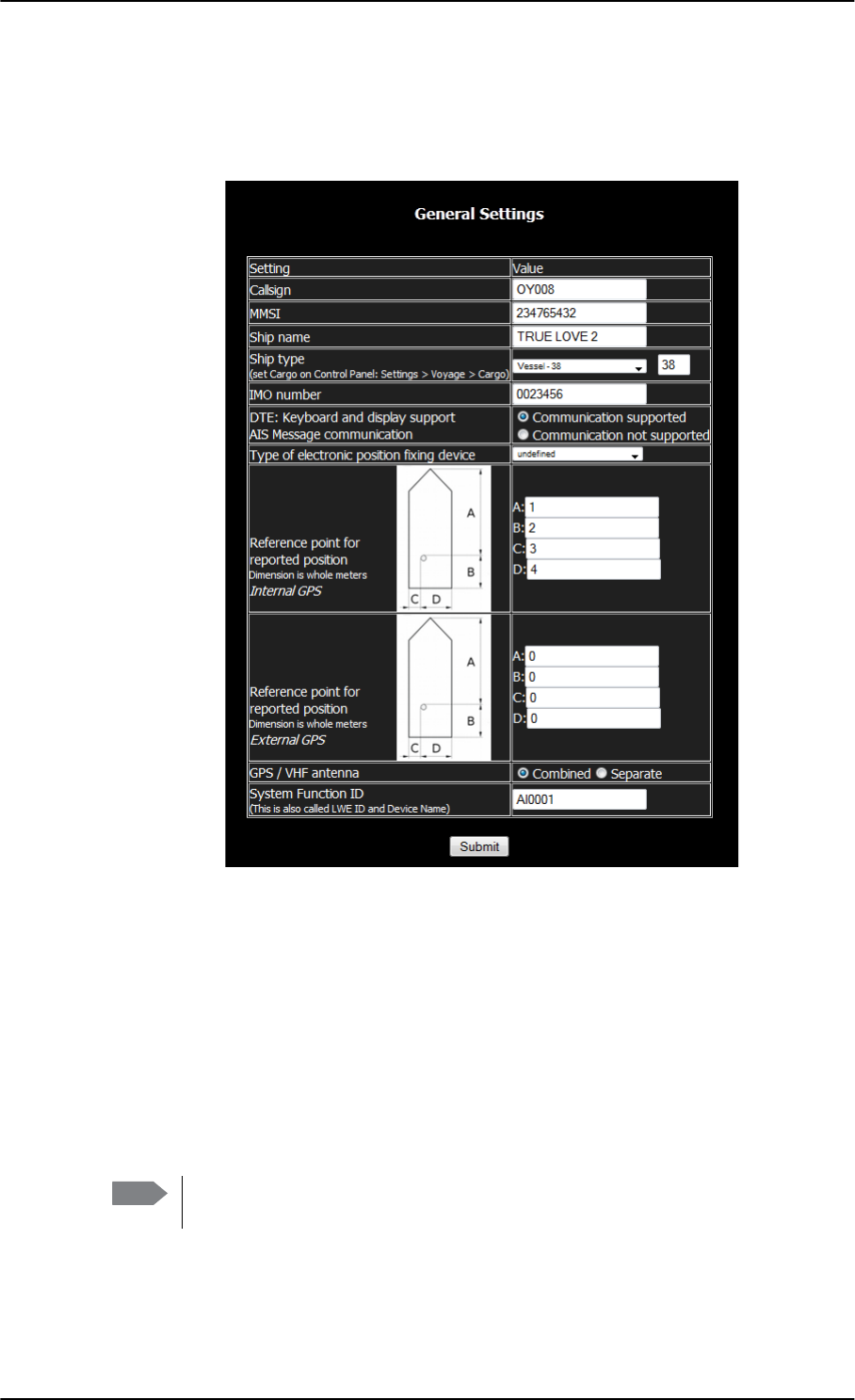

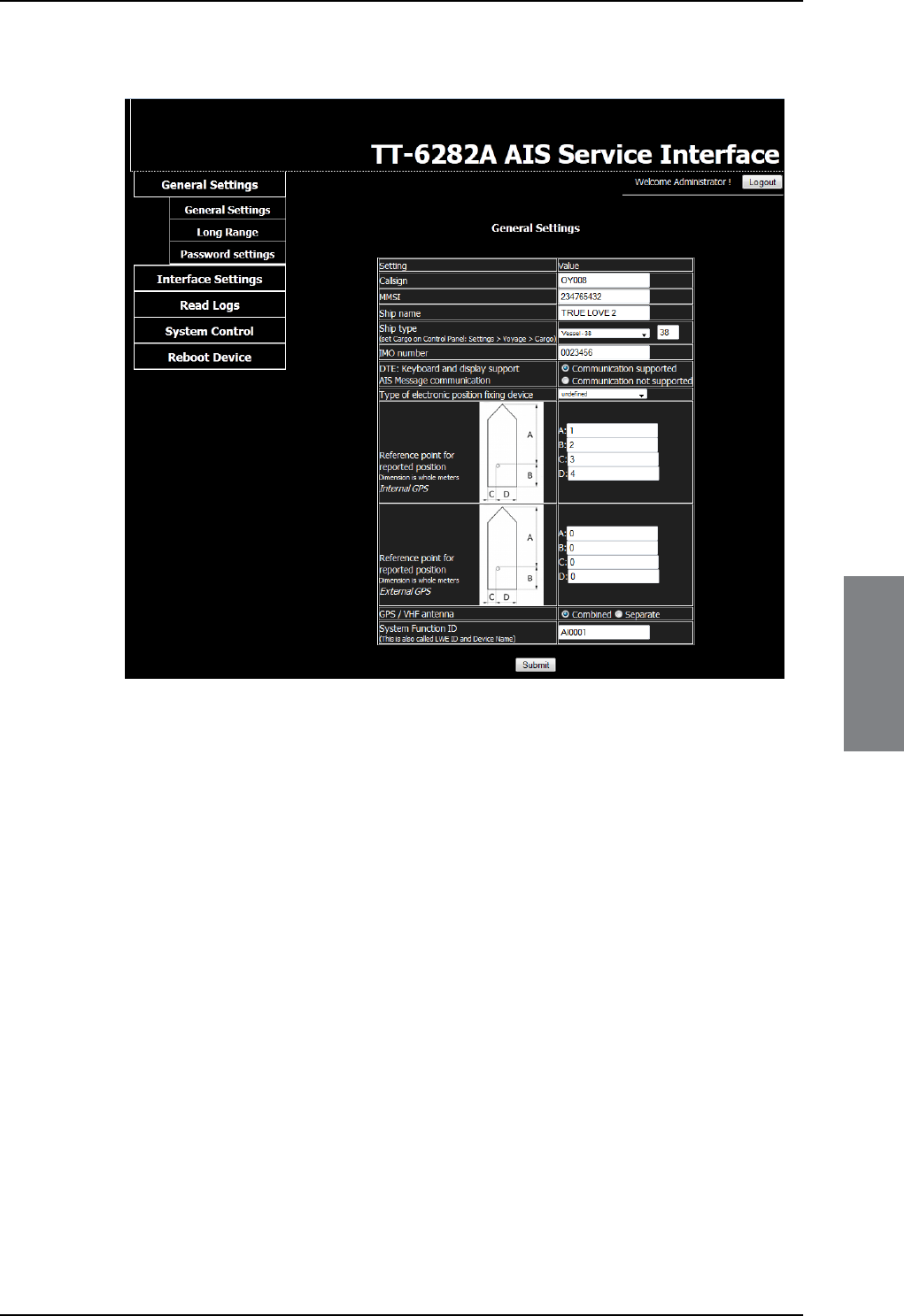

5.3.2 General settings ...................................................................................................................5-8
5.3.3 Long Range ..........................................................................................................................5-10

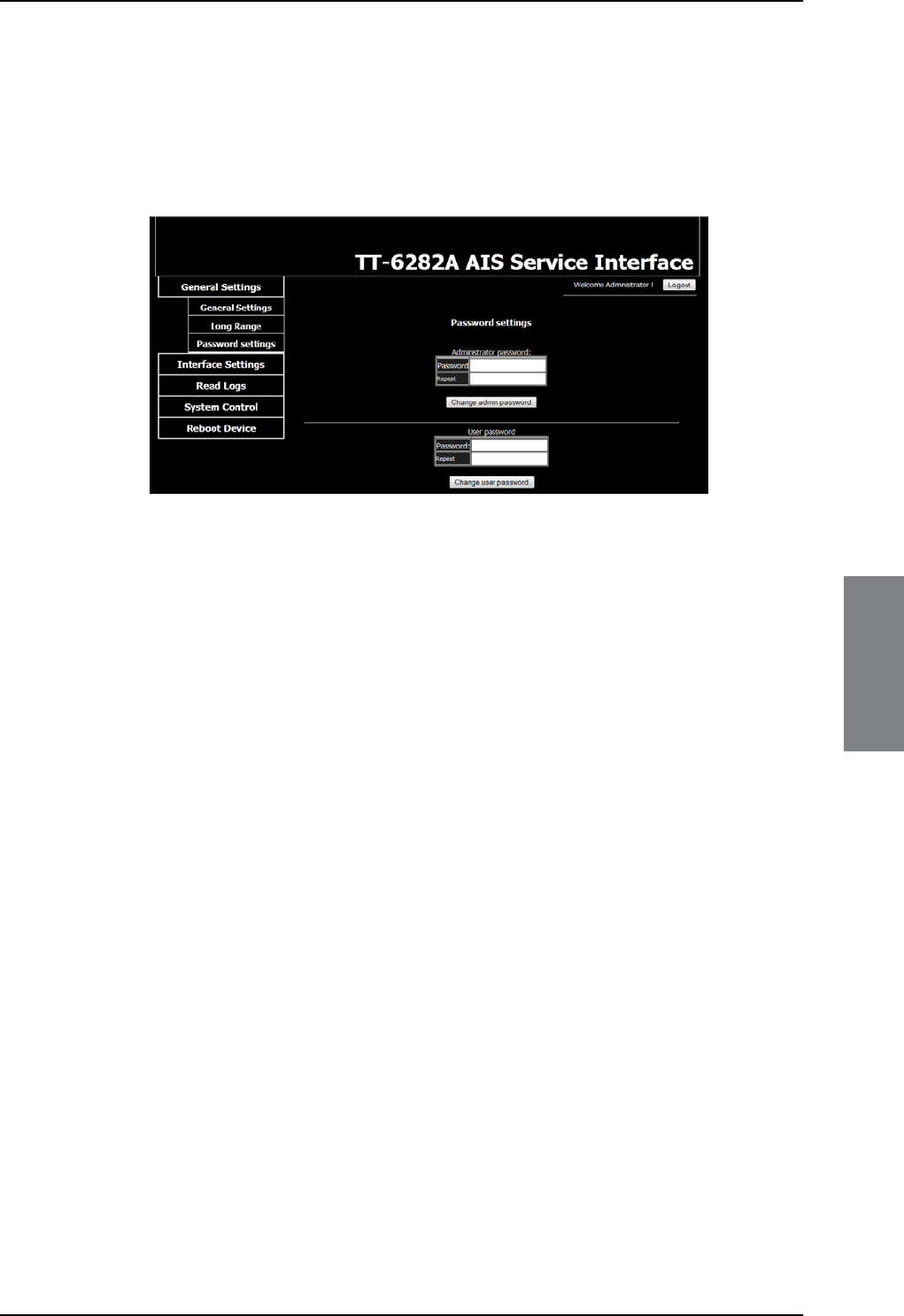

5.3.4 Password settings .............................................................................................................5-11
5.3.5 Interface settings .............................................................................................................5-12
5.3.6 Read logs ..............................................................................................................................5-17
5.3.7 System control ..................................................................................................................5-18
5.3.8 Reboot device ....................................................................................................................5-18
![](/img.php?id=2082849&img=bgb.png)
Table of contents
98-137573-A ix
5.3.9 Connecting a chart plotter ..........................................................................................5-19
5.4 Verification .........................................................................................................................5-20
5.4.1 NMEA Trace tool ..............................................................................................................5-20
Chapter 6 Service & maintenance
6.1 Contact for support ........................................................................................................6-1
6.2 Maintenance .........................................................................................................................6-1
6.2.1 Preventive maintenance ..................................................................................................6-1
6.2.2 Error messages ......................................................................................................................6-1

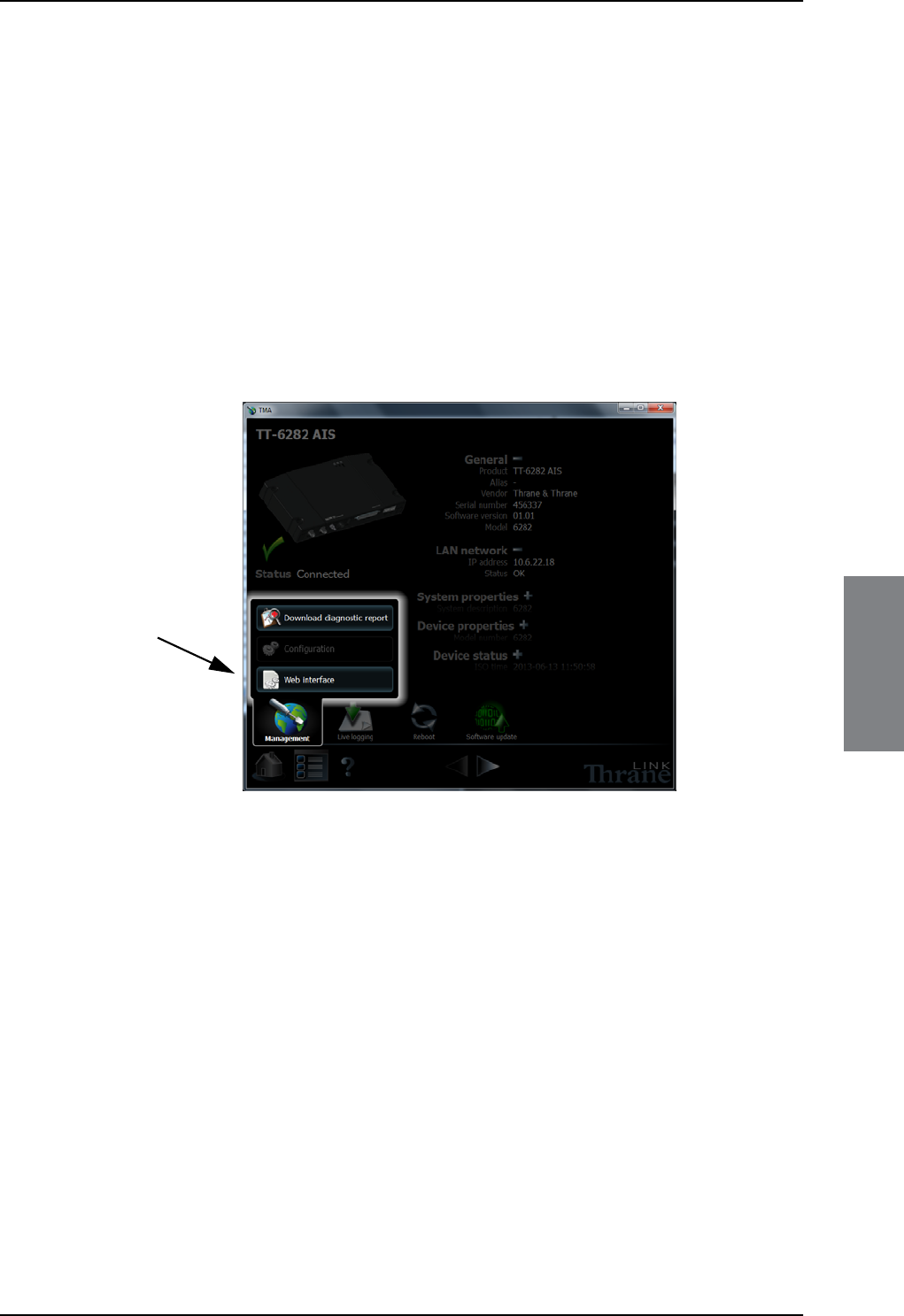

6.2.3 Software update using the TMA (ThraneLINK Management Application) 6-2
6.3 Disassembling ......................................................................................................................6-3
6.3.1 Removing the SAILOR 6282 AIS Transponder from the wall tray ..............6-3
6.4 Alarms and notifications ............................................................................................6-4
6.4.1 Overview ..................................................................................................................................6-4
6.4.2 List of alarms ..........................................................................................................................6-5
6.5 Troubleshooting guide ...............................................................................................6-11
6.5.1 Recovering communication with the SAILOR 6004 Control Panel ..........6-12
6.6 Warranty and returning units for repair ......................................................6-13
6.6.1 Repacking for shipment ................................................................................................6-13
Appendix A Technical specifications
A.1 SAILOR 6282 AIS Transponder ............................................................................ A-1
A.1.1 Reporting Intervals ............................................................................................................ A-2
A.2 SAILOR 6285 GPS Antenna - Active ................................................................. A-3
A.3 SAILOR 6283 AIS Connection Box and Wall Tray ................................. A-4
A.4 SAILOR 6004 Control Panel .................................................................................... A-5
Appendix B NMEA sentences
B.1 NMEA sentences used ..................................................................................................B-1
B.1.1 Light weight Ethernet - LWE ..........................................................................................B-1
B.1.2 Sentence characteristics and their linkage with port configuration ...........B-1
B.2 Sentence use reference ...............................................................................................B-3
B.2.1 ABK - AIS addressed and binary broadcast acknowledgement (output) .B-3
B.2.2 ABM - AIS addressed binary and safety related message (input) ................B-3
B.2.3 ACA - AIS channel assignment message (input / output) ...............................B-4
B.2.4 ACK - Acknowledge alarm (input) ...............................................................................B-4
B.2.5 AIR - AIS interrogation request (input) ....................................................................B-5
B.2.6 ALR - Set alarm state (output) .......................................................................................B-5
B.2.7 BBM - AIS broadcast binary message (input) ........................................................B-5
B.2.8 DTM - Datum reference (input) ...................................................................................B-6
![](/img.php?id=2082849&img=bgc.png)
Table of contents
x 98-137573-A
B.2.9 EPV - Command or report equipment property value (input / response output) B-6
B.2.10 GBS - GNSS satellite fault detection (input) ...........................................................B-6
B.2.11 GGA - Global positioning system (GPS) fix data (input) ...................................B-7
B.2.12 GNS - Fix data (input) ........................................................................................................B-7
B.2.13 HBT - Heartbeat supervision sentence (input) ......................................................B-8
B.2.14 HDT - Heading true (input) .............................................................................................B-8
B.2.15 LR1 - AIS long-range reply sentence 1 (output) ...................................................B-8
B.2.16 LR2 - AIS long-range reply sentence 2 (output) ...................................................B-8
B.2.17 LR3 - AIS long-range reply sentence 3 (output) ...................................................B-9
B.2.18 LRF - AIS long-range function (input / output) .....................................................B-9
B.2.19 LRI - AIS long-range interrogation (input / output) .........................................B-10
B.2.20 NAK - Negative acknowledgement (output) .......................................................B-10
B.2.21 PTHRAOC - AIS operational control (input / output) ......................................B-10
B.2.22 PTHRROS - Radio operational status (output) ....................................................B-11
B.2.23 RMC - Recommended minimum specific GNSS data (input) ......................B-12
B.2.24 ROT - Rate of turn (input) .............................................................................................B-12
B.2.25 SPW - Security password sentence (input) ..........................................................B-12
B.2.26 SSD - AIS ship static data (input / output) ...........................................................B-13
B.2.27 THS -True heading and status (input) ....................................................................B-13
B.2.28 TRL - AIS transmitter non functioning log (output) ........................................B-13
B.2.29 TXT - Text transmission (output) .............................................................................B-14
B.2.30 VBW - Dual ground/water speed (input) ...............................................................B-14
B.2.31 VDM - AIS VHF data-link message (output) ........................................................B-14
B.2.32 VDO - AIS VHF data-link own-vessel report (output) .....................................B-15
B.2.33 VER - Version (output) ...................................................................................................B-15
B.2.34 VSD - AIS voyage static data (input / output) ....................................................B-15
B.2.35 VTG - Course over ground and ground speed (input) ....................................B-16
B.2.36 ZDA - Time and Date (output) ...................................................................................B-16
Appendix C Supported keys
C.1 Keys supported by the SAILOR 6004 Control Panel ............................ C-1
Glossary ..............................................................................................................................................................Glossary-1
Index ................................................................................................................................................................... Index-1
![](/img.php?id=2082849&img=bgd.png)
98-137573-A 1-1
Chapter 1
1111
About this manual
About this manual 1
1.1 Intended readers
This is an installation manual for the SAILOR 6280/6281 AIS System. It is intended for
installers of the system and service personnel. Personnel installing or servicing the system
must be properly trained by Cobham SATCOM. It is important that you observe all safety
requirements listed in the beginning of this manual, and install the system according to the
guidelines in this manual. For daily use see the SAILOR 6282 AIS Transponder User manual.
1.2 Manual overview
This manual has the following chapters and appendices:
•Introduction
•Installation
•Interface description
•Configuration
•Service & maintenance
•Technical specifications
•NMEA sentences
1.3 Related documentation
The following table shows the documents related to this manual and to the SAILOR 6282 AIS
Transponder.
Title and description Document
number
SAILOR 6282 AIS Transponder & SAILOR 6280/6281 AIS System, User manual 98-135323
SAILOR 6004 Control Panel, Installation manual 98-136644
SAILOR 6282 AIS Transponder, Installation guide 98-136017
SAILOR 6283 AIS Connection Box and Wall Tray, Installation guide 98-136018
SAILOR 6285 GPS Antenna - Active, Installation guide 98-136019
Table 1-1: Related documents
![](/img.php?id=2082849&img=bge.png)
Precautions
1-2 Chapter 1: About this manual 98-137573-A
1.4 Precautions
Warnings, Cautions and Notes
Text marked with “Warning”, “Caution”, “Note” or “Important” show the following type of
data:
•Warning: A Warning is an operation or maintenance procedure that, if not obeyed, can
cause injury or death, or jeopardize the safety on board.
•Caution: A Caution is an operation or maintenance procedure that, if not obeyed, can
cause damage to the equipment.
•Note: A Note gives information to help the reader.
•Important: A text marked Important gives information that is important to the user,
e.g. to make the system work properly. This text does not concern damage on
equipment, travel safety nor personal safety.
General precautions
All personnel who operate equipment or do maintenance as specified in this manual must
know and follow the safety precautions. The warnings and cautions that follow apply to all
parts of this manual.
CAUTION! Do not use materials that are not equivalent to materials
specified by Cobham SATCOM. Materials that are not equivalent can cause
damage to the equipment.
CAUTION! The system contains items that are electrostatic discharge
sensitive. Use approved industry precautions to keep the risk of damage to a
minimum when you touch, remove or insert parts or assemblies.
![](/img.php?id=2082849&img=bgf.png)
98-137573-A 2-1
Chapter 2
2222
Introduction
Introduction 2
This chapter has the following sections:
•Introduction to AIS
•SAILOR 6280/6281 AIS System
•System components
•Part numbers and options
2.1 Introduction to AIS
2.1.1 Overview
AIS (Automatic Identification System) is a communication system for the exchange of
navigation data. An AIS station can be a ship station or a shore-side base station. AIS
stations operate without interaction by ship or shore personnel (autonomous and
continuous). AIS has evolved to include devices such as AIS as a navigation aid, AIS on
search and rescue aircraft and AIS search and rescue transmitters (AIS SART).
AIS enables the automatic exchange of shipboard information from the vessel's sensors
(dynamic data), as well as manually entered static and voyage related data, between one
vessel and another and between a vessel and a shore station(s). AIS also provides the
possibility to send short safety related text messaging for ship or shore personnel. AIS
devices are required internationally on most commercial vessels as identified by the
International Maritime Organization (IMO) in the Safety of Life at Sea Convention (SOLAS),
Chapter V. In addition, AIS is often required domestically on other vessels by some
administrations.
Figure 2-1: AIS for exchange of data
![](/img.php?id=2082849&img=bg10.png)
Introduction to AIS
2-2 Chapter 2: Introduction 98-137573-A
2.1.2 AIS applications and purpose
The principal applications of AIS are:
• Information exchange between vessels within VHF range of each other, increasing
situation awareness
• Information exchange between a vessel and a shore station, such as a Vessel Traffic
Service (VTS), to improve traffic management in congested waterways
• Automatic reporting in areas of mandatory and voluntary reporting
• Exchange of safety related information between vessels and between vessels and shore
station(s).
The purpose of AIS is to improve the safety of navigation and protection of the
environment by assisting in the effective navigation of ships and the operation of VTS. This
is achieved through the following:
• In a ship-to-ship mode for collision avoidance
• As a means for littoral states to obtain information about a ship and its cargo
• As a VTS tool, i.e. ship-to-shore, for traffic management
• Increased situational awareness which enables effective response to emergencies such
as search and rescue (SAR) as well as environmental pollution
• Providing data to identify trends or improvements to enhance navigational safety.
If a vessel operating in a mandatory ship reporting system does switch off its AIS, this
should be reported to the relevant authority. Note that some data is entered or updated
manually, meaning that there is potential for false entry and for the entered data to
become out of date. This includes data related to static information (e.g. ship identity,
dimension) and voyage related data (e.g. navigational status).
AIS and radar
A difference between AIS and radar is that AIS uses an absolute referencing system to
determine the position, whereas radar determines the position by relative measurements
from the vessel or shore base to observed targets. AIS may be used together with radar
information to provide:
• Vessel identification, heading, course over ground (COG) and speed over ground (SOG)
• Improved vessel tracking (no target swap)
• Wider geographical coverage
• Greater positional accuracy, dependent on the position input sensor
• Information in radar shadow area ('sees' around bends and behind islands)
• Maneuver data in nearly real time
• No loss of targets in sea, rain and snow clutter
Note Not all ships are required to have AIS. Furthermore, AIS may
be switched off if there is a potential risk that the operation of
AIS might compromise the safety or security of the ship, or if
security incidents are imminent.
![](/img.php?id=2082849&img=bg11.png)
SAILOR 6280/6281 AIS System
98-137573-A Chapter 2: Introduction 2-3
2222
Introduction
2.1.3 AIS classes
AIS is not only used on board ships. It can be grouped by 'class' (shipborne) and function. A
Ship borne AIS device which contributes by most of the flow of AIS information, is
classified as either Class A or B. The AIS Class A stations are ship borne units which meet
IMO performance standards and are required on most commercial ships by the
International Maritime organization (IMO). The SAILOR 6282 AIS Transponder is a Class A
AIS.
2.2 SAILOR 6280/6281 AIS System
The SAILOR 6280 AIS System consists of the following units:
1. SAILOR 6282 AIS Transponder
2. SAILOR 6285 GPS Antenna - Active
3. SAILOR 6004 Control Panel
4. SAILOR 6283 AIS Connection Box and Wall Tray
The SAILOR 6281 AIS Basic System consists of the following units:
1. SAILOR 6282 AIS Transponder
2. SAILOR 6285 GPS Antenna - Active
3. SAILOR 6004 Control Panel
2.2.1 Overview of a SAILOR 6281 AIS Basic System
The following figure shows the system configuration.
Figure 2-2: System configuration for the SAILOR 6281 AIS Basic System
GPS Antenna - Active
SAILOR 6004 Control Panel
VHF Antenna
12-24 VDC
Connector for interface connections
VHF/GPS
GPS
12-24V DC
FUSE
SUB-D50
1
SAILOR 6282 AIS Transponder
or connection board
SAILOR 6285
ACC
AUX
TEST
PWR
![](/img.php?id=2082849&img=bg12.png)
SAILOR 6280/6281 AIS System
2-4 Chapter 2: Introduction 98-137573-A
The SAILOR 6004 Control Panel is connected to the SAILOR 6282 AIS Transponder through
a LAN connection (LWE/IEC 61162-450), here after called LWE. The SAILOR 6281 AIS Basic
System is operated using the touch display of the SAILOR 6004 Control Panel.
2.2.2 Features
• AIS Class A compliant and approved
• Active GPS antenna included
• Interface for ThraneLINK applications and INS available
• Programmable interface for connection to sensors using the NMEA interface versions
2.0, ..., 4.1
• Touch screen on the SAILOR 6004 Control Panel
• Easy installation with the dedicated connection box available (SAILOR 6283 AIS
Connection Box and Wall Tray)
• Easy service - on the unit, through the ThraneLINK Management Application (TMA) or a
web browser
• Built-in self-diagnostic system
• Built-in DC output on GPS antenna connector
• Possibility for a combined VHF and GPS antenna
• Works with both GPS and GLONASS
• Input for Low Power Forced Control, 1W output (gas alarm)
• Support of Class B carrier sense messages
• Function for discarding Class B messages
• Support for Long Range satellite tracking on channel 75 & channel 76
• Interface for pilot plug
![](/img.php?id=2082849&img=bg13.png)
System components
98-137573-A Chapter 2: Introduction 2-5
2222
Introduction
2.3 System components
2.3.1 SAILOR 6282 AIS Transponder
The SAILOR 6282 AIS Transponder is a Class A AIS. It has connectors for GPS and VHF
antenna, a ground stud, connector for DC power (12–24 VDC), multi connector for
interfaces and 2 LAN connectors. The SAILOR 6282 AIS Transponder is always on, provided
there is DC power.
The SAILOR 6282 AIS Transponder supports 3 sensor inputs for e.g. GPS and ROT and 4
presentation interfaces for e.g. ECDIS, Radar, Long Range and Pilot Plug. It also has inputs
for Blue Sign functionality, Low Power Forced Control (gas alarm) and output for alarm. The
SAILOR 6282 AIS Transponder has three LEDs showing the status of Power, Rx and Tx.
2.3.2 SAILOR 6285 GPS Antenna - Active
The SAILOR 6285 GPS Antenna - Active is a robust, sealed and waterproof GPS antenna
(classified IPx6 & IPx8).

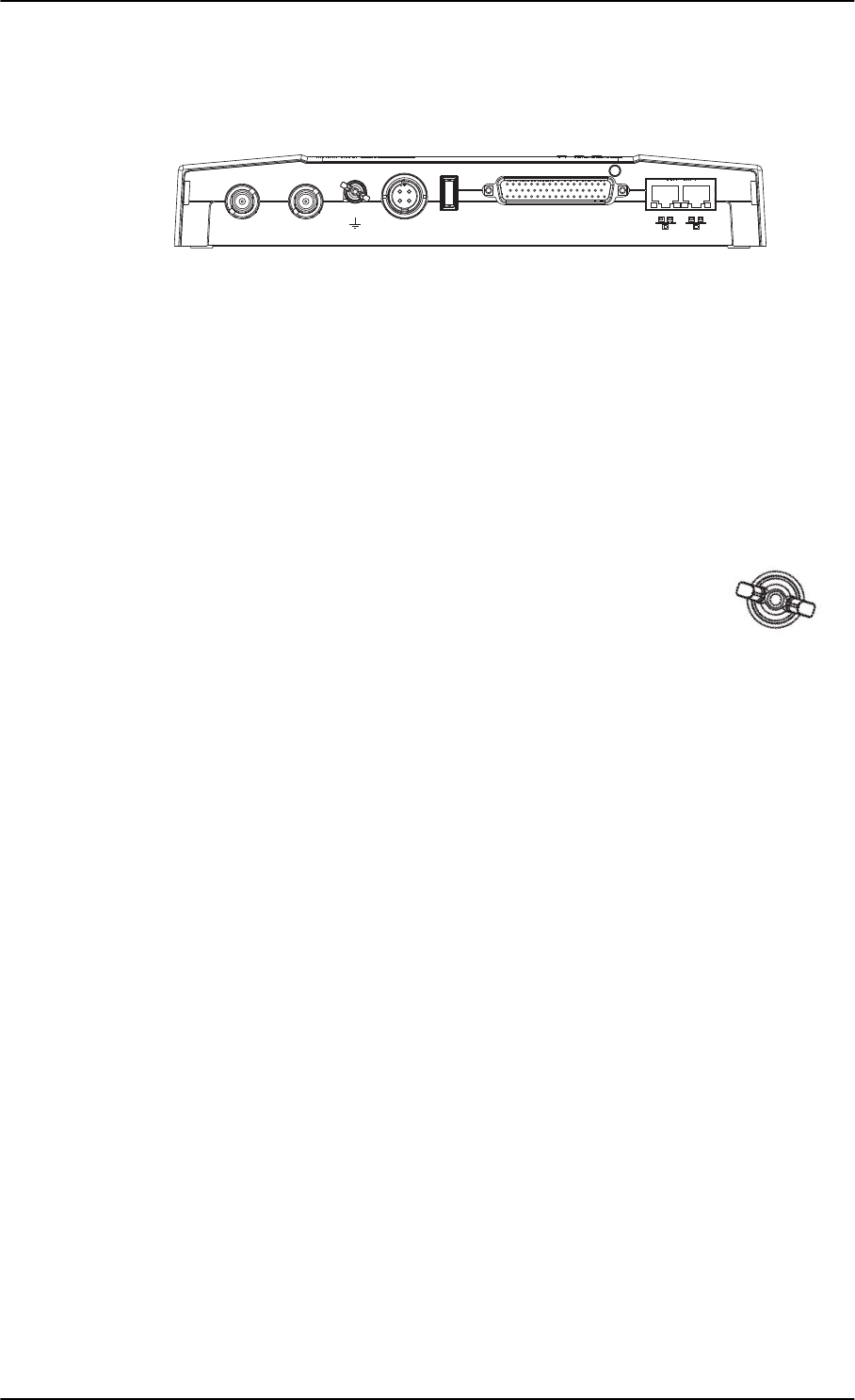

Figure 2-3: SAILOR 6282 AIS Transponder
Figure 2-4: SAILOR 6285 GPS Antenna - Active
![](/img.php?id=2082849&img=bg14.png)
System components
2-6 Chapter 2: Introduction 98-137573-A
2.3.3 SAILOR 6004 Control panel
The SAILOR 6004 Control panel is the user interface for the SAILOR 6282 AIS Transponder.
Through the touch panel you access all settings that can be changed by the user. Alarms
and notifications are shown in the display. The SAILOR 6004 Control panel has a buzzer for
alarm tones. The display supports night mode. The AIS application is loaded into the
SAILOR 6004 Control Panel during installation.
2.3.4 SAILOR 6283 AIS Connection Box and Wall Tray (optional)
The SAILOR 6283 AIS Connection Box and Wall Tray has spring-loaded terminals for easy
connection of all interfaces. See SAILOR 6282 AIS Transponder on page 2-5 for more
information on interfaces.
Figure 2-5: SAILOR 6004 Control panel
Figure 2-6: SAILOR 6283 AIS Connection Box and Wall Tray
![](/img.php?id=2082849&img=bg15.png)
Part numbers and options
98-137573-A Chapter 2: Introduction 2-7
2222
Introduction
2.4 Part numbers and options
2.4.1 Applicable part numbers
This installation manual is for the SAILOR 6282 AIS Transponder system and is applicable
to the model- and part numbers below:
2.4.2 Accessories
The following accessories are included in the delivery:
Part number Description
406282A SAILOR 6282 AIS Transponder
406004A SAILOR 6004 Control Panel
406285A SAILOR 6285 GPS Antenna - Active
406283A SAILOR 6283 AIS Connection Box and Wall Tray
Table 2-1: Part numbers for the SAILOR 6280/6281 AIS System
Part number Description accessories
37-130130 DC Power cable for SAILOR 6282 AIS Transponder and
SAILOR 6004 Control Panel
37-135955 SUB-D50 cable, 1 m
37-207073-000 RJ45 Cat5e STP LAN cable, 5 m
41-135855 GPS Antenna bracket
67-135974 Pilot plug
Table 2-2: Part numbers for accessories
![](/img.php?id=2082849&img=bg16.png)
Part numbers and options
2-8 Chapter 2: Introduction 98-137573-A
![](/img.php?id=2082849&img=bg17.png)
98-137573-A 3-1
Chapter 3
3333
Installation
Installation 3
This chapter has the following sections:
•Unpacking and initial inspection
•VHF and GPS antenna installation
•Physical installation of the SAILOR 6280 AIS System
•Physical installation of the SAILOR 6281 AIS System
•Physical installation of the SAILOR 6004 Control panel
3.1 Unpacking and initial inspection
3.1.1 Unpacking
The following items are included in the delivery of a SAILOR 6282 AIS Transponder:
• SAILOR 6282 AIS Transponder
• SAILOR 6285 GPS Antenna - Active
• GPS antenna bracket
• User manual SAILOR 6282 AIS Transponder & SAILOR 6280/6281 AIS System
• Installation guide SAILOR 6282 AIS Transponder
• Installation guide SAILOR 6285 GPS Antenna - Active
• Power cable, 1 m
• Cable D-SUB, 50 pin, 1 m
• Cable RJ45 Cat5e STP, 5 m
• Fuse puller
• Fuse (7.5 AF)
• Screw M5-40 TORX, black (5 pieces)
• Screw ST4.8x50 TORX (5 pieces)
• Pilot plug
3.1.2 Initial inspection
Inspect the shipping carton immediately upon receipt for evidence of damage during
transport. If the shipping carton is severely damaged or water stained, request that the
carrier's agent be present when opening the carton. Save the carton packing material for
future use.
![](/img.php?id=2082849&img=bg18.png)
VHF and GPS antenna installation
3-2 Chapter 3: Installation 98-137573-A
After unpacking the system, inspect it thoroughly for hidden damage and loose
components or fittings. If the contents are incomplete, if there is mechanical damage or
defect, or if the system does not work properly, notify your dealer.
3.2 VHF and GPS antenna installation
The SAILOR 6282 AIS Transponder must be installed with one antenna for VHF RX/TX
communication and one antenna for GPS communication. You can install all commonly
available 50 Ohm antennas covering the appropriate frequency range and providing a
VSWR less than 1.5 over this range.
For further details on equipment and antenna installation, see IMOCOMSAR/Circ. 32,
GUIDELINES FOR THE HARMONIZATION OF GMDSS REQUIREMENTS FOR RADIO
INSTALLATIONS ON BOARD SOLAS SHIPS.
3.2.1 Combined VHF and GPS antenna
Typically the SAILOR 6282 AIS Transponder is connected to a VHF antenna and a GPS with
two cables. The SAILOR 6282 AIS Transponder can also be connected to a combined VHF
and GPS antenna with only one cable. The combined antenna must be approved to work
with the SAILOR 6282 AIS Transponder. The approved combined VHF and GPS antennas
are listed in Table 3-3 on page 3-11.
The combined VHF and GPS antenna is connected to the VHF plug of the SAILOR 6282 AIS
Transponder. During installation the SAILOR 6282 AIS Transponder must be set up for the
one-cable installation. You do this using a service PC with the TT6282 AIS Service Interface,
setup menu.
WARNING! To avoid electric shock, do not apply
power to the system if there is any sign of shipping
damage to any part of the front or rear panel or the
outer cover. Read the safety summary at the front of this
manual before installing or operating the system.
![](/img.php?id=2082849&img=bg19.png)
VHF and GPS antenna installation
98-137573-A Chapter 3: Installation 3-3
3333
Installation
3.2.2 Cable requirements
Connect the antennas using a low loss type 50 Ohm coaxial cable, e.g. good quality RG214
or better. IMO-COMSAR/Circ. 32 recommends the use of a double screened type cable (like
e.g. RG214) with a maximum insertion loss of 3 dB across the antenna cable installation.
The maximum antenna cable length in the installation depends on the quality of the cable,
i.e. the specified attenuation (dB/m) of the cable of choice at the high end of the VHF
frequency band. As a rule of thumb the cable length using e.g. RG214 coaxial cable should
not exceed 25 m.
Figure 3-1: Installation of a combined VHF and GPS antenna
12 – 24 VDC
LAN
1
3
3:5
7(67
$8; $&&
SAILOR 6004 Control Panel
9
SAILOR 6282 AIS Transponder
SUB-D50
FUSE
12-24V DCGPSVHF/GPS
9
Combined
VHF and GPS
antenna
Service PC
![](/img.php?id=2082849&img=bg1a.png)
VHF and GPS antenna installation
3-4 Chapter 3: Installation 98-137573-A
3.2.3 VHF RX/TX antenna
In installations with two or more units it is important to ensure the optimum performance
of these by carefully selecting the antenna positions for both units. It is recommended to
maximize the RF attenuation between the VHF RX/TX antennas in the installation. You can
ensure this by not having the RX/TX antennas positioned at the same horizontal level, i.e.
the RX/TX antennas for each radio must be installed at shifted elevations as shown in the
following drawing.
If sufficient vertical distance between two or more such antennas cannot be achieved, the
horizontal distance between them is increasingly important for optimum performance. If
there is hardly any vertical separation ensure that there is a minimum of 5 m horizontal
distance between any RX/TX antennas in the installation.
To minimize any increase in VSWR of the VHF RX/TX antenna, install the antenna at a
vertical distance of at least 2 m to any other mast, pole or other RF antennas. Keep VHF
antennas as far away as possible from the antenna main beam of any radar and satellite
equipment.
Figure 3-2: Antenna positioning
RX/TX
or combined
VHF DSC
VHF
GPS for AIS
AIS VHF
AIS VHF/GPS
39679
![](/img.php?id=2082849&img=bg1b.png)
VHF and GPS antenna installation
98-137573-A Chapter 3: Installation 3-5
3333
Installation
3.2.4 SAILOR 6285 GPS Antenna - Active
To install the SAILOR 6285 GPS Antenna - Active do as follows:
1. Install the bracket on the pipe. Use silicone glue to lock the bracket to the pipe.
2. Pass the cable through the top of the bracket and connect the antenna cable to the
antenna (screw lock). Seal the connection to prevent water ingress.
3. Click the antenna onto the bracket.

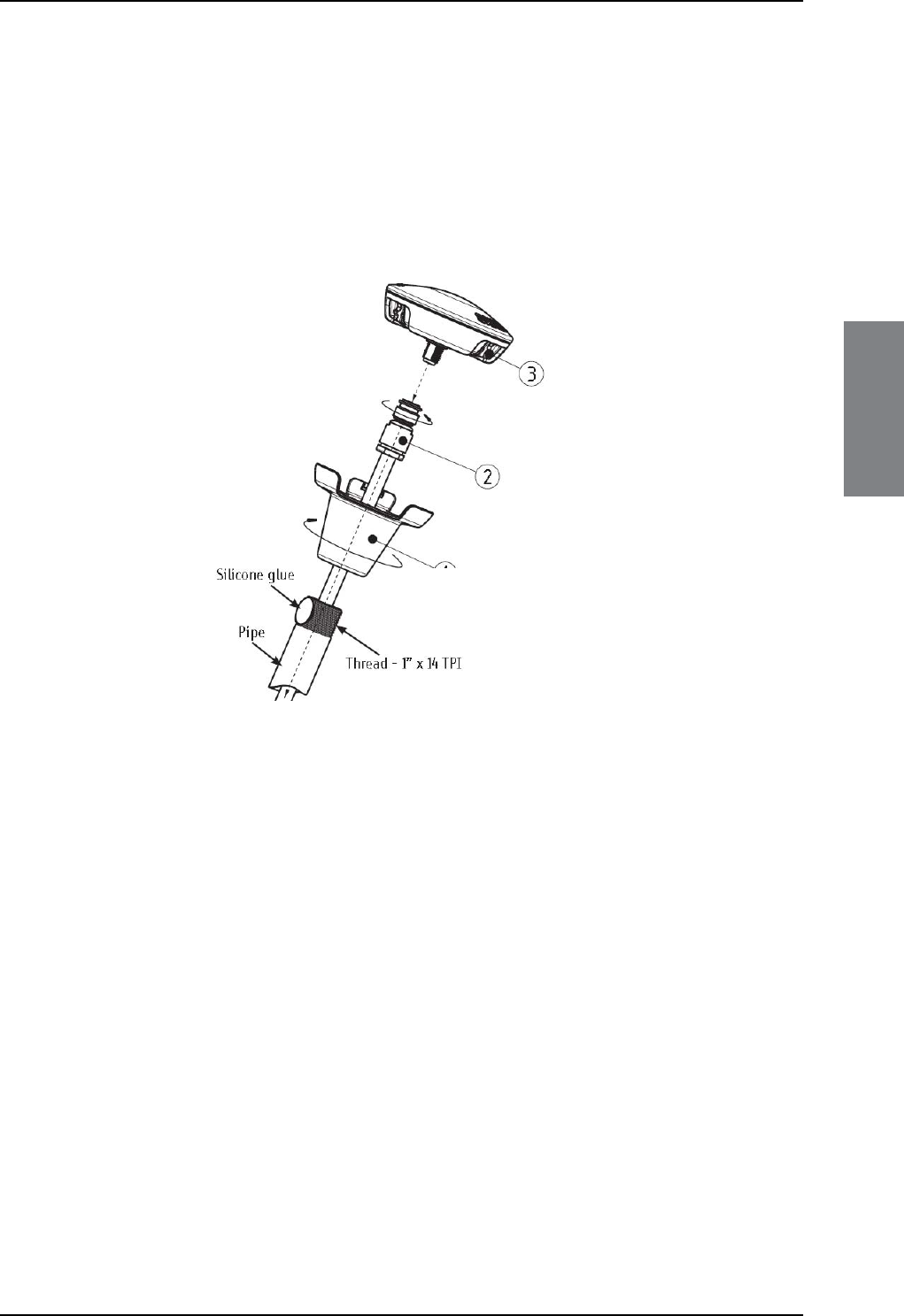

Figure 3-3: Installing the SAILOR 6285 GPS Antenna - Active
![](/img.php?id=2082849&img=bg1c.png)
Physical installation of the SAILOR 6280 AIS System
3-6 Chapter 3: Installation 98-137573-A
3.3 Physical installation of the SAILOR 6280 AIS
System
The SAILOR 6280 AIS System consists of the following units:
1. SAILOR 6282 AIS Transponder
2. SAILOR 6004 Control Panel
3. SAILOR 6285 GPS Antenna - Active
4. SAILOR 6283 AIS Connection Box and Wall Tray
You can mount the SAILOR 6283 AIS Connection Box and Wall Tray on a desktop or on a
wall. Provide space enough to access the connectors and the fuse. Allow space for the
cables.
Application example
Figure 3-4: Application example with SAILOR 6283 AIS Connection Box and Wall Tray
VHF antenna
GPS antenna
Low power forced
control
Blue sign
BIIT relay
Ground
PI1, e.g. ECDIS
Sensor 1
PI2, e.g. radar
Power
PI3, e.g. pilot plug
Sensor 2
Sensor 3
PI4, e.g. long range
![](/img.php?id=2082849&img=bg1d.png)
Physical installation of the SAILOR 6280 AIS System
98-137573-A Chapter 3: Installation 3-7
3333
Installation

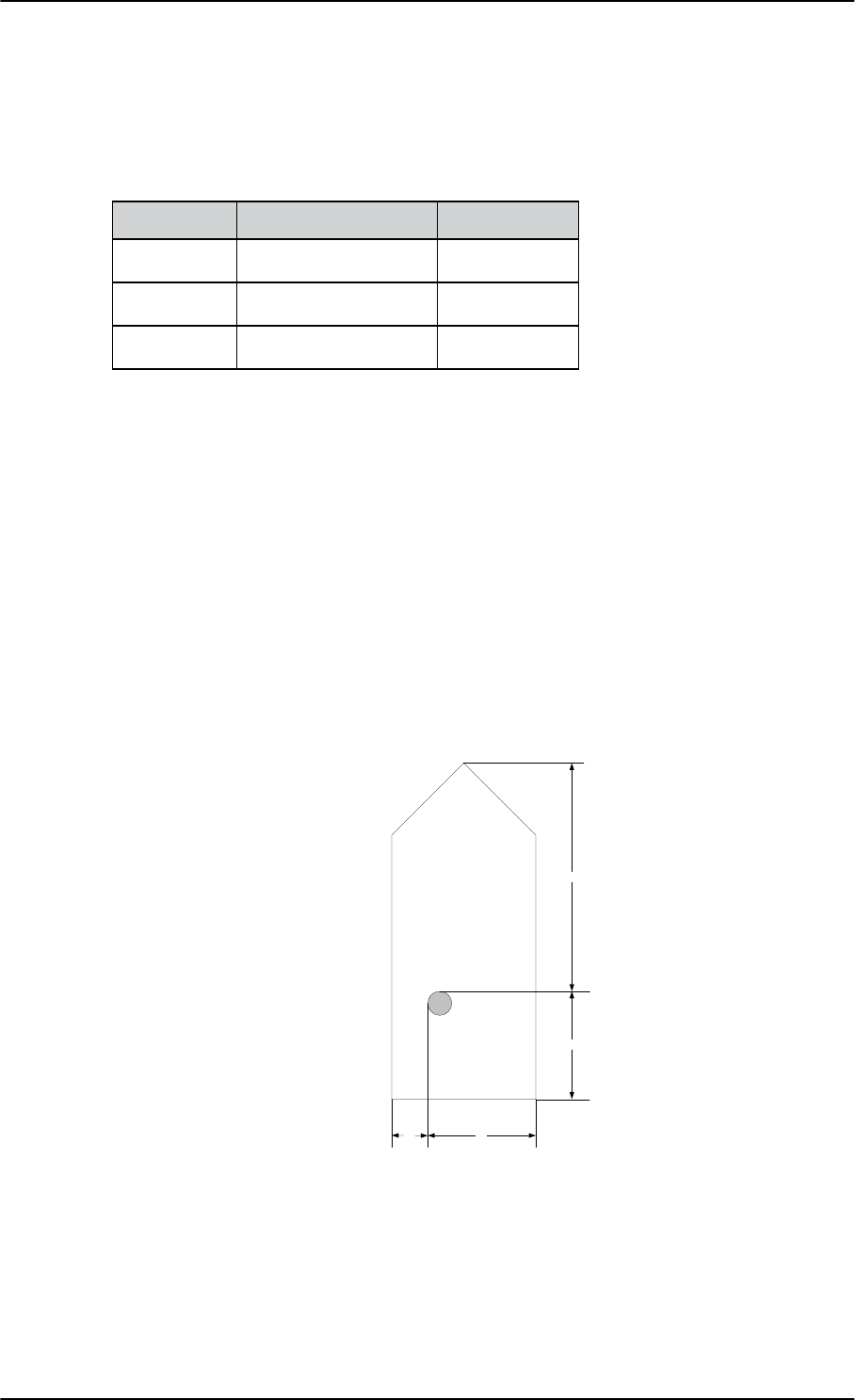

Compass safe distance
Make sure that the SAILOR 6282 AIS Transponder is far enough from any magnetic
compass. See the following table for the safe distance after magnetization between the
nearest point of the device and the centre of the compass at which it will produce a
deviation of 0.3°.
Physical installation
See the following figure for installing the SAILOR 6283 AIS Connection Box and Wall Tray.
1. Put the SAILOR 6282 AIS Transponder on the SAILOR 6283 AIS Connection Box and
Wall Tray and fasten it with 4 screws (included in the delivery).
2. Leave the lid of the SAILOR 6283 AIS Connection Box and Wall Tray off until all
equipment is connected to the spring-loaded terminals.
3. Use the integrated cable relief to secure the cables.
4. Having connected and secured all cables fasten the lid on the SAILOR 6283 AIS
Connection Box and Wall Tray with 2 screws (included in the delivery).
Device Compass safe distance
SAILOR 6282 AIS Transponder 55 cm (standard magnetic compass)
45 cm (Emergency magnetic compass)
SAILOR 6004 Control Panel 60 cm
Table 3-1: Compass safe distance for SAILOR 6282 AIS Transponder

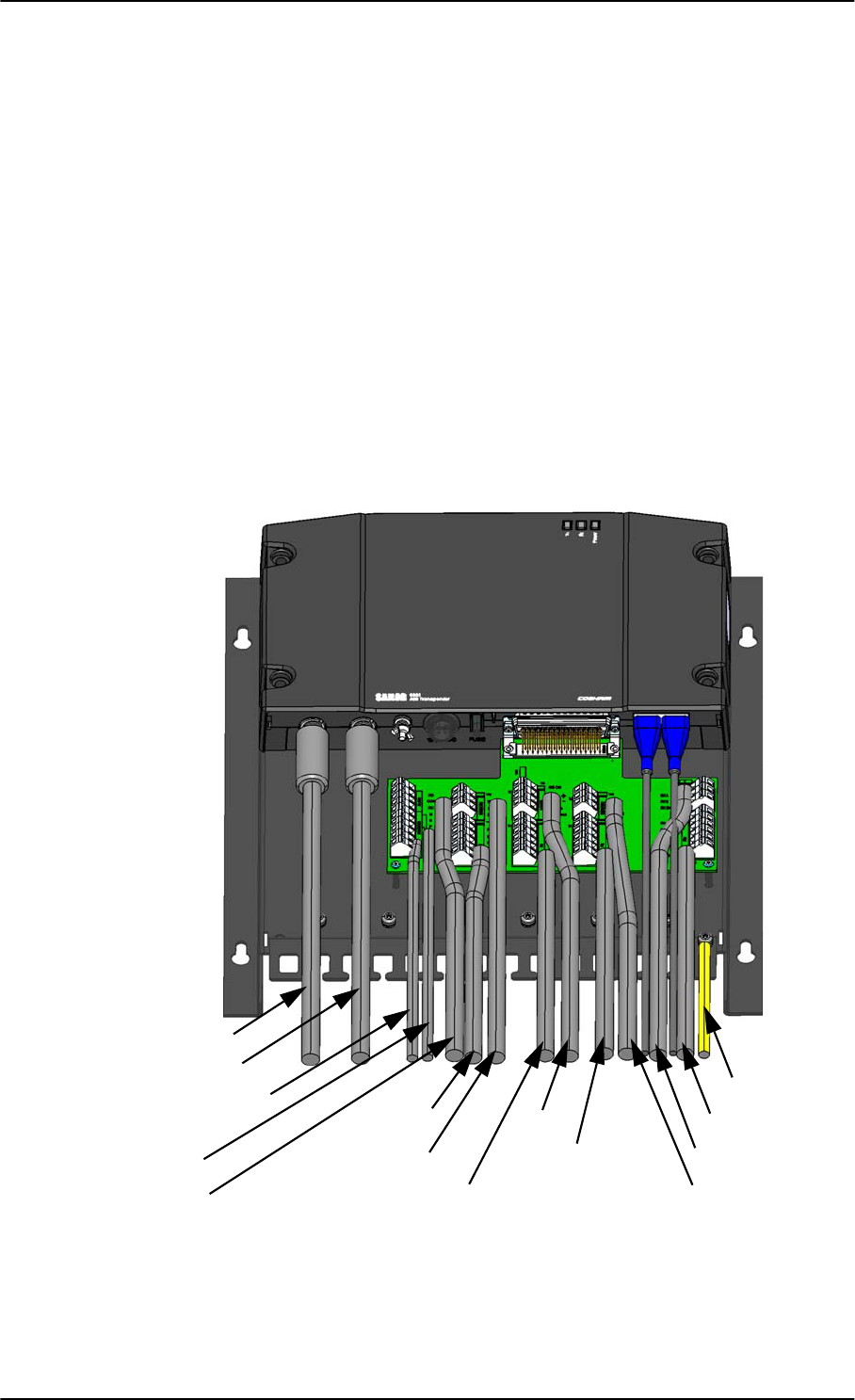

Figure 3-5: Installing the SAILOR 6283 AIS Connection Box and Wall Tray
40 mm
54 mm 245 mm
344.5 mm
290 mm
309 mm
9.5 mm 9.5 mm
![](/img.php?id=2082849&img=bg1e.png)
Physical installation of the SAILOR 6280 AIS System
3-8 Chapter 3: Installation 98-137573-A
Connector overview – SAILOR 6282 AIS Transponder
The following figure shows the connectors of the SAILOR 6282 AIS Transponder.
VHF/GPS
Connect the VHF antenna or the combined VHF/GPS antenna to this connector.
GPS
Connect the cable from the SAILOR 6285 GPS Antenna - Active to this connector.
Grounding
To connect the SAILOR 6282 AIS Transponder to ship ground, do as
follows:
1. Connect a ground cable of shortest possible length and minimum
4 mm2 cross section to the Ground stud and fasten it with the wing
nut.
2. Connect the other end of the cable to ship ground.
DC Power input 12–24 VDC
For more information on DC power input, pin allocation and instructions how to connect
DC power see Connecting DC power on page 4-2.
Connector overview – spring loaded terminals
The following figure shows the spring loaded terminals of the SAILOR 6283 AIS Connection
Box and Wall Tray.
Figure 3-6: Connectors of the SAILOR 6282 AIS Transponder
VHF/GPS
GPS
12-24V DC
FUSE
SUB-D50
1
Ground stud
![](/img.php?id=2082849&img=bg1f.png)
Physical installation of the SAILOR 6280 AIS System
98-137573-A Chapter 3: Installation 3-9
3333
Installation
Maximum wire cross section: 2.5 mm
If the SENSOR or PI is used for high speed communication (38400 baud) the related jumper
must be closed. Closing the jumper terminates the Rx A and Rx B lines with 120 Ohm.
Figure 3-7: Connectors of the SAILOR 6283 AIS Connection Box and Wall Tray
W8
W7
W6
W5
W4
W3
W2
W1
RV1
R7
R6
R5
R4
R3
R2
R1
J3
J2
J7
J5
J6
J8
J9
J10
J11
J1
ALARM
BLUESIGN
1W
NO
COM
NC
N
P
C
FUSED
-
SENSOR1
PI1
Rx A
Rx B
Rx C
Rx C
Rx B
Rx A
Tx C
Tx B
Tx A
PI2
AIS ON
POWER
DC
DC
ON_IN
ON_OUT
SENSOR2
PI3
Tx C
Tx B
Tx A
Rx C
Rx B
Rx A
Rx C
Rx B
Rx A
SENSOR3
PI4
+
+
-
Rx C
Rx B
Rx A
Tx C
Tx B
Tx A
Rx C
Rx B
Rx A
Tx C
Tx B
Tx A
Rx A
Rx B
Rx C
Jumper Description
W5 SENSOR 1
W3 SENSOR 2
W1 SENSOR 3
W2 PI1
W7 PI2
W6 PI3
W4 PI4
W8 Must always be closed to switch on the SAILOR 6282
AIS Transponder.
Table 3-2: Jumper settings on the SAILOR 6283 AIS Connection Box and
Wall Tray
![](/img.php?id=2082849&img=bg20.png)
Physical installation of the SAILOR 6280 AIS System
3-10 Chapter 3: Installation 98-137573-A

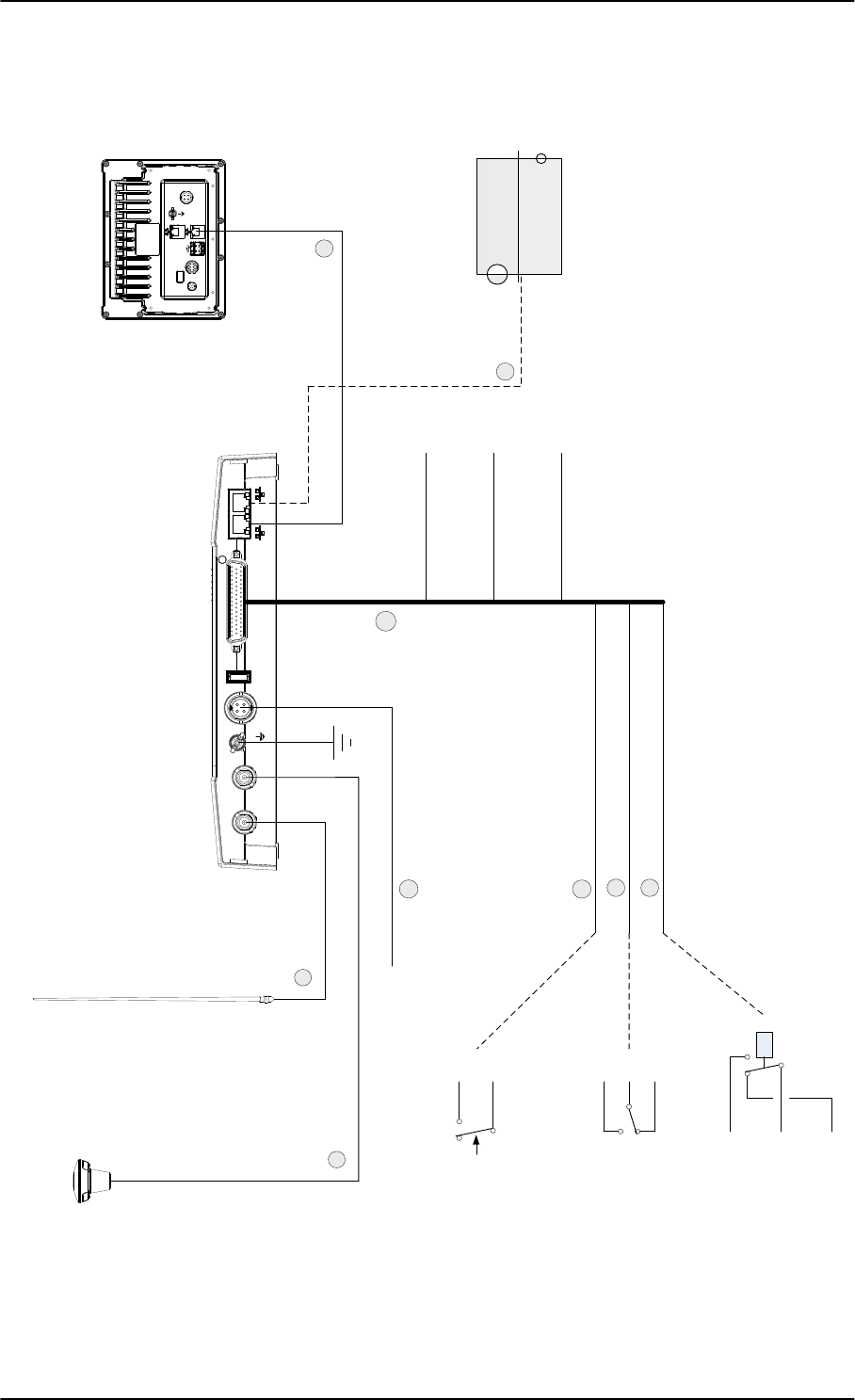

3.3.1 SAILOR 6280 AIS System - wiring
Figure 3-8: SAILOR 6280 AIS System, wiring
12 - 24VDC
5
3
4
6
7
3:5
7(67
$8; $&&
SAILOR 6004 Control Panel
7
7
7
8
8
8
9
Long Range, PI 4
Pilot, PI 2
GPS input SENSOR 1
ECDIS, PI 1
Input SENSOR 3
Input SENSOR 2
PI 3
9
-
5[&
5[%
5[$
7[$
7[%
7[&
5[$
5[%
5[&
7[$
7[%
7[&
5[$
5[%
5[&
3, 6(1625
5[$
5[%
5[&
5[$
5[%
5[&
7[$
7[%
7[&
3, 6(1625
21B287
21B,1
'&
'&
32:(5
$,621
3,
7[$
7[%
7[&
5[$
5[%
5[&
5[&
5[%
5[$
3, 6(1625
)86('
&
3
1
1&
&20
12
: %/8(6,*1 $/$50
-
-
-
-
-
-
-
-
-
5
5
5
5
5
5
5
59
:
:
:
:
:
::
:
SAILOR 6285
GPS Antenna -
Active
LAN
2
1
SAILOR 6282 AIS Transponder
SUB-D50
FUSE
12-24V DCGPSVHF/GPS
VHF Antenna
3-6-2013
Service PC
12W 1W
Forced low power
NO
COM
NC
Alarm
Blue Sign
N
C
P
![](/img.php?id=2082849&img=bg21.png)
Physical installation of the SAILOR 6280 AIS System
98-137573-A Chapter 3: Installation 3-11
3333
Installation
3.3.2 Cable specifications
Number Cable for: Specification Length
1 VHF antenna Coaxial RG 214 or similar Max. 45 m
Combined antennas
for VHF and GPS
Comrod VHF / GPS antenna type AC17M4-AIS,
item number 014822.
Max. 40 m
Comrod VHF / GPS antenna type AC17P4-AIS,
item no 014828.
Max. 40 m
AC Marine VHF / GPS antenna type VHF/GPS-B Max. 35 m
2 SAILOR 6285 GPS
Antenna - Active
Coaxial RG 214 or similar Max. 55 m
3 DC supply 2 x AWG 14 with screen, length 1.2 m, Included. –
4 Low power forced
control (gas alarm):
1W
2 leaded wire with screen. 15 m
5 Blue Sign input 3 leaded wire with screen 50 m
6 Alarm output 3 leaded wire with screen 50 m
7 Sensor input, Sensor 1
- Sensor 3
2 wire twisted, screened cable for NMEA
The name of the signals are also printed on the
connection board:
• RxA (signal A)
• RxB (signal B)
• RxC (screen)
Max. 100 m
8 Presentation Interface,
PI1 - PI4
4 wire twisted pair, screened cable for NMEA
The name of the signals are also printed on the
connection board:
• RxA (signal A)
• RxB (signal B)
• RxC (screen)
• TxA (signal A)
• TxB (signal B)
• TxC (screen)
Max. 100 m
9 LAN Ethernet cable, shielded Cat 5 Max. 100 m
10 Interface cable Multi wire with SUB-D 50 pin (male) connector.
Included in the delivery.
1.5 m
Table 3-3: Cable specifications, SAILOR 6280 AIS System
![](/img.php?id=2082849&img=bg22.png)
Physical installation of the SAILOR 6281 AIS System
3-12 Chapter 3: Installation 98-137573-A
3.4 Physical installation of the SAILOR 6281 AIS
System
The SAILOR 6281 AIS System consists of the following units:
1. SAILOR 6282 AIS Transponder
2. SAILOR 6004 Control Panel
3. SAILOR 6285 GPS Antenna - Active
You can mount the SAILOR 6282 AIS Transponder on a desktop or on a wall. Provide space
enough to access the connectors and the fuse. Allow space for the cables.
Compass safe distance
See Compass safe distance on page 3-7.
Physical installation
See the following figure for dimensions of the SAILOR 6282 AIS Transponder.
Figure 3-9: Dimensions of the SAILOR 6282 AIS Transponder
270 mm
155 mm 42.5 mm
![](/img.php?id=2082849&img=bg23.png)
Physical installation of the SAILOR 6281 AIS System
98-137573-A Chapter 3: Installation 3-13
3333
Installation
Fasten the SAILOR 6282 AIS Transponder using the delivered screws according to the
following measures:
Connector overview
The following figure shows the connectors of the SAILOR 6282 AIS Transponder.
VHF/GPS
Connect the VHF antenna or the combined VHF/GPS antenna to this connector.
GPS
Connect the cable from the SAILOR 6285 GPS Antenna - Active to this connector.
Grounding
To connect the SAILOR 6282 AIS Transponder to ship ground, do as
follows:
1. Connect a ground cable of shortest possible length and minimum
4 mm2 cross section to the Ground stud and fasten it with the wing
nut.
2. Connect the other end of the cable to ship ground.

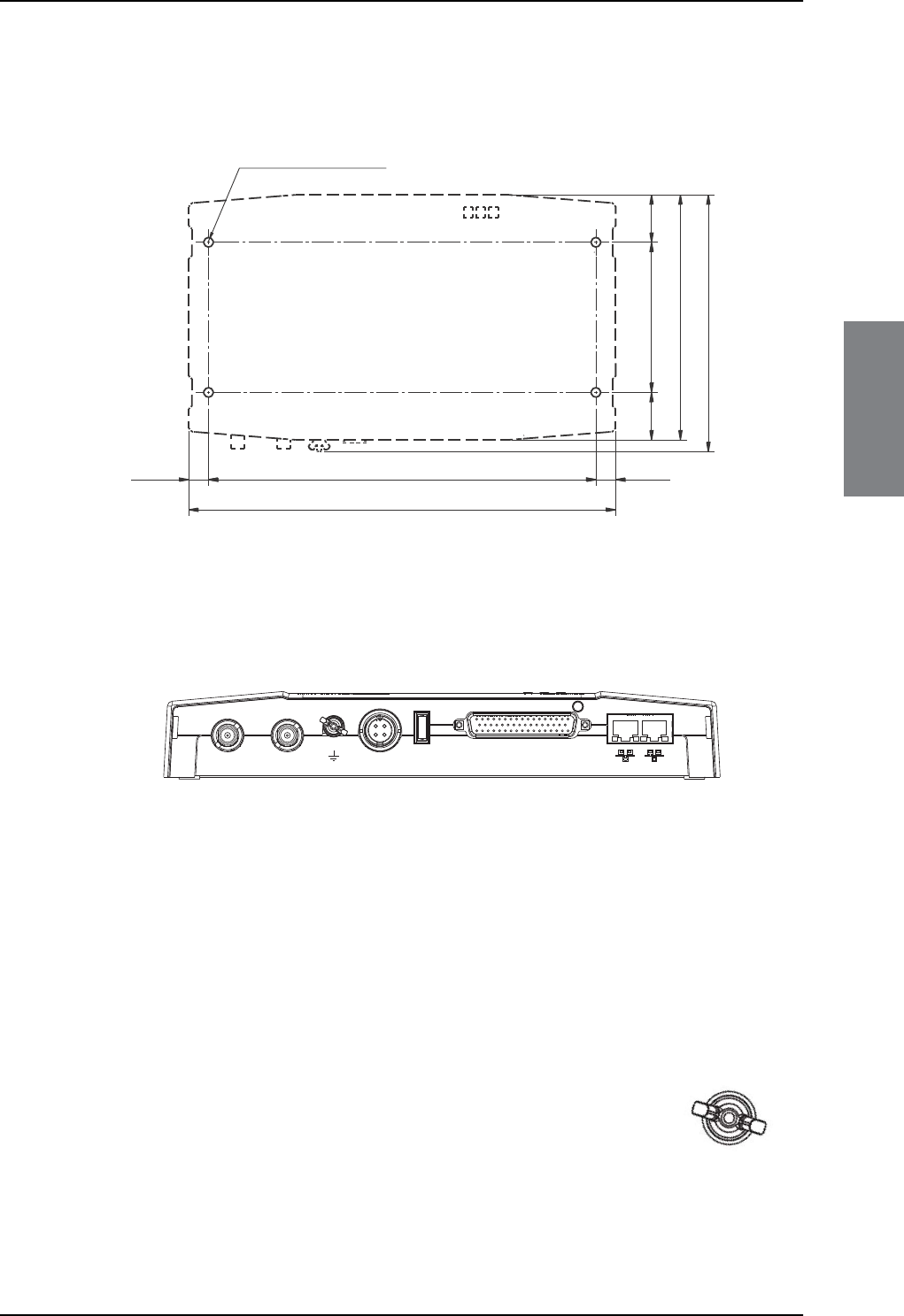

Figure 3-10: Measures for installing the SAILOR 6282 AIS Transponder
155 mm
270 mm
95 mm
30 mm 30 mm
245 mm12.5 mm 12.5 mm
162.5 mm
4 x M5 or hole for
self-tapping ø4.8mm
Figure 3-11: Connectors of the SAILOR 6282 AIS Transponder
VHF/GPS
GPS
12-24V DC
FUSE
SUB-D50
1
Ground stud
![](/img.php?id=2082849&img=bg24.png)
Physical installation of the SAILOR 6281 AIS System
3-14 Chapter 3: Installation 98-137573-A
DC Power input 12–24 VDC
For more information on DC power input, pin allocation and instructions how to connect
DC power see Connecting DC power on page 4-2.
SUB-D50 connector and cable
For a detailed description of the
interfaces see Interface description on
page 4-1.
The SUB-D50 connector is intended for
connecting external sensors and devices
connected to PI1 to PI4.
1
18
34
View on SAILOR 6282 AIS Transponder
SUB-D, 50 pin female
Description Pin
number Wire colour Description Pin
number Wire colour
SENSOR 3 Rx C 1 Black 1W 29 Brown/Black
SENSOR 3 Rx B 2 Brown ALARM COM 30 Red/Black
SENSOR 3 Rx A 3 Red ALARM NC 31 Orange/Black
SENSOR 2 Rx C 4 Orange DC- (0 VDC) 32 Yellow/Black
SENSOR 2 Rx B 5 Yellow PI 3 Tx B 34 Green/Black
SENSOR 2 Rx A 6 Green PI 3 Tx A 35 Blue/Black
BLUESIGN N 11 Blue PI 3 Rx C 36 Purple/Black
AUX 12 Purple PI 3 Rx B 37 Grey/Black
ON_IN 13 Grey PI 3 Rx A 38 Brown/Red
BLUESIGN C 14 White PI 2 Tx B 39 Orange/Red
ON_OUT 15 Pink PI 2 Tx A 40 Green/Red
PI 4 Rx A 18 Light Green PI 2 Rx C 41 Blue/Red
PI 4 Rx B 19 Light Blue PI 2 Rx B 42 Purple/Red
PI 4 Rx C 20 Black/White PI 2 Rx A 43 Grey/Red
PI 4 Tx A 21 Brown/White SENSOR 1 Rx C 44 White/Red
PI 4 Tx B 22 Red/White SENSOR 1 Rx B 45 Yellow/Green
PI 1 Tx B 23 Orange/White BLUESIGN P 46 Black/Red
PI 1 Tx A 24 Yellow/White ALARM NO 47 Blue/Green
PI 1 Rx C 25 Green/White DC- (0 VDC) 48 Purple/Green
PI 1 Rx B 26 Blue/White DC- (0 VDC) 49 Grey/Green
PI 1 Rx A 27 Purple/White CABLE SHIELD 50 Drain wire
SENSOR 1 Rx A 28 Grey/White
Table 3-4: Pin allocation, SUB-D50
![](/img.php?id=2082849&img=bg25.png)
Physical installation of the SAILOR 6281 AIS System
98-137573-A Chapter 3: Installation 3-15
3333
Installation

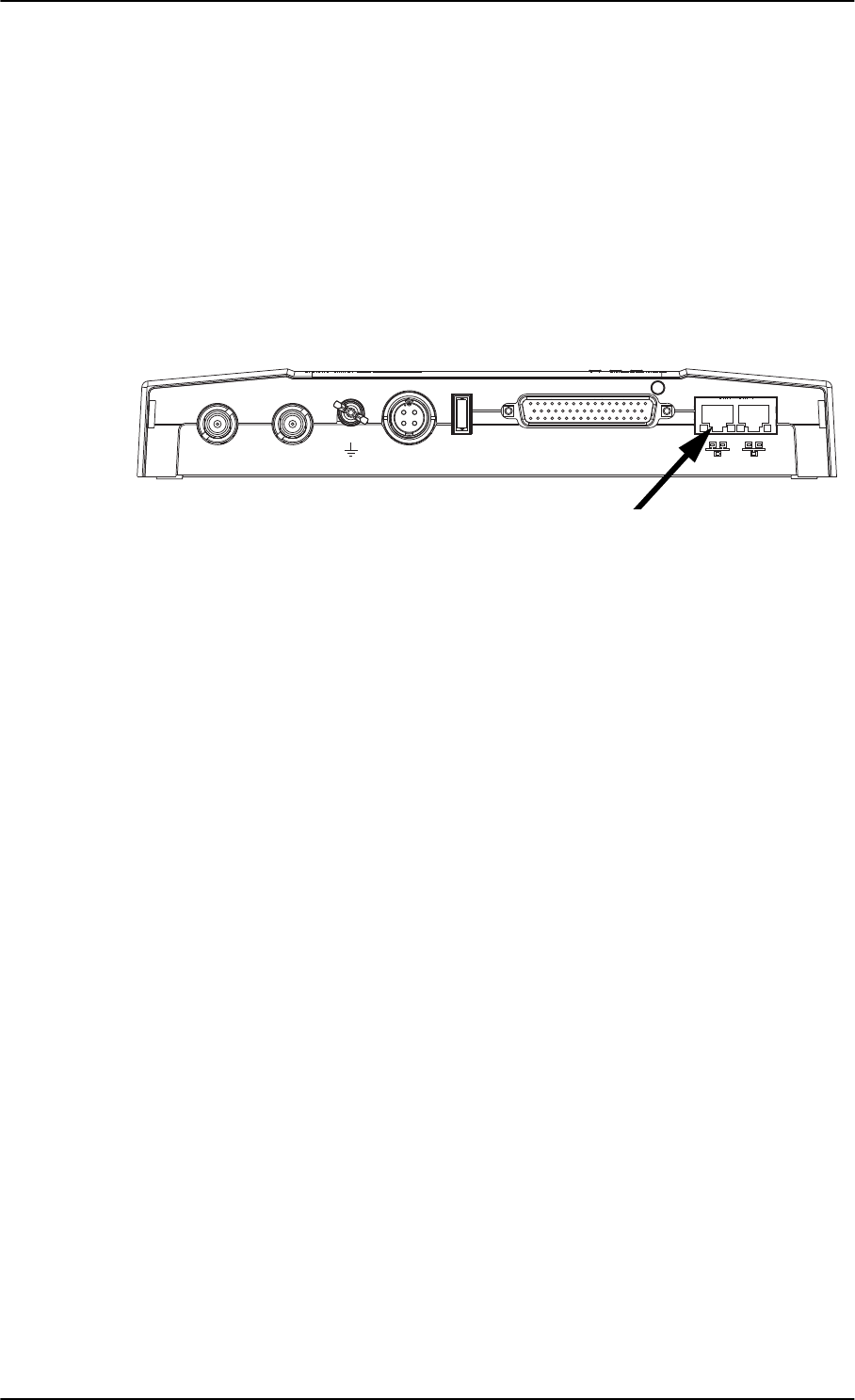

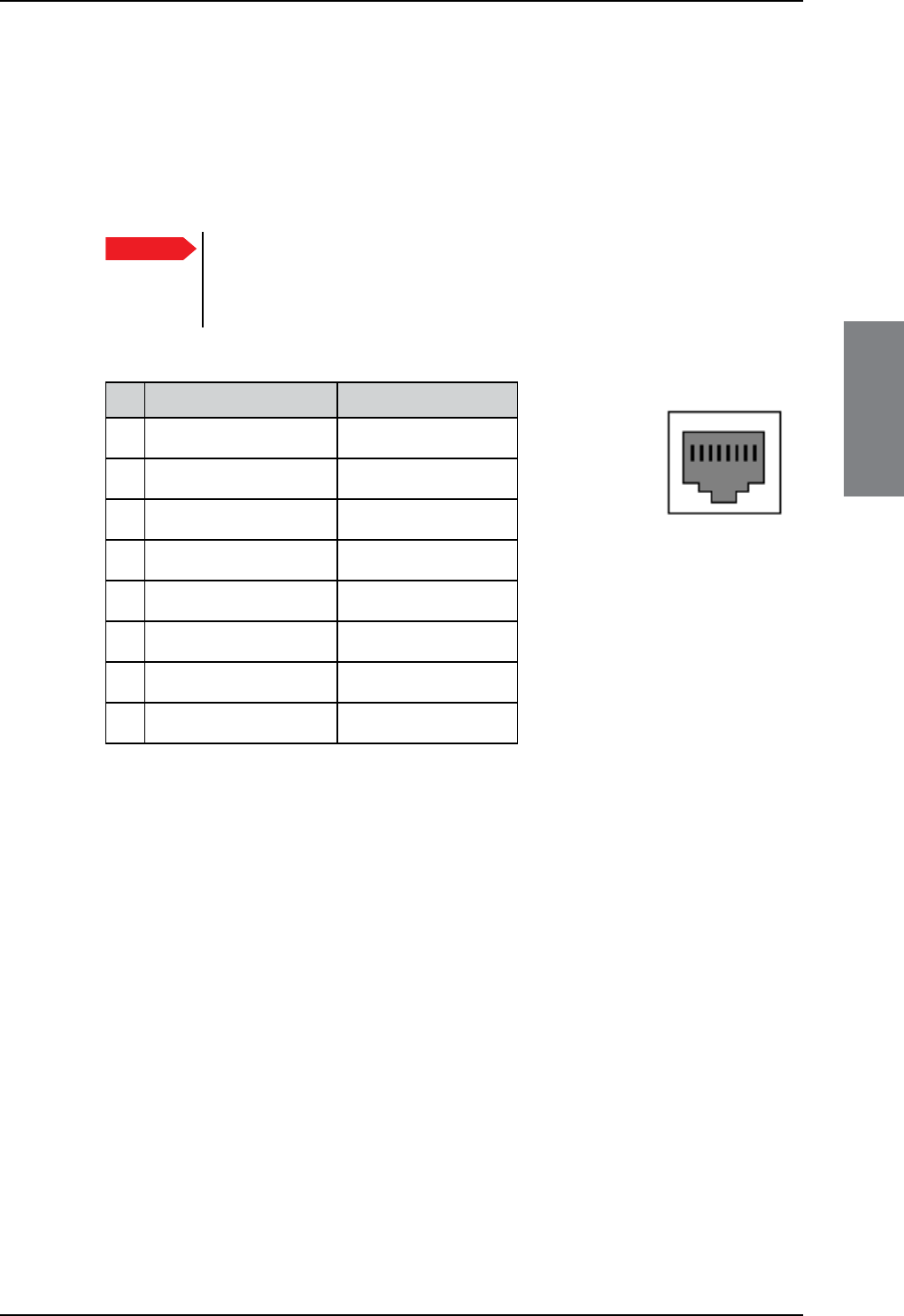

LAN connector and cable
The SAILOR 6282 AIS Transponder has two LAN connections used for connection to the
display and keyboard of the SAILOR 6004 Control Panel and for ThraneLINK Management
Application (Service Tool).
The two connectors are identical and of the type RJ45 with 8 leads
The figure and table below show the connector outline and pin assignments.
Cable type: Cat5e STP
For instructions how to connect to a LAN network see Ethernet interfaces on page 4-11
Important For GMDSS installations: Only connect units that
are part of the system. For safety and compliance
reasons, the Ethernet interface is restricted to internal
communication in an isolated system.
Pin Pin function Wire colour
1 Tx+ White/Orange
2 Tx- Orange
3 Rx+ White/Green
4 Not connected Blue
5 Not connected White/Blue
6 Rx- Green
7 Not connected White/Brown
8 Not connected Brown
Table 3-5: Pin allocation, LAN connector and cable
RJ-45 female
1 2 3 4 5 6 7 8
![](/img.php?id=2082849&img=bg26.png)
Physical installation of the SAILOR 6281 AIS System
3-16 Chapter 3: Installation 98-137573-A
3.4.1 SAILOR 6181 AIS Basic System - wiring
For cable specifications see Cable specifications on page 3-11.
Figure 3-12: SAILOR 6281 AIS Basic System, wiring
SAILOR 6285
GPS Antenna -
Active
12-24VDC
LAN
2
5
1
3
4
6
3:5
7(67
$8; $&&
SAILOR 6004 Control Panel
10
9
GPS
ECDIS
PILOT
12W 1W
Forced low power
NO
COM
NC
Alarm
Blue Sign
N
C
P
SAILOR 6282 AIS Transponder
SUB-D50
FUSE
12-24V DCGPSVHF/GPS
3-6-2013
Service PC
9
VHF Antenna
![](/img.php?id=2082849&img=bg27.png)
Physical installation of the SAILOR 6004 Control panel
98-137573-A Chapter 3: Installation 3-17
3333
Installation
3.5 Physical installation of the SAILOR 6004 Control
panel
For instructions how to install the SAILOR 6004 Control Panel see separate installation
manual for the SAILOR 6004 Control panel (part number 98-136644).
Connect a LAN connector at the SAILOR 6282 AIS Transponder to a LAN connector at the
SAILOR 6004 Control Panel.
![](/img.php?id=2082849&img=bg28.png)
Physical installation of the SAILOR 6004 Control panel
3-18 Chapter 3: Installation 98-137573-A
![](/img.php?id=2082849&img=bg29.png)
98-137573-A 4-1
Chapter 4
4444
Interface description
Interface description 4
This chapter describes the electrical interfaces of the SAILOR 6282 AIS Transponder in
details. It has the following sections:
•Power
•Sensor input
•Presentation Interfaces
•Alarm relay
•Low power forced control (gas alarm) 1 W
•Blue sign input
•Ethernet interfaces
4.1 Power
The SAILOR 6282 AIS Transponder is designed to operate on 24 VDC. The transponder can
also operate in the voltage range 10.8 to 31.2 VDC.
The SAILOR 6282 AIS Transponder is protected with a 7.5 AT fuse. The fuse is located on
the transponder next to the power connector. The power connector is a custom connector
and a power cable with matching connector is included in the box. To avoid power and
voltage drops in the power line it is important that a sufficient sized cable is used (for
further details see Cable specifications on page 3-11).

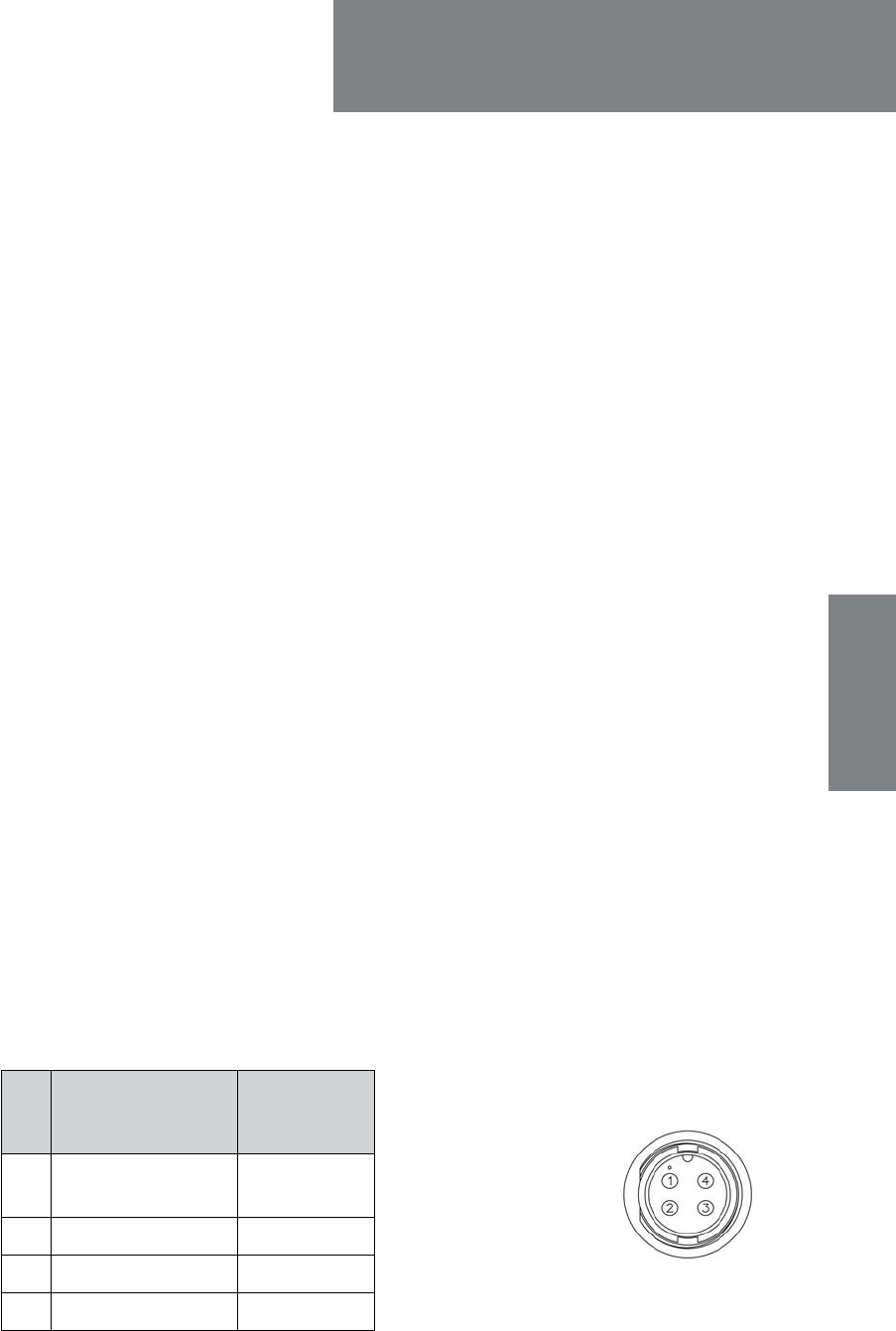

The figure and table below show the connector outline on the SAILOR 6282 AIS
Transponder, pin assignments and wire color in the power cable delivered with the SAILOR
6282 AIS Transponder.
Pin Pin function
Wire color
in power
cable
1 DC+ (10.8 -
31.2 VDC)
Red
2 DC- (0 VDC) Black
3 ON_IN White
4 ON_OUT Blue
Table 4-1: Pin allocation, DC connector
Front view on Control
Panel lock, 4 pin male
![](/img.php?id=2082849&img=bg2a.png)
Power
4-2 Chapter 4: Interface description 98-137573-A
4.1.1 Connecting DC power
Connect DC+ (red wire) to DC out + from your DC supply.
Connect DC- (black wire) to DC out - from your DC supply.
Connect the white wire in the power cable to DC- (black wire) unless you want to use the
Remote on/off (ON_IN) function. See the next section for further details on remote on/off.
Connecting remote on/off (ON_IN)
With the remote on/off function you can remotely switch on and off the SAILOR 6282 AIS
Transponder. To connect the remote on/off function do as follows:
1. Connect DC+ and DC- as described in the previous section.
2. Connect a switch to the white wire in the power cable (pin3, ON_IN, in the power
connector)
3. Connect the other side of the switch to the black wire in the power cable (DC- (0 VDC)
in the power connector).
To switch on the SAILOR 6282 AIS Transponder, close the switch.
Connecting on/off control (ON_OUT)
You can use pin 4 in the power connector (blue wire) to switch other units on and off when
the SAILOR 6282 AIS Transponder is switched on and off. How to connect this pin depends
on the units you connect.
The function of pin 4 is as follows:
• SAILOR 6282 AIS Transponder off: Pin 4 is in high impedance state.
• SAILOR 6282 AIS Transponder on: Pin 4 is low (DC- from the power supply, with 10
kOhm serial resistance).
![](/img.php?id=2082849&img=bg2b.png)
Sensor input
98-137573-A Chapter 4: Interface description 4-3
4444
Interface description
4.2 Sensor input
The SAILOR 6282 AIS Transponder has three sensor inputs (SENSOR 1, SENSOR 2 and
SENSOR 3). These can be connected to the ship’s sensors which can provide information
about e.g. speed over ground (SOG), course over ground (COG), heading (HDT), rate of turn
(ROT) and position.
These sensors are connected to the sensor input through the SUB-D 50 pin connector,
which is connected to the SAILOR 6283 AIS Connection Box and Wall Tray or the multi-
wire cable supplied with the SAILOR 6282 AIS Transponder. See the section SUB-D50
connector and cable on page 3-14 for a description of the connector and the cable. Rx-A
and Rx-B are the data wires and Rx-C is an electrically isolated ground.
The three sensor inputs are input-only data and support the following NMEA0183
(IEC61162-1/2) sentences, version 2.0, 2.3 and 4.1:
• IEC 61162-1 sensor sentences: DTM, GNS, GBS, RMC, VBW, HDT, THS, ROT
For a full list of supported NMEA sentences see Appendix B, NMEA sentences.
4.2.1 Electrical characteristics
The schematics of the sensor inputs is shown in the following figure. The sensor inputs
support both IEC61162-1 and IEC61162-2, i.e. baud rates ranging from 4800 to 38400,
input voltages down to 0.3 VDC and electrical isolation between each sensor input and the
internal power supply.
The load of each sensor input is maximum 2 mA at minimum 2 VDC.
If the sensor input is configured as high speed (38400) it is recommended to terminate the
signal lines with 120 Ohm in both ends of the bus. See the figure below:
Figure 4-1: Schematics of sensor inputs
SENSOR 1 RX B
SENSOR 1 RX A
SENSOR 1 RX C
GND_ISO4
SENSOR_1_RX
3V3 3V3
VCC_ISO4
R779
1M
-
+
VCC
U38
TS7221
2
1
5
4
3
R291
100k
R286
1.54k
Q14
BC817-40W
1
3
2
C623
100nF
BLM15AG102SN1
E27
R293
1k
R285
1.54k
R289
464R
U39
MOC207-M
1
2
7
5
3
6
4 8
R287
10k R290
10k
R288
10k
R283
10k
R282
1M
C220
22pF
R284
10k
R279
1.54k
R786
15.4R
R280
1.54k
R292
3.83k
C219
22pF
Figure 4-2: Termination of signal lines
equipment
Other
equipment
Other
output
Sensor
SAILOR 6282
A
B
C
A
B
C
120 Ohm 120 Ohm
![](/img.php?id=2082849&img=bg2c.png)
Sensor input
4-4 Chapter 4: Interface description 98-137573-A
4.2.2 Sensor configuration
All three sensor inputs are IEC61162-1/2 (RS-422) compliant and can be configured
individually with different baud rates. From the factory the ports are set up with the default
baud rate as stated in the following table:
With the Service Interface the sensor input can be set to another baud rate and NMEA0183
version.
See Interface settings on page 5-12 to learn how to set up the SAILOR 6282 AIS
Transponder using the Service Interface.
4.2.3 Position (GNS, RMC, DTM, GGA)
The SAILOR 6282 AIS Transponder processes the position from both the external GNSS
sensor and the internal GNSS receiver. Therefore you must enter the dimensions of the
physical location of both GNSS antennas. To do this use the Service Interface, General
Settings. The dimensions are defined as shown in the following figure. Enter the values in
metres.
The SAILOR 6282 AIS Transponder automatically selects the position source with the
highest priority as defined in IEC 61993-2.
See General settings on page 5-8 to learn how to set up the reference points for reported
position in the SAILOR 6282 AIS Transponder using the Service Interface.
Port ID Default baud rate Function
SENSOR 1 4800 GPS input
SENSOR 2 4800 Input
SENSOR 3 4800 Input
Table 4-2: Sensor inputs – default baud rate
Figure 4-3: Physical location of the GNSS antennas
$ %
&
'
![](/img.php?id=2082849&img=bg2d.png)
Sensor input
98-137573-A Chapter 4: Interface description 4-5
4444
Interface description
4.2.4 Heading (HDT)
The SAILOR 6282 AIS Transponder can process heading information from heading sensors
that provide an IEC 61162 output.
If THS (True Heading and Status) and HDT are available, THS is preferred.
4.2.5 Rate of Turn (ROT)
If a Rate of Turn (ROT) sensor is available and provides an IEC 61162 output, the sensor
must be connected to the SAILOR 6282 AIS Transponder.
If the ROT information is not available from a Rate of Turn sensor it may optionally be
delivered from another source, e.g. a gyrocompass or other external sources giving ROT or
heading.
The SAILOR 6282 AIS Transponder automatically selects the ROT source with the highest
priority. The priority is defined in IEC 61993-2. It is decided by the Talker ID, where TI
(Turn Indicator) has a higher priority than HE (Heading sensor; lower priority). TI and HE are
the talker IDs of these devices.
4.2.6 Log (VBW)
The Log (VBW, Dual ground/water speed) refers to the speed log sensor. It has nothing to
do with the malfunction log and system log. The Log (VBW) is about water-referenced and
ground-referenced speed data.
Priority: Only one sensor is allowed to be connected to the SAILOR 6282 AIS Transponder.
You can also use Talker ID filtering to ensure that VBW only at one port can enter the
SAILOR 6282 AIS Transponder.
![](/img.php?id=2082849&img=bg2e.png)
Presentation Interfaces
4-6 Chapter 4: Interface description 98-137573-A
4.3 Presentation Interfaces
4.3.1 Overview
The SAILOR 6282 AIS Transponder has four presentation interfaces (PI1, PI2, PI3 and PI4).
A presentation interface is a bidirectional interface used for e.g. an ECDIS, pilot plug, Long
Range equipment or similar.
The presentation interfaces are connected through the SUB-D 50 pin connector, which is
connected to the SAILOR 6283 AIS Connection Box and Wall Tray or the multi-wire cable
supplied with the SAILOR 6282 AIS Transponder. See the section SUB-D50 connector and
cable on page 3-14 for a description of the connector and the cable.
Rx-A and Rx-B are the data input wires and Tx-A and Tx-B are the data output wires to the
SAILOR 6282 AIS Transponder. Rx-C is an electrically isolated ground for the input. Tx-C is
connected to DC- on the SAILOR 6283 AIS Connection Box and Wall Tray.
The presentation interfaces are bidirectional data ports and support the following
NMEA0183 (IEC61162-1/2) sentences, version 2.0, 2.3 and 4.1:
The Appendix B, NMEA sentences, gives detailed information on the supported NMEA
sentences.
Long Range
The Long Range functionality uses an appropriate long-range communication link (e.g.
Inmarsat C or MF/HF) to provide a means for ship reporting and tracking systems which
cannot use AIS VHF coverage due to the distance to the next AIS base station ashore.
Long-range messages are input to and output from external long-range communication
systems, e.g. Inmarsat C via one of the four PI.
IEC 61993-2 Sentence Support
AIS High-speed input data and
formats
VSD, SSD, ABM, BBM, ABK, AIR, ACA, HBT,
ACK, LRF
AIS high speed output data and
formats
ABK, VDO, ALR/TXT, ACA, VDM, LRI, LRF, SSD,
VSD, VER
AIS Long-range communications
input data and formats
LRI, LRF
LR output data formats LR1, LR2, LR3
Optional PI port sentences EPV, SPW, TRL
Transmission of binary Message 25
and 26
ABM, BBM, ABK
Table 4-3: Supported IEC 61993-2 sentences
![](/img.php?id=2082849&img=bg2f.png)
Presentation Interfaces
98-137573-A Chapter 4: Interface description 4-7
4444
Interface description
4.3.2 Electrical Characteristics
The schematics for the presentation interfaces is shown in the following figure. The
presentation interfaces support both IEC61162-1 and IEC61162-2, i.e. baud rates from
4800 to 38400, input voltages down to 0.3 VDC and electrical isolation between each
sensor input and the internal power supply.
The load of each input is maximum 2 mA at minimum 2 VDC.
Each output can drive maximum 20 listeners, each consuming 2 mA.
4.3.3 Configuration of the Presentation Interfaces
All four presentation interfaces are IEC61162-1/2 (RS-422) compliant and can be
configured individually with different baud rates. From the factory the ports are setup with
the default baud rate as follows:

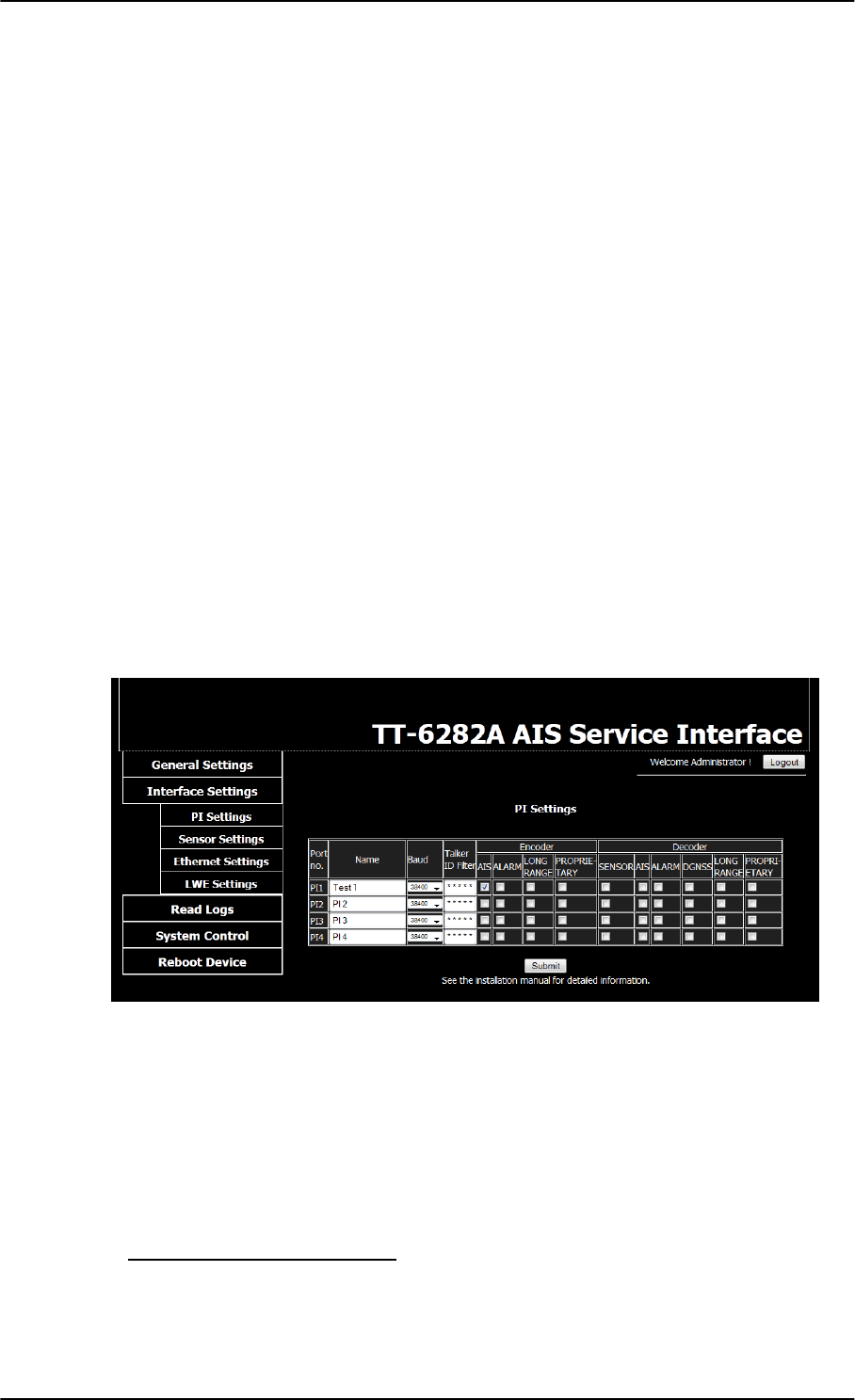

See Interface settings on page 5-12 to learn how to set up theSAILOR 6282 AIS
Transponder using the Service Interface.

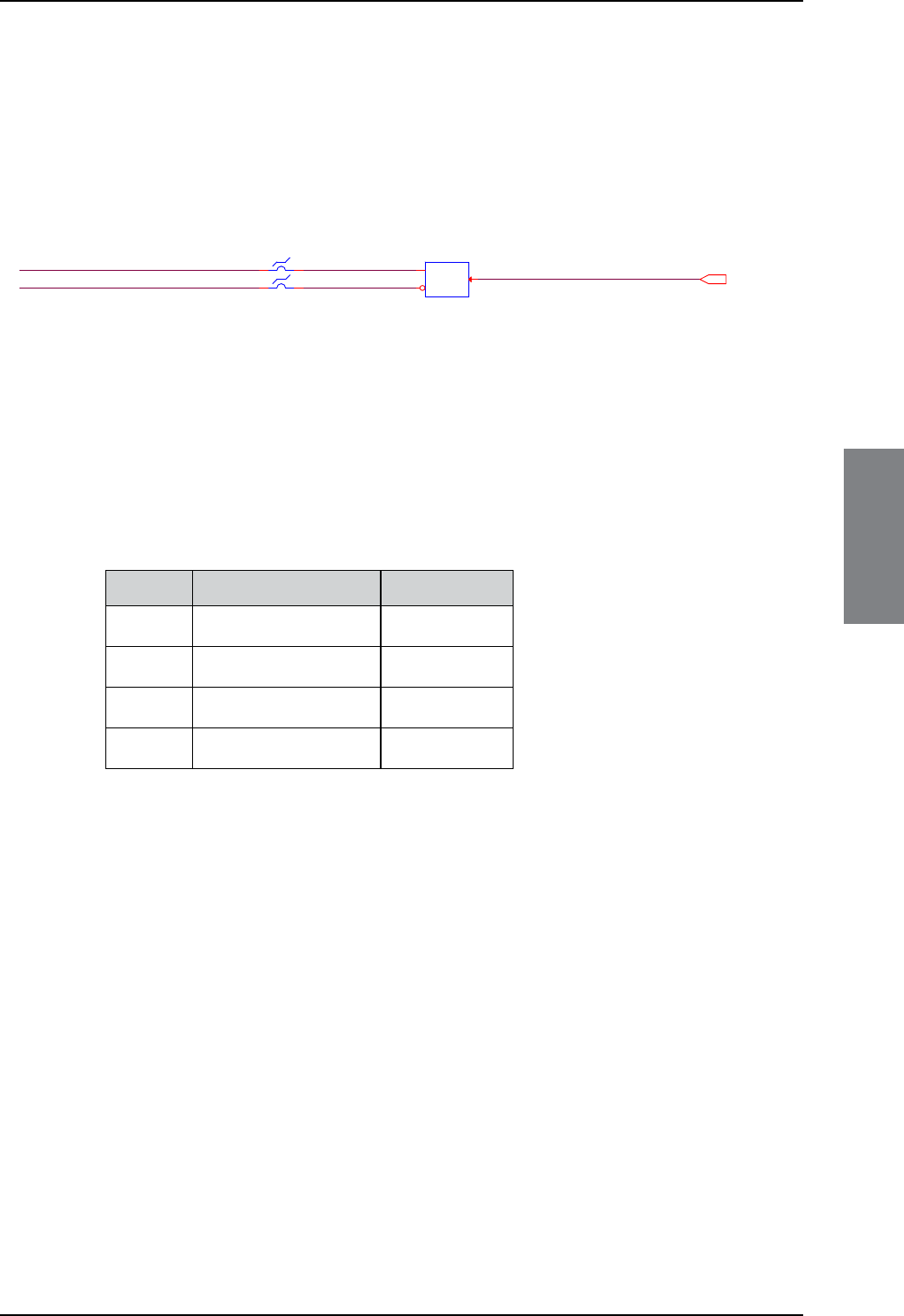

Figure 4-4: Schematics of presentation interfaces
PI 1 TX B
PI 1 TX A
PI_1_TX
U29D
ISL32374E
Y4
14
Z4
13 DI4 15
BLM15AG102SN1
E21
BLM15AG102SN1
E22
Port ID Default baud rate Function
PI1 38400 ECDIS
PI4 4800 Long Range
PI2 38400 Pilot plug
PI3 38400 AUX
Table 4-4: Presentation interfaces – default baud rate
![](/img.php?id=2082849&img=bg30.png)
Presentation Interfaces
4-8 Chapter 4: Interface description 98-137573-A
4.3.4 Pilot plug connection
The pilot plug provides a connection to the SAILOR 6282 AIS Transponder for pilots using
the standard pilot plug connector. This connector is supplied with the SAILOR 6282 AIS
Transponder. Mount it in an appropriate position for easy access by the pilot. The
connector kit for the pilot plug consists of the following items:
Connect the pilot plug as shown below:
Type Manufacturer Part number
Pilot Plug Connector AMP/Tyco 206486-2, Square Flange
Contact Pins AMP/Tyco 66570-3, solder type
Sealing Cap AMP/Tyco 208800-1
Table 4-5: Connector kit for the pilot plug

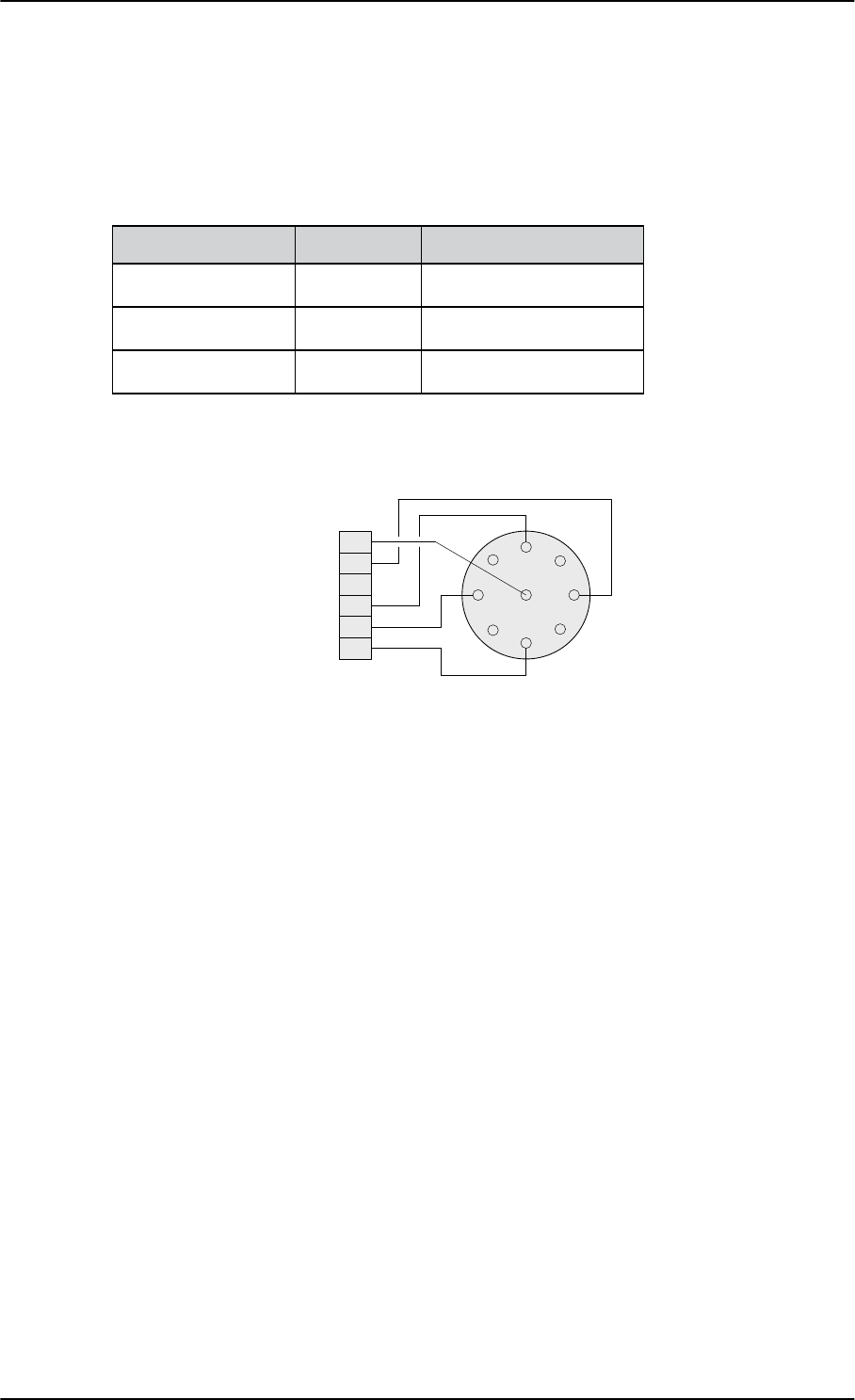

Figure 4-5: Pilot plug connection
1
5
23
46
7
9
8
Rx A
PI 2
Rx B
Rx C
Tx A
Tx B
Tx C
![](/img.php?id=2082849&img=bg31.png)
Alarm relay
98-137573-A Chapter 4: Interface description 4-9
4444
Interface description
4.4 Alarm relay
The SAILOR 6282 AIS Transponder has an internal alarm relay. Connect the alarm relay to
an audible alarm device or the ships alarm system, if available.
The ship’s alarm system is connected to the alarm relay through the SUB-D 50 pin
connector, which is connected to the SAILOR 6283 AIS Connection Box and Wall Tray or
the multi-wire cable included. See the section SUB-D50 connector and cable on page 3-14
for a description of the connector and the cable. The alarm relay connections are described
in the table below.
When the SAILOR 6282 AIS Transponder is powered on and there are no alarms the relay is
energized, i.e. ALARM COM and ALARM NO is connected.
The maximum switching current is 1 A.
The maximum switching voltage is 125 VAC, 60 VDC.
4.5 Low power forced control (gas alarm) 1 W
The transmitter output power of the SAILOR 6282 AIS Transponder is normally 12 W. For
the vessel type defined as Tanker(s) and the voyage data set to Moored the transmitter
output power will automatically be reduced to 1 W.
The transmitter can be forced to an output power of 1 W. This is done by shorting the '1W'
signal to DC-.
The Low power forced control (gas alarm) 1W can be connected to a switch to DC- through
the SUB-D 50 pin connector, which is connected to the SAILOR 6283 AIS Connection Box
and Wall Tray or the multi-wire cable supplied with the SAILOR 6282 AIS Transponder. See
the section SUB-D50 connector and cable on page 3-14 for a description of the connector
and the cable.
Signal Function
ALARM COM Alarm relay common
ALARM NC Alarm relay normally closed
ALARM NO Alarm relay normally open
Table 4-6: Alarm relay connections
![](/img.php?id=2082849&img=bg32.png)
Blue sign input
4-10 Chapter 4: Interface description 98-137573-A
4.6 Blue sign input
Blue sign is used on vessels that are subject to the Inland Waterway specifications where
the Blue sign is used as a special manoeuvre indicator. The SAILOR 6282 AIS Transponder
supports a direct connection to the Blue sign switch and is able to detect three logical
states:
• Set
• Not Set
• Not Connected
The state Not Connected can be used to detect a broken wire.
4.6.1 Electrical interface
The Blue sign interface is shown below. The voltage on the Blue sign interface must be
between 12 and 24 VDC. The interface can be powered from the ship’s Blue sign switch,
alternatively it can be powered from the AIS Transponder.

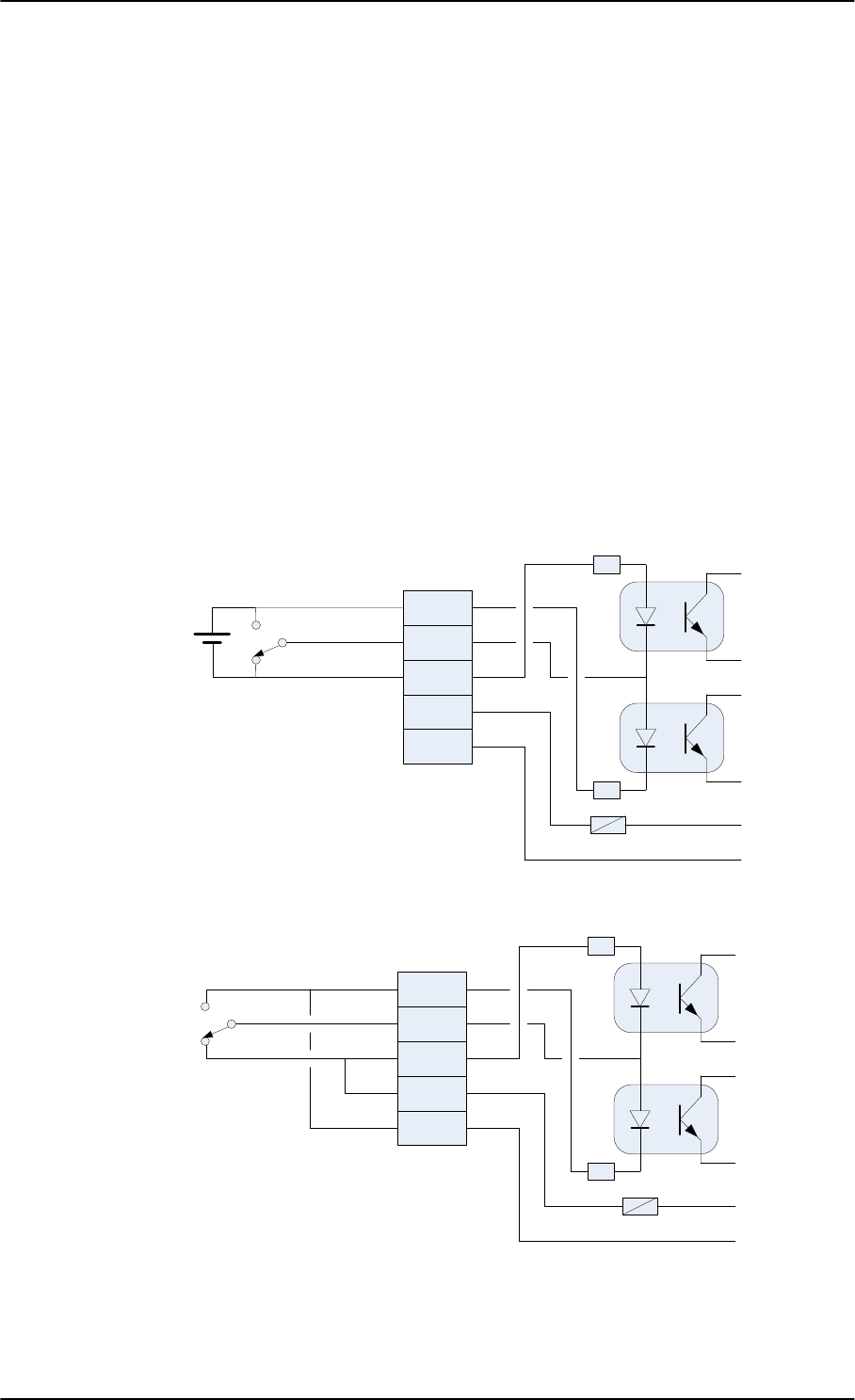

Figure 4-6: Blue sign interface to SAILOR 6282 AIS Transponder, powered by Blue sign switch
Figure 4-7: Blue sign interface to SAILOR 6282 AIS Transponder, powered by SAILOR 6282 AIS
Transponder
O
O
O
O
O
N
C
P
+ Fused
-
-DC
+ 12-24 VDC
0.3A
+
2
1
Pos. 1: Blue sign not set
Pos. 2: Blue sign set
O
O
O
O
O
N
C
P
+ Fused
-
-DC
+ 12-24 VDC
0.3A
Pos. 1: Blue sign not set
Pos. 2: Blue sign set
1
2
![](/img.php?id=2082849&img=bg33.png)
Ethernet interfaces
98-137573-A Chapter 4: Interface description 4-11
4444
Interface description
The Blue sign switch has two states: Set or Not Set. Each state activates one or the other
optocoupler. If the switch or wire becomes open circuit both optocouplers are activated. If
Blue sign is not used (12–24 VDC not connected or a broken wire) both optocouplers are
deactivated.
4.6.2 Configuration of Blue sign input
See Interface settings on page 5-12 to learn how to set up theSAILOR 6282 AIS
Transponder using the Service Interface.
4.7 Ethernet interfaces
The SAILOR 6282 AIS Transponder has two Ethernet connectors (RJ45). The Ethernet
connectors are used to communicate between the SAILOR 6004 Control Panel and the
SAILOR 6282 AIS Transponder. The Ethernet connectors are identical, you can use any of
the connectors to connect the SAILOR 6282 AIS Transponder to the SAILOR 6004 Control
Panel.
The units use the IEC 61162-450 protocol, also called Light Weight Ethernet (LWE), for
communication. LWE is a maritime standard for carrying NMEA sentences over Ethernet.
LWE is using UDP Multicast to communicate with other LWE equipment.
The Ethernet interface is used for communication with the Service Interface. For more
information see Service Interface on page 5-4.
4.7.1 Ethernet configuration
The SAILOR 6282 AIS Transponder and the SAILOR 6004 Control Panel communicate
through Ethernet (LWE). Other equipment can also communicate using the same Ethernet.
Therefore, it is necessary to configure an IP address and LWE ID for the SAILOR 6282 AIS
Transponder in the SAILOR 6004 Control Panel. I.e. the two devices must be paired.
IP address
The IP addresses of the SAILOR 6282 AIS Transponder and the SAILOR 6004 Control Panel
are acquired automatically. There is also the possibility to set a static IP address. The IP
addresses are unique for each device connected to the Ethernet network.
LWE ID
There are two LWE IDs, one for the SAILOR 6282 AIS Transponder and one for the SAILOR
6004 Control Panel. An LWE ID consists of two letters (always AI) and four digits, e.g.
AI0001. The LWE ID must be unique for each device connected to the Ethernet network.
When configuring the SAILOR 6282 AIS Transponder you must set the LWE ID on the
SAILOR 6004 Control Panel. Make sure that the SAILOR 6282 AIS Transponder and the
SAILOR 6004 Control Panel are connected to the same network.
![](/img.php?id=2082849&img=bg34.png)
Ethernet interfaces
4-12 Chapter 4: Interface description 98-137573-A
Both IDs are visible in the display of the SAILOR 6004 Control Panel in the AIS app in
section Settings > Connection. The SAILOR 6282 AIS Transponder LWE ID is visible in
the top bar of all AIS screens of the SAILOR 6004 Control Panel.
You can change the LWE IDs in two ways:
• Using the AIS app, Settings > Connection, see the user manual for more detailed
instructions.
• Using the Service Interface, see LWE ID on page 4-11.
See Interface settings on page 5-12 to learn how to set up theSAILOR 6282 AIS
Transponder using the Service Interface.

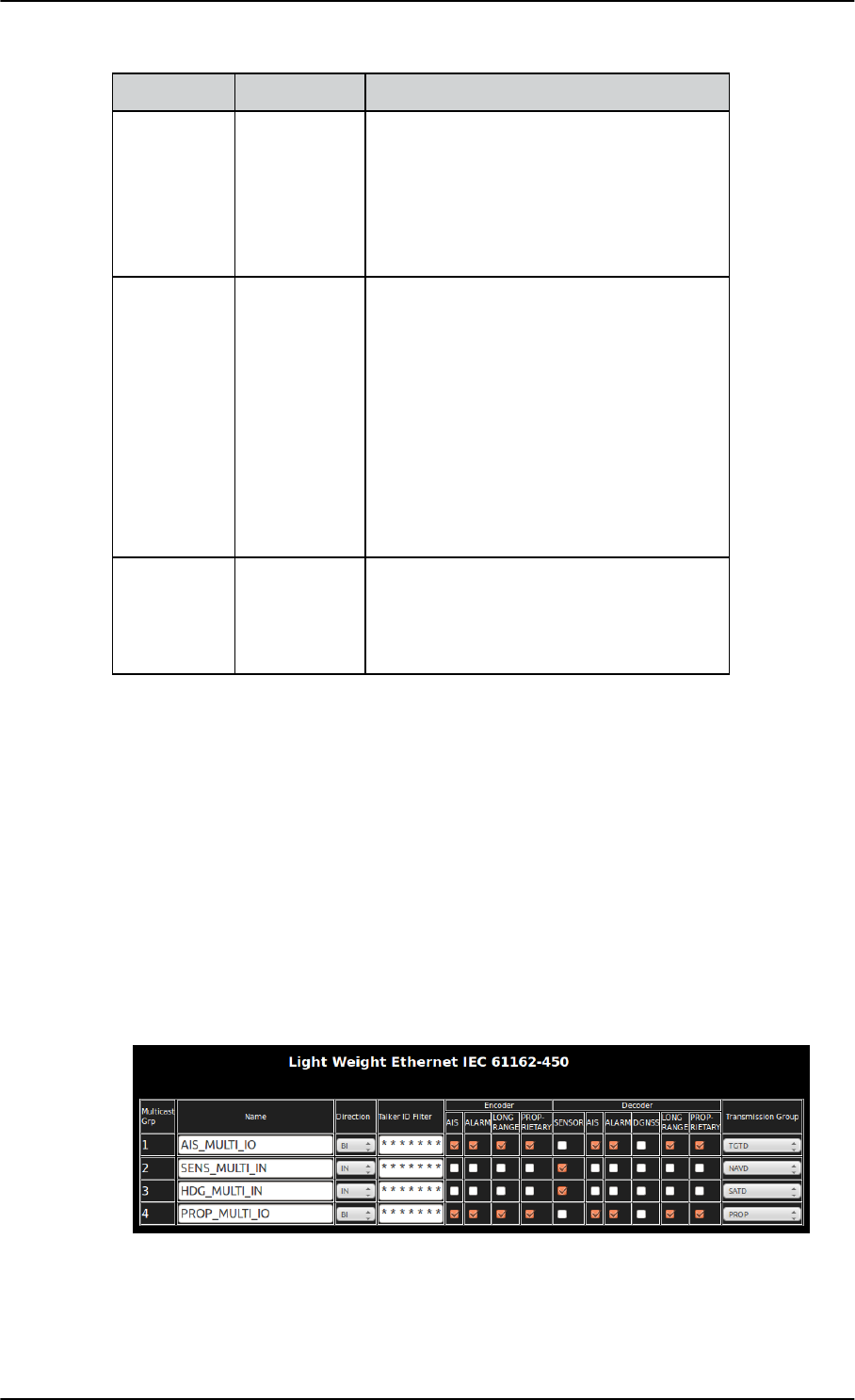

Transmission group
See Light weight Ethernet - LWE on page B-1.
Unit Default LWE ID
SAILOR 6282 AIS Transponder (default) AI0001
SAILOR 6004 Control Panel (must be set) AI0002
Table 4-7: LWE ID for SAILOR 6282 AIS Transponder and SAILOR 6004 Control Panel
![](/img.php?id=2082849&img=bg35.png)
98-137573-A 5-1
Chapter 5
5555
Configuration
Configuration 5
This chapter has the following sections:
•Start up
•AIS app installation and system settings
•Service Interface
5.1 Start up
5.1.1 To Power on and off
As soon as DC power is provided the SAILOR 6282 AIS Transponder is on.
To switch on the SAILOR 6004 Control Panel push the power button. Operate
the SAILOR 6004 Control Panel by tapping the touch screen. To switch off
the SAILOR 6004 Control Panel push and hold the power button for 2
seconds and follow the instructions on the screen.
If the Control Panel cannot switch off normally (e.g. due to a fault): Push and
hold for 12 seconds.
5.1.2 Dim and night mode
Turn the dim knob of the SAILOR 6004 Control Panel to increase or decrease
the display brightness. The display goes into night mode either when turning
the dim knob on the front panel counterclockwise or when the internal light
sensor detects the light level for changing to night mode.
To dim to level zero push the power button once. If an alarm appears while the display is in
level zero, the display returns to the latest dim value and the alarm is displayed.
![](/img.php?id=2082849&img=bg36.png)
AIS app installation and system settings
5-2 Chapter 5: Configuration 98-137573-A
5.2 AIS app installation and system settings
5.2.1 System app
Having switched on the SAILOR 6004 Control Panel, an icon named System is always
displayed, plus the icon(s) of the applications that are installed. Under System you can set
up and manage the SAILOR 6004 Control Panel.
Tap the icon System and the following topics are available:
•Settings
containing Network, Date/Time and Debugging.
•Applications
containing installed and available applications.
•Self Test
containing a self test of Touch, Controls Display, Audio, USB, Light Sensor, Alarm Output,
NMEA and LAN.
•About
containing Legal information, software versions and network information (IP address
and MAC address of the SAILOR 6004 Control panel).
Settings
Tap Settings to enter the section for network configuration, date and time setting and
debugging. Tap the section you want to work with and explore the touch screen for each
setting.

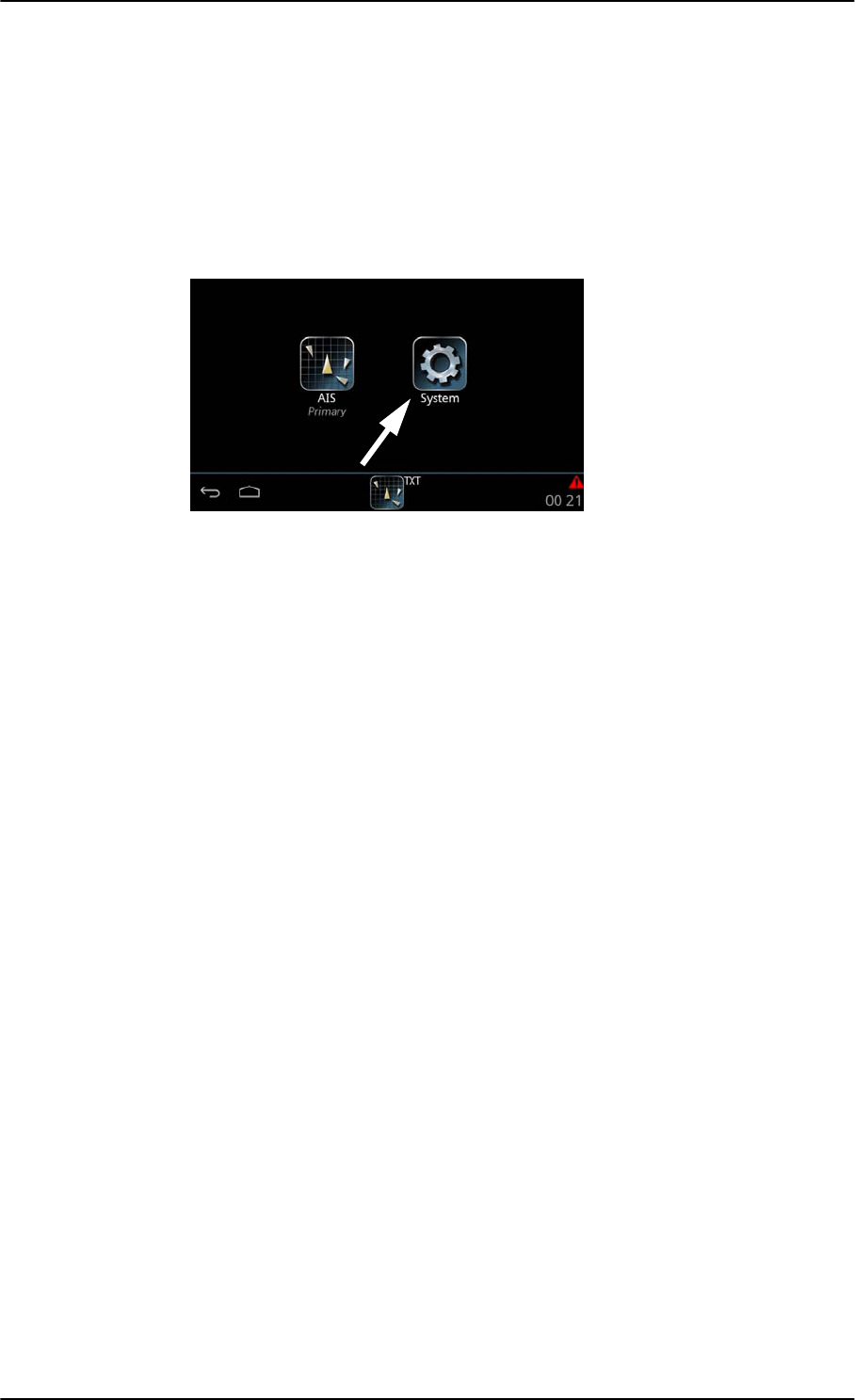

Figure 5-1: Screen to enter System (example)
![](/img.php?id=2082849&img=bg37.png)
AIS app installation and system settings
98-137573-A Chapter 5: Configuration 5-3
5555
Configuration
To change a setting you must enter the password for user level and tap OK.
Applications
Tap Applications to install or uninstall applications. This section has two tabs: Available,
showing the apps that are available to the SAILOR 6004 Control Panel on the current
network, and Installed, showing which apps are already installed.
To install an app, do as follows:
1. Tap Available to display the apps that are available to this SAILOR 6004 Control Panel.
2. Tap the app you want to install.
For each app there are the following items::
• App name and version, e.g. AIS Version 1.0.
•Install to install this app on the SAILOR 6004 Control Panel.
3. Enter the password for user level and tap OK.
To manage an already installed app, do as follows:
1. Tap Installed to display the apps that are installed on this SAILOR 6004 Control Panel.
2. Tap the app you want to manage.
For each app there are the following items::
• App name and version, e.g. AIS Version 1.0.
•Update (if available, else grayed out) – tap here to update this app. Enter the
password for user level and tap OK.
Figure 5-2: System - Settings, Display
Figure 5-3: System – Applications (example)
![](/img.php?id=2082849&img=bg38.png)
Service Interface
5-4 Chapter 5: Configuration 98-137573-A
•Uninstall – tap here to uninstall this app from the SAILOR 6004 Control Panel.
3. Enter the password for user level and tap OK.
Self Test
Tap Self Test to start the self test of the SAILOR 6004 Control Panel. For further details on
the self test see the installation manual of the SAILOR 6004 Control Panel.
About
Tap About to view the following:
•Legal with legal and copyright information, open source licences, etc.
•Version with various software versions and serial number of the SAILOR 6004 Control
Panel.
•Network with IP address and MAC address of the SAILOR 6004 Control Panel.
5.2.2 AIS app – daily use
The daily use of the AIS app is described in the user manual for the SAILOR 6282 AIS
Transponder.
5.3 Service Interface
Before the SAILOR 6280/6281 AIS System can be used on board you must set up several
parameters in the SAILOR 6282 AIS Transponder. To do this, use the Service Interface.
The Service Interface is a web interface built into the software of the SAILOR 6282 AIS
Transponder. No installation of software is necessary. You access it from a computer with a
standard Internet browser (Firefox or Chrome recommended). The Service Interface can
also be shown in the display of the SAILOR 6004 Control Panel at Settings > Installation.
5.3.1 Accessing the Service Interface
You can start the Service Interface in several ways:
•Using a PC with Thrane Management Application (TMA)
•Using a PC and an Internet browser
Note When entering text, note that only touch-screen keys that are required in the AIS
standard 1371-4, table 44 are supported. Other keys are ignored. You find the
complete table in the appendix Supported keys on page C-1.
![](/img.php?id=2082849&img=bg39.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-5
5555
Configuration
Using a PC with Thrane Management Application (TMA)
To access the built-in web interface, also called the Service Interface, via the TMA do as
follows:
1. Switch on the SAILOR 6004 Control Panel and make sure that DC power is provided for
the SAILOR 6282 AIS Transponder.
2. Connect a PC to the same network as the SAILOR 6282 AIS Transponder (preferably a
direct connection to the Ethernet connector of the SAILOR 6282 AIS Transponder).
3. Start the TMA (v. 1.04 or higher) and click on the SAILOR 6282 AIS Transponder (TT-
6282 AIS).
4. Click the icon Management and then Web interface. The web interface opens in a
browser window.
Using a PC and an Internet browser
To access the Service Interface, with a PC and an Internet browser do as follows:
1. Switch on the SAILOR 6004 Control Panel and make sure that DC power is provided for
the SAILOR 6282 AIS Transponder.
2. Tap the menu item in the top right corner, swipe upwards and tap Settings.
3. In the section Connection, two IP addresses are listed:
• Remote IP address – IP address of the SAILOR 6282 AIS Transponder
• Own IP Address – IP address of the SAILOR 6004 Control Panel
These IP addresses are assigned automatically. Note down the IP address of the SAILOR
6282 AIS Transponder.
4. Connect a PC to the same network as the SAILOR 6282 AIS Transponder - or - SAILOR
6004 Control Panel.
Figure 5-4: Accessing the web interface using the TMA
![](/img.php?id=2082849&img=bg3a.png)
Service Interface
5-6 Chapter 5: Configuration 98-137573-A
5. Open an Internet browser (Firefox or Chrome recommended) and enter the IP address
of the SAILOR 6282 AIS Transponder (Remote IP address), e.g.:
http://10.10.8.45/index.html
The start screen of the Service Interface is displayed.

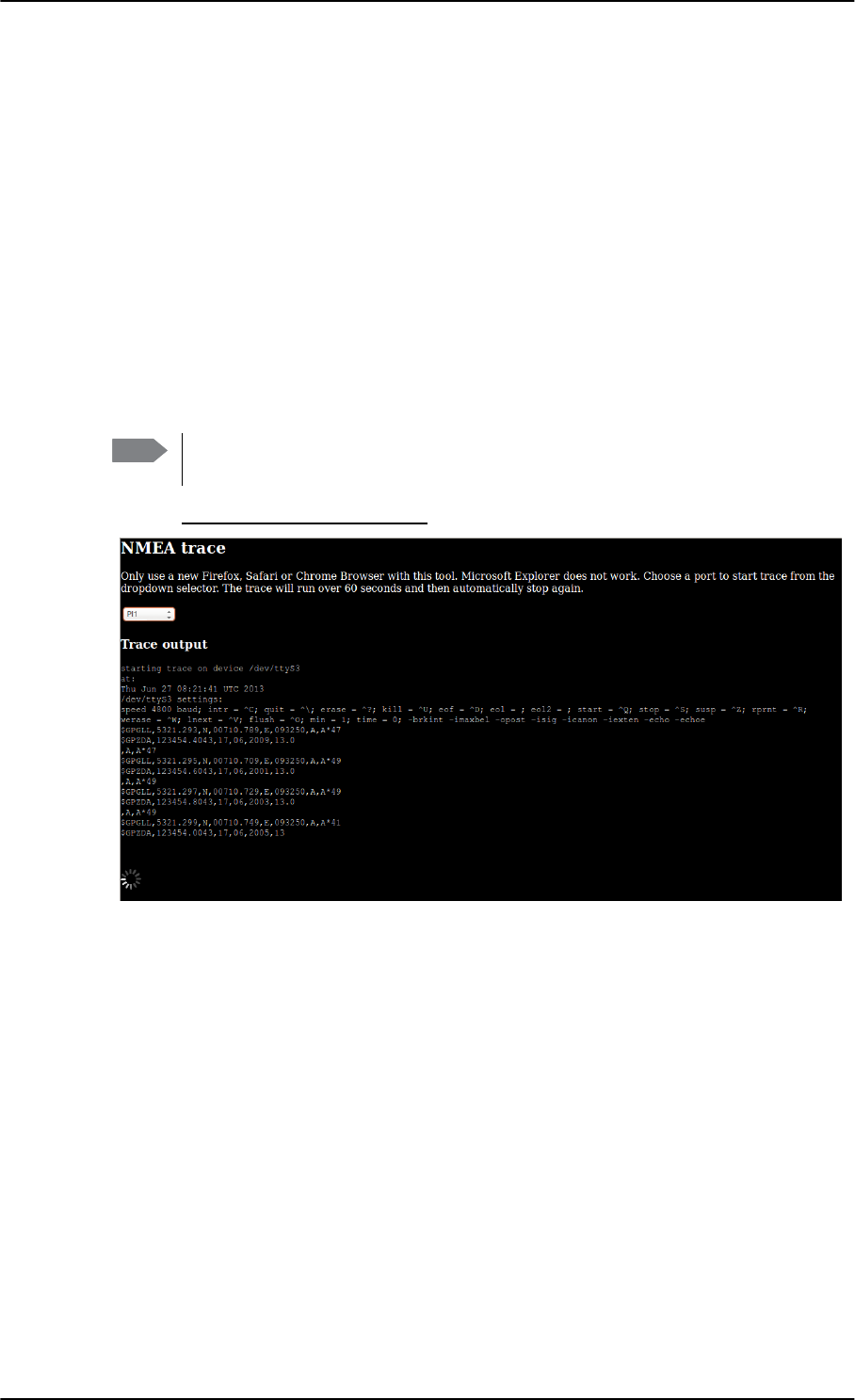

From the start screen you can start an NMEA Trace tool. This tool is useful when verifying
the installation and the connected devices. For more information see Verification on
page 5-20.
6. Enter the password and click Login.
Default password: sailorsailor
Figure 5-5: Start screen of the Service Interface in an Internet browser
Important The SAILOR 6282 AIS Transponder (also called AIS
Transceiver) is locked for normal use for as long as
communication with the Service Interface is ongoing.

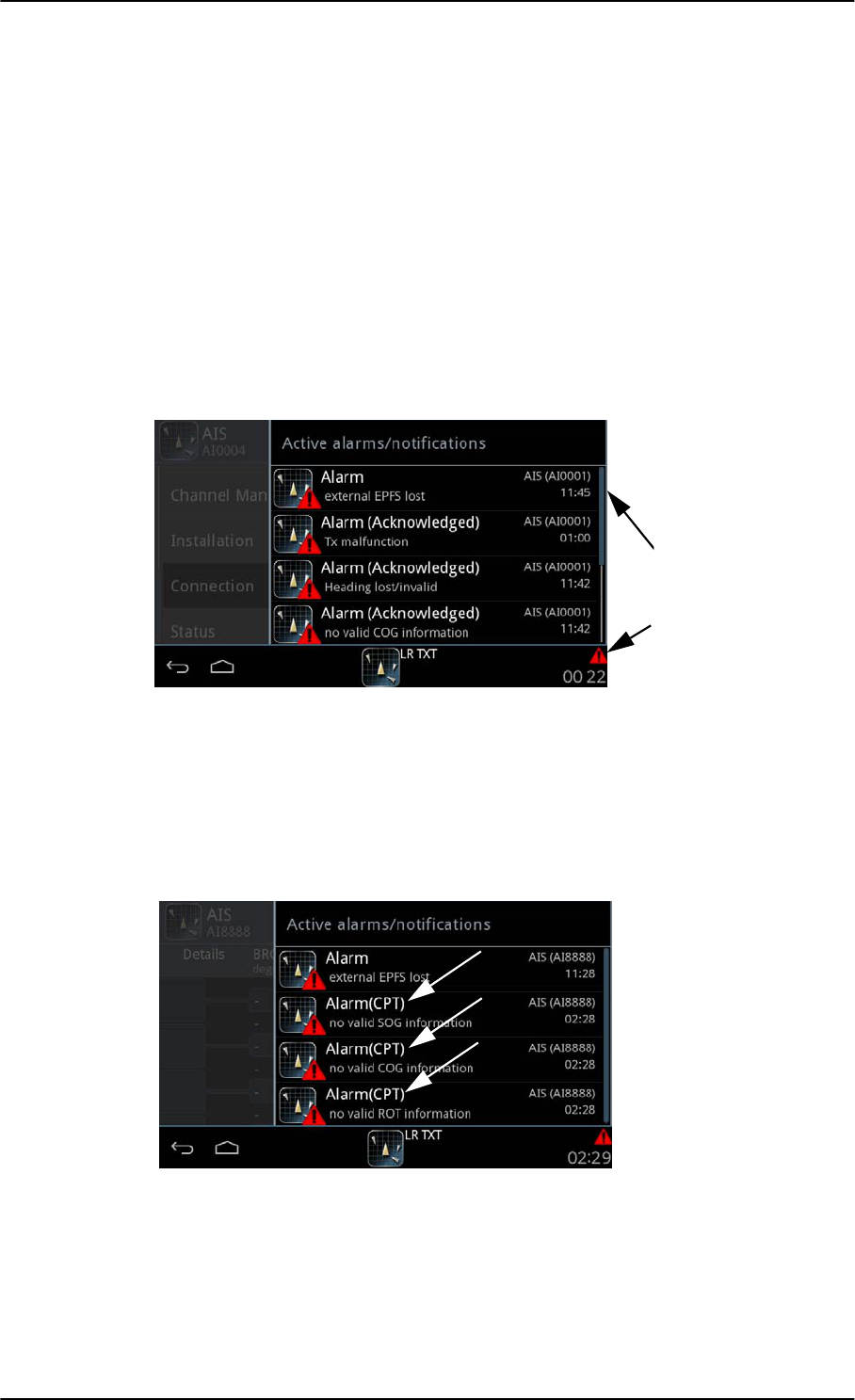

The SAILOR 6282 AIS Transponder raises the alarm Connection lost,
this will be displayed in the SAILOR 6004 Control Panel (also called
MKD). There will be no alarm TX malfunction.

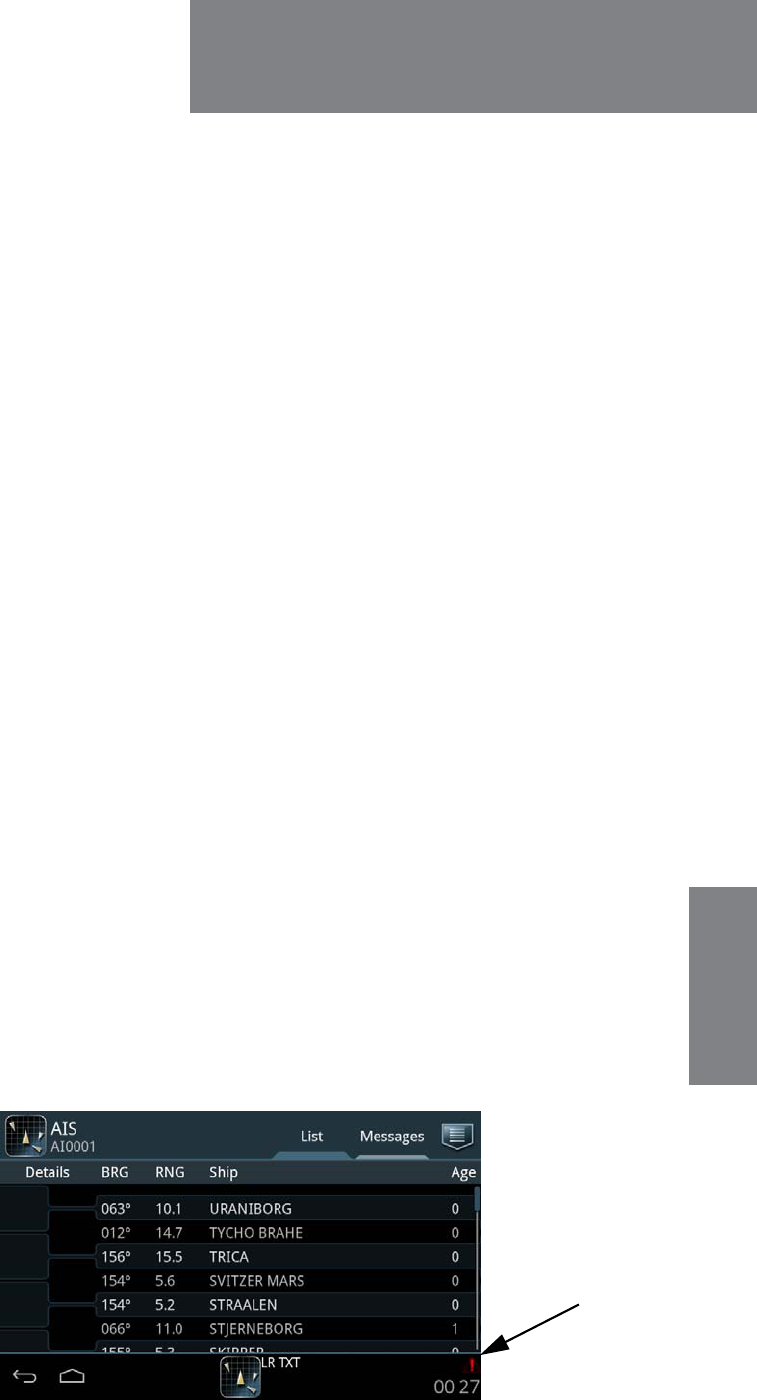

Figure 5-6: SAILOR 6004 Control Panel display: No connection when using the Service Interface
![](/img.php?id=2082849&img=bg3b.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-7
5555
Configuration
Figure 5-7: Service Interface – general settings
![](/img.php?id=2082849&img=bg3c.png)
Service Interface
5-8 Chapter 5: Configuration 98-137573-A
5.3.2 General settings
Enter the general settings and click Submit to store the settings in the SAILOR 6282 AIS
Transponder.
Callsign
Enter the callsign of the vessel.
MMSI
Enter the vessel’s MMSI number.
Ship name
Enter the vessel’s name.
Figure 5-8: Service Interface: General settings
Note Enter the ship name using upper-case letters and numbers. Lower-case letters are
not valid.
![](/img.php?id=2082849&img=bg3d.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-9
5555
Configuration
Ship type
Select a ship type from the drop-down list or select Numeric entry to enter directly the 2-
digit value for the ship type.
How to set the cargo is described in the user manual of the SAILOR 6282 AIS Transponder.
Short instruction: Tap List icon > Settings > Voyage > Cargo
DTE indicator
DTE is an abbreviation for data terminal equipment. The purpose of the DTE indicator is to
inform distant receiving applications that, if set to Communication supported, the
transmitting station conforms, at least, to the minimum keyboard and display requirements
(SAILOR 6004 Control Panel). The DTE indicator is only used as information provided to the
application layer of the SAILOR 6282 AIS Transponder, indicating that the transmitting
station is available for communication. The DTE indication is transmitted in AIS Message 5.
The consequences of configuring the DTE value are the following:
•Communication not supported (DTE=1): (Keyboard and display are either unknown
or unable to support communication). Message 5 will always indicate "1" (unavailable).
•Communication supported (DTE=0): (Keyboard and display are a standard
configuration, and communication is supported).
Ship types Ship types (Continued)
Not available Pleasure Craft
Future ship types Vessel - 38
WIG Vessel - 39
HSC Pilot Vessel
Passenger Ships S and rescue vessel
Cargo Ships Tugs
Tanker(s) Port tenders
Vessel - Fishing Vessel with anti-pollution facilities or
equipment
Vessel - Towing Law Enforcement Vessel
Vessel - Towing > 200 m length or >
25 m breadth
Local vessel:56
Vessel - Dredging or underwater
operations
Local vessel:57
Vessel - Diving operations Medical transport
Vessel - Military Operations Ships of states not party to an armed
conflict
Vessel - Sailing Numeric entry:
Table 5-1: Ship types
![](/img.php?id=2082849&img=bg3e.png)
Service Interface
5-10 Chapter 5: Configuration 98-137573-A
Message 5 will indicate "1" (unavailable) if no MKD connection (no HBT - heart beat) or if
an established connection is lost (HBT time-out).
Message 5 will indicate "0" (available) if MKD connection (HBT - heart beat) is detected.
Type of electronic position fixing device
Select the desired electronic position fixing device. See also Position (GNS, RMC, DTM,
GGA) on page 4-4.
Reference point for reported position, internal and external GPS
Enter the respective coordinates for the location of the GPS antenna(s) on the vessel, with
A, B, C and D according to the drawings on the screen. For more information see Position
(GNS, RMC, DTM, GGA) on page 4-4.
GPS / VHF antenna
Select whether the vessel has a combined GPS and VHF antenna or a separate GPS antenna.
For more information see VHF and GPS antenna installation on page 3-2.
System function ID
This is the device name of the SAILOR 6282 AIS Transponder that appears in the display of
the SAILOR 6004 Control Panel. The default value is AI0001. For more information see LWE
ID on page 4-11.
You can also change the LWE ID using the SAILOR 6004 Control Panel. This is described in
the user manual of the SAILOR 6282 AIS Transponder.
Short instruction: Tap List icon > Settings > Connection > Own Name
5.3.3 Long Range
Here you can change the channels for Long Range broadcast channel 1 and 2.
1. Enter the new channel number.
2. Click Submit to store the new setting in the SAILOR 6282 AIS Transponder.

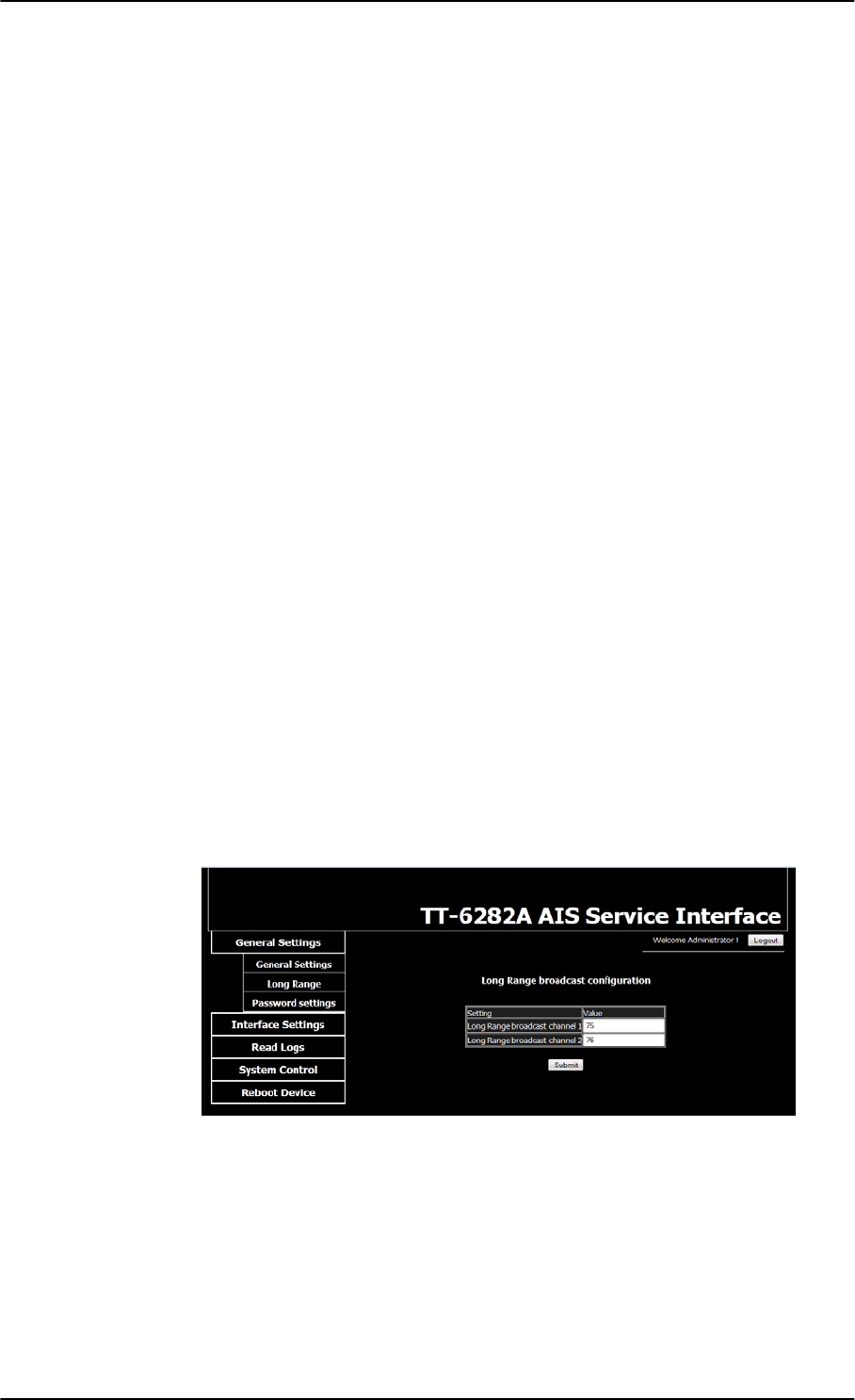

Figure 5-9: Service Interface: Long Range
![](/img.php?id=2082849&img=bg3f.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-11
5555
Configuration
5.3.4 Password settings
Here you can change the password for user and administrator level. The password for user
level is used when unlocking a setting using the SAILOR 6004 Control Panel. The password
for administrator level is used when accessing the SAILOR 6282 AIS Transponder
through the Service Interface.
1. Enter the new password in the boxes Password and Repeat.
2. Click Change admin password or Change user password to store the new setting
in the SAILOR 6282 AIS Transponder.
Default password – administrator: sailorsailor
Default password – user: user (for SAILOR 6004 Control Panel)
Master Reset password
The master reset password will reset the SAILOR 6282 AIS Transponder to factory default
passwords if the operator has unintentionally closed access or forgotten the user or
administrator password. Every time this password has been used both the passwords must
be changed again from this default.
Password – Master reset: 12345
Figure 5-10: Service Interface: Password settings
![](/img.php?id=2082849&img=bg40.png)
Service Interface
5-12 Chapter 5: Configuration 98-137573-A
5.3.5 Interface settings
The purpose of the UART interface settings is to control the information coming into the 4
PI ports and the 3 sensor input ports and to configure for the desired purposes.
PI Settings (Presentation Interface bi-directional ports)
The PI ports can be configured to encode and decode different categories/purposes:
• Sensor specific NMEA sentences
• AIS specific NMEA sentences
• Alarm specific NMEA sentences
• Proprietary NMEA sentences
• Long Range NMEA sentences1
• DGNSS input (Differential GNSS)2
If two ports are configured with the same encoder/decoder pair they are operated equally.
This means if for example an AIS specific sentence is configured for output on both P1 and
P2, VDO/VDM sentences will be output on both ports. If identical sentences are received
from multiple sources on different input ports, they shall be filtered by their talker ID.
Query sentences will only be acknowledged on the port where the request was received.
The DGNSS configuration is only allowed to be exclusively on a single port.
1. Configure only a single PI port with LONG_RANGE parser and LONG_RANGE encoder.
2. Configure only a single PI port for DGNSS parser input.
Figure 5-11: Service Interface: Interface settings – PI Settings
![](/img.php?id=2082849&img=bg41.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-13
5555
Configuration
Sensor Settings
The sensor ports are normally connected to a variety of sensor sources on board the vessel,
such as positioning, heading and speed sensors. If identical sentences are received from
multiple sources on different input ports, they shall be filtered by their talker ID. If a port is
configured as a sensor port, an empty talker ID list will allow all sensor devices to be
accepted on that port regardless of the talker ID applied in the sentences.
Example: If the position source is connected to SENSOR 1 and the heading sensor to
SENSOR 2, both ports should be configured as sensor decoders and SENSOR 1
should have GP as talker ID whereas SENSOR 2 should be configured HE in the
talker ID list.
The Sensor ports can be configured to decode different categories/purposes:
• Sensor specific NMEA sentences
• AIS specific NMEA sentences
• Alarm specific NMEA sentences
• Proprietary NMEA sentences
• Long Range NMEA sentences1
• DGNSS input (Differential GNSS)2
Item Description
Name You can name PI1 through PI4 according to your system requirements.
Baud Use the drop-down list to change the baud rate, if needed (default: 38400 baud).
Talker ID Filter Enter NMEA talker ID. Replace * from left to right.
Example: AI ZZ BI0000 CC9999 GH ZI VA ST **
Talker ID filters are used to ensure that the SAILOR 6282 AIS TransponderAIS does not get
the same sentence type from more than one physical sensor.
If one of the inputs (PI, Sensor or LWE) provides sentences that must be ignored by the AIS,
make a positive Talker ID filter list for this port listing all the talker ID's that must be used by
the AIS on this interface. By leaving out the Talker IDs that are not to be used by the AIS,
these are filtered out.
Encoder Select which NMEA sentences you want to encode. For further information see Table B-2 on
page B-2.
Decoder Select which NMEA sentences you want to decode. For further information see Table B-2 on
page B-2.
Table 5-2: Interface settings, PI Settings
1. Configure only a single PI port with LONG_RANGE parser and LONG_RANGE encoder.
2. Configure only a single PI port for DGNSS parser input.
![](/img.php?id=2082849&img=bg42.png)
Service Interface
5-14 Chapter 5: Configuration 98-137573-A
Note The sensor inputs can in principle also be configured to decode the same sentence
categories as the PI ports, but as the sensor ports are pure input ports query
sentences will not be acknowledged correctly.
Figure 5-12: Service Interface: Interface settings – Sensor Settings
Item Description
Name You can name SENSOR1 through SENSOR3 according to your system
requirements.
Baud Use the drop-down list to change the baud rate, if needed (default: 4800 baud).
Talker ID Filter Enter NMEA talker ID. Replace * from left to right.
Example: AI ZZ BI0000 CC9999 GH ZI VA ST **
Talker ID filters are used to ensure that the SAILOR 6282 AIS TransponderAIS
does not get the same sentence type from more than one physical sensor.
If one of the inputs (PI, Sensor or LWE) provides sentences that shall be ignored
by the AIS, make a positive Talker ID filter list for this port listing all the talker ID's
that shall be used by the AIS on this interface. By leaving out the Talker IDs that
are not to be used by the AIS, these are filtered out.
Decoder Select which NMEA sentences you want to decode.
For further information see Table B-2 on page B-2.
Table 5-3: Interface settings, Sensor Settings
![](/img.php?id=2082849&img=bg43.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-15
5555
Configuration
Ethernet Settings
If needed you can set the SAILOR 6282 AIS Transponder to have a static IP address.
Click Submit to send the new setting to the SAILOR 6282 AIS Transponder.

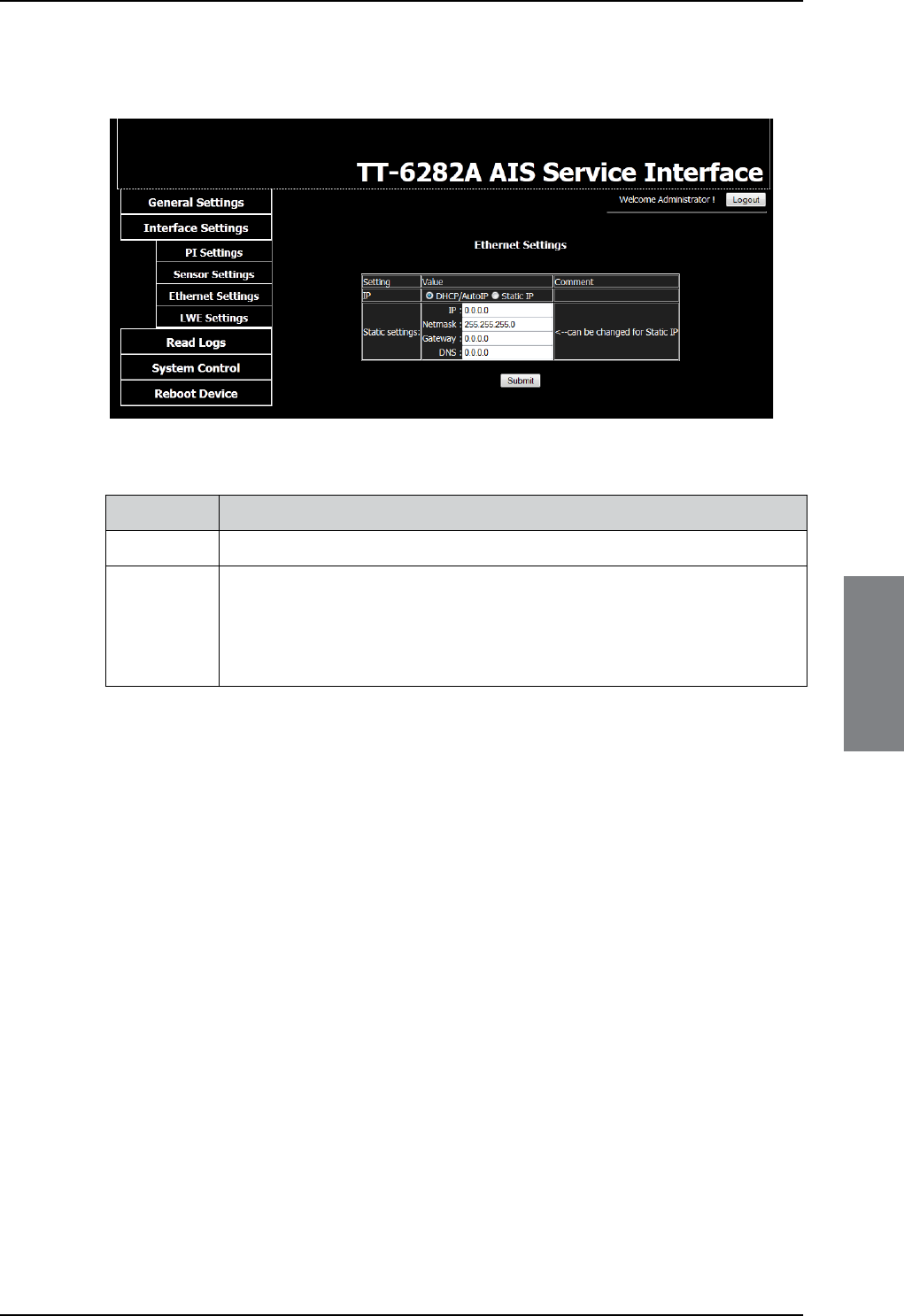

Figure 5-13: Service Interface: Interface settings – Ethernet Settings
Item Description
IP DHCP/Auto IP (recommended and default) or Static IP
Static settings If you need a static IP you must enter the following:
– IP address
– Netmask
– Gateway
– DNS
Table 5-4: Interface settings, Ethernet Settings
![](/img.php?id=2082849&img=bg44.png)
Service Interface
5-16 Chapter 5: Configuration 98-137573-A
LWE Settings
Set the LWE Settings as shown in the figure below to achieve connection to the SAILOR
6004 Control panel.
Read more about LWE at LWE ID on page 4-11.

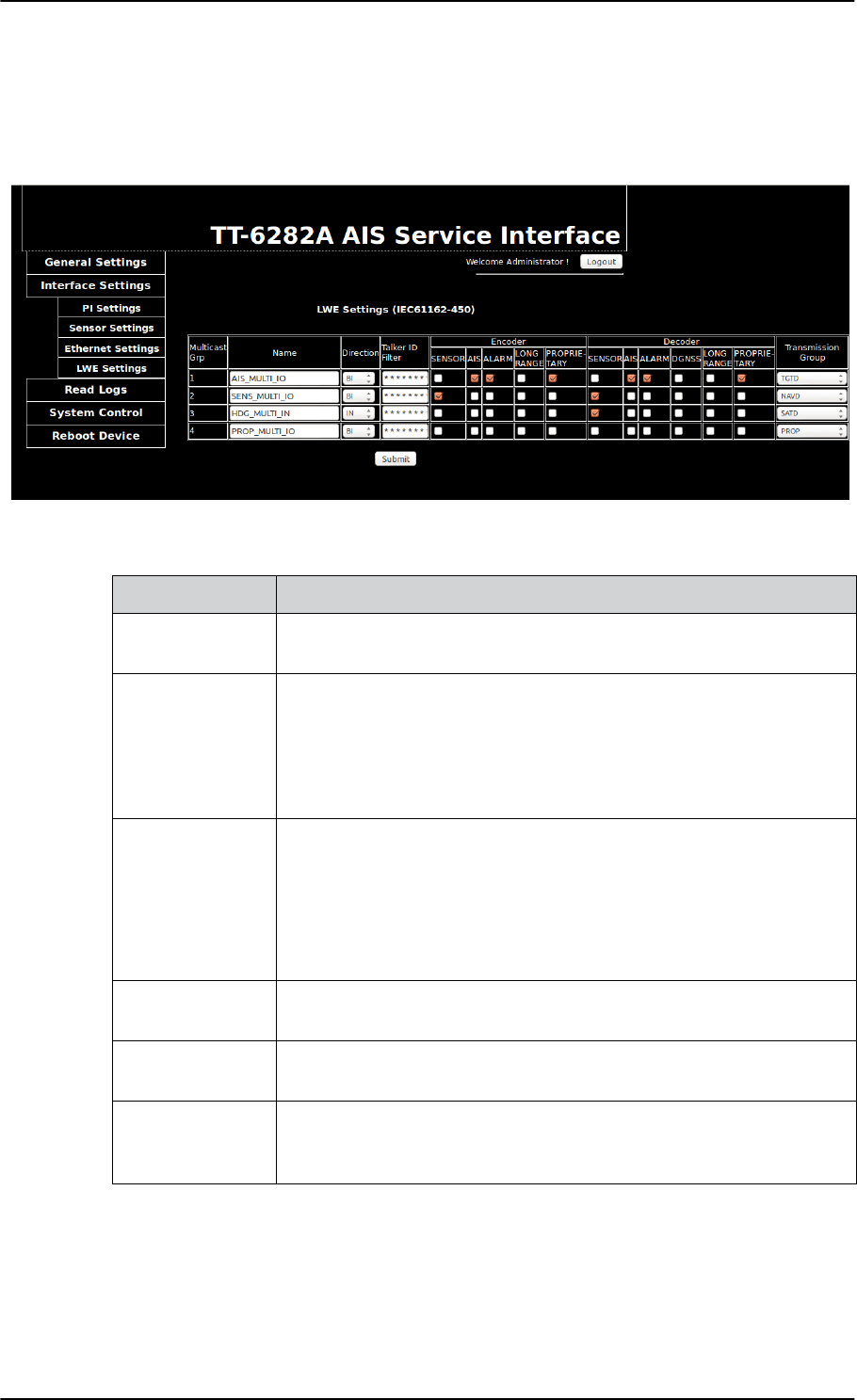

Figure 5-14: Service Interface: Interface settings – LWE Settings (default)
Item Description
Name You can name Multicast groups1 through 4 according to your system
requirements.
Direction There are three possibilities for the multicast group:
• listen only (IN:input only),
• talk (OUT:output only)
• listen and talk (BI:bidriectional)
Talker ID Filter Talker ID filters are used to ensure that the SAILOR 6282 AIS Transponder
does not get the same sentence type from more than one physical sensor.
If one of the inputs (PI, Sensor or LWE) provides sentences that must be
ignored by the AIS, make a positive Talker ID filter list for this port listing all
the talker ID's that must be used by the AIS on this interface. By leaving out
the Talker IDs that are not to be used by the AIS, these are filtered out.
Encoder Select which NMEA sentences you want to encode. For further information
see Table B-2 on page B-2.
Decoder Select which NMEA sentences you want to decode. For further information
see Table B-2 on page B-2.
Transmission Group Select which lightweight Ethernet transmission group to use for the
telegrams to use. Transmission groups must be unique for each port. For
further information see Appendix B, NMEA sentences.
Table 5-5: Interface settings, LWE Settings
![](/img.php?id=2082849&img=bg45.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-17
5555
Configuration
5.3.6 Read logs
You can view and download the system log to a file. Click Download System Log and
follow the instructions on the screen.
Figure 5-15: Service Interface: Read Logs
Log type Description
System Malfunction Log This log shows:
• offTime – start time of event
• onTime – stop time of event
• reason – Reason codes are explained on the screen
• entry – running number of event
System Log This log shows a list of system activities.
Table 5-6: Service Interface – System logs
![](/img.php?id=2082849&img=bg46.png)
Service Interface
5-18 Chapter 5: Configuration 98-137573-A
5.3.7 System control
5.3.8 Reboot device
Click the button Reboot to activate the changes and leave the Service Interface and put
the SAILOR 6282 AIS Transponder into normal operation. This may take up to 30 seconds.
After a reboot the latest 20 addressed safety messages remain in the SAILOR 6282 AIS
Transponder, all other messages are deleted.

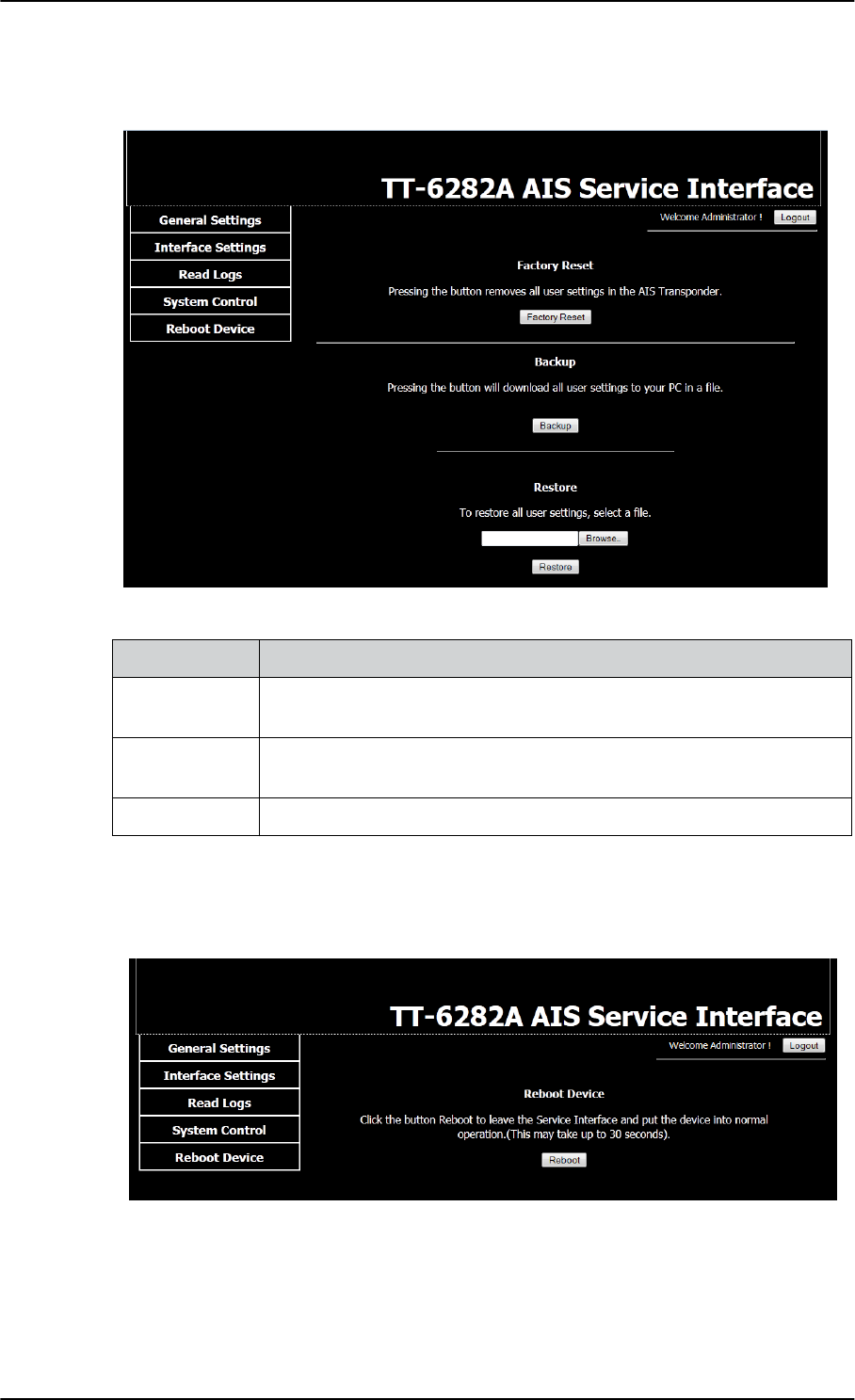

Figure 5-16: Service Interface: System control
System Control Description
Factory Reset Click Factory Reset to reset the SAILOR 6282 AIS Transponder to default
values. All user settings are deleted.
Cloning Click Backup to make a clone of the current setup of the SAILOR 6282 AIS
Transponder.
Restore from file Click Browse and Restore to restore a setup from file.
Table 5-7: Service Interface: System Control
Figure 5-17: Reboot the device
![](/img.php?id=2082849&img=bg47.png)
Service Interface
98-137573-A Chapter 5: Configuration 5-19
5555
Configuration
5.3.9 Connecting a chart plotter
To set up the chart plotter to work together with the SAILOR 6282 AIS Transponder do as
follows:
1. Connect a chart plotter to a free PI interface.
2. Login to the Service Interface.
3. Click Interface settings > PI Settings.
4. Set the baud rate according to the requirements of the chart plotter.
5. In Encoder select AIS.
6. Select nothing in Decoder.
7. Click Submit to save the settings.
![](/img.php?id=2082849&img=bg48.png)
Verification
5-20 Chapter 5: Configuration 98-137573-A
5.4 Verification
5.4.1 NMEA Trace tool
After installation of all devices to the SAILOR 6280/6281 AIS System it can be useful to
start the NMEA Trace tool to see current system information whether the connected
device on a selected port receives and sends correct NMEA information. The tool runs
independently from the Service Interface and you can access the SAILOR 6282 AIS
Transponder as in normal operation.
To start the NMEA Trace tool, do as follows:
1. Access the login page of the Service Interface, see Using a PC and an Internet browser
on page 5-5.
2. Click Start the NMEA Trace tool to start the NMEA tracer tool. A new window opens.
In this window the current data to and from the port selected in the drop-down list are
displayed.
At the same time you can monitor alarms related to the connected devices and configure
the connected devices in the display of the SAILOR 6004 Control Panel.
Note Do not login to the Service Interface! The NMEA Trace tool is started and works
separately.
Figure 5-18: NMEA Trace tool (example)
![](/img.php?id=2082849&img=bg49.png)
98-137573-A 6-1
Chapter 6
6666
Service & maintenance
Service & maintenance 6
6.1 Contact for support
Contact your authorized dealer for technical service and support of the SAILOR 6280/6281
AIS System. Before contacting your authorized dealer you can go through the
troubleshooting guide to solve some of the most common operational problems.
6.2 Maintenance
6.2.1 Preventive maintenance
Maintenance of the SAILOR 6280/6281 AIS System can be reduced to a maintenance
check at each visit of the service staff. Inspect all units for mechanical damages, salt
deposits, corrosion and any foreign material. Due to its robust construction and ruggedness
the SAILOR 6282 AIS Transponder, SAILOR 6285 GPS Antenna - Active, SAILOR 6283 AIS
Connection Box and Wall Tray and SAILOR 6004 Control Panel have a long lifetime.
Anyway they must carefully be checked at intervals not longer than 12 months - dependent
on the current working conditions.
Salt deposits
In case the equipment has been exposed to sea water there is a risk of salt crystallization on
the keys and knobs and they may become inoperable. Clean the units with fresh water.
6.2.2 Error messages
Error messages are shown in the display of the SAILOR 6004 Control panel and are read-
only. Tap the red triangle/exclamation mark in the lower right corner of the SAILOR 6004
Control Panel to display the alarm(s).
Figure 6-1: Display error messages
Tap to
display alarm
list
![](/img.php?id=2082849&img=bg4a.png)
Maintenance
6-2 Chapter 6: Service & maintenance 98-137573-A
6.2.3 Software update using the TMA (ThraneLINK Management
Application)
1. Download the TMA from the Cobham eSupport web site (Self-Service Center, SSC. You
find the SSC in the Service and Support section, 24-7 Service). Make sure to use version
1.03 or higher.
2. Make sure that your PC is on the same network as the SAILOR 6282 AIS Transponder.
3. Make sure that the SAILOR 6004 Control Panel is switched on.
4. Connect your PC to a free LAN interface of the SAILOR 6282 AIS Transponder.
5. Start the TMA on your PC. The SAILOR 6282 AIS Transponder is automatically detected.
Click the icon for the SAILOR 6282 AIS Transponder. The Software Download Status
must show Ready.
6. The icon Software update pulsates yellow when a new software version is detected
for the SAILOR 6282 AIS Transponder.
The TMA searches all devices connected via USB for new software. You can add an
additional search path. To do so press the icon Option on the software update screen
and select Search for software. A dialog box is displayed and you can select a
directory.
7. To start the software update click the icon Software update and select Update. The
current and the new software version numbers are displayed.
You can also select a specific software version. To do so press the icon Option on the
software update screen and select Select software. A list of available software
versions is displayed. Select one and click the button Update.
Figure 6-2: LAN connectors of the SAILOR 6282 AIS Transponder
VHF/GPS
GPS
12-24V DC
FUSE
SUB-D50
1
![](/img.php?id=2082849&img=bg4b.png)
Disassembling
98-137573-A Chapter 6: Service & maintenance 6-3
6666
Service & maintenance
6.3 Disassembling
6.3.1 Removing the SAILOR 6282 AIS Transponder from the wall
tray
1. Remove the cover of the SAILOR 6283 AIS Connection Box and Wall Tray by loosening
the two screws marked 1.
2. Remove the cables, going to the SAILOR 6282 AIS Transponder 6282, marked 2.
3. To remove the SAILOR 6282 AIS Transponder from the wall tray, loosen the four screws
marked 3.
4. Remove the SAILOR 6282 AIS Transponder from the wall tray by moving it upwards,
away from the wall tray, and detach carefully the multi-connector, marked 4.
Figure 6-3: Removing the cover of the SAILOR 6283 AIS Connection Box and Wall Tray
Figure 6-4: Removing the SAILOR 6282 AIS Transponder
1
1
3
2
3
4
![](/img.php?id=2082849&img=bg4c.png)
Alarms and notifications
6-4 Chapter 6: Service & maintenance 98-137573-A
6.4 Alarms and notifications
6.4.1 Overview
If an alarm is reported from the SAILOR 6282 AIS Transponder a flashing red triangle appears in the
bottom bar of the SAILOR 6004 Control Panel display:
• Flashing, bright red triangle: Unacknowledged alarm(s).
• Faded red triangle: Acknowledged alarm(s).
To acknowledge an alarm do as follows:
1. Tap the flashing, bright red triangle to display the list with active alarms.
2. Tap the alarm to acknowledge the alarm.
When all active alarms are acknowledged the bright red triangle turns into a faded red triangle.
Internal hardware errors in the SAILOR 6282 AIS Transponder are reported as Rx channel
malfunction alarm messages. See Table 6-1 on page 5 for further details.
If the SAILOR 6004 Control Panel cannot retrieve the time for an alarm from the SAILOR 6282 AIS
Transponder, this is marked by adding (CPT) to the alarm title. See the example in the following
figure.
Figure 6-5: Active alarms (example)
Figure 6-6: Active alarms, no time stamp from SAILOR 6282 AIS
Transponder (example)
1
2
![](/img.php?id=2082849&img=bg4d.png)
Alarms and notifications
98-137573-A Chapter 6: Service & maintenance 6-5
6666
Service & maintenance
6.4.2 List of alarms
Alarm Consequence Reason Remedy
Connection
lost
AIS list is empty,
the padlock for
password
protection
cannot be
opened.
Someone has logged into
the TT-6282A AIS Service
Interface.
TRX has no power
TRX-MKD connection
cable is defect
TRX lost Ethernet
connection
TRX or MKD use wrong
connection settings.
After logout from
the TT-6282A AIS
Service Interface
resumes normal
operation. Allow up
to 30 s.
Tx
malfunction
(ID 001)
The SAILOR
6282 AIS
Transponder
stops
transmission.
The AIS is not able to
transmit for technical
reasons (VSWR exceeds
allowed ratio, see alarm ID
002)
Missing or invalid MMSI
The integrity of the VDL is
degraded by incorrect
transmitter behaviour for
instance in case of the Tx
shutdown procedure has
been activated.
Check the VHF
antenna, plugs, and
cable to the AIS
Transponder. Check
correct
programming of
the MMSI.
Antenna
VSWR
exceeds
limit
(ID 002)
The SAILOR
6282 AIS
Transponder
continues
operation.
For every transmission,
the VSWR is checked. If it
exceeds the warning
threshold, this alarm is
generated. The alarm is
cleared by the AIS when
the VSWR is measured to
be below the threshold
again.
Check the VHF
antenna, plugs, and
cable to the AIS
Transponder.
Rx channel
AIS 1
malfunction
(ID 003)
The SAILOR
6282 AIS
Transponder
stops
transmission on
the affected
channel.
If continuous monitoring
of the receiver channel 1
shows inconsistency, this
alarm is activated.
Check the VHF
antenna, plugs, and
cable to the AIS
transceiver.
Table 6-1: AIS Alarms
![](/img.php?id=2082849&img=bg4e.png)
Alarms and notifications
6-6 Chapter 6: Service & maintenance 98-137573-A
Rx channel
AIS 2
malfunction
(ID 004)
The SAILOR
6282 AIS
Transponder
stops
transmitting on
the affected
channel.
If continuous monitoring
of the receiver channel 2
shows inconsistency, this
alarm is activated.
Check the VHF
antenna, plugs, and
cable to the AIS
Transponder.
Rx channel
70
malfunction
(ID 005)
The SAILOR
6282 AIS
Transponder
continues
operation, but
external channel
management is
not possible.
If continuous monitoring
of the receiver channels
shows inconsistency, this
alarm is activated.
Check the VHF
antenna, plugs, and
cable to the AIS
Transponder.
General
failure
(ID 006)
The SAILOR
6282 AIS
Transponder
stops
functioning. In
case of severe
software or
hardware failure,
this alarm is
activated.
Check the power
supply to the AIS
Transponder.
UTC sync
invalid
(ID 007)
The SAILOR
6282 AIS
Transponder
continues
operation using
indirect or
semaphore
synchronization.
If the internal GNSS
receiver cannot receive a
synchronization signal
from the satellites, this
alarm is activated.
Check the GNSS
antenna, plugs, and
cable to the AIS
Transponder.
Alarm Consequence Reason Remedy
Table 6-1: AIS Alarms (Continued)
![](/img.php?id=2082849&img=bg4f.png)
Alarms and notifications
98-137573-A Chapter 6: Service & maintenance 6-7
6666
Service & maintenance
MKD
Connection
lost
(ID 008)
The SAILOR
6282 AIS
Transponder
continues
operation with
DTE set to 1, the
MKD is not
active.
This alarm is activated by
the system, if the AIS
Transponder does not
receive heartbeat
messages from at least
one minimum keyboard
display (MKD) unit (e.g.
SAILOR 6004 Control
Panel).
Check the power
supplies, cabling,
Ethernet
connection
between the AIS
Transponder and
the SAILOR 6004
Control Panel.
Restart both units:
SAILOR 6282 AIS
Transponder:
remove and
connect power,
SAILOR 6004
Control Panel: use
on/off button.
Internal /
external
GNSS
position
mismatch
(ID 009)
The SAILOR
6282 AIS
Transponder
continues
operation.
This alarm is activated
when the distance
between the external and
internal GNSS position
remains >100 m for an
interval longer than 15
minutes.
Check the NMEA
connection
between external
GNSS receiver and
the AIS
Transponder. Check
as well the GNSS
antenna, plugs, and
cable to the AIS
Transponder.
NavStatus
incorrect
(ID 010)
The SAILOR
6282 AIS
Transponder
continues
operation.
This alarm is activated if a
mismatch exists between
the sensor input and the
Voyage settings status.
E.g. when the status is set
by the operator to At
Anchor and the ship is
moving faster than 3 kn,
this alarm is activated.
Enter the AIS
Application on the
SAILOR 6004
Control Panel and
set Status in
Settings >
Voyage to the
correct state
according to the
ship’s current
movement.
Heading
sensor
offset
(ID 011)
The SAILOR
6282 AIS
Transponder
continues
operation.
This alarm is activated
when SOG is greater than
5 kn and the difference
between COG and HDT is
greater than 45° for 5 min.
Check the heading
sensor and its
NMEA connection
to the AIS
Transponder.
Alarm Consequence Reason Remedy
Table 6-1: AIS Alarms (Continued)
![](/img.php?id=2082849&img=bg50.png)
Alarms and notifications
6-8 Chapter 6: Service & maintenance 98-137573-A
Active AIS-
SART
(ID 014)
The SAILOR
6282 AIS
Transponder
continues
operation.
This alarm is activated
when the SAILOR 6282
AIS Transponder receives
a position report from an
AIS search and rescue
transponder (SART). The
AIS SART indicates the
position of persons in
distress. It is displayed on
the first line in the AIS list
view on the SAILOR 6004
Control Panel.
External
EPFS lost
(ID 025)
The SAILOR
6282 AIS
Transponder
continues
operation, based
on the internal
GNSS.
The alarm is activated if
the external electronic
position fixing system
(EPFS) is lost.
Check the NMEA
connection
between the
external GNSS and
the AIS
Transponder.
No position
sensor in
use (ID 026)
The SAILOR
6282 AIS
Transponder
continues
operation.
The alarm is activated in
case none of the GNSS
connected to the AIS
Transponder provide valid
position data to the AIS
Transponder.
Check the GNSS
antenna, plugs, and
cable to the AIS.
Check the NMEA
connections
between the
external GNSS and
the AIS
Transponder. Check
the status of the
external GNSS at its
own control panel.
Check that the
GNSS antennas are
not covered and
are free to receive
satellite signals.
Alarm Consequence Reason Remedy
Table 6-1: AIS Alarms (Continued)
![](/img.php?id=2082849&img=bg51.png)
Alarms and notifications
98-137573-A Chapter 6: Service & maintenance 6-9
6666
Service & maintenance
No valid
SOG
information
(ID 029)
The SAILOR
6282 AIS
Transponder
continues
operation using
default data.
This alarm is activated
when none of the sensor
inputs reports a valid
speed over ground (SOG).
Check the NMEA
connection
between speed
measuring device
and AIS
Transponder; check
the GNSS antenna,
plugs, and cable to
the AIS
Transponder; check
the NMEA
connection
between the
external GNSS
receiver and the
AIS Transponder.
No valid
COG
information
(ID 030)
The SAILOR
6282 AIS
Transponder
continues
operation using
default data.
This alarm is activated
when none of the sensor
inputs reports a valid
course over ground (COG).
In order to solve
the problem, check
the GNSS antenna,
plugs, and cable to
the AIS
Transponder; check
the NMEA
connection
between the
external GNSS
receiver and the
AIS Transponder.
Heading
lost/invalid
(ID 032)
The SAILOR
6282 AIS
Transponder
continues
operation using
default data.
This alarm is activated
when none of the sensor
inputs reports a valid
heading.
Check the NMEA
connection
between heading
sensor and the AIS
Transponder.
Alarm Consequence Reason Remedy
Table 6-1: AIS Alarms (Continued)
![](/img.php?id=2082849&img=bg52.png)
Alarms and notifications
6-10 Chapter 6: Service & maintenance 98-137573-A
No valid
ROT
information
(ID 035)
The SAILOR
6282 AIS
Transponder
continues
operation using
default data.
This alarm is issued if the
rate of turn (ROT) cannot
be determined from
sensor data or internal
calculations.
Check the NMEA
connection
between ROT
sensor and AIS
transceiver; check
the GNSS antenna,
plugs, and cable to
the AIS transceiver;
check the NMEA
connection
between the
external GNSS
receiver and the
AIS Transponder.
Alarm Consequence Reason Remedy
Table 6-1: AIS Alarms (Continued)
![](/img.php?id=2082849&img=bg53.png)
Troubleshooting guide
98-137573-A Chapter 6: Service & maintenance 6-11
6666
Service & maintenance
6.5 Troubleshooting guide
Problem Symptom Remedy
The SAILOR
6282 AIS
Transponder
will not turn
on.
Green LED on
SAILOR 6282
AIS
Transponder
is off.
If the power cable is connected directly to
the SAILOR 6282 AIS Transponder then
check that the white wire in the power
cable is connected to the black wire (-DC).
If power to SAILOR 6282 AIS Transponder
is connected via the connection board
then check the jumper W8 is placed in
position AIS ON. For further details see
the Installation manual.
No
communi-
cation
No flashing
yellow or red
LED on AIS
transponder
Check if a valid MMSI has been entered.
For further details see the installation
manual.
No GPS No signal
from GPS.
Position
requested.
Check the antenna cable to the GPS.
Missing
MMSI
When powering up the SAILOR 6282 AIS
Transponder for the first time after leaving
the factory there is no MMSI stored in the
SAILOR 6282 AIS Transponder. Enter a
valid MMSI to operate the SAILOR 6282
AIS Transponder. For further details see
the Installation manual.
Wrong
MMSI
If a wrong MMSI number has been
entered and stored, or if there is a
requirement to change it, contact your
authorized dealer.
Device
failure
If any of the checks and tests described in
this section do not assist in resolving the
difficulties experienced in the operation
and/or performance of the AIS installation,
a fault may have developed in the AIS
System. When contacting an authorized
representative be sure to provide as much
information as possible describing the
observed behaviour - also including the
type of the AIS units, serial number, and
software release version. You find this
information in the setup menu of the
connected SAILOR 6004 Control Panel.
Table 6-2: Troubleshooting guide
![](/img.php?id=2082849&img=bg54.png)
Troubleshooting guide
6-12 Chapter 6: Service & maintenance 98-137573-A
6.5.1 Recovering communication with the SAILOR 6004 Control
Panel
If there is no communication between the SAILOR 6282 AIS Transponder and the SAILOR 6004
Control Panel you can re-establish the communication by setting the parameters as shown in the
screen below. This situation may arise after you have made unintended, conflicting settings in the
SAILOR 6282 AIS Transponder.
1. Start the Service Interface, see Accessing the Service Interface on page 5-4.
2. Click LWE Settings and copy the settings from the figure below.
SAILOR
6004
Control
Panel cannot
be switched
off.
If the SAILOR 6004 Control Panel cannot
be switched off normally (e.g. due to a
fault): Push and hold for 12 seconds.
Password
entered, but
padlock does
not open
Authorization
failed. Wrong
password or
the
connection to
the SAILOR
6282 AIS
Transponder
is lost
Check that you enter the correct password.
Check the power supplies, cabling,
Ethernet connection between the AIS
transceiver and the SAILOR 6004 Control
Panel. Restart both units: SAILOR 6282 AIS
Transponder: remove and connect power,
SAILOR 6004 Control Panel: use on/off
button.
Check that no one has logged into the
Service Interface.
The Test
Message
does not
pass.
If you do not receive an answer within 30
seconds try the test with another ship.
Problem Symptom Remedy
Table 6-2: Troubleshooting guide (Continued)
Figure 6-7: Recovering communication between the SAILOR 6282 AIS Transponder and the
SAILOR 6004 Control panel
![](/img.php?id=2082849&img=bg55.png)
Warranty and returning units for repair
98-137573-A Chapter 6: Service & maintenance 6-13
6666
Service & maintenance
6.6 Warranty and returning units for repair
Should your Cobham SATCOM product fail, please contact your dealer or installer, or the
nearest Cobham SATCOM partner. You will find the partner details on cobham.com/satcom
where you also find the Cobham SATCOM Self Service Center web-portal, which may help
you solve the problem.
Your dealer, installer or Cobham SATCOM partner will assist you whether the need is user
training, technical support, arranging on-site repair or sending the product for repair.
Your dealer, installer or Cobham SATCOM partner will also take care of any warranty issue.
6.6.1 Repacking for shipment
Should you need to send the product for repair, please read the below information before
packing the product.
The shipping carton has been carefully designed to protect the SAILOR 6282 AIS
Transponder and its accessories during shipment. This carton and its associated packing
material should be used when repacking for shipment. Attach a tag indicating the type of
service required, return address, part number and full serial number. Mark the carton
FRAGILE to ensure careful handling.
If the original shipping carton is not available, the following general instructions should be
used for repacking with commercially available material.
1. Wrap the defective unit in heavy paper or plastic. Attach a tag indicating the type of
service required, return address, part number and full serial number.
2. Use a strong shipping container, e.g. a double walled carton.
3. Protect the front- and rear panel with cardboard and insert a layer of shock-absorbing
material between all surfaces of the equipment and the sides of the container.
4. Seal the shipping container securely.
5. Mark the shipping container FRAGILE to ensure careful handling.
Failure to do so may invalidate the warranty.
Note Correct shipment is the customer’s own responsibility.
![](/img.php?id=2082849&img=bg56.png)
Warranty and returning units for repair
6-14 Chapter 6: Service & maintenance 98-137573-A
![](/img.php?id=2082849&img=bg57.png)
98-137573-A A-1
Appendix A
AAAA
Technical specifications
Technical specifications A
A.1 SAILOR 6282 AIS Transponder
Item Specification
Weight 1.15 kg
Dimensions (L x W x H) 160 x 270 x 42 mm
Equipment class Protected, according to IEC 60945
Input voltage 10.8 VDC to 31.2 VDC
Power consumption 12 W (0.5 A @24 VDC input voltage)
Heat dissipation 10 W
Temperature -15 °C to +55 °C (Operational)
-30 °C to +70 °C (Storage)
Compass Safe Distance 55 cm (standard magnetic compass)
45 cm (Emergency magnetic compass)
Receivers 156.025 - 162.025 MHz (TDMA)
156.525 MHz (Channel 70, DSC)
Channel bandwidth 25 kHz
RF Output Power High: 12.5 W
Low: 1 W
Low power forced control (gas alarm): 1 W
Frequency 156.025 - 162.025 MHz
VHF connector TNC female
GPS connector TNC female
VHF and GPS cable RG214 or better
Connection to SAILOR
6004 Control Panel
LAN (LWE IEC 61162-450)
Connections to sensors and
PI
50 pin sub-D
Table A-1: SAILOR 6282 AIS Transponder specifications
![](/img.php?id=2082849&img=bg58.png)
SAILOR 6282 AIS Transponder
A-2 Chapter A: Technical specifications 98-137573-A
A.1.1 Reporting Intervals
The SAILOR 6282 AIS Transponder is transmitting in different intervals depending of the
dynamic input data as speed and turn. The reporting intervals are as follows:
Type of information Reporting interval
Static Information Every 6 min. or when data has been amended
and on request.
Dynamic Information Depending on speed and course alteration,
see the table below.
Voyage related
information
Every 6 min. or when data has been amended
and on request.
Safety related message As required.
Table A-2: Reporting intervals
Type of ship Reporting
Interval
Ship at anchor or moored and not moving faster than
3 knots
3 min
Ship at anchor or moored and moving faster than 3 knots 10 s
Ship with a speed of between 0 - 14 knots 10 s
Ship with a speed of between 0 - 14 knots and changing
course
3 1/3 s
Ship with a speed of between 14 - 23 knots 6 s
Ship with a speed of between 14 - 23 knots and changing
course
2 s
Ship with a speed of greater than 23 knots 2 s
Ship with a speed of greater than 23 knots and changing
course
2 s
Table A-3: Reporting intervals for types of ship
![](/img.php?id=2082849&img=bg59.png)
SAILOR 6285 GPS Antenna - Active
98-137573-A Appendix A: Technical specifications A-3
AAAA
Technical specifications
A.2 SAILOR 6285 GPS Antenna - Active
Item Specification
Dimensions Ø: 91 mm, H: 77.5 mm
Weight 0.15 kg
Mounting Bracket mount on pipe, thread 1” x 14 TPI
Equipment class Exposed, according to IEC 60945
Antenna type Active patch antenna
Frequency 1570 to 1608 MHz
Impedance Nominal 50 Ohm
Polarization Circular right-hand
Coverage Hemispherical
Selectivity 45 dB down at center ±25 MHz
Gain 28 dB
Supply voltage 5 ±1 VDC
Current
consumption
Approx. 30 mA
Connector TNC female
Cable RG214 recommended
Operating
temperature
-40 °C to +55 °C
Storage temperature -40 °C to +70 °C
Table A-4: SAILOR 6285 GPS Antenna - Active specifications
![](/img.php?id=2082849&img=bg5a.png)
SAILOR 6283 AIS Connection Box and Wall Tray
A-4 Appendix A: Technical specifications 98-137573-A
A.3 SAILOR 6283 AIS Connection Box and Wall Tray
Item Specification
Weight without SAILOR 6282 AIS Transponder 2.15 kg
Weight with SAILOR 6282 AIS Transponder
mounted
3.30 kg
Dimensions (L x W x H) 340 x 310 x 55 mm
Equipment class Protected, according
to IEC 60945
Table A-5: SAILOR 6283 AIS Connection Box and Wall Tray specifications
![](/img.php?id=2082849&img=bg5b.png)
SAILOR 6004 Control Panel
98-137573-A Chapter A: Technical specifications A-5
AAAA
Technical specifications
A.4 SAILOR 6004 Control Panel
Item Specifications
Mounting method Flush mount or bracket
Voltage 10.8 to 31.2 VDC
Power consumption Typical: 18 W active
Peak: 42 W
3.15 A internal fuse (non-serviceable)
Audio input Up to 6 W in 8 Ohm
Interfaces 2 x Ethernet (10/100 Mbit/s)
Accessories connector
Auxiliary connector
Compliance • IEC 60945
• IEC 60950-1
IP rating IP54a
a. Estimated.
Ambient
temperature
-15 °C to 55 °C
Storage temperature -30 °C to 80 °C
Compass safe
distance
0.6 m
Dimensions W x H x
D
191 mm x 145 mm x 61 mm (without mounting
bracket)
Weight 1.1 kg (1.25 kg with mounting bracket)
Table A-6: SAILOR 6004 Control Panel specifications
![](/img.php?id=2082849&img=bg5c.png)
SAILOR 6004 Control Panel
A-6 Chapter A: Technical specifications 98-137573-A
![](/img.php?id=2082849&img=bg5d.png)
98-137573-A B-1
Appendix B
BBBB
NMEA sentences
NMEA sentences B
B.1 NMEA sentences used
All sentences are defined according to NMEA 0183 version 4.10 and IEC 61162-1 and IEC
61162-2.
B.1.1 Light weight Ethernet - LWE
Sentences may be configured to be received and transmitted over serial PI and sensor
interfaces, but also over Light Weight Ethernet (IEC 61162-450). The following table shows
the available transmission group multicast addresses and ports that can be set up in the
Service Interface.
B.1.2 Sentence characteristics and their linkage with port
configuration
The following table lists all the supported sentences. The Encoder/Parser column reflects
the group of sentences that can be configured for a specific port. See also Interface
settings on page 5-12.
• Transmission Interval indicates the time after which a renewed sentence must be
received. Otherwise sentence data will be invalidated.
• Restore Time indicates the time an invalidated sentence must be received from the
same source with the proper transmission interval until it can be qualified for input.
Transmission
group Category Multicast address Destination
port
MISC SF not explicitly listed below 239.192.0.1 60001
TGTD Target data (AIS), tracked target messages (Radar) 239.192.0.2 60002
SATD High update rate, for example ship heading, attitude
data.
239.192.0.3 60003
NAVD Navigational output other than that of TGTD and
SATD groups
239.192.0.4 60004
VDRD Data required for the VDR according to IEC 61996 239.192.0.5 60005
RCOM Radio communication equipment 239.192.0.6 60006
TIME Time transmitting equipment 239.192.0.7 60007
PROP Proprietary and user specified SFs 239.192.0.8 60008
USR1 to USR8 User defined transmission group 1 to 8 239.192.0.9 to
239.192.0.16
60009 to
60016
Table B-1: Destination multicast addresses and port numbers
![](/img.php?id=2082849&img=bg5e.png)
NMEA sentences used
B-2 Appendix B: NMEA sentences 98-137573-A
Encoder/Parser Sentence Transmission
Interval (s)
Restore
time (s)
ENCODER_AIS output
sentences
ABK, ACA, EPV, LRF, NAK, VER, VDM,
VDO, VSD, SSD, TXT
N.A N.A
PARSER_AIS input
sentences
ABM 1 -
ACA 1 -
AIR 1 -
BBM 1 -
EPV 1 -
HBT Programmable
(default 30)
-
LRF - -
SPW 1 -
SSD 1 -
VSD 1 -
ENCODER_LONG_RANGE
output sentences
LR1, LR2, LR3, LRF, LRI N.A N.A
PARSER_LONG_RANGE
input sentences
LRF - -
LRI - -
ENCODER_PROPRIETARY
output sentences
PTHRAOC, PTHRROS N.A N.A
PARSER_PROPRIETARY
input sentences
PTHRAOC - -
ENCODER_SENSOR output
sentences
ZDA a
a. Only transmitted to the identified HBT MKD source (TT-6004A).
N.A N.A
PARSER_SENSOR input
sentences
DTM 60 70
GBS 5,5 30
GGA 5,5 30
GNS 5,5 30
HDT 11 11
RMC 5,5 30
ROT 1,5 3
THS 11 11
VBW 11 11
VTG 5,5 30
ENCODER_ALARM output
sentences
ALR, TRL N.A N.A
PARSER_ALARM input
sentences
ACK - -
PARSER_DGNSS input RTCM 104 binary - -
Table B-2: Supported sentences and their characteristics.
![](/img.php?id=2082849&img=bg5f.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-3
BBBB
NMEA sentences
B.2 Sentence use reference
This section describes the supported sentences and the specific field use in the SAILOR
6282 AIS Transponder.
B.2.1 ABK - AIS addressed and binary broadcast acknowledgement
(output)
$--ABK,xxxxxxxxx,x,x,x,x*hh<CR><LF>
B.2.2 ABM - AIS addressed binary and safety related message (input)
$--ABM,x,x,x,xxxxxxxxx,x,xx,s-s,x*hh<CR><LF>
Field Data format Description Comment
1 ABK Sentence Id Used
2 xxxxxxxxx MMSI of the addressed AIS unit Used
3 x AIS channel of reception Used
4 x Message ID, ITU-R M.1371 Used
5 x Message sequence number Used
6 x Type of acknowledgement Used
Field Data format Description Comment
1 ABM Sentence Id Used
2 x Total number of sentences needed Used
3 x Sentence number Used
4 x Sequential message identifier Used
5 xxxxxxxxx The MMSI of the destination AIS unit Used
6 x AIS channel for broadcast of radio message Used
7 xx Message ID, ITU-R M.1371 Used
8 s-s Encapsulated data Used
9 x Number of fill-bits Used
![](/img.php?id=2082849&img=bg60.png)
Sentence use reference
B-4 Appendix B: NMEA sentences 98-137573-A
B.2.3 ACA - AIS channel assignment message (input / output)
$--ACA,x,llll.ll,a,yyyyy.yy,a,llll.ll,a,yyyyy.yy,a,x,xxxx,x,xxxx,x,x,x,a,x,hhmmss.ss*hh<CR><LF>
B.2.4 ACK - Acknowledge alarm (input)
$--ACK,xxx*hh>CR><LF>
Field Data format Description Comment
1 ACA Sentence Id Used
2 x Sequence number, 0 to 9 Used
3 llll.ll Region northeast corner latitude Used
4 a Region northeast corner latitude - N/S Used
5 yyyyy.yy Region northeast corner longitude Used
6 a Region northeast corner longitude - E/W Used
7 llll.ll Region southwest corner latitude Used
8 a Region southwest corner latitude -N/S Used
9 yyyyy.yy Region southwest corner longitude Used
10 a Region southwest corner longitude - E/W Used
11 x Transition zone size Used
12 xxxx Channel A Used
13 x Channel A bandwidth Used
14 xxxx Channel B Used
15 x Channel B bandwidth Used
16 x Tx/Rx mode control Used
17 x Power level control Used
18 a Information source Used
19 x In-use flag Used
20 hhmmss.ss Time of "in use" Used
(hhmmss)
Field Data format Description Comment
1 ACK Sentence Id Used
2 xxx Unique alarm number (identifier) at alarm source Used
![](/img.php?id=2082849&img=bg61.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-5
BBBB
NMEA sentences
B.2.5 AIR - AIS interrogation request (input)
$--AIR, xxxxxxxxx,x.x,x,x.x,x,xxxxxxxxx,x.x,x,a,x.x,x.x,x.x*hh<CR><LF>
B.2.6 ALR - Set alarm state (output)
$--ALR,hhmmss.ss,xxx,A,A,c-c*hh<CR><LF>
B.2.7 BBM - AIS broadcast binary message (input)
$--BBM,x,x,x,x,xx,s-s,x*hh<CR><LF>
Field Data format Description Comment
1 AIR Sentence Id Used
2 xxxxxxxxx MMSI of interrogated station 1 Used
3 x.x First message number requested from station 1 Used
4 x Message sub-section Not Used
5 x.x Second message number requested from station 1 Used
6 x Message sub-section Not Used
7 xxxxxxxxx MMSI of interrogated station 2 Used
8 x.x First message number requested from station 2 Used
9 x Message sub-section Not Used
10 a Channel of interrogation Not Used
11 x.x Message ID1.1 station 1 reply slot Not Used
12 x.x Message ID1.2 station 1 reply slot Not Used
13 x.x Message ID2.1 station 2 reply slot Not Used
Field Data format Description Comment
1 ALR Sentence Id Used
2 hhmmss.ss Time of alarm condition change Used
3 xxx Unique alarm number (identifier) at alarm source Used
4 A Alarm condition (A=threshold exceeded, V=not exceeded) Used
5 A Alarm acknowledge state, (A=acknowledged, V=
unacknowledged)
Used
6 c-c Alarm's description text Used
Field Data format Description Comment
1 BBM Sentence Id Used
2 x Total number of sentences needed Used
3 x Sentence number Used
4 x Sequential message identifier Used
5 x AIS channel for broadcast of radio message Used
6 xx Message ID, ITU-R M.1371 Used
7 s-s Encapsulated data Used
8 x Numbers of fill-bits Used
![](/img.php?id=2082849&img=bg62.png)
Sentence use reference
B-6 Appendix B: NMEA sentences 98-137573-A
B.2.8 DTM - Datum reference (input)
$--DTM,ccc,a,x.x,a,x.x,a,x.x,ccc*hh<CR><LF>
B.2.9 EPV - Command or report equipment property value (input /
response output)
$--EPV,a,c-c,c-c,x.x,c-c,*hh<CR><LF>
B.2.10 GBS - GNSS satellite fault detection (input)
$--GBS,hhmmss.ss,x.x,x.x,x.x,xx,x.x,x.x,x.x,h,h*hh<CR><LF>
Field Data format Description Comment
1 DTM Sentence Id Used
2 ccc Local datum Used
3 a Local datum subdivision code Not Used
4 x.x Latitude offset, min Not Used
5 a Latitude offset, min, N/S Not Used
6 x.x Longitude offset, min Not Used
7 a Longitude offset, min, E/W Not Used
8 x.x Altitude offset, m Not Used
9 ccc Reference datum Not Used
Field Data format Description Comment
1 EPV Sentence Id Used
2 a Sentence status flag Used
3 c-c Destination equipment type Used
4 c-c Unique identifier Used
5 x.x Property identifier for the property to be set Used
6 c-c Value of property to be set Used
Field Data format Description Comment
1 GBS Sentence Id Used
2 hhmmss.ss UTC of GGA or GNS Used
3 x.x Expected error in latitude Used
4 x.x Expected error in longitude Used
5 x.x Expected error in altitude Used
6 xx ID number Not Used
7 x.x Probability of missed detection Not Used
8 x.x Estimate of bias on failed satellite Not Used
9 x.x Standard deviation of bias estimate Not Used
10 h GNSS System ID Not Used
11 h GNSS System ID Not Used
![](/img.php?id=2082849&img=bg63.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-7
BBBB
NMEA sentences
B.2.11 GGA - Global positioning system (GPS) fix data (input)
$--GGA,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx*hh<CR><LF>
B.2.12 GNS - Fix data (input)
$--GNS,hhmmss.ss,llll.ll,a,yyyyy.yy,a,c-c,xx,x.x,x.x,x.x,x.x,x.x,a*hh<CR><LF>
Field Data format Description Comment
1 GGA Sentence Id Used
2 hhmmss.ss UTC of position Used
3 llll.ll Latitude Used
4 a Latitude N/S Used
5 yyyyy.yy Longitude Used
6 a Longitude E/W Used
7 x GPS quality indicator Used
8 xx Number of satellites in use, 00-12 Not Used
9 x.x HDOP Not Used
10 x.x Antenna altitude, m Not Used
11 M Units of antenna altitude M Not Used
12 x.x Geoidal separation Not Used
13 M Units of geoidal separation M Not Used
14 x.x Age of differential data Not Used
15 xxxx Differential reference station Not Used
Field Data format Description Comment
1 GNS Sentence Id Used
2 hhmmss.ss UTC of position Used
3 llll.ll Latitude Used
4 a Latitude N/S Used
5 yyyyy.yy Longitude Used
6 a Longitude E/W Used
7 c-c Mode indicator Used
8 xx Total number of satellites in use, 00-99 Not Used
9 x.x HDOP Not Used
10 x.x Antenna altitude, m Not Used
11 x.x Geoidal separation Not Used
12 x.x Age of differential data Not Used
13 x.x Differential reference station Not Used
14 a Navigational status indicator Used
![](/img.php?id=2082849&img=bg64.png)
Sentence use reference
B-8 Appendix B: NMEA sentences 98-137573-A
B.2.13 HBT - Heartbeat supervision sentence (input)
$--HBT,x.x,a,x*hh<CR><LF>
B.2.14 HDT - Heading true (input)
$--HDT,x.x,T*hh<CR><LF>
B.2.15 LR1 - AIS long-range reply sentence 1 (output)
$--LR1,x,xxxxxxxx,xxxxxxxxx,c-c,c-c,xxxxxxxxx*hh<CR><LF>
B.2.16 LR2 - AIS long-range reply sentence 2 (output)
$--LR2,x,xxxxxxxxx,xxxxxxxx,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x.x,T,x.x,N*hh<CR><LF>
Field Data format Description Comment
1 HBT Sentence Id Used
2 x.x Configured repeat interval Used
3 a Equipment status Used
4 x Sequential sentence identifier Used
Field Data format Description Comment
1 HDT Sentence Id Used
2 x.x Heading, degrees true Used
3 T Heading, degrees true Not Used
Field Data format Description Comment
1 LR1 Sentence Id Used
2 x Sequence number Used
3 xxxxxxxxx MMSI of responder Used
4 xxxxxxxxx MMSI of requestor (replydestination) Used
5 c-c Ship's name, 1 to 20 characters Used
6 c-c Call sign, 1 to 7 characters Used
7 xxxxxxxxx IMO number, 9-digit number Used
Field Data format Description Comment
1 LR2 Sentence Id Used
2 x Sequence number Used
3 xxxxxxxxx MMSI of responder Used
4 xxxxxxxx Date: ddmmyyyy, 8 digits Used
5 hhmmss.ss UTC time of position Used
6 llll.ll Latitude Used
7 a Latitude - N/S Used
8 yyyyy.yy Longitude Used
9 a Longitude - E/W Used
![](/img.php?id=2082849&img=bg65.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-9
BBBB
NMEA sentences
B.2.17 LR3 - AIS long-range reply sentence 3 (output)
$--LR3,x,xxxxxxxxx,c-c,xxxxxx,hhmmss.ss,x.x,x.x,x.x,x.x,x.x,x.x*hh<CR><LF>
B.2.18 LRF - AIS long-range function (input / output)
$--LRF,x,xxxxxxxxx,c-c,c-c,c-c*hh<CR><LF>
10 x.x Course over ground, degrees, true Used
11 T Course over ground, degrees, true Used
12 x.x Speed over ground, knots Used
13 N Speed over ground, knots Used
Field Data format Description Comment
Field Data format Description Comment
1 LR3 Sentence Id Used
2 x Sequence number Used
3 xxxxxxxxx MMSI of responder Used
4 c-c Voyage destination, 1 to 20 chars Used
5 xxxxxx ETA date: ddmmyy Used (ddmm00)
6 hhmmss.ss ETA time Used (hhmm00.00)
7 x.x Draught Used
8 x.x Ship/cargo Used
9 x.x Ship length Used
10 x.x Ship breadth Used
11 x.x Ship type Used
12 x.x Persons, 0 to 8191 Used
Field Data format Description Comment
1 LRF Sentence Id Used
2 x Sequence number, 0 to 9 Used
3 xxxxxxxxx MMSI of requestor Used
4 c-c Name of requestor, 1 to 20 characters Used
5 c-c Function request, 1 to 26 characters Used
6 c-c Function reply status Used
![](/img.php?id=2082849&img=bg66.png)
Sentence use reference
B-10 Appendix B: NMEA sentences 98-137573-A
B.2.19 LRI - AIS long-range interrogation (input / output)
$--LRI,x,a ,xxxxxxxxx,xxxxxxxxx,llll.ll,a,yyyyy.yy,a,llll.ll,a,yyyyy.yy,a*hh<CR><LF>
B.2.20 NAK - Negative acknowledgement (output)
$--NAK,cc,ccc,c-c,x.x,c-c*hh<CR><LF>
B.2.21 PTHRAOC - AIS operational control (input / output)
$PTHRAOC,x,x*hh<CR><LF>
Field Data format Description Comment
1 LRI Sentence Id Used
2 x Sequence number, 0 to 9 Used
3 a Control flag Used
4 xxxxxxxxx MMSI of requestor Used
5 xxxxxxxxx MMSI of destination Used
6 llll.ll Latitude (north-east co-ordinate) Used
7 a Latitude - N/S (north-east co-ordinate) Used
8 yyyyy.yy Longitude (north-east co-ordinate) Used
9 a Longitude - E/W (north-east co-ordinate) Used
10 llll.ll Latitude (south-west co-ordinate) Used
11 a Latitude - N/S (south-west co-ordinate) Used
12 yyyyy.yy Longitude (south-west co-ordinate) Used
13 a Longitude - E/W (south-west co-ordinate) Used
Field Data format Description Comment
1 NAK Sentence Id Used
2 cc Talker identifier Used
3 ccc Affected sentence formatter Used
4 c-c Unique identifier Used
5 x.x Reason code for negative acknowledgement Used
6 c-c Negative acknowledgement's descriptive text Used
Field Data format Description Comment
1 PTHRAOC Sentence Id Used
2 x Enable/disable inland waterways mode
0 = Disable
1 = Enable
Used
3 x Enable/disable long range broadcast
0 = Disable
1 = Enable
Used
![](/img.php?id=2082849&img=bg67.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-11
BBBB
NMEA sentences
B.2.22 PTHRROS - Radio operational status (output)
$PTHRROS,cc,x,x,xx,x,x,x,xxxx,x*hh<CR><LF>
Field Data format Description Comment
1 PTHRROS Sentence Id Used
2 cc Product code. The product code for which this sentence is
valid
AI = AIS
CR = NAVTEX receiver
Used
3 x Inland waterways enabled - AIS specific
0 = Disabled
1 = Enabled
Used
4 x Transmitter power level - AIS specific
0 = Low
1 = High
Used
5 xx Receiver channel status - NAVTEX specific
0 = Not received over air
1 = 490 kHz
2 = 518 kHz
3 = 4209,5 kHz
4 = 490 kHz and 518 kHz
5 = 490 kHz and 4209,5 kHz
6 = 518 kHz and 4209,5 kHz
7 = 490 kHz, 518 kHz and 4209,5 kHz
8-99 Reserved for future use
Not Used
6 x Automatic filter mode for storage and display - NAVTEX
0 = Manual
1 = Automatic
Not Used
7 x Automatic filter mode for the INS port - NAVTEX
0 = Manual
1 = Automatic
Not Used
8 x Automatic filter mode for the printing device - NAVTEX
0 = Manual
1 = Automatic
Not Used
9 xxxx Receive radius - NAVTEX
1-9999 Nautical Miles
Not Used
10 x Long range broadcast enabled - AIS specific
0 = Disabled
1 = Enabled
Used
![](/img.php?id=2082849&img=bg68.png)
Sentence use reference
B-12 Appendix B: NMEA sentences 98-137573-A
B.2.23 RMC - Recommended minimum specific GNSS data (input)
$--RMC, hhmmss.ss,a,llll.ll,a,yyyyy.yy,a ,x.x,x.x, xxxxxx, x.x,a,a,a*hh<CR><LF>
B.2.24 ROT - Rate of turn (input)
$--ROT,x.x,a*hh<CR><LF>
B.2.25 SPW - Security password sentence (input)
$--SPW,ccc,c-c,x,c-c*hh<CR><LF>
Field Data format Description Comment
1 RMC Sentence Id Used
2 hhmmss.ss UTC of position fix Used
3 a Status (A or V) Used
4 llll.ll Latitude Used
5 a Latitude N/S Used
6 yyyyy.yy Longitude Used
7 a Longitude E/W Used
8 x.x Speed over ground, knots Used
9 x.x Course over ground, degrees true Used
10 xxxxxx Date: ddmmyy Used
11 x.x Magnetic variation, degrees Not Used
12 a Magnetic variation, E/W Not Used
13 a Mode indicator Used
14 a Navigational status Used
Field Data format Description Comment
1 ROT Sentence Id Used
2 x.x Rate of turn, °/min, "-" = bow turn to port Used
3 a Status: A = data valid, V = data invalid Used
Field Data format Description Comment
1 SPW Sentence Id Used
2 ccc Password protected sentence Used
3 c-c Unique identifier Used
4 x Password level Used
5 c-c Password Used
![](/img.php?id=2082849&img=bg69.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-13
BBBB
NMEA sentences
B.2.26 SSD - AIS ship static data (input / output)
$--SSD,c-c,c-c,xxx,xxx,xx,xx,c,ac*hh<CR><LF>
B.2.27 THS -True heading and status (input)
$--THS,x.x,a*hh<CR><LF>
B.2.28 TRL - AIS transmitter non functioning log (output)
$--TRL,x.x,x.x,x,xxxxxxxx,hhmmss.ss,xxxxxxxx,hhmmss.ss,x,*hh<CR><LF>
Field Data format Description Comment
1 SSD Sentence Id Used
2 c-c Ship’s call sign Used
3 c-c Ship’s name Used
4 xxx Pos. ref., point dist. A from bow Used
5 xxx Pos. ref., point dist. B from stern Used
6 xx Pos. ref., point dist. C from port beam Used
7 xx Pos. ref., point dist. D from starboard beam Used
8 c DTE indicator flag Used
9 ac Source identifier Used
Field Data format Description Comment
1 THS Sentence Id Used
2 x.x Heading, degrees true Used
3 a Mode indicator Used
Field Data format Description Comment
1 TRL Sentence Id Used
2 x.x Total number of log entries Used
3 x.x Log entry number Used
4 x Sequential message identifier Used
5 xxxxxxxx Switch off date Used
6 hhmmss.ss Switch off UTC time Used
7 xxxxxxxx Switch on date Used
8 hhmmss.ss Switch on UTC time Used
9 x Reason code Used
![](/img.php?id=2082849&img=bg6a.png)
Sentence use reference
B-14 Appendix B: NMEA sentences 98-137573-A
B.2.29 TXT - Text transmission (output)
$--TXT,xx,xx,xx,c-c*hh<CR><LF>
B.2.30 VBW - Dual ground/water speed (input)
$--VBW,x.x,x.x,a,x.x,x.x,a,x.x,a,x.x,a*hh<CR><LF>
B.2.31 VDM - AIS VHF data-link message (output)
$--VDM,x,x,x,a,s-s,x*hh<CR><LF>
Field Data format Description Comment
1 TXT Sentence Id Used
2 xx Total number of sentences Used
3 xx Sentence number Used
4 xx Text identifier Used
5 c-c Text message Used
Field Data format Description Comment
1 VBW Sentence Id Used
2 x.x Longitudinal water speed Not Used
3 x.x Transverse water speed Not Used
4 a Status water speed, A = data valid, V = data invalid Not Used
5 x.x Longitudinal ground speed Used
6 x.x Transverse ground speed Used
7 A Status ground speed, A = data valid, V = data invalid Used
8 x.x Stern transverse water speed Not Used
9 A Status stern water speed, A = data valid, V = data invalid Not Used
10 x.x Stern transverse ground speed Not Used
11 A Status stern ground speed, stern ground speed Not Used
Field Data format Description Comment
1 VDM Sentence Id Used
2 x Total number of sentences needed to transfer message, 1 to 9 Used
3 x Sentence number, 1 to 9 Used
4 x Sequential message identifier, 0 to 9 Used
5 a AIS channel Used
6 s-s Encapsulated ITU-R M.1371 radio message Used
7 x Number of fill-bits Used
![](/img.php?id=2082849&img=bg6b.png)
Sentence use reference
98-137573-A Appendix B: NMEA sentences B-15
BBBB
NMEA sentences
B.2.32 VDO - AIS VHF data-link own-vessel report (output)
$--VDO,x,x,x,a,s-s,x*hh<CR><LF>
B.2.33 VER - Version (output)
$--VER,x,x,aa,c-c,c-c,c-c,c-c,c-c,c-c,x*hh<CR><LF>
B.2.34 VSD - AIS voyage static data (input / output)
$--VSD,x.x,x.x,x.x,c-c,hhmmss.ss,xx,xx,x.x,x.x*hh<CR><LF>
Field Data format Description Comment
1 VDO Sentence Id Used
2 x Total number of sentences needed to transfer message Used
3 x Sentence number Used
4 x Sequential message identifier, 0 to 9 Used
5 a AIS channel Used
6 s-s Encapsulated ITU-R M.1371 radio message Used
7 x Number of fill-bits Used
Field Data format Description Comment
1 VER Sentence Id Used
2 x Total number of sentences needed, 1 to 9 Used
3 x Sentence number, 1 to 9 Used
4 aa Device type Used
5 c-c Vendor ID Used
6 c-c Unique identifier Used
7 c-c Manufacture serial number Used
8 c-c Model code (product code) Used
9 c-c Software revision Used
10 c-c Hardware revision Used
11 x Sequential message identifier Used
Field Data format Description Comment
1 VSD Sentence Id Used
2 x.x Type of ship and cargo category Used
3 x.x Maximum present static draught Used
4 x.x Persons on-board Used
5 c-c Destination Used
6 hhmmss.ss Estimated UTC of arrival at destination Used
(hhmm00.0
0)
7 xx Estimated day of arrival at destination Used
8 xx Estimated month of arrival at destination Used
9 x.x Navigational status Used
10 x.x Regional application flags Used
![](/img.php?id=2082849&img=bg6c.png)
Sentence use reference
B-16 Appendix B: NMEA sentences 98-137573-A
B.2.35 VTG - Course over ground and ground speed (input)
$--VTG,x.x,T,x.x,M,x.x,N,x.x,K,a*hh<CR><LF>
B.2.36 ZDA - Time and Date (output)
$--ZDA, hhmmss.ss,xx,xx,xxxx,xx,xx*hh<CR><LF>
Field Data format Description Comment
1 VTG Sentence Id Used
2 x.x Course over ground, degrees true Used
3 T T Not Used
4 x.x Course over ground, degrees magnetic Not Used
5 M M Not Used
6 x.x Speed over ground, knots Used
7 N N Not Used
8 x.x Speed over ground, km/h Not Used
9 K K Not Used
10 a Mode indicator Used
Field Data format Description Comment
1 ZDA Sentence Id Used
2 hhmmss.ss UTC Used
3 xx Day, 01 to 31 (UTC) Used
4 xx Month, 01 to 12 (UTC) Used
5 xxxx Year (UTC) Used
6 xx Local zone hours (00 to +/-13h) Not Used
7 xx Local zone minutes (00 to +59) Not Used
![](/img.php?id=2082849&img=bg6d.png)
98-137573-A C-1
Appendix C
CCCC
Supported keys
Supported keys C
C.1 Keys supported by the SAILOR 6004 Control
Panel
When entering ship’s name, destination, call sign and more, the following characters are
available. These are in accordance with the AIS standard 1371-4.
6-Bit ASCII Standard ASCII 6-Bit ASCII Standard ASCII
Chr Dec Hex Binary Dec Hex Binary Ch
r
Dec Hex Binary Dec Hex Binary
@0 0x00 00 0000 64 0x40 0100 0000 !33 0x21 10 0001 33 0x21 0010 0001
A1 0x01 00 0001 65 0x41 0100 0001 "34 0x22 10 0010 34 0x22 0010 0010
B2 0x02 00 0010 66 0x42 0100 0010 #35 0x23 10 0011 35 0x23 0010 0011
C3 0x03 00 0011 67 0x43 0100 0011 $36 0x24 10 0100 36 0x24 0010 0100
D4 0x04 00 0100 68 0x44 0100 0100 %37 0x25 10 0101 37 0x25 0010 0101
E5 0x05 00 0101 69 0x45 0100 0101 &38 0x26 10 0110 38 0x26 0010 0110
F6 0x06 00 0110 70 0x46 0100 0110 `39 0x27 10 0111 39 0x27 0010 0111
G7 0x07 00 0111 71 0x47 0100 0111 (40 0x28 10 1000 40 0x28 0010 1000
H8 0x08 00 1000 72 0x48 0100 1000 )41 0x29 10 1001 41 0x29 0010 1001
I9 0x09 00 1001 73 0x49 0100 1001 *42 0x2A 10 1010 42 0x2A 0010 1010
J10 0x0A 00 1010 74 0x4A 0100 1010 +43 0x2B 10 1011 43 0x2B 0010 1011
K11 0x0B 00 1011 75 0x4B 0100 1011 ,44 0x2C 10 1100 44 0x2C 0010 1100
L12 0x0C 00 1100 76 0x4C 0100 1100 -45 0x2D 10 1101 45 0x2D 0010 1101
M13 0x0D 00 1101 77 0x4D 0100 1101 .46 0x2E 10 1110 46 0x2E 0010 1110
N14 0x0E 00 1110 78 0x4E 0100 1110 /47 0x2F 10 1111 47 0x2F 0010 1111
O15 0x0F 00 1111 79 0x4F 0100 1111 048 0x30 11 0000 48 0x30 0011 0000
P16 0x10 01 0000 80 0x50 0101 0000 149 0x31 11 0001 49 0x31 0011 0001
Q17 0x11 01 0001 81 0x51 0101 0001 250 0x32 11 0010 50 0x32 0011 0010
R18 0x12 01 0010 82 0x52 0101 0010 351 0x33 11 0011 51 0x33 0011 0011
S19 0x13 01 0011 83 0x53 0101 0011 452 0x34 11 0100 52 0x34 0011 0100
T20 0x14 01 0100 84 0x54 0101 0100 553 0x35 11 0101 53 0x35 0011 0101
U21 0x15 01 0101 85 0x55 0101 0101 654 0x36 11 0110 54 0x36 0011 0110
V22 0x16 01 0110 86 0x56 0101 0110 755 0x37 11 0111 55 0x37 0011 0111
W23 0x17 01 0111 87 0x57 0101 0111 856 0x38 11 1000 56 0x38 0011 1000
X24 0x18 01 1000 88 0x58 0101 1000 957 0x39 11 1001 57 0x39 0011 1001
Y25 0x19 01 1001 89 0x59 0101 1001 :58 0x3A 11 1010 58 0x3A 0011 1010
Z26 0x1A 01 1010 90 0x5A 0101 1010 ;59 0x3B 11 1011 59 0x3B 0011 1011
[27 0x1B 01 1011 91 0x5B 0101 1011 <60 0x3C 11 1100 60 0x3C 0011 1100
Table C-1: Keys supported in compliance with AIS standard 1371-4
![](/img.php?id=2082849&img=bg6e.png)
Keys supported by the SAILOR 6004 Control Panel
C-2 Appendix C: Supported keys 98-137573-A
\28 0x1C 01 1100 92 0x5C 0101 1100 =61 0x3D 11 1101 61 0x3D 0011 1101
]29 0x1D 01 1101 93 0x5D 0101 1101 >62 0x3E 11 1110 62 0x3E 0011 1110
^30 0x1E 01 1110 94 0x5E 0101 1110 ?63 0x3F 11 1111 63 0x3F 0011 1111
-31 0x1F 01 1111 95 0x5F 0101 1111
Space 32 0x20 10 0000 32 0x20 0010 0000
6-Bit ASCII Standard ASCII 6-Bit ASCII Standard ASCII
Table C-1: Keys supported in compliance with AIS standard 1371-4 (Continued)
![](/img.php?id=2082849&img=bg6f.png)
98-137573-A Glossary-1
4444
Glossary
Glossary
Glossary 4
A
AIS SART AIS Search And Rescue Transmitters
AIS Automatic Identification System
C
COG Course Over Ground
D
DC Direct Current
DHCP Dynamic Host Configuration Protocol. A protocol for assigning dynamic IP addresses to
devices on a network. With dynamic addressing, a device can have a different IP address
every time it connects to the network.
DNS Domain Name System. A system translating server names (URLs) to server addresses.
DSC Digital Selective Calling. Primarily intended to initiate ship-to-ship, ship-to-shore and
shore-to-ship radiotelephone and MF/HF radiotelex calls. Each DSC-equipped ship, shore
station and group is assigned a unique 9-digit Maritime Mobile Service Identity. DSC
distress alerts, which consist of a preformatted distress message, are used to initiate
emergency communication with ships and rescue coordination centers.
DTE Data Terminal Equipment
E
ECDIS Electronic Chart Display and Information System (ECDIS) is a computer-based navigation
information system that complies with International Maritime Organization (IMO)
regulations and can be used as an alternative to paper nautical charts.
G
GLONASS GLObal’naya NAvigatsionnaya Sputnikovaya Sistema. Global Navigation Satellite System
in English.
GMDSS Global Maritime Distress and Safety System. The system is intended to perform the
following functions: alerting (including position determination of the unit in distress),
search and rescue coordination, locating (homing), maritime safety information
broadcasts, general communication, and bridge-to-bridge communication.
GPL General Public License
GPS Global Positioning System. A system of satellites, computers, and receivers that is able to
![](/img.php?id=2082849&img=bg70.png)
Glossary
Glossary-2 98-137573-A
determine the latitude and longitude of a receiver on Earth by calculating the time
difference for signals from different satellites to reach the receiver.
H
HDT HeaDing True
HSC High-Speed Craft, e.g. air-cushion vehicles (such as hovercraft) and hydrofoil boats.
I
IEC International Electrotechnical Commission. The international standards and conformity
assessment body for all fields of electrotechnology.
IMO International Maritime Organization
INS Integrated Navigation System
IP Ingress Protection. An international classification system for the sealing effectiveness of
enclosures of electrical equipment against the intrusion into the equipment of foreign
bodies (i.e. tools, dust, fingers) and moisture. This classification system uses the letters "IP"
followed by two or three digits. An "x" is used for one of the digits if there is only one class
of protection; e.g. IPX4 which addresses moisture resistance only.
L
LAN Local Area Network. A computer network covering a small physical area, like a home,
office, school or airport. The defining characteristics of LANs, in contrast to wide-area
networks (WANs), include their usually higher data-transfer rates, smaller geographic area,
and lack of a need for leased telecommunication lines.
LGPL Lesser General Public License
LWE LightWeight Ethernet
M
MKD Minimum Keyboard Display
MMSI MMSI Maritime Mobile Service Identity. A series of nine digits which are sent in digital
form over a radio frequency channel in order to uniquely identify ship stations, ship earth
stations, coast stations, coast earth stations, and group calls. These identities are formed
in such a way that the identity or part thereof can be used by telephone and telex
subscribers connected to the general telecommunications network to call ships
automatically.
![](/img.php?id=2082849&img=bg71.png)
Glossary
98-137573-A Glossary-3
4444
Glossary
R
RF Radio Frequency
ROT Rate Of Turn
Rx Receive
S
SAR Search And Rescue
SART Search And Rescue Transponder
SOG Speed Over Ground.
SOLAS (International Convention for the) Safety Of Life At Sea. Generally regarded as the most
important of all international treaties concerning the safety of merchant ships.
STP Shielded Twisted Pair
T
TDMA Time-Division Multiple Access
TMA Thrane Management Application
TPI Threads Per Inch
Tx Transmit
U
UART Universal Asynchronous Receiver/Transmitter, part of an integrated circuit used for serial
communications over a peripheral device serial port.
UDP User Datagram Protocol
V
VDL VHF Data Link
VHF Very High Frequency. 30-300 MHz, a "straight-line" signal used for short-distance
terrestrial communication and navigation.
VSWR Antenna Voltage Standing Wave Ratio
VSWR Voltage Standing Wave Ratio
VTS Vessel Traffic Service, a marine traffic monitoring system established by harbour or port
authorities, similar to air traffic control for aircraft.
![](/img.php?id=2082849&img=bg73.png)
98-137573-A Index-1
5555
Index
Index
Index 5
A
accessories, 2-7
AIS
introduction, 2-1
AIS Transponder
connectors, 3-8, 3-13
dimensional drawing, 3-12
remove, 6-3
alarm, 6-4
output, 2-5
pin out, 3-14
antenna
GPS, 5-10
VHF, 5-10
antenna installation
cable requirements, 3-3
GPS, 3-2
VHF, 3-2
antenna, combined, 2-4
applications, 5-2, 5-3
B
Blue sign, 2-5
connector, 3-6
electrical interface, 4-10
input, 4-10
brightness, 5-1
buzzer, 2-6
C
cable
max. diameter for AIS Connection Box, 3-9
cable length
D-SUB, 3-1
Ethernet, 3-1
power, 3-1
cable requirements, 3-3
cable specifications
Ethernet, 3-15
SAILOR 6280 AIS System, 3-11
SAILOR 6281 AIS Basic System, 3-16
callsign, 5-8
chart plotter, 5-19
clear messages, 5-18
clone, 5-18
communication
recover, 6-12
compass safe distance, -iii, 3-7, 3-12, A-5
components
SAILOR 6281 AIS Basic System, 3-12
connection box, 2-4
connection lost, 5-6
connector
AIS Connection Box, 3-8
AIS Connection Box and Wall Tray, 3-8
AIS Transponder, 3-8, 3-13
Blue Sign, 3-6
DC power input, 3-8
GPS antenna, 3-8, 3-13
LAN, 3-15
multi pin, 3-14
SUB-D50, 3-14
VHF/GPS antenna, 3-8, 3-13
contact, 6-1
control
on/off, 4-2
D
DC power input
connect, 4-2
DC power input connector, 3-8
default settings
reset to, 5-18
delete messages, 5-18
delivery
items included, 3-1
device name, 5-10
dimensions, A-5
AIS Transponder, 3-12
dimming function, 5-1
disassembling, 6-3
display
brightness, 5-1
DTE indicator, 5-9
E
electrical interface, 4-10
![](/img.php?id=2082849&img=bg74.png)
Index
Index-2 98-137573-A
electronic position, 5-10
error messages, 6-1
Ethernet, 4-11
cable type, 3-15
configuration, 4-11
connector, 3-15
Ethernet settings, 5-15
Ethernet transmission group, 5-16
F
factory reset, 5-18
fixing device, 5-10
fuse, A-5
size, 3-1
G
gas alarm, 2-5, 4-9
GMDSS installations, 3-15
GPS antenna, 5-10
connector, 3-8, 3-13
reference points, 5-10
grounding, 3-8, 3-13
H
heading information, 4-5
I
IEC 61993-2 sentences, 4-6
install app, 5-2, 5-3
installation, 3-1
interface
RS 422, 4-4
IP address
Control Panel, 5-4
J
jumper settings, 3-9
K
keys supported
table, 5-4
L
LAN
cable type, 3-15
connector, 3-15
license
software, -ii
location
GNSS antennas, 4-4
log
system, 5-17
system malfunction, 5-17
Log (VBW), 4-5
Long Range, 4-6
channel setup, 5-10
satellite tracking, 2-4
low power forced control, 2-5, 4-9
connector, 3-6
LWE
cable, 3-15
description, 4-11
LWE ID, 4-11
LWE settings, 5-16
M
MAC address
Control Panel, 5-4
measures for installing, 3-13
Message 5, 5-10
messages
clear, 5-18
MMSI
Missing MMSI, 6-11
wrong MMSI, 6-11
MMSI number, 5-8
multicast addresses, B-1
N
night mode, 2-6, 5-1
NMEA interface versions, 2-4
NMEA sentence, B-1
![](/img.php?id=2082849&img=bg75.png)
Index
98-137573-A Index-3
5555
Index
NMEA tracer, 5-20
O
on/off control, 4-2
open source licences, 5-4
P
part numbers, 2-7
accessories, 2-7
password, 5-6
admin level, 5-11
change, 5-11
reset, 5-11
user level, 5-11
PI settings, 5-12
pilot plug, 2-4
connection, 4-8
SAILOR 6283 AIS Connection Box and Wall
Tray, 4-8
pin allocation
DC connector, 4-1
pilot plug, 4-8
SUB-D50, 3-14
position
fixing device, 5-10
GNSS antennas, 4-4
reference points for GPS antenna, 5-10
power connector, 3-8
presentation interfaces, 2-5, 4-6
baud rate, 4-7
schematics, 4-7
R
radar, 2-2
distance to antenna installation, 3-4
Rate of Turn, 4-5
reboot
power cycle, 5-18
recover communication, 6-12
remote on/off
connect, 4-2
remove AIS Transponder, 6-3
reporting interval, A-2
reset, 5-18
password, 5-11
restore, 5-18
restore from file, 5-18
RF exposure, -iii
ROT, 2-5
RS 422 interfaces, 4-4
S
safety distance, -iii
SAILOR 6280 AIS System
cable specifications, 3-11
components, 3-6
wiring, 3-10
SAILOR 6281 AIS Basic System
cable specifications, 3-16
components, 3-12
wiring, 3-16
salt deposits, 6-1
satellite equipment
distance to antenna installation, 3-4
self test, 5-4
Sensor
NMEA sentences, 5-13
sensor inputs, 2-5, 4-3
baud rate, 4-4
schematics, 4-3
termination, 4-3
Sensor settings, 5-13
Service Interface
access, 5-4
settings
Ethernet, 5-15
jumper, AIS Connection Box, 3-9
LWE, 5-16
PI, 5-12
sensor, 5-13
ship name, 5-8
ship type
table, 5-9
software
uninstall, 5-3, 5-4
software license, -ii
software update
TMA, 6-2
software version
TMA, 5-5
specifications, A-1
SUB-D 50 connector
pin allocation, 3-14
SUB-D50 connector, 3-14
![](/img.php?id=2082849&img=bg76.png)
Index
Index-4 98-137573-A
support, 6-1
switching current
alarm, 4-9
switching voltage
alarm, 4-9
system ID, 5-10
T
technical data, A-1
ThraneLINK, 2-4
TMA
add search path, 6-2
software update, 6-2
software version, 6-2
specific software, 6-2
version, 5-5
tracer tool, 5-20
transmission group, 5-16, B-1
troubleshooting, 6-11
U
uninstall, 5-3, 5-4
unpacking
items included, 3-1
V
verfication, 5-20
VHF antenna, 5-10
VHF RX/TX antenna installation, 3-4
VHF/GPS antenna
connector, 3-8, 3-13
VTS tool, 2-2
W
warnings, 6-1
warranty, -iii, 6-13
waterproof, -iii
wire diameter
maximum for AIS Connection Box, 3-9
wiring
SAILOR 6280 AIS System, 3-10
SAILOR 6281 AIS Basic System, 3-16
