Three In One TIO-W355558100 Wireless Video Scope User Manual 01

Three In One Enterprises Co., Ltd Wireless Video Scope 01

User Manual

Video Scope User ManualFor Model：TIO-W3558100

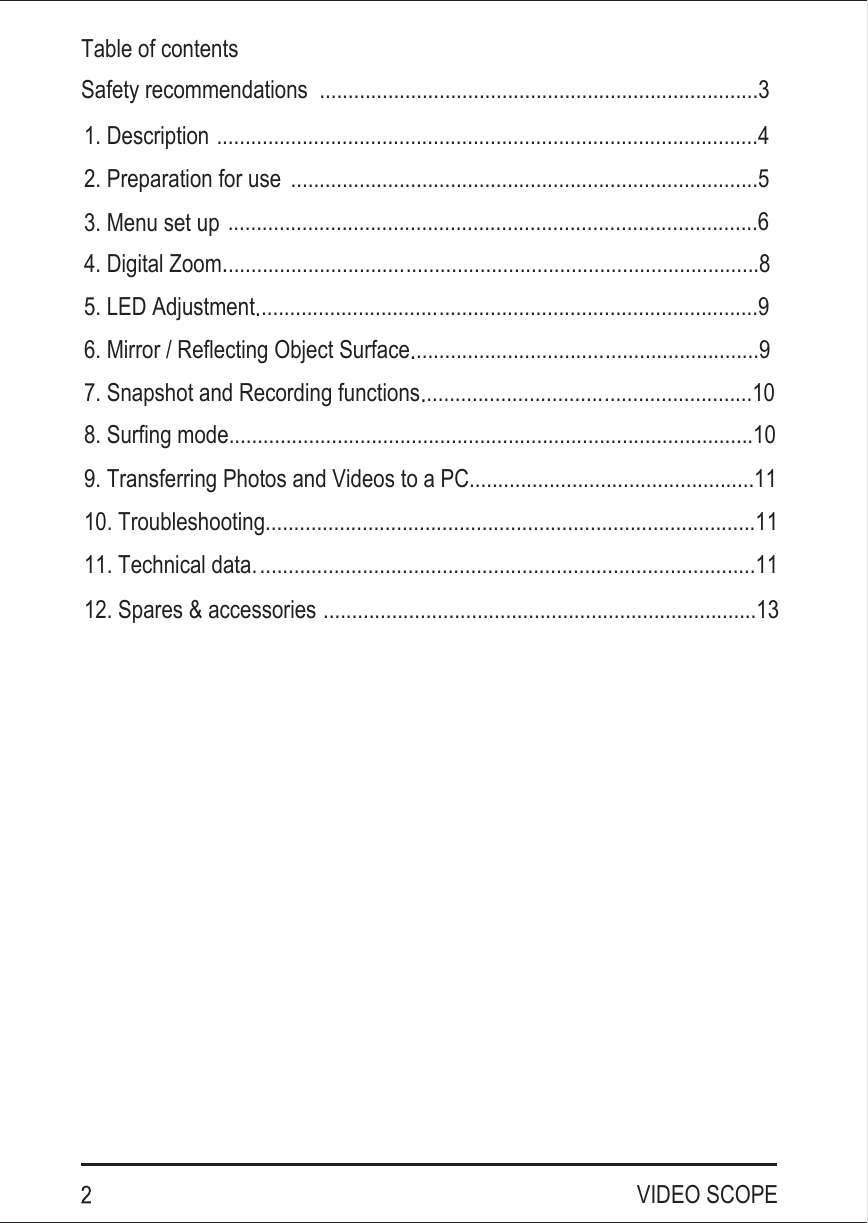

Table of contentsSafety recommendations ..............................................................................31. Description................................................................................................42. Preparation for use ...................................................................................53. Menu set up ..............................................................................................67. Snapshot and Recording functions................................ ..........................1010. Troubleshooting......................................................................................1111. Technical data. .......................................................................................1112. Spares & accessories.............................................................................13VIDEO SCOPE8. Surfing mode............................................................................................104. Digital Zoom................................ ..............................................................85. LED Adjustment................................ ........................................................96. Mirror / Reflecting Object Surface.................................. ...........................99. Transferring Photos and Videos to a PC..................................................11

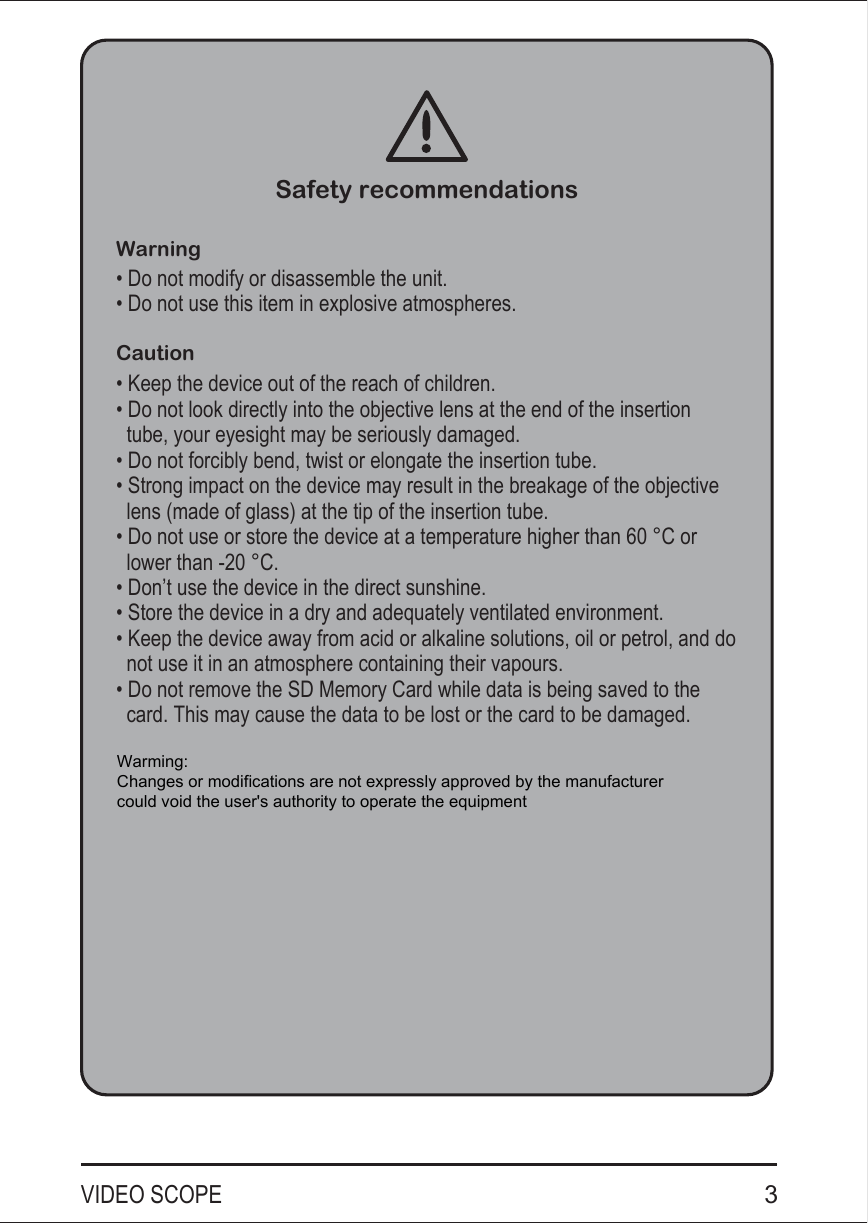

Safety recommendationsWarning• Do not modify or disassemble the unit.• Do not use this item in explosive atmospheres.Caution• Keep the device out of the reach of children.• Do not look directly into the objective lens at the end of the insertiontube, your eyesight may be seriously damaged.• Do not forcibly bend, twist or elongate the insertion tube.• Strong impact on the device may result in the breakage of the objectivelens (made of glass) at the tip of the insertion tube.• Do not use or store the device at a temperature higher than 60 °C orlower than -20 °C.• Don’t use the device in the direct sunshine.• Store the device in a dry and adequately ventilated environment.• Keep the device away from acid or alkaline solutions, oil or petrol, and donot use it in an atmosphere containing their vapours.• Do not remove the SD Memory Card while data is being saved to thecard. This may cause the data to be lost or the card to be damaged.3VIDEO SCOPEWarming:Changes or modifications are not expressly approved by the manufacturercould void the user's authority to operate the equipment

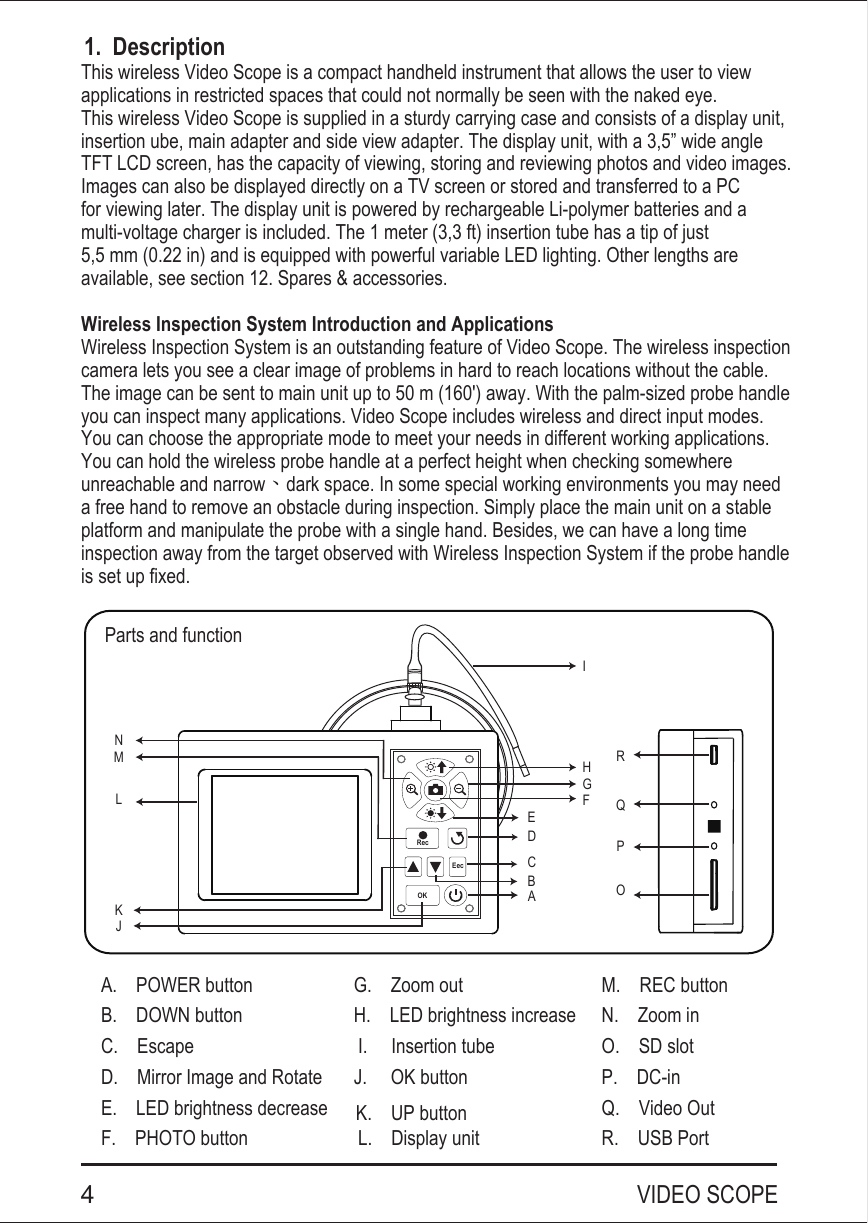

41. DescriptionVIDEO SCOPEParts and functionA. POWER buttonC. EscapeB. DOWN buttonG. Zoom outL. Display unitE. LED brightness decreaseM. REC buttonD. Mirror Image and Rotate J. OK buttonK. UP button N. Zoom inH. LED brightness increaseF. PHOTO buttonO. SD slot Q. Video OutP. DC-inR. USB PortI. Insertion tubeThis wireless Video Scope is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye.This wireless Video Scope is supplied in a sturdy carrying case and consists of a display unit, insertion ube, main adapter and side view adapter. The display unit, with a 3,5” wide angle TFT LCD screen, has the capacity of viewing, storing and reviewing photos and video images.Images can also be displayed directly on a TV screen or stored and transferred to a PCfor viewing later. The display unit is powered by rechargeable Li-polymer batteries and amulti-voltage charger is included. The 1 meter (3,3 ft) insertion tube has a tip of just5,5 mm (0.22 in) and is equipped with powerful variable LED lighting. Other lengths areavailable, see section 12. Spares & accessories.Wireless Inspection System Introduction and ApplicationsWireless Inspection System is an outstanding feature of Video Scope. The wireless inspection camera lets you see a clear image of problems in hard to reach locations without the cable. The image can be sent to main unit up to 50 m (160') away. With the palm-sized probe handle you can inspect many applications. Video Scope includes wireless and direct input modes. You can choose the appropriate mode to meet your needs in different working applications. You can hold the wireless probe handle at a perfect height when checking somewhere unreachable and narrow、dark space. In some special working environments you may need a free hand to remove an obstacle during inspection. Simply place the main unit on a stable platform and manipulate the probe with a single hand. Besides, we can have a long time inspection away from the target observed with Wireless Inspection System if the probe handle is set up fixed.RecEecOKABCDEFGHIJKLMNOPQR

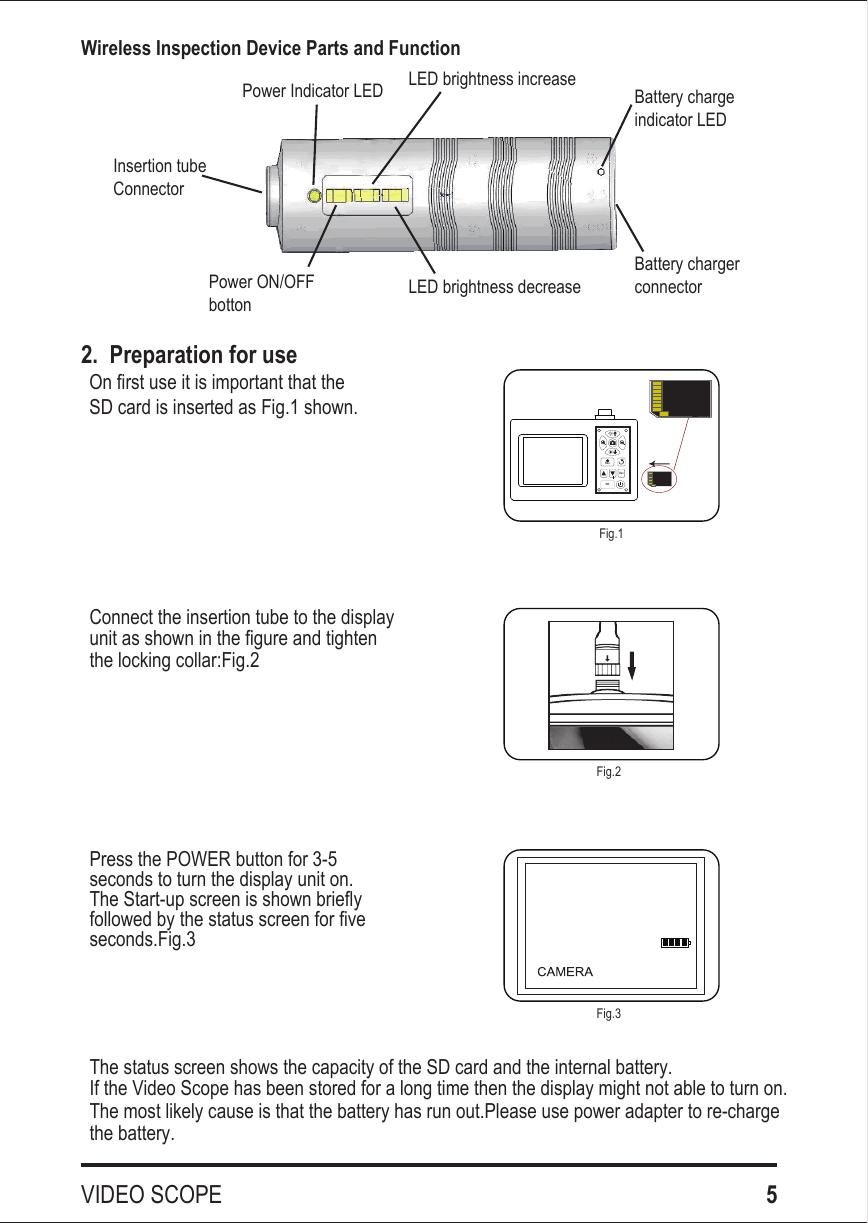

2. Preparation for useOn first use it is important that theSD card is inserted as Fig.1 shown.Connect the insertion tube to the displayunit as shown in the figure and tightenthe locking collar:Fig.2The status screen shows the capacity of the SD card and the internal battery.If the Video Scope has been stored for a long time then the display might not able to turn on.The most likely cause is that the battery has run out.Please use power adapter to re-chargethe battery.5VIDEO SCOPEPress the POWER button for 3-5seconds to turn the display unit on.The Start-up screen is shown brieflyfollowed by the status screen for fiveseconds.Fig.3Fig.2Fig.3Wireless Inspection Device Parts and FunctionInsertion tubeConnectorPower ON/OFFbottonBattery chargeindicator LEDBattery chargerconnectorPower Indicator LED LED brightness increaseLED brightness decreaseFig.1RecEecOK

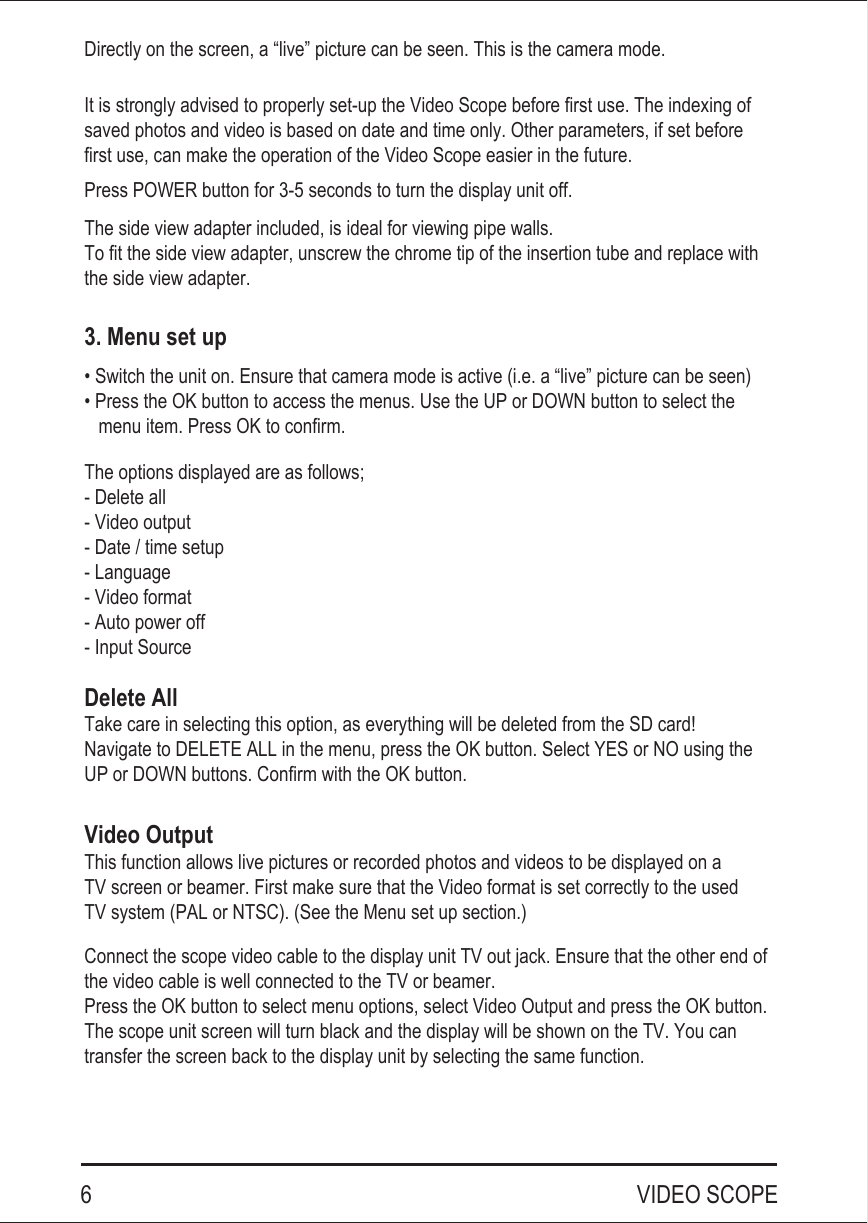

Directly on the screen, a “live” picture can be seen. This is the camera mode.• Switch the unit on. Ensure that camera mode is active (i.e. a “live” picture can be seen)• Press the OK button to access the menus. Use the UP or DOWN button to select the menu item. Press OK to confirm.3. Menu set upThe options displayed are as follows;- Delete all- Video output- Date / time setup- Language- Video format- Auto power off- Input SourceDelete AllTake care in selecting this option, as everything will be deleted from the SD card!Navigate to DELETE ALL in the menu, press the OK button. Select YES or NO using theUP or DOWN buttons. Confirm with the OK button.It is strongly advised to properly set-up the Video Scope before first use. The indexing of saved photos and video is based on date and time only. Other parameters, if set before first use, can make the operation of the Video Scope easier in the future.Press POWER button for 3-5 seconds to turn the display unit off.The side view adapter included, is ideal for viewing pipe walls.To fit the side view adapter, unscrew the chrome tip of the insertion tube and replace with the side view adapter.6VIDEO SCOPEVideo OutputThis function allows live pictures or recorded photos and videos to be displayed on aTV screen or beamer. First make sure that the Video format is set correctly to the usedTV system (PAL or NTSC). (See the Menu set up section.)Connect the scope video cable to the display unit TV out jack. Ensure that the other end ofthe video cable is well connected to the TV or beamer.Press the OK button to select menu options, select Video Output and press the OK button.The scope unit screen will turn black and the display will be shown on the TV. You cantransfer the screen back to the display unit by selecting the same function.

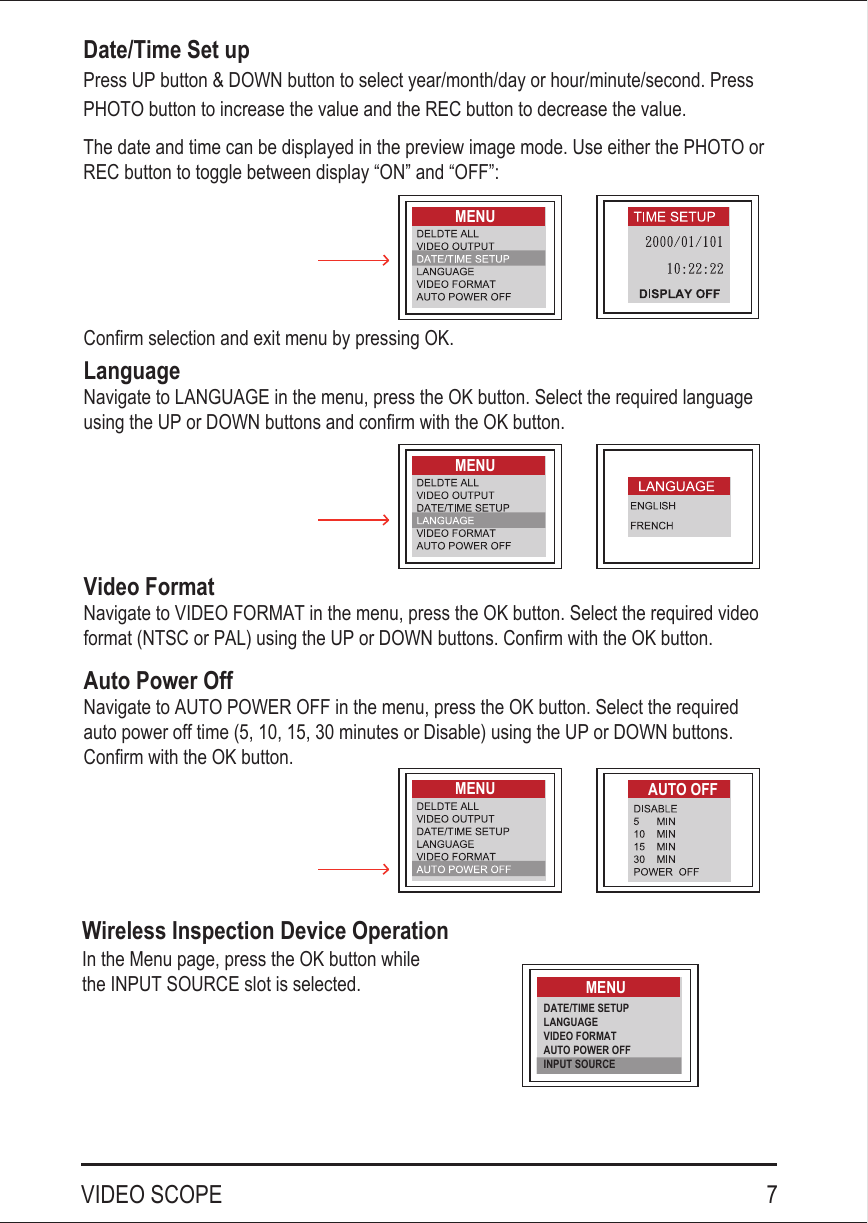

Confirm selection and exit menu by pressing OK.LanguageNavigate to LANGUAGE in the menu, press the OK button. Select the required languageusing the UP or DOWN buttons and confirm with the OK button.Video FormatNavigate to VIDEO FORMAT in the menu, press the OK button. Select the required videoformat (NTSC or PAL) using the UP or DOWN buttons. Confirm with the OK button.Auto Power OffNavigate to AUTO POWER OFF in the menu, press the OK button. Select the requiredauto power off time (5, 10, 15, 30 minutes or Disable) using the UP or DOWN buttons.Confirm with the OK button.7VIDEO SCOPEDate/Time Set upPress UP button & DOWN button to select year/month/day or hour/minute/second. PressPHOTO button to increase the value and the REC button to decrease the value.The date and time can be displayed in the preview image mode. Use either the PHOTO orREC button to toggle between display “ON” and “OFF”:Wireless Inspection Device OperationIn the Menu page, press the OK button while the INPUT SOURCE slot is selected.MENUMENUMENUDATE/TIME SETUPLANGUAGEVIDEO FORMATAUTO POWER OFFINPUT SOURCEMENUAUTO OFF

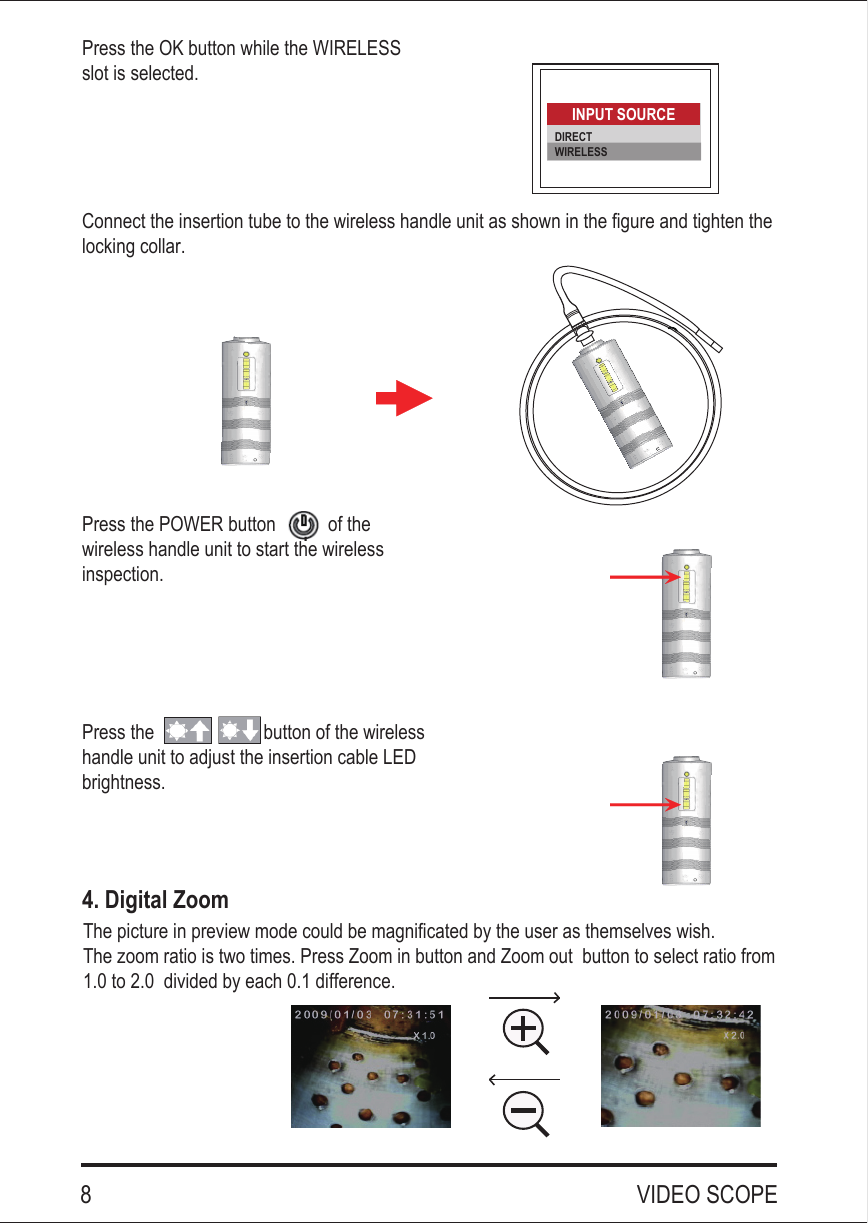

8VIDEO SCOPE4. Digital ZoomThe picture in preview mode could be magnificated by the user as themselves wish.The zoom ratio is two times. Press Zoom in button and Zoom out button to select ratio from 1.0 to 2.0 divided by each 0.1 difference.Press the OK button while the WIRELESS slot is selected.Connect the insertion tube to the wireless handle unit as shown in the figure and tighten the locking collar. Press the POWER button of the wireless handle unit to start the wireless inspection. Press the button of the wireless handle unit to adjust the insertion cable LED brightness.DIRECTWIRELESS INPUT SOURCE

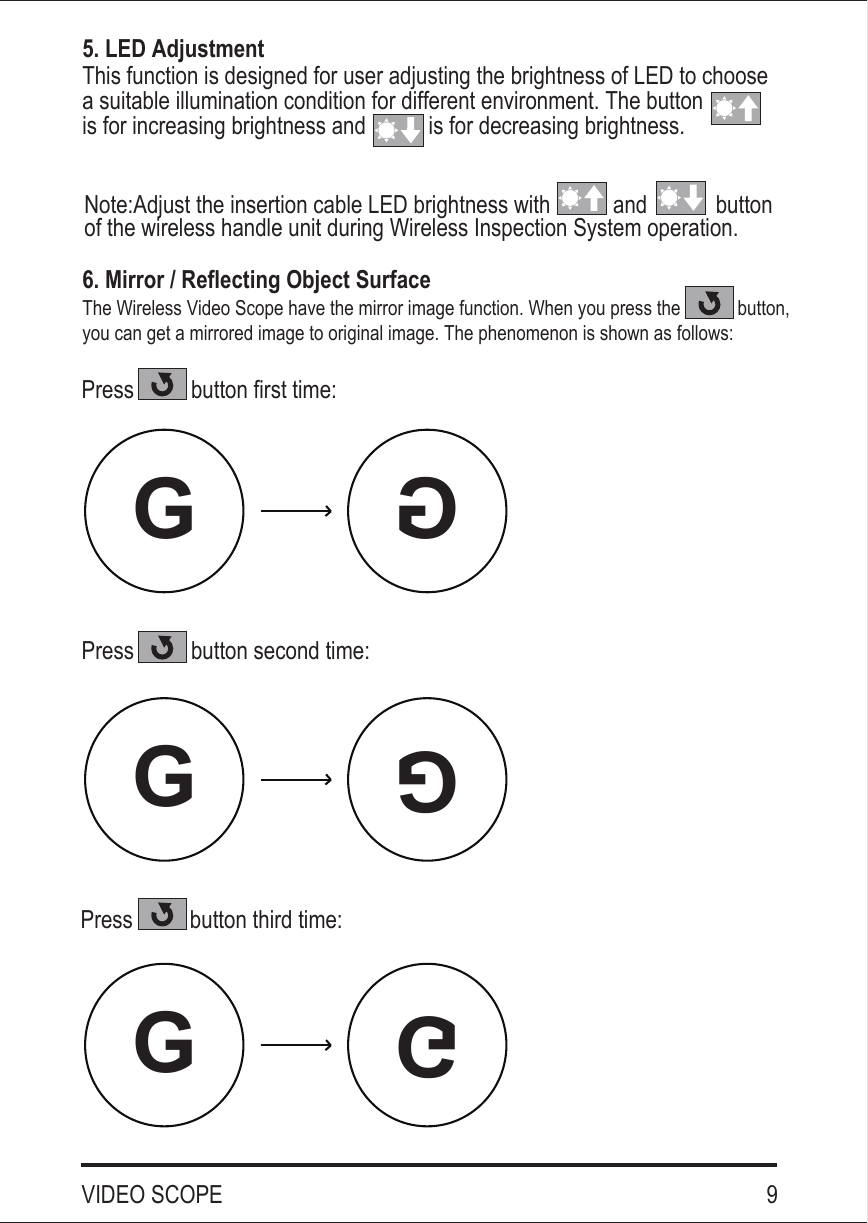

9VIDEO SCOPE6. Mirror / Reflecting Object SurfaceThe Wireless Video Scope have the mirror image function. When you press the button, you can get a mirrored image to original image. The phenomenon is shown as follows:Press button first time:Press button second time:Press button third time:5. LED AdjustmentThis function is designed for user adjusting the brightness of LED to choose a suitable illumination condition for different environment. The buttonis for increasing brightness and is for decreasing brightness.Note:Adjust the insertion cable LED brightness with and buttonof the wireless handle unit during Wireless Inspection System operation.GGGGGG
8. Surfing modeIn the preview mode, press the UP or DOWN key, the last photo or video will be displayed.Press the UP or DOWN keys to navigate to the photo or video to be viewed.To stop recording, press the REC button again. The video icon disappears. The display reverts to preview mode.The video is automatically stored to the SD card in avi format with a file name of running number.For example IMG00002.avi.To play the video, press the REC button. Press the REC button again to pause, and adjustthe video volume by pressing button.To revert to preview mode, press the ESC buttonTo delete a saved photo, press the OK button whilst it is displayed. To delete a saved video,make sure the video is not in play mode, press the OK button. A delete menu will show.Toggle between the Yes and No options using the UP and DOWN buttons. Press the OKbutton to confirm.10 VIDEO SCOPE7. Snapshot and Recording functionsSnapshotIn preview mode, press the PHOTO button to take a photo.The photo is stored to the SD card in jpg format with a file name of running number. For example IMG00001.jpg.RecordingIn preview mode, press the REC button to take a video. The video icon is shown in the top right corner.Users can capture the picture that they wanted during the video playing and recording bypressing the PHOTO bottom

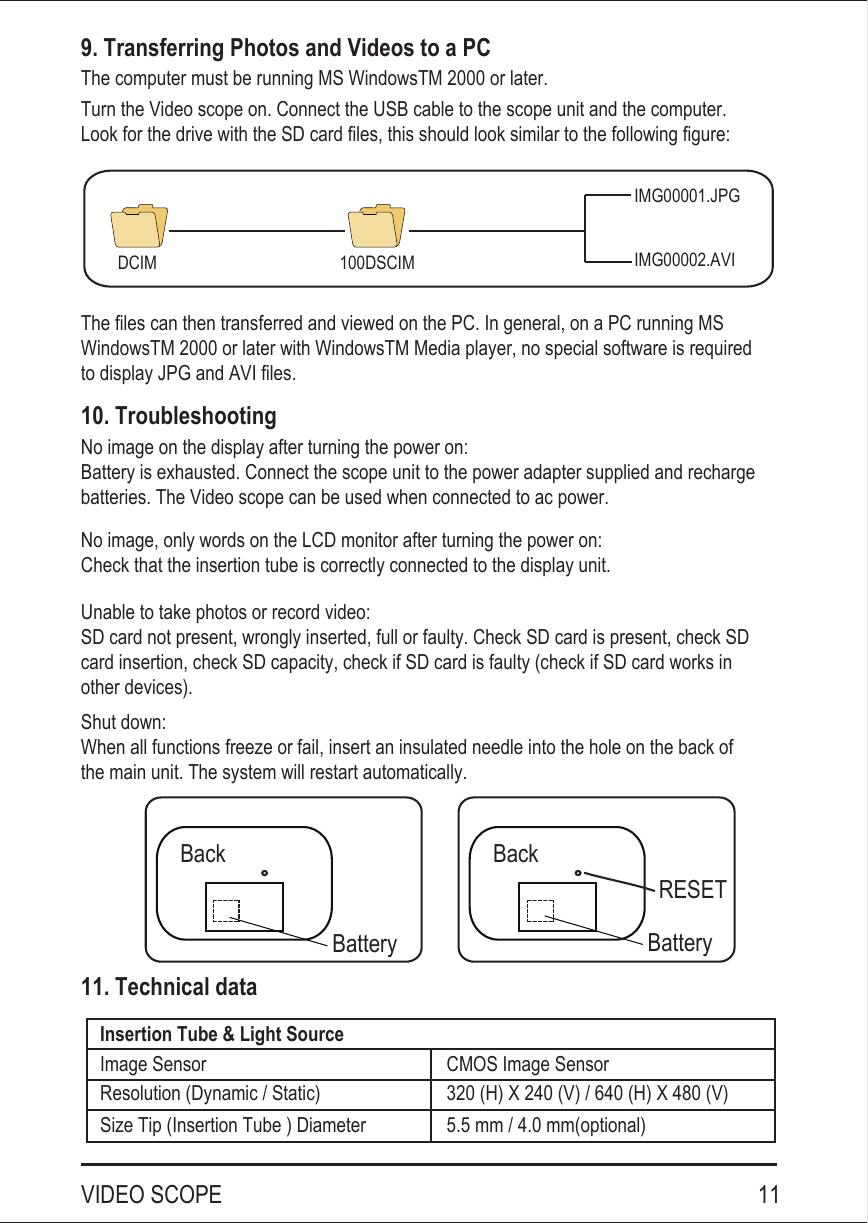

119. Transferring Photos and Videos to a PCThe computer must be running MS WindowsTM 2000 or later.Turn the Video scope on. Connect the USB cable to the scope unit and the computer.Look for the drive with the SD card files, this should look similar to the following figure:The files can then transferred and viewed on the PC. In general, on a PC running MSWindowsTM 2000 or later with WindowsTM Media player, no special software is requiredto display JPG and AVI files.10. TroubleshootingNo image on the display after turning the power on:Battery is exhausted. Connect the scope unit to the power adapter supplied and rechargebatteries. The Video scope can be used when connected to ac power.No image, only words on the LCD monitor after turning the power on:Check that the insertion tube is correctly connected to the display unit.Unable to take photos or record video:SD card not present, wrongly inserted, full or faulty. Check SD card is present, check SDcard insertion, check SD capacity, check if SD card is faulty (check if SD card works inother devices).Shut down:When all functions freeze or fail, insert an insulated needle into the hole on the back ofthe main unit. The system will restart automatically.Insertion Tube & Light SourceImage Sensor CMOS Image SensorResolution (Dynamic / Static) 320 (H) X 240 (V) / 640 (H) X 480 (V)Size Tip (Insertion Tube ) Diameter 5.5 mm / 4.0 mm(optional)VIDEO SCOPEIMG00001.JPGIMG00002.AVI100DSCIMDCIM11. Technical dataBackBatteryRESETBackBattery

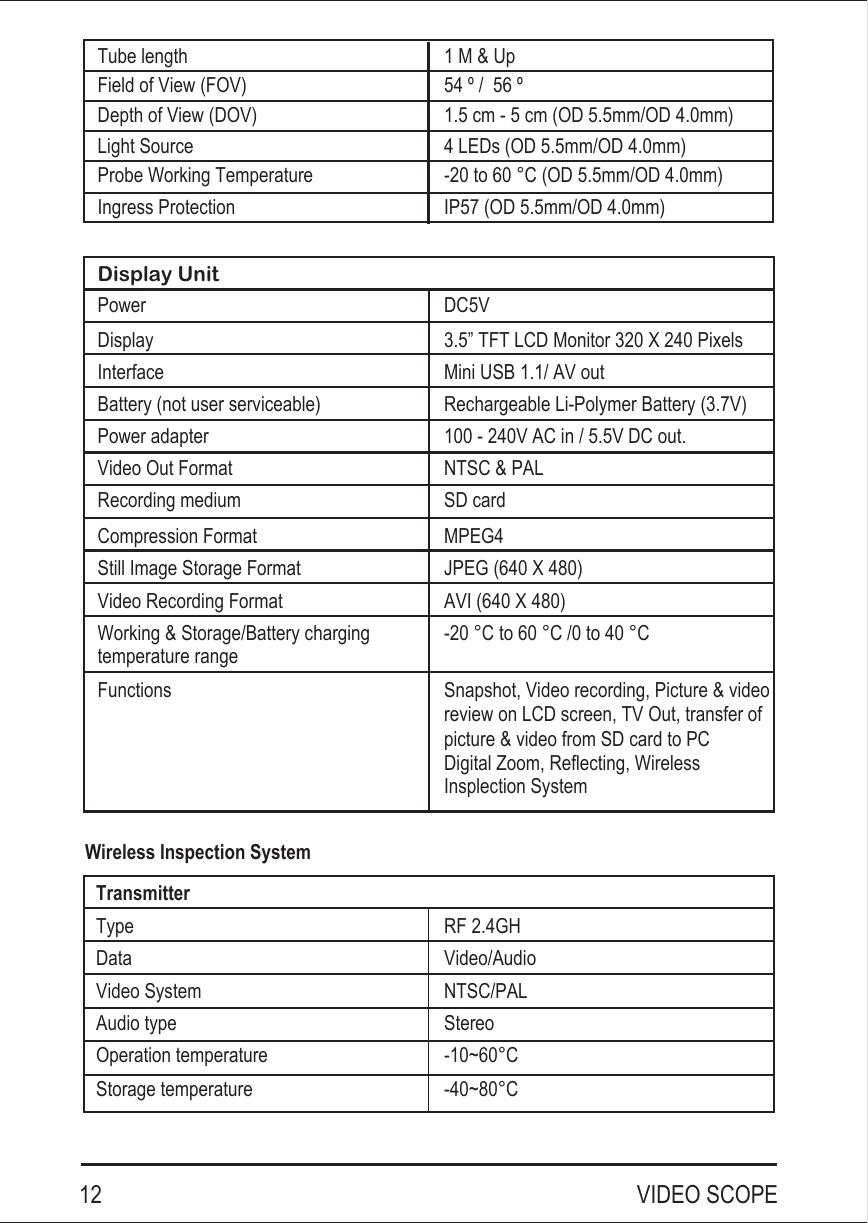

12 VIDEO SCOPEWireless Inspection SystemTube length 1 M & UpField of View (FOV) 54 º / 56 ºDepth of View (DOV) 1.5 cm - 5 cm (OD 5.5mm/OD 4.0mm)Light Source 4 LEDs (OD 5.5mm/OD 4.0mm)Probe Working Temperature -20 to 60 °C (OD 5.5mm/OD 4.0mm)Ingress Protection IP57 (OD 5.5mm/OD 4.0mm)Display UnitPower DC5VDisplay 3.5” TFT LCD Monitor 320 X 240 PixelsInterface Mini USB 1.1/ AV outBattery (not user serviceable) Rechargeable Li-Polymer Battery (3.7V)Power adapter 100 - 240V AC in / 5.5V DC out.Video Out Format NTSC & PALRecording medium SD cardCompression Format MPEG4Still Image Storage Format JPEG (640 X 480)Video Recording Format AVI (640 X 480)Working & Storage/Battery chargingtemperature range-20 °C to 60 °C /0 to 40 °CFunctions Snapshot, Video recording, Picture & videoreview on LCD screen, TV Out, transfer ofpicture & video from SD card to PCDigital Zoom, Reflecting, Wireless Insplection SystemTransmitterTypeDataVideo SystemAudio typeOperation temperatureStorage temperatureRF 2.4GHVideo/AudioNTSC/PALStereo-10~60°C-40~80°C

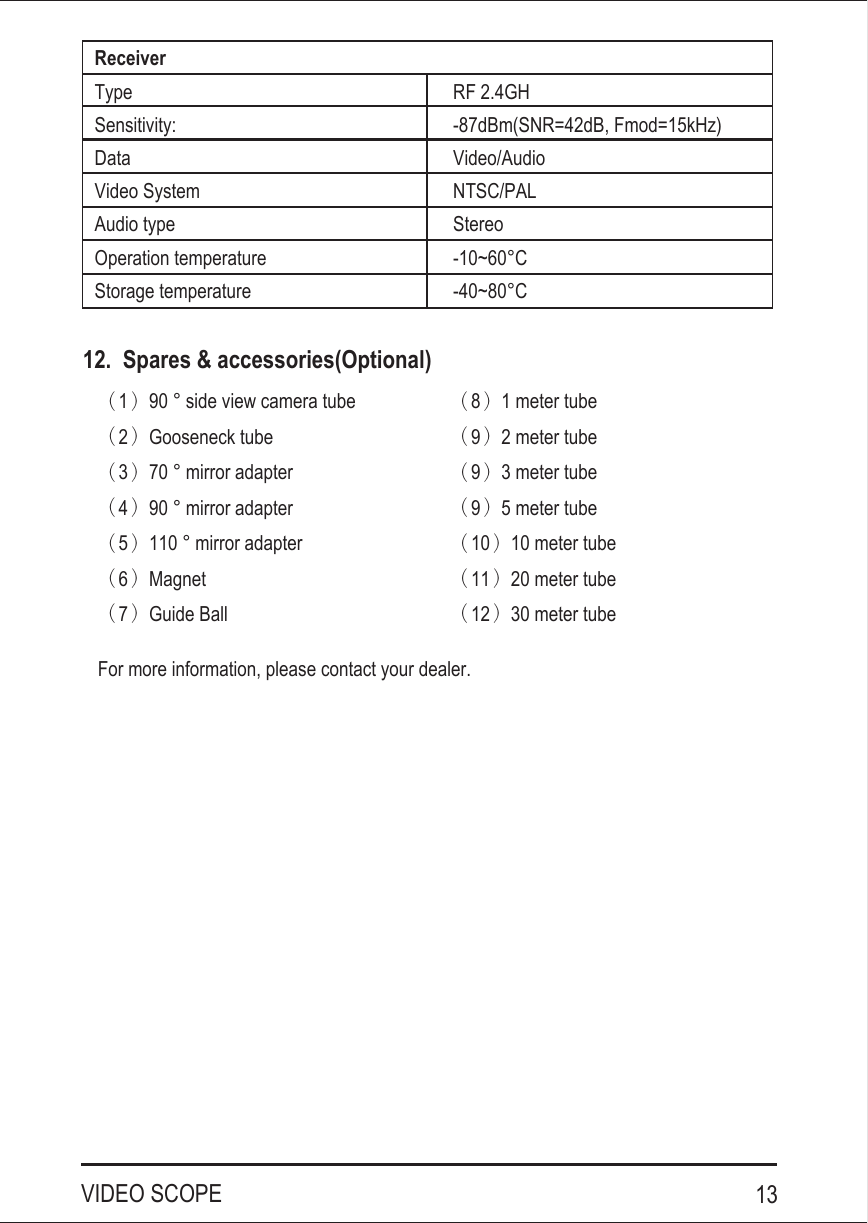

13VIDEO SCOPE12. Spares & accessories(Optional)（1）90 ° side view camera tube（2）Gooseneck tube （4）90 ° mirror adapter（3）70 ° mirror adapter（5）110 ° mirror adapter（6）Magnet（7）Guide Ball（8）1 meter tube（9）2 meter tube（9）3 meter tube（9）5 meter tube（10）10 meter tube（11）20 meter tube（12）30 meter tubeFor more information, please contact your dealer.ReceiverTypeSensitivity:DataVideo SystemAudio typeOperation temperatureStorage temperatureRF 2.4GHVideo/AudioNTSC/PALStereo-10~60°C-40~80°C-87dBm(SNR=42dB, Fmod=15kHz)
