Tonning Electronic Technology JWM40 Car Radio User Manual

Tonning Electronic Technology CO.,Ltd. Car Radio

User Manual

JWM40MOBILE AUDIO SYSTEMInstallation and Owner's Manual
CONTENTSIntroduction.........................................................3Disc Notes.........................................................4Installation..........................................................5Wiring..............................................................6Basic Operation.....................................................7Tuner Operation.....................................................9Disc Operation......................................................10CD Operation......................................................10DVD/VCD Operation................................................10MP3/USB Operation................................................13Bluetooth Operation................................................15Remote Control Operation...........................................17DVD Setup Menu...................................................19Care and Maintenance..............................................21Troubleshooting....................................................21Specifications......................................................22FCC Notice........................................................22

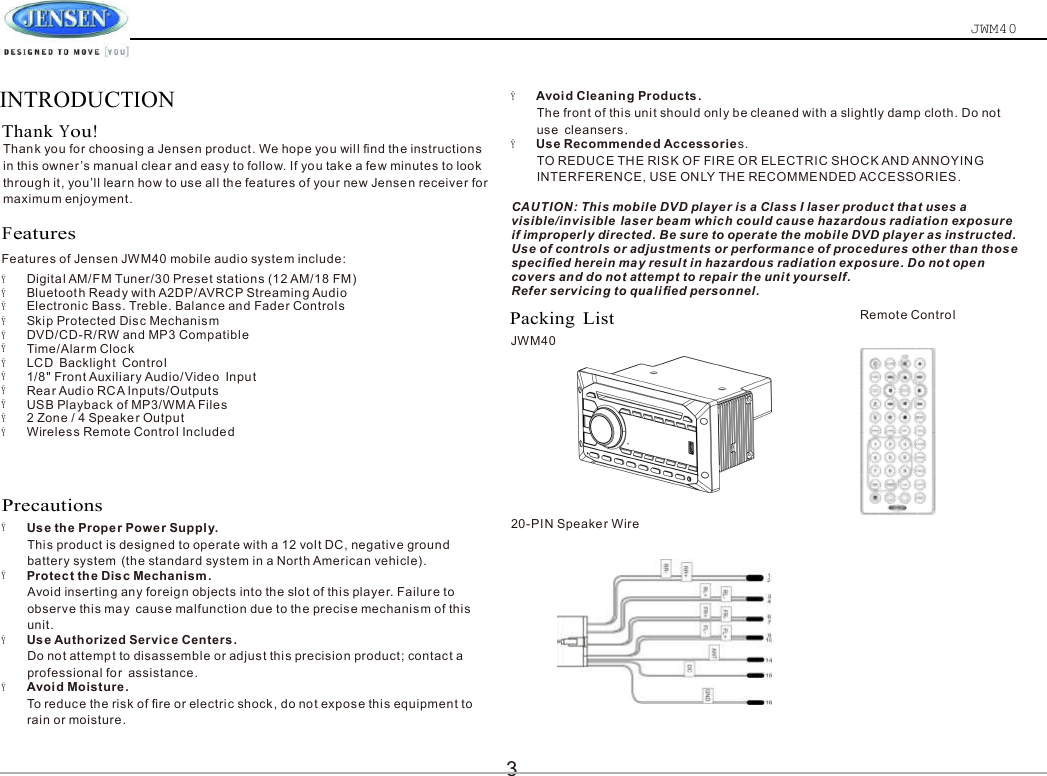

JWM403INTRODUCTIONThankYou!Thank yo u for choosing a Jensen product. We hope you wil l find the instruction sin this owne r’s manual clear and eas y to follow. If you tak e a few minutes to lookthroug h it, you’ll learn how to use all the features of you r ne w Jensen receiver formaximu m enjoyment.FeaturesFeature s of Jensen JWM40 mobile audio syste m include:ŸDigita l AM/FM Tuner/30 Preset station s (12 AM/18 FM)ŸBluetooth Read y with A2DP/ AVRCP Streamin g AudioŸElectronic Bass, Treble, Balance and Fader ControlsŸAvoi d Cleaning Products.The front of this unit should only be cleane d with a slightly damp cloth. Do notuse cleansers.ŸUs e Recommended Accessories.TO REDUCE TH E RISK OF FIRE OR ELECTRIC SHOC K AND ANNOYIN GINTERFERENCE, USE ON LY THE RECOMMENDED ACCESSORIES .CAUTION: Thi s mobile DVD player is a Class I laser produ ct that uses avisible/invisible laser beam which could cause hazardou s radiation exposureif improperl y directed. Be sure to operat e the mobile DVD player as instructed .Us e of controls or adjustments or performance of procedures other than thosespecified herein may result in hazardou s radiatio n exposure. Do not opencovers an d do no t attempt to repair the uni t yourself.Refer servicin g to qualified personnel.ŸSkip Protected Dis c MechanismŸDVD/CD-R/RW and MP3 CompatibleŸTime/Alarm Cloc kŸLC D Backlight Contro lŸ1/8" Front Auxiliary Audio/Video Inpu tŸRear Audi o RCA Inputs/OutputsŸUSB Playback of MP3/WMA FilesŸ2 Zone / 4 Speake r OutputŸWireless Remote Control Include dPrecautionsŸUs e the Proper Power Supply.This product is designed to operate wit h a 12 volt DC, negative groundbatter y system (the standard system in a North American vehicle).ŸProtect the Disc Mechanism .Avoid inserting any foreign objects int o the slo t of this player. Failur e toobserve this ma y caus e malfunction due to the precise mechanism of thisunit.ŸUs e Authorized Service Centers.Do not attemp t to disassemble or adjust thi s precision product ; contac t aprofessional for assistance.ŸAvoi d Moisture.To reduce the risk of fire or electri c shock, do not expose thi s equipmen t torain or moisture .Packing ListJWM4020-PIN Speake r WireRemote Contro l

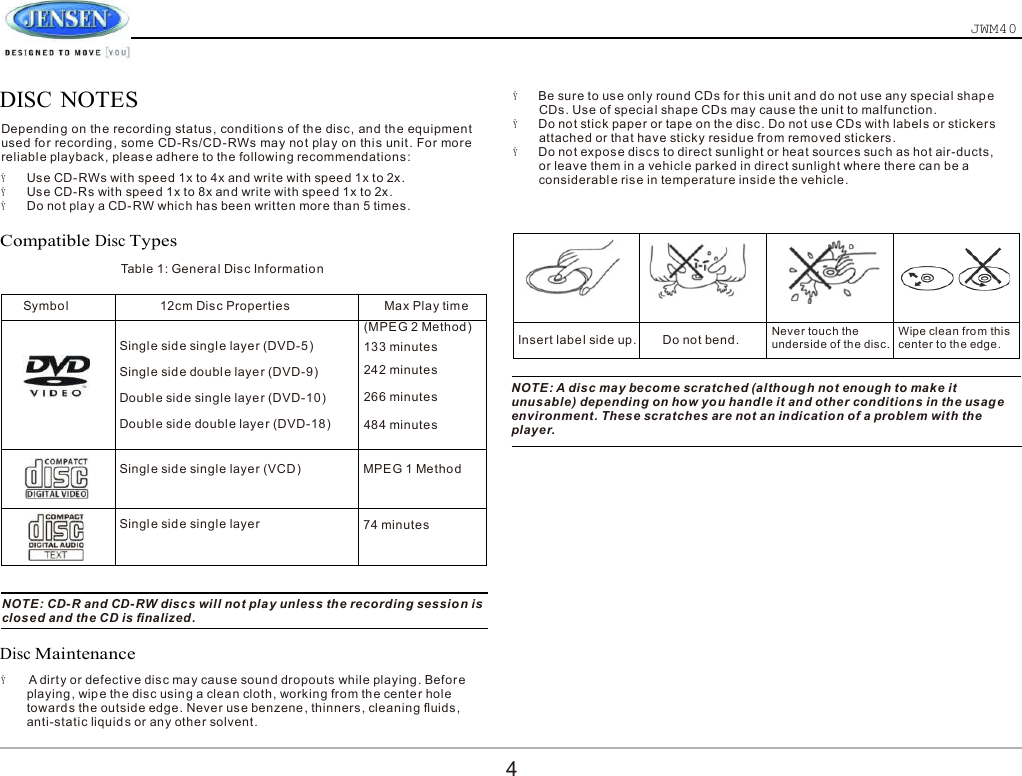

JWM404Insert label side up. Do not bend. Never touc h theundersid e of th e disc.Wipe clean fro m thiscenter to the edge.Symbol 12cm Dis c Properties Max Play timeSingle side single layer (DVD-5 )Single side doubl e layer (DVD-9)Double side single layer (DVD-10)Double side double layer (DVD-18)(MPEG 2 Method)133 minutes242 minutes266 minutes484 minutesSingle side single layer (VCD) MPEG 1 MethodSingle side single layer 74 minutesDISCNOTESDepending on th e recording status, conditions of the disc, and the equipmentused for recording, som e CD-Rs/CD-RWs may not pla y on thi s unit. For morereliable playback, please adhere to the following recommendations :ŸUs e CD-RWs with speed 1x to 4x an d write with spee d 1x to 2x .ŸUs e CD-Rs with speed 1x to 8x and write with spee d 1x to 2x.ŸDo not pla y a CD-RW which has bee n written more than 5 times.CompatibleDiscTypesŸBe sure to use only round CDs fo r this unit and do not us e any special shapeCDs. Use of special shape CDs ma y caus e th e uni t to malfunction.ŸDo not stic k paper or tape on th e disc. Do not us e CDs with labels or stickersattached or that have sticky residue from remove d stickers.ŸDo not expose discs to direct sunlight or heat sources such as hot air-ducts,or leave them in a vehi cl e parked in direct sunlight where there ca n be aconsiderabl e ris e in temperature inside the vehicle .Table 1: Genera l Dis c InformationNOTE: A disc may become scratched (although not enoug h to make itunusable) depending on ho w you handle it an d other conditions in the usag eenvironment . These scratches are not an indication of a problem wit h theplayer.NOTE: CD- R and CD-RW discs will no t pla y unless th e recording sessio n isclosed and the CD is finalized.DiscMaintenanceŸA dirt y or defectiv e disc ma y cause sound dropouts while playing. Beforeplaying, wipe th e disc usin g a clean cloth, working from the center holetoward s the outside edge. Never us e benzene , thinners, cleaning fluids,anti-static liquid s or any other solvent.

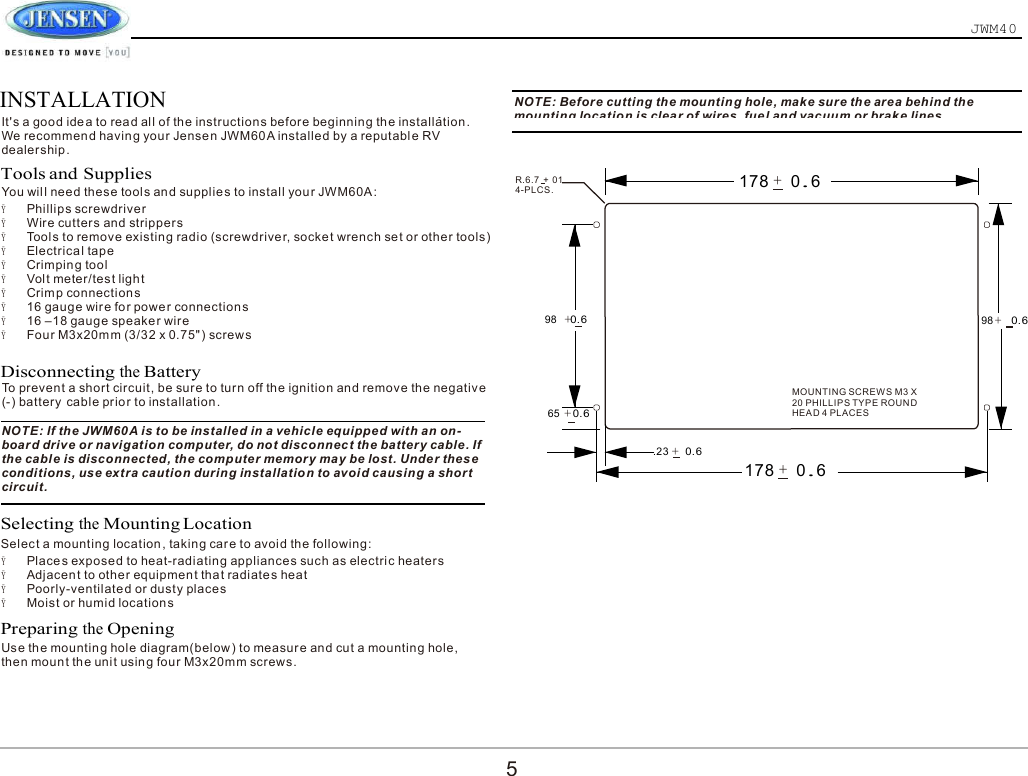

JWM405INSTALLATION NOTE: Before cutting th e mountin g hole, make sure th e are a behind the.mountin g locatio n is clear of wires, fue l an d vacuum or brake lines.It's a good ide a to read all of the instructions befor e beginning th e installation .We recommen d having your Jensen JWM60A installed by a reputable RVdealership .Tools and SuppliesYou will nee d these tools an d supplie s to install you r JWM60A :ŸPhillips screwdriverŸWire cutters and stripper sŸTools to remove existing radio (screwdriver, socke t wrench se t or other tools)ŸElectrical tapeŸCrimping too lŸVolt meter/test lightŸCrimp connectionsŸ16 gauge wire fo r power connection sŸ16 –18 gauge speaker wireŸFour M3x20mm (3/32 x 0.75") screwsDisconnectingtheBatteryTo prevent a short circuit, be sur e to turn off the ignition and remove the negative(-) battery cable prior to installation.NOTE: If the JWM60A is to be installed in a vehicl e equipped wit h an on-board drive or navigation computer, do not disconnect the battery cable. Ifthe cabl e is disconnected, the computer memory ma y be lost . Under theseconditions , use extra caution during installatio n to avoid causing a shortcircuit.R.6.7 + 014-PLCS.98+0.665+0.6.23+0.6178+0.6MOUNTIN G SCREW S M3 X20 PHILLIPS TYP E ROUNDHEAD 4 PLACES178+0.698+0.6SelectingtheMounting LocationSelect a mounting location , taking care to avoi d th e following:ŸPlaces exposed to heat-radiating appliances such as electric heatersŸAdjacent to other equipmen t tha t radiate s heatŸPoorly-ventilated or dusty placesŸMoist or humid locationsPreparingtheOpeningUs e the mountin g hole diagram(below ) to measure and cut a mounting hole,then moun t th e uni t using four M3x20mm screws.
JWM406PIN NO . WIRE COLOR DESCRIPTION1 VIOLET/BLACK REAR RIGHTSPEAKER(-)2VIOLET REAR RIGHT SPEAKER (+)3 GREE N REAR LEFT SPEAKER (+ )4 GREEN/BLACK REAR LEFT SPEAKE R (-)5 N/A N/A6 GRAY FRON T RIGH T SPEAKE R (+)7 GRAY/BLACK FRON T RIGH T SPEAKE R (-)8N/A N/ A9 WHITE/BLAC K FRON T LEFT SPEAKE R (- )10 WHITE FRON T LEFT SPEAKE R (+)11 N/A N/A12 N/A N/A13 N/A N/A14 BLU E AM P REMOT E (+12VD C10 0m A )15 RED +12VDC SWITCHED16 BLACK GROUN D17 N/A N/A18 N/A N/A19 N/A N/A20 N/A N/AWIRINGThe wiring diagra m depicts all th e wiring connections required fo r properoperation of the unit.WARNING : Wiring harness comes with stripped and tinned leads to aid in th einstallatio n process . Any unused speaker wire s mus t have their exposed ends cu toff or insulate d individually.DETAIL ASHOWN FROM PIN VIEWCONNECTIONSThe diagram below depicts all th e available audio/video connections available touse with your system.

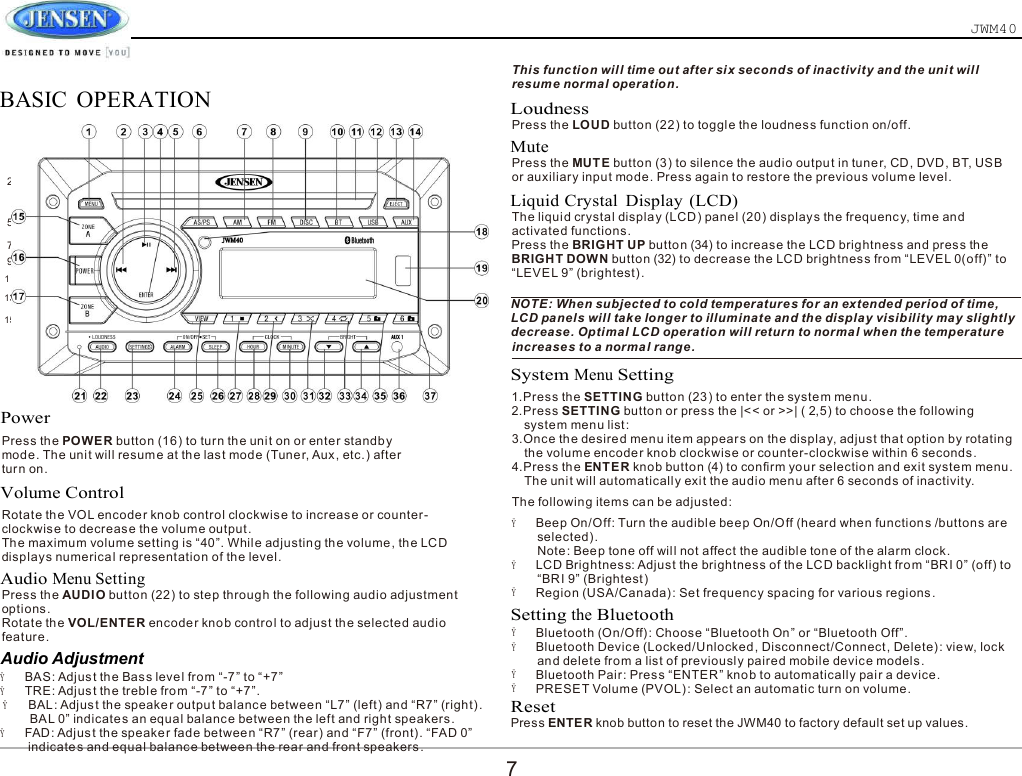

JWM407BASICOPERATION1234567891 0113130This functio n will time out after si x second s of inactivity and th e unit wil lresum e normal operation.LoudnessPress the LOUD button (22) to toggl e the loudness function on/off.MutePress the MUTE button (3) to silenc e the audio output in tune r, CD , DVD, BT, US Bor auxiliary input mode. Press again to restore the previous volume level.Liquid Crystal Display (LCD)The liqui d crystal displa y (LCD ) panel (20) display s the frequency, time an dactivated functions.Press th e BRIGHT UP butto n (34) to increase th e LC D brightness an d press theBRIGHT DOWN button (32) to decrease the LC D brightness from “LEVEL 0(off)” to“LEVEL 9” (brightest) .12131415162928NOTE: When subjected to cold temperatures fo r an extended period of time,27 LCD panels will take longer to illuminate and the display visibility may slightly26 decrease . Optimal LCD operation will return to normal when th e temperatureincreases to a normal range.SystemMenuSettingPower17 18 20 2 2 24 1.Press th e SETTING button (23) to enter the system menu.2.Press SETTING button or press the |<< or >>| ( 2,5) to choos e th e followingsystem menu list :Press th ePOWERbutton (16) to turn the uni t on or enter standb ymode. The unit will resume at the las t mode (Tune r, Aux , etc.) afterturn on.VolumeControlRotate the VOL encoder knob control clockwise to increas e or counter-clockwise to decrease the volume output.The maximum volume setting is “40”. While adjusting the volume, the LC Ddisplays numerica l representation of the level.AudioMenu SettingPress th eAUDIObutton (22) to step through the followin g audio adjustmentoptions.Rotate th e VOL/ENTER encoder kno b control to adjust the selecte d audiofeature.Audio AdjustmentŸBAS: Adjust the Bas s level from “-7” to “+7”ŸTRE: Adj ust the treble from “-7 ” to “+7”.ŸBAL: Adjust the speake r outpu t balanc e between “L7” (left) an d “R7” (right) .BA L 0” indicates an equal balanc e between the lef t and righ t speakers.ŸFAD: Adj ust the speaker fade between “R7” (rear) and “F7” (front). “FAD 0”indicates and equal balanc e betwee n the rear and front speakers .3.Once the desire d menu item appears on the display, adjust that option by rotatingthe volume encoder knob clockwise or counter-clockwise within 6 seconds .4.Press the ENTER kno b button (4) to confirm your selectio n and exit system menu.The uni t will automaticall y exit the audio menu after 6 seconds of inactivity.The following items can be adjusted:ŸBeep On/Off: Turn th e audibl e beep On/O ff (heard when function s /button s areselected).Note: Beep tone off will not affect the audibl e tone of th e alarm clock.ŸLCD Brightness: Adjust the brightness of the LC D backligh t fro m “BR I 0” (off) to“BRI 9” (Brightest )ŸRegion (USA/Canada): Set frequency spacing for various regions .SettingtheBluetoothŸBluetooth (On/Off): Choose “Bluetooth On ” or “Bluetoot h Off”.ŸBluetooth Device (Locked/Unlocked , Disconnect/Connect, Delete) : view, loc kan d delete from a list of previously paired mobile devic e models .ŸBluetooth Pair: Press “ENTER” knob to automatically pai r a device .ŸPRESET Volume (PVOL) : Select an automatic tur n on volume.ResetPress ENTER knob button to reset the JWM40 to factory default set up values.
8JWM40AuxiliaryInput FunctionPress th e AU X button (14) to directly access auxiliary input modes (AUX IN 1 andAUX IN2) from any other mod e when a portabl e audio device is connected to theunit. To connect a portable audio device, insert a standard 3.5mm (audio lineoutput or headphone output from you r portable CD / MP 3 / iPod or other mediaplayer) into the AUX A/ V IN connecto r (AUX IN1) (36 ) on the front of the unit orth e AUDIO IN (AUX IN2 ) on the back of the unit (see“Wiring”on page 3).Auxiliary InputConnectorFor front panel A/ V input, an external audio/video (A/V) source such as a videogame player, camera, etc. ca n be connecte d to the fron t panel A/V input wit h theprovided 3.5m m A/V cable adapter (Please note that ther e are several differentA/V cabl e "standards"). Connec t the device to the AUX A/V IN connecto r (36) onth e front panel.In addition to front panel auxiliary input source, the unit can also be connectedto the RCA audio input throug h the AUX AUDIO INPUT jack on the rear of th eunit.Press th e AUX button (14) to directl y access auxiliary input modes (AU X 1 INand AUX 2 IN ) from any other mode when a portabl e audio devic e is connectedto the unit .USBInterface ConnectorYou ca n connec t a US B device directly to US B interface (19) on the front of theJWM40 for playbac k of compatible files. Playback begins automaticall y. Pressth e USB button (12) to switch to US B mod e from anothe r source . Refe r to“MP3/USB Operation” on page 13 for additional operatin g instructions.NOTE: USB will not suppor t Appl e device playback. The USB input suppliesup to 1A of charging current .ClockSetupPress and hold the cloc k HOUR or MINUTE button (28, 30) to access clock setupmode. The number representin g the hours and minutes will flash. Press the HOU Rbutton (28) to adjust the hou r and pres s the MINUTE button (30) to adjust minutes .The new time wil l be saved five seconds after the last adjustment is made.Sleep ModeThe Sleep Time r will automaticall y turn off the JWM40 in the designated number ofminutes . To set th e Sleep Time, press th e SLEEP button (26) and th e sleep time wil lappear in the display with the number representing th e minute s (SLEE P 0). Pres sSLEEP button repeatedly to chang e th e sleep tim e from 0 (OFF), 15, 30 , 45 or 60mi nu tes .AlarmSettingTo set the alarm , press an d hol d theALARM SETbutton (24) for 2 seconds an d theclock digits will be flashing. Pres s th e HOUR button to adjust the hou r once at a timeor press and hold to advance rapidl y. Repeatedl y press the MINUT E button to adjustthe minute on e digit at a time, or press and hol d to advance rapidly.Press th e ALARM SET or ENTER knob button to save th e alarm time.Once a tim e is set, press ALARM ON/OFF (24) to turn the alarm function on or off.RemoteSensorInfrared receive r (18) is located on the upper left of front panel to receiv e infrared signalemitted by th e remote control.Speaker OutputThe two speaker output button s (15, 17) (Zone A, Zone B) controlspeaker zones output from th e radio. Press an y of th e two buttons to turn thecorresponding speaker zone on or off. SPK A (Zon e A), SP K B (Zone B) willappear on the display.ResetThe reset button should be activated fo r th e following reasons :•initia l installatio n of the unit whe n al l wiring is completed•function buttons do not operate•error symbol on the displayUse a ball point pe n or similar object to press the RESE T button (21). This ma y benecessary should th e unit display an error code.Clock DisplayPress the VIEW button (25) to alternate between playing time and clock timewhile in Tuner, CD , DVD, US B or auxiliary input mode.

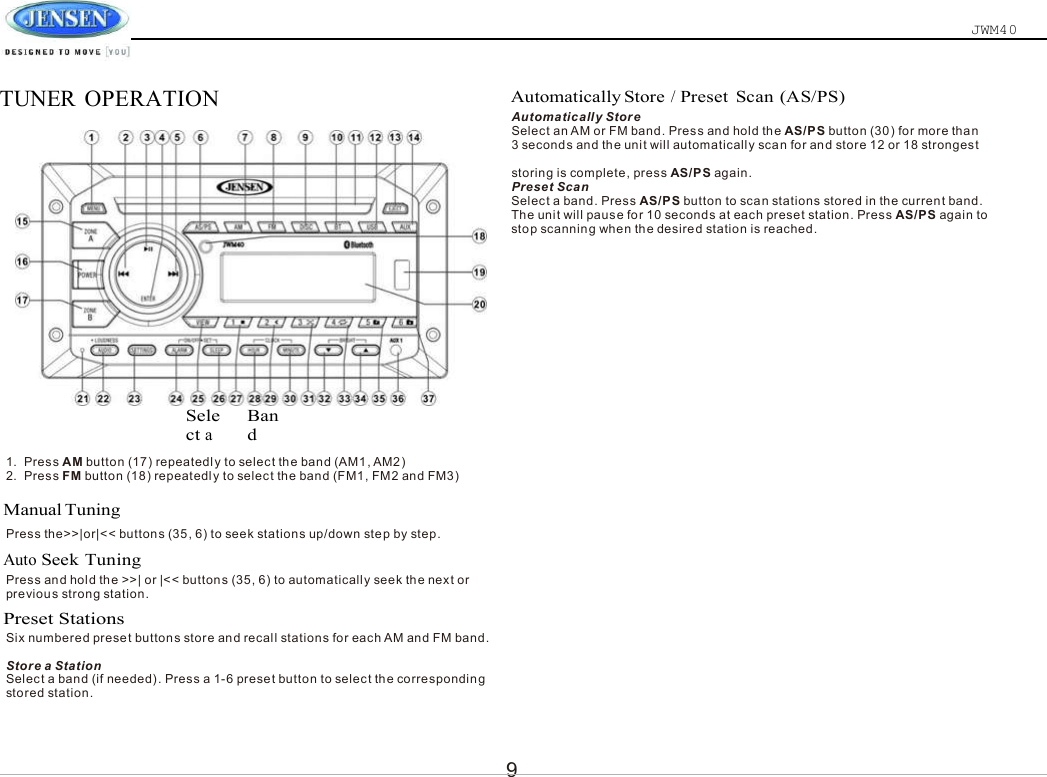

9JWM40TUNEROPERATIONAutomatically Store/Preset Scan (AS/PS)Automatically Stor eSelect an AM or FM band. Press and hold th e AS/PS button (30) for more than3 seconds and th e unit will automaticall y sca n for and store 12 or 18 strongeststoring is complete, press AS/PS again.Preset ScanSelect a band. Press AS/P S button to scan stations stored in the current band.The unit will pause fo r 10 second s at each preset station. Press AS/PS again tostop scannin g when the desire d statio n is reached.SelectaBand1. Press AM button (17) repeatedl y to select the band (AM1, AM2)2. Press FM button (18) repeat edl y to selec t th e band (FM1, FM2 and FM3 )Manual TuningPress the>>|or|<< button s (35, 6) to seek stations up/down step by step.AutoSeek TuningPress an d hold th e >>| or |<< buttons (35, 6) to automatically seek the next orprevious strong station .Preset StationsSix numbered prese t button s store an d recal l stations for each AM an d FM band.Store a StationSelect a band (if needed). Press a 1-6 preset button to selec t th e correspondingstored station.
1039JWM40DISCOPERATION1234567891 011123938373635343332313029TrackSelectPress th e >>| or |<< button (3, 4) to advance to the previous or next track on the CD.The selected track number will appear on the display. Press and hold the >> | or |<<button for more than three second s to fast forwar d or fast reverse through the disc.CD play starts when the play/pause button is pressed.Fast Forward/ReversePress and hold the >>| or |<< button (3, 4) or press the >> or << buttons on theremote control (14) once for FORWARD X 2. Press and hold additiona l times fo rFORWARD X 4, X 8, X 20 or PLAY. Pres s th euII button on the contro l panel (3) orremote contro l (17) to end fast forward or reverse an d resume normal playback.Repeat (RPT)Press the4/button (33) during disc play to access the repea t function . Press againto continuously repeat th e selecte d track (RPT ONE). Press a third tim e to repeat all1314151628tracks (RPT ALL). Press onc e more tim e to stop repeat function (RPT OFF).2726Random Shuffle(RDM)Press th e 3/ button (31) during disc play to play al l tracks on CD in random,shuffled order (RD M ON) . Press 3/ again to stop rando m pla y (RDM OFF).17 1819CDOPERATIONInsertinga CD20 2 221 2324 25Programmed Playback1. Press thePROGbutton (7) on the remote contro l to access the programmedplayback screen.Inserting a CD label-side up into the dis c slot (11)6an d th e dis c will begin to pla y automaticall y.1Ejectinga CDPress the EJECT butto n (13) to stop CD play an d4eject the CD.5Pausing Playback227Press theuII button (3) to suspend or resume7disc play.8Stop PlaybackPress th e 1/■button (27) to suspen d disc play, and“PRE-STOP” wil l appear in the display.Press theuII butto n (3 ) to resume disc pla y fromLOU D1213141516171819 2. Use th e or cursor buttons (15) on th e remote control to access the fields20on the “PROG” screen.213. Use th e number button s on the remote contro l to enter a track numbe r in each field.224. Press theu/|| button (17) on the remot e contro l or highlight “PLAY” on scree n an d23then press the ENTER button (5) to begin playback in the numbere d order25indicated to delete the list, highlight “CLEAR ” an d then pressENTER. PressPRO G24to exit the programmed playback screen.th e last position. Pres s 1/ ■button twice an d“STOP” wil l appear on th e display.10281126
11JWM40Remote Control Direct Track EntryTo select a track directly, use the number pad on the remote control (10).For single digit entries, press the corresponding number for tw o digitentries. Press th e 10+ butto n followe d by the las t digit (i.e., for track 16,press 10 + an d the n 6) .GOTODirect Track/ChapterAccessUs e the GOTO function to access a track (chapter) directly.1. Press the GO TO button (25 ) on the remote control . The On ScreenDispla y information wil l appear wit h the track number highli ghted.2. Use the numbe r keys on th e remote control to enter th e 3-digit tracknumber directl y (i.e. for track 10 , enter “010”)3. Press the ENTER button (5) to confirm and begi n playback.CDPlayback InformationTh e following information is displayed at the top of the screen during CDplayback:TR K ##/## –"1/18" indicates the first of 18 tracks on th e CD is currentlyplaying.“X”indicates repeat play is OFF,“1”indicates repeat track,and“A”indicates repeat disc.Press th e button on the remote control (26) repeatedly to view th efollowing informatio n for elapsed/remainin g playing time:00:02:18 –total elapsed playing time of current track;C –00 :34 :37–remaining playing time of curren t track;T 00:02:18 –total elapse d playing time for current disc;T–00 :3 4 :3 7 –remaining playin g tim e for current disc.DVD/VCDOPERATIONInsertingaDiscInsert a disc label-side up into th e disc slo t (11) and the dis c will begin toplay.NOTE: Press th e DISC or USB button (9,12) to alternate between th eUSB and DVD source .Ejectinga DVDPress th eEJECTbutton (13) to stop DVD pla y an d ejec t the DVD.Pausing PlaybackPress th euIIbutton (3) to suspen d or resume disc play.Stop PlaybackPress the 1/■button (27) to suspen d disc pla y, and “PR E STOP ” will appear inth e display.Press theuII button (3) to resume disc play fro m the last position. Press 1/■buttontwice an d “STOP ” will appear on the display.TrackSelectPress th e>>|or|<<button (2 , 5) to advance to the next or previous track on thedisc. The selected track number wil l appear on the display.Enter/SelectWhile in men u mode, press the ENTER button (4) to selec t a menu option.Language SelectionWhile playin g a DVD, press the 6/FOLDER UP butto n (37) to chang e the DVD audiolanguage.Fast Forward/ReversePress and hold the>> |or|<<button (2, 5) or pres s the>>or<<button s on th eremote control (17) once fo r FORWARD X 2. Press an d hold additional time s fo rFORWARD X 4, X 8, X 20 or PLAY. Press theuIIbutton on the contro l panel (3) orremote control (17) to end fast forwar d or reverse and resume normal playback.Repeat Chapter/TitlePress th e4/button (33) on the control panel or the RPT butto n (21) on the remotecontro l multipl e times during playbac k to select from the followin g repeat pla yoptions:•VCD: RER1 (track), RER ALL (disc), RPT OFF•DVD: RER Chapter, RE R Title, RP T All , RPT OFFPlayback Control(VCDOnly)Press th eMENUbutton (14) on the remote control to turn Playback Control on/offwhen this feature is available on your VCD .Programmed Playback1. Press the PROG button (7) on the remote control to access the programme dplayb ack scree n .

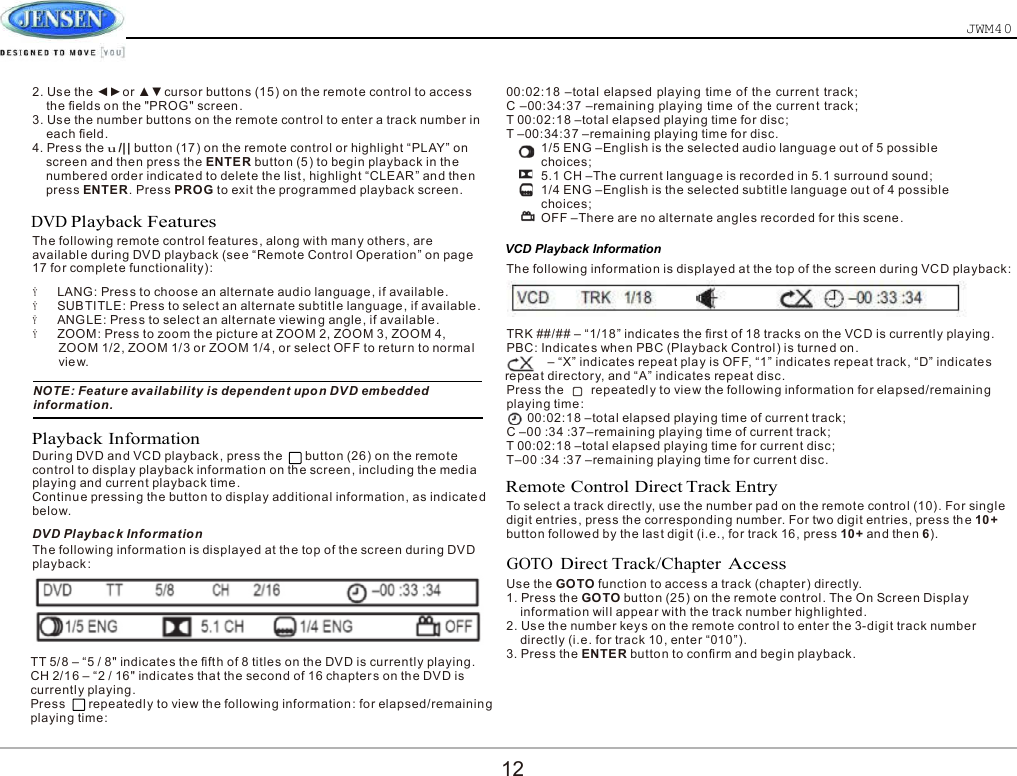

12JWM402. Use the ◄►or ▲▼ cursor buttons (15) on the remote contro l to acces sthe fields on the "PROG" screen.3. Use the numbe r buttons on the remote control to enter a track number ineach field.4. Press theu/| | button (17) on the remote control or highlight “PLAY” onscreen and then press the ENTER button (5 ) to begin playback in th enumbere d order indicated to delete the list, highlight “CLEAR ” an d thenpress ENTER. Press PROG to exit the programmed playbac k screen .DVDPlaybackFeaturesTh e following remote contro l features, along with many others, areavailable during DVD playback (se e “Remote Control Operation” on page17 for complet e functionality):ŸLANG: Press to choos e an alternate audio language, if available.ŸSUBTITLE: Press to select an alternate subtitle language, if available.ŸANGLE: Press to select an alternat e viewin g angle, if available .ŸZOOM: Press to zoom th e picture at ZOO M 2, ZOOM 3, ZOOM 4,ZOOM 1/2 , ZOOM 1/ 3 or ZOOM 1/4, or select OFF to return to normalview.00:02:18 –total elapsed playing time of th e current track;C –00:34:37 –remaining playing time of the current track;T 00:02:18 –total elapse d playing time for disc ;T –00:34:37 –remaining playing time for disc.1/5 ENG –English is the selected audio languag e out of 5 possiblechoices;5.1 CH –The current languag e is recorded in 5.1 surroun d sound;1/4 ENG –English is the selected subtitle language ou t of 4 possiblechoices;OFF –There ar e no alternate angles recorded for this scene.VCD Playback InformationThe following informatio n is displayed at the to p of the screen during VC D playback:TRK ##/## – “1/18” indicates the first of 18 tracks on th e VCD is currently playing .PBC: Indicate s when PBC (Playback Control ) is turne d on .– “X” indicate s repeat play is OF F, “1” indicates repeat track, “D” indicate srepea t directory, and “A” indicates repeat disc.NOTE: Featur e availability is dependen t upon DV D embeddedinformation.Playback InformationDuring DV D and VCD playback, press th e button (26 ) on th e remotecontro l to display playbac k information on the screen , including the mediaplaying and current playback time.Continu e pressing the butto n to display additional information, as indicate dbelow.DVD Playback InformationTh e following information is displayed at the top of the screen during DVDplayback:TT 5/8 – “5 / 8" indicates the fift h of 8 titles on the DVD is currently playing .CH 2/1 6 – “2 / 16" indicate s that th e second of 16 chapter s on the DVD iscurrently playing.Press repeatedly to view th e following information: fo r elapsed/remainingplaying time:Press th e repeatedly to view the following information for elapsed/remainin gplaying time:00:02:18 –total elapsed playin g time of current track;C –00 :34 :37–remaining playing time of current track;T 00:02:18 –total elapse d playing time for current disc;T–00 :34 :3 7 –remaining playing time for current disc.Remote Control Direct Track EntryTo select a trac k directl y, us e the number pa d on the remote control (10). For singledigit entries , press th e corresponding number. For tw o digit entries, press the 10+button followed by the last digit (i.e., for track 16, press 10+ an d the n 6).GOTODirect Track/ChapterAccessUs e the GOTO function to access a track (chapter) directly.1. Press the GOTO button (25) on th e remote control. The On Screen Displa yinformation will appear with th e track number highlighted.2. Use th e number keys on th e remote control to enter th e 3-digi t track numberdirectly (i.e. for track 10 , enter “010”).3. Press the ENTER button to confirm an d begin playback.

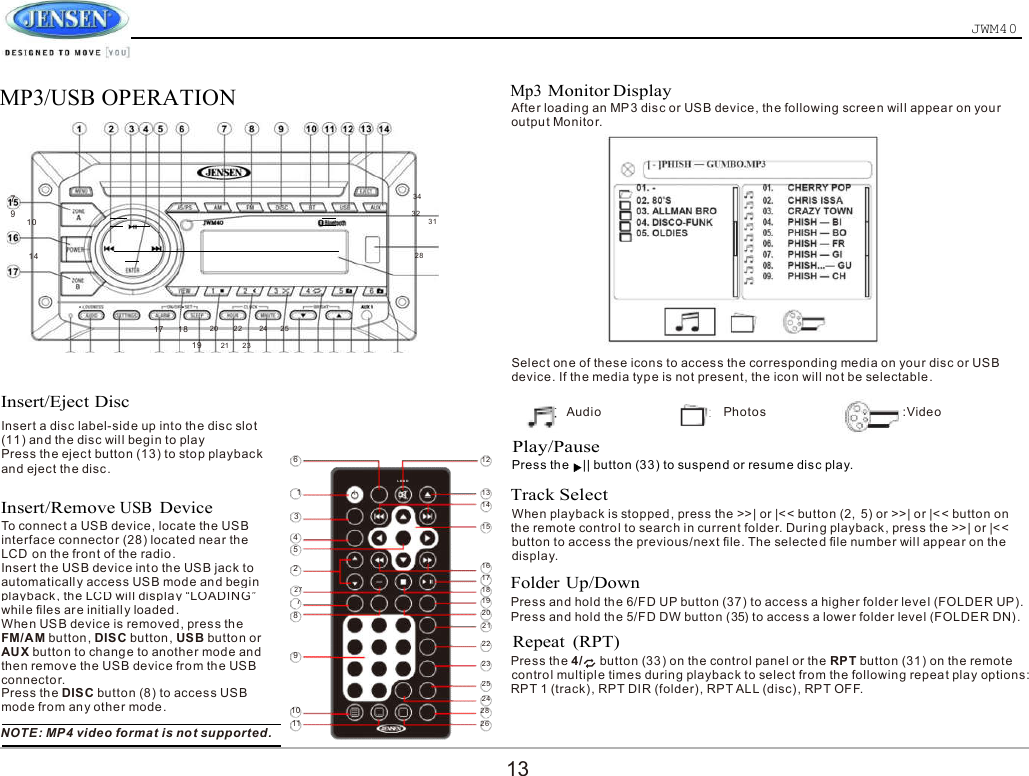

1331218JWM40MP3/USBOPERATIONMp3Monitor DisplayAfter loading an MP3 disc or USB device, th e following screen will appea r on youroutput Monito r.79103432311428Insert/Eject Disc17 1819202221232425Select one of these icons to acces s th e corresponding medi a on your disc or USBdevice. If th e media typ e is not present, the icon will not be selectable .Audio Photos :VideoInsert a disc label-side up into th e disc slo t(11) and th e disc will begi n to pla yPress th e ejec t button (13 ) to sto p playbac k 6and eject the disc.1Insert/RemoveUSBDeviceTo connec t a USB device, locate the USBinterface connector (28) located near the 4LCD on the fron t of the radio. 5Insert the USB devic e into the USB jac k to2automatically access USB mode and begin27playback, the LCD will displa y “LOADING”7while file s are initially loaded. 8When USB device is removed , press theFM/AM button, DISC button, US B button orAUX button to change to another mode an d 9then remove the USB device from th e US Bconnector.Press th e DIS C button (8 ) to acces s US BLO U DPlay/PausePress th e || button (33) to suspen d or resum e disc play.13TrackSelect14When playbac k is stopped, press the >>| or |<< button (2, 5) or >>| or |< < butto n on15the remote contro l to search in current folder. During playback, press the >>| or |<<button to access the previous/next file . The selecte d file number wil l appear on thedisplay.1617Folder Up/Down19 Press and hold th e 6/FD UP butto n (37) to access a higher folder level (FOLDER UP).20Press and hold the 5/F D DW button (35) to access a lower folder level (FOLDER DN).2122Repeat (RPT)23 Press th e 4/ button (33) on the control panel or the RPT button (31) on the remotecontro l multiple time s during playback to select from the following repea t play options:25 RPT 1 (track), RPT DIR (folder), RPT ALL (disc), RPT OFF.24mode from any other mode.NOTE: MP4 video format is not supported.10 2 811 26
14JWM40Random Shuffle(RDM)Press th e 3/ button (13) during disc to play all files in random, shuffledorder. Press 3/ agai n to stop rando m pla y.Fast Forward/ReversePress th e >>| or |<< button (2 , 5) for more than three second s or press the >> or<< button on the remote control (16) to fast forwar d or fast reverse. Press andhold once fo r FORWARD X 2. Press and hold additional times for FORWARD X 4,X 8, X 20 or PLAY. Press th euII button on th e control panel (3) or remotecontro l (18) to end fast forward or reverse an d resume normal playback.Programmed Playback1. Press the PROG butto n (7 ) on the remote control to acces s the programmedplaybac k screen."GOTODirect Track/ChapterAccessUse th e GO TO function to acces s a track (chapter) directl y.1. Press th e GOTO button (25) on the remote control. Th e On Screen Displayinformation will appear with th e file number highlighted.2. Use th e number keys on the remote control to ente r the 3-digit trac k numberdirectly (i.e. for file 10, enter “010”).3. Press th e ENTER button to confirm and begin playback.Mp3Playback InformationThe following information is displayed at th e top of th e screen during CD playback:TRK ##/## – “9/150 ” indicates the ninth of 150 tracks on th e disc is currently playing.– “X” indicates repeat play is OFF, “1” indicates repeat song, and “D” indicate srepeat directory (folder).Press repeatedl y to view the following information for elapsed/remainin g playin gtime:00:02:18 – total elapsed playing time fo r discC –00 :3 4 :3 7 – remaining playin g tim eT 00:02:18 – total elapsed playing time for current trackC –00 :3 4 :3 7 – remaining playin g tim e for current track2. Use th e ◄ ► or ▲ ▼ cursor button s (15) on th e remote control to access thefields on the “PROG” screen.3. Use th e number button s on the remote contro l to enter a track numbe r in eachfield.4.Press theu/| | button (17) on the remote control or highlight “PLAY” on screenand then press the ENTER button (4) to begin playback in the numbered orderindicated to delete the list, highligh t “CLEAR” and then press ENTER. PressPROG to exi t the programmed playbac k screen."Remote Control Direct Track EntryTo select a file directl y, use the numbe r pa d on the remote contro l (9) . Fo r singl edigit entries, pres s th e corresponding number. For tw o digit entries, press the10 + button followed by th e last digit (i.e., fo r file 16, press 10 + and then 6).
15JWM40BLUETOOTHOPERATIONThe JWM40 includes built-in Bluetooth technology tha t allows you to connec tthis head unit to Bluetoot h devices for streaming audi o playback.About Bluetooth TechnologyBluetooth wireless technolog y is a short-rang e wireles s radio protocol.Operating in the 2.4 GHz range, it transmits audio an d data at speeds up to 2.1Mbit/s over a range of up to 10 meters.BluetoothMenuOptionsNOTE: Please note that some Bluetooth menu options are only availablewhile the uni t is in Bluetooth Audio mode.Press and hold the BT butto n (10) to enter menu adjustment mode. Repeatedlypress th e >> | or |<< buttons (2, 5) or SETTING button to access th e “BluetoothOn/Off” men u function. Rotate th e volume encode r knob to select BLUETOOT HON , then press the ENTER button to turn the Bluetoot h function On or Off. Thefollowing men u option s ar e available whe n the unit is in Bluetoot h mode.ŸBluetooth Pai r <ENTER> : Press an d hold the BT (10) button fo r abou t 4seconds to start pairing with a Bluetooth enabled device.ŸBluetooth Device: Press the ENTER knob button to view a list of previouslypaired mobile devices models. Press the >>|or |<< buttons to vie w devices fromth e list. You canno t delete a device that is actively connected. Press th e ENTERknob button to select the device. Press the >>| or |< < button to chooseLocked/Unlocked , Connect/Disconnect or Delete fo r this device.ŸBluetooth Pai r (B T Pair): Press an d hold the BT button (10) fo r about 4 second sto start pairing wit h a Bluetooth enable d device.ŸDISCONNECT: To disconnect a paired device, press the ENT ER knob butto n totemporarily remov e th e BT link . The link can be re-established throug h yourphone menu by selecting th e JWM40 fo r connection.ŸLOCKED/UNLOCKED: Th e JWM40 can store up to 5 dev ices fo r BT connection.The devices ar e stored in FIFO (First In First Out) order. To preven t a devicefrom being bumped from the list when more than 5 device s are used , yo u mustlock th e device. To Lock/Unlock a device , press the ENTER knob button.ŸDELETE: To delete a device from the list, Press the ENTE R knob button.PairingaBluetooth DeviceBefore you begin, consul t th e owner’s manua l fo r th e Bluetooth device yo u want to pairwith the JWM40.1. Make sure th e device you want to pair is on and ready to receiv e a signal from theJWM40. With the JWM40 in BT Mode. Press an d hol d th e BT button (10) fo rabout 4 seconds. The unit is waiting to connec t to a mobil e phone device . Whenpairing with a smart phone/iPhone, the JWM40 becomes “discoverable ” by yoursmart phone and ca n be paired usin g th e phon e menu.2. When the Bluetoot h device has completed its search, the mobile device willdisplay the Bluetooth device name (JWM40)3. Selec t BT PAUSE on th e radio and ente r th e pairing password (0000) , if requested.After connecting successfully, you are able to liste n to music stored on you r Bluetoothenabled device through the JWM40.Bluetooth Audio (A2DP)The A2DP music is availabl e for Bluetooth enable d phones when th e phone isconnected. To access Bluetooth mode an d play songs stored in your phone, pressthe BT button (10) to enter the Bluetooth mode.While in Bluetooth mode, the “BT PAUSE ” will display on the LCD.

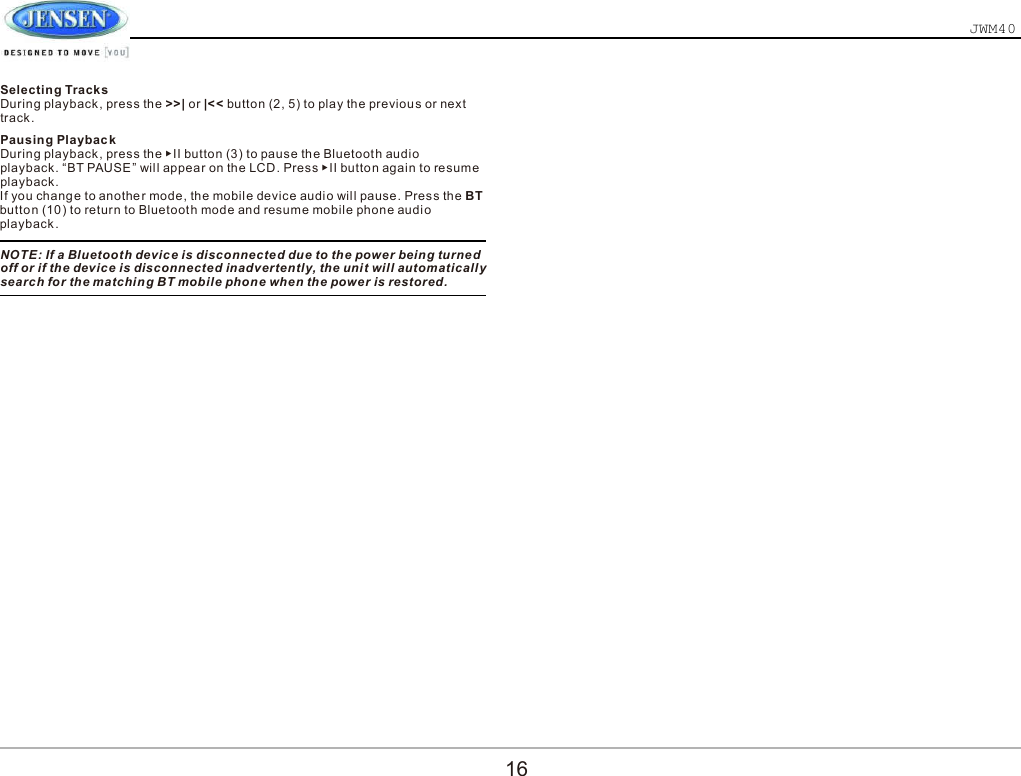

16JWM40Selecting TracksDuring playback, press the >>| or |<< button (2 , 5) to play th e previous or nexttrack.Pausin g PlaybackDuring playback, press the▶II button (3) to pause the Bluetooth audioplayback. “BT PAUSE” will appear on the LCD . Press▶II butto n again to resum eplayback.If you change to anothe r mode, the mobile device audio wil l pause. Press the BTbutton (10) to return to Bluetooth mode and resume mobile phone audioplayback.NOTE: If a Bluetooth devic e is disconnected due to the power being turne doff or if the device is disconnected inadvertently, the uni t wil l automaticallysearch for th e matchin g BT mobile phone when the power is restored.
17JWM40JWM40REMOTE CONTROLOPERATIONREF DESCRIPTION TUNER BLUETOOTH CD/MP3/USB DVD612LOU D113143154521617271871982021229232524102811261 Powe r Turn radi o on/standb ymode .Tur n radi o on/standb ymode .Turn radio on/standbymode .Tur n radi o on/standb ymode .2VOL +/ - Adjust volum e up/down.Press for Audi o ControlSetup menu.Adjust volume up/down .Press for Audi o Contro lSetup menu.Adjust volume up/down .Press for Audi o ControlSetup menu.Adjust volume up/down .Press for Audi o ControlSetup menu.3 TUNE + Tune to higher station4TUNE - Tune to lowe r station5 ENTE R Confirm menu selection Con firm men u selection6ALAR M Turn the alar m featureon/o ff.Turn the alarm featureon/off.Tur n the alar m featureon/o ff.Turn the alarm featureon/off.7PROG Displa y Program PlayMenuDisplay Program Pla yMenu8LANG Display MONO/L ,MONO/R or STEREO .Select alternate audi olanguage, if available.9 NumericKeyboardUse 1- 6 to access prese tstations.Enter track number toaccess trac k directly.For trac k Numbe r > 10 ,use 10 + followed bysecond digit.Enter track number toaccess track directly.For trac k Number > 10,use 10 + followed bysecond digit.10 Setup View SETU P menu. View SETU P menu.11 Subtitle Choose subtitl elanguage, if available.12 Mute/LOU DSilence Audio output.Press an d hol d to turnLOUDNESS featureon/o ff.Silenc e Audi o output.Press an d hold to turnLOUDNESS featureon/off.Silence Audio output.Pres s an d hol d to turnLOUDNESS featureon/o ff.Silence Audio output.Press an d hol d to turnLOUDNESS featureon/o ff.13 Eject Ejec t Disc. Ejec t Disc. Ejec t Disc. Ejec t Disc.14 Previous/Next Select next/previou strack.Select next/previou strack.Select next/previoustrack.15 Directiona lButtonsMove to desired menuitem and then pressENTE R to confirm.Use with DVD menu tomove to desire d menuitem and then pressENTE R to confirm16 Fas t Re verse /ForwardFa st Fo rw ar d 2X , 4X , 8X ,20X.Fas t Reverse 2X ,4X, 8X , 20X .Fast Forward 2X, 4X, 8X,20X.Fast Reverse 2X,4X, 8X , 20X.17 Play/Pause Stop Pause/resum eplaybackPause/resumeplaybackPause/resumeplayback18 TITLE Stop playback. Stop playback.
18JWM4019 TITLE Pres s to view titlemenu . Use directiona larrows an d play butto nto pla y selecte d title.May no t be supportedby all discs.20 RPT Repeat track Repeat chapter21 SOURCE Sele c t sourc e fo rplaybackSelect sourc e forplay backSelect source forplaybackSele c t sourc e fo rplayback22 ZOOM Zoom picture or pressrepeat edl y to changemagnification level.23 ANGLE Select alternate viewingangle, if available .24 AUD Access Audio Men uoptions .Access Audi o Men uoptions.Access Audi o Menuoptions .Access Audi o Menuoptions .25 GOTO Select exact time, trackor chapte r for playback .Select exact time, trac kor chapter for playback.26 Display Disp la y cu rre n tplayback informatio n onthe screen.Display currentplayback information onthe screen.27 AS/PS Brows e prese t stations(10 sec. interval). Pres sand hold to scan/stor estations.28 MENU Access syste m MENU. Access system MENU.AAccess system MENU. Press to access systemMENU. Press and holdto access DVD MENU.

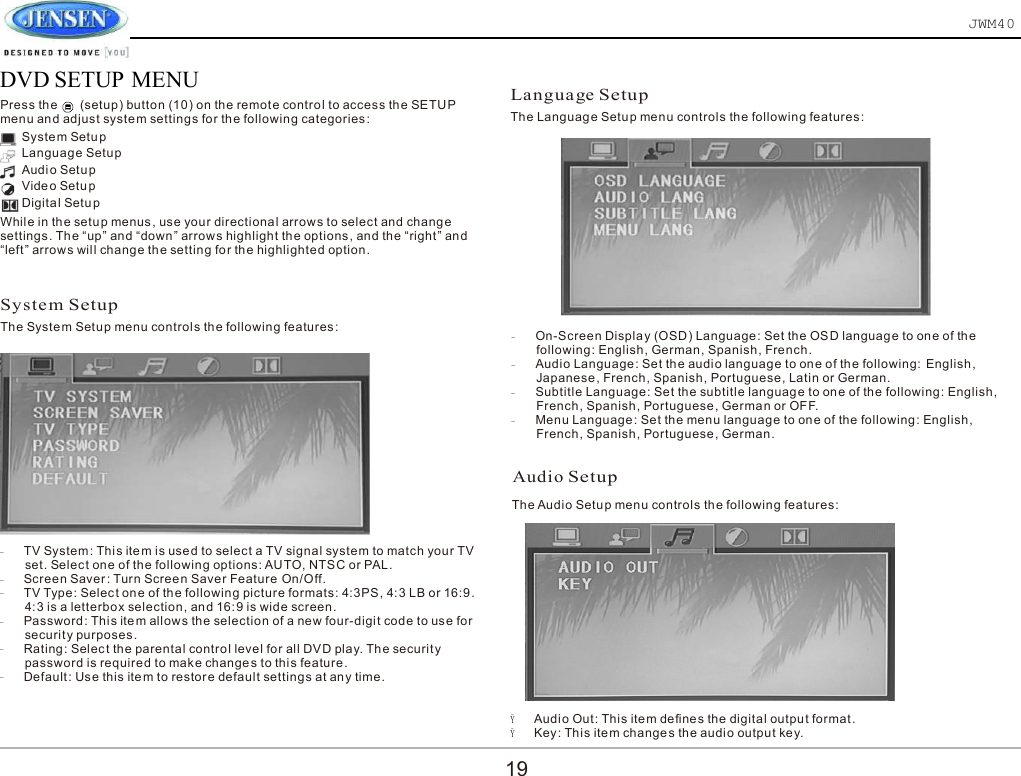

19JWM40DVD SETUP MENUPress th e (setup) button (10) on the remot e contro l to access the SETUPmenu and adjust system settings fo r the following categories :System SetupLanguage SetupAudio SetupVide o Setu pDigita l SetupWhile in the setup menus, use your directiona l arrows to selec t and changesettings. Th e “up” an d “down” arrow s highlight the options, and the “right” an d“left” arrow s will change th e setting for th e highlighted option .SystemSetupThe System Setup menu controls th e following features:LanguageSetupThe Languag e Setup menu controls the following features :–On-Screen Display (OSD) Language: Se t th e OS D languag e to one of thefollowing: English, German , Spanish , French.–Audio Language: Se t th e audio languag e to one of the following: English,Japanese, French, Spanish, Portuguese, Latin or German.–Subtitle Language: Set the subtitle language to on e of the following: English,French, Spanish, Portuguese, Germa n or OFF.–Menu Language: Set the menu language to one of the following : English,French, Spanish, Portuguese, German.AudioSetupThe Audio Setu p menu control s th e following features:–TV System: This ite m is used to select a TV signal system to match your TVset. Select on e of the following options: AUTO, NTSC or PAL.–Screen Saver : Turn Screen Saver Feature On/O ff.–TV Type: Selec t on e of the following picture formats: 4:3PS, 4: 3 LB or 16:9 .4: 3 is a letterbo x selection, and 16: 9 is wid e screen.–Password: This item allows the selection of a new four-digit code to us e forsecurit y purposes .–Rating: Sel ect the parental contro l level for all DVD play. Th e securitypassword is required to mak e change s to thi s feature .–Default: Use this ite m to restore default setting s at any time.ŸAudio Out: This ite m defines the digital output format.ŸKey: This ite m change s the audio output key.
20JWM40VideoSetupThe Video Setup men u controls the following features:–System Setup–Language Setup–Audio Setup–Vide o Setup–Digita l SetupDigital SetupThe Speaker Setup men u controls the following features:–OP Mode: Select LINE OUT or RF REMOD.–Dynamic Range: Select FULL, 6/8 , 4/8, 2/8 or OFF.–Dual Mono : Select STEREO, MONO/L, MONO/R or MIX MONO.

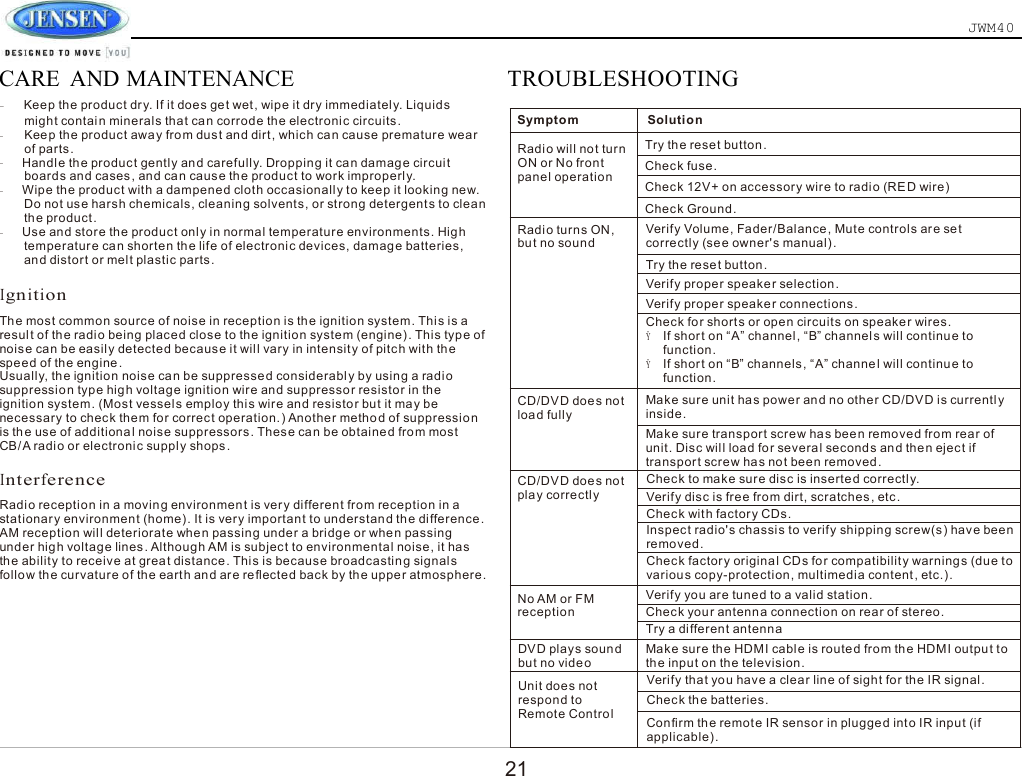

21JWM40CARE AND MAINTENANCETROUBLESHOOTINGmight contai n minerals tha t ca n corrode the electronic circuits.–Keep th e product away from dus t and dirt, which ca n cause premature wea rof parts .–Handle th e product gently and carefully. Dropping it ca n damage circui tboards and cases, and can cause th e product to work improperly.–Wipe the product with a dampened cloth occasionally to keep it looking new.Do not us e harsh chemicals, cleaning solvents, or strong detergent s to clea nth e product .–Us e and stor e the product only in norma l temperature environments. Hig htemperatur e can shorten the life of electronic devices, damage batteries,an d distort or mel t plastic parts.IgnitionThe most commo n source of nois e in reception is the ignition system. This is aresult of the radio being placed close to the ignition system (engine) . This typ e ofnoise can be easily detected because it will vary in intensity of pitch with th espeed of the engine.Usually, th e ignition nois e ca n be suppresse d considerabl y by using a radiosuppressio n type hig h voltag e ignitio n wire an d suppressor resistor in theignition system. (Most vessel s employ this wir e and resisto r but it ma y benecessary to chec k them for correct operation.) Another metho d of suppressio nis the use of additiona l noise suppressors . These can be obtaine d from mos tCB/A radio or electronic supply shops .InterferenceRadio reception in a moving environmen t is very different from reception in astationary environment (home) . It is ver y important to understand th e di fference.AM reception will deteriorate when passing under a bridge or when passingunder high voltage lines . Although AM is subjec t to environmental noise, it hasthe ability to receive at great distance. This is because broadcasti ng signalsfollow th e curvature of th e earth and are re flected back by th e uppe r atmosphere.Symptom SolutionRadio will not turnON or No frontpanel operationTry th e reset button.Check fuse.Check 12V+ on accessory wire to radio (RED wire)Check Ground.Radio turns ON ,bu t no soundVerify Volume, Fader/Balance, Mute controls are se tcorrectly (see owner's manual).Try the reset button.Verify proper speaker selection.Verify proper speaker connections .Check fo r shorts or open circuit s on speaker wires.ŸIf shor t on “A” channel , “B” channels will continue tofunction.ŸIf shor t on “B” channels , “A” channel will continue tofunction.CD/DVD doe s no tload fullyMake sur e unit has power and no other CD/DVD is currentlyinside.Make sur e transport screw ha s been removed from rear ofunit. Disc will load fo r several second s and the n eject iftransport screw ha s not been removed .CD/DVD doe s no tplay correctl yCheck to make sure disc is inserted correctly.Verify disc is fre e from dirt, scratches , etc.Check with factory CDs .Inspec t radio's chassis to verify shippin g screw(s ) have bee nremoved.Check factor y original CDs fo r compatibilit y warning s (due tova ri ou s co py -prot ec ti on , mult imedia co nt ent , et c. ).No AM or FMreceptionVerify yo u are tuned to a valid station.Check your antenna connection on rear of stereo.Try a di fferent antennaDVD plays soundbut no videoMake sur e the HDMI cable is route d fro m the HDM I output toth e input on the television.Unit does notrespon d toRemote ControlVerify that yo u hav e a clear line of sight for th e IR signal.Check the batteries.Confirm th e remote IR sensor in plugged int o IR input (ifapplicable) .–Keep th e product dry. If it does get wet, wipe it dr y immediately. Liquids
22JWM40SPECIFICATIONSFM TunerFrequency Coverag e (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87.5 to 107.9 MHzSensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <4 μVStereo Separation@1 kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dBAM TunerFrequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHzSensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <63 μVAmplifierOutputPower....................................................6Wx4Output Impedance . . . . . .Compatible with 4-8 Ω ohm s speakers, 4 ohm load minimumDVDFrequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-20,000 HzChanne l Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 dBS/N Rati o . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 dBDistortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5%GeneralPower Supply Requirement s . . . . . . . . . . . . . . . . . . DC 12 Volts , Negative GroundOperating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-16 VDCOveral l Dimensions . . . . . . . . . . . . . . 208m m (W) x 110.0m m (D ) x 170.0m m (H ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.19” (W ) x 4.33 ” (D) x 6.69” (H )Mounting Dimension s . . . . . . . . . . . . . 180mm (W) x 133mm (D) x 86mm (H ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.09” (W ) x 5.2” (D ) x 3.39” (H)Weight.........................................................1.45KG...............................................................3.20lbsFCC NoticeNOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits ar edesigne d to provide reasonable protection against harmfu l interference in aresidential installation. This equipment generate s uses and can radiat e radiofrequency energy and, if no t installed and used in accordanc e with theinstructions, may cause harmful interference to radio communications. Howeve r,there is no guarante e tha t interference will not occur in a particular installation. Ifthis equipmen t does cause harmful interferenc e to radi o or television reception,which ca n be determine d by turnin g the equipmen t off an d on , the user isencourage d to try to correct th e interferenc e by one or more of th e followingme asure s :---Reorient or relocate the receivin g antenna.---Increase the separation between the equipment and receiver.---Connect th e equipment into an outlet on a circuit different from that to whichth e rec ei ve r is co nnected .---Consult the dealer or an experience d radio/TV technician for help.WARNING : Changes or modi fications not expressl y approve d by the partyresponsibl e for compliance coul d void the user' s authorit y to operate th eequipment.This equipment complied wit h FCC radiation exposure limits set forth for anuncontrolle d environment. This equipment shoul d be installed and operated withminimu m distance 20cm between the radiator & you r bod y.NOTE: The manufacture r is not responsible fo r an y radio or TV interference cause d byunauthorized modifications to this equipment . Such modification s could voi d the user'sauthority to operat e th e equipment.
ELECTRONICS2602 Marina Drive, Elkhart, IN 46514www.asaelectronics.com
