Top Victory Electronics CM990D Color Monitor User Manual D990T
Top Victory Electronics (Taiwan) Co Ltd Color Monitor D990T
users manual
1
Your Work Never Looked Better
Plug & Play Drivers for the AOC Spectrum Series Monitors are available
at AOC’s Web Site: www.aoc-europe.com
9Elr/9ElrA
9Elr+/9ElrA+
USER MANUAL
TABLE OF CONTENTS
FOR YOUR SAFETY -------------------------------------------------- 1
SAFETY PRECAUTIONS -------------------------------------- 2
BEFORE YOU OPERATE THE MONITOR ---------------------- 3
FEATURES -------------------------------------------------------- 3
PACKING LIST --------------------------------------------------- 3
INSTALLATION INSTRUCTIONS --------------------------- 3
CONTROLS AND CONNECTORS -------------------------- 4
OPERATING INSTRUCTIONS ------------------------------------- 5
GENERAL INSTRUCTIONS ---------------------------------- 5
HOW TO ADJUST A SETTING ------------------------------ 6
ADJUSTING THE PICTURE ---------------------------------- 7
POWER MANAGEMENT FEATURE ----------------------- 7
PLUG AND PLAY ------------------------------------------------ 9
TECHNICAL SUPPORT(FAQ) -------------------------------------10
APPENDIX ---------------------------------------------------------------11

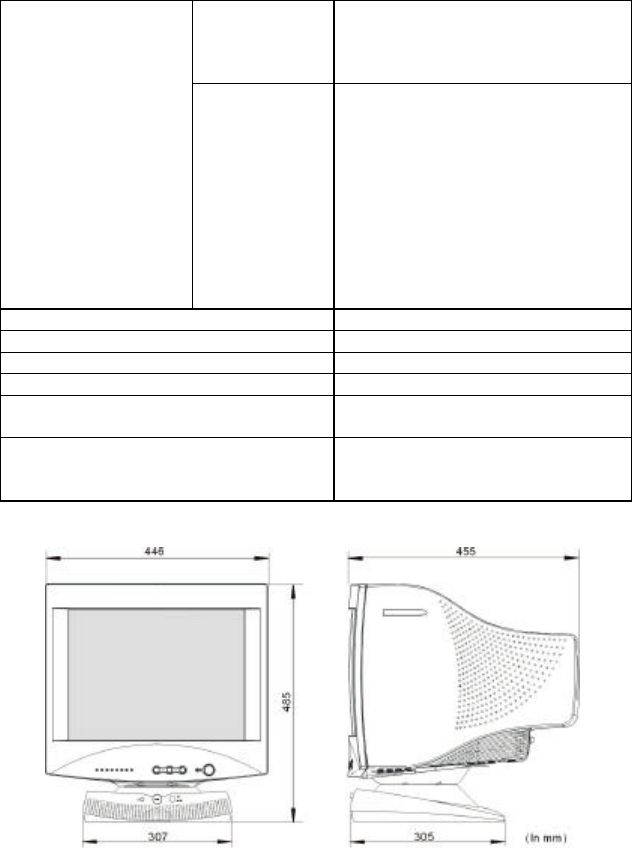

SPECIFICATIONS ------------------------------------------
FACTORY PRESET TIMING TABLE -----------------------13

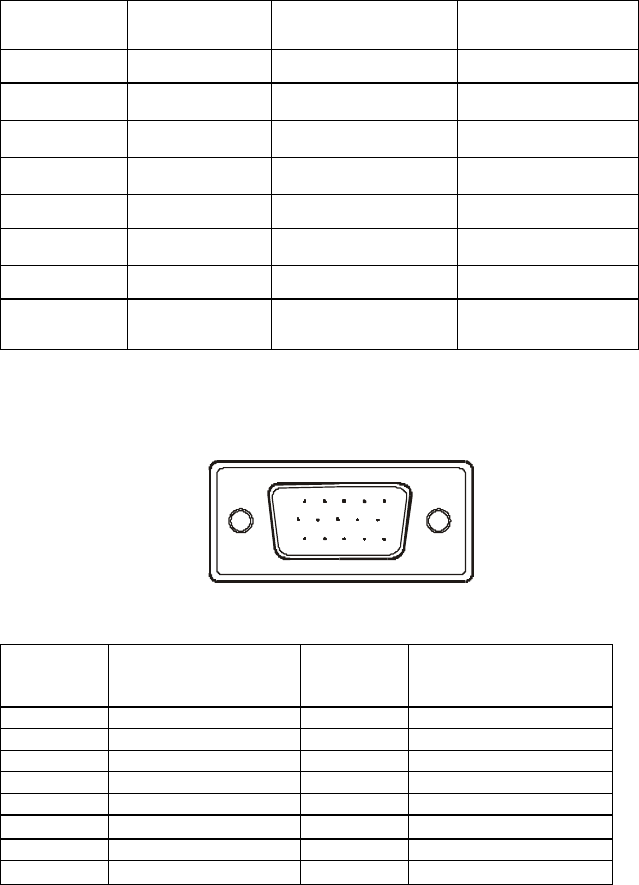

CONNECTOR PIN ASSIGNMENT ------------------------- 13
LIMITED THREE-YEAR WARRANTY -----------------------14-15
Thank you very much for choosing the AOC Color Monitor.
We recommend that you take a few minutes to read carefully through this brief
but comprehensive manual before installing and switching on the monitor.
Please keep this manual in a safe place for you future reference.
ENGLISH
DEUTSCH
FRANÇAI
S
ESPAÑOL
ITALIANO
11-12
2
Before operating the monitor please read this manual thoroughly. This manual
should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE :
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order
to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modification to this equipment. It is the responsibilities of
the user to correct such interference.
As an ENERGY STAR? Partner ,Envision Peripherals Inc. has determined that
this product meets the ENERGY STAR? guidelines for energy efficiency.
WARNING :
To prevent fire or shock hazard, do not expose the monitor to rain or moisture.
Dangerously high voltages are present inside the monitor. Do not open the
cabinet. Refer servicing to qualified personnel only.
3
PRECAUTIONS
?Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen
sink, laundry tub, swimming pool or in a wet basement.
?Do not place the monitor on an unstable cart, stand, or table. If the monitor
falls, it can injure a person and cause serious damage to the appliance. Use
only a cart or stand recommended by the manufacturer or sold with the
monitor. If you mount the monitor on a wall or shelf, use a mounting kit
approved by the manufacturer and follow the kit instructions.
?Slots and openings in the back and bottom of the cabinet are provided for
ventilation. To ensure reliable operation of the monitor and to protect it from
overheating, be sure these openings are not blocked or covered. Do not
place the monitor on a bed, sofa, rug, or similar surface. Do not place the
monitor near or over a radiator or heat register. Do not place the monitor in a
bookcase or cabinet unless proper ventilation is provided.
?The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supplied to your home,
consult your dealer or local power company.
?The monitor is equipped with a three-pronged grounded plug, a plug with a
third (grounding) pin. This plug will fit only into a grounded power outlet as a
safety feature. If your outlet does not accommodate the three-wire plug, have
an electrician install the correct outlet, or use an adapter to ground the
appliance safely. Do not defeat the safety purpose of the grounded plug.
?Unplug the unit during a lightning storm or when it will not be used for long
periods of time. This will protect the monitor from damage due to power
surges.
?Do not overload power strips and extension cords. Overloading can result in
fire or electric shock.
?Never push any object into the slot on the monitor cabinet. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
?Do not attempt to service the monitor yourself; opening or removing covers
can expose you to dangerous voltages and other hazards. Please refer all
servicing to qualified service personnel.
?To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked between
100 - 240V AC, Min. 2.5A.
4
BEFORE YOU OPERATE THE MONITOR
FEATURES
?48.3cm(19”) Color Monitor
?Crisp, Clear Display for Windows
?Supports Resolutions up to 1600 ? 1200
?Power Management
?Ergonomic Design (MPR II Approved)
?Space Saving, Compact Case Design
CHECKING THE CONTENTS OF THE MONITOR PACKAGE
The product package should include the following items:
1. Monitor
2. Owner's Manual
3. Power Cord
4. Swivel Base
5. Audio Cable ( For 9EA/9ElrA only )
INSTALLATION INSTRUCTIONS
SWIVEL BASE
To attach the swivel base to the monitor, do the following:
?Carefully turn the monitor on its side or upside down. ( see figure 1 )
?Locate the cavities at the bottom front of the monitor.
?Insert the pegs on the swivel base into these cavities. Push the swivel base
forward until the swivel base locks in place.
?To remove the swivel base, hold the bottom of the swivel base, then push it
out.
Install Remove Install Remove
9E/9Elr 9EA/9ElrA

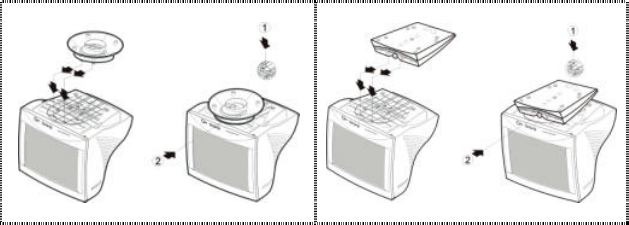

Figure 1 Installing and Removing the Swivel Base
5
POWER CORD
Power Source:
1. Make sure the power cord is the correct type that required in your area.
2. This monitor has a universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area ( No user adjustment is required. )
3. Connect the power cord into your monitor’s power input socket, and then
plug the other end into a 3-pin AC power outlet. The power cord may be
connected to either a wall power outlet or the power outlet socket on your PC,
depending on the type of power cord supplied with your monitor.
CONTROLS AND CONNECTORS
VIDEO CABLE
Connecting the Video Cable: the monitor comes with a built-in video cable.
Plug the signal cable?s 15-pin connector into the computer's video port and
tighten the two screws on the cable connector. (see figure 2)
Caution: Don’t bend the signal cable, otherwise it will break the inner wire.
Connecting the Power Cord: Plug the power cord into the monitor's AC power
socket. Then plug the power cord into a grounded AC outlet or UL-approved
power strip or the power output socket on your PC.
Caution: If the AC outlet is not grounded, install the proper grounding adapter
(not supplied).
Connecting the Audio Cable ( 9EA/9ElrA only ): Plug audio cable between the
computer multi-media (or sound) card's audio output and monitor's audio input.
Connecting the DC Power Cable ( 9E/9Elr only ): Plug DC power cable
between monitor to swivel base for audio power
9E/9Elr 9EA/9ElrA
Figure 2 Connecting Cables
1. Power Cord 4. PC Audio Output
2. Signal Cable 5. DC Output
3. VGA Card Adapter
6
OPERATING INSTRUCTIONS
GENERAL INSTRUCTIONS
The power switch is located at front panel of the monitor. Press the power
switch to turn the monitor on or off. The other control knobs are located at the
base of the monitor (See Figure 3). By changing these settings, the picture can
be adjusted to your personal preferences.
?The power cord should be connected.
?Connect the video cable from the monitor to the video card.
?To turn the monitor on, press the POWER switch to ON position. The power
indicator will light up.
?Your monitor features a unique quick switch system which provides a picture
within seconds after the monitor is switched on.
9E/9Elr 9EA/9ElrA

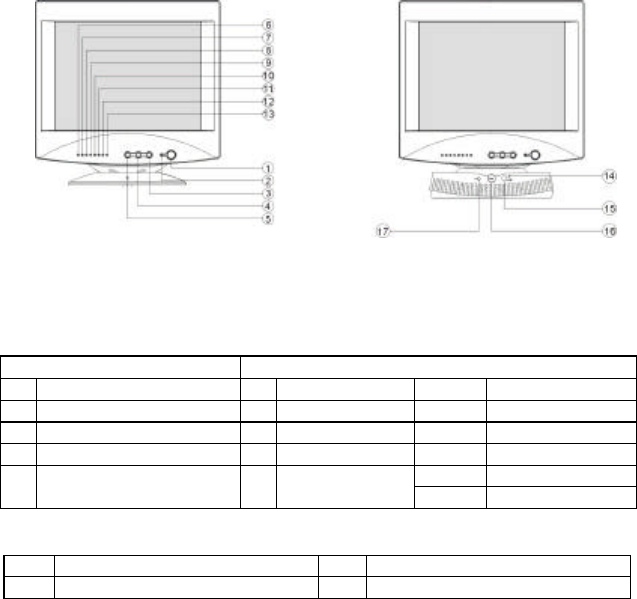

Figure 3 External Control Knob
EXTERNAL CONTROLS
Switch: Functions:
1. Power On/Off Switch 6. Contrast 11. V-Center
2. LED 7. Brightness 12. Pincushion
3. Up Key 8. H-Size 13. Trapezoid
4. Down Key 9. H-Center 3+4.Recall
5. Function Key 10. V-Size 4+5. Degauss
12+13.Rotation
?Functions:( 9EA/9ElrA ONLY)
14. Audio power indicator 16. Volume
15. Audio power ON/OFF 17. Earphone Jack
7
NOTES
?Do not install the monitor in a location near heat sources such as radiators
or air ducts , or in a place subject to direct sunlight , or excessive dust or
mechanical vibration or shock.
?Save the original shipping carton and packing materials, as they will come in
handy if you ever have to ship your monitor.
?For maximum protection, repackage your monitor as it was originally packed
at the factory.
?To keep the monitor looking new, periodically clean it with a soft cloth.
Stubborn stains may be removed with a cloth lightly dampened with a mild
detergent solution. Never use strong solvents such as thinner, benzene, or
abrasive cleaners, since these will damage the cabinet. As a safety
precaution, always unplug the monitor before cleaning it.
HOW TO ADJUST A SETTING
1. Press the knob, the green LED lights and the power is ON.
Press this knob again, the green LED disappears and the power is OFF.
2. When press the “FUNC” key, the LED will flash to indicate the function has
been selected.
3. When function has been selected, press or to adjust picture image.
4. When eight LEDs don't flash, directly press to select the brightness
function or press to select the contrast function.
5. Press the “FUNC” key until the LEDs of pincushion and trapezoid flash
simultaneously, then press Up or Down key to adjust the picture tilt to
horizontal position.
6. If color impurity occurs when moving or swiveling the monitor, press the
Func. key and Down key together as manual degauss function to fix the
picture condition.
8
ADJUSTING THE PICTURE

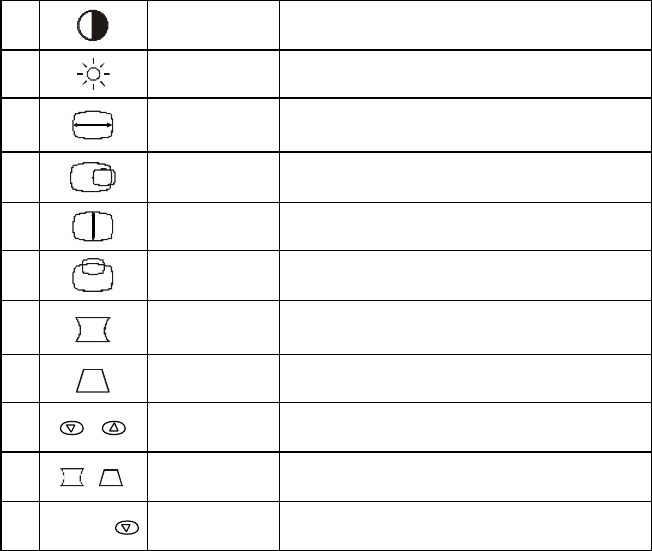

The description for function control LEDS
1. CONTRAST Adjust the picture contrast.
2. BRIGHTNESS Adjust the picture brightness.
3. H-SIZE Adjust the picture’s horizontal size.
4. H-CENTER Adjust the horizontal position of the picture.
5. V-SIZE Adjust the picture’s vertical size.
6. V-CENTER Adjust the vertical position of the picture.
7. PINCUSHION Adjust the pincushion and barrel.
8. TRAPEZOID Adjust the picture’s trapezoid distortion.
9. +RECALL To recall original factory preset mode.
10. +ROTATION Adjust the picture’s tilt to horizontal position.
11. FUNC.+
DEGAUSS Fix the picture condition.
POWER MANAGEMENT FEATURE
The power management feature of this product complies with every power
saving requirements of ENERGY STAR? and VESA DPMS when activated, it
automatically reduces unnecessary power consumption of the monitor when
your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS
computer. There are three power management modes available, these are
described below. The required settings, including the timer setting, should be
made by the computer.
?Stand-by Mode
When the H-sync signal from the computer is off, the monitor enters into
Stand-by Mode which reduces the power consumption to less than 15W. The
screen becomes dark, and the power indicator turns to orange. From Stand-
by Mode, the screen reappears instantaneously when the keyboard or the
mouse is touched again.
9
10
?Suspend Mode
When the V-sync signal from the computer is off, the monitor enters into
Suspend Mode which reduces the power consumption to less than 15W. The
screen becomes dark, and the power indicator turns to orange. From
Suspend Mode, the screen reappears instantaneously when the keyboard or
the mouse is touched again.
?Active-off Mode
When both the H and V sync signals form the computer are off, the monitor
enters into Active-off Mode which reduces the power consumption to less
than 8W. The screen becomes dark, and the power indicator turns to orange.
From Active-off Mode, the screen reappears instantaneously when the
keyboard or the mouse is touched again.
?The power-saving mode can be indicated by the light-emitting diode (LED)
on the front panel: Signal Power
Mode Cable H-Sync V-Sync Video Indicator Consumption
On*Attached Yes Yes Active Green ? 120 W
Stand-by Attached No Yes Blank Orange ? 15 W
Suspend Attached Yes No Blank Orange ? 15 W
Off Attached No No Blank Orange ? 8 W
FEATURES
Green monitor
?The monitor has a power saving function that conforms to the VESA DPMS
standard. This feature will only work if your PC is a green PC. This feature is
similar to a screen saver, except that your monitor will turn it off instead of
activating the screen saver.
To activate this feature in Windows® 98 :
In Windows® 98, this feature can be activated and customized under the screen
saver setting of the display properties.
1. Right click on the desktop and choose Properties.
2. Click on the tab that says Screen Saver. If your system supports Green PC,
there will be a section entitled “Energy Saving Features of Monitor.” If there
isn’t a section like that, then your PC does not support Green Monitor. The
monitor will behave just like a normal monitor, so you will have to turn it off
manually to save energy.
3. In the “Energy Saving Features of Monitor” sections are two boxes, Standby
and Shut off. To activate either one, click the box next to each one.
4. You can specify the amount of inactive time before your monitor enters
standby mode or shuts off.
PLUG AND PLAY
11
Plug & Play DDC1/2B Feature
This monitor is equipped with VESA DDC1/2B capabilities according to the
VESA DDC STANDARD. It allows the monitor to inform the host system of its
identity and, depending on the level of DDC used, communicate additional
information about its display capabilities. The communication channel is defined
in two levels, DDC1 and DDC2B.
The DDC1 is a unidirectional data channel from the display to the host that
continuously transmits EDID information. The DDC2B is a bidirectional data
channel based on the I²C protocol. The host can request EDID information over
the DDC2B channel.
THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS
NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE
PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.
This monitor meets the Power Management standards as set by the Video
Electronics Standards Association (VESA) and/or the United States
Environmental Protection Agency (EPA) and The Swedish Confederation
Employees ( NUTEK ). This feature is designed to conserve electrical energy by
reducing power consumption when there is no video input signal present. When
there is no video input signal this monitor, following a time-out period, will
automatically switch to an OFF mode. This reduces the monitor's internal power
supply consumption. After the video input signal is restored, full power is
restored and the display is automatically redrawn. The appearance is similar to a
"Screen Saver" feature except the display is completely off. The display is
restored by pressing a key on the keyboard, or clicking the mouse.
USING THE RIGHT POWER CORD :
The accessory power cord for the Northern American region is the wallet plug
with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for the
power cord shall be 125 volts AC.
Supplied with units intended for connection to power outlet of personal
computer: Please use a cord set consisting of a minimum No. 18 AWG, type
SJT or SVT three conductors flexible cord. One end terminates with a grounding
type attachment plug, rated 10A, 250V, CEE-22 male configuration. The other
end terminates with a molded-on type connector body, rated 10A, 250V, having
standard CEE-22 female configuration.
12
TECHNICAL SUPPORT (FAQ)
Problem & Question Possible Solution
Power LED is not on *Check if the Power Switch is in the ON
position
*Power Cord should be connected
No Plug & Play *Check if the PC system is Plug & Play
compatible
*Check if the Video Card is Plug & Play
compatible
*Check if the D-15 plug pin of Video Cable
is bent
*Make sure the ENVISION Monitor Drivers
are installed
(ENVISION Monitor Drivers are available
at: www.epius.com)
No picture *Computer Power Switch should be in the
ON position
*Computer Video Card should be snugly
seated in its slot
*The Signal Cable should be completely
connected to the computer
*Check the color of the Power LED
indicator. If it is orange, then the monitor
and the PC system are in power-saving
mode. You need press your keyboard or
move the mouse to reactivate the system.
Picture is fuzzy *Adjust the Contrast and Brightness
Controls.
Picture bounces or a wave
pattern is present in the picture *Move electrical devices that may cause
electrical interference.
Monitor is stuck in “Power
Saving Mode” *Make sure monitor’s video cable is properly
connected to the computer.
*Inspect monitor’s video cable and make
sure none of the pins are bent.
*Make sure computer is operational by
hitting the CAPS LOCK key on the
keyboard while observing the CAPS LOCK
LED. The LED should either turn ON or
OFF after hitting the CAPS LOCK key.
Missing one of the primary
colors (RED, GREEN, or BLUE) *Inspect the monitor’s video cable and
make sure that none of the pins are bent.
North America technical
support telephone number: 1-800-343-5777
13
APPENDIX
SPECIFICATIONS
CRT Size 48.3cm(19"), 90º deflection, 29mm
neck,
CRT Viewable Image
Size 45.7cm (18"), diagonal
Type 0.27mm dot pitch.
Video 0.7Vpp, R,G,B Analog
Input Separate Sync. TTL Level
H./V.- Sync. Positive / Negative
Scanning H-Frequency 30kHz - 95kHz
Frequency V-Frequency 50Hz-160Hz
Max. Resolution 1600 x 1200
Video Dot Rate 200MHz
Factory Preset mode :8
User Programmable mode : 10
Power Source Universal AC 100 - 240V,
50Hz / 60Hz
Operating 0ºC to 40ºC ambient
Humidity 10%to 85%relative, non-condensing
Dimensions
9E/9Elr : Monitor & Base 446(W) × 436(H) × 455(D)mm
9EA/9ElrA : Monitor & Base 446(W) × 485(H) × 455(D)mm
Weight
9E/9Elr : Unit (net) 18.4kg ( Net )
9EA/9ElrA : Unit (net) 19.4kg ( Net )
Signal Cable: Attached Mini D-sub 15 Male
446
436
(ln mm)
455
9E/9Elr 9E/9Elr
14
Switch ?Power On/Off switch
?UP/Down Key
?Function Key
?Volume(9EA/9ElrA)
External Controls: Functions ?Contrast
?Brightness
?H-Center
?H-Size
?V-Center
?V-Size
?Pincushion
?Trapezoid
?Rotation
?Degauss
?Recall
Plug & Play DDC1/2B
Power Management EPA, VESA DPMS
Power Consumption ( Maximum ) 120 Watts
Pre-set Display Area 346mm x 260mm
Audio Output
(for 9EA/9ElrA only) Rated Power 1W rms
(Per channel)
Regulatory Compliance UL, CSA, FDA, FCC, TÜV/GS, CE,
MPR II
TCO’95 or TCO’99 (Optional)
9EA/9ElrA 9EA/9ElrA
15
FACTORY PRESET TIMING TABLE
STANDARD RESOLUTION HORIZONTAL
FREQUENCY VERTICAL
FREQUENCY
VGA 720 × 400 31.5kHz 70Hz
VGA 640 × 480 31.5kHz 60Hz
VESA/85 640 × 480 43.3kHz 85Hz
VESA/85 800 × 600 53.7kHz 85Hz
VESA/85 1024 × 768 68.7kHz 85Hz
VESA/85 1280 × 960 85.9kHz 85Hz
VESA/85 1280× 1024 91.1kHz 85Hz
VESA/75 1600× 1200 93.8kHz 75Hz
CONNECTOR PIN ASSIGNMENT
1 5
610
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Red 9. NC
2. Green 10. Ground
3. Blue 11. Monitor Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync / ?V-Clk
7. G-Ground 15. DDC-Serial Clock
8. B-Ground ?For DDC
