Contents
- 1. users manual 1
- 2. users manual 2
users manual 2
1
TABLE OF CONTENTS
Before Use…………………...………………………………………….…… 2
Safety Precautions………………………………………………………..… 3
For Your Safety Reason………………………………………………….… 7
Important Safety Instruction……………………………………………… 8
Introduction ……………………………………………………..……….… 10

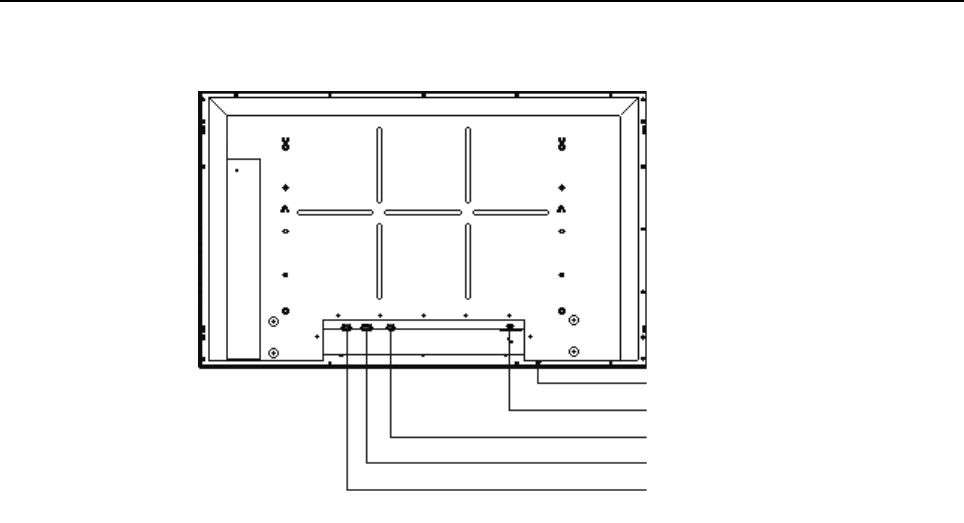

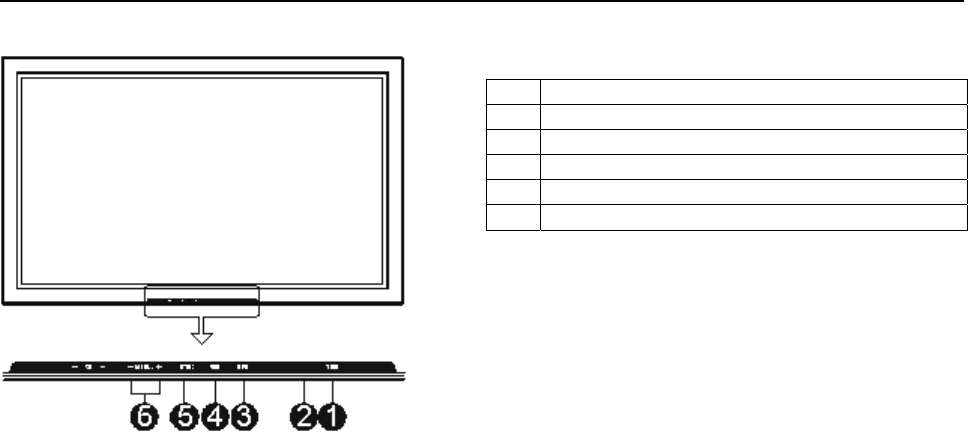

Part Names and Function ……………………………………………….... 11

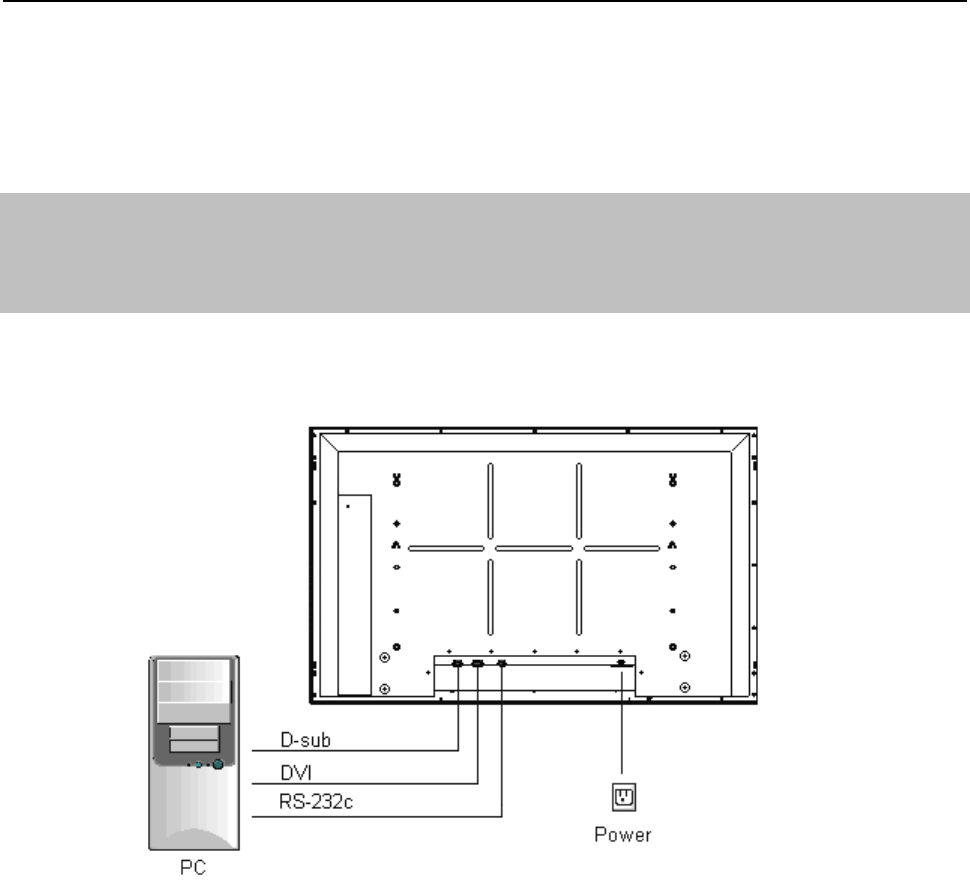

Installation ……………………………………………………………….… 12-13
Basic Operations …………………………………………………………… 15
Table of Signals Supported ……………………………………………...… 16
Troubleshooting ……………………………………………………….…… 17
Specifications …………………………………………………………….… 18
2
Before Use
Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.
FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
OPEN THE PACKAGE:
y The product is packaged in a carton together with other standard accessories. Any optional accessories shall
be packed separately in another carton.
y The weight of the Plasma Display is approx. 36 kg. Due to the size & weight of the product, it is recommend
that it is moved by a minimum of 2 people.
y The protective glass and the glass substrate are installed on the front of the product. Since both glasses can
be broken and scraped easily, move the product gently. Never place the unit with the glass facing downwards
unless it is protected with pads.
y When opening the carton, check that the product is in good condition and that all standard accessories and
items are included.
y Whenever possible, use the handles on the back of the Display for transport.
INSTALLATION:
y A specified technician from the distributor or authorised agent should always install the product, otherwise the
warranty may become void.
y The power consumption of this device is 320W ,always use the jack exclusively designed for this product. If
an extended line is required, please consult with your service agent.
y The product should be installed on a flat surface to avoid tipping. The distance between the back of the
product and the wall should be maintained for proper ventilation.
y Avoid installing the product in the kitchen, bathroom or any other places with higher humidity so as not to
shorten the service life of the electronic components.
y Please ensure the product be installed horizontally, any 90° clockwise or counterclockwise installation may
induce poor ventilation and subsequent component damage.
y To protect the screen and avoid screen burn, do not hold on a static picture for a long time.
y In order to receive the most consummate warranty, installation has to be done by the professional technician
from dealer or authorized distributor.
NOTICE:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. If the PDP monitor displays a fixed pattern on the screen for extended periods of time, it could make the
differences of brightness and chromaticity between fixed pattern area and other areas. This is because the
brightness of fixed pattern area becomes lower than the other areas due to degrading of the phosphor, but this
phenomenon is not failure.
3
Safety Precautions
Safety of operators has been taken into consideration at the design and manufacture phase, but
inappropriate operation may cause electric shock or fire. To prevent the product from being
damaged, the following rules should be observed for the installation, use and maintenance of the
product. Read the following safety instructions before starting the operation.
Symbols
Various symbols are used in this Installation Manual for the safe and proper use of the product as
well as preventing any injury or damage to persons or property. These symbols and their meanings
are described below. Please have a good understanding of these matters before reading the main text
of the manual.
WARNING Ignoring this indication and improper handling could be the cause of
personal injury such as a serious injury or death.
CAUTION Ignoring this indication and improper handling could cause injury to a
person or damage to the surrounding household belongings.
Examples of Symbols
This symbol informs that there are contents that demand caution (including warnings).
Concrete details of the caution are written within the diagram.
This symbol indicates a prohibited matter.
Concrete details of the prohibition are written within the diagram.
This symbol indicates something that must be done.
Concrete details of the prohibition are written within the diagram.
WARNING
Be sure to have the Plasma Display installed by your store of purchase following the instructions in this
manual. If installed incorrectly, the Plasma Display could tip over, resulting in injury.
To ensure safety, tighten bolts and screws securely.
Failure to do so could cause the Plasma Display to tip over, resulting in injury.
Do not modify parts.
Doing so could cause the Plasma Display to tip over, resulting in injury.
Do not use damaged parts. Doing so could cause the Plasma Display to tip over, resulting in injury.
If a part should be damaged, contact the store of purchase.
The units are exclusively for use only with the Plasma Displays. Do not mount them on other devices.
Doing so could cause the device to tip over, resulting in injury.
Do not install the product on sloping or unstable:
The product may drop or tip over.
4
WARNING
NOTES
Do not obstruct the Plasma Display’s ventilation holes. If the ventilation holes are covered, the heat sill build
up inside, and this could lead to fire. For example, do not install the Plasma Display in narrow spaces where
ventilation is poor, do not place covers over it, etc.
Do not install the Plasma Display neat air conditioner air outlets or in places where vibrations are strong.
Doing so could lead to fire or electric shock.
Do not install the Plasma Display in humid or dusty places or places exposed to soot or vapor (such as in
kitchens, near humidifiers, etc.). Doing so could lead to fire.
When installing the Plasma Display, leave sufficient space around it,
as shown in the diagram. Failure to do so could cause heat to build up inside, leading to fire.
Hold the Plasma Display securely when mounting the units on it. Failure to do so could cause the Plasma
Display to fall, resulting in injury.
When installing the Plasma Display on a stand with casters, be sure to block the casters, If the stand should
move, the Plasma Display could fall, resulting in injury.
The Plasma Display is heavy, so be sure to install in a stable place and take measures to prevent it from
tipping over and causing injury. The Plasma Display has a high center of gravity. It should be unpacked and
moved by a minimum of two people, holding it at the top and bottom. Failure to do so could cause the
Plasma Display to fall, resulting in injury.
NOTES
Keep the product away from moisture:
Do not expose this appliance to rain or moisture.
If water penetrates into the product, stop the operation; unplug the connector and contact with the
Service Center. Continuous use in this case may result in fire or electric shock.
Do not place any objects on the top of the product:
Spilled water or metal objects may cause short circuit, fire or electric shock if they penetrate into the
housing of the product.
Never use a damaged power cord:
Heavy objects, heat or tensile force may damage the power cord and cause fire or electric shock.
Do not change or open the back cover: Removing the back cover of the product may cause fire or
electric shock.
Contact the Service Center when inspection or adjustment is required.
Do not use the product if any abnormality occurs:
If any smoke or odor becomes apparent, unplug the connector and contact the Service Center
immediately. Do not try to repair the product by yourself.
Avoid using dropped or damaged appliances:
If the product is dropped and the housing is damaged, the internal components may function
abnormally. Unplug the connector immediately and contact the Service Center for repair.
Continuous use of the product may cause fire or electric shock.
Do not touch the power cord during lightening:
To avoid electric shock, avoid handling the power cord during electrical storms.
50mm
50mm
31mm 31mm 50mm
5
Unplug the connector
NOTES
Avoid dusty or humid rooms and rooms filled with soot or cigarette smoke.
The Plasma Display’s screen could get dirty, resulting in poor picture quality.
Avoid places where the screen is exposed to direct sunlight or strong artificial light.
If surrounding light should shine on the screen, the screen will appear white and be hard to see.
Do not install in places where the temperature is high or low.
Doing so could result in damage.
Additional fall prevention measures.
To protect the Plasma Display from tipping over due to earthquakes or shocks, fasten the two safety fittings to the screw
holes on the rear of the Plasma Display using the two safety fitting mount screws, then pass a commercially available
rope or chain through the fittings and secure the Plasma Display to a wall, pillar or other sturdy object using screws and
hooks. (Do not do this when using the separately sold ceiling mount unit or wall mount unit.) While moving the Plasma
Display, pay attention to the rope or chain that tags along the back of the Display.
Image Sticking:
The plasma monitor illuminates phosphor to display images. The phosphor has a finite illumination life. After extended
periods of illumination, the brightness of the phosphor will be degraded to such extend that stationary images would
burn-in that part of the screen as grayed-out images.
Tips to prevent such image sticking are:
* Do not display images having sharp brightness differences or hi-contrast images, such as monochrome characters
and graphic patterns for long.
* Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to
move them using screen saver function.
* Turn down the contrast and brightness control.
Note:
Such “Image Sticking” constitute misuse are NOT COVERED by the manufacturer’s warranty.
Do not install the product close to smoke or moisture:
Fire or electric shock may be caused when the product is installed close to smoke or moisture.
Do not installed the product in an area with heavy dust or high humidity:
Fire or electric shock may be caused when the product is installed in a place with heavy dust or
high humidity.
Instructions for moving the product:
Ensure that the power connector and any other leads are unplugged before moving the product.
The power cable should be kept away from heat sources:
The heat produced by any heat source may melt the covering of the power cable.
Hold the power connector when removing the power cable:
Pulling the power cable itself may damage the wires inside the cable and cause fire or electric
shock.
Do not touch the connector with wet hands:
To avoid risk of electric shock.
Do not block or cover the vents:
Blocking the vents may cause overheating and fire.
Do not install the product in a place with little or no ventilation. Never cover the vents with
towels, blankets or dusters.
6
Precautions
1. Read all safety instructions and the User Manual before using the product.
2. The safety instructions and User Manual should be maintained in good condition for future reference.
3. Unplug the power connector before cleaning the product. A wet cloth is sufficient for the cleaning of
the product, never use liquid or spray cleaner for cleaning the product.
4. Always use the accessories recommended by the manufacturer to avoid any risk.
5. When moving the product from an area of low temperature to an area of high temperature, drops of water
may condense on the housing. Do not turn on the Display immediately after moving so as not to cause
fire, electric shock or component damage. Please wait for a period of time. The product will warm up to
normal temperature and clear the condensation.
6. Do not install the product on unstable fixtures or stands. The installation of the product should be
conducted in accordance with the instructions and using the support recommended by the manufacturer.
7. Do not remove the earthing pin on the power plug. The product is supplied with a three-pin earthing-
type power plug, this plug will only fit an earthing-type power outlet. This is a safety feature, if you are
unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing
plug.
8. Avoid overloading the power cord. Using extension cables or the cords of other appliances may cause
fire or electric shock.
9. If any of the following occurs please contact the qualified technician:
y The power supply or connector fails.
y Liquid sprays or any object drops into the Display.
y The Display is exposed to rain or other moisture.
y If the product doesn’t function properly, you can only follow the instructions of the user manual to
make adjustment. Any damage caused by improper adjustment would require even longer time for
qualified technician to repair it.
y The Display is dropped or damaged in any way.
y The performance of the Display changes substantially.
10. A distance of at least 1 metre should be maintained between the product and any heat source, i.e. radiator,
heater, oven, amplifier etc.
11.The power cable must be replaced when using different voltage from that specified in the User Manual.
For more information, contact your dealer.
7
For your safety reason
触电危险，勿开后盖！
CAUTION
RISK OF ELECTRIC
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
N
O USER SERVICEABLE PARTS INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol
,
within an equilateral triangle, is intended t
o
alert the user to the presence of uninsulate
d
dangerous voltage within the product’
s
enclosure that may be of sufficien
t
magnitude to constitute a risk of electri
c
shock to persons.
The exclamation point within an equilatera
l
triangle is intended to alert the user to th
e
p
resence of important operating an
d
maintenance (servicing) instructions in th
e
literature accompanying the appliance.
Warning
To prevent fire or shock hazard, do not expose this
appliance to rain or moisture.
Ventilation
There should be at least 10cm space between the top,
rear and sides of the monitor.
Power requirements
Power requirements for electrical appliances differ
from area to area. Please ensure that your appliance
meets the power requirements in your area.
Remove the power plug from the AC power outle
t
when not using the monitor for a long period of time.
Make your contribution to protect the
environment
Used batteries with the ISO symbol for recycling as
well as small accumulators (rechargeable batteries),
mini-batteries(cells) and starter batteries
should not be thrown into the garbage can.
Please leave them at an appropriate
depot.
8
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS.
WARNING-When using electric products, basic precautions should always be followed, including the following:
Read Instructions-All the safety and operating instructions should be read before the appliance is operated.
Retain Instructions-The safety and operating instructions should be retained for future reference.
Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
Follow Instructions-All operating and using instructions should be followed.
Water and Moisture-This appliance should not be used near water - for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimmingpool, and the like.
Carts and Stands-Do not place this appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may
fall, causing serious injury to a child or adult and serious damage to the appliance. Locate the monitor on a firm, flat and
stable surface.
An appliance and cart combination should be movedwith care. Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to over turn.
PORTABLE CART WARNING
Wall or Ceiling Mounting-Do not recommend mounting this appliance on a wall or from a ceiling.
Ventilation-This appliance should be situated so that its location or position does not interfere with its properventilation. For
example: the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings; or placed in a built-in situation, such as a bookcase or cabinet that may impede the flow of air through the
ventilation openings.
Heat-This appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
Power Sources-This appliance should be connected to a power supply only of the type described in the operating
instructions of as marked on the appliance. If you are not sure of the type of power supply to your home, consult your
appliance dealer or local power supply.
Power Cord Protection-Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs convenience receptacles, and the point
where they exit from the appliance. Do not subject the mains lead to sharp bends, heat or chemicals. If the mains lead is
damaged, disconnect it from the wall socket and have it checked by authorized service personnel.
Cleaning-Unplug this appliance from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaner.Use
a damp cloth for cleaning.
Lightning or Nonuse Periods-For added protection for this appliance during a lightning storm, or when it is left
unattached for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will
prevent damage to the appliance due to lightning and power-surges.
9
Object and Liquid Entry-Never push objects of any kind into this appliance through openings as they may touch
dangerous voltage points do short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on
the appliance.
Damage Requiring Service-Unplug this appliance from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the appliance.
c. If the appliance has been exposed to rain or water.
d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions as an improper adjustment of other controls may result indamage and will
often require extensive work by aqualified technician to restore the appliance to its normal operation.
e. If the appliance has been dropped or the cabinet hasbeen damaged.
f. When the appliance exhibits a distinct change in performance this indicates a need for service.
Servicing-Do not attempt to service this appliance yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
Replacement Parts-When replacement parts are required, be sure the service technician has used replacement specified
parts that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock,
or injury to persons.
Safety Check-Upon completion of any service or repair to this appliance, ask the service technician to perform routine
safety checks to determine that the appliance is in safe operating condition.
Other-This product either alone or in combination with an amplifier and headphones or speakers, may be capable of
producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high
volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should
consult an audiologist. Make sure the monitor is at room temperature before switching it on.Do not place anything on
top of the monitor. Never touch the power cord’s plug with wet hands. Always pull the power cord out by the plug,
never by the cord.Use a household AC power source only. Never use a DC power source.Avoid using the monitor near
appliances generating strong magnetic fields (non shielded stereo speakers for example).
10
Introduction
Introduction to the PT4231 Plasma Monitor
PT4231 is a seamless blend of cutting-edge visual technology and sophisticated design. At 42-inches, with a 16:9 aspect
ratio, the PT4231 certainly makes a big impression. However, at a mere 4.3-inches/110 mm thin, the monitor’s sleek
techno-art lines blend in well with your environment. PT4231crisp, vivid image quality will transform data from any
graphic medium from PCs players-into art. And weighing only 79.4 lbs/36kg, it actually can be hung almost anywhere.
We have made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended
on the PT4231 monitor.
The features you’ll enjoy include:
y 42-inch screen.
y 16:9 aspect ratio.
y 4.3 inch / 110 mm thin.
y 79.4 lbs/36kg in weight
y High-resolution screen: 852×480 pixels.
y 160-degrees of off-axis viewing, horizontally and vertically.
y Flicker-and-warp-free display provides excellent image geometry even in screen corners.
y Not affected by magnetic fields, no color drifting or edge distortion.
y VGA, SVGA, XGA computer signal compatibility.
y Advance graphic scan conversion automatically converts VGA, SVGA, XGA and SXGA signals to the panel’s
native resolution.
y AccuColor control system provides user selectable on-screen color temperature settings.
y New Drive Technology.
y OSD menu-driven on screen control system that makes image adjustments a snap.
y Languages (English, French, Spanish).
Contents of the Package
Plasma multimedia display.
Power cord.
D-Sub cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin connector).
User’s manual.
11
Part Names and Function
1. POWER
2. POWER/Standby Indicator
3. INPUT Select
4. MENU
5. SETTING
6. ADJ. + , ADJ. -
Front View
1. POWER
Turn the monitor’s power on and off.
2. POWER/Standby Indicator Window
When the power is on …………………. Lights orange.
When the power is standby ….……… Lights red.
3. INPUT Select
Switch the input in the following order.
DVI <=> D-sub 15 PIN
4.MENU
Sets the On-Screen Display (OSD) Menu mode and displays the main menu.
5. SETTING
˙ In the on screen menu execute the selected highlight item or level setting
6. ADJ. + , ADJ.
˙ In the on screen menu mode:
A) Highlight the submenu or item you wish to enter
B) Adjust the level or change the setting of the selected item
12
Installation
Rear View
MAIN POWER SWITCH
Turn on/off the AC power.
AC IN
Connect the included power cord here.
RS232C
Only use in factory.
DVI (29pin) INPUT
Input for a digital RGB signal (TMDS).
D-sub（15Pin）INPUT
Input for the analog RGB signal from personal computer, etc.
MAIN POWER WITCH
AC IN
RS-232C
DVI (29pin)
D-sub RGB
13
Installation
Connections with Equipment that has a Digital Interface
Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital
Visual Interface) standard.
* Use a DVI 29-pin signal cable when making connections to the DVI connector of the main unit.
Note that the DVI terminal does not support analog RGB input source and HDCP protocol.
Note:
1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to single link.
2. To maintain display quality, use a cable with quality prescribed by DVI standards that is within 5 meters in
length.
3. RS-232C Only use in factory setting.
14

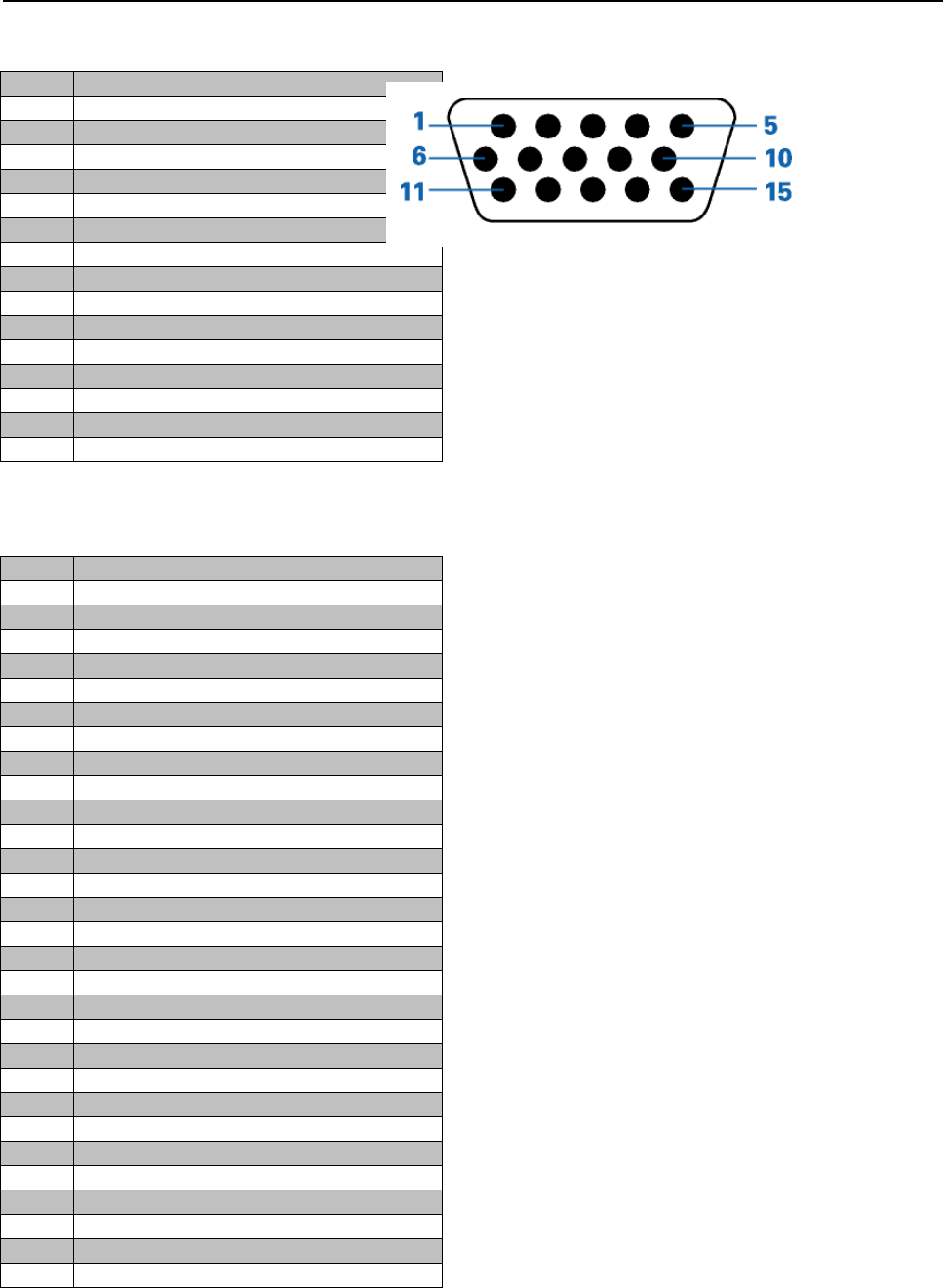

Pin Assignments and signal for D-sub 15 pin RGB (Analog)
Pin No. Signal (Analog)
1Red
2Green or sync-on-green
3Blue
4No Connection
5 Ground
6Red ground
7 Green ground
8Blue ground
9 No Connection
10 Sync signal ground
11 No Connection
12 Bi-directional DATA (SDA)
13 Horizontal sync or Composite sync
14 Vertical sync
15 Data clock
Pin Configuration and Signal of the DVI Connector
Pin No. Signal (Digital)
1 T.M.D.S Data 2 -
2T.M.D.S Data 2 +
3 T.M.D.S Data 2 Shield
4No Connection
5 No Connection
6DDC Clock
7 DDC Data
8No Connection
9 T.M.D.S Data 1 -
10 T.M.D.S Data 1 +
11 T.M.D.S Data 1 Shield
12 No Connection
13 No Connection
14 +5V Power
15 Ground
16 Hot Plug Detect
17 T.M.D.S Data 0 -
18 T.M.D.S Data 0 +
19 T.M.D.S Data 0 Shield
20 No Connection
21 No Connection
22 T.M.D.S Clock Shield
23 T.M.D.S Clock +
24 T.M.D.S Clock -
25 No Connection
26 No Connection
27 No Connection
28 No Connection
29 No Connection
The unit is equipped with a type of connector
commonly used for both analog and digital.
(Functionally, this cannot be used for an analog
input.)
(TMDS can be used for single link only.)
15
Basic Operations
POWER
1. To power on and off the unit:
Connect the power cord to your plasma monitor and wall AC power outlet.
Push the main power switch on the bottom side of the plasma monitor (the main power switch can be access from
the back side of the plasma monitor). The power indicator LED will flash and stabilized in red color. The monitor is
in the STANDYBY mode when the LED light is stabilized in red color.
Attention: For protection against power supply in the plasma monitor, when you turn off main power switch and
intend to turn on again, please wait for 5 seconds before you turn it on.
2. To turn on the unit:
When the monitor is in STANDBY mode, press the POWER button to turn on the unit. The monitor’s
POWER/STANDBY indicator LED will flash and stabilized in orange color.
3. To turn off the units:
Press the POWER button，the monitor’s POWER/STANDBY indicator LED will flash and stabilized in red color.
When the LED stops flashing and stabilized in red color, the monitor is in STANDBY mode.
16
Table of Signals Supported
Supported resolution
y When the screen mode is NORMAL, each signal is converted to a 640 dots × 480 lines signal.
y When the screen mode is FULL, each signal is converted to a 852 dots × 480 lines signal.
Computer input signals supported by this system
Dots × Lines Vertical Horizontal Sync Polarity Presence Screen Mode
Frequency Frequency Horizontal Vertical Horizontal Vertical Normal FULL
(Hz) (kHz) (4:3) (16:9)
640×400 70.1 31.5 NEG NEG YES YES YES YES
640×480 59.9 31.5 NEG NEG YES YES YES YES
72.8 37.9 NEG NEG YES YES YES YES
75.0 37.5 NEG NEG YES YES YES YES
85.0 43.3 NEG NEG YES YES YES YES
848×480 60.0 31.0 POS POS YES YES YES YES
852×480 60.0 31.7 NEG NEG YES YES YES YES
800×600 56.3 35.2 POS POS YES YES YES YES
60.3 37.9 POS POS YES YES YES YES
72.2 48.1 POS POS YES YES YES YES
75.0 46.9 POS POS YES YES YES YES
85.1 53.7 POS POS YES YES YES YES
1024×768 60.0 48.4 NEG NEG YES YES YES YES
70.1 56.5 NEG NEG YES YES YES YES
85.0 68.7 POS POS YES YES YES YES
* Recommended display card setup format.
* DVI connector does not support HDCP agreement.
17
Troubleshooting
If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting
service.
Symptom Checks Remedy
No picture is produced.y Is the monitor’s power cord plugged into a
power outlet?
y Plug the monitor’s power core into a
power outlet.
y Are all the monitor’s indicators off? y Press the power button on the monitor to
turn on the power.
Poor picture with RGB signal input. y Improper control setting.
Incorrect 15 PIN connector pin connections.
y Adjust picture controls as needed.
Check pin assignments and connections.
Tint is poor or colors are weak. y Are the tint and colors properly adjusted? y Adjust picture controls as needed.
Check pin assignments and connections.
Nothing appears on screen. y Is the computer’s power turned on? y Turn on the computer’s power.
y Is a source connected? y Connect source to the monitor.
y Is the power management function in the
standby or off mode?
y Operate the computer (move the mouse,
etc.)
Part of picture is cut off or picture is
not centered.
y Is the position adjustment appropriate? y Adjust the “SCREEN” properly.
Picture is unstable. y Is the computer’s resolution setting
appropriate?
y Set to the proper resolution.
POWER/STANDBY indicator blinks
in red
y Horizontal and / or vertical sync signal is not
present when the Intelligent Power Manager
control is on.
y Check the input signal.
POWER/STANDBY indicator is fast
blinking
y Promptly switch off the power of the main
unit.
y See*
At PC mode if position of picture is
not correct
y Is the position adjustment appropriate? y Turn on the “AUTO FOCUS” properly.
* In the following case, power off the monitor immediately and contact your dealer or authorized Service Center. The
monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator fast blinks. It indicates
that the power supply circuit or Plasma display panel or, temperature sensor has been damaged.
18
Specifications
Product Name Plasma Monitor PT4231
Screen Size 36.3"(H) × 20.4"(V) inches
921(H) × 518(V) mm diagonal 42"
Aspect Ratio 16 : 9
Resolution 852(H) × 480(V) pixels
Pixel Pitch 0.043"(H) × 0.044"(V) inches
1.095(H) × 1.110(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization range Horizontal: 31 to 69kHz
Vertical: 56.0 to 85Hz
RS232 Control D-sub 9-pin × 1
Power Supply AC100V~240V 50/60Hz
Current Rating 3.0A
Power Consumption 380W (typical)
Dimensions 41.3(W) × 25.5(H) × 3.5(D) inches
1038(W) × 640(H) × 89(D) mm
Weight 79.4lbs/36kg
Environmental Considerations
Operating Temperature Humidity 0°C to 40°C / 32°F to 104°F
20 to 80% (no condensation)
Storage Temperature Humidity -10°C to 50°C / 14°F to 122°F
10 to 90% (no condensation)
Front panel User Controls Power on/off, Input source select, OSD control
Other features 3D motion adaptive Scan Converter with 2-2 (50Hz), 2-3 (60Hz) Pull Down Converter,
Digital Zoom function, Color Temperature Select, Power management, Plug and play
(DDC1, DDC2B)
Accessories VGA cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin connector), Power cord, User’s
Manual,
Regulatory Compliance UL, FCC, CE
