TopSeed Technology TSAQ-901 rRF Flex Pointer - FSK User Manual AQ User manual
TopSeed Technology Corp. rRF Flex Pointer - FSK AQ User manual
users manual
Flex Pointer-TS/AQ User Manual
How to use the remote:

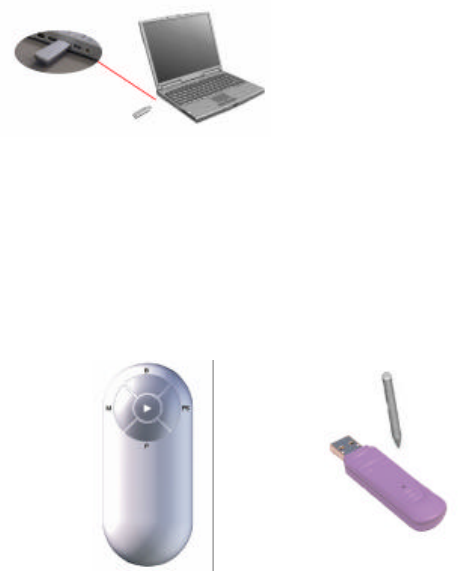

1. Plug the receiver unit into any USB port.
1. Your operation system will start to setup the receiver unit. There is no
software to load. (Win98/Me may show some dialog boxes during
setup process. Press “Next” on all dialog boxes and then “finish”.
During setup process, the O/S may ask you to put Win98 CD into the
CD-ROM.)
2. After the setup process finish, the remote will work.
Notice:
1-1. If the remote is not working or interference with another:
ID Change : Press Both “ M “ and “ B ” buttons simultaneously
more than 3 seconds will change the
currend ID . (Green LED flashed)
Pic.1 Pic.2
1-2. Use a paper clip to press the receiver unit red button (Stand by to
learn the new ID)---Pic.2
1-3. Press any button except “M “ button to operate. (Let receiver unit
learn the new ID).
2. If you remove the battery or the remote does not work, repeat the
steps 1-1 to 1-3. 1
2
Symbo
Key definition
B Black Display a black screen or return to the slide show
from a black screen
Slide
Forward
Perform the next animation or advance to the
next slide
P Slide Back
Perform the previous animation or return to the
previous
F5 F5/ESC F5: Running your slide show in full screen mode
ESC:End a Slide show
M Mode Key
NOTE:
1. Remote Power ON/Off : In the remote ON mode ,
press and hold the “ M “ key and
press “ F5 ” buttons more than 3
seconds the remote will be Power
Off . (Green LED from on to off.)
In the remote Off mode ,
Press and hold the “ M “ key and
press “ F5 ” buttons more than 3
seconds the remote will be Power
ON . (Green LED from off to on )
Federal Communications Commission (FCC)
Requirements, Part 15
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and
receiver.
---Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV
technician for help.
3
CAUTION:
Any changes of modifications not expressly approved by the
grantee of this device could void the users au
thority to operate
the equipment.
