Toplink Technology Development TOPAP01 WIFI Module User Manual RA R111300A 5350

Shenzhen Toplink Technology Development CO.,LTD WIFI Module RA R111300A 5350

User Manual

    


User Manual
   
Product Name:
Model Name:
WIFI Module
TOP-AP01
TEL:
FAX:
Introduction
The RT5350 SoC combines Ralink’s IEEE 802.11b/g/n draft compliant 1T1R
MAC/BBP/PA/RF, a high performance 360 MHz MIPS24KEc CPU core, a 5-port
integrated 10/100 Ethernet switch/PHY and a USB host/device. With the RT5350,
there are very few external components required for 2.4 GHz 802.11n wireless
products. The RT5350 employs Ralink’s 2nd generation 802.11n technologies for
longer range and better throughput. The embedded, high performance CPU can
easily manage advanced applications such as Wi-Fi data processing without
overloading the host processor. In addition, the RT5350 offers a variety of
hardware interfaces (SPI/I2S/I2C/PCM/UART/USB) to support a range of
possible applications.
Applications
iNICAP/Router
Features
Embedded1T1R2.4GCMOSRFMIPS24KEc360Mhzwith32KBIcache/16KBDcache
Embedded802.11n1T1RMAC/BBPwithSupports16ͲbitSDRSDRAM(upto64MB)
MLDenhancementSupportsbootfromROM,FLASH
EmbeddedPA/LNAUSB2.0HOST/Devicedualmodex1
150MbpsPHYdatarateEmbedded5Ͳport10/100MbpsEthernet
20Mhz/40MHzchannelwidthswitchand5ͲportUTPPHY
LegacyandhighthroughoutmodesSupports510/100UTPports
CompressedblockACKSlowspeedI/O:GPIO,SPI,I2C,I2S,PCM,
BluetoothCoͲexistenceUART,andJTAG
MultipleBSSID(upto16)PackagingandI/Ovoltage
WEP64/128,WPA,WPA2,WAPIengines12mmx12mmTFBGAͲ196package
QOSͲWMM,WMMPowerSaveI/O:3.3VI/O
Hardwareframeaggregation
Supports802.11hTPC

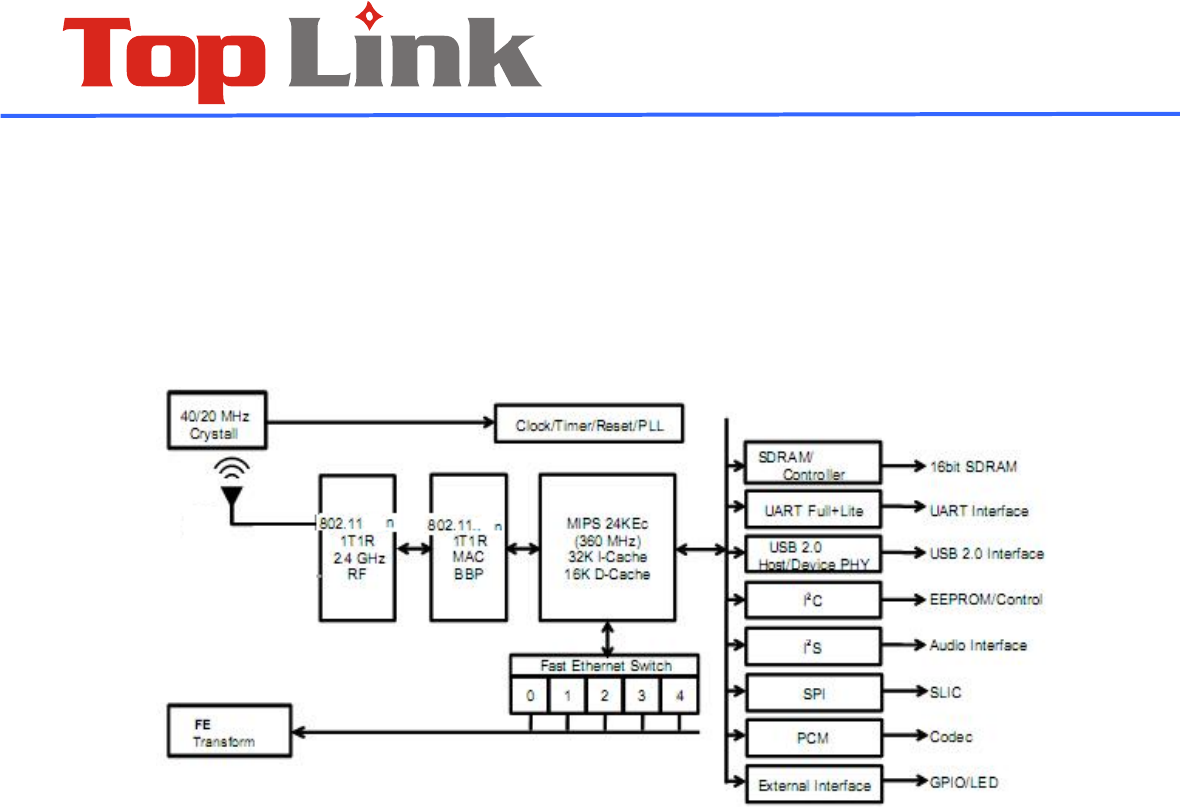

2㧚Functional block diagram
b/g/ b/g/
3 General Specifications
Model Name
Product Description Wireless AP/ROUTER Module
WLAN Standard IEEE 802.11b/g/n ,Wi-Fi compliant
Host Interface LAN/USB
Major Chipset Ralink RT5350
Dimension
Weight 10g
Operating Conditions
Voltage
Temperature -10~55͠
Humidity Non-
Operating 90% RH non-condensing (12 months among 0~40͠ )
Electrical Specfications
Frequency Range 2.412~2.462GHZ
300m
Transmission
Distance
environment)
Data Rate IEEE 802.11b: 1-11Mbps IEEE 802.11g: 6-54Mbps
IEEE 802.11n: MCS0-MCS7
Transmit power 15.48dbm
WEP64/128, WPA,WPA2,WAPI
Data security
Receiver Sensitivity 150M:-68dbm@10%PER
135M: -68dbm@10%PER
54M:-70dbm@10%PER
11M:-83dbm@10%PER
TOP-AP01-38pin/TOP-AP01-52pin
42 *29 *1MM
3.3V +1.8V
48 *30 *1MM
6M:-86dbm@10%PER
1M:-90dbm@10%PER
Storage Temperature:-40~70͠(-40ͦ~158ͦ)
Relative humidity:10%-90%
Environment Non-condensing
Storage Humidity:<10% RH
Non-condensing
Modulation Type OFDM/CCK/16-QAM/64-QAM

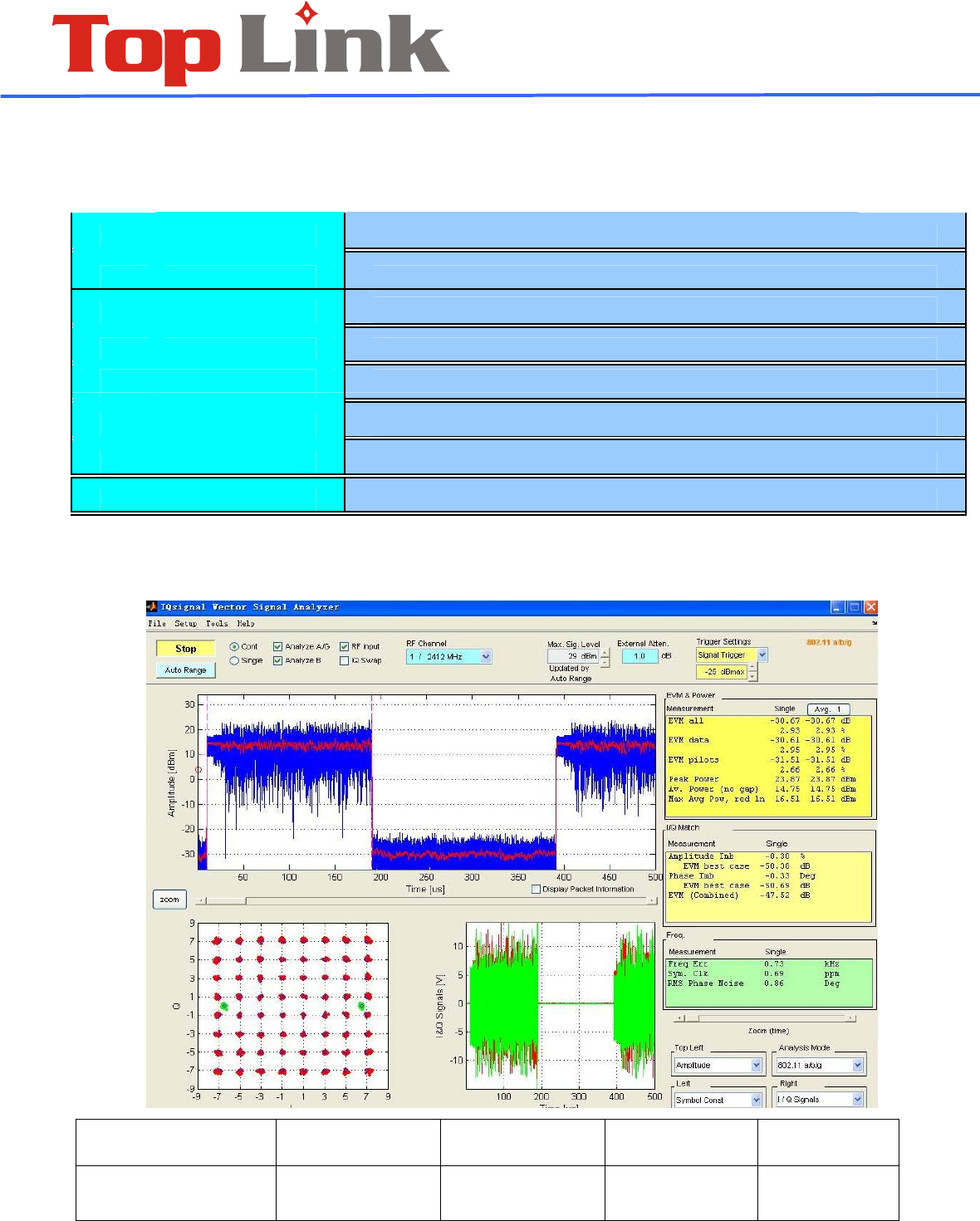

4. TEST PARAMETER
Test item TX POWER EVM Freq ERR
RX SENS
Test result
(54M)
14.75 dbm -30.67dbm 0.73 khz -70 dbm

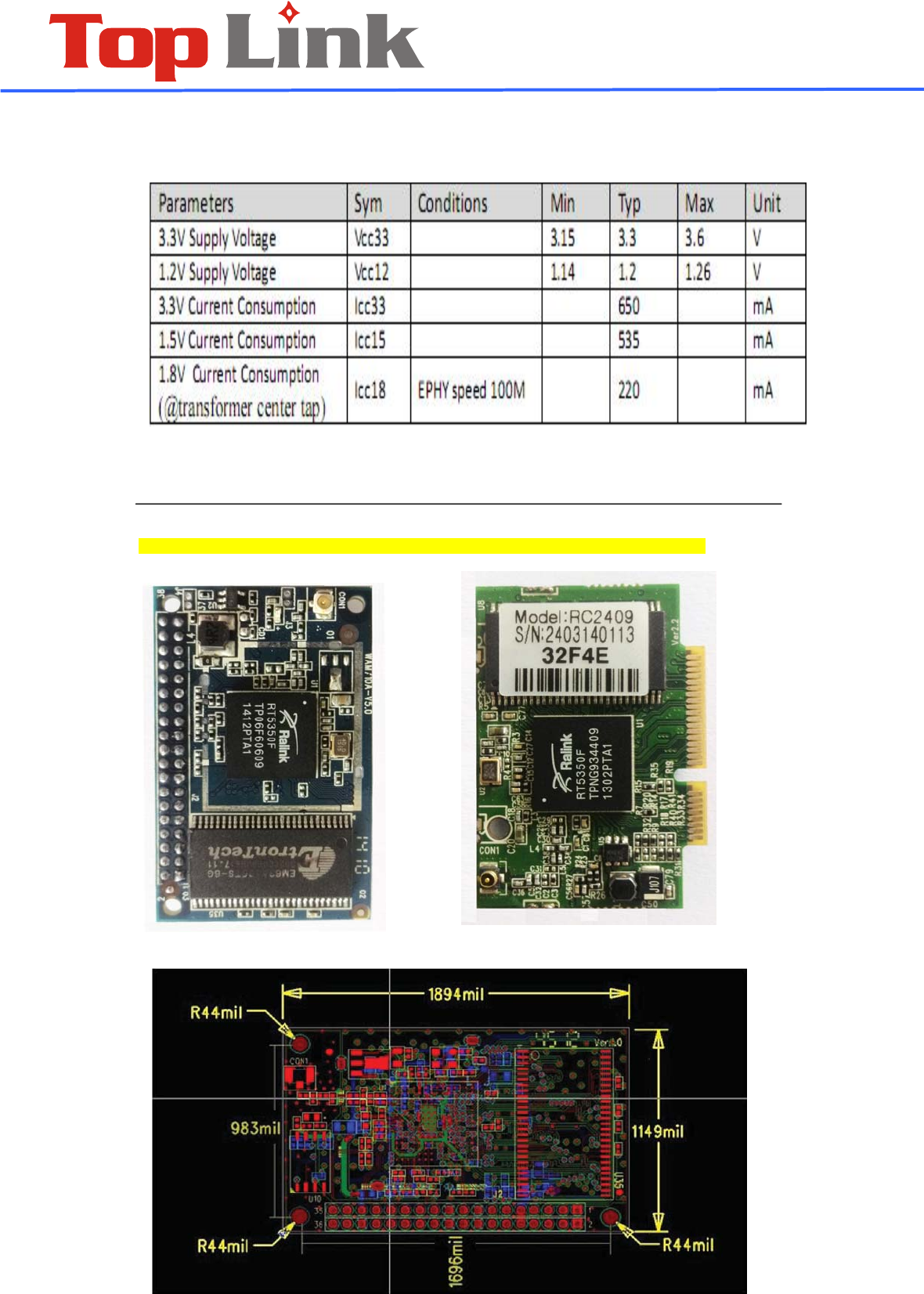

5㧚Power Consumption

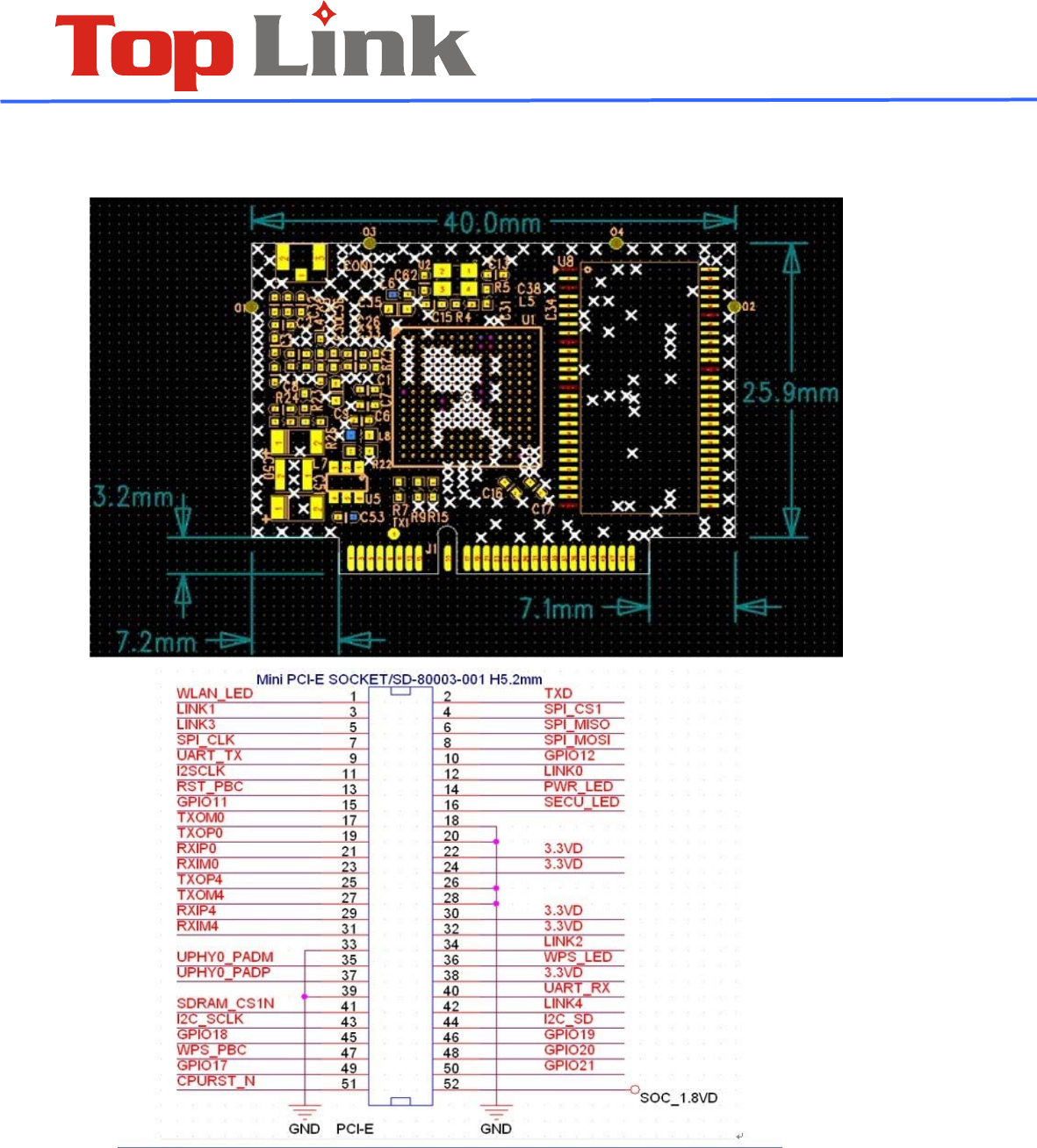

6. Mechanical Information
Positive Negative
TOP-AP01-38pin
TOP-APO1-38pin
TOP-AP01-52pin

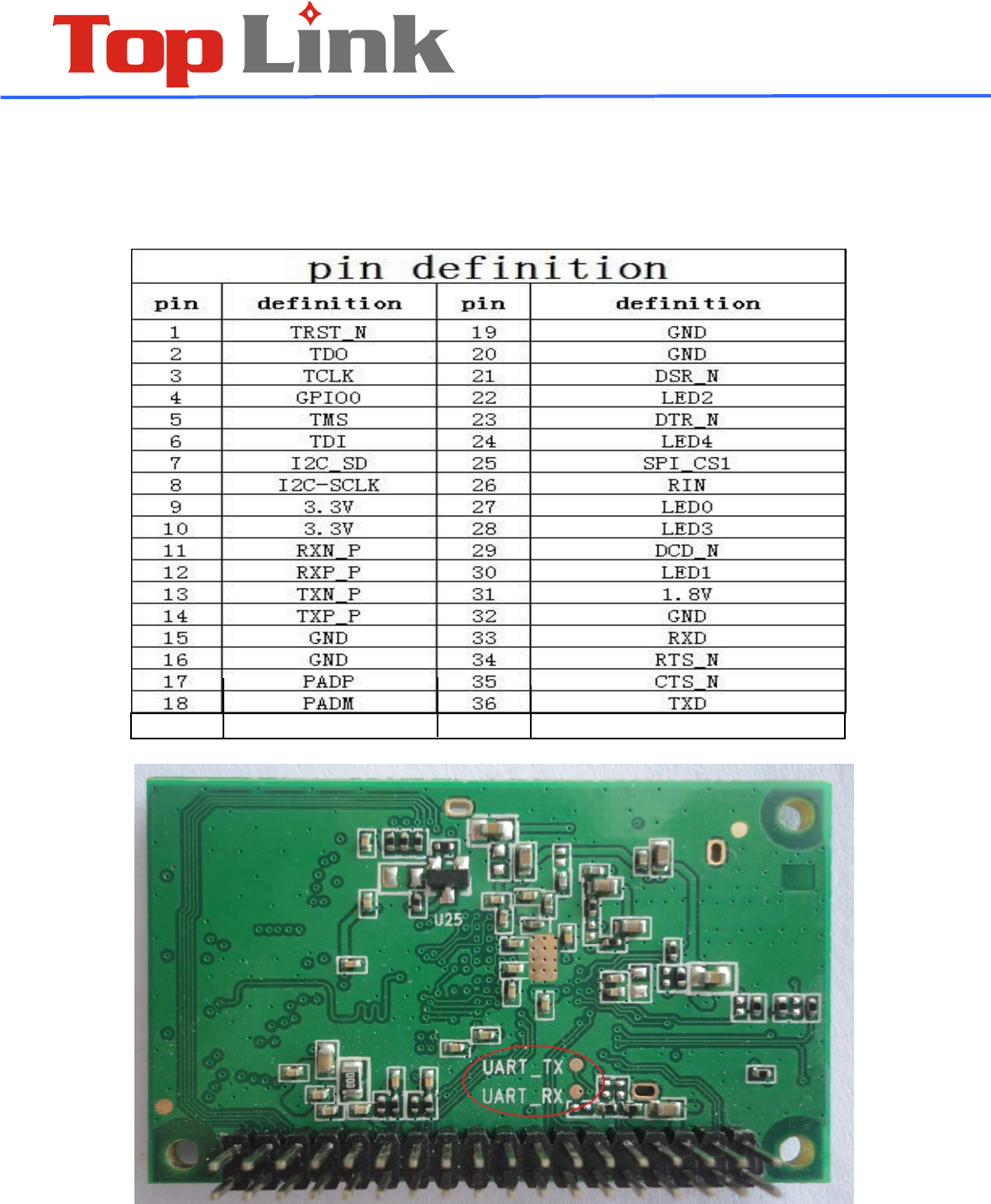

7. PIN DEFINITION
can be used as a serial port debugging use
Note: the red oval tag is the UART serial port TX and UART RX two test points
37 38
GND AMCLK
TOP-AP01-38pin
TOP-AP01-52pin
.Antenna And Interface Connection Information
Interface and the antenna have the option
.Product ordering information
TOP-AP01 only support 802.11b/g/n, 3.3V and 1.8V voltage support
And pls mark clearly your need
about antenna and voltage support
information.
8
9
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modi?cations to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
(2) this device must accept any interference received, including interference that
may cause undesired operation.
following two conditions:
(1) This device may not cause harmful interference
To comply with FCC RF exposure compliance requirements,this grant isapplicable to only mobile
configurations. The antennas used for this transmittermust be installed to provide a
separation distance of at least 20 cm from allpersons and must not be co-located or operating in
conjunction with any otherantenna or transmitter.
