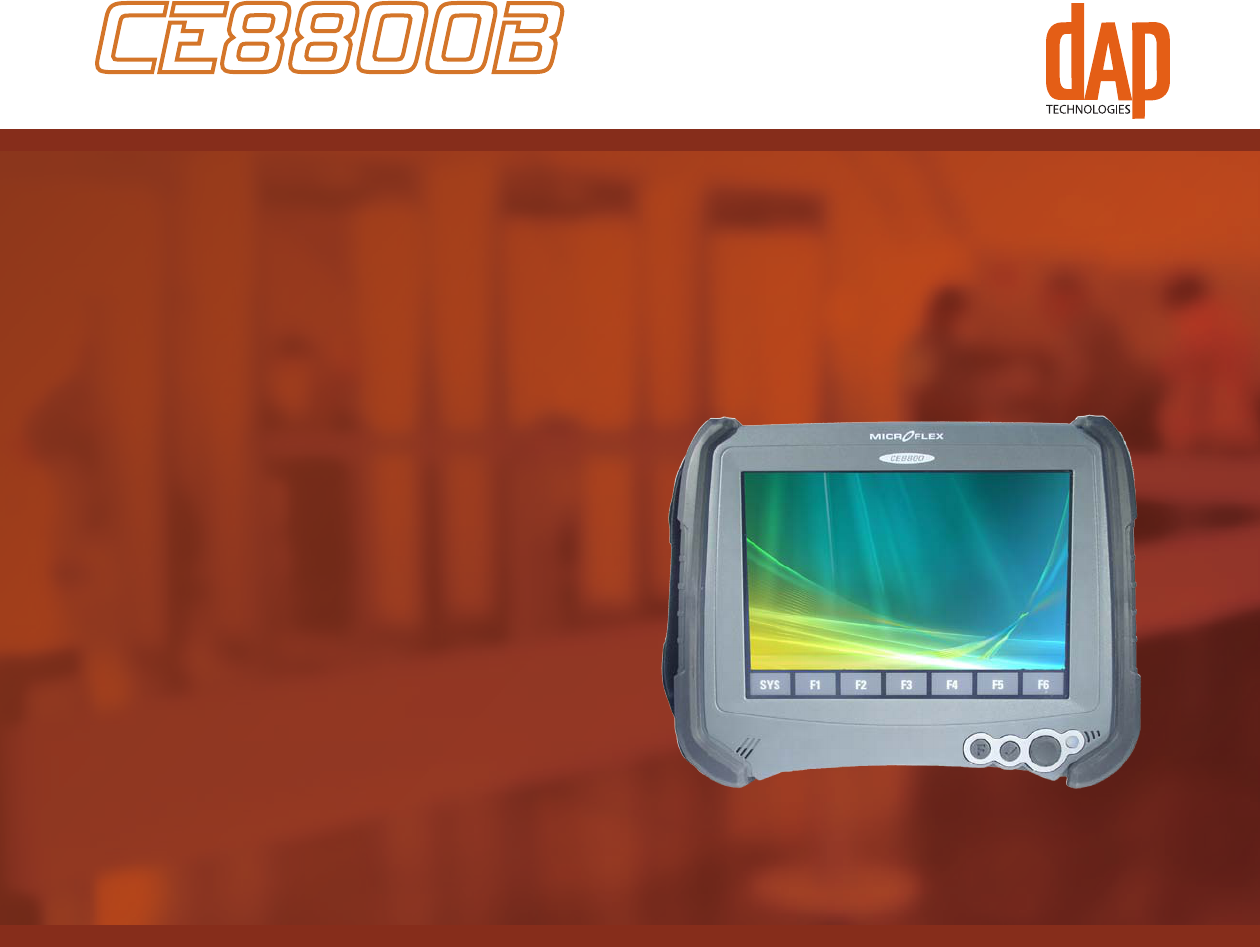

CE8800B
The 8800B Series will not let you down: it is designed to work in extreme condions, and is heat, cold, wet,
shock and dust resistant. Your in-eld workers will remain producve – and your costs under control – when
you rely on this tough and reliable tablet.
Featuring a large full-color display with superb contrast and brightness, on-screen images remain clear both
indoors or out. Data entry through an on-screen keyboard plus remote data transfer capability means workers
have real-me access to crical informaon – anyme and anywhere.
A range of oponal peripherals and accessories are
available with the 8800B Series, including sealed RJ45,
DB9 (RS232) and USB host connectors, integrated
1D and 2D barcode reader (CMOS imager), 1D laser
barcode scanner, and desktop and vehicle cradles. The
opons allow the system to be customized to meet
a wide range of industry requirements. The CE8800B
also includes integrated PC Card and SDIO slots which
allow for added memory or oponal peripheral
devices.
The 8800B Series features the Xscale (Bulverde) processor 520 (MHz) which provides increased speed to enhance eld
performance and eecveness.With the Windows CE 5.0 Operang System, the 8800B Series enables users to ulize
essenal applicaons including Image and Video Viewer, Handwring Recognion, Playback/Recording Program, and
many more. The 8800B Series provides ample storage and memory – 128 MB Storage Flash and 128 MB SRAM, with
oponal addional storage via the PC Card and SDIO slot.
The 8800B Series oers two display variaons to accommodate your eld applicaon needs: a 7.2” VGA STN transecve
color LCD display with backlighng or a 7” WVGA TFT color display with transmissive LCD.Both provide a resisve touch
panel with built-in funcon keys.
Staying producve in the eld is made easy with a 2400 mAH Lithion-Ion. Baery (fast swappable) which provides full
shi operaon under demanding work condions.
The 8800B Series is rated IP67 (sealed against immersion) to provide ultimate ruggedness in all environments and
meeting MIL-STD-810F standards for humidity, rain, immersion, and free fall drops.
Outstanding reliability and durability in the toughest environments
www.daptech.com
United States
RMT
7450 S. Priest Dr
Tempe, AZ 85283 USA
P| 480.705.4200
salesNA@daptech.com
United Kingdom
25 Nueld Way
Abingdon, OX14 1RL
England
P| +44 (0) 1235 462130
F| +44 (0) 1235 462131
SalesUK@daptech.com
Canada
875 Charest Boulevard West
Suite 200
Quebec City, QC G1N 2C9
P| 418.681.9394
P| 1.800.363.1993
F| 418.681.0799
salesNA@daptech.com
© 2009 DAP Technologies Ltd. DAP Technologies reserves the right to change product specicaons without noce. Color display images and models shown may vary slightly from actual display. Windows and the Microso
Windows logo are trademarks or registered trademarks of Microso Corporaon. All rights reserved.
www.ropermobile.com
CE8800B
Base System
Processor
• XScale (Bulverde) – PXA270, 520 MHz
Operang System
• Windows CE 5.0
Memory
• 256 MB Storage Flash for WIN CE and le system
(approximately 192 MB available to user)
• 128 MB SRAM (approximately 64 MB used for OS)
• Oponal: Addional storage via PCMCIA/CF Flash cards
and USB connected memory devices and SD Memory Flash Cards
Display
8810B
• 7.2” VGA (640 x 480 pixels) STN transecve color LCD with backlighng
• Resisve touch panel with built-in funcon keys
8820B
• 270 nit, 7” WVGA (800 x 480 pixels) color TFT, transmissive LCD
Connecvity
Ethernet 10BaseT
Wireless Edion adds Bluetooth Class 2 and 802.11 b/g
Graphics / Sound
Integrated and environmentally sealed speaker
Recording and playback fully supported by Windows CE operang system
Oponal: Integrated and environmentally sealed microphone and headset connector
User Interface
Touch Screen
Keyboard
• On-screen alpha keyboard can be called by applicaon soware or from WIN CE desktop
• Programmable audible feedback
• 6 user determined funcon keys on touch panel plus 1 system key
• 3 keys on case molding (funcon, cursor control, accept/ enter)
• Soware controllable trigger on underside of case molding
Ports
PC Card Type II (CF Card via adaptor)
1 Secure Digital (SD or SDIO) slot
Serial RS232 and USB client via cradle
or Serial RS232 and Ethernet via cradle
Ethernet 10BaseT, 10Mbps
Expansion Bay
Addional space for integraon of custom electronics for specic applicaons
• Mul-funcon connector, serial, USB I/O, ect.
• Serial port RS232 on LEMO Type Connector
Environment
Temperature:
• Operang: -4°F to +122°F (-20°C to +50°C)
• Storage: -40°F to +140°F (-40°C to +60°C) with baery
• Storage: -40°F to +158°F (-40°C to+70°C) without baery
Display refresh cycle may decrease
Free Fall Drop Resistance:
• Meets and exceeds: IEC 68-2-32 method 1 (1.2 meter drop onto concrete)
• Meets and exceeds: MIL-STD-810F method 516.5 procedure IV
Immersion, Rain and Humidity:
• MIL-STD-810F method 512.4 procedure I
• IP67 (1 meter immersion)
• MIL-STD-810F method 506.4 procedure I (wind blown rain)
Humidity: 95% non-condensing
Electrostac Discharge
• Meets: EN 61000-4-2
Power Supply
Rechargeable 2400 mAh Lithium-Ion baery (fast swappable)
Integrated charge status and low-baery indicator
Intelligent fast charge
Power gauge to monitor the main baery
Rechargeable backup baery
ON/OFF switch, manual and automac shuto
12V DC Power jack on casing for power input and baery charging in addion to cradle recharge
5 Volt power for external devices
Dimensions
9.05” (230 mm) x 7.28” (185 mm) x 2.12” (50 mm) for the CE8810B
9.05” (230 mm) x 7.28” (185 mm) x 2.36”(60 mm) for the CE8820B
2.76 lbs (11250 g) with baery pack
Opons and Accessories
Sealed RJ45 connector on case molding for 10BaseT Ethernet
Sealed DB9 (RS232) and USB host connectors
Integrated 1D and 2D barcode reader (CMOS imager)
Integrated 1D laser barcode scanner
Various desktop and vehicle communicaons and charging cradles
Bundled / Available Soware
Microso AcveSync
FTP client/server
CE Internet Explorer and Viewers for Word®
Excel®, PowerPoint® and PDF les
Microso® Outlook®• Microso® Windows Media® Player
Terminal Services Client
Image and video viewer
Voice Recorder
Approvals
FCC class B
CE Cercaon
RoHS compliant
Class B 21 CFR Chapter I, Subpart J, Part 1040.10 (Laser Barcode Scanner)
IEC 60825-1: 1993+A1: 1997 + A2: 2001 (Class 2 Laser Product)
Warranty
Manufacturer’s warranty: 1 year parts and labor
Oponal DapCare warranty extension available
SP0804-A1
