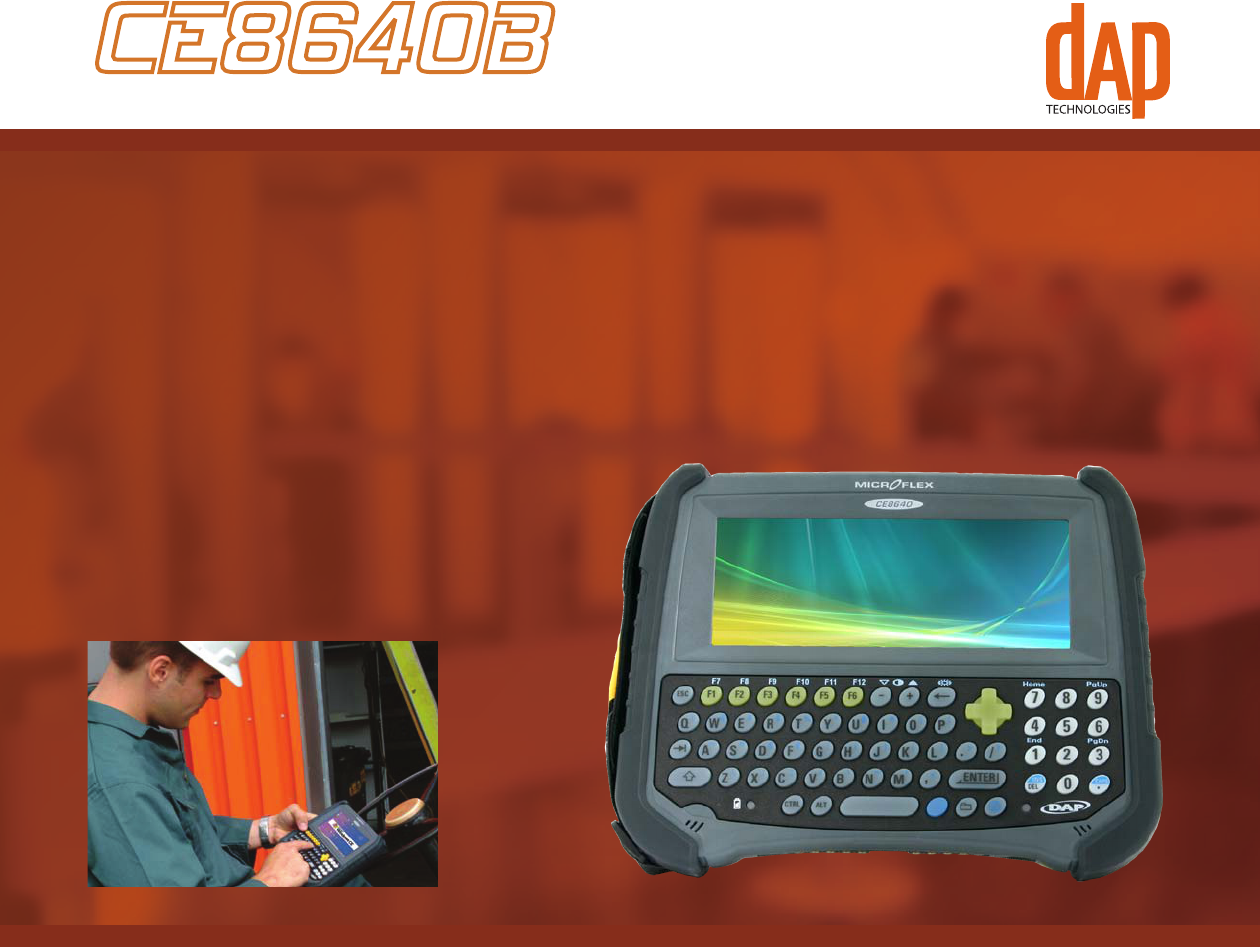

CE8640B
A range of oponal accessories are oered with the CE8640B (sealed RJ45, DB9 (RS232) and USB host connec-
tors, integrated 1D and 2D barcode reader (CMOS imager), 1D laser barcode scanner, and desktop and vehicle
cradles), consequently allowing the unit to be customized and built to all industry requirements.
Integrated into the CE8640B are a PC Card and SDIO slot allowing for added memory or oponal peripheral
devices.
Staying producve in the eld is made easy with a 2400 mAH Lithion-Ion baery (fast swappable) which pro-
vides 2 to 4 working days under typical environments.

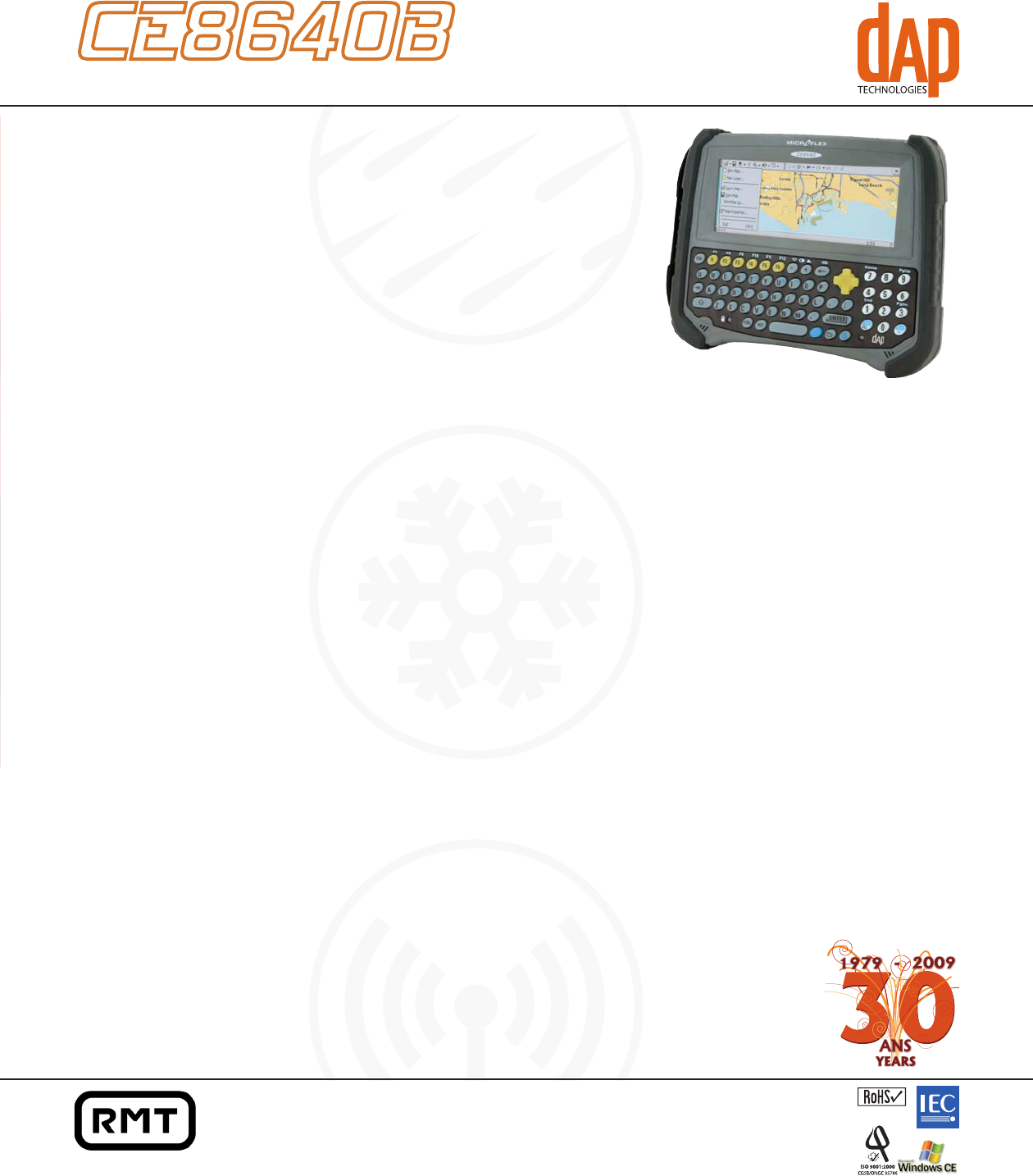

The CE8640B provides ulmate ruggedness
in all environments, being rated IP67 (sealed
against immersion) and meeng MIL-STD-810F
standards for humidity, rain, immersion, and
free fall drops.
Extend the reach of your handheld from the eld by choosing the Wireless Edion (Bluetooth, 802.11b/g).
Featured with the Xscale (Bulverde) processor (520 MHz), the CE8640B provides increased speed to enhance
eld performance and eecveness. Fied with Windows CE 5.0 Operang System, the CE8640B will allow you
to ulize essenal applicaons.
Memory storage for your data is assured with the CE8640B – 256 MB Storage Flash and 128 MB SRAM, with
oponal addional storage via the PC Card and SDIO slot.
With a 1/2 VGA color LCD (STN transecve) touch screen display, users can view applicaons in various light-
ing environments whether indoors or outdoors.
The CE8640B oers a highly rugged 64-key keypad (QWERTY or AZERTY) that allows for easy data-entry even
when used with gloves.
www.daptech.com
United States
RMT
7450 S. Priest Dr
Tempe, AZ 85283 USA
P| 480.705.4200
salesNA@daptech.com
United Kingdom
25 Nueld Way
Abingdon, OX14 1RL
England
P| +44 (0) 1235 462130
F| +44 (0) 1235 462131
SalesUK@daptech.com
Canada
875 Charest Boulevard West
Suite 200
Quebec City, QC G1N 2C9
P| 418.681.9394
P| 1.800.363.1993
F| 418.681.0799
salesNA@daptech.com
© 2009 DAP Technologies Ltd. DAP Technologies reserves the right to change product specicaons without noce. Color display images and models shown may vary slightly from actual display. Windows and the Microso
Windows logo are trademarks or registered trademarks of Microso Corporaon. All rights reserved.
www.ropermobile.com
CE8640B
Base Unit
Processor
• XScale (Bulverde) – PXA270, 520 MHz
Operang System
• Windows CE 5.0
Memory
• 256MB Storage Flash for WIN CE and le system
( approximately 192 MB available to user)
• 128 MB SRAM (approximately 64 MB used for OS)
• Oponal: Addional storage via PCMCIA/CF Flash cards
and USB connected memory devices and SD Memory Flash Cards
Display
1/2 VGA (6.5”) STN transecve color LCD with backlighng
Indoor/Outdoor color display
Automac contrast temperature compensaon
Scratch and shock resistant touch screen can be used with a stylus or nger
Available with the ULTIVUE display for enhanced performance in sunlight
Connecvity
Ethernet 10BaseT
Wireless Edion adds Bluetooth Class 2 and 802.11 b/g
Graphics / Sound
Integrated and environmentally sealed speaker
Recording and playback fully supported by Windows CE operang system
Oponal: Integrated and environmentally sealed microphone and headset connector
User Interface
Touch Screen
Keyboard
• Highly resistant 64-key keypad (QWERTY or AZERTY)
CE desktop
• Dedicated funcon keys
• Large independent numeric keypad and funcon keys
• Keyboard backlight
• Ergonomic key grouping to speed up data entry
• Tacle and programmable audible feedback
• Soware controllable trigger on underside of case molding
Ports
PC Card Type II (CF Card via adaptor)
1 Secure Digital (SD or SDIO) slot
Serial RS232 and USB client via cradle
or Serial RS232 and Ethernet via cradle
Ethernet 10BaseT, 10Mbps
Expansion Bay
• Addional space for integraon of custom electronics for specic applicaons
• Mul-funcon connector, serial, USB I/O, etc.
• Serial port RS232 on LEMO Type Connector
Environment
Temperature:
• Operang: -4°F to +122°F (-20°C to +50°C)*
• Storage: -22°F to +140°F (-30°C to +60°C) with baery
• Storage: -22°F to +158°F (-30°C to+70°C) without baery
* Display refresh cycle may decrease
Free Fall Drop Resistance:
• Meets and exceeds: IEC 68-2-32 method 1 (1-meter drop onto concrete)
• Meets and exceeds: MIL-STD-810F method 516.5 procedure IV
Immersion, Rain and Humidity:
• MIL-STD-810F method 512.4 procedure I
• IP67 (1 meter immersion)
• MIL-STD-810F method 506.4 procedure I (wind blown rain)
• Humidity: 95% non-condensing
Electrostac Discharge
• Meets: EN 61000-4-2
Power Supply
Rechargeable 2400 mAh Lithium-Ion baery (fast swappable)
Integrated charge status and low-baery indicator
Intelligent fast charge
Power gauge to monitor the main baery
Rechargeable backup baery
ON/OFF switch, manual and automac shuto
12V DC Power jack on casing for power input and baery charging in addion to cradle recharge
5 Volt power for external devices
Dimensions
9.05” (230 mm) x 7.28” (185 mm) x 1.97” (50 mm)
2.43 lbs (1100 g) with baery pack
Opons and Accessories
Sealed RJ45 connector on case molding for 10BaseT Ethernet
Sealed DB9 (RS232) and USB host connectors
Integrated 1D and 2D barcode reader (CMOS imager)
Integrated 1D laser barcode scanner
Various desktop and vehicle communicaons and charging cradles
Bundled / Available Soware
Microso AcveSync
FTP client/server
CE Internet Explorer and Viewers for Word®
Excel®, PowerPoint® and PDF les
Microso® Outlook®• Microso® Windows Media® Player
Terminal Services Client
Image and video viewer
Voice Recorder
Approvals
FCC class B
CE Cercaon
RoHS compliant
Class B 21 CFR Chapter I, Subpart J, Part 1040.10 (Laser Barcode Scanner)
IEC 60825-1: 1993+A + A1: 1997 + A2
Warranty
Manufacturer’s warranty: 1 year parts and labor
Oponal DapCare warranty extension available
SP0803-A4
