v
Preface
This manual contains information that will help you operate this rugged
Tablet Computer. It is divided into six chapters and two appendices.
Chapter 1: Getting Started, takes you through the process of setting up
your Tablet Computer and identifying its external components.
Chapter 2: Operating Your Tablet Computer, tells you how to use the
Tablet Computer’s components and features.
Chapter 3: Connecting Your Tablet Computer, provides information on
installing and using peripheral devices.
Chapter 4: Managing Power, provides information on power
management.
Chapter 5: Expanding Your Tablet Computer, provides information
on installing and using optional accessories, such as docking stations,
expansion modules, etc.
Chapter 6: Using BIOS Setup and System Recovery, describes the
system recovery utility that reinstalls Windows to the Tablet Computer.
Appendix A
for your Tablet Computer, and gives solutions to common problems you
may encounter when using the Tablet Computer.
Appendix B, provides regulatory information and safety notices on your
Tablet Computer.
vi
Notational Conventions
Throughout this manual, the following conventions are used to distinguish
elements of text.
NOTE:
CAUTION:
Hardware and keyboard keys are shown in a bold typeset. For example:
Press the F1 key to complete.
A title, command, setup item, value, option, or button that you can see on the
screen is shown in boldface. For example:
Select When I press the power button, set it to Shut down, and then tap
the Save changes button.
1-1Getting Started
CHAPTER 1
Congratulations on purchasing this rugged Tablet Computer. The rugged design
allows you to use it in harsh outdoor environments. You can use it under blazing
heat, subzero cold, driving rain or dusty surroundings – places you could not
take a consumer-grade Tablet Computer.
This chapter tells you step by step how to get the Tablet Computer up and
Unpacking
Device Overview (An Explanation of External Components and their
Functions)
Installing the Stylus
Installing the SIM Card
Installing Battery Packs and Connecting to AC Power
Turning the Tablet Computer On and Off
Getting Started
1-2 Getting Started
Unpacking

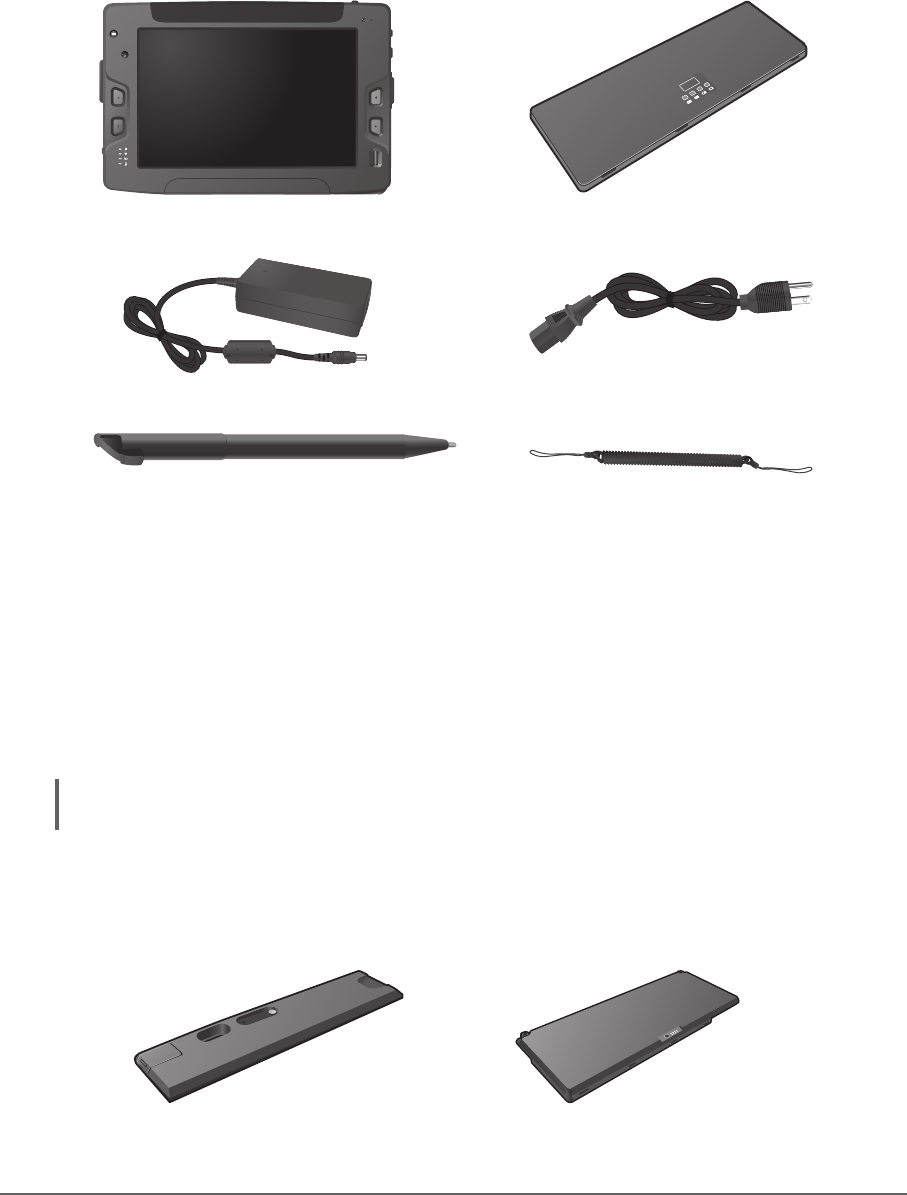

Inspect all items. If any item is damaged or missing, notify your dealer
immediately.
2.0 MP
Keep the shipping carton and packaging materials in case you need to ship or
store the Tablet Computer in the future.
NOTE:
Optional Items
1-3Getting Started
Device Overview

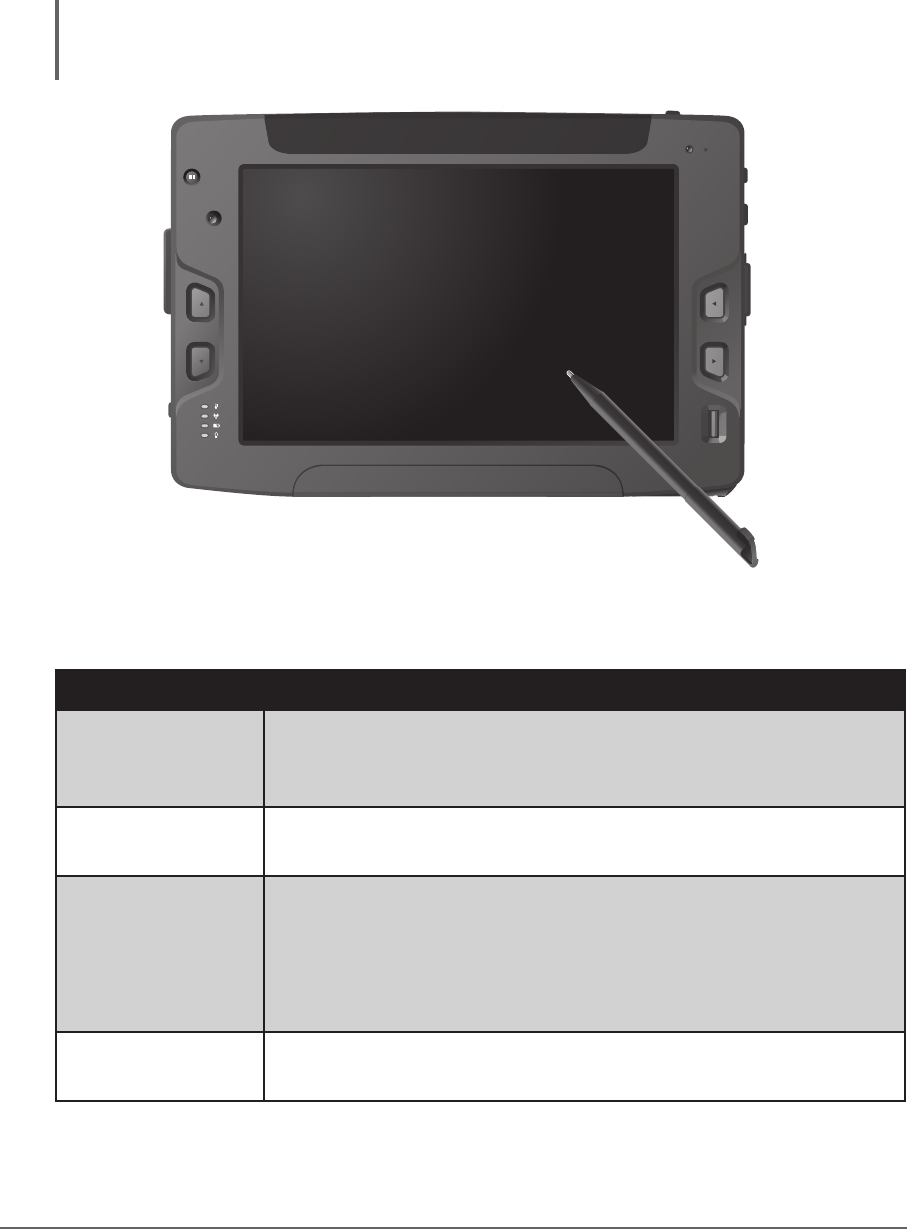

Front View
2. 0 MP
2
6
7
8
9
10
11
3
1
5
4

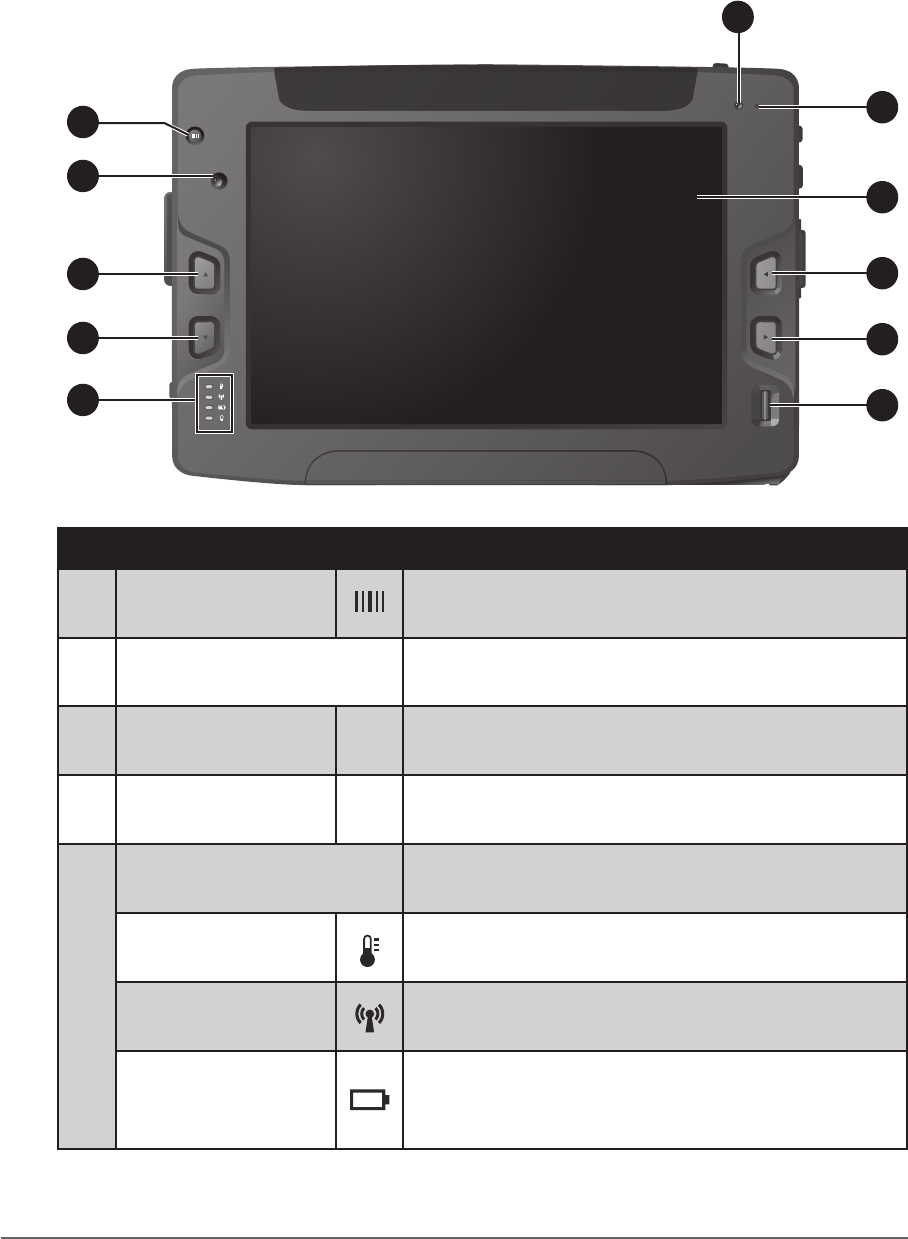

No. Item Description
1Barcode Scanner
Button
Press to activate the barcode scanner located
on the top left corner of the Tablet Computer.
2 Web Camera Use for video chatting and other interactive
applications.
3 Up Key On menu selection, moves the cursor up or
increases a value.
4 Down Key On menu selection, moves the cursor down
or decreases a value.
5
LED Indicators Shows the current status of the Tablet
Computer.
Thermal Lights up when the Tablet Computer
temperature is too high.
Wireless Solid green: Wireless antenna is enabled.
Off: Wireless antenna is disabled.
Battery
Blinking green: Battery is charging
Solid greeen: Battery is fully charged.
Blinking red: Battery power is low.
1-4 Getting Started
No. Item Description
5 Power
Solid green: Tablet computer is turned on
Blinking green: Tablet computer is in
sleep mode.
Off: Tablet computer is turned off.
6 Ambient Light Sensor Adjusts the screen brightness according to
the current ambient light.
7 Microphone Use for chatting and other interactive
applications.
8 Touch Screen Displays and receives information for the
Tablet Computer.
9 Left Key On menu selection, moves the cursor to the
left or decreases a value.
10 Right Key On menu selection, moves the cursor to the
right or increases a value.
11 Fingerprint Reader
purposes.
1-5Getting Started
Rear View (Standard Model)
5.0MP
AF
5
1
5
4
9
2 3
6
6
7
8

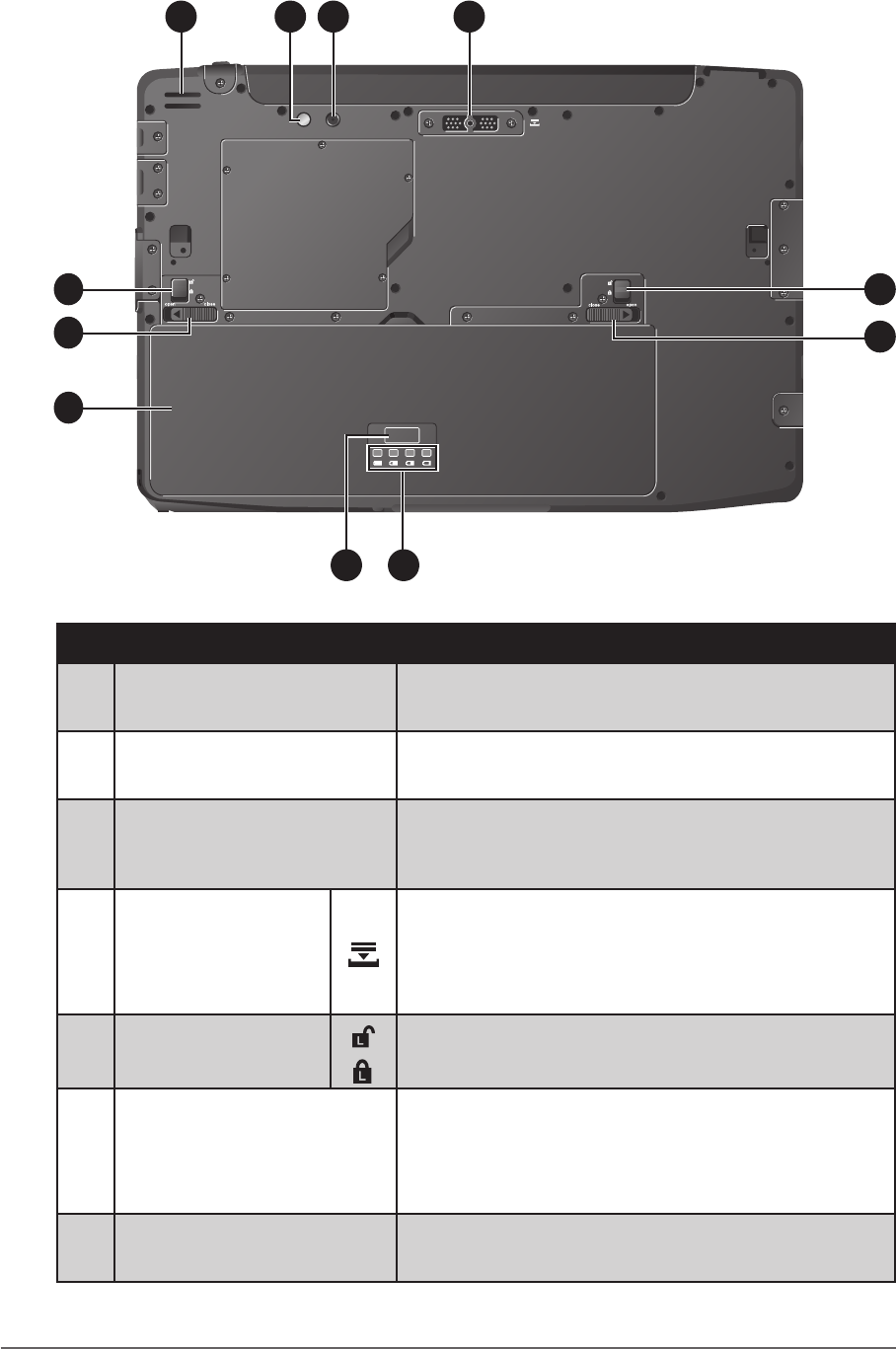

No. Item Description
1 Speaker Sends out sound and voice from your Tablet
Computer.
2 Camera Flash
camera.
3 CMOS Camera Allows you to use the camera features.
4 Expansion Port
Connects to expansion modules, such as an
RFID Reader, Smart Card Reader, etc.
Note:
5 Battery Lock Slide up to unlock the battery latch.
Slide down to lock the battery latch.
6 Battery Latch
Slide inward to latch the battery pack to the
Tablet Computer.
Slide outward to unlatch the battery pack
from the Tablet Computer.
7 Battery Pack Supplies power to your Tablet Computer
when external power is not connected.
1-6 Getting Started
No. Item Description
8 Battery Button
Press the button to light the battery status
LEDs. The LEDs automatically go off after 5
seconds.
9
Battery Status LEDs Shows the battery capacity.
Battery full
Battery charged
Battery half charged
Battery low
1-7Getting Started

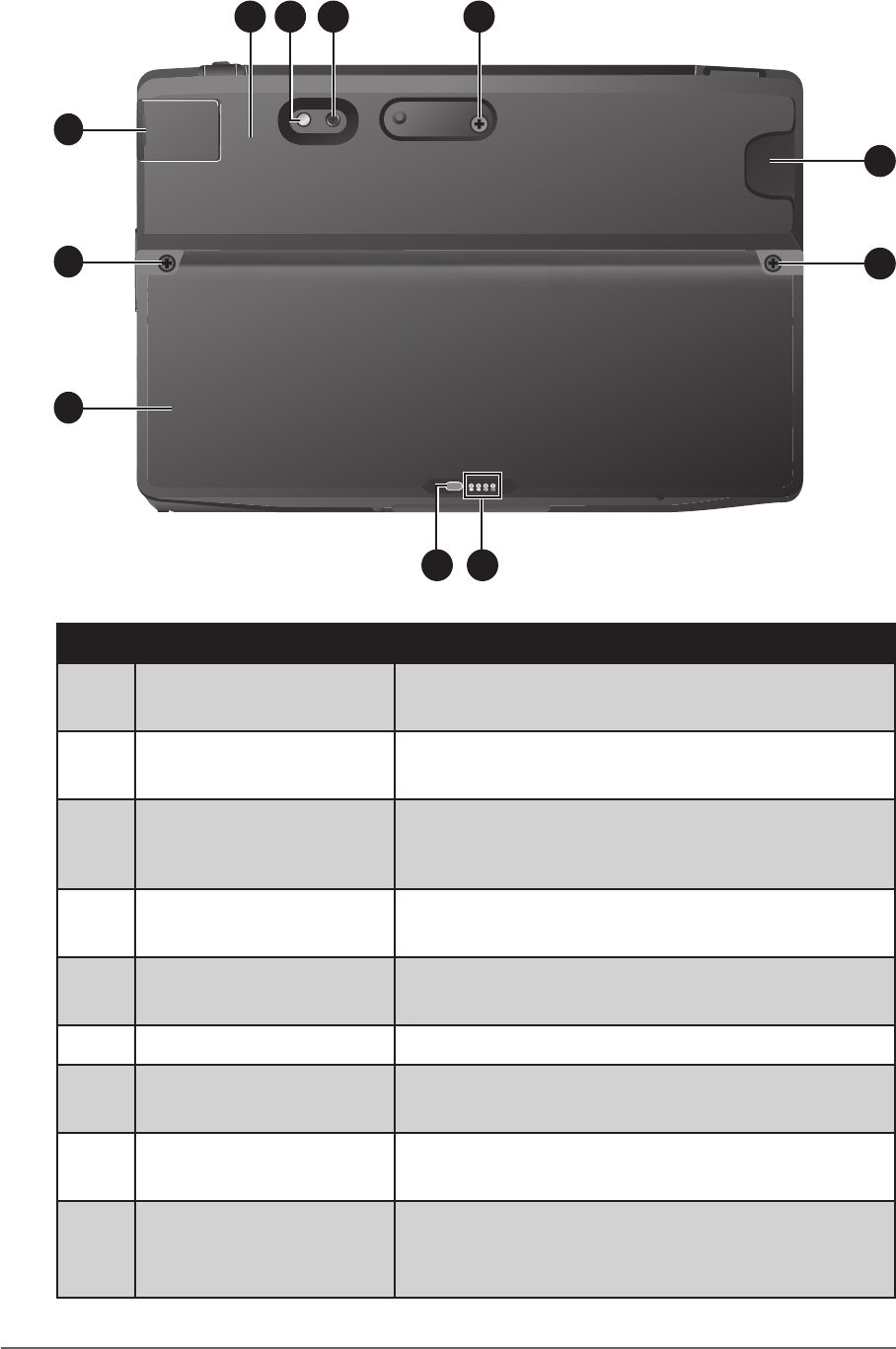

Rear View (Expanded Model)
7
1
7
4
10
2 3
8
9
6
5
No. Item Description
1 Expansion Module Provides additional features for the Tablet
Computer.
2 Camera Flash
camera.
3 CMOS Camera Allows you to use the camera features.
4 Expansion Module
Screw
Secures the expansion module to the Tablet
Computer.
5 4G SIM Card Slot Stores a 4G SIM card which provides 4G data
network capability to the Tablet Computer.
6 Smart Card Reader Reads smart cards.
7 Battery Screws Secures the extended battery pack to the
Tablet Computer.
8 Extended Battery Pack Supplies power to your Tablet Computer when
external power is not connected.
9 Battery Button
Press the button to light the battery status
LEDs. The LEDs automatically go off after 5
seconds.
1-8 Getting Started
No. Item Description
10 Battery Status LEDs Shows the battery capacity.
Battery full
Battery charged
Battery half charged
Battery low
1-9Getting Started
Top and Bottom View
1 3
Bottom View
Top View
4 5 6 7
2
No. Item Description
1 Audio Connector Connects to a set of headphones, external
speakers, or an audio recording device.
2 Antenna Receives and transmits wireless signals.
WARNING: It is highly recommended not to use
your Tablet Computer upside down.
3 Barcode Reader Reads barcodes.
4 SIM Card Slot Stores the SIM card which provides 3G data
connection to your Tablet Computer.
5 Docking Connector Connects to a docking station (optional).
6 Stylus Holder Stores the stylus.
7 Stylus Pull to release the stylus from the holder.
1-10 Getting Started

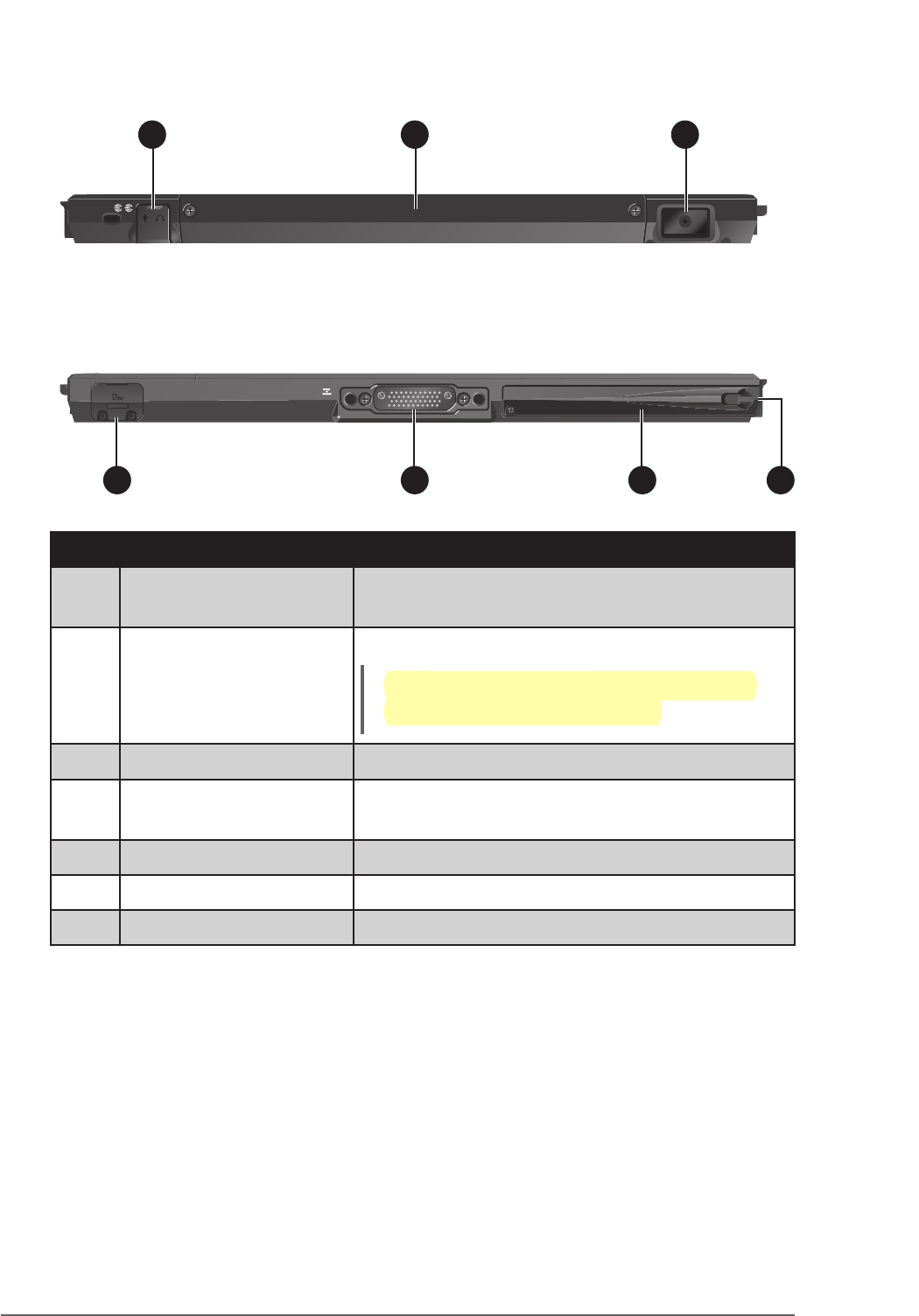

Left and Right Views
1
Left View Right View
2
3
4
5
6
7
No. Item Description

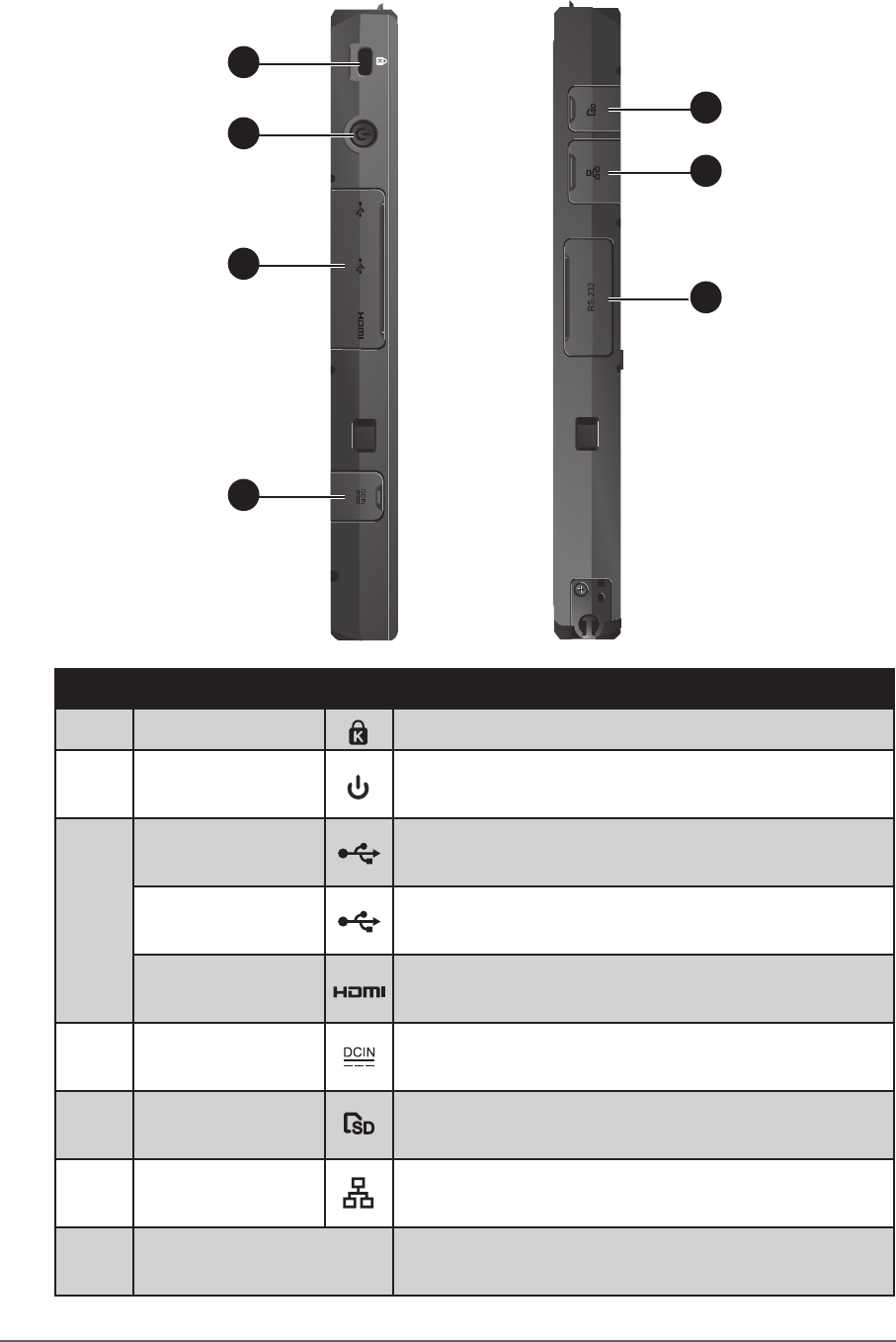

1 Kensington Lock Provides lock mechanism security.
2 Power Button Short press to enable sleep mode.
Long press to turn the Tablet Computer off.
3
USB Port Connects to a USB device, such as a USB
Mini USB Port Connects to a USB device, such as a
computer, printer, scanner, etc.
HDMI Connector
(Type D)
Connects to an HDMI device such as an
external monitor.
4Power
Connector Connects to the AC adapter.
5Memory Card
Slot
Stores the microSD card for additional
storage.
6 Ethernet Port Connects to a LAN jack for network
connection.
7 RS232 Port Connects to a serial device, such as a
scanner, printer, etc.
1-11Getting Started
Installing the Stylus
Your Tablet Computer comes with a stylus for use with the touch screen.
The stylus holder at the bottom of the Tablet Computer provides a convenient
place to store the stylus.

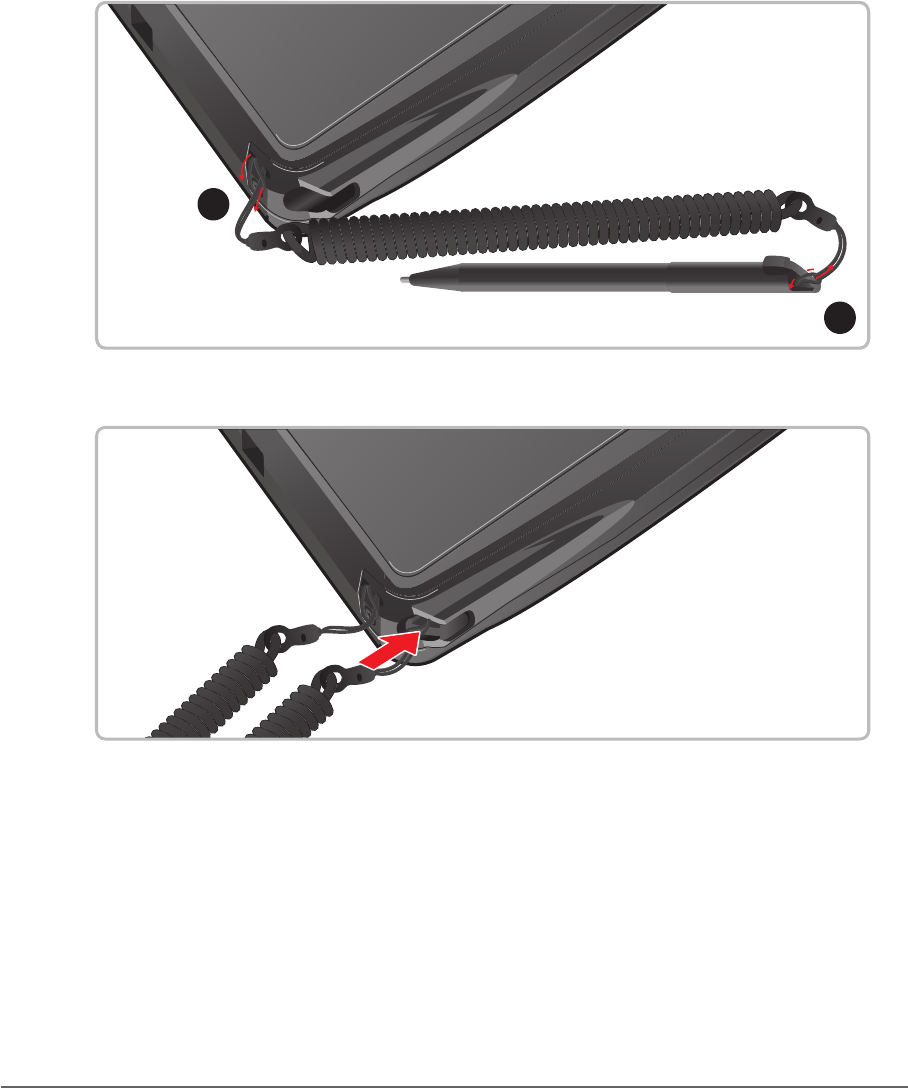

Perform the following to prepare and install the stylus to your Tablet Computer:
1. Loop one end of the tether to the stylus eyelet.
2. Loop the other end of the tether to the Tablet Computer eyelet.
2
1
3. Insert the stylus into the stylus holder until it locks into place.
Removing the Stylus
Pull the stylus by its tab to remove it from the stylus holder.
1-12 Getting Started
Installing the Memory Card
provides additional storage space for the Tablet Computer.
Perform the following to install a microSD card to your Tablet Computer:

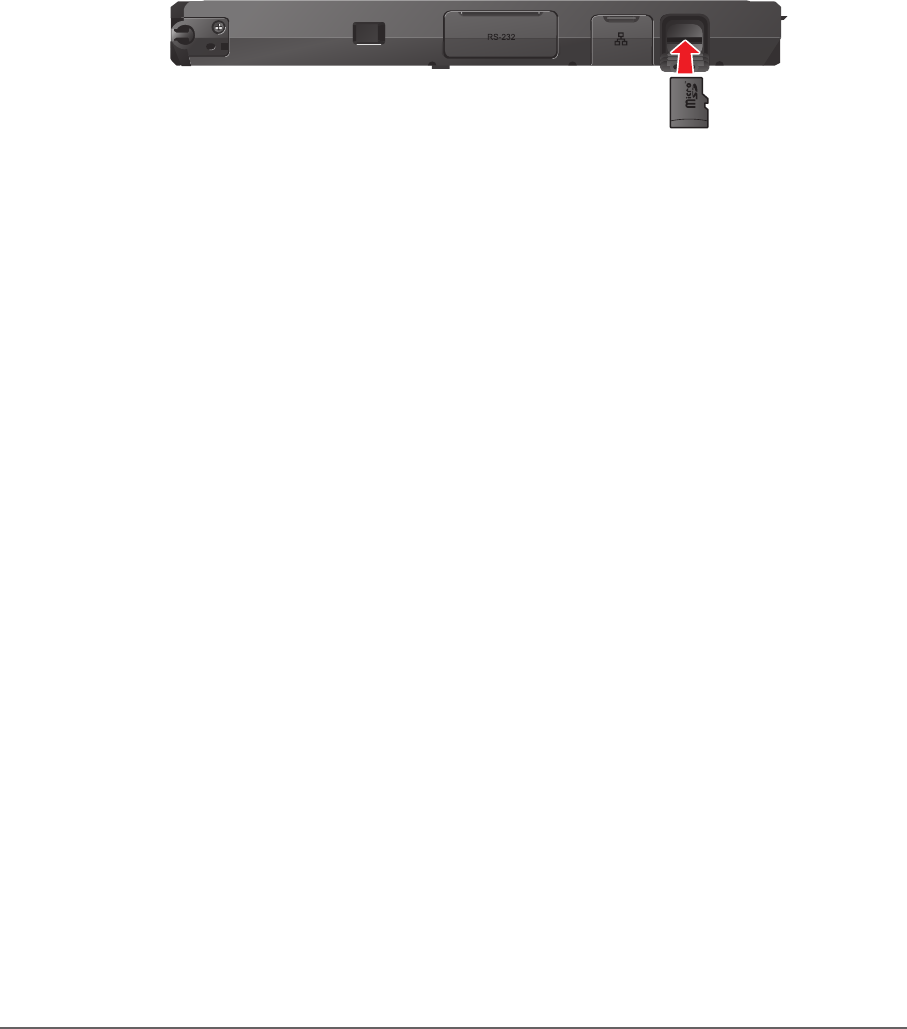

1. On the right side of the Tablet Computer, open the memory card slot cover.
2. Insert the microSD card with the gold contacts facing down.
3. Push the microSD card until it clicks into place.
4. Close the SIM card slot cover.
Removing the Memory Card
1. Perform Windows procedures on safely removing removable drives from
the Tablet Computer.
2. On the right side of the Tablet Computer, open the memory card slot cover.
3. Push the microSD card to eject it from the slot.
4. Pull to remove the microSD card.
1-13Getting Started

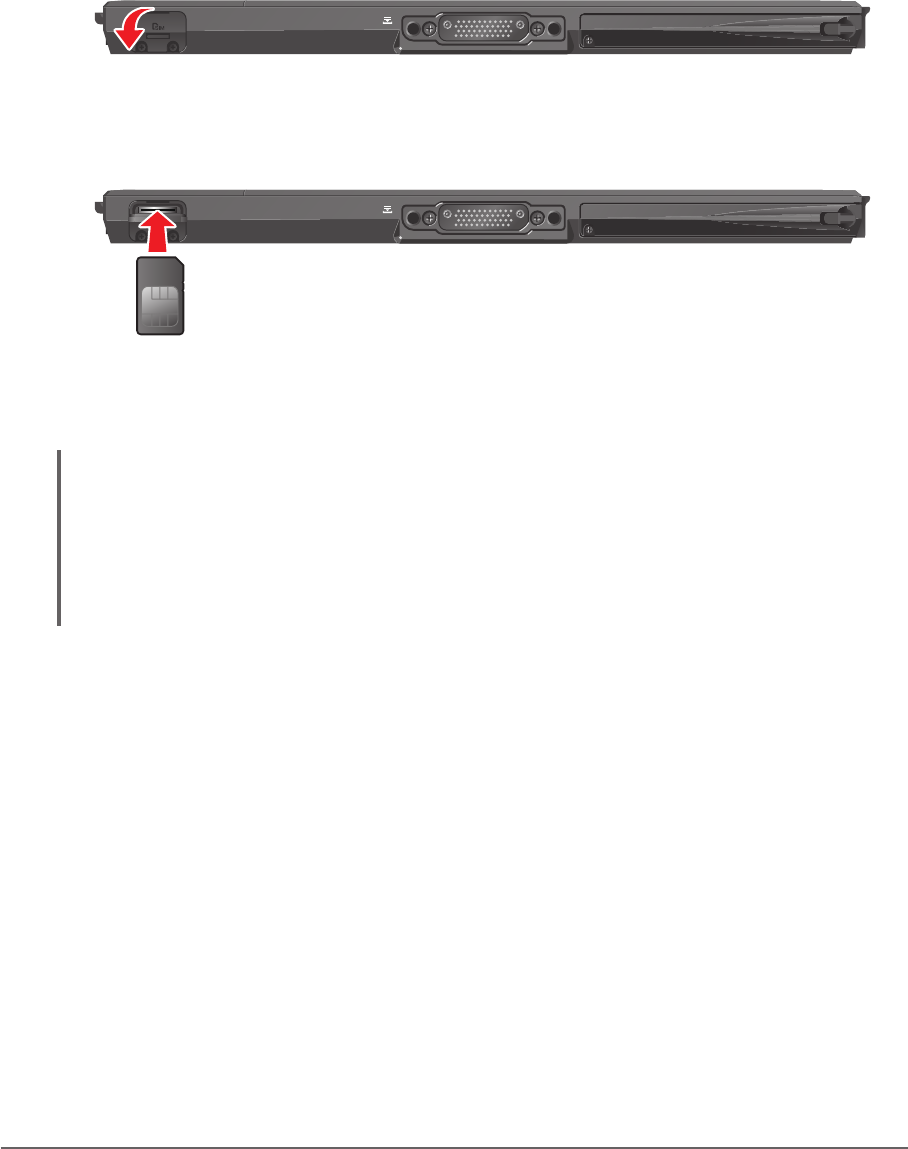

Installing the SIM Card
The Tablet Computer supports data connection using 3G SIM cards.
Perform the following to install the SIM card to your Tablet Computer:
1. Make sure the Tablet Computer is turned off.
2. On the bottom side of the Tablet Computer, open the SIM card slot cover.
3.
facing the front of the device.
4. Push the SIM card until it clicks into place.
NOTE:
Removing the SIM Card
1. Turn the Tablet Computer off (see “Turning Off” on page 1-18).
2. On the bottom side of the Tablet Computer, open the SIM card slot cover.
3. Push the SIM card to eject it from the slot.
4. Pull to remove the SIM card.
1-14 Getting Started

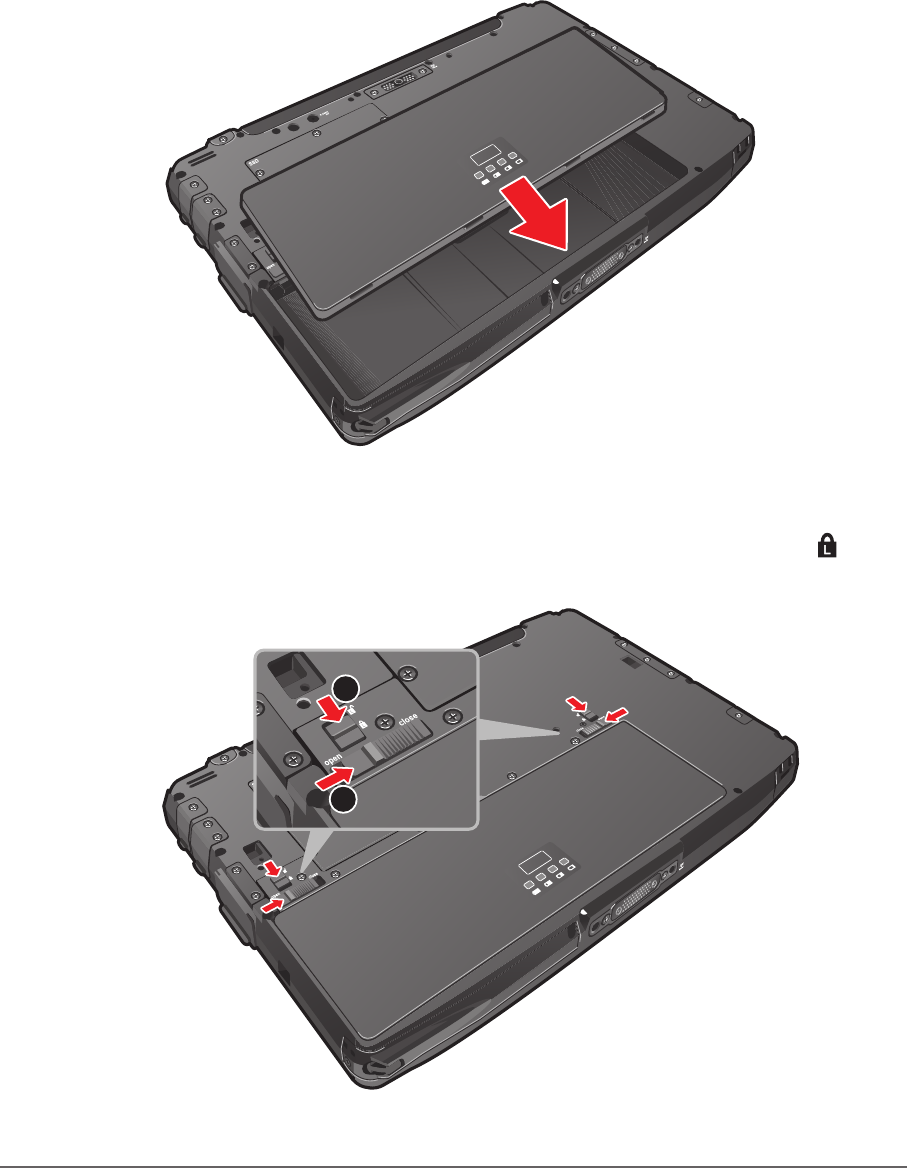

Installing the Battery Pack
Perform the following to install the battery pack to the Tablet Computer.
1.
2. From the bottom side of the battery pack, align and place the battery pack
on its bay.
3. Slide the battery latches inward to the “close” position (A).
4. For a more secured installation, slide the battery locks to the lock ( )
position (B).
A
B
1-15Getting Started
Connecting to Network
The Tablet Computer can connect to a local area network or the Internet via
wired or wireless connection (see “Using Wireless LAN” on page 2-7).
To connect the Tablet Computer via wired connection, perform the steps below:

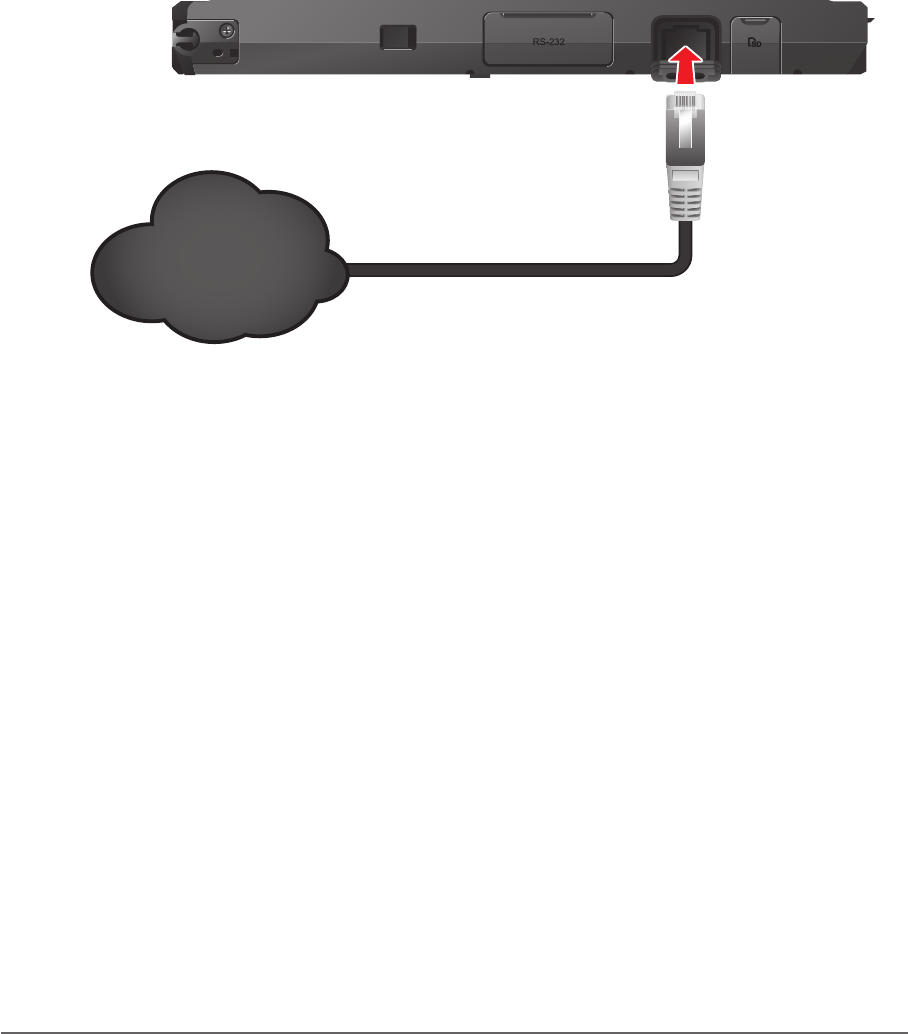

1. On the right side of the Tablet Computer, open the network port cover.
2. Connect one end of an Ethernet cable to the Ethernet port of the Tablet
Computer.
3. Connect the other end to a wall socket or a network hub.
Network
1-16 Getting Started
Connecting to AC Power
The Tablet Computer operates either on the external AC power or internal
battery power. It is recommended to use AC power when you start up the Tablet
CAUTION:
Perform the following to connect the Tablet Computer to AC power:
1. On the left side of the Tablet Computer, open the power connector cover.
2. With the battery pack installed, plug the DC cord of the AC adapter into the
power connector of the Tablet Computer.
3. Plug the female end of the AC power cord into the AC adapter.
4. Then plug the male end of the AC power cord into an electrical outlet.
1
2
3
When the AC adapter is connected, the battery pack is charging. The
battery LED indicator ( ) shows shows three different states:
Blinking green: Battery is charging
Solid greeen: Battery is fully charged.
Blinking red: Battery power is low.
1-17Getting Started
CAUTION:
Turning the Tablet Computer On and Off
Turning On

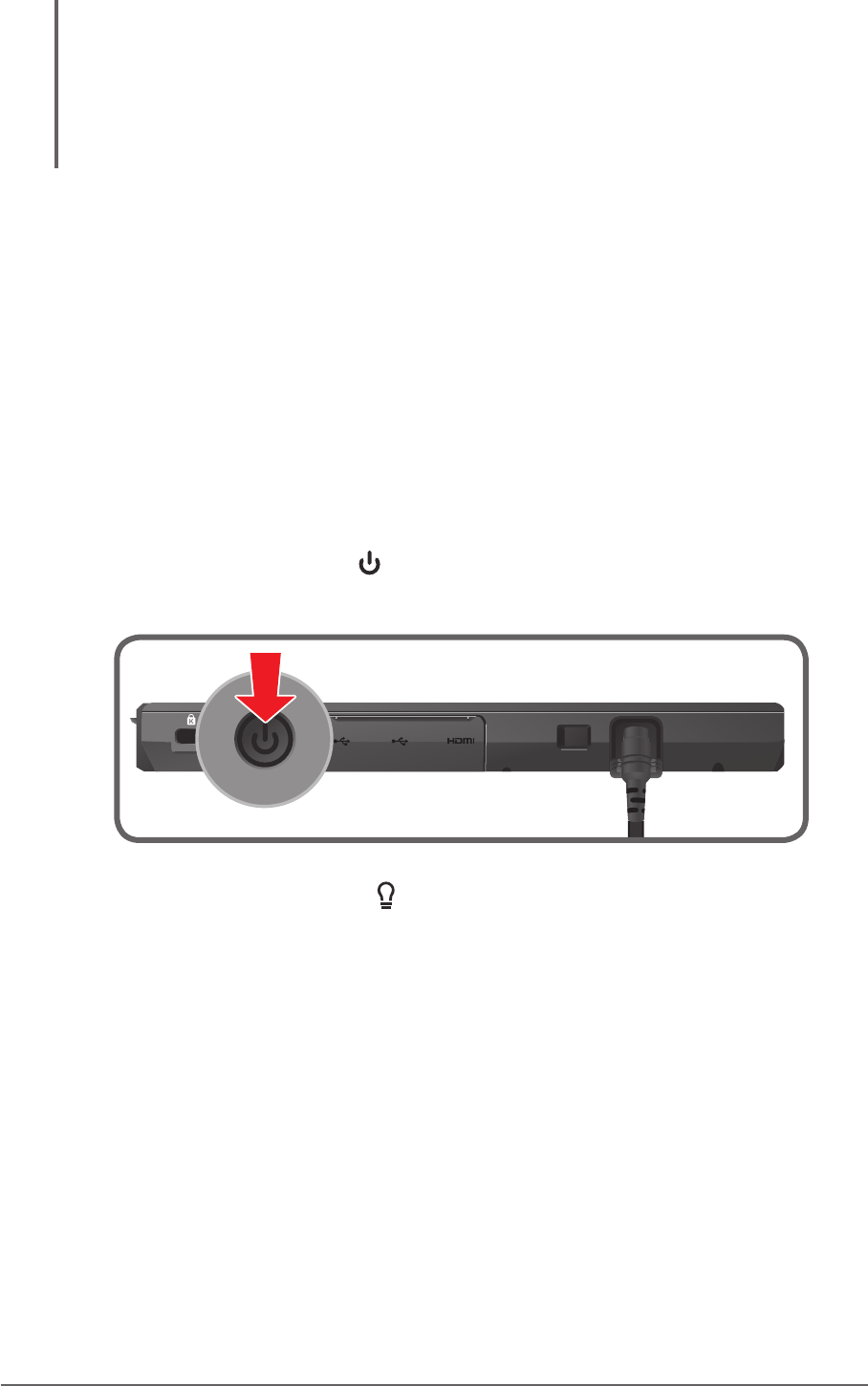

1. Make sure that the Tablet Computer is either connected to TouAC power
or the battery pack is charged.
2. Press the power button ( ). Notice the screen remains blank for 8 ~ 10
seconds but the power LED lights up.
The power LED indicator ( ) shows two different states:
Solid green: Tablet computer is turned on
Blinking green: Tablet computer is in sleep mode.
Off: Tablet computer is turned off.
1-18 Getting Started
Turning Off
To turn off the Tablet Computer, use the “Shut Down” command of your
operating system.
CAUTION:
shutting it down or leaving the Tablet Computer in Sleep or Hibernation mode:
To stop in
this mode...
Do this...
Off Use the Windows Start Menu and follow the shut down
procedure.
You can force the Tablet Computer to turn off by pressing and
holding the power button ( ) for more than 6 seconds. This
is not the recommended method, but may be necessary if the
system is locked up.
Hybrid Sleep Short press the power button ( ) or use the Windows Start
Menu to put the Tablet Computer in Hybrid Sleep mode.
Hibernation Use the Windows Start Menu to put the Tablet Computer in
hibernation mode.
Press the power button ( ) to resume or turn on the Tablet Computer from any
of these modes. See “Power Management” on page 4-6 for more information.
NOTE:-
2-1Operating Your Tablet Computer
CHAPTER 2
This chapter provides information about the use of the Tablet Computer
and describes the operating basics of these components and features:
Touch Screen
Input Panel
Panel Keys
Wireless LAN Features
Bluetooth Features
3G Network Features
GPS Features
Camera
Barcode Reader
Fingerprint Reader
Operating Your Tablet
Computer
2-2 Operating Your Tablet Computer
Using the Touch Screen
The touch screen is a touch-sensitive device that allows you to control and
make selections on the Tablet Computer by controlling the location of the
pointer on the screen.
CAUTION:
2. 0M P
Here are some common terms that you should know when using the touch
screen.
Term Action
Tap Tap gently on the touch screen to select or open an item.
Tapping is the same as clicking the left mouse button of a
PC.
Double-tap Rapidly tap twice on the touch screen. This action is
similar to double-clicking the left mouse button of a PC.
Tap and hold Tap and hold the stylus lightly on the display. A big circle
appears to indicate that a pop-up menu will soon appear.
Lift up the stylus and a pop-up menu appears. Select the
desired function. This action is similar to a right mouse
click on a PC.
Drag Hold the stylus on the screen and drag across the screen
to select text and images or move icons to a new location.
For a more customized stylus settings, go to Start > Control Panel > Pen and
Touch.
2-3Operating Your Tablet Computer
Calibrating the Screen
When there is a noticeable discrepancy in the placement of the stylus on
the screen and the indicated position of the onscreen pointer, recalibrate the
screen.
Perform the following to calibrate the screen:
1. Tap Start > Control Panel > Tablet PC Settings.
2. On the Display tab, tap Calibrate.

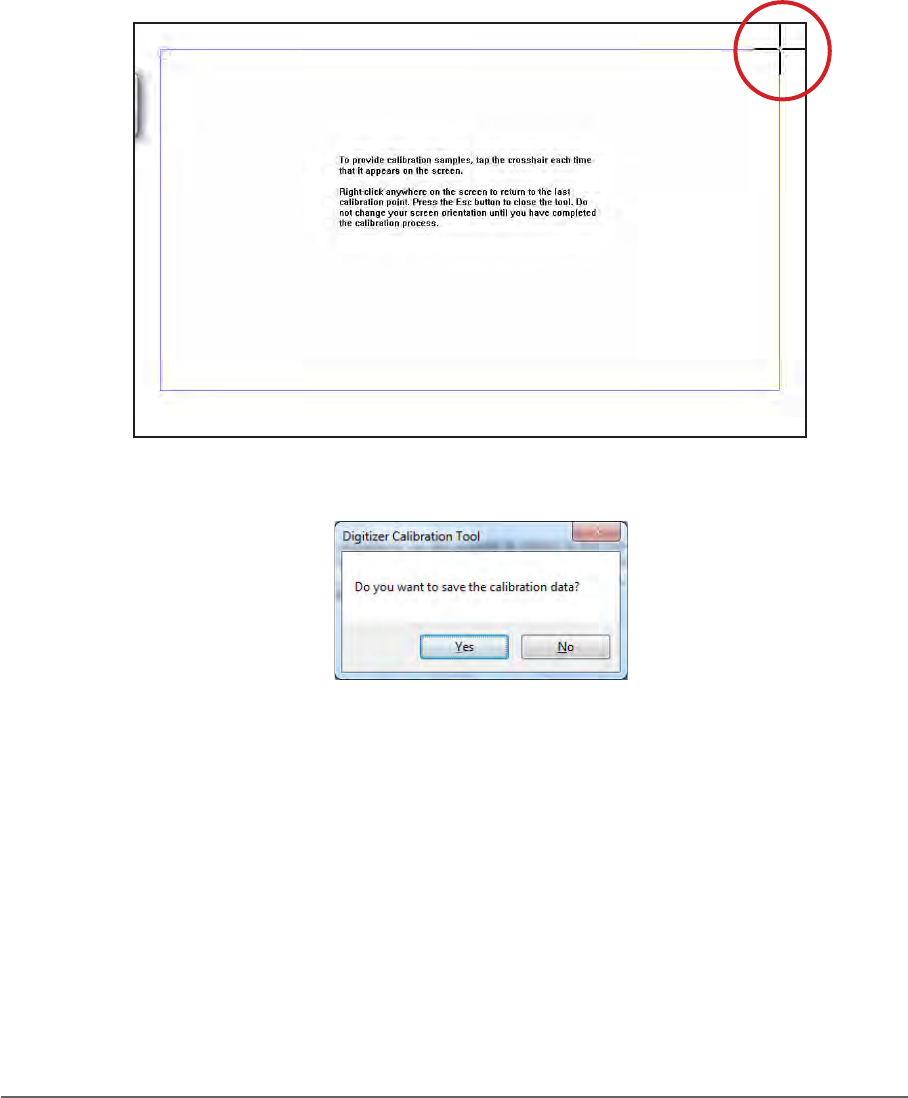

3. Tap the cross-hair with the stylus as it moves around the screen.
4. When calibration is complete, tap Yes to close the calibration utility screen.
2-4 Operating Your Tablet Computer
Using the Input Panel
The Tablet Computer Input Panel is a virtual keyboard that allows you to enter
text and perform various keyboard functions.
There are two types of Input Panels for you to use:

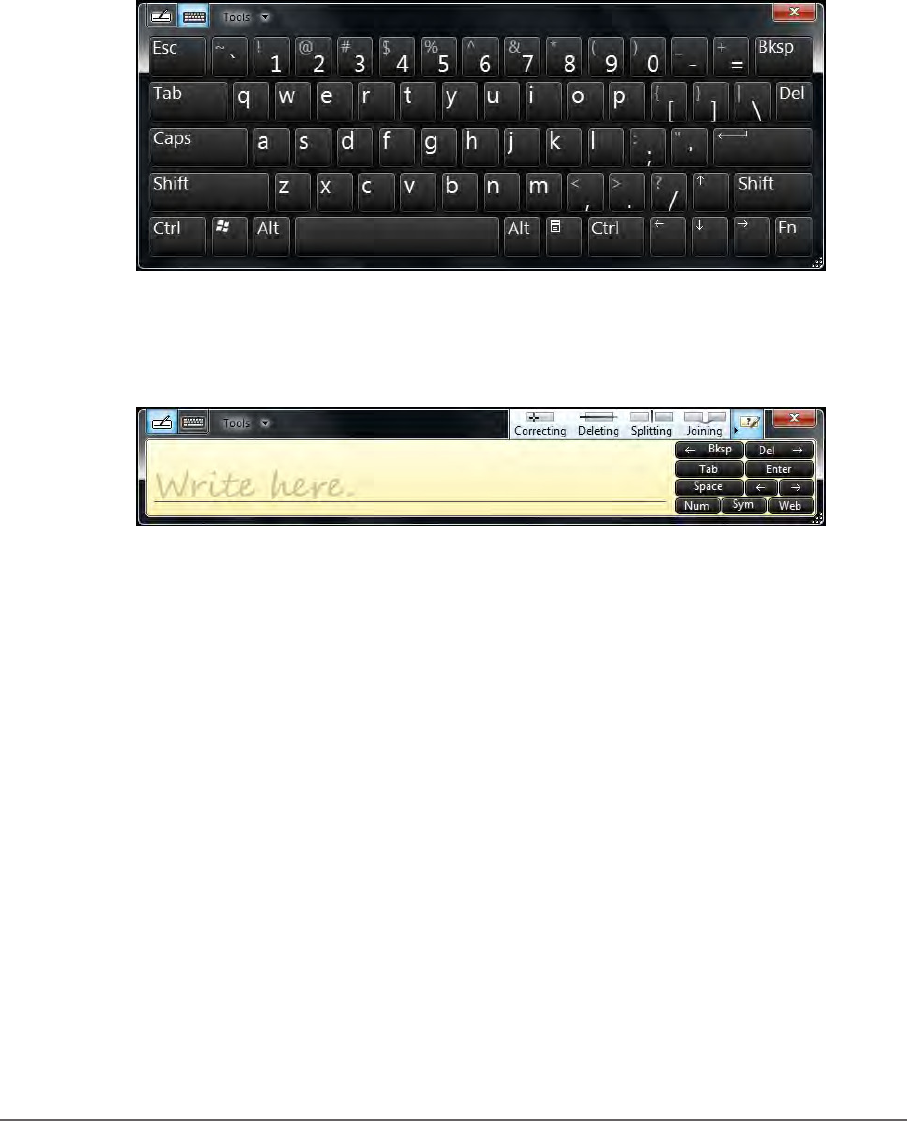

Touch Keyboard
Allows you to enter text by tapping the keys with the stylus, like pressing the
keys on a standard keyboard.
Writing Pad
Allows you to write on the writing pad, like writing on a piece of paper. Your
handwriting will be converted into typed text.
2-5Operating Your Tablet Computer
Opening the Input Panel
To open the Input Panel

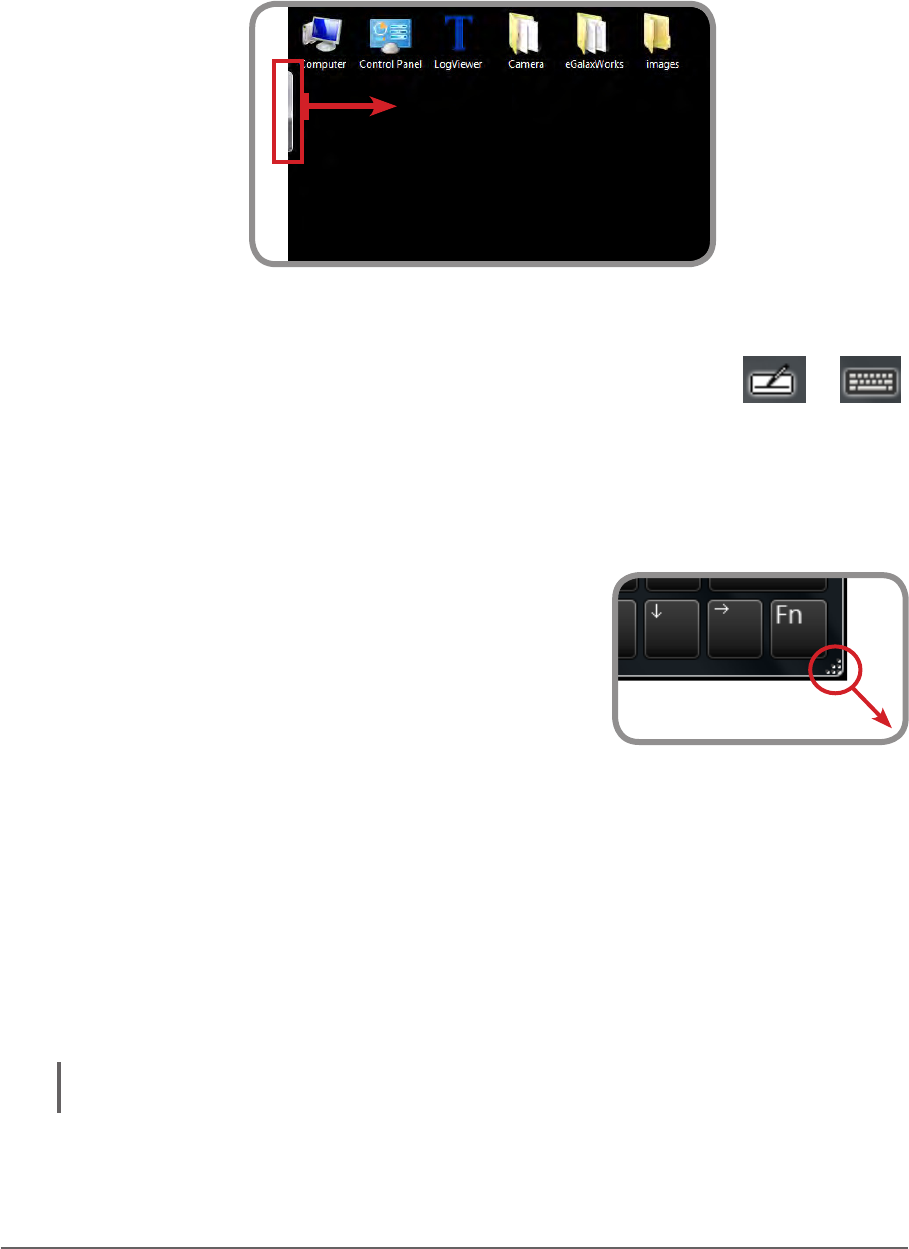

From the left side of the screen, drag the edge of the Input Panel towards the
center.
To switch between keyboards
To switch between the Touch Keyboard and the Writing Pad, tap or
at the upper left corner of the Input Panel.
Managing the Input Panel
To change the Input Panel size
To increase the size of the Input Panel, select
the lower right corner of the Input Panel and drag.
To position the Input Panel
to an area on the screen, place the stylus on the title bar and drag the Input
Panel to a new location on the screen.
To dock the Input Panel
You can dock the Input Panel to so that it is anchored at the top or the bottom of
the screen. On the Input Panel, tap Tools > Docking, and tap Dock at top of
screen or Dock at bottom of screen.
NOTE:
2-6 Operating Your Tablet Computer
Using the Panel Keys
The Panel Keys provide shortcuts for you to utilize the functions of your Tablet
Computer, such as adjusting the brightness setting or volume, and others.
Adjusting Volume
Peform the following to adjust the volume of your Tablet Computer:
Adjusting Screen Brightness
Peform the following to adjust the screen brightness of your Tablet Computer:
2-7Operating Your Tablet Computer
Using Wireless LAN
Your Tablet Computer has a built-in wireless antenna which automatically
detects wireless networks that are within range.
It takes approximately 30 seconds for your Tablet Computer to make a
successful wireless connection and approximately 10 seconds to disconnect.
WARNING: It is highly recommended not to use your Tablet Computer upside down.
Turning the Wireless Antenna On and Off
By default, the wireless antenna is turned on. In case you need to turn the
wireless antenna on or off, perform the following:

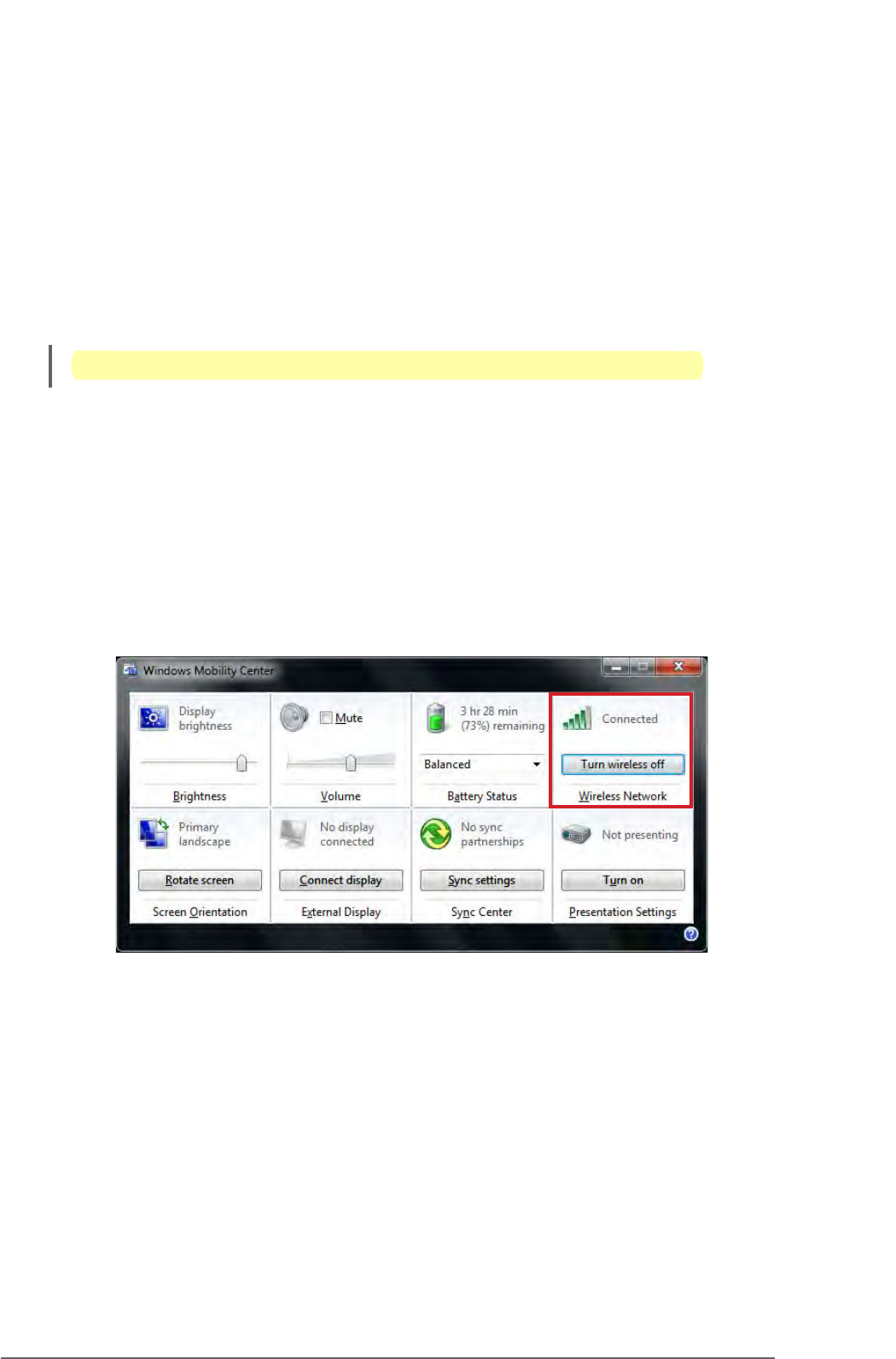

1. Tap Start > Control Panel > Windows Mobility Center.
2. To turn the wireless antenna on or off, tap Turn wireless on or Turn
wireless off.
2-8 Operating Your Tablet Computer
Connecting to a Wireless Network
Perform the following to connect to a wireless network:
1.
green and the Wireless network icon on the taskbar shows ).

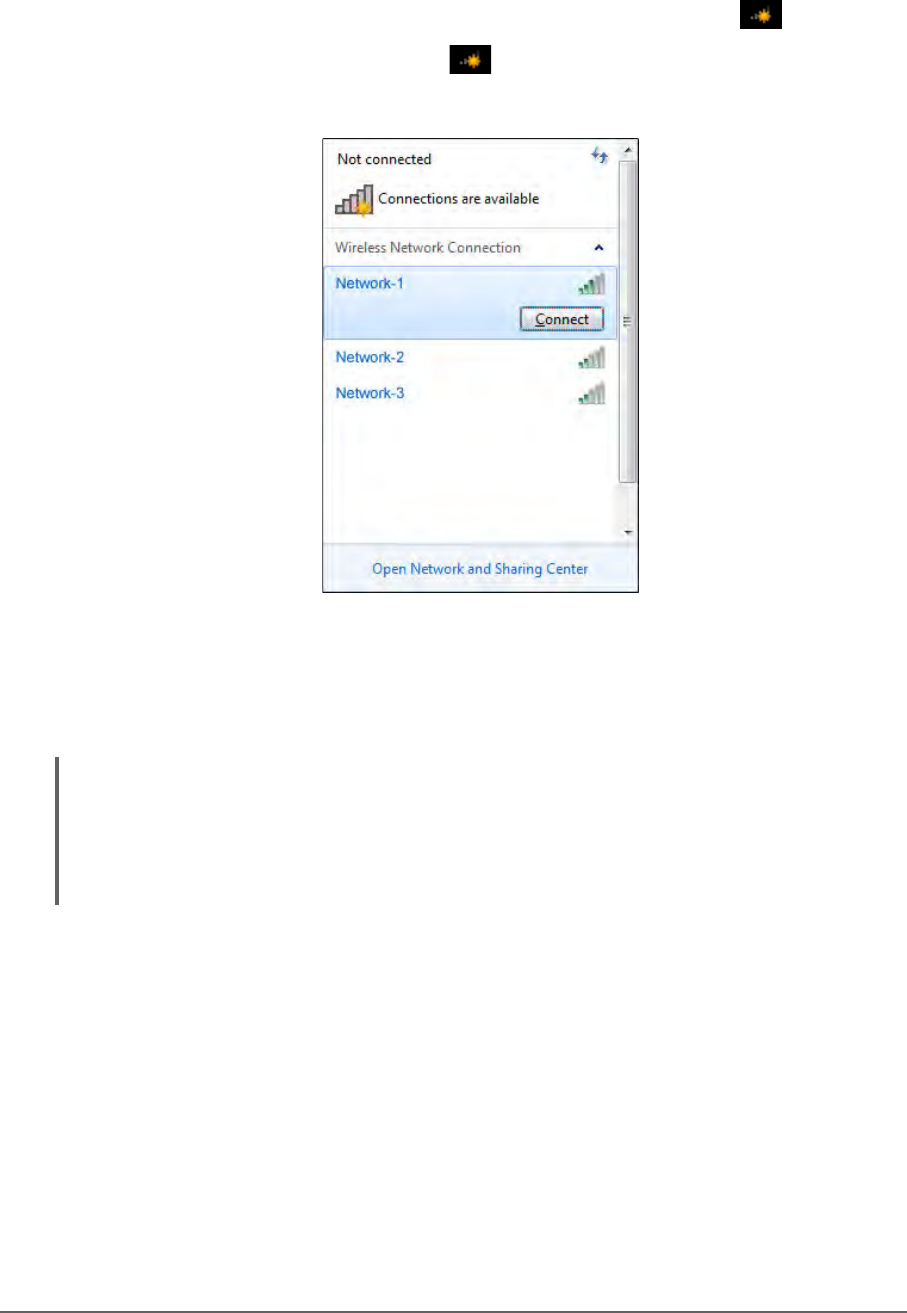

2. Tap the Wireless Network icon ( ) on the taskbar.
3. In the list of available networks, tap a network.
4. Tap Connect.
5. If the network requires authentication, enter the security key or
passphrase.
NOTE:
2-9Operating Your Tablet Computer
Using Bluetooth
Your Tablet Computer has integrated Bluetooth capability for short-range
wireless communication between Bluetooth-enabled devices.
By default, the Bluetooth feature is enabled as indicated by the Bluetooth icon
() on the taskbar; but your Tablet Computer is not visible to other devices.
To make your Tablet Computer visible, check the Discovery box in Bluetooth
Turning the Bluetooth Adapter On and Off
In case you need to turn the Bluetooth adapter on or off, perform the following:
1. Tap the Bluetooth On ( ) or Bluetooth off ( off) icon on the taskbar.
2. A pop up menu appears. Tap Turn adapter on or Turn adapter off.

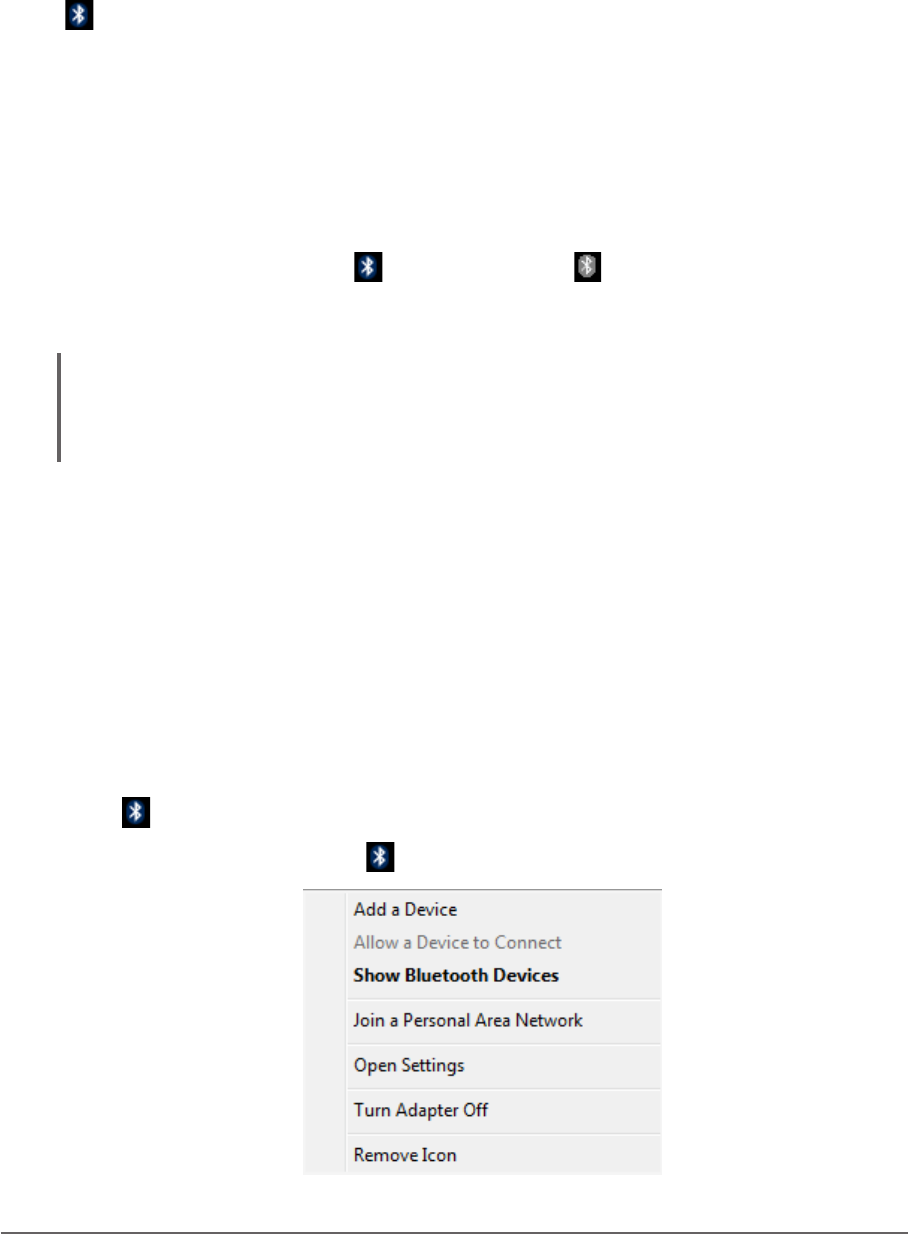

NOTE: Start > Devices and Printers
DevicesBlue-
tooth settingsOK
Pairing with Bluetooth Devices
To add and pair a Bluetooth device
Perform the following to pair your Tablet Compuer with Bluetooth devices:
1. Make sure the Bluetooth adapter is on as indicated by the Bluetooth icon
() on the taskbar.
2. Tap the Bluetooth icon ( ) to display a pop up menu.
2-10 Operating Your Tablet Computer

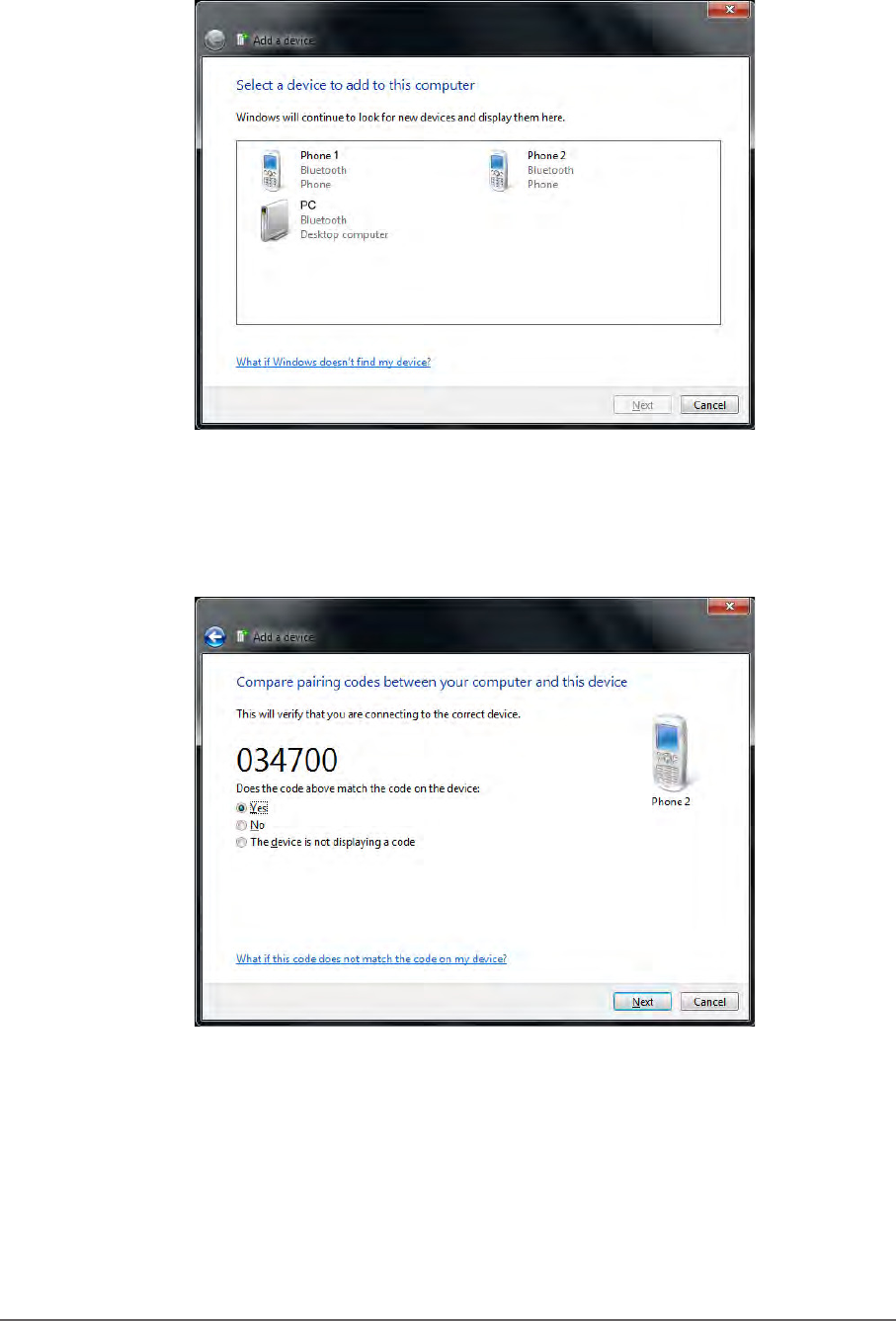

3. Tap Add a Device. The Tablet Computer will scan for Bluetooth devices
within range.
4. Tap the device you want to pair with, then tap Next.
5. Depending on the device you are pairing, you may be prompted to enter
or verify the pairing code. The pairing code entered or shown on your
Tablet Computer and the Bluetooth device must be the same. Click Next
to continue.
2-11Operating Your Tablet Computer
6. Windows will check for the device driver and install, if necessary. Tap
Close to close the screen.
Depending on the paired Bluetooth device, you may use your Tablet Computer
more.
NOTE:
To reconnect to a Bluetooth device
Once a Bluetooth device has been paired with your Tablet Computer, you do not
To reconnect to a Bluetooth device, perform the following:
1. Make sure the Bluetooth adapter is on as indicated by the Bluetooth icon
() on the taskbar.
2. Tap the Bluetooth icon ( ) to display a pop up menu.
3. Tap Show Bluetooth Devices.
2-12 Operating Your Tablet Computer

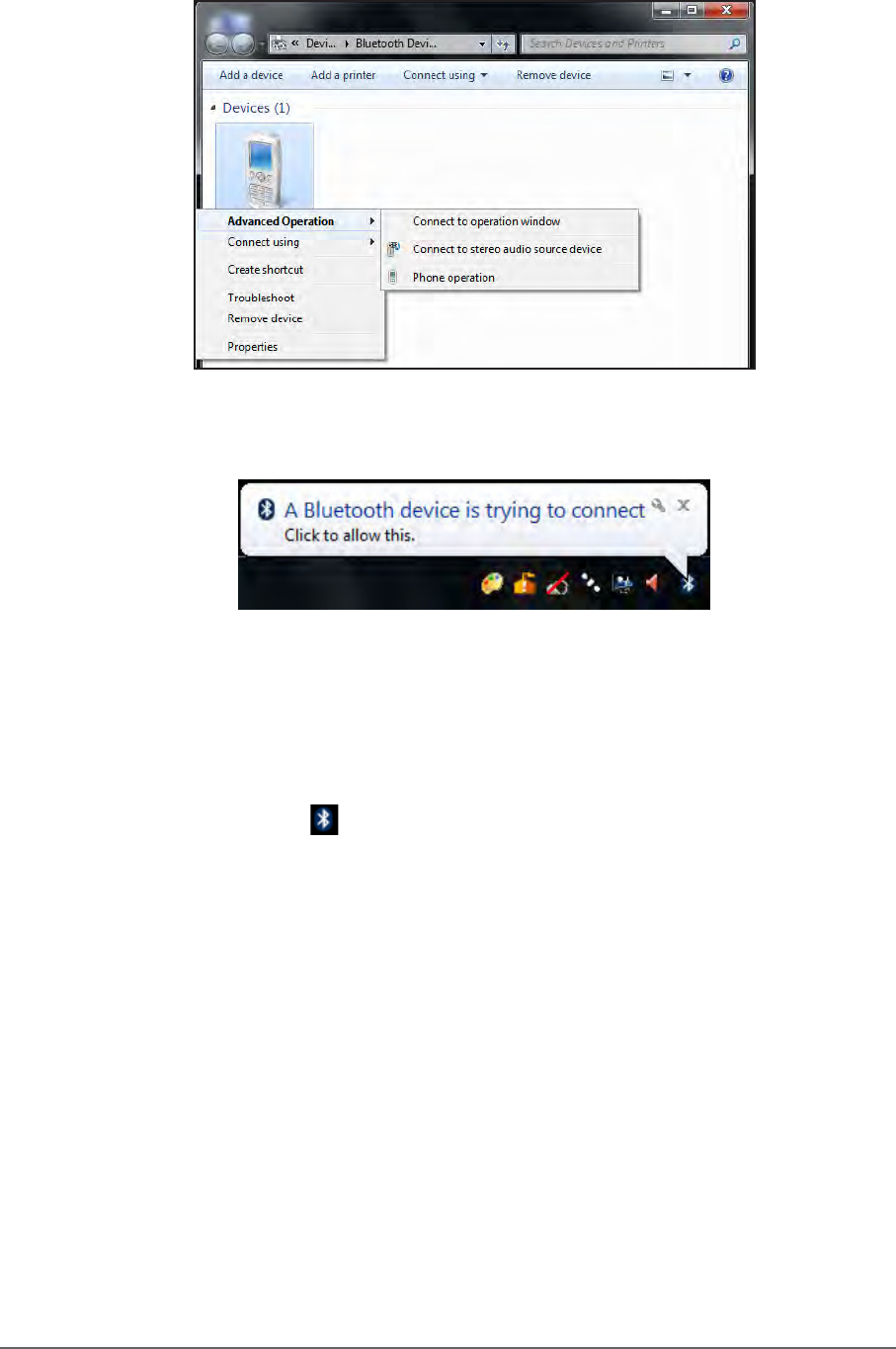

4. Tap and hold the Bluetooth device to display the pop up menu.
5. Tap Advance Operation, then tap the applicable connection operation.
When a Bluetooth device wants to pair with your Tablet Computer, a pop up
message appears on the taskbar, tap the message to pair with the device.
Bluetooth devices, sync data, and other options. To access the settings, tap and
hold the Bluetooth icon ( ) on the taskbar, and tap Open Settings.
2-13Operating Your Tablet Computer
Using 3G Network
Your Tablet Computer has 3G network capabilities that provide wireless
connection to the Internet using a SIM card with data subscription.
Connecting to 3G Network
Your Tablet Computer comes with Sierra Wireless AirCard® Watcher, an
application that allows you to connect to the Internet using your SIM card and
keeps you informed of your wireless connection status. Perform the following to
connect to your 3G network:
1. Install a SIM card to your Tablet Computer (see “Installing the SIM Card”
on page 1-13).
2. Open the AirCard® Watcher application (tap Start > All Programs > Sierra
Wireless > AirCard Watcher).
The application detects the SIM card and displays network information on
the AirCard® Watcher main screen.
TIP: ®
®
3. Tap Connect to connect to the 3G network.
Once connected, the AirCard® Watcher main screen displays the network
connection information, such as signal strength, connection speed, and
bitrate transfer. For more information on using the application, see “Using
AirCard® Watcher” on page 2-14.
2-14 Operating Your Tablet Computer
Using AirCard® Watcher

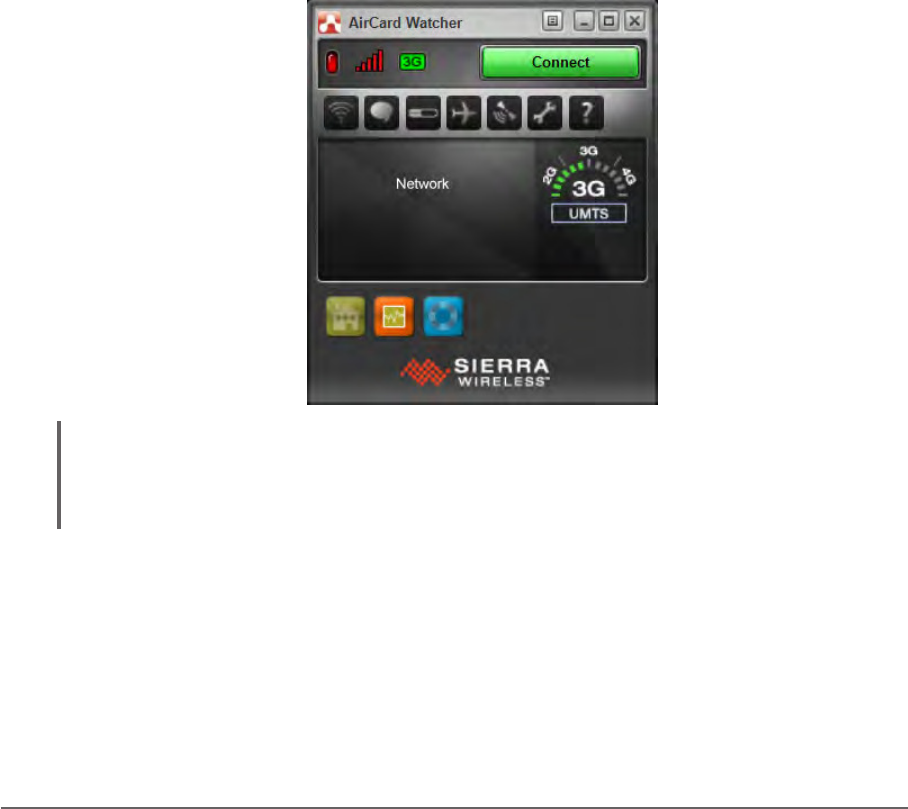

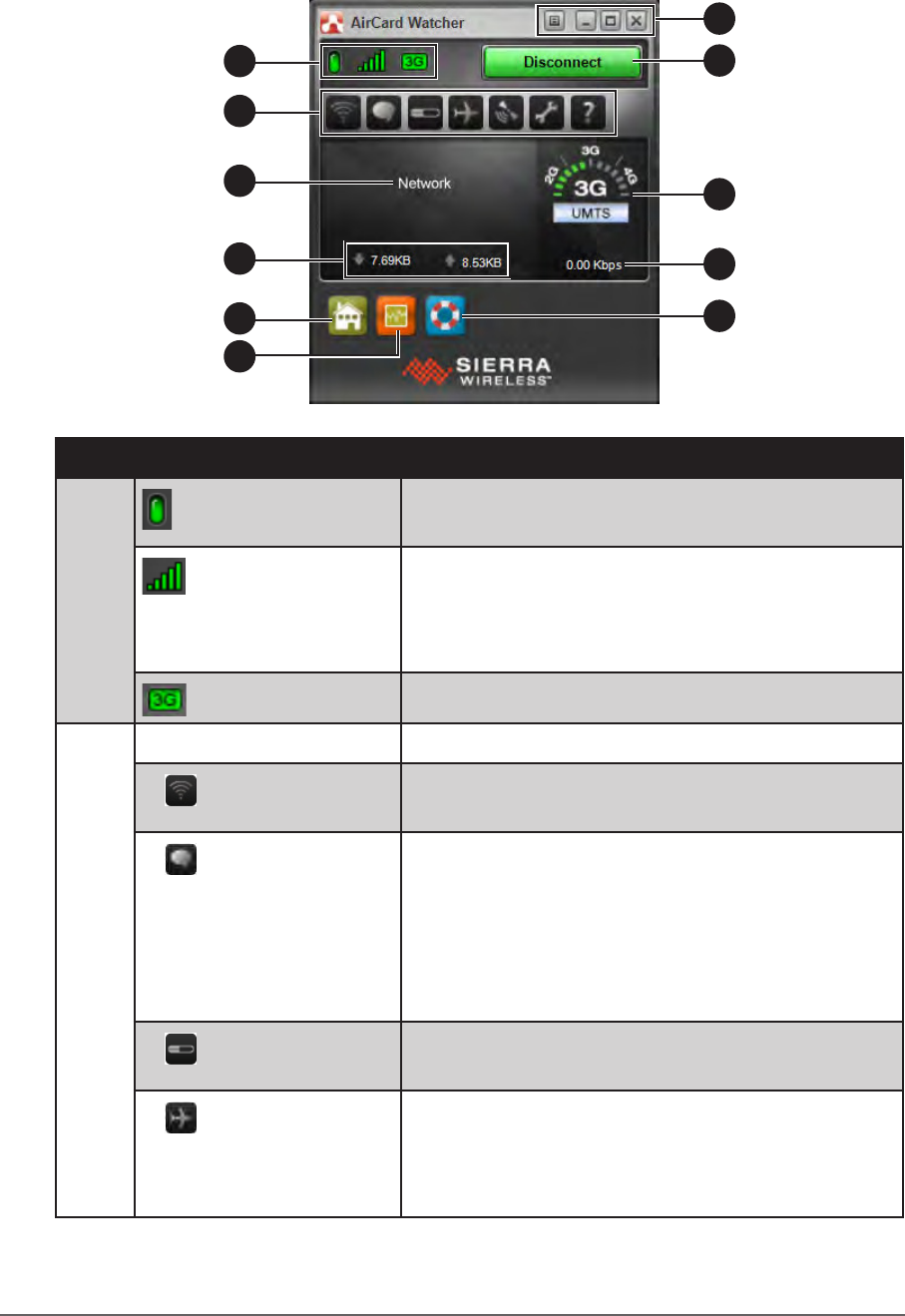

The AirCard® Watcher main screen
1
2
8
9
3
410
5
6
11
7
No. Item Description
1 3G On/Off Green: 3G network is on.
Red: 3G network is off.
Signal Strength Green: Indicate the network signal
strength. More lit bars indicate stronger
signal.
Red: No signal.
Network Type Indicates the network connection type.
2 Toolbar Tap an icon to access the function.
Tap to view and modify wireless network
SMS Tap to open SMS Express to send and
receive SMS messages on your Tablet
Computer.
NOTE:
History Tap to view the usage history and clear the
bitrate counters.
Airplane Mode Tap to enable airplane mode. When this
feature is enabled, the icon turns red. Tap the
icon again or tap Turn Radio On to disable
airplane mode.
2-15Operating Your Tablet Computer
No. Item Description
2 AirCard GPS Tap to open AirCard GPS Monitor.
Settings Tap to access the AirCard® Watcher settings.
on page 2-16.
Help
3 Network Name Displays the name of the SIM card network
provider.
4Data Transfer Rate Displays the upstream and downstream
transfer information.
5 Home Tap to open the Sierra Wireless website.
6 Speed Graph Tap to display a graphical table of the data
transfer speed.
7 Menu Tap to access the application menu.
Minimize Tap to minimize the application to the system
tray.
Restore Tap to toggle the display between full view
and compact view.
Close
8 Connect / Disconnect
Button
Tap to connect or disconnect from the 3G
network.
9Network Info A graphical display of the network connection
type.
10 Speed Indicates the network connection speed.
11 Customer Support Tap to open Sierra Wireless support website.
2-16 Operating Your Tablet Computer
® Watcher Settings

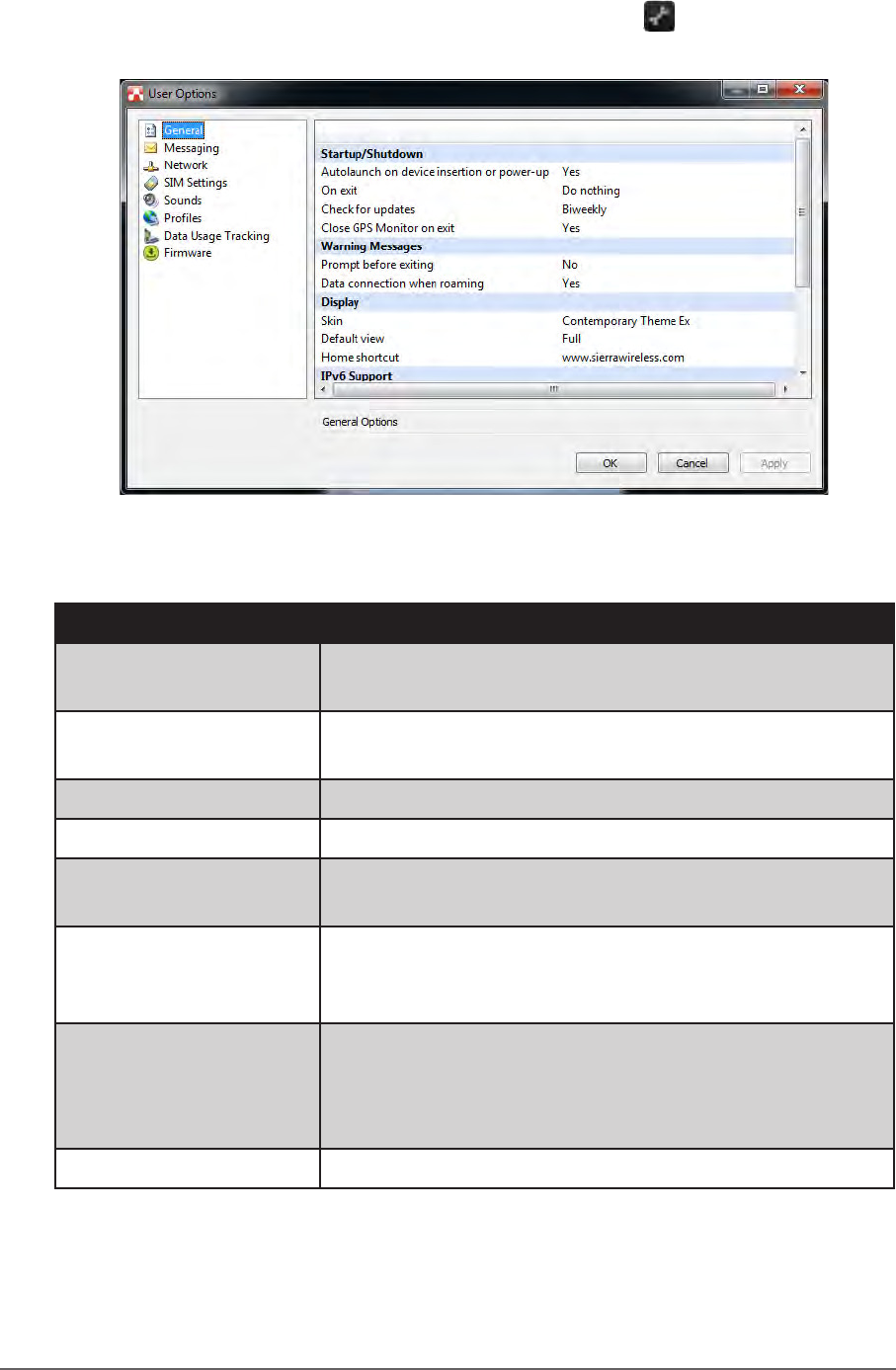

On the AirCard® Watcher main screen, tap the Settings ( ) icon to display the
screen below.
Tap a menu item on the left panel to display the corresponding settings on the
right. The following menus are available:
Menu Description
General
messages, display properties, and others.
Messaging
Network
SIM Settings Enables SIM security settings.
Sounds Enables sound alert when network is connected,
disconnected or when a new message is received.
page 2-17.
Data Usage Tracking
subscription rate plan settings. This feature is useful
when you have limited data rate plan to help you
monitor and control your Internet usage.
Firmware
2-17Operating Your Tablet Computer
(APN), TCP/IP settings, and more. You can also set AirCard® Watcher to
automatically connect to the 3G network at startup.

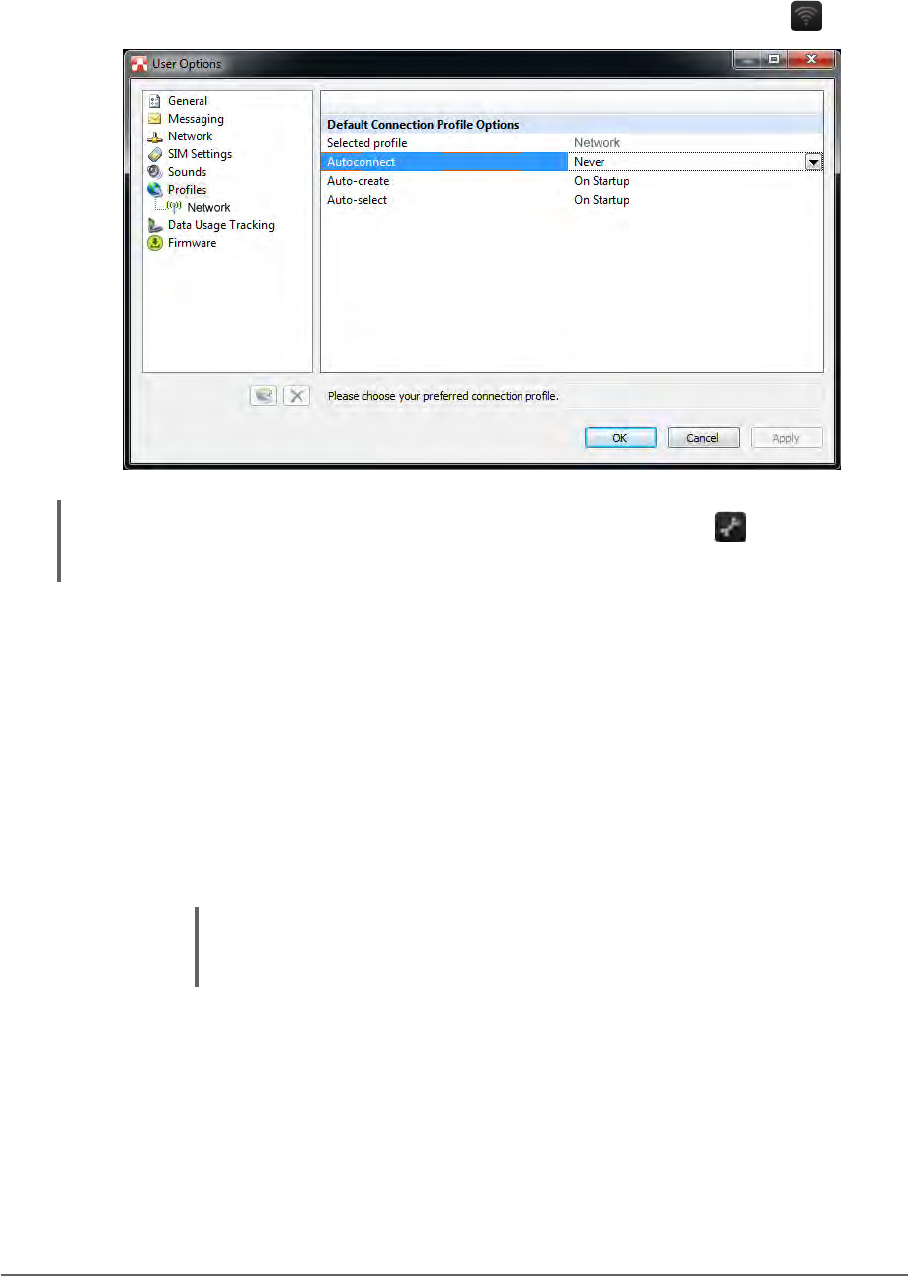

1. On the AirCard® ) icon.
NOTE:
2. On the menu, the following items are displayed:
: Displays the name of your 3G network.
Autoconnect
Never: Do not auto-connect to network.
While not roaming: Automatically connects to network while within
the local network coverage.
Always (even when roaming): Automatically connects to network
even when roaming outside the local network coverage.
NOTE:
Auto-create
using a new SIM card.
Auto-select
the current SIM.
3. Tap Apply to save the settings.
2-18 Operating Your Tablet Computer
4. To view the SIM card information, tap the network name on the left panel.
5. Tap OK to close the screen.
2-19Operating Your Tablet Computer
Using GPS
Your Tablet Computer has a GPS (Global Positioning System) receiver module
built in and includes the u-blox GPS Location Sensors software.
u-blox GPS Location Sensors is an application that allows you to manage the
following:
Location
Assistance
Satellites
To open u-blox GPS Location Sensors, tap Start > All Programs > u-blox >
u-tray > u-tray 1.1.0.4
Location

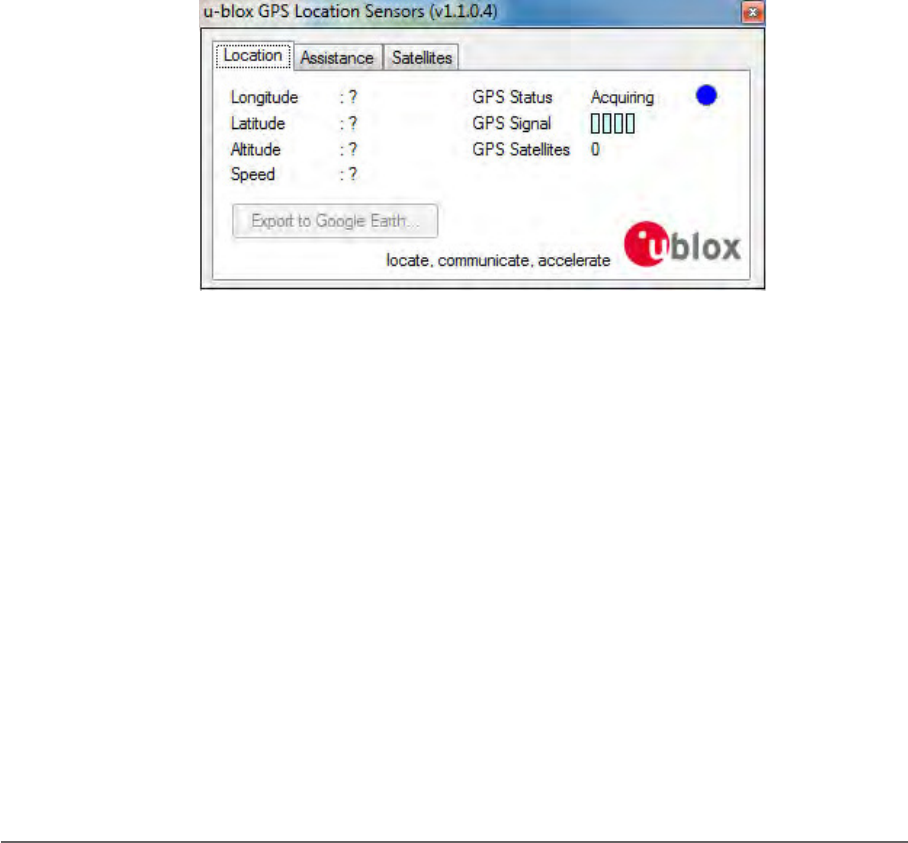

The Location tab provides an overview your location and system status.
2-20 Operating Your Tablet Computer
Assistance

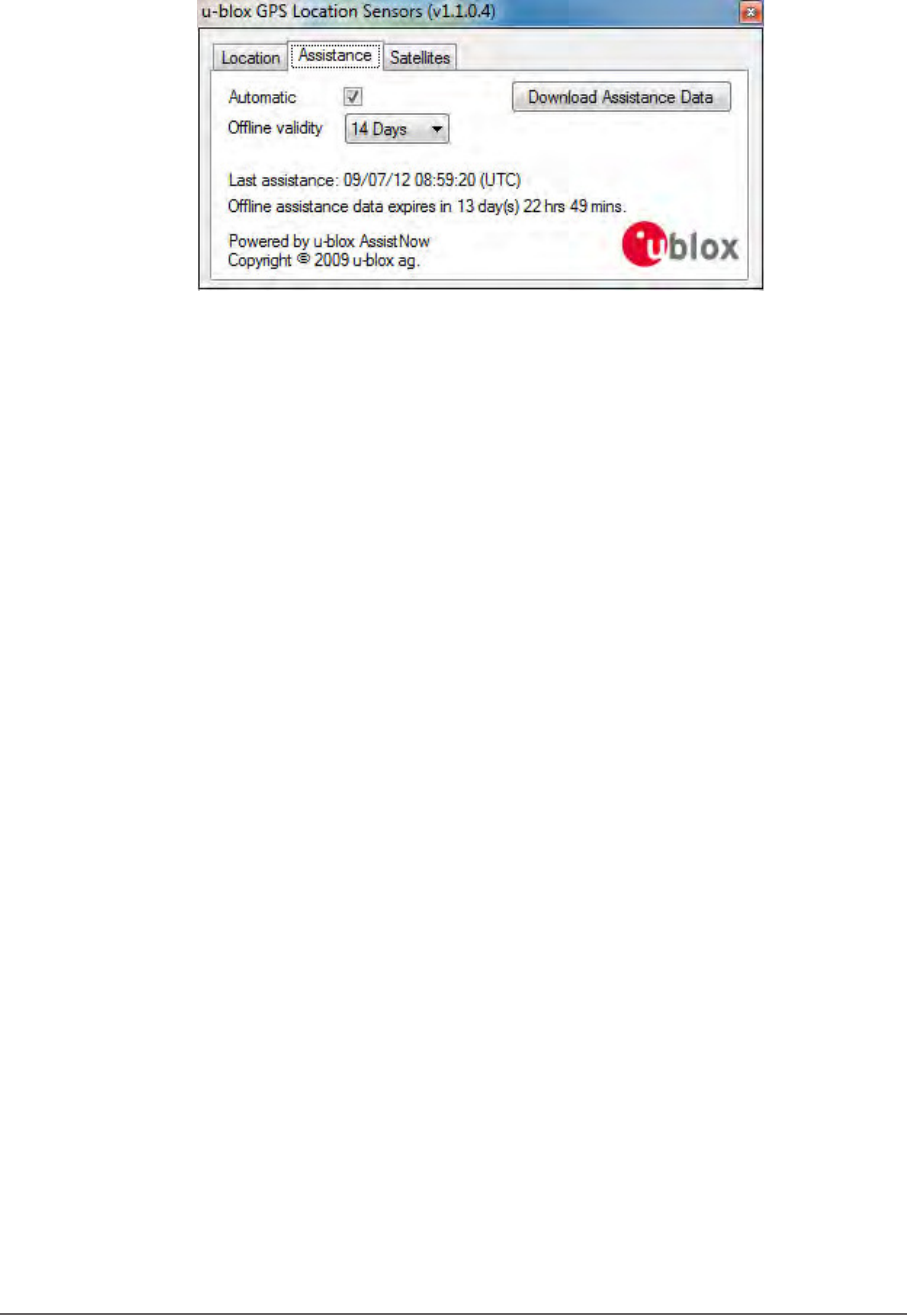

The Assistance tab allows you to set the schedule and download assistance
data.
To download update manually, tap Download Assistance Data.
To set automatic download, check the Automatic box and select the
frequency of automatic download in .
