User Manual Part 2

2-21Operating Your Tablet Computer
Using the Barcode Reader
Your Tablet Computer has a built-in barcode reader which is a 2D image CMOS
type scanner that you can use to scan barcodes.
NOTE:
• The built-in barcode reader is an optional accessory. Contact your dealer to purchase.
• Alternatively, you can also use a Bluetooth scanner or connect an external barcode
scanner to the RS232 port. See for more information.
Perform the following to scan barcodes using the built-in barcode reader:
1. Press and hold the barcode button to active the barcode reader. The
barcode reader lights red.
2. Place the barcode label facing the barcode reader. The Tablet Computer
emits a beep sound when the barcode is read properly.
2.0MP
2-22 Operating Your Tablet Computer
Using SmartWedgeLite
The SmartWedgeLite application allows Bluetooth scanners to be paired with
your Tablet Computer and scan barcodes into keyboard applications. It also
supports barcode scanners connected through the RS232 port of your Tablet
Computer.
• To pair with a Bluetooth scanner, see “Pairing a Bluetooth Scanner” on page
1-41.
• To connect an external barcode scanner, see “Using an External Barcode
Scanner” on page 1-42.
To activate SmartWedgeLite
Tap Start > All Programs > Intermec > SmartWedgeLite to activate the
application. The SmartWedgeLite ( )icon appears on the taskbar.
TIP: To activate SmartWedgeLite faster, create a desktop shortcut icon. Alternatively,
you can enable SmartWedgeLite automatically at Windows startup (see “To congure
SmartWedgeLite settings” below).

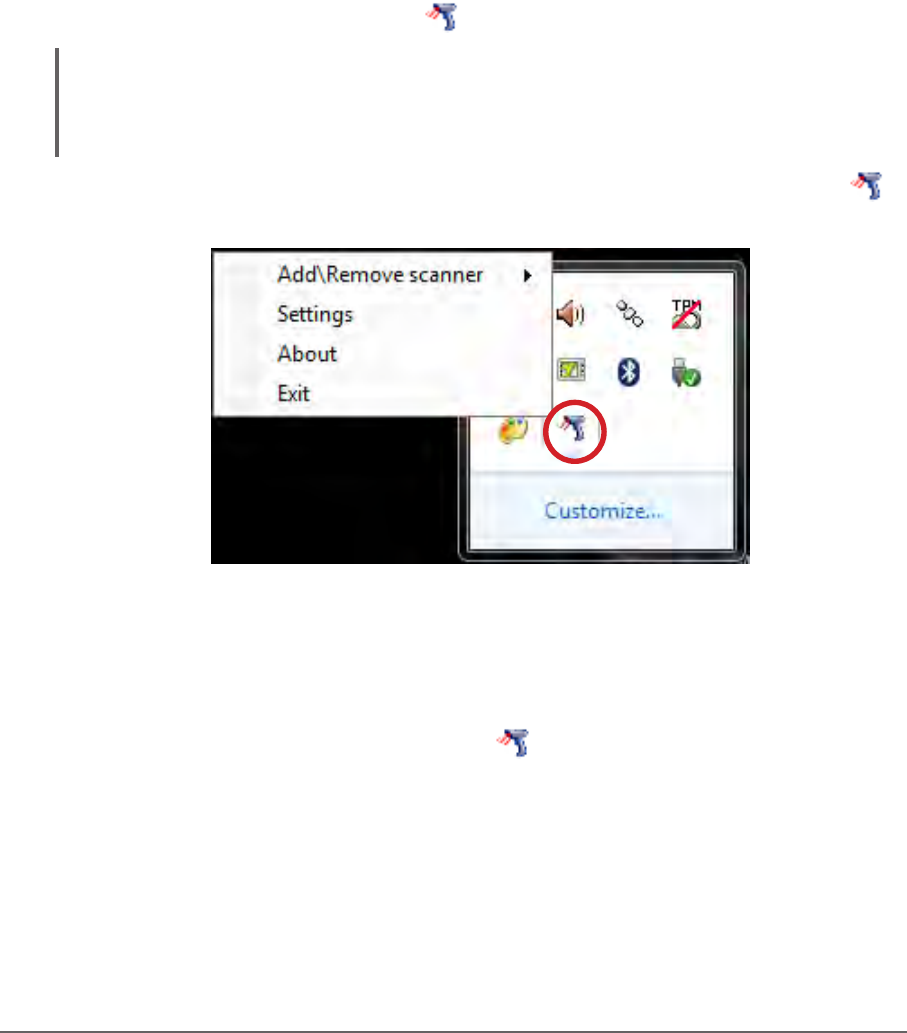

Once SmartWedgeLite is activated, tap and hold on the SmartWedgeLite ( )
icon on the taskbar to display the pop up menu.
To congure SmartWedgeLite settings
1. Activate SmartWedgeLite (Start > All Programs > Intermec >
SmartWedgeLite).
2. Tap and hold the SmartWedgeLite ( ) icon on the taskbar.
3. On the pop-up menu, tap Settings.
4. Modify the settings according to your preference:
• Default PIN Number: Enter desired PIN number. The default value is
0000.
• Start VirtualWedge at Windows startup: Check this box to
automatically activate SmartWedgeLite when Windows starts up.
2-23Operating Your Tablet Computer
• Emit a beep locally when barcode data is received: Check this box
to enable the Tablet Computer to emit a beep sound when a barcode is
read properly.
5. When nished, tap OK.
To refresh or remove a scanner
Once an external barcode scanner is connected through the RS232 port of your
Tablet Computer, the barcode scanner prole is saved in SmartWedgeLite. You
can view the scanner proles or remove them from the list.
1. Activate SmartWedgeLite on your Tablet Computer (see “To activate
SmartWedgeLite” on page 2-22).
2. Tap and hold the SmartWedgeLite ( ) icon on the taskbar.

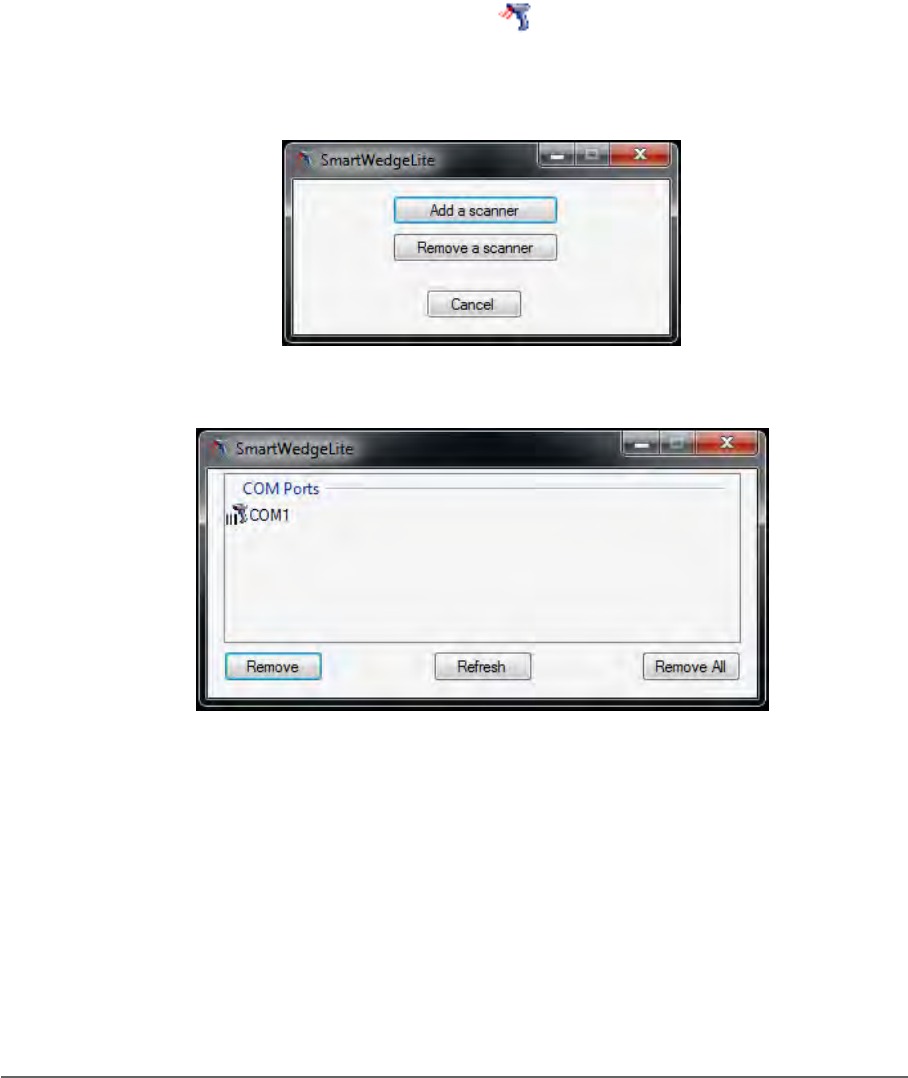

3. On the pop-up menu, tap Add\Remove scanner.
4. The screen below appears, tap Remove a scanner.
5. The screen below appears with a list of the barcode scanner proles.
• To refresh the list, tap Refresh.
• To remove a prole, tap the prole and then tap Remove.
• To remove all proles, tap Remove All.
2-24 Operating Your Tablet Computer
Pairing a Bluetooth Scanner
Perform the following to pair a Bluetooth scanner with your Tablet Computer:
1. Enable Bluetooth on the scanner.
2. Activate SmartWedgeLite on your Tablet Computer (see “To activate
SmartWedgeLite” on page 2-22).
3. Tap and hold the SmartWedgeLite ( ) icon on the taskbar.
4. On the pop-up menu, tap Add\Remove scanner.

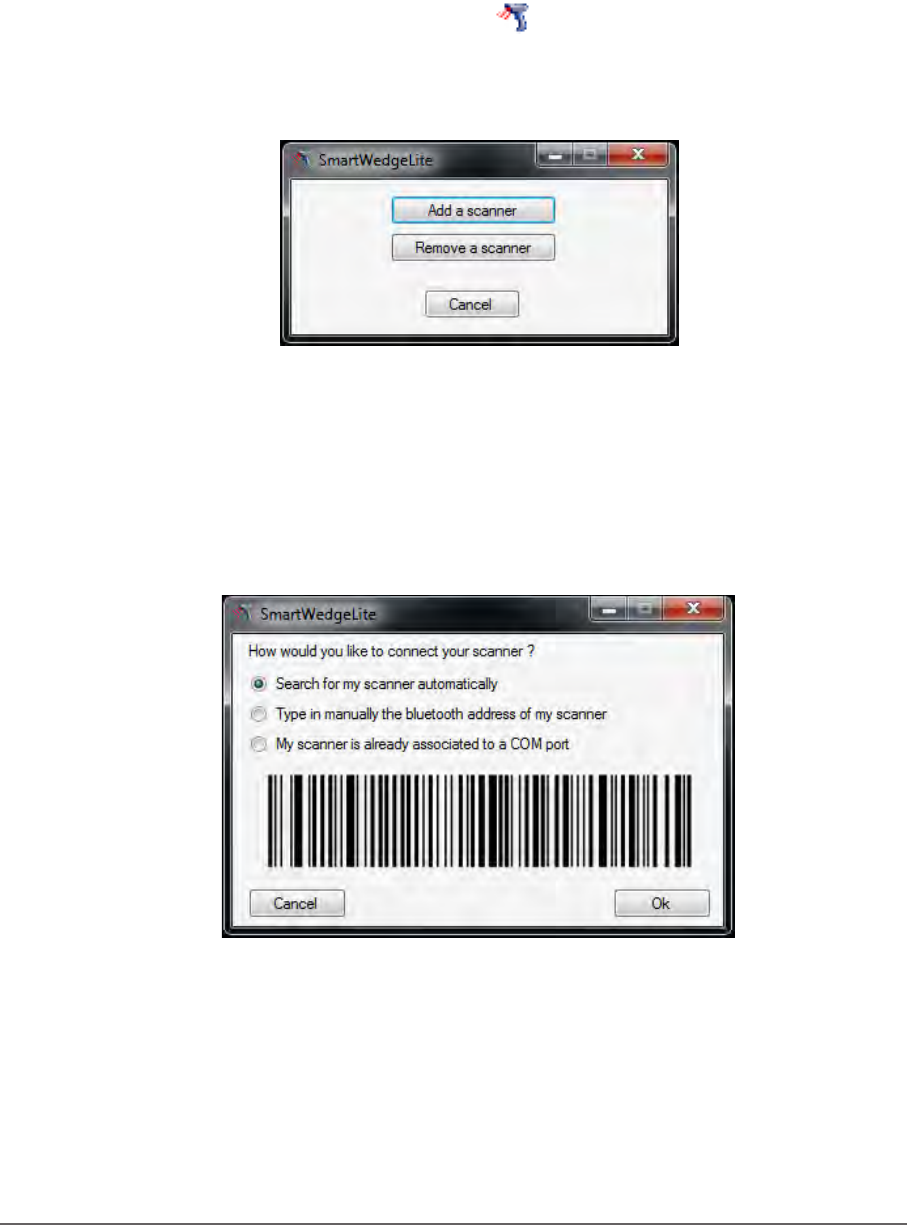

5. The screen below appears, tap Add a scanner.
6. When the screen below appears, tap one of the following to connect a
Bluetooth scanner:
• Search for my scanner automatically: To scan for the Bluetooth
scanner automatically.
• Type in manually the bluetooth address of my scanner: To manually
type the Bluetooth address of the barcode scanner.
7. Tap Ok.
8. If you select “Search for my scanner automatically”, the Tablet
Computer automatically searchers for the Bluetooth scanner and displays
the device on the screen. Tap the Bluetooth scanner and then tap OK.
2-25Operating Your Tablet Computer

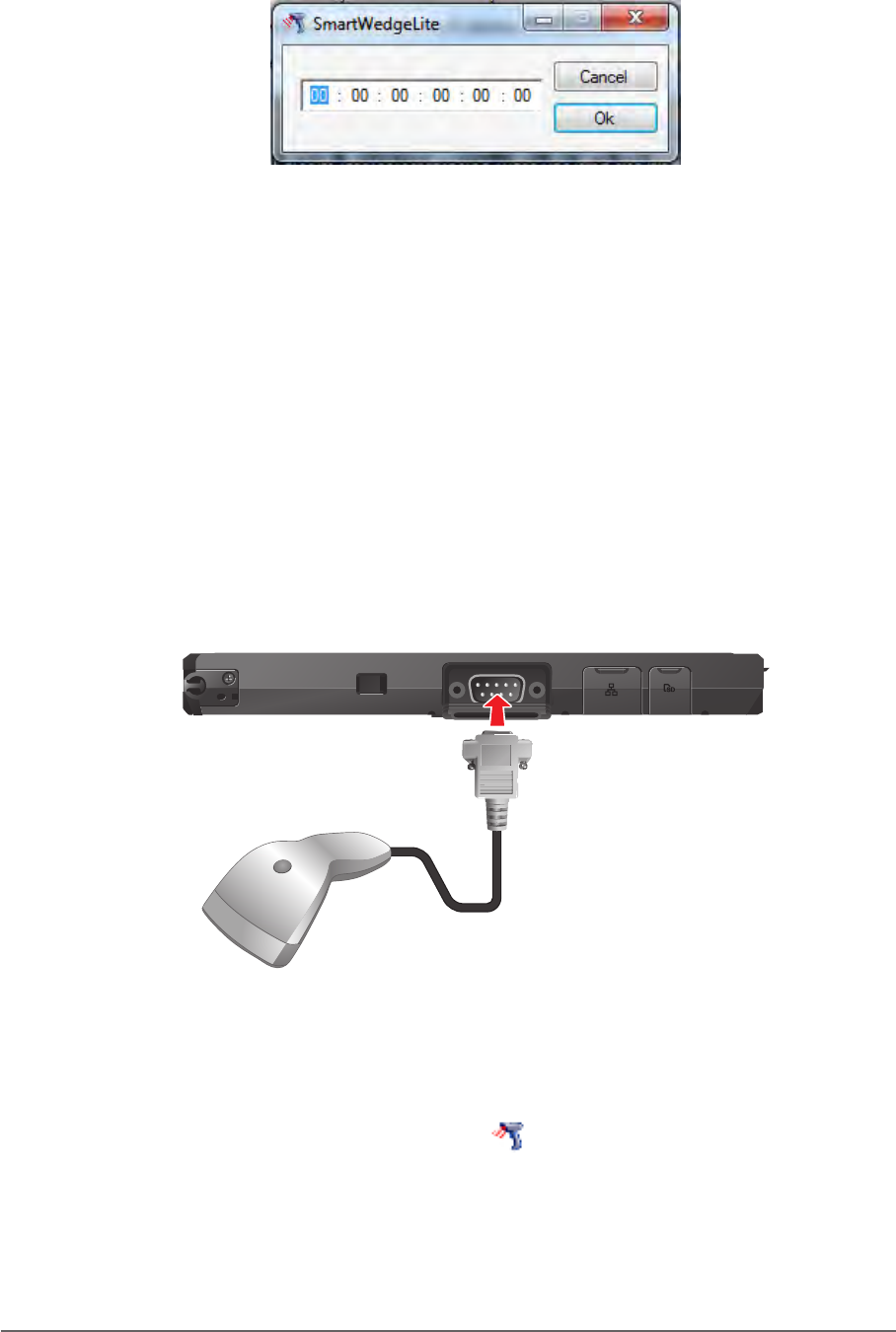

9. If you select “Type in manually the bluetooth address of my scanner”,
the screen below is displayed. Type the Bluetooth address of the barcode
scanner, then tap Ok.
10. Once connected, you may start scanning barcodes using the Bluetooth
scanner.
Pairing the Bluetooth scanner with the Tablet Computer is only done when
connecting for the rst time. The Tablet Computer saves the scanner prole and
automatically connects with it when and the Bluetooth scanner is in range and
the Bluetooth feature is enabled in the Tablet Computer.
Connecting an External Barcode Scanner
You may connect an external barcode scanner to the RS-232 port of your Tablet
Computer.
1. Connect the RS232 connector of the barcode scanner to the RS232 port
of your Tablet Computer.
2. Activate SmartWedgeLite on your Tablet Computer (see “To activate
SmartWedgeLite” on page 2-22).
3. Tap and hold the SmartWedgeLite ( ) icon on the taskbar.
4. On the pop-up menu, tap Add\Remove scanner.
2-26 Operating Your Tablet Computer

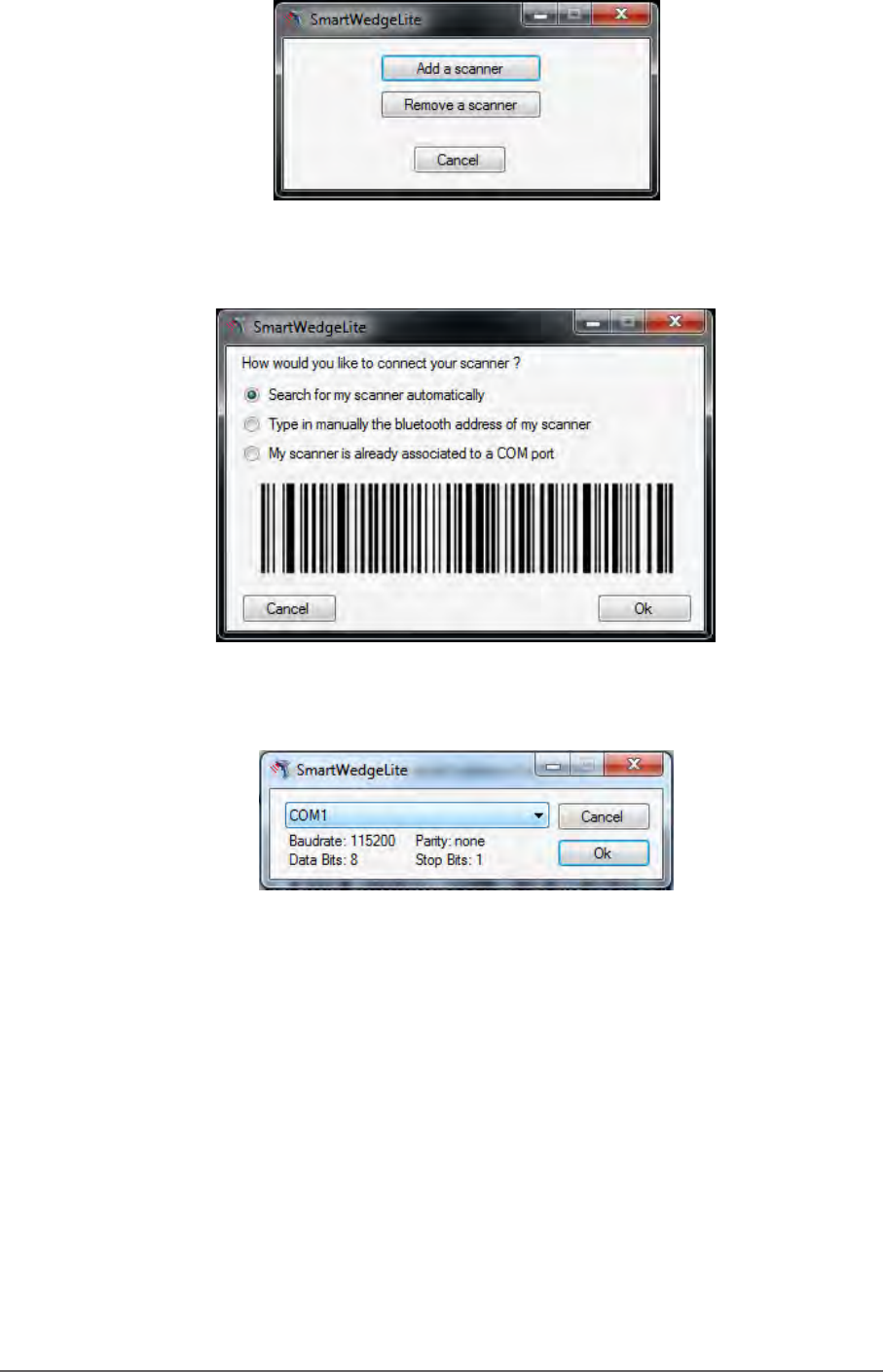

5. The screen below appears, tap Add a scanner.
6. When the screen below appears, tap “My scanner is already associated
to a COM port”, then tap Ok.
7. Select the COM1 port. This is where the external barcode scanner is
connected on your Tablet Computer. Then tap Ok to connect.
The screen above disappears and the external barcode scanner is
connected.
2-27Operating Your Tablet Computer
Using the Fingerprint Reader
Your Tablet Computer has a built-in ngerprint reader that you can use to scan
and authenticate your ngerprints for security purposes. Instead of entering a
password, you can simply swipe a nger on the ngerprint reader and log on to
Windows. The ngerprint reader also supports other advanced functions and
applications that may require ngerprint authentication, such as website logon,
quick launch, and stronger identity protection for websites, among others.
NOTE: Applications that may require ngerprint authentication vary and do not come
pre-installed on the Tablet Computer.
Using AuthenTec TrueSuite
Before you can use the ngerprint reader, you must enroll your ngerprints
using the AuthenTec TrueSuite application.
AuthenTec TrueSuite is a biometric software that protects the security of
your data through the use of ngerprint authentication. When you enroll
your ngerprints, your ngerprints are associated with your user name and
password, and stored as a “user identity”.
To open AuthenTec TrueSuite, tap Start > All Programs > AuthenTec
TrueSuite > AuthenTec TrueSuite.
Setting Up Your Fingerprints
To maximize your Tablet Computer security features, register your ngerprints
for authentication.
1. Open the AuthenTec TrueSuite application (Start > All Programs >
AuthenTec TrueSuite > AuthenTec TrueSuite). A screen wizard appears.
2-28 Operating Your Tablet Computer
NOTE: The computer images shown on the screen are for reference only and may differ from
your Tablet Computer.
2. Locate the ngerprint reader on your Tablet Computer (see “Device
Overview” on page 1-3), then tap Yes. The screen below appears.
3. Tap Yes.
4. When the screen below appears, tap a nger that you want to register.
5. The tapped nger is marked by a blue icon.
2-29Operating Your Tablet Computer
6. When registering your ngerprints for the rst time, you will be prompted
for a Windows Password. This password will be associated with your
ngerprints as your “identity”. Enter a password, and tap OK.
7. Slowly swipe the marked nger on the ngerprint reader from left to right
direction.
The screen below appears. The red bar indicates the scanning process.
8. Swipe the same nger again.
2-30 Operating Your Tablet Computer
9. Swipe the same nger for the third time. When done, the screen below
appears, notice that the blue icon turns green to indicate successful nger
enrollment.
10. To register another nger, tap a nger and repeat steps 4 ~ 9. Or, tap
to complete the enrollment.
11. The software registration screen appears. Tap Register Now if you want
to purchase the full version of AuthenTec TrueSuite or tap Register Later
to continue using the version that came with your Tablet Computer.
12. When the screen below appears, your ngerprint enrollment is complete.
2-31Operating Your Tablet Computer
Removing an Enrolled Fingerprint
Perform the following to remove the authentication of an enrolled ngerprint:
1. Open the AuthenTec TrueSuite application (Start > All Programs >
AuthenTec TrueSuite > AuthenTec TrueSuite).
2. Swipe an enrolled ngerprint on the ngerprint reader.
NOTE: Alternatively, you can also enter the Windows Password by tapping I want to use my
Windows password.
3. Tap and hold the marked ngerprint that you want to remove.
4. Tap Deletenger. The green icon is removed.
2-32 Operating Your Tablet Computer
Log On to Windows by Fingerprints
After enrolling your ngerprint, you can use the enrolled nger to log on to
Windows.
Perform the following to use ngerprint authentication for Windows log on:
1. If the Tablet Computer has more than one account, tap the Fingerprint
prole icon. The screen below appears.
2. Slowly swipe an enrolled nger on the ngerprint reader from left to right
direction. If the ngerprint matches, Windows opens.
3-1Connecting Your Tablet Computer
CHAPTER 3
You can extend the capabilities of your Tablet Computer by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this chapter.
This chapter gives guidelines on installing and using these devices:
• USB Device
• HDMI Device
• Audio Device
• Serial Devices
Connecting Your Tablet
Computer
3-2 Connecting Your Tablet Computer

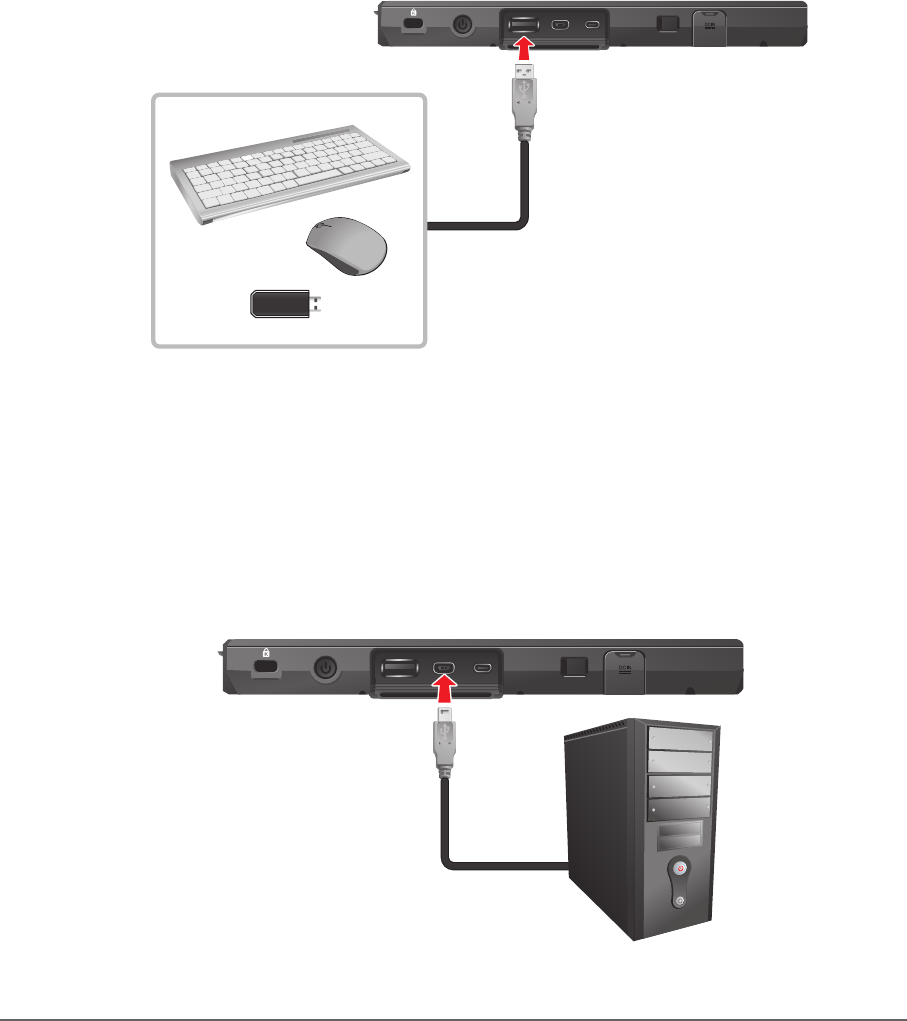

Connecting USB Devices
Your Tablet Computer has two USB ports: one USB (Type A) port and one mini
USB port.
USB Port Connection
Use the USB port to connect USB devices, such as a ash disk drive, scanner,
printer, keyboard, and mouse.
To connect a USB device, simply plug the device cable into the USB port of
your Tablet Computer.
Mini USB Port Connection
Use the mini USB port to connect your Tablet Computer to another computer or
notebook.
To connect, plug the mini USB cable connector to the mini USB port of your
Tablet Computer and plug the other end of the USB cable to a computer or
notebook.
3-3Connecting Your Tablet Computer
Connecting HDMI Devices
Your Tablet Computer has one mini HDMI port for connecting HDMI devices,
such as an external monitor.
To connect an HDMI device, simply plug the device cable into the mini HDMI
connector of your Tablet Computer.
3-4 Connecting Your Tablet Computer
Connecting Audio Devices
Your Tablet Computer has one combo audio connector that supports both
audio in and audio out devices. You can connect speakers, headphones, or an
earphone set.
To connect an audio device, simply plug the device cable into the audio
connector of your Tablet Computer.
3-5Connecting Your Tablet Computer
Connecting Serial Devices
Your Tablet Computer has one RS232 port for connecting serial devices, such
as barcode scanners, printers, among others.
To connect a serial device, simply plug the device cable into the RS232 port of
your Tablet Computer. Attach the screws to secure the connection.
4-1Managing Power
CHAPTER 4
Your Tablet Computer operates either on external AC power or on battery
power.
This chapter tells you how you can effectively manage power. To maintain
optimal battery performance, it is important that you use the battery in the
proper way.
The topics in this chapter include:
• How to charge the battery pack
• How to check the battery level
• What happens when the battery is low and what actions to take
• What is Power Management
• How to save power
Managing Power
4-2 Managing Power
Battery Pack
The operating time of a fully charged battery pack depends on how you use
the Tablet Computer. When you use applications that often access peripherals,
or when you stay connected to a wireless network, the operating time of the
battery may be shortened.
WARNING:
• Do not disassemble the battery pack. There are no user-serviceable parts inside. Doing so
may present risk of exposure to harmful chemicals, explosion or re.
• Contact your local waste disposal service provider regarding the disposal or recycling of used
battery packs.
Charging the Battery Pack
To charge the battery pack, perform the following:
1. With the battery pack installed, plug the DC cord of the AC adapter into the
power connector of the tablet computer.
2. Plug the female end of the AC power cord into the AC adapter.
3. Then plug the male end of the AC power cord into an electrical outlet.
1
2
3
The battery LED indicator ( ) blinks green to indicate that charging is
in progress. When the battery is fully charged, the battery LED indicator
glows solid green.
4-3Managing Power

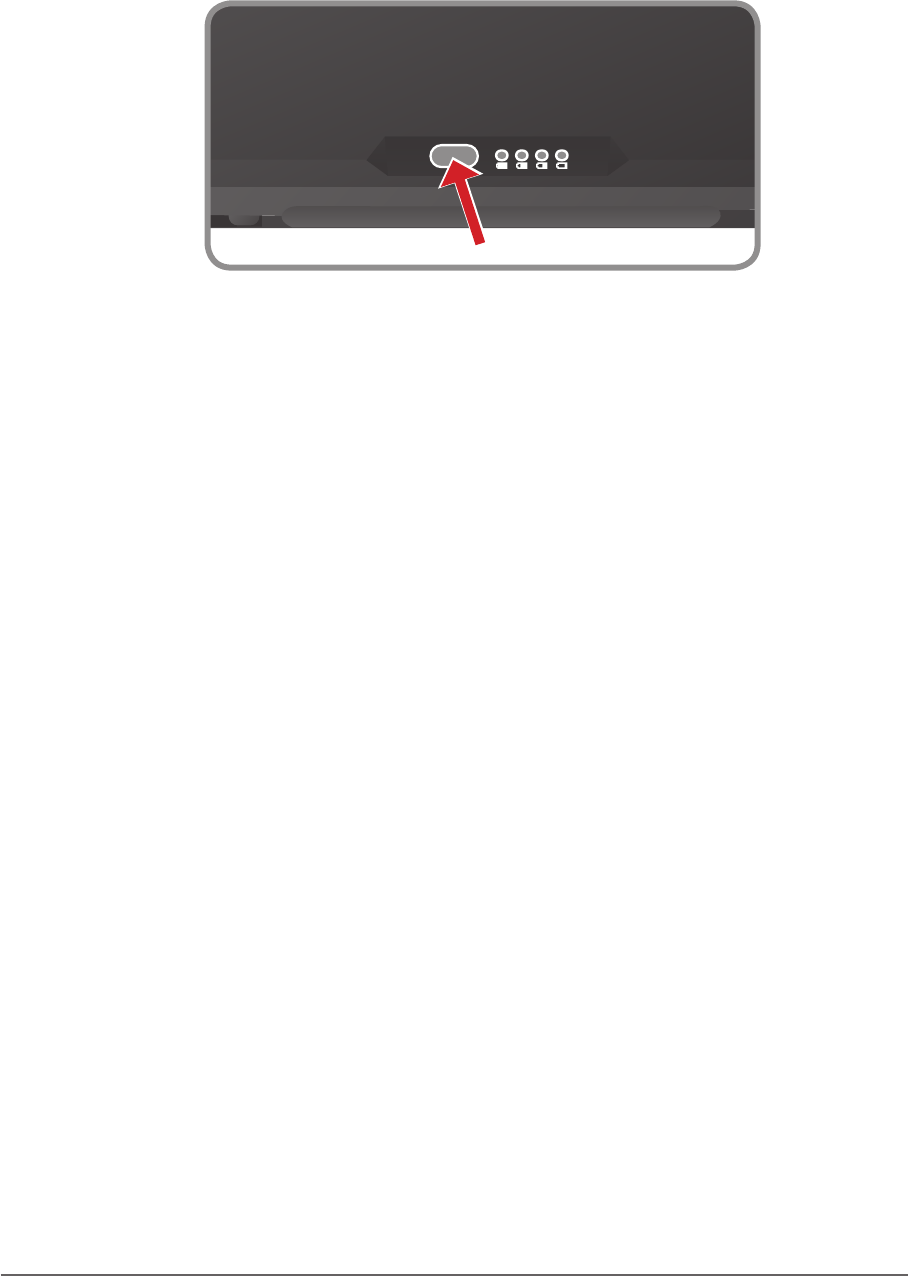

Checking the Battery Level
To check the battery level, press the battery button of the battery pack. The
battery LED lights up. The number of lit up LEDs indicates the battery level of
the battery pack.
5.0MP
AF
NOTE: The battery capacity indicator shows only an approximate battery level status.
4-4 Managing Power

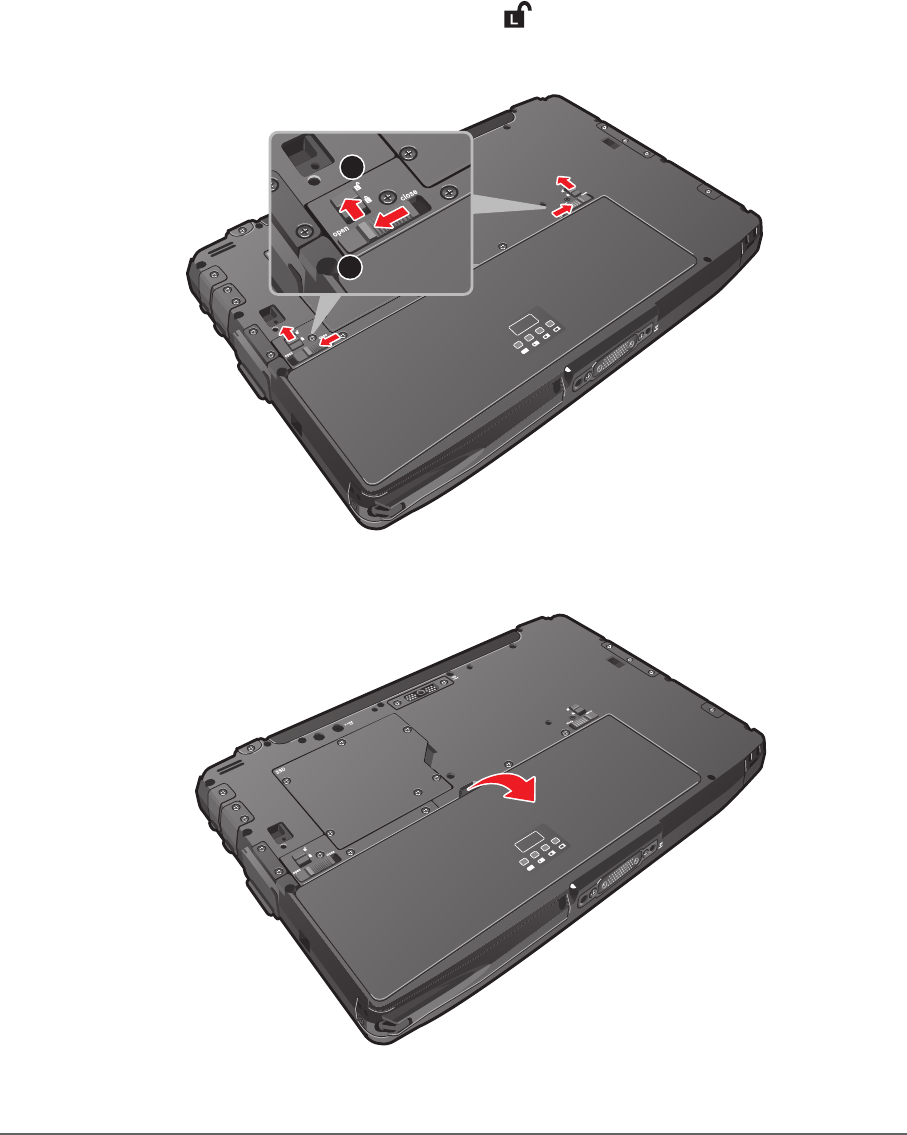

Replacing the Battery Pack
If you rely on battery power for a long period of time, consider purchasing
additional batteries from your dealer to use for backup.
To replace the battery pack, perform the following:
1. Shut down the Tablet Computer.
2. Disconnect the Tablet Computer from the AC power.
3. Place the Tablet Computer face down on a at even surface.
4. Slide the battery locks to the unlock ( ) position (A).
5. Slide the battery latches outward to the “open” position (B).
B
A
6. Insert your nger on the tab and then lift to remove the battery pack .
4-5Managing Power
7. Install the replacement battery pack in place (see “Installing the Battery
Pack” on page 1-14).
NOTE: You can still operate the Tablet Computer without a battery pack when it is connected to a
power source. However, this action is not recommended as an empty battery pack slot exposes the
Tablet Computer internal parts to environmental hazards, such as dust and water.
4-6 Managing Power
Power Management
The power management feature helps reduce power consumption which
extends battery life.
Your Tablet Computer supports ACPI (Advanced Conguration and Power
Interface) for power management. Power supply to different components is
controlled on an as-needed basis. This allows maximum power conservation
and performance at the same time.
Windows comes with pre-dened Power Options (Balanced, Power Saver,
and High Performance) for you to select. You can access Power Options
by tapping Start > Control Panel > Power Options. By default, your Tablet
Computer is in Balanced Mode.
For detailed information on power management, see Windows Help.
4-7Managing Power
Power Saving Tips
Here are some practical suggestions that you can do to maximize the operating
time of the battery:
• Enable Power Management. Choose a power plan that saves power. A
power plan is a collection of hardware and system settings that control how
your Tablet Computer manages power.
• Decrease the LCD brightness to the lowest comfortable level.
• Shorten the length of time before Windows turns off the display.
• Many USB devices use power just by being connected. If you use a USB
ash drive, unplug it when you are not using it.
• Deactivate the Wireless LAN function if you are not using it.
• Deactivate Bluetooth wireless feature if you are not using it.
• Turn off the Tablet Computer when you are not using it.
5-1Expanding Your Tablet Computer
CHAPTER 5
You can optimize the capabilities of your Tablet Computer by using other
optional accessories.
This chapter gives guidelines on installing and using these accessories:
• Docking Station
• Expansion Module
• Extendable Battery Pack
Expanding Your Tablet
Computer
5-2 Expanding Your Tablet Computer
Connecting the Docking Station
The Ofce Dock, a docking station designed for use with your Tablet Computer
is available as an optional accessory.
The Ofce Dock has the following features:
• Docks the Tablet Computer with adjustable fangs up to 20° for comfortable
viewing capabilities
• Charges the Tablet Computer
battery pack
• Charges an additional battery
pack with its extra battery bay
• Provides four USB ports
• Provides one RS232 port
• Provides one Line-In and one
Line-out port
• Provides one RJ45 jack that
supports up to 1GB LAN
connection
• With two LED indicators
Docking the Tablet Computer
To dock your Tablet Computer, simply align the docking connectors of the Tablet
Computer to the connectors on the Ofce Dock.
NOTE: For information on using the Ofce Dock, refer to the User Manual that comes with the device.
5-3Expanding Your Tablet Computer
Installing the Expansion Module
Your Tablet Computer is designed to extend its functionality with the use of the
Expansion Module. The Expansion Module provides a Smart Card Reader and
a SIM card slot.
Perform the following to install the Expansion Module to your Tablet Computer:
1. Align the expansion connectors (pogo connectors) of your Tablet
Computer to the connectors on the Expansion Module.
2. Tighten the screw to secure the Expansion Module to the Tablet Computer.
NOTE: For information on using the Expansion Module, refer to the User Manual that comes with the
module.
5-4 Expanding Your Tablet Computer

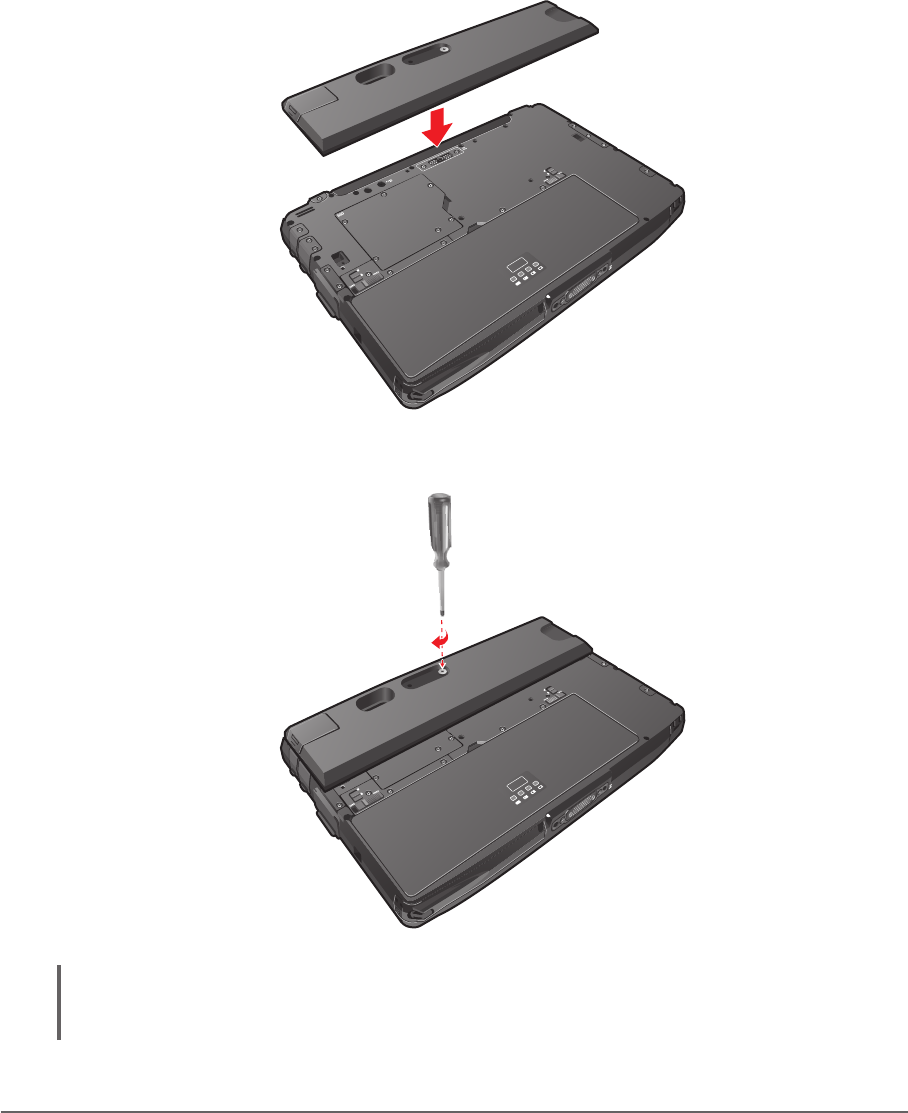

Installing the Extendable Battery Pack
For longer battery life, you can use the Extendable Battery Pack which is
available as an optional accessory.
Perform the following to install the Extendable Battery Pack to your Tablet
Computer:
1. Place the Tablet Computer face down on a at even surface.
2. Align and place the battery pack on its bay.
3. Tighten the screws to secure the Extendable Battery Pack to the Tablet
Computer.
5-5Expanding Your Tablet Computer
Checking the Battery Level
To check the battery level of the Extendable Battery Pack, press the battery
button. The battery LED lights up. The number of lit up LEDs indicates the
battery level of the battery pack.
6-1Using BIOS Setup and System Recovery
CHAPTER 6
BIOS Setup Utility is a program for conguring the BIOS (Basic Input/ Output
System) settings of the tablet computer. The BIOS is a layer of software,
called rmware, that translates instructions from other layers of software into
instructions that the tablet computer hardware can understand. The BIOS
settings are needed by your tablet computer to identify the types of installed
devices and establish special features.
System Recovery reinstalls Windows to your system and congures it to s
factory default settings.
The chapter describes how to use the BIOS Setup and System Recovery.
Using BIOS Setup and
System Recovery
6-2 Using BIOS Setup and System Recovery
BIOS Setup
When to Use
You need to run BIOS Setup utility when:
• You see an error message on the screen requesting that you run BIOS
Setup utility.
• You want to restore the factory default BIOS settings.
• You want to modify some specic hardware settings.
• You want to modify some specic settings to optimize the system
performance.
Starting BIOS Setup Utility
A USB keyboard is required to access, move around, and make selections in
the BIOS Setup Utility.
1. Before turning on the Tablet Computer, connect the USB keyboard to the
USB port of the Tablet Computer.
2. Power on the Tablet Computer.
3. When the system starts up and the post screen logo appears, quickly
press F2 or the Delete key to enter the BIOS Setup Utility.
6-3Using BIOS Setup and System Recovery
How to Use
NOTE:
• The BIOS Setup Utility screens shown in this chapter are for reference only. The actual items
or settings on your Tablet Computer may differ.
• The settings you select in your operating system might override similar settings in BIOS Setup
Utility.
Key Function
◄ / ► Selects a menu title.
▲ / ▼ Selects an item or option.
Enter • Brings up the submenu, if available
• When an item is selected, opens or closes the options
window
• Goes to the next eld when an item has multiple elds, such
as System Date.
+ / - Changes the option or adjusts the value.
F1 Displays help.
F9 Optimized Defaults.
F10 Save and exit BIOS.
Esc Returns to the previous menu if in a submenu or Exit BIOS.
6-4 Using BIOS Setup and System Recovery
BIOS Menu
Main Menu
The Main menu contains the system date and time settings and shows the
basic system information.
Main AdvancedInternal DevicesSecurityBootSave & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
System Date [Thu 09/06/2012]
System Time [19:12:12]
Processor Type Intel(R) Atom(TM) CPU
Processor Speed 1600 MHz
Total Memory 2048 MB
Internal Drive Model 64GB SATA F1 (64GB)
System Model GT101C
Bios Version E06
Quiet Boot [Enabled]
Set the Date. Use Tab to
switch between Date elements.
: Select Screen
: Select Item
Enter: Select
+/_:Change Opt.
F1: General Help
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
• System Date: Sets the system date.
• System Time: Sets the system time.
• Quiet Boot: Enables or disables the Quiet Boot option.
Security Menu
The Security menu contains the security settings, such as conguring the
Supervisor Password and Trusted Computing.
Main AdvancedInternal DevicesSecurityBoot Save & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Supervisor Password
Supervisor Password Clear
Trusted Computing
Set Supervisor Password
To clear supervisor password,
please enter old password
first and leave new password
and new password confirmation
blank.
: Select Screen
: Select Item
Enter: Select
+/_:Change Opt.
F1: General Help
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
• Supervisor Password: Congures the supervisor password which will be
required before you can enter the BIOS Setup Utility. When the Supervisor
Password is congured, the word “Set” is shown on the screen. If the
6-5Using BIOS Setup and System Recovery
Supervisor Password is not congured, the word “Clear” is displayed.
• Trusted Computing: Enables or disables BIOS support for TPM (Trusted
Platform Module) security devices.
Advanced Menu
The Advanced menu contains the advanced settings, such as Wake On LAN
and Storage Device Data Interface settings.
Main AdvancedInternal DevicesSecurityBootSave & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: Select Screen
: Select Item
Enter: Select
+/_:Change Opt.
F1: General Help
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
Wake On LAN [Enabled]
Storage Device Data Interface [AHCI]
Wake On LAN
[Enabled]: Allow Wake On LAN.
[Disabled]: Prevent Wake On
LAN.
• Wake On Lan: Enables or disables the device to wake on LAN.
• Storage Device Data Interface: Selects how the hard disk controller
operates, options are IDE or AHCI mode.
6-6 Using BIOS Setup and System Recovery
Internal Devices Menu
The Internal Devices menu enables or disables the built-in devices in the Tablet
Computer.
Main AdvancedInternal DevicesSecurityBootSave & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: Select Screen
: Select Item
Enter: Select
+/_:Change Opt.
F1: General Help
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
Wake On LAN [Enabled]
Storage Device Data Interface [AHCI]
Wake On LAN
[Enabled]: Allow Wake On LAN.
[Disabled]: Prevent Wake On
LAN.
• Front Camera: Enables or disables the front camera.
• Rear Camera: Enables or disables the rear camera.
• Fingerprint Reader: Enables or disables the ngerprint reader.
• WWAN: Enables or disables the WWAN antenna.
• WLAN/BT Module: Enables or disables the WLAN/BT antenna.
• GPS: Enables or disables the GPS antenna.
Boot Menu
The Boot menu sets the boot order of devices.
Main AdvancedInternal DevicesSecurityBoot Save & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: Select Screen
: Select Item
Enter: Select
+/_:Change Opt.
F1: General Help
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
Set Boot Priority
1st Boot [USB CD/DVD]
2nd Boot [Hard Disk: 64GB SA...]
3rd Boot [USB Hard Disk:Gene...]
4th Boot [USB KEY]
5th Boot [USB Floppy]
6th Boot [Network:Realtek PX...]
Set Boot Priority.
6-7Using BIOS Setup and System Recovery
Save & Exit Menu
The Save & Exit menu displays ways of exiting BIOS Setup Utility. After
modifying the settings, you must save and exit for the changes to take effect.
Main AdvancedInternal DevicesSecurityBootSave & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: Select Screen
: Select Item
Enter: Select
+/_:Change Opt.
F1: General Help
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
Save Changes and Reset
Discard Changes and Exit
Restore Defaults
Discard Changes
Save Changes
Reset the system after saving
the changes.
• Exit Saving Changes: Saves the changes you have made and exits BIOS
Setup Utility.
• Exit Discarding Changes: Exits BIOS Setup Utility without saving the
changes you have made.
• Load Setup Defaults: Restores the default values of all items.
• Discard Changes: Restores the previous values of all items.
• Save Changes: Saves the changes you have made.
A-1Specications
APPENDIX A
This chapter covers the following topics:
• How to care for your Tablet Computer
• Troubleshoot your Tablet Computer
• Tablet Computer Specications
Maintenance, Troubleshooting
and Specications
A-2 Specications
Taking Care of the Tablet Computer
Location Guidelines
• Keep the tablet computer at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic eld such as a TV,
refrigerator, motor, or a large audio speaker.
General Guidelines
• Do not place heavy objects on top of the tablet computer as this may
damage the display.
• The screen surface is easily scratched. Use the screen protector lm to
protect it. Do not use paper towels to clean the display but use the included
cleaning cloth. Avoid touching it with a pen or pencil.
• To maximize the life of the backlight in the display, allow the backlight to
automatically turn off as a result of power management. Avoid using a
screen saver or other software that prevents the power management from
working.
Cleaning Guidelines
• Use a soft cloth moistened with water or a non-alkaline detergent to wipe
the exterior of the tablet computer.
• Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or
detergent on the display.
Touchscreen Guidelines
• Use your nger or the included stylus on the display. Using a sharp or
metallic object may cause scratches and damage the display, thereby
causing errors.
• Use a soft cloth to remove dirt on the display. The touchscreen surface has
a special protective coating that prevents dirt from sticking to it. Not using
a soft cloth may cause damage to the special protective coating on the
touchscreen surface. To clean off hard to remove dirt, blow some steam on
the particular area and gently wipe away using a soft cloth.
• Do not use excessive force on the display. Avoid placing objects on top of
the display as this may cause the glass to break.
When there is a noticeable discrepancy in the operation of the touchscreen
function (stylus touch does not correlate to the proper location on the screen),
recalibrate the touchscreen display (see “Calibrating the Screen” on page
2-3).
A-3Specications
Troubleshooting
When you encounter problems when using the Tablet Computer, try the
following troubleshooting tips rst to detect and solve the problem. If the
problem persists, contact customer support.
Problem Solution
The battery is not
charging.
• Make sure the AC adapter is properly
connected.
• Make sure the battery is not too hot or too cold.
• Make sure the battery pack is installed correctly.
• Make sure the battery terminals are clean.
Nothing appears on the
screen.
• The Tablet Computer may be in sleep mode.
Press the power button to wake up the display.
• The brightness level may be too low. Increase
brightness (see “Adjusting Screen Brightness”
on page 2-6).
The screen suddenly
turns blank and the
power indicator goes off.
• Make sure the AC adapter is properly
connected.
• If using a battery pack, the battery pack may be
depleted, replace or charge the battery.
I cannot use the wireless
LAN feature.
• Make sure that wireless LAN feature is turned
on.
Wireless LAN signal
quality is poor.
• The Tablet Computer may be out of range. Move
your Tablet Computer closer to the access point
or another wireless LAN device associated with
it.
• Check if your surroundings have interferences,
such as microwave ovens, cordless phones.
Move the Tablet Computer away from objects
causing interference.
I cannot connect to
another wireless LAN
device.
• Make sure that wireless LAN feature is turned
on.
• Make sure that the SSID setting is the same for
every wireless LAN device in the network.
• Restart the Tablet Computer.
• Make sure the IP address or subnet mask
setting is correct.
A-4 Specications
Problem Solution
I cannot connect to
another device with
Bluetooth.
• Make sure that both devices have Bluetooth
turned on.
• Make sure that the distance between the two
devices is within 10 meters and there are no
walls or large obstructions between the devices.
• Make sure that both devices are turned on and
are congured to be discoverable.
• Make sure that both devices are compatible.
No sound is produced. • Adjust the volume of the Tablet Computer (see
“Adjusting Volume” on page 2-6).
• If using an external audio device, make sure that
the cable is properly connected.
A-5Specications
Tablet Computer Specications
TechnicalSpecications
Processor Intel® Cedar Trail
N2600 (1.6GHz)
BIOS • AMI Aptio®
• TAA socket
Chipset • Intel Tiger Point
• NM10
Main Memory DDR3 2GB
Display • 10.1” backlight LED
• 1280 x 800
Graphics • Intel Cedar View SGX545
• SGX545@400MHz
Camera • Back Cam CMOS, 5.0MP with auto focus
• Front Cam CMOS, 2MP with xed focus
Storage 32/64/128GB
Card Slot Micro SD Card Reader
Connectivity
• WLAN: 801.11 b/g/n, half-size mini PCI-E card
with BT
• WWAN: Gobi 3000
LED Status Indicator
• Heater On
• RF On/Off
• Battery Full / Charging / Low
• Power On
Interface
• 3.5 Φ Audio Jack x 1
• HDMI Type D x 1
• Micro SD Card x 1
• Mini-SIM Card x 1
• USB Type A x 1
• USB Mini-A x 1
• RJ-45 x 1
• Expansion Port x 1
• Docking Port x 1
Antenna
• WWAN Main
• WLAN x 2
• GPS
Audio • Single Digital Mic
• 1 x Speaker, 200Hz ~ 16KHz
Power Management ACPI 3.0 Supported
A-6 Specications
TechnicalSpecications
Battery Bridge Battery Lithium-Polymer Battery Pack with power saving
features activated
AC Adapter AC 100 ~ 240V, 50 ~ 60Hz, DC 12V, 60W
PhysicalSpecications
Dimensions (WxHxT) 290 x 195 x < 21 mm
Weight < 1.2 Kg (including battery)
Security
• Inneon chip on board
• Fingerprint Reader Swipe-type biometric
sensor
• Kensington Lock
B-1Regulatory Information
APPENDIX B
This appendix provides regulatory statements and safety notices about your
Tablet Computer.
NOTE: Marking labels located on the exterior of your Tablet Computer indicate the regulations that
your model complies with. Check the marking labels and refer to the corresponding statements in this
appendix. Some notices apply to specic models only.
Regulatory Information
B-2 Regulatory Information
Important Information
WARNING: To reduce the risk of re or electric shock, do not expose this
appliance to rain or moisture. MAKE SURE the power cord is UNPLUGGED
FROM THE WALL OUTLET IF IT WILL NOT BE USED FOR AN EXTENDED
PERIOD OF TIME. To completely disengage power from the unit, BE SURE
TO UNPLUG THE POWER CORD FROM THE AC OUTLET. Do not remove
the back cover or any internal parts. Contact qualied personnel if repairs are
necessary.
SA1965
ELECTRICAL SAFETY WARNING
Used for instructions intended to alert the user to the risk of a
fatal electric shock or serious injury in case of incorrect use of the
unit.
SA1966
WARNING
Used for instructions intended to alert the user to the risk of death
or serious injury in case of incorrect use of the unit.
ATTENTION: Pour réduire le risque d’incendie ou de choc electrique ne pas
exposer l’appareil à la pluie ou à l’humidité FAIRE le cordon électrique est
DÉBRANCHÉ DE LA PRISE MURALE DANS UN DELAI DE PROLONGER
INACTIVITÉ. De se désengager totalement LE POUVOIR DE L’UNITE, S’IL
VOUS PLAÎT DEBRANCHER LE CORDON D’ALIMENTATION DE LA PRISE
AC. NE PAS Romove le capot arrière, pas de PIÈCES À L’INTÉRIEUR.
Contactez un personnel qualié S’il faut le réparer.
SA1965
ELECTRIQUE AVERTISSEMENT
Sert aux instructions destin es alerter l’utilisateur d’un CHOC
ÉLECTRIQUE mortel ou de blessure grave en cas d’utilisation
incorrecte de l’unit.
SA1966
AVERTISSEMENT
Sert aux instructions destin es alerter l’utilisateur d’un risque
mortel ou de blessure grave en cas d’utilisation incorrecte de
l’unit .
B-3Regulatory Information
Safety Information (EN)
Follow and adhere to all warnings and instructions on the screen. For your
safety, please read all safety and operating instructions before using the
monitor. Keep this manual for future reference.
1. Carefully read all recommendations and precautions for use before using
this product.
2. All recommendations and precautions for use should be retained so that
they can be referred to necessary.
3. Read and be sure to understand all warnings listed in the precautions.
4. Follow all operating precautions when using this product.
5. This product should not be used near water such as bathtubs, sinks,
swimming pools, wet basements etc..
6. Use only a dry cloth to clean this product.
7. Do not block any ventilation openings. Do not place the product against a
wall or in an enclosed space as doing so might impede the ow of cooling
air.
8. Do not place the product near any heat sources such as radiators, warm
air intakes, stoves or other heat-generating devices (including ampliers or
other heat producing equipment).
9. Do not disregard the safety that a polarized or grounded connection can
provide. A polarized connection consists of two plugs, one of which is
larger than the other. A grounded connection has two blades and a third
one that is grounded. If the main plug provided cannot be inserted into
your outlet, consult an electrician to replace your obsolete outlet.
10. Protect the power cord from being crushed or pinched, particularly in the
area of the plugs, any receptacles used, and the point of exit from the
apparatus. Do not break off the ground pin of the power cord.
11. Use only accessories specied by the manufacturer.
12. Use only with its transport carriage, stand, tripod, console
or table specied by the manufacturer or sold with the product.
When using a carriage, move the carriage assembly with the
product carefully to avoid damage from falling over.
13. Unplug this apparatus during lightning storms or when it is not being used
for long periods.
14. Refer all servicing to qualied service personnel. A technical intervention is
required when the apparatus has been damaged in any way, for example if
the power cord or plug is damaged, liquid has been spilled or objects have
fallen inside the unit, if the product has been exposed to rain or moisture, if
it does not operate normally or if it has been dropped.
B-4 Regulatory Information
Safety Information (FR)
Suivez et respectez tous les avertissements et instructions gurant sur l’écran.
Pour votre sécurité, s’il vous plaît lire toutes les consignes de sécurité et de
fonctionnement avant d’utiliser le moniteur. Gardez ce manuel pour référence
future.
1. Lire avec attention toutes les recommandations et precautions d’emploi
avant d’utiliser ce produit.
2. Toutes les recommandations et précautions d’emploi doivent être
conservées an de pouvoir s’y reporter si nécessaire.
3. Lire et comprendre tous les avertissements énumérés dans les
précautions d’emploi.
4. Suivre toutes les précautions d’emploi pour utiliser ce produit.
5. Ce produit ne doit pas être utilisé près d’eau, comme par exemple
baignoires, éviers, piscine, sous-sol humides ... Etc.
6. Utiliser exclusivement un chiffon sec pour nettoyer ce produit.
7. Ne bloquér aucune ouverture de ventilation. Ne pas placer le produit tout
contre un mur ou dans une enceinte fernée, cela gênerait le ux d’air
nécessaire au refroidissement.
8. Ne pas placer le produit près de toute source de chaeur telle que
radiateurs, arrivées d’air chaud, fourneaux ou autres appareils générant
de la chaleur (incluant les amplicateurs producteurs de chaleur) .
9. Ne pas négliger la sécurité que procure un branchement polarisé ou avec
raccordement à la terre, Un branchement polarisé comprend deux ches
dont l’une est plus large que l’autre. Un branchement à la terre comprend
deux ches plus une troisième reliée à la terre. Si la che secteur fournie
ne s’insert pas dans votre prise de courant. consulter un ‘électricien an
de remplacer votre prise obsolète.
10. Protéger le cordon d’alimentation de tout écrasement ou pincement,
particulièrement au niveau des ches, des réceptacles utilisés et à
l’endroit de sortie de l’appareil. Ne pas casser la che de terre du cordon
d’alimentation.
11. Utiliser uniquement les accessoires spéciés par le constructeur.
12. Utiliser uniquement avec le chariot de transport, le support,
le trépied, la console ou la table spéciés par le constructeur
ou vendus avec l’appareil. Lors de l’utilisation d’un chariot,
bouger avec précaution l’ensemble chariotlappareil an
d’éviter les dommages d’un renversement.
13. Débrancher cet appareil lors d’orages ou s’il n’est pas utilize pendant une
longue période.
14. Pour toutes interventions techniques s’adresser à un technicien
qualié.L’intervention technique est nécessaire lorsque l’appareil a été
endommagé de n’importe quelle façon, comme par exemple si le cordon
secteur ou sa che sont détériorés,si du liquide a coulé ou si des objets
sont tombés à l’intérieur de l’apparei1,si l’appareil a été exposé à la pluie
ou à l’humidité, s’il ne fonctionne pas normalement ou s’il est tombé.
B-5Regulatory Information
About the Batteries
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION!
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions. (English)
ATTENTION!
Il y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du mêre type ou d’un type équivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées
conformément aux instructions du fabricant. (French)
About the Adapter
• Use only the supplied AC adapter (Rating: Input DC 12V, 5.0A). Use of
another type of AC adapter will result in malfunction and/or danger.
• Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
• Allow adequate ventilation around the adapter when using it to operate the
device or charge the battery. Do not cover the AC adapter with paper or
other objects that will reduce cooling. Do not use the AC adapter while it is
inside a carrying case.
• Connect the adapter to a proper power source. The voltage requirements
are found on the product case and/or packaging.
• Do not use the adapter if the cord becomes damaged.
• Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
B-6 Regulatory Information
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
Operation on the 5.15-5.25GHz frequency band is restricted to indoor use only.
The FCC requires indoor use for the 5.15-5.25GHz band to reduce the potential
for harmful interference to co-channel Mobile Satellite Systems. Therefore, it
will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725 –5.850 GHz
band when associated with an access point (AP).
B-7Regulatory Information
RF Exposure Information (SAR)
This device is compliance with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance
with the measurement methods and procedures specied in OET Bulletin 65
Supplement C.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device was tested for operations with the device
contacted directly to the human body to the back side of the EUT. To maintain
compliance with FCC RF exposure compliance requirements, avoid direct
contact to the transmitted antenna during transmitting.
IC Regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.”
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
The device could automatically discontinue transmission in case of absence of
information to transmit, or operational failure. Note that this is not intended to
prohibit transmission of control or signaling information or the use of repetitive
codes where required by the technology.
B-8 Regulatory Information
The device for the band 5150-5250 MHz is only for indoor usage to reduce
potential for harmful interference to co-channel mobile satellite systems; the
maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and
5470-5725 MHz) to comply with the e.i.r.p. limit; and The maximum antenna
gain permitted (for devices in the band 5725-5850 MHz) to comply with the
e.i.r.p. limits specied for point-to-point and non point-to-point operation as
appropriate, as stated in section A9.2(3). In addition, High-power radars are
allocated as primary users (meaning they have priority) of the band 5250-5350
MHz and this radar could cause interference and/or damage to LE-LAN devices.
The County Code Selection feature is disabled for products marketed in the US/
Canada. For product available in the USA/ Canada markets, only channel 1~11
can be operated. Selection of other channels is not possible.
Important Note
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specied in IEEE 1528.
Copyright © 2012
All rights reserved

Navigation menu
