Transtek Medical Electronics LS901-E01 DIGITAL TAPE MEASURE User Manual tape user manual englishV5
Guangdong Transtek Medical Electronics Co.,Ltd DIGITAL TAPE MEASURE tape user manual englishV5
USERS MANUAL
version 1.0
print date: 8/2012
Digital Tape Meter LS502-E
1 2
Device structure Before using
Measure key Body measurements
Wireless transmit
Internet disconnection
Low battery indicator
Measure value
User
Select key
Power button
Coupling
Tape
Battery cover
Data store
Measurement
1. Install the data bridge. Please refer to the data bridge instruction
manual. (If data bridge is already installed, skip these steps.)
2. Register for an account at www.profileplan.net and click
"Create Account". Follow the instructions on screen.
3 4
Register device
1. Log into your account at www.profileplan.net and
choose "My Account" > "Devices."
2. Enter your device’s serial number & click "Add Device."
3. If successful, the device will display as "Active."
4. See "Activate the Product" on the following pages if
device does not display as synced.
5 6
Install batteries Activate the device
Slide off the battery cover
according to the arrow direction. Install 2 AA batteries according to the
marks in the battery compartment.
Replace the battery cover.
1. Bring the device within 3 feet of the data bridge.
2. Press the power button for 5 seconds.
7 8
Operating instructions
See trouble shooting Move to next step
1. Power up the unit, press the
select key to cycle through
the measurement location options
2. Gently pull out the tape to start
measuring.
3. Wrap selected body part with tape.
4. Insert the plastic end of the tape into the
coupling. Press the measure key to
measure and store data.

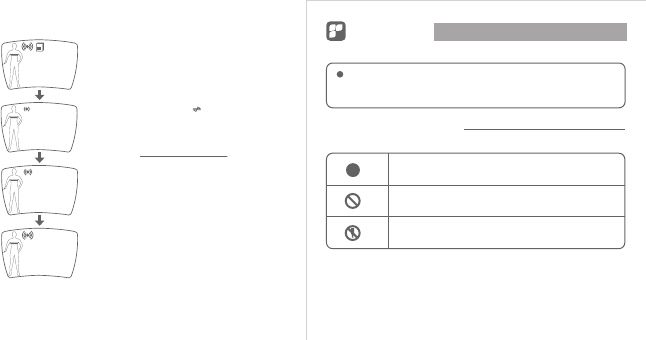

3. The screen will appear. Wait for the screen to
appear. If this screen does not display, see trouble shooting.
9 10
Cautions
Symbol meaning
6. Log into www.profileplan.net to check
the results or use the mobile app.
5. The data, including those failed to be
sent before, will be automatically sent to
the data bridge. After the data is sent the
unit will turn off automatically. If there is
data failure the icon will display.
To prevent the product from harming users and to prolong
product life, please follow guidelines below.
General instruction
Forbidden
Disassembly is forbidden
11 12
About battery use About the device
About daily maintenance
2 x AAA batteries are required for this product. Keep measuring at the same time of every day. For
example, before you go to bed.
Measure and check the data corresponding to the part you
choose.
Measure close to the body to avoid interference caused by
clothing.
Do not disassemble product if you’re not a professional.
Please store in a cool, dry place.
Place the product on the horizontal platform when not
in use
Comply to the environmental rules when disposing of
this product.
If the product is not used for extended periods of
time remove batteries.
When you insert the batteries please make
sure they are in the correct position.
Do not heat the batteries or expose them to
flame.
Do not combine old and new batteries.
Do not disassemble battery charger.
1413

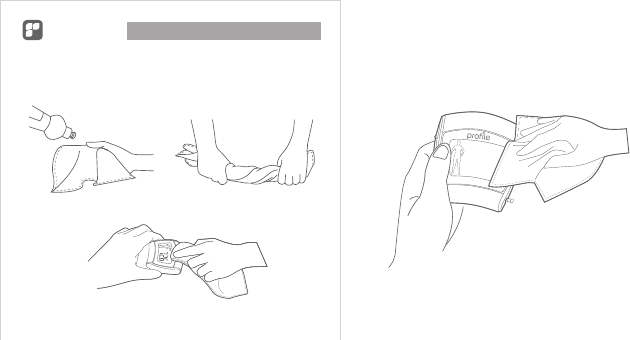

1. Use a damp cloth to gently clean the device. 2. Dry the device after cleaning it.
Cleaning
15 16
Trouble shooting
Symptom
Solution
No Display
Low charge Install new batteries
Wrong battery
installation
Network failure
1. Wireless communication is
interrupted
2. The product is too far away from
the data bridge during activation
Re-activate the product within 3 feet of the data bridge
Align polarity symbols (+/-)
Reason/
Cause

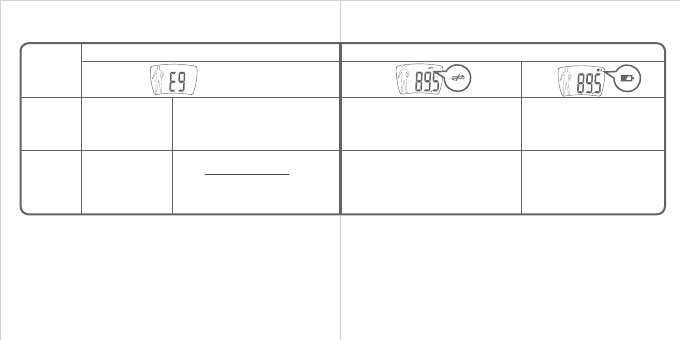

LCD error code
17 18
Product is still
not registered.
LCD error code
Wide Band failure. The data
bridge’s WAN LED light flashes
Check the internet connection
Low battery
Replace the batteries
Symptom
Reason/
Cause
Solution
When using the device, the LCD displays
Go to www.profileplan.net and
delete the unused device or
purchase a new data bridge.
Register the
device
(see step 1)
Data bridge limit of 16 devices
has been reached
19 20
The wireless
communication between
the product and data
bridge is interrupted
Re-measure, keeping the data bridge within 3 feet
of the product.
The system can't automatically
identify the measurement data and
exceeds the identification range
Check the network connection
of the data bridge
Symptom
Solution
When using the device, the LCD displaysWhen using the device the LCD displays
The product is out of
wireless transmission
range
Reason/
Cause
21 22
Specifications
The platform of the Health Center can't indicate
the measurement data normally.
Check network
connection
Symptom
Solution
Item
Product Name
Whole Size
Weight
Power Supply
Display Mode
Unit of measure
Capacity
Division
Working Condition
Storage and
Transportation Condition
85 g (excluding batteries)
2 x AAA
Blue film LCD
Inch
2.2 in min - 59 in max
0.1 in
Temperature: 32 ~ 104 ºF
Temperature: -4 ~ 140 ºF
Digital Tape Meter LS502-E
3 x 2.6 x 1.5 inches
Parameter
The measurement data
is near or over the
identification range. The
system can’t identify
Go into Device
management > Product
> Data authentication
and assign the data
manually
Wide Band failure.
The data bridge’s
WAN LED light
flashes
Reason/
Cause
23 24
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Caution: The user is cautioned that changes or modifications
not expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician
for help.
