Trinus Systems CCR24R Wireless Transmitter System User Manual

Trinus Systems Inc. Wireless Transmitter System

User manual

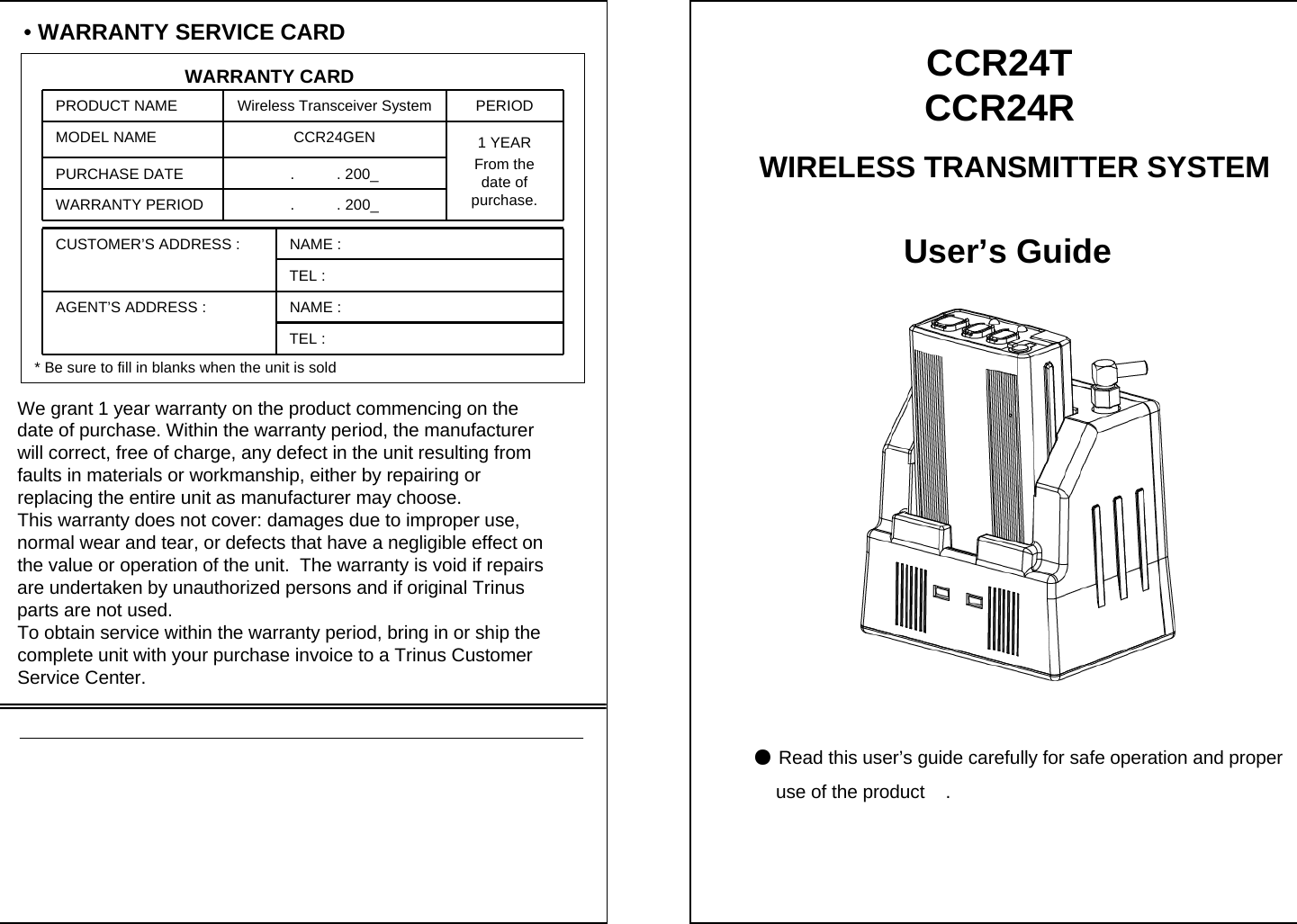

•WARRANTY SERVICE CARDWARRANTY CARDPRODUCT NAME Wireless Transceiver System PERIODMODEL NAME CCR24GEN 1 YEARFrom the date of purchase.PURCHASE DATE .          . 200_WARRANTY PERIOD .          . 200_CUSTOMER’S ADDRESS : NAME : TEL : AGENT’S ADDRESS : NAME : TEL : * Be sure to fill in blanks when the unit is soldWe grant 1 year warranty on the product commencing on thedate of purchase. Within the warranty period, the manufacturerwill correct, free of charge, any defect in the unit resulting from faults in materials or workmanship, either by repairing or replacing the entire unit as manufacturer may choose.This warranty does not cover: damages due to improper use, normal wear and tear, or defects that have a negligible effect on  the value or operation of the unit.  The warranty is void if repairs are undertaken by unauthorized persons and if original Trinus parts are not used.To obtain service within the warranty period, bring in or ship the complete unit with your purchase invoice to a Trinus Customer Service Center.User’s Guide●Read this user’s guide carefully for safe operation and properuse of the product    .CCR24T CCR24RWIRELESS TRANSMITTER SYSTEM

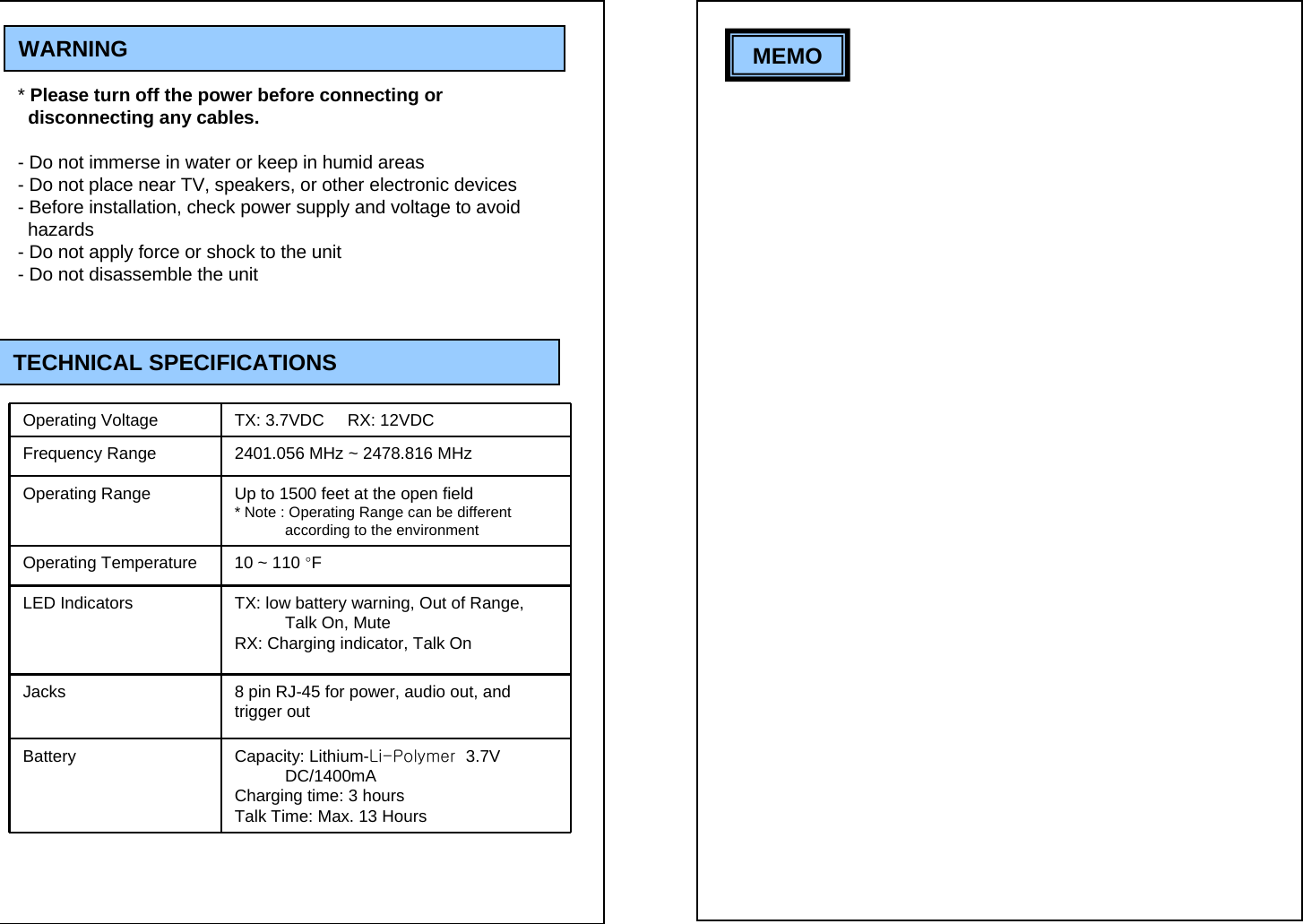

WARNING* Please turn off the power before connecting or  disconnecting any cables. - Do not immerse in water or keep in humid areas- Do not place near TV, speakers, or other electronic devices- Before installation, check power supply and voltage to avoid   hazards- Do not apply force or shock to the unit- Do not disassemble the unit TECHNICAL SPECIFICATIONSOperating Voltage TX: 3.7VDC     RX: 12VDCFrequency Range 2401.056 MHz ~ 2478.816 MHzOperating Range Up to 1500 feet at the open field  * Note : Operating Range can be different according to the environmentOperating Temperature 10 ~ 110 °FLED Indicators TX: low battery warning, Out of Range, Talk On, MuteRX: Charging indicator, Talk OnJacks 8 pin RJ-45 for power, audio out, and trigger outBattery Capacity: Lithium-Li-Polymer  3.7V DC/1400mACharging time: 3 hours Talk Time: Max. 13 Hours  MEMO

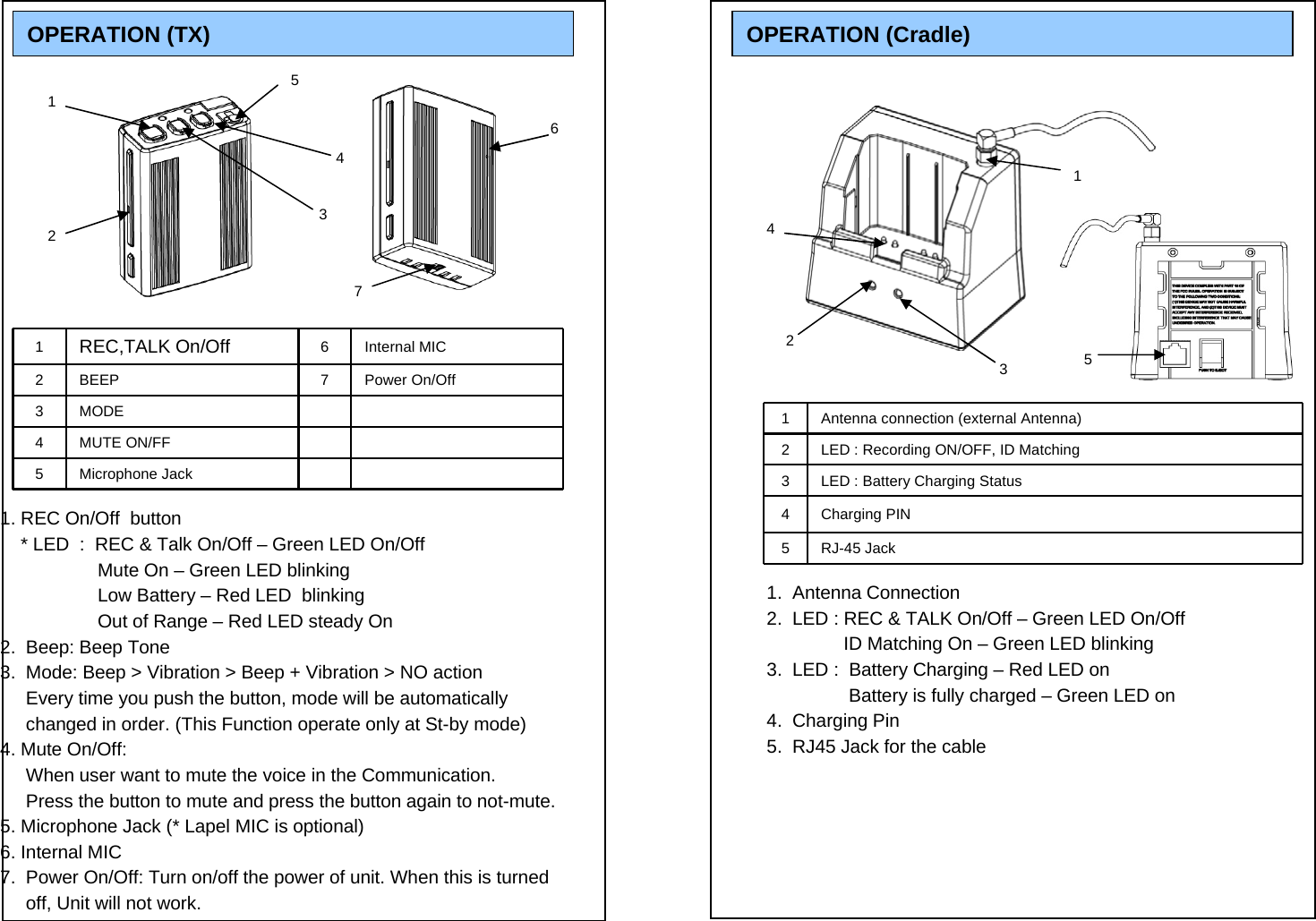

OPERATION (TX) 1REC,TALK On/Off 6 Internal MIC2 BEEP 7 Power On/Off3MODE4MUTE ON/FF5 Microphone Jack1. REC On/Off  button* LED  :  REC & Talk On/Off – Green LED On/OffMute On – Green LED blinkingLow Battery – Red LED  blinkingOut of Range – Red LED steady On2.  Beep: Beep Tone 3.  Mode: Beep > Vibration > Beep + Vibration > NO actionEvery time you push the button, mode will be automatically changed in order. (This Function operate only at St-by mode)4. Mute On/Off: When user want to mute the voice in the Communication. Press the button to mute and press the button again to not-mute.5. Microphone Jack (* Lapel MIC is optional)6. Internal MIC7.  Power On/Off: Turn on/off the power of unit. When this is turned off, Unit will not work.123461 Antenna connection (external Antenna)2 LED : Recording ON/OFF, ID Matching 3 LED : Battery Charging Status4Charging PIN5 RJ-45 Jack1.  Antenna Connection2.  LED : REC & TALK On/Off – Green LED On/OffID Matching On – Green LED blinking 3.  LED :  Battery Charging – Red LED onBattery is fully charged – Green LED on4.  Charging Pin5.  RJ45 Jack for the cableOPERATION (Cradle) 1432557

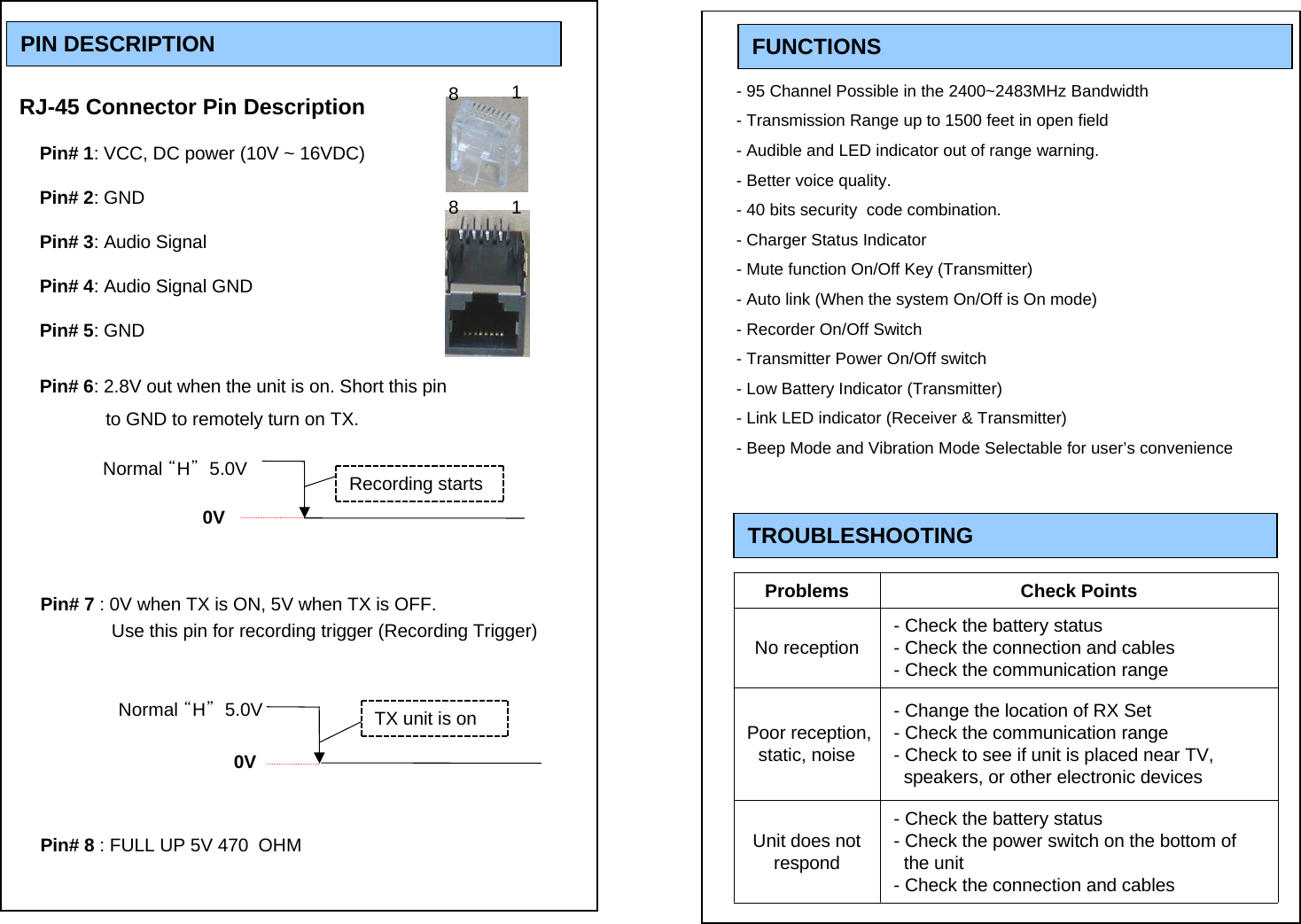

FUNCTIONSPIN DESCRIPTIONRJ-45 Connector Pin DescriptionPin# 1: VCC, DC power (10V ~ 16VDC)Pin# 2: GNDPin# 3: Audio SignalPin# 4: Audio Signal GNDPin# 5: GNDPin# 6: 2.8V out when the unit is on. Short this pin   to GND to remotely turn on TX.    Pin# 7 : 0V when TX is ON, 5V when TX is OFF.           Use this pin for recording trigger (Recording Trigger)Pin# 8 : FULL UP 5V 470  OHM8118- 95 Channel Possible in the 2400~2483MHz Bandwidth- Transmission Range up to 1500 feet in open field- Audible and LED indicator out of range warning. - Better voice quality.- 40 bits security  code combination.- Charger Status Indicator- Mute function On/Off Key (Transmitter)- Auto link (When the system On/Off is On mode)- Recorder On/Off Switch- Transmitter Power On/Off switch- Low Battery Indicator (Transmitter)- Link LED indicator (Receiver & Transmitter)- Beep Mode and Vibration Mode Selectable for user’s convenienceTROUBLESHOOTING Problems Check PointsNo reception - Check the battery status- Check the connection and cables- Check the communication rangePoor reception, static, noise- Change the location of RX Set- Check the communication range- Check to see if unit is placed near TV, speakers, or other electronic devices Unit does not respond- Check the battery status- Check the power switch on the bottom of the unit- Check the connection and cablesNormal “H”5.0V0VTX unit is on0VRecording startsNormal “H”5.0V

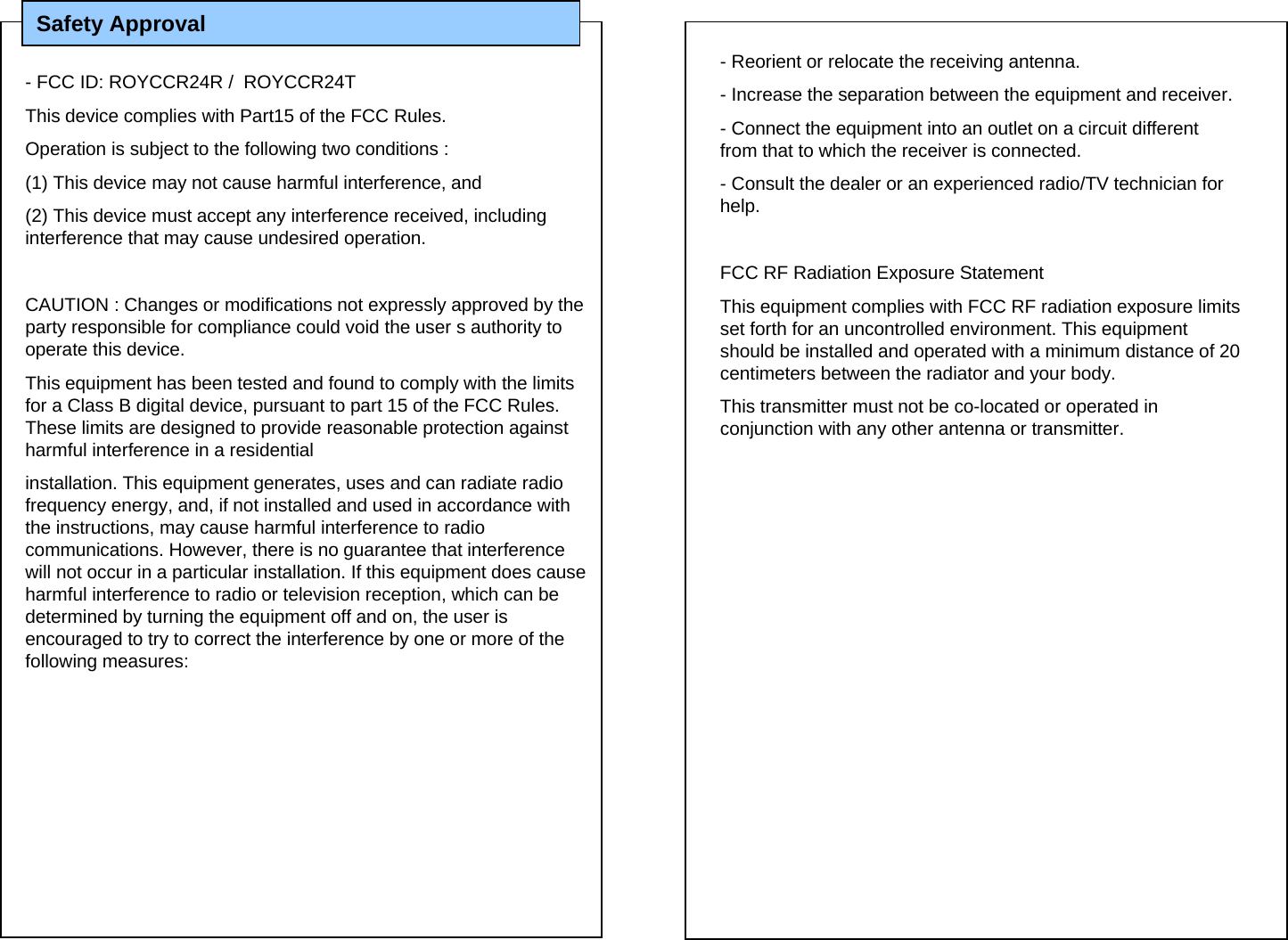

Safety Approval - FCC ID: ROYCCR24R /  ROYCCR24TThis device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions :(1) This device may not cause harmful interference, and(2) This device must accept any interference received, includinginterference that may cause undesired operation.CAUTION : Changes or modifications not expressly approved by theparty responsible for compliance could void the user s authority to operate this device.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure StatementThis equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
