Trinus Systems CCR24R Wireless Transmitter System User Manual
Trinus Systems Inc. Wireless Transmitter System
User manual
•WARRANTY SERVICE CARD
WARRANTY CARD
PRODUCT NAME Wireless Transceiver System PERIOD
MODEL NAME CCR24GEN 1 YEAR
From the
date of
purchase.
PURCHASE DATE . . 200_
WARRANTY PERIOD . . 200_
CUSTOMER’S ADDRESS : NAME :
TEL :
AGENT’S ADDRESS : NAME :
TEL :
* Be sure to fill in blanks when the unit is sold
We grant 1 year warranty on the product commencing on the
date of purchase. Within the warranty period, the manufacturer
will correct, free of charge, any defect in the unit resulting from
faults in materials or workmanship, either by repairing or
replacing the entire unit as manufacturer may choose.
This warranty does not cover: damages due to improper use,
normal wear and tear, or defects that have a negligible effect on
the value or operation of the unit. The warranty is void if repairs
are undertaken by unauthorized persons and if original Trinus
parts are not used.
To obtain service within the warranty period, bring in or ship the
complete unit with your purchase invoice to a Trinus Customer
Service Center.
User’s Guide
●Read this user’s guide carefully for safe operation and proper
use of the product .
CCR24T
CCR24R
WIRELESS TRANSMITTER SYSTEM
WARNING
* Please turn off the power before connecting or
disconnecting any cables.
- Do not immerse in water or keep in humid areas
- Do not place near TV, speakers, or other electronic devices
- Before installation, check power supply and voltage to avoid
hazards
- Do not apply force or shock to the unit
- Do not disassemble the unit
TECHNICAL SPECIFICATIONS
Operating Voltage TX: 3.7VDC RX: 12VDC
Frequency Range 2401.056 MHz ~ 2478.816 MHz
Operating Range Up to 1500 feet at the open field
* Note : Operating Range can be different
according to the environment
Operating Temperature 10 ~ 110 °F
LED Indicators TX: low battery warning, Out of Range,
Talk On, Mute
RX: Charging indicator, Talk On
Jacks 8 pin RJ-45 for power, audio out, and
trigger out
Battery Capacity: Lithium-Li-Polymer 3.7V
DC/1400mA
Charging time: 3 hours
Talk Time: Max. 13 Hours
MEMO

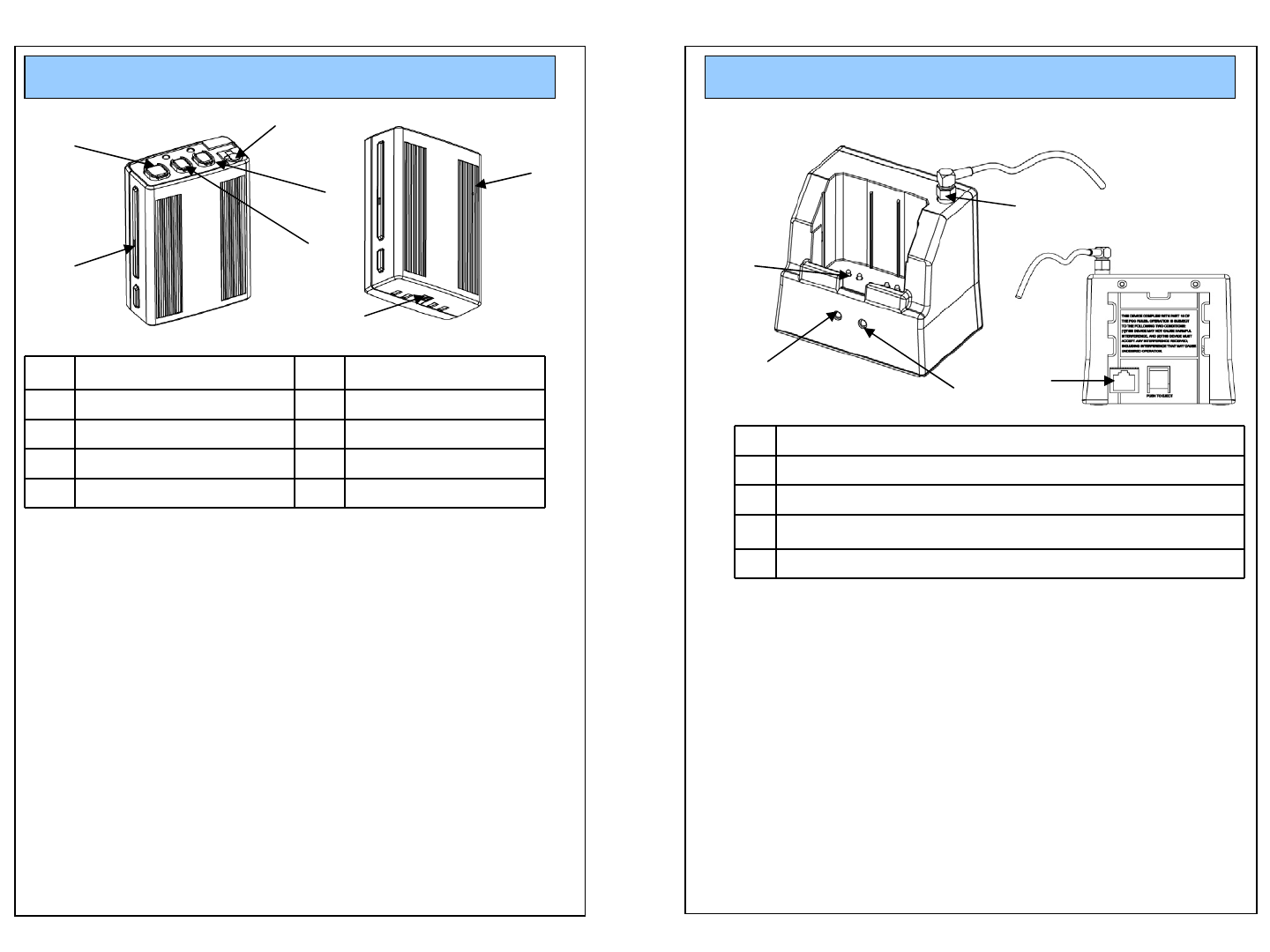

OPERATION (TX)
1REC,TALK On/Off 6 Internal MIC
2 BEEP 7 Power On/Off
3MODE
4MUTE ON/FF
5 Microphone Jack
1. REC On/Off button
* LED : REC & Talk On/Off – Green LED On/Off
Mute On – Green LED blinking
Low Battery – Red LED blinking
Out of Range – Red LED steady On
2. Beep: Beep Tone
3. Mode: Beep > Vibration > Beep + Vibration > NO action
Every time you push the button, mode will be automatically
changed in order. (This Function operate only at St-by mode)
4. Mute On/Off:
When user want to mute the voice in the Communication.
Press the button to mute and press the button again to not-mute.
5. Microphone Jack (* Lapel MIC is optional)
6. Internal MIC
7. Power On/Off: Turn on/off the power of unit. When this is turned
off, Unit will not work.
1
2
3
4
6
1 Antenna connection (external Antenna)
2 LED : Recording ON/OFF, ID Matching
3 LED : Battery Charging Status
4Charging PIN
5 RJ-45 Jack
1. Antenna Connection
2. LED : REC & TALK On/Off – Green LED On/Off
ID Matching On – Green LED blinking
3. LED : Battery Charging – Red LED on
Battery is fully charged – Green LED on
4. Charging Pin
5. RJ45 Jack for the cable
OPERATION (Cradle)
1
4
3
2
5
5
7
FUNCTIONS
PIN DESCRIPTION
RJ-45 Connector Pin Description
Pin# 1: VCC, DC power (10V ~ 16VDC)
Pin# 2: GND
Pin# 3: Audio Signal
Pin# 4: Audio Signal GND
Pin# 5: GND
Pin# 6: 2.8V out when the unit is on. Short this pin
to GND to remotely turn on TX.
Pin# 7 : 0V when TX is ON, 5V when TX is OFF.
Use this pin for recording trigger (Recording Trigger)
Pin# 8 : FULL UP 5V 470 OHM
81
18
- 95 Channel Possible in the 2400~2483MHz Bandwidth
- Transmission Range up to 1500 feet in open field
- Audible and LED indicator out of range warning.
- Better voice quality.
- 40 bits security code combination.
- Charger Status Indicator
- Mute function On/Off Key (Transmitter)
- Auto link (When the system On/Off is On mode)
- Recorder On/Off Switch
- Transmitter Power On/Off switch
- Low Battery Indicator (Transmitter)
- Link LED indicator (Receiver & Transmitter)
- Beep Mode and Vibration Mode Selectable for user’s convenience
TROUBLESHOOTING
Problems Check Points
No reception - Check the battery status
- Check the connection and cables
- Check the communication range
Poor reception,
static, noise
- Change the location of RX Set
- Check the communication range
- Check to see if unit is placed near TV,
speakers, or other electronic devices
Unit does not
respond
- Check the battery status
- Check the power switch on the bottom of
the unit
- Check the connection and cables
Normal “H”5.0V
0V
TX unit is on
0V
Recording starts
Normal “H”5.0V
