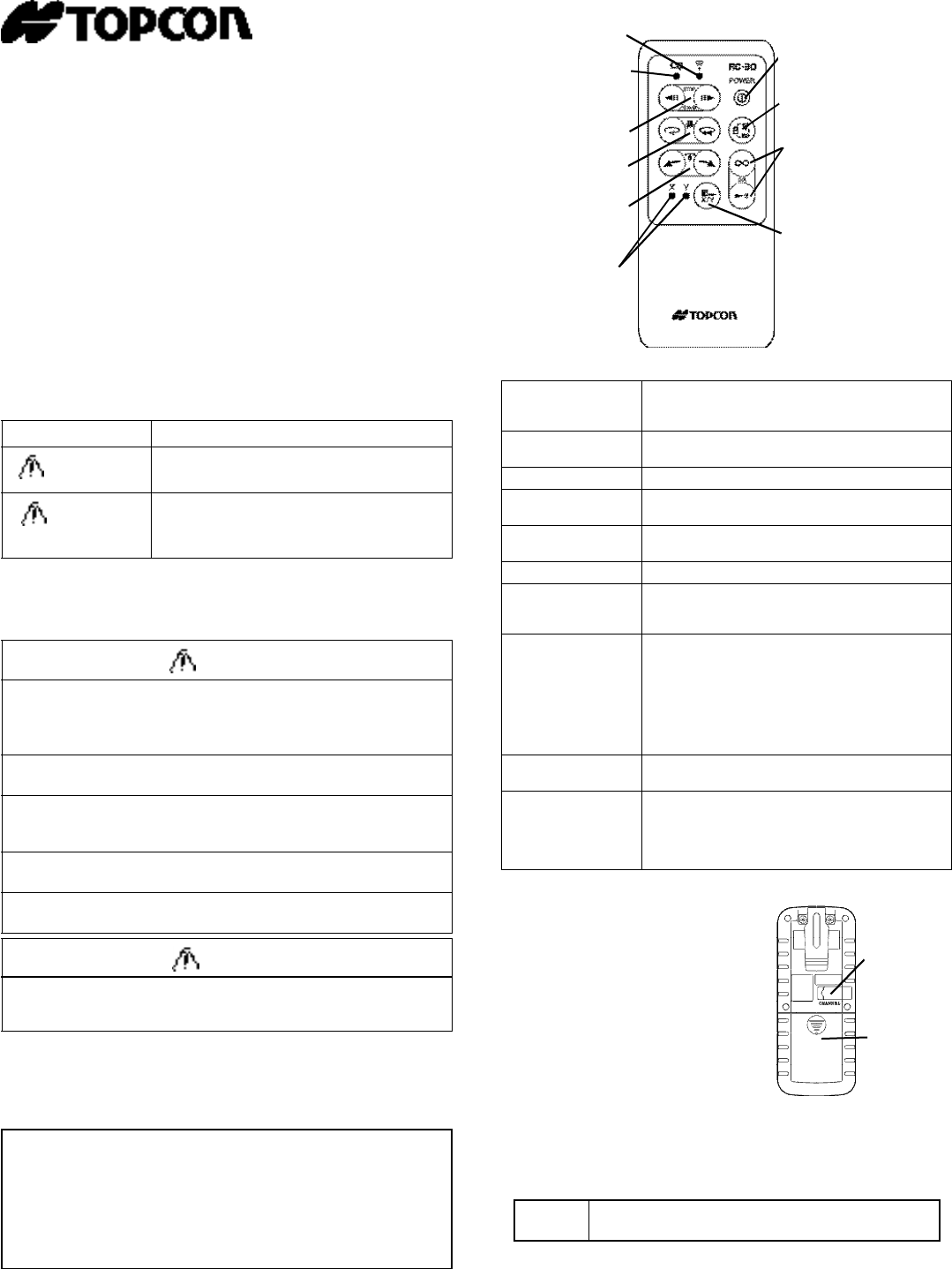

INSTRUCTION MANUAL
Remote Controller for RL-VH3 Series
RC-30
Foreword
Thank you for purchasing the TOPCON Remote controller RC-30.
For the best performance of the instruments, please read these instruc-
tions carefully and keep them in a convenient location for future refer-
ence.
Handling Precautions
Vibration and Impact Protection
when transporting the instrument, provide protection to minimize risk of
severe vibration or impact.
Display for Safe Use
In order to encourage the safe use of products and prevent any danger
to the operator and others or damage to properties, important warnings
are put on the products and inserted in the instruction manuals.
We suggest that everyone understand the meaning of the following dis-
plays and icons before reading the “Safety Cautions” and text.
1) Injury refers to hurt, burn, electric shock, etc.
2) Physical damage refers to extensive damage to buildings or
equipment and furniture.
Safety Cautions
Specifications
Nomenclature
Key Functions
How to Set Communication Channel
The same communication channel must
be assigned to both RC-30 and the RL-
VH3 series.
Remove the rubber cap and turn the
rotary switch to set a channel.
How Replace the RC-30
Batteries
1Remove the battery cover from the
back of the RC-30 by pressing on the
cover and sliding it in the direction of
the arrow.
2Remove the old batteries and replace
with new three “AA” cell alkaline batteries making sure each is
placed in the proper direction as indicated.
3Replace the battery cover. You will hear a click when it snaps in
place.
Display Meaning
WARNING Ignoring or disregard of this display may
lead to death or serious injury.
CAUTION Ignoring or disregard of this display may
lead to personal injury or physical dam-
age to the instrument.
WARNING
• There is a risk of fire, electric shock or physical harm if you
attempt to disassemble or repair the instrument yourself.
This is only to be carried out by TOPCON or an authorized dealer,
only!
• Risk of fire or electric shock.
Do not use a wet battery or charger.
• May ignite explosively.
Never use an instrument near flammable gas, liquid matter, and
do not use in a coal mine.
• Battery can cause explosion or injury.
Do not dispose in fire or heat.
• The short circuit of a battery can cause a fire.
Do not short circuit battery when storing it.
CAUTION
Do not allow skin or clothing to come into contact with acid from
the batteries, if this does occur then wash off with copious
amounts of water and seek medical advice.
Power source Three “AA” cell batteries DC4.5V
Operating time Alkaline manganese dry batteries
Approx. 40 hours ( +20°C)
Operating temperature -20°C to +50°C (-4°F to +122°F)
Dimensions 157(L) x 64(W) x 34(H) mm
(6.2 (L) x2.5 (W) x 1.3(H) ) in
Weight 0.24kg (0.05 lbs)
Transmission lamp Sends operation to the instrument.
If the channel is not equal to the channel set
at RL-VH3 side, the red lamp will light.
Battery warning
lamp for RC-30 Battery warning for RC-30.
Replace the battery to new ones.
Stop beam control Sets Stop beam mode and moves the laser.
Speed control The rotation speed of the rotary head can be
changed.
Alignment control Setting slope for horizontal rotation.
Alignment of the line for vertical rotation.
X/Y axis lamp An axis selected turns on.
Power switch for
RL-VH3 series On/Off of the RL-VH3series by pressing this
key for more than three seconds.
(Sleep mode on/off)
Mode switch con-
trol Laser mode is switched alternately as follows.
Scan mode / Laser sensor mode / Laser
pointing mode.
If this key is pressed in other modes except
Scan, Laser sensor and Laser pointing
modes, the mode will change to scan mode.
If this key is pressed in manual focus mode,
manual focus will be cancelled.
Manual focus con-
trol Laser beam can be focused manually.
(Only for RL-VH3A/G)
X/Y axis selection Sets slope mode by pressing for more than
three seconds.
Select X or Y axis for manual grading.
To cancel the slope mode press this key for
more than three seconds.
Note • Replace all 3 batteries with new ones.
• Do not mix old batteries and new ones.
Battery warning lamp
for RC-30
Transmission lamp
Power switch for RL-VH3
series
Mode switch control
(RL-VH3G does not have
Laser sensor mode.)
Slope mode /
X/Y axis selection
X/Y axis lamp
Alignment control
Speed control
Stop beam control Manual focus control
( Only for RL-VH3A/G)
Rotary switch
(with rubber
cap)
Battery cover
(1a) RC-30 9910
