600-1025 OEM Transceiver Module
Installation Instructions
Description
The OEM transceiver modules are compatible with GE Security
wireless transmitters. The modules have an onboard receiver,
microprocessor, and connection for a daughter board. The micro-
processor controls the receiver, providing antenna switching and
AGC functions. It also analyzes the received data from the
receiver, validates incoming packets, and returns packets to the
receiver when polled. A daughter board, which communicates
with the module via an 8-pin header, can be added to implement
a variety of functions.
Each module encapsulates the receiver functions and formats and
presents a common interface to the daughter board. Therefore,
even though protocols vary among the GE Security radio
frequencies used around the world, the interface is the same to
the daughter board.
Installation guidelines
Observe the following guidelines when installing the OEM trans-
ceiver module:
• Allow at least 9 inches (22.9 cm) of clearance above the
enclosure for the antennas.
• Avoid mounting locations that expose the module to mois-
ture.
• Avoid areas with excessive metal or electrical wiring
including furnace and utility rooms. If unavoidable, mount
on or near metal with the antenna extending above the
metallic surfaces as shown in Figure 1.

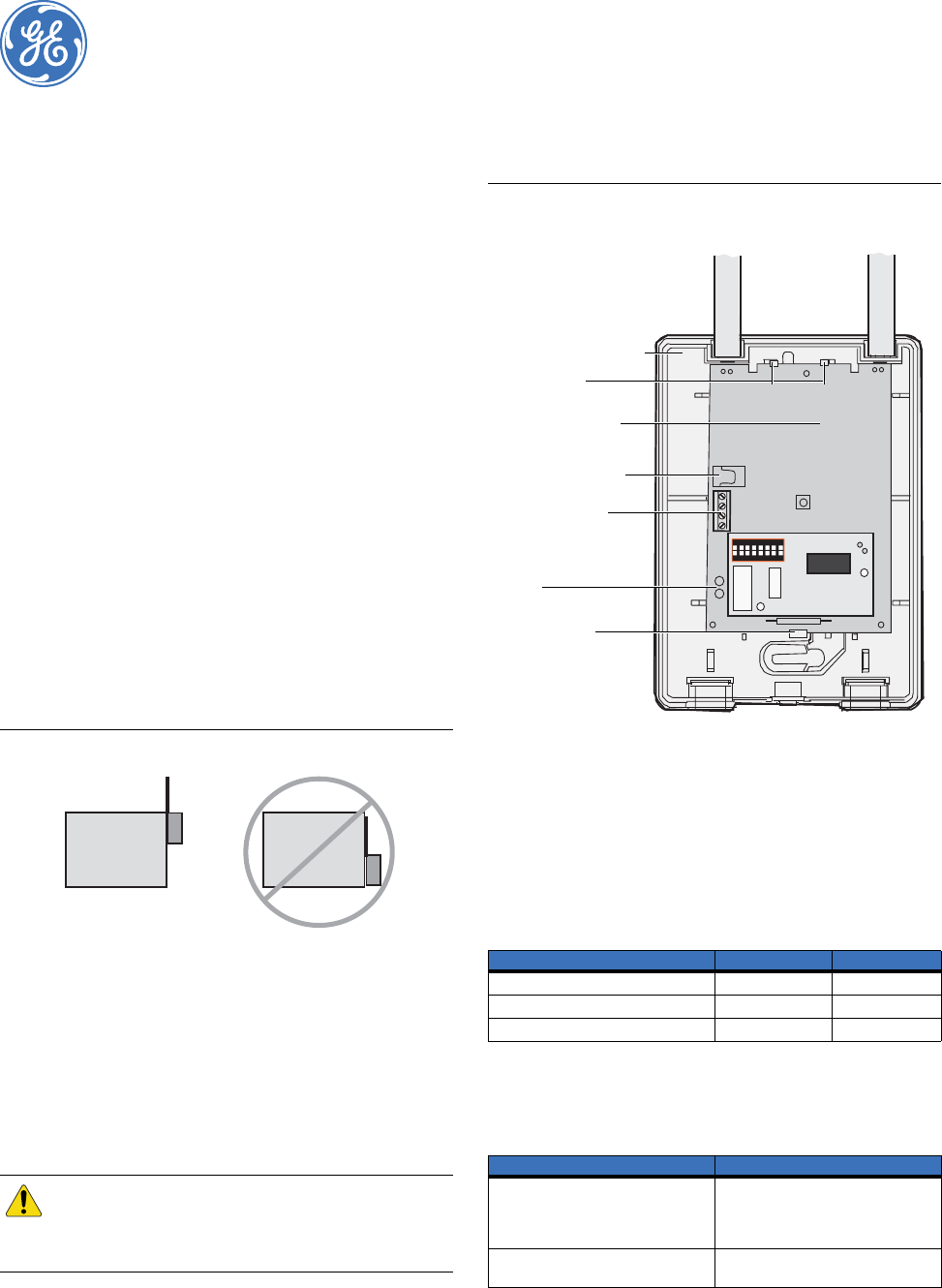

Figure 1. Mounting on or near metal
Note: For UL installations this module must be mounted in the 600-
1029 enclosure. Daughter boards have not been investigated
for use by UL.
Installation
To mount the OEM transceiver module onto the back plate of the
600-1029 enclosure, do the following:
1. Insert the antennas into the antenna shrouds (Figure 2).
2. Gently slide the top of the circuit board under the two top
latches.
3. Snap the circuit board in at the bottom latch to secure it in
place as shown in Figure 2.
Figure 2. Installing the circuit board
4. Connect DC power to the OEM transceiver module using 2
mm power jacks (center positive) or connect flyleads to the
terminal block as labeled on the board.
Note: For model 600-1025-02-43, the cable length must be less than
3 m (9.8 ft.) for CE compliance.
LED operation
Table 1 shows the LED indications for the OEM transceiver
module.
Troubleshooting
The following table gives troubleshooting suggestions for the
OEM transceiver module.
CAUTION You must be free of static electricity before
handling circuit boards. Wear a grounding strap
or touch a bare metal surface to discharge static
electricity.
Metal Metal
Table 1. OEM transceiver module LED indications
Indication Green LED Red LED
Powered up On Off
Communication with daughter baord On Flashing
Valid packet received One flash off Off or flashing
Table 2. OEM transceiver module troubleshooting
Problem Action
OEM transceiver module’s green and
red LEDs are off 1. Check that the transformer is plugged
in.
2. Check the transformer to module
wiring.
OEM receiver module’s green LED is
on and the red LED is off Check the daughter board mounting.
ON
ON
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Antenna shrouds
600-1029 enclosure
Top latches
Bottom latch
2 mm power jack
Terminal block
OEM transceiver
LEDs
600-1025 OEM Transceiver Module
Installation Instructions
2
FCC compliance
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including interfer-
ence that may cause undesired operation.
Changes or modifications not expressly approved by GE Security can void the
user’s authoriy to operate the equipment.
Specifications
CE declaration of conformity
Means of conformity
We declare under our sole responsibility that this product is in conformity with
Directive 93/68/EEC (Marking) and/or complies to the essential requirements and
all other relevant provisions of the 1999/5/EC (R&TTE) based on test results using
(non) harmonized standards in accordance with the Directives mentioned.
Models 600-1025-02-95R and 600-1025-02-43
Frequency
600-1025-02-95R
600-1025-02-43
319.5 MHz
433.92 MHz
Sensor compatability
600-1025-02-95R
600-1025-02-43
All 319.5 MHz sensors
All 433 MHz sensors
Power required (without
daughter board)
Typical 45mA
Maximum 100mA
Wireless range 1,000 feet (305 m)
Listings
600-1025-02-95R
600-1025-02-43
UL (985 1023), FCC ID (B4Z-875-TCVR), DoC,
IC: 867-875CVR
CE
Operating temperature 32 to 140°F (0 to 60°C)
Storage temperature -30 to 140°F (-34 to 60°C)
Maximum relative humidity 90% noncondensing
Dimensions 3.2 x 4.6 x 0.6 inches (8.1 x 11.7 x 1.5 cm)
Features Antenna tamper, jam detect, wall tamper, cover
tamper
Enclosure 600-1029
USB adaptor 59-873
Repeater adaptor 600-1031
Stand-off 40-262
Manufacturer’s name: GE Security
Manufacturer’s address: 1275 Red Fox Road
Arden Hills, MN 55112
USA
EU representative: GE Security B.V.
Kelvinstraat 7
6003 DH Weert
The Netherlands
Product indentification: Product: 433 MHz OEM Transceiver
Model number: 600-1025-02-43
Brand: GE Security
R&TTE directive:
EMC: TUV 0123 / GE Security
Test report reference: CEQP-600-1025-02-43
Applied standards: EN50130-4 (1995) +A1
(1998)
Safety: GE Security
Test report reference: CEQP-600-1025-02-43
Applied standards: EN60950-1:2001
Radio: TUV 0123
Test report reference: CEQP 600-1025-02-43
Applied standards: EN300220-3 v1.1.1 (09-
2000)
Equipment class identifier:
(RF products falling under the
scope of R&TTE)
None (class 1 product)
