User Manual
L2

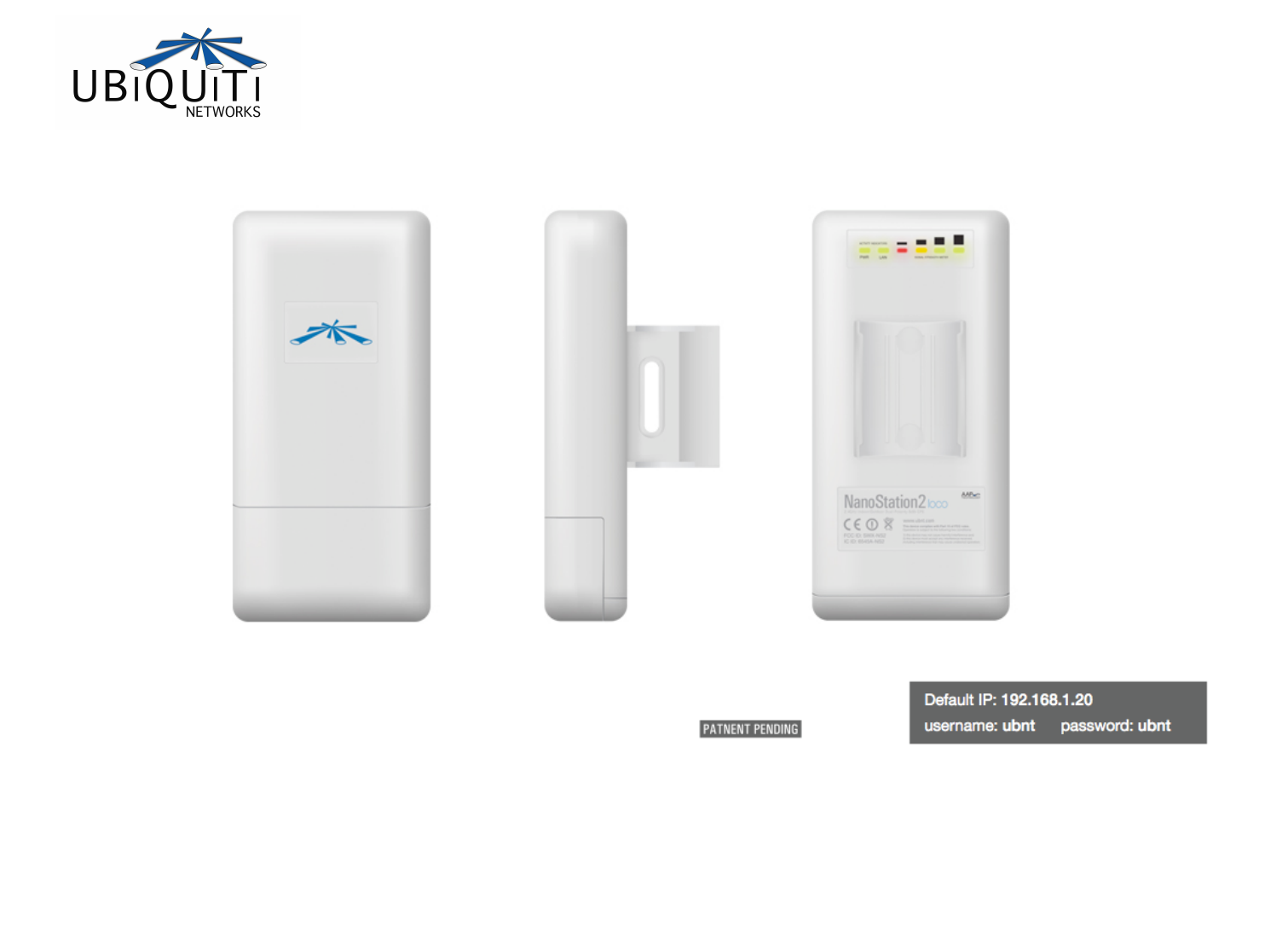

OEM Users Guide
TECH SPECS
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 20 dBm +/-1dB 1Mbps -95 dBm +/-1dB
2Mbps 20 dBm +/-1dB 2Mbps -94 dBm +/-1dB
5.5Mbps 20 dBm +/-1dB 5.5Mbps -93 dBm +/-1dB
11Mbps 20 dBm +/-1dB 11Mbps -90 dBm +/-1dB
6Mbps 20 dBm +/-1dB 6Mbps -92 dBm +/-1dB
9Mbps 20 dBm +/-1dB 9Mbps -91 dBm +/-1dB
12Mbps 20 dBm +/-1dB 12Mbps -89 dBm +/-1dB
18Mbps 20 dBm +/-1dB 18Mbps -88 dBm +/-1dB
24Mbps 20 dBm +/-1dB 24Mbps -84 dBm +/-1dB
36Mbps 18 dBm +/-1dB 36Mbps -81 dBm +/-1dB
48Mbps 16 dBm +/-1dB 48Mbps -75 dBm +/-1dB
54Mbps 15 dBm +/-1dB 54Mbps -72 dBm +/-1dB
802.11b
802.11g OFDM
802.11g OFDM
TX SPECIFICATIONS
RX SPECIFICATIONS
Wireless Approvals
FCC Part 15.247, IC RS210, CE
RADIO OPERATING FREQUENCY 2412-2462 MHz
802.11b
REGULATORY / COMPLIANCE INFORMATION
SYSTEM INFORMATION
Processor Specs
Atheros MIPS 4KC, 180MHz
Memory Information
16MB SDRAM, 4MB Flash
Networking Interface
1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
RoHS Compliance
YES
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size
16.3 cm. length x 3.1 cm. height x 8cm. width
Weight
0.18kg
Enclosure Characteristics
Outdoor UV Stabalized Plastic
Mounting Kit
Pole Mounting Kit included
Max Power Consumption
4 Watts
Power Supply
12V, 1A (12 Watts). Supply and injector included
Shock and Vibration
ETSI300-019-1.4
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature
-20C to +70C
Operating Humidity
5 to 95% Condensing
COMPLIANCE INFORMATION
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
!
The antennas used for this transmitter must be installed to provide a separation
distance of at least following from all users:
20cm
!
INDUSTRY CANADA
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à! la norme NMB-003 du
Canada.
!
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
!!
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.!
The device has been designed to operate with the antennas listed below and having a
maximum gain of 8dBi. Antennas not included in this list or having a gain greater than
8dBi are strictly prohibited for use with this device. The required antenna impedance is 50
ohms.
This device must be professionally installed and is designed strictly for for outdoor point-
to-point wireless links.
