Manual 2

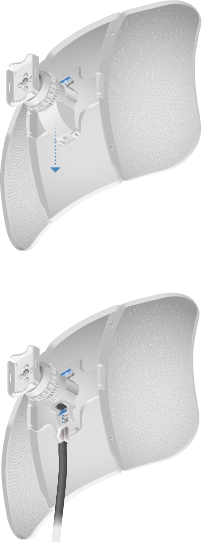

6. Press both sides of the Port Cover and detach it from the
Feed Receiver.
7. Connect an Ethernet cable to the Ethernet port.
8. Reattach the Port Cover.

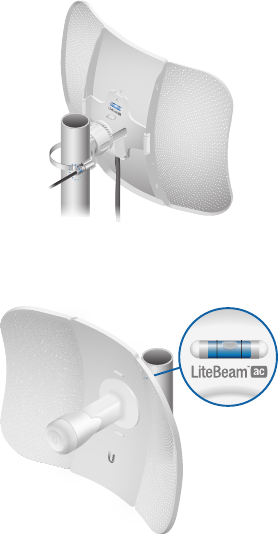

9. Open the Metal Strap and feed it through the two slots of
the Ball Joint Mount.
10. Wrap the Metal Strap around the pole. Use a 7 mm socket
wrench or screwdriver to turn the screw clockwise and
securely fasten the strap to the pole.
11. Loosen the lock nut on the Ball Joint Mount, and aim at
the other end of the wireless link. Use the bubble level
to ensure level alignment, and then lock the aim by
hand‑tightening the lock nut.
Connecting Power over Ethernet

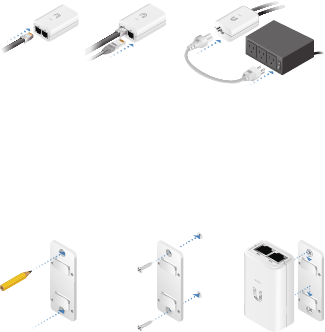

1. Connect the Ethernet cable from the Ethernet port of the
LiteBeam ac to the adapter’s POE port.
2. Connect an Ethernet cable from your LAN to the adapter’s
LAN port.
3. Connect the Power Cord to the adapter’s power port.
Connect the other end of the Power Cord to a power outlet.
Mounting the PoE Adapter (Optional)
1. Remove the PoE Mounting Bracket from the adapter, place
the bracket at the desired location, and mark the two holes.
2. Pre‑drill the holes if necessary, and secure the bracket
using two fasteners (not included).
3. Align the adapter’s slots with the tabs of the PoE Mounting
Bracket, and then slide the adapterdown.
Accessing airOS®
1. Make sure that your host system is connected via Ethernet
to the LiteBeam ac.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.

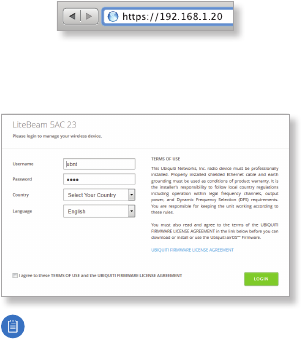

3. Launch your web browser. Type https://192.168.1.20 in
the address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Select your Country and Language.
You must agree to the Terms of Use to use the product.
Click Login.
Note: For the Country setting, U.S. product versions
are restricted to a choice of Canada, Puerto Rico,
or the U.S. to ensure compliance with FCC/IC
regulations.
The airOS Configuration Interface will appear, allowing you to
customize your settings as needed.
*640-00218-01*
640-00218-01
Installer Compliance Responsibility
Devices must be professionally installed and it is the
professional installer's responsibility to make sure the device is
operated within local country regulatory requirements.

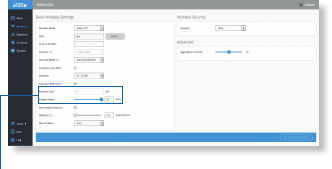

Since Ubiquiti Networks equipment can be paired with a
variety of antennas and cables, the Antenna Gain and Output
Power fields are provided to the professional installer to assist
in meeting regulatory requirements.
Specifications
LBE‑5AC‑23
Dimensions 362 x 273 x 203 mm
(14.25 x 10.75 x 7.99")
Weight 907 g
(2.00 lb)
Operating Frequency Worldwide: 5150 ‑ 5875 MHz
USA: 5150 ‑ 5350, 5470 ‑ 5850 MHz
Networking Interface (1) 10/100/1000 Ethernet Port
Antenna Gain 23 dBi
Max. Power Output 25 dBm
Max. Power Consumption 7W
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature ‑40 to 70° C
(‑40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
ESD/EMP Protection ± 24 kV Contact / Air
Shock and Vibrations ETSI300‑019‑1.4
Certications CE, FCC, IC
Wind Survivability 200 km/h (125 mph)
Wind Loading 87 N @ 200 km/h
(19.5 lbf @ 125 mph)
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2‑wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short‑circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
