Uniform HE7620 802.11n 20HT WIFI modular User Manual
Uniform Industrial Corp. 802.11n 20HT WIFI modular Users Manual
Uniform >
Use manual Rev. 1
Modification History
Date Revision Editor Comment
0.1 2014/10/15
Wi-Fi module Specification
Product Name Wi-Fi module
Model Number Home Extender Family
Host interface Wifi, Fast Ethernet ,USB, I2c,SPI,UART
Wireless
LAN
Band 2.4G ISM
Channels USA and Canada: ch1~ch11
Standard 82.11 n 20HT
TX power(high gain) 802.11n:17~19dbm
RX sensitivity 802.11n:-61dbm
Antenna gain 5dbi
Wire LAN Fast Ethernet(10/100M) x2
Led indicator Wireless x1, Ethernet x2, power x1
Input power DC5V/2.1A
Power consumption <15W
Temperature Range Operating Temp:-10~60℃
Storage Temp:-10~65℃
Humidity Operation Humidity: 10~90% Non-condensing
PCB Dimension 70x57.66mm
Regulatory compliance FCC
Detail description
1 Description
802.11n 20HT Wi-Fi Board, High Power High Gain
2 System
CPU:580MHzMIPS®24KCPUcore/MT7620A
Flash:16MB
DDR2:64MB
RTC:NO
RF:1T1R,802.11n 20HT,Highpower
Ethernet:10/100MbpsFastethernet
3Function

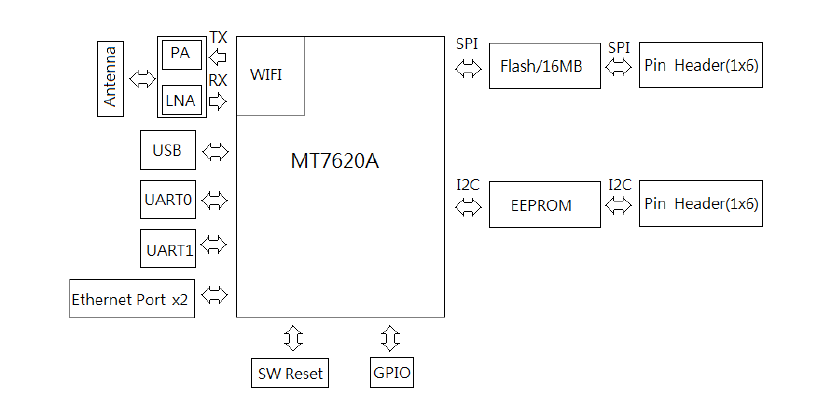

3.0FunctionBlock
3.1Wi‐Fispec
ComplianceIEEE802.11n20HT
3.2Ethernet
ComplianceIEEE802.3u
3.4USB
SupportUSB2.0host
3.5I2c
Supportstandardspeed(100kbps)
3.6SPI
3.7UART
CompatiblewithRS232
4 HWinterface
InterfaceConnectorMT7620A
FunctionPin
Wi‐FiSMAN/AN/A
Ethernetport0RJ45MDI_TN_P0
MDI_TP_P0
MDI_RN_P0
MDI_RP_P0
U17
U16
T15
U15
Ethernetport4RJ45MDI_RP_P0
MDI_TP_P4
MDI_RN_P4
MDI_RN_P4
M17
M16
N17
N16
USBMiniUSB UPHY0_PADM
UPHY0_PADP
C16
C17
UART0Pinheader1x4TXD
RXD
R12
P12
UART1Pinheader1x4TXD2
RXD2
P13
P14
I2CPinheader1x6I2C_SCLK
I2C_SD
U14
T14
SPI Pinheader1x6SPI_CS0
SPI_CLK
SPI_MOSI
SPI_MISO
SPI_CS1
C7
D8
A8
C8
C9
ResetButtonTackswitchND_D0 P8
PowerJackMiniDCJackN/A N/A
GPIOTestpointND_D3
ND_D4
U10
T9

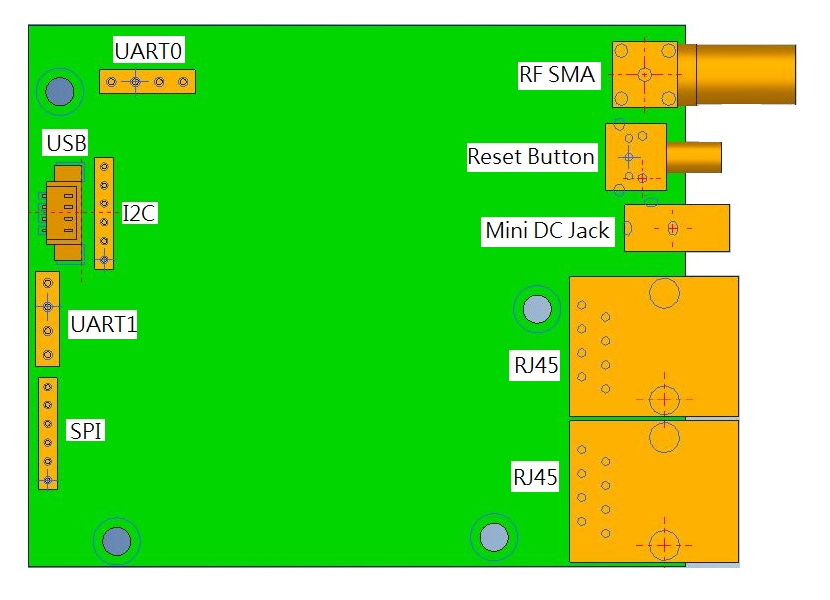

5PCBPlacement
Warning:
This device must be professionally installed. The intended use is generally not
for the general public. It is generally for industry/commercial use. Installers
must be provided with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for
he FCC compliance requirement of the end product which integrates this module.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to also be informed that any
changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment. If the size of the end product is smaller
than 8x10cm, then additional FCC part 15.19 statement is required to be available in
the users manual: This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains
TX FCC ID: TFJHE7620. If the size of the end product is larger than 8x10cm, then the
following FCC part 15.19 statement has to also be available on the label: This device
complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
