Operating Instructions

Radar sensor for continuous level

measurement of bulk solids

VEGAPULS 69

4 … 20 mA/HART - two-wire

Document ID: 47247

Contents

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Contents

1 About this document

1.1 Function ........................................................................................................................... 4

1.2 Target group ..................................................................................................................... 4

1.3 Symbols used................................................................................................................... 4

2 For your safety

2.1 Authorised personnel ....................................................................................................... 5

2.2 Appropriate use ................................................................................................................ 5

2.3 Warning about incorrect use ............................................................................................. 5

2.4 General safety instructions ............................................................................................... 5

2.5 CE conformity ................................................................................................................... 6

2.6 NAMUR recommendations .............................................................................................. 6

2.7 Radio license for Europe .................................................................................................. 6

2.8 Radio license for USA ...................................................................................................... 7

2.9 Radio license for Canada ................................................................................................. 7

2.10 Environmental instructions ............................................................................................... 9

3 Product description

3.1 Conguration .................................................................................................................. 11

3.2 Principle of operation...................................................................................................... 12

3.3 Packaging, transport and storage ................................................................................... 13

3.4 Accessories and replacement parts ............................................................................... 13

4 Mounting

4.1 General instructions ....................................................................................................... 16

4.2 Mounting versions, plastic horn antenna ........................................................................ 17

4.3 Mounting preparations, mounting strap .......................................................................... 19

4.4 Mounting instructions ..................................................................................................... 20

5 Connecting to power supply

5.1 Preparing the connection ............................................................................................... 31

5.2 Connecting ..................................................................................................................... 32

5.3 Wiring plan, single chamber housing.............................................................................. 34

5.4 Wiring plan, double chamber housing ............................................................................ 34

5.5 Double chamber housing Ex d ....................................................................................... 36

5.6 Wiring plan, double chamber housing Ex d ia ................................................................ 37

5.7 Double chamber housing with DISADAPT ..................................................................... 39

5.8 Wiring plan - version IP 66/IP 68, 1 bar ........................................................................... 40

5.9 Switch-on phase............................................................................................................. 40

6 Set up with the display and adjustment module

6.1 Insert display and adjustment module ............................................................................ 41

6.2 Adjustment system ......................................................................................................... 42

6.3 Measured value indication - Selection of national language ........................................... 43

6.4 Parameter adjustment - Quick setup .............................................................................. 44

6.5 Parameter adjustment - Extended adjustment................................................................ 44

6.6 Saving the parameterisation data ................................................................................... 58

7 Setup with PACTware

7.1 Connect the PC .............................................................................................................. 60

7.2 Parameter adjustment .................................................................................................... 61

7.3 Saving the parameterisation data ................................................................................... 62

Contents

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

8 Set up with other systems

8.1 DD adjustment programs ............................................................................................... 63

8.2 Field Communicator 375, 475 ........................................................................................ 63

9 Diagnosis, asset management and service

9.1 Maintenance .................................................................................................................. 64

9.2 Measured value and event memory ............................................................................... 64

9.3 Asset Management function ........................................................................................... 65

9.4 Rectify faults ................................................................................................................... 68

9.5 Exchanging the electronics module ................................................................................ 71

9.6 Software update ............................................................................................................. 72

9.7 How to proceed if a repair is necessary .......................................................................... 72

10 Dismount

10.1 Dismounting steps.......................................................................................................... 73

10.2 Disposal ......................................................................................................................... 73

11 Supplement

11.1 Technical data ................................................................................................................ 74

11.2 Radio astronomy stations ............................................................................................... 84

11.3 Dimensions .................................................................................................................... 84

11.4 Industrial property rights ................................................................................................. 95

11.5 Trademark ...................................................................................................................... 95

Safety instructions for Ex areas

TakenoteoftheExspecicsafetyinstructionsforExapplications.

These instructions are attached as documents to each instrument

with Ex approval and are part of the operating instructions manual.

Editing status: 2017-03-15

1 About this document

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

1 About this document

1.1 Function

This operating instructions manual provides all the information you

need for mounting, connection and setup as well as important instruc-

tionsformaintenanceandfaultrectication.Pleasereadthisinforma-

tion before putting the instrument into operation and keep this manual

accessible in the immediate vicinity of the device.

1.2 Target group

This operating instructions manual is directed to trained specialist

personnel. The contents of this manual should be made available to

these personnel and put into practice by them.

1.3 Symbols used

Information, tip, note

This symbol indicates helpful additional information.

Caution: If this warning is ignored, faults or malfunctions can result.

Warning: If this warning is ignored, injury to persons and/or serious

damage to the instrument can result.

Danger: If this warning is ignored, serious injury to persons and/or

destruction of the instrument can result.

Ex applications

This symbol indicates special instructions for Ex applications.

• List

The dot set in front indicates a list with no implied sequence.

→ Action

This arrow indicates a single action.

1 Sequence of actions

Numbers set in front indicate successive steps in a procedure.

Battery disposal

This symbol indicates special information about the disposal of bat-

teries and accumulators.

2 For your safety

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

2 For your safety

2.1 Authorised personnel

All operations described in this operating instructions manual must

be carried out only by trained specialist personnel authorised by the

plant operator.

During work on and with the device the required personal protective

equipment must always be worn.

2.2 Appropriate use

VEGAPULS 69 is a sensor for continuous level measurement.

Youcannddetailedinformationabouttheareaofapplicationin

chapter "Product description".

Operational reliability is ensured only if the instrument is properly

usedaccordingtothespecicationsintheoperatinginstructions

manual as well as possible supplementary instructions.

2.3 Warning about incorrect use

Inappropriate or incorrect use of the instrument can give rise to

application-specichazards,e.g.vesseloverllordamagetosystem

components through incorrect mounting or adjustment. Also the pro-

tectivecharacteristicsoftheinstrumentcanbeinuenced.

2.4 General safety instructions

This is a state-of-the-art instrument complying with all prevailing

regulations and guidelines. The instrument must only be operated in a

technicallyawlessandreliablecondition.Theoperatorisresponsible

for the trouble-free operation of the instrument.

During the entire duration of use, the user is obliged to determine the

compliance of the necessary occupational safety measures with the

current valid rules and regulations and also take note of new regula-

tions.

The safety instructions in this operating instructions manual, the na-

tional installation standards as well as the valid safety regulations and

accident prevention rules must be observed by the user.

For safety and warranty reasons, any invasive work on the device

beyond that described in the operating instructions manual may be

carried out only by personnel authorised by the manufacturer. Arbi-

traryconversionsormodicationsareexplicitlyforbidden.

The safety approval markings and safety tips on the device must also

be observed.

Depending on the instrument version, the emitting frequencies are in

the C, K or W band range. The low emission power is far below the

internationally approved limit values. When used correctly, the device

poses no danger to health.

2 For your safety

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

2.5 CE conformity

ThedevicefullsthelegalrequirementsoftheapplicableEUdirec-

tives.ByaxingtheCEmarking,weconrmtheconformityofthe

instrument with these directives.

YoucanndtheEUconformitydeclarationonourwebsiteunder

www.vega.com/downloads.

2.6 NAMUR recommendations

NAMUR is the automation technology user association in the process

industry in Germany. The published NAMUR recommendations are

acceptedasthestandardineldinstrumentation.

ThedevicefullstherequirementsofthefollowingNAMURrecom-

mendations:

• NE 43 – Signal level for malfunction information from measuring

transducers

• NE53–Compatibilityofelddevicesanddisplay/adjustment

components

• NE107–Self-monitoringanddiagnosisofelddevices

For further information see www.namur.de.

2.7 Radio license for Europe

The instrument was tested according to the latest issues of the har-

monizedstandards:

• EN 302372 - Tank Level Probing Radar

• EN 302729 - Level Probing Radar

It is hence approved for use inside and outside closed vessels in

countries of the EU.

Use is also approved in EFTA countries, provided these standards

have been implemented.

For operation inside of closed vessels, the following conditions must

befullled:

• The instrument must be permanently mounted on a closed vessel

made of metal, reinforced concrete, or comparable attenuating

materials

• Flanges,processttingsandmountingaccessoriesmustensure

the microwave impermeability of the vessel and not let the radar

signal escape to the outside

• If necessary, existing viewing windows in the vessel must be

coated with a microwave impermeable material (e.g. electrically

conductive coating)

• Manholesandangesonthevesselmustbeclosedandsealedto

avoid penetration of the radar signal

• The instrument should be preferably mounted on top of the vessel

with antenna orientation downward

For operation outside of closed vessels, the following conditions must

befullled:

2 For your safety

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• The instrument must be stationary mounted and the antenna

directed vertically downward

• The instrument may only be used outside closed vessels in the

version with G1½ or 1½ NPT thread with integrated horn antenna.

• The mounting location must be at least 4 km away from radio

astronomy stations, unless special permission was granted by the

responsible national approval authority

• When installed within 4 to 40 km of a radio astronomy station,

the instrument must not be mounted higher than 15 m above the

ground.

Youcanndalistoftherespectiveradioastronomystationsinchap-

ter "Supplement".

2.8 Radio license for USA

This approval is only valid for USA. Hence the following text is only

available in the English language:

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

• This device may not cause interference, and

• This device must accept any interference, including interference

that may cause undesired operation of the device

This device is approved for unrestricted use only inside closed,

stationary vessels made of metal or concrete. From electronics index

.-03theuseincontainersmadeofreinforcedberglassisalsopermit-

ted.

For operation outside of closed vessels, the following conditions must

befullled:

• This device shall be installed and maintained to ensure a verti-

cally downward orientation of the transmit antenna's main beam.

Furthermore, the use of any mechanism that does not allow the

main beam of the transmitter to be mounted vertically downward is

prohibited.

• Operation of the instrument is only permitted with thread G1½ or

1½ NPT with integrated horn antenna.

• Thisdeviceshallbeinstalledonlyatxedlocations.TheLPR

device shall not operate while being moved or while inside a mov-

ing container.

• Hand-held applications are prohibited.

• Marketing to residential consumers is prohibited.

Changesormodicationsnotexpresslyapprovedbythemanufac-

turer could void the user’s authority to operate this equipment.

2.9 Radio license for Canada

This approval is only valid for Canada. Hence the following texts are

only available in the English/French language:

This device complies with Industry Canada's license-exempt RSS

standard(s). Operation is subject to the following conditions:

2 For your safety

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• This device may not cause interference, and

• This device must accept any interference, including interference

that may cause undesired operation of the device

This device has been approved for both closed containers and open-

air environments with the following limitations:

• ClosedContainers:Forinstallationsutilizingatiltduringinstalla-

tion: This device is limited to installation in a completely enclosed

container made of metal or concrete to prevent RF emissions,

which can otherwise interfere with aeronautical navigation, the

maximum approved tilt angel is 10°. From electronics index .-03

theuseincontainersmadeofreinforcedberglassisalsopermit-

ted.

• Open Air Environment: For operation outside of closed vessels,

thefollowingconditionmustbefullled:Thisdeviceshallbe

installed and maintained to ensure a vertically downward orienta-

tion of the transmit antenna's main beam. Furthermore, the use of

any mechanism that does not allow the main beam of the transmit-

ter to be mounted vertically downward is prohibited.

• Operation of the instrument outside of closed vessels is only per-

mitted with G1½ or 1½ NPT with integrated horn antenna.

• The installation of the LPR/TLPR device shall be done by trained

installers, in strict compliance with the manufacturer's instructions.

• Thisdeviceshallbeinstalledonlyatxedlocations.TheLPR

device shall not operate while being moved or while inside a mov-

ing container.

• Hand-held applications are prohibited.

• Marketing to residential consumers is prohibited.

• The use of this device is on a "no-interference, no-protection"

basis. That is, the user shall accept operations of high-powered

radar in the same frequency band which may interfere with or

damage this device.

• However, devices found to interfere with primary licensing opera-

tions will be required to be removed at the user's expense.

• The installer/user of this device shall ensure that it is at least 10 km

from the Dominion Astrophysical Radio Observatory (DRAO) near

Penticton, British Columbia. The coordinates of the DRAO are

latitude49°19′15″Nandlongitude119°37′12″W.Fordevicesnot

meeting this 10 km separation (e.g., those in the Okanagan Valley,

British Columbia,) the installer/user must coordinate with, and

obtain the written concurrence of, the Director of the DRAO before

the equipment can be installed or operated. The Director of the

DRAO may be contacted at 250-497-2300 (tel.)or 250-497-2355

(fax). (Alternatively, the Manager, Regulatory Standards, Industry

Canada, may be contacted.)

Le présent appareil est conforme aux CNR d’Industrie Canada ap-

plicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux conditions suivantes :

• L’appareil ne doit pas produire de brouillage; et

2 For your safety

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• L’utilisateur de l’appareil doit accepter tout brouillage radioélect-

rique subi, même si le brouillage est susceptible d’en compromet-

tre le fonctionnement.

Cet appareil est homologué pour une utilisation dans les cuves fer-

mées et les environnements ouverts avec les restrictions suivantes :

• Cuves fermées: Pour les installations impliquant une inclinaison

lors de l'installation : cet appareil ne doit être installé que dans une

cuve totalement fermée en métal ou en béton, pour empêcher les

émissions RF susceptibles d'interférer avec la navigation aéro-

nautique. L'angle d'inclinaison maximum autorisé est de 10°. From

electronics index .-03 the use in containers made of reinforced

berglassisalsopermitted.

• Environnement ouvert : Pour l'utilisation hors des cuves fermées,

la condition suivante doit être remplie : L'appareil doit être installé

et entretenu de manière à garantir une orientation verticale vers

le bas du faisceau principal de l’antenne émettrice. De plus,

l’utilisation de tout mécanisme ne permettant pas l’orientation ver-

ticale vers le bas du faisceau principal de l’émetteur est interdite

• Il est uniquement autorisé d'utiliser la version d'appareil avec le

letageG1½ou1½NPTenenvironnementsouvertes.

• L’installationd’undispositifLPRouTLPRdoitêtreeectuéepar

desinstallateursqualiés,enpleineconformitéaveclesinstruc-

tions du fabricant.

• Cetappareilnedoitêtreinstalléqu'àdesemplacementsxes.

L’appareil LPR ne doit pas être utilisé pendant qu’il est en train

d’être déplacé ou se trouve dans un conteneur en mouvement.

• Les applications portables sont interdites.

• La vente à des particuliers est interdite

• Ce dispositif ne peut être exploité qu'en régime de non-brouillage

et de non-protection, c'est-à-dire que l'utilisateur doit accepter que

des radars de haute puissance de la même bande de fréquences

puissent brouiller ce dispositif ou même l'endommager. D'autre

part, les capteurs de niveau qui perturbent une exploitation autori-

sée par licence de fonctionnement principal doivent être enlevés

aux frais de leur utilisateur.

• La personne qui installe/utilise ce capteur de niveau doit s'assurer

qu'il se trouve à au moins 10 km de l'Observatoire fédéral de

radioastrophysique (OFR) de Penticton en Colombie-Britannique.

Lescoordonnéesdel'OFRsont:latitudeN49°19′15″,longitude

O119°37′12″.Lapersonnequiinstalle/utiliseundispositifne

pouvant respecter cette distance de 10 km (p. ex. dans la vallée

de l'Okanagan [Colombie-Britannique]) doit se concerter avec le

directeurdel'OFRand’obtenirdesapartuneautorisationécrite

avant que l'équipement ne puisse être installé ou mis en marche.

Le directeur de l'OFR peut être contacté au 250-497-2300 (tél.) ou

au 250-497-2355 (fax). (Le Directeur des Normes réglementaires

d'Industrie Canada peut également être contacté).

2.10 Environmental instructions

Protection of the environment is one of our most important duties.

That is why we have introduced an environment management system

2 For your safety

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

with the goal of continuously improving company environmental pro-

tection.Theenvironmentmanagementsystemiscertiedaccording

to DIN EN ISO 14001.

Pleasehelpusfullthisobligationbyobservingtheenvironmental

instructions in this manual:

• Chapter "Packaging, transport and storage"

• Chapter "Disposal"

3 Product description

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

3 Product description

3.1 Conguration

Thetypelabelcontainsthemostimportantdataforidenticationand

use of the instrument:

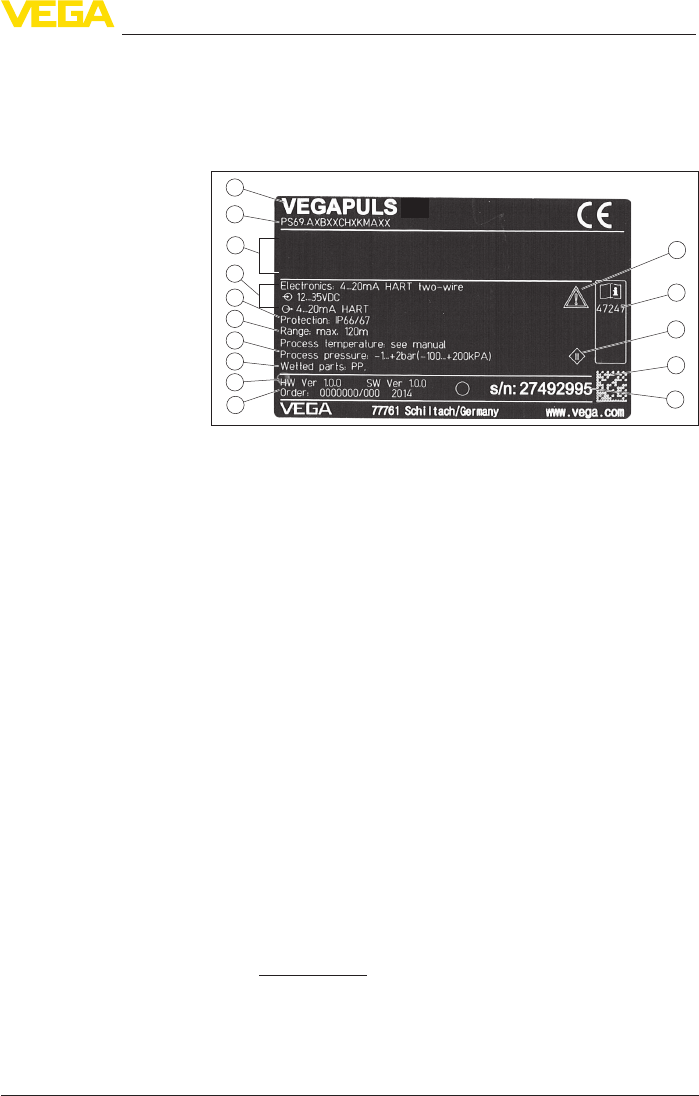

Fig. 1: Layout of the type label (example)

1 Instrument type

2 Product code

3 Approvals

4 Voltage supply and signal output, electronics

5 Protection rating

6 Measuring range

7 Process and ambient temperature, process pressure

8 Material, wetted parts

9 Hardware and software version

10 Order number

11 Serial number of the instrument

12 Data matrix code for smartphone app

13 Symbol of the device protection class

14 ID numbers, instrument documentation

15 Reminder to observe the instrument documentation

16 NotiedauthorityforCEmarking

17 Approval directive

The type label contains the serial number of the instrument. With it

youcanndthefollowinginstrumentdataonourhomepage:

• Product code (HTML)

• Delivery date (HTML)

• Order-specicinstrumentfeatures(HTML)

• Operating instructions and quick setup guide at the time of ship-

ment (PDF)

• Order-specicsensordataforanelectronicsexchange(XML)

• Testcerticate(PDF)-optional

Go to "www.vega.com", "VEGATools" and "Instrument search". Enter

the serial number.

Alternatively, you can access the data via your smartphone:

• Download the smartphone app "VEGATools" from the "Apple App

Store" or the "GooglePlayStore"

Type label

Serial number - Instru-

ment search

3 Product description

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• Scan the Data Matrix code on the type label of the instrument or

• Enter the serial number manually in the app

This operating instructions manual applies to the following instrument

versions:

• Hardware version from 1.0.0

• Software version from 1.1.0

The scope of delivery encompasses:

• Radar sensor

• Hexagon socket wrench (for instruments with swivel holder)

• Documentation

– Quick setup guide VEGAPULS 69

– Instructions for optional instrument features

– Ex-specic"Safety instructions" (with Ex versions)

– Ifnecessary,furthercerticates

• DVD "DTMCollection", included therein

– PACTwar e

– DTM Collection

– Instrumentmasterles(GSD)forProbusPA

– FDTcerticates

Information:

In this operating instructions manual, the optional instrument features

are described. The respective scope of delivery results from the order

specication.

3.2 Principle of operation

The VEGAPULS 69 is a radar sensor for continuous level measure-

mentofbulksolidsevenunderthemostdicultprocessconditions

and in very large measuring ranges.

Itisidealforuseinhigh,slendersiloswithpoorlyreectingbulksolids

suchasy-ash,plasticgranulesorwoodchipsaswellasinternal

installations that cause strong false echoes. This is made possible by

its functional principle, a distance measurement through frequency

shifting with an especially small beam angle.

Theinstrumentisavailablewithdierentantennasystemsandacces-

sories for virtually all applications and processes:

• Plastic horn antenna or metal-jacketed lens antenna

• Optional or integrated rinsing air connection

• Swivelling holder with seal against the process

The instrument emits a continuous radar signal through its antenna.

This signal is frequency modulated in the form of a sawtooth wave.

Theemittedsignalisreectedbythemediumandreceivedbythe

antenna as an echo.

The frequency of the received signal always deviates from the actual

emittingfrequency.Thefrequencydierenceisproportionaltothe

distanceandthustothellingheight.Thisdierenceiscalculated

Scope of this operating

instructions manual

Scope of delivery

Application area

Functional principle

3 Product description

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

viaspecialalgorithmsinthesensorelectronics.Thedeterminedll-

ing height is then converted into a corresponding output signal and

outputted as the measured value.

3.3 Packaging, transport and storage

Your instrument was protected by packaging during transport. Its

capacity to handle normal loads during transport is assured by a test

based on ISO 4180.

The packaging of standard instruments consists of environment-

friendly, recyclable cardboard. For special versions, PE foam or PE

foil is also used. Dispose of the packaging material via specialised

recycling companies.

Transport must be carried out in due consideration of the notes on the

transport packaging. Nonobservance of these instructions can cause

damage to the device.

The delivery must be checked for completeness and possible transit

damage immediately at receipt. Ascertained transit damage or con-

cealed defects must be appropriately dealt with.

Up to the time of installation, the packages must be left closed and

stored according to the orientation and storage markings on the

outside.

Unless otherwise indicated, the packages must be stored only under

the following conditions:

• Not in the open

• Dry and dust free

• Not exposed to corrosive media

• Protected against solar radiation

• Avoiding mechanical shock and vibration

• Storage and transport temperature see chapter "Supplement -

Technicaldata-Ambientconditions"

• Relative humidity 20 … 85 %

3.4 Accessories and replacement parts

The display and adjustment module PLICSCOM is used for measured

value indication, adjustment and diagnosis. It can be inserted into the

sensor and removed at any time.

The integrated Bluetooth module (optional) enables wireless adjust-

ment via standard adjustment devices:

• Smartphone/tablet (iOS or Android operating system)

• PC/notebook with Bluetooth USB adapter (Windows operating

system)

Youcanndfurtherinformationintheoperatinginstructions"Display

andadjustmentmodulePLICSCOM" (Document-ID 27835).

The interface adapter VEGACONNECT enables the connection of

communication-capable instruments to the USB interface of a PC. For

Packaging

Transport

Transport inspection

Storage

Storage and transport

temperature

PLICSCOM

VEGACONNECT

3 Product description

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

parameter adjustment of these instruments, the adjustment software

PACTware with VEGA-DTM is required.

Youcanndfurtherinformationintheoperatinginstructions"Interface

adapterVEGACONNECT" (Document-ID 32628).

The VEGADIS 81 is an external display and adjustment unit for VEGA

plics® sensors.

For sensors with double chamber housing the interface adapter

"VEGADISadapter" is also required for VEGADIS 81.

Youcanndfurtherinformationintheoperatinginstructions

"VEGADIS81" (Document-ID 43814).

The VEGADIS adapter is an accessory part for sensors with double

chamber housings. It enables the connection of VEGADIS 81 to the

sensor housing via an M12 x 1 plug.

Youcanndfurtherinformationinthesupplementaryinstructions

"VEGADISadapter" (Document-ID 45250).

VEGADIS 82 is suitable for measured value indication and adjustment

of sensors with HART protocol. It is looped into the 4 … 20 mA/HART

signal cable.

Youcanndfurtherinformationintheoperatinginstructions

"VEGADIS824…20mA/HART" (Document-ID 45300).

PLICSMOBILE T61 is an external GSM/GPRS radio unit for transmis-

sion of measured values and for remote parameter adjustment of

plics® sensors. Adjustment is carried out via PACTware/DTM and the

integrated USB connection.

Youcanndfurtherinformationinthesupplementaryinstructions

"PLICSMOBILET61" (Document-ID 37700).

PLICSMOBILE is an internal GSM/GPRS radio unit for transmission

ofmeasuredvaluesandforremotecongurationofplics® sensors.

Adjustment is carried out via PACTware/DTM and the integrated USB

connection.

Youcanndfurtherinformationinthesupplementaryinstructions

"PLICSMOBILEGSM/GPRSradiomodule" (Document-ID 36849).

The protective cover protects the sensor housing against soiling and

intense heat from solar radiation.

Youwillndadditionalinformationinthesupplementaryinstructions

manual "Protective cover" (Document-ID 34296).

Screwedangesareavailableindierentversionsaccordingtothe

following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5,

JIS B 2210-1984, GOST 12821-80.

Youcanndadditionalinformationinthesupplementaryinstructions

manual "FlangesaccordingtoDIN-EN-ASME-JIS".

VEGADIS 81

VEGADIS adapter

VEGADIS 82

PLICSMOBILE T61

PLICSMOBILE

Protective cover

Flanges

3 Product description

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

For mounting the instrument with plastic horn antenna to a socket,

twoangeversionsareavailable:thecombicompressionangeand

theadapterange

Youcanndadditionalinformationinchapter"Mounting" of this

operating instruction.

A mounting strap is available for mounting the instrument with plastic

horn antenna to the wall or ceiling.

Youcanndadditionalinformationinchapter"Mounting" of this

operating instruction.

Electronics module "VEGAPULS series 60" is a replacement part for

radarsensorsofVEGAPULSseries60.Adierentversionisavailable

for each type of signal output.

Youcanndfurtherinformationintheoperatinginstructions"Elec-

tronicsmoduleVEGAPULSseries60" (Document-ID 36801).

The supplementary electronics is a replacement part for 4 … 20 mA/

HART sensors with double chamber housing.

Youcanndfurtherinformationintheoperatinginstructions"Supple-

mentaryelectronicsfor4…20mA/HART-two-wire" (Document-ID

42764).

Flanges with plastic horn

antenna

Mounting strap with plas-

tic horn antenna

Electronics module

Supplementary electron-

ics for double chamber

housing

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

4 Mounting

4.1 General instructions

Protect your instrument against moisture ingress through the following

measures:

• Use the recommended cable (see chapter "Connectingtopower

supply")

• Tighten the cable gland

• Loop the connection cable downward in front of the cable gland

This applies particularly to:

• Outdoor mounting

• Installations in areas where high humidity is expected (e.g. through

cleaning processes)

• Installations on cooled or heated vessels

Make sure that all parts of the instrument exposed to the process are

suitable for the existing process conditions.

These are mainly:

• Active measuring component

• Processtting

• Process seal

Process conditions in particular are:

• Process pressure

• Process temperature

• Chemical properties of the medium

• Abrasionandmechanicalinuences

Youcannddetailedinformationontheprocessconditionsinchapter

"Technicaldata" as well as on the type label.

Metric threads

In the case of instrument housings with metric thread, the cable

glands are screwed in at the factory. They are sealed with plastic

plugs as transport protection.

You have to remove these plugs before electrical connection.

NPT thread

In the case of instrument housings with self-sealing NPT threads, it is

not possible to have the cable entries screwed in at the factory. The

free openings for the cable glands are therefore covered with red dust

protection caps as transport protection. The dust protection caps do

notprovidesucientprotectionagainstmoisture.

Prior to setup you have to replace these protective caps with ap-

proved cable glands or close the openings with suitable blind plugs.

The mounting position and orientation of the sensor must take into ac-

count the limitations in chapter "For your safety", "Radio approval for

USA" "RadioapprovalforCanada" of this operating instructions.

Protection against mois-

ture

Suitability for the process

conditions

Cable glands

Radio license for USA/

Canada

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

4.2 Mounting versions, plastic horn antenna

The optional mounting strap allows simple mounting of the instrument

on a wall, ceiling or boom. Especially in the case of open vessels, this

isasimpleandeectivewaytoalignthesensortothesurfaceofthe

bulk solid material.

The following versions are available:

• Length 300 mm

• Length 170 mm

The instrument is normally mounted vertically with a bracket on the

ceiling.

This allows swivelling the sensor up to 180° for optimal orientation

and rotating for optimal connection.

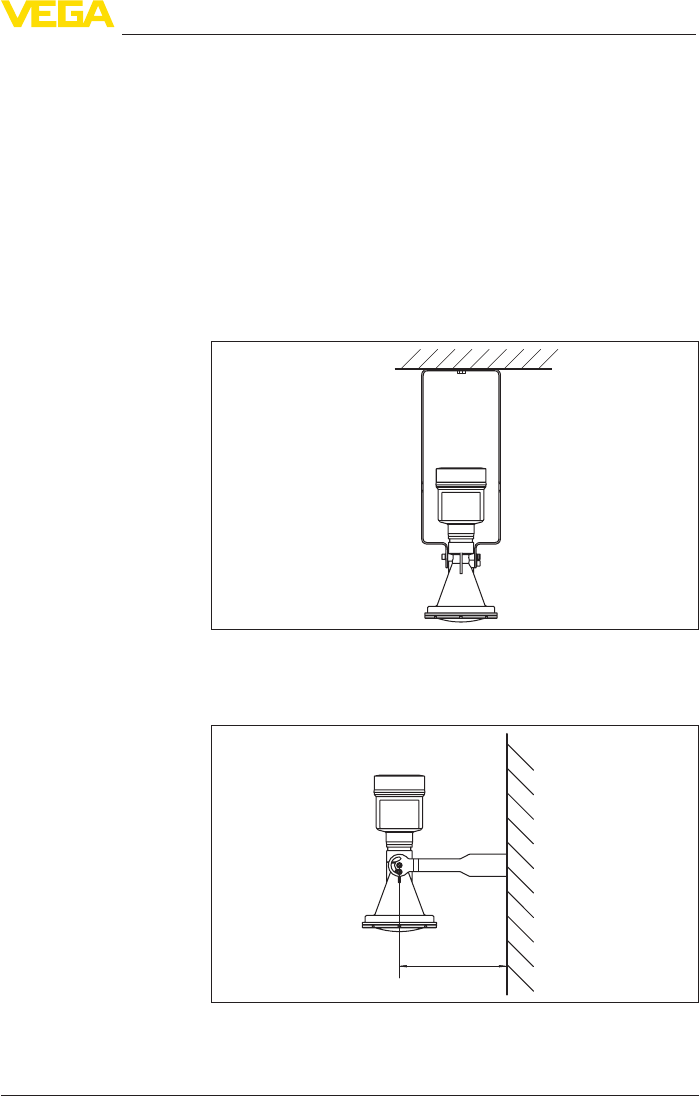

Fig.2:Ceilingmountingviathemountingstrapwithlength300mm

Asanalternativethestrapmountingiscarriedouthorizontallyor

obliquely.

> 200 mm

(7.87")

Fig. 3: Wall mounting horizontally via the mounting strap with length 170 mm

Mounting strap

Mounting strap - Ceiling

mounting

Mounting strap - Wall

mounting

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Fig. 4: Wall mounting with inclined wall via the mounting strap with length

300 mm

Two versions are available for mounting the instrument on a socket:

• Combicompressionange

• Adapterange

Combicompressionange

Thecombicompressionangeissuitablefordierentvesselanges

DN 80, ASME 3" and JIS 80. It comes not sealed against the radar

sensorandcanthusonlybeusedunpressurized.Itcanberetrotted

oninstrumentswithsinglechamberhousing,retrottingtoadouble

chamber housing is not possible.

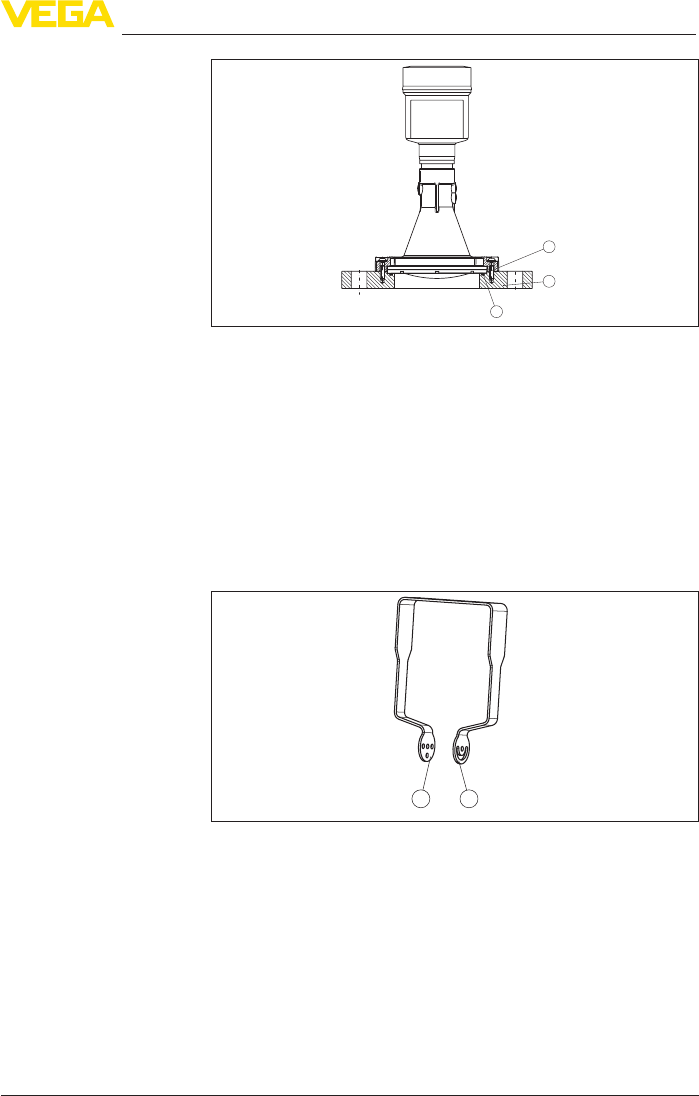

Fig.5:Combicompressionange

1 Combicompressionange

Adapterange

TheadapterangeisavailablefromDN100,ASME4"andJIS100.It

is permanently connected with the radar sensor and sealed.

Flange

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

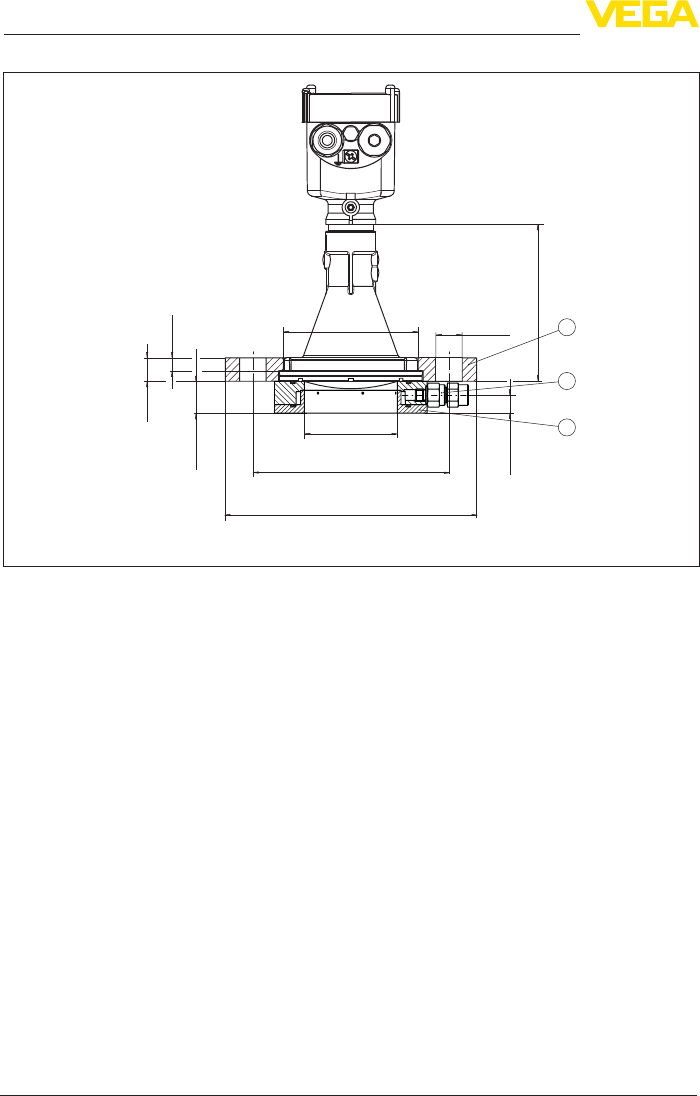

Fig.6:Adapterange

1 Connectionscrew

2 Adapterange

3 Process seal

4.3 Mounting preparations, mounting strap

The mounting strap is supplied unassembled (optionally) and must be

screwed to the sensor before setup with three hexagon socket screws

M5 x 10 and spring washers. Max. torque, see chapter "Technical

data".Requiredtools:Allenwrenchsize4.

Therearetwodierentvariantsofscrewingthestraptothesensor,

see following illustration:

1 2

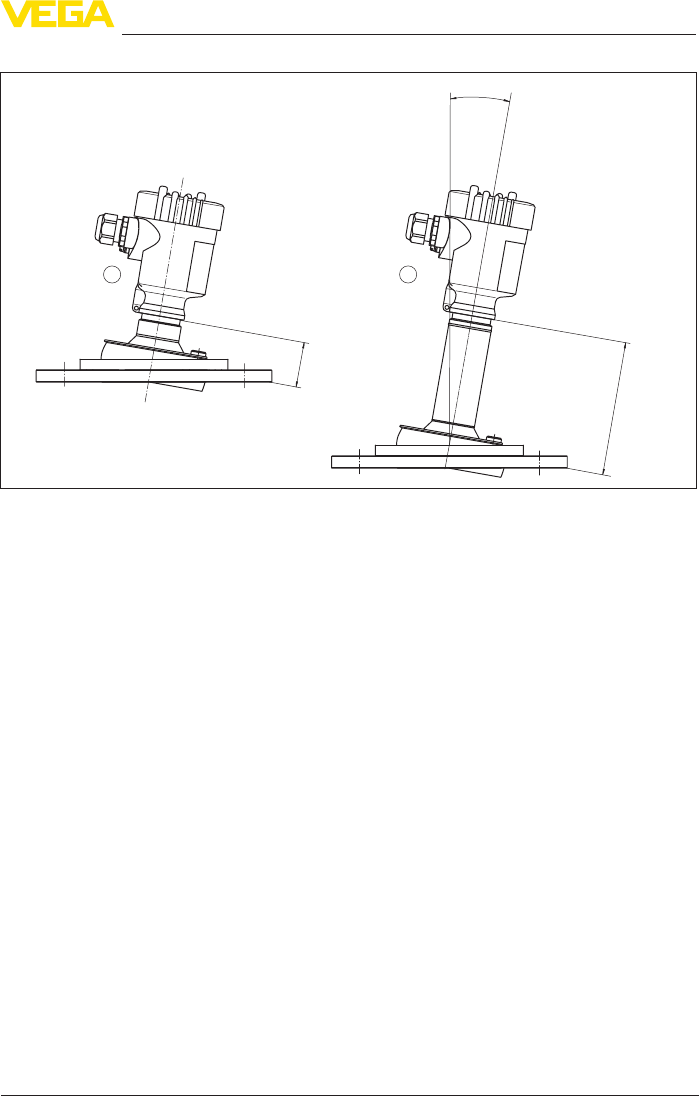

Fig. 7: Mounting strap for screwing to the sensor

1 For angle of inclination in steps

2 Forangleofinclination,innitelyvariable

Depending on the selected variant, the sensor can be rotated in the

strap:

• Single chamber housing

– Angle of inclination in three steps 0°, 90° and 180°

– Angleofinclination180°,innitelyvariable

• Double chamber housing

– Angle of inclination in two steps 0° and 90°

– Angleofinclination90°,innitelyvariable

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

4.4 Mounting instructions

Radar sensors for level measurement emit electromagnetic waves.

Thepolarizationisthedirectionoftheelectricalcomponentofthese

waves.

Thepolarizationdirectionismarkedbyanoseonthehousing,see

following drawing:

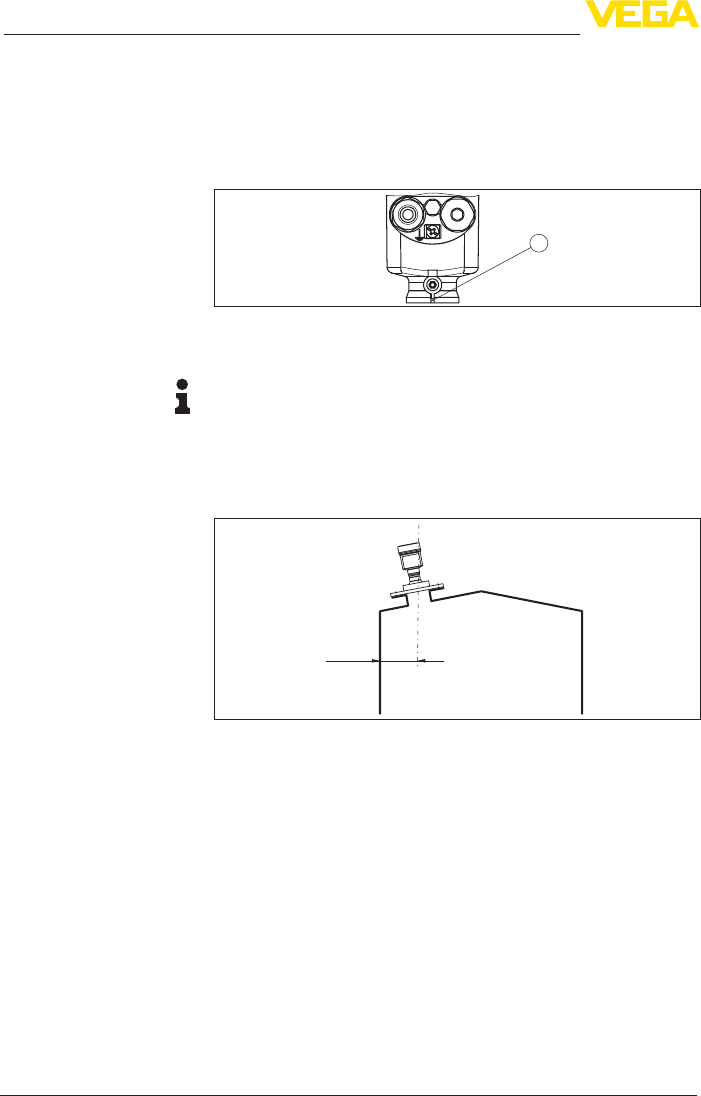

Fig. 8: Position of the polarisation

1 Nose for marking the direction of polarisation

Note:

Whenthehousingisrotated,thedirectionofpolarizationchanges

andhencetheinuenceofthefalseechoonthemeasuredvalue.

Please keep this in mind when mounting or making changes later.

Mount the sensor at least 200 mm (7.874 in) away from the vessel

wall.

200 mm

(7.87

Fig. 9: Mounting the radar sensor on the vessel top

If you cannot maintain this distance, you should carry out a false

signal suppression during setup. This applies particularly if buildup on

the vessel wall is expected. In such cases, we recommend repeating

the false signal suppression at a later date with existing buildup.

Theinstrumentshouldnotbemountedtooclosetotheinowing

medium, as the radar signal could be disrupted.

Silowithllingfromtop

Theoptimalmountingpositionisoppositethellingaperture.Toavoid

heavysoiling,thedistancetoanylterordustexhaustershouldbeas

large as possible.

Polarisation

Installation position

Inowingmedium

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

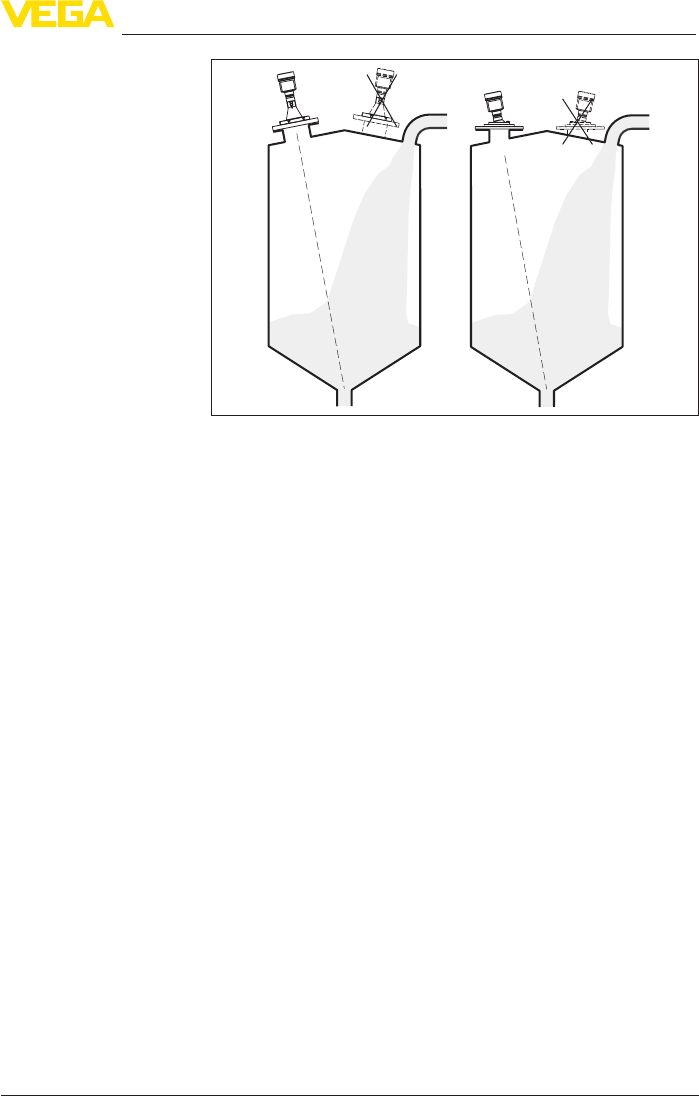

Fig.10:Mountingoftheradarsensorwithinowingmedium

Silowithlaterallling

Inbulksolidssiloswithlateralpneumaticllingtheinstrumentshould

notbemountedabovethellingstream,astheradarsignalwillbe

disrupted.Theoptimalmountingpositionistothesideofthelling

aperture.Toavoidheavysoiling,thedistancetoanylterordust

exhauster should be as large as possible.

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Fig.11:Mountingoftheradarsensorwithinowingmedium

Information:

The mounting socket should be as short as possible and its end

rounded. This reduces false echoes from the vessel mounting socket.

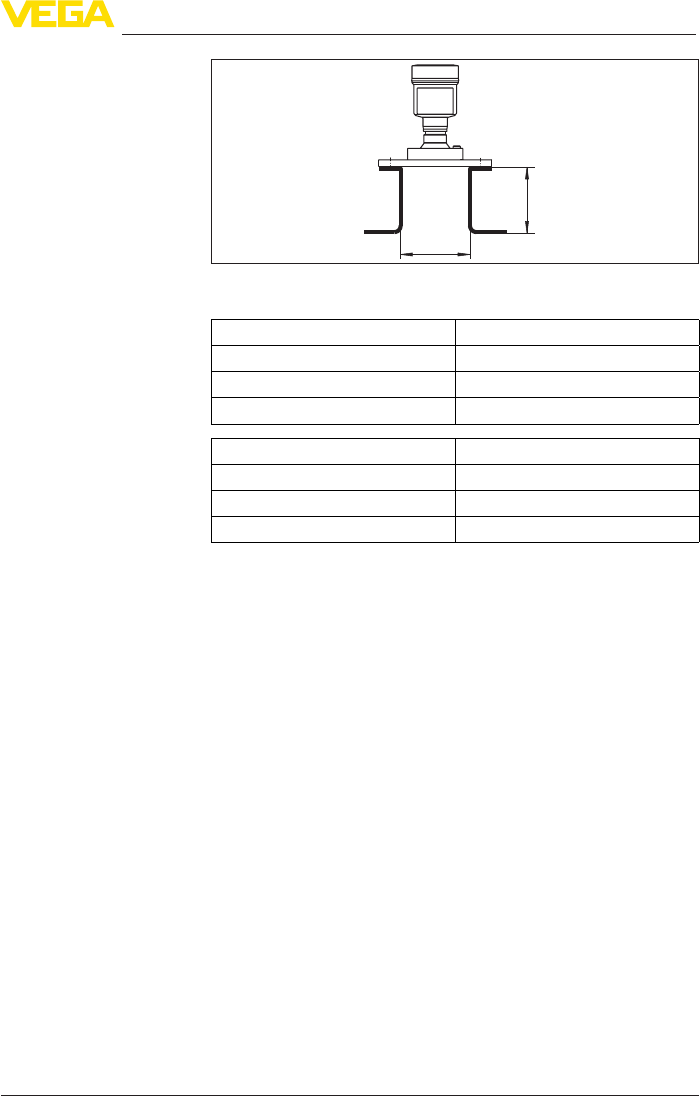

Fig. 12: Recommended socket mounting

Ifthemediumhasgoodreectiveproperties,youcanalsomountthe

VEGAPULS 69 on longer sockets. Approximate socket heights are

shown in the following illustration.

Information:

When mounting on longer sockets, we recommend carrying out a

false signal suppression (see chapter "Parameter adjustment").

Type of socket

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

The below charts specify the max. pipe socket length h depending on

the diameter d.

Socket diameter d Socket length h

80 mm ≤200mm

100 mm ≤300mm

150 mm ≤500mm

Socket diameter d Socket length h

3" ≤7.87in

4" ≤11.8in

6" ≤19.7in

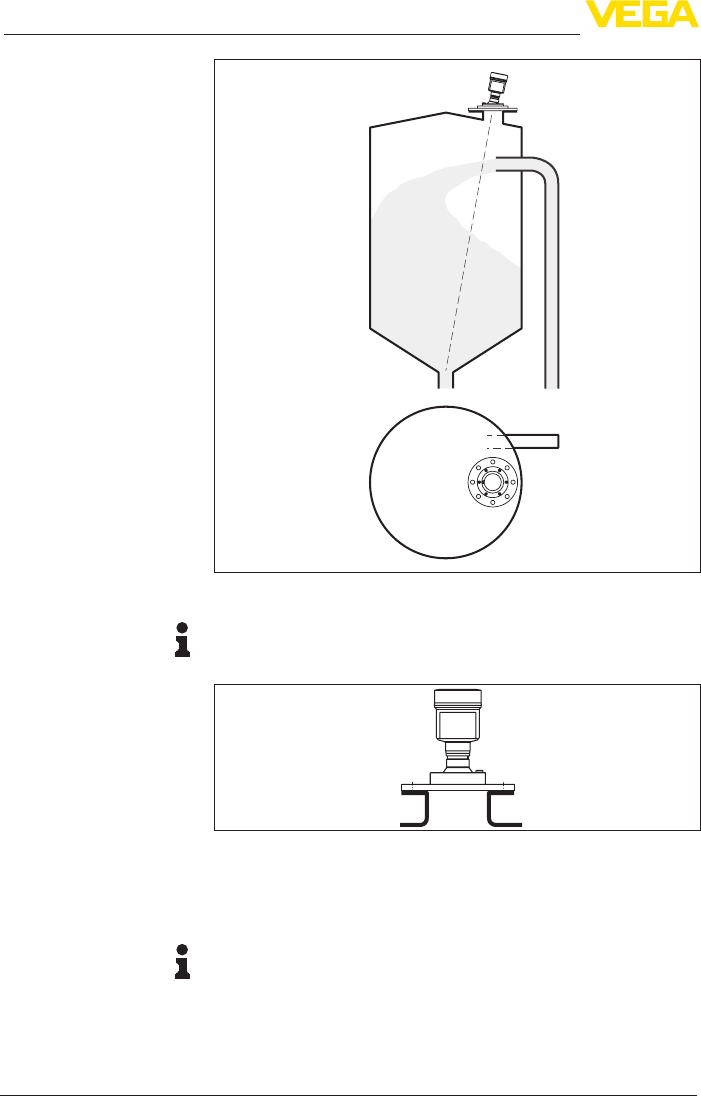

In order to measure as much of the vessel volume as possible, the

sensor should be aligned so that the radar signal reaches the lowest

level in the vessel. In a cylindrical silo with conical outlet, the sensor is

mounted anywhere from one third to one half of the vessel radius from

the outside wall (see following drawing).

Orientation

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

rr...

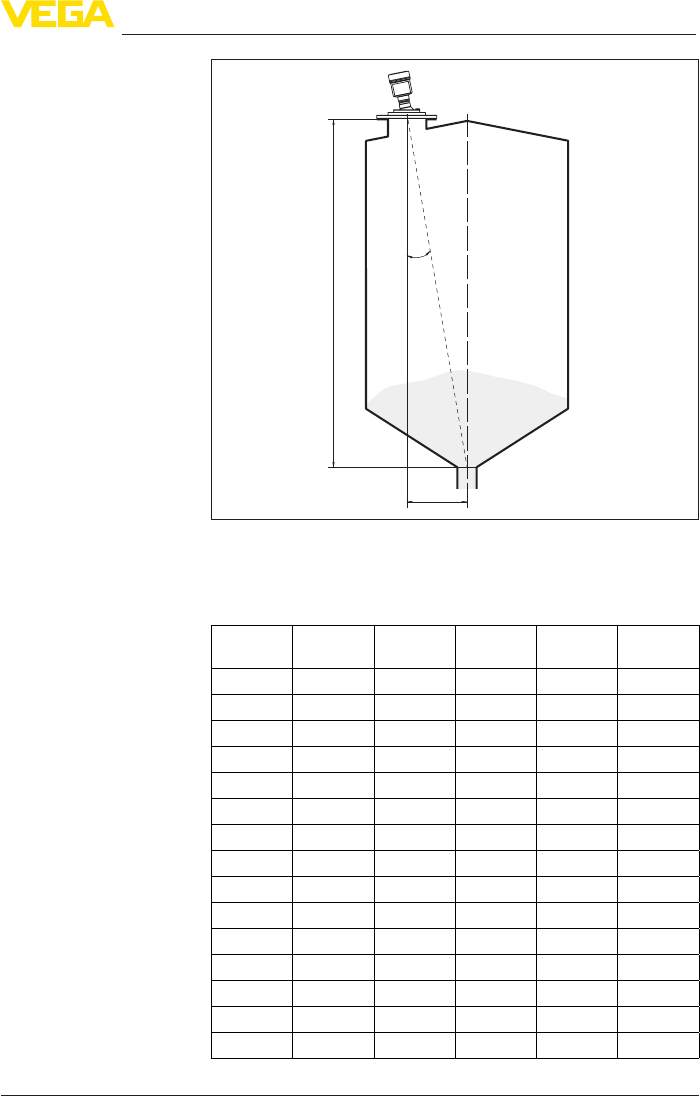

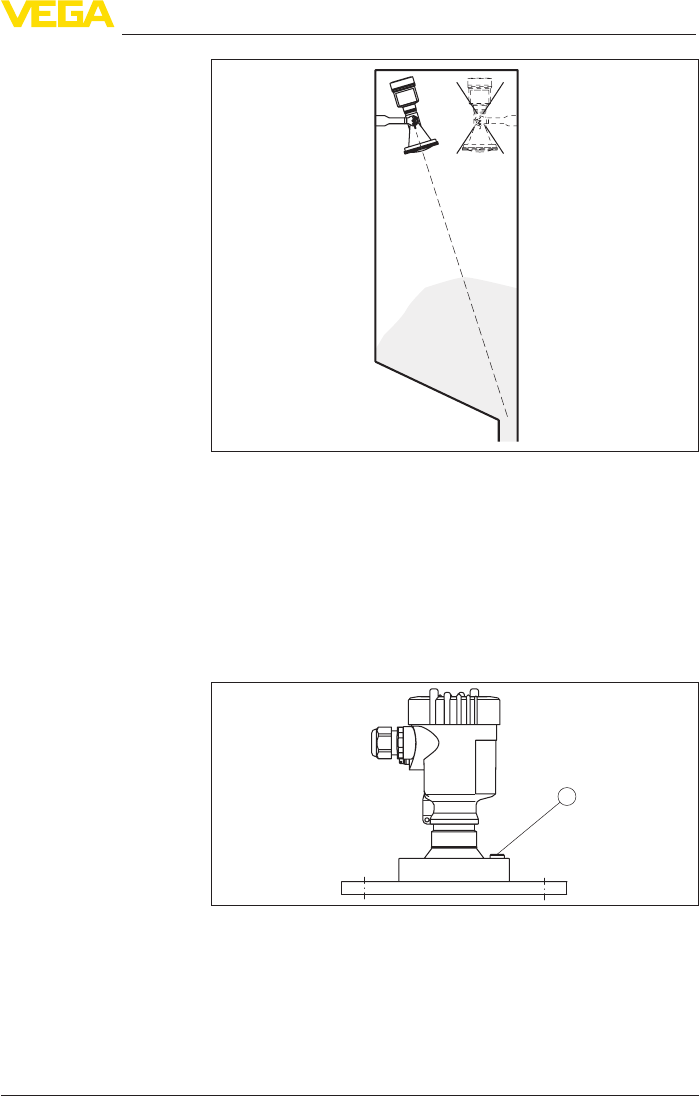

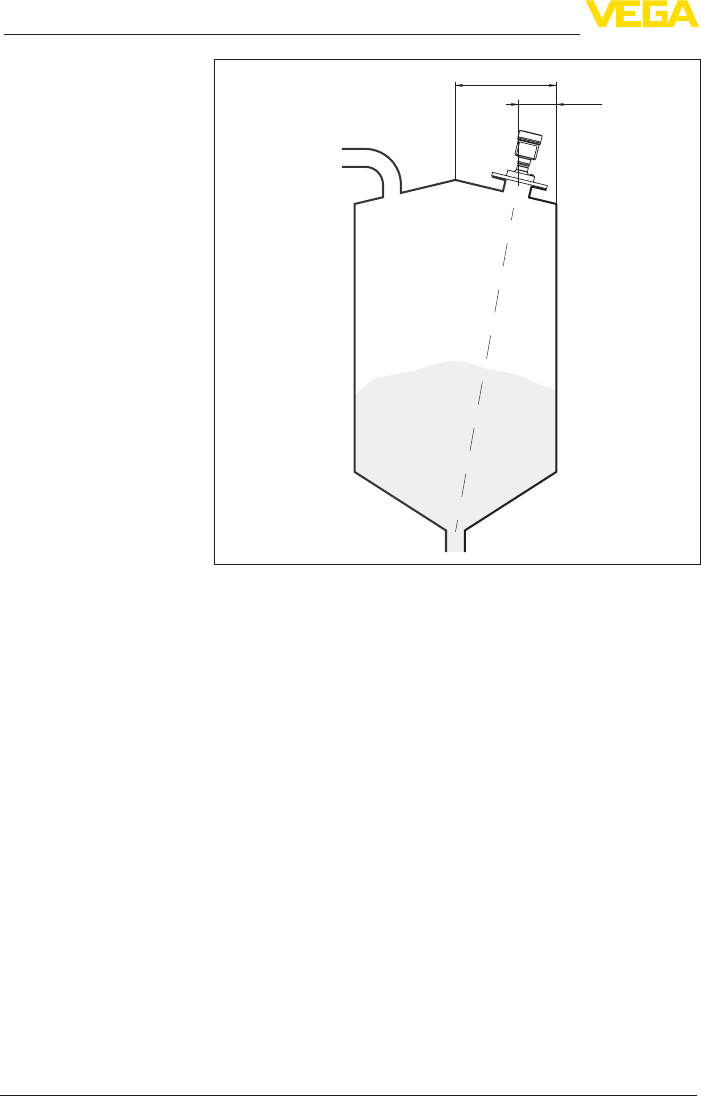

Fig. 14: Mounting position and orientation

With the help of an optional swivelling holder, the sensor can be

easily aligned to the vessel centre. The necessary angle of inclination

depends on the vessel dimensions. It can be easily checked with a

suitable bubble tube or mechanic's level on the sensor.

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Fig.15:ProposalforinstallationafterorientationVEGAPULS69

The following table shows the necessary angle of inclination. It

depends on the measuring distance and the distance "a" between

vessel centre and installation position.

Distance d

(m)

2° 4° 6° 8° 10°

2 0.1 0.1 0.2 0.3 0.4

4 0.1 0.3 0.4 0.6 0.7

6 0.2 0.4 0.6 0.8 1.1

8 0.3 0.6 0.8 1.1 1.4

10 0.3 0.7 1.1 1.4 1.8

15 0.5 1 1.6 2.1 2.6

20 0.7 1.4 2.1 2.8 3.5

25 0.9 1.7 2.6 3.5 4.4

30 1 2.1 3.2 4.2 5.3

35 1.2 2.4 3.7 4.9 6.2

40 1.4 2.8 4.2 5.6 7.1

45 1.6 3.1 4.7 6.3 7.9

50 1.7 3.5 5.3 7 8.8

60 2.1 4.2 6.3 8.4 10.5

70 2.4 4.9 7.3 9.7 12.2

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Distance d

(m)

2° 4° 6° 8° 10°

80 2.8 5.6 8.4 11.1 13.9

90 3.1 6.3 9.4 12.5 15.6

100 3.5 7 10.5 13.9 17.4

110 3.8 7.7 11.5 15.3 19.1

120 4.2 8.4 12.5 16.7 20.8

Example:

In a vessel 20 m high, the installation position of the sensor is 1.4 m

from the vessel centre.

The necessary angle of inclination of 4° can be read out from this

table.

Proceed as follows to adjust the angle of inclination with the swivelling

holder:

1. Loosen the terminal screws of the swivel holder by one turn. Use

ahexagonsocketwrench,size5.

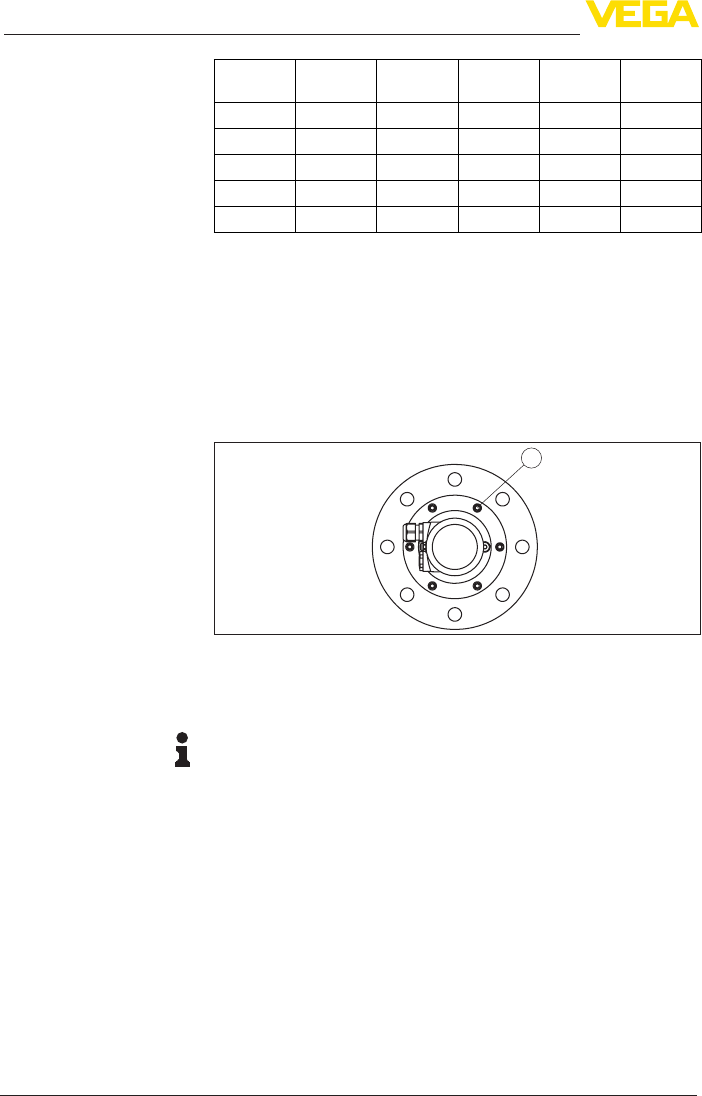

Fig.16:VEGAPULS69withswivellingholder

1 Terminalscrews(6pcs.)

2. Align the sensor, check angle of inclination

Information:

The max. angle of inclination of the swivelling holder is approx. 10°

3. Re-tighten the terminal screws, max. torque see chapter "Techni-

cal data".

The mounting location of the radar sensor should be a place where no

otherequipmentorxturescrossthepathoftheradarsignals.

Vessel installations, such as e.g. ladders, limit switches, heating spi-

rals, struts, etc., can cause false echoes and impair the useful echo.

Make sure when planning your measuring point that the radar sensor

has a "clear view" to the measured product.

In case of existing vessel installations, a false signal suppression

should be carried out during setup.

If large vessel installations such as struts or supports cause false

echoes, these can be attenuated through supplementary measures.

Vessel installations

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

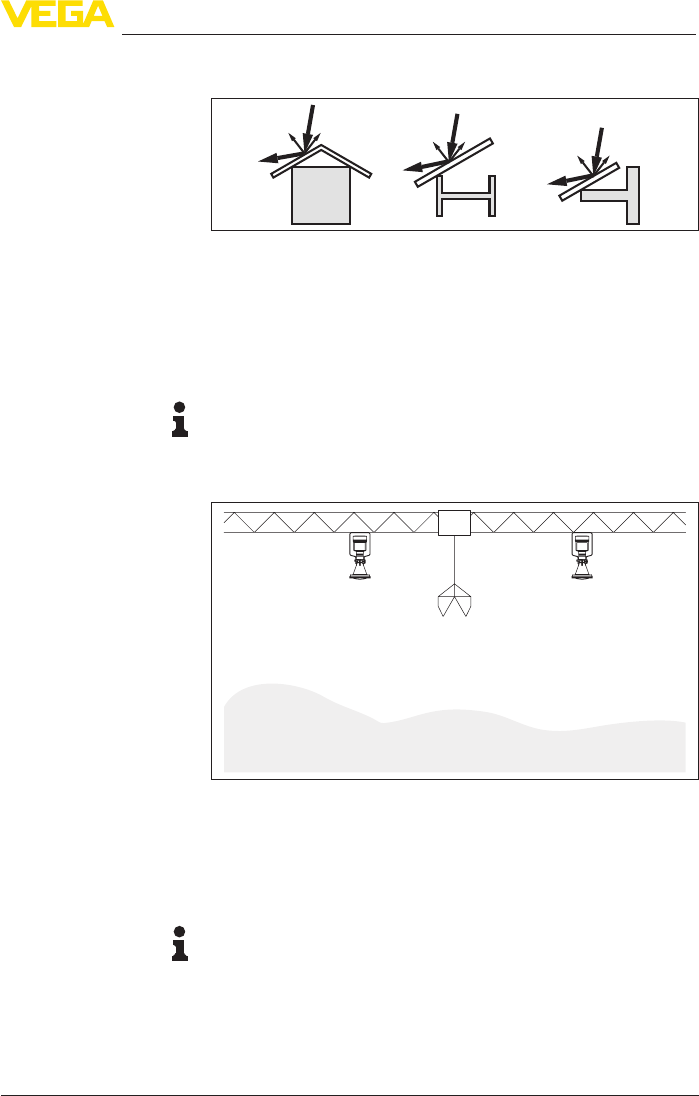

Small,inclinedsheetmetalbaesabovetheinstallationsscatterthe

radarsignalsandpreventdirectinterferingreections.

Fig.17:Coverat,large-areaproleswithdeectors

Large material heaps are best measured with several instruments,

which can be mounted on e.g. traverse cranes. For this type of ap-

plication it is advantageous to orient the sensor perpendicular to the

bulk solid surface.

Thesensorsdonotinuenceeachother.

Information:

Keep in mind that for these applications, the sensors are designed

for relatively slow level changes. If the sensor is used on a movable

boom, the max. measuring rate must be observed (see chapter

"Technicaldata").

Fig. 18: Radar sensors on traverse crane

Instruments for a temperature range up to 200° C have a spacer

betweenprocessttingandelectronicshousing.Thisspacerisused

to thermally decouple the electronics from the high process tempera-

tures.

Information:

The spacer may only be incorporated up to a maximum of 50 mm into

the vessel insulation. Only then is a reliable temperature decoupling

guaranteed.

Material heaps

Mounting in the vessel

insulation

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

max. 50 mm

(1.97")

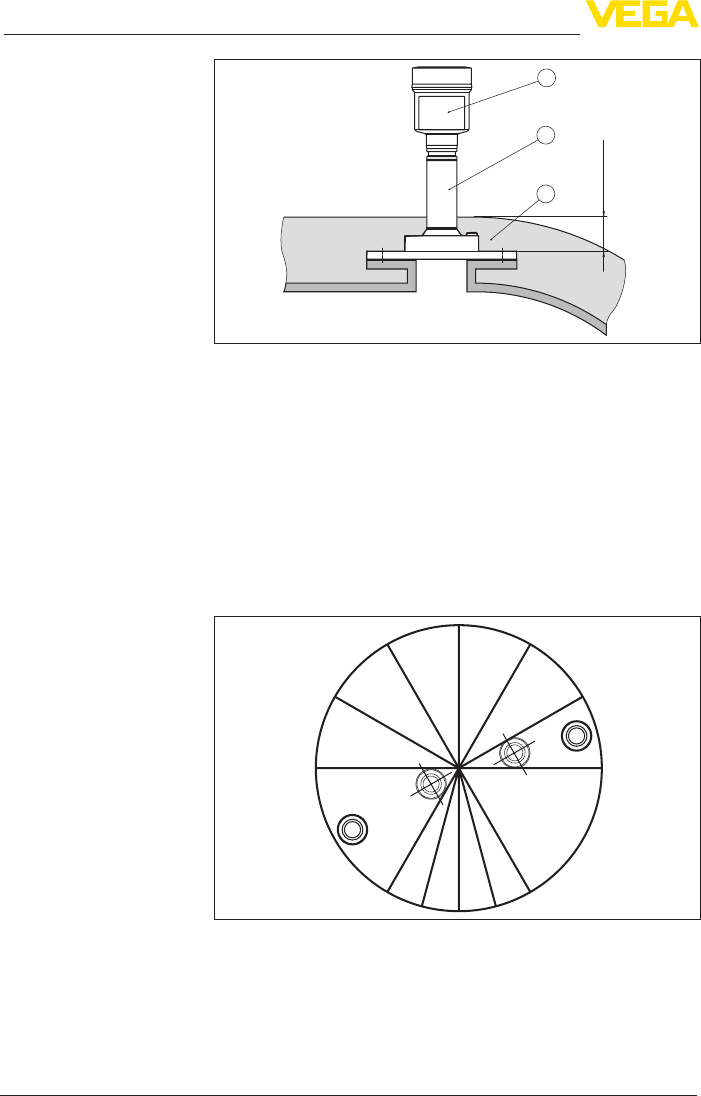

Fig. 19: Mounting the instrument on insulated vessels.

1 Electronicshousing

2 Spacer

3 Vessel insulation

Thewallsofmultiple-chambersilosareoftenmadeofprolematerial,

e.g.prolesheeting,toensuretherequiredstability.Iftheradarsen-

sor is mounted very close to a heavily structured vessel wall, substan-

tialinterferingreectionscanbegenerated.Thusthesensorshould

be mounted at the largest possible distance from the separating wall.

The best mounting location is on the outer wall of the silo, with the

sensor pointing towards the discharge opening in the silo centre. This

can be accomplished, for example, with the mounting strap.

Fig. 20: Installation and orientation in multiple chamber silos

Mounting in multiple

chamber silo

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Fig. 21: Installation and orientation in multiple chamber silos

To avoid heavy buildup and dust on the antenna, the sensor should

not be mounted close to the dust exhauster inside the vessel.

To protect the sensor against buildup, particularly in case of strong

condensation, air rinsing is recommended.

Metal-jacketed lens antenna

The VEGAPULS 69 with metal-jacketed lens antenna is equipped

with a rinsing air connection as a standard feature, see following

graphics.

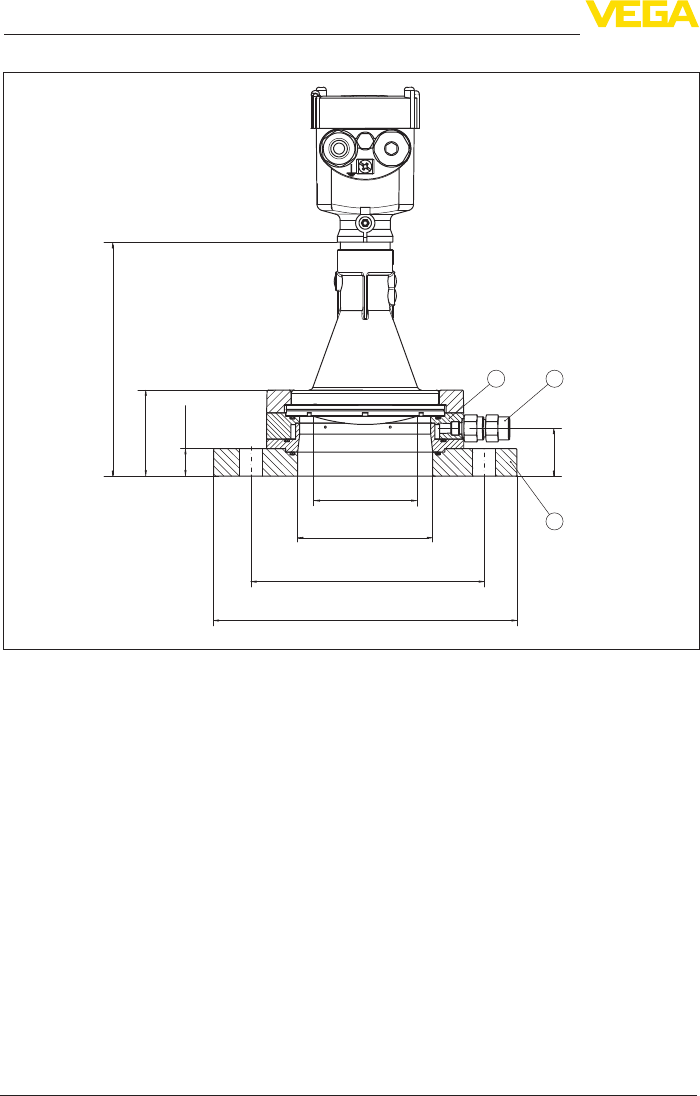

Fig. 22: Rinsing air connection on metal-jacketed lens antenna

Plastic horn antenna

The VEGAPULS 69 with plastic horn antenna is optionally available

witharinsingairconnection.Themechanicalcongurationdiers

accordingtotheangeversion,seefollowinggraphics.

Dust deposits - Rinsing

air connection

4 Mounting

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

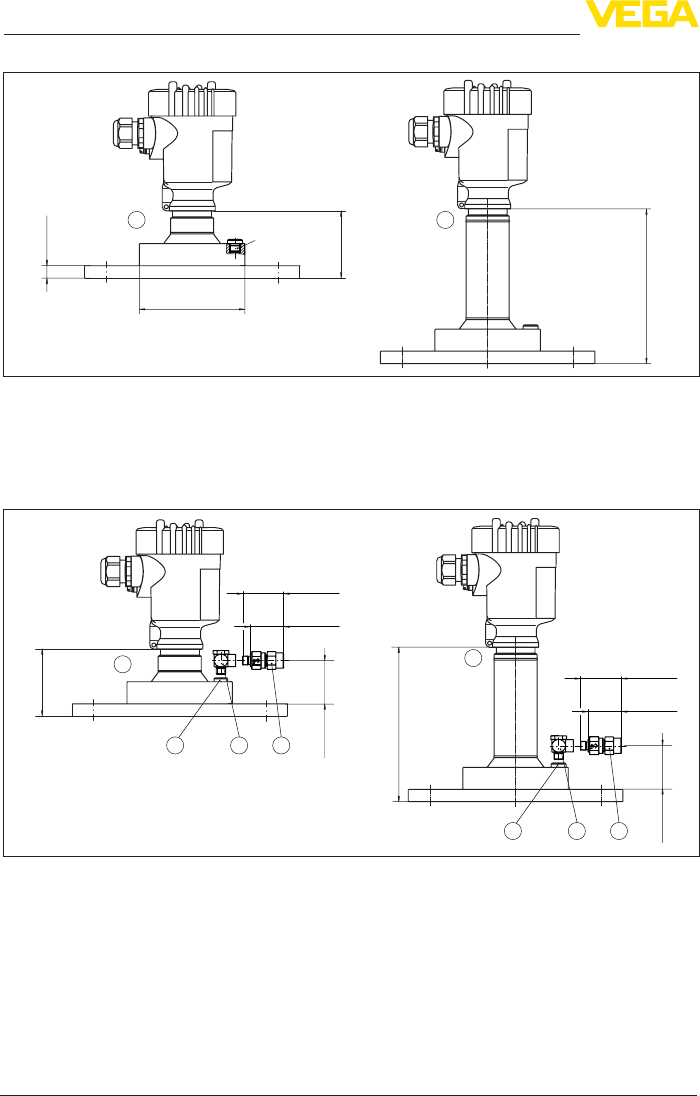

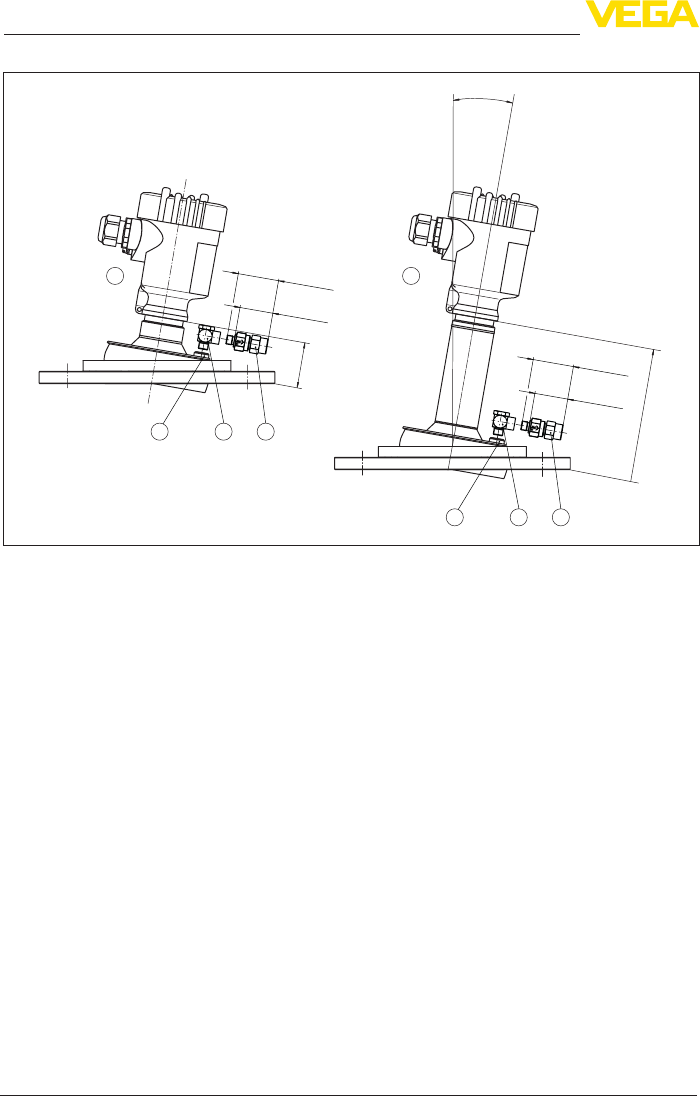

Fig.23:Rinsingairconnectionwithcompressionange

Fig.24:Rinsingairconnectionwithadapterange

Youcannddetailsontherinsingairconnectioninchapter"Technical

data".

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

5 Connecting to power supply

5.1 Preparing the connection

Always keep in mind the following safety instructions:

Warning:

Connect only in the complete absence of line voltage.

• The electrical connection must only be carried out by trained

personnel authorised by the plant operator.

• If overvoltage surges are expected, overvoltage arresters should

be installed.

Power supply and current signal are carried on the same two-wire

cable.Theoperatingvoltagecandierdependingontheinstrument

version.

Thedataforpowersupplyarespeciedinchapter"Technicaldata".

Provide a reliable separation between the supply circuit and the

mains circuits according to DIN EN 61140 VDE 0140-1.

Keepinmindthefollowingadditionalfactorsthatinuencetheoperat-

ing voltage:

• Lower output voltage of the power supply unit under nominal load

(e.g. with a sensor current of 20.5 mA or 22 mA in case of fault)

• Inuenceofadditionalinstrumentsinthecircuit(seeloadvaluesin

chapter "Technicaldata")

The instrument is connected with standard two-wire cable without

screen. If electromagnetic interference is expected which is above the

test values of EN 61326-1 for industrial areas, screened cable should

be used.

Use cable with round cross section for instruments with housing and

cablegland.Toensurethesealeectofthecablegland(IPprotection

rating),ndoutwhichcableouterdiameterthecableglandissuitable

for.

Useacableglandttingthecablediameter.

Screened cable generally necessary in HART multidrop mode.

Metric threads

In the case of instrument housings with metric thread, the cable

glands are screwed in at the factory. They are sealed with plastic

plugs as transport protection.

You have to remove these plugs before electrical connection.

NPT thread

In the case of instrument housings with self-sealing NPT threads, it is

not possible to have the cable entries screwed in at the factory. The

free openings for the cable glands are therefore covered with red dust

protection caps as transport protection.

Prior to setup you have to replace these protective caps with ap-

proved cable glands or close the openings with suitable blind plugs.

Safety instructions

Voltage supply

Connection cable

Cable glands

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

On plastic housings, the NPT cable gland or the Conduit steel tube

must be screwed into the threaded insert without grease.

Max. torque for all housings, see chapter "Technicaldata".

If screened cable is required, the cable screen must be connected on

both ends to ground potential. In the sensor, the screen is connected

directly to the internal ground terminal. The ground terminal on the

outside of the housing must be connected to the ground potential (low

impedance).

In Ex systems, the grounding is carried out according to the installa-

tion regulations.

In electroplating plants as well as plants for cathodic corrosion protec-

tionitmustbetakenintoaccountthatsignicantpotentialdierences

exist. This can lead to unacceptably high currents in the cable screen

if it is grounded at both ends.

Information:

Themetallicpartsoftheinstrument(processtting,sensor,concen-

tric tube, etc.) are connected with the internal and external ground

terminal on the housing. This connection exists either directly via

the conductive metallic parts or, in case of instruments with external

electronics, via the screen of the special connection cable.

Youcanndspecicationsonthepotentialconnectionsinsidethe

instrument in chapter "Technicaldata".

5.2 Connecting

The voltage supply and signal output are connected via the spring-

loaded terminals in the housing.

Connection to the display and adjustment module or to the interface

adapter is carried out via contact pins in the housing.

Information:

The terminal block is pluggable and can be removed from the

electronics. To do this, lift the terminal block with a small screwdriver

and pull it out. When reinserting the terminal block, you should hear it

snap in.

Proceed as follows:

1. Unscrew the housing lid

2. If a display and adjustment module is installed, remove it by turn-

ing it slightly to the left.

3. Loosen compression nut of the cable gland and remove blind

plug

4. Remove approx. 10 cm (4 in) of the cable mantle, strip approx.

1 cm (0.4 in) of insulation from the ends of the individual wires

5. Insert the cable into the sensor through the cable entry

Cable screening and

grounding

Connection technology

Connection procedure

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

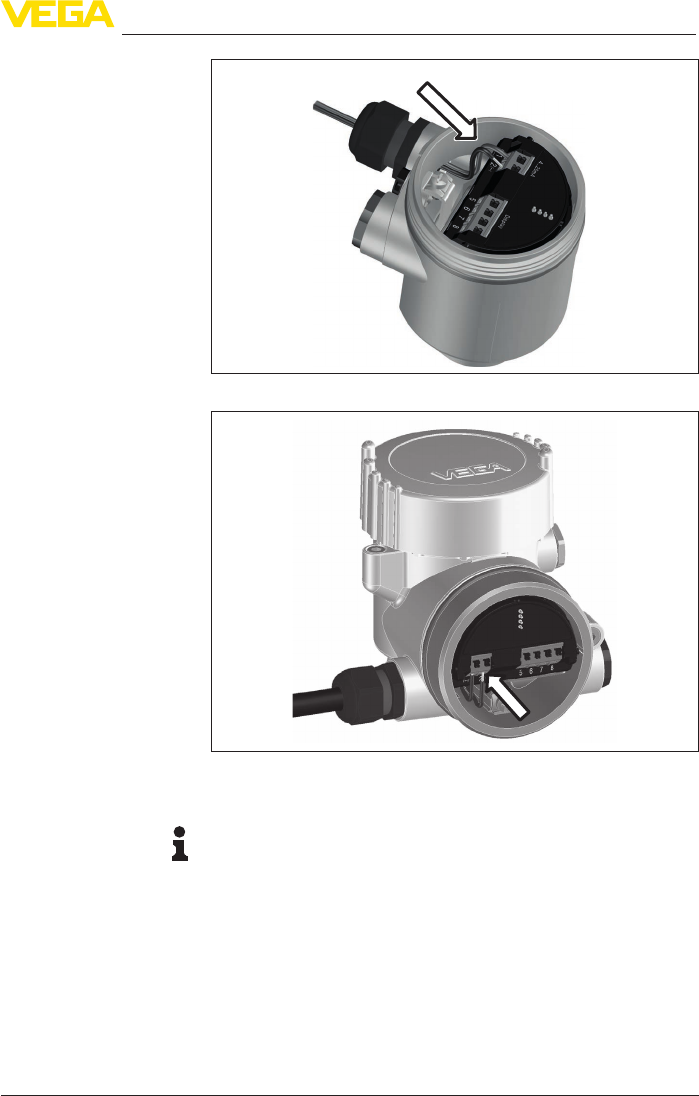

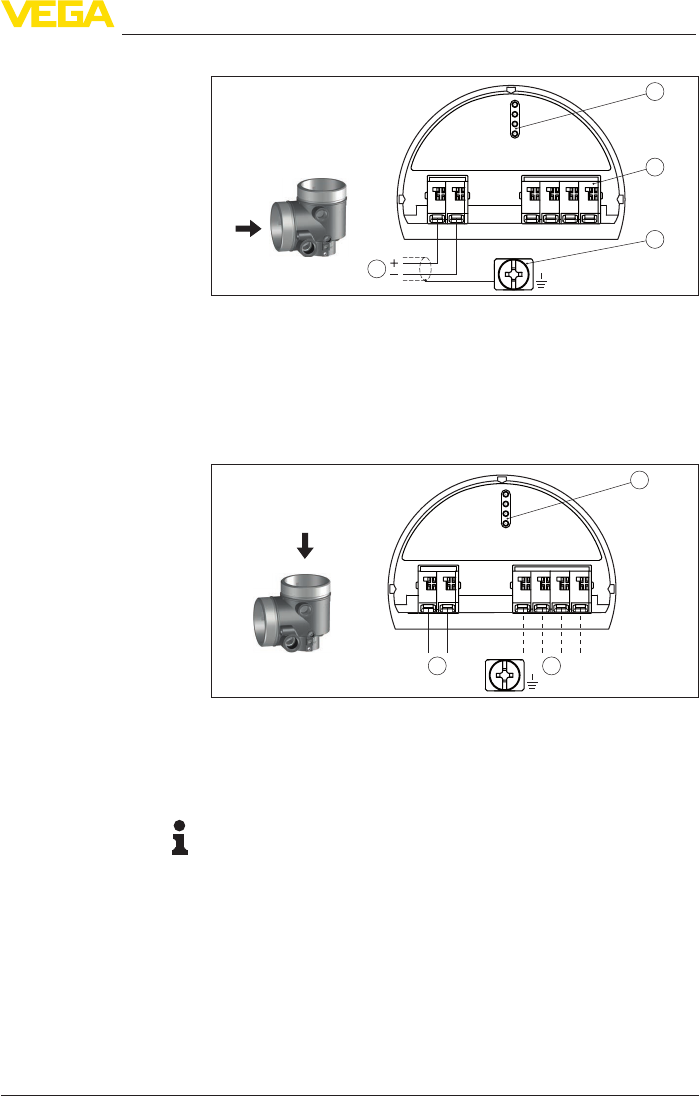

Fig.25:Connectionsteps5and6-Singlechamberhousing

Fig.26:Connectionsteps5and6-Doublechamberhousing

6. Insert the wire ends into the terminals according to the wiring plan

Information:

Solidcoresaswellasexiblecoreswithwireendsleevesareinsert-

eddirectlyintotheterminalopenings.Incaseofexiblecoreswithout

end sleeves, press the terminal from above with a small screwdriver,

the terminal opening is then free. When the screwdriver is released,

the terminal closes again.

Youcanndfurtherinformationonthemax.wirecross-sectionunder

"Technicaldata-Electromechanicaldata"

7. Check the hold of the wires in the terminals by lightly pulling on

them

8. Connect the screen to the internal ground terminal, connect the

external ground terminal to potential equalisation

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

9. Tighten the compression nut of the cable entry gland. The seal

ring must completely encircle the cable

10. Reinsert the display and adjustment module, if one was installed

11. Screw the housing lid back on

Theelectricalconnectionisnished.

5.3 Wiring plan, single chamber housing

The following illustration applies to the non-Ex as well as to the Ex-ia

version.

( ) (-)

678

4...20mA

Fig.27:Electronicsandterminalcompartment-singlechamberhousing

1 Voltage supply, signal output

2 For display and adjustment module or interface adapter

3 For external display and adjustment unit

4 Groundterminalforconnectionofthecablescreen

5.4 Wiring plan, double chamber housing

The following illustrations apply to the non-Ex as well as to the Ex-ia

version.

5678

4...20mA

( ) (-)

1 1

Fig.28:Electronicscompartment-doublechamberhousing

1 Internal connection to the terminal compartment

2 For display and adjustment module or interface adapter

Electronics and terminal

compartment

Electronics compartment

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

( ) (-)

678

4...20mADisplay

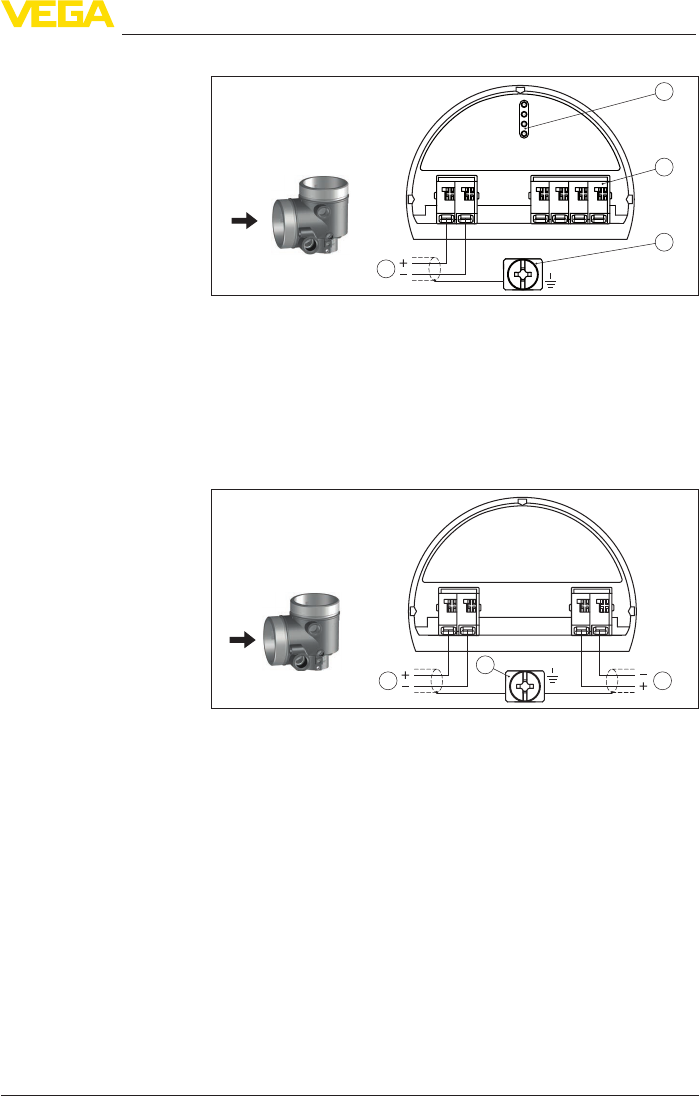

Fig.29:Terminalcompartment-doublechamberhousing

1 Voltage supply, signal output

2 For display and adjustment module or interface adapter

3 For external display and adjustment unit

4 Groundterminalforconnectionofthecablescreen

To make a second measured value available for use, you can use the

supplementary electronics "Additional current output".

Both current outputs are passive and need a power supply.

( ) (-)

4...20mA

I I

4...20mA

( ) (-)

1 2

Fig.30:Terminalcompartment,doublechamberhousing,supplementaryelec-

tronics "Additional current output"

1 Firstcurrentoutput(I)-Voltagesupplyandsignaloutput,sensor(HART)

2 Additional current output (II) - Voltage supply and signal output (without

HART)

3 Groundterminalforconnectionofthecablescreen

Terminal compartment

Supplementary electron-

ics - Additional current

output

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

USB

Status

Te st

SIM-Card

( ) (-)

Fig.31:Terminalcompartment-RadiomodulePLICSMOBILE

1 Voltage supply

Youcannddetailedinformationonconnectioninthesupplementary

instructions "PLICSMOBILEGSM/GPRSradiomodule".

5.5 Double chamber housing Ex d

5678

4...20mA

( ) (-)

Fig.32:Electronicscompartment-Ex-ddoublechamberhousing

1 Internal connection to the terminal compartment

2 For display and adjustment module or interface adapter

Terminal compart-

ment - Radio module

PLICSMOBILE

Electronics compartment

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

( ) (-)

678

4...20mA

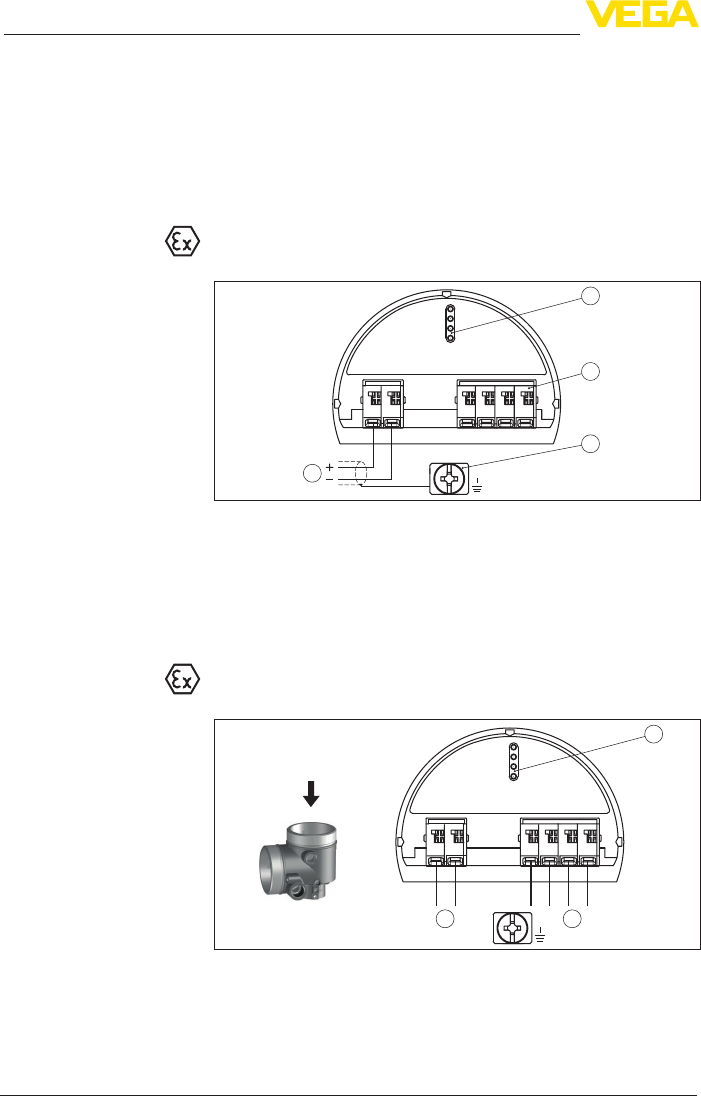

Fig.33:Terminalcompartment-doublechamberhousing

1 Voltage supply, signal output

2 For display and adjustment module or interface adapter

3 For external display and adjustment unit

4 Groundterminalforconnectionofthecablescreen

5.6 Wiring plan, double chamber housing Ex d ia

5678

( ) (-)

4...20mA

Fig.34:Electronicscompartment-Ex-d-iadoublechamberhousing

1 Internal connection to the terminal compartment

2 For display and adjustment module or interface adapter

3 Internal connection to the plug connector for external display and adjust-

ment unit (optional)

Note:

HART multidrop mode is not possible when using an Ex-d-ia instru-

ment.

Terminal compartment

Electronics compartment

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

4...20mA

( ) (-)

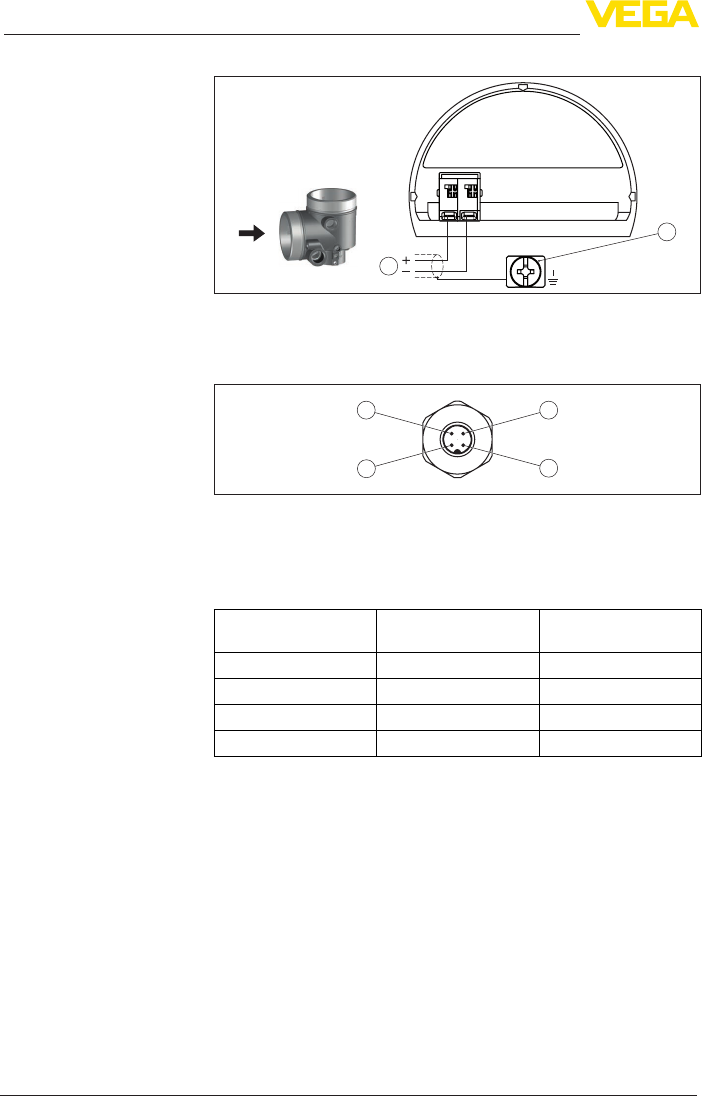

Fig.35:Connectioncompartment-Ex-d-iadoublechamberhousing

1 Voltage supply, signal output

2 Groundterminalforconnectionofthecablescreen

Fig.36:Topviewoftheplugconnector

1 Pin 1

2 Pin 2

3 Pin 3

4 Pin 4

Contact pin Colour, connection ca-

ble in the sensor

Terminal, electronics

module

Pin 1 Brown 5

Pin 2 White 6

Pin 3 Blue 7

Pin 4 Black 8

Terminal compartment

Plug M12 x 1 for external

display and adjustment

unit

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

5.7 Double chamber housing with DISADAPT

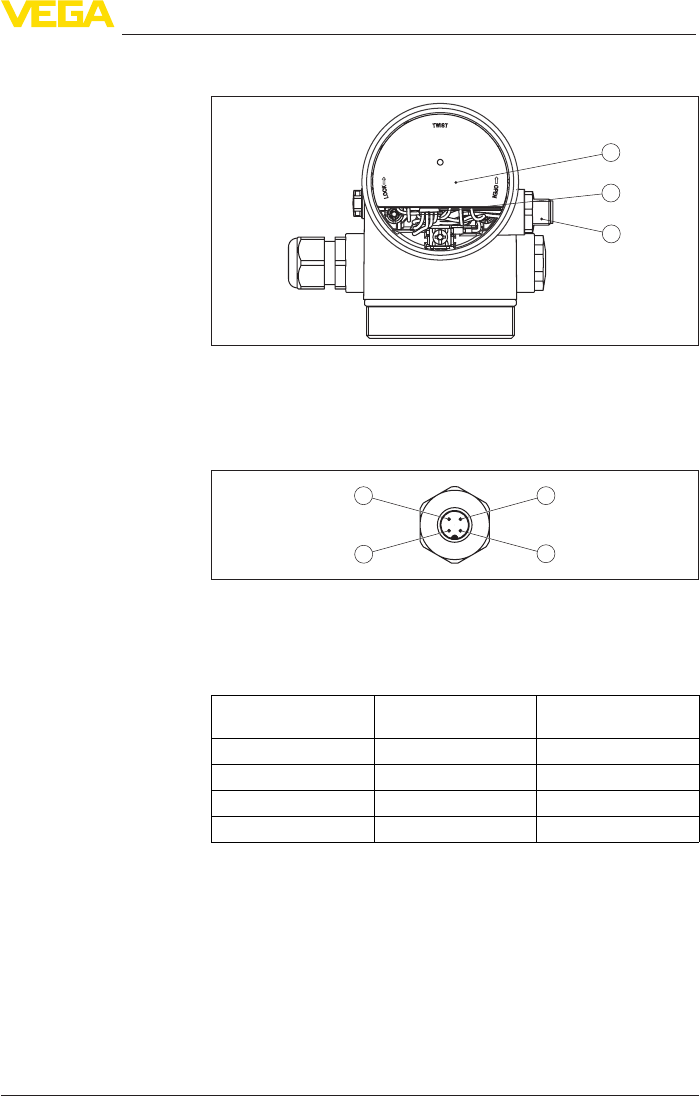

Fig.37:ViewtotheelectronicscompartmentwithVEGADISadapterforconnec-

tion of the external display and adjustment unit

1 VEGADISadapter

2 Internal plug connection

3 Plug connector M12 x 1

Fig. 38: View to the plug connector M12 x 1

1 Pin 1

2 Pin 2

3 Pin 3

4 Pin 4

Contact pin Colour, connection ca-

ble in the sensor

Terminal, electronics

module

Pin 1 Brown 5

Pin 2 White 6

Pin 3 Blue 7

Pin 4 Black 8

Electronics compartment

Assignment of the plug

connector

5 Connecting to power supply

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

5.8 Wiring plan - version IP 66/IP 68, 1 bar

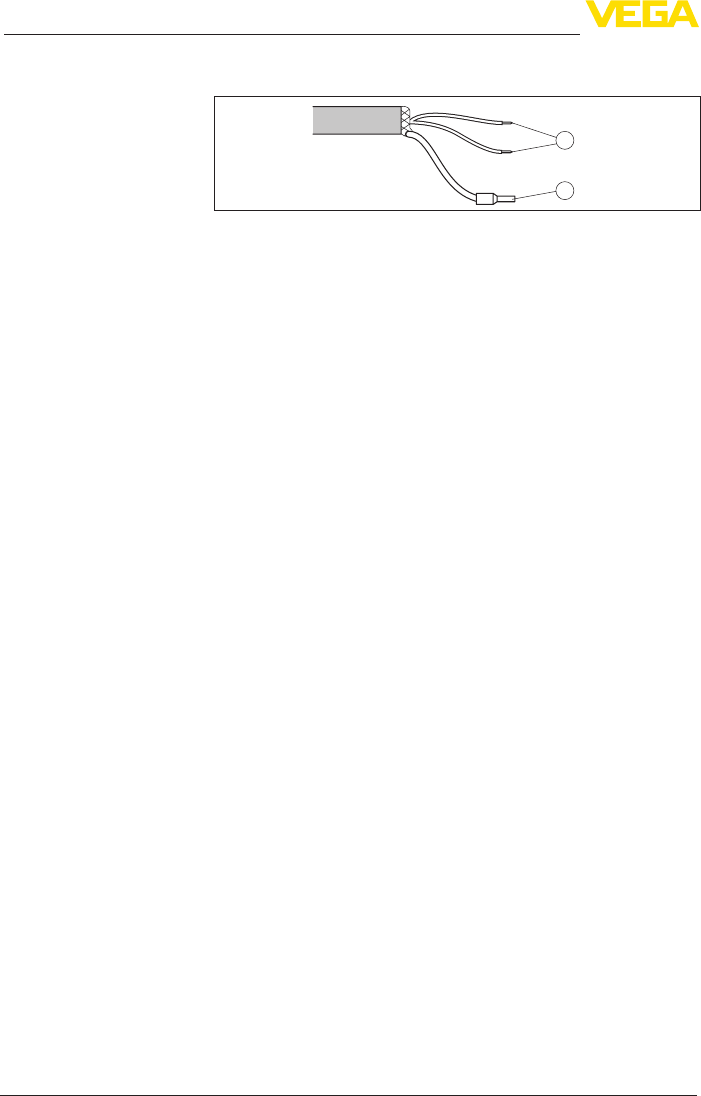

Fig. 39: Wire assignment in permanently connected connection cable

1 Brown(+)andblue(-)topowersupplyortotheprocessingsystem

2 Shielding

5.9 Switch-on phase

After connecting the instrument to power supply or after a voltage

recurrence, the instrument carries out a self-check for approx. 30 s:

• Internal check of the electronics

• Indication of the instrument type, hardware and software version,

measurement loop name on the display or PC

• Indication of the status message "F 105 Determine measured

value" on the display or PC

• The output signal jumps to the set fault current

As soon as a plausible measured value is found, the corresponding

current is outputted to the signal cable. The value corresponds to the

actual level as well as the settings already carried out, e.g. factory

setting.

Wire assignment, con-

nection cable

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

6 Set up with the display and adjustment

module

6.1 Insert display and adjustment module

The display and adjustment module can be inserted into the sensor

andremovedagainatanytime.Youcanchooseanyoneoffourdier-

ent positions - each displaced by 90°. It is not necessary to interrupt

the power supply.

Proceed as follows:

1. Unscrew the housing lid

2. Place the display and adjustment module on the electronics in the

desired position and turn it to the right until it snaps in.

3. Screw housing lid with inspection window tightly back on

Disassembly is carried out in reverse order.

The display and adjustment module is powered by the sensor, an ad-

ditional connection is not necessary.

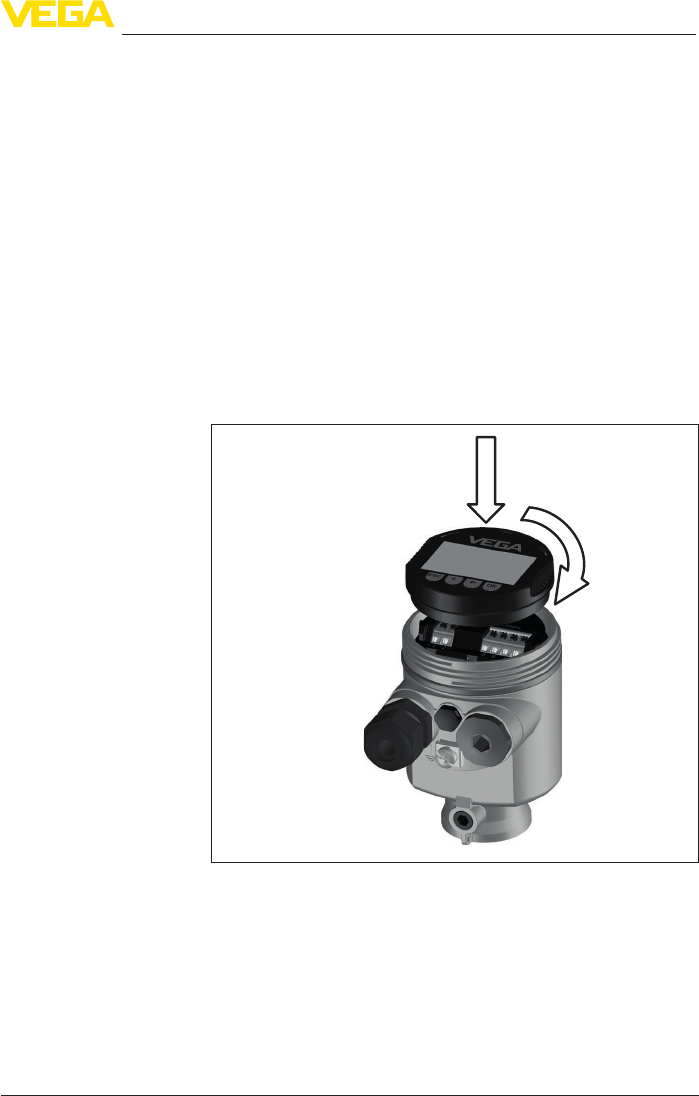

Fig. 40: Installing the display and adjustment module in the electronics compart-

ment of the single chamber housing

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

1 2

Fig. 41: Installing the display and adjustment module in the double chamber

housing

1 In the electronics compartment

2 In the terminal compartment

Note:

Ifyouintendtoretrottheinstrumentwithadisplayandadjustment

module for continuous measured value indication, a higher lid with an

inspection glass is required.

6.2 Adjustment system

Fig. 42: Display and adjustment elements

1 LCdisplay

2 Adjustment keys

• [OK] key:Key functions

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

– Move to the menu overview

– Conrmselectedmenu

– Edit parameter

– Save value

• [->] key:

– Change measured value presentation

– Select list entry

– Select menu items in the quick setup menu

– Select editing position

• [+] key:

– Change value of the parameter

• [ESC] key:

– Interrupt input

– Jump to next higher menu

The instrument is operated via the four keys of the display and

adjustment module. The individual menu items are shown on the LC

display.Youcanndthefunctionoftheindividualkeysintheprevious

illustration.

When the [+] and [->] keys are pressed quickly, the edited value,

or the cursor, changes one value or position at a time. If the key is

pressed longer than 1 s, the value or position changes continuously.

When the [OK] and [ESC] keys are pressed simultaneously for more

than 5 s, the display returns to the main menu. The menu language is

then switched over to "English".

Approx. 60 minutes after the last pressing of a key, an automatic reset

tomeasuredvalueindicationistriggered.Anyvaluesnotconrmed

with [OK] will not be saved.

6.3 Measured value indication - Selection of

national language

With the [->]keyyoumovebetweenthreedierentindicationmodes.

Intherstview,theselectedmeasuredvalueisdisplayedinlarge

digits.

In the second view, the selected measured value and a correspond-

ing bar graph presentation are displayed.

In the third view, the selected measured value as well as a second se-

lectable value, e.g. the temperature of the electronics, are displayed.

During the initial setup of an instrument shipped with factory settings,

use the "OK" key to get to the menu "National language".

Adjustment system

Time functions

Measured value indica-

tion

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

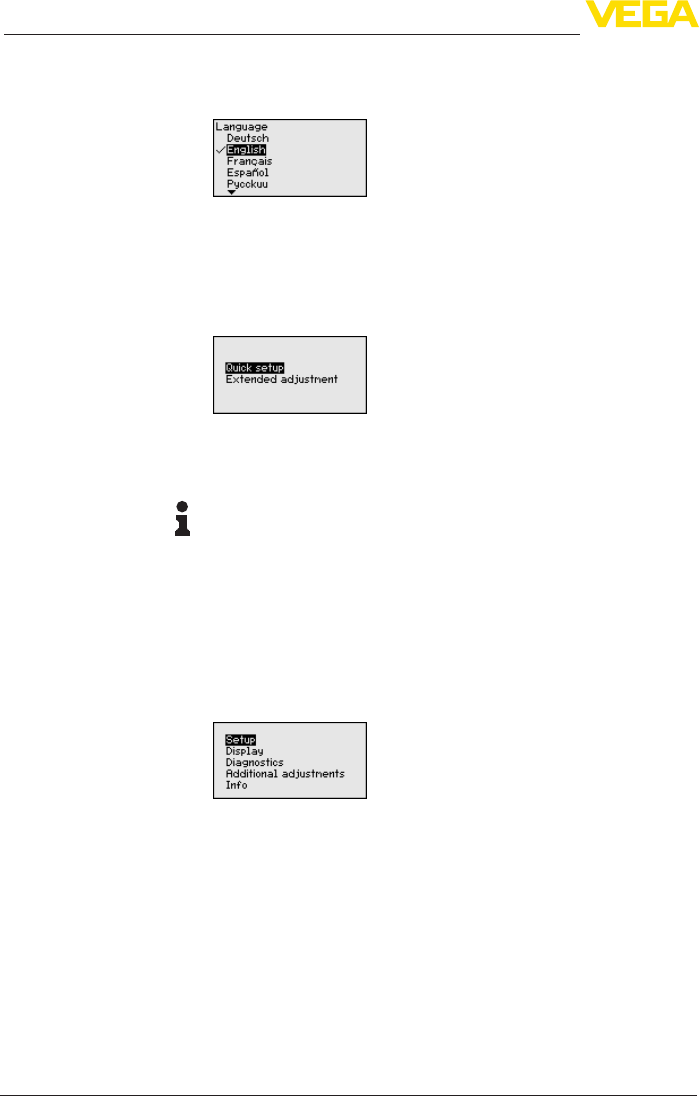

This menu item is used to select the national language for further pa-

rameter adjustment. You can change the selection via the menu item

"Setup - Display, Menu language".

With the "OK" key you move to the main menu.

6.4 Parameter adjustment - Quick setup

To quickly and easily adapt the sensor to the application, select

the menu item "Quick setup" in the start graphic on the display and

adjustment module.

Select the individual steps with the [->] key.

After the last step, "Quick setup terminated successfully" is displayed

briey.

Information:

The echo curve of setup is stored automatically during the quick

setup.

The return to the measured value indication is carried out through the

[->] or [ESC] keys or automatically after 3 s

Youcannd"Extendedadjustment" in the next sub-chapter.

6.5 Parameter adjustment - Extended adjustment

Themainmenuisdividedintovesectionswiththefollowingfunc-

tions:

Setup: Settings, e.g., for measurement loop name, units, application,

adjustment, signal output

Display: Settings, e.g., for language, measured value display, lighting

Diagnosis: Information, for example, on device status, peak value,

simulation, echo curve

Additional adjustments: Date/Time, reset, copy function, scaling,

currentoutput,falsesignalsuppression,linearization,HARTmode,

special parameters

Info: Instrument name, hardware and software version, calibration

date, instrument features

In the main menu item "Setup", the individual submenu items

should be selected one after the other and provided with the correct

Selection of national

language

Main menu

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

parameters to ensure optimum adjustment of the measurement. The

procedure is described in the following.

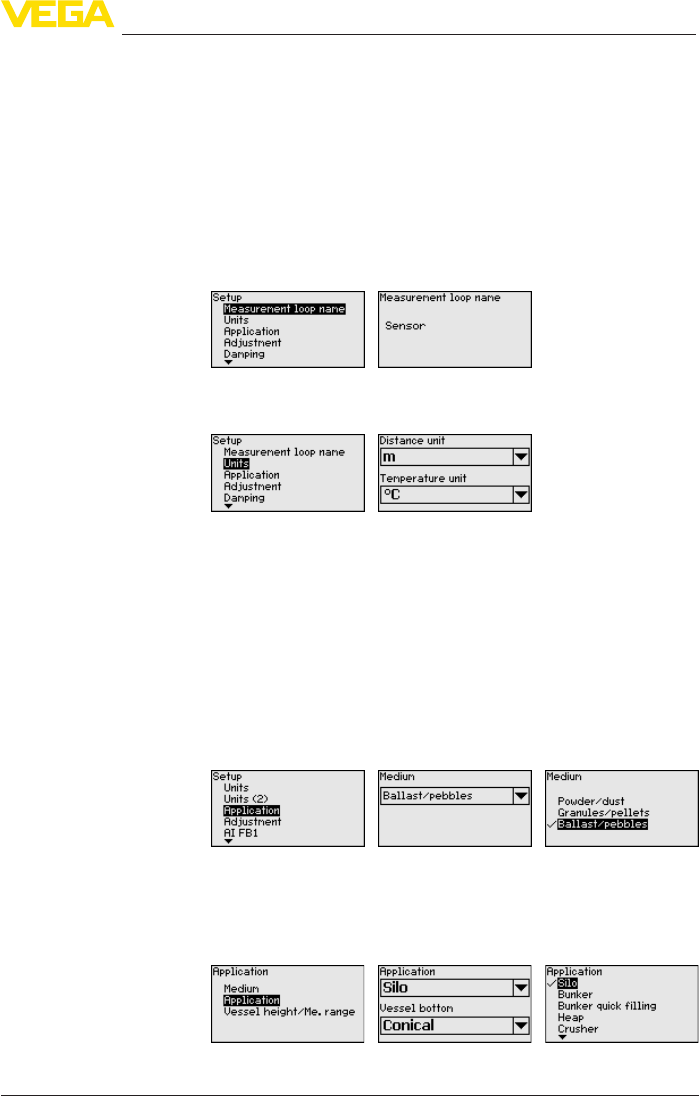

Here you can assign a suitable measurement loop name. Push the

"OK" key to start the editing. With the "+" key you change the sign and

with the "->" key you jump to the next position.

You can enter names with max. 19 characters. The character set

comprises:

• Capital letters from A … Z

• Numbers from 0 … 9

• Special characters + - / _ blanks

In this menu item you select the distance unit and the temperature

unit.

For the distance units you can choose between m, in and ft and for

the temperature units °C, °F and K.

With this menu item, the sensor can be optimally adapted to the ap-

plication, the installation location or the measurement conditions. It

includes selection options for medium, application as well as vessel

height/measuring range.

Medium:

Everymediumhasadierentreectivebehaviour.Withthisselection,

the sensor can be perfectly adapted to the medium and measurement

reliability,particularlywithmediawithpoorreectiveproperties,is

considerably increased.

Application:

Depending on the type of bulk solids application, material cones and

additional echoes from the vessel wall or bottom can become further

interfering factors. Through this selection, the sensor is adapted

perfectly to the application.

Setup - Measurement

loop name

Setup - Units

Setup - Application

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

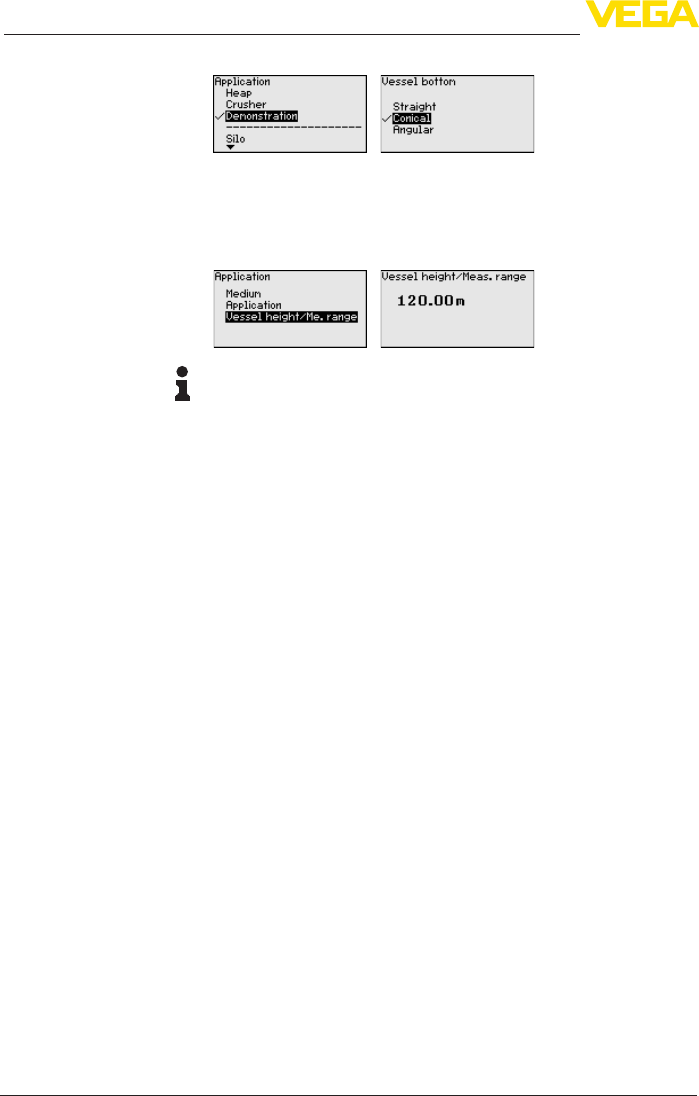

Vessel height/Measuring range:

The VEGAPULS 69 is a bulk solids radar sensor for high, slender

vessels. It covers a measuring range up to 120 m. This menu item lets

you limit the active measuring range in which the instrument searches

for level echoes.

Information:

The min. adjustment must be carried out independently of this.

The following features form the basis of the applications:

Silo (slender and high):

• Vessel of metal: weld joints

• Process/measurement conditions:

– Filling aperture too close to the sensor

– System noise in completely empty silo increased

• Properties, sensor:

– Stable measured values through higher averaging

– False signal suppression during setup recommended, required

for automatic false signal suppression

– Automaticfalsesignalsuppressionwithpartlylledvessel1)

Bunker (large-volume):

• Vessel of concrete or metal:

– Structured vessel walls

– Installations present

• Process/measurement conditions:

– Large distance to the medium

– Large angles of repose

• Properties, sensor:

– Mean averaging

– High measured value jumps are accepted

Bunkerwithfastlling:

• Vessel of concrete or metal, also multiple chamber silo:

– Structured vessel walls

– Installations present

• Process/measurement conditions:

– Measured value jumps, e.g. through truck loading

1) Theinstrumentrecognizesifamanualfalsesignalsuppressionwascarried

out with empty vessel and high system noise. An automatic false signal sup-

pression is then carried out if a product echo was detected at the beginning

ofthellingprocess.

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

– Large distance to the medium

– Large angles of repose

• Properties, sensor:

– Lower averaging

– Very high measured value jumps are accepted

Heap:

• Sensor mounting on movable conveyor belts

• Detectionoftheheapprole

• Heightdetectionduringlling

• Process/measurement conditions:

– Measuredvaluejumps,e.g.bytheproleoftheheaportrav-

erses

– Large angles of repose

– Measurementnearthellingstream

• Properties, sensor:

– Mean averaging

– High measured value jumps are accepted

Crusher:

• Vessel: installations, wear and protective facilities available

• Process/measurement conditions:

– Measured value jumps, e.g. through truck loading

– Fast reaction time

– Large distance to the medium

• Properties, sensor:

– Little averaging

– Max. reaction speed, very high measured value jumps are

accepted

Demonstration:

• Adjustment for all applications which are not typically level meas-

urement

– Instrument demonstration

– Object recognition/monitoring (additional settings required)

• Properties, sensor:

– Sensor accepts all measured value changes within the measur-

ing range immediately

– High sensitivity to interference, because virtually no averaging

Enter the requested parameters via the appropriate keys, save your

settings with [OK] and jump to the next menu item with the [ESC] and

the [->] key.

Since the radar sensor is a distance measuring instrument, the

distance from the sensor to the product surface is measured. To

indicate the actual level, an allocation of the measured distance to the

percentage height must be carried out.

To perform the adjustment, enter the distance with full and empty ves-

sel, see the following example:

Setup - Adjustment

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

100%

1 m

(39.37

35 m

(1378

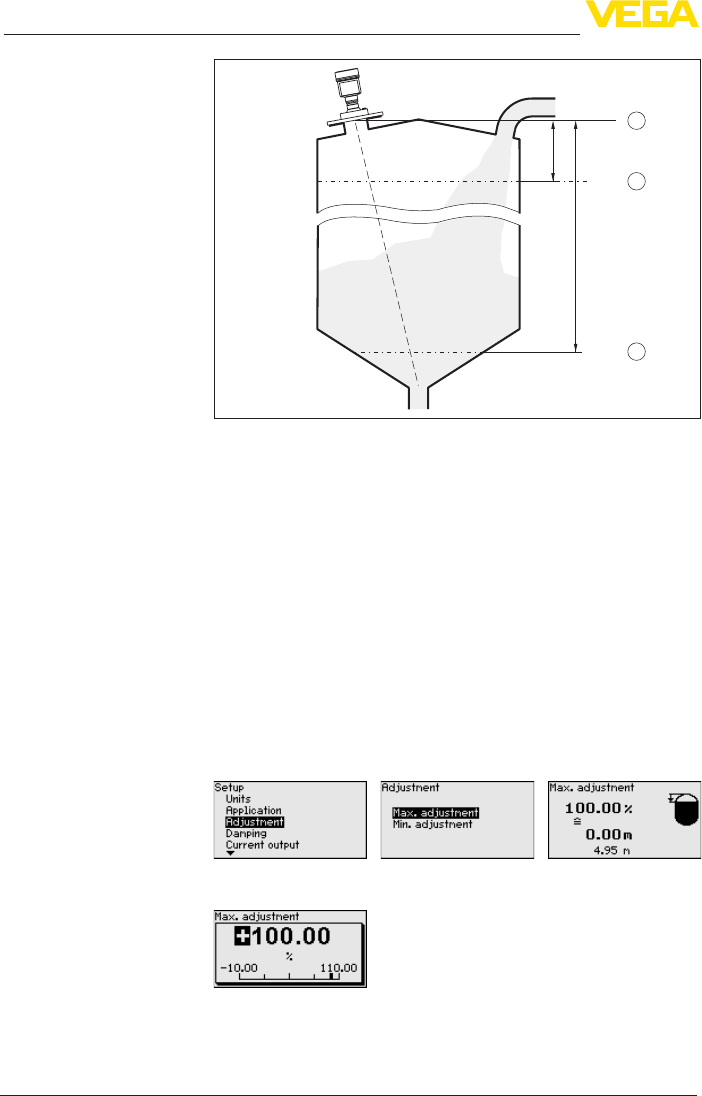

Fig.43:Parameteradjustmentexamplemin./max.adjustment

1 Min. level = max. measuring distance

2 Max. level = min. measuring distance

3 Reference plane

If these values are not known, an adjustment with the distances of e.g.

10%and90%ispossible.Startingpointforthesedistancespecica-

tionsisalwaysthesealingsurfaceofthethreadorange.Youcannd

specicationsonthereferenceplaneinchapter"Technicaldata". The

actual level is calculated on the basis of these settings.

The actual product level during this adjustment is not important,

because the min./max. adjustment is always carried out without

changing the product level. These settings can be made ahead of

time without the instrument having to be installed.

Proceed as follows:

1. Select with [->]themenuitemMax.adjustmentandconrmwith

[OK].

2. Prepare the percentage value for editing with [OK] and set the

cursor to the requested position with [->].

3. Set the requested percentage value with [+] and save with [OK].

The cursor jumps now to the distance value.

Setup - Max. adjustment

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

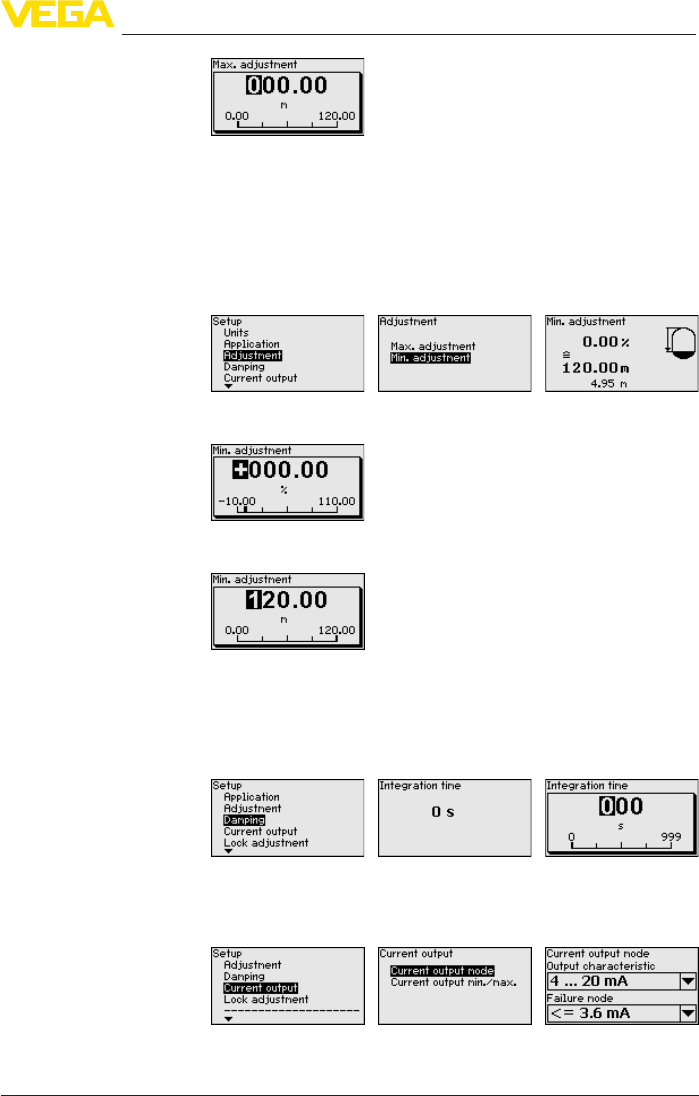

4. For the full vessel, enter the distance value in m matching the

percentage value.

5. Save settings with [OK] and move with [ESC] and [->] to Min.

adjustment.

Proceed as follows:

1. Select with [->] the menu item "Min. adjustment"andconrmwith

[OK].

2. Edit the percentage value with [OK] and set the cursor to the

requested position with [->].

3. Set the requested percentage value with [+] and save with [OK].

The cursor jumps now to the distance value.

4. Enter the suitable distance value in m for the empty vessel (e.g.

distance from the sensor to the vessel bottom) corresponding to

the percentage value.

Todampprocess-dependentmeasuredvalueuctuations,setan

integration time of 0 … 999 s in this menu item.

The default setting is a damping of 0 s.

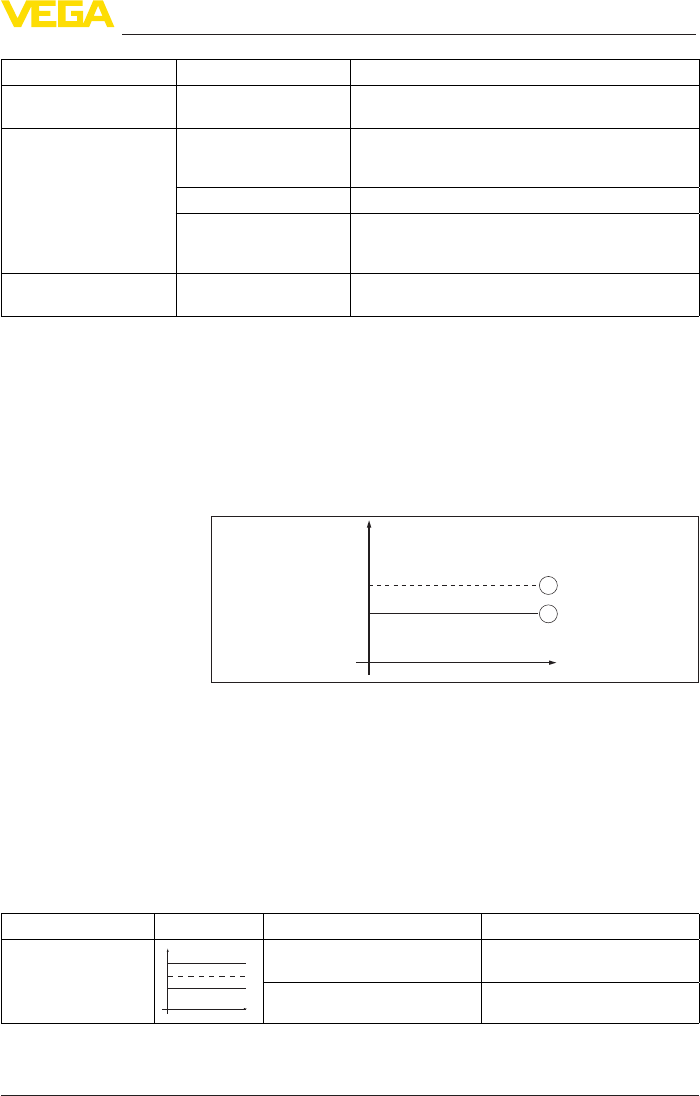

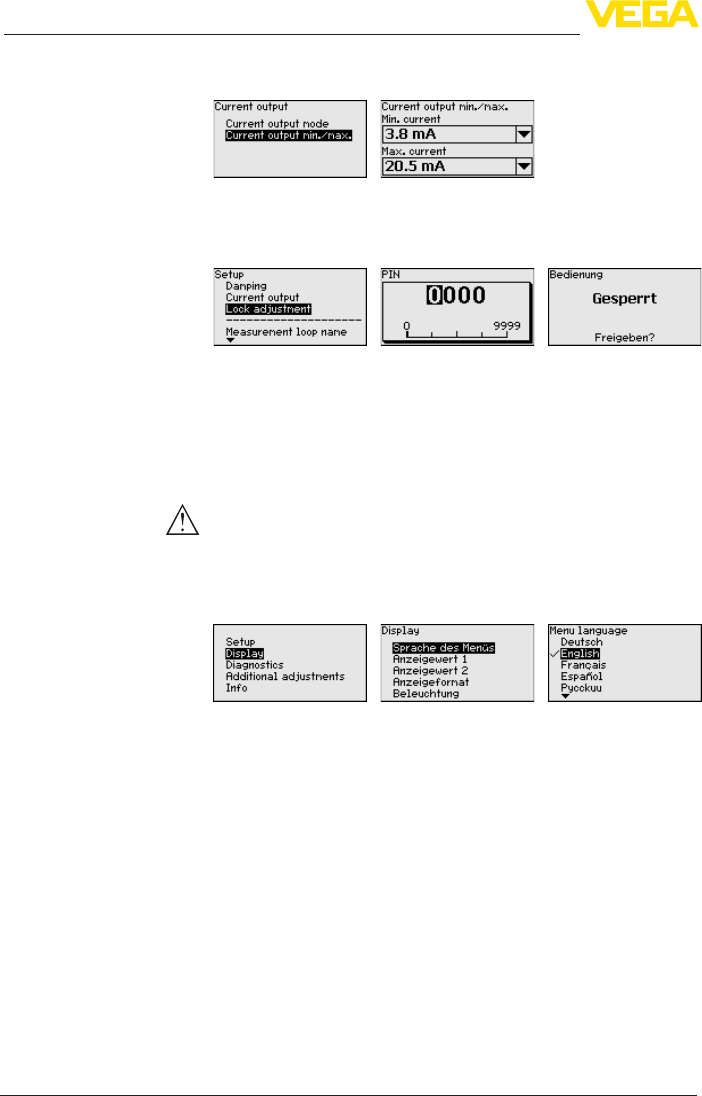

In the menu item "Currentoutputmode" you determine the output

characteristics and reaction of the current output in case of failure.

The default setting is output characteristics 4 … 20 mA, fault mode

< 3.6 mA.

Setup - Min. adjustment

Setup - Damping

Setup - Current output,

mode

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

In the menu item "CurrentoutputMin./Max.", you determine the reac-

tion of the current output during operation.

The default setting is min. current 3.8 mA and max. current 20.5 mA.

In the menu item "Lock/unlockadjustment" you safeguard the sensor

parametersagainstunauthorizedorunintentionalmodications.

With active PIN, only the following adjustment functions are possible

without entering a PIN:

• Select menu items and show data

• Read data from sensor into the display and adjustment module.

Releasing the sensor adjustment is also possible in any menu item by

entering the PIN.

Caution:

With active PIN, adjustment via PACTware/DTM and other systems is

also blocked.

This menu item enables the setting of the requested national lan-

guage.

The following languages are available:

• German

• English

• French

• Spanish

• Russian

• Italian

• Dutch

• Portuguese

• Japanese

• Chinese

• Polish

• Czech

• Turkish

In the delivery status, the VEGAPULS 69 is set to the ordered national

language.

Setup - Current output

Min./Max.

Lock/unlock setup - Ad-

justment

Display - Menu language

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

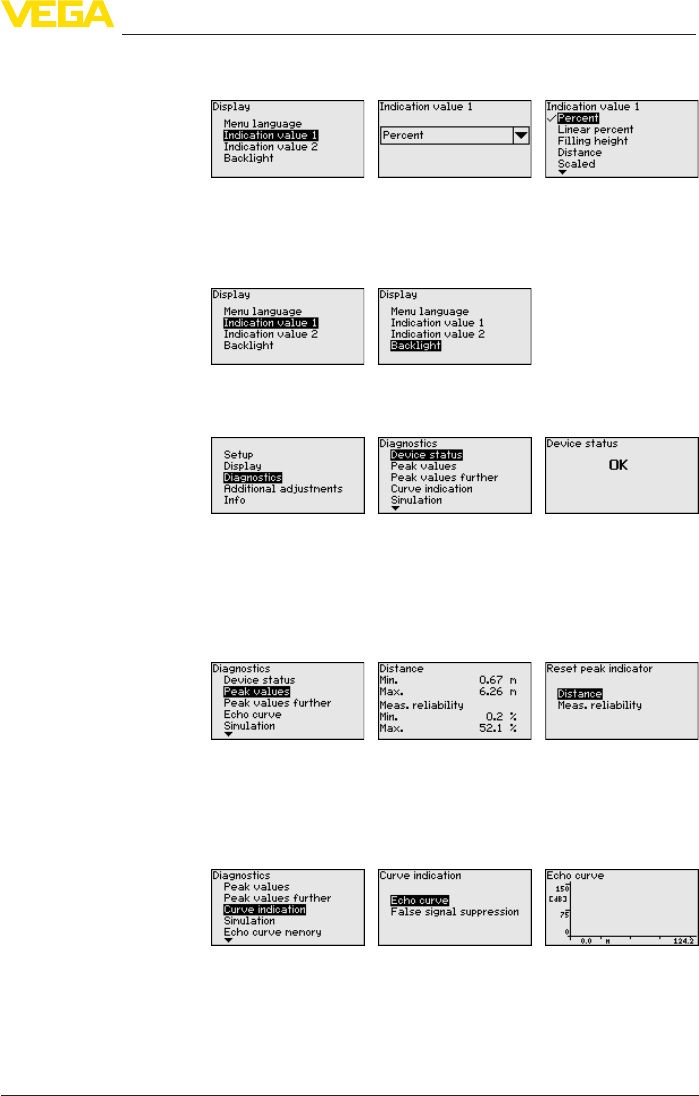

Inthismenuitemyoucandenethewaymeasuredvaluesareindi-

cated on the display.

The default setting for the display value is "Percent".

The display and adjustment module has a backlight for the display. In

thismenuitemyoucanswitchthelightingonoro.Youcanndthe

required operating voltage in chapter "Technicaldata".

In delivery status, the lighting is switched on.

In this menu item, the device status is displayed.

The min. and max. measured value, the measurement certainty as

well as the min. and max. electronics temperature are stored in the

sensor. The values are displayed in menu item "Peak value" or "Fur-

ther peak values".

A reset menu is opened with the [OK] key in the respective peak

value window:

With the [OK] key in the reset menu, the peak values are reset to the

current measured value.

The "Echocurve" shows the signal strength of the echoes over the

measuring range in dB. The signal strength enables an evaluation of

the quality of the measurement.

Theselectedcurveiscontinuouslyupdated.Asubmenuwithzoom

functions is opened with the [OK] key:

• "X-Zoom":Zoomfunctionforthemeas.distance

• "Y-Zoom":1,2,5and10xsignalmagnicationin"dB"

• "Unzoom":Resetthepresentationtothenominalmeasuringrange

withoutmagnication

Display - Displayed value

1 and 2

Display - Backlight

Diagnostics - Device

status

Diagnosis - Peak value

Diagnoses - Curve indica-

tion

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

In this menu item you can simulate measured values via the current

output. This allows the signal path to be tested, e.g. through down-

stream indicating instruments or the input card of the control system.

Select the requested simulation variable and set the requested value.

Caution:

During simulation, the simulated value is outputted as 4 … 20 mA cur-

rent value and as digital HART signal. The status message within the

context of the asset management function is "Maintenance".

To deactivate the simulation, you have to push the [ESC] key and

conrmthemessage

with the [OK] key.

Information:

The sensor terminates the simulation automatically after 60 minutes.

The function "Setup" allows the echo curve to be saved at the time of

setup.

Information:

This is generally recommended, however, for use of the Asset

Management functions it is absolutely necessary. Saving should be

carried out with a very low level.

The function "Echocurvememory" allows up to ten individual echo

curves to be stored, for example to detect the measurement behav-

iourofthesensorindierentoperatingconditions.

With the adjustment software PACTware and the PC, the stored echo

curvescanbedisplayedwithhighresolutionandusedtorecognize

signal changes over time. In addition, the echo curve saved during

setup can also be displayed in the echo curve window and compared

with the current echo curve.

Diagnosis - Simulation

Diagnostics - Echo curve

memory

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

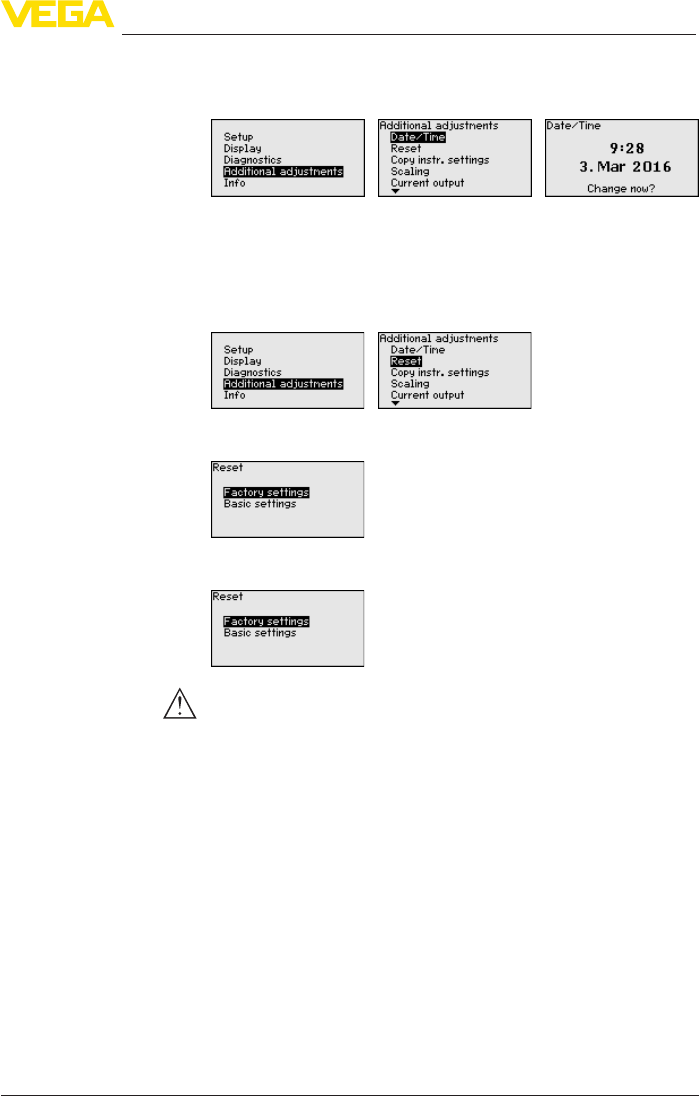

In this menu item, the internal clock of the sensor is set to the request-

ed time and time format. At the time of shipment from factory, the

instrument is set to CET (Central European Time).

During a reset, the parameter settings carried out by the user are

reset to the default values (see below table).

Proceed as follows:

1. Select with [->] under "Additional adjustments" the menu item

"Reset"andconrmwith[OK].

2. Conrmwith[OK] and select the requested reset function with

[->]

3. Conrmwith[OK], for approx. 5 s the message "Resetting" is

displayed, then the selection window appears.

Caution:

For the duration of the reset, the set trouble signal is outputted via the

current output. Within the context of the asset management function,

the message "Maintenance" is outputted.

The following reset functions are available:

Delivery status: Restores the parameter settings at the time of ship-

mentfromthefactory,incl.theorder-specicsettings.Anycreated

falsesignalsuppression,user-programmablelinearizationcurveas

well as measured value and echo curve memory is deleted. The event

andparametermodicationmemoriesremainunaected.

Basic settings: Resets the parameter settings, incl. special param-

eters, to the default values of the respective instrument. Any stored

false signal suppression or user programmable linearisation curve, as

well as the measured value memory, is deleted. Order-related settings

are not taken over into the current parameters after this reset.

The following table shows the scope of the reset function and the

default values of the instrument:

Additional settings - Date/

Time

Additional adjustments

- Reset

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Menu Menu item Default value

Setup Measurement

loop name

Sensor

Units Distance in m

Temperature in °C

Application Medium: Crushed stones/gravel

Application: Silo

Vessel bottom: Flat

Vessel height/Measuring range: 120 m

Min. adjustment 120 m

Max. adjustment 0,000 m(d)

Damping 0.0 s

Current output

mode

Output characteristics: 4 … 20 mA

Failure mode: < 3.6 mA ▼

Current output

Min./Max.

Min. current: 3.8 mA

Max. current: 20.5 mA

Display Displayed value 1 Filling height

Displayed value 2 Temperature

Backlight Switchedo

Additional adjust-

ments

Date/Time Time format: 24 h

Scalingsize Volume

Scaling format 100.00 lin %, 100 l

0.00 lin %, 0 l

Current output 1

and2size

Lin %

Current output 1

and 2 adjustment

100.00 %, 100 l

0.00 %, 0 l

Linearization Linear

HART mode HART address: 0

Loop current mode: Analogue cur-

rent output

The instrument settings are copied with this function. The following

functions are available:

Read from sensor: Read data from sensor and store into the display

and adjustment module

Write into sensor: Store data from the display and adjustment mod-

ule back into the sensor

The following data or settings for adjustment of the display and ad-

justment module are saved:

• All data of the menu "Setup" and "Display"

Additional settings - Copy

instrument settings

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• The menu items "Reset,Date/Time" in the menu "Additional set-

tings"

• Theuser-programmablelinearizationcurve

The copied data are permanently saved in an EEPROM memory in

the display and adjustment module and remain there even in case of

power failure. From there, they can be written into one or more sen-

sors or kept as backup for a possible electronics exchange.

Note:

Before the data are saved in the sensor, a safety check is carried out

to determine if the data match the sensor. In the process the sensor

type of the source data as well as the target sensor are displayed. If

the data do not match, a fault message is outputted or the function is

blocked. The data are saved only after release.

In the menu item "Scaling"youdenethescalingvariableandthe

scaling format for the indication of the level measured value for 0 %

and 100 % on the display, for example as volume in l.

In menu item "Currentoutput,variable" you specify which measured

variable the current output refers to.

In menu item "Currentoutput,adjustment" you can assign a respec-

tive measured value to the current output.

Thefollowingcircumstancescauseinterferingreectionsandcan

inuencethemeasurement:

• High sockets

• Vessel internals such as struts

Additional settings - Scal-

ing

Additional settings - Cur-

rent output (size)

Additional settings - Cur-

rent output (adjustment)

Additional adjustments -

False signal suppression

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• Agitators

• Buildup or welded joints on vessel walls

Note:

A false signal suppression detects, marks and saves these false

signals so that they are no longer taken into account in the level

measurement.

This should be done with the lowest possible level so that all potential

interferingreectionscanbedetected.

Proceed as follows:

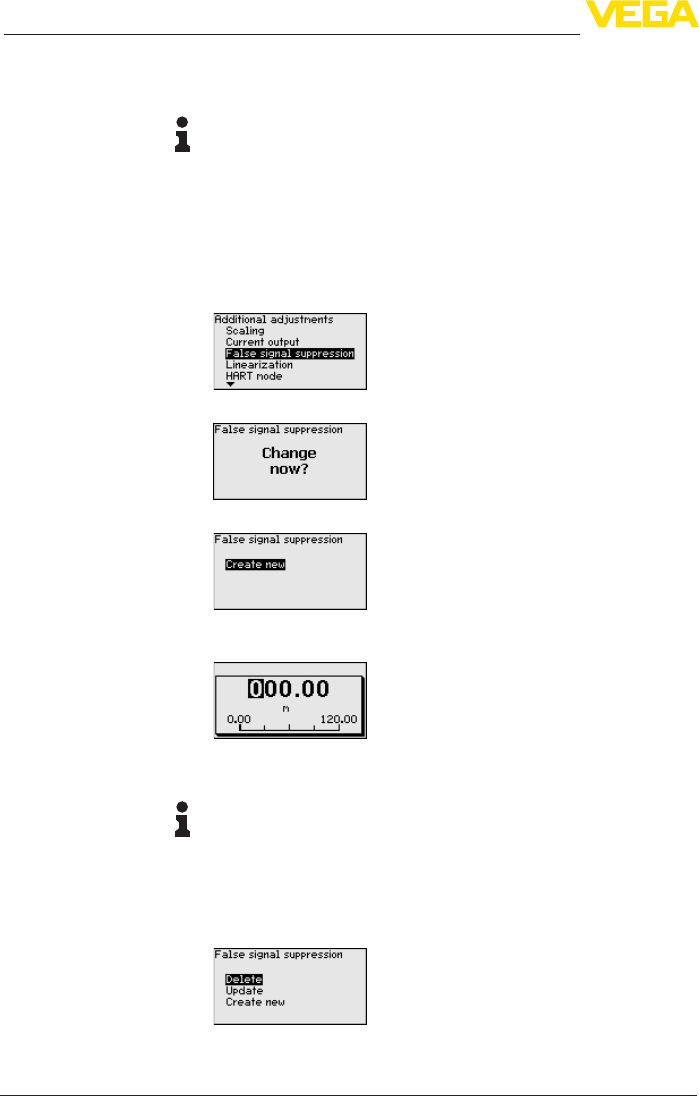

1. Select with [->] the menu item "False signal suppression" and

conrmwith[OK].

2. Conrmagainwith[OK].

3. Conrmagainwith[OK].

4. Conrmagainwith[OK] and enter the actual distance from the

sensor to the product surface.

5. All interfering signals in this section are detected by the sensor

andstoredafterconrmingwith[OK].

Note:

Check the distance to the product surface, because if an incorrect

(too large) value is entered, the existing level will be saved as a false

signal. The level would then no longer be detectable in this area.

If a false signal suppression has already been saved in the sensor,

the following menu window appears when selecting "False signal

suppression":

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Delete: An already created false signal suppression will be com-

pletely deleted. This is useful if the saved false signal suppression no

longer matches the metrological conditions in the vessel.

Extend: is used to extend an already created false signal suppres-

sion. This is useful if a false signal suppression was carried out with

too high a level and not all false signals could be detected. When

selecting "Extend", the distance to the product surface of the created

false signal suppression is displayed. This value can now be changed

and the false signal suppression can be extended to this range.

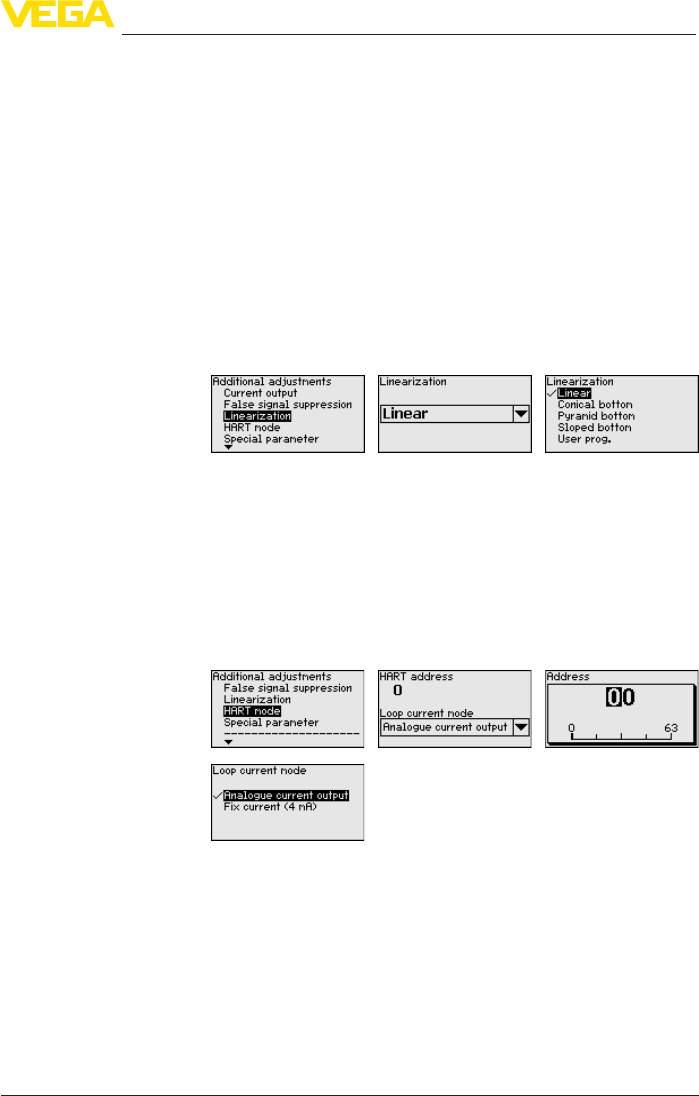

Alinearizationisnecessaryforallvesselsinwhichthevesselvolume

doesnotincreaselinearlywiththelevel.Correspondinglinearization

curves are preprogrammed for these vessels. They represent the

correlation between the level percentage and vessel volume. The

linearizationappliestothemeasuredvalueindicationandthecurrent

output.

In this menu item you specify the HART mode and enter the address

for multidrop mode.

In the mode "Fixed current output" up to 63 sensors can be operated

on one two-wire cable (Multidrop operation). An address between 0

and 63 must be assigned to each sensor.

If you select the function "Analogue current output", a 4 … 20 mA

signal is output in multidrop mode.

In the mode "Fixed current (4 mA)"axed4mAsignalisoutputinde-

pendently of the actual level.

The default setting is "Analogue current output" and the address "00".

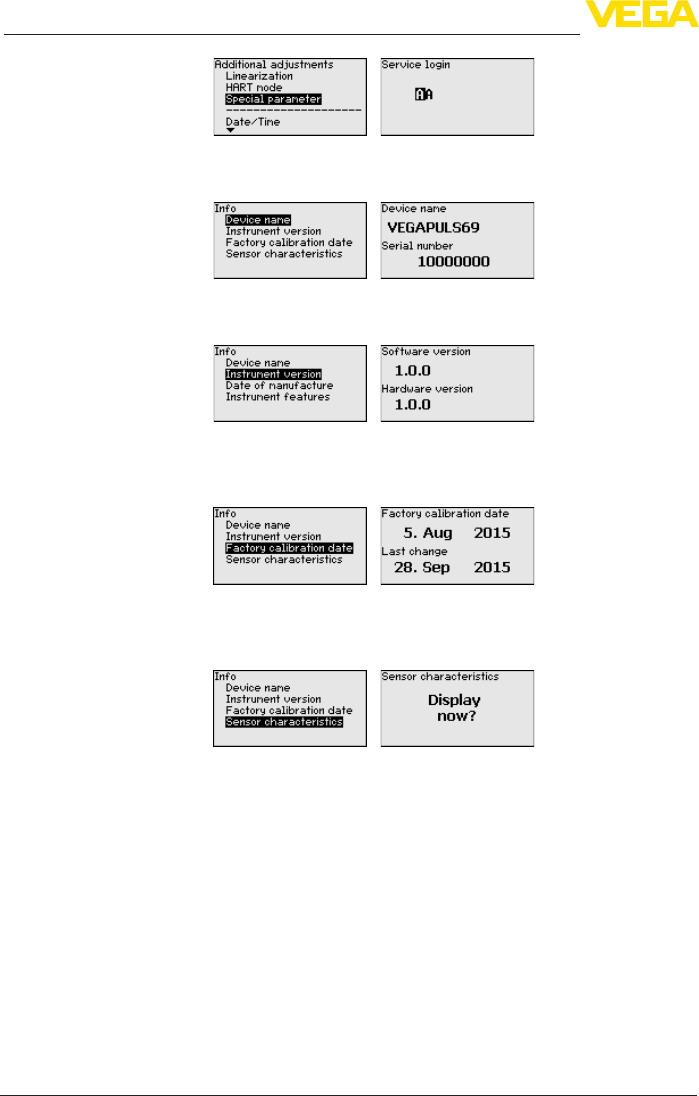

In this menu item you gain access to the protected area where

you can enter special parameters. In exceptional cases, individual

parameterscanbemodiedinordertoadaptthesensortospecial

requirements.

Change the settings of the special parameters only after having con-

tactedourservicesta.

Additional settings - Lin-

earization

Additional adjustments -

HART mode

Additional settings - Spe-

cial parameters

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

In this menu item, you can read out the instrument name and the

instrument serial number:

In this menu item, the hardware and software version of the sensor is

displayed.

In this menu item, the date of factory calibration of the sensor as well

as the date of the last change of sensor parameters are displayed via

the display and adjustment module or via the PC.

In this menu item, the features of the sensor such as approval, pro-

cesstting,seal,measuringrange,electronics,housingandothers

are displayed.

6.6 Saving the parameterisation data

We recommended writing down the adjustment data, e.g. in this op-

erating instructions manual, and archiving them afterwards. They are

thus available for multiple use or service purposes.

If the instrument is equipped with a display and adjustment module,

the data in the sensor can be saved in the display and adjustment

module. The procedure is described in menu item "Copydevice

settings" in the menu "Additional settings". The data remain there

permanently even if the sensor power supply fails.

The following data or settings for adjustment of the display and ad-

justment module are saved:

• All data of the menu "Setup" and "Display"

Info - Instrument name

Info - Instrument version

Info - Factory calibration

date

Info - Sensor character-

istics

Backup on paper

Backup in the display and

adjustment module

6 Set up with the display and adjustment module

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• The items "Sensor-specicunits,temperatureunitandlinearisa-

tion" in the menu "Additional settings".

• The values of the user-programmable linearisation curve

The function can also be used to transfer settings from one instru-

ment to another instrument of the same type. If it is necessary to

exchange a sensor, the display and adjustment module is inserted

into the replacement instrument and the data are likewise written into

the sensor via the menu item "Copydevicesettings".

7 Setup with PACTware

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

7 Setup with PACTware

7.1 Connect the PC

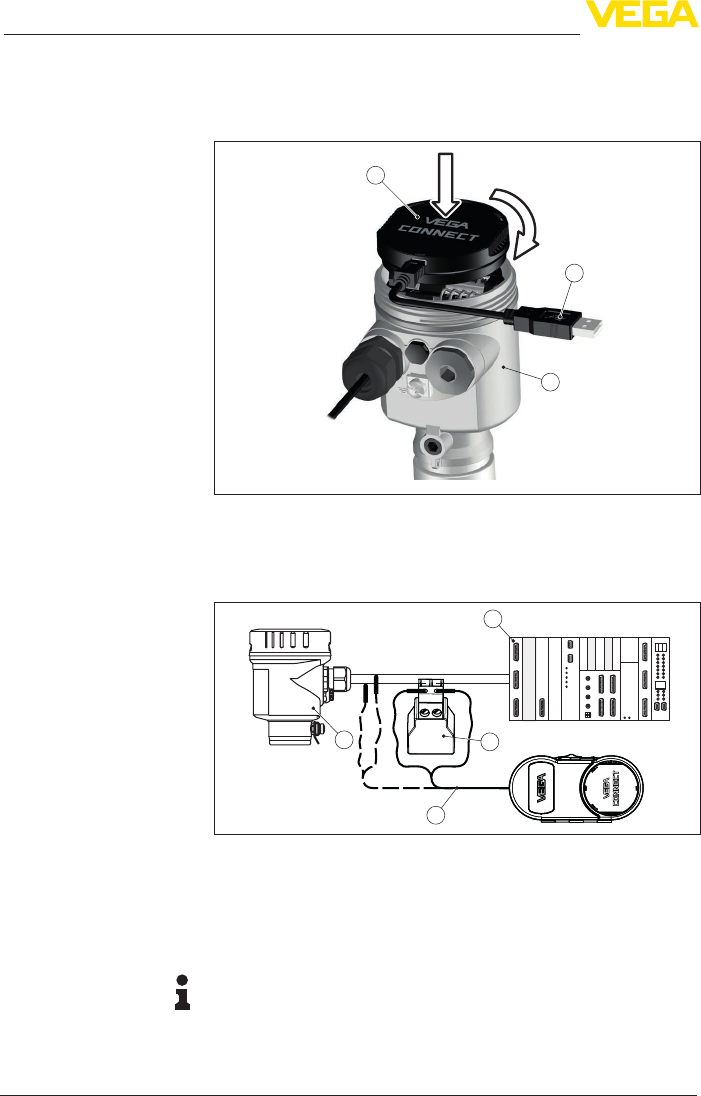

Fig.44:ConnectionofthePCdirectlytothesensorviatheinterfaceadapter

1 USBcabletothePC

2 InterfaceadapterVEGACONNECT

3 Sensor

Fig.45:ConnectingthePCviaHARTtothesignalcable

1 Sensor

2 HARTresistance250Ω(optionaldependingonevaluation)

3 Connectioncablewith2mmpinsandterminals

4 Processingsystem/PLC/Voltagesupply

5 Interfaceadapter,forexampleVEGACONNECT4

Note:

With power supply units with integrated HART resistance (internal

resistanceapprox.250Ω),anadditionalexternalresistanceisnot

necessary. This applies, e.g. to the VEGA instruments VEGATRENN

149A, VEGAMET 381, VEGAMET 391. Common Ex separators are

Via the interface adapter

directly on the sensor

Via the interface adapter

and HART

7 Setup with PACTware

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

alsousuallyequippedwithasucientcurrentlimitingresistance.In

such cases, the interface converter can be connected parallel to the

4 … 20 mA cable (dashed line in the previous illustration).

7.2 Parameter adjustment

For parameter adjustment of the instrument via a Windows PC, the

congurationsoftwarePACTwareandasuitableinstrumentdriver

(DTM) according to FDT standard are required. The latest PACTware

version as well as all available DTMs are compiled in a DTM Collec-

tion. The DTMs can also be integrated into other frame applications

according to FDT standard.

Note:

To ensure that all instrument functions are supported, you should

always use the latest DTM Collection. Furthermore, not all described

functionsareincludedinolderrmwareversions.Youcandownload

the latest instrument software from our homepage. A description of

the update procedure is also available in the Internet.

Further setup steps are described in the operating instructions manu-

al "DTMCollection/PACTware" attached to each DTM Collection and

which can also be downloaded from the Internet. Detailed descrip-

tions are available in the online help of PACTware and the DTMs.

Fig.46:ExampleofaDTMview

All device DTMs are available as a free-of-charge standard version

and as a full version that must be purchased. In the standard version,

all functions for complete setup are already included. An assistant for

simpleprojectcongurationsimpliestheadjustmentconsiderably.

Saving/printing the project as well as import/export functions are also

part of the standard version.

Prerequisites

Standard/Full version

7 Setup with PACTware

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

In the full version there is also an extended print function for complete

project documentation as well as a save function for measured value

and echo curves. In addition, there is a tank calculation program as

well as a multiviewer for display and analysis of the saved measured

value and echo curves.

The standard version is available as a download under

www.vega.com/downloads and "Software". The full version is avail-

able on CD from the agency serving you.

7.3 Saving the parameterisation data

We recommend documenting or saving the parameterisation data via

PACTware. That way the data are available for multiple use or service

purposes.

8 Set up with other systems

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

8 Set up with other systems

8.1 DD adjustment programs

Device descriptions as Enhanced Device Description (EDD) are

available for DD adjustment programs such as, for example, AMS™

and PDM.

Thelescanbedownloadedatwww.vega.com/downloads under

"Software".

8.2 Field Communicator 375, 475

Device descriptions for the instrument are available as EDD for pa-

rameterisation with Field Communicator 375 or 475.

Integrating the EDD into the Field Communicator 375 or 475 requires

the "Easy Upgrade Utility" software, which is available from the manu-

facturer. This software is updated via the Internet and new EDDs are

automatically accepted into the device catalogue of this software after

they are released by the manufacturer. They can then be transferred

to a Field Communicator.

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

9 Diagnosis, asset management and service

9.1 Maintenance

If the instrument is used correctly, no maintenance is required in

normal operation.

Insomeapplications,buildupontheantennasystemcaninuence

the measuring result. Depending on the sensor and application, take

measures to avoid heavy soiling of the antenna system. If necessary,

clean the antenna system in certain intervals.

9.2 Measured value and event memory

The instrument has several memories available for diagnostic pur-

poses. The data remain there even in case of voltage interruption.

Up to 100,000 measured values can be stored in the sensor in a ring

memory. Each entry contains date/time as well as the respective

measured value. Storable values are for example:

• Distance

• Filling height

• Percentage value

• Lin. percent

• Scaled

• Current value

• Meas. certainty

• Electronics temperature

When the instrument is shipped, the measured value memory is

active and stores distance, measurement certainty and electronics

temperature every 3 minutes.

The requested values and recording conditions are set via a PC with

PACTware/DTM or the control system with EDD. Data are thus read

out and also reset.

Up to 500 events are automatically stored with a time stamp in the

sensor (non-deletable). Each entry contains date/time, event type,

event description and value. Event types are for example:

• Modicationofaparameter

• Switch-onandswitch-otimes

• Status messages (according to NE 107)

• Error messages (according to NE 107)

The data are read out via a PC with PACTware/DTM or the control

system with EDD.

The echo curves are stored with date and time and the corresponding

echo data. The memory is divided into two sections:

Echo curve of the setup: This is used as reference echo curve for

the measurement conditions during setup. Changes in the measure-

ment conditions during operation or buildup on the sensor can thus

berecognized.Theechocurveofthesetupisstoredvia:

Measured value memory

Event memory

Echo curve memory

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• PC with PACTware/DTM

• Control system with EDD

• Display and adjustment module

Further echo curves: Up to 10 echo curves can be stored in a ring

buerinthismemorysection.Additionalechocurvesarestoredvia:

• PC with PACTware/DTM

• Control system with EDD

9.3 Asset Management function

The instrument features self-monitoring and diagnostics according to

NE 107 and VDI/VDE 2650. In addition to the status messages in the

following tables, detailed error messages are available under menu

item "Diagnostics" via the display and adjustment module, PACTware/

DTM and EDD.

The status messages are divided into the following categories:

• Failure

• Function check

• Outofspecication

• Maintenance requirement

and explained by pictographs:

41 2 3

Fig. 47: Pictographs of the status messages

1 Failure - red

2 Outofspecication-yellow

3 Function check - orange

4 Maintenance - blue

Failure: Due to a malfunction in the instrument, a fault message is

outputted.

This status message is always active. It cannot be deactivated by the

user.

Function check: The instrument is being worked on, the measured

value is temporarily invalid (for example during simulation).

This status message is inactive by default. It can be activated by the

user via PACTware/DTM or EDD.

Outofspecication: The measured value is unreliable because an

instrumentspecicationwasexceeded(e.g.electronicstemperature).

This status message is inactive by default. It can be activated by the

user via PACTware/DTM or EDD.

Maintenance:Duetoexternalinuences,theinstrumentfunction

islimited.Themeasurementisaected,butthemeasuredvalueis

Status messages

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

still valid. Plan in maintenance for the instrument because a failure is

expected in the near future (e.g. due to buildup).

This status message is inactive by default. It can be activated by the

user via PACTware/DTM or EDD.

The following table shows the error codes in the status message

"Failure"andgivesinformationonthereasonandrectication.Keep

in mind that some information is only valid for four-wire instruments.

Code

Text message

Reason Removal DevSpec

State in CMD 48

F013

no measured value

available

•

Sensor does not detect an echo

during operation

•

Antenna system dirty or defec-

tive

•

Check or correct installation

and/or parameter settings

•

Clean or exchange process

component or antenna

Bit 0 of Byte 0 … 5

F017

Adjustment span

too small

•

Adjustmentnotwithinspecica-

tion •

Change adjustment according

tothelimitvalues(dier-

ence between min. and max.

≥10mm)

Bit 1 of Byte 0 … 5

F025

Error in the lineari-

zationtable

•

Index markers are not continu-

ously rising, for example illogical

value pairs

•

Check linearisation table

•

Delete table/Create new

Bit 2 of Byte 0 … 5

F036

No operable soft-

ware

•

Failed or interrupted software

update •

Repeat software update

•

Check electronics version

•

Exchanging the electronics

•

Send instrument for repair

Bit 3 of Byte 0 … 5

F040

Error in the elec-

tronics

•

Hardware defect •

Exchanging the electronics

•

Send instrument for repair

Bit 4 of Byte 0 … 5

F080

General software

error

•

General software error •

Disconnect operating voltage

briey

Bit 5 of Byte 0 … 5

F105

Determine meas-

ured value

•

The instrument is still in the

start phase, the measured value

could not yet be determined

•

Wait for the end of the switch-on

phase

•

Duration up to approx. 3 min.

depending on the version and

parameter settings

Bit 6 of Byte 0 … 5

F113

Communication

error

•

EMC interference

•

Transmission error during exter-

nal communication with 4-wire

power supply unit

•

RemoveEMCinuences

•

Exchange 4-wire power supply

unit or electronics

Bit 12 of Byte 0 … 5

F125

Impermissible elec-

tronics temperature

•

Temperature of the electronics

inthenon-speciedrange •

Check ambient temperature

•

Insulate electronics

•

Use instrument with higher

temperature range

Bit 7 of Byte 0 … 5

F260

Error in the cali-

bration

•

Error in the calibration carried

out in the factory

•

Error in the EEPROM

•

Exchanging the electronics

•

Send instrument for repair

Bit 8 of Byte 0 … 5

Failure

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Code

Text message

Reason Removal DevSpec

State in CMD 48

F261

Error in the instru-

ment settings

•

Error during setup

•

False signal suppression faulty

•

Error when carrying out a reset

•

Repeat setup

•

Carry out a reset

Bit 9 of Byte 0 … 5

F264

Installation/Setup

error

•

Adjustment not within the vessel

height/measuring range

•

Max. measuring range of the

instrumentnotsucient

•

Check or correct installation

and/or parameter settings

•

Use an instrument with bigger

measuring range

Bit 10 of Byte 0 … 5

F265

Measurement func-

tion disturbed

•

Sensor no longer carries out a

measurement

•

Operating voltage too low

•

Check operating voltage

•

Carry out a reset

•

Disconnect operating voltage

briey

Bit 11 of Byte 0 … 5

The following table shows the error codes and text messages in the

status message "Function check" and provides information on causes

as well as corrective measures.

Code

Text message

Reason Removal DevSpec

State in CMD 48

C700

Simulation active

•

A simulation is active •

Finish simulation

•

Wait for the automatic end after

60 mins.

"Simulation Active"

in"Standardized

Status 0"

The following table shows the error codes and text messages in the

status message "Outofspecication" and provides information on

causes as well as corrective measures.

Code

Text message

Reason Removal DevSpec

State in CMD 48

S600

Impermissible elec-

tronics temperature

•

Temperature of the electronics

inthenon-speciedrange •

Check ambient temperature

•

Insulate electronics

•

Use instrument with higher

temperature range

Bit 8 of

Byte 14 … 24

S601

Overlling

•

Dangerofvesseloverlling •

Make sure that there is no

furtherlling

•

Check level in the vessel

Bit 9 of

Byte 14 … 24

S603

Impermissible oper-

ating voltage

•

Operating voltage below speci-

edrange •

Check electrical connection

•

If necessary, increase operating

voltage

Bit 11 of

Byte 14 … 24

The following table shows the error codes and text messages in the

status message "Maintenance" and provides information on causes

as well as corrective measures.

Code

Text message

Reason Removal DevSpec

State in CMD 48

M500

Error during the re-

set "delivery status"

•

The data could not be restored

during the reset to delivery

status

•

Repeat reset

•

LoadXMLlewithsensordata

into the sensor

Bit 0 of

Byte 14 … 24

Function check

Outofspecication

Maintenance

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Code

Text message

Reason Removal DevSpec

State in CMD 48

M501

Error in the non-

active linearisation

table

•

Hardware error EEPROM •

Exchanging the electronics

•

Send instrument for repair

Bit 1 of

Byte 14 … 24

M502

Error in the event

memory

•

Hardware error EEPROM •

Exchanging the electronics

•

Send instrument for repair

Bit 2 of

Byte 14 … 24

M503

Measurement reli-

ability too low

•

The echo/noise ratio is too small

for reliable measurement

•

Antenna dirty or defective

•

Check installation and process

conditions

•

Change polarisation direction

•

Use instrument with higher

sensitivity

•

Clean the antenna

Bit 3 of

Byte 14 … 24

M504

Error at a device in-

terface

•

Hardware defect •

Check connections

•

Exchanging the electronics

•

Send instrument for repair

Bit 4 of

Byte 14 … 24

M505

No echo available

•

Sensor does not detect an echo

during operation

•

Antenna dirty or defective

•

Clean the antenna

•

Use a more suitable antenna/

sensor

•

Remove possible false echoes

•

Optimizesensorpositionand

orientation

Bit 5 of

Byte 14 … 24

M506

Installation/Setup

error

•

Error during setup •

Check or correct installation

and/or parameter settings

Bit 6 of

Byte 14 … 24

M507

Error in the instru-

ment settings

•

Error during setup

•

Error when carrying out a reset

•

False signal suppression faulty

•

Carry out reset and repeat setup Bit 7 of

Byte 14 … 24

9.4 Rectify faults

The operator of the system is responsible for taking suitable meas-

ures to rectify faults.

Therstmeasuresare:

• Evaluation of fault messages via the adjustment device

• Checking the output signal

• Treatment of measurement errors

Further comprehensive diagnostics options are available with a PC

with PACTware and the suitable DTM. In many cases, the reasons can

bedeterminedinthiswayandfaultsrectied.

Connect a multimeter in the suitable measuring range according to

the wiring plan. The following table describes possible errors in the

current signal and helps to eliminate them:

Reaction when malfunc-

tion occurs

Procedure for fault recti-

cation

Check the 4 … 20 mA

signal

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Error Reason Removal

4 … 20 mA signal not sta-

ble •

Fluctuations of the

measured variable •

Set damping appropriate to the instrument via the

display and adjustment module or PACTware/DTM

4 … 20 mA signal missing •

Electrical connection

faulty •

Check connection according to chapter "Connection

steps" and if necessary, correct according to chapter

"Wiring plan"

•

Voltage supply missing •

Check cables for breaks; repair if necessary

•

Operating voltage too

low or load resistance

too high

•

Check, adapt if necessary

Current signal greater than

22 mA or less than 3.6 mA •

Electronics module in the

sensor defective •

Exchange the instrument or send it in for repair

The below tables show typical examples of application-related

measurement errors with bulk solids. A distinction is made between

measurement errors during:

• Constant level

• Filling

• Emptying

The images in column "Errorpattern" show the real level as a broken

line and the level displayed by the sensor as a continuous line.

Level

time

1 Real level

2 Level displayed by the sensor

Notes:

• Whenever the sensor displays a constant value, the reason could

also be that the fault setting of the current output is set to "Hold

value"

• If the level indication is too low, the reason could be a line resist-

ance that is too high

Measurement error with constant level

Fault description Error pattern Cause Rectication

1. Measured value

shows a too low or too

high level

Level

time

•

Min./max. adjustment not

correct •

Adapt min./max. adjustment

•

Incorrectlinearizationcurve •

Adaptlinearizationcurve

Treatment of measure-

ment errors with bulk

solids

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

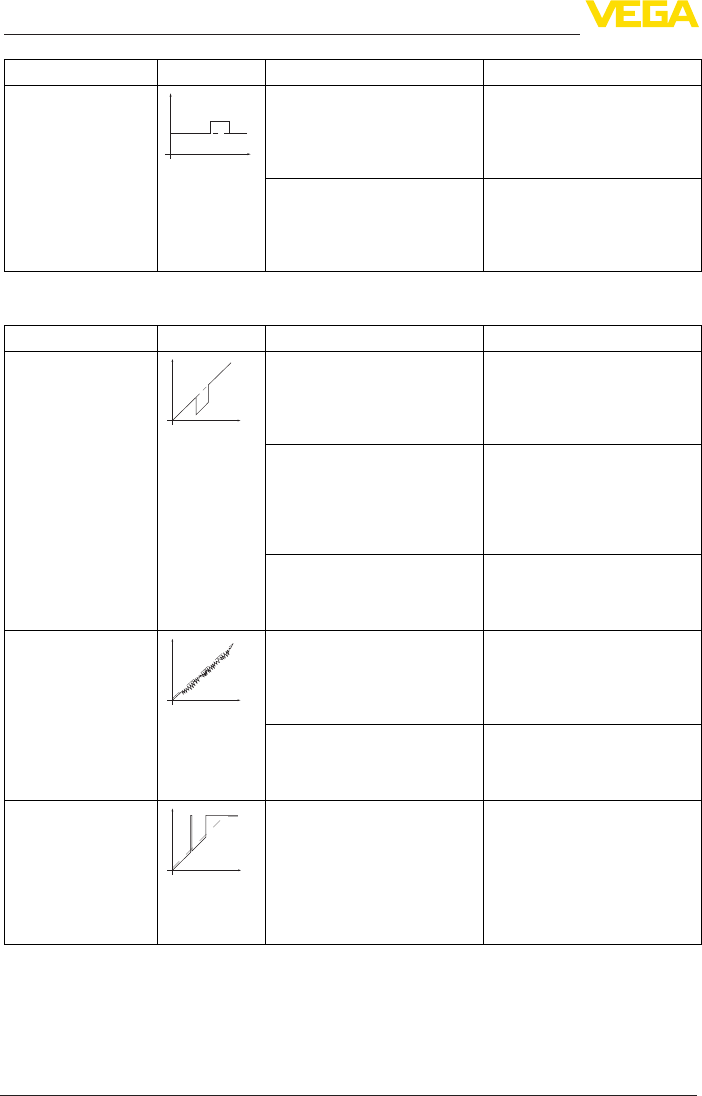

Fault description Error pattern Cause Rectication

2. Measured value

jumps towards 100 %

Level

time

•

Due to the process, the

amplitude of the product echo

decreases

•

A false signal suppression was

not carried out

•

Carry out a false signal suppres-

sion

•

Amplitude or position of a false

signal has changed (e.g. con-

densation, buildup); false signal

suppression no longer matches

actual conditions

•

Determine the reason for the

changed false signals, carry out

false signal suppression, e.g.

with condensation

Measurementerrorduringlling

Fault description Error pattern Cause Rectication

3. Measured value

jumps towards 0 %

duringlling

Level

time

•

Amplitude of a multiple echo

(vessel top - product surface) is

larger than the level echo

•

Check parameter "Application",

especially vessel top, type of

medium, dished bottom, high

dielectric constant, and adapt if

necessary

•

The level echo cannot be distin-

guished from the false signal at

a false signal position (jumps to

multiple echo)

•

Remove/reduce false signal:

minimizeinterferinginstallations

bychangingthepolarization

direction

•

Chose a more suitable installa-

tion position

•

Transversereectionfroman

extraction funnel, amplitude of

thetransversereectionlarger

than the level echo

•

Direct sensor to the opposite

funnel wall, avoid crossing with

thellingstream

4. Measured val-

ueuctuatesaround

10 … 20 %

Level

time

•

Various echoes from an uneven

product surface, e.g. a material

cone

•

Check parameter "Type of

medium" and adapt, if neces-

sary

•

Optimizeinstallationposition

and sensor orientation

•

Reectionsfromtheproduct

surface via the vessel wall

(deection)

•

Select a more suitable installa-

tionposition,optimizesensor

orientation, e.g. with a swivelling

holder

5. Measured value

jumps sporadically to

100%duringlling

Level

time

•

Changing condensation or con-

tamination on the antenna •

Carry out a false signal suppres-

sion or increase false signal

suppression with condensation/

contamination in the close

range by editing

•

With bulk solids use radar sen-

sor with purging air connection

orexibleantennacover

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

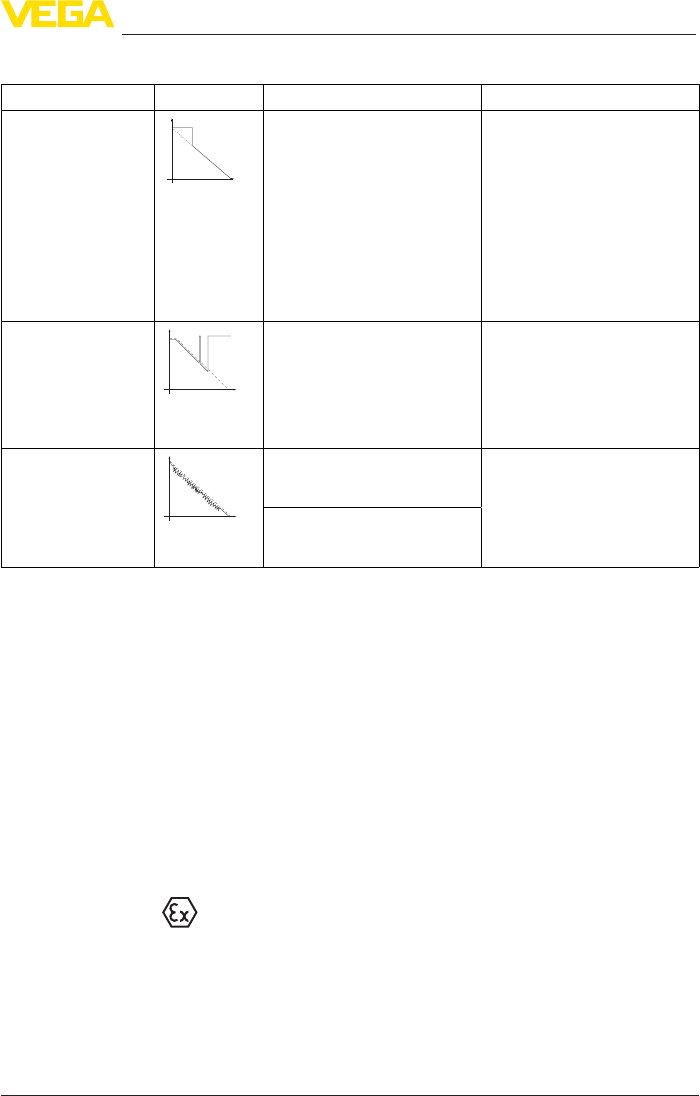

Measurement error during emptying

Fault description Error pattern Cause Rectication

6. Measured value re-

mains unchanged in

the close range during

emptying

Level

time

•

False signal larger than the level

echo

•

Level echo too small

•

Eliminate false signals in the

close range. Check: Antenna

must protrude out of the socket

•

Remove contamination on the

antenna

•

Minimizeinterferinginstallations

in the close range by changing

thepolarizationdirection

•

After eliminating the false sig-

nals, the false signal suppres-

sion must be deleted. Carry out

a new false signal suppression

7. Measured value

jumps sporadically to-

wards 100 % during

emptying

Level

time

•

Changing condensation or con-

tamination on the antenna •

Carry out false signal suppres-

sion or increase false signal

suppression in the close range

by editing

•

With bulk solids use radar sen-

sor with purging air connection

orexibleantennacover

8. Measured val-

ueuctuatesaround

10 … 20 %

Level

time

•

Various echoes from an uneven

product surface, e.g. an extrac-

tion funnel

•

Check parameter "Type of

medium" and adapt, if neces-

sary

•

Optimizeinstallationposition

and sensor orientation

•

Reectionsfromtheproduct

surface via the vessel wall

(deection)

Depending on the reason for the fault and the measures taken, the

steps described in chapter "Setup" must be carried out again or must

be checked for plausibility and completeness.

Should these measures not be successful, please call in urgent cases

the VEGA service hotline under the phone no. +49 1805 858550.

The hotline is also available outside normal working hours, seven

days a week around the clock.

Sinceweoerthisserviceworldwide,thesupportisprovidedin

English. The service itself is free of charge, the only costs involved are

the normal call charges.

9.5 Exchanging the electronics module

If the electronics module is defective, it can be replaced by the user.

In Ex applications, only instruments and electronics modules with ap-

propriate Ex approval may be used.

If there is no electronics module available on site, the electronics

module can be ordered through the agency serving you. The electron-

icsmodulesareadaptedtotherespectivesensoranddierinsignal

output or voltage supply.

The new electronics module must be loaded with the default settings

of the sensor. These are the options:

Reaction after fault recti-

cation

24 hour service hotline

9 Diagnosis, asset management and service

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

• In the factory

• Or on site by the user

In both cases, the serial number of the sensor is needed. The serial

numbers are stated on the type label of the instrument, on the inside

of the housing as well as on the delivery note.

Whenloadingonsite,theorderdatamustrstbedownloadedfrom

the Internet (see operating instructions manual "Electronicsmodule").

Caution:

Allapplication-specicsettingsmustbeenteredagain.That'swhyyou

have to carry out a fresh setup after exchanging the electronics.

Ifyousavedtheparametersettingsduringtherstsetupofthesen-

sor, you can transfer them to the replacement electronics module. A

fresh setup is then not necessary.

9.6 Software update

The following components are required to update the instrument

software:

• Instrument

• Voltage supply

• Interface adapter VEGACONNECT

• PC with PACTware

• Currentinstrumentsoftwareasle

Youcanndthecurrentinstrumentsoftwareaswellasdetailed

information on the procedure in the download area of our homepage:

www.vega.com.

Caution:

Instruments with approvals can be bound to certain software versions.

Thereforemakesurethattheapprovalisstilleectiveafterasoftware

update is carried out.

Youcannddetailedinformationinthedownloadareaat

www.vega.com.

9.7 How to proceed if a repair is necessary

Youcanndaninstrumentreturnformaswellasdetailedinforma-

tion about the procedure in the download area of our homepage:

www.vega.com.

By doing this you help us carry out the repair quickly and without hav-

ing to call back for needed information.

If a repair is necessary, please proceed as follows:

• Printandlloutoneformperinstrument

• Clean the instrument and pack it damage-proof

• Attach the completed form and, if need be, also a safety data

sheet outside on the packaging

• Please contact the agency serving you to get the address for

thereturnshipment.Youcanndtheagencyonourhomepage

www.vega.com.

10 Dismount

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

10 Dismount

10.1 Dismounting steps

Warning:

Before dismounting, be aware of dangerous process conditions such

as e.g. pressure in the vessel or pipeline, high temperatures, cor-

rosive or toxic products etc.

Take note of chapters "Mounting" and "Connectingtopowersupply"

and carry out the listed steps in reverse order.

10.2 Disposal

The instrument consists of materials which can be recycled by spe-

cialised recycling companies. We use recyclable materials and have

designed the electronics to be easily separable.

Correctdisposalavoidsnegativeeectsonhumansandtheenviron-

ment and ensures recycling of useful raw materials.

Materials: see chapter "Technicaldata"

If you have no way to dispose of the old instrument properly, please

WEEE directive 2002/96/EG

This instrument is not subject to the WEEE directive 2002/96/EG and

the respective national laws. Pass the instrument directly on to a spe-

cialised recycling company and do not use the municipal collecting

points. These may be used only for privately used products according

to the WEEE directive.

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

11 Supplement

11.1 Technical data

Note for approved instruments

The technical data in the respective safety instructions are valid for approved instruments (e.g. with

Exapproval).Thesedatacandierfromthedatalistedherein,forexampleregardingtheprocess

conditions or the voltage supply.

Materials and weights

316L corresponds to 1.4404 or 1.4435

Materials, wetted parts with metal-jacketed lens antenna

Ʋ Processtting 316L, Alloy C22 (2.4602), Alloy 400 (2.4360)

ƲProcess seal On site

ƲAntenna PP, PEEK

Ʋseal, antenna system FKM (SHS FPM 70C3 GLT), EPDM (COG AP310)

Materials, wetted parts with plastic horn antenna

Ʋ Adapterange PP-GF30 black

Ʋ Seal,adapterange FKM (COG VI500), EPDM (COG AP310)

ƲAntenna cone PBT-GF 30

ƲFocussing lense PP

Material, wetted parts rinsing air connection

ƲRinsing air connection PP-GFK

ƲSeal FKM (COG VI500), EPDM (COG AP310)

Materials, non-wetted parts

Ʋ Compressionange PP-GF30 black

ƲMounting strap 316L

ƲFixing screws, mounting strap 316L

Ʋ Fixingscrews,adapterange 304

ƲPlastic housing plastic PBT (Polyester)

ƲAluminium die-casting housing Aluminium die-casting AlSi10Mg, powder-coated - basis:

Polyester

ƲStainless steel housing 316L

ƲCable gland PA, stainless steel, brass

ƲSealing, cable gland NBR

ƲBlind plug, cable gland PA

ƲSeal between housing and housing lid Silicone SI 850 R, NBR silicone-free

ƲInspection window in housing cover

(optional)

Polycarbonate

ƲGround terminal 316L

Weights

ƲInstrument (depending on housing,

processttingandantenna)

approx. 2 … 17.2 kg (4.409 … 37.92 lbs)

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Torques

Max. torques, threaded version

ƲG¾ 30 Nm (22.13 lbf ft)

ƲG1½ 200 Nm (147.5 lbf ft)

Max. torques, version plastic horn antenna

ƲMounting screws, mounting strap on

sensor housing

4 Nm (2.950 lbf ft)

Ʋ Flangescrews,compressionange

DN 80

5 Nm (3.689 lbf ft)

Ʋ Flangescrews,adapterangeDN100 7 Nm (5.163 lbf ft)

Max. torques, version metal-jacketed lens antenna

ƲTerminal screws for swivelling holder 8 Nm (5.9 lbf ft)

Max. torques for NPT cable glands and Conduit tubes

ƲPlastic housing 10 Nm (7.376 lbf ft)

ƲAluminium/Stainless steel housing 50 Nm (36.88 lbf ft)

Input variable

Measured variable The measured quantity is the distance between the

end of the sensor antenna and the product surface. The

reference plane for the measurement is the lower side of

theange.

Fig. 57: Data of the input variable

1 Reference plane

2 Measured variable, max. measuring range

3 Useablemeasuringrange(recommendedmin.distancesee"Measuringaccuracy")

Max. measuring range 120 m (393,7 ft)

Output variable

Output signal 4 … 20 mA/HART

Range of the output signal 3.8 … 20.5 mA/HART (default setting)

Signal resolution 0.3 µA

Resolution, digital < 1 mm (0.039 in)

Fault signal, current output (adjustable) mA-value unchanged 20.5 mA, 22 mA, < 3.6 mA

Max. output current 22 mA

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Starting current ≤3.6mA;≤10mAfor5msafterswitchingon

Load see load diagram under Power supply

Damping (63 % of the input variable),

adjustable

0 … 999 s

HART output values according to HART 7.02)

ƲPV (Primary Value) Lin. percent

ƲSV (Secondary Value) Distance

ƲTV (Third Value) Meas. certainty

ƲQV (Fourth Value) Electronics temperature

FullledHARTspecication 7.0

Further information on Manufacturer ID,

Device ID, Device Revision

See website of HART Communication Foundation

Output variable - Additional current output

Output signal 4 … 20 mA

Range of the output signal 3.8 … 20.5 mA (default setting)

Signal resolution 0.3 µA

Failure signal current output (adjustable) mA-value unchanged 20.5 mA, 22 mA, < 3.6 mA

Max. output current 22 mA

Starting current ≤3.6mA;≤10mAfor5msafterswitchingon

Load see load diagram under Power supply

Damping (63 % of the input variable),

adjustable

0 … 999 s

Accuracy (according to DIN EN 60770-1)

Process reference conditions according to DIN EN 61298-1

ƲTemperature +18 … +30 °C (+64 … +86 °F)

ƲRelative humidity 45 … 75 %

ƲAir pressure 860 … 1060 mbar/86 … 106 kPa (12.5 … 15.4 psig)

Installation reference conditions

ƲMin. distance to internal installations > 200 mm (7.874 in)

Ʋ Reector Flatplatereector,surface1x1m(3.281x3.281ft)

Ʋ Falsereections Biggest false signal, 20 dB smaller than the useful signal

Deviation See following diagrams

2) Default values can be assigned individually.

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

1,0 m (3.281 ft)

30 mm (1.181 in)

- 30 mm (- 1.181 in)

5 mm (0.197 in)

- 5 mm (- 0.197 in)

0,15 m (0.49 ft)

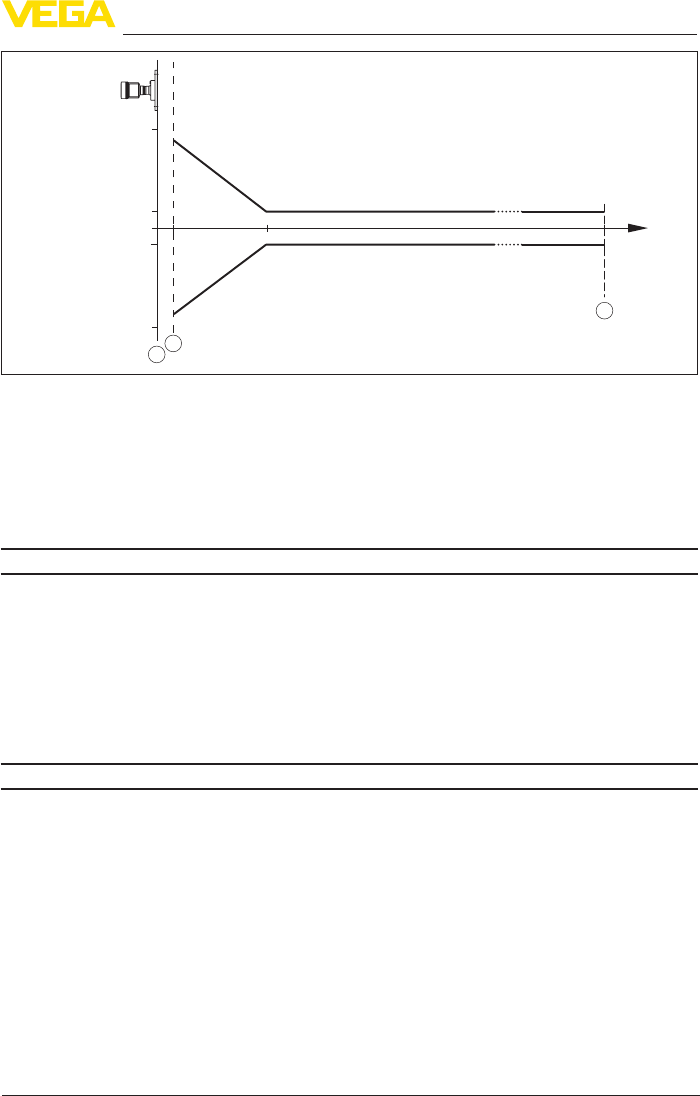

Fig. 58: Deviation under reference conditions

1 Reference plane

2 Recommended min. distance

3 Measuring range end

Repeatability ≤±1mm

Deviation with bulk solids The values depend to a great extent on the application.

Bindingspecicationsarethusnotpossible.

Variablesinuencingmeasurementaccuracy

Specicationsapplytothedigitalmeasuredvalue

Temperature drift - Digital output ±3mm/10K,max.10mm

Specicationsapplyalsotothecurrentoutput

Temperature drift - Current output ±0.03%/10Krelatingtothe16mAspanmax.±0.3%

Deviation on the current output through analogue/digital conversion

ƲNon-Ex and Ex-ia version <±15µA

ƲEx-d-ia version <±40µA

Characteristics and performance data

Measuring frequency W-band(within75-85GHz)

Measuring cycle time approx. 700 ms

Step response time3) ≤3s

Beam angle4)

ƲPlastic horn antenna 3.5°

ƲMetal-jacketed lens antenna 4°

3) Time span (after a sudden measuring distance change of max. 2 m in bulk solids applications) until the output

signalhastakenon90%ofthenalvalueforthersttime(IEC61298-2).

4) Outsidethespeciedbeamangle,theenergyleveloftheradarsignalis50%(-3dB)less.

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Emitted HF power (depending on the parameter adjustment)5)

ƲAverage spectral transmission power

density

-3dBm/MHzEIRP

ƲMax. spectral transmission power

density

+34dBm/50MHzEIRP

ƲMax. power density at a distance of

1 m

< 3 µW/cm²

Ambient conditions

Ambient, storage and transport tempera-

ture

-40 … +80 °C (-40 … +176 °F)

Process conditions

Fortheprocessconditions,pleasealsonotethespecicationsonthetypelabel.Thelowestvalue

always applies.

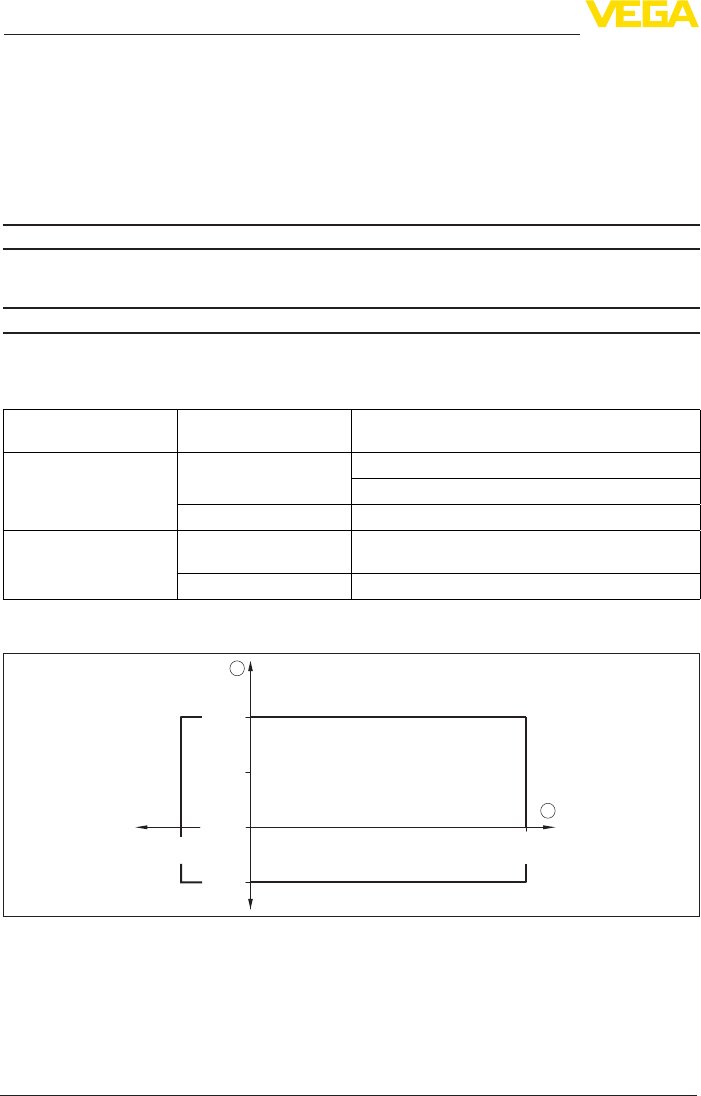

Process temperature

Antenna lens Seal Process temperature (measured on the process

tting)

PEEK FKM (SHS FPM 70C3

GLT)

-40 … +130 °C (-40 … +266 °F)

-40 … +200 °C (-40 … +392 °F)

EPDM (COG AP302) -40 … +130 °C (-40 … +266 °F)

PP FKM (SHS FPM 70C3

GLT)

-40 … +80 °C (-40 … +176 °F)

EPDM (COG AP310) -40 … +80 °C (-40 … +176 °F)

Ambient temperature - Process temperature

0 °C

(32 °F)

-40 °C

(-104 °F)

80 °C

(176 °F)

80 °C

(176 °F)

-40 °C

(-104 °F)

Fig. 59: Ambient temperature - Process temperature, plastic horn antenna

1 Ambient temperature

2 Process temperature

5) EIRP: Equivalent Isotropic Radiated Power.

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

2 3

0°C / 32°F

-40°C / -40°F

80°C / 176°F

35°C / 95°F

51°C / 124°F

60°C / 140°F

130°C

266°F

100°C

212°F

50°C

122°F

80°C

176°F

-40°C

-40°F

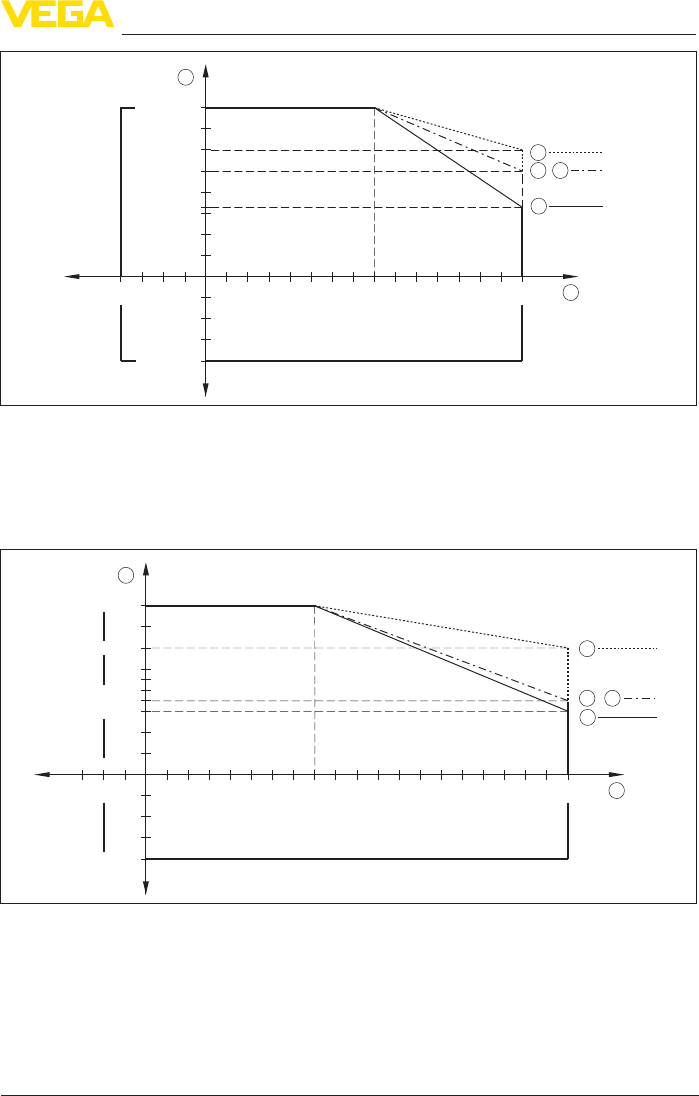

Fig.60:Ambienttemperature-Processtemperature,metal-jacketedlensantennaupto+130°C(266°F)

A Ambient temperature

B Processtemperature

1 Aluminium housing

2 Plastic housing

3 Stainless steel housing, precision casting

4 Stainless steel housing, electropolished

0°C / 32°F

-40°C / -40°F

80°C / 176°F

54°C / 129°F

49°C / 120°F

63°C / 145°F

200°C

392°F

150°C

302°F

100°C

212°F

50°C

122°F

80°C

176°F

-40°C

-40°F

Fig.61:Ambienttemperature-Processtemperature,metal-jacketedlensantennaupto+200°C(392°F)

A Ambient temperature

B Processtemperature

1 Aluminium housing

2 Plastic housing

3 Stainless steel housing, precision casting

4 Stainless steel housing, electropolished

Vessel pressure

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Vessel pressure

ƲMetal-jacketed lens antenna -1 … 3 bar (-100 … 300 kPa/-14.5 … 43.5 psig)

ƲPlastic horn antenna -1 … 2 bar (-100 … 200 kPa/-14.5 … 29.1 psig)

ƲPlastic horn antenna - Version with

adapterangefromDN100PPor

PP-GF 30

-1 … 1 bar (-100 … 100 kPa/-14.5 … 14.5 psig)

Vesselpressurerelatingtotheange

nominal pressure stage

see supplementary instructions manual "Flanges ac-

cordingtoDIN-EN-ASME-JIS"

Mechanial stresses

Vibration resistance - Metal jacketed lens

antenna

4gat5…200HzaccordingtoEN60068-2-6(vibration

with resonance)

Vibration resistance - Plastic horn antenna

Ʋ Withadapterange 2gat5…200HzaccordingtoEN60068-2-6(vibration

with resonance)

Ʋwith mounting strap 1gat5…200HzaccordingtoEN60068-2-6(vibration

with resonance)

Shock resistance 100 g, 6 ms according to EN 60068-2-27 (mechanical

shock)

Data on rinsing air connection

Recommended max. pressure with con-

tinuous rinsing

1 bar (14.50 psig)

Max. permissible pressure 6 bar (87.02 psig)

Air quality Filtered

Air volume, depending on pressure

Metal-jacketed lens antenna Air volume

Pressure Withoutreuxvalve Withreuxvalve

0.2 bar (2.9 psig) 1.7 m3/h -

0.4 bar (5.8 psig) 2.5 m3/h -

0.6 bar (8.7 psig) 2.9 m3/h 0.8 m3/h

0.8 bar (11.6 psig) 3.3 m3/h 1.5 m3/h

1 bar (14.5 psig) 3.6 m3/h 2 m3/h

1.2 bar (17.4 psig) 3.9 m3/h 2.3 m3/h

1.4 bar (20.3 psig) 4 m3/h 2.7 m3/h

1.6 bar (23.2 psig) 4.3 m3/h 3 m3/h

1.8 bar (20.3 psig) 4.5 m3/h 3.5 m3/h

2 bar (23.2 psig) 4.6 m3/h 4 m3/h

Plastic horn antenna Air volume

Pressure Withoutreuxvalve Withreuxvalve

0.2 bar (2.9 psig) 3.3 m3/h -

0.4 bar (5.8 psig) 5 m3/h -

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Plastic horn antenna Air volume

Pressure Withoutreuxvalve Withreuxvalve

0.6 bar (8.7 psig) 6 m3/h 1 m3/h

0.8 bar (11.6 psig) - 2.1 m3/h

1 bar (14.5 psig) - 3 m3/h

1.2 bar (17.4 psig) - 3.5 m3/h

1.4 bar (20.3 psig) - 4.2 m3/h

1.6 bar (23.2 psig) - 4.4 m3/h

1.8 bar (20.3 psig) - 4.8 m3/h

2 bar (23.2 psig) - 5.1 m3/h

Connection

ƲThread G⅛

ƲSeal with metal jacketed lens antenna Threaded plug of 316Ti

Reuxvalve-(optional,isabsolutelynecessaryforExapplications)

ƲMaterial 316Ti

ƲThread G⅛

ƲSeal FKM (SHS FPM 70C3 GLT), EPDM (COG AP310)

ƲFor connection G⅛

ƲOpening pressure 0.5 bar (7.25 psig)

ƲNominal pressure stage PN 250

Electromechanical data - version IP 66/IP 67 and IP 66/IP 68; 0.2 bar

Options of the cable entry

ƲCable entry M20 x 1.5, ½ NPT

ƲCable gland M20 x 1,5; ½ NPT (cable ø see below table)

ƲBlind plug M20 x 1.5; ½ NPT

ƲClosing cap ½ NPT

Material ca-

ble gland

Material seal

insert

Cable diameter

4.5 … 8.5 mm 5 … 9 mm 6 … 12 mm 7 … 12 mm 10 … 14 mm

PA NBR – ● ● –●

Brass, nickel-

plated

NBR ● ● ● – –

Stainless

steel

NBR –● ● –●

Wire cross-section (spring-loaded terminals)

ƲMassive wire, stranded wire 0.2 … 2.5 mm² (AWG 24 … 14)

ƲStranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Electromechanical data - version IP 66/IP 68 (1 bar)

Options of the cable entry

ƲCable gland with integrated connec-

tion cable

M20 x 1.5 (cable: ø 5 … 9 mm)

ƲCable entry ½ NPT

ƲBlind plug M20 x 1.5; ½ NPT

Connection cable

ƲWire cross-section 0.5 mm² (AWG 20)

ƲWire resistance <0.036Ω/m

ƲTensile strength < 1200 N (270 lbf)

ƲStandard length 5 m (16.4 ft)

ƲMax. length 180 m (590.6 ft)

ƲMin. bending radius 25 mm (0.984 in) with 25 °C (77 °F)

ƲDiameter approx. 8 mm (0.315 in)

ƲColour - Non-Ex version Black

ƲColour - Ex-version Blue

Display and adjustment module

Display element Display with backlight

Measured value indication

ƲNumber of digits 5

Ʋ Sizeofdigits W x H = 7 x 13 mm

Adjustment elements 4 keys

Protection rating

Ʋunassembled IP 20

Ʋmounted in the housing without lid IP 40

Ambient temperature - Display and

adjustment module

-20 … +70 °C (-4 … +158 °F)

Materials

ƲHousing ABS

ƲInspection window Polyester foil

Interface to the external display and adjustment unit

Data transmission Digital (I²C-Bus)

Connection cable Four-wire

Sensor version Conguration,connectioncable

Cable length Standard cable Special cable Screened

4 … 20 mA/HART 50 m ●– –

ProbusPA,Founda-

tion Fieldbus 25 m – ● ●

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Integrated clock

Date format Day.Month.Year

Time format 12 h/24 h

Timezone,factorysetting CET

Rate deviation max. 10.5 min/year

Additional output parameter - Electronics temperature

Output of the temperature values

ƲAnalogue Via the current output

ƲDigital Via the digital output signal - depending on the electron-

ics version

Range -40 … +85 °C (-40 … +185 °F)

Resolution < 0.1 K

Accuracy ±3K

Voltage supply

Operating voltage UB

ƲNon-Ex instrument 12 … 35 V DC

ƲEx-d instrument 12 … 35 V DC

ƲEx ia instrument 12 … 30 V DC

ƲEx-d-ia instrument 17 … 35 V DC

Operating voltage UB - illuminated display and adjustment module

ƲNon-Ex instrument 18 … 35 V DC

ƲEx-d instrument 18 … 35 V DC

ƲEx ia instrument 18 … 30 V DC

ƲEx-d-ia instrument Due to the barrier, no lighting possible

Reverse voltage protection Integrated

Permissible residual ripple - Non-Ex, Ex-ia instrument

Ʋfor 12 V< UB < 18 V ≤0.7Ve(16…400Hz)

Ʋfor 18 V< UB < 35 V ≤1.0Ve(16…400Hz)

Permissible residual ripple - Ex-d-ia instrument

Ʋfor 18 V< UB < 35 V ≤1Ve(16…400Hz)

Load resistor

ƲCalculation (UB - Umin)/0.022 A

ƲExample - Non-Ex instrument with

UB= 24 V DC

(24V-12V)/0.022A=545Ω

Electrical protective measures

Protection rating

Housing material Version IP-protection class NEMA protection

Plastic Single chamber IP 66/IP 67 Type4X

Double chamber IP 66/IP 67 Type4X

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Housing material Version IP-protection class NEMA protection

Aluminium Single chamber IP 66/IP 68 (0.2 bar)

IP 68 (1 bar)

Type 6P

Double chamber IP 66/IP 68 (0.2 bar)

IP 68 (1 bar)

Type 6P

Stainless steel (electro-

polished)

Single chamber IP 66/IP 68 (0.2 bar) Type 6P

Stainless steel (precision

casting)

Single chamber IP 66/IP 68 (0.2 bar)

IP 68 (1 bar)

Type 6P

Double chamber IP 66/IP 68 (0.2 bar)

IP 68 (1 bar)

Type 6P

Protection rating (IEC 61010-1) III

Approvals

Instrumentswithapprovalscanhavedierenttechnicalspecicationsdependingontheversion.

For that reason the associated approval documents of these instruments have to be carefully

noted. They are part of the delivery or can be downloaded under www.vega.com via "VEGATools"

and "Instrument search" as well as in the download area.

11.2 Radio astronomy stations

Certain restrictions on the use of VEGAPULS 69 outside closed vessels result from the radio

license.Youcanndtheserestrictionsinchapter"RadiolicenseforEurope". Some of these restric-

tions have to do radio astronomy stations. The following table states the geographic positions of

radio astronomy stations in Europe:

Country Name of the Station Geographic Latitude Geographic Longitude

Finland Metsähovi 60°13'04'' N 24°23'37'' E

France Plateau de Bure 44°38'01'' N 05°54'26'' E

Germany Eelsberg 50°31'32'' N 06°53'00'' E

Italy Sardinia 39°29'50" N 09°14'40" E

Spain Yebes 40°31'27" N 03°05'22" W

Pico Veleta 37°03'58" N 03°23'34" W

Sweden Onsala 57°23’45" N 11°55’35" E

11.3 Dimensions

The following dimensional drawings represent only an extract of all possible versions. Detailed

dimensional drawings can be downloaded at www.vega.com/downloads under "Drawings".

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

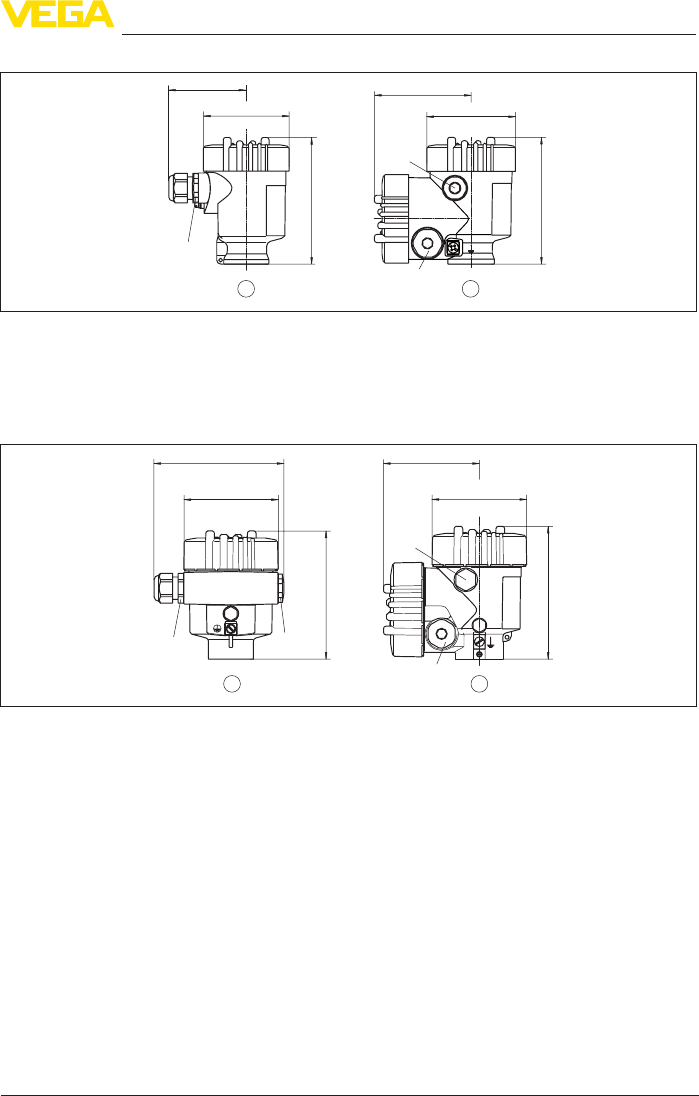

Plastic housing

~ 69 mm

(2.72")

ø 79 mm

(3.11")

112 mm

(4.41")

M20x1,5/

½ NPT

~ 84 mm

(3.31")

M16x1,5

112 mm

(4.41")

M20x1,5/

½ NPT

ø 79 mm

(3.11")

Fig.62:HousingversionswithprotectionratingIP66/IP67-withintegrateddisplayandadjustmentmodulethe

housingis9mm/0.35inhigher

1 Single chamber version

2 Double chamber version

Aluminium housing

ø 86 mm

(3.39")

~ 116 mm

(4.57")

116 mm

(4.57")

M20x1,5

M20x1,5/

½ NPT

~ 87 mm

(3.43")

M16x1,5

ø 86 mm

(3.39")

120 mm

(4.72")

M20x1,5/

½ NPT

Fig.63:HousingversionswithprotectionratingIP66/IP68(0.2bar)-withintegrateddisplayandadjustment

modulethehousingis9mm/0.35inhigher

1 Single chamber version

2 Double chamber version

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

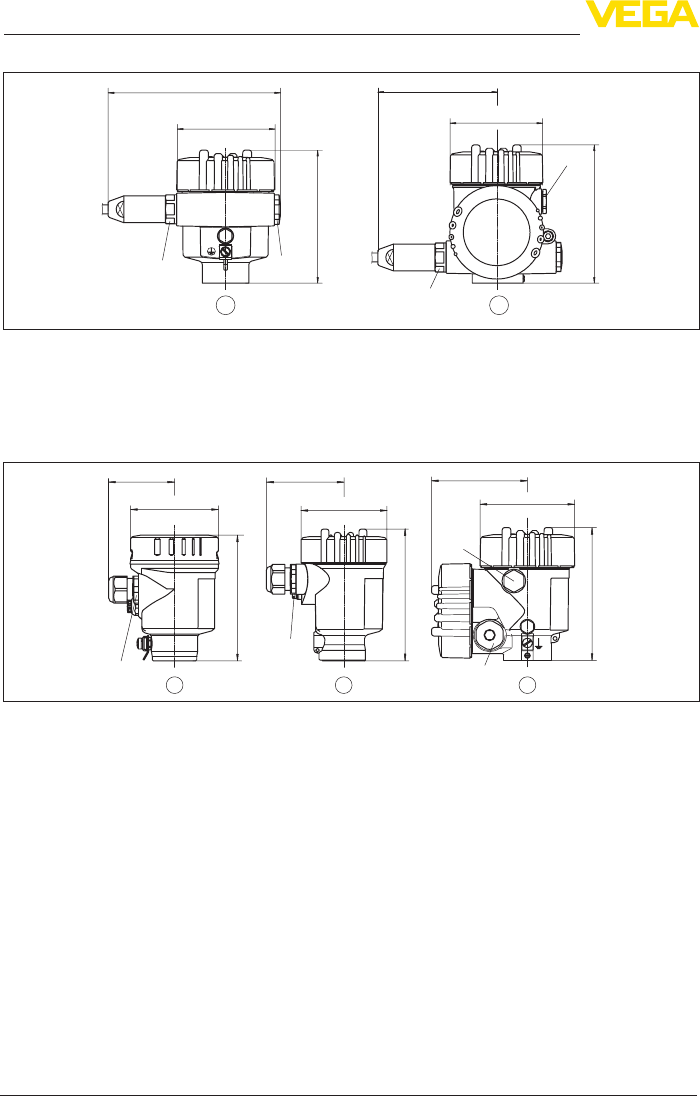

Aluminium housing with protection rating IP 66/IP 68 (1 bar)

120 mm

(4.72")

~ 105 mm

(4.13")

116 mm

(4.57")

~ 150 mm

(5.91")

ø 86 mm

(3.39")

ø 86 mm

(3.39")

M20x1,5/

½ NPT

M16x1,5

M20x1,5

Fig.64:HousingversionwithprotectionratingIP66/IP68(1bar)-withintegrateddisplayandadjustmentmodule

thehousingis9mm/0.35inhigher

1 Single chamber version

2 Double chamber version

Stainless steel housing

~ 69 mm

(2.72")

ø 79 mm

(3.11")

117 mm

(4.61")

M20x1,5/

½ NPT

~ 59 mm

(2.32")

ø 80 mm

(3.15")

112 mm

(4.41")

M20x1,5/

½ NPT

~ 87 mm

(3.43") ø 86 mm

(3.39")

120 mm

(4.72")

M20x1,5/

½ NPT

M16x1,5

321

Fig.65:HousingversionswithprotectionratingIP66/IP68(0.2bar)-withintegrateddisplayandadjustment

modulethehousingis9mm/0.35inhigher

1 Single chamber version, electropolished

2 Single chamber version, precision casting

3 Double chamber version, precision casting

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

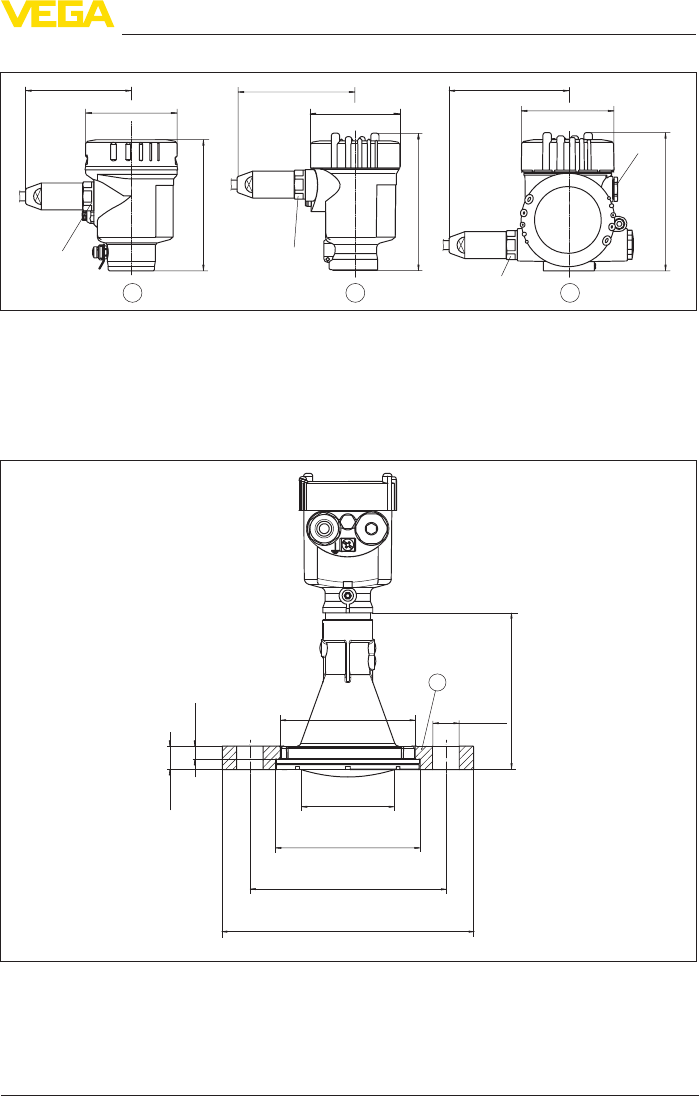

Stainless steel housing with protection rating IP 66/IP 68, 1 bar

117 mm

(4.61")

~ 103 mm

(4.06") ø 79 mm

(3.11")

120 mm

(4.72")

~ 105 mm

(4.13") ø 86 mm

(3.39")

M20x1,5

M20x1,5/

½ NPT

M16x1,5

~ 93 mm

(3.66") ø 80 mm

(3.15")

112 mm

(4.41")

M20x1,5/

½ NPT

Fig.66:HousingversionwithprotectionratingIP66/IP68(1bar)-withintegrateddisplayandadjustmentmodule

thehousingis9mm/0.35inhigher

1 Single chamber version, electropolished

2 Single chamber version, precision casting

3 Double chamber version, precision casting

VEGAPULS69,plastichornantennawithcompressionange

126 mm

(4.96")

10,5 mm

(0.41")

19 mm

(0.75")

ø 75 mm

(2.95")

ø 115 mm

(4.53")

ø 156 mm

(6.14")

ø 200 mm

(7.87")

ø 21 mm

(0.83")

ø 107 mm

(4.21")

Fig.67:Radarsensorwithcompressionangesuitableforanges3"150lbs,DN80PN16

1 Compressionange

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS69,plastichornantennawithcompressionangeandrinsingconnection

126 mm

(4.96")

14,7 mm

(0.58")

10,5 mm

(0.41")

26,5 mm

(1.04")

19 mm

(0.75")

ø 75 mm

(2.95")

ø 156 mm

(6.14")

ø 200 mm

(7.87")

ø 21 mm

(0.83")

ø 107 mm

(4.21")

Fig.68:Radarsensorwithcompressionangesuitableforanges3"150lbs,DN80PN16

1 Compressionange

2 Reuxvalve

3 Rinsing connection

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS69,plastichornantennawithadapterange

144 mm

(5.67")

36,5 mm

(1.44")

20 mm

(0.79")

17,5 mm

(0.69")

ø 75 mm

(2.95")

ø 98 mm

(3.86")

ø 180 mm

(7.09")

ø 220 mm

(8.66")

Fig.69:RadarsensorwithadapterangeDN100PN6

1 Adapterange

2 Process seal

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS69,plastichornantennamitadapterangeundrinsingconnection

170 mm

(6.69")

62,5 mm

(2.46")

20 mm

(0.79")

34,7 mm

(1.37")

ø 75 mm

(2.95")

ø 98 mm

(3.86")

ø 180 mm

(7.09")

ø 220 mm

(8.66")

Fig.70:VEGAPULS69,adapterangeDN100PN6andrinsingconnection

1 Rinsing air connection

2 Reuxvalve

3 Adapterange

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS 69, plastic horn antenna with mounting strap

125 mm

(4.92")

2,5 mm

(0.10")

ø 75 mm

(2.95")

ø 107 mm

(4.21")

ø 115 mm

(4.53")

300 mm

(11.81")

19 mm

(0.75")

98 mm

(3.86")

6 mm

(0.24")

8,5 mm

(0.34")

9 mm

(0.35")

85 mm

(3.35")

12 mm

(0.47")

9 mm

(0.35")

12 mm

(0.47")

170 mm

(6.69")

Fig.71:VEGAPULS69,plastichornantenna,mountingstrapin170or300mmlength

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS 69, metal-jacketed lens antenna

144 mm

(5.67")

63 mm

(2.48")

11,5 mm

(0.45")

ø 98 mm

(3.86")

G 1/8" x 8mm

Fig.72:VEGAPULS69,metal-jacketedlensantenna.Flangethicknessacc.todrawing,angedimensionsacc.to

DIN/ASME/JIS.

1 Versionupto130°C(266°F)

2 Versionupto200°C(392°F)

VEGAPULS 69, metal-jacketed lens antenna with rinsing connection

3 4 5

144 mm

(5.67")

63 mm

(2.48")

27,5 mm

(1.08")

35 mm

(1.38")

43 mm

(1.69")

27,5 mm

(1.08")

35 mm

(1.38")

43 mm

(1.69")

Fig.73:VEGAPULS69,metal-jacketedlensantennawithrinsingconnection

1 Versionupto130°C(266°F)

2 Versionupto200°C(392°F)

3 Blindplug

4 90°anglejoint

5 Reuxvalve

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS 69, metal-jacketed lens antenna with swivelling holder

max. 10°

144 mm

(5.67")

63 mm

(2.48")

Fig.74:VEGAPULS69,metal-jacketedlensantennaandswivellingholder

1 Versionupto130°C(266°F)

2 Versionupto200°C(392°F)

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

VEGAPULS 69, metal-jacketed lens antenna with swivelling holder and rinsing connection

max. 10°

35 mm

(1.38")

43 mm

(1.69")

35 mm

(1.38")

43 mm

(1.69")

3 4 5

144 mm

(5.67")

63 mm

(2.48")

Fig.75:VEGAPULS69,metal-jacketedlensantennawithswivellingholderandrinsingconnection

1 Versionupto130°C(266°F)

2 Versionupto200°C(392°F)

3 Blindplug

4 90°anglejoint

5 Reuxvalve

11 Supplement

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

11.4 Industrial property rights

VEGA product lines are global protected by industrial property rights. Further information see

www.vega.com.

VEGA Produktfamilien sind weltweit geschützt durch gewerbliche Schutzrechte.

Nähere Informationen unter www.vega.com.

Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec-

tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com.

VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus-

trial. Para mayor información revise la pagina web www.vega.com.

Линии продукции фирмы ВЕГА защищаются по всему миру правами на интеллектуальную

собственность. Дальнейшую информацию смотрите на сайте www.vega.com.

VEGA系列产品在全球享有知识产权保护。

进一步信息请参见网站<www.vega.com。

11.5 Trademark

All the brands as well as trade and company names used are property of their lawful proprietor/

originator.

INDEX

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

INDEX

Adjustment 43, 48, 49

Change the language 50

Check output signal 68

Connection

– Cable 31

Copy sensor settings 54

Current output

– Adjust 55

– Min./Max. 50

– Mode 49

Curve indication

– Echo curve 51

Damping 49

Date/Time 53

Default values 53

Deviation 69

Display lighting 51

Echo curve

– Setup 52

EDD (Enhanced Device Description) 63

Electrical connection 32

Electronics and terminal compartment 34

Error codes 67

Event memory 64

False signal suppression 55

Faultrectication68

Functional principle 12

Grounding 32

HART 60

– Address 57

Linearisation 57

Main menu 44

Measured value memory 64

Measurement loop name 45

Mounting

– Flange 18

– Strap 17

Mounting socket 22

NAMUR NE 107 65, 66, 67

Peak value indicator 51

Polarisation 20

Repair 72

Reset 53

Sensor status 51

Service hotline 71

Set display parameters 51

Simulation 52

Special parameters 57

Type label 11

Vessel installations 26

Vessel insulation 27

Notes

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Notes

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Notes

VEGAPULS 69 • 4 … 20 mA/HART - two-wire

47247-EN-170315

Printing date:

VEGA Grieshaber KG

Am Hohenstein 113

77761 Schiltach

Germany

47247-EN-170315

All statements concerning scope of delivery, application, practical use and operat-

ing conditions of the sensors and processing systems correspond to the information

available at the time of printing.

Subject to change without prior notice

Phone +49 7836 50-0

Fax +49 7836 50-201

E-mail: info.de@vega.com

VEGA Grieshaber KG PS60XW1 VEGAPULS 69 Level Probing Radar User Manual 77 GHz 031517

VEGA Grieshaber KG VEGAPULS 69 Level Probing Radar Users Manual 77 GHz 031517

Contents

Users Manual 77 GHz 031517

Navigation menu

Namespaces

Views

Navigation
