1. USER MANUAL
2. Users Manual

Users Manual

User’s manual

Models:

CS6124/CS6124-2

www.vtechphones.com

Congratulations

on purchasing your new VTech product. Before using this telephone, please

read the Important safety instructions on page 46 of this manual.

This manual has all the feature operations and troubleshooting necessary

to install and operate your new VTech telephone. Please review this manual

thoroughly to ensure proper installation and operation of this innovative and

feature rich VTech product. For support, shopping, and everything new at

VTech, visit our website at www.vtechphones.com.

In Canada, please visit

www.vtechcanada.com.

The ENERGY STAR® program (www.energystar.gov) recognizes

and encourages the use of products that save energy and help

protect our environment. We are proud to mark this product with

the ENERGY STAR® label indicating it meets the latest energy

GHſEKGPE[IWKFGNKPGU

Compatible with

Hearing Aid T-Coil

TIA-1083

6GNGRJQPGUKFGPVKſGFYKVJVJKUNQIQJCXGTGFWEGFPQKUGCPF

interference when used with most T-coil equipped hearing aids and

cochlear implants. The TIA-1083 Compliant Logo is a trademark of the

Telecommunications Industry Association. Used under license.

Table of contents

Getting started..............1

Parts checklist ...............1

Telephone base installation.....2

Wall mounting................3

Battery installation ............4

Battery charging..............5

Handset layout...............6

Telephone base layout.........8

Telephone settings ..........9

Ringer volume (telephone base) . 9

Ringer volume (handset) .......9

Ringer tone..................9

LCD language ..............10

Clear voicemail..............10

Key tone...................11

Set date and time............11

Home area code.............12

Dial mode..................12

Website....................12

Telephone operation........13

Make a call.................13

Predial a call................13

Answer a call ...............13

End a call ..................13

Volume....................13

Mute......................13

Call waiting.................14

Temporary ringer silencing.....14

Temporary tone dialing........14

Find handset................14

Chain dialing................15

Redial list ..................15

Review the redial list .........15

Dial a redial entry............16

Delete a redial entry..........16

Multiple handset use .........16

Directory...................17

Add a directory entry .........18

Character chart .............19

Review the directory..........19

Alphabetical search ..........20

Dial a directory entry .........20

Edit a directory entry .........20

Delete a directory entry .......21

About caller ID ..............21

Call log....................22

Missed call indicator .........22

Memory match..............23

Review the call log...........23

View dialing options..........23

Dial a call log number.........24

Save a call log entry to

the directory ..............24

Delete from the call log .......25

Call log display screen

messages ................25

Answering system settings . . 26

Answering system set up......26

Answer ON/OFF.............26

Call screening ..............26

Number of rings .............27

Remote access code . . . . . . . . . 27

Message alert tone...........27

Recording time..............28

Announcement..............28

Play your announcement .....28

Record your own

announcement ............28

Delete your announcement ....29

Answering system operation . 30

Answering system and

voicemail.................30

Message capacity ...........30

New message indication ......31

Call intercept ...............31

Message playback...........31

Delete all messages..........32

Record, play or delete memos . . 32

Message window displays . . . . . 33

Remote access .............34

iii

Table of contents

Appendix..................35

Screen display messages .....35

Handset and telephone base

indicators ................37

Handset screen icons ........37

Battery ....................38

Troubleshooting .............39

Important safety instructions . . . 46

Precautions for users of

implanted cardiac

pacemakers ..............47

Operating range.............47

Maintenance................47

About cordless telephones.....48

The RBRC® seal.............48

Warranty...................49

FCC, ACTA and IC regulations . 51

6GEJPKECNURGEKſECVKQPU .......53

Index .....................54

Parts checklist

Your telephone contains the following items. Save your sales receipt and

original packaging in the event warranty service is necessary.

To purchase a replacement battery or power adapter, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or call 1 (800) 267-7377.

Getting started

User’s manual

Handset

(1 for CS6124 and

2 for CS6124-2)

Telephone base Telephone base

power adapter

Telephone line cord

Battery

(1 for CS6124 and

2 for CS6124-2)

Battery compartment

cover

(1 for CS6124 and 2 for CS6124-2)

Quick start guide

Charger and

charger adapter

(1 for CS6124-2)

Telephone base installation

Install the telephone base as shown below.

Make sure that the electrical outlet is not controlled by a wall switch.

If you subscribe to digital subscriber line (DSL) high-speed Internet service

through your telephone line, you must install a &5.ſNVGTDGVYGGPVJG

VGNGRJQPGNKPGEQTFCPFVGNGRJQPGYCNNLCEM6JGſNVGTRTGXGPVUPQKUGCPFECNNGT

ID problems caused by DSL interference. Contact your DSL service provider

HQTOQTGKPHQTOCVKQPCDQWV&5.ſNVGTU

Use only the power adapter supplied with this product. To order a

replacement, visit our website at www.vtechphones.com or call

1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call

1 (800) 267-7377.

6JGRQYGTCFCRVGTKUKPVGPFGFVQDGEQTTGEVN[QTKGPVGFKPCXGTVKECNQTƀQQT

mount position. The prongs are not designed to hold the plug in place if it is

plugged into a ceiling, under-the-table or cabinet outlet.

•

Getting started

Telephone base

Telephone

line cord

Electrical outlet

(not controlled

by a wall switch)

Telephone

wall jack

&5.ſNVGTPQVKPENWFGF

required if you have

DSL high-speed

Internet service

Telephone base

power adapter

Getting started

Wall mounting

Your telephone comes ready for tabletop use. If you prefer to mount your

telephone on the wall (optional), it is designed to mount on a standard

telephone wall plate.

You can mount the telephone base on the wall by positioning the top hole at

the back of the telephone base against the top mounting stud [A]. Then slide

the telephone base down on the mounting studs [A] and [B] until it locks into

place.

Telephone base

Mounting

studs

[A]

[B]

Getting started

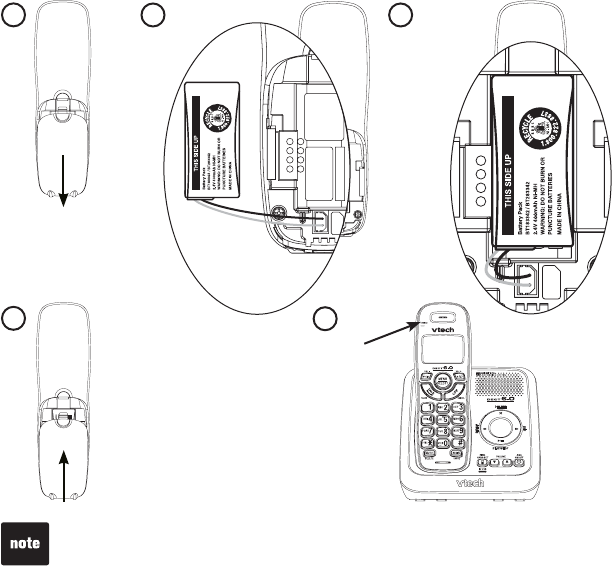

Battery installation

Install the battery as shown below.

If the battery compartment cover is on the handset, press on the indentation

and slide the cover down to remove.

Plug the battery connector securely into the socket inside the handset

battery compartment, matching the color-coded label.

Place the battery with the label THIS SIDE UP facing up and the wires

inside the battery compartment.

#NKIPVJGEQXGTƀCVCICKPUVVJGDCVVGT[EQORCTVOGPVVJGPUNKFGKVVQYCTFU

the center of the handset until it clicks into place.

Charge the handset by placing it in the telephone base or charger. The

CHARGE light remains on whenever the handset is charging in the

telephone base or charger.

If the handset will not be used for a long period of time, disconnect and

remove the battery to prevent any possible leakage.

To purchase a replacement battery, visit our website at www.vtechphones.com

or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call

1 (800) 267-7377.

•

2 3

CHARGE

light

Getting started

Battery charging

Once you have installed the battery, the screen indicates the battery status

(see the table below). If necessary, place the handset in the telephone base

or charger to charge the battery. For best performance, keep the handset in

the telephone base or charger when not in use. The battery is fully charged

after 16 hours of continuous charging. See the table on page 38 for battery

operating times.

If the screen is blank, you need to charge the handset without interruption for

at least 10 minutes to give the handset enough charge to use the telephone

for a short time. When the battery is low, the handset beeps and shows Low

batteryCPFCƀCUJKPI icon. If you are on a call in low battery mode, the

handset beeps every minute.

The following table summarizes the battery charge indicators and actions

to take.

Battery indicators Battery status Action

The screen is blank, or

displays Place in charger

and ƀCUJGU.

Battery has very little or

no charge. The handset

cannot be used.

Charge without interruption

(at least 30 minutes).

The screen displays

Low battery and ƀCUJGU

Battery has enough

charge to be used for a

short time.

Charge

without interruption

(about 30 minutes).

The screen displays

HANDSET X and --:-- -

-/--.

Battery is charged. To keep the battery charged,

place it in the telephone

base or charger when not

in use.

If you do not plug in the battery into the handset and place it in the telephone base

or charger, the screen displays No battery.

Getting started

Handset layout

CID/VOL-

Press to review the call log when the telephone is

not in use (page 23).

During a call, press to decrease the listening

volume. A double beep sounds at the lowest setting

(page 13).

Press to scroll down while in a menu or reviewing

the directory, call log or redial list.

When entering numbers or names in the directory,

press to move the cursor to the left.

/FLASH

Press to make or answer a call (page 13).

During a call, press to answer an incoming call when

you receive a call waiting alert (page 14).

CHARGE light

On when the handset is charging in the telephone

base (page 4).

CANCEL

MUTE/DELETE

While on a call, press to mute the microphone page 13).

While using the dialing keys, press to delete digits.

While the handset is ringing, press to silence the ringer

temporarily (page 14).

When reviewing the directory, call log or redial list, press to delete the

desired entry (page 21, 25 or 16).

TONE

Press to switch to tone dialing temporarily when

using the pulse service (page 14).

Dialing keys

Press to enter numbers or characters.

Press repeatedly to add or remove 1 in front of

the call log entry before dialing or saving it to

the directory.

Getting started

Handset layout

/VOL+

Press to review the directory when the telephone is

not in use (page 19).

During a call, press to increase the listening

volume. A double beep sounds at the highest setting

(page 13).

Press to scroll up while in a menu or reviewing the

directory, call log or redial list.

When entering numbers or names in the directory,

press to move the cursor to the right.

MENU/SELECT

Press to show the menu.

While in a menu, press to choose an item, or save

an entry or setting.

OFF/CANCEL

During a call, press to hang up.

While the handset is ringing, press to silence the

ringer temporarily (page 14).

While the telephone is not in use, press and hold to

erase the missed call indicator (page 22).

While in a menu, press to exit without making

changes.

While in a menu, press and hold to return to idle

mode.

While predialing, press to delete digits (page 13).

REDIAL/PAUSE

Press repeatedly to review the redial list (page 15).

While dialing or entering numbers into the directory,

press and hold to insert a dialing pause (pages 13

and 18).

Press repeatedly to show other dialing options when

reviewing a call log entry (page 23)

CANCEL

Getting started

Telephone base layout

/FIND HANDSET

Press to page all system

handsets (page 14).

Message window

Shows the number of

messages and other

answering system

information (page 33).

X/DELETE

Press to delete the

message currently playing

(page 31).

When the phone is not in

use, press twice to delete

all previously reviewed

messages (page 32).

/ANS ON/OFF

Press to turn the answering

system on or off (page 26).

/PLAY/STOP

Press to play messages

(page 31).

Press to stop message

playback (page 31).

//VOL

Press to adjust the volume during playback

(page 31).

When the phone is not in use, press to

adjust the telephone base ringer volume

(page 9).

IN USE light

Flashes when there is an

incoming call, or another

telephone sharing the

same line is in use.

On when the telephone is

in use, or the answering

system is answering a call.

/SKIP

Press to skip to the next

message (page 31).

/REPEAT

Press to repeat a

message or press twice to

play the previous message

(page 31).

Ringer volume (telephone base)

Press /VOLUME or /VOLUME on the telephone base to adjust the ringer

volume when the telephone is not in use. When you set the ringer volume to

zero, the base ringer is off and the system announces, “

Base ringer is off.”

Ringer volume (handset)

You can adjust the ringer volume or turn the ringer off.

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Ringers,

then pressress MENU/SELECT twice.

Press CID/VOL- or /VOL+to select ringer volume

from Off,Low or High. A sample of each ringer volumeA sample of each ringer volume

plays as you scroll through the choices.

Press MENU/SELECT to save your selection, you will

JGCTCEQPſTOCVKQPVQPG

Ringer tone

You can change the handset ringer tone.

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Ringers,

then press MENU/SELECT.

Press CID or until the screen displays

Ringer tone, then press MENU/SELECT.

Press CID or to choose Tone: 1,2, 3, or 4. The

EWTTGPVUGVVKPIƀCUJGU#UCORNGQHGCEJTKPIGTVQPG

plays as you scroll through the choices.

Press MENU/SELECT to save your selection, you will

JGCTCEQPſTOCVKQPVQPG

•

Telephone settings

Ringers

Volume:High

If the ringer volume is set to Off,Ringer off is displayed on the idle screen.

The setting also determines the ringer volume of the handset paging tone.

However, when the ringer volume is set to Off, the handset still rings when

you press /FIND HANDSET.

•

If you turn off the ringer volume, you will not hear ringer

tone samples.

•

Ringers

Ringer tone

Tone: 1

Telephone settings

LCD language

The LCD language is preset to English. You can select English, French or

Spanish to be used in all screen displays.

To select a language:

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Settings,

then press MENU/SELECT twice.

Press CID or to choose English,Français or

Español, then press MENU/SELECT to save your setting.

;QWYKNNJGCTCEQPſTOCVKQPVQPG

Clear voicemail

If you subscribe to voicemail service offered by your telephone service

provider, New voicemail and are displayed on the handset when you have

new voicemail messages. Contact your telephone service provider for more

information and assistance about using your voicemail service.

After you have listened to all new voicemail messages, the indicators on the

handset turn off automatically.

Use the clear voicemail feature when the telephone indicates that there is

new voicemail but there are none (for example, when you have accessed your

voicemail while away from home). The clear voicemail feature only turns off the

indicators; it does not delete your voicemail messages. As long as you have

new voicemail messages, your telephone service provider continues to send

the signal that turns on the indicators.

To manually turn off these indicators:

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Settings,

then press MENU/SELECT.

Press CID or until the screen displays

Clr voicemail, then press MENU/SELECT. The screen

displays Clear VM icon?

Press MENU/SELECTVQEQPſTO[QWTUGNGEVKQP[QWYKNN

JGCTCEQPſTOCVKQPVQPG

Your telephone service provider may only alert you of new

messages with a broken (stutter) dial tone. This by itself

will not activate the New voicemail indication on your

cordless handset. The provider must also send a digital

signal for Visual Message Waiting Indication to activate the

new voicemail alert on the handset display. This may also be called FSK Voice

Message Waiting Indication. Contact your telephone service provider for details.

Settings

LCD language

Settings

Clr voicemail

Clear VM icon?

Telephone settings

Key tone

You can turn the key tone on or off.

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Settings,

then press MENU/SELECT.

Press CID or until the screen displays Key tone,

then press MENU/SELECT.

Press CID or to choose On or Off, then press

MENU/SELECTVQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTC

EQPſTOCVKQPVQPG

Set date and time

The answering system announces the date and time of each message prior

to playing it. Before using the answering system, set the date and time as

follows. If you subscribe to caller ID service, the day, month and time are set

automatically with each incoming call. However, the year must be correct

so that the day of the week can be calculated from the caller ID information.

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Settings,

then press MENU/SELECT.

Press CID or until the screen displays

Set date/time, then press MENU/SELECT.

9JGPVJGOQPVJKUƀCUJKPIRTGUU CID or until

the screen displays the correct month and then press

MENU/SELECT; or, press the dialing keys (0-9) to enter

the current month (for example, December would be

represented as 12).

Repeat step 4 to set the correct date and year and then

press MENU/SELECT to advance to time setting.

9JGPVJGJQWTKUƀCUJKPIRTGUU CID or until

the screen displays the correct hour and then press

MENU/SELECT; or, press the dialing keys (0-9) to enter

the current hour (for example, twelve o’clock would be

represented as 12).

Repeat step 6 to set the correct minute. When AM or

PM KUƀCUJKPIRTGUU CID or to select AM or PM.

Press MENU/SELECT to save your settings, you will hear

CEQPſTOCVKQPVQPG

If the date and time are not set when a message is recorded, the system

announces, “Time and date not set,” before each message plays.

When there is a power failure or after battery replacement, the time needs to

be reset.

•

Settings

Key tone

Settings

Set date/time

Date: 12/25/10

Time: 12:35 PM

Telephone settings

Home area code

If you dial local calls using only seven digits (area code not required), you can

program your home area code so that when you receive a call within your local

area, the telephone number is automatically stored in the call log without the

area code.

To change the setting:

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Settings,

then press MENU/SELECT.

Press CID or until the screen displays

Home area code, then press MENU/SELECT.The

screen displays --- if no area code is stored or the screen

displays the stored area code.

Use the dialing keys (0-9) to enter the desired home area

code or press MUTE/DELETE to delete a digit.

Press MENU/SELECTVQEQPſTO[QWYKNNJGCTCEQPſTOCVKQPVQPG

Dial mode

If you have touch-tone service, the telephone is ready to use as soon as the

battery is charged. If you have pulse (rotary) service, you need to change the

dial mode setting to pulse.

To change the setting:

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Settings, then press

MENU/SELECT.

Press CID or until the screen displays Dial mode, then press

MENU/SELECT.

Press CID or to choose Tone or Pulse, then press MENU/SELECT to

EQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG

Website

Use this feature to view the VTech website address.

Press MENU/SELECT when the handset is not in use.

Press CID or until the screen displays Website, then press

MENU/SELECT. The screen will display the VTech website address.

Home area code

---

If, in the future, your telephone service provider requires you to dial the area

code when making a local call, or, if you move to a location that requires it,

delete the home area code you have already programmed following the steps

above. After you have deleted the home area code, --- appears.

Telephone operation

Make a call

Press /FLASH and then use the dialing keys (0-9)

to dial the telephone number.

Predial a call

Enter the telephone number using the dialing

keys (0-9), then press /FLASH to dial.

Answer a call

Press /FLASH or any of the dialing keys (0-9,TONE or #).

End a call

Press OFF/CANCEL or put the handset to the telephone base.

Volume

During a call, press CID/VOL- or /VOL+ to adjust

the listening volume.

Mute

The mute function allows you to hear the other party

but the other party cannot hear you.

During a call, press MUTE/DELETE on the handset.

The handset screen displays Muted until the mute

function is turned off.

Press MUTE/DELETE again to resume the

conversation. The handset screen temporarily

displays Microphone on.

•

2. Muted

10:15 PM

12/25

CANCEL

The screen shows the elapsed time as you talk (in hours, minutes

and seconds).

When predialing (preview numbers before dialing), press MUTE/DELETE or

OFF/CANCEL to backspace and delete; press and hold REDIAL/PAUSE to

insert a dialing pause (a P appears).

If the handset is moved out of range while on a call, it will beep three times.

•

Telephone operation

Call waiting

When you subscribe to call waiting service from your telephone service

provider, you hear an alert tone if there is an incoming call while you are on

another call.

Press /FLASH to put the current call on hold and take

the new call.

Press /FLASH at any time to switch back and forth

between calls.

Temporary ringer silencing

When the telephone is ringing, you can temporarily silence the ringer of the

handset without disconnecting the call. The next call rings normally at the

preset volume.

To silence the handset ringer:

Press OFF/CANCEL or MUTE/DELETE and

Ringer muted displays.

Temporary tone dialing

If you have pulse (rotary) service only, you can switch from pulse to tone

dialing temporarily during a call. This is useful if you need to send touch-tone

signals to access your telephone banking or long distance services.

During a call, press TONE .

Use the dialing keys to enter the relevant number. The telephone sends

touch-tone signals.

The telephone automatically returns to pulse dialing mode after you end the

call.

Find handset

7UGVJKUHGCVWTGVQſPFU[UVGOJCPFUGVU

To start paging:

Press /FIND HANDSET on the telephone base when

the telephone is not in use.

All idle system handset(s) ring and ** Paging **

ƀCUJGUQPVJGUETGGPHQTUGEQPFU

To end paging:

Press /FIND HANDSET again on the telephone base.

-OR-

Press /FLASH or any of the dialing keys (0-9,TONE

or #) on the handset to stop the paging tone.

•

CANCEL

Ringer muted

10:15 PM

12/25

Telephone operation

Chain dialing

Use this feature to initiate a dialing sequence from numbers stored in the

directory, call log or redial while you are on a call.

Chain dialing can be useful if you wish to access other numbers (such as bank

account numbers or access codes) from the directory, call log or redial list.

To access a number in the directory while on a call:

Press MENU/SELECT twice to select Directory.

Press CID or to scroll to the desired entry.

Press MENU/SELECT to dial the displayed number.

To access a number in the call log while on a call:

Press MENU/SELECT and then press CID or to select Call log.

Press MENU/SELECT and then press CID or to scroll to the desired

entry.

Press MENU/SELECT to dial the displayed number.

To access a number in the redial list while on a call:

Press REDIAL/PAUSE and then press CID or or REDIAL/PAUSE to

browse to the desired entry.

Press MENU/SELECT to dial the displayed number.

Redial list

6JGVGNGRJQPGUVQTGUVJGſXGOQUVTGEGPVN[FKCNGFPWODGTU

9JGPVJGTGCTGCNTGCF[ſXGGPVTKGUVJGQNFGUVGPVT[KUFGNGVGFVQOCMGTQQO

for the new entry.

Entries are shown in reverse chronological order.

Review the redial list

Press REDIAL/PAUSE when the handset is not in use.

Press CID, or REDIAL/PAUSE repeatedly to browse

the redial list.

•

You cannot edit a directory entry while on a call. For more details about the

directory, see page 17.

You cannot copy a call log entry into the directory while on a call. For more

details about call log, see page 22.

You cannot erase a redial entry while on a call. For more details about the redial

memory, see page 15.

Press OFF/CLEAR to exit redial, directory or call log when you are on a call.

9JGPVJGTGKUOQTGVJCPQPGJCPFUGVQPCECNNQPN[VJGſTUVJCPFUGVVJCV

answered the call can access the directory, call log or redial list.

•

Telephone operation

This feature is not applicable to model CS6124.•

Dial a redial entry

Press REDIAL/PAUSE when the handset is not in use.

Press CID, or REDIAL/PAUSE repeatedly until the desired

entry displays.

Press /FLASH to dial.

-OR-

Press /FLASH when the handset is not in use.

Press REDIAL/PAUSE and then press CID, or REDIAL/PAUSE

repeatedly until the desired entry displays.

Press MENU/SELECT to dial.

Delete a redial entry

Press REDIAL/PAUSE when the handset is not in use.

Press CID, or REDIAL/PAUSE repeatedly to browse to the

desired entry.

Press MUTE/DELETE to delete the displayed number. You will hear a

EQPſTOCVKQPVQPG

Multiple handset use

You can use up to two system handsets at a time on an outside call.

To share an outside call:

When a handset is already on a call and you would like to join the call, press

/FLASH on another handset to join the call.

To end the call, press OFF/CLEAR or place the handset in the telephone base

or charger. The call will not end until all handsets hang up.

•

Telephone operation

Directory

Telephone operation

Character chart

Use the dialing keys and the chart below to enter a name (up to 15 characters).

Each press of a particular key causes the characters to be displayed in the

following order:

Review the directory

Entries are sorted alphabetically. To search the directory:

Press when the handset is not in use. Press

CID or to browse.

-OR-

Press MENU/SELECT twice when the handset is not

in use.

Press CID or to select Review.

Press MENU/SELECT and then press CID or

to browse.

Number

key

Characters by number of key presses

1234 5 6 7891011

11.-’ ( ) *#&/ ,

2ABCa b c 2

3DEFd e f 3

4GHI g h i 4

5JKLj k l 5

6MNOm n o 6

7PQRS p q r s7

8TUVt u v 8

9WXYZ w x y z 9

0space 0

TONE

9JGPGPVGTKPICPCOGKPVJGFKTGEVQT[VJGſTUVNGVVGTQHGCEJYQTFKU

automatically capitalized. Press the number key repeatedly until the desired

character appears.

•

Mike Smith

800-595-9511

REVIEW

Telephone operation

Alphabetical search

To start an alphabetical search:

Follow the steps in Review the directory on page 19 to enter the directory.

Use the dialing keys to enter the letters associated with the name. For

example, if you have entries for Jenny, Jessie, Kristen and Laura in your

directory, press 5 (JKL) once to see Jenny, twice to see Kristen (if you have

more than one stored entry beginning with the same letter, in this case Jenny

CPF,GUUKGYKVJVJGſTUVGPVT[FKURNC[GF=Jenny], press to view all other

entries beginning with that letter), or three times to see Laura. If there is no

name entry matching your search, the next closest match in alphabetical

order appears. If necessary, press CID or on the handset to browse.

Dial a directory entry

Search for the desired entry in the directory (see Review the directory on

page 19 or Alphabetical search above).

When the desired entry appears, press /FLASH to dial.

Edit a directory entry

Search for the desired entry in the directory (see Review the directory on

page 19 or Alphabetical search above).

When the desired entry appears, press MENU/SELECT.

The screen displays Edit number and the desired entry’s number.

If the number is more than 11 digit, the screen will

not display Edit Number but the desired entry’s

number only.

4. Use the dialing keys to edit the number.

Press MUTE/DELETE to backspace and erase a digit.

Press and hold MUTE/DELETE to erase the entire entry.

Press CID or to move the cursor to the left or right.

Press and hold REDIAL/PAUSE to insert a dialing pause (a P appears).

Press MENU/SELECT to move to the name. The screen

displays Edit name and the desired entry’s name

displays.

Use the dialing keys (see Character Chart on page 19)

to edit the name.

Press MUTE/DELETE to backspace and erase

a character.

Press and hold MUTE/DELETE to erase the

entire entry.

Press CID or to move the cursor to the left

or right.

Press MENU/SELECTVQEQPſTO6JGUETGGPFKURNC[USaved and you hear a

EQPſTOCVKQPVQPG

•

Edit name

Mike Smith_

Edit number

800-595-9511_

Telephone operation

Delete a directory entry

Search for the desired entry in the directory (see

Review the directory on page 19 or Alphabetical

search on page 20).

When the desired entry appears, press MUTE/DELETE.

The screen displays Delete Contact? and the number.

Press MENU/SELECTVQEQPſTO6JGUETGGPFKURNC[U

Deleting ... and Contact deleted. You will hear a

EQPſTOCVKQPVQPG

Delete contact?

800-595-9511

Deleting...

About caller ID

This product supports caller ID services provided by most telephone service

providers. Depending on your service subscription, you may see the caller’s

number, or the caller’s name and number that are sent by your telephone

UGTXKEGRTQXKFGTCHVGTVJGſTUVQTUGEQPFTKPI%CNNGT+&CNNQYU[QWVQUGGVJG

name, number, date and time of calls.

Information about caller ID with call waiting

Caller ID with call waiting lets you see the name and telephone number of the

caller before answering the telephone, even while on another call.

It may be necessary to change your telephone service to use this feature.

Contact your telephone service provider if:

You have both caller ID and call waiting, but as separate services (you may

need to combine these services).

You have only caller ID service, or only call waiting service.

You do not subscribe to caller ID or call waiting services.

There are fees for caller ID services. In addition, services may not be available

in all areas.

This product can provide information only if both you and the caller are in

areas offering caller ID service and if both telephone service providers use

compatible equipment. The time and date are sent by your telephone service

provider along with the call information.

You can use this product with regular caller ID service, or you can use this

product’s other features without subscribing to either caller ID or combined

caller ID with call waiting service.

•

The name (if available), telephone number, date and time of all incoming calls

are shown on the screen.

You hear a double beep when it reaches the beginning or end of the call log list.

•

Contact deleted

Telephone operation

Call log

If you subscribe to caller ID service, information about each caller will appear

CHVGTVJGſTUVQTUGEQPFTKPI+H[QWCPUYGTCECNNDGHQTGVJGECNNGTKPHQTOCVKQP

appears on the screen, it will not be saved in the call log.

The call log stores up to 30 entries. Each entry has up to 24 digits for the

phone number and 15 characters for the name. If the phone number has

more than 15 digits, only the last 15 digits appear. If the name has more

VJCPEJCTCEVGTUQPN[VJGſTUVEJCTCEVGTUCTGUJQYPCPFUCXGFKPVJG

call log.

You can review, redial and copy an entry into the directory.

Entries appear in reverse chronological order.

When the call log is full, the oldest entry is deleted to make room for new

incoming call information.

XX missed call(s) displays when there are new call log entries that have not

been reviewed.

Call log empty displays when there are no records in the call log.

Only one handset can review the call log at a time. If a handset tries to enter

the call log while another handset is already in it, Not available displays.

Missed call indicator

When there are calls that have not been reviewed in the call

log, the handset displays XX missed calls.

Each time you review a call log entry marked NEW, the

number of missed calls decreases by one.

When you have reviewed all the missed calls, the missed

call indicator no longer displays.

If you do not want to review the missed calls one by one,

press and hold OFF/CANCEL on the handset to erase the

missed call indicator. All the entries are then considered old

and kept in the call log.

•

The caller ID information may not be available for every incoming call. The

callers may intentionally block their names and/or telephone numbers.

For call log entries with numbers between 16 and 24 digits, in order to view the

entire number, you must save the entry to the directory (see page 24).

If the phone number has more than 24 digits, it will not be saved or shown in the

call log.

•

xx missed calls

10:15 PM

12/25

Mike Smith

595-9511

10:15 PM

12/25

NEW

Telephone operation

Memory match

When the incoming telephone number matches exactly a telephone number

in your directory, the name on the screen matches the corresponding name in

your directory.

For example, if Linda Jones calls, her name appears as Linda if this is how

you entered it into your directory.

Review the call log

Press CID when the handset is not in use.

Press CID or to browse.

-OR-

Press MENU/SELECT when the handset is not in use. Press CID or to

select Call log.

Press MENU/SELECT and then press CID or to select Review.

Press MENU/SELECT and then press CID or to browse.

View dialing options

Although the call log entries received have 10 digits (the area code plus the

seven-digit number), in some areas, you may dial only the seven digits, or a 1

plus the seven digits, or a 1 plus the area code plus the

seven digits. You can change the number of digits that

you dial from or store to the directory.

While reviewing the call log, press # (the pound key)

repeatedly to show different dialing options for local

and long distance numbers before dialing or saving the

telephone number in the directory.

Press 1 repeatedly if you need to add or remove 1 in

front of the telephone number before dialing or saving it

in the directory.

When the number is shown in the correct format for

dialing, press /FLASH on the handset to call

the number.

The number shown in the call log is in the format sent by the telephone service

provider. It usually delivers 10-digit telephone numbers (area code plus phone

number). If the last seven digits of the incoming telephone number does not

match a number in your directory, the name appears as it is delivered by the

telephone service provider.

If you have programmed the home area code (see page 12), only the last

seven digits of the incoming phone numbers from that area code will be

displayed while reviewing the call log. Press # repeatedly to display all possible

dialing options.

595-9511

1-595-9511

800-595-9511

1-800-595-9511

800-595-9511

1-800-595-9511

595-9511

1-595-9511

Telephone operation

Dial a call log number

When in the call log (see Review the call log on page 23), press CID or

to browse to the desired entry.

Press /FLASH to call.

Save a call log entry to the directory

When in the call log (see Review the call log on page 23), press CID or

to browse.

When the desired entry appears, press MENU/SELECT.

The screen displays Edit number and the desired

entry’s number.

4. Use the dialing keys to edit the number.

Press MUTE/DELETE to backspace and erase

a digit.

Press and hold MUTE/DELETE to erase the entire entry.

Press CID or to move the cursor to the left or right.

Press and hold REDIAL/PAUSE to insert a dialing pause (a P appears).

Press MENU/SELECT to move to the name. The

screen displays Edit name and the desired entry’s

name displays.

Use the dialing keys (see Character chart on page 19)

to edit the name.

Press MUTE/DELETE to backspace and erase

a character.

Press and hold MUTE/DELETE to erase the

entire entry.

Press CID or to move the cursor to the left or right.

Press MENU/SELECTVQEQPſTO6JGUETGGPFKURNC[USaved and you hear a

EQPſTOCVKQPVQPG

•

Edit number

800-595-9511_

Edit name

Mike Smith_

If the entry is already saved in the directory, the screen displays

Number repeated.

f there is no caller ID information, the screen displays Unable to save and you

hear

a double beep.

•

Telephone operation

Delete from the call log

Delete an entry:

When in the call log, press CID or to browse.

Press MUTE/DELETE to delete the selected entry. The screen displays

Deleting...CPF[QWJGCTCEQPſTOCVKQPVQPG

Delete all entries:

Press MENU/SELECT when the handset is not in use. Press CID or to

select Call log.

Press MENU/SELECT and then press CID or to select

Del all calls.

Press MENU/SELECT and the screen displays

Delete all?

Press MENU/SELECTVQEQPſTO6JGUETGGPFKURNC[U

Deleting...CPF[QWJGCTCEQPſTOCVKQPVQPG

Displays When

PRIVATE NAME The caller is blocking the name information.

PRIVATE NUMBER The caller is blocking the telephone number

information.

PRIVATE CALLER The caller is blocking the name and number

information.

UNKNOWN NAME This caller’s name is unavailable.

UNKNOWN NUMBER This caller’s number is unavailable.

UNKNOWN CALLER No call information is available about this caller.

LONG DISTANCE

-OR-

L (before the caller’s number)

It is a long distance call.

Delete all?

Call log display screen messages

Answering system set up

You must use a system handset to change your answering system settings.

Answer ON/OFF

The answering system must be turned on to answer and record messages.

When the answering system is turned on, the /ANS ON/OFF light on the

telephone base will be on and ANS ON will display on the handset.

To turn on or off with the telephone base:

Press /ANS ON/OFF to turn the built-in answering system on

or off. When the answering system is turned on, it announces,

“Calls will be answered.”

When the answering system is turned

off, it announces,

“Calls will not be answered.”

To turn on or off with a handset:

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Answer ON/OFF, then press MENU/SELECT.

Press CID or to choose On or Off, then press MENU/SELECT to

EQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG

Call screening

You can listen at the telephone base to a caller leaving a message. If you

want to turn off the call screening feature, set the call screening off on the

handset. Remember to increase the volume in order to hear your messages

during playback.

To turn on or off with a handset:

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Ans sys setup, then press MENU/SELECT.

Press MENU/SELECT to select Call screening.

Press CID or to choose On or Off, then press MENU/SELECT to

EQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG

•

Answering system settings

Number of rings

You can choose from two, four, or six rings; or toll saver. With toll saver

selected, the answering system answers after two rings when you have

new messages, and after four rings when you have no new messages. This

enables you to check for new messages and avoid paying unnecessary long

distance charges if you are calling from out of your local area.

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Ans sys setup, then press MENU/SELECT.

Press CID or to select # of rings, then press MENU/SELECT.

Press CID or to choose from 6,4,2 or Toll saver, then press

MENU/SELECT VQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG

Remote access code

A two-digit security code is required to access the answering system remotely

from any touch-tone telephone. The preset code is 19. You can set the code

from 00 to 99.

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Ans sys setup, then press MENU/SELECT.

Press CID or to select Remote code, then press MENU/SELECT.

Press the dialing keys (0-9) to enter the code or CID or to select from

00 to 99, then press MENU/SELECT VQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCT

CEQPſTOCVKQPVQPG

Message alert tone

This telephone can beep every 10 seconds to alert you of new messages. The

tone stops when all new messages have been reviewed.

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Ans sys setup, then press MENU/SELECT.

Press CID or to select Msg alert tone, then press MENU/SELECT.

Press CID or to choose On or Off, then press MENU/SELECT to

EQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG

While the answering system is answering a call, you can press /VOLUME once

on the telephone base, or press /PLAY/STOP to temporarily turn on the call

screening. Press /PLAY/STOP to temporarily turn off the call screening.

The answering system must be turned on for the message alert tone to function.

Press any key on the telephone base (except /FIND HANDSET) to temporarily

silence the message alert tone.

•

Answering system settings

Recording time

You can set the recording time for each incoming message.

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Ans sys setup, then press MENU/SELECT.

Press CID or to select Recording time, then press MENU/SELECT.

Press CID or to choose from 3 minutes,2 minutes or 1 minute,

then press MENU/SELECT VQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTC

EQPſTOCVKQPVQPG

Announcement

The telephone is preset with a greeting that answers calls with

“Hello, please

leave a message after the tone.”

You can use this preset announcement, or

replace it with your own.

Play your announcement

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press MENU/SELECT to select Announcement.

The handset announces,

“To play, press 2. To record, press 7.”

Press 2

to play.

Record your own announcement

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press MENU/SELECT to select Announcement.

The handset announces,

“To play, press 2. To record, press 7.”

Press 7

to record.

The handset announces,

“Record after the tone. Press 5 when you are done.”

After the tone, speak towards the microphone of the handset.

Press 5YJGPſPKUJGF

The answering system automatically plays back the newly recorded

announcement. Press 5 to stop the playback at any time; 2 to replay the

recorded announcement; or 7 to record again if desired.

Your announcement can be up to 90 seconds in length.

Announcements shorter than two seconds will not be recorded.

•

Answering system settings

Delete your announcement

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press MENU/SELECT to select Announcement.

The handset announces,

“To play, press 2. To record, press 7.”

Press 3

to delete your own recorded announcement. The handset announces,

“Announcement deleted.”

When your announcement is deleted, calls are answered with the

preset announcement.

•

Answering system and voicemail

Your telephone has separate indicators for two different types of voice

messages: those left on its built-in answering system and those left at your

service provider’s voicemail. Your telephone’s built-in answering system

messages and voicemail messages are separate. Each alerts you to new

messages differently.

If and New voicemail display on the handset, your telephone service

provider is indicating that it has new voicemail for you. To listen to your

voicemail, you typically dial an access number provided by your telephone

service provider, followed by a security code or PIN.

If and XX new message(s) display on the handset and the message

YKPFQYQPVJGVGNGRJQPGDCUGƀCUJGUVJGTGCTGPGYCPUYGTKPIU[UVGO

messages. Press MENU/SELECT twice on the handset (page 31) or

/PLAY/STOP on the telephone base (page 31) to listen.

Some service providers bundle or combine multiple services like voicemail

and call waiting, so you may not be aware that you have voicemail. To check

what services you have and how to access them, contact your telephone

service provider.

To use your voicemail service rather than your answering system, turn off your

answering system. To use your answering system rather than your voicemail

service, contact your telephone service provider to deactivate your voicemail

service. You can also use your telephone answering system and voicemail

together by setting your built-in answering system to answer before voicemail

answers as described below. To learn how to program your voicemail settings,

contact your telephone service provider. Then, if you are on a call, or if the

answering system is busy recording a message and you receive another call,

the second caller can leave a voicemail message.

Set your answering system to answer calls at least two rings earlier than

your voicemail is set to answer. For example, if your voicemail answers

after six rings, set your answering system to answer after four rings. Some

voicemail providers may program the delay before answering calls in seconds

instead of rings. In this case, allow six seconds per ring when determining the

appropriate setting.

Message capacity

The answering system can record and store up to 99 messages. Each

message can be up to three minutes in length. The total storage capacity

for the announcement, messages and memos is approximately 14 minutes.

The actual recording time depends on individual message characteristics.

Messages remain available for replay until you delete them.

•

Answering system operation

New message indication

When there are new answering system messages, and XX new message(s)

UJQYQPVJGJCPFUGVCPFVJGOGUUCIGYKPFQYQPVJGVGNGRJQPGDCUGƀCUJGU

If the new message alert tone is turned on, the telephone base beeps every

10 seconds when there are messages that have not been reviewed.

Call intercept

If you want to talk to the person whose message is being recorded, press

/FLASH or on the handset.

Message playback

If you have new messages, the telephone plays only the new messages (oldest

ſTUV+HVJGTGCTGPQPGYOGUUCIGUVJGVGNGRJQPGRNC[UDCEMCNNOGUUCIGU

QNFGUVſTUV

When playback begins, you hear the total number of messages followed by the

day and time of the message. After the last message, the telephone announces,

“End of messages.”

To play messages with the telephone base:

Press /PLAY/STOP when the phone is not in use.

Options during playback:

Press /VOLUME or /VOLUME to adjust the speaker volume.

Press /SKIP to skip to the next message.

Press /REPEAT to repeat the message currently playing.

Press /REPEAT twice to listen to the previous message.

Press X/DELETE to delete the current message. The system advances to

the next message.

Press /PLAY/STOP to stop.

To play messages with a handset:

Press MENU/SELECT when the phone is not in use.

Press MENU/SELECT to select Play messages.

Options during playback:

Press CID/VOL- or /VOL+ to adjust the speaker volume.

Press 6 to skip to the next message.

Press 4 to repeat the message currently playing. Press 4 twice to listen to

the previous message.

Press 3 to delete the current message. The system advances to the

next message.

Press OFF/CLEAR to stop.

•

During message playback, if there is an incoming call or another handset makes

a call, message playback will be stopped.

•

Answering system operation

Delete all messages

To delete all messages with the telephone base:

Press X/DELETE when the phone is not in use.

The telephone announces, “To delete all old messages, press DELETE

again.” Press X/DELETE again. All previously heard messages are erased

and the telephone announces, “All old messages deleted.”

To delete all messages with a handset:

Press MENU/SELECT when the handset is not in use.

Press CID or to select >Answering Sys, then press MENU/SELECT.

Press CID or to select >Delete all old, then press MENU/SELECT.

The handset shows Delete all msg?

Press MENU/SELECTVQEQPſTO[QWTUGNGEVKQP6JGUETGGPFKURNC[U

Deleting ... and No old messages;QWYKNNJGCTCEQPſTOCVKQPVQPG

Record, play or delete memos

Memos are your own recorded messages used as reminders for yourself or

others using the same answering system. You can record your own memos

using a system handset. Playback and delete them in the same way as

incoming messages.

To record a memo:

Press MENU/SELECT when the handset is not in use.

Press CID or to select Answering Sys, then press MENU/SELECT.

Press CID or to select Record memo, then press MENU/SELECT.

The handset announces,

“Record after the tone. Press 5 when you are

done.”

After the tone, speak towards the microphone of the handset.

Press 5YJGPſPKUJGFTGEQTFKPI6JGJCPFUGVCPPQWPEGU

“Recorded.”

If you record a memo when the answering system memory is full, “MEMORY IS

FULL” will be announced.

Each memo can be up to three minutes in length and memos shorter than two

second are not recorded.

When the answering system has less than three minutes of recording time left,

“Less than three minutes to record” is announced at the telephone base and the

handset displays Rec mem low.

When FCPFPWODGTQTOGUUCIGUCTGƀCUJKPICNVGTPCVGN[KPVJGOGUUCIG

window or the handset displays Rec mem full, the memory is full. Delete some

messages to make room for more.

You can only delete old messages, which are messages you have played.

•

Answering system operation

When the memory is full, the answering system answers incoming calls after

10 rings and announces, “Memory is full. Enter the remote access code.”

•

Window display Description

0No messages.

1-9 9 Total number of old messages recorded.

Current message number during old message playback.

0-99 ƀCUJKPI 9JGPVKOGCPFFCVGCTGPQVUGVKVƀCUJGUVQVCNPWODGT

of new messages recorded, or total number of old

messages recorded.

The telephone base may have lost and regained power.

The clock needs to be set.

1-9 9 & F (alternating) Memory is full with total number of messages recorded.

1-8 Telephone base speaker volume level while adjusting.

-- The system is answering a call, recording a memo or

announcement.

Telephone is answering a call, accessing directory or call

log, or being accessed remotely.

The answering system is being programmed.

0-6 Telephone base ringer level while adjusting.

Message window displays

Answering system operation

Remote access

A two-digit security code is required to access the answering system remotely

from any touch-tone telephone. The preset code is 19; see Remote access

code on page 27 to change it.

Dial your telephone number from any touch-tone telephone.

When the system plays your announcement, enter the two-digit security

code.

Then you can enter one of the following remote commands.

Hang up or press 8 to end the call.

Command Function

1Play all messages.

2Play only new messages.

3Delete the current message (during playback).

33 Delete all old messages.

4Repeat the current message (during playback).

5Stop.

*5 Hear a list of remote commands.

6Skip to the next message (during playback).

*7 Record a new announcement.

8End the call.

0Turn the answering system on or off.

If you do not press any keys after you enter the remote access code, all new and

old messages play. If there are no new messages, all old messages play.

Once the new messages have played, the telephone announces the help menu

options. If you do not press any key within 20 seconds, the remote access call

automatically disconnects.

When the answering system is turned off, the telephone answers after 10 rings,

and announces, “Please enter your remote access code.”

•

Appendix

Call log empty There are no call log entries.

Directory empty There are no directory entries.

Directory full The directory is full.

Ended X:XX:XX You have just ended a call.

Incoming call There is an incoming call.

Line in use A system handset or another telephone on the same line

is in use.

Low battery The battery needs to be recharged.

Microphone on MUTE is turned off and the person on the other end can

hear you.

Muted You have turned off the handset microphone. The other

party cannot hear you but you can hear the other party.

New voicemail There are new voicemail message(s) from the telephone

service provider.

No battery No battery is installed. Follow the directions for battery

installation on page 4 to install the battery before charging.

No line There is no telephone line connected.

No signal Communication between handset and telephone base is

lost during a call.

Not available One handset is already viewing the call log and another

handset attempts to review it.

Number repeated The telephone number entered is already stored in the

directory.

Out of range or no

pwr at base

The handset cannot communicate with the telephone

base. Check the telephone base power connection or

move closer.

Phone X:XX:XX The handset is on a call.

Place in charger The battery is very low. Place the handset in the telephone

base or charger for recharging.

Rec mem full Answering system has no recording time left.

Rec mem low Answering system has less than three minutes recording

time left.

Ringer muted The handset ringer is muted temporarily during an

incoming call.

Screen display messages

Appendix

Ringer off The handset ringer is turned off.

Saved Your selection has been saved.

XX missed calls There are calls that have not been reviewed in the call log.

XX new messages There are new messages in the answering system.

** Paging ** All system handsets are being paged.

Screen display messages

Appendix

$CVVGT[UVCVWUƀCUJGUYJGPVJGDCVVGT[KUNQYCPFPGGFUEJCTIKPI

Battery status - animates when the battery is charging.

Battery status - becomes solid when the battery is fully charged.

New voicemail received from the telephone service provider.

New answering system messages.

NEW New missed call(s) in call log.

ANS ON Answering system is turned on.

Message number currently playing and total number of messages

recorded.

Handset screen icons

Handset and telephone base indicators

Handset light

CHARGE On when the handset is charging in the telephone base or

charger.

Telephone base light

IN USE On when the telephone line is in use.

On when the answering system is answering a call.

Flashes quickly when there is an incoming call.

Flashes when another telephone sharing the same line is

in use.

/ANS ON/OFF On when the answering system is turned on.

1/13

Appendix

Battery

It takes up to 16 hours for the battery to be fully charged. When it is fully charged,

you can expect the following performance:

Operation Operating time

While in use (talking*) Seven hours

While not in use (standby**) Seven days

*Operating times vary depending on your actual use and the age of the battery.

**Handset is not charging or in use.

The battery needs charging when:

A new battery is installed in the handset.

The handset beeps every minute while on a call.

The handset beeps and Low battery displays on the handset.

A battery is properly installed and the screen is blank.

CAUTION:

6QTGFWEGVJGTKUMQHſTGQTKPLWT[TGCFCPFHQNNQYVJGUGKPUVTWEVKQPU

Use only the battery(ies) provided or equivalent. To order a replacement, visit our

website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.

vtechcanada.com or call 1 (800) 267-7377.

&QPQVFKURQUGQHVJGDCVVGT[KGUKPCſTG%JGEMYKVJNQECNYCUVGOCPCIGOGPVEQFGU

for special disposal instructions.

Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may

cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.

Exercise care in handling batteries in order not to create a short circuit with conductive

materials.

%JCTIGVJGDCVVGT[KGURTQXKFGFYKVJQTKFGPVKſGFHQTWUGYKVJVJKURTQFWEVQPN[KP

CEEQTFCPEGYKVJVJGKPUVTWEVKQPUCPFNKOKVCVKQPUURGEKſGFKPVJKUOCPWCN

Observe proper polarity orientation between the battery and metallic contacts.

6QRTGXGPVſTGQTUJQEMJC\CTFFQPQVGZRQUGVJKURTQFWEVVQYCVGTQTCP[V[RGQH

moisture.

•

Appendix

Troubleshooting

+H[QWJCXGFKHſEWNV[YKVJ[QWTVGNGRJQPGRNGCUGVT[VJGUWIIGUVKQPUDGNQY

For customer service, visit our website at www.vtechphones.com or call

1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call

1 (800) 267-7377.

My telephone does not work at all.

Make sure the battery is installed and charged correctly (pages 4 and 5). For optimum

daily performance, return the handset to the telephone base or charger after use.

Make sure the power adapter is securely plugged into an outlet not controlled by a

wall switch.

/CMGUWTGVJGVGNGRJQPGNKPGEQTFKURNWIIGFſTON[KPVQVJGVGNGRJQPGDCUGCPFVJG

wall jack.

Unplug the electrical power to the telephone base. Wait for approximately 15 seconds,

then plug it back in. Allow up to one minute for the cordless handset and telephone

base to synchronize.

Charge the battery in the handset for up to 16 hours.

If the battery is completely depleted, it may take up to 10 minutes to charge the

handset before Low battery appears on the screen (page 5).

Remove and install the battery again. If that still does not work, it may be necessary to

purchase a new battery.

Disconnect the telephone base from the telephone wall jack and plug in a working

telephone. If the other telephone does not work, the problem is probably in the wiring

or the local telephone service. Contact your telephone service provider.

There is no dial tone.

First, try all the above suggestions.

Move the handset closer to the telephone base. It may be out of range.

The telephone line cord may be malfunctioning. Install a new telephone line cord.

Disconnect the telephone base from the telephone wall jack and connect a different

telephone. If there is no dial tone on this telephone either, the problem is in your

wiring or local telephone service. Contact your telephone service provider.

I cannot dial out.

First, try all the above suggestions.

Make sure there is a dial tone before dialing. It is normal if the handset takes a second

or two to synchronize with the telephone base before producing a dial tone. Wait an

extra second before dialing.

If the other telephones in your home are having the same problem, the problem is in the

wiring or local telephone service. Contact your telephone service provider (charges may

apply).

Eliminate any background noise. Mute the cordless handset before dialing, or dial from

another room in your home with less background noise.

Low battery shows on the handset screen.

Place the handset in the telephone base or charger for recharging.

•

Appendix

Remove and install the battery again and use it until fully depleted, then charge the

handset in the telephone base for up to 16 hours.

If the above measures do not correct the problem, replace the battery.

The battery does not charge in the handset or the handset battery does

not accept charge.

Make sure the handset is placed in the telephone base or charger correctly. The

CHARGE light on the handset should be on.

Remove and install the battery again, then charge for up to 16 hours.

If the handset is in the telephone base or charger but the CHARGE light on the

handset is not on, refer to The CHARGE light is off below.

If the battery is completely depleted, it may take up to 10 minutes to charge the

handset before Low battery appears on the screen (page 5).

Purchase a new battery. Refer to the Battery section (page 38).

The CHARGE light is off.

Clean the charging contacts on the handset and telephone base or charger each

month with a pencil eraser or a dry non-abrasive fabric.

Make sure the power adapter and telephone line cord are plugged in correctly and

securely.

Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to

one minute for the handset and telephone base or charger to reset.

The telephone does not ring when there is an incoming call.

Make sure the handset ringer volume is not set to off (see page 9).

Make sure the telephone line cord and power adapter are plugged in properly (page 2).

The handset may be too far from the telephone base. Move it closer to the telephone

base.

There may be too many extension phones on the telephone line to allow all of them to

ring simultaneously. Unplug some of them.

If the other telephones in your home are having the same problem, the problem is in

the wiring or local telephone service. Contact your telephone service provider

(charges may apply).

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as

possible from these types of electronic devices.

Test a working telephone at the telephone wall jack. If another telephone has the same

problem, the problem is in the telephone wall jack. Contact your telephone service

provider (charges may apply).

The telephone line cord may be malfunctioning. Install a new telephone line cord.

Remove and install the battery again and place the handset in the telephone base.

Wait for the handset to synchronize with the telephone base. Allow up to one minute

for this to take place.

•

Troubleshooting

Appendix

My handset beeps and is not performing normally.

Make sure the power cord is securely plugged into the telephone base. Plug the

telephone base into a different working electrical outlet not controlled by a wall switch.

Move the handset closer to the telephone base. It may be out of range.

Reset the telephone base by unplugging the electrical power to the base. Wait for

15 seconds and plug it back in again. Allow up to one minute for the cordless handset

and the telephone base to synchronize.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as

possible from these types of electronic devices.

There is interference during a telephone conversation.

My calls fade out when I am using the cordless handset.

The handset may be out of range. Move it closer to the telephone base.

If you subscribe to high-speed Internet service (DSL - digital subscriber line) through

[QWTVGNGRJQPGNKPG[QWOWUVKPUVCNNC&5.ſNVGTDGVYGGPVJGVGNGRJQPGNKPGEQTFCPF

VJGVGNGRJQPGYCNNLCEM6JGſNVGTRTGXGPVUPQKUGCPFECNNGT+&RTQDNGOUECWUGFD[

DSL interference. Contact your DSL service provider for more information about DSL

ſNVGTU

Appliances or other cordless telephones plugged into the same circuit as the

telephone base can cause interference. Try moving the appliance or telephone base

to another outlet.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as

possible from these types of electronic devices.

If your telephone is plugged in with a modem or a surge protector, plug the telephone

(or modem/surge protector) into a different location. If this doesn’t solve the problem,

relocate your telephone or modem farther apart from each other, or use a different surge

protector.

The location of your telephone base can impact the performance of your cordless

phone. For better reception, install the telephone base in a centralized location within

[QWTJQOGQTQHſEGCYC[HTQOYCNNUQTQVJGTQDUVTWEVKQPU+POCP[GPXKTQPOGPVU

elevating the telephone base improves overall performance.

Disconnect the telephone base from the telephone wall jack and plug in a corded

telephone. If calls are still not clear, the problem is probably in the wiring or local

telephone service. Contact your telephone service provider (charges may apply).

If the other telephones in your home are having the same problem, the problem is

in the wiring or local telephone service. Contact your telephone service provider

(charges may apply).

I hear other calls when using the telephone.

Disconnect the telephone base from the telephone wall jack. Plug in a different

telephone. If you still hear other calls, the problem is probably in the wiring or local

telephone service. Contact your telephone service provider.

•

Troubleshooting

Appendix

Troubleshooting

I hear noise on the cordless handset and the keys do not work.

Make sure the telephone line cord is plugged in securely.

My caller ID features are not working properly.

Caller ID is a subscription service. You must subscribe to this service from your

telephone service provider for this feature to work on your telephone.

The caller may not be calling from an area which supports caller ID.

Both your and the caller’s telephone service providers must use equipment

compatible with the caller ID service.

6JGECNNGT+&KPHQTOCVKQPUJQYUCHVGTVJGſTUVQTUGEQPFTKPI

If you subscribe to high-speed Internet service (DSL - digital subscriber line) through

[QWTVGNGRJQPGNKPG[QWOWUVKPUVCNNC&5.ſNVGTDGVYGGPVJGVGNGRJQPGNKPGEQTFCPF

VJGVGNGRJQPGYCNNLCEM6JGſNVGTRTGXGPVUPQKUGCPFECNNGT+&RTQDNGOUECWUGFD[

DSL interference. Contact your DSL service provider for more information about DSL

ſNVGTU

The telephone does not receive caller ID or the telephone does not show

caller ID during call waiting.

Make sure you subscribe to caller ID with call waiting features provided by your

telephone service provider.

The caller may not be calling from an area which supports caller ID.

Both your and the caller’s telephone service providers must use equipment

compatible with caller ID service.

If you subscribe to high-speed Internet service (DSL - digital subscriber line) through

[QWTVGNGRJQPGNKPG[QWOWUVKPUVCNNC&5.ſNVGTDGVYGGPVJGVGNGRJQPGNKPGEQTFCPF

VJGVGNGRJQPGYCNNLCEM6JGſNVGTRTGXGPVUPQKUGCPFECNNGT+&RTQDNGOUECWUGFD[

DSL interference. Contact your DSL service provider for more information about DSL

ſNVGTU

Caller ID entries do not match the numbers I need to dial.

Caller ID service delivers 10 digits (the area code plus the seven-digit number). If you

need to dial something other than 10 digits, see the view dialing options feature on

page 23 for instructions on changing the number.

If you dial seven digits for local calls, you may want to use the home area code feature

(see page 12).

Out of range or no pwr at base shows on the handset screen.

The handset may be out of range. Move it closer to the telephone base.

Make sure the power cord is securely plugged into the telephone base. Use a working

electrical outlet not controlled by a wall switch.

Reset your telephone by unplugging the power adapter from the telephone base.

Disconnect the battery from the cordless handset. Wait for 15 seconds, then plug in

the power adapter and install the battery again. Place the handset in the telephone

base and allow up to one minute for the handset and telephone base to synchronize.

•

Appendix

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as

possible from these types of electronic devices.

New voicemail and show on the handset display and I don’t know why.

Your telephone has voicemail indication that is separate from the built-in answering

system. If New voicemail and appear on the handset, your telephone has

received a signal from your telephone service provider that you have a voicemail

message waiting for you to retrieve from them. Contact your telephone service

provider for more information on how to access your voicemail.

I cannot retrieve voicemail messages.

Your telephone has both a built-in answering system and voicemail indication. They

are independent features and each alerts you to new messages differently (page 30).

you subscribe to voicemail service from your telephone service provider (charges may

apply), contact your telephone service provider for more information on how to access

your voicemail.

The answering system does not answer after the correct number of rings.

Make sure the answering system is on. When the answering system is on, the

/ANS ON/OFF light on the telephone base should be lit and ANS ON should show

on the handset.

If toll saver is selected, the number of rings changes to two when there are new

messages waiting (page 15).

If the memory is full or if the answering system is off, the answering system answers

after 10 rings.

In some cases, the answering system is affected by the ringing system used by your

telephone service provider.

If you subscribe to voicemail service, change the number of rings so that your

answering system answers before your voicemail answers (page 36). To determine

how many rings will activate your voicemail, please contact your telephone service

provider.

If there is a fax machine connected to the same telephone line, try disconnecting the

fax machine. If that solves the problem, consult your fax machine documentation for

information on compatibility with answering systems.

The outgoing announcement is not clear.

When recording the announcement, make sure you speak in a normal tone of voice

towards the microphone of the handset.

Make sure there is no background noise when recording.

The answering system does not record messages.

Make sure the answering system is on.

When the answering machine memory is full, it does not record new messages until

some old messages are deleted.

•

Troubleshooting

Appendix

If you subscribe to voicemail service, change the number of rings so that your

answering system answers before your voicemail answers (page 36). To determine

how many rings will activate your voicemail, please contact your local telephone

service provider.

If there is a fax machine connected to the same telephone line, try disconnecting the

fax machine. If that solves the problem, consult your fax machine documentation for

information on compatibility with answering systems.

6JGOGUUCIGUQPVJGCPUYGTKPIU[UVGOCTGXGT[FKHſEWNVVQJGCT

Press /VOLUME on the telephone base or /VOL+ on the handset to increase

the speaker volume.

The messages on the answering system are incomplete.

If a caller leaves a very long message, part of it may be lost when the answering

system disconnects the call after the preset recording time.

If the memory on the answering system becomes full during a message, the

answering system stops recording and disconnects the call.

If the caller’s voice is very soft, the answering system may stop recording and

disconnect the call.

The answering system does not respond to remote commands.

Make sure your remote access code is correct (page 27).

Make sure you are calling from a touch-tone telephone. When dialing a number, there

should be tones. If there are clicks, then it is not a touch-tone telephone and cannot

activate the answering system.

The answering system may not detect the remote access code when your

announcement is playing. Wait until the announcement is over before entering the

code.

There may be interference on the telephone line you are using. Press the dialing keys

ſTON[YJGPFKCNKPI

I subscribe to a nontraditional telephone service that uses my computer

to establish connections, and my telephone doesn’t work.

Make sure your computer is powered on.

Make sure your Internet connection is working properly.

Make sure that the software is installed and running for your nontraditional telephone

service.

Make sure to plug your USB telephone adapter into a dedicated USB port on your

computer. Do not plug into a multiple port USB hub (USB splitter) that is not powered.

In a few rare instances, the USB port on your computer may not have enough power.

In these instances, try using a USB hub with its own external power supply.

+H[QWCTGWUKPICſTGYCNNKVOC[RTGXGPVCEEGUUVQ[QWTPQPVTCFKVKQPCNVGNGRJQPG

service. Contact your service provider for more information.

•

Troubleshooting

Appendix

Common cure for electronic equipment.

If the telephone is not responding normally, put the cordless handset in the telephone

base. If it does not respond, try the following (in the order listed):

1. Disconnect the power to the telephone base.

2. Disconnect the battery on the cordless handset.

3. Wait a few minutes before connecting power to the telephone base.

4. Install the battery again and place the cordless handset in the telephone base .

5. Wait for the cordless handset to synchronize with the telephone base. Allow up to

one minute for this to take place.

•

Troubleshooting

Appendix

Important safety instructions

When using your telephone equipment, basic safety precautions should always be followed to

TGFWEGVJGTKUMQHſTGGNGEVTKEUJQEMCPFKPLWT[KPENWFKPIVJGHQNNQYKPI

Read and understand all instructions.

Follow all warnings and instructions marked on the product.

Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners.

Use a damp cloth for cleaning.

Do not use this product near water.

Do not place this product on an unstable table, shelf, stand or other unstable surfaces.

Slots and openings in the back or bottom of the telephone base and handset are provided for

ventilation. To protect them from overheating, these openings must not be blocked by placing the

product on a soft surface such as a bed, sofa or rug. This product should never be placed near

or over a radiator or heat register. This product should not be placed in any area where proper

ventilation is not provided.

This product should be operated only from the type of power source indicated on the marking

NCDGN+H[QWCTGPQVUWTGQHVJGV[RGQHRQYGTUWRRN[KP[QWTJQOGQTQHſEGEQPUWNV[QWTFGCNGT

or local power company.

Do not allow anything to rest on the power cord. Do not install this product where the cord may

be walked on.

Never push objects of any kind into this product through the slots in the telephone base or

handset because they may touch dangerous voltage points or create a short circuit. Never spill

liquid of any kind on the product.

To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized

UGTXKEGHCEKNKV[1RGPKPIQTTGOQXKPIRCTVUQHVJGVGNGRJQPGDCUGQTJCPFUGVQVJGTVJCPURGEKſGF

access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can

cause electric shock when the product is subsequently used.

Do not overload wall outlets and extension cords.

Unplug this product from the wall outlet and refer servicing to an authorized service facility under

the following conditions:

When the power supply cord or plug is damaged or frayed.

If liquid has been spilled onto the product.

If the product has been exposed to rain or water.

If the product does not operate normally by following the operating instructions. Adjust only

those controls that are covered by the operation instructions. Improper adjustment of other

controls may result in damage and often requires extensive work by an authorized technician to

restore the product to normal operation.

If the product has been dropped and the telephone base and/or handset has been damaged.

If the product exhibits a distinct change in performance.

Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk

of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

Only put the handset of your telephone next to your ear when it is in normal talk mode.

6JGRQYGTCFCRVGTKUKPVGPFGFVQDGEQTTGEVN[QTKGPVGFKPCXGTVKECNQTƀQQTOQWPVRQUKVKQP6JG

prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or

cabinet outlet.

SAVE THESE INSTRUCTIONS

10.

11.

12.

13.

14.

15.

16.

Appendix

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless telephones):

Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary

evaluation of the interference between portable wireless telephones and implanted cardiac

pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to

physicians that:

Pacemaker patients

Should keep wireless telephones at least six inches from the pacemaker.

Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,

when it is turned ON.

Should use the wireless telephone at the ear opposite the pacemaker.

WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using

wireless telephones.

Operating range

This cordless telephone operates with the maximum power allowed by the Federal Communications

Commission (FCC). Even so, this handset and telephone base can communicate over only a certain

distance - which can vary with the locations of the telephone base and handset, the weather, and the

NC[QWVQH[QWTJQOGQTQHſEG

When the handset is out of range, the handset displays Out of range or no pwr at base.

If there is a call while the handset is out of range, it may not ring, or if it does ring, the call may not

connect well when you press /FLASH. Move closer to the telephone base, then press /FLASH to

answer the call.

If the handset moves out of range during a telephone conversation, there may be interference. To

improve reception, move closer to the telephone base.

Maintenance

Taking care of your telephone

Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.

Avoid rough treatment

Place the handset down gently. Save the original packing materials to protect your telephone if you

ever need to ship it.

Avoid water

Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle

it with wet hands. Do not install the telephone base near a sink, bathtub or shower.

Electrical storms

Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own

safety, take caution when using electrical appliances during storms.

Cleaning your telephone

Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only

with a soft cloth slightly dampened with water or mild soap. Do not use excess water or cleaning

solvents of any kind.

•

Remember that electrical appliances can cause serious injury if used when you are wet or standing

in the water. If the telephone base should fall into the water, DO NOT RETRIEVE IT UNTIL YOU

UNPLUG THE POWER CORD AND TELEPHONE LINE CORD FROM THE WALL. Then remove

the telephone by the unplugged cords.

Appendix

About cordless telephones

Privacy: The same features that make a cordless telephone convenient create some limitations.

Telephone calls are transmitted between the telephone base and the cordless handset by radio

waves, so there is a possibility that the cordless telephone conversations could be intercepted by

radio receiving equipment within range of the cordless handset. For this reason, you should not

think of cordless telephone conversations as being as private as those on corded telephones.

Electrical power: The telephone base of this cordless telephone must be connected to a working

electrical outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot

be made from the cordless handset if the telephone base is unplugged, switched off or if the

electrical power is interrupted.

Potential TV interference: Some cordless telephones operate at frequencies that may cause

interference to televisions and VCRs. To minimize or prevent such interference, do not place

the telephone base of the cordless telephone near or on top of a TV or VCR. If interference is

experienced, moving the cordless telephone farther away from the TV or VCR often reduces or

eliminates the interference.

Rechargeable batteries: Exercise care in handling batteries in order not to create a short

circuit with conducting material such as rings, bracelets, and keys. The battery or conductor may

overheat and cause harm. Observe proper polarity between the battery and the battery charger.

Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner.

Do not burn or puncture the battery. Like other batteries of this type, if burned or punctured, they

could release caustic material which could cause injury.

•

The RBRC® seal

The RBRC® seal on the nickel-metal hydride battery indicates that VTech Communications, Inc. is

voluntarily participating in an industry program to collect and recycle these batteries at the end of

their useful lives, when taken out of service within the United States and Canada.

The RBRC® program provides a convenient alternative to placing used nickel-metal hydride

batteries into the trash or municipal waste, which may be illegal in your area.

VTech’s participation in RBRC®makes it easy for you to drop off the spent battery at local retailers

participating in the RBRC® program or at authorized VTech product service centers. Please call

1 (800) 8 BATTERYTM for information on Ni-MH battery recycling and disposal bans/restrictions

in your area. VTech’s involvement in this program is part of its commitment to protecting our

environment and conserving natural resources.

RBRC® is a registered trademark of Rechargeable Battery Recycling Corporation.

Appendix

Warranty

What does this limited warranty cover?

The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase

(“Consumer” or “you”) that the Product and all accessories provided in the sales package

(“Product”) are free from defects in material and workmanship, pursuant to the following terms

and conditions, when installed and used normally and in accordance with the Product operating

instructions. This limited warranty extends only to the Consumer for Products purchased and used

in the United States of America and Canada.

What will VTech do if the Product is not free from defects in materials and workmanship

during the limited warranty period (“Materially Defective Product”)?

During the limited warranty period, VTech’s authorized service representative will repair or replace

at VTech’s option, without charge, a Materially Defective Product. If we repair the Product, we may

use new or refurbished replacement parts. If we choose to replace the Product, we may replace

it with a new or refurbished Product of the same or similar design. We will retain defective parts,

modules, or equipment. Repair or replacement of the Product, at VTech’s option, is your exclusive

remedy. VTech will return the repaired or replacement Products to you in working condition. You

should expect the repair or replacement to take approximately 30 days.

How long is the limited warranty period?

The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase.

If VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty,

this limited warranty also applies to the repaired or replacement Product for a period of either (a) 90

days from the date the repaired or replacement Product is shipped to you or (b) the time remaining

on the original one-year warranty; whichever is longer.

What is not covered by this limited warranty?

This limited warranty does not cover:

1. Product that has been subjected to misuse, accident, shipping or other physical damage,

KORTQRGTKPUVCNNCVKQPCDPQTOCNQRGTCVKQPQTJCPFNKPIPGINGEVKPWPFCVKQPſTGYCVGTQTQVJGT

liquid intrusion; or

2TQFWEVVJCVJCUDGGPFCOCIGFFWGVQTGRCKTCNVGTCVKQPQTOQFKſECVKQPD[CP[QPGQVJGTVJCPCP

authorized service representative of VTech; or

3. Product to the extent that the problem experienced is caused by signal conditions, network

reliability, or cable or antenna systems; or

4. Product to the extent that the problem is caused by use with non-VTech accessories; or

5. Product whose warranty/quality stickers, product serial number plates or electronic serial

numbers have been removed, altered or rendered illegible; or

6. Product purchased, used, serviced, or shipped for repair from outside the United States of

America or Canada, or used for commercial or institutional purposes (including but not limited to

Products used for rental purposes); or

7. Product returned without a valid proof of purchase (see item 2 below); or

8. Charges for installation or set up, adjustment of customer controls, and installation or repair of

systems outside the unit.

Appendix

Warranty (continued)

How do you get warranty service?

To obtain warranty service in the USA, please visit our website at www.vtechphones.com or call

1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. NOTE: Before

calling for service, please review the user’s manual - a check of the Product’s controls and features

may save you a service call.

Except as provided by applicable law, you assume the risk of loss or damage during transit and

transportation and are responsible for delivery or handling charges incurred in the transport of the

Product(s) to the service location. VTech will return repaired or replaced Product under this limited

warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for

damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty,

or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will

request that you authorize the cost of repair prior to any further repair activity. You must pay for the

cost of repair and return shipping costs for the repair of Products that are not covered by this limited

warranty.

What must you return with the Product to get warranty service?

Return the entire original package and contents including the Product to the VTech service

NQECVKQPCNQPIYKVJCFGUETKRVKQPQHVJGOCNHWPEVKQPQTFKHſEWNV[CPF

Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product

model) and the date of purchase or receipt; and

Provide your name, complete and correct mailing address, and telephone number.

Other limitations

This warranty is the complete and exclusive agreement between you and VTech. It supersedes all

other written or oral communications related to this Product. VTech provides no other warranties

for this Product. The warranty exclusively describes all of VTech’s responsibilities regarding the

2TQFWEV6JGTGCTGPQQVJGTGZRTGUUYCTTCPVKGU0QQPGKUCWVJQTK\GFVQOCMGOQFKſECVKQPUVQVJKU

NKOKVGFYCTTCPV[CPF[QWUJQWNFPQVTGN[QPCP[UWEJOQFKſECVKQP

5VCVG2TQXKPEKCN.CY4KIJVU6JKUYCTTCPV[IKXGU[QWURGEKſENGICNTKIJVUCPF[QWOC[CNUQJCXG

other rights, which vary from state to state or province to province.

.KOKVCVKQPU+ORNKGFYCTTCPVKGUKPENWFKPIVJQUGQHſVPGUUHQTCRCTVKEWNCTRWTRQUGCPF

OGTEJCPVCDKNKV[CPWPYTKVVGPYCTTCPV[VJCVVJG2TQFWEVKUſVHQTQTFKPCT[WUGCTGNKOKVGFVQQPG

year from the date of purchase. Some states/provinces do not allow limitations on how long an

implied warranty lasts, so the above limitation may not apply to you. In no event shall VTech be

liable for any indirect, special, incidental, consequential, or similar damages (including, but not

NKOKVGFVQNQUVRTQſVUQTTGXGPWGKPCDKNKV[VQWUGVJG2TQFWEVQTQVJGTCUUQEKCVGFGSWKROGPVVJGEQUV

of substitute equipment, and claims by third parties) resulting from the use of this Product. Some

states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so

the above limitation or exclusion may not apply to you.

Please retain your original sales receipt as proof of purchase.

Appendix

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device

under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are

intended to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

%JCPIGUQTOQFKſECVKQPUVQVJKUGSWKROGPVPQVGZRTGUUN[CRRTQXGFD[VJGRCTV[TGURQPUKDNGHQT

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two condi-

tions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer-

ence received, including interference that may cause undesired operation. Privacy of communications

may not be ensured when using this telephone.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy

that can be safely absorbed by a user or bystander according to the intended usage of the product.

This product has been tested and found to comply with the FCC criteria. The handset may be safely

held against the ear of the user. The telephone base shall be installed and used such that parts of the

user’s body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or

more.

This Class B digital apparatus complies with Canadian ICES-003.

FCC Part 68 and ACTA

This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by

the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this

GSWKROGPVEQPVCKPUCOQPIQVJGTVJKPIUCRTQFWEVKFGPVKſGTKPVJGHQTOCV75###'36::::6JKU

KFGPVKſGTOWUVDGRTQXKFGFVQ[QWTVGNGRJQPGUGTXKEGRTQXKFGTWRQPTGSWGUV

The plug and jack used to connect this equipment to premises wiring and the telephone network

must comply with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant

telephone cord and modular plug is provided with this product. It is designed to be connected to a

compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting

to a single line and an RJ14 jack for two lines. See Installation Instructions in the user’s manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to

your telephone line and still have them ring when you are called. The REN for this product is encoded

CUVJGVJCPFVJEJCTCEVGTUHQNNQYKPIVJG75KPVJGRTQFWEVKFGPVKſGTGIKHKUVJG4'0KU

+POQUVDWVPQVCNNCTGCUVJGUWOQHCNN4'0UUJQWNFDGſXGQTNGUU(QTOQTGKPHQTOCVKQP

please contact your telephone service provider.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment

connected to your telephone line, ensure the connection of this equipment does not disable your alarm

equipment. If you have questions about what will disable alarm equipment, consult your telephone

UGTXKEGRTQXKFGTQTCSWCNKſGFKPUVCNNGT

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has

been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its

authorized agents. For repair procedures, follow the instructions outlined under the Warranty.

•

FCC, ACTA and IC regulations

Appendix

FCC, ACTA and IC regulations (continued)

If this equipment is causing harm to the telephone network, the telephone service provider may

temporarily discontinue your telephone service. The telephone service provider is required to notify

[QWDGHQTGKPVGTTWRVKPIUGTXKEG+HCFXCPEGPQVKEGKUPQVRTCEVKECN[QWYKNNDGPQVKſGFCUUQQPCU

possible. You will be given the opportunity to correct the problem and the telephone service provider

KUTGSWKTGFVQKPHQTO[QWQH[QWTTKIJVVQſNGCEQORNCKPVYKVJVJG(%%;QWTVGNGRJQPGUGTXKEGRTQXKFGT

may make changes in its facilities, equipment, operation, or procedures that could affect the proper

functioning of this product. The telephone service provider is required to notify you if such changes are

planned.

If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

If this product has memory dialing locations, you may choose to store emergency telephone numbers

GIRQNKEGſTGOGFKECNKPVJGUGNQECVKQPU+H[QWFQUVQTGQTVGUVGOGTIGPE[PWODGTURNGCUG

4GOCKPQPVJGNKPGCPFDTKGƀ[GZRNCKPVJGTGCUQPHQTVJGECNNDGHQTGJCPIKPIWR

Perform such activities in off-peak hours, such as early morning or late evening.

Industry Canada

Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference, including interference that may cause undesired

operation.

6JGVGTOŎŏ+%ŎŏDGHQTGVJGEGTVKſECVKQPTGIKUVTCVKQPPWODGTQPN[UKIPKſGUVJCVVJG+PFWUVT[%CPCFC

VGEJPKECNURGEKſECVKQPUYGTGOGV

The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of

the maximum number of devices allowed to be connected to a telephone interface. The termination on

an interface may consist of any combination of devices subject only to the requirement that the sum of

VJG4'0UQHCNNVJGFGXKEGUFQGUPQVGZEGGFſXG

6JKURTQFWEVOGGVUVJGCRRNKECDNG+PFWUVT[%CPCFCVGEJPKECNURGEKſECVKQPU

Appendix

6GEJPKECNURGEKſECVKQPU

Frequency control Crystal controlled PLL synthesizer

Transmit frequency Handset: 1921.536-1928.448 MHz

Telephone base: 1921.536-1928.448MHz

Channels 5

Nominal effective range Maximum power allowed by FCC and IC.

Actual operating range may vary according to

environmental conditions at the time of use.

Size Handset:

6.48 X 2.03 X 1.30 in (164.5 X 51.5 X 33.0 mm)

Telephone base:

4.92 X 5.32 X 3.19 in (125.0 X 135.0 X 81.0 mm)

Charger:

2.91 X 3.17 X 1.89 in (74.0 X 80.5 X 48.0 mm)

Weight Handset: 4.58oz (129.8g) (including battery)

Telephone base: 6.77oz (191.9g)

Charger:1.83oz (52.0g)

Power requirements Handset: 2.4V 400mAh Ni-MH battery

Telephone base: 6V DC @ 400mA

Charger: 6V AC @ 300mA

Memory Handset directory:

30 memory locations; up to 30 digits and 15 characters

Handset call log:

30 memory locations; up to 24 digits and 15 characters

Appendix

Index

About caller ID 21

About cordless telephones 48

Answer a call 13

Answering system and voicemail 30

Answering system setup 26

Answer ON/OFF 26

Battery 38

Battery charging 5

Battery installation 4

Caller ID 21

Call intercept 31

Call log 22

Call log display screen messages 25

Call waiting 14

Character chart 19

Charging 5

Clear voicemail 10

Delete a directory entry 21

Delete announcement 29

Delete a redial entry 16

Dial a call log number 24

Dial a number from the directory 20

Dial a redial entry 16

Dialing pause 18, 20, 24

Directory 17

&5.ſNVGT2

Edit a directory entry 20

End a call 13

Find handset 14

Handset layout 6, 7

Handset light 37

Handset screen icons 37

Important safety instructions 46

Indicators 37

Installation 2

Key tone 11

Listening volume 13

Maintenance 47

Make a call 13

Message alert tone 27

Message playback 31

Message window displays 33

Missed call indicator 22

Number of rings 27

Operating range 47

Pacemaker patients 47

Paging handset 14

Parts checklist 1

Phonebook 17

Play announcement 28

Precautions for users of implanted

cardiac pacemakers 47

Predial a call 13

Appendix

Index

Review the call log 23

Review the directory 19

Ringer 9

Ringer volume 9

Safety instructions 46

Save a call log entry to the directory 24

Screen display messages 35, 36

Screen icons 37

Store a directory entry 18

Store from redial 18

6GEJPKECNURGEKſECVKQPU53

Telephone base installation 2

Telephone base layout 8

Telephone base light 37

Temporary tone dialing 14

Troubleshooting 39

View dialing options 23

Voicemail 30

Volume 9, 13

Wall mounting 3

Warranty 49

Website 12

VTECH TELECOMMUNICATIONS LTD.

A member of THE VTECH GROUP OF COMPANIES.

Distributed in the U.S.A. by VTech Communications, Inc.

Beaverton, Oregon 97008

Distributed in Canada by VTech Technologies Canada, Ltd.

Richmond, B.C. V6W 1L5

Printed in China.

91-003657-010-100

VTech Telecommunications 80-7718-00 1.9GHz Digital Modulation Cordless Phone User Manual CS6124 FCC English Re 2

VTech Telecommunications Ltd 1.9GHz Digital Modulation Cordless Phone CS6124 FCC English Re 2

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
