Users Manual

User’s manual

www.vtechcanada.com

Models:

LS6425/LS6425-2/

LS6425-3/LS6425-4

Congratulations

on purchasing your new VTech product. Before using this telephone, please read

the Important safety instructions on page 64 of this manual.

This manual has all the feature operations and troubleshooting necessary to install

and operate your new VTech telephone. Please review this manual thoroughly to

ensure proper installation and operation of this innovative and feature rich VTech

product. For support, shopping, and everything new at VTech, visit our website at

www.vtechphones.com.

In Canada, please visit www.vtechcanada.com.

The ENERGY STAR® program (www.energystar.gov) recognizes and

encourages the use of products that save energy and help protect our

environment. We are proud to mark this product with the ENERGY STAR®

label indicating it meets the latest energy efficiency guidelines.

Compatible with

Hearing Aid T-Coil

TIA-1083

Telephones identified with this logo have reduced noise and interference

when used with most T-coil equipped hearing aids and cochlear implants. The

TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry

Association. Used under license.

Table of contents

Getting started................................. 1

Parts checklist ................................... 1

Base layout........................................ 2

Handset layout................................... 3

Telephone installation........................ 6

Battery installation ............................. 7

Handset battery charging .................. 8

Installation options............................. 9

Tabletop to wall mount installation .... 9

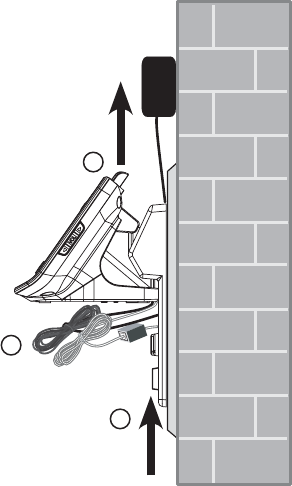

Wall mount to tabletop installation... 10

Telephone settings........................ 11

Ringer volume (telephone base) ..... 11

Ringer volume (handset) ................. 11

Ringer tone...................................... 11

Set date/time ................................... 12

LCD language.................................. 12

Voice announce caller ID................. 13

Clear voicemail indicator ................. 13

Rename handset ............................. 14

Key tone .......................................... 15

CID time synchronization................. 15

Home area code.............................. 15

Dial mode ........................................ 16

Website............................................ 16

Telephone operation ..................... 17

Make a call ...................................... 17

Predial a call.................................... 17

Answer a call ................................... 17

End a call......................................... 17

Speakerphone ................................. 17

Listening volume.............................. 17

Mute................................................. 18

Temporary ringer silencing.............. 18

Temporary tone dialing.................... 18

Find handset.................................... 19

Call waiting ...................................... 19

Equalizer.......................................... 19

Chain dialing.................................... 20

Redial ............................................. 20

View a redial entry........................... 20

Dial a redial entry............................. 21

Delete a redial entry ........................ 21

Copy a number form the redial list to

the directory ................................. 21

Multiple handset use........................ 21

Intercom........................................... 22

Answer an incoming call during an

intercom call................................. 23

Announced transfer ......................... 23

Blind transfer ................................... 24

Push to talk (PTT)............................ 25

Turn PTT on or off: .......................... 25

PTT to a single handset................... 26

PTT to all handsets.......................... 27

Answer PTT..................................... 28

Change a one-to-one PTT to

intercom ....................................... 28

End PTT .......................................... 29

Answer an incoming call

during PTT ................................... 29

Make an outgoing call during PTT... 29

Directory .......................................... 30

Store a directory entry ..................... 30

Character chart................................ 31

Search the directory ........................ 32

Alphabetical search ......................... 32

Dial a directory entry........................ 32

Edit a directory entry........................ 33

Delete a directory entry ................... 33

Assign a directory entry to

a speed dial location .................... 34

Dial a speed dial entry..................... 34

Reassign a speed dial number........ 35

Delete a speed dial entry................. 35

Caller ID operation......................... 36

About caller ID................................. 36

Information about caller ID with call

waiting.......................................... 36

Caller ID log..................................... 37

Memory match................................. 37

Missed call indicator ........................ 38

Review the caller ID log................... 38

View dialing options......................... 38

Dial a caller ID log entry .................. 39

Save a caller ID log entry to the

directory ....................................... 39

Delete the caller ID log entries ........ 40

Caller ID log display

screen messages......................... 40

Answering system settings.......... 41

Answering system ........................... 41

Answer ON/OFF.............................. 41

Call screening.................................. 41

Number of rings............................... 42

Remote access code....................... 42

Message alert tone.......................... 43

Message recording time .................. 43

Announcement ................................ 43

Record your own announcement..... 44

Play your announcement................. 44

Delete your announcement ............. 44

Answering system operation ....... 45

Answering system and voicemail .... 45

Message capacity............................ 45

New message indication.................. 46

Call screening and call intercept...... 46

Message playback........................... 46

Delete all messages ........................ 48

Record, play and delete memos...... 49

Message window displays............... 49

Remote access................................ 50

Appendix ........................................ 51

Handset display screen messages.. 51

Handset and telephone base

indicators...................................... 53

Handset battery ............................... 54

Expand your telephone system ....... 55

Add and register

a handset (optional) ..................... 55

Deregister a handset ....................... 56

Troubleshooting............................... 57

Important safety instructions............ 64

Precautions for users of implanted

cardiac pacemakers..................... 66

Operating range............................... 66

Maintenance.................................... 66

About cordless telephones .............. 67

The RBRC® seal .............................. 67

FCC, ACTA and IC regulations ....... 68

Limited warranty .............................. 70

6GEJPKECNURGEKſECVKQPU................... 72

Index................................................ 73

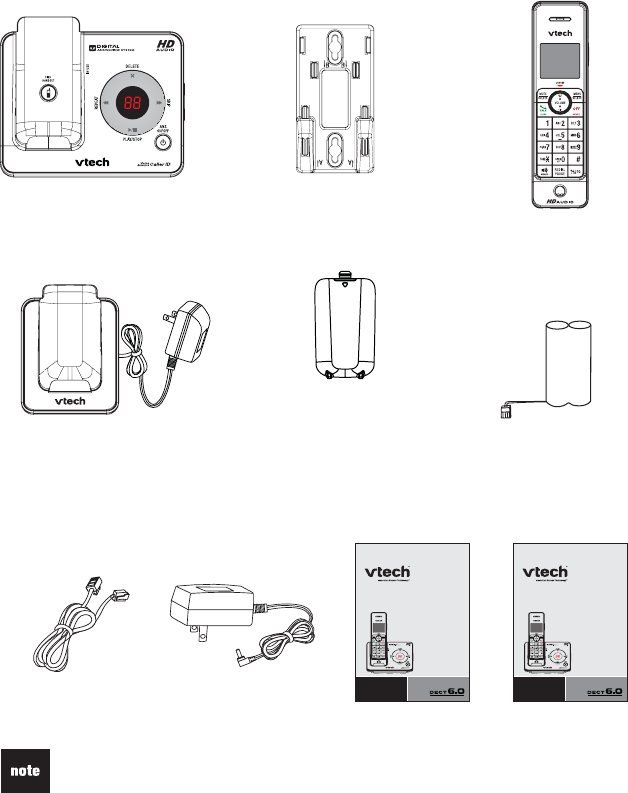

Parts checklist

Your telephone package contains the following items. Save your sales receipt and

original packaging in case it is necessary to ship your telephone for warranty service.

Getting started

Handset

(1 for LS6425,

2 for LS6425-2,

3 for LS6425-3,

4 for LS6425-4)

Quick start guide

To purchase replacement batteries or power adapters, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or call 1 (800) 267-7377.

User’s manual

Telephone base

Handset charger

and charger adapter

(1 for LS6425-2,

2 for LS6425-3,

3 for LS6425-4)

Wall mount bracket

Battery

(1 for LS6425,

2 for LS6425-2,

3 for LS6425-3,

4 for LS6425-4)

Battery

compartment cover

(1 for LS6425,

2 for LS6425-2,

3 for LS6425-3,

4 for LS6425-4)

Telephone line cord Telephone base

power adapter

Quick start guide

www.vtechcanada.com

Models:

LS6425/LS6425-2/

LS6425-3/LS6425-4

User’s manual

www.vtechcanada.com

Models:

LS6425/LS6425-2/

LS6425-3/LS6425-4

Getting started

Base layout

X/DELETE

Press to delete the message

currently playing (page 46).

When the phone is not in use, press

twice to delete all old messages

(page 48).

Message window

Shows the number of messages and

other answering system information

(page 49).

IN USE light

Flashes when there is an incoming

call, or another telephone sharing the

same line is in use.

On when the telephone is in use, or

the answering system is answering

a call.

/FIND HANDSET

Press to page all

system handsets

(page 19).

/REPEAT

Press to repeat a message or

press twice to play the previous

message (page 46).

/PLAY/STOP

Press to play messages or press to

stop message playback (page 46).

/ANS ON/OFF

Press to turn the answering system

on or off (page 41).

/SKIP

Press to skip to the next message

(page46).

Getting started

Handset layout

Getting started

CHARGE light

On when the handset is charging in the telephone

base or charger (page 8).

/VOLUME (directory/volume)

Press to enter the directory when the telephone is

not in use (page 32).

While in a menu, press to scroll up.

During a call, press to increase the listening volume

(page 17).

MUTE/DELETE

While on a call, press to mute the microphone

(page 18).

While reviewing the redial list, directory or caller ID

log, press to delete an individual entry (pages 21,

33 and 40 respectively).

While the handset is ringing, press to silence the

ringer temporarily (page 18).

While predialing, press to delete digits (page 17).

/FLASH

Press to make or answer a call (page 17).

During a call, press to answer an incoming call

when you receive a call waiting alert (page 19).

While reviewing a caller ID log entry, press

repeatedly to add or remove 1 in front of the

telephone number before dialing or saving it in the

directory (page 38).

With the phone set for pulse dialing, press to

temporarily change to tone dialing while on a call

(page 18).

/SPEAKER

Press to make or answer a call (page 17).

During a call, press to switch between

speakerphone and handset (page 17).

Getting started

Handset layout

Getting started

CID/VOLUME (caller ID/volume)

Press to review the caller ID log when the

telephone is not in use (page 38).

While in a menu, press to scroll down.

During a call, press to decrease the listening

volume (page 17).

MENU/SELECT

Press to show the menu.

While in a menu, press to choose an item, or save

an entry or setting.

OFF/CLEAR

During a call, press to hang up (page 17).

While the handset is ringing, press to silence the

ringer temporarily (page 18).

While the telephone is not in use, press and hold

to delete the missed call indicator (page 38).

While in a menu, press to exit without making

changes.

While in a menu, press and hold to return to idle

mode.

Dialing keys

Press to enter numbers or characters.

Press repeatedly to show other dialing options

when reviewing a caller ID log entry (page 38).

Press to switch the name order (page 39).

During an outside call, intercom call, message

or announcement playback, press to change the

audio quality to best suit your hearing (page 19).

REDIAL/PAUSE

Press to review the redial list (page 20).

While dialing or entering numbers into the

directory, press and hold to insert a dialing pause

(page 30).

Getting started

Push to talk (PTT)

Press to begin a one-to-one or

one-to-all broadcast message

(pages 25 and 27).

Handset layout

Getting started

Telephone installation

Install the telephone base and charger(s) as shown below.

Make sure that the electrical outlet is not controlled by a wall switch.

If you subscribe to digital subscriber line (DSL) high-speed Internet service

through your telephone line, you must install a DSL filter between the telephone

line cord and the telephone wall jack. The filter prevents noise and caller ID

problems caused by DSL interference. Contact your DSL service provider for

more information about DSL filters.

Telephone

wall jack

Telephone

line cord

If you have

DSL high

speed Internet

service, a

DSL filter (not

included) is

required.

Telephone base

power adapter

Telephone base

Electrical

outlet not

controlled by

a wall switch

Charger adapter

Charger

Getting started

Battery installation

Install the battery as shown below.

If the battery compartment cover is on the handset, press on the grooved tab

and slide the cover to remove.

Plug the battery connector securely into the socket inside the handset battery

compartment, matching the color-coded label.

Place the battery with the label THIS SIDE UP facing up and the wires inside

the battery compartment.

Align the cover flat against the battery compartment, then slide it towards the

center of the handset until it clicks into place.

Charge the handset by placing it in the telephone base or charger. The

CHARGE light is on when the handset charges.

If the handset will not be used for a long time, disconnect and remove the

battery to prevent possible leakage.

To purchase replacement batteries, visit our website at www.vtechphones.com

or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call

1 (800) 267-7377.

•

1 2 3

4 5 CHARGE

light

Getting started

Handset battery charging

Once you have installed the battery, the screen indicates the battery status (see

the table below). If necessary, place the handset in the telephone base or charger

to charge the battery. For best performance, keep the handset in the telephone

base or charger when not in use. The battery is fully charged after 10 hours of

continuous charging. See the table on page 54 for battery operating times.

If the screen is blank or displays Place in charger, you need to charge the

handset without interruption for at least 30 minutes to give the handset enough

charge to use the telephone for a short time. When the battery is low, the

handset screen displays Low battery and a flashing icon. If you are on a call in

low battery mode, the handset plays short beeps to alert you.

The following table summarizes the battery charge indicators and actions to take.

Battery indicators Battery status Action

The screen is blank, or

displays Place in charger

and flashes.

Battery has very little or

no charge. The handset

cannot be used.

Charge without interruption

(at least 30 minutes).

The screen displays

Low battery and flashes.

Battery has enough

charge to be used for a

short time.

Charge without interruption

(about 30 minutes).

The screen displays

HANDSET X.

Battery is charged. To keep the battery charged,

place it in the telephone base

or charger when not in use.

If you do not plug in the battery into the handset and place it in the telephone base

or charger, the screen displays No battery.

Getting started

Installation options

Your telephone base is ready for tabletop use. If you want to mount your

telephone on a wall, use the provided wall mount bracket to connect with a

standard dual-stud telephone wall mounting plate. If you do not have this

mounting plate, you can purchase one from many hardware or consumer

electronics retailers. You may need a professional to install the mounting plate.

Tabletop to wall mount installation

Plug one end of the telephone line cord into the TEL LINE jack on the bottom

of the telephone base. Plug the small end of the power adapter into the

POWER jack on the bottom of the telephone base.

Position the telephone bas and wall mount bracket as shown below. Insert the

extended tabs b of the wall mount bracket into the slots a on the back of the

telephone base. Push the telephone base down until it clicks securely in place.

Route the telephone line cord through the wall mount bracket hole and plug

it into the telephone wall jack. Route the power cord out of the bottom of the

telephone and plug it into an electrical outlet not controlled by a wall switch.

Align the holes on the bracket with the standard wall plate and slide the

bracket down until it locks securely. Bundle the telephone line cord and power

adapter cord neatly with twist.

1 2

Getting started

Wall mount to tabletop installation

If the telephone line cord and power adapter cord are bundled, untie them first.

Slide the black wall mount bracket up and remove it from the wall plate.

Unplug the telephone line cord (or DSL filter) from the wall. Unplug the power

adapter from the power outlet.

Slide the telephone base up and remove it from the wall mount bracket.

See Telephone installation on page 6.

Telephone settings

Ringer volume (telephone base)

Press /VOL or /VOL on the right side of the telephone base to adjust the

ringer volume when the telephone is not in use. When you set the base ringer

volume to off, the window box displays 0 and the system announces, “Base

ringer is off.”

Ringer volume (handset)

You can set the ringer volume or turn the ringer off. When the

ringer is off, Ringer off and icon appear on the screen.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Ringers, then press

MENU/SELECT.

Press MENU/SELECT to select >Ringer volume.

Press CID or to adjust the volume. A sample of each

ringer volume plays as you scroll through the choices.

Press MENU/SELECT to save your selection and return to

the previous menu. You hear a confirmation tone.

The setting also determines the ringer volume of the intercom call and paging tone.

However, paging volume ranges between level 4 to 6 only.

If the ringer volume is set to off, the handset screen displays Caller ID won’t be

announced when you save the setting. The Voice announce caller ID (page 13)

is silenced.

•

Ringer tone

You can choose different ringer tones for each handset.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Ringers, then press

MENU/SELECT.

Press CID or to highlight >Ringer tone, then press

MENU/SELECT.

Press CID or to highlight the desired ringer tone.

A sample of each ringer tone plays as you scroll through

the choices.

Press MENU/SELECT to save your selection and return to the previous menu.

You hear a confirmation tone.

If you turn off the ringer volume, you will not hear ringer tone samples.

•

Caller ID log

>Ringers

>Ringer volume

Ringer tone

RINGER VOLUME

Caller ID log

>Ringers

>Ringer volume

Ringer tone

RINGER VOLUME

Ringer volume

>Ringer tone

RINGER TONE

>Tone 1

Ringer volume

>Ringer tone

RINGER TONE

>Tone 1

Telephone settings

Set date/time

The answering system announces the date and time of each message prior to

playing it. Before using the answering system, set the date and time as follows. If

you subscribe to caller ID service, the day, month and time are set automatically

with each incoming call. However, the year must be correct so that the day of the

week can be calculated from the caller ID information. You can also turn off the

date and time settings of the caller ID service and use your own settings for each

incoming call (see CID time synchronization on page 15).

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Set date/time, then press

MENU/SELECT.

Press the dialing keys (0-9) to enter or press CID or to

scroll to the correct numbers for the month, date and year.

Press MENU/SELECT to move on to set the time.

Press the dialing keys (0-9) to enter correct numbers for the

hour and minute. Press CID or to select AM or PM or

press 2 for AM and 7 for PM, then press MENU/SELECT to

save the settings and return to the previous menu. You hear

a confirmation tone.

If the date and time are not set when a message is recorded, the system

announces, “Time and date not set,” before each message plays.

The telephone plays two beeps if the number you entered is invalid.

•

LCD language

You can select English,Français or Español to be used in all screen displays.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press MENU/SELECT to select >LCD language.

Press CID or to scroll through the choices.

Press MENU/SELECT to save your selection and return to

the previous menu. You hear a confirmation tone.

Ringers

>Set date/time

SET DATE

__/__/__

SET TIME

__:__ __

Ringers

>Set date/time

SET DATE

__/__/__

SET TIME

__:__ __

Set date/time

>Settings

>LCD language

Annc Caller ID

LCD LANGUAGE

>English

Set date/time

>Settings

>LCD language

Annc Caller ID

LCD LANGUAGE

>English

Telephone settings

Voice announce caller ID

The voice announce caller ID feature lets you know who is calling without having

to look at the display. When you have an incoming call, the handset and/or base

speaks the name and number of the caller based on the directory or caller ID

information. If the caller’s name is private or unknown, the last 11 digits of the

telephone number will be spoken, if no digits are available, “no digits” will be

spoken. If the caller’s telephone number is also private or unknown, “Private

number” or “Unknown number” will be spoken. Unless you change it, the voice

announce caller ID feature is already turned on.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press CID or to highlight >Annc Caller ID, then press

MENU/SELECT.

Press CID or to highlight >HANDSET or >BASE, then

press MENU/SELECT.

Press CID or to choose >On or >Off.

Press MENU/SELECT to save your selection and return to

the previous menu. You hear a confirmation tone.

Voice announce caller ID is available in English only.

Clear voicemail indicator

If you subscribe to voicemail service offered by your telephone service provider,

New voicemail and appear on the handset when you have new voicemail

messages. Contact your telephone service provider for more information and

assistance about using your voicemail service.

After you have listened to all new voicemail messages, the indicators on the

handset turn off automatically.

Use the clear voicemail feature when the telephone indicates that there is

new voicemail but there are none (for example, when you have accessed your

voicemail while away from home). Clearing the voicemail waiting indicator only

turns off the indicators; it does not delete your voicemail messages. As long as

you have new voicemail messages, your telephone service provider continues to

send the signal to turn on the indicators.

LCD language

>Annc Caller ID

ANNC CALLER ID

>HANDSET

HS ANNOUNCE CID

>On

LCD language

>Annc Caller ID

ANNC CALLER ID

>HANDSET

HS ANNOUNCE CID

>On

Telephone settings

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press CID or to highlight >Clr voicemail, then press

MENU/SELECT. The screen displays Turn off indicator?

Press MENU/SELECT to save your selection and return to

the previous menu. You hear a confirmation tone.

Your telephone service provider may alert you of new messages with a stutter

(broken) dial tone. Contact your telephone service provider for details.

Voicemail is different from answering system messages recorded in your

cordless phone’s answering system. For more information about the difference,

see page 45.

•

Rename handset

You can change the name for each registered handset. The name can be up to 11

characters.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press CID or to highlight >Rename handset, then

press MENU/SELECT.

Press the dialing keys to enter a name.

Press MUTE/DELETE to delete a character.

Press and hold MUTE/DELETE to delete all characters.

Press CID or to move the cursor to the right or left.

Press MENU/SELECT to save the name and return to the previous menu. You

hear a confirmation tone.

The new handset name will be shown in other handsets when you start

intercom or transfer a call.

If the new handset name is deleted, the default handset name will be used.

•

Annc Caller ID

>Clr voicemail

Turn off

indicator?

Annc Caller ID

>Clr voicemail

Turn off

indicator?

Clr voicemail

>Rename handset

RENAME HANDSET

HANDSET____

Clr voicemail

>Rename handset

RENAME HANDSET

HANDSET____

Telephone settings

Key tone

You can choose different key tone for each handset.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press CID or to highlight >Key tone, then press

MENU/SELECT.

Press CID or to adjust the volume. A sample of each

ringer volume plays as you scroll through the choices. Off

displays on the screen when the key tone is turned off.

Press MENU/SELECT to save your selection and return to the previous menu.

You hear a confirmation tone.

CID time synchronization

This feature allows the time and date to be set by incoming caller ID information.

The default setting is On.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press CID or to highlight >CID time sync, then press

MENU/SELECT.

Press CID or to choose >On or >Off.

Press MENU/SELECT to save your selection and returns to

the previous menu. You hear a confirmation tone.

Home area code

If you dial your local calls using only seven digits (area code not required), you

can program your home area code so that when you receive a call within your

local area, the telephone number is automatically stored without the area code in

the caller ID log.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press MENU/SELECT.

Rename handset

>Key tone

KEY TONE

Rename handset

>Key tone

KEY TONE

Key tone

>CID time sync

CID TIME SYNC

>On

Key tone

>CID time sync

CID TIME SYNC

>On

Telephone settings

Press CID or to highlight >Home area code, then press MENU/SELECT.

The screen displays only for 7digit dial from CID for two

seconds, then automatically advances to home area code

edit mode.

Press the dialing keys to enter a three-digit home area code.

Press MUTE/DELETE to delete a digit.

Press and hold MUTE/DELETE to delete all digits.

Press CID or to move the cursor to the right or left.

Press MENU/SELECT to save your selection. You hear a

confirmation tone. The screen displays Area code will not

show in CID for two seconds, and then automatically turns to

the main menu.

If, in the future, your telephone service provider requires you to dial the area code

when making a local call, or, if you move to a location that requires it, delete the

home area code you have already programmed, following the steps above. After

you have deleted the home area code, _ _ _ will appear on the display.

Dial mode

The dial mode is preset to tone dialing. If you have pulse (rotary) service, you

must change the dial mode to pulse dialing before using the telephone.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Settings, then press

MENU/SELECT.

Press CID or to highlight >Dial mode, then press

MENU/SELECT.

Press CID or to choose >Tone or >Pulse.

Press MENU/SELECT to save your selection and return to

the previous menu. You hear a confirmation tone.

While on a call in pulse dialing mode, press to temporarily change to tone

dialing mode.

Website

Use this feature to view the VTech website address.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >User help, then press

MENU/SELECT. The screen displays the website.

•

CID time sync

>Home area code

Only for 7digit

dial from CID

HOME AREA CODE

___

CID time sync

>Home area code

Only for 7digit

dial from CID

HOME AREA CODE

___

Home area code

>Dial mode

DIAL MODE

>Tone

Home area code

>Dial mode

DIAL MODE

>Tone

Settings

>User help

www.vtechphones

.com

Settings

>User help

www.vtechphones

.com

Telephone operation

Make a call

Press /FLASH or /SPEAKER on the handset. You hear

a dial tone.

Dial the number.

Predial a call

Dial the number on the handset.

Press /FLASH or /SPEAKER.

Answer a call

Press /FLASH,/SPEAKER or any of the dialing keys

(0-9,#, ) on the handset to answer a call.

The handset screen shows the elapsed time as you talk (in hours, minutes and

seconds).

When predialing (preview numbers before dialing), press MUTE/DELETE or

OFF/CLEAR to backspace and delete a digit; press and hold REDIAL/PAUSE to

insert a dialing pause (a p appears).

•

End a call

Press OFF/CLEAR on the handset or place the handset in the telephone base or

charger.

Speakerphone

When the handset is on a call, press /SPEAKER to switch between

speakerphone and normal handset use. When the speakerphone is active, the

handset screen displays Speaker.

Listening volume

To adjust handset listening volume:

During a call, press CID or on the handset.

Telephone operation

Mute

The mute function allows you to hear the other party but the other party cannot

hear you.

During a call, press MUTE/DELETE. The handset screen

displays Muted for a few seconds and MUTE displays until

the mute function is turned off.

Press MUTE/DELETE again to resume the conversation. The

handset screen temporarily displays Microphone ON.

Temporary ringer silencing

When the telephone is ringing, press OFF/CLEAR or MUTE/DELETE to temporarily

silence the ringer on that handset only. The handset screen displays Ringer off

and . This turns off the ringer without disconnecting the call. The next call rings

normally at the preset volume.

Each handset rings when there is an incoming call unless the ringer volume is

turned off on that handset.

Temporary tone dialing

If you have pulse (rotary) service only, you can switch from pulse to tone dialing

temporarily during a call. This is useful if you need to send touch-tone signals to

access your telephone banking or long distance services.

During a call, press on the handset.

Press the dialing keys to enter the number you wish to dial. The telephone

sends touch-tone signals. The telephone automatically returns to pulse dialing

mode after you end the call.

•

Telephone operation

Find handset

The find handset feature is useful if you misplace any handsets.

To start the paging tone:

Press /FIND HANDSET on the telephone base. All

idle handsets ring, the handset screens display **

Paging **.

To end the paging tone:

To end paging, press /FLASH,/SPEAKER, any

dialing keys (0-9,#, ) on the handset or press

/FIND HANDSET on the telephone base.

Press OFF/CLEAR to temporarily turn off the paging tone on the handset when

paging rings, the screen shows Ringer off and icon.

Paging rings on all the registered handsets even if the ringer volume is set to off.

•

Call waiting

When you subscribe to call waiting service from your telephone service provider,

you hear an alert tone if there is an incoming call while you are on another call.

Press /FLASH to put your current call on hold and take the new call.

Press /FLASH at any time to switch back and forth between calls.

Equalizer

The equalizer feature on the handset enables you to change the

audio quality of the handset to best suit your hearing.

While on a call, intercom call or listening to a message or

announcement, press EQ to select the equalizer setting

Treble 1,Treble 2,Bass or Natural (the default setting) for the

handset. The current setting is displayed on the handset for two

seconds.

•

Telephone operation

Chain dialing

Use this feature to initiate a dialing sequence from numbers stored in the

directory, caller ID log or redial list while you are on a call.

Chain dialing can be useful if you wish to access other numbers (such as bank

account numbers or access codes) from the directory, caller ID log or redial list.

To access a number from the directory while on a call:

Press MENU/SELECT.

Press CID or to highlight >Directory, then press

MENU/SELECT.

Press CID or to scroll to the desired entry.

Press MENU/SELECT to dial the displayed number.

To access a number from the directory while on a call:

Press MENU/SELECT.

Press CID or to highlight >Caller ID log, then press

MENU/SELECT.

Press CID or to scroll to the desired entry.

Press MENU/SELECT to dial the displayed number.

To access a number from the redial list while on a call:

Press REDIAL/PAUSE to enter the redial list.

Press CID or or REDIAL/PAUSE repeatedly to browse to the desired entry.

Press MENU/SELECT to dial the displayed number.

Redial

Each system handset stores the 10 most recently dialed

numbers. Entries are shown in reverse chronological order.

When there are already 10 entries, the oldest entry is deleted

to make room for the new entry. When there are no redial

entries in the redial list, the handset screen shows Redial empty.

View a redial entry

Each system handset stores the 10 most recently dialed numbers. To view the

redial entries:

Press REDIAL/PAUSE to display the most recently called number.

Press CID or or REDIAL/PAUSE repeatedly to browse the redial list.

Press OFF/CLEAR to exit the redial list.

>Directory

Caller ID log

Mike Smith

595-9511

Phone 0:03:20

Mike Smith

9/27 2:30PM

>Directory

Caller ID log

Mike Smith

595-9511

Phone 0:03:20

Mike Smith

9/27 2:30PM

REDIAL #1/10

800-595-9511

REDIAL #1/10

800-595-9511

Telephone operation

Dial a redial entry

Display the desired redial number, then press /FLASH or /SPEAKER.

-OR-

Press /FLASH or /SPEAKER, then press REDIAL/PAUSE.

Press REDIAL/PAUSE repeatedly or CID or to browse to the desired entry,

then press MENU/SELECT.

Delete a redial entry

Press REDIAL/PAUSE to enter the redial list.

Press CID or or REDIAL/PAUSE repeatedly to browse to the desired entry.

Press MUTE/DELETE to delete the displayed entry. You hear a confirmation tone.

Copy a number form the redial list to the directory

Press REDIAL/PAUSE to enter the redial list.

Press CID or or REDIAL/PAUSE repeatedly to browse to the desired entry,

then press MENU/SELECT.

Use the dialing keys (0-9) to edit the number (up to 30 digits).

Press MUTE/DELETE to backspace and delete a digit.

Press and hold MUTE/DELETE to delete the entire entry.

Press CID or to move the cursor to the right or left.

Press and hold REDIAL/PAUSE to insert a dialing pause (a p appears).

Press MENU/SELECT to move on to edit the name. The screen displays

Edit name.

Use the dialing keys to edit the name (up to 15 characters).

Press 0 to add a space.

Press MUTE/DELETE to backspace and delete a character.

Press and hold MUTE/DELETE to delete all characters

Press CID or to move the cursor to the right or left.

Press MENU/SELECT to save the entry, the screen shows Saved with a

confirmation tone.

Multiple handset use

The telephone base supports four system handsets at a time on an outside call.

You can buy additional expansion handsets (model LS6405) for this telephone

base, and you can register up to 12 handsets to the telephone base.

•

Telephone operation

To share an outside call:

When a handset is already on a call, you can join the call by pressing

/FLASH or /SPEAKER on another handset.

To exit the call, press OFF/CLEAR or place the handset in the telephone base

or charger. The call will not end until all handsets hang up.

Intercom

Use the intercom feature for conversations between two handsets. This feature

is not available for model LS6429.Intercom does not show on the main menu if

only one handset is available or registered.

When the handset is not in use, press MENU/SELECT. Press CID or to

highlight >Intercom, then press MENU/SELECT.

-OR-

Press /FLASH or /SPEAKER, then press MENU/SELECT. Press CID or

to highlight >Intercom, then press MENU/SELECT.

If you have a two-handset system, your handset screen displays Calling

other handset.

If you have more than two handsets, your handset screen displays

INTERCOM TO:. Use the dialing keys to enter a handset number (to call

handset 10, 11 or 12, press 0,1 and 2 respectively) or press

CID or to scroll to the desired handset, then press MENU/SELECT.

Your handset screen displays Calling handset X (X represents the

destination handset number).

-OR-

Press # or CID or to scroll to >Ring all, then press MENU/SELECT to

call all other handsets. Your handset screen displays Calling all handsets.

The other handset rings and its screen displays Other handset is calling or

Handset Y is calling (Y represents the originating handset number).

To answer the intercom call, press /FLASH, /SPEAKER or any of the dialing

keys (0-9, #, ) on the other handset. Both handsets now display Intercom.

To end the intercom call, one party press OFF/CLEAR or place the handset in

the telephone base or charger. Both handsets displays Intercom ended.

You can cancel the intercom call before it is answered by pressing OFF/CLEAR

on your originating handset.

If the other handset does not answer the intercom call within 100 seconds, or

if it is accessing the answering system, is out of range, or has no power, your

handset screen displays Unable to call. Try again and returns to idle mode.

You can only use one pair of handsets to make intercom calls at a time.

•

Telephone operation

Answer an incoming call during an intercom call

If you receive an incoming outside call during an intercom call, there will be an

alert tone.

To answer the call, press /FLASH on the handset. The intercom call ends

automatically.

To end the intercom call without answering the incoming call, press OFF/CLEAR

on the handset. The telephone continues to ring.

Announced transfer

Use this feature to transfer an outside call to other system handsets by notifying

them first. This feature is not available for model LS6429.

When the handset is on a call, press MENU/SELECT.

Press CID or to scroll to >Intercom, then press MENU/SELECT. The outside

call is put on hold automatically. The handset screen displays INTERCOM TO:.

Use the dialing keys to enter a handset number (to call handset 10, 11 or 12,

press 0,1 and 2 respectively). Press CID or to scroll to the

desired handset

-OR-

Press # or CID or to scroll >Ring all. Then press MENU/SELECT to

call all handsets.

To answer the intercom call, press /FLASH, /SPEAKER or any of the dialing

keys (0-9, #, ) on the destination handset. Handsets now display Intercom.

You can now have a private conversation between the two handsets.

From this intercom call, you have the following options:

To transfer the call, press MENU/SELECT twice on the originating handset to

choose >Transfer. The originating handset screen displays Call transferred.

The destination handset is automatically connected to the outside call.

To share the call, press MENU/SELECT on your handset and then press

CID or to highlight >Share call. Then press MENU/SELECT. Both

handsets are connected to the outside call.

To end the outside call, press OFF/CLEAR or place the handset in the

telephone base or charger. The call continues until all handsets hang up.

You can cancel the intercom call before it is answered by pressing OFF/CLEAR

on your originating handset.

If the destination handset does not answer the intercom call within 100

seconds, or if it is accessing the answering system, is out of range, or has no

power, your originating handset screen displays Unable to call. Try again and

returns to idle mode.

•

Telephone operation

Blind transfer

Use this feature to transfer an outside call to other system handsets without

notifying them. This feature is not available for model LS6429.

When the handset is on a call, press MENU/SELECT.

Press CID or to scroll to >Transfer, then press MENU/SELECT.

If you have a two-handset system, your handset screen displays

Transferring call...

If you have more than two handsets, your handset screen displays

TRANSFER TO:. Use the dialing keys to enter a handset number (to call

handset 10, 11 or 12, press 0,1 and 2 respectively) or press

CID or to scroll to the desired handset, then press MENU/SELECT.

Your handset screen displays Transferring call...

-OR-

Press CID or to scroll to >Ring all, then press MENU/SELECT to call

all other handsets. Your handset screen displays Transferring call to all...

The destination handset rings and its screen displays Transfer from other

handset or Transfer from HANDSET X.

To answer the outside call, press /FLASH,/SPEAKER or any of the dialing

keys (0-9,#, ) on the destination handset.

To end the outside call, press OFF/CLEAR or place the handset in the

telephone base or charger.

You can cancel the intercom call before it is answered by pressing OFF/CLEAR

on your originating handset.

If the destination handset does not answer the intercom call within 100 seconds, is

accessing the answering system, is out of range, or has no power, your originating

handset screen displays No response to transfer. If you do not press /FLASH,

/SPEAKER or any of the dialing keys (0-9, #, ) on the other handset to

answer the outside call within 30 seconds, the call hangs up automatically.

•

Telephone operation

Push to talk (PTT)

You can directly broadcast messages from one handset to the

speakerphone of one or all other handsets. Any handset you call can

respond by pressing Push to talk on the right side of the handset

to begin a two-way communication. If there is only one handset is

available or registered, the handset screen shows PTT requires two

handsets when you press Push to talk.

Only one handset can talk at a time. To do so, press and hold

Push to talk.

You must release Push to talk, so the other person can respond.

Only one PTT can be active at a time.

While PTT is in use between two handsets, other handsets cannot

use the intercom feature but can access the answering system.

When you attempt to place a PTT call to another handset which is

accessing the answering system, your handset screen displays

Not available at this time.

Turn PTT on or off:

Press Push to talk when the handset is not in use.

The Push to talk menu displays.

Press CID or to highlight >PTT On/Off, then press

MENU/SELECT.

Press CID or to choose >On or >Off, then press

MENU/SELECT.

When PTT is turned off, the handset screen shows No Incoming PTT while the

phone is not in use.

When you attempt to place a PTT call to another handset that has the PTT

feature turned off, your handset screen displays Not available at this time.

•

PUSH TO TALK

>PTT On/Off

INCOMING PTT

>On

PUSH TO TALK

>PTT On/Off

INCOMING PTT

>On

Telephone operation

PTT to a single handset

You have two ways to begin a PTT call:

If you have a two-handset system, press and hold Push to talk when the

handset is not in use.

If you have more than two handsets, press Push to talk when the handset

is not in use. Then use the dialing keys to enter a handset number (to call

handset 10, 11 or 12, press 0,1 and 2 respectively) or press

CID or to highlight a handset number and then press MENU/SELECT

or Push to talk.

Your handset screen displays Connecting to HANDSET X... for a few

seconds. When the connection is made, both your and the destination

handset screens display Press and hold [PTT] to talk and beep once.

Press and hold Push to talk on your handset. A chirp indicates your

microphone is on. Speak towards the handset. Your voice is broadcast to the

destination handset. While you are speaking, your handset screen displays

PTT To X (X represents the destination handset number).

Release Push to talk after speaking. Both handsets beep once again. After

the handsets beep, you can press and hold Push to talk to continue speaking

or the destination handset can respond (see Answer PTT on page 28).

To end the PTT call, press OFF/CLEAR or place the handset in the telephone

base or charger. The handset screen displays Push to talk Ended for a few

seconds.

After Push to talk is released, the PTT call remains open for a short time. If no one

presses Push to talk within 10 seconds, the PTT call ends automatically.

•

Telephone operation

PTT to all handsets

When there are two to five handsets registered to the phone system, PTT

supports one-to-all calls (one-to-four maximum). However if there are six or more

handsets registered to the phone system, PTT supports a maximum of one-to-

three calls. The first four registered handsets will be able to use this feature.

Other handsets can only use PTT for one-to-one calls.

To begin a PTT-to-all call:

Press and hold Push to talk when the handset is not in use.

If you have more than two handsets, press Push to talk when the handset

is not in use. Press CID or to highlight >All handsets, then press

MENU/SELECT or Push to talk.

Your handset screen displays Connecting to all handsets... for a few

seconds. When the connection is made, all handsets display Press and hold

[PTT] to talk and beep once.

Press and hold Push to talk on your handset. A chirp indicates your

microphone is on. Speak towards the handset. Your voice is broadcast to all

destination handsets.

While you are speaking, your handset screen displays PTT To handset: X (X

represents the destination handset number).

Release Push to talk after speaking. Both handsets beep once again. After

the handsets beep, you can press and hold Push to talk to continue speaking

or the destination handset can respond (see Answer PTT on page 28).

To end the PTT call, press OFF/CLEAR or place the handset in the telephone

base or charger. The handset screen displays Push to talk Ended for a few

seconds.

After Push to talk is released, the PTT call remains open for a short time. If no one

presses Push to talk within 10 seconds, the PTT call ends automatically.

•

Telephone operation

Answer PTT

You can respond to a PTT call whenever the speakerphone light is off, as

described below.

When your handset receives a PTT call, the handset beeps and the screen

displays Press and hold [PTT] to talk.

When someone else is speaking, your speakerphone light is on, and your

handset screen displays PTT From HS X To HS Y to (X represents the

originating handset number, Y represents your handset number; a maximum

of four handset numbers appear).

When your speakerphone light is off (the screen displays Press and hold

[PTT] to talk, press and hold Push to talk on your handset. You will hear a

chirp. Speak towards the handset.

While you are speaking, your handset screen displays PTT To handset: X

(X represents the handset numbers of one or more destination handsets; a

maximum of four handset numbers appear).

Your voice is broadcast to all destination handsets.

After speaking, release Push to talk. Your handset will beep. After the beep, if

your speakerphone light is off, you can press and hold Push to talk to continue

speaking or the destination handset can respond.

Change a one-to-one PTT to intercom

You can convert a one-to-one PTT conversation to an intercom call.

When your handset screen displays Press and hold [PTT] to talk, press

MENU/SELECT. The screen displays >Intercom.

Press MENU/SELECT.

If you have two handsets system, your handset screen displays Calling

other handset. The destination handset screen temporarily displays Push

to talk Ended and then Other handset is calling.

If you have more than two handsets system, you handset screen displays

Calling HANDSET X. The destination handset screen temporarily displays

Push to talk Ended and then HANDSET Y is calling.

On the destination handset, press /FLASH,/SPEAKER or any of the

dialing keys (0-9,#, ) to answer the intercom call. Both handsets now

display Intercom.

To end an intercom call, press OFF/CLEAR or place the handset in the

telephone base or charger. Both screens display Intercom ended.

•

Telephone operation

End PTT

For one-to-one PTT, both originating and destination handsets can end PTT.

For one-to-all PTT, the originating handset can end the PTT call for all

handsets on the PTT call. If any one of the destination handsets leaves the

PTT call, the call continues until all handsets hang up.

To end or leave PTT:

Press OFF/CLEAR or place the handset in the telephone base or charger. The

handset screen displays Push to talk Ended.

After Push to talk is released, the PTT call remains open for a short time. If no one

presses Push to talk within 10 seconds, the PTT call ends automatically.

Answer an incoming call during PTT

If you receive an incoming outside call during PTT, there is an alert tone.

During a one-to-one PTT, press /FLASH on the originating or destination

handset. The PTT call ends automatically and the outside call is answered.

During a one-to-all PTT, press /FLASH on the originating handset. The PTT

call ends automatically and the outside call is answered.

During a one-to-all PTT, press /FLASH on any one of the destination

handsets and that handset answers the outside call. The PTT call continues

for the rest of the PTT participants.

To leave the PTT call without answering the incoming call, press OFF/CLEAR.

The telephone continues to ring.

Make an outgoing call during PTT

During a one-to-one PTT, press /FLASH to get a dial tone. The PTT call ends

automatically.

During a one-to-all PTT, press /FLASH on the originating handset. The PTT

call ends automatically and you get a dial tone.

During a one-to-all PTT, press /FLASH on any one of the destination

handsets and that handset gets a dial tone. The PTT call continues for the

rest of the PTT participants.

•

Telephone operation

Directory

>Caller ID log

Review

>Del all calls

Delete

all calls

Answering system

You must use a system handset to change your answering system settings. Changes

of answering system setup made on one handset apply to all system handsets.

Answer ON/OFF

The answering system must be turned on to answer and record messages. When

the answering system is turned on, the /ANS ON/OFF light on the telephone

base will be on and ANS ON will display on the handset. If the answering system

is turned off, it will be automatically turned on when you save the settings under

Ans sys setup menu.

To turn on or off with the telephone base:

Press /ANS ON/OFF to turn the built-in answering

system on or off. When the answering system is turned

on, it announces, “Calls will be answered.” When the

answering system is turned off, it announces,

“Calls will not be answered.”

To turn on or off with a handset:

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press MENU/SELECT.

Press CID or to highlight >Answer ON/OFF, then press MENU/SELECT.

Press CID or to choose >On or >Off, then press MENU/SELECT.

If the memory is full when you turn on the answering system, the telephone

announces, “Memory full” and the screen displays Memory full.

Call screening

You can hear incoming messages at the telephone base while they are being

recorded. Follow the below steps to turn this feature on or off.

To turn on or off with a handset:

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press CID or to highlight >Ans sys setup, then press

MENU/SELECT.

Press MENU/SELECT to select >Call screening, then press

MENU/SELECT.

Press CID or to choose >On or >Off, then press MENU/SELECT.

>Call screening

# of rings

CALL SCREENING

>On

>Call screening

# of rings

CALL SCREENING

>On

Answering system settings

Number of rings

You can choose from two, three, four, five, six rings or toll saver. With toll saver

selected, the answering system answers after two rings when you have new

messages, and after four rings when you have no new messages. This enables

you to check for new messages and avoid paying unnecessary long distance

charges if you are calling from out of your local area.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press CID or to highlight >Ans sys setup, then press

MENU/SELECT.

Press CID or to highlight ># of rings, then press

MENU/SELECT.

Press CID or to choose 6,5,4,3, 2 or Toll saver, then

press MENU/SELECT to save your selection.

Remote access code

A two-digit security code is required to access the answering system remotely

from any touch-tone telephone. The preset code is 19. You can set the code from

00 to 99.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press CID or to highlight >Ans sys setup, then press

MENU/SELECT.

Press CID or to highlight >Remote code, then press

MENU/SELECT.

Press the dialing keys (0-9) to enter the code, then press

MENU/SELECT to save your setting.

Call screening

># of rings

# OF RINGS

Call screening

># of rings

# OF RINGS

# of rings

>Remote code

REMOTE CODE

# of rings

>Remote code

REMOTE CODE

Answering system settings

Message alert tone

The telephone base beeps every 10 seconds to alert you of new messages. The

tone stops when all new messages have been reviewed.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press CID or to highlight >Ans sys setup, then press

MENU/SELECT.

Press CID or to highlight >Msg alert tone, then press

MENU/SELECT.

Press CID or to choose >On or >Off, then press

MENU/SELECT to save your selection.

The answering system must be turned on for the message alert tone to function.

Press any key on the telephone base (except /FIND HANDSET) to temporarily

silence the message alert tone.

•

Message recording time

You can set the recording time allowed for incoming messages. The message

length is one minute by default.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press CID or to highlight >Ans sys setup, then press

MENU/SELECT.

Press CID or to highlight >Recording time, then press

MENU/SELECT.

Press CID or to choose >3 minutes,>2 minutes,or

>1 minute, then press MENU/SELECT.

Announcement

The telephone is preset with a greeting that answers calls with “Hello, please

leave a message after the tone.” You can use this preset announcement, or

replace it with your own.

Remote code

>Msg alert tone

MSG ALERT TONE

>On

Remote code

>Msg alert tone

MSG ALERT TONE

>On

Msg alert tone

>Recording time

RECORDING TIME

>3 minutes

Msg alert tone

>Recording time

RECORDING TIME

>3 minutes

Answering system settings

Record your own announcement

You can record an announcement up to 90 seconds, but announcements shorter

than two seconds will not be recorded.

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press MENU/SELECT to select >Announcement.

Press CID or to highlight >Record annc, then press

MENU/SELECT. The handset announces, “Record after the

tone, press 5when you are done” and the screen shows

5-Stop.

After the tone, speak towards the microphone of the

handset. Press 5 when finished or press OFF/CLEAR to exit the recording.

Play your announcement

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press

MENU/SELECT.

Press MENU/SELECT to select >Announcement.

Press MENU/SELECT to select >Play annc. The handset

starts to play the announcement and the screen shows

5-Stop.

Press 5 to stop the playback and return to the previous menu or the handset

screen automatically returns to the previous menu after the playback. Press

OFF/CLEAR to return to the previous menu during playback.

Delete your announcement

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering sys, then press MENU/SELECT.

Press CID or to highlight >Announcement, then press MENU/SELECT.

Press MENU/SELECT to select >Play annc. The handset starts to play the

announcement and the screen shows 5-Stop.

Press MUTE/DELETE or 3 to delete the announcement. The handset

announces, “Announcement deleted.”

When your announcement is deleted, calls are answered with the preset

announcement.

Play annc

>Record annc

RECORDING ANNC...

5-Stop

Play annc

>Record annc

RECORDING ANNC...

5-Stop

>Play annc

Record annc

RECORDING ANNC...

5-Stop

>Play annc

Record annc

RECORDING ANNC...

5-Stop

Answering system and voicemail

Your telephone has separate indicators for two different types of voice messages:

those left on its built-in answering system and those left at your service provider’s

voicemail. Your telephone’s built-in answering system messages and voicemail

messages are separate. Each alerts you to new messages differently.

If and New voicemail display on the handset, your telephone service

provider is indicating that it has new voicemail for you. To listen to your

voicemail, you typically dial an access number provided by your telephone

service provider, followed by a security code or PIN.

If displays on the handset and the message window on the telephone

base flashes, there are new messages in the built-in answering system. To

listen to messages recorded on your digital answering system, press

/PLAY/STOP on the telephone base or refer to Answer ON/OFF on page

41 to turn it on the handset.

Some service providers bundle or combine multiple services like voicemail and

call waiting, so you may not be aware that you have voicemail. To check what

services you have and how to access them, contact your telephone service

provider.

To use your voicemail service rather than your answering system, turn off your

answering system. To use your answering system rather than your voicemail

service, contact your telephone service provider to deactivate your voicemail

service. You can also use your telephone answering system and voicemail

together by setting your built-in answering system to answer before voicemail

answers as described below. To learn how to program your voicemail settings,

contact your telephone service provider. Then, if you are on a call, or if the

answering system is busy recording a message and you receive another call, the

second caller can leave a voicemail message.

Set your answering system to answer calls at least two rings earlier than your

voicemail is set to answer. For example, if your voicemail answers after six rings,

set your answering system to answer after four rings. Some voicemail providers

may program the delay before answering calls in seconds instead of rings. In this

case, allow six seconds per ring when determining the appropriate setting.

Message capacity

The answering system can record and store up to 99 messages. The recording

time of each message depends on the message length you set (see Message

recording time on page 43). The total storage capacity for the announcement,

messages and memos is approximately 14 minutes. The actual recording time

depends on individual message characteristics. Messages remain available for

replay until you delete them.

•

Answering system operation

New message indication

The message window on the telephone base flashes and XX New message(s)

displays on the handset when there are new answering system messages.

If the new message alert tone is turned on, the telephone base beeps every 10

seconds when there are messages that have not been reviewed.

Call screening and call intercept

Call screening on the telephone base:

If the answering system and call screening are on (see Call screening on page

41), you hear the announcement and the incoming message when receiving a call.

While the answering system is recording message, you have the following options.

Press /VOL or /VOL on the telephone base to adjust the call screening volume.

Press /PLAY/STOP to temporarily silence the call screening.

Press /PLAY/STOP or /VOL to temporarily turn on the call screening if call

screening is off.

Call screening on the handset:

If the answering system is on and your answering system is recording message, your

handset shows To screen call, press [SELECT]. Press MENU/SELECT on your

handset to hear the message.

If you want to talk to the person whose message is being recorded, press

/FLASH or /SPEAKER on the handset.

The call screening setting does not affect the call screening on handset.

Message playback

On the telephone base, if you have new messages, the telephone plays only the

new messages (oldest first). If there are no new messages, the telephone plays

back all messages (oldest first).

On the handset, if you have both new and old messages, you can play either new or

old messages. The caller ID information displays on the handset screen when you

play messages and you can call back the caller.

When playback begins, you hear the total number of messages followed by the

day and time of the message. If the time and date are not set, the telephone

announces, “Time and date not set”. After the last message, the telephone

announces, “End of messages.”

•

Answering system operation

To play messages with the telephone base:

Press /PLAY/STOP when the telephone is not in use.

Options during playback:

Press /VOL or /VOL to adjust the speaker volume.

Press /SKIP to skip to the next message.

Press /REPEAT to repeat the message currently playing. Press /REPEAT

twice to listen to the previous message.

Press X/DELETE to delete the current message. The system advances to the

next message.

Press /PLAY/STOP to stop, the telephone plays a long beep.

To play messages with a handset:

Press MENU/SELECT when the handset is not in use.

Press MENU/SELECT to select >Play messages. If you

have either new or old messages, the messages play

automatically. If you have both new and old messages:

To play new messages, press MENU/SELECT to select

>Play new msgs.

To play old messages, press CID or to highlight

>Play old msgs, then press MENU/SELECT.

When the telephone is playing the message, the screen

shows the caller’s name, if there is no name or number

available, the screen shows No caller info.

Options during playback:

Press MENU/SELECT to stop the playback, and display the

caller’s name and number information if it is available, then

press /FLASH or /SPEAKER to call back the caller.

If you do not press /FLASH or /SPEAKER within five

seconds, the screen automatically returns to the message playback mode.

Press /FLASH or /SPEAKER to stop the playback and call back the

caller.

Press CID or to adjust the speaker volume.

Press EQ to adjust the handset message playback audio quality.

Press 6 to skip to the next message.

Press 4 to repeat the message currently playing. Press 4 twice to listen to

the previous message.

•

>Play messages

Answering sys

>Play new msgs

Play old msgs

Mike Smith

4-Repeat 6-Skip

1/4 9:30AM

ANS ON

1 New message

ANS ON

>Play messages

Answering sys

>Play new msgs

Play old msgs

Mike Smith

4-Repeat 6-Skip

1/4 9:30AM

ANS ON

1 New message

ANS ON

Answering system operation

Press 3or MUTE/DELETE to delete the current message. The system

announces, “Message deleted” and advances to the next message.

Press 5 to stop.

When the answering system has less than three minutes of recording time left,

“Less than three minutes to record” is announced.

When the telephone is not in use, if F and the number of messages are flashing

alternately in the message window, or the handset screen displays Rec mem

full, the memory is full. Delete some messages to make room for more.

You can only delete old messages, which are messages you have played.

•

Delete all messages

To delete all messages with the telephone base:

Press X/DELETE when the phone is not in use. The

telephone announces, “To delete all old messages, press

DELETE again.”

Press X/DELETE again. All previously heard messages are

deleted and the telephone announces, “All old messages

deleted.”

To delete all messages with a handset:

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering Sys, then press

MENU/SELECT.

Press CID or to highlight >Delete all old, then press

MENU/SELECT. The handset screen displays Delete all old

messages? If there are no old messages in the answering

system, the screen displays No old messages to delete.

Press MENU/SELECT to save your selection, the screen

shortly displays Deleting.. and then All old msgs deleted.

You hear a confirmation tone.

•

>Play messages

Answering sys

Announcement

>Delete all old

Delete all old

messages?

Deleting...

All old msgs

deleted

>Play messages

Answering sys

Announcement

>Delete all old

Delete all old

messages?

Deleting...

All old msgs

deleted

Answering system operation

Record, play and delete memos

Memos are your own recorded messages used as reminders for yourself or

others using the same answering system. You can record your own memos using

a system handset. Play and delete them in the same way as incoming messages

(see Message playback on page 46).

To record a memo:

Press MENU/SELECT when the handset is not in use.

Press CID or to highlight >Answering Sys, then press MENU/SELECT.

Press CID or to highlight >Record memo, then press MENU/SELECT.

The handset announces, “Record after the tone. Press 5 when you are done.”

After the tone, speak towards the microphone of the handset.

Press 5 when finished recording. The handset announces, “Recorded.”

“Memory is full” is announced if you record a memo when the memory is full.

Each memo can be up to four minutes in length.

Memos shorter than two seconds are not recorded.

•

Message window displays

Window display Description

0No messages.

1-99 Total number of old messages recorded. Current messages number

during old message playback.

0-99 (flashing) When time and date are not set, it flashes 0, or total number of new

messages recorded, or total number of old messages recorded.

The telephone base may have lost and regained power.

The clock needs to be set.

1-99 & F

(alternating)

Memory is full with total number of messages recorded.

1-8 Telephone base speaker volume level while adjusting.

-- The system is answering a call, or recording a memo or announcement.

Telephone is answering a call or being accessed remotely.

The answering system is being programmed.

0-6 Telephone base ringer level while adjusting.

When the memory is full, the answering system answers incoming calls after 10

rings and announces, “Memory is full. Enter the remote access code.”

Answering system operation

Remote access

A two-digit security code is required to access the answering system remotely

from any touch-tone telephone. The preset code is 19; see Remote access

code on page 42 to change it.

Dial your telephone number from any touch-tone telephone.

When the system plays your announcement, enter the two-digit security code.

Then you can enter one of the following remote commands.

Command Function

1Play all messages.

2Play new messages.

3Delete the current message (during playback).

33 Delete all old messages.

4Repeat the current message (during playback).

44 Skip to the previous message (during playback).

5Stop.

*5 Hear a list of remoter commands.

6Skip to the next message (during playback).

*7 Record a new announcement.

8End the call.

0Turn the answering system on or off.

Hang up or press 8 to end the call.

If you do not press any keys after you enter the remote access code, all new

messages play. If there are no new messages, all old messages play.

Once the new messages have played, the telephone announces the help menu

options. If you do not press any key within 20 seconds, the remote access call

automatically disconnects.

When the answering system is turned off, the telephone answers after 10 rings,

and announces, “Please enter your remote access code.”

When the answering system memory is full (low), the telephone announces,

“Memory is full (low). Enter your remote access code.”

•

Appendix

Handset display screen messages

Number already

saved

The telephone number entered is already stored in the

directory.

Caller ID log

empty

There are no caller ID log entries.

Calling handset X

Calling other

handset

Calling another handset.

Directory empty There are no directory entries.

Directory full The directory is full.

Ended You have just ended a call.

Handset X is

calling

Other handset is

calling

Another system handset is calling.

Incoming call There is an incoming call.

Intercom The handset is on an intercom call.

Intercom ended You have just ended an intercom call.

Line in use A system handset or another telephone on the same line is in

use, or the answering system is answering a call.

Low battery The handset battery needs to be recharged.

Microphone ON MUTE is turned off and the person on the other end can hear

you.

Muted You have turned off the handset microphone. The other party

cannot hear you but you can hear the other party.

New voicemail There are new voicemail messages from your telephone

service provider.

No battery No battery is installed. Follow the directions for battery

installation on page 7 to install the battery before charging.

No line There is no telephone line connected.

No signal,

call ended

Communication between the handset and telephone base is

lost during a call.

Not available at

this time

One handset is already viewing the caller ID log or

directory and another handset attempts to review it.

Appendix

Out of range OR

No pwr at base

The handset cannot communicate with the telephone

base. Check the telephone base power connection or

move closer.

**Paging ** The system handset is being paged.

Phone The handset is on a call.

Place in charger The battery is very low. Place the handset in the

telephone base or charger for recharging.

Rec mem full The battery is very low. Place the handset in the

telephone base or charger for recharging.

Rec mem low Answering system has less than three minutes of

recording time left.

Ringer off The ringer is muted temporarily during an incoming or

intercom call.

Saved Your selection has been saved.

Speaker The handset speakerphone is in use.

Unable to call.

Try again

You have attempted to make an intercom call, but the

handset you are calling is in the directory, in the caller

ID log or out of range, or the handset you are calling is

on an outside call.

Unable to save You are attempting to save a caller ID entry without a

name and number.

XX Missed calls There are XX calls that have not been reviewed in your

caller ID log.

XX New messages There are XX new messages in the answering system.

Appendix

Handset and telephone base indicators

Handset lights

On when the handset speakerphone is in use.

CHARGE On when the handset is charging in the telephone base or charger.

Telephone base lights

IN USE On when the telephone line is in use.

On when the answering system is answering a call.

On when you are registering a handset.

Flashes quickly when there is an incoming call.

Flashes when another telephone sharing the same line is in use.

Flashes when you are deregistering all handsets.

/ANS ON/OFF On when the answering system is turned on.

Handset icons

Battery status - flashes when the battery is low and needs charging.

Battery status - animates when the battery is charging.

Battery status - becomes solid when the battery is fully charged.

Speakerphone is in use.

Handset ringer off.

New voicemail received from your telephone service provider.

ANS ON Answering system is turned on.

New answering system messages.

NEW New caller ID log entries.

MUTE Microphone is muted.

1/13 Message number currently playing and total number of messages

recorded.

Appendix

Handset battery

It takes up to 10 hours for the battery to be fully charged. When it is fully charged, you can

expect the following performance:

Operation Operating time

While in handset use (talking*) Up to seven hours

While in speakerphone mode (talking*) Up to five hours

While not in use (standby**) Up to seven days

*Operating times vary depending on your actual use and the age of the battery.

**Handset is not charging or in use.

The battery needs charging when:

A new battery is installed in the handset.

The handset beeps.

A battery is properly installed and the screen is blank.

Low battery or Place in charger displays on the handset screen.

CAUTION:

To reduce the risk of fire or injury, read and follow these instructions:

Use only the battery(ies) provided or equivalent. To order a replacement, visit our

website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or call 1 (800) 267-7377.

Do not dispose of the battery(ies) in a fire. Check with local waste management codes

for special disposal instructions.

Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may

cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.

Exercise care in handling batteries in order not to create a short circuit with conductive

materials.

Charge the battery(ies) provided with or identified for use with this product only in

accordance with the instructions and limitations specified in this manual.

Observe proper polarity orientation between the battery and metallic contacts.

To prevent fire or shock hazard, do not expose this product to water or any type of moisture.

•

Appendix

Expand your telephone system

The handsets provided with your telephone system are already registered. Each handset

is assigned a number that displays on the handset. Additional handsets registered to the

telephone system are assigned in sequential order. For instance, if the telephone system

already has HANDSET 1 and HANDSET 2, the new registered handset is assigned

HANDSET 3. This telephone system accommodates up to five handsets.

Add and register a handset (optional)

You can add new handsets (LS6405, purchased separately) to your telephone system.

Each handset must be registered with the telephone base before use. When first

purchased, each handset screen displays Put HS on BASE to register. You may need to

charge the handset before registering it to the telephone base. For more details on battery

charging, see page 8.

To register a handset:

Place the unregistered handset in the telephone base. If Put HS on BASE to register

does not appear on the handset screen after a few seconds, remove the handset and

place it in the telephone base again.

The handset screen displays Registering...Please wait and the red IN USE light on

the telephone base turns on. It takes about 90 seconds to complete the registration.

The handset screen displays Handset registered and you hear a beep when the

registration completes.

If the registration fails, the handset screen displays Registration failed for a few seconds,

then Put HS on BASE to register. To reset the handset, remove it from the telephone

base and place it back in. Try the registration process again.

You cannot register a handset if any other system handset is in use.

Appendix

Deregister a handset

If you want to replace a handset, or reassign the designated handset number of a

registered handset, you must deregister all the handsets that are registered to the

telephone base. Then register each handset individually.

To make deregistration easier, read all of the instructions on this page before you begin.

To deregister all handsets:

Press and hold /FIND HANDSET on the telephone base for about 10 seconds until

the IN USENKIJVQPVJGVGNGRJQPGDCUGVWTPUQPCPFUVCTVUVQƀCUJ

Press and release /FIND HANDSET again. You must press /FIND HANDSET while

the IN USENKIJVKUUVKNNƀCUJKPI6JGIN USENKIJVƀCUJGUHQTCRRTQZKOCVGN[UGXGP

seconds.

The deregistration process takes about 10 seconds to complete. All handsets show

Put HS on BASE to register.

If deregistration fails, you may need to reset the telephone base and try again.

To reset:

Pick up the registered handset and then press /FLASH.

-OR-

Unplug the power from the telephone base, then plug it back in.

You cannot register a handset if any other system handset is in use.

After you deregister the handset(s), the telephone base is in idle mode but the

system date and time information needs to be reset. For instructions, see Set

date/time on page 12.

•

Appendix

Troubleshooting

If you have difficulty with your telephone, please try the suggestions below. For

customer service, visit our website at www.vtechphones.com, or call

1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call

1 (800) 267-7377.

My telephone does not work at all.

Make sure the battery is installed and charged correctly (pages 7-8). For optimum daily

performance, return the handset to the telephone base or charger after use.

Make sure the power adapter is securely plugged into an outlet not controlled by a wall

switch.

Make sure the telephone line cord is plugged firmly into the telephone base and the

telephone wall jack.

Unplug the electrical power to the telephone base. Wait for approximately 15 seconds,

then plug it back in. Allow up to one minute for the cordless handset and telephone

base to synchronize.

Charge the battery in the handset for up to 10 hours.

If the battery is completely depleted, it may take up to 30 minutes to charge the handset

before Low battery appears on the screen (page 8).

Completely remove and install the battery again. If that still does not work, it may be

necessary to purchase a new battery.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as possible

from these types of electronic devices.

Disconnect the telephone base from the telephone wall jack and plug in a working

telephone. If the other telephone does not work, the problem is probably in the wiring or

telephone service. Contact your telephone service provider.

There is no dial tone.

First, try all the above suggestions.

Move the handset closer to the telephone base. It might be out of range.

The telephone line cord may be defective. Install a new telephone line cord.

Disconnect the telephone base from the telephone wall jack and connect a different

telephone. If there is no dial tone on this telephone either, the problem is in your wiring

or telephone service. Contact your telephone service provider.

I cannot dial out from my cordless handset.

First, try all the above suggestions.

Make sure there is a dial tone before dialing. It is normal if the handset takes a second

or two to synchronize with the telephone before producing a dial tone. Wait an extra

second before dialing.

If other telephones in your home are having the same problem, the problem is in the

wiring or telephone service. Contact your telephone service provider.

Eliminate any background noise. Mute the cordless handset before dialing, or dial from

another room in your home with less background noise.

•

Appendix

Troubleshooting

Low battery shows on screen.

Place the handset in the telephone base or charger for recharging.

Completely remove and install the battery again and use it until fully depleted, then

recharge the handset in the telephone base or charger for up to 10 hours.

If the above measures do not correct the problem, replace the battery.

The battery does not charge in the handset or the handset battery does not accept

charge.

Make sure the handset is placed in the telephone base or charger correctly. The

CHARGE light on the handset should be on.

Completely remove and install the battery again, then charge for up to 10 hours.

If the handset is in the telephone base or charger but the CHARGE light on the handset

is not on, refer to The CHARGE light is off in this section.

If the battery is completely depleted, it can take up to 30 minutes to charge the handset

before Low battery appears on the screen (page 8).

Purchase a new battery. Refer to Handset battery on page 54.

The CHARGE light is off.

Clean the charging contacts on the handset and telephone base each month with a

pencil eraser or a dry non-abrasive fabric.

Make sure the power adapter and telephone line cord are plugged in correctly and

securely.

Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to

one minute for the handset and telephone base to reset.

The telephone does not ring when there is an incoming call.

Make sure the handset ringer volume is not set to the lowest level (page 11) and the

telephone base ringer volume is not set to zero (page 11). Make sure the telephone line

cord and power adapter are plugged in properly (page 6).

The handset may be too far from the telephone base. Move it closer to the telephone

base.

There may be too many extension phones on the telephone line to allow all of them to

ring simultaneously. Unplug some of them.

If the other telephones in your home are having the same problem, the problem is in the

wiring or telephone service. Contact your telephone service provider.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as possible

from these types of electronic devices.

Test a working telephone at the telephone wall jack. If another telephone has the same

problem, the problem is in the telephone wall jack. Contact your telephone service

provider.

The telephone line cord may be defective. Install a new telephone line cord.

Completely remove and install the battery again and place the handset in the telephone

base or charger.

Wait for the handset to synchronize with the telephone base. Allow up to one minute for

this to take place.

•

Appendix

Troubleshooting

My handset beeps and is not performing normally.

Make sure the power cord is securely plugged into the telephone base. Plug the

telephone base into a different working electrical outlet not controlled by a wall switch.

Move the handset closer to the telephone base. It may be out of range.

Reset the telephone base by unplugging the electrical power to the base. Wait for 15

seconds and plug it back in again. Allow up to one minute for the cordless handset and

the telephone base to synchronize.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as possible

from these types of electronic devices.

I hear noise on the cordless handset and the keys do not work.

Make sure the telephone line cord is plugged in securely.

There is interference during a telephone conversation. My calls fade out when I am

using the cordless handset.

The handset may be out of range. Move it closer to the telephone base.

If you subscribe to high-speed Internet service (digital subscriber line - DSL) through

your telephone line, you must install a DSL filter between the telephone line cord and

the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL

interference. Contact your DSL service provider for more information about DSL filters.

Appliances or other cordless telephones plugged into the same circuit as the telephone

base can cause interference. Try moving the appliance or telephone base to another

outlet.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as possible

from these types of electronic devices.

If your telephone is plugged in with a modem or a surge protector, plug the telephone

(or modem/surge protector) into a different location. If this doesn’t solve the problem,

relocate your telephone or modem farther apart from each other, or use a different

surge protector.

The location of your telephone base can impact the performance of your cordless

phone. For better reception, install the telephone base in a centralized location within

your home or office, away from walls or other obstructions. In many environments,

elevating the telephone base improves overall performance.

Disconnect the telephone base from the telephone wall jack and plug in a corded

telephone. If calls are still not clear, the problem is probably in the wiring or telephone

service. Contact your telephone service provider (charges may apply).

If other telephones in your home are having the same problem, the problem is in the

wiring or telephone service. Contact your telephone service provider.

•

Appendix

I hear other calls when using the cordless handset.

Disconnect the telephone base from the telephone wall jack. Plug in a different

telephone. If you still hear other calls, the problem is probably in the wiring or telephone

service. Call your telephone service provider.

The other party cannot hear my voice during a call.

Make sure the mute feature is not turned on during a call (page 18).

Registration failed appears on the handset.

Only one handset can be registered at a time. If you have multiple handsets to register,

please follow the instructions on page 55 for the first handset. Once a handset has been

successfully registered, repeat the steps for each handset that needs to be registered.

If you have already registered the maximum numbers of handsets, you need to follow

the deregistration instructions before registering a handset. Refer to Expand your

telephone system on page 55 and Deregister a handset on page 56. Make sure that

the telephone base and handsets are in idle mode when registering a handset.

Follow the steps on page 63 for the Common cure for electronic equipment, then try

again to register a handset.

My caller ID features are not working properly.

Caller ID is a subscription service. You must subscribe to this service from your

telephone service provider for this feature to work on your telephone.

The caller may not be calling from an area which supports caller ID.

Both your and your caller’s telephone service providers must use equipment compatible

with the caller ID service.

The caller ID information shows after the first or second ring.

If you subscribe to high-speed Internet service (digital subscriber line - DSL) through

your telephone line, you must install a DSL filter between the telephone line cord and

the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL

interference. Contact your DSL service provider for more information about DSL filters.

The telephone does not receive caller ID or the telephone does not show caller ID

during call waiting.

Make sure you subscribe to caller ID with call waiting features provided by your

telephone service provider.

The caller may not be calling from an area which supports caller ID.

Both your and your caller’s telephone service providers must use equipment compatible

with caller ID service.

If you subscribe to high-speed Internet service (digital subscriber line - DSL) through

your telephone line, you must install a DSL filter between the telephone line cord and

the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL

interference. Contact your DSL service provider for more information about DSL filters.

•

Troubleshooting

Appendix

Troubleshooting

Caller ID entries do not match the numbers I need to dial.

Caller ID service delivers 10 digits (the area code plus the seven-digit number). If

you need to dial something other 10 digits, see View dialing options on page 38 for

instructions on changing the number.

If you dial seven digits for local calls, you may want to use the home area code feature

(page 15).

Out of range OR No pwr at base shows in the handset screen.

The handset may be out of range. Move it closer to the telephone base.

Make sure the power cord is securely plugged into the telephone base. Use a working

electrical outlet not controlled by a wall switch.

Reset your telephone by unplugging the power adapter from the telephone base.

Disconnect the battery from the cordless handset. Wait for 15 seconds, then plug in the

power adapter and install the battery again. Place the handset in the telephone base

and allow up to one minute for the handset and telephone base to synchronize.

Other electronic products such as HAM radios and other DECT phones can cause

interference with your cordless phone. Try installing your phone as far away as possible

from these types of electronic devices.

New voicemail and show on the display and I don’t know why.

Your telephone has voicemail indication that is separate from the built-in answering

system. If New voicemail and appear on the display, then your telephone has received a

signal from your telephone service provider that you have a voicemail message waiting

for you to retrieve from your telephone service provider. Contact your telephone service

provider for more information on how to access your voicemail.

I cannot retrieve voicemail messages.

Your telephone has both a built-in answering system and voicemail indication. They

are independent features and each alerts you to new messages differently (page 45). If

you subscribe to voicemail service from your telephone service provider (charges may

apply), contact your telephone service provider for more information on how to access

your voicemail.

The answering system does not answer after the correct number of rings.

Make sure the answering system is on. When the answering system is on, the

/ANS ON/OFF light on the telephone base should be lit and ANS ON should show on

the handset.

If toll saver is selected, the number of rings changes to two when there are new

messages waiting (page 42).

If the memory is full or if the answering system is off, the answering system answers

after 10 rings.

In some cases, the answering system is affected by the ringing system used by your

telephone service provider.

If you subscribe to voicemail service, change the number of rings so that your

answering system answers before your voicemail answers (see Number of rings on

page 42). To determine how many rings activate your voicemail, please contact your

telephone service provider.

•

Appendix

Troubleshooting

If there is a fax machine connected to the same telephone line, try disconnecting the

fax machine. If that solves the problem, consult your fax machine documentation for

information on compatibility with answering systems.

The outgoing announcement is not clear.

When recording the announcement, make sure you speak in a normal tone of voice

towards the microphone of the handset.

Make sure there is no background noise when recording.

The answering system does not record messages.

Make sure the answering system is on (see Answer ON/OFF on page 41).

When the answering machine memory is full, it does not record new messages until

some old messages are deleted.

If you subscribe to voicemail service, change the number of rings so that your

answering system answers before your voicemail answers (see Number of rings on

page 42). To determine how many rings activate your voicemail, please contact your

telephone service provider.

If there is a fax machine connected to the same telephone line, try disconnecting the

fax machine. If that solves the problem, consult your fax machine documentation for

information on compatibility with answering systems.

The messages on the answering system are very difficult to hear.

Press /VOL on the telephone base or on the handset to increase the speaker

volume.

The messages on the answering system are incomplete.

The recording time of each message depends on the message length you set (see

Message recording time on page 43).

If a caller leaves a very long message, part of it may be lost when the answering system

disconnects the call after four minutes.

If the memory on the answering system becomes full during a message, the answering

system stops recording and disconnects the call.

If the caller’s voice is very soft, the answering system may stop recording and

disconnect the call.

The answering system does not respond to remote commands.

Make sure your remote access code is correct (page 42).

Make sure you are calling from a touch-tone telephone. When dialing a number, there

should be tones. If there are clicks, then it is not a touch-tone telephone and cannot

activate the answering system.

The answering system may not detect the remote access code when your

announcement is playing. Wait until the announcement is over before entering the code.

There may be interference on the telephone line you are using. Press the dial pad keys

firmly when dialing.

•

Appendix

Troubleshooting

I subscribe to a nontraditional telephone service that uses my computer to establish

connections, and my telephone doesn’t work.

Make sure your computer is powered on.

Make sure your Internet connection is working properly.

Make sure that the software is installed and running for your nontraditional telephone

service.

Make sure to plug your USB telephone adapter into a dedicated USB port on your

computer. Do not plug into a multiple port USB hub (USB splitter) that is not powered.

In a few rare instances, the USB port on your computer may not have enough power. In

these instances, try using a USB hub with its own external power supply.

If you are using a firewall, it may prevent access to your nontraditional telephone

service. Contact your service provider for more information.

Common cure for electronic equipment.

If the telephone is not responding normally, put the cordless handset in the telephone base.

If it does not respond, try the following (in the order listed):

Disconnect the power to the telephone base.- Disconnect the battery on the cordless

handset.

Wait a few minutes before connecting power to the telephone base.

Completely remove and install the battery again and place the cordless handset in the

telephone base or charger.

Wait for the cordless handset to synchronize with the telephone base. Allow up to one

minute for this to take place.

•

Appendix

Important safety instructions

When using your telephone equipment, basic safety precautions should always be followed to reduce

the risk of fire, electric shock and injury, including the following:

Read and understand all instructions.

Follow all warnings and instructions marked on the product.

Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a

damp cloth for cleaning.

Do not use this product near water.

Do not place this product on an unstable table, shelf, stand or other unstable surfaces.

Slots and openings in the back or bottom of the telephone base and handset are provided for

ventilation. To protect them from overheating, these openings must not be blocked by placing the

product on a soft surface such as a bed, sofa or rug. This product should never be placed near

or over a radiator or heat register. This product should not be placed in any area where proper

ventilation is not provided.

This product should be operated only from the type of power source indicated on the marking label.

If you are not sure of the type of power supply in your home or office, consult your dealer or local

power company.

Do not allow anything to rest on the power cord. Do not install this product where the cord may be

walked on.

Never push objects of any kind into this product through the slots in the telephone base or handset

because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any

kind on the product.

To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized

service facility. Opening or removing parts of the telephone base or handset other than specified

access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can

cause electric shock when the product is subsequently used.

Do not overload wall outlets and extension cords.

Unplug this product from the wall outlet and refer servicing to an authorized service facility under the

following conditions:

When the power supply cord or plug is damaged or frayed.

If liquid has been spilled onto the product.

If the product has been exposed to rain or water.

If the product does not operate normally by following the operating instructions. Adjust only those

controls that are covered by the operation instructions. Improper adjustment of other controls

may result in damage and often requires extensive work by an authorized technician to restore

the product to normal operation.

If the product has been dropped and the telephone base and/or handset has been damaged.

If the product exhibits a distinct change in performance.

Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of

electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances,

a spark may be created when the adapter is plugged into the power outlet, or when the handset is

replaced in its cradle. This is a common event associated with the closing of any electrical circuit.

The user should not plug the phone into a power outlet, and should not put a charged handset into

the cradle, if the phone is located in an environment containing concentrations of flammable or

flame-supporting gases, unless there is adequate ventilation. A spark in such an environment could

create a fire or explosion. Such environments might include: medical use of oxygen without adequate

ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc.

10.

11.

12.

•

13.

14.

Appendix

Only put the handset of your telephone next to your ear when it is in normal talk mode.

The power adapters are intended to be correctly oriented in a vertical or floor mount position. The

prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or

cabinet outlet.

SAVE THESE INSTRUCTIONS

15.

16.

Important safety instructions

Appendix

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless telephones):

Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary

evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers.

Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that:

Pacemaker patients

Should keep wireless telephones at least six inches from the pacemaker.

Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,

when it is turned ON.

Should use the wireless telephone at the ear opposite the pacemaker.

WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using

wireless telephones.

Operating range

This cordless telephone operates with the maximum power allowed by the Federal Communications

Commission (FCC). Even so, this handset and telephone base can communicate over only a certain

distance - which can vary with the locations of the telephone base and handset, the weather, and the

layout of your home or office.

When the handset is out of range, the handset screen displays Out of range OR No pwr at base.

If there is a call while the handset is out of range, it may not ring, or if it does ring, the call may not connect

well when you press /FLASH. Move closer to the telephone base, then press /FLASH to answer the call.

If the handset moves out of range during a telephone conversation, there may be interference. To

improve reception, move closer to the telephone base.

Maintenance

Taking care of your telephone

Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.

Avoid rough treatment

Place the handset down gently. Save the original packing materials to protect your telephone if you ever

need to ship it.

Avoid water

Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it

with wet hands. Do not install the telephone base near a sink, bathtub or shower.

Electrical storms

Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own

safety, take caution when using electrical appliances during storms.

Cleaning your telephone

Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only

with a soft cloth slightly dampened with water or mild soap. Do not use excess water or cleaning

solvents of any kind.

•

Remember that electrical appliances can cause serious injury if used when you are wet or standing

in the water. If the telephone base should fall into the water, DO NOT RETRIEVE IT UNTIL YOU

UNPLUG THE POWER CORD AND TELEPHONE LINE CORD FROM THE WALL. Then remove the

telephone by the unplugged cords.

Appendix

About cordless telephones

Privacy: The same features that make a cordless telephone convenient create some limitations.

Telephone calls are transmitted between the telephone base and the cordless handset by radio

waves, so there is a possibility that the cordless telephone conversations could be intercepted by

radio receiving equipment within range of the cordless handset. For this reason, you should not think

of cordless telephone conversations as being as private as those on corded telephones.

Electrical power: The telephone base of this cordless telephone must be connected to a working

electrical outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot be made

from the cordless handset if the telephone base is unplugged, switched off or if the electrical power

is interrupted.

Potential TV interference: Some cordless telephones operate at frequencies that may cause

interference to televisions and VCRs. To minimize or prevent such interference, do not place

the telephone base of the cordless telephone near or on top of a TV or VCR. If interference is

experienced, moving the cordless telephone farther away from the TV or VCR often reduces or

eliminates the interference.

Rechargeable batteries: Exercise care in handling batteries in order not to create a short circuit

with conducting material such as rings, bracelets, and keys. The battery or conductor may overheat

and cause harm. Observe proper polarity between the battery and the battery charger.

Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do

not burn or puncture the battery. Like other batteries of this type, if burned or punctured, they could

release caustic material which could cause injury.

•

The RBRC® seal

The RBRC® seal on the nickel-metal hydride battery indicates that VTech Communications, Inc. is

voluntarily participating in an industry program to collect and recycle these batteries at the end of their

useful lives, when taken out of service within the United States and Canada.

The RBRC® program provides a convenient alternative to placing used nickel-metal hydride batteries

into the trash or municipal waste, which may be illegal in your area.

VTech’s participation in RBRC®makes it easy for you to drop off the spent battery at local retailers

participating in the RBRC® program or at authorized VTech product service centers. Please call

1 (800) 8 BATTERYTM for information on Ni-MH battery recycling and disposal bans/restrictions in your

area. VTech’s involvement in this program is part of its commitment to protecting our environment and

conserving natural resources.

RBRC® is a registered trademark of Rechargeable Battery Recycling Corporation.

Appendix

FCC, ACTA and IC regulations

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device

under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended

to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation. Privacy of communications may not

be ensured when using this telephone.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy

that can be safely absorbed by a user or bystander according to the intended usage of the product. This

product has been tested and found to comply with the FCC criteria. The handset may be safely held

against the ear of the user. The telephone base shall be installed and used such that parts of the user’s

body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or more.

This Class B digital apparatus complies with Canadian ICES-003.

FCC Part 68 and ACTA

This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by

the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this

equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This

identifier must be provided to your local telephone company upon request.

The plug and jack used to connect this equipment to premises wiring and the telephone network

must comply with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant

telephone cord and modular plug is provided with this product. It is designed to be connected to a

compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a

single line and an RJ14 jack for two lines. See Installation Instructions in the user’s manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your

telephone line and still have them ring when you are called. The REN for this product is encoded as the

6th and 7th characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3). In most,

but not all areas, the sum of all RENs should be five (5.0) or less. For more information, please contact

your local telephone company.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment

connected to your telephone line, ensure the connection of this equipment does not disable your alarm

equipment. If you have questions about what will disable alarm equipment, consult your telephone

company or a qualified installer.

•

Appendix

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has

been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its

authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty.

If this equipment is causing harm to the telephone network, the telephone company may temporarily

discontinue your telephone service. The telephone company is required to notify you before interrupting

service. If advance notice is not practical, you will be notified as soon as possible. You will be given the

opportunity to correct the problem and the telephone company is required to inform you of your right to

file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment,

operation, or procedures that could affect the proper functioning of this product. The telephone company

is required to notify you if such changes are planned.

If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

If this product has memory dialing locations, you may choose to store emergency telephone numbers

(e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:

Remain on the line and briefly explain the reason for the call before hanging up.

Perform such activities in off-peak hours, such as early morning or late evening.

Industry Canada

Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference, including interference that may cause undesired

operation.

The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada

technical specifications were met.

The Ringer Equivalence Number (REN) for this terminal equipment is 0.5. The REN is an indication of

the maximum number of devices allowed to be connected to a telephone interface. The termination on

an interface may consist of any combination of devices subject only to the requirement that the sum of

the RENs of all the devices does not exceed five.

This product meets the applicable Industry Canada technical specifications.

FCC, ACTA and IC regulations

Appendix

Limited warranty

What does this limited warranty cover?

The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer”

or “you”) that the Product and all accessories provided in the sales package (“Product”) are free from

defects in material and workmanship, pursuant to the following terms and conditions, when installed and

used normally and in accordance with the Product operating instructions. This limited warranty extends

only to the Consumer for Products purchased and used in the United States of America and Canada.

What will VTech do if the Product is not free from defects in materials and

workmanship during the limited warranty period (“Materially Defective Product”)?

During the limited warranty period, VTech’s authorized service representative will repair or replace at

VTech’s option, without charge, a Materially Defective Product. If we repair the Product, we may use

new or refurbished replacement parts. If we choose to replace the Product, we may replace it with a

new or refurbished Product of the same or similar design. We will retain defective parts, modules, or

equipment. Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech

will return the repaired or replacement Products to you in working condition. You should expect the

repair or replacement to take approximately 30 days.

How long is the limited warranty period?

The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If

VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty, this

limited warranty also applies to repaired or replacement Product for a period of either (a) 90 days from

the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original

one-year warranty; whichever is longer.

What is not covered by this limited warranty?

This limited warranty does not cover:

Product that has been subjected to misuse, accident, shipping or other physical damage, improper

installation, abnormal operation or handling, neglect, inundation, fire, water or other liquid intrusion;

Product that has been damaged due to repair, alteration or modification by anyone other than an

authorized service representative of VTech; or

Product to the extent that the problem experienced is caused by signal conditions, network reliability,

or cable or antenna systems; or

Product to the extent that the problem is caused by use with non-VTech accessories; or

Product whose warranty/quality stickers, product serial number plates or electronic serial numbers

have been removed, altered or rendered illegible; or

Product purchased, used, serviced, or shipped for repair from outside the United States of America

or Canada, or used for commercial or institutional purposes (including but not limited to Products

used for rental purposes); or

Product returned without a valid proof of purchase (see item 2 below); or

Charges for installation or set up, adjustment of customer controls, and installation or repair of

systems outside the unit.

Appendix

How do you get warranty service?

To obtain warranty service, please visit our website at www.vtechcanada.com or call 1 (800) 2677377.

NOTE: Before calling for service, please review the user’s manual - a check of the Product’s controls

and features may save you a service call.

Except as provided by applicable law, you assume the risk of loss or damage during transit and

transportation and are responsible for delivery or handling charges incurred in the transport of the

Product(s) to the service location. VTech will return repaired or replaced Product under this limited

warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage

or loss of the Product in transit. If the Product failure is not covered by this limited warranty, or proof of

purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you

authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and

return shipping costs for the repair of Products that are not covered by this limited warranty.

What must you return with the Product to get warranty service?

Return the entire original package and contents including the Product to the VTech service location

along with a description of the malfunction or difficulty; and

Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model)

and the date of purchase or receipt; and

Provide your name, complete and correct mailing address, and telephone number.

Other Limitations

This warranty is the complete and exclusive agreement between you and VTech. It supersedes all

other written or oral communications related to this Product. VTech provides no other warranties for this

Product. The warranty exclusively describes all of VTech’s responsibilities regarding the Product. There

are no other express warranties. No one is authorized to make modifications to this limited warranty and

you should not rely on any such modification.

State/Provincial Law Rights: This warranty gives you specific legal rights, and you may also have other

rights, which vary from state to state or province to province.

Limitations: Implied warranties, including those of fitness for a particular purpose and merchantability

(an unwritten warranty that the Product is fit for ordinary use) are limited to one year from the date of

purchase. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the

above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental,

consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use

the Product or other associated equipment, the cost of substitute equipment, and claims by third parties)

resulting from the use of this Product. Some states/provinces do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please retain your original sales receipt as proof of purchase.

Limited warranty

Appendix

Technical specifications

Frequency Control Crystal controlled PLL synthesizer

Transmit frequency Handset: 1921.536-1928.448 MHz

Telephone base: 1921.536-1928.448 MHz

Channels 5

Nominal effective

range

Maximum power allowed by FCC and IC. Actual operating range might vary

according to environmental conditions at the time

of use.

Operating

temperature

32°F — 122°F

(0°C — 50°C)

Power

requirements

Handset: 2.4V 400mAh Ni-MH battery

Telephone base: 6V DC @ 400mACharger: 6V AC @ 300mA

Memory Handset directory: 50 memory locations;

up to 30 digits and 15 characters

Handset caller ID log: 50 memory locations;

up to 24 digits and 15 characters

Appendix

Index

About cordless telephones, 67

Add a handset, 55

Alphabetical search, 32

Announced transfer, 23

Announcement, 43

Answer a call, 17

Answer an incoming call during an intercom

call, 23

Answer an incoming call during PTT, 29

Answering system, 41,45

Answer ON/OFF, 41

Answer PTT, 28

Assign a directory entry to a speed dial

location, 34

Base layout, 2

Battery, 54

Battery charging, 8

Blind transfer, 24

Caller ID, 36

Caller ID log, 37

Call intercept, 46

Call screening, 41,46

Call waiting, 19

Chain dialing, 20

Character chart, 31

CID time synchronization, 15

Clear voicemail indicator, 13

Date and time, 12

Delete a directory entry, 33

Delete all messages, 48

Delete announcement, 44

Delete a speed dial entry, 35

Delete the caller ID log entries, 40

Deregister a handset, 56

Dial a caller ID log entry, 39

Dial a directory entry, 32

Dial a speed dial entry, 34

Dialing options, 38

Dial mode, 16

Directory, 30

Edit a directory entry, 33

End a call, 17

Equalizer, 19

Expand your telephone system, 55

FCC, ACTA and IC regulations, 68–69

Find handset, 19

Handset display screen messages, 51–52

Handset icons, 53

Handset layout, 3–5

Handset lights, 53

Handset listening volume, 17

Home area code, 15

Important safety instructions, 64–65

Installation (Battery), 7

Installation (telephone base), 6

Intercom, 22

Key tone, 15

Appendix

LCD language, 12

Limited warranty, 70–71

Maintenance, 66

Make a call, 17

Make an outgoing call during PTT, 29

Memo, 49

Memory match, 37

Message alert tone, 43

Message capacity, 45

Message playback, 46

Message recording time, 43

Message window displays, 49

Missed call indicator, 38

Multiple handset use, 21

Mute, 18

New message indication, 46

Number of rings, 42

Operating range, 66

Parts checklist, 1

Play announcement, 44

Precautions for users of implanted cardiac

pacemakers, 66

Predial a call, 17

PTT on or off:, 25

PTT to all handsets, 27

PTT to a single handset, 26

Push to talk (PTT), 25

Reassign a speed dial number, 35

Record announcement, 44

Redial, 20–21

Remote access, 50

Remote access code, 42

Rename handset, 14

Review the caller ID log, 38

Ringer tone, 11

Ringer volume (handset), 11

Ringer volume (telephone base), 11

Save a caller ID log entry to the directory,

Search the directory, 32

Speakerphone, 17

Store a directory entry, 30

Tabletop installation, 10

6GEJPKECNURGEKſECVKQPU72

Telephone base lights, 53

Temporary ringer silencing, 18

Temporary tone dialing, 18

The RBRC® seal, 67

Voice announce caller ID, 13

Voicemail, 13,45

Wall mount, 9

Website, 16

VTECH TELECOMMUNICATIONS LTD.

A member of THE VTECH GROUP OF COMPANIES.

Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 97008

Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W 1L5

Printed in China.

VTech Telecommunications 80-7723-00 1.9GHz Cordless Phone User Manual

VTech Telecommunications Ltd 1.9GHz Cordless Phone Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
