users manual 2 page16to45
![](/img.php?id=345594&img=bg1.png)
OMNI 3600 TERMINAL
Install/Replace MSAM Cards
16 OMNI 3600 INSTALLATION GUIDE

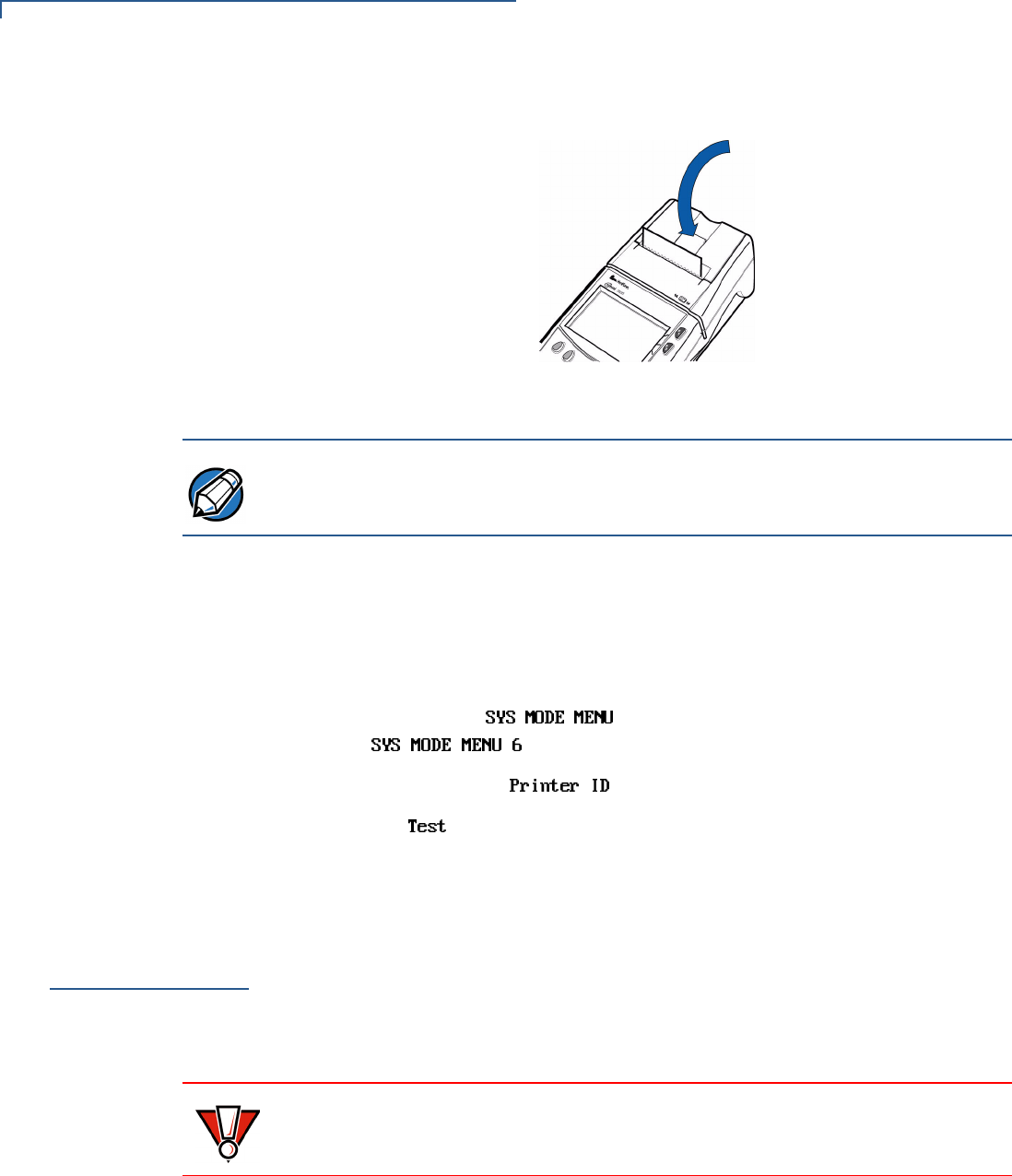

Figure 8 Close the Printer Cover
Printer Test To ensure the printer is operating correctly:
1Turn on the terminal by pressing the green enter key (see Figure 2, page 10).
2Enter system mode by pressing F2+F4 at the initial copyright screen, and
entering the system mode password (see Passwords).
3Toggle through the screens, using the down arrow key until you
reach .
4Press F4 to enter the screen.
5Press F3, , to start the printer self-test.
The test printout, with printer information and repeating character strings, is
approximately 38 cm (15 in.) long.
Install/Replace
MSAM Cards
When you first receive your Omni 3600 terminal, you may need to install a
merchant smart card or one or more micromodule-sized security account
manager (MSAM) cards, or you may need to replace old cards. Often, these small
cards arrive on a larger, credit card-style plastic card, from which they must be
removed. The following procedure describes MSAM card installation.
1Remove the battery (see Smart Battery)
2Open the MSAM door located beneath the battery (Figure 9):
aPush down and back on the raised arrow on the door.
bLift up on the raised arrow with the tip of your index finger.
NOTE To prevent damage to the print roller on the paper roll cover, always close the
cover by gently pressing down on the paper roll cover tab.
CAUTION Observe standard precautions for handling electrostatically sensitive devices.
Electrostatic discharges can damage this equipment. An anti-static wrist strap
grounded to a metal surface is recommended.
![](/img.php?id=345594&img=bg2.png)
OMNI 3600 TERMINAL
Install/Replace MSAM Cards
OMNI 3600 INSTALLATION GUIDE 17

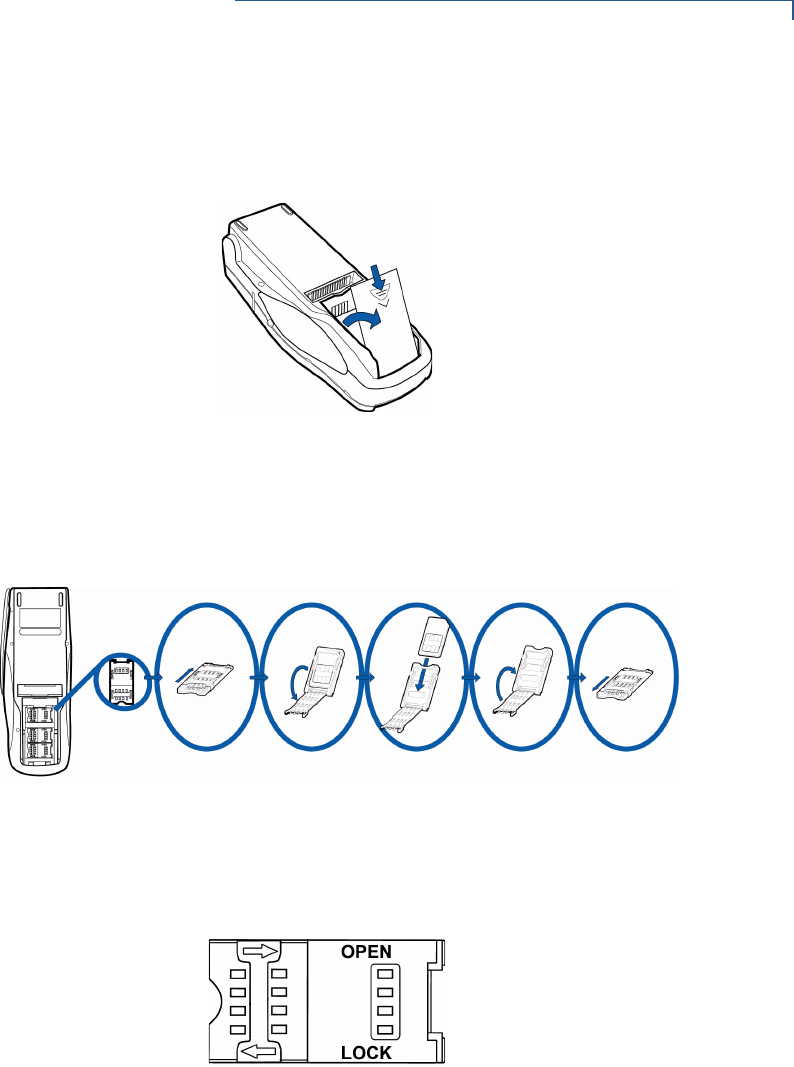

cOpen the door until it is in the upright position, resting against the end of
the terminal.
Figure 9 Open the MSAM Access Door
The three MSAM cardholders are now accessible. Each cardholder consists of
a hinged tilt-up cover attached to a connector base (Figure 10).
Figure 10 MSAM Card Installation
3Access the MSAM cardholders (reference Figure 10):
aUnlock the cardholder: Slide the lock plate to the unlocked position, in the
OPEN direction (Figure 11).
Figure 11 MSAM Cardholder Lock Plate Detail
![](/img.php?id=345594&img=bg3.png)
OMNI 3600 TERMINAL
Install/Replace SIM Card (GSM models)
18 OMNI 3600 INSTALLATION GUIDE

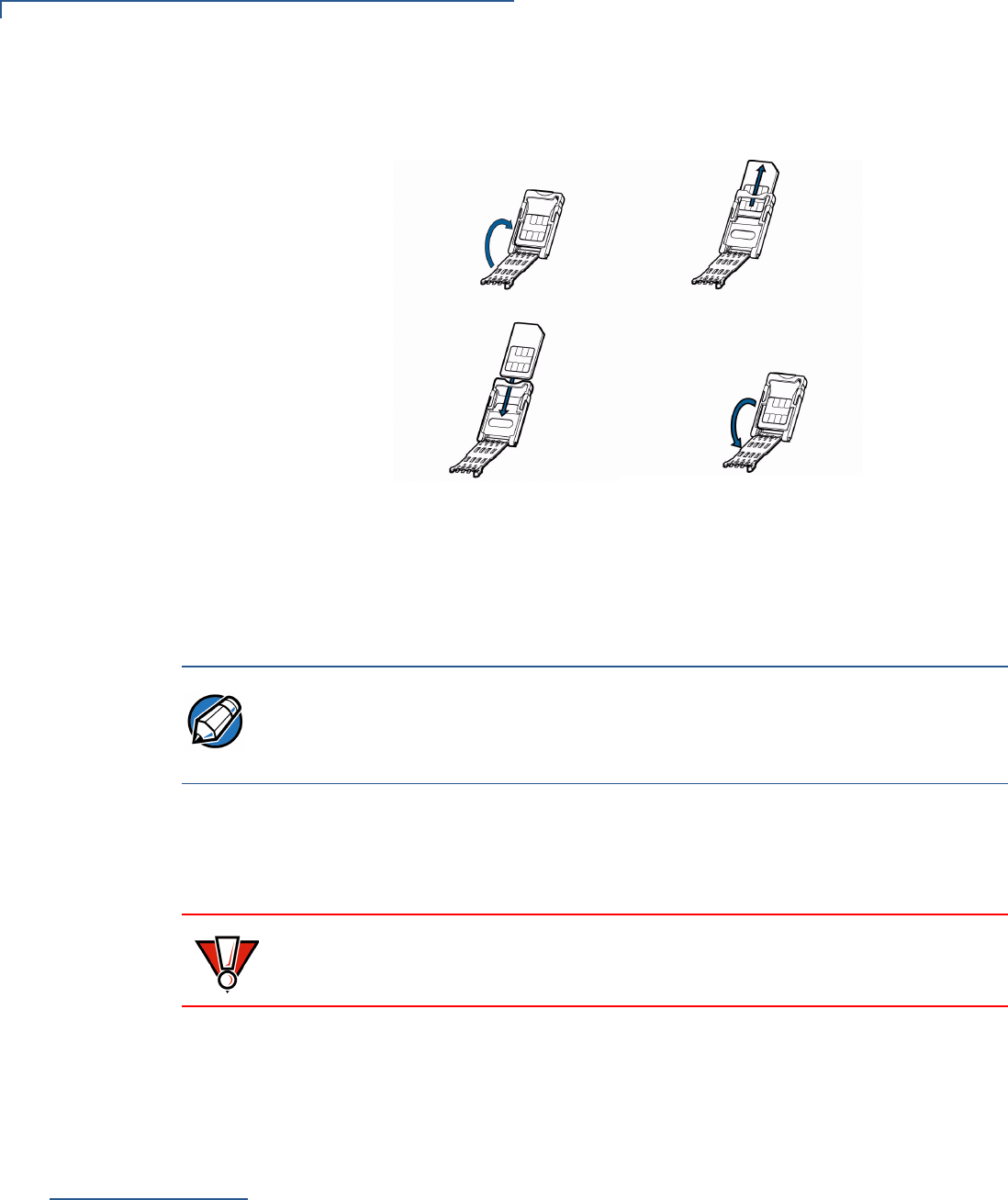

bOpen the cardholder by pivoting the cover on its hinge away from the
connector base (Figure 12).
Figure 12 Insert MSAM Card into Cardholder
4Remove any previously installed MSAM card by sliding the card from the
cover.
5Install an MSAM card by aligning the card and carefully sliding it within the
guides on the cover until fully inserted.
6Close the cover (Figure 12).
7Lock each MSAM cardholder by sliding its locking plate towards the LOCK
arrow until the plate stops (Figure 11).
8Close the MSAM door.
9Replace the smart battery.
Install/Replace
SIM Card (GSM
models)
The SIM (Subscriber Identity Module) card is a smart card inserted in the
Omni 3600 GSM terminal that contains your GSM radio account information. Use
the following procedure to replace or install a SIM card.
NOTE The cardholder has a set of contacts and a notch on one corner to ensure the
MSAM card is positioned correctly when the cover is closed. The MSAM card has
a notch on one corner to ensure it is correctly positioned in the cardholder. Before
inserting the MSAM card, position it as shown in Figure 12.
CAUTION To avoid damage to the MSAM cardholders, ensure each cardholder is locked
before closing the MSAM door.
![](/img.php?id=345594&img=bg4.png)
OMNI 3600 TERMINAL
Install/Replace SIM Card (GSM models)
OMNI 3600 INSTALLATION GUIDE 19
1Remove screw from SIM card access door on back of Omni 3600 terminal
(Figure 13).

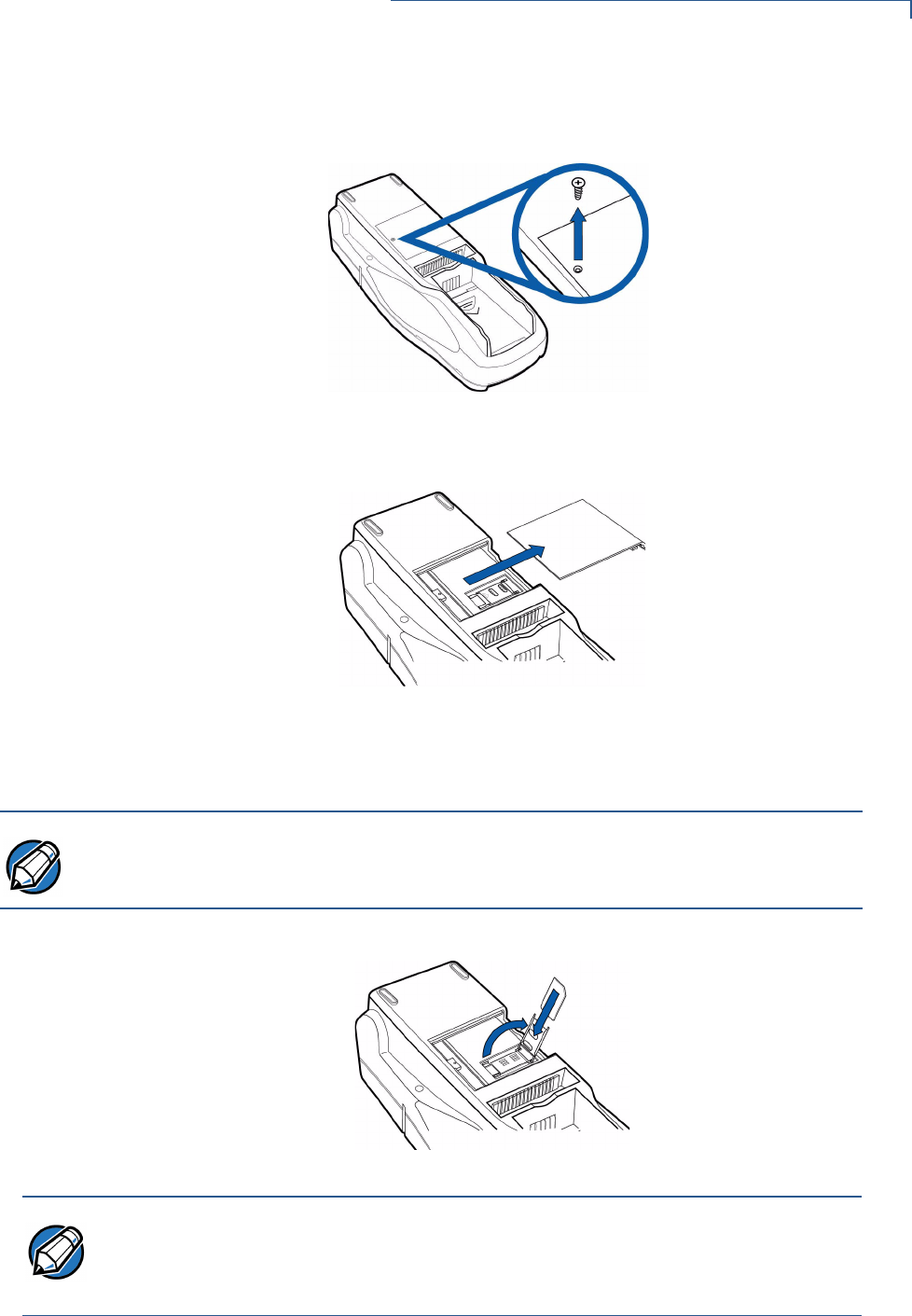

Figure 13 Remove SIM Door Screw
2Remove the SIM card access door (Figure 14):
Figure 14 Slide Off SIM Card Access Door
3Open the SIM card holder and slide the SIM card supplied by your provider
into the cardholder (Figure 15).
Figure 15 Insert SIM Card into Cardholder
4Replace the SIM card access door and screw.
NOTE
Do not lose the SIM card dust cover or retaining screw.
NOTE The SIM cardholder has a notch on one corner to ensure the SIM card is
positioned correctly. The SIM card has a notch on one corner for easy orientation
in the cardholder. Before inserting the SIM card, position it as shown in Figure 15,
with the card’s gold contacts facing down.
![](/img.php?id=345594&img=bg5.png)
OMNI 3600 TERMINAL
Wireless Transactions
20 OMNI 3600 INSTALLATION GUIDE
Wireless
Transactions
To conduct a wireless transaction:
•Ensure the terminal is in an optimal position for transmitting.
•Follow the on-screen instructions provided with your application.
Smart Card
Reader
Transactions

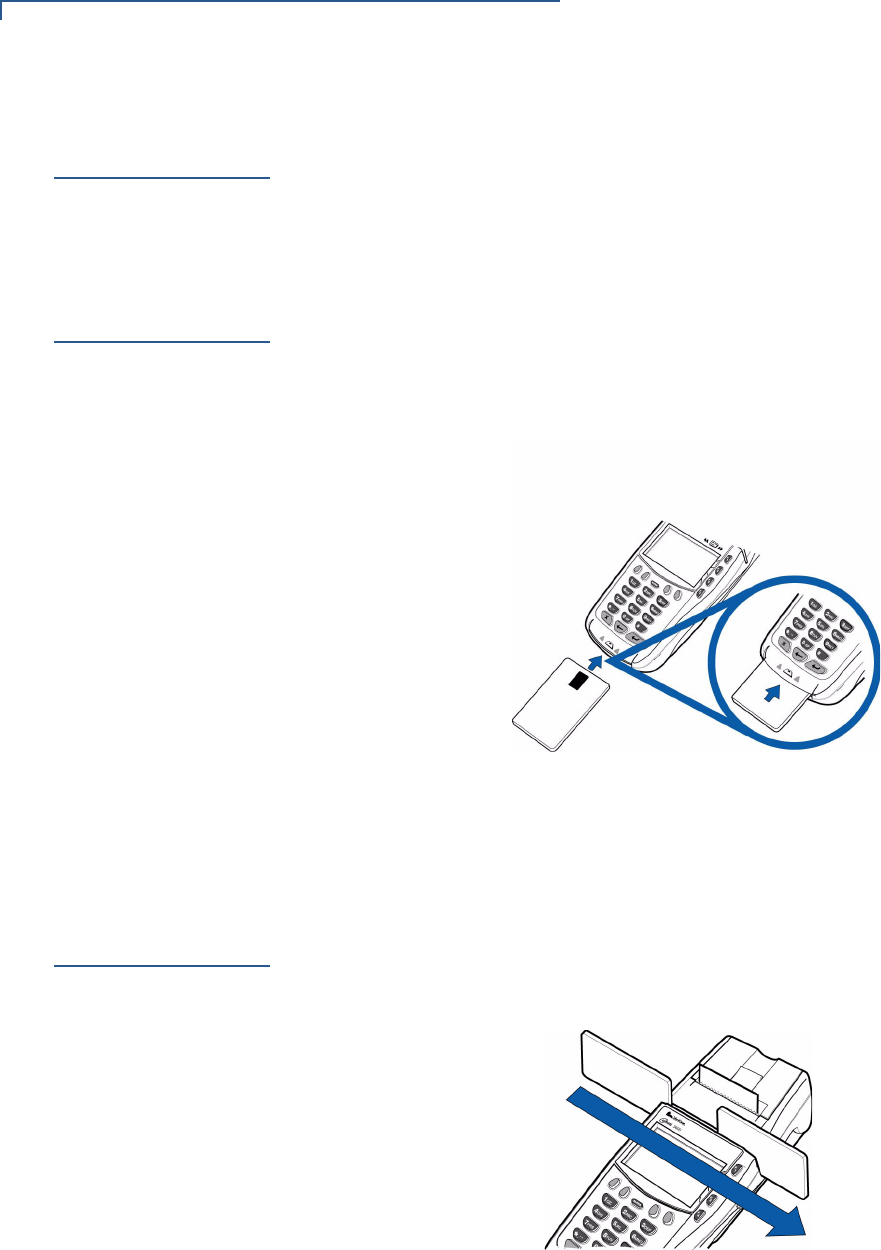

To conduct a smart card transaction:
1Position the smart card with the contacts up and insert it into the smart card
reader slot in a smooth, continuous motion until it seats firmly (Figure 16).
Leave the smart card in the card reader until the transaction is complete.
Premature removal voids the transaction.
Figure 16 Using the Primary Smart Card Reader
2Remove the card when the display indicates the transaction is complete.
Magnetic Card
Reader
Transactions
To conduct a credit/debit card transaction:
1Position the card with the magnetic stripe facing down and towards the printer.
2Swipe it through the reader from left-to-right, as shown in Figure 17.
Figure 17 Using the Magnetic Card Reader
![](/img.php?id=345594&img=bg6.png)
OMNI 3600 TERMINAL
Antenna (Some Wireless Models)
OMNI 3600 INSTALLATION GUIDE 21
Antenna (Some
Wireless
Models)
For some Omni 3600 terminals to establish a wireless connection, an external
antenna is provided. This connection allows communication with your service
provider to upload transaction data from the terminal and download system
upgrades to the terminal. Radio service is activated by your service provider.
Data transfers can also be performed through the Omni 3600 base (see
Omni 3600 Base Communications Ports).
This section only discusses Omni 3600 terminals with external antenna.

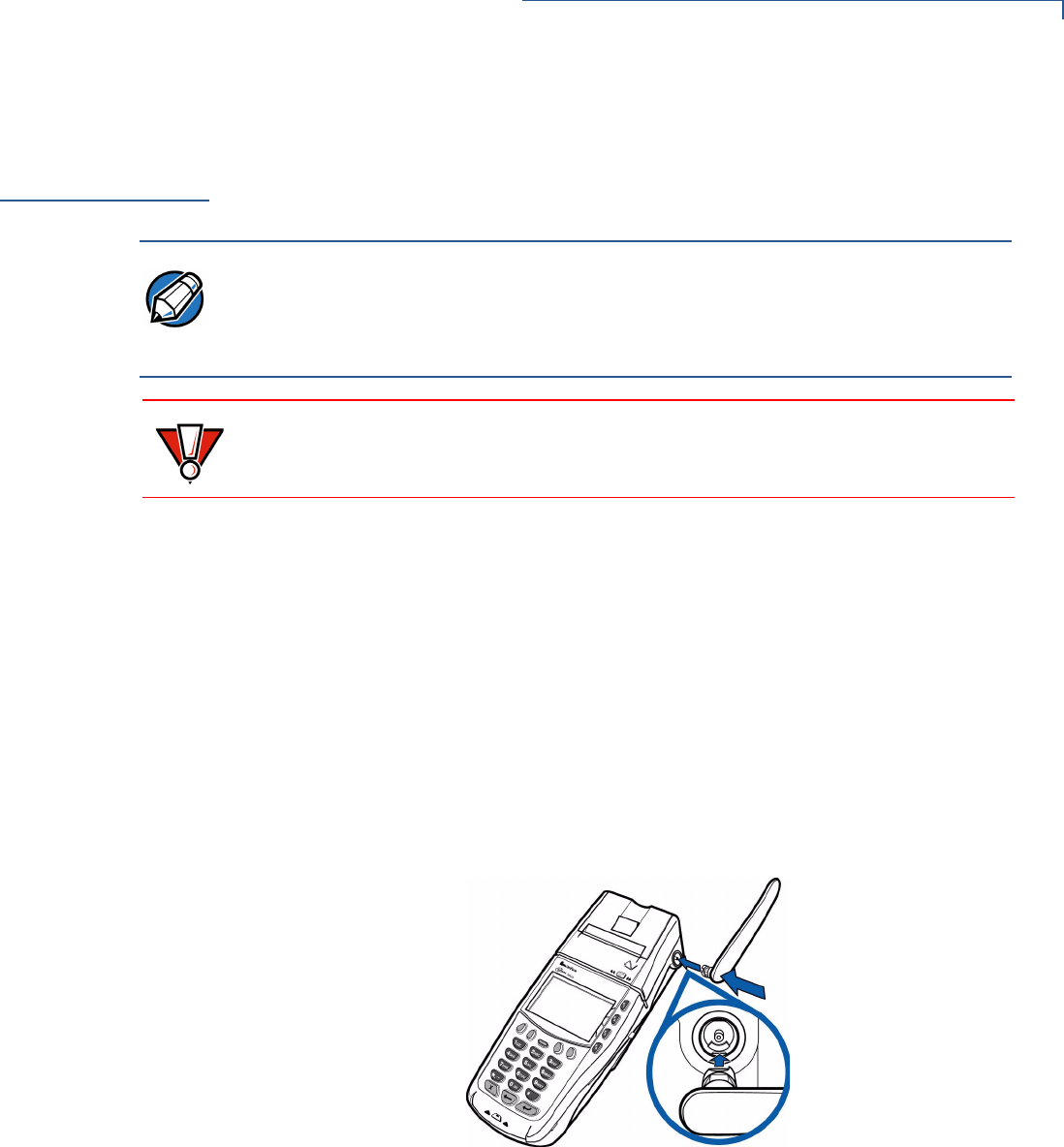

Installation The Omni 3600 should arrive from manufacture with the antenna attached. If
unattached, use the following procedure to install the antenna:
1Locate the antenna port on the side of the Omni 3600 terminal.
2Align the respective “notch” inside the antenna to the key in the terminal
(Figure 18).
3Push gently on the center of the base of the antenna until it locks in position.
Figure 18 Antenna Installation
Orientation To establish good wireless communication (uplink), it is important that the antenna
always be vertically aligned with respect to ground and sky (Figure 19). For
example, if standing and holding the terminal horizontally, position the antenna at
an approximately 90° angle to the unit (that is, pointing up from the printer). This
should point the antenna directly at the sky.
NOTE Most Omni 3600 terminals have an internal antenna and this section can be
ignored.
Only use the antenna designed for your unit. Failure to use the proper antenna
results in the inability to establish a wireless connection.
CAUTION Never hold the unit by the antenna; doing so may break the connection and void
your warranty.
![](/img.php?id=345594&img=bg7.png)
OMNI 3600 TERMINAL
Antenna (Some Wireless Models)
22 OMNI 3600 INSTALLATION GUIDE
If the unit is on a flat surface (for example, a table top) or docked in the Omni 3600
base, position the antenna so that it points directly at the sky. Soft detentes are
felt and clicks heard when positioning the antenna. These detentes maintain
antenna positions of 60°, 90°, and 180°.
Figure 19 Correct Antenna Position for Uplink
If an application (for example, SoftPay) is installed in your Omni 3600 unit, a
signal strength indicator may appear on the display.
Replace the
Antenna
If your Omni 3600 terminal has difficulties completing wireless transactions, you
may have to replace the antenna. Use the following procedure to replace the
antenna:
1Remove the existing antenna from the Omni 3600 terminal:
aRotate the antenna to align with the base of the unit, pointing away from
the back.
bGrasp the base of the antenna, close to the body of the terminal.
cPull gently out until the antenna unsnaps from the antenna port.
2Align the respective notch inside the new antenna to the key in the antenna
port on the terminal (Figure 18).
3Push gently on the center of the base of the newly installed antenna until it
locks in position.
![](/img.php?id=345594&img=bg8.png)
OMNI 3600 INSTALLATION GUIDE 23
CHAPTER 3
Omni 3600 Base
This section discusses the features of the Omni 3600 base, including
•providing power to the Omni 3600 base,
•docking the Omni 3600 terminal,
•charging the smart battery in a docked terminal,
•charging a spare smart battery,
•establishing communications, and
•connecting peripheral devices.
The Omni 3600 base does not support PIN pad connections.
Unpack the
Shipping
Carton
Refer to Figure 20 and the following procedure while unpacking the Omni 3600
base shipping carton.

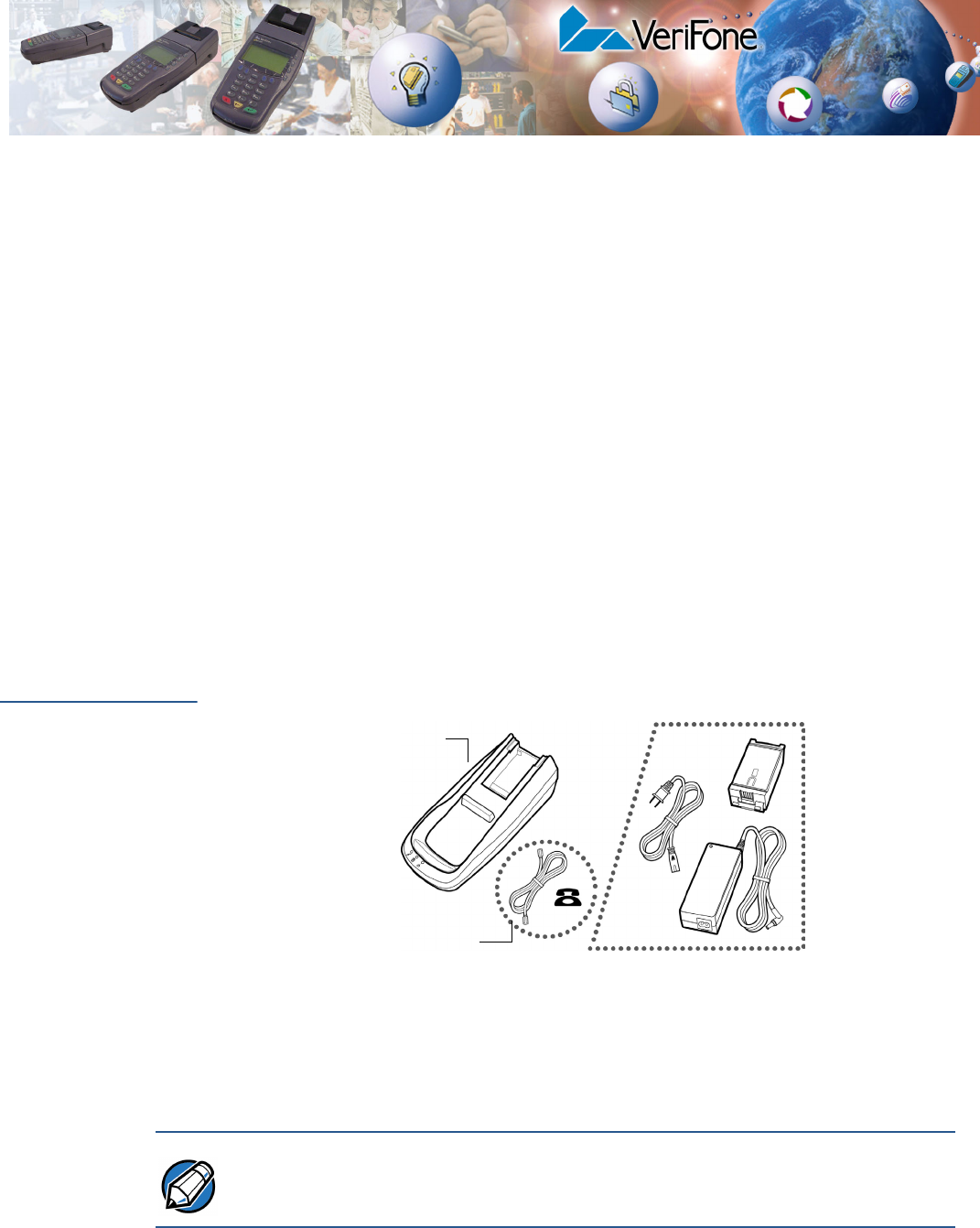

Figure 20 Omni 3600 Base Shipping Carton Contents
1Remove the following items:
•Omni 3600 base
•Telco cable (optional)
2Remove all plastic wrap from the Omni 3600 base and other components.
OMNI 3600
BASE
TELCO CABLE
(OPTIONAL)
OPTIONAL ACCESSORIES
NOTE The power pack and power cable, spare battery packs, and Telco cable are
available separately. See Accessories and Documentation for ordering
information.
![](/img.php?id=345594&img=bg9.png)
OMNI 3600 BASE
Omni 3600 Base Features
24 OMNI 3600 INSTALLATION GUIDE
Omni 3600
Base Features
This section discusses the features of the Omni 3600 base.

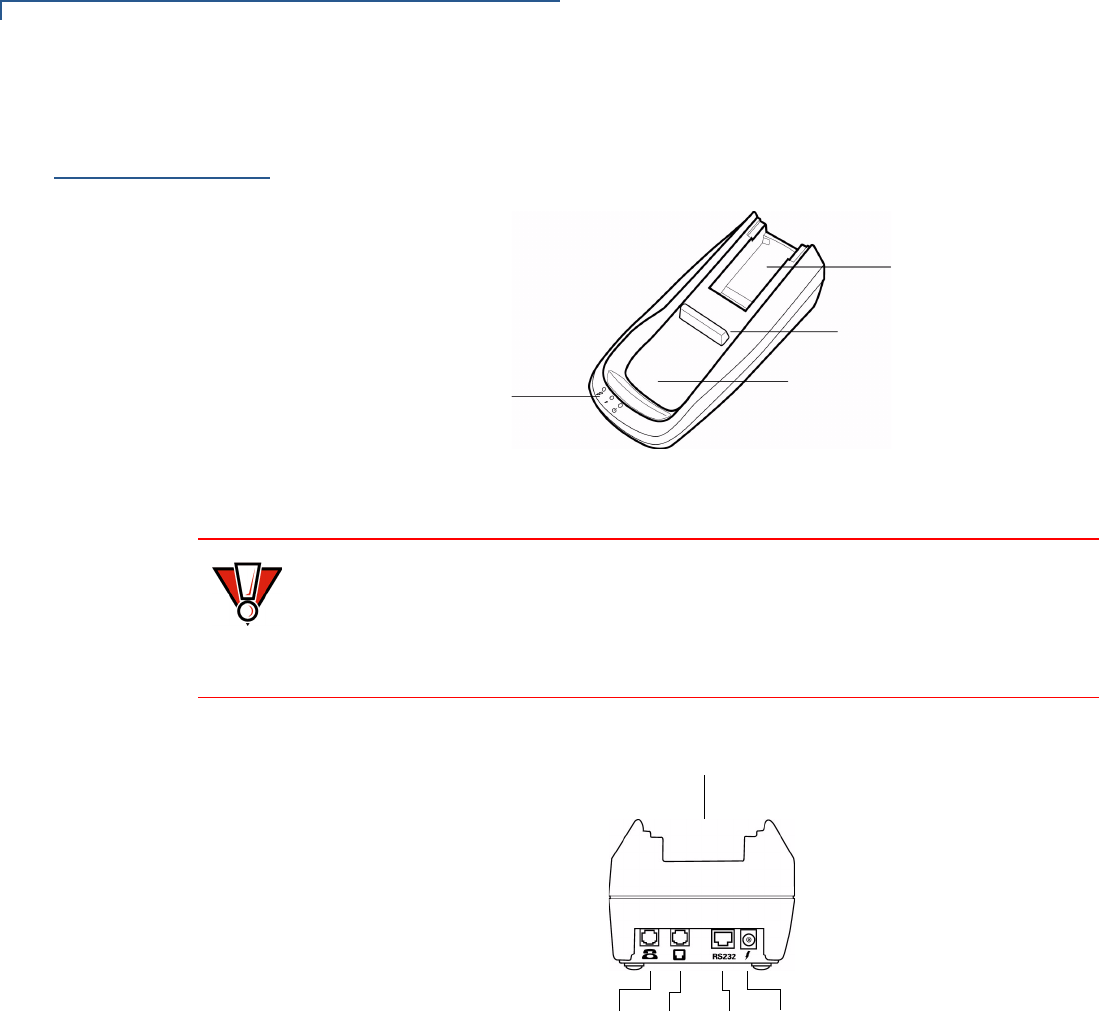

Figure 21 Omni 3600 Base Features: Top
Figure 22 Omni 3600 Base Features: Back (Telco models)
The Omni 3600 base
•recharges the smart battery within a docked Omni 3600 terminal,
•charges a spare smart battery pack placed in the spare battery dock,
•establishes communications to a host through a 14.4 Kbps modem (Telco
port), and
•connects to optional peripherals through the serial (RS-232) port (see
Peripheral Devices).
The following are the physical features of the Omni 3600 base (Figure 21 and
Figure 22):
•Three status LEDs (light emitting diodes) viewed left-to-right
STATUS LEDS
SPARE BATTERY
DOCK
TERMINAL DOCKING
CONTACTS
TERMINAL DOCKING
CRADLE
CAUTION Avoid touching the contacts in the raised area in the center of the Omni 3600
base. Finger oils tarnish contacts, causing bad connections. If the battery charge
state or terminal power LEDs do not light when the terminal is docked, or there is
a high occurrence of bad or incomplete data transfers, clean the contacts. See
Maintenance for more information.
POWER
PORT
RS-232
PORT
TELCO
PORT
TELSET
PORT
TERMINAL DOCKING
CRADLE
![](/img.php?id=345594&img=bga.png)
OMNI 3600 BASE
Omni 3600 Base Features
OMNI 3600 INSTALLATION GUIDE 25

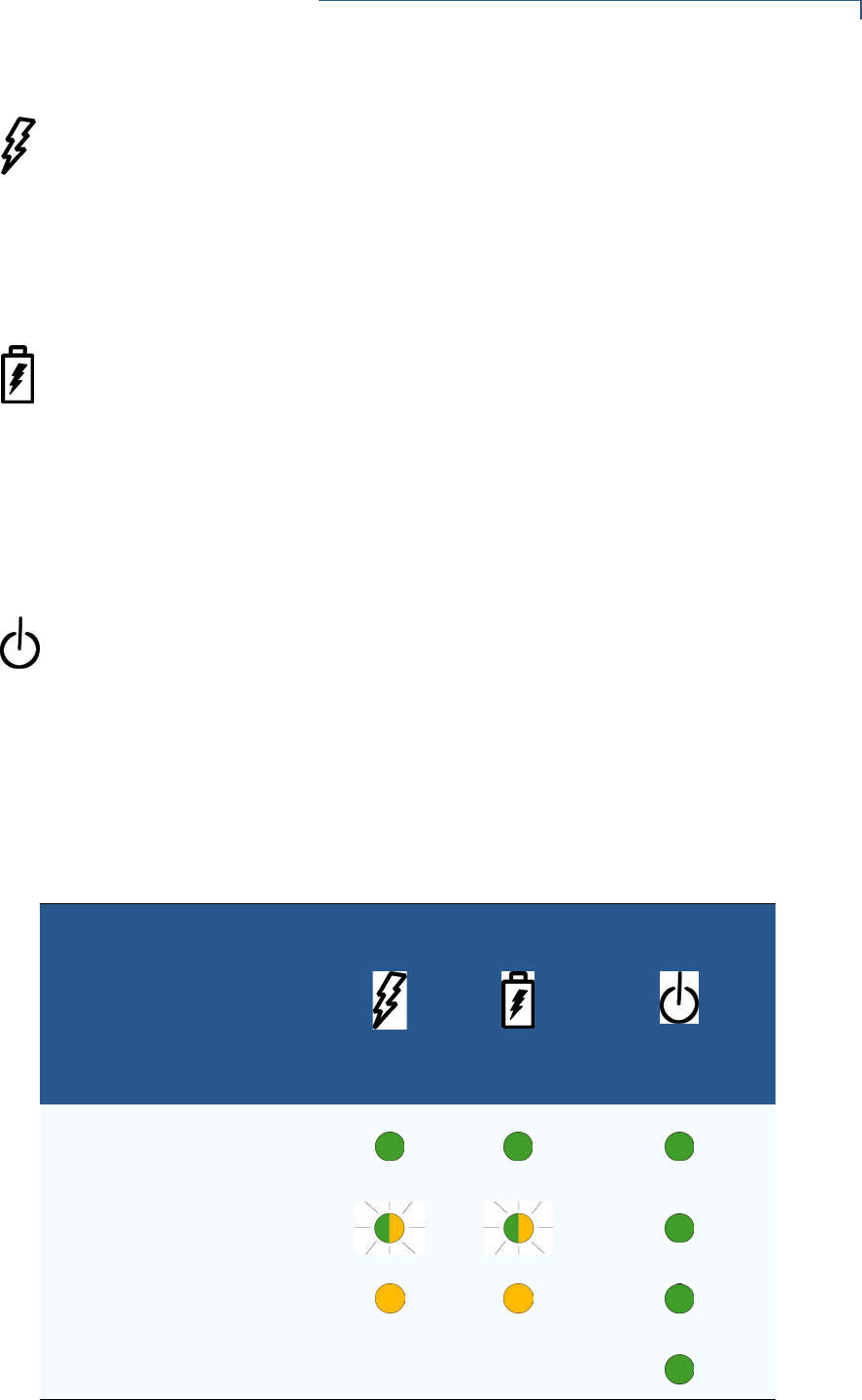

•Terminal power LED:
•Steady green indicates the battery in the terminal is fully charged or
the terminal is docked, but has no battery.
•Flashing amber indicates the battery in the terminal is receiving a test
charge and is in the precharge state–the Omni 3600 base circuitry is
determining the charge state of the battery in terminal.
•Steady amber indicates the battery in the terminal is recharging.
•Battery charge state LED:
•Steady green indicates the spare battery docked in the Omni 3600
base is fully charged or is no longer charging.
•Flashing amber indicates the spare battery is receiving a test charge
and is in the precharge state–the Omni 3600 base circuitry is
determining the charge state of the spare battery.
•Steady amber indicates the battery in the spare battery dock is
recharging.
•Omni 3600 base power LED:
•Steady green indicates the Omni 3600 base is connected to the power
adapter.
•Not lit indicates the Omni 3600 base is not connected to the power
pack, the power pack is not connected to the wall outlet, or the power
is out.
Table 1 illustrates different LED states.
Table 1 Omni 3600 Base LED Status
Battery State
LED
Terminal
Power
Spare
Battery
Omni 3600 Base
Power
Fully charged battery in
Omni 3600 terminal and spare
battery in Omni 3600 base
Pre-charge state
Charging
Omni 3600 base has power
![](/img.php?id=345594&img=bgb.png)
OMNI 3600 BASE
Power Connection
26 OMNI 3600 INSTALLATION GUIDE
•Docking cradle: For Omni 3600 terminal (Figure 21) smart battery recharging
and data transfers.
•Spare battery docking station and optional spare battery: The recessed area
in the top-rear of the Omni 3600 base is the dock to charge and store a smart
battery. The spare battery LED does not light if no spare battery is present.
•Power port: The round port on back of Omni 3600 base (icon at left) connects
the Omni 3600 base to the power pack.
•Communications ports: The ports on the back of the Omni 3600 base allow
telephone or LAN line connectivity and peripheral device support.
Power
Connection
The Omni 3600 base unit must be plugged in to a power outlet to
•recharge a smart battery in a docked terminal,
•charge spare smart batteries,
•communicate with peripheral devices, and
•establish Telco host connections.
Figure 23 Power Pack Connection (Docked Terminal)
To connect the Omni 3600 base to power (Figure 23):
NOTE The Omni 3600 terminal will not automatically turn off or sleep when docked; it
must be turned off manually (see Turn On/Off the Omni 3600 Terminal).
WARNING
Do not plug the power pack into an outdoor outlet.
NOTE It is recommended that the power pack be plugged into a power surge protector to
protect against possible damage caused by lightning strikes and electrical surges.
![](/img.php?id=345594&img=bgc.png)
OMNI 3600 BASE
Omni 3600 Terminal Docking
OMNI 3600 INSTALLATION GUIDE 27
1Insert the round barrel connector into the power port (icon at left) on the far
right of the Omni 3600 base.
2Insert the power cable into the power pack.
3Plug the power cable into a wall outlet or surge protector. When the
Omni 3600 base is powered, the far-right LED (icon at left) lights steady
green.
Omni 3600
Terminal
Docking
Place the Omni 3600 terminal in the docking cradle (Figure 23) to recharge the
terminal smart battery, establish communications connections for data transfers,
and communicate with peripheral devices.
Spare Smart
Battery Pack
Spare smart battery packs for the Omni 3600 terminal can be ordered from
VeriFone. See Accessories and Documentation for ordering information. To
charge a smart battery in the Omni 3600 base, place the smart battery into the
Omni 3600 base spare smart battery dock as shown in Figure 24. The smart
battery dock is keyed so that the smart battery can only be inserted in one way.

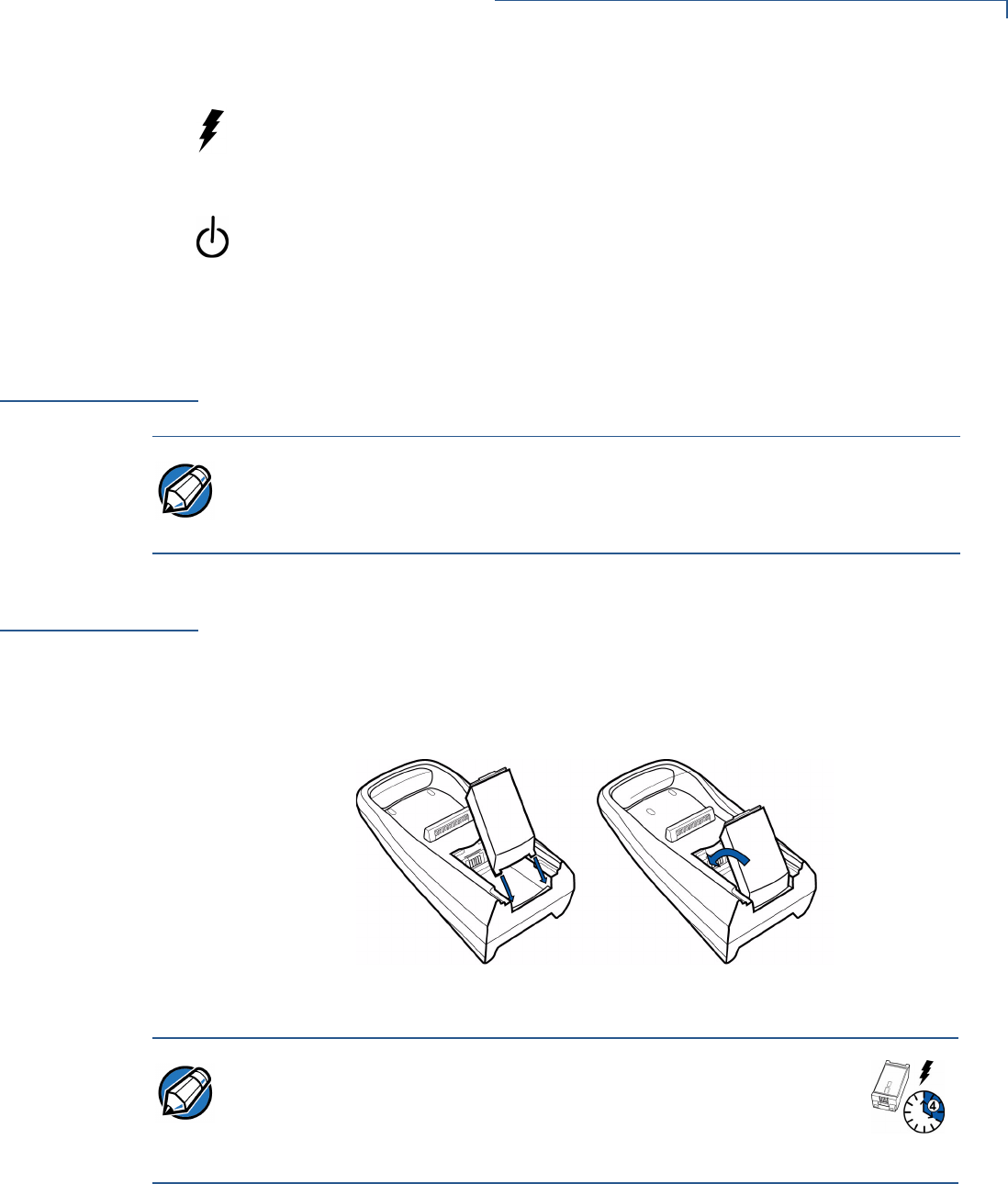

Figure 24 Spare Smart Battery Docking
Keep a spare smart battery charging in the Omni 3600 base battery dock to
ensure that a fully charged battery is always available.
NOTE The Omni 3600 terminal will not turn off or enter sleep mode while docked on the
Omni 3600 base. This ensures that the unit is not placed into sleep mode during
data transfers. The unit must be turned off manually when docked on the
Omni 3600 base. See Turn On/Off the Omni 3600 Terminal.
NOTE Allow the spare battery to remain in the Omni 3600 base unit for a
minimum of 2 hours, maximum of 4 hours to ensure the battery
receives a full charge. Note that a new Li-ion battery’s full performance
is achieved only after two or three complete charge and discharge
cycles.
![](/img.php?id=345594&img=bgd.png)
OMNI 3600 BASE
Omni 3600 Base Communications Ports
28 OMNI 3600 INSTALLATION GUIDE
On initial use, allow the Omni 3600 smart battery to charge a maximum of 4 hours
and fully discharge during normal operation to ensure reliable battery operation.
See Smart Battery for charge/discharge procedures.
Omni 3600 Base
Communications
Ports
The communications ports are located on the back of the Omni 3600 base (see
Figure 25). When the Omni 3600 terminal is docked in the Omni 3600 base, a
communication port in the terminal is opened, and data can transfer from the
Omni 3600 terminal back and forth through the Omni 3600 base over the modem
connection to and from your service provider or merchant contact.

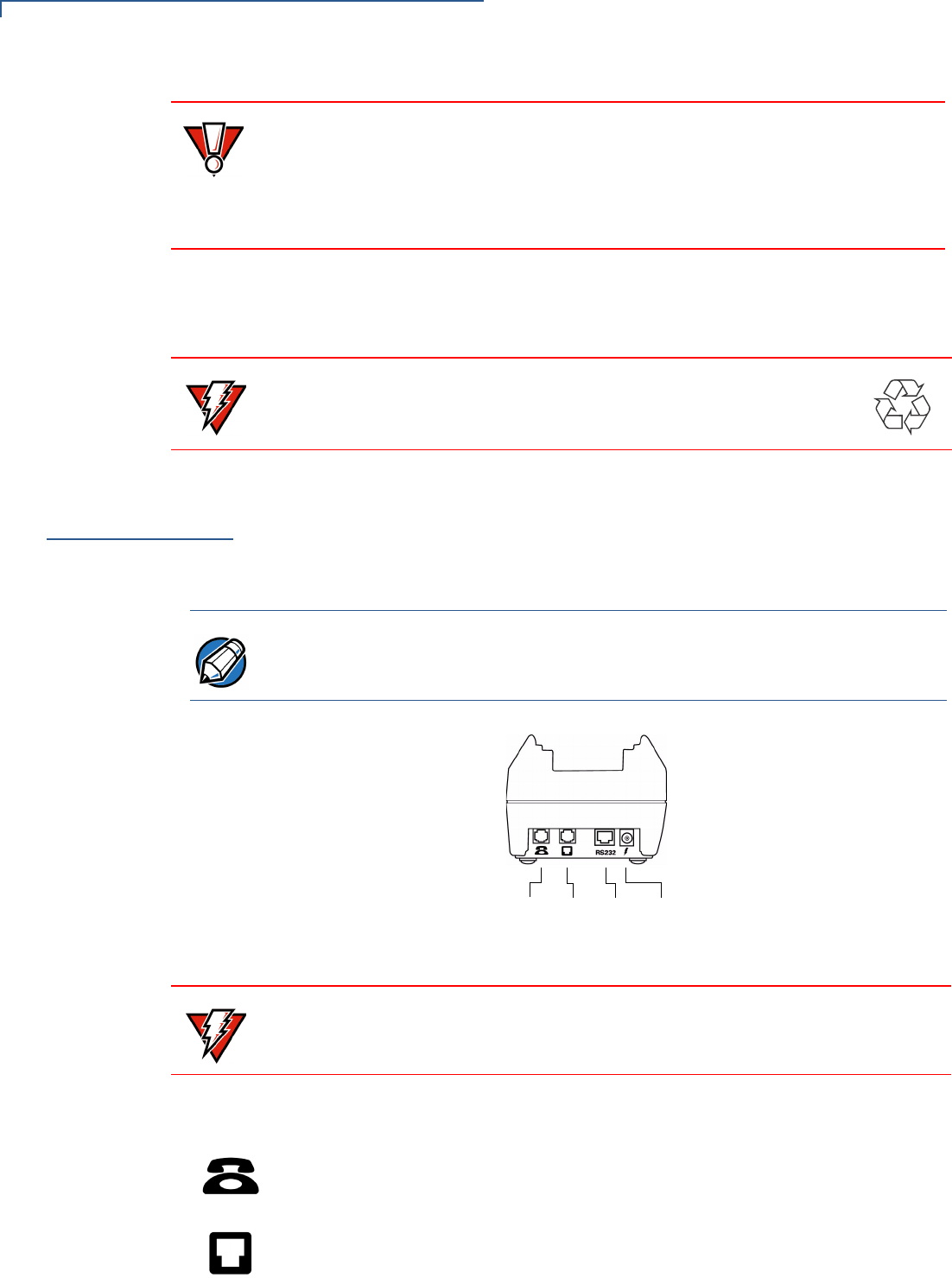

Figure 25 Omni 3600 Base Connection Ports
Telephone Line
Ports
There are two RJ11-type modular phone jacks (Figure 25) to connect the
Omni 3600 base to a telephone line:
•The first port is identified by a telephone-shaped Telset icon shown at left. Use
this port to connect a telephone to the terminal (pass-through connection)
•The second port is identified by the Telco icon shown at left. Use this port to
directly connect the Omni 3600 series terminal to a telephone wall jack
CAUTION Conserve battery power by turning the Omni 3600 terminal off when not in use. If
the terminal is not to be used for several days, remove the battery from the
terminal as it continues to discharge even when the terminal is turned off.
If the Omni 3600 base unit is not plugged in, remove the smart battery from the
dock to avoid the smart battery discharging in the Omni 3600 base unit.
WARNING Do not dispose of batteries in a fire. Li-ion batteries must be recycled
or disposed of properly. Do not dispose of Li-ion batteries in municipal
waste sites.
NOTE The Omni 3600 base must be plugged into power to establish communications
connections.
POWER PORTRS-232
PORT
TELCO
PORT
TELSET
PORT
WARNING Do not remove the Omni 3600 terminal from the Omni 3600 base during data
transfers. This terminates the connection and data loss may result.
![](/img.php?id=345594&img=bge.png)
OMNI 3600 BASE
Peripheral Devices
OMNI 3600 INSTALLATION GUIDE 29
Telephone Line
Connections
To make a direct connection, connect a telephone cord from the Telco port on the
Omni 3600 base directly to a telephone wall jack (Figure 26). Do not string the
telephone cord across a walkway or place it so as to interfere in high-traffic areas.
With a direct connection, the phone line is dedicated to the terminal.

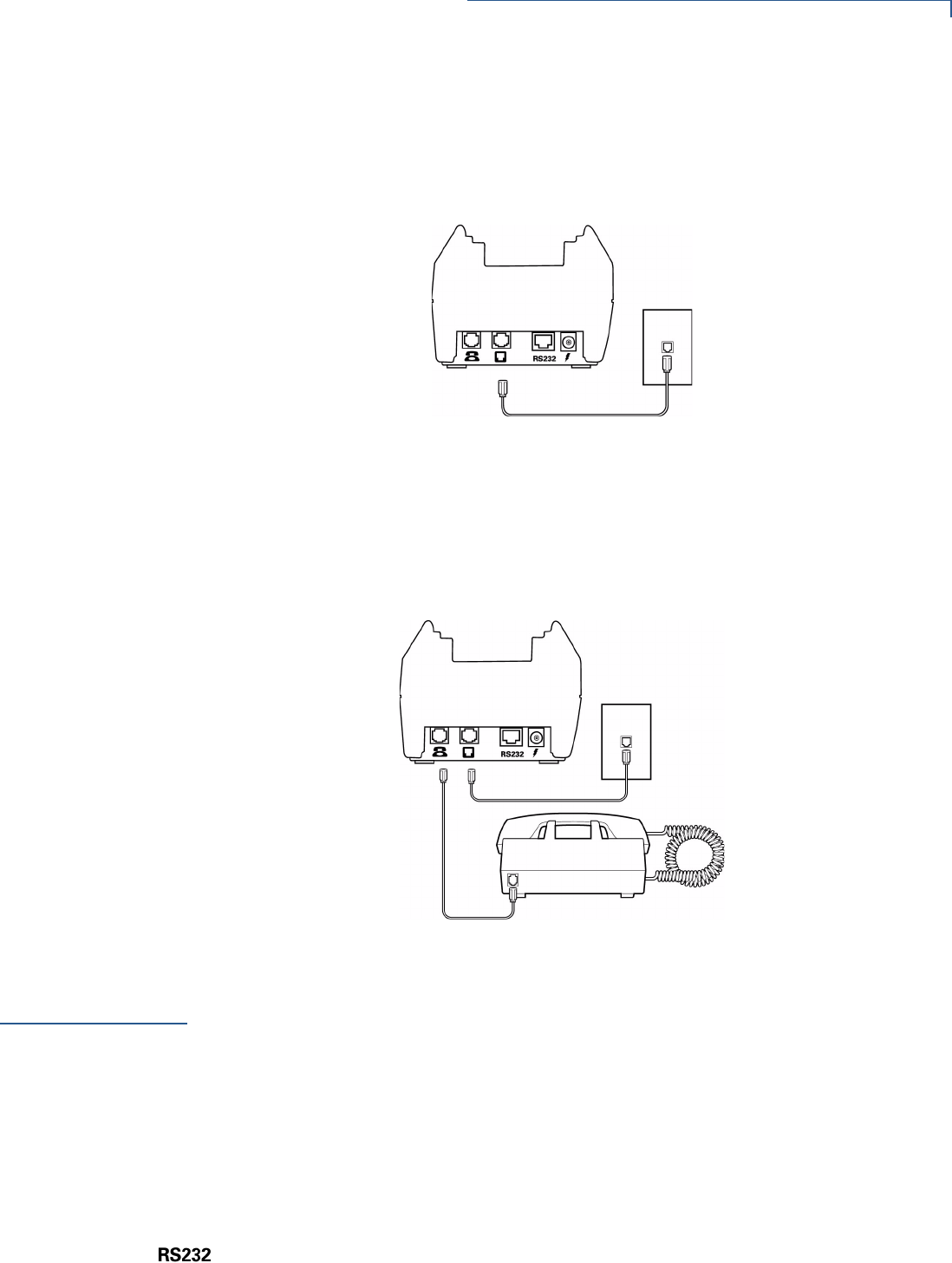

Figure 26 Direct Connection
Pass-through connection — Run a telephone cord from the Telco port on the
Omni 3600 base to the RJ11 jack on a standard telephone (Figure 27). Do not
string the telephone cord across a walkway or place it so as to interfere in high-
traffic areas. With a pass-through connection, the phone line is busy during
downloads.
Figure 27 Pass-through Connection
Peripheral
Devices
The Omni 3600 base supports a line of VeriFone peripheral devices designed to
use with point-of-sale terminals. Use the RS-232 port on the back panel of the
Omni 3600 base to connect these optional devices.
The following sections discuss the optional devices supported by the Omni 3600.
Other optional devices may be supported. For more information, please contact
your VeriFone distributor.
Optional
Peripheral Device
Port
Right of the RJ11 ports is a RJ45-type modular jack (serial port), labeled RS232:
•The RS232 serial port (icon shown at left) connects a VeriFone CR 600 check
reader or other peripheral device to the Omni 3600 base
![](/img.php?id=345594&img=bgf.png)
OMNI 3600 BASE
Peripheral Devices
30 OMNI 3600 INSTALLATION GUIDE
The Omni 3600 base does not support external PIN pad devices.
Check Readers
Supported
The Omni 3600 base supports two VeriFone check readers: CR 600 and
CR 1000i. Contact your VeriFone representative or visit the online store at
www.verifone.com for information on these devices. Figure 28 provides an
example of a peripheral connection.

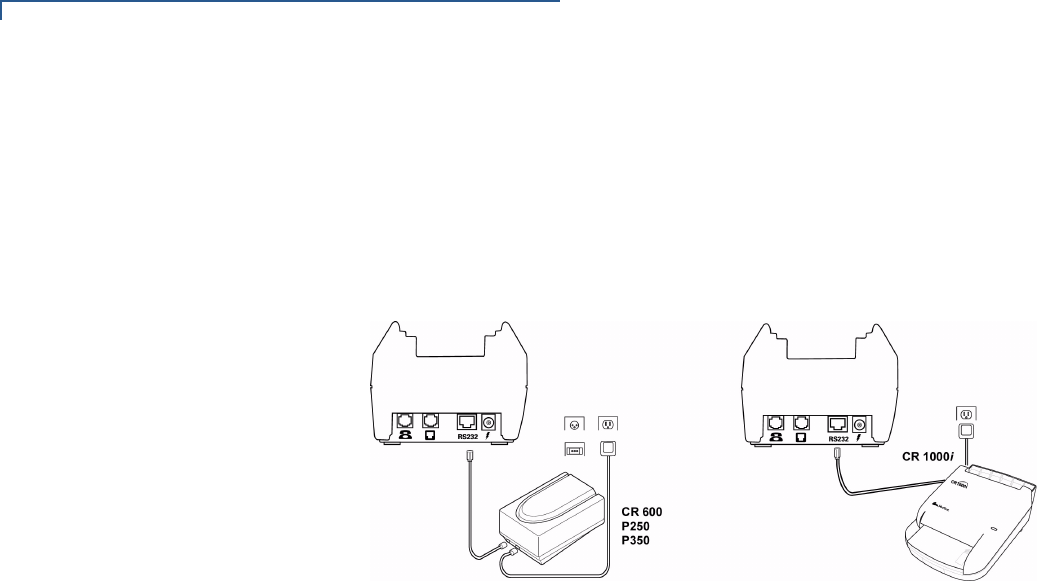

Figure 28 Example Peripheral Connections
External Printers
Supported
Although the Omni 3600 has an internal thermal printer (see Paper Installation), it
may be convenient to print larger print runs (for example, daily or weekly reports)
to an external printer. The Omni 3600 base supports three VeriFone external
printers: P250, P350, and P900. Contact your VeriFone representative or visit the
online store at www.verifone.com for information on these devices. External
printer connections are through the same port as check readers (see Figure 28).
![](/img.php?id=345594&img=bg10.png)
OMNI 3600 INSTALLATION GUIDE 31
CHAPTER 4
Maintenance
This section discusses maintenance of the Omni 3600 terminal and Omni 3600
base.
Cleaning For normal dirt, use a clean cloth slightly dampened with water and a drop or two
mild soap. For stubborn stains, use alcohol or an alcohol-based cleaner.
Teminal and Base
Contacts
Gently swab the contacts with alcohol or contact cleaner to remove dirt. It is
important that the exposed contacts in the docking cradle of the base stay clean
and unbent.
Card Readers The magnetic and smart card readers require no regular maintenance. For card
reader service, contact your VeriFone distributor or service provider.
CAUTION Never use thinner, acetone, trichloroethylene, or ketone-based
solvents — these chemicals can deteriorate plastic or rubber parts.
Do not spray cleaners or other solutions directly onto the keypad or
display.
CAUTION Avoid touching the contacts in the raised area in the center of the base and the
recessed area on the terminal. Finger oils tarnish contacts, causing bad
connections. If the battery charge state or terminal power LEDs do not light when
the terminal is docked or there is a high occurrence of bad or incomplete data
transfers, clean the contacts.
CAUTION
Do not attempt to clean the card readers. Doing so may void your warranty.
![](/img.php?id=345594&img=bg11.png)
MAINTENANCE
Cleaning
32 OMNI 3600 INSTALLATION GUIDE
![](/img.php?id=345594&img=bg12.png)
OMNI 3600 INSTALLATION GUIDE 33

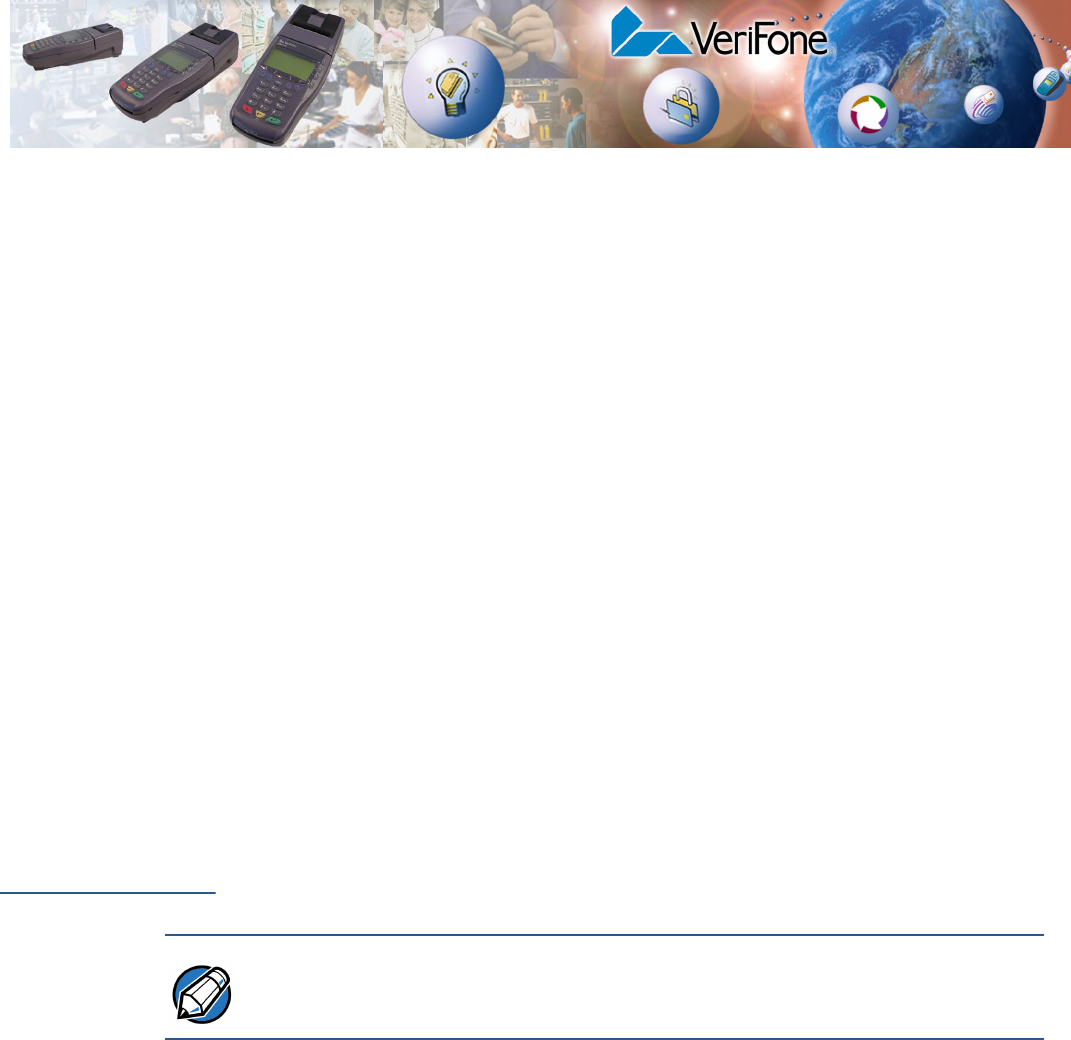

CHAPTER 5
Troubleshooting
VeriFone follows stringent quality control standards in the manufacture of
Omni 3600 terminals. Each unit that leaves the factory receives numerous tests to
ensure quality and reliable operation. However, should you encounter a problem
in operation, read this section for possible causes and solutions.
Troubleshooting
Guidelines
The troubleshooting guidelines provided in the following section identify various
problems and suggest appropriate corrective actions. If you have problems
operating your Omni 3600 terminal, please read through these troubleshooting
examples. If the problem persists or if it is not described below, contact your local
VeriFone representative for assistance.
During normal, day-to-day operation of your Omni 3600 terminal, it is possible that
minor malfunctions may occur. Here are some examples of possible problems
and steps you can take to resolve them.
Terminal Does Not
Start
•Ensure that the smart battery charge state is not below the critically low level.
•Recharge or replace the smart battery.
•Ensure that you pressed the ENTER/ON key for approximately 3 seconds,
until the unit lit up.
Terminal Does Not
Turn Off
The Omni 3600 terminal will not shut off or go into sleep mode while docked in the
Omni 3600 base. You must turn off a docked Omni 3600 terminal manually or
remove the Omni 3600 terminal from the Omni 3600 base to allow it to enter sleep
mode.
Terminal Display
Does Not Show
Correct or
Readable
Information
•Recharge or replace the battery.
•Dock the Omni 3600 terminal in a powered Omni 3600 base (if you have one)
to see if this clears the problem, which points to a discharged battery.
If the problem persists, contact your local VeriFone representative for assistance.
NOTE The Omni 3600 terminal comes equipped with tamper-evident labels. Do not,
under any circumstance, attempt to disassemble the terminal.
NOTE Perform only those adjustments or repairs specified in this guide. For all other
services, contact your local VeriFone distributor or service provider. Service
conducted by parties other than authorized VeriFone representatives may void
the product warranty.
![](/img.php?id=345594&img=bg13.png)
TROUBLESHOOTING
Troubleshooting Guidelines
34 OMNI 3600 INSTALLATION GUIDE
Smart Battery Will
Not Charge
The smart battery must initially receive a full charge and then full discharge to
calibrate its full charge capacity. This operation is performed at manufacture;
however, it is recommended that the battery receive a full charge/discharge once
a year.
To discharge the smart battery, run the unit until the smart battery is fully drained.
Telephone Line
Connection Does
Not Work Properly
•Check the telephone line cord-to-base connections, and all telephone
connections.
•Check the telephone line cord.
•If you are using a pass-through (Telset) connection, check that the telephone
handset is seated properly in its cradle. Also, check the line using another
telephone base unit. If the other telephone works, have the defective
telephone repaired or replaced.
•If you are using a direct (Telco) connection, check the Telco cable by plugging
it into a working telephone and listening for a dial tone. If this test does not
work, replace the Telco cable.
•If it is determined that the telephone line is dead, contact your local telephone
company to check the status of the line.
If the problem persists, contact your local VeriFone representative for assistance.
Printer Does Not
Work
•Check battery status. The printer will not print if there is an insufficient charge
remaining in the battery to complete the print operation.
•Check if the printer is out of paper and that the roll is properly installed. Open
the paper roll cover and install a new roll of printer paper or ensure that the roll
is feeding from the bottom.
•Verify that the printer roller and paper roll dust cover are properly installed.
If the problem persists, contact your local VeriFone representative for assistance.
NOTE Allow the Omni 3600 terminal to remain connected to the power pack
for a minimum of 2 hours, maximum of 4 hours to ensure the battery
receives a full charge.
Conserve battery power by turning the Omni 3600 terminal off when
not in use. If the terminal is not to be used for several days, remove the
battery from the terminal as it continues to discharge even when the
terminal is turned off.
NOTE The Omni 3600 terminal automatically shuts off when the smart battery reaches
the critically low charge state. If this occurs, the smart battery must recharge a
minimum of 1/2 hour before it can power the terminal. It make take several
recharge attempts to reset the safety circuit when charging a smart battery that
has reached a critically low charge state.
![](/img.php?id=345594&img=bg14.png)
TROUBLESHOOTING
Troubleshooting Guidelines
OMNI 3600 INSTALLATION GUIDE 35
Serial Port Does
Not Work
•Check the power cable connection.
•Ensure the outlet has power.
•The serial port on the back panel of the Omni 3600 base is identified by the
“RS232” icon. Check that the device connected to the serial port has power
and is functioning properly. If possible, perform a self-test on the device in
question.
•The cable connecting the optional device to the Omni 3600 base serial port
may be defective. Try a different serial cable.
If the problem persists, contact your local VeriFone representative for assistance.
Terminal Does Not
Process
Transactions
There are several possible reasons why the terminal may not be processing
transactions. Use the following steps to troubleshoot failures.
Step 1: Check the magnetic card reader
•Perform a test transaction using several different magnetic stripe cards to
ensure the problem is not a defective card.
•Ensure that you are swiping cards properly. With the Omni 3600 card reader,
the black, magnetic stripe on the card should face down, away from the
keypad.
•Process a transaction manually using the keypad instead of the card reader. If
the manual transaction works, the problem may be a defective card reader.
Contact your VeriFone distributor or service provider.
•If the manual transaction does not work, proceed to Step 4.
Step 2: Check the smart card reader
•Perform a test transaction using several different smart cards to ensure the
problem is not a defective card.
•Ensure that the card is inserted correctly. The chip on the card should be
facing up and inward.
•Ensure the MSAM cards are properly inserted in the cardholders and the
cardholders are properly secured (see Install/Replace MSAM Cards).
•If the manual transaction does not process, proceed to Step 4.
Step 3: Check the signal strength on-screen (SoftPay)
•Signal-strength indicator displays at least one bar to indicate connectivity to
radio network.
•Check antenna connection and orientation.
•Ensure that the radio has been activated by your service provider.
Step 4: Check the telephone line
•Connect to a working telephone and check for a dial tone. If there is no dial
tone, replace the Telco cable.
![](/img.php?id=345594&img=bg15.png)
TROUBLESHOOTING
Troubleshooting Guidelines
36 OMNI 3600 INSTALLATION GUIDE
•If the problem appears to be with the telephone line, check with the party you
are trying to call to see if their system is operational. If they are not
experiencing difficulties with their line, contact the telephone company and
have your line checked.
•If the telephone line works, contact your local VeriFone representative for
assistance.
Keypad Does Not
Respond
•Check the display panel. If it displays the wrong character or nothing at all
when you press a key, follow the steps outlined in Terminal Display Does Not
Show Correct or Readable Information.
•If pressing a function key does not perform the expected action, refer to the
user documentation for that application to ensure you are entering data
correctly.
If the problem persists, contact your local VeriFone representative for assistance.
![](/img.php?id=345594&img=bg16.png)
OMNI 3600 INSTALLATION GUIDE 37
CHAPTER 6
VeriFone Service and Support
For Omni 3600 terminal or Omni 3600 base problems, contact your local
VeriFone representative or service provider.
For Omni 3600 product service and repair information:
•United States: VeriFone Support Services, 1-800-837-4366, Monday–Friday,
8 A.M.–8 P.M. eastern time
•International: Contact your local VeriFone representative
For Omni 3600 supplies:
•VeriFone online store at www.store.verifone.com
•United States: VeriFone Support Services, 1-800-837-4366, Monday–Friday,
8 A.M.–8 P.M. eastern time
•International: Contact your local VeriFone representative
Return a
Terminal, Base,
or Smart
Battery
Before returning an Omni 3600 terminal, Omni 3600 base, or smart battery to
VeriFone, you must obtain a Merchandise Return Authorization (MRA) number.
The following procedure describes how to return one or more Omni 3600
terminals, Omni 3600 bases, or smart batteries for repair or replacement (U.S.
customers only):
1Gather the following information from the printed labels on each Omni 3600
terminal (Figure 29), Omni 3600 base (Figure 30), and smart battery
(Figure 31) you are returning:
•Product ID, including the model and part number. For example,
“OMNI 3600” and “PTID XXXXXXXX” (if your terminal includes this
number)
•Serial number (S/N XXX-XXX-XXX)
2Within the United States, call VeriFone toll-free at 1-800-837-4366.
3Select the MRA option from the automated message. The MRA department is
open Monday–Friday, 8 A.M.–8 P.M., eastern time.
4Give the MRA representative the information gathered in Step 1.
NOTE International customers, please contact your local VeriFone representative for
assistance with your service, return, or replacement.
![](/img.php?id=345594&img=bg17.png)
VERIFONE SERVICE AND SUPPORT
Return a Terminal, Base, or Smart Battery
38 OMNI 3600 INSTALLATION GUIDE
If the list of serial numbers is long, you can fax the list, along with the
information gathered in Step 1, to the MRA department. Include a telephone
number where you can be reached and your fax number.
Please print clearly to the attention of the “VeriFone MRA Dept.” and send
your fax to 727-953-4172 (U.S.). You will be issued an MRA number and the
fax returned to you.
5Describe the problem and provide the shipping address to return the repaired
or replacement unit.
6Keep a record of the following items:
•Assigned MRA number(s)
•VeriFone serial number assigned to the Omni 3600 terminal, Omni 3600
base, or smart battery you are returning for service or repair (terminal
serial numbers are located on the inside of the smart battery compartment;
base serial numbers on the bottom of the unit; smart battery serial
numbers on the side of the battery)
•Shipping documentation, such as airbill numbers used to trace the
shipment
•Model(s) returned (model numbers are located on the VeriFone label on
the bottom of the Omni 3600 terminal or Omni 3600 base)

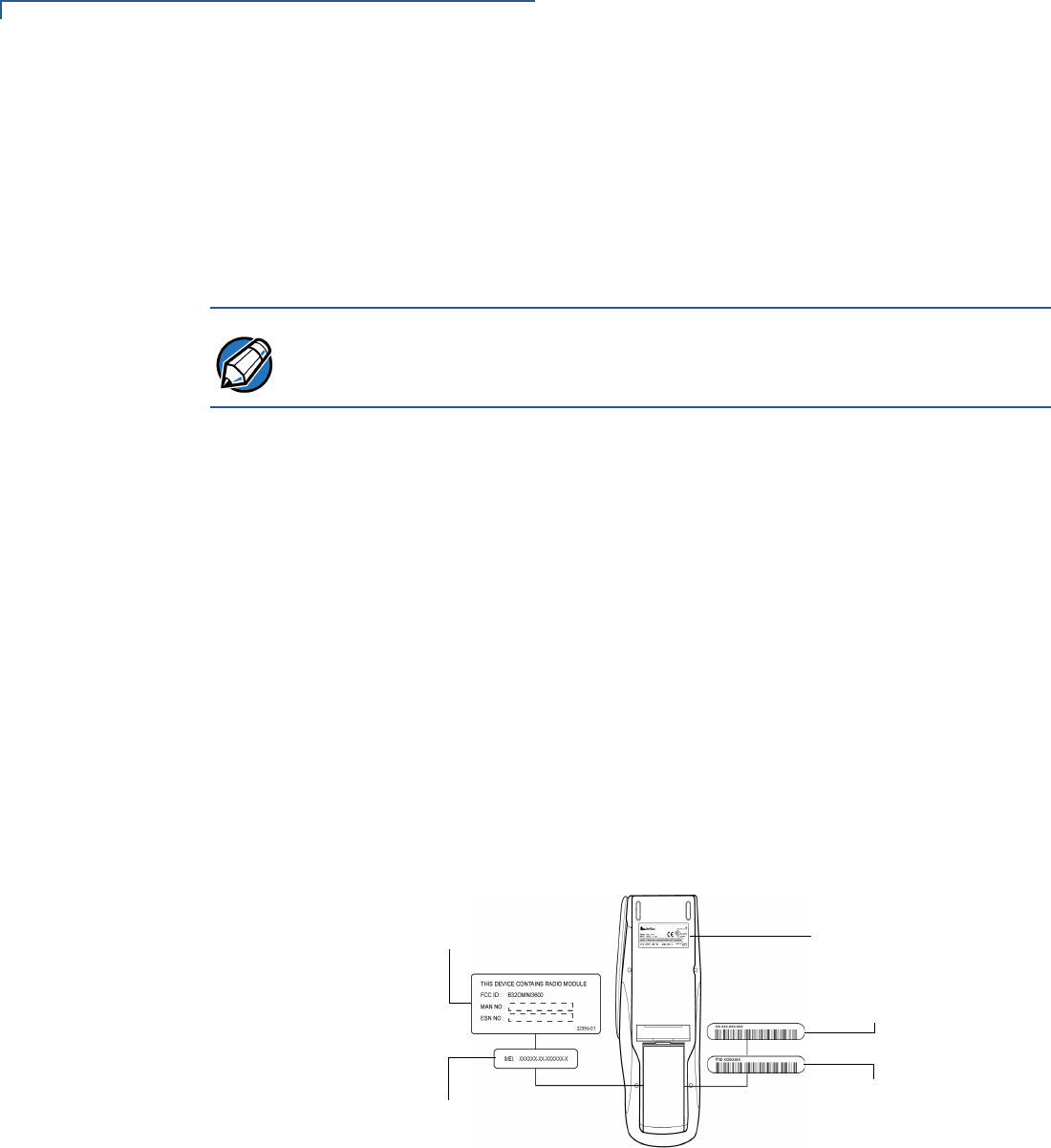

Figure 29 Omni 3600 Terminal Information Label Locations
NOTE One MRA number must be issued for each Omni 3600 terminal or Omni 3600
base you return to VeriFone, even if you are returning several of the same model.
MOBITEX RADIO
MODULE LABEL
GSM RADIO
MODULE
LABEL
SERIAL NUMBER
LABEL
PTID LABEL
PRODUCT INFORMATION
LABEL
![](/img.php?id=345594&img=bg18.png)
VERIFONE SERVICE AND SUPPORT
Return a Terminal, Base, or Smart Battery
OMNI 3600 INSTALLATION GUIDE 39

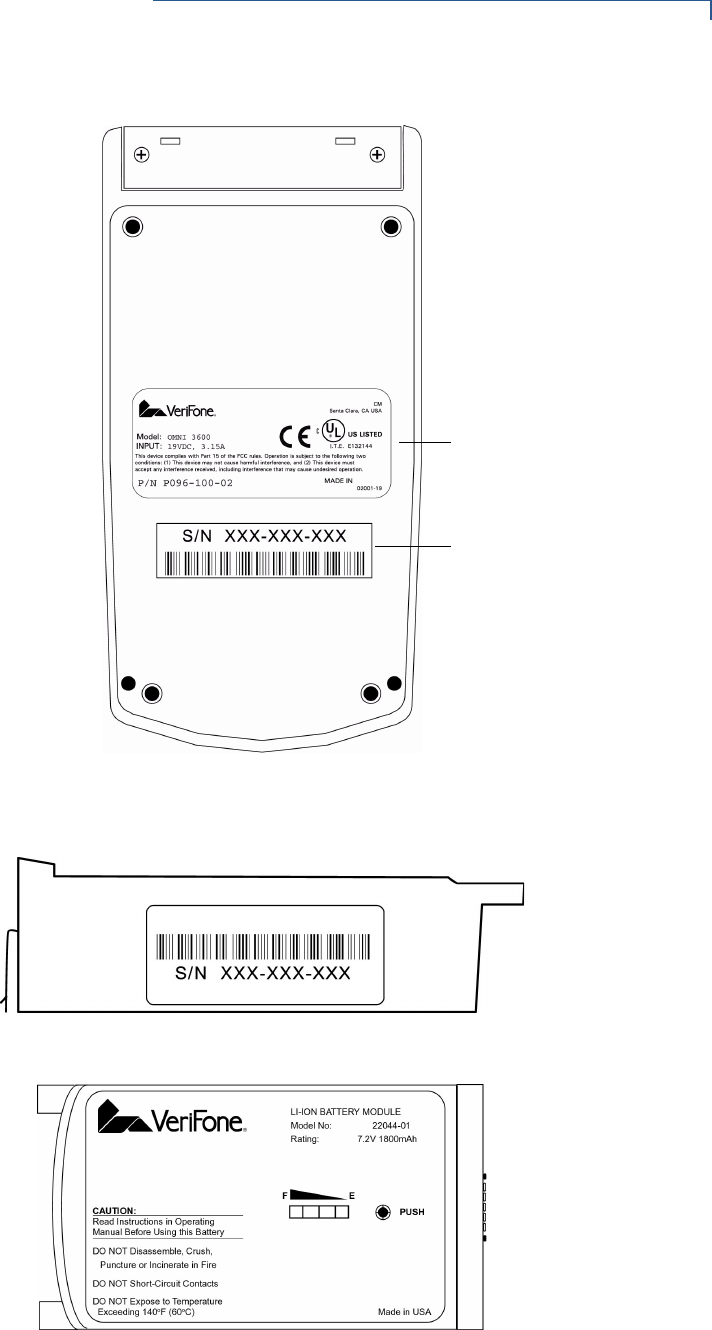

Figure 30 Omni 3600 Base Information Label Locations
Figure 31 Smart Battery Information Label Locations
SERIAL NUMBER
LABEL
PRODUCT
INFORMATION LABEL
SERIAL NUMBER
LABEL
PRODUCT INFORMATION
LABEL
![](/img.php?id=345594&img=bg19.png)
VERIFONE SERVICE AND SUPPORT
Return a Terminal, Base, or Smart Battery
40 OMNI 3600 INSTALLATION GUIDE
![](/img.php?id=345594&img=bg1a.png)
OMNI 3600 INSTALLATION GUIDE 41
CHAPTER 7
Specifications
This section provides information on the power requirements, environmental
conditions that the units can be subjected to, and unit dimensions.
Power
Requirements
DC power (all Omni 3600 terminals and Omni 3600 bases): DC: 19VDC; 3.16A
DC power pack (all Omni 3600 terminals and Omni 3600 bases):
•Input: 100–240 V ~ (100–240VAC); 50–60 Hz; 1.5A
•Output: 19VDC; 3.16A

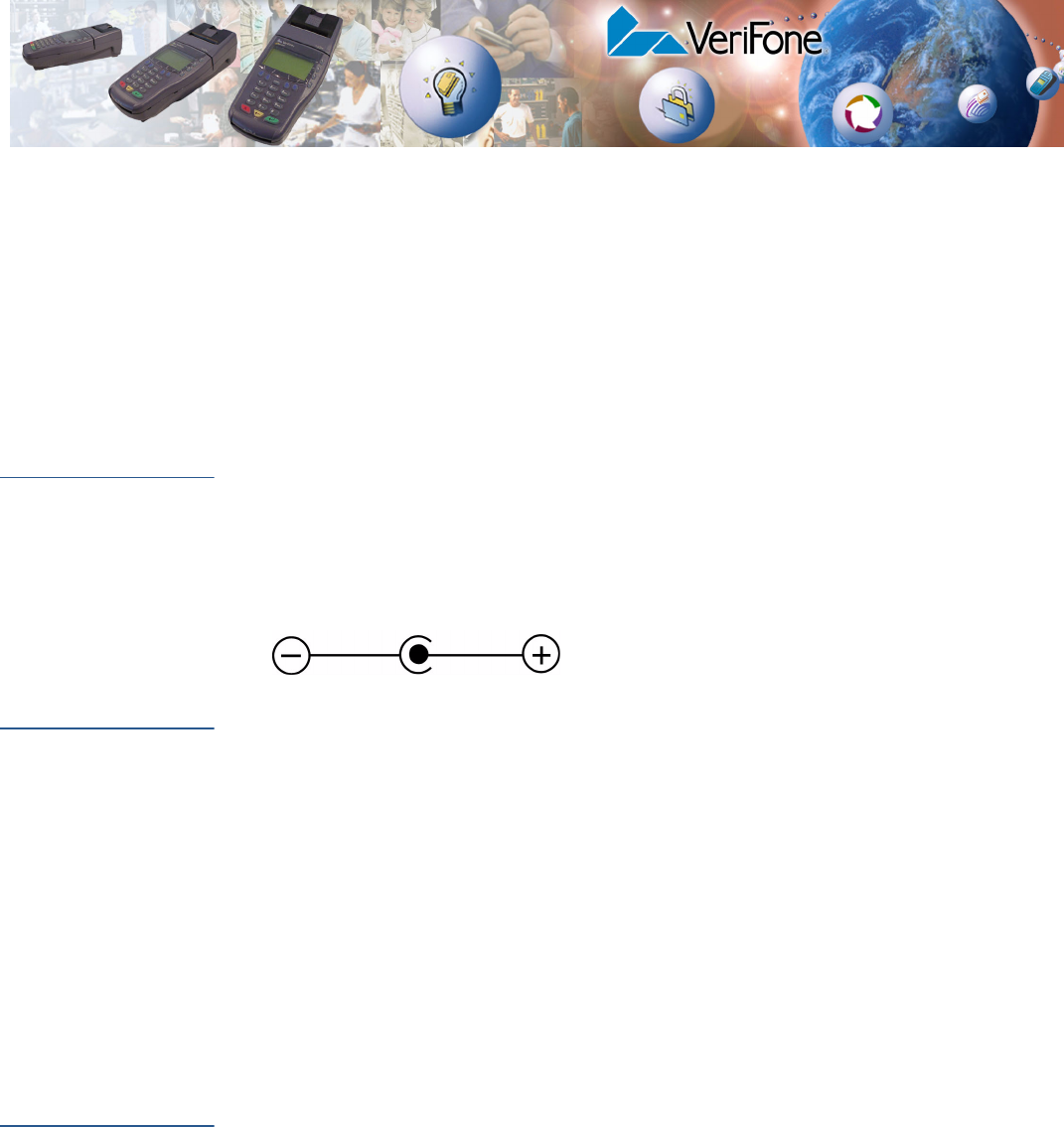

Barrel connector polarity (all Omni 3600 terminals and Omni 3600 bases):
Environmental Omni 3600 terminal:
•Operating temperature: 0° to + 50° C (32° to 122° F)
•Storage temperature: – 20° to + 70° C (0° to 158° F)
•Relative humidity: 15% to 90%; no condensation
Omni 3600 base:
•Operating temperature: 0° to 55° C (32° to 131° F)
•Storage temperature: – 40° to + 70° C (–40° to 158° F)
•Relative humidity: 15% to 90%; no condensation
Omni 3600
Terminal
Dimensions
•Height: 69 mm (2.72 inches)
•Width: 95 mm (3.74 inches)
•Length: 220 mm (8.64 inches)
Weight • Terminal weight: 568 g (1.25 lb)
•with battery installed: 681 g (1.5 lb)
•with battery and paper roll installed: 710 g (1.56 lb)
•Shipping weight: 1264 g (2.78 lb): The shipping weight for the Omni 3600
terminal includes: shipping carton, one terminal, power pack and cable, one
smart battery, paper roll, and one Quick Installation Guide.
![](/img.php?id=345594&img=bg1b.png)
SPECIFICATIONS
Omni 3600 Base Dimensions
42 OMNI 3600 INSTALLATION GUIDE
Omni 3600
Base
Dimensions
•Height: 88.9 mm (3.5 inches)
•Width: 95.25 mm (3.75 inches)
•Length: 241.3 mm (9.5 inches)
Weight • Base station weight: 378 g (0.83 lb)
•Shipping weight: 498 g (1.098 lb): The shipping weight for the Omni 3600
base station includes: shipping carton, one base station, one Telco cable, and
one Quick Installation Guide.
![](/img.php?id=345594&img=bg1c.png)
OMNI 3600 INSTALLATION GUIDE 43
CHAPTER 8
Accessories and Documentation
This sections lists accessories and documentation available for the Omni 3600.
When ordering, please refer to the part number in the left column.
How to Order •VeriFone Online Store at www.store.verifone.com
•United States: VeriFone Customer Development Center, 1-800-837-4366,
Monday–Friday, 8 A.M.–8 P.M., eastern time
•International: Contact your local VeriFone representative
Omni 3600
Terminal
This section presents accessory and part replacement ordering information for the
Omni 3600 terminal. See VeriFone Service and Support for product service and
repair information.
Download Cables
and Adapters
Cables for
Optional
Peripherals
Base Station
Telco Cable
Smart Battery
Power Pack Contact your local VeriFone distributor to determine which power pack fits your
needs.
05651-xx MOD10-MOD10 (base station-to-base station)
26263-xx 02xxx MOD10-PC DB25F (base station-to-PC)
26264-xx 02xxx MOD10-PC DB9F (base station-to-PC)
22536-01 MOD10 adapter (terminal-to-terminal/PC/telephone)
07041-xx MOD10-MDIN9 (CR 600/CR 1000icheck readers)
P096-201-00 Base station
00124-17 2.1-m (7’) telephone line cord, black color, with modular RJ11-type
connectors
22044-02 12V battery pack
22161-01 DC power pack (universal)
21973-01 Power cable (U.S.)
![](/img.php?id=345594&img=bg1d.png)
ACCESSORIES AND DOCUMENTATION
Omni 3600 Base
44 OMNI 3600 INSTALLATION GUIDE
Thermal Printer
Paper
Antenna Contact your VeriFone distributor to determine the exact antenna for your
Omni 3600 terminal.
VeriFone Cleaning
Kit
Omni 3600
Base
Download Cables
Cables for
Optional
Peripherals
Telephone Line
Cord
Documentation
CRM0043 Standard-grade thermal printer paper, 57-mm (2.25”) width, 7.62-m
(25’) length; single roll
22066-XX Replacement antenna.
02746-01 Cleaning kit
P096-201-00 Base, U.S., 14.4 Kbps modem
P096-203-00 Base, generic 14.4 Kbps modem
05651-xx MOD10-MOD10 (base-to-base)
26263-xx 02xxx Mod 10-PC DB25F (base-to-PC)
26264-xx 02xxx Mod 10-PC DB9F (base-to-PC)
07041-xx MOD10-Mini DIN9 (CR 600/CR 1000i check readers; P250/P355/P900
external printers)
00124-17 2.1-meter (7-foot) telephone line cord, black color, with modular RJ11-type
connectors
22377 Omni 3600 Quick Installation Guide
22378 Omni 3600 Base Station Quick Installation Guide
22060 Omni 3600 Installation Guide
19733 Verix Operating System Programmer’s Manual
![](/img.php?id=345594&img=bg1e.png)
Omni 3600
Installation Guide
Part Number 22060, Revision D
VeriFone, Inc.
2455 Augustine Drive
Santa Clara CA 95054-3002
Tel: 800-VeriFone (837-4366)
www.verifone.com
VERIX
OPERATING
ENVIRONMENT
SOFTPAY
E-PAYMENT
APPLICATION
VERIX
DEVELOPMENT
TOOLS
DEVELOPER
TOOLKIT
VERISHIELD
SECURITY
ARCHITECTURE
OMNI 33XX
MULTI-APPLICATION
APPLIANCES
VERICENTRE
APPLIANCE
MANAGEMENT
SUITE
RADIO MODEM
OMNI 3600
APPLIANCES
HAND-HELD
OMNI 37XX
HAND-OVER-COUNTER
MULTI-APPLICATION
APPLIANCES
