User manual rev



Verizon



FiOSQuantumGateway

UserGuide



ModelFiOS‐G1100



Pagei

Contents

Chapter1Introduction...................................................................................1

PackageContent...........................................................................................................1

SystemRequirements...................................................................................................1

Features.......................................................................................................................1

GettingtoKnowyourGateway......................................................................................3

MountGatewaytoWallOption................................................................................................5

Chapter2ConnectingyourGateway..............................................................7

SettingUpyourGateway..............................................................................................7

Step1:ConnectyourGateway..................................................................................................7

Step2:ConnectYourDevicetoyourGateway.........................................................................8

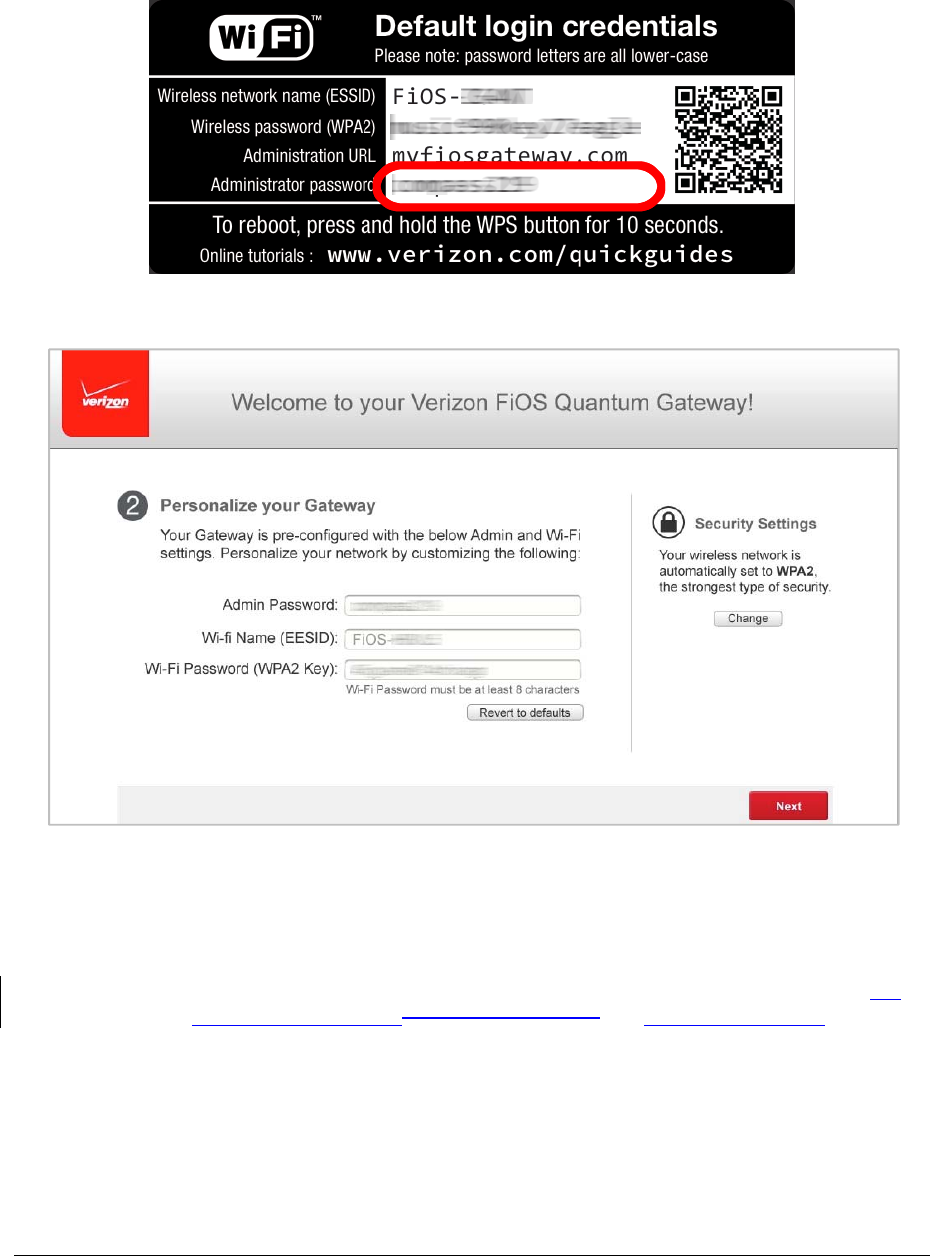

Step3:ConfigureyourGateway...............................................................................................8

ComputerNetworkConfiguration................................................................................12

ConfiguringDynamicIPAddressing........................................................................................12

ConnectingOtherComputersandNetworkDevices..............................................................13

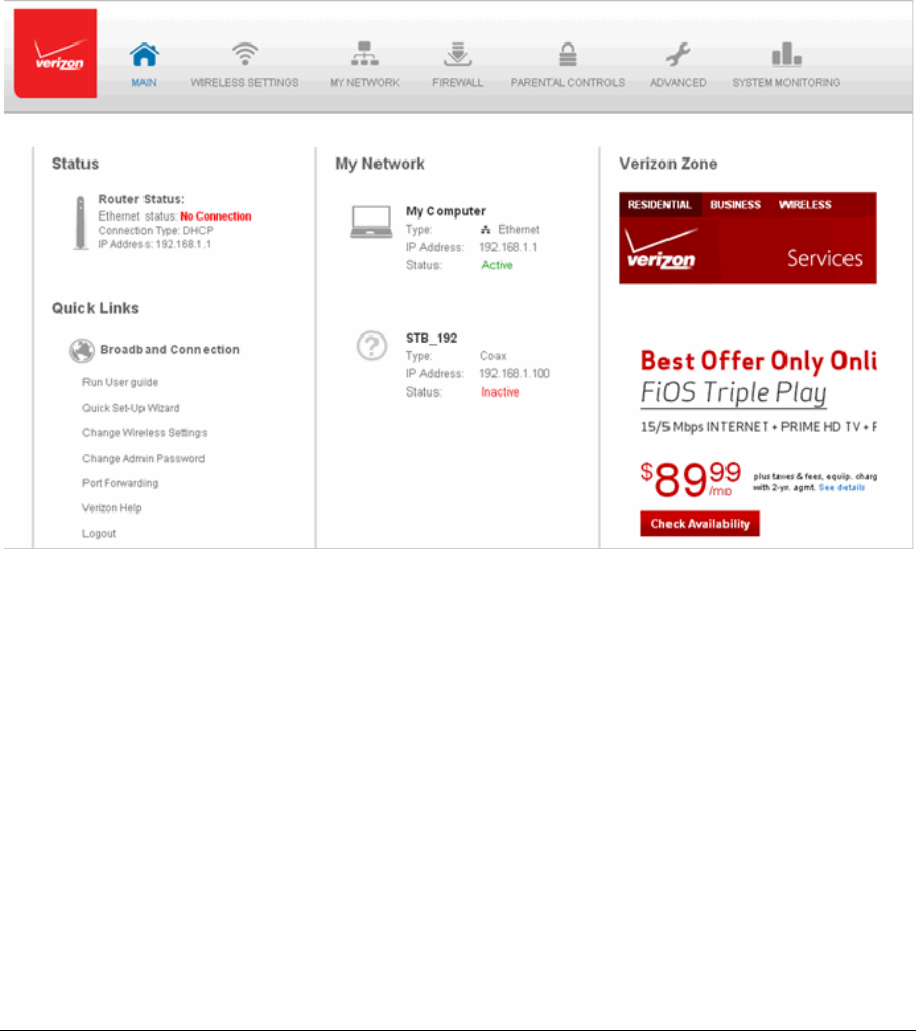

MainScreen...............................................................................................................15

Menu.......................................................................................................................................16

Status.......................................................................................................................................17

Chapter3WirelessSettings..........................................................................18

Overview...................................................................................................................18

ConnectingaWirelessClient..........................................................錯誤!尚未定義書籤。

WirelessStatus...........................................................................................................19

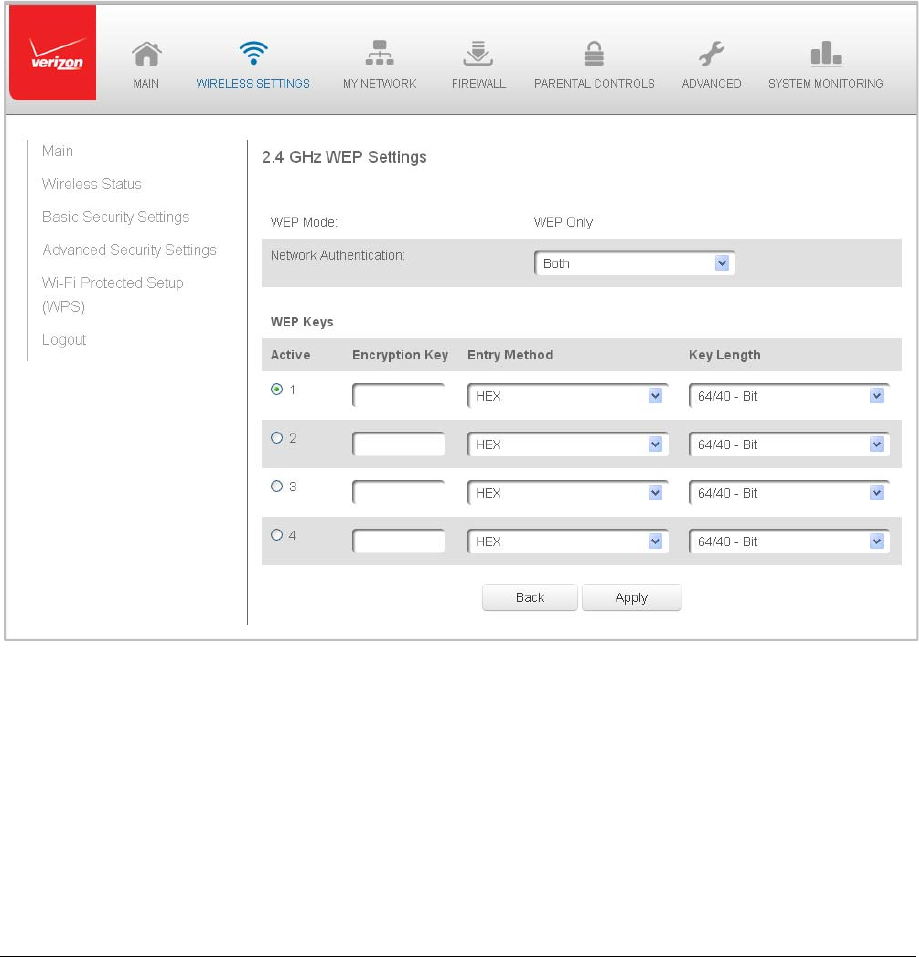

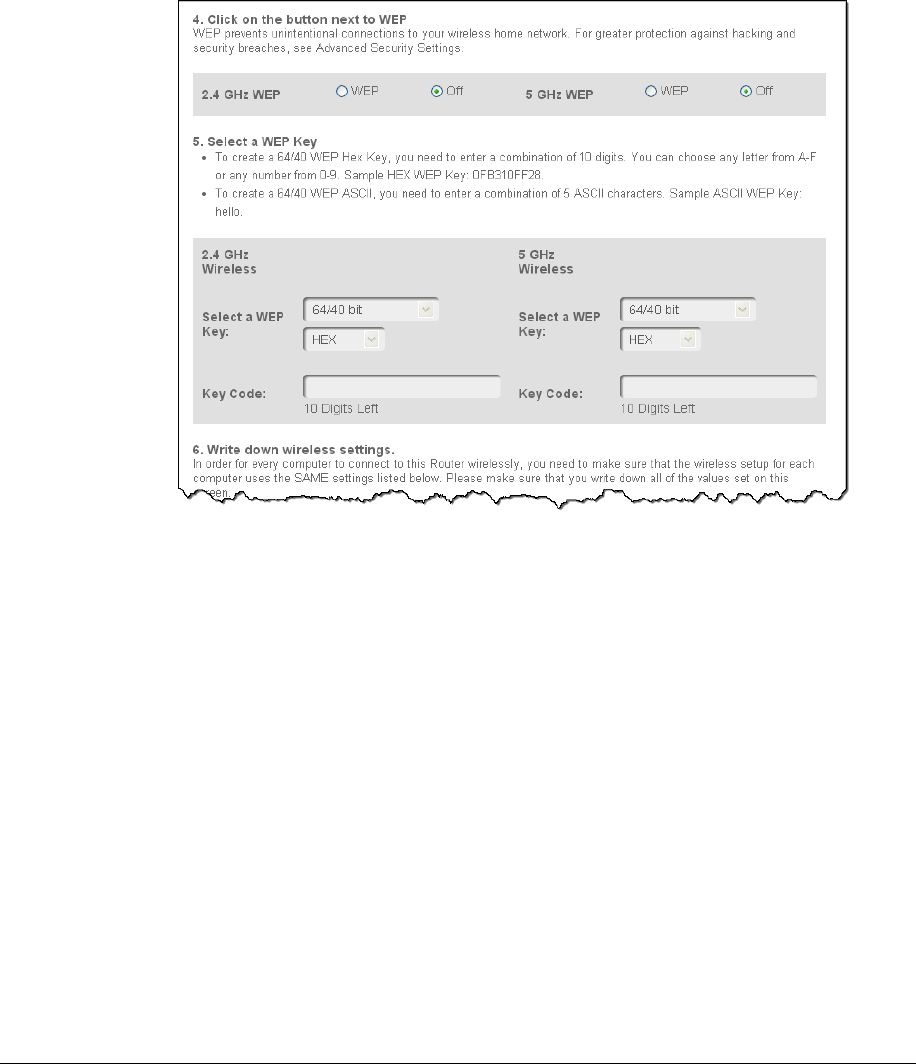

BasicSecuritySettings................................................................................................21

AdvancedSecuritySettings.........................................................................................23

Level1:SecuringyourNetwork...............................................................................................24

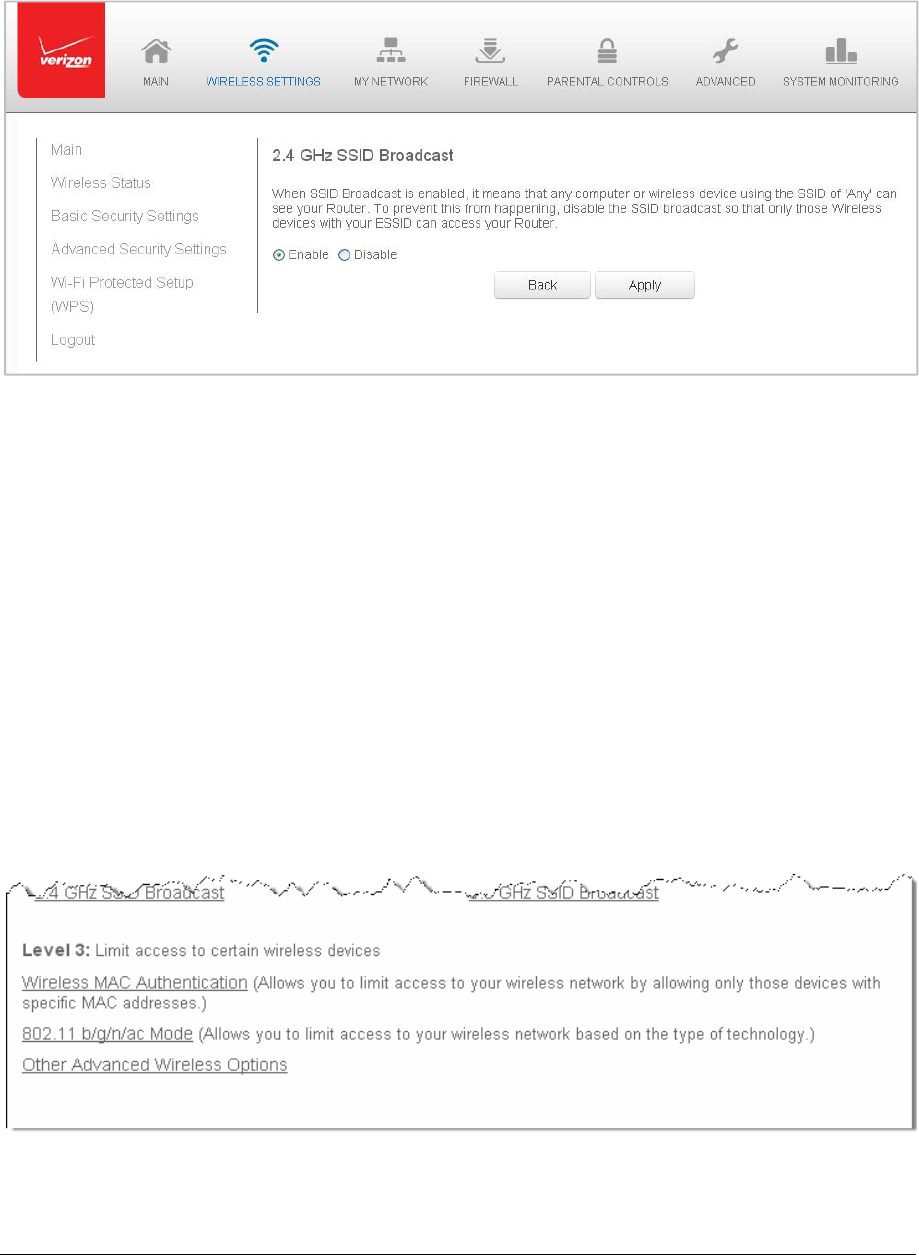

Level2:SSIDBroadcast...........................................................................................................26

Level3:LimitAccess................................................................................................................27

WirelessMACAuthentication......................................................................................29

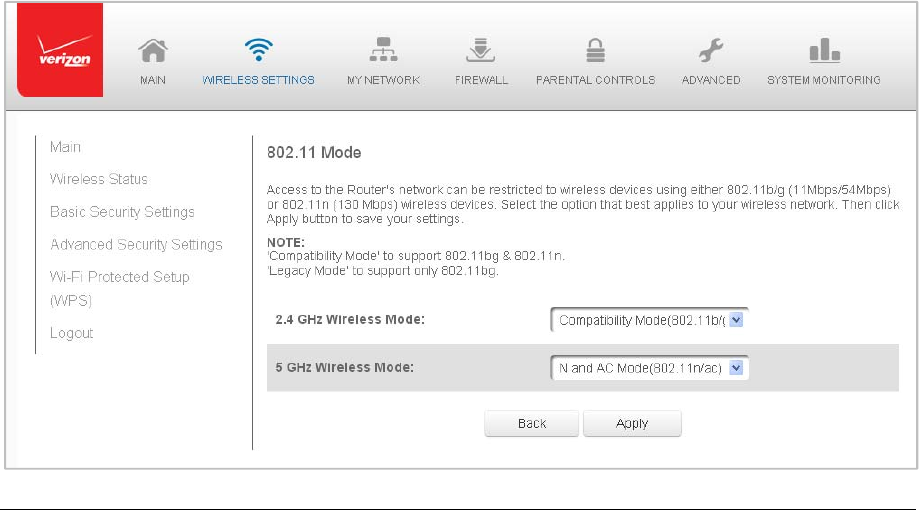

802.11Mode..............................................................................................................30

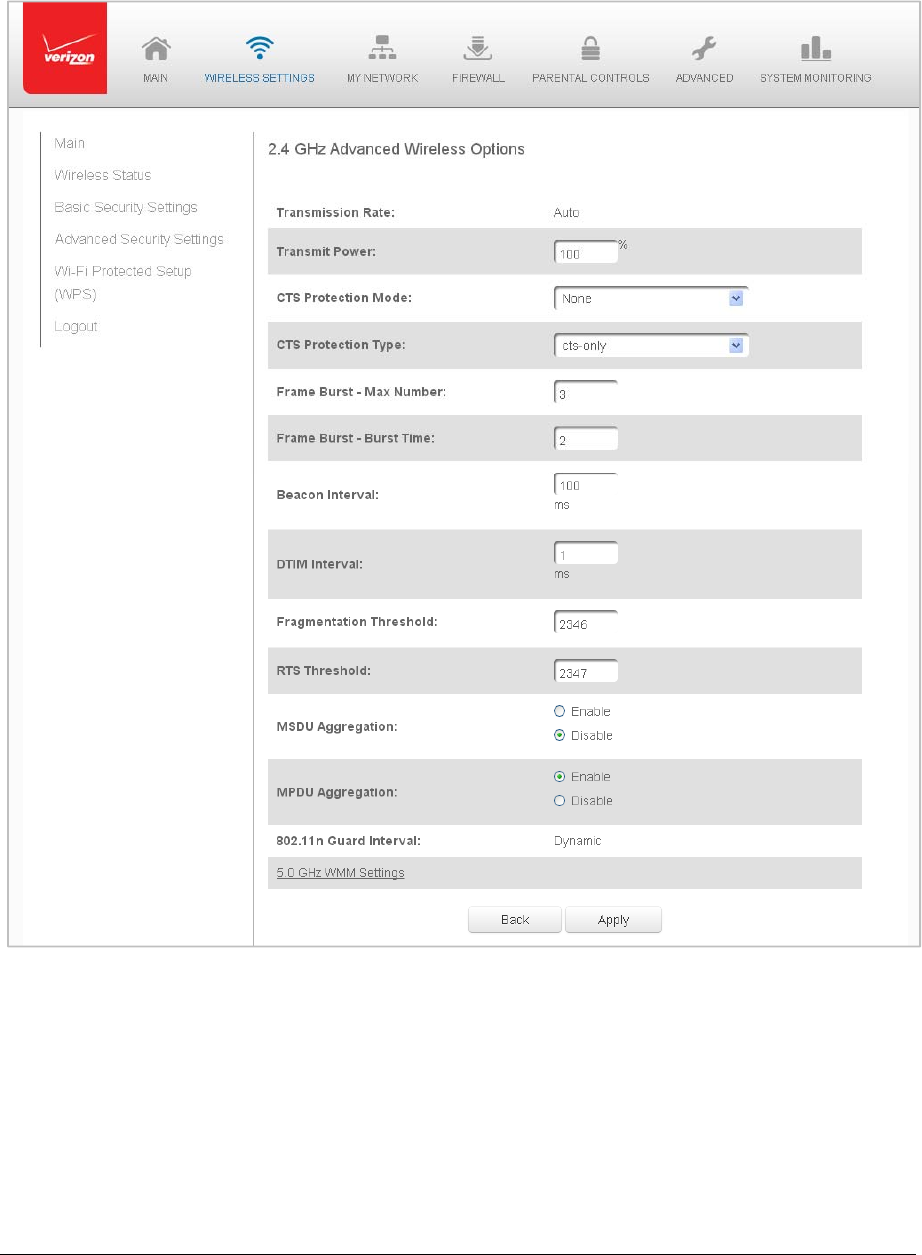

OtherAdvancedWirelessOptions...............................................................................31

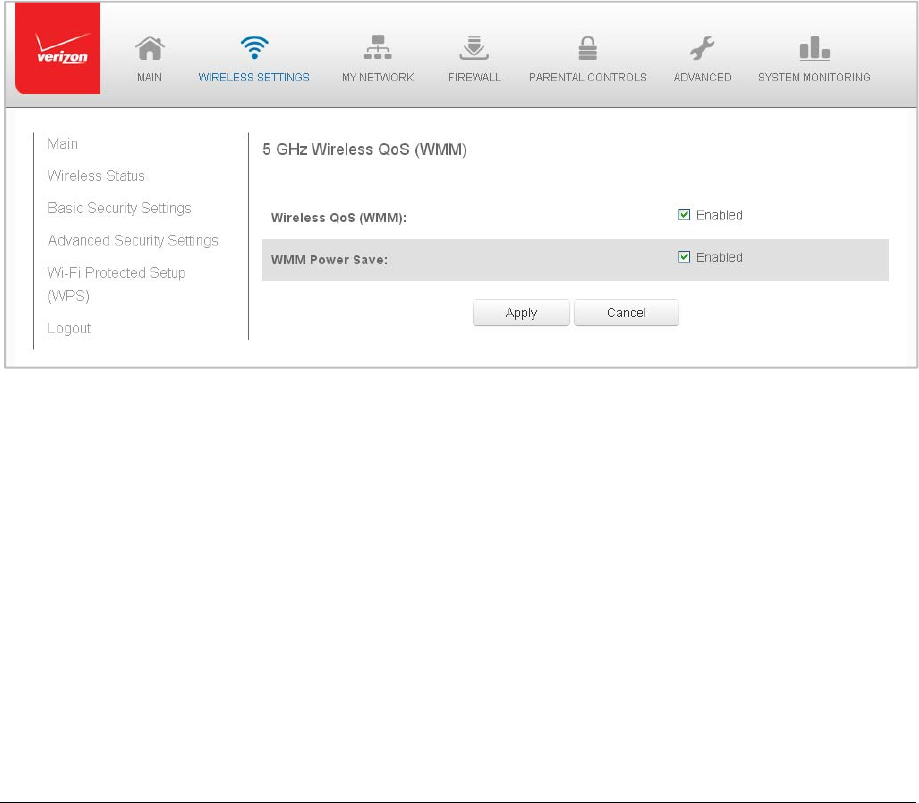

WMMSettings.........................................................................................................................34

Chapter4ConfiguringMyNetworkSettings.................................................35

AccessingMyNetworkSettings...................................................................................35

UsingMyNetworkSettings.........................................................................................36



Pageii

Chapter5UsingNetworkConnections.........................................................37

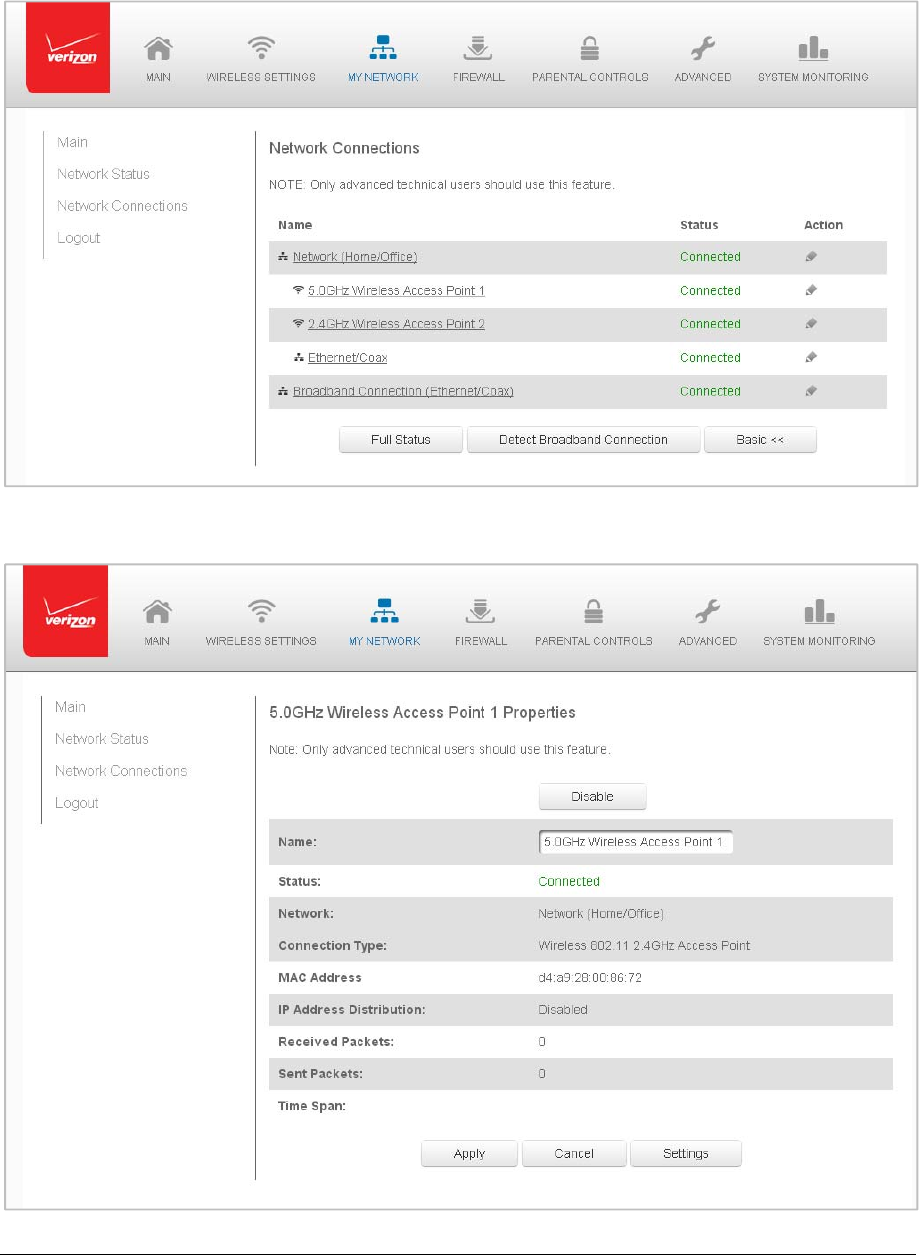

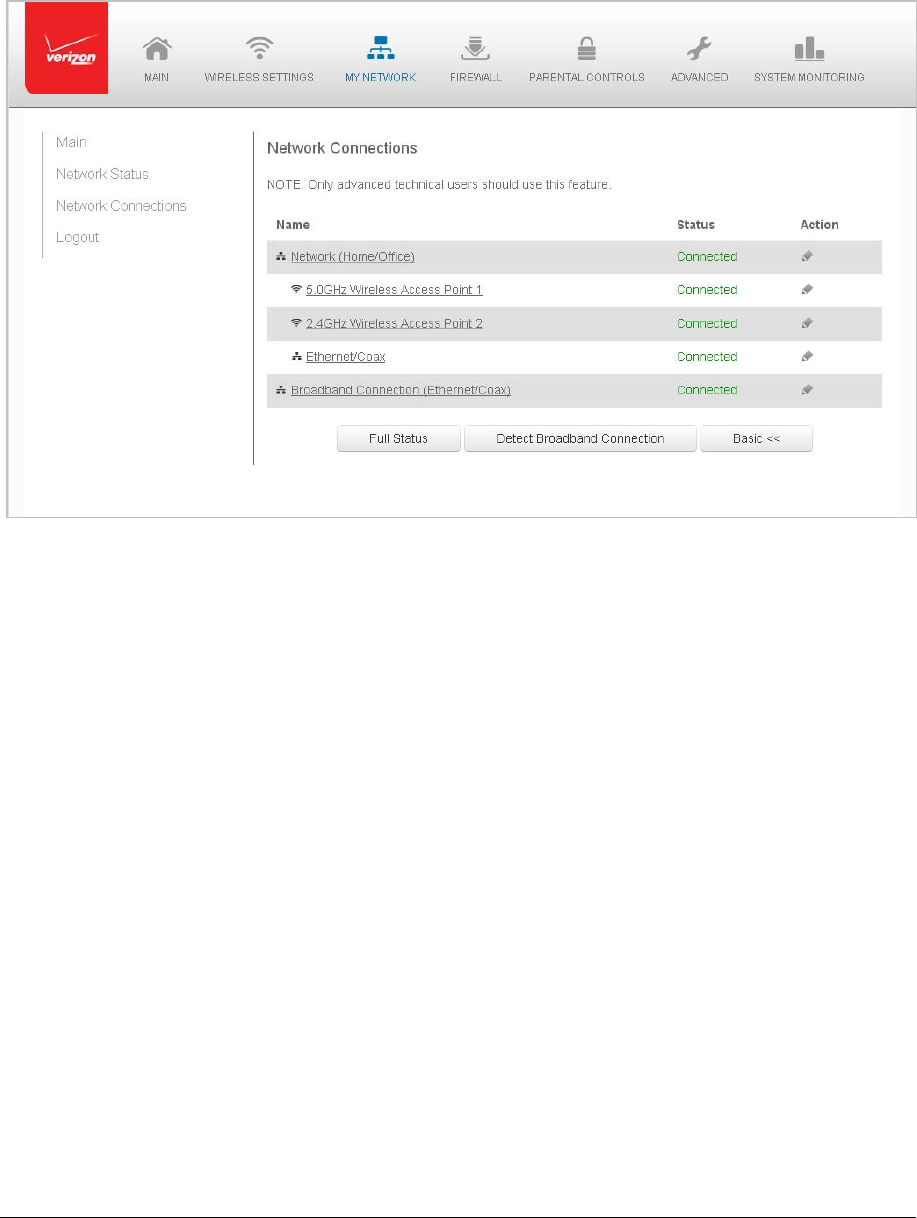

AccessingNetworkConnections..................................................................................37

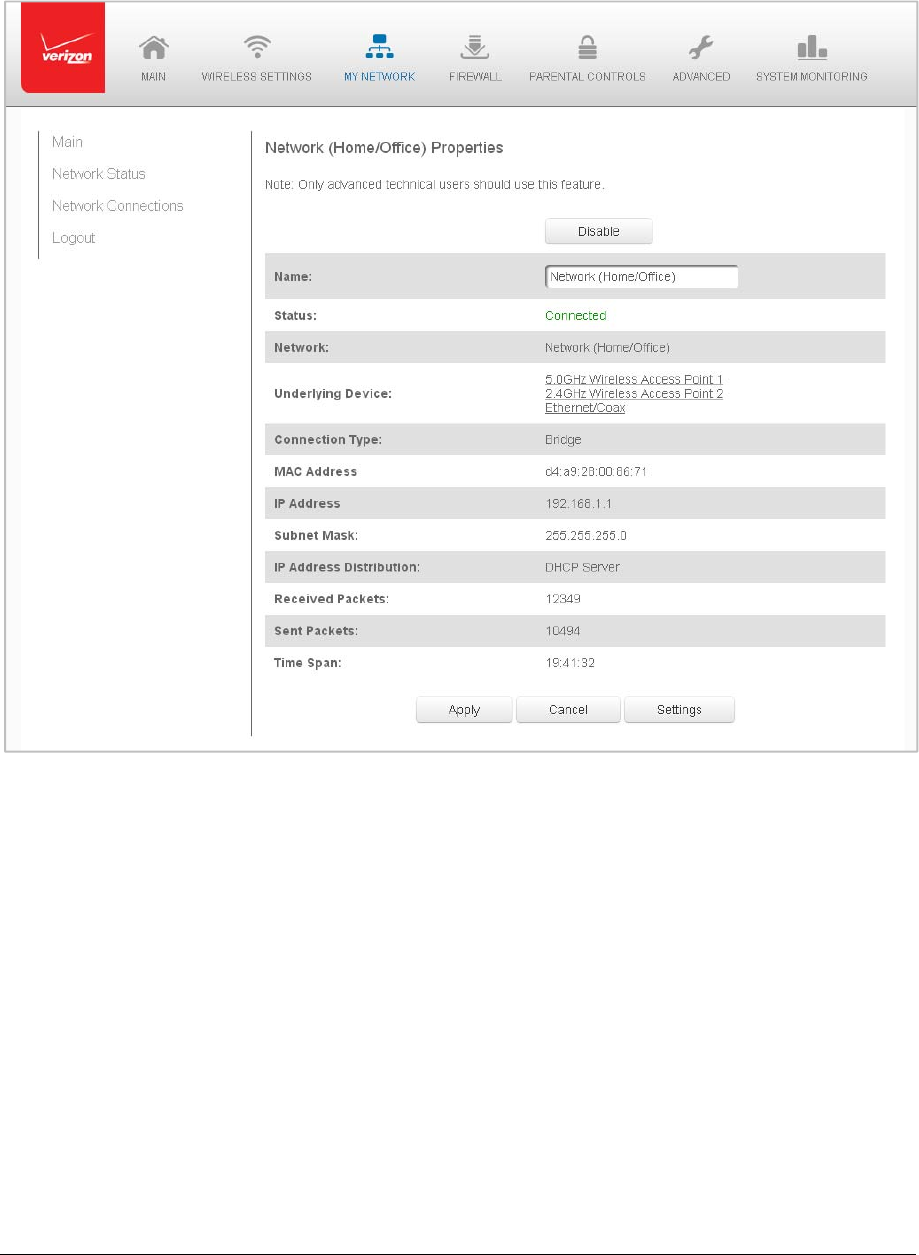

Network(Home/Office)Connection............................................................................38

Ethernet/CoaxConnection..........................................................................................45

WirelessAccessPointConnection................................................................................48

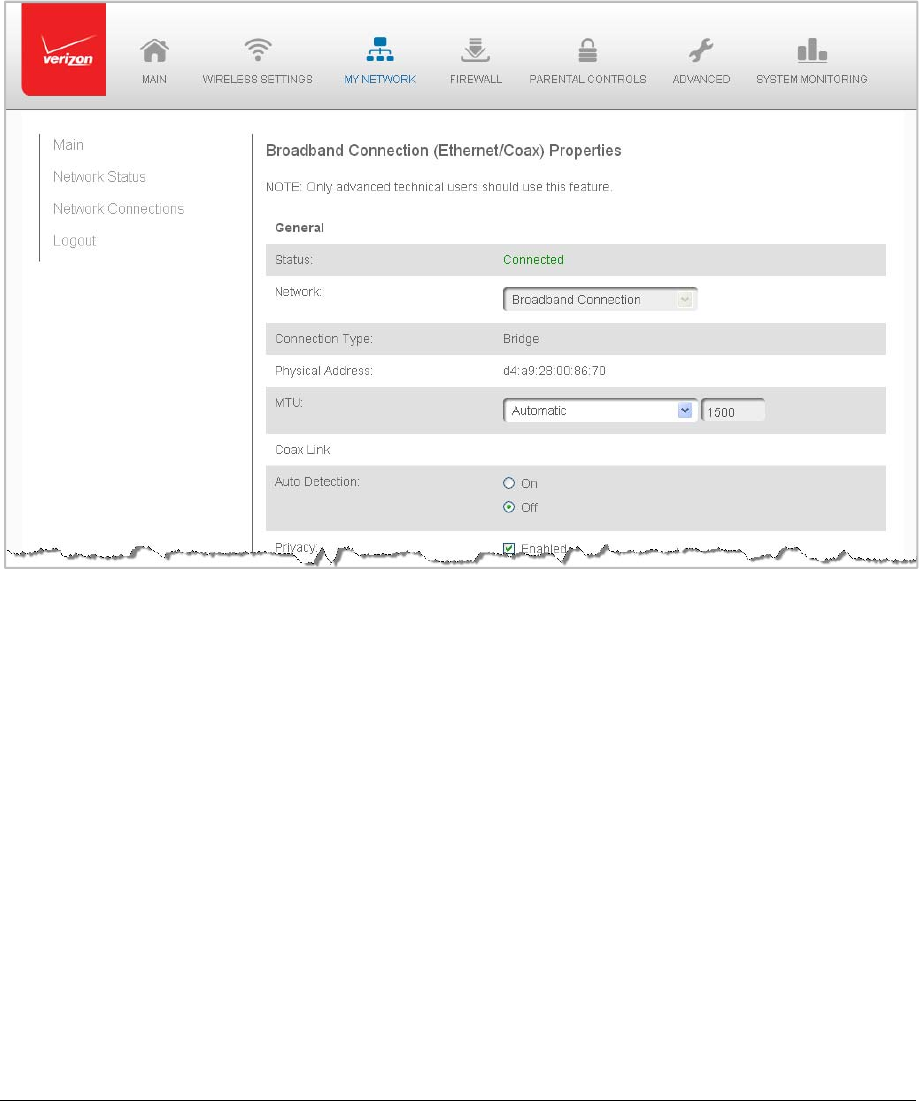

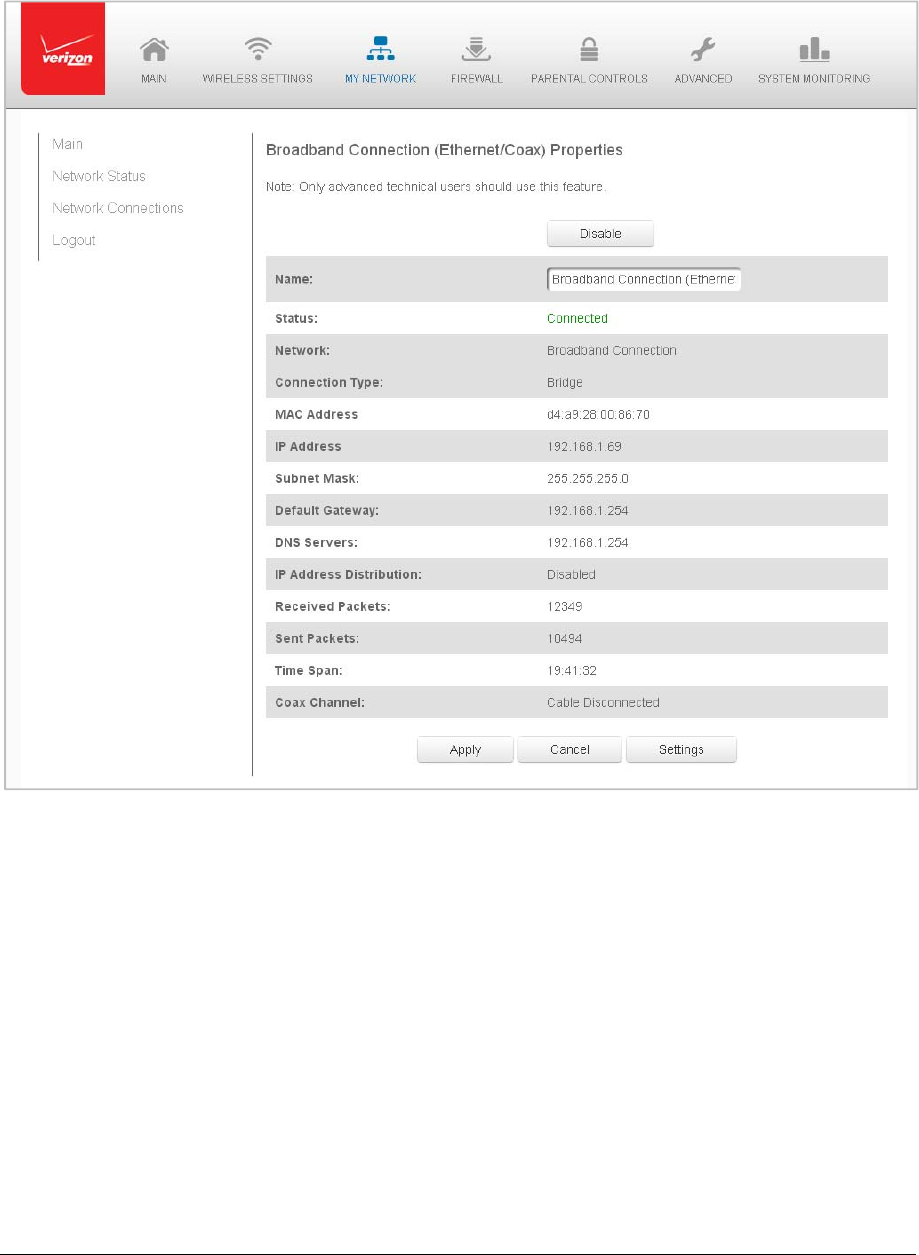

BroadbandEthernet/CoaxConnection.........................................................................51

Chapter6ConfiguringSecuritySettings........................................................57

Firewall......................................................................................................................57

SettingFirewallConfiguration.................................................................................................58

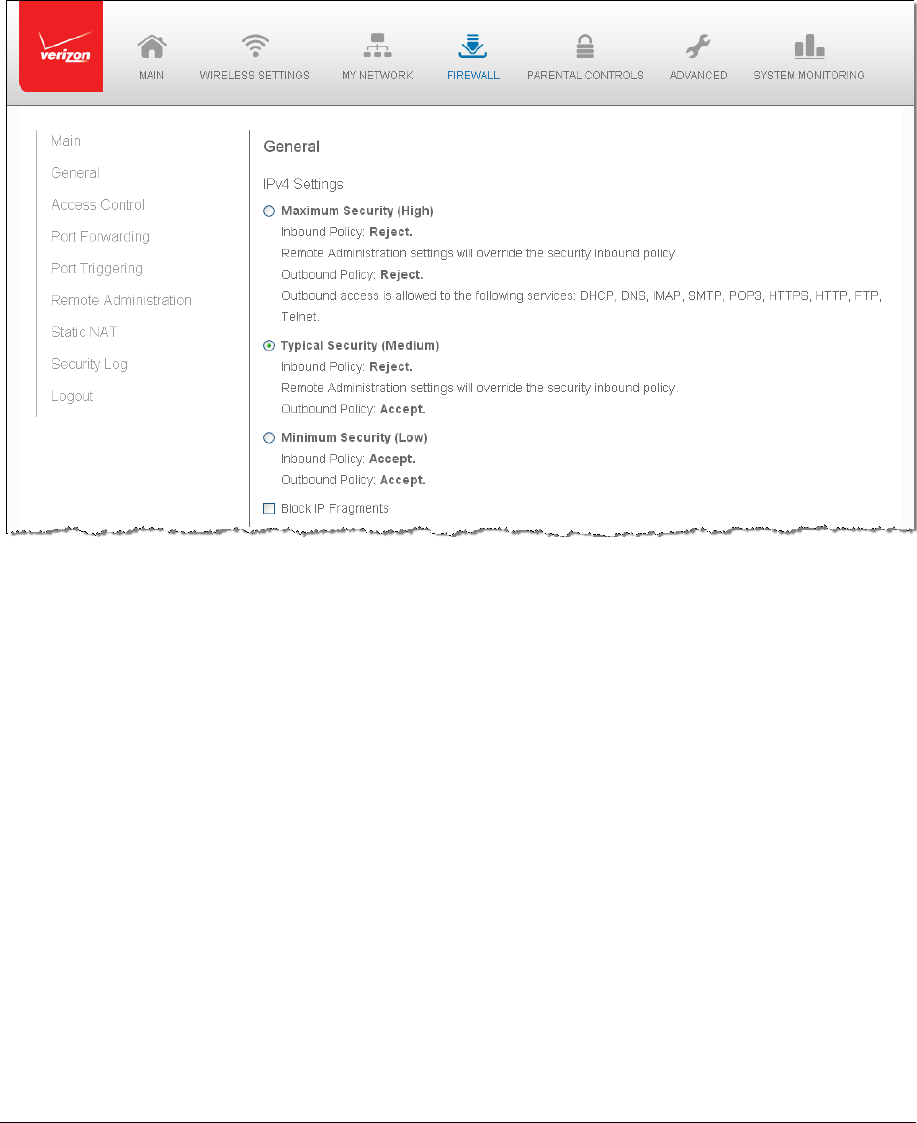

SpecifyingGeneralSettingsforIPv4orIPv6...........................................................................59

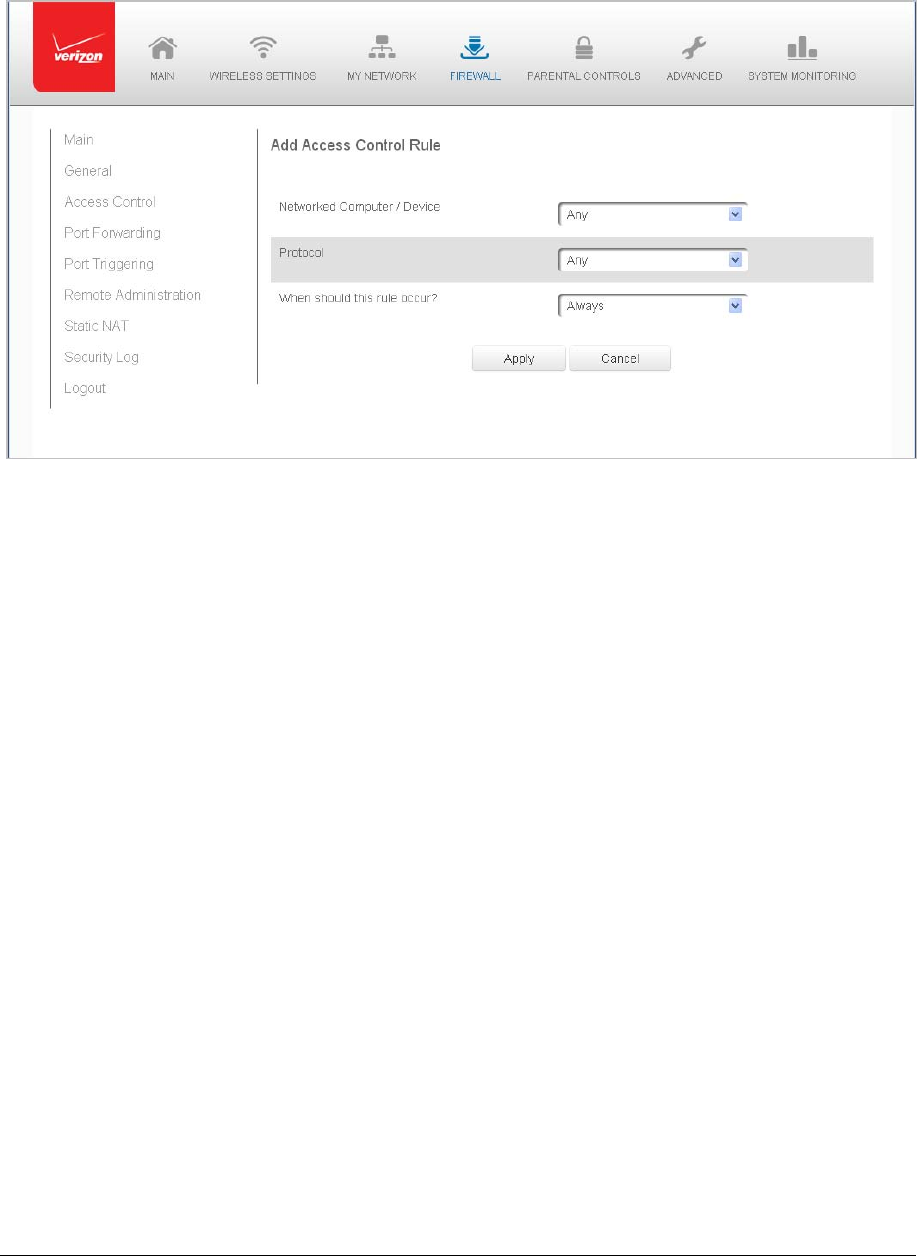

AccessControl............................................................................................................60

AlloworRestrictServices........................................................................................................60

DisableAccessControl............................................................................................................61

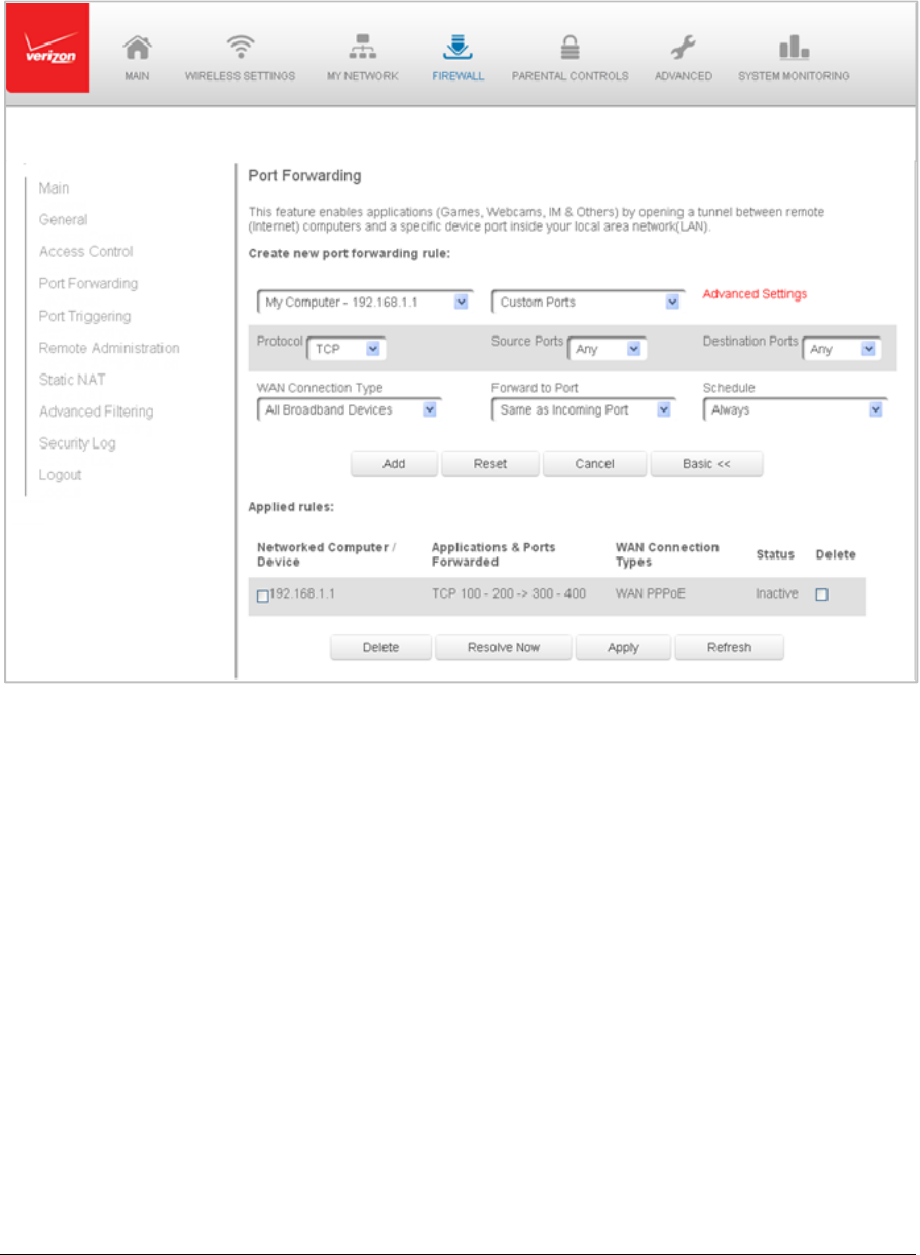

PortForwarding.........................................................................................................62

AdvancedPortForwardingRules............................................................................................62

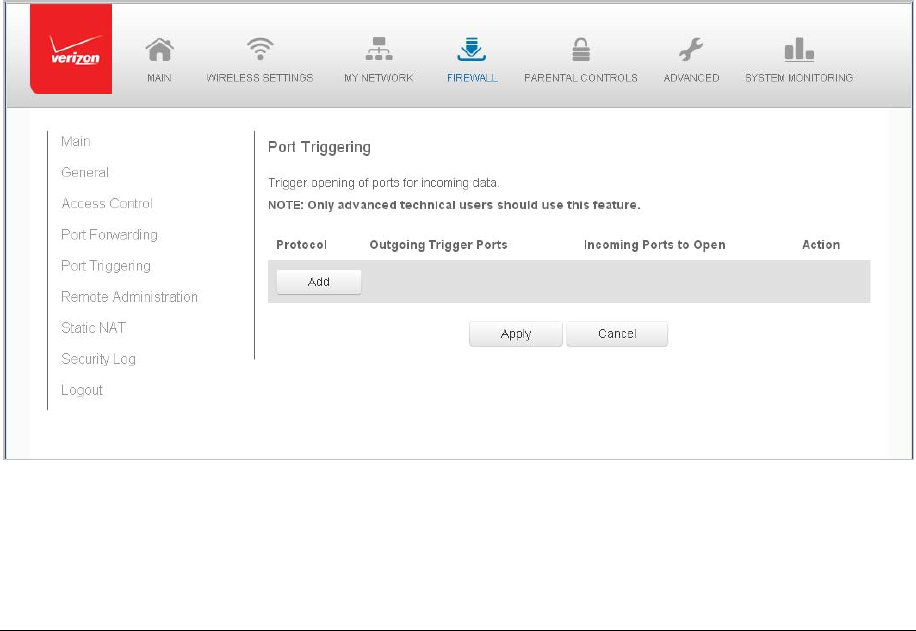

PortTriggering...........................................................................................................64

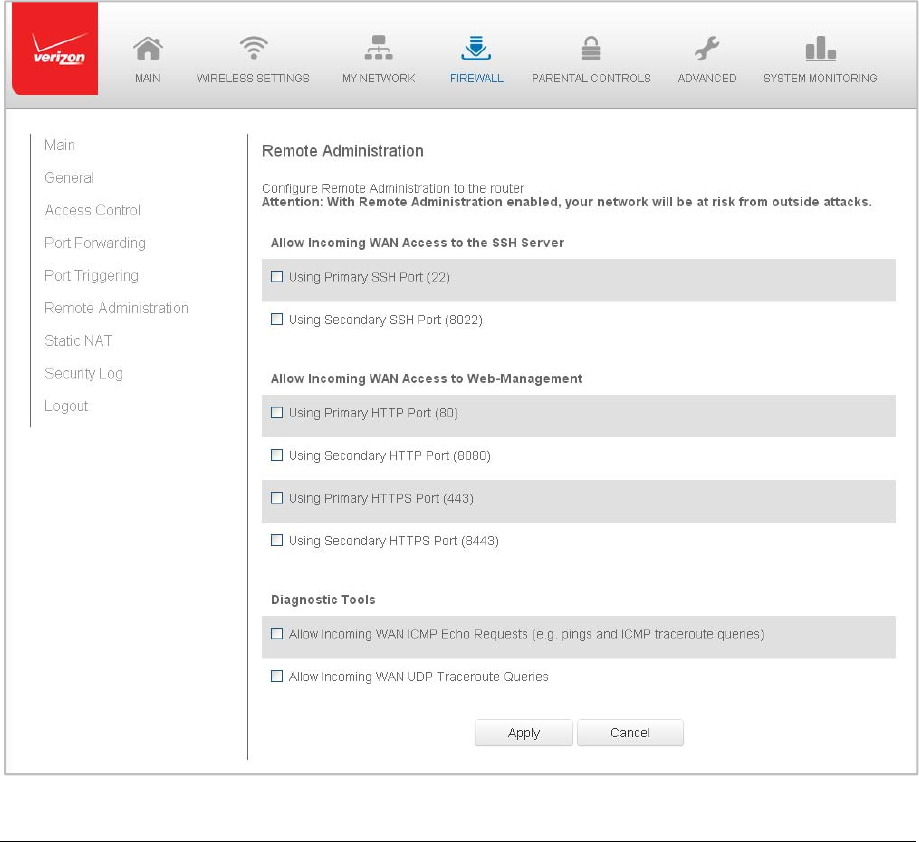

RemoteAdministration...............................................................................................65

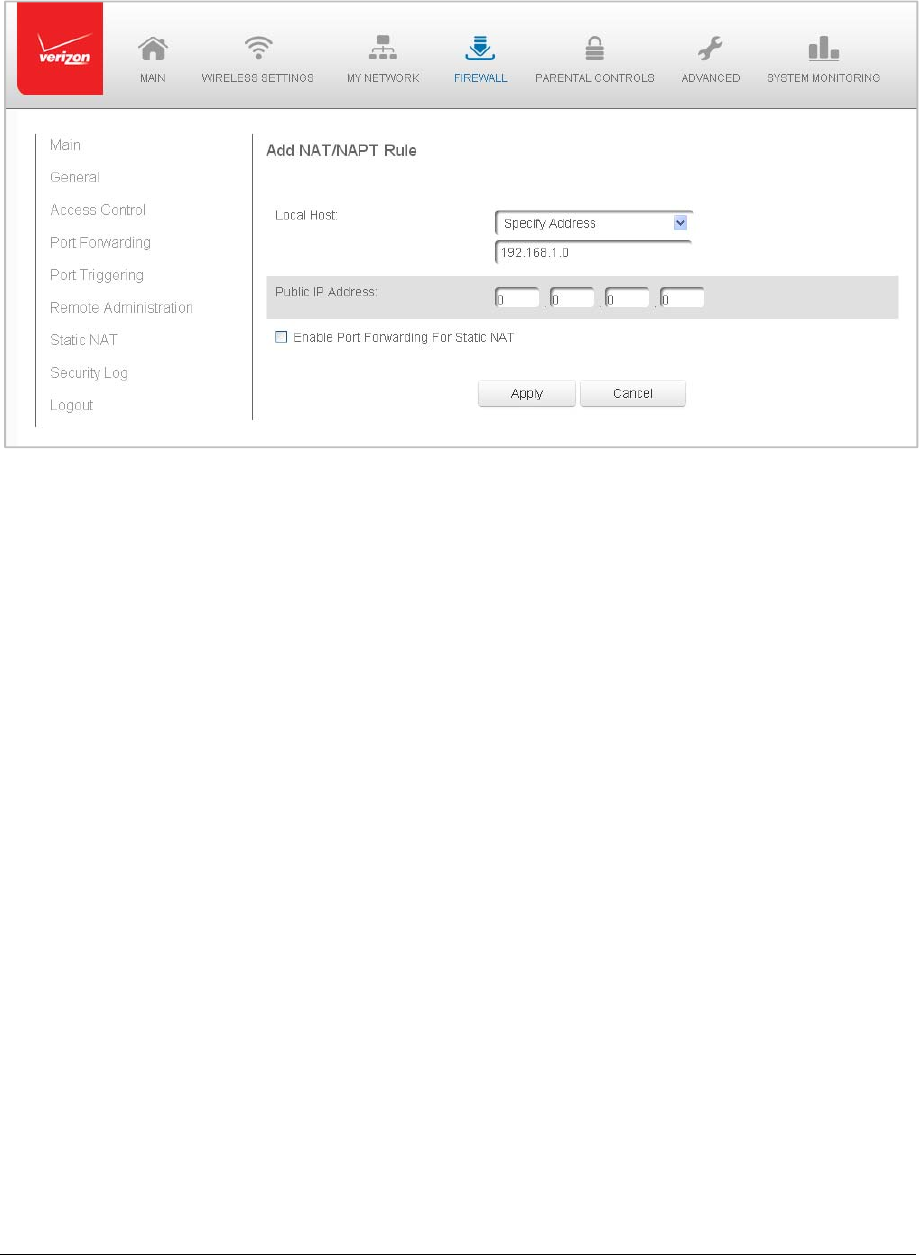

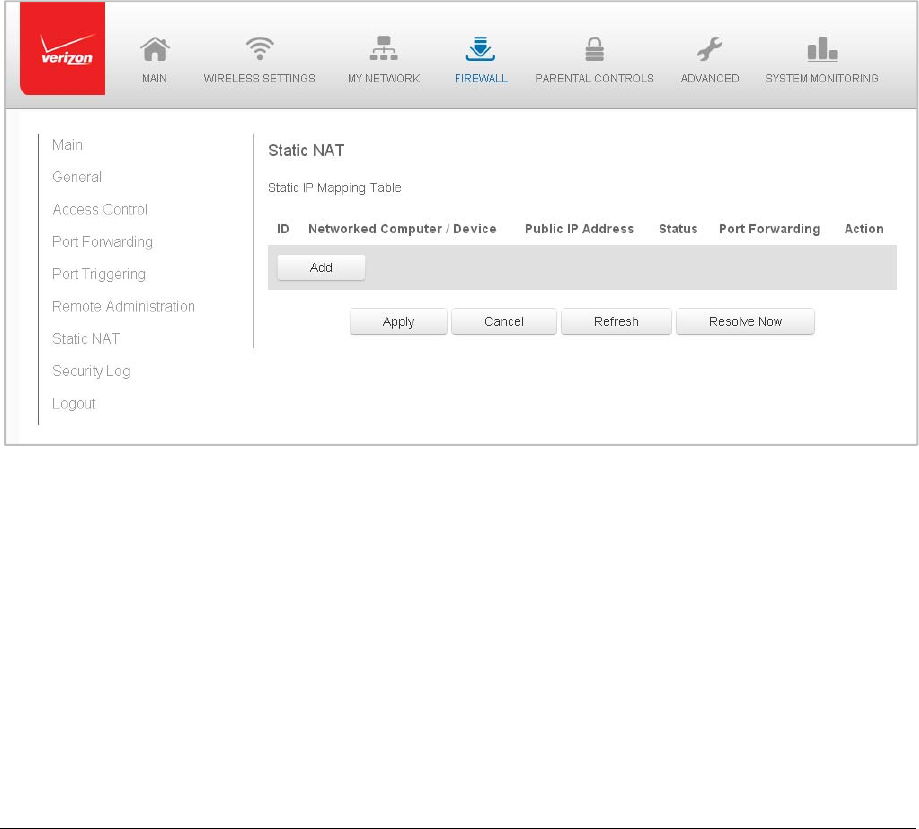

StaticNAT..................................................................................................................67

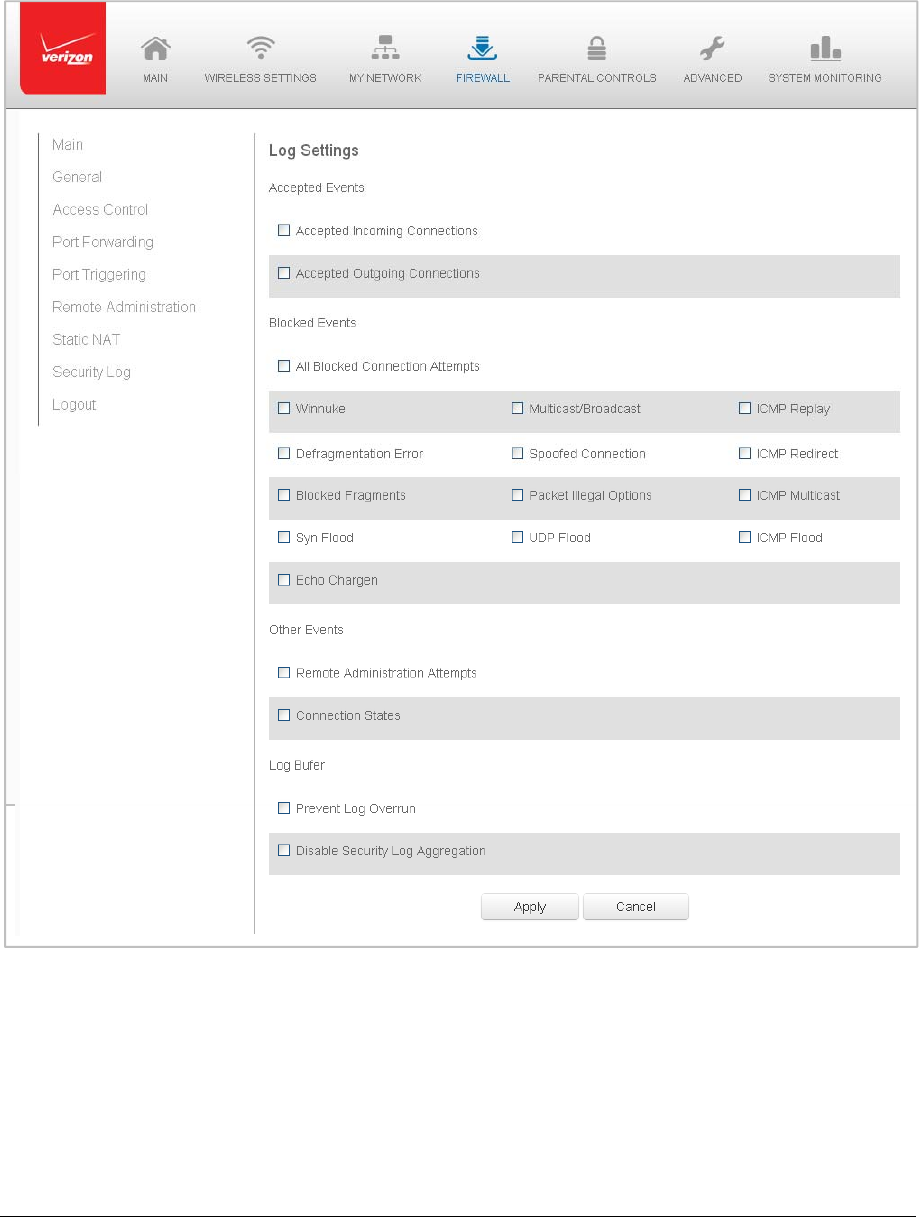

SecurityLog................................................................................................................68

EventTypes.............................................................................................................................69

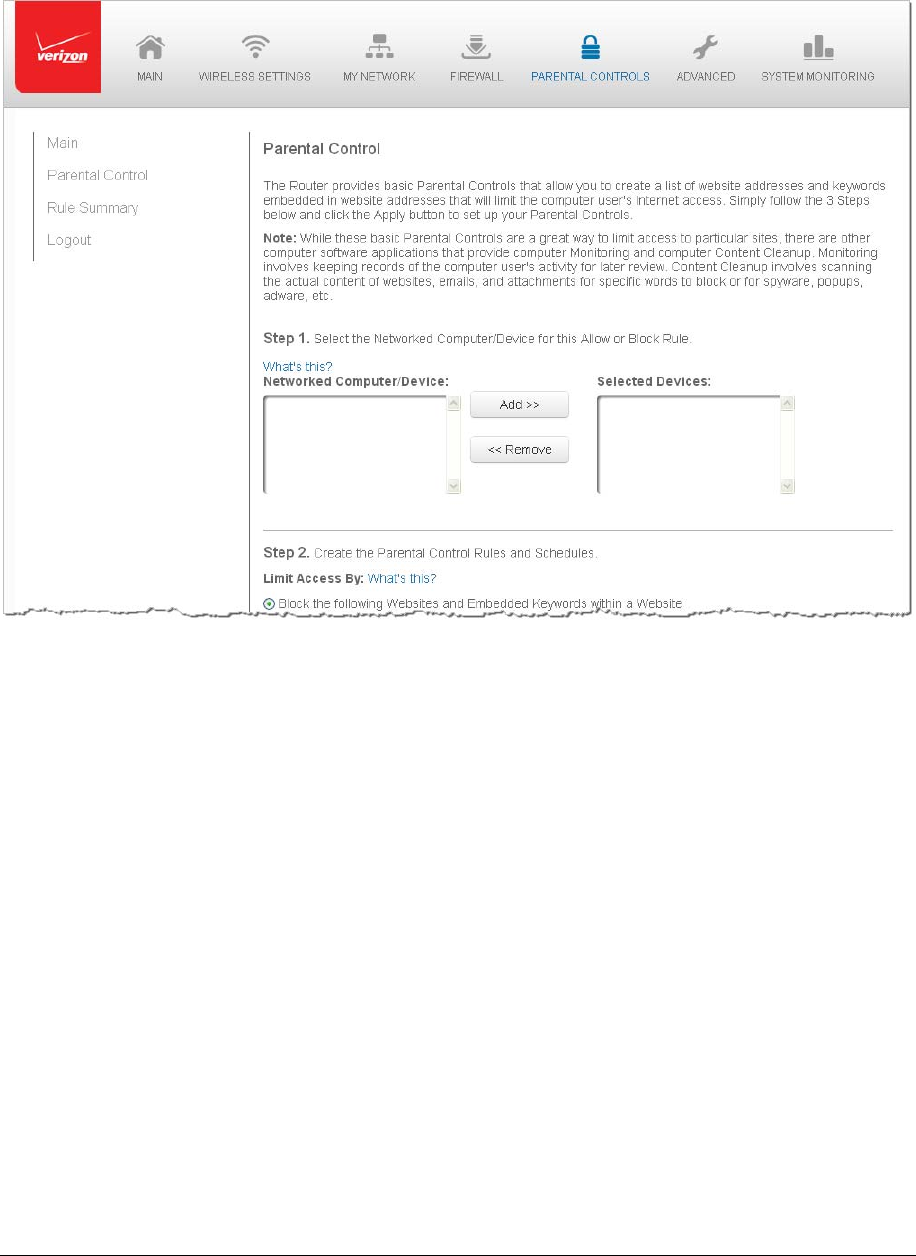

Chapter7SettingParentalControls..............................................................74

ActivatingParentalControls........................................................................................74

RuleSummary.........................................................................................................................77

Chapter8ConfiguringAdvancedSettings.....................................................78

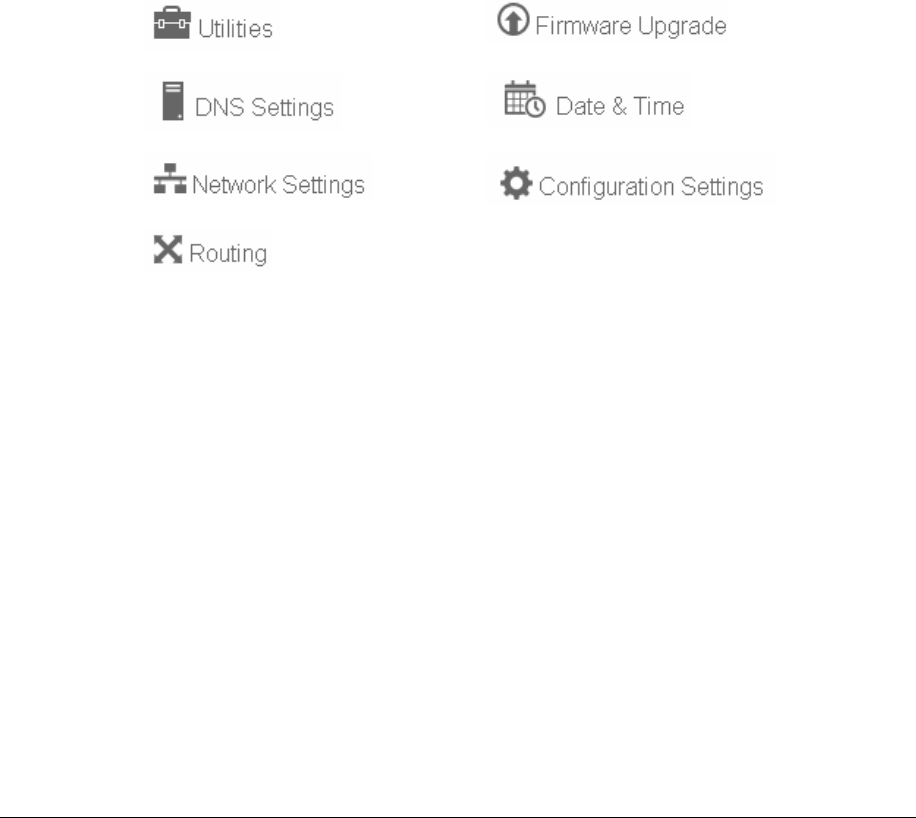

UsingAdvancedSettings.............................................................................................78

Utilities......................................................................................................................79

Diagnostics..............................................................................................................................80

RestoreDefaults......................................................................................................................80

RebootGateway......................................................................................................................81

MACCloning............................................................................................................................82

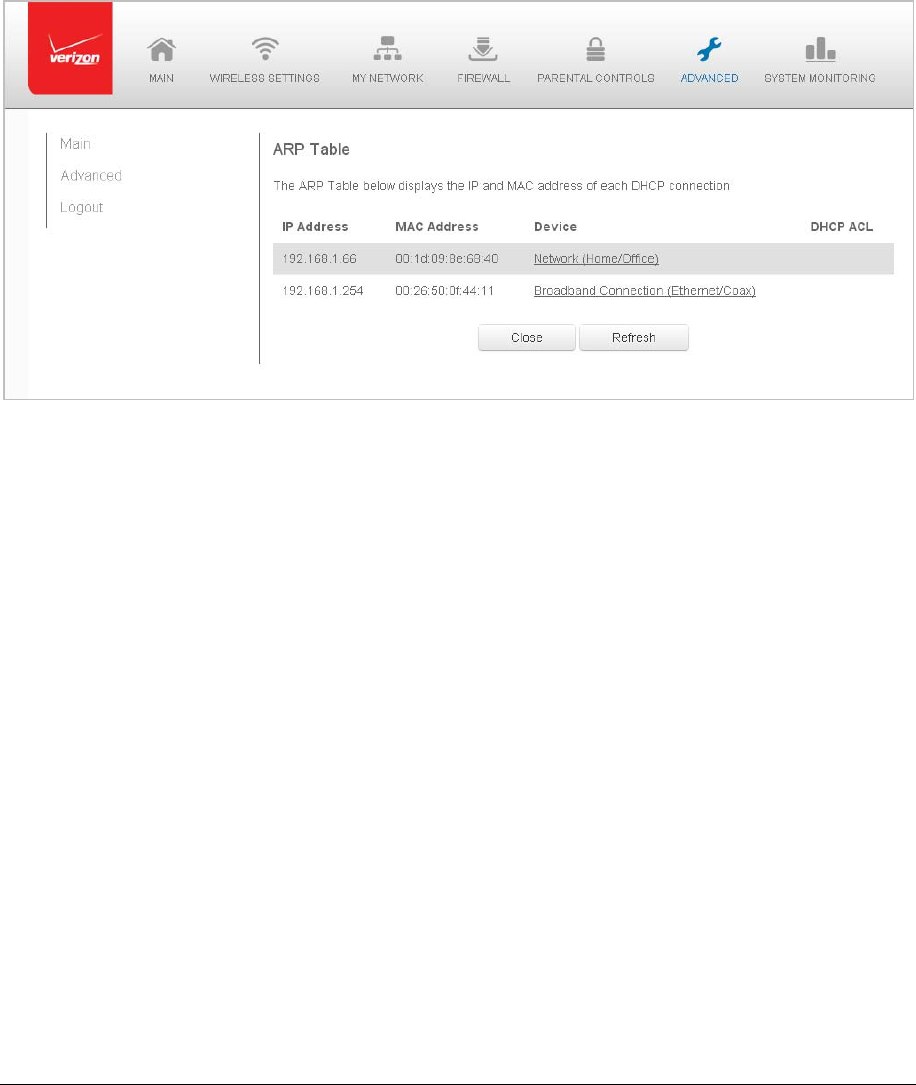

ARPTable.................................................................................................................................83

Users........................................................................................................................................83

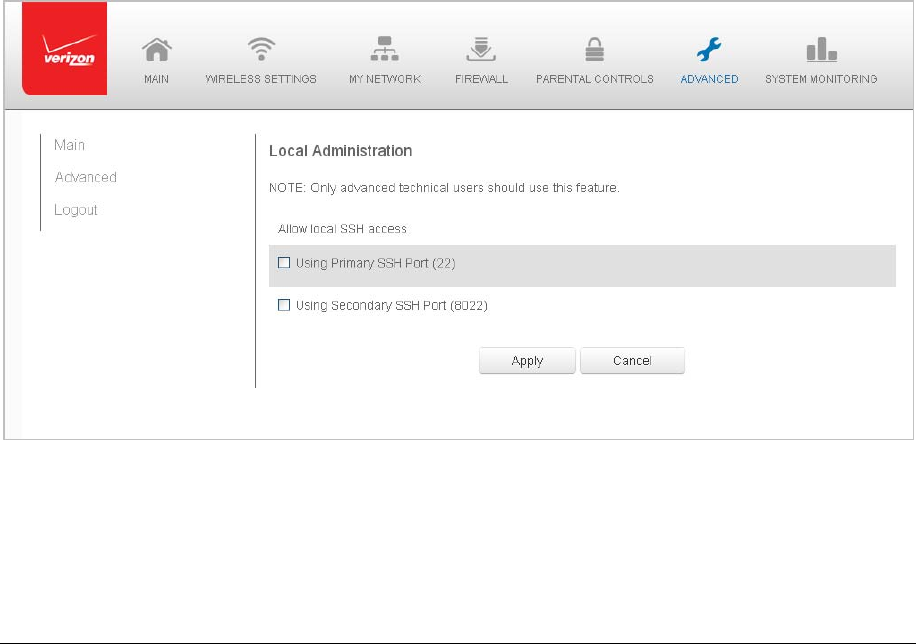

LocalAdministration................................................................................................................85

RemoteAdministration...........................................................................................................86

DNSSettings...............................................................................................................86

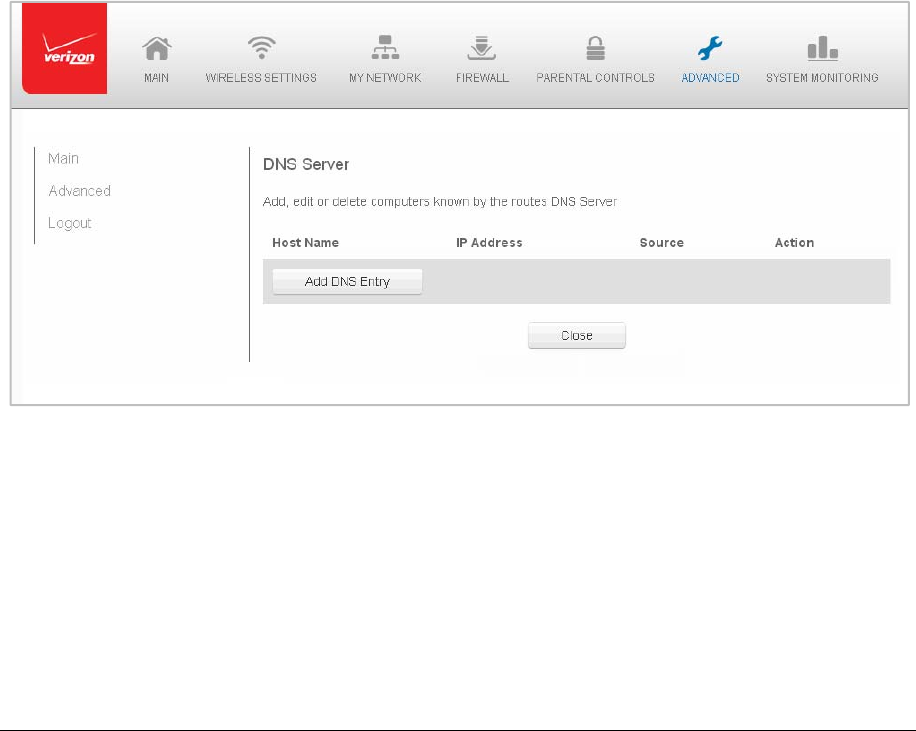

DNSServer...............................................................................................................................86

NetworkSettings........................................................................................................87

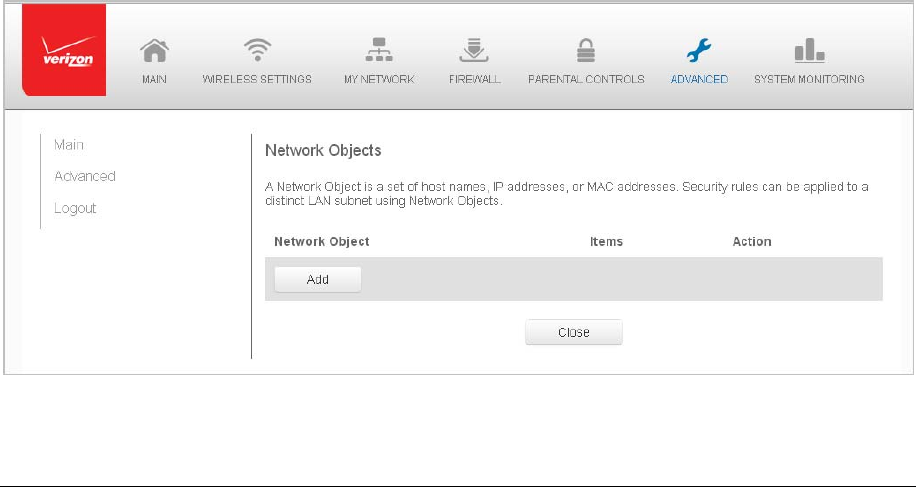

NetworkObjects......................................................................................................................87

UniversalPlugandPlay...........................................................................................................89

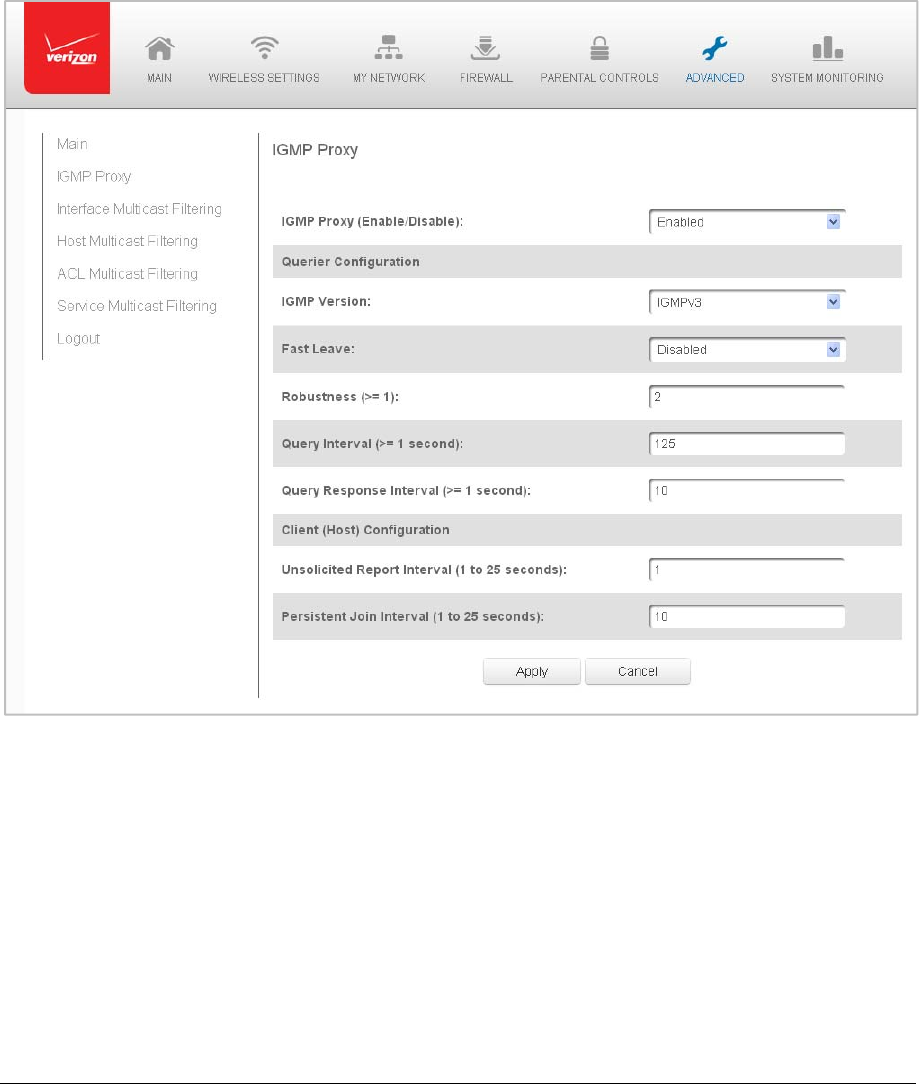

IGMPProxy..............................................................................................................................90

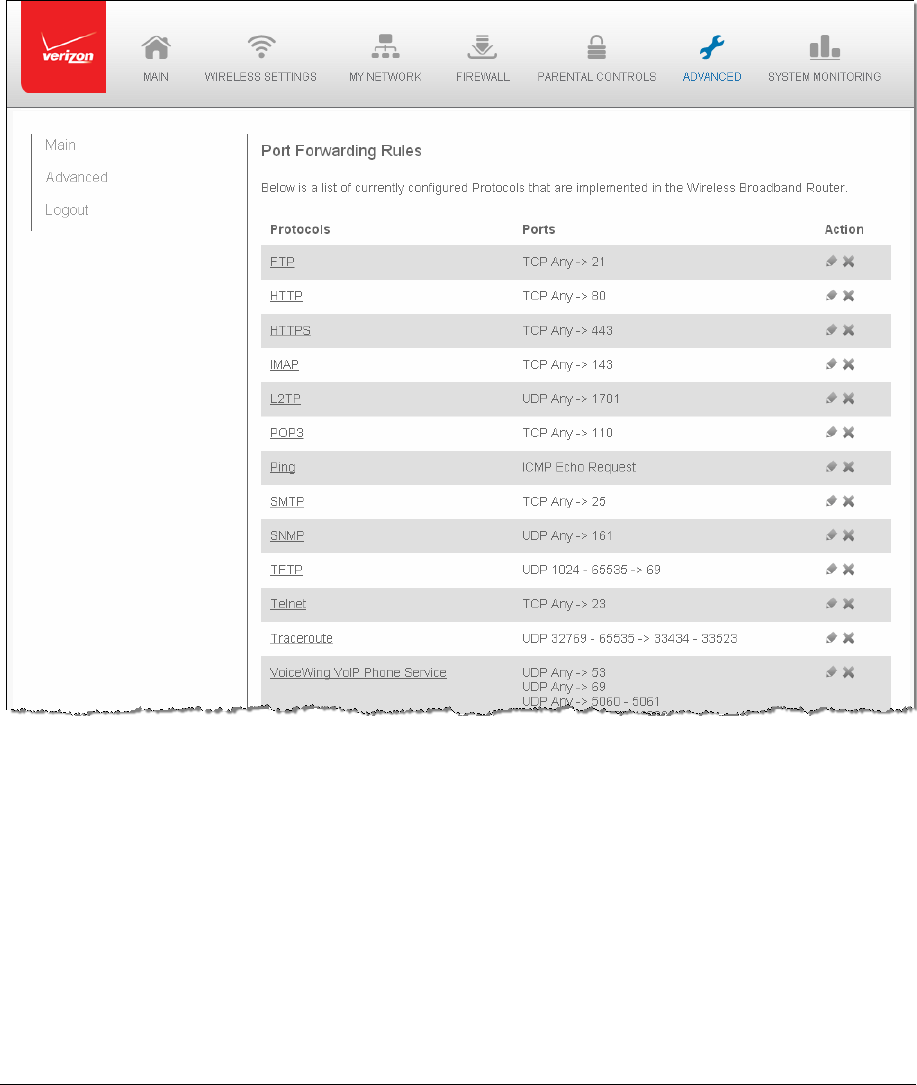

PortForwardingRules.............................................................................................................92



Pageiii

Routing......................................................................................................................94

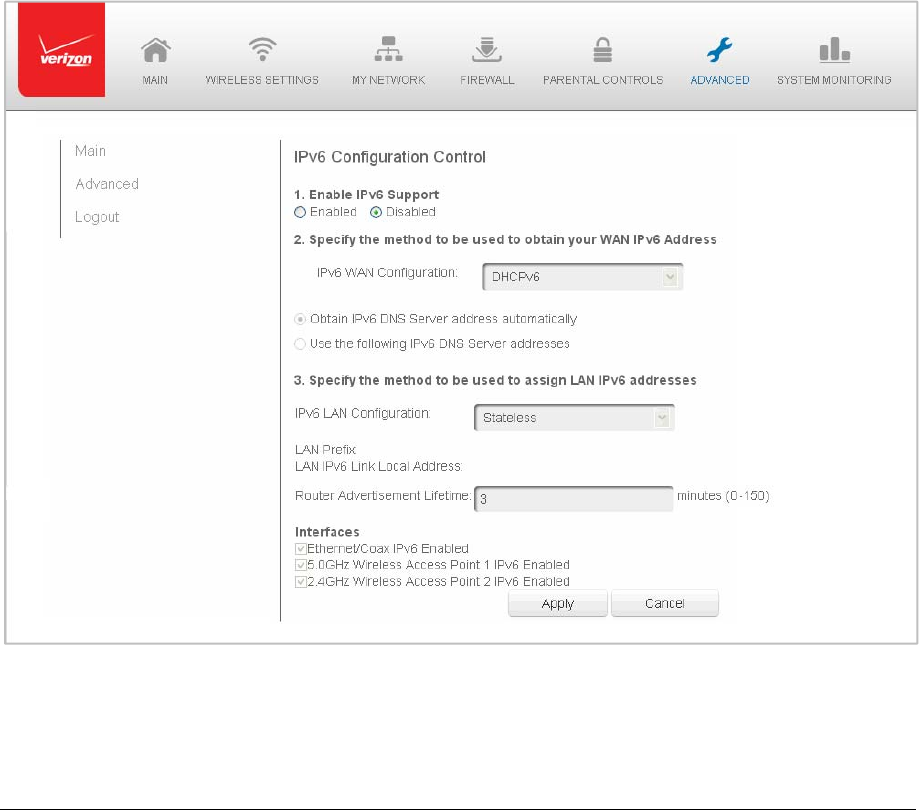

IPv6ConfigurationControl......................................................................................................94

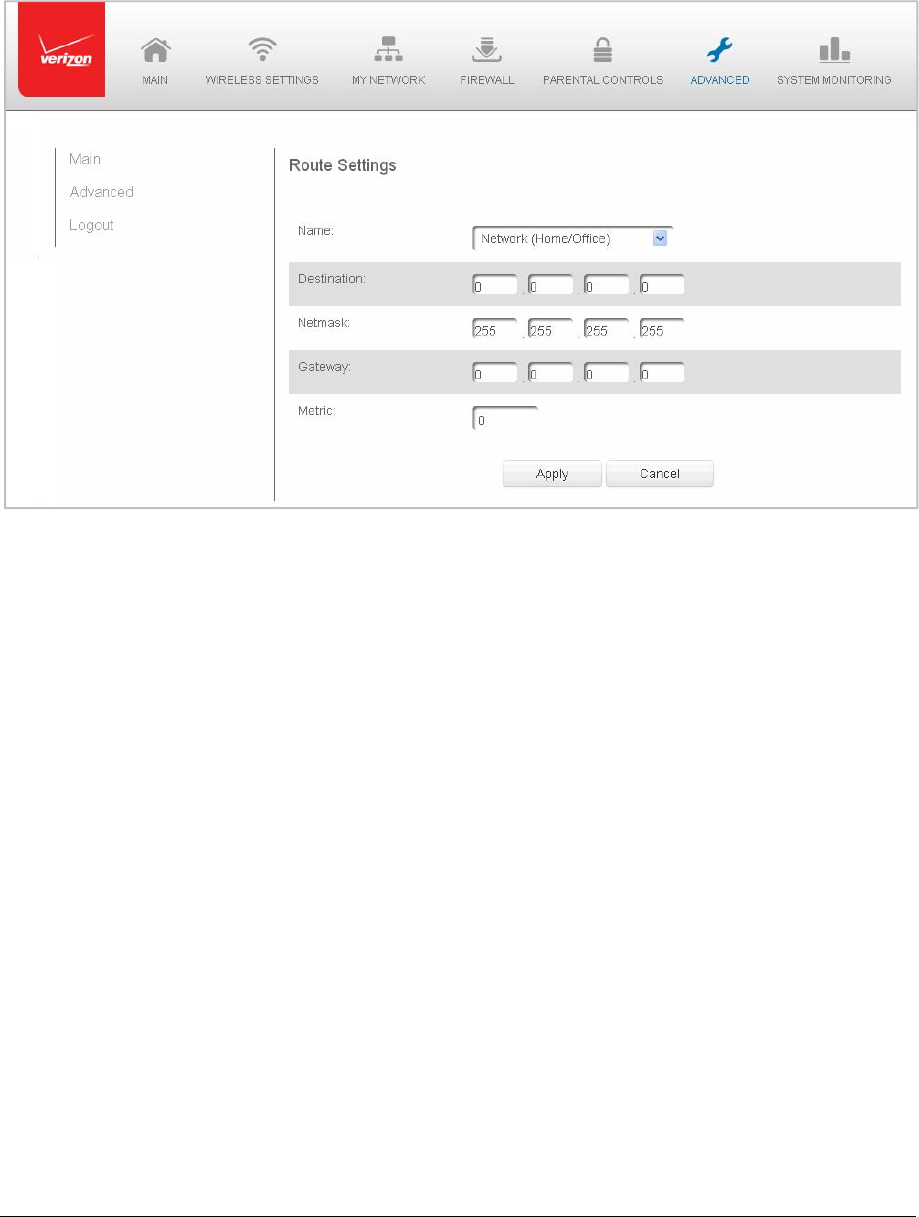

RoutingSettings......................................................................................................................95

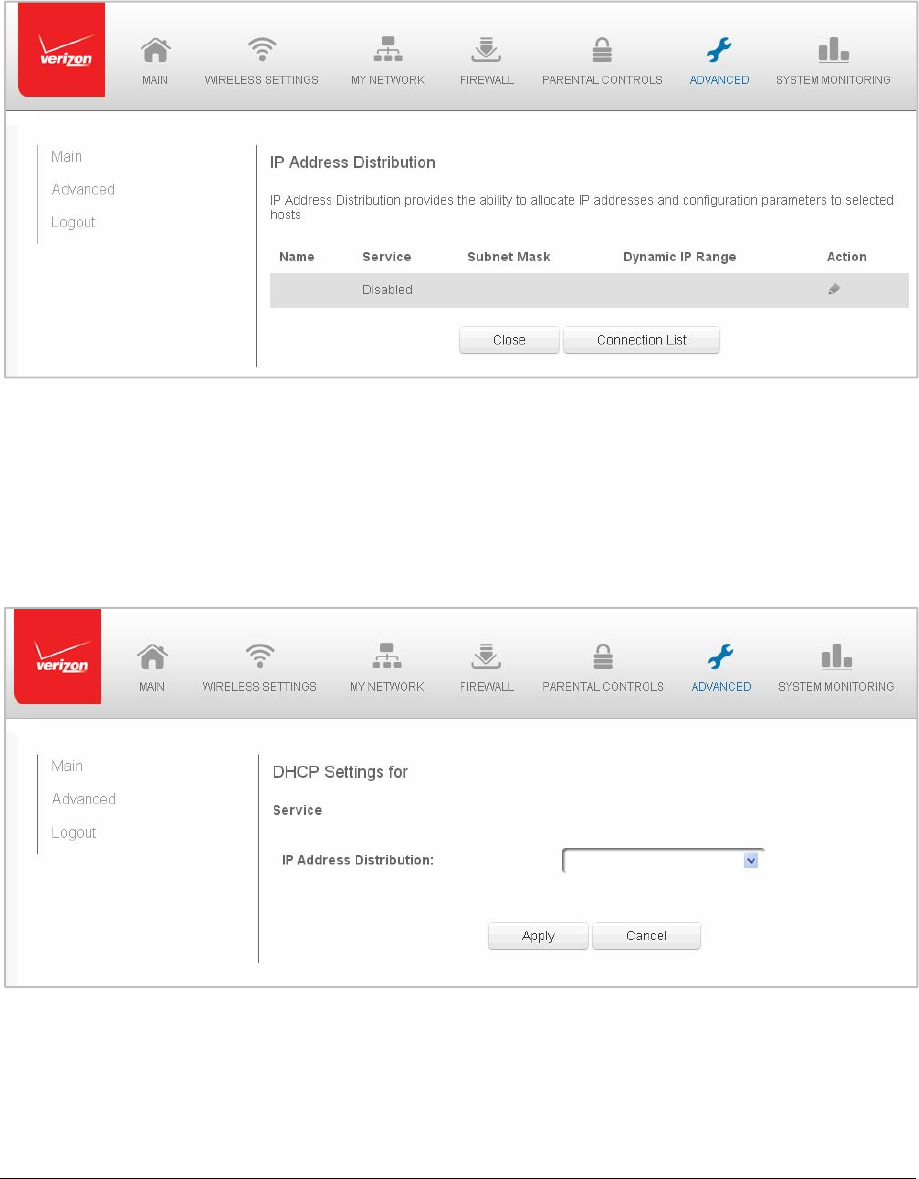

IPAddressDistribution............................................................................................................97

FirmwareUpgrade.....................................................................................................102

FirmwareUpgrade.................................................................................................................102

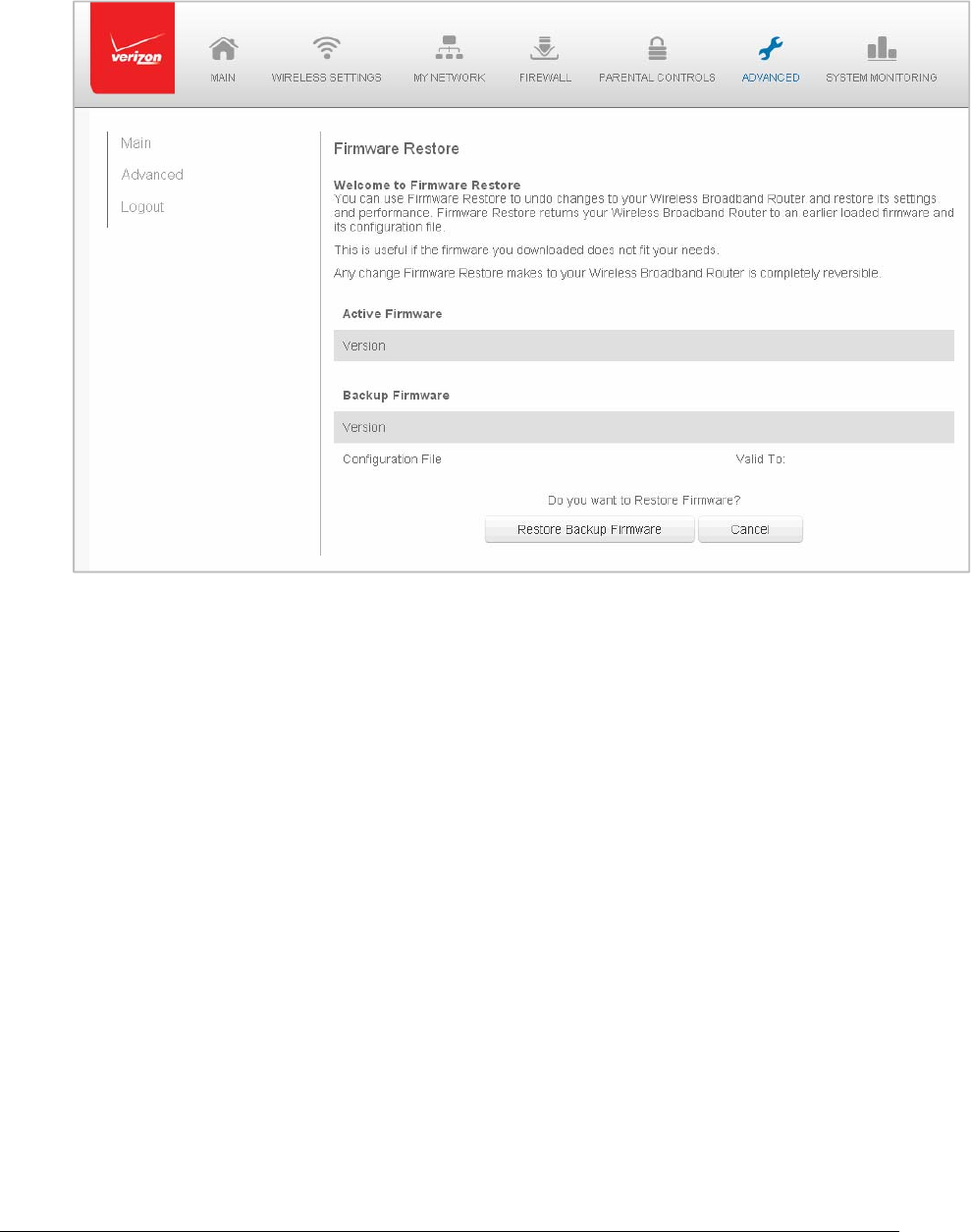

FirmwareRestore..................................................................................................................104

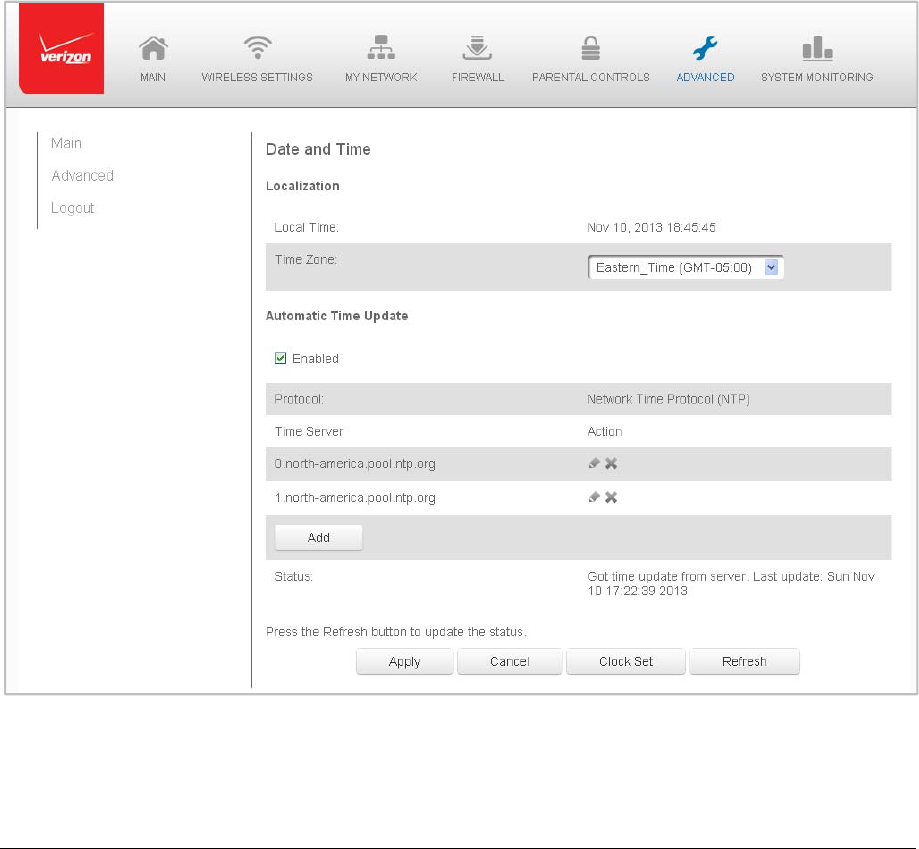

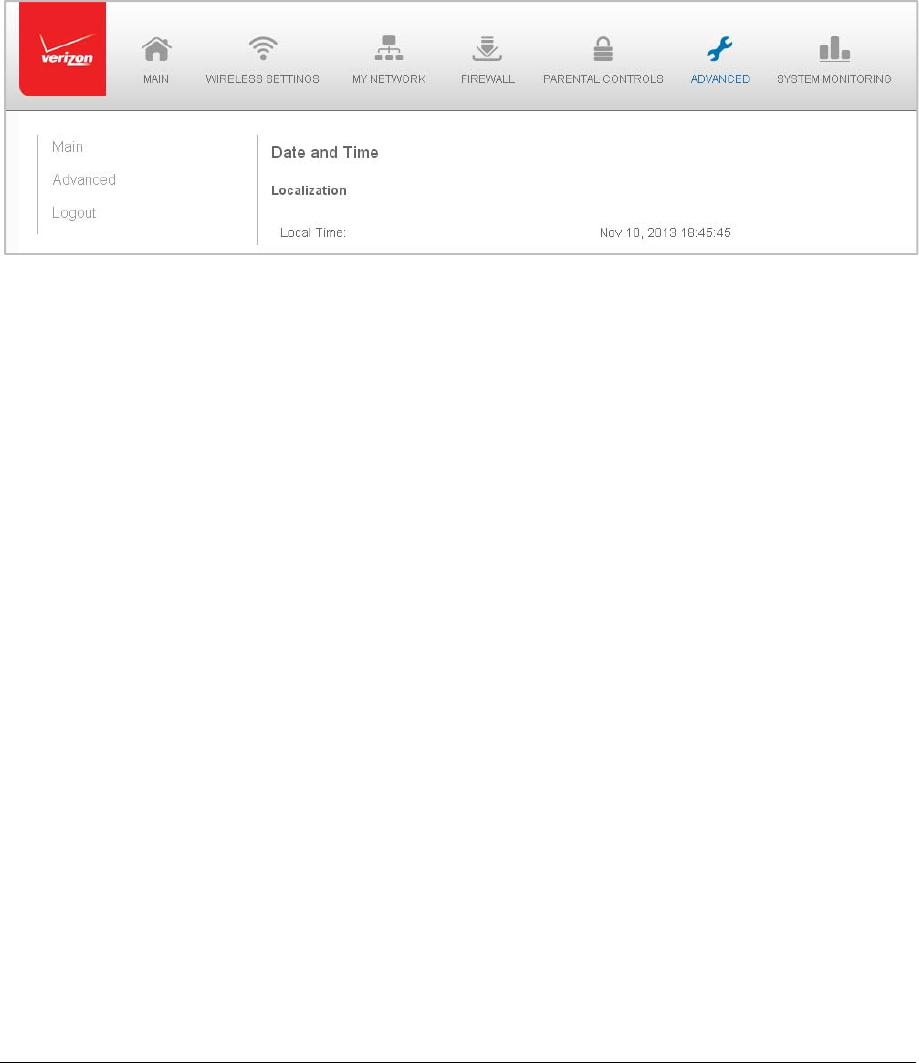

DateandTime...........................................................................................................106

DateandTimeSettings.........................................................................................................106

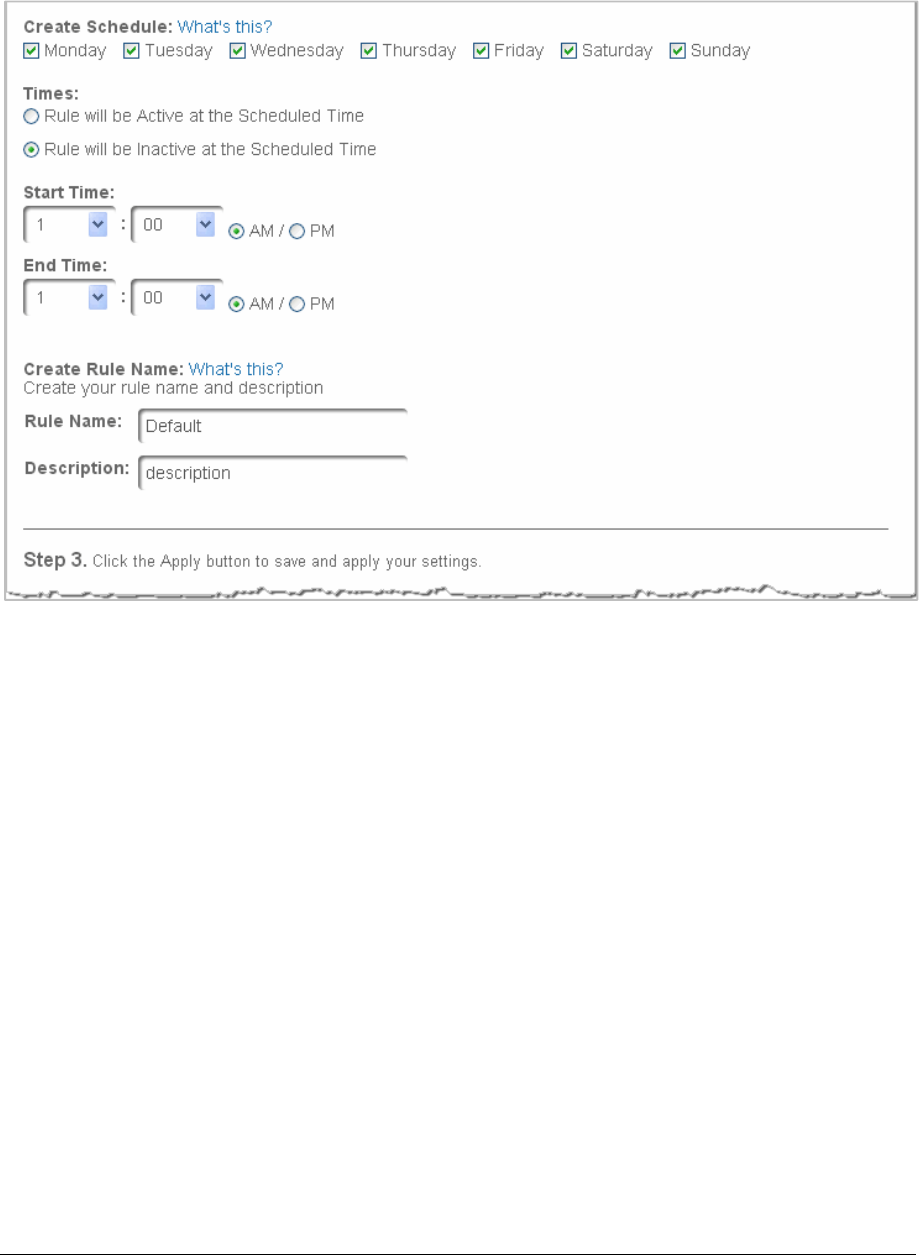

SchedulerRules.....................................................................................................................107

ConfigurationSettings...............................................................................................110

ConfigurationFile..................................................................................................................110

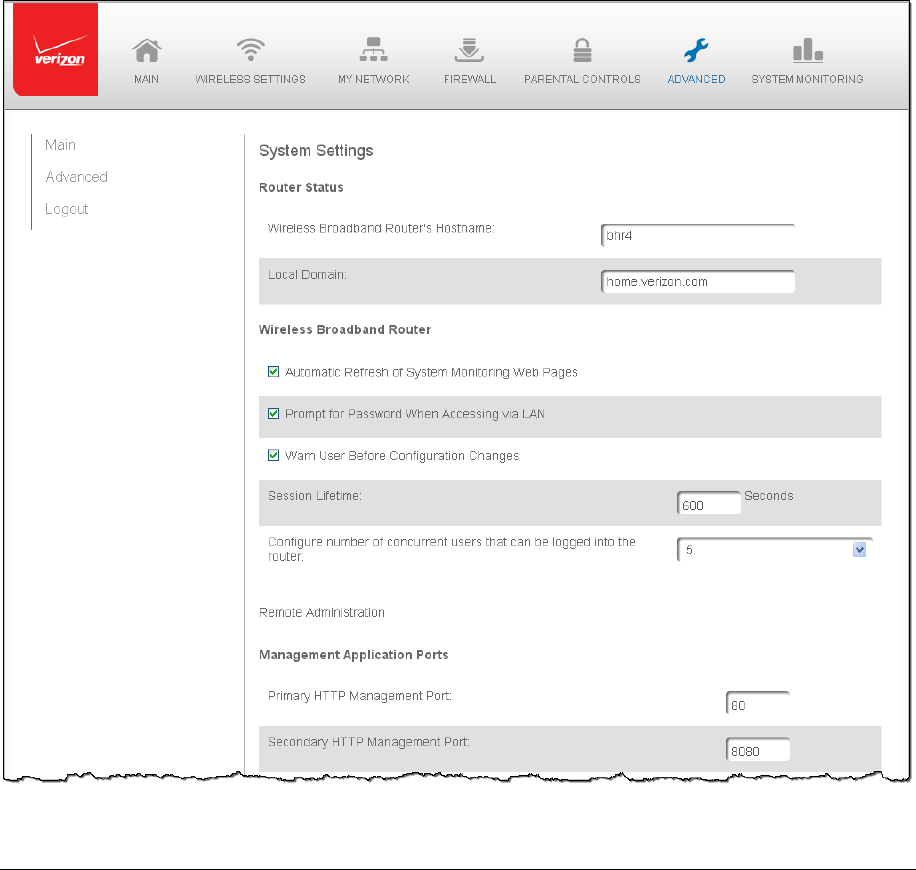

SystemSettings.....................................................................................................................111

EthernetPortConfiguration..................................................................................................114

Chapter9MonitoringyourGateway...........................................................116

GatewayStatus.........................................................................................................116

AdvancedStatus........................................................................................................117

SystemLogging..........................................................................................................118

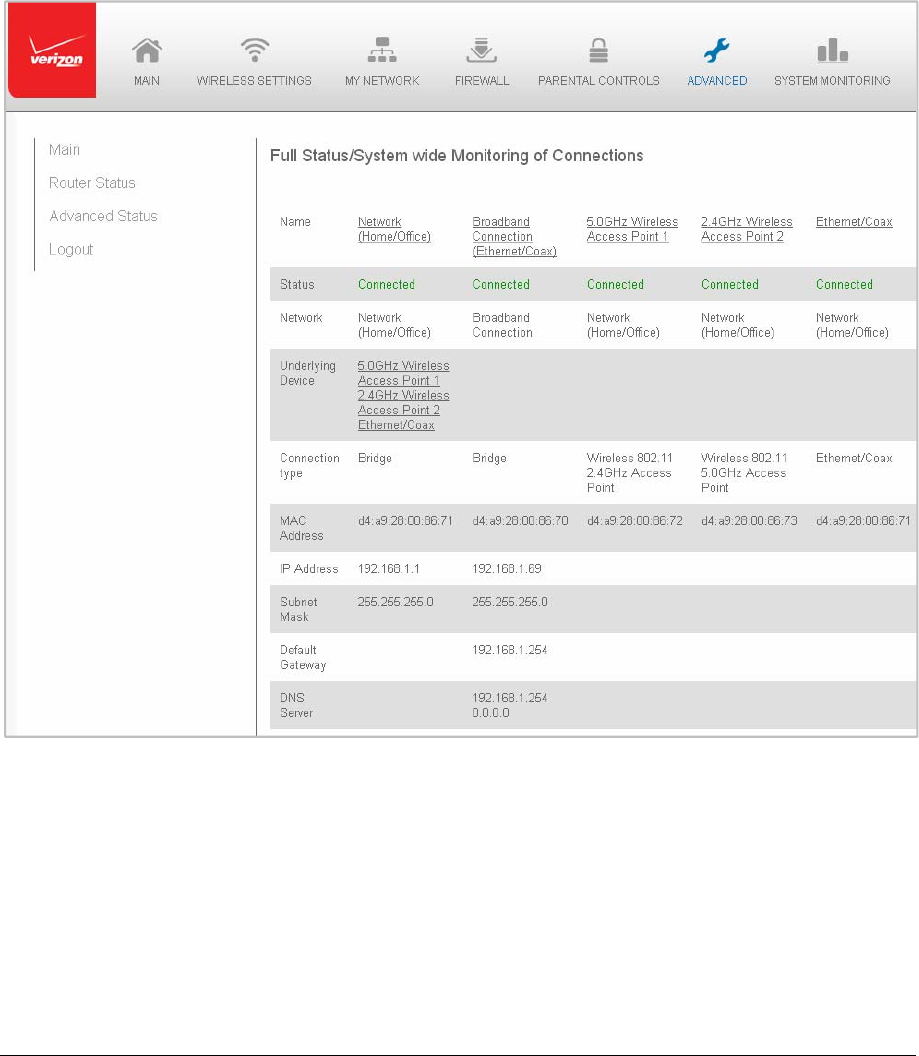

FullStatus/SystemwideMonitoringofConnections....................................................119

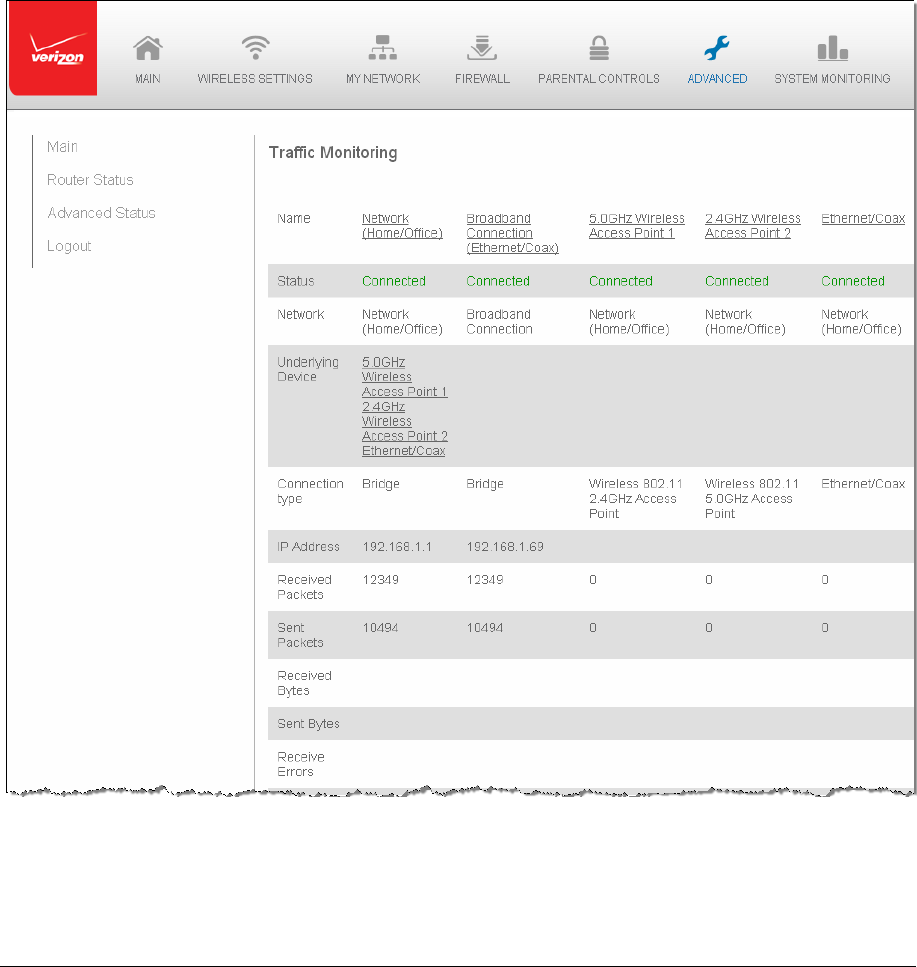

TrafficMonitoring.....................................................................................................120

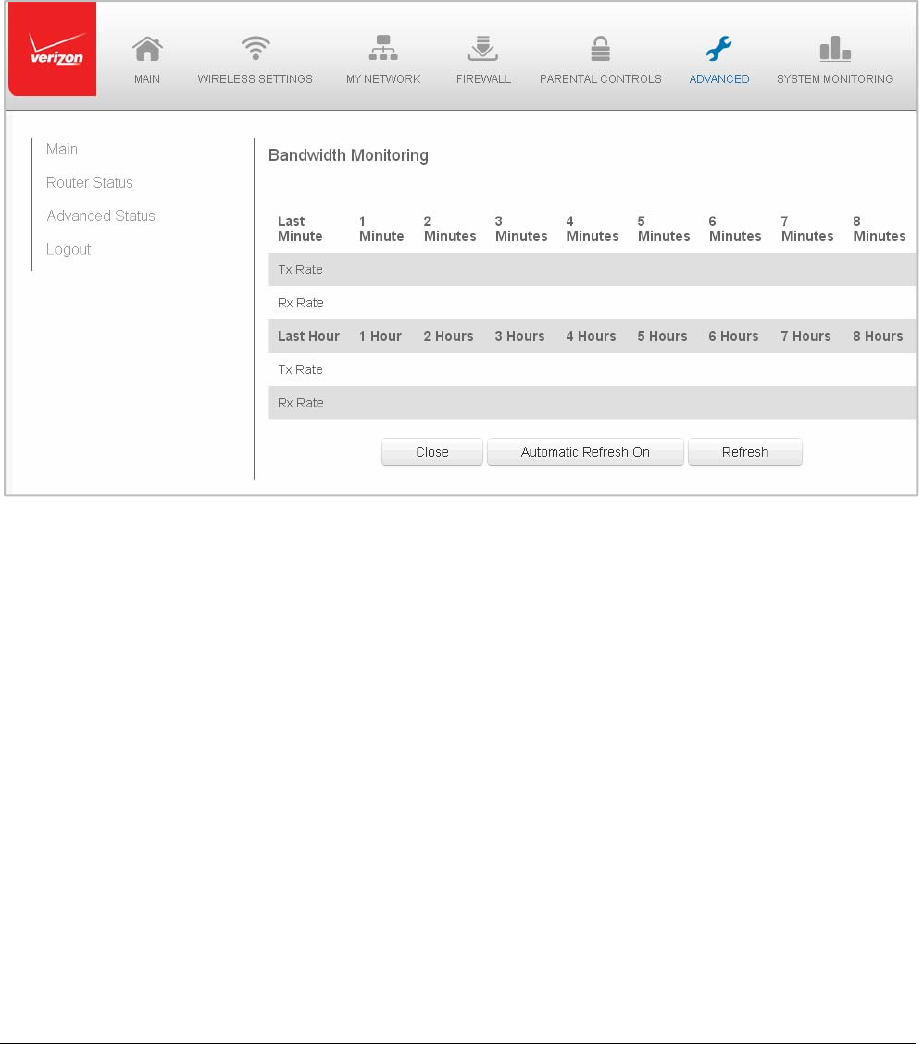

BandwidthMonitoring...............................................................................................121

Chapter10Troubleshooting.......................................................................122

TroubleshootingTips.................................................................................................122

FrequentlyAskedQuestions.......................................................................................126

Chapter11Specifications...........................................................................129

General.....................................................................................................................129

LEDIndicators...........................................................................................................130

EnvironmentalParameters.........................................................................................130

Chapter12Notices.....................................................................................132

RegulatoryComplianceNotices..................................................................................132

ClassBEquipment.................................................................................................................132

Modifications.........................................................................................................................132

NEBSRequirements...............................................................................................................133

GeneralPublicLicense...........................................................................................................134



Page1



Chapter1 Introduction

TheVerizonFiOS®QuantumGatewayletsyoutransmitanddistributedigitalentertainment

andinformationtomultipledevicesinyourhome/office.YourGatewaysupports

networkingusingcoaxialcables,Ethernet,orWi‐Fi,makingitoneofthemostversatileand

powerfulgatewaysavailable.

PackageContent

Yourpackagecontains:

• TheFiOSQuantumGateway

• Poweradapter

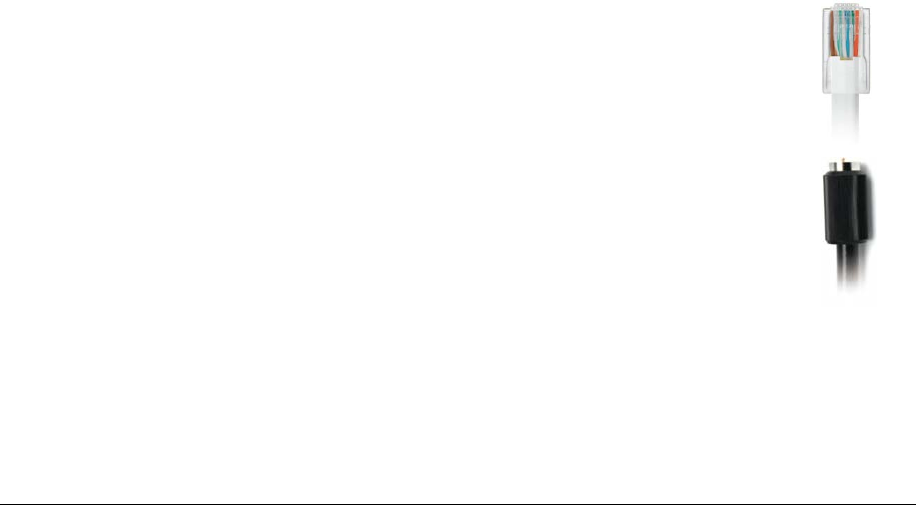

• WANEthernetcable(white)

• LANEthernetcable(yellow)

• QuickStartGuide

• InstallationGuide

SystemRequirements

Systemandsoftwarerequirementsare:

• AcomputerorothernetworkdevicesupportingWi‐FiorwiredEthernet

• Awebbrowser,suchasChrome,Firefox,InternetExplorer8orhigher,orSafari5.1

orhigher

Features

YourGatewayfeaturesinclude:

• Supportformultiplenetworkingstandards,including

 WAN–GigabitEthernetandMoCA2.0interfaces

 LAN–802.11b/g/n/ac,GigabitEthernetandMoCA2.0interfaces

• Integratedwirednetworkingwith4‐portEthernetswitchandMoCA

 Ethernetsupportsspeedsupto1000Mbps

 MoCA2.0and1.1enabledtosupportspeedsupto700Mbpsovercoaxial

cable



Page2



• Integratedwirelessnetworkingwith802.11b/g/n/acaccesspointfeaturing:

 802.11benabledtosupportspeedsupto11Mbpswirelessly

 802.11genabledtosupportspeedsupto54Mbpswirelessly

 802.11nenabledtosupportspeedsupto450Mbpswirelessly

 802.11acenabledtosupportspeedsupto1300Mbpswirelessly

• Enterprise‐levelsecurity,including:

 FullycustomizablefirewallwithStatefulPacketInspection(SPI)

 ContentfilteringwithURL‐keywordbasedfiltering,parentalcontrol,and

customizablefilteringpoliciespercomputer

 IntrusiondetectionwithDenialofServiceprotectionagainstIPspoofing

attacks,scanningattacks,IPfragmentoverlapexploit,pingofdeath,and

fragmentationattacks

 Eventlogging

 Intrusiondetection

 MACaddressfiltering

 StaticNAT

 Portforwarding

 Porttriggering

 Accesscontrol

 AdvancedwirelessprotectionfeaturingWPA2/,WPA2MixedMode,WEP

64/128bitencryption,andMACaddressfiltering

 ICSAcertification

• Options,including:

 DHCPserver

 WANinterfaceauto‐detection

 DNSserver

 LANIPandWANIPaddressselection

 MACaddresscloning

 QoSsupport(endtoendlayer2/3)featuring:DifferentiatedServices

(Diffserv),802.1p/qprioritization,andpass‐throughofWAN‐sideDSCPs,Per

HopBehaviors(PHBs),andqueuingtoLAN‐sidedevices

 RemotemanagementandsecuredremotemanagementusingHTTPS

 Staticrouting

 Timezonesupport



Page3



 VPN(VPNpassthroughonly)

 Portforwardingrules

 IGMPproxy

 Securityloggingofmultipleeventtypes

 Daylightsavingstimesupport

GettingtoKnowyourGateway

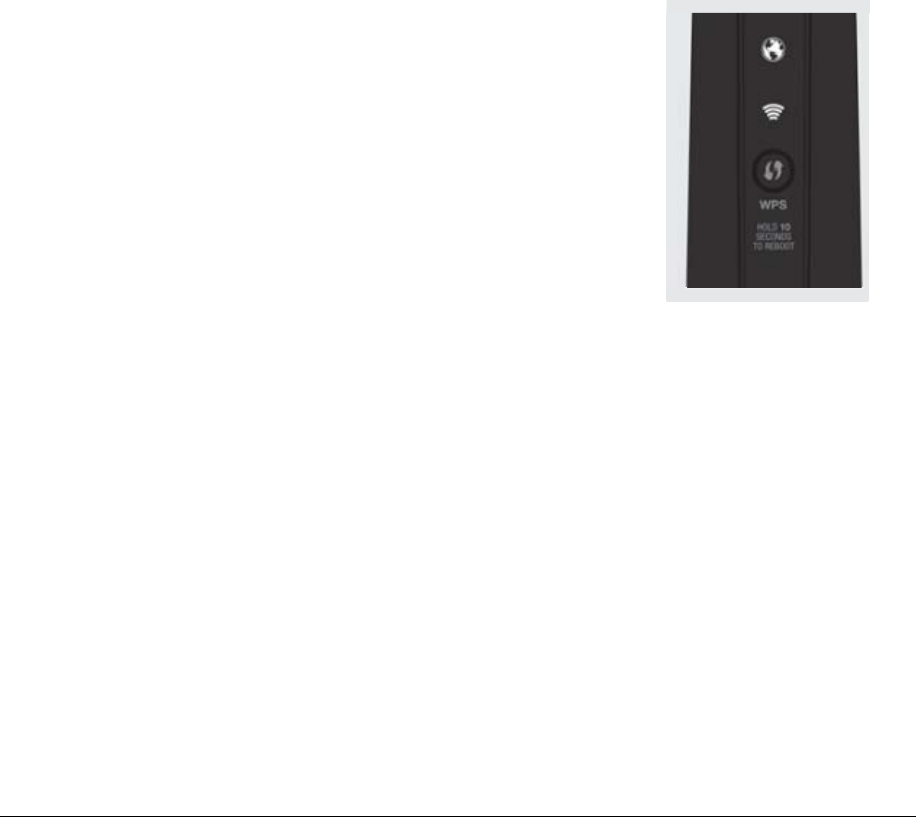

FrontPanel

ThefrontpanelhastwolightedindicatorsandaWPS(Wi‐FiProtectedSetup)button.

ThePower/InternetlightwillbeonandsolidwhenyourGatewayisturnedon,connectedto

theInternet,andfunctioningnormally.

TheWirelesslightwillbeonwhenyourGatewayWi‐Fiis

turnedon.

Foradditionalinformationonthefrontlightsanderror

indications,refertheTroubleshootingsectioninthisGuide.

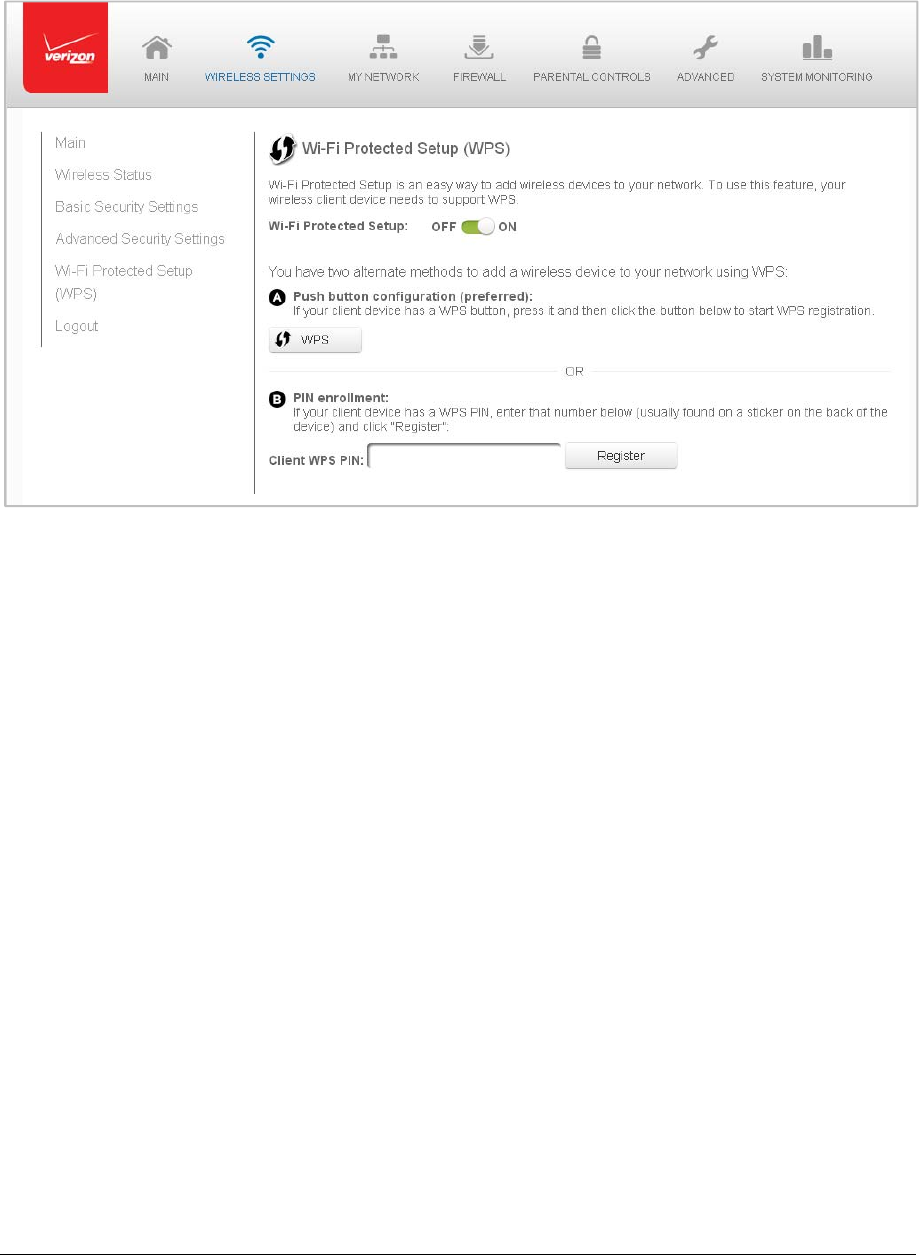

TheWPSbuttonisusedtoinitiateWi‐FiProtectedSetup.This

isaneasywaytoaddWPScapabledevicestoyourwireless

network.

WhenWPSisinitiatedfromyourGateway,thewirelesslight

slowlyflasheswhiteforuptotwominutes,allowingtimeto

completetheWPSpairingprocessonyourwirelessclient

device.

WhenadevicebeginsconnectingtoyourGatewayusingWPS,thewirelesslightrapidly

flasheswhiteforafewseconds,thenturnssolidwhiteastheconnectioncompletes.

IfthereisanerrorduringtheWPSpairingprocess,thewirelesslightflashesredrapidlyfor

twominutesaftertheerroroccurs.

TheWPSbuttoncanalsobeusedtoreboottherouter.Toperformasoftreboot,pressand

holdtheWPSbuttonforatleast10seconds.







Page4



SidePanel

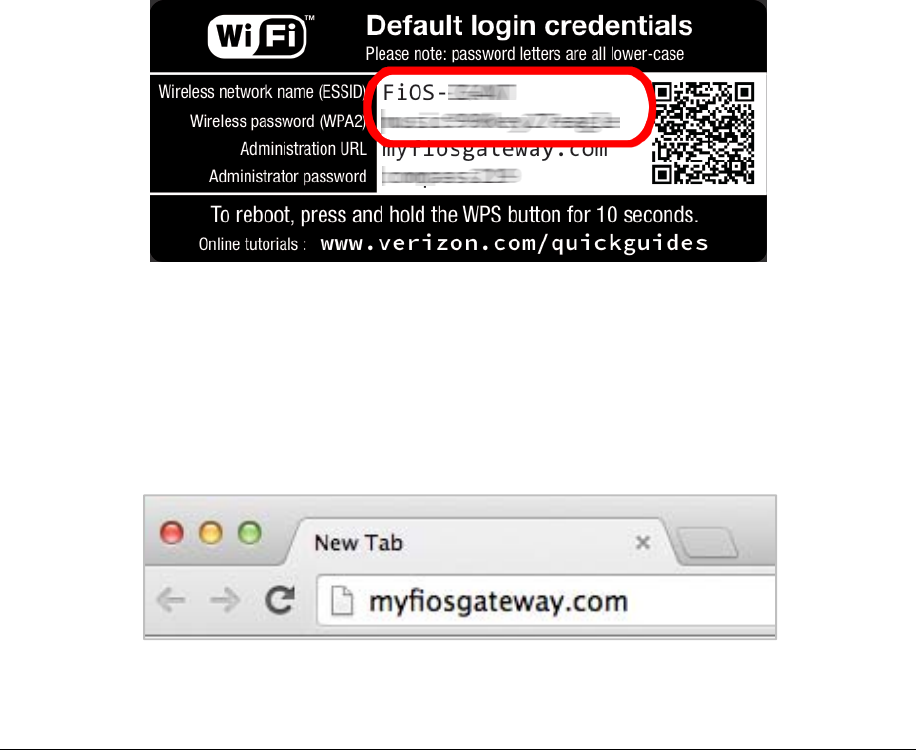

ThesidepanelofyourGatewayhasalabelthatcontainsimportantinformationaboutyour

device,includingthedefaultsettingsfortheGateway’swirelessnetworkname(ESSID),

wirelesspassword(WPA2

key),localURLforaccessing

theGateway’sadministrative

pages,andGateway

administratorpassword.



RearPanel

TherearpanelofyourGatewayhas8ports;MoCA(COAX),EthernetLAN[4],EthernetWAN,

andUSB[2].TherearpanelalsoincludesaDCpowerjackandaresetbutton.



Page5



• USB–providesupto500mAat5VDCforattacheddevices.Forexample,youcould

chargeacellphone.Inthefuture,withafirmwareupgrade,theUSBhost

functionalitymaybeavailableforotherdevices,suchasexternalstorageand

cameras.

• Resetbutton–allowsyoutoresetyourGatewaytothefactorydefaultsettings.To

resettheGateway,pressandholdtheResetbuttonforatleastthreeseconds.

• EthernetLAN–connectsdevicestoyourGatewayusingEthernetcablestojointhe

localareanetwork(LAN).ThefourEthernetLANportsare10/100/1000Mbpsauto‐

sensingandcanbeusedwitheitherstraight‐throughorcrossoverEthernetcables.

• EthernetWAN–connectsyourGatewaytotheInternetusinganEthernetcable.

• MoCA(COAX)WANandLAN–connectsyourGatewaytotheInternetand/orto

otherMoCAdevicesusingacoaxialcable.

Warning!TheWANCoaxPortisintendedforconnectiontoVerizonFiOSonly.It

mustnotbeconnectedtoanyexteriororinteriorcoaxialwiresnotdesignatedfor

VerizonFiOS.

• Power–connectsyourGatewaytoanelectricalwalloutletusingthesuppliedpower

adapter.

MountGatewaytoWallOption

Foroptimumperformance,theFiOSQuantumGatewayisdesignedtostandinavertical

uprightposition.VerizondoesnotrecommendwallmountingtheFiOSQuantumGateway.

However,ifyouwishtomountyourGateway,youcanpurchaseawallmountbracketfrom

theVerizonFiOSAccessoriesStoreatverizon.com/fiosaccessories.

IfyouarereplacinganexistingVerizonwallmountedrouter,youdonotneedtoremovethe

mountingscrewsfromthewall.Themountingscrewswillfittheexistingbracket.

TomountyourGatewaytoawall:

1. RemovethefootbyturningtheGatewayupsidedownandremovingthesingle

screwthatholdsthefoottotheGateway.

2. SlidethefoottowardthefrontoftheGatewayandpullthefootfromtheholes.

Youmayneedtowigglethefootslightly.

3. YoumayusethewallmountbracketasatemplateforpositioningtheGateway.

4. Markthemountingholes,thenremovethewallmountbracketfromthewall.

5. Drillholesforthescrewanchors.

6. Insertthescrewsinthescrewanchors,theninsertthescrewanchorsinthe

holes.Leavescrewsextendedabout0.2inchesfromthewall.

7. Verifythescrewsarepositionedcorrectlybyplacingthewallbracketonthe

screws.Removethewallbracketfromthewall.



Page6



8. PlacetheGatewayonthewallbracketandslidetheGatewayforwarduntilit

locksinplace.

9. TosecuretheGateway,attachthebrackettotheGatewayusingthesinglescrew

youremovedfromthefoot.

10. SlidethewallmountbracketwiththeattachedGatewayonthescrews,then

slidethebracketdownuntilitlocksinplace.



Page7



Chapter2 ConnectingyourGateway

ConnectingyourGatewayandaccessingitsweb‐basedGraphicalUserInterface(GUI)are

bothsimpleprocedures.AccessingtheGUImayvaryslightly,dependingonyourdevice’s

operatingsystemandwebbrowser.

SettingUpyourGateway

TherearethreebasicstepstosettingupyourGateway:

Step1:ConnectyourGatewaytotheInternet

Step2:ConnectyournetworkdevicetoyourGateway

Step3:ConfigureyourGateway

Beforeyoubegin,ifyouarereplacinganexistingGateway,disconnectit.Removeallold

Gatewaycomponents,includingthepowersupply.Theywillnotworkwithyournew

Gateway.

Step1:ConnectyourGateway

1. RemoveyourGateway,Ethernetcables,andpoweradapterfromthebox.

2. Locateyourhigh‐speedInternet(WAN)outlet.Thiswouldbethewalljack

installedpreviouslybyVerizon.NotethetypeofjackmaybeeitherEthernetor

coaxial.

3. ConnectyourGatewaytotheInternet(WAN).

a. IfconnectingtheWANusingEthernet,usethesuppliedwhite

EthernetcableandplugoneendintothewhiteEthernetWAN

portonthebackofyourGateway.Plugtheotherendofthe

cableintothehigh‐speedEthernetwalljack.

b. IfconnectingtheWANusingcoaxialcable,locateacoaxialcable

andconnectoneendtothecoaxportonthebackofyour

Gateway.Connecttheotherendofthecoaxialcabletoacoax

walljack.

Tightenthecoaxialcablesbyhanduntilsnug.Thecablesshould

notrequireawrench.

4. PlugthepowercordintothepowerportonthebackofyourGatewayandthen

intoapoweroutlet.TheGatewayautomaticallyturnsonassoonaspoweris

pluggedin.



Page8



IMPORTANT:WaituntilthePower/InternetlightonthefrontoftheGateway

stopsflashingandissolidwhite.Ifafterseveralminutesitisstillnotsolidlylit,

checkthetroubleshootingstepsintheTroubleshootingsectionoftheuserguide.

Step2:ConnectYourDevicetoyourGateway

IfconnectingadeviceusingwiredEthernet(preferredforinitialsetup):

• PlugoneendofthesuppliedyellowEthernetcableintooneofthefouryellow

EthernetportsinthebackofyourGateway.

• PlugtheotherendoftheyellowEthernetcableintotheEthernetportofyour

networkdevice.

Ifconnectingawirelessdeviceusingthewirelessnetwork:

• AccesstheWi‐Fisettingonyourwirelessdevice,thenselectyournewGateway

usingthewirelessnetworkname(ESSID)shownonthestickerlocatedonthesideof

yourGateway.

• Enterthewirelesspassword(WPA2key)alsoshownonthesticker.



Step3:ConfigureyourGateway

1. OpenawebbrowseronthedeviceconnectedtoyourGatewaynetwork.

2. Inthebrowseraddressfield(URL),enter:myfiosgateway.com,thenpressthe

Enterkeyonyourkeyboard.

Alternately,youcanenter:http://192.168.1.1



Page9



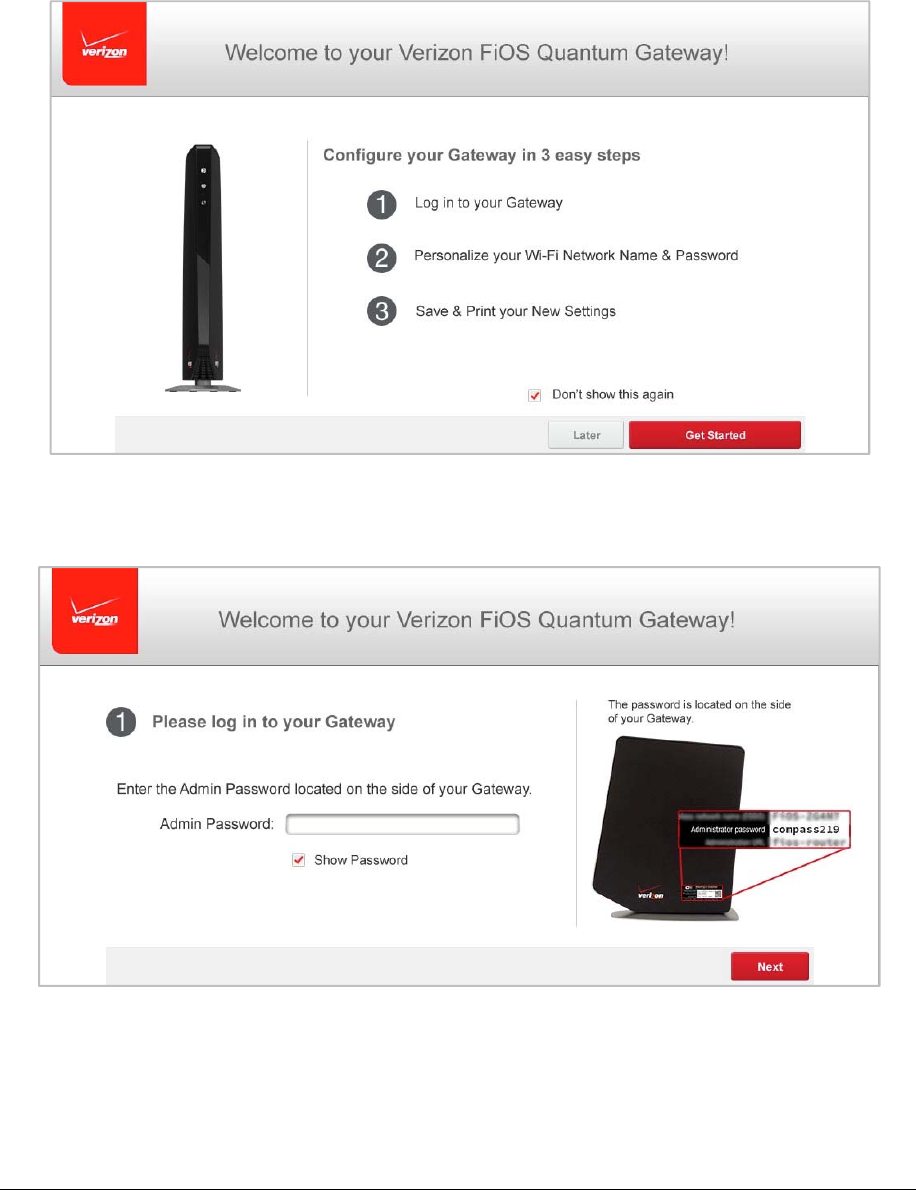

ThefirsttimeyouaccessyourGateway,anEasySetupWizarddisplaystohelp

stepyouthroughthesetupprocess.



3. ClicktheGetStartedbutton.TheGatewayLoginscreendisplays.



4. IntheAdminPasswordfield,enterthepasswordthatisprintednexttothe

AdministratorPasswordonthelabelonthesideofyourGateway.



Page10



5. ClickNext.ThePersonalizeyourGatewayscreendisplays.



Foryourprotection,yourGatewayispre‐setatthefactorytouseWPA2(Wi‐Fi

ProtectedAccess)encryptionforyourwirelessnetwork.Thisisthebestsetting

formostusersandprovidesmaximumsecurity.

IfyouhaveanoldwirelessdevicethatdoesnotsupportWPA2,clicktheChange

buttonbelowtheLockicon.Thisallowsyoutochangethesecuritytypetothe

backwards‐compatibletheolder,lesssecureWPA2/WPAmixedmodeorWEP

encryption,oryoucandisablewirelesssecurityentirelybytogglingtheWEP

optionon,thenoff.

WARNING:WEPprovidesalowlevelofsecurityandisnotrecommended.The

WEPsecuritysettingwilldropyourGateway’swirelessspeedperformancefrom

amaximumdatarateof450Mbpstoamaximumdatarateof54Mbps.



Page11



6. ClickNexttocontinueandsavetheAdminandWi‐FichangestoyourGateway.

IMPORTANT:IfyouareonaWi‐FidevicewhensettingupyourGateway,you

willbedisconnectedfromtheWi‐FinetworkwhenyouchangetheWi‐Finame

orWi‐Fipassword.Whenthisoccurs,yourGatewaywilldetectthissituationand

promptyoutoreconnectusingthenewsettings.

7. Saveyoursettings.OnceyouhavepersonalizedyourGatewaysettings,youwill

bepromptedtosavearecordofthesesettingsincaseyouforgetthem.You

havetheoptiontoprintorsavethemtoafileandsavethefileonyourdevice.



8. ClickNexttocontinue.YourGatewayverifiesthefinalsettingsanddisplaysthat

itissuccessfullyconnectedtotheInternetandisreadyforuse.



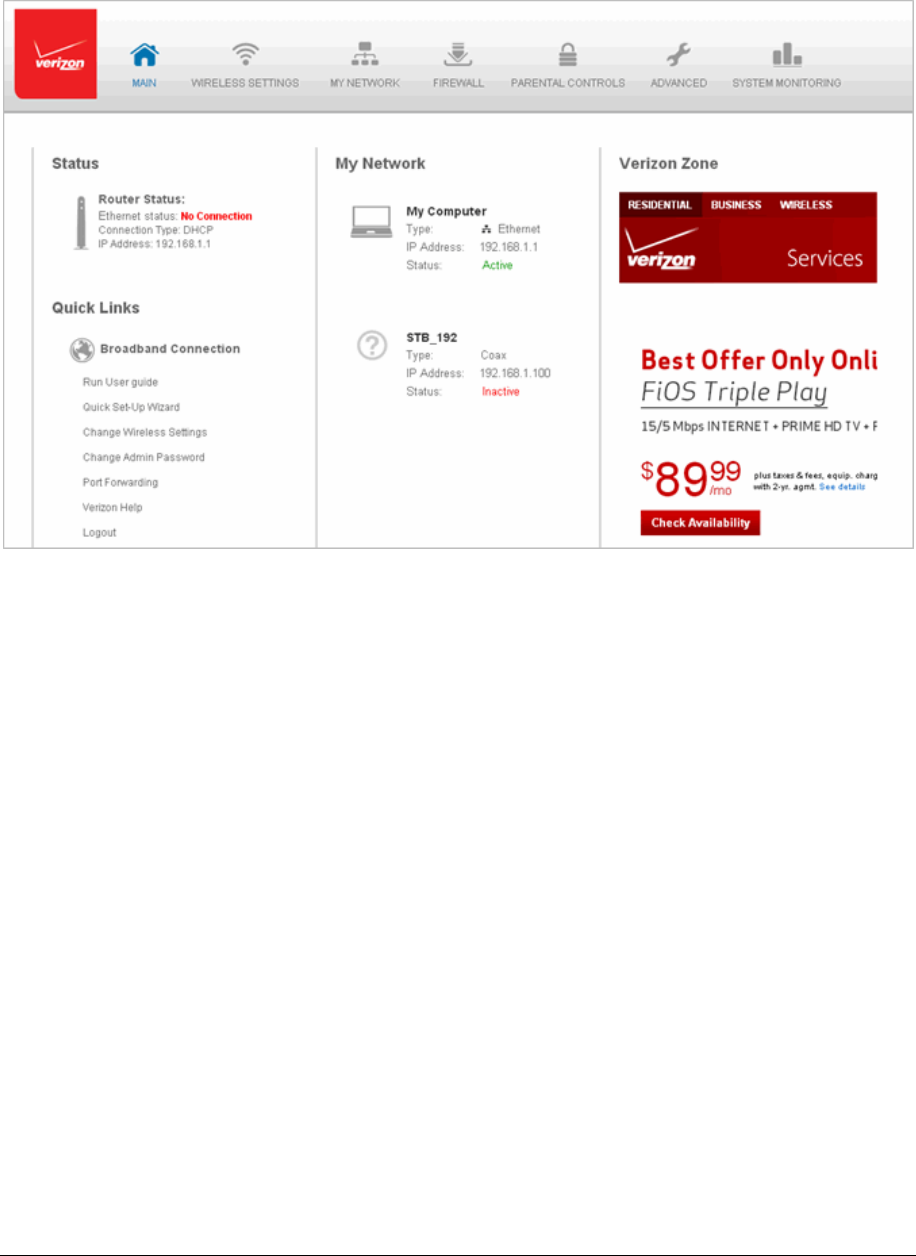

Uponthesuccessfulcompletionofsetup,theMainscreenoftheGatewaydisplays.Your

Gatewayisnowconfigured.YoucanchangeanyoftheGatewaysettingsafterthisinitiallog

in.

IfyourGatewayissubsequentlyresettothefactorydefaultsettings,thesettingsprintedon

thelabelwillagainbeineffect.

IfyourGatewayfailstoconnect,followthetroubleshootingstepsintheTroubleshooting

sectionofthisguide.





Page12



ComputerNetworkConfiguration

EachnetworkinterfaceonyourcomputershouldeitherautomaticallyobtainanIPaddress

fromtheupstreamNetworkDHCPserver(defaultconfiguration)orbemanuallyconfigured

withastaticallydefinedIPaddressandDNSaddress.Werecommendleavingthissettingas

is.

ConfiguringDynamicIPAddressing

¾ ToconfigureacomputertousedynamicIPaddressing:

Windows7

1. IntheControlPanel,locateNetworkandInternet,thenselectViewNetwork

StatusandTasks.

2. IntheViewyouractivenetworks–Connectordisconnectsection,clickLocal

AreaConnectionintheConnectionsfield.TheLocalAreaConnectionStatus

windowdisplays.

3. ClickProperties.TheLocalAreaConnectionPropertieswindowdisplays.

4. SelectInternetProtocolVersion4(TCP/IPv4),thenclickProperties.The

InternetProtocolVersion4(TCP/IPv4)Propertieswindowdisplays.

5. ClicktheObtainanIPaddressautomaticallyradiobutton.

6. ClicktheObtainDNSserveraddressautomaticallyradiobutton,thenclickOK.

7. IntheLocalAreaConnectionPropertieswindow,clickOKtosavethesettings.

8. ToconfigureInternetProtocolVersion6(TCP/IPv6)tousedynamicIPaddressing,

repeatstep1to7.Howeverforstep3,selectInternetProtocolVersion6

(TCP/IPv6)inthePropertiesoption.



MacintoshOSX

1. ClicktheAppleiconinthetopleftcornerofthedesktop.Amenudisplays.

2. SelectSystemPreferences.TheSystemPreferenceswindowdisplays.

3. ClickNetwork.

4. VerifythatEthernet,locatedinthelistontheleft,ishighlightedanddisplays

Connected.

5. ClickAssistMe.

6. FollowtheinstructionsintheNetworkDiagnosticsAssistant.





Page13



ConnectingOtherComputersandNetworkDevices

YoucanconnectyourGatewaytoothercomputersorsettopboxesusinganEthernetcable,

wirelessconnection(Wi‐Fi),orcoaxialcable.

Ethernet

1. PlugoneendofanEthernetcableintooneoftheopenyellowEthernetportson

thebackofyourGateway.

2. PlugtheotherendoftheEthernetcableintoanEthernetportonthecomputer.

3. RepeatthesestepsforeachcomputertobeconnectedtoyourGatewayusing

Ethernet.Youcanconnectuptofour.

WirelessusingWPS

Wi‐FiProtectedSetup(WPS)isaneasierwayformanydevicestosetupasecure

wirelessnetworkconnection.Insteadofmanuallyenteringpasswordsormultiple

keysoneachwirelessclient,suchasalaptop,printer,orexternalharddrive,your

Gatewaycreatesasecurewirelessnetwork.

Inmostcases,thisonlyrequiresthepressingofafewbuttons–oneonyour

Gatewayandoneonthewirelessclient.Thiscouldbeeitherabuilt‐inbuttonorone

onacompatiblewirelessadapter/card,oravirtualbuttoninsoftware.Once

completed,thisallowswirelessclientstojoinyourwirelessnetwork.

ToinitializetheWPSprocess,youcaneitherpressandreleasetheWPSbutton

locatedonthefrontofyourGatewayorusetheGUIandpresstheon‐screenbutton.

IfyoupresstheWPSbuttononyourGatewayandchangeyourmind,youcancancel

theWPSprocessbypressingthebuttonasecondtime.

YoucaneasilyaddwirelessdevicestoyourwirelessnetworkusingtheWPSoptionif

yourwirelessdevicesupportstheWPSfeature.

ToaccessWPSusingtheuserinterface:

1. FromtheMainmenu,selectWirelessSettings,thenselectWi‐FiProtected

Setup(WPS).



Page14



2. EnabletheprotectedsetupbymovingtheselectortoOn.

3. Useoneofthefollowingmethods:

 IfyourwirelessclientdevicehasaWPSbutton,presstheWPSbuttonon

yourGateway,thenclicktheWPSbuttononyourwirelessclienttostartthe

WPSregistrationprocess.

 IfyourclientdevicehasaWPSPIN,locatethePINprintedontheclient’s

labelorintheclientdocumentation.

EnterthePINnumberintheClientWPSPINfield.TheClientWPSPINfieldis

locatedinthesectionBPINEnrollmentontheuserinterface.

ClickRegister.

4. AfterinitializingWPSonyourGateway,youhavetwominutestopresstheWPS

buttonontheclientdevicebeforetheWPSsessiontimesout.

WhentheWPSbuttononyourGatewayispressed,theWirelesslightonthe

frontofyourGatewaybeginsflashingwhite.TheflashingcontinuesuntilWPS

pairingtotheclientdevicecompletessuccessfully.Atthistime,theWireless

lightturnssolidwhite.

IfWPSfailstoestablishaconnectiontoawirelessclientdevicewithintwo

minutes,theWirelesslightonyourGatewayflashesredfortwominutesto

indicatetheWPSpairingprocesswasunsuccessful.Afterflashingred,thelight

returnstosolidwhitetoindicatethatWi‐Fiison.



Page15



WirelessusingManualConfiguration

1. Verifyeachdevicethatyouareconnectingwirelessly(usingWi‐Fi)hasabuilt‐in

wirelessorexternalwirelessadapter.

2. Openthedevice’swirelesssettingsapplication.

3. SelectyourGateway’swirelessnetworkname(SSID)fromthedevice’slistof

discoveredwirelessnetworks.

4. EnteryourGateway’swirelesspassword(WPA2key)intothedevice’swireless

settings.YourGateway’sdefaultwirelessnetworknameandwirelesspassword

arelocatedareonthestickeronthesideofyourGateway.

5. Verifythechangeswereimplementedbyusingthedevice’swebbrowserto

accessasiteontheInternet.

6. Repeatthesestepsforeverydevicethatyouarewirelesslyconnectingtoyour

Gateway.

Coaxial

1. Verifyallcoaxdevicesareturnedoff.

2. Disconnectanyadaptercurrentlyconnectedtothecoaxialwalljackintheroom

whereyourGatewayislocated.

3. Connectoneendofthecoaxialcabletothecoaxialwalljackandtheotherend

totheCoaxportonyournetworkdevice.

4. Powerupthenetworkdevice.

MainScreen

WhenyoulogintoyourGateway,thepagedisplaysshowingtheMainnavigationmenuat

thetopofthepageandyourGateway’sStatus,includingQuickLinks,MyNetwork,and

VerizonZonedisplayinthebodyofthepage.



Page16



Menu

TheMainmenucontainslinkstothefollowingconfigurationoptionsandchapters:

• WirelessSettings–Chapter3

• MyNetwork–Chapter5

• FirewallSettings–Chapter6

• ParentalControls–Chapter7

• Advanced–Chapter8

• SystemMonitoring–Chapter9



Page17



Status

ThissectiondisplaysthestatusofyourGateway’slocalnetwork(LAN)andInternet

connection(WAN).

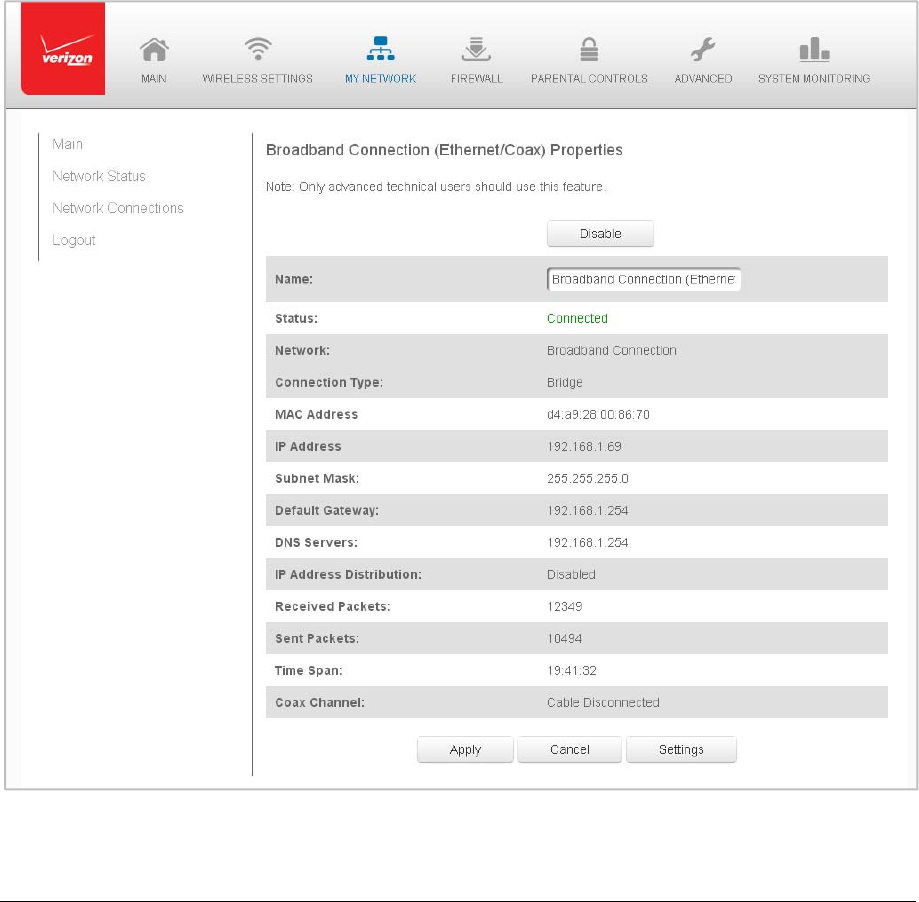

BroadbandConnection

BroadbandConnectiondisplaysthestateofthebroadbandconnection:

• Broadbandinterface:EthernetorCoax

• Connectedstatus:ConnectedorNoConnection

• Connectiontype:DHCPorStatic

• WANIPaddress:Addressofthebroadbandconnection



QuickLinks

QuickLinkscontainlinkstofrequentlyaccesseddocumentation,suchasUserGuide,Quick

SetupWizard,andVerizonHelp,andlinkstosettings,suchasChangeWirelessSettings,

ChangeAdminPassword,andPortForwarding,aswellasLogouttologoutofyour

Gateway’sGUI.



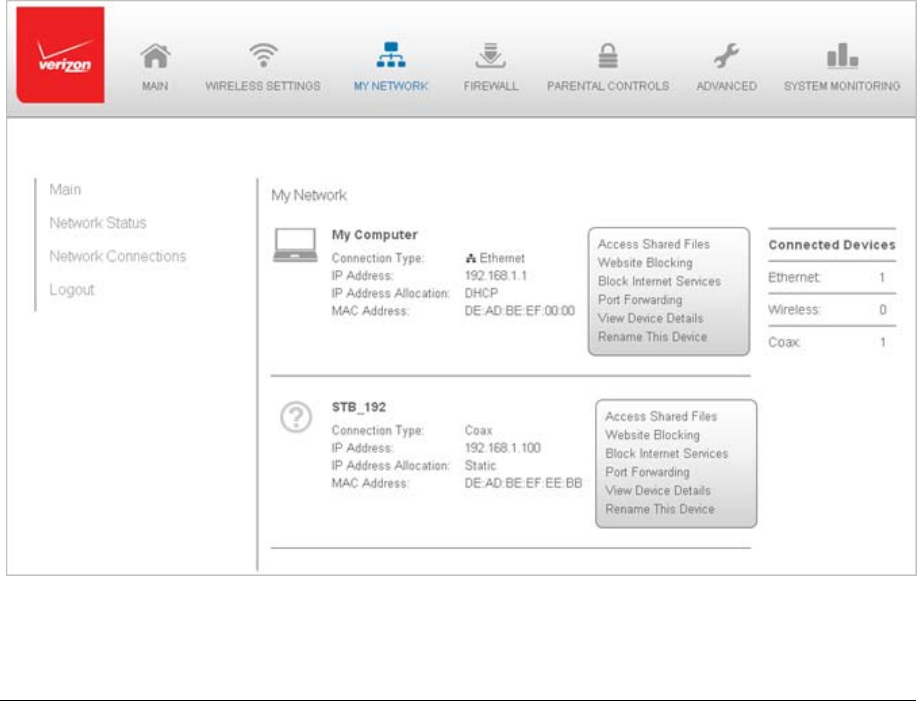

MyNetwork

MyNetworkdisplaystheconnectiontype,IPaddress,andstatusofalldevicesthathave

accessedorarecurrentlyconnectedtothenetwork.

Theiconassociatedwiththedevicedisplaystosignifythedeviceisactiveorshadedgrayto

indicatethedevicehasnotbeenactiveforseveralminutes.Youcanviewtheindividual

settingsofeachdevicebyclickingitsicon.



VerizonZone

TheVerizonZonecontainslinkstovariousVerizonwebsitesandotherinformationallinks.



Page18



Chapter3 WirelessSettings

Wirelessnetworkingenablesyoutofreeyourselffromwiresandplugs,makingyourdevices

moreaccessibleandeasiertouse.Youcancreateawirelessnetwork,includingaccessing

andconfiguringwirelesssecurityoptions.

Overview

YourGatewayprovidesyouwithwirelessconnectivityusingthe802.11b,g,n,orac

standards.Thesearethemostcommonwirelessstandards.

802.11bhasamaximumdatarateof11Mbps,802.11ghasamaximumdatarateof54

Mbps,802.11nhasamaximumdatarateof450Mbps,and802.11achasamaximumdata

rateof1300Mbps.

802.11bandgstandardsoperateinthe2.4GHzrange.802.11noperatesinboththe2.4GHz

and5GHzranges.802.11acoperatesinthe5GHzrange.

Note:802.11bisalegacymodeandisnotrecommended.Evenone802.11bdevice

connectedtothenetworkwillslowyourentirewirelessnetwork.

Thewirelessserviceandwirelesssecurityareactivatedbydefault.Thelevelofsecurityis

presettoWPA2encryptionusingauniquedefaultWPA2key(alsoreferredtoasa

passphraseorpassword)pre‐configuredatthefactory.Thisinformationisdisplayedona

stickerlocatedonthesideofyourGateway.



YourGatewayintegratesmultiplelayersofsecurity.TheseincludeWiredEquivalentPrivacy

(WEP),Wi‐FiProtectedAccess(WPAandWPA2),andfirewall.



Page19



WirelessStatus

UsetheWirelessStatusfeaturetoviewthestatusofyourGateway’swirelessnetwork.

¾ Toviewthestatus:

1. AccesstheMainpage.YoucanquicklyviewyourGateway’swirelessstatusin

theMyNetworkcolumn.Thisincludesalldevicesthathaverecentlyaccessedor

arecurrentlyconnectedtothenetwork.



2. SelecttheWirelessSettingsicon.TheWirelessStatuspagedisplaysadditional

wirelessdetails.



Page20



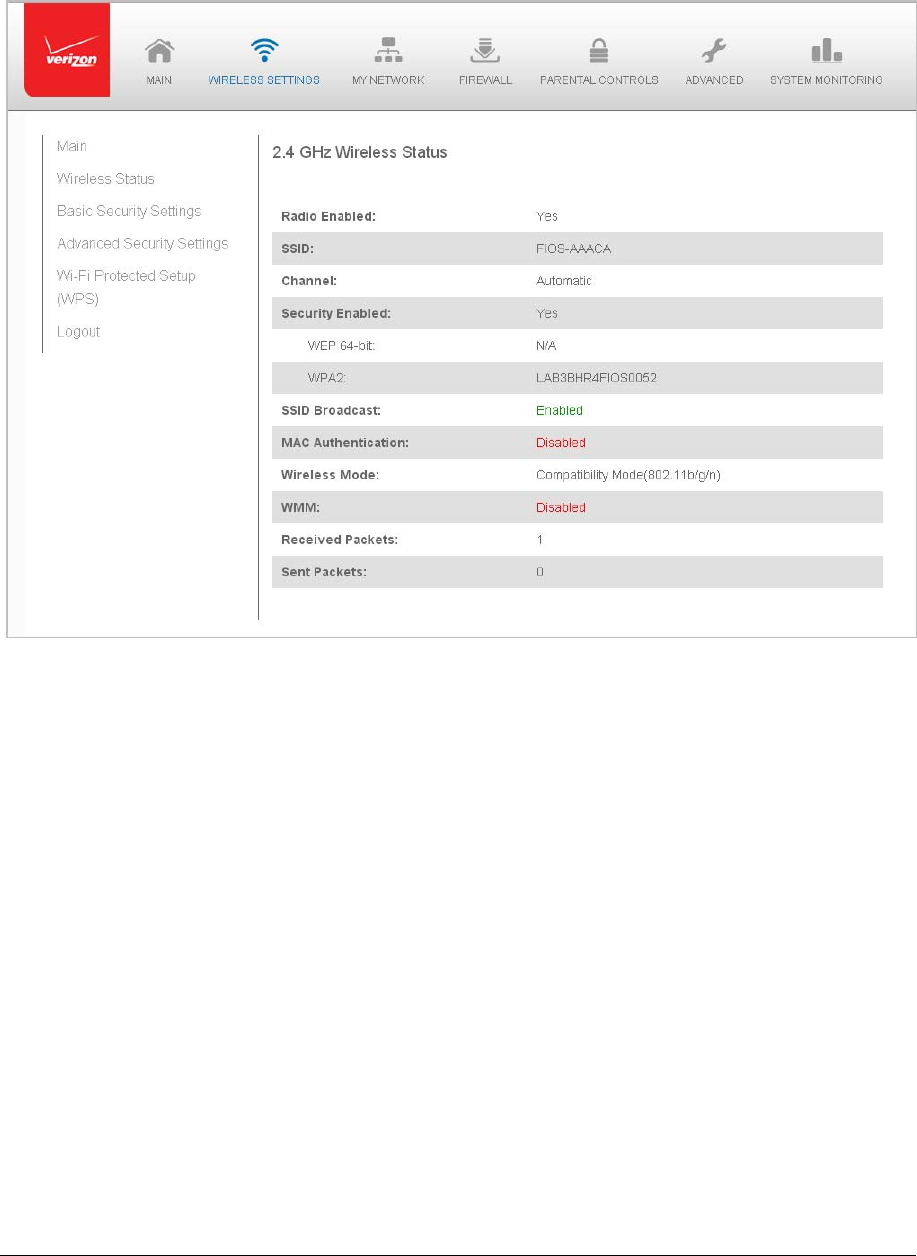

3. OntheWirelessStatuspageforeither2.4GHzor5GHz,thefollowing

informationdisplays:

 RadioEnabled–displayswhetherthewirelessradioisactive.

 SSID–displaystheSSID(ServiceSetIdentifier)sharedamongalldevicesona

wirelessnetwork.TheSSIDisthenetworkname.Alldevicesmustusethe

sameSSID.

 Channel–displaysthechannelthewirelessconnectioniscurrentlyusing.

 SecurityEnabled–displaysthetypeofsecurityactiveonthewireless

connectionaswellasthesecurityencryptionkey.

 SSIDBroadcast–displayswhetheryourGatewayisbroadcastingitsSSID.If

activated,theSSIDofyourGatewaywirelessnetworkisbroadcastwirelessly.

Ifnotactivated,theSSIDishiddenandthewirelessclientsmustbemanually

configuredtousetheSSID.

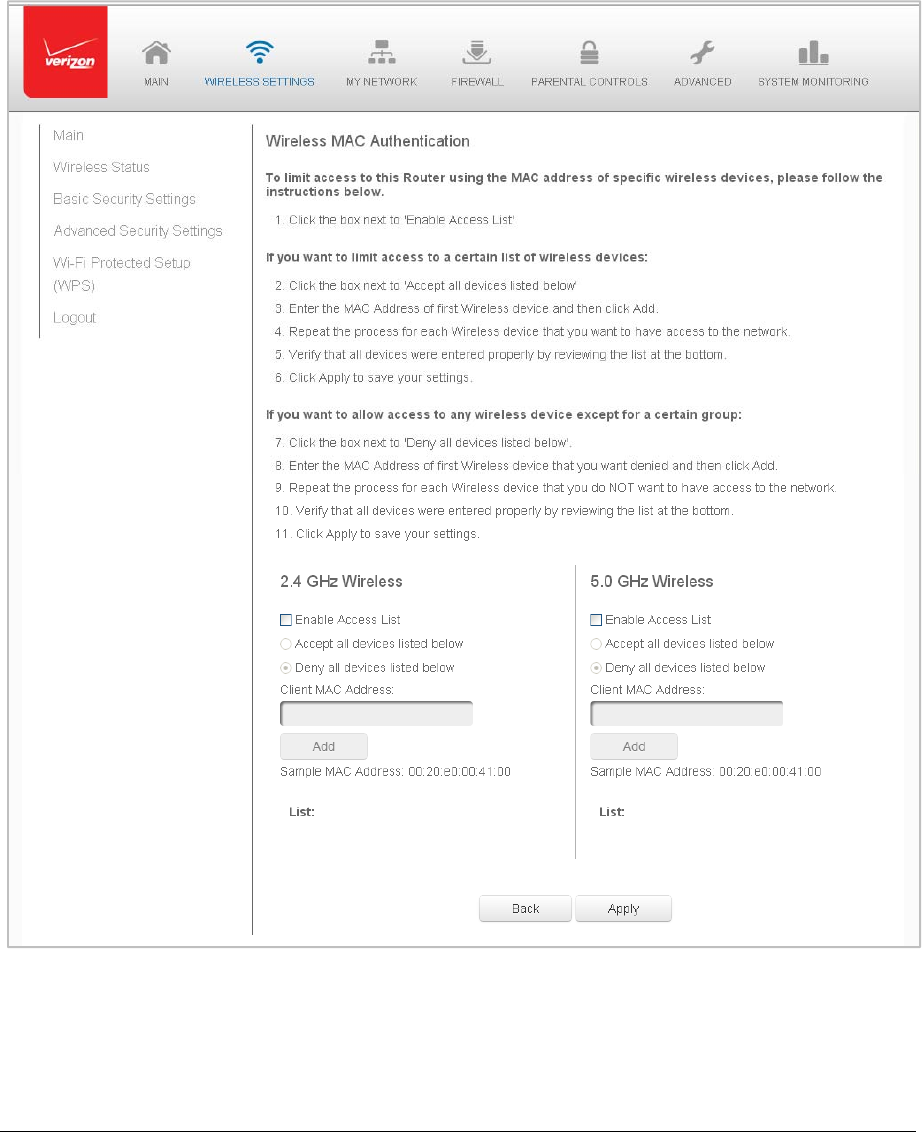

 MACAuthentication–displayswhetheryourGatewayisusingMAC(Media

AccessControl)addressauthenticationtoallowwirelessdevicestojointhe

network.

 WirelessMode–displaysthetypesofwirelessdevicethatcanjointhe

network.



Page21



 WMM–displayswhetherWMMisenabledonyourGateway.

 PacketsReceived/Sent–displaysthenumberofpacketsreceivedandsent

sincethewirelesscapabilitywasactivated.

BasicSecuritySettings

YoucanconfigurethebasicsecuritysettingsforyourGateway’swirelessnetwork.

Note:YourGateway’srecommendedwirelesssecurityencryptionissettoWPA2.Thisisthe

factorydefault.

ThissectionexplainshowtoactivateWEP(WiredEquivalentPrivacy)wirelesssecurity.WEP

isasignificantlylessrobustsecuritycomparedtoWPAorWPA2andisnotrecommended.

TosetupWPA2wirelesssecurity,refertotheWPA2section.

ToconfigurebasicsecuritytoWEP:

1. OntheWirelessSettingspage,selectBasicSecuritySettings.



Page22



2. Toactivatethewirelessradio,clicktheOnradiobutton.

3. Ifdesired,enteranewnameforthewirelessnetworkintheSSIDfieldorleave

thedefaultnamethatdisplaysautomatically.

4. Selectthechannelyouwantthewirelessradiotousetocommunicateoraccept

thedefaultchannel,thenselecttheKeepmychannelselectionduringpower

cyclecheckboxtosaveyourchannelselectionwhenyourGatewayisrebooted.



5. ToactiveWEP(WiredEquivalentPrivacy)security,clicktheWEPradiobutton.

6. SelectaWEPsecuritylevelas64/40bitor128/104bit.

7. Enterthekeycode.IfusingaHEXkey,eachcharactermustbealetterfromAto

Foranumberfrom0to9.IfthekeyisASCII,eachcharactercanbeeitherany

ASCIIoralphanumericcharacter.

Ifusing64/40bit,enter10HEXor5ASCII/alphanumericcharacters.If128/104,

enter26HEXor5ASCII/alphanumericcharacters.

8. Besuretowritedownthewirelesssettingsforfutureuse.Otherwireless

devicesthatwillbeconnectedtoyourGatewaymustbeconfiguredtousethese

settingstojoinyourGateway’swirelessnetwork.

9. ClickApplytosavechanges.



Page23



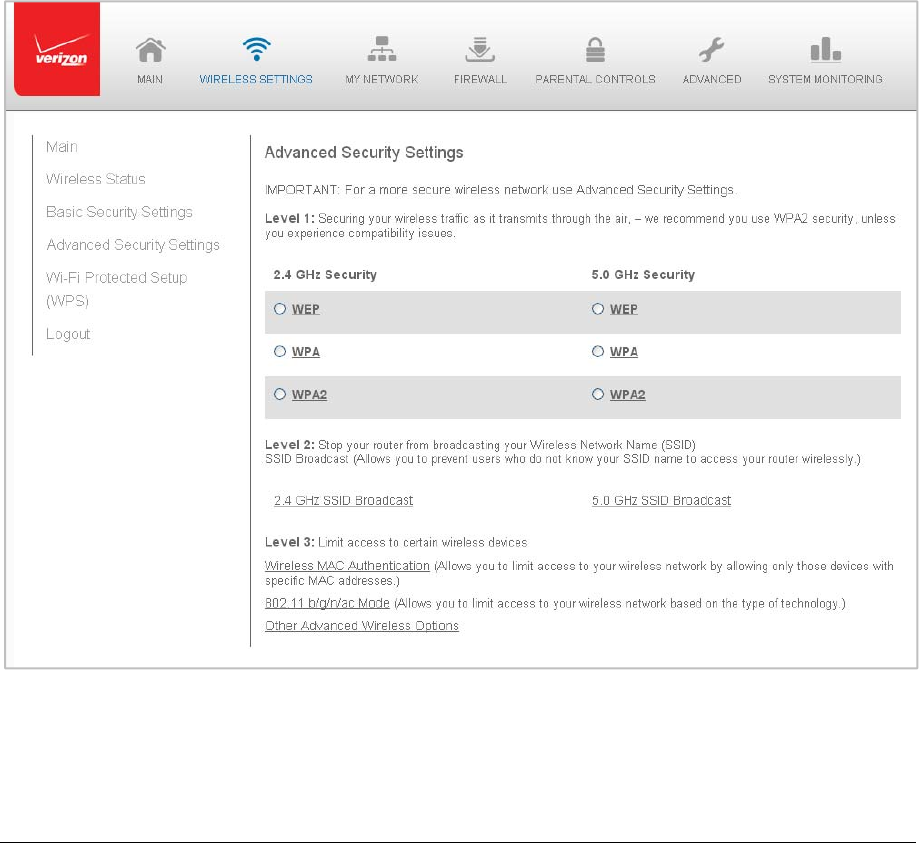

AdvancedSecuritySettings

Youcanchangeyouradvancedwirelesssecuritysettings,suchasconfiguringwireless

encryptiontopreventunauthorizedaccessordamagetoyournetworkdevices;disableyour

SSIDbroadcasttosecureyourwirelesstraffic;stopyourGatewayfrombroadcastingyour

SSID;setWirelessMACAuthenticationtolimitaccesstospecificwirelessdevices;and

changethewirelessmodetolimitorallowaccesstoyourwirelessnetworkbasedonthe

typeoftechnologyaswellasotheradvancedwirelessoptions.



¾ Tomodifythesecuritysettingsforeither2.4GHzor5GHz:

1. IntheWirelessSettingspage,selectAdvancedSecuritySettings.



Page24



Level1:SecuringyourNetwork

IntheLevel1section,selectthetypeofwirelesssecurity.Dependingonyourselection,one

ofthefollowingpagesdisplays.

WEP

IfWEPwasselected,theWEPSettingspagedisplays.

¾ TosettheWEPsecurity:

1. IntheNetworkAuthenticationfield,selecttheauthenticationlevelasOpen

SystemAuthentication,SharedKeyAuthenticationorBoth.



2. IntheWEPKeyssection,activatetheencryptionkeybeenteringthekeyname

intheEncryptionKeycolumn.IfHEX,thekeymustbehexadecimaldigits.If

ASCII,anycharacterscanbeused.

3. Specifythelengthofkey1byselecting64/40bitor128/104bitintheKey

LengthfieldandHEXorASCIIintheEntryMethodfield.

4. ClickApplytosavechanges.



Page25



WPA

IfWPA(Wi‐FiProtectedAccess)wasselected,theWPAKeypagedisplays.Youcanreview

theUserGuidanceonPasswordSelectionsection.

¾ TosettheWPAsecurity:

1. EnterthePre‐SharedKeyasawirelesspasswordorWPAkey.



2. Toactivatethegroupkeyupdateinterval,selecttheGroupKeyUpdateInterval

checkboxandsettheintervaltimeinseconds.

3. ClickApplytosavethechanges.



WPA2

IfWPA2(Wi‐FiProtectedAccessII)wasselected,theWPA2pagedisplays.WPA2isthe

defaultwirelesssecurityprotocol.YoucanreviewtheUserGuidanceonPasswordSelection

section.

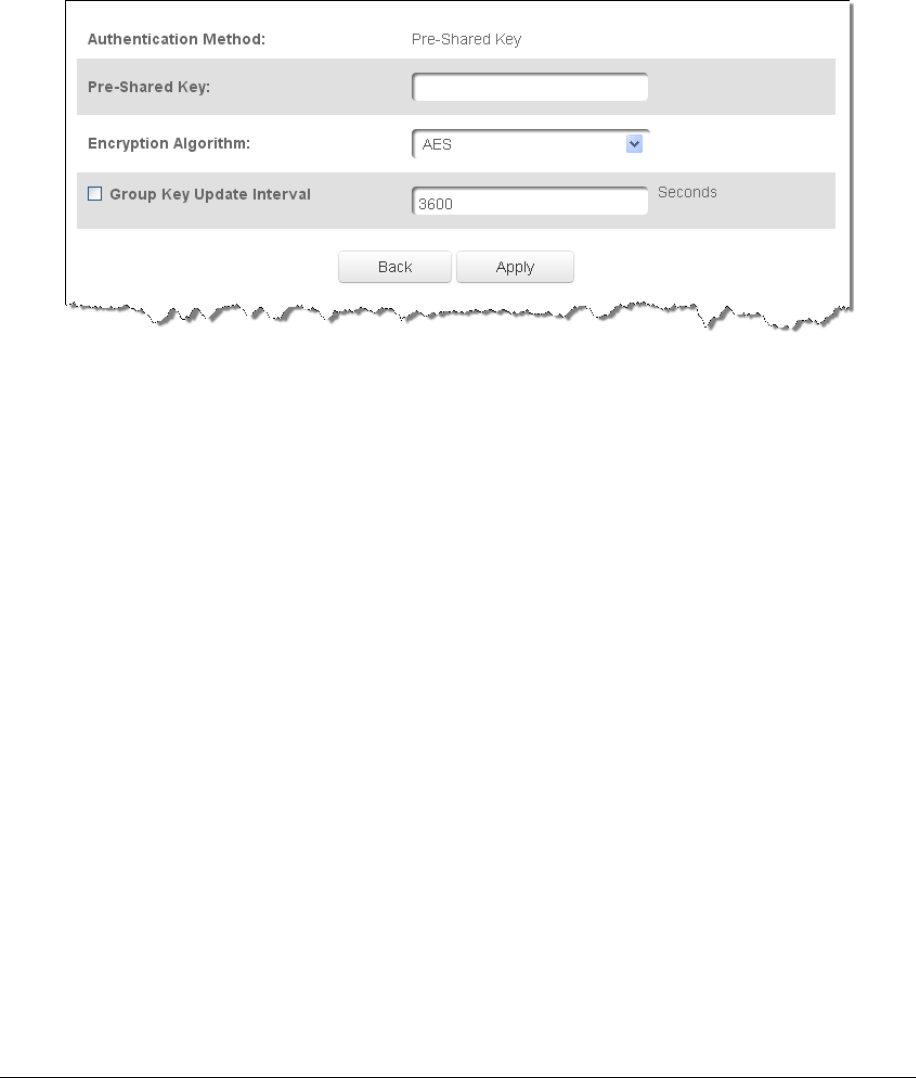

¾ TosettheWPA2security:

1. EnterthePre‐SharedKey.



Page26



2. SelecttheencryptionalgorithmasTKIPandAESorAES.

3. Toactivatethegroupkeyupdateinterval,selecttheGroupKeyUpdateInterval

checkboxandsettheintervaltimeinseconds.

4. ClickApplytosavethechanges.

Level2:SSIDBroadcast

YoucanconfigureyourGateway’sSSIDbroadcastcapabilitiestoallowordisallowwireless

devicesfromautomaticallyusingabroadcastSSIDnametodetectyourGatewaywireless

network.

¾ ToenableordisableSSIDbroadcast:

1. IntheAdvancedSettingspage,locatetheLevel2section.



2. Clickthe2.4GHzSSIDBroadcastor5GHzSSIDBroadcastlinkforthewireless

networkyouwishtomodify.Thefollowingexampleusesthe2.4GHznetwork.

Thedisplayconfigurationlooksbasicallythesameforthe5GHznetwork.



Page27



3. ToenableSSIDbroadcasting,clicktheEnableradiobutton.SSIDbroadcastis

enabledbydefault.TheSSIDofthewirelessnetworkwillbebroadcasttoall

wirelessdevices.

4. TodisableSSIDbroadcasting,clicktheDisableradiobutton.ThepublicSSID

broadcastwillbehiddenfromallwirelessdevices.Youwillneedtomanually

configureadditionalwirelessdevicestojointhewirelessnetwork.

5. ClickApplytosavethechanges.

Level3:LimitAccess

YoucanconfigureyourGatewaytolimitaccesstoyourwirelessnetworkallowingaccess

onlytothosedeviceswithspecificMACaddressesorbasedonthetypeofwireless

technologyused.

¾ Tolimitaccess:

1. IntheAdvancedSettingspage,locatetheLevel3section.



Page28



2. ToallowonlydeviceswithspecificMACaddresses,clicktheWirelessMAC

Authenticationlink.TheWirelessMACAuthenticationpagedisplays.For

additionaldetails,refertotheWirelessMACAuthenticationsection.

3. Tolimitaccessbasedonthetypeoftechnology,clickthe802.11b/g/n/acMode

link.The802.11b/g/n/acModepagedisplays.Foradditionaldetails,refertothe

802.11b/g/n/acModesection.

4. Toaccessotheradvancedwirelessoptions,clicktheOtherAdvancedWireless

Optionslink.TheOtherAdvancedWirelessOptionspagedisplays.Foradditional

details,refertotheOtherAdvancedWirelessOptionssection.



Page29



WirelessMACAuthentication

Youcanallowordenyaccesstoyourwirelessnetworkbyspecifyingdeviceswithspecific

MACaddresses.



Page30



¾ TosetWirelessMACAuthentication:

1. OntheAdvancedSettingspage,locatetheLevel3sectionandclicktheWireless

MACAuthenticationlink.TheWirelessMACAuthenticationpagedisplays.

2. Toenableaccesscontrol,selecttheEnableAccessListcheckbox.

3. Selecteither:

 Acceptalldeviceslistedbelow–allowsonlythelisteddevicestoaccessthe

wirelessnetwork.

WARNING:Thiswillblockwirelessnetworkaccessforalldevicesnotinthe

list.Onlydevicesinthelistwillbeabletoconnecttothewirelessnetwork.

 Denyalldeviceslistedbelow–deniesaccesstothelisteddevices.Allother

wirelessdeviceswillbeabletoaccessthewirelessnetworkiftheyusethe

correctwirelesspassword.

4. EntertheMACaddressofadevice,thenclickAdd.

5. Repeatstep2toaddadditionaldevices,asneeded.

6. Toremoveaspecificdevice’sMACaddress,clicktheRemovebuttonnexttothe

specificMACaddress.

7. Whenallchangesarecomplete,clickApplytosavechanges.

802.11Mode

Fromthe802.11Modepage,youcanlimitthewirelessaccesstoyournetworkbyselecting

the2.4GHzand5GHzwirelesscommunicationstandard(mode)bestsuitedorcompatible

withthedevicesyouallowaccesstoyourwirelessnetwork.



Page31



¾ Toselectthe802.11Mode:

1. OntheAdvancedSettingspage,locatetheLevel3sectionandclickthe802.11

Modelink.The802.11Modepagedisplays.

2. Selectthe2.4GHzWirelessModeasfollows:

 Compatibility–Thisisthedefaultmodesetting,providingagoodbalanceof

performanceandcompatibilitywithexistingwirelessdevices.802.11b,g,

andndevicescanconnect.

 Legacy–Forolderwirelessdevices.Only802.11bandgdevicescanconnect.

802.11b(legacymode)willcauseyourwirelessnetworktoslowandisnot

recommended.

 Performance–Fornewerwireless802.11ndevicesonly.Nootherdevices

canbeused.

3. Selectthe5GHzWirelessModeasfollows:

 NandACMode–Thisisthedefaultsetting.Both802.11nand802.11acare

availableonthe5GHzfrequencies.

 NOnlyMode–The5GHzfrequenciesareavailableto802.11ndevices.

802.11acisnotenabled.

 ACOnlyMode–Thisprovidesmaximumperformance.802.11acdeviceswill

haveexclusiveuseofthe5GHzfrequenciesand802.11ndeviceswillnotbe

abletoconnectat5GHz.

4. ClickApplytosavethechanges.

OtherAdvancedWirelessOptions

Youcanviewadditionalwirelessoptions.

¾ Toviewtheoptions:

1. IntheAdvancedSettingspage,locatetheLevel3sectionandclickOther

AdvancedWirelessOptionslink.Awarningmessagedisplays.

2. ClickOK.TheOtherAdvancedWirelessOptionspagedisplays.



Page32



Page33



3. Viewthefollowingoptions:

Caution!Thesesettingsshouldonlybeconfiguredbyexperiencednetwork

technicians.Changingthesettingscouldadverselyaffecttheoperationofyour

Gatewayandyourlocalnetwork.

 TransmissionRate–displaysstatusasAuto

 TransmitPower–adjuststhepowerofthewirelesssignal

 CTS(CleartoSend)ProtectionMode–allowsmixed802.11b/g/n/ac

networkstooperateatmaximumefficiency

 CTSProtectionType–displayscts,whichisonlyformixed802.11b/g/n/ac

networksorrts‐cts,whichisfor802.11a/b/gnetworks

 FrameBurst–MaxNumber–allowspacketbursting,whichincreases

overallnetworkspeed

 FrameBurst–BurstTime–indicatesthebursttimeoftheframebursts

 BeaconInterval–displaysthetimeperiodofthebeaconinterval

 DTIM(DeliveryTrafficIndicationMessage)Interval–providesacountdown

mechanism,informingwirelessnetworkclientsofthenextwindowfor

listeningtobroadcastandmulticastmessages

 FragmentationThreshold–increasesthereliabilityofframetransmissions

onthewirelessnetwork

 RTSThreshold–controlsthesizeofthedatapacketthatthelowlevelRF

protocolissuestoanRTSpacket

 MSDUAggregation–enablesordisablesMSDUaggregation

 MPDUAggregation–enablesordisablesMPDUaggregation

4. ToaccesstheWMMsettings,clicktheWMMSettingslink.

5. ClickApplytosavechanges.



Page34



WMMSettings

Youcanprioritizethetypesofdatatransmittedoverthewirelessnetworkusingthe

advancedWMMsettings.

WirelessQoS(WMM)canimprovethequalityofservice(QoS)forvoice,video,andaudio

streamingoverWi‐Fibyprioritizingthesedatastreams.

WMMPowerSavecanimprovebatterylifeonmobileWi‐Fidevicessuchassmartphones

andtabletsbyfine‐tuningpowerconsumption.

WMM(Wi‐FiMultimedia)QoSandPowerSaverequireawirelessclientdevicewhichalso

supportsWMM.

¾ Tosettheoptions:

1. IntheAdvancedWirelessOptionspage,clickWMMSettingslink.Awarning

messagedisplays.

2. ClickYes.TheWMMSettingspagedisplays.



3. ToenableWirelessQoS(WMM),selecttheEnabledcheckbox.

4. ToenableWMMPowerSave,enableWirelessQoS(WMM)first,thenenable

WMMPowerSavebyselectingtheEnabledcheckbox.

5. ClickApplytosavechanges.



Page35



Chapter4 ConfiguringMyNetworkSettings

YoucanconfigurethebasicnetworksettingsforyourGateway’snetwork.

Caution!Thesettingsdescribedinthischaptershouldonlybeconfiguredbyexperienced

networktechnicians.ChangescouldadverselyaffecttheoperationofyourGatewayand

yourlocalnetwork.

AccessingMyNetworkSettings

MyNetworkallowsyoutoviewandmanageyournetworkconnectionsanddevices.Youcan

blockwebsitesandInternetservices,setportforwarding,viewdevicedetails,andrename

devices.

Toviewyournetworkconnections:

1. OntheMainpage,selecttheMyNetworkicon.TheMyNetworkpageopens

withourcurrentstatusdisplayed.



Page36



UsingMyNetworkSettings

Youcanaccessandconfigurecommonnetworkparameters:

• WebsiteBlocking

Toblockspecificwebsites,clickWebsiteBlocking.TheParentalControlpage

displays.

Foradditionalinformationaboutblockingwebsites,refertoChapter7Using

ParentalControls.

• BlockInternetServices

Internetservicesblockingpreventsadeviceonyournetworkfromaccessingspecific

services,suchasreceivingemailordownloadingfilesfromFTPsites.

BlockInternetservicesbylocatingthedevice,thenclickingBlockInternetServices.

TheAccessControlpagedisplays.

ForadditionalinformationonblockingInternetservices,refertotheAccessControl

sectioninChapter6ConfiguringSystemSettings.

• PortForwarding

PortForwardingallowsyournetworktobeexposedtotheInternetinspecific

limitedandcontrolledways.Forexample,youcouldallowspecificapplications,such

asgaming,voice,andchat,toaccessserversinthelocalnetwork.

ToaccessthePortForwardingpage,clickPortForwarding.

Foradditionalinformation,refertothePortForwardingsectioninChapter6

ConfiguringSystemSettings.

• ViewDeviceDetails

ClickViewDeviceDetailstodisplaytheDeviceInformationpageandviewthe

selecteddevice’sinformation,suchasIPAddress,MACaddress,Network

Connection,LeaseType,PortForwardingServices,andWindowsSharedFolderas

wellasthePingTestoption.Youcanalsoclickthedevice’siconintheMainpageto

displaytheDeviceInformationpage.

• RenamethisDevice

Tochangethenameofaspecificdevice,clickRenamethisDevice.TheRename

Devicepagedisplays.

Ifdesired,enterthenewdevicenameand/orselectadifferenticon.ClickApplyto

savechanges.TheMyNetworkpagewillopenwiththenewnameandicon

displayed.



Page37



Chapter5 UsingNetworkConnections

YourGatewaysupportsvariouslocalareanetwork(LAN)andwideareanetwork(WAN),or

InternetconnectionsusingEthernetorcoaxialcables.Youcanconfigureaspectsofthe

networkandInternetconnectionsaswellascreatenewconnections.

Caution!Thesettingsdescribedinthischaptershouldonlybeconfiguredbyexperienced

networktechnicians.ChangescouldadverselyaffecttheoperationofyourGatewayand

yourlocalnetwork.

AccessingNetworkConnections

Youcanaccessyournetworkconnectionsandviewtheconnectionsbyconnectiontype.

¾ Toaccessthenetworkconnections:

1. SelectMyNetwork,thenselectNetworkConnections.



Page38



2. Todisplayallconnectionentries,clicktheAdvancedbutton.



3. Toselectaspecificnetworkconnection,clickthehyperlinkedname.The

followingsectionsdetailthetypesofnetworkconnectionsthatyoucanview.

Network(Home/Office)Connection

Youcanviewthepropertiesofyourlocalnetwork.Thisconnectionisusedtocombine

severalnetworkdevicesunderonevirtualnetwork.Forexample,youcancreatea

home/officenetworkconnectionforEthernetandothernetworkdevices.

Note:Whenanetworkconnectionisdisabled,theformerlyunderlyingdevicesconnectedto

itwillnotbeabletoobtainanewDHCPaddressfromthatGatewaynetworkinterface.

¾ Toviewtheconnection:

1. OntheNetworkConnectionspage,clicktheNetwork(Home/Office)connection

link.TheNetwork(Home/Office)Propertiespagedisplays.



Page39



2. Todisableanactivenetworkconnection,clickDisable.

3. Torenameanetworkconnection,enterthenewnetworknameintheName

field.

4. ClickApplytosavethechanges.

ConfiguringtheHome/OfficeNetwork

¾ Toconfigureanetworkconnection:

1. IntheNetwork(Home/Office)Propertiespage,clickSettings.Theconfiguration

pagedisplays.



Page40



2. Configurethefollowingsections,asneeded.



General

IntheGeneralsection,verifythefollowinginformation:

 Status–displaystheconnectionstatusofthenetwork

 Network–displaysthetypeofnetworkconnection

 ConnectionType–displaysthetypeofconnection

 PhysicalAddress–displaysthephysicaladdressofthenetworkcardused

forthenetwork

 MTU–specifiestheMaximumTransmissionUnit(MTU)specifiesthelargest

packetsizepermittedforInternettransmissions:

⎯ Automatic–setstheMTUat1500

⎯ AutomaticbyDHCP–setstheMTUaccordingtotheDHCPconnection

⎯ Manual–allowsyoutomanuallysettheMTU



Page41



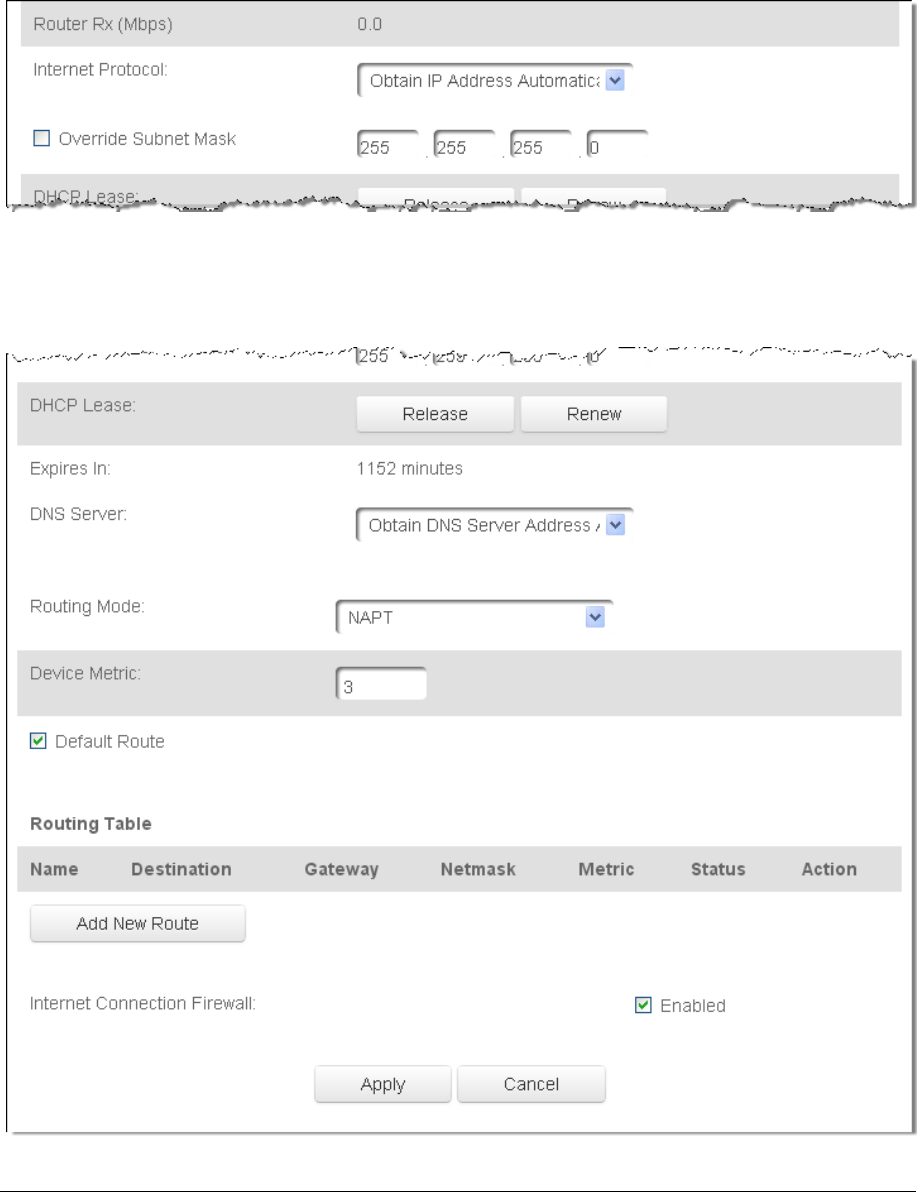

InternetProtocol

IntheInternetProtocolsection,specifyoneofthefollowing:

 ObtainanIPAddressAutomatically–thenetworkconnectionisrequiredby

VerizontoobtainanIPaddressautomatically(default).TheDHCPserver

assigningtheIPaddressalsoassignsasubnetmaskaddress.Thesubnet

maskaddresscanbeoverriddenbyenteringadifferentsubnetmaskaddress

providedbyVerizonorexperiencednetworktechnician.

 UsetheFollowingIPAddress–thenetworkconnectionusesapermanentor

staticIPaddressandsubnetmaskaddress,providedbyVerizonor

experiencednetworktechnician.

 UsetheFollowingIPAddress‐thenetworkconnectionusesapermanentor

staticIPaddress,thentheIPaddressandsubnetmaskaddress.



Bridge

IntheBridgesectionoftheConfigureNetwork(Home/Office),youcanconfigurethe

variousLANinterfaces.Bydefault,theEthernet,Coax,andWirelessAccessPoint

connectionsareactivated.

Caution!DonotchangethesesettingsunlessspecificallyinstructedtobyVerizon.

ChangescouldadverselyaffecttheoperationofyourGatewayandyourlocal

network.



Page42



Verifythefollowinginformation:

 Status–displaystheconnectionstatusofaspecificdevice.

 STP–enablesSpanningTreeProtocolonthedevice.Thisprotocolprovidesa

pathredundancywhilepreventingundesirablecommunicationloopsinthe

network.

 Action–containsaniconthat,whenclicked,generatesthenextlower‐level

configurationpageforthespecificnetworkconnectionornetworkdevice.

Forexample,whenyouclicktheActionicon,youcanconfiguretheDNSserverin

thelower‐levelnetworkconnectionpropertiessettingsfortheBroadband

Connection(Ethernet/Coax)network.



Page43



Inaddition,theDHCPandRoutingactionslistedbelowareexamplesoftheactions

thatcanbeconfiguredfortheBroadbandConnection(Ethernet/Coax)andNetwork

(Home/Office)networks.

DNSServer

TheDNS(DomainNameSystem)isthenamingsystemmethodbywhichwebsitesor

domainnamesaretranslatedintoIPaddresses.

ToconfigureyourGateway’sBroadbandConnection(Ethernet/Coax)networktouse

aspecificDNSserver,refertotheDNSServersectionofthePropertiespage.

TomanuallyconfigureaDNSserverusingtheDNSaddressesprovidedbyVerizon:

1. SpecifythefollowingDNSServeraddresses:thePrimaryandSecondaryDNS

serveraddresses.

2. ClickApplytosavethechanges.



DHCPServer

TheIPAddressDistributionsectionofthePropertiessettingsisusedtoconfigure

yourGateway’sDynamicHostConfigurationProtocol(DHCP)serverparameters.

Onceenabledandconfigure,theDHCPserverautomaticallyassignsIPaddressesto

anynetworkdeviceswhicharesettoobtaintheirIPaddressdynamically.

IfDHCPServerisenabledonyourGateway,configurethenetworkdevicesasDHCP

Clients.Thereare2basicoptionsinthissection:DisabledandDHCPServer.

TosetuptheGateway’snetworkbridgetofunctionasaDHCPserver:

1. IntheIPAddressDistributionsection,selecttheDHCPserver.Onceenabled,

theDHCPserverprovidesautomaticIPassignments(alsoreferredtoasIPleases)

basedonthepresetIPrangedefinedbelow.

a. StartIPAddress–EnterthefirstIPaddressintheIPrangethattheGateway

willautomaticallybeginassigningIPaddressesfrom.SinceyourGateway’sIP

addressis192.168.1.1,thedefaultStartIPAddressis192.168.1.2.

b. EndIPAddress–EnterthelastIPaddressintheIPrangethattheGateway

willautomaticallystoptheIPaddressallocationat.ThemaximumendIP

addressrangethatcanbeenteredis192.168.1.254.

2. IfWindowsInternetNamingService(WINS)isbeingused,entertheWINSserver

address.

3. IntheLeaseTimeinMinutesfield,entertheamountoftimeanetworkdeviceis

allowedtoconnecttotheGatewaywithitscurrentlyissueddynamicIPaddress.

4. TohavetheGatewayautomaticallyassignahostnametonetworkdevices,

selecttheProvideHostNameifNotSpecifiedbyClientcheckbox.

5. ClickApplytosavechanges.



Page44



Routing

YoucanconfigureyourGatewaytousestaticordynamicrouting.

• Staticrouting–specifiesafixedroutingpathtoneighboringdestinationsbasedon

predeterminedmetrics.

• Dynamicrouting–automaticallyadjustshowpacketstravelonthenetwork.The

pathdeterminationisbasedonnetwork/devicereachabilityandstatusofnetwork

beingtraveled.

Toconfigurerouting:

1. IntheDeviceMetricfield,enteradevicemetric.

ThedevicemetricisavalueusedbyyourGatewaytodeterminewhetherone

routeissuperiortoanother,basedonparameters,suchasbandwidthanddelay

time.



2. IntheRoutingTablesection,clickAddNewRoutetodisplayandmodifythe

newrouteconfigurationpage.

CompleteNetworkConnectionConfigurationUpdates

• Tosaveyourchanges,clickApply.



Page45



Ethernet/CoaxConnection

AnEthernetconnectionconnectscomputerstoyourGatewayusingEthernetcables.The

connectionsareeitherdirectorusenetworkhubsandswitches.

ACoaxconnectionconnectsdevices,suchasset‐topboxes,toyourGatewayusingacoaxial

cable.

Note:Ifdisablingtheconnection,youmustrebootyourGatewayforthechangetotake

effect.

¾ Toviewtheconnection:

1. IntheNetworkConnectionspage,clicktheBroadbandConnection

(Ethernet/Coax)link.



Page46



2. Torenamethenetworkconnection,enterthenewnameintheNamefield.

3. ClickApplytosavechanges.

ConfiguringtheEthernet/CoaxConnection

¾ Toconfiguretheconnection:

1. IntheBroadbandConnection(Ethernet/Coax)Propertiespage,clickSettings.

Theconfigurationpagedisplays.



Page47



2. Configurethefollowingsettings,asneeded.



General

Verifythefollowinginformation:

 Status–displaystheconnectionstatusofthenetwork

 Network–displaysthetypeofnetworkconnection

 ConnectionType–displaysthetypeofconnection

 PhysicalAddress–displaysthephysicaladdressofthenetworkcardused

forthenetwork

 MTU–specifiesthelargestpacketsizepermittedforInternettransmissions:

⎯ Automatic–settheMTU(MaximumTransmissionUnit)at1500

⎯ AutomaticbyDHCP–setstheMTUaccordingtotheDHCPconnection

⎯ Manual–allowsyoutomanuallysettheMTU



CoaxLink

1. TosettheChannel,selectthecoaxlinkchannelas1to3.



Page48



2. SelecttheOnorOffradiobuttonintheAutoDetectionfield.

3. Tosetprivacy,selecttheEnabledcheckbox.Thiscausesalldevicesconnected

tothecoaxialcabletousethesamepassword.Thisisrecommended.

4. Tosetthepassword,entertheCoaxLinkpasswordinthePasswordfield.

5. TosettheCMratio,selecttheCMratioindropdown.

6. ToenableordisabletheCoaxlink,clickDisableorEnable.

7. Toviewthedevicesconnectedusingthecoaxialcable,clicktheGotoWANCoax

Statslink.



HWSwitchPorts

¾ TogeneratethePortSettingspageandsettheHWSwitchPorts:

1. IntheHWSwitchPortssection,verifytheconnectionstatusofthe4Ethernet

portsand1coaxport.

2. Toeditnetworktrafficpolicies,clicktheActionicon.



CompleteallEthernet/CoaxConnectionConfigurationUpdates

¾ Tosaveyourchanges:

1. ClickApply.



WirelessAccessPointConnection

AWirelessAccessPointnetworkconnectionallowswirelessdevicestoconnecttothelocal

areanetwork(LAN)usingthe2.4GHzor5GHzWi‐Finetwork.

Note:Oncedisabled,allwirelessdevicesconnectedtothatwirelessnetworkwillbe

disconnectedfromtheLANnetworkandInternet.

¾ Toviewtheconnection:

1. IntheNetworkConnectionspage,clickAdvanced.



Page49



2. Click5GHzWirelessAccessPoint1or2.4GHzWirelessAccessPoint2.



Page50



3. Todisabletheconnection,clickDisable.

4. Torenametheconnection,enteranameintheNamefield.

5. ClickApplytosavethechanges.

6. RebootyourGateway.

ConfiguringtheWirelessAccessPointProperties

¾ Toconfiguretheconnection:

1. IntheWirelessAccessPointPropertiespage,clickSettings.Theconfiguration

pagedisplays.



Page51



2. Verifythefollowinginformation:

 Status–displaystheconnectionstatusofthenetwork

 Network–displaysthetypeofnetworkconnection

 ConnectionType–displaysthetypeofconnection

 PhysicalAddress–displaysthephysicaladdressofthenetworkcardused

forthenetwork

 MTU–specifiesthelargestpacketsizepermittedforInternettransmissions:

⎯ Automatic–settheMTU(MaximumTransmissionUnit)at1500

⎯ AutomaticbyDHCP–setstheMTUaccordingtotheDHCPconnection

⎯ Manual–allowsyoutomanuallysettheMTU

3. ClickApplytosavechanges.

BroadbandEthernet/CoaxConnection

ABroadbandEthernetconnectionconnectscomputerstoyourGatewayusingEthernet

cables.Theconnectionsareeitherdirectorusenetworkhubsandswitches.

ACoaxconnectionconnectsdevices,suchasset‐topboxes,toyourGatewayusingacoaxial

cable.

Note:Ifdisablingtheconnection,youmustrebootyourGatewayforthechangetotake

effect.

¾ Toviewtheconnection:

1. IntheNetworkConnectionspage,clicktheBroadbandConnection

(Ethernet/Coax)link.



Page52



2. Torenamethenetworkconnection,enterthenewnameintheNamefield.

3. ClickApplytosavechanges.



Page53



ConfiguringtheEthernet/CoaxConnection

¾ Toconfiguretheconnection:

1. IntheBroadbandConnection(Ethernet/Coax)Propertiespage,clickSettings.

Theconfigurationpagedisplays.



2. Configurethefollowingsettings,asneeded.



General

Verifythefollowinginformation:

 Status–displaystheconnectionstatusofthenetwork

 Network–displaysthetypeofnetworkconnection

 ConnectionType–displaysthetypeofconnection

 PhysicalAddress–displaysthephysicaladdressofthenetworkcardused

forthenetwork

 MTU–specifiesthelargestpacketsizepermittedforInternettransmissions:

⎯ Automatic–settheMTU(MaximumTransmissionUnit)at1500

⎯ AutomaticbyDHCP–setstheMTUaccordingtotheDHCPconnection

⎯ Manual–allowsyoutomanuallysettheMTU



Page54



CoaxLink

1. TosettheChannel,selectthecoaxlinkchannelas1to3.



2. SelecttheOnorOffradiobuttonintheAutoDetectionfield.

3. Tosetprivacy,selecttheEnabledcheckbox.Thiscausesalldevicesconnected

tothecoaxialcabletousethesamepassword.Thisisrecommended.

4. Tosetthepassword,entertheCoaxLinkpasswordinthePasswordfield.

5. TosettheCMratio,selecttheCMratioindropdown.

6. ToenableordisabletheCoaxlink,clickDisableorEnable.

7. Toviewthedevicesconnectedusingthecoaxialcable,clicktheGotoWANCoax

Statslink.



InternetProtocol

1. IntheInternetProtocolsection,specifyoneofthefollowing:

 NoIPAddress–theconnectionhasnoIPaddress.Thisisusefulifthe

connectionoperatesunderabridge.

 ObtainanIPAddressAutomatically–thenetworkconnectionisrequiredby

VerizontoobtainanIPaddressautomatically.TheserverassigningtheIP

addressalsoassignsasubnetmaskaddress,whichcanbeoverriddenby

enteringanothersubnetmaskaddress.



Page55



 UsetheFollowingIPAddress‐thenetworkconnectionusesapermanentor

staticIPaddress,thentheIPaddressandsubnetmaskaddress.



2. Tooverridethesubnetmask,selecttheOverrideSubnetMaskcheckbox,then

enterthenewsubnetmask.

RoutingMode



Page56



CompleteallEthernet/CoaxConnectionConfigurationUpdates

¾ Tosaveyourchanges:

1. ClickApply.



Page57



Chapter6 ConfiguringSecuritySettings

YourGateway’ssecuritysuiteincludescomprehensiveandrobustsecurityservices,suchas

statefulpacketinspection,firewallsecurity,userauthenticationprotocols,andpassword

protectionmechanisms.Thesefeatureshelpprotectyourcomputersfromsecuritythreats

ontheInternet.

Thischaptercoversthefollowingsecurityfeatures:

• Firewall–selectthesecuritylevelforthefirewall

• AccessControl–restrictaccessfromthelocalnetworktotheInternet

• PortForwarding–enableaccessfromtheInternettospecificservicesprovidedby

computersonthelocalnetwork

• PortTriggering–defineporttriggeringentriestodynamicallyopenthefirewallfor

specificprotocolsorports

• RemoteAdministration–enableremoteconfigurationofyourGatewayfromany

Internet‐accessiblecomputer

• StaticNAT–allowmultiplestaticNATIPaddressestobedesignatedtodeviceson

thenetwork

• SecurityLog–viewandconfigurethesecuritylog

Firewall

ThefirewallisthecornerstoneofthesecuritysuiteforyourGateway.Ithasbeenexclusively

tailoredtotheneedsoftheresidentialorofficeuserandispre‐configuredtoprovide

optimumsecurity.

Thefirewallprovidesboththesecurityandflexibilityhomeandofficeusersseek.Itprovides

amanaged,professionallevelofnetworksecuritywhileenablingthesafeuseofinteractive

applications,suchasInternetgamingandvideoconferencing.

Additionalfeatures,includingsurfingrestrictionsandaccesscontrol,canalsobeconfigured

locallythroughtheuserinterfaceorremotelybyaserviceprovider.

ThefirewallregulatestheflowofdatabetweenthelocalnetworkandtheInternet.Both

incomingandoutgoingdataareinspected,theneitheracceptedandallowedtopass

throughyourGatewayorrejectedandbarredfrompassingthroughyourGateway,

accordingtoaflexibleandconfigurablesetofrules.Theserulesaredesignedtoprevent

unwantedintrusionsfromtheoutside,whileallowinglocalnetworkusersaccesstoInternet

services.



Page58



ThefirewallrulesspecifythetypeofservicesontheInternetthatareaccessiblefromthe

localnetworkandtypesofservicesinthelocalnetworkthatareaccessiblefromthe

Internet.

Eachrequestforaservicethatthefirewallreceivesischeckedagainstthefirewallrulesto

determinewhethertherequestshouldbeallowedtopassthroughthefirewall.Ifthe

requestispermittedtopass,allsubsequentdataassociatedwiththisrequestorsessionis

alsoallowedtopass,regardlessofitsdirection.

Forexample,whenaccessingawebsiteontheInternet,arequestissenttotheInternetfor

thissite.WhentherequestreachesyourGateway,thefirewallidentifiestherequesttype

andorigin,suchasHTTPandaspecificcomputerinthelocalnetwork.UnlessyourGateway

isconfiguredtoblockrequestsofthistypefromthiscomputer,thefirewallallowsthistype

ofrequesttopasstotheInternet.

Whenthewebsiteisreturnedfromthewebserver,thefirewallassociatesthewebsitewith

thissessionandallowsittopass;regardlessHTTPaccessfromtheInternettothelocal

networkisblockedorpermitted.

Itistheoriginoftherequest,notsubsequentresponsestothisrequest,whichdetermines

whetherasessioncanbeestablished.

SettingFirewallConfiguration

Youcanselectamaximum,typical,orminimumsecurityleveltoblock,limit,orpermitall

traffic.Thefollowingtableshowsrequestaccessforeachsecuritylevel.

SecurityLevelInternetRequests

IncomingTraffic

LocalNetworkRequests

OutgoingTraffic

MaximumBlockedLimited

TypicalBlockedUnrestricted

MinimumUnrestrictedUnrestricted



Therequestaccessisdefinedas:

• Blockedtraffic–noaccessallowed,exceptasconfiguredinPortForwardingand

RemoteAccess

• Limited–permitsonlycommonlyusedservices,suchasemailandwebbrowsing

• Unrestricted–permitsfullaccessofincomingtrafficfromtheInternetandallowsall

outgoingtraffic,exceptasconfiguredinAccessControl



Page59



SpecifyingGeneralSettingsforIPv4orIPv6

¾ Tosetyourfirewallconfiguration:

1. ClicktheFirewallSettingsicon.TheGeneralSettingspagedisplays.



2. Selectasecuritylevelbyclickingoneoftheradiobuttons.

UsingtheMinimumSecuritysettingmayexposethelocalnetworktosignificant

securityrisks,andshouldonlybeusedforshortperiodsoftimetoallow

temporarynetworkaccess.

3. Toprotectthelocalnetworkfromacommontypeofhackerattackthatuses

fragmenteddatapacketstosabotagethenetwork,selecttheBlockIPFragments

checkbox.

VPNoverIPSecandsomeUDP‐basedservicesmakelegitimateuseofIP

fragments.IPfragmentsmustbeallowedtopassintothelocalnetworktouse

theseservices.

4. ClickApplytosavechanges.



Page60



AccessControl

Youcanblockindividualcomputersonyourlocalnetworkfromaccessingspecificservices

ontheInternet.Forexample,youcouldblockonecomputerfromaccessingtheInternet,

thenblockasecondcomputerfromtransferringfilesusingFTPaswellasprohibitthe

computerfromreceivingincomingemail.

Accesscontrolincorporatesalistofpresetservices,suchasapplicationsandcommonport

settings.

AlloworRestrictServices

¾ Toalloworrestrictservices:

1. FromtheFirewallpage,selectAccessControl.TheAccessControlpageopens

withtheAllowsandBlockedsectionsdisplayed.TheAllowedsectiononly

displayswhenthefirewallissettomaximumsecurity.



2. Toblockaservice,clickAdd.TheAddAccessControlRulepagedisplays.



Page61



3. Toapplytheruleto:

 Allnetworkeddevices–selectAny.

 Specificdevicesonly–selectUserDefined,thenclickAddandcreatea

networkobject.

4. IntheProtocolfield,selecttheInternetprotocoltobeallowedorblocked.

Iftheserviceisnotincludedinthelist,selectUserDefined.TheEditService

pagedisplays.Definetheservice,thenclickOK.Theserviceisautomatically

addedtotheAddAccessControlRulesection.

5. SpecifywhentheruleisactiveasAlwaysorUserDefinedandclickAddtocreate

theschedule.

6. ClickApplytosavechanges.TheAccessControlpagedisplaysasummaryofthe

newaccesscontrolrule.

DisableAccessControl

Youcandisableanaccesscontrolandenableaccesstotheservicewithoutremovingthe

servicefromtheAccessControltable.Thiscanmaketheserviceavailabletemporarilyand

allowyoutoeasilyreinstatetherestrictionlater.

• Todisableanaccesscontrol,clearthecheckboxnexttotheservicename.

• Toreinstatetherestriction,selectthecheckboxnexttotheservicename.

• Toremoveanaccessrestriction,selecttheserviceandclickRemove.Theserviceis

removedfromtheAccessControltable.



Page62



PortForwarding

YoucanactivateportforwardingtoexposethenetworktotheInternetinalimitedand

controlledmanner.Forexample,enablingapplications,suchasgamingandvoice,towork

fromthelocalnetworkaswellasallowingInternetaccesstoserverswithinthelocal

network.

¾ Tocreateportforwardingrules:

1. FromtheFirewallpage,selectPortForwarding.ThePortForwardingpageopens

withthecurrentrulesdisplayed.



2. Tocreateanewrule,selecttheIPaddressintheSelectIPfromMenudrop

down.

3. SelecttheapplicationintheApplicationtoForwarddropdown.

4. ClickAdd.TheruledisplaysintheAppliedRulessection.

5. ClickApplytosavechanges.

AdvancedPortForwardingRules

Youcanconfigureadvancedportforwardingrules.

¾ Toconfiguretherules:

1. InthePortForwardingpage,selectAdvanced.



Page63



2. Ifneeded,toselectaporttoforwardcommunicationto,selectanoptioninthe

ForwardtoPortlistbox.

3. Ifasingleportorrangeofportsisselected,atextboxdisplays.Entertheport

numbers.

4. Toscheduletherule,selecteitherAlwaysorUserDefinedintheSchedulelist

box.

5. ClickAdd.TheruledisplaysintheAppliedRulessection.

6. ClickApplytosavechanges.



Page64



PortTriggering

Porttriggeringcanbedescribedasdynamicportforwarding.Bysettingporttriggeringrules,

inboundtrafficarrivesataspecificnetworkhostusingportsthataredifferentthanthose

usedforoutboundtraffic.Theoutboundtraffictriggerstheportswheretheinboundtraffic

isdirected.

Forexample,agamingserverisaccessedusingUDPprotocolonport2222.Thegaming

serverthenrespondsbyconnectingtheuserusingUDPonport3333,whenagaming

sessionisinitiated.

Inthiscase,porttriggeringmustbeusedsinceitconflictswiththefollowingdefaultfirewall

settings:

• Firewallblocksinboundtrafficbydefault.

• ServerrepliestoyourGatewayIP,andtheconnectionisnotsentbacktothehost

sinceitisnotpartofasession.

Toresolvetheconflict,aporttriggeringentrymustbedefined,whichallowsinboundtraffic

onUDPport3333onlyafteranetworkhostgeneratedtraffictoUDPport2222.Thisresults

inyourGatewayacceptingtheinboundtrafficfromthegamingserverandsendingitbackto

thenetworkhostwhichoriginatedtheoutgoingtraffictoUDPport2222.

¾ Toconfigureporttriggering:

1. SelectPortTriggering.



Page65



2. Toaddaserviceasanactiveprotocol,clickAdd.TheEditPortTriggeringRule

pagedisplays.



3. Entertheservicenamethenconfigureitsinboundandoutboundtriggerports.

ClickApplytosaveUserDefinedchanges.ThePortTriggeringpagedisplays.

4. ClickApplyagaintosaveallchanges.

RemoteAdministration

Caution!EnablingRemoteAdministrationplacesyourGatewaynetworkatriskfromoutside

attacks.

YoucanaccessandcontrolyourGatewaynotonlyfromwithinthelocalnetwork,butalso

fromtheInternetusingRemoteAdministration.

Youcanallowincomingaccesstothefollowing:

• SSHAccess–usedtocreateacommand‐linesessionandgainaccesstoallsystem

settingsandparametersusingatext‐basedterminal.

• WebManagement–usedtoobtainaccesstoyourGateway’sGUIandgainaccessto

allsettingsandparametersthroughawebbrowser.BothsecureHTTPSandnon‐

secureHTTPaccessisavailable.

• DiagnosticTools–usedfortroubleshootingandremotesystemmanagementbya

userorVerizon.



Page66



SSHandWebManagementremoteadministrationaccessmaybeusedtomodifyordisable

firewallsettings.LocalIPaddressesandothersettingscanalsobechanged,makingit

difficultorimpossibletoaccessyourGatewayfromthelocalnetwork.Remote

administrationaccesstoSSHorWebManagementservicesshouldbeactivatedonlywhen

absolutelynecessary.

Note:EncryptedremoteadministrationisperformedusingasecureSSLconnectionand

requiresaSSLcertificate.WhenaccessingyourGatewayforthefirsttimeusingencrypted

remoteadministration,awarningpageopenswithacertificateauthenticationmessage

displayed.ThisisduetoyourGatewaySSLcertificatebeingself‐generated.Whenthis

messagedisplayunderthatcircumstance,ignorethemessageandcontinue.Eventhough

thismessagedisplays,theself‐generatedcertificateissafeandprovidesasecureSSL

connection.

¾ Toenableremoteadministration:

1. SelectRemoteAdministration.



Page67



2. Toenableaccess,selectthecheckbox.

3. ClickApplytosavechanges.

4. Toremoveaccess,clearthecheckbox.

5. ClickApplyagaintosavechanges.

StaticNAT

StaticNATallowsdeviceslocatedbehindafirewallthatisconfiguredwithprivateIP

addressestoappeartohavepublicIPaddressestotheInternet.Thisallowsaninternalhost,

suchasawebserver,tohaveanunregistered(private)IPaddressandstillbeaccessible

overtheInternet.

¾ ToconfigurestaticNAT:

1. SelectStaticNAT.



2. TocreateastaticNAT,clickAdd.TheAddNAT/NAPTRulepagedisplays.



Page68



3. SelectasourceaddressintheSpecifyAddressfieldorenteranIPaddressinthe

textbox.

4. EnterthepublicIPaddress.

5. Ifusingportforwarding,selecttheEnablePortForwardingforStaticNATcheck

box.

6. ClickApplytosavechanges.

7. RepeatthesestepstoaddadditionalstaticIPaddresses.

SecurityLog

Youcanvieweventsthatyourfirewallhasblockedbyaccessingthesecuritylog.Your

Gatewayreportsevents,suchasattemptstoestablishinboundandoutboundconnections,

attemptstoauthenticateatanadministrativeinterface,suchasyourGatewayGUI,firewall

configuration,andsystemstart‐up.

Thesecuritylogreportsthefollowinginformation:

• Time–basedonthedateandtimeinyourGateway

• Event–consistsoffirewallinformation,firewallsetup,andsystemlog

• EventType–describestheeventthatoccurred,suchasafragmentedpacketor

parentalcontrols.

• Details–provideareasontheeventoccurred,suchasapackethasbeenblocked

becauseofparentalcontrol.

Youcanmodifythetypeofeventsthatdisplayinthesecuritylog.Thisdoesnotmodifythe

eventitself.Itsimplychangestheinformationthatdisplaysinthelog.



Page69



EventTypes

Thesecuritylogsrecordsthefollowingeventtypes:

• Accesscontrol–apackethasbeenaccepted/blockedduetoanaccesscontrolrule.

• Advancefilterrule–apackethasbeenaccepted/blockedduetoanadvancedfilter

rule.

• ARP–anARPpackethasbeenaccepted.

• AUTH:113request‐anoutboundpacketforAUTHprotocolhasbeenaccepted(for

maximumsecuritylevel).

• Broadcast/Multicastprotection–apacketwithabroadcast/multicastsourceIPhas

beenblocked.

• Defaultpolicy–apackethasbeenaccepted/blockedaccordingtothedefaultpolicy.

• Defragmentationfailed–thefragmenthasbeenstoredinmemoryandblocked

untilallfragmentshavearrivedanddefragmentationcanbeperformed.

• DHCPrequest–yourGatewaysentaDHCPrequest(dependsonthedistribution).

• DHCPresponse‐yourGatewaysentaDHCPresponse(dependsonthedistribution).

• Echo/Chargen/Quote/Snorkprotection–apackethasbeenblockeddueto

Echo/Chargen/Quote/Snorkprotection.

• Firewallinternal–fromthefirewallinternalmechanism,eventtypeisrecordedand

anaccompanyingexplanationwillbeadded.

• Firewallruleswerechanged–therulesethasbeenmodified.

• Firewallstatuschanged–thefirewallstatuschangedfromuptodownorviceversa,

asspecifiedintheeventtypedescription.

• FirstpacketinconnectionisnotaSYNpacket–apackethasbeenblockedduetoa

TCPconnectionthatstartedwithoutaSYNpacket.

• Fragmentedpacket–afragmenthasbeenrejected.

• Fragmentedpacket,badalign–apackethasbeenblockedbecause,after

defragmentation,thepacketwasbadlyaligned.

• Fragmentedpacket,headertoobig–apackethasbeenblockedbecause,after

defragmentation,theheaderwastoobig.

• Fragmentedpacket,headertoosmall–apackethasbeenblockedbecause,after

defragmentation,theheaderwastoosmall.

• Fragmentedpacket,nomemory–apackethasbeenblockedbecausethereisno

memoryforfragments.

• Fragmentedpacket,overlapped–apackethasbeenblockedbecause,after

defragmentation,therewereoverlappingfragments.



Page70



• Fragmentedpacket,packetexceeds–apackethasbeenblockedbecause,after

defragmentation,thepacketexceeded.

• Fragmentedpacket,packettoobig–apackethasbeenblockedbecause,after

defragmentation,thepacketwastoobig.

• FTPportrequestto3rdpartyisforbidden–possiblebounceattack–apackethas

beenblocked.

• ICMPfloodprotection–abroadcastICMP(InternetControlMessageProtocol)flood.

• ICMPprotection–abroadcastICMPmessagehasbeenblocked.

• ICMPredirectprotection–anICMPredirectedmessagehasbeenblocked.

• ICMPreplay–anICMPreplaymessagehasbeenblocked.

• Illegalpacketoptions–theoptionsfieldinthepacket’sheaderiseitherillegalor

forbidden.

• IPVersion6–anIPv6packethasbeenaccepted.

• Malformedpacket:Failedparsing–apackedhasbeenblockedbecauseitis

malformed.

• Maximumsecurityenabledservice–apackethasbeenacceptedbecauseitbelongs

toapermittedserviceinthemaximumsecuritylevel.

• MulticastIGMPconnection–amulticastpackethasbeenaccepted.

• NATError:Connectionpoolisfull‐Noconnectioncreated–aconnectionhasnot

beencreatedbecausetheconnectionpoolisfull.

• NATError:Conflictmappingalreadyexists–aconflictoccurredbecausetheNAT

mappingalreadyexists,soNATfailed.

• NATError:NofreeNATIP–nofreeNATIP,soNAThasfailed.

• NAToutfailed–NATfailedforthispacket.

• OutboundAuth1X–anoutboundAuth1Xpackethasbeenaccepted.

• Packetinvalidinconnection–aninvalidconnectionpackethasbeenblocked.

• Parentalcontrol–apackagehasbeenblockbecauseofparentalcontrol.

• Passiveattackonftp‐server:ClientattemptedtoopenServerports–apackethas

beenblocked.

• Service–apackethasbeenacceptedbecauseofacertainservice,asspecifiedinthe

eventtype.

• Spoofingprotection–apacketfromtheInternetwithasourceIPbelongtothelocal

networkhasbeenblocked.

• STPpacket–STP(SpanningTreeProtocol)packethasbeenaccepted/rejected.

• SynCookiesprotection–aSynCookiespackethasbeenblocked.



Page71



• Trusteddevice–apacketfromatrusteddevicehasbeenaccepted.

• UDPfloodprotection–apackedhasbeenblocked,stoppingaUDPflood.

• Userauthentication–amessagearrivedduringlogintime,includingbothsuccessful

andfailedauthentication.

• Wildcardconnectionhooked–debugmessageregardingconnection.

• Wildcardconnectionopened‐debugmessageregardingconnection.

• WinNukeprotection–aWinNukeattackhasbeenblocked.



Toviewthesecuritylog:

1. SelectSecurityLog.



Page72



2. Tomodifythetypesofeventsthatdisplayinthelog,clickSettings.



Page73



3. IntheAcceptedEventssection,selectthetypeofactivitiesthatgeneratesalog

message:

 AcceptedIncomingConnections–generatesalogmessageforeach

successfulattempttoestablishaninboundconnectiontothelocalnetwork.

 AcceptedOutgoingConnections‐generatesalogmessageforeach

successfulattempttoestablishanoutboundconnectiontothepublic

network.

4. IntheBlockedEventssection,selectthetypeofblockedeventsyouwantlogged.

5. Tologamessageforeachremoteadministrationconnectionattempt,clickthe

RemoteAdministrationAttemptscheckbox.

6. TologtheconnectionforhandlingbythefirewallandapplicationlevelGateways,

clicktheConnectionStatescheckbox.

7. ClickApplytosavechanges.TheSecurityLogpagedisplays.



Page74



Chapter7 SettingParentalControls

TheabundanceofharmfulinformationontheInternetposesaseriouschallengefor

employersandparentsalikeastheyask“HowcanIregulatewhatmyemployeeorchild

doesontheInternet?”

Withthatquestioninmind,yourGateway’sParentalControlsweredesignedtoallow

controlofInternetaccessonalllocallynetworkeddevices.

ActivatingParentalControls

YoucancreateabasicaccesspolicyforanycomputerordeviceonyourGatewaynetwork.

ParentalcontrolslimitInternetaccesstospecificwebsitesbasedonaschedulethatyou

create.

Accesscanbelimitedonspecificwebsitesorkeywordsembeddedinawebsite.Forexample,

youcanblockaccesstothe‘www.anysite.com’aswellasblockanywebsitethathasthe

word‘any’initssitename.

¾ Tolimitcomputeraccess:

1. SelectParentalControl.



Page75



2. InStep1,selectthecomputersordevicewhereyouarelimitingaccessinthe

NetworkedComputer/Devicelistbox,thenclickAdd.Thedevicesdisplayinthe

SelectedDevicessection.

3. ToremoveadevicefromtheSelectedDeviceslistbox,selectthedevice,then

clickRemove.ThedevicedisplaysintheNetworkedComputer/Devicelistbox.

4. InStep2,clickoneofthefollowingoptionsintheLimitAccessBysection:

 BlockthefollowingWebsitesandEmbeddedKeywordswithinaWebsite–

blocksthespecifiedwebsitesandwebsiteswithnamescontainedthe

specifiedkeyword.

 AllowthefollowingWebsitesandEmbeddedKeywordswithinaWebsite–

allowsthespecifiedwebsitesandwebsiteswithnamescontainedthe

specifiedkeyword.

 BlockALLInternetAccess–willnotallowthedevicetoaccesstheInternet.

5. Enterthenameofthewebsiteorkeyword,thenclickAdd.



Page76



6. Toremoveawebsiteorkeyword,selecttheword,thenclickRemove.

7. Createaschedulebyselectingthedaysoftheweekwhentherulewillbeactive

orinactive.



Page77



8. Setthetimewhentherulewillbeactiveorinactive,thenspecifythestarttime

andendtime.

9. Createarulenameanddescription.

10. ClickApplytosavechanges.

RuleSummary

YoucanviewtherulescreatedforyourGateway.

• Toviewtherulesummary,selectRuleSummary.TheRuleSummarypageopens

withtherulename,description,andcomputerordevicedisplayed.

Youcanview,edit,ordeletetherule.



Page78



Chapter8 ConfiguringAdvancedSettings

AdvancedsettingscoverawiderangeofsophisticatedconfigurationsforyourGateway’s

firmwareandnetwork.

Caution!Thesettingsdescribedinthissectionshouldonlybeconfiguredbyexperienced

networktechnicians.ChangescouldadverselyaffecttheoperationofyourGatewayand

localnetwork.

UsingAdvancedSettings

Youcanaccessthefollowingsettings:





¾ Toaccesstheadvancedsettings:

1. SelectAdvanced.Awarningpagedisplays,askingifyouwanttoproceed.

2. ClickYes.TheAdvancedpagedisplays.



Page79



3. Selectatopicbyclickingthetopicname.

Utilities

Youcanaccessthefollowingadvancedsettings:

• Diagnostics–performsdiagnostictests

• RestoreDefaults–resetsyourGatewaytoitdefaultsettings

• RebootRouter–restartsyourGateway

• MACCloning–clonestheMACaddress

• ARPTable–displaysactivedeviceswiththeirIPandMACaddresses

• Users–createsandmanagesremoteusers

• QualityofService(QoS)–contactTechnicalSupportfordetailedinformation

• LocalAdministration–allowsyoutograntlocalSSHaccess

• RemoveAdministration–detailedinChapter6ConfiguringYourNetworkSettings



Page80



Diagnostics

Youcanusediagnosticstotestnetworkconnectivity.

¾ Todiagnosenetworkconnectivity:

1. SelectDiagnosticsintheAdvancedpage.



2. TopinganIPaddress,entertheIPaddressordomainnameintheDestination

fieldandclickGo.

Thediagnosticswilldisplaythenumberofpings,status,packetssent,andround

triptime.

Ifnodiagnosticstatusdisplays,clickRefreshinyourwebbrowser.

3. ClickClosetoexitthesession.



RestoreDefaults

YoucanrestoreyourconfigurationsettingstoyourGatewayfactorydefaultsettings.

Restoringthedefaultsettingserasesthecurrentconfiguration,includinguserdefined

settingsandnetworkconnections.AllconnectedDHCPclientmustrequestnewIPaddresses.

YourGatewaymustrestart.

Priortorestoringthefactorydefaults,youmaywanttosaveyourcurrentconfigurationtoa

file.Thisallowsyoutoreapplyyourcurrentsettingsandparameterstothedefaultsettings,

asneeded.Foradditionalinformation,refertotheConfigurationFilesection.



Page81



Note:Whenrestoringdefaults,thesettingandparametersofyourGatewayarerestoredto

theirdefaultvalues.ThisincludestheAdministratorpassword.Auser‐specifiedpassword

willnolongerbevalid.

¾ TorestoreyourGateway’sfactorydefaultsettings:

1. SelectRestoreDefaultsintheAdvancedpage.



2. Tosaveyourcurrentconfigurationfile,clickSaveConfigurationFile.

3. Torestorethefactorydefaultsettings,clickOK.

ThefactorydefaultsettingsareappliedandyourGatewayrestarts.Once

complete,theLoginpagefortheFirstTimeEasySetupWizarddisplays.

RebootGateway

YoucanrebootyourGatewayusingtheRebootRouterfeatureaswellaspressingand

holdingtheWPSbuttononthefrontoftheGatewayforatleast10seconds.

¾ TorebootyourGateway:

1. SelectRebootRouterintheAdvancedpage.



Page82



2. Toreboot,clickOK.YourGatewayreboots.Thismaytakeuptoaminute.

3. ToaccessyourGatewayuserinterface,refreshyourwebbrowser.



MACCloning

AMACaddressisahexadecimalcodethatidentifiesadeviceonanetwork.Allnetworkable

deviceshaveauniqueMACaddress.

WhenreplacinganetworkdeviceonyourGateway,youcansimplifytheinstallationprocess

bycopyingtheMACaddressoftheexistingdevicetoyourGateway.



¾ TocopytheMACaddressoftheexistingdevice:

1. SelectMACCloningintheAdvancedpage.



2. IntheToPhysicalAddressfield,entertheMACaddressofyournewdevice.

3. TolocatetheMACaddress,refertothedocumentationfromthedevice

manufacturer.

4. ClickApplytosavechanges.



Page83



ARPTable

YoucanviewtheIPandMACaddressesofeachDHCPconnection.

¾ Toviewtheaddresses:

1. SelectARPTableintheAdvancedpage.



2. ReviewtheIPandMACaddressforeachdevice.

3. Whencomplete,clickClose.

Users

Youcanviewtheusersthatcancurrentlyaccessyourwirelessnetwork.Inaddition,youcan

modifytheirloginpasswordandnameaswellasmanagethenumberofunsuccessfullogin

attemptsausercanenterbeforeyourGatewaytemporarilydeniesallfurtherloginattempts

bythatuser.



¾ Toviewusers:

1. SelectUsersintheAdvancedpage.



Page84



2. IntheLoginConfigurationsection,enterthemaximumnumberofunsuccessful

3. Toeditusernamesandpasswords,clicktheEditiconintheActioncolumn.The

UserSettingspagedisplays.



Page85



4. Toedittheusernameandsetanewpassword,asneeded.

5. Toaddanewuser,specifythefollowingparameters:

 FullName–nameoftheuser.

 UserName–nametheuserenterstoremotelyaccessthehomeoroffice

network.Thisfieldiscase‐sensitive.

6. TosetanewPassword,selecttheSetanewpasswordcheckbox.TheNew

Passwordfieldsdisplay.

7. VerifythelevelofaccessfortheuserinthePermissionsfield.

8. ClickApplytosavechanges.TheUserspageopenswiththeuserinformation

displayed.

9. ClickApplyagaintosavechangesandexit.

LocalAdministration

Youcangrantlocalaccessonaspecificport.



¾ Tograntaccess:

1. SelectLocalAdministrationintheAdvancedpage.



2. Tograntaccess,selectthecheckboxforthespecificSSHaccess.

3. ClickApplytosavechanges.Localaccessisgranted.

4. Toremoveaccess,clearthecheckbox,thenclickApply.Nolocalaccessis

granted.



Page86



RemoteAdministration

TheRemoteAdministrationparametersaredetailedinChapter4ConfiguringYourNetwork

Settings.

DNSSettings

YoucanviewandmanagetheDNSserverhostnameandIPaddressaswellasaddanew

computer.TheDNSserverdoesnotrequireconfiguration.

DNSServer

Youcaneditthehostnameand/orIPaddress,ifthehostwasmanuallyaddedtotheDNS

table.Ifnot,youcanonlymodifythehostname.

ToaccesstheDNSserver:

1. SelectDNSServerintheAdvancedpage.



2. ToviewandaddcomputersstoredintheDNStable,clickAddDNSEntry.The

AddDNSEntrypagedisplays.

3. IntheHostNamefield,enterthenameofthecomputer,thenentertheIP

addressandclickApplytosavechanges.TheDNSServerpagedisplays.

4. ToeditthehostnameorIPaddress,clicktheEditiconintheActioncolumn.The

DNSEntrypagedisplays.Editthehostnameand/orIPaddress,thenclickApply

tosavechanges.

5. ToremoveahostfromtheDNStable,clicktheDeleteiconintheActioncolumn.



Page87



NetworkSettings

Youcanconfigurethefollowingnetworksettings:

• NetworkObjects–defineagroup,suchasagroupofcomputers

• UPnP–checksthevalidityofallUPnPservicesandrules

• IGMPProxy–enablesIGMPproxy

• PortForwardingRules–displaysportforwardingrules

NetworkObjects

Networkobjectsdefineagroup,suchasagroupofcomputers,onyourGatewaynetworkby

MACaddress,IPaddress,and/orhostname.Thedefinedgroupbecomesanetworkobject.

Youcanapplysettings,suchasconfiguringsystemrules,toalldevicesdefinedinthe

networkobject.

Forexample,insteadofsettingthesamewebsitefilteringconfigurationindividuallytofive

computersoneatatime,youcandefinethecomputersasanetworkobject.Website

filteringcanthenbesimultaneouslyappliedtoallthecomputers.

Youcanusenetworkobjectstoapplysecurityrulesbasedonhostnames,insteadofIP

addresses.ThisisusefulsinceIPaddresseschangefromtimetotime.Inaddition,youcan

definenetworkobjectsaccordingtoMACaddresstomaketheruleapplicationmore

persistentagainstnetworkconfigurationsettings.



¾ Todefineanetworkobject:

1. SelectNetworkObjectsintheAdvancedpage.



Page88



2. Todefineanetworkobject,clickAdd.TheEditNetworkObjectspagedisplays.



3. IntheDescriptionfield,enteranameforthenetworkobject.

4. ClickAdd.TheEditItempagedisplays.



5. SelectthetypeofnetworkobjectasIPaddress,IPsubnet,IPrange,MACaddress,

hostname,DHCPoption,orprotocol,andclickApplytosavechanges.

6. Repeattheabovestepstocreateadditionalnetworkobjects.

7. Whencomplete,clickApplytosavechanges.



Page89



UniversalPlugandPlay

YoucanuseUniversalPlugandPlay(UPnP)tosupportnewdeviceswithoutconfiguringor

rebootingyourGateway.

Inaddition,youcanenabletheautomaticcleanupofinvalidrules.Whenenabled,this

functionalityverifiesthevalidityofallUPnPservicesandruleseveryfiveminutes.Oldand

unusedUPnPdefinedservicesareremoved,unlessauser‐definedruledependsonit.

UPnPservicesarenotdeletedwhendisconnectingacomputerwithoutpropershutdownof

theUPnPapplications,suchasmessenger.Servicesmayoftennotbedeletedandeventually

thisleadstotheexhaustionofrulesandservices,andnonewservicescanbedefine.The

cleanupfeaturelocatestheinvalidservicesandremovesthem,preventingservices

exhaustion.



¾ Toaccessthissetting:

1. SelectUniversalPlugandPlayintheAdvancedpage.



2. ToenableUPnPandallowUPnPservicestobedefinedonanynetworkhosts,

selecttheUPnPEnabledcheckbox.

3. Toenableautomaticcleanupofinvalidrules,selectEnableAutomaticCleanup

ofOldUnusedUPnPServicescheckbox.

4. ClickApplytosavechanges.



Page90



IGMPProxy

YoucanconfigureIGMPproxysettings,asneeded.

¾ Todefinethesettings:

1. SelectICMPProxyintheAdvancedpage.



Page91



2. IntheIGMPProxyfield,verifyIGMPProxyisenabled.

3. IntheQuerierConfigurationsection,definethefollowingfields,asneeded:

 IGMPVersion‐selecttheIGMPProxyversionasIGMP,IGMPv2,orIGMPv3.

 FastLeave‐activateordeactivateFast.

 Robustness‐selectthelevelofrobustnessbyenteringanumbergreater

thanorequalto1.

 QueryInterval‐setthequeryintervalinseconds.Theintervalmustbe

greaterthanorequalto1.

 QueryResponseInterval‐setthequeryresponseintervalinseconds.The

intervalmustbegreaterthanorequalto1.

4. IntheClient(Host)Configurationsection,definethefollowingfields,asneeded:

 UnsolicitedReportInterval‐settheunsolicitedreportinseconds.The

intervalmustbebetween1and25.

 PersistentJoinInterval‐setthepersistentjoinintervalinseconds.The

intervalmustbebetween1and25.

5. ClickApplytosavechanges.



Page92



PortForwardingRules

Youcanview,modify,anddeleteportforwardingrules.

¾ Toaccesstherules:

1. SelectPortForwardingRulesintheAdvancedpage.



Page93



2. Toeditaprotocolrule,clicktheEditiconintheActioncolumn.TheEditService

pagedisplays.



3. ModifytheServiceNameandServiceDescription,asneeded.

4. Tomodifythecurrentprotocol,clicktheEditiconintheActioncolumn.

5. Toaddserverports,clickAddServerPorts.

6. ClickApplytosavechanges.





Page94



Routing

Youcanconfigurethefollowingsettings:

• IPv6–enablesIPv6support.

• Routing–managestheroutingandIPaddressdistributionrules.

• IPAddressDistribution‐addscomputersconfiguredasDHCPclientstothenetwork



IPv6ConfigurationControl

YoucanconfigureIPv6onyourwirelessnetwork.

¾ ToconfigureIPv6:

1. SelectIPv6fromtheAdvancedpage.



Page95



2. EnableIPv6support.

3. ObtainIPv6DNSServeraddressautomaticallyorspecifytheserveraddress.

4. SpecifymethodforassigningLANIPv6addresses.

5. IntheInterfacessection,selecttheenabledinterfaces.

6. ClickApplytosavechanges.

RoutingSettings

YoucanviewtheroutingandIPaddressdistributionrulesaswellasadd,edit,ordeletethe

rules.

¾ Toviewtherules:

1. SelectRoutingintheAdvancedpage.



Page96



2. ToaddanewGateway,clickAddNewRoute.



3. Specifythefollowingparameters:

 Name–selectthenetworktype.

 Destination‐enterthedestinationIPofthedestinationhost,subnet

address,networkaddress,ordefaultroute.Thedestinationforadefault

routeis0.0.0.0.

 Netmask–enterthenetworkmask.Thisisusedinconjunctionwiththe

destinationtodeterminewhenarouteisused.

 Gateway–entertheIPaddressofyourGateway.

 Metric–enterameasurementpreferenceoftheroute.Typically,thelowest

metricisthemostpreferredroute.Ifmultipleroutesexisttoaspecific

destinationnetwork,theroutewiththelowestmetricisused.

4. ClickApplytosavechanges.



Page97



IPAddressDistribution

YoucaneasilyaddcomputersconfiguredasDHCPclientstothenetwork.TheDHCPserver

providesamechanismforallocatingIPaddressestothesehostsandfordeliveringnetwork

configurationparameterstothehosts.

Forexample,aclient(host)sendsabroadcastmessageonthenetworkrequestinganIP

addressforitself.TheDHCPserverthenchecksitslistofavailableaddressesandleasesa

localIPaddresstothehostforaspecificperiodoftimeandsimultaneouslydesignatesthis

IPaddressastaken.Atthispoint,thehostisconfiguredwithanIPaddressfortheduration

ofthelease.

Thehostcanrenewanexpiringleaseorletitexpire.Ifitrenewsalease,thehostreceives

currentinformationaboutnetworkservices,asitdidduringtheoriginallease,allowingitto

updateitsnetworkconfigurationstoreflectanychangesthatoccurredsincethefirst

connectiontothenetwork.

Ifthehostwishestoterminatealeasebeforeitsexpiration,itsendsareleasemessageto

theDHCPserver.ThismakestheIPaddressavailableforusebyotherhosts.

TheDHCPserverperformsthefollowingfunctions:

• DisplaysalistofallDHCPhostdevicesconnectedtoyourGateway

• DefinestherangeofIPaddressesthatcanbeallocatedinthenetwork

• DefinesthelengthoftimethedynamicPaddressesareallocated

• Providestheaboveconfigurationsforeachnetworkdeviceandcanbeconfigured

andenabledordisabledseparatelyforeachnetworkdevice

• AssignsastaticleasetoanetworkcomputertoreceivethesameIPaddresseach

timeitconnectstothenetwork,evenifthisIPaddressiswithintherangeof

addressesthattheDHCPservermayassigntoothercomputer

• ProvidestheDNSserverwiththehostnameandIPaddressofeachcomputer

connectedtothenetwork



Page98



¾ ToviewasummaryoftheservicesprovidedbytheDHCPserver:

1. SelectIPAddressDistributionintheAdvancedpage.



DHCPServerSettings

YoucanedittheDHCPserversettingsforadevice.

¾ Toeditthesettings:

1. OntheIPAddressDistributionpage,clicktheEditiconintheActioncolumn.The

DHCPSettingspageopenswiththedeviceinformationdisplayed.



Page99



2. ToenabletheDHCPserver,selectDHCPServerintheIPAddressDistribution

field.

Onceenabled,theDHCPserverprovidesautomaticIPassignments(IPleases)

basedonthepresetIPrangedefinedbelow.

3. ToconfiguretheDHCPservercompletethefollowingfields:

 StartIPAddress–enterthefirstIPaddressthatyourGatewaywill

automaticallybeginassigningIPaddressesfrom.SinceyourGateway’s

defaultIPaddressis192.168.1.1,thedefaultstartIPaddressshouldbe

192.162.1.2.

 EndIPAddress–enterthelastIPaddressthatyourGatewaywill

automaticallystoptheIPaddressallocation.ThemaximumendIPaddress

rangethatcanbeenteredis192.168.1.254.

 WINSServer–determinestheIPaddressassociatedwithanetworkdevice.

 LeaseTimeinMinutes‐assignstheamountoftimeinminutesthateach

deviceisassignedanIPaddressbytheDHCPserverwhenitconnectstothe

network.

Whentheleaseexpires,theserverdeterminesifthecomputerhas

disconnectedfromthenetwork.Ifithas,theservermayreassignthisIP

addresstoanewly‐connectedcomputer.

 ProvideHostNameifNotSpecifiedbyClient–whenactivated,your

Gatewayassignsadefaultnametotheclient,iftheDHCPclienthasnohost

name.

4. ClickApplytosavechanges.



DHCPConnections

Youcanviewalistoftheconnectionscurrentlyassignedandrecognizedbythe

DHCPserver.Inaddition,youcanaddanewconnectionwithafixedIPaddress.

Note:ThefixedIPaddressofadeviceisassignedtotheMACaddressofthe

networkcardinstalledonthenetworkcomputer.Ifthisnetworkcardisreplaced,

youmustupdatethedeviceentryintheDHCPConnectionslistwiththeMAC

addressofthenewnetworkcard.



¾ Toviewalistofcomputers:

1. OntheIPAddresspage,clickConnectionList.



Page100



2. TodefineanewStaticConnectionwithafixedIPaddress,clickAddStatic

Connection.



Page101



3. Enterthehostname.

4. EnterthefixedIPaddresstobeassigned.

5. EntertheMACaddressofthenetworkinterfaceofthecomputerusedwiththis

DHCPstaticconnection.

6. ClickApplytosavechanges.





Page102



FirmwareUpgrade

Youcanperformthefollowingfunctions:

• FirmwareUpgrade–upgradesusingtheInternetoralocalcomputer.

• FirmwareRestore–rollbacksyourfirmwaretoapreviousversion.

FirmwareUpgrade

YourGatewayoffersabuilt‐inmechanismforupgradingorrestoringitsfirmwarewithout

losingcustomconfigurationandsettings.

Youcanuseeitherofthefollowingmethods:

• UpgradingfromtheInternet–upgradesyourGateway’sfirmwarebyremotely

downloadinganupdatedsoftwareimagefile.

• Upgradingfromalocalcomputer–useasoftwareimagefilepre‐downloadedtothe

computer’sdiskdriveforupgrades



¾ Toupgradethefirmware:

1. SelectFirmwareUpgradeintheAdvancedpage.



Page103



2. SelecteitherUpgradefromtheInternetorUpgradefromaComputerinthe

Network.

AutomaticallyUpgradefromtheInternet

¾ Toautomaticallyupgrade:

1. SelectfromthefollowingoptionsintheFirmwareUpgradepage:

 AutomaticallyCheckforNewVersionandUpgradeWirelessBroadband

Gateway–entertheperiodoftimeandURLatwhichtoreceivetheupgrade.

YourGatewaycheckseachtimeintervalforanupgradeand,ifanupgradeis

available,upgradesthefirmware.

 AutomaticallyCheckforNewVersionandNotifyviaEmail–enterthe

periodoftimeandURLatwhichtoreceivetheupgrade.YourGateway

checkseachtimeintervalforanupgradeand,ifanupgradeisavailable,

sendsanemailtotheemailaddresslistedintheSystemSettings.

 AutomaticallyCheckDisabled–YourGatewaydoesnotautomaticallycheck

forfirmwareupgrades.Youmustmanuallyupgradethefirmware.



Page104



2. ClickApplytosavechanges.

ManuallyUpgradefromtheInternet

¾ Tomanuallyupgrade:

1. ClicktheCheckNowbuttonintheFirmwareUpgradepage.

2. Ifanewversionisavailable,clickForceUpgrade.Adownloadprocessbegins.

Whencompleted,aconfirmationpagedisplays,askingwhethertoupgradeto

thenewversion.

3. ClickApplytosavechanges.Theupgradeprocessbeginsandshouldrequireno

morethanaminutetocompletetheprocess.

Whentheupgradeprocesscompletes,yourGatewayautomaticallyreboots.The

newfirmwareruns,maintaininganycustomconfigurationsandsettings.

UpgradefromLocalComputer

Onlyusefileswitharmtextensionwhenperformingthefirmwareupgradeprocedure.

¾ Toupgradefromalocalcomputer:

1. ToutilizetheUpgradefromaComputerintheNetworkoption,firstobtaina

validfirmwareimage(file)foryourGateway.

2. IntheUpgradefromaComputerintheNetworksectionoftheFirmware

Upgradepage,clickBrowsetolocatethedownloadedfirmwarefileandclick

Open.

3. ClickUpgradeNowtobegintheupdateprocess.TheFirmwareUpgradein

processpagedisplays.

Whentheupgradeprocesscompletes,yourGatewayautomaticallyreboots.The

newfirmwareruns,maintaininganycustomconfigurationandsettings.



FirmwareRestore

FirmwareRestoreallowsyoutoundochangestoyourGatewayandrestoreprevious

settings.Forexample,youcanusefirmwarerestoreifafirmwareupdatedoesnotfityour

needs.

¾ Torestorefirmwaretoapreviousversion:

1. SelectFirmwareRestoreintheAdvancedpage.



Page105



2. ClickRestoreBackupFirmware.







Page106



DateandTime

Youcanconfigurethefollowingsettings:

• DateandTimeSettings–setsthetimezoneandenablesautomatictimeupdates.

• SchedulerRules–limitstheactivationoffirewallrulestospecifictimeperiods.



DateandTimeSettings

Youcansetthetimezoneandenableautomatictimeupdates.

¾ Toconfigurethesettings:

1. SelectDateandTimeintheAdvancedpage.



Page107



2. Selectthelocaltimezone.YourGatewayautomaticallydetectsdaylightsaving

timesforselectedtimezone.

3. IntheAutomaticTimeUpdatesection,selecttheEnabledchecktoperforman

automatictimeupdate.

4. DefinethetimeserveraddressesbyclickingAdd.TheTimeServerSettingspage

displays.



5. EntertheIPaddressordomainnameofthetimeserver,thenclickApplytosave

changes.



SchedulerRules

Schedulerrulesareusedforlimitingtheactivationoffirewallrulestospecifictimeperiods.

Thetimeperiodsareeitherfordaysoftheweekorforhoursofeachdaybasedonactivity

orinactivity.



¾ Todefinearule:

1. VerifythatthedateandtimeofyourGatewayiscorrect.

2. SelectSchedulerRulesintheAdvancedpage.



Page108



3. ClickAdd.TheSetRuleSchedulepagedisplays.



Page109



4. Enterthenameoftherule.

5. IntheRuleSettingssection,specifyiftheruleisactiveatthescheduledtimeor

inactiveatthescheduledtime.

6. ClicktheAddRuleSchedule.TheEditRuleSchedulepagedisplays.



7. Selecttheactiveorinactivedaysoftheweek.

8. Todefineanewactiveorinactivehourlyrange,clickNewHoursRangeEntry.

9. Enterthestartandendtime,thenclickApplytosavechanges.

10. ClickApplyagaintosavetheruleschedule.



Page110



ConfigurationSettings

Youcanconfigurethefollowingconfigurationsettings:

• ConfigurationFile–usedforfilebackupsandrestoringconfigurationfiles

• SystemSettings–configuresvarioussystemandmanagementparameters

• PortConfiguration–setsupEthernetports

ConfigurationFile

YoucanusetheConfigurationFilefunctionalitytoview,save,andloadconfigurationfiles.

ThesefilesareusedtobackupandrestorethecurrentconfigurationofyourGateway.

OnlyconfigurationfilessavedonaspecificGatewaycanbeappliedtothatGateway.You

cannottransferconfigurationfilesbetweenGateways.

WARNING!ManuallyeditingaconfigurationfilecancauseyourGatewaytomalfunctionor

becomecompletelyinoperable.



¾ Tosaveorloadtheconfigurationfile:

1. SelectConfigurationFile.



Page111



2. Tosavethecurrentconfigurationtoafile,clickSaveConfigurationFile.The

configurationfileissavedtoyouwebbrowser’sdownloadfolder.

3. Toloadapreviouslysavedconfigurationfile,clickLoadConfigurationFile.

Browsetothelocationofthefile,thenclickApplytobegintheconfiguration

uploadingprocess.YourGatewaywillautomaticallyrestartwiththat

configuration.

SystemSettings

Youcanconfigurevarioussystemandmanagementparameters.

Toconfiguresystemsettings:

1. SelectSystemSettingsintheAdvancedpage.



Page112



2. IntheRouterStatussection,configurethefollowing:

 WirelessBroadbandRoute’sHostname–enterthehostnameorURL

addressofyourGateway.Bothnamesarethesame.

 LocalDomain–enterthelocaldomainofthenetwork.

3. IntheWirelessBroadbandRoutersection,configurethefollowingbyselecting

thecheckbox:

 AutomaticRefreshofSystemMonitoringWebPages–activatesthe

automaticrefreshofsystemmonitoringwebpages.

 PromptforPasswordwhenAccessingviaLAN–causesyourGatewaytoask

forapasswordwhentryingtoconnecttothenetwork.

 WarnUserBeforeConfigurationChanges–activatesuserwarningsbefore

networkconfigurationchangestakeeffect.

IntheSessionLifetimefield,specifythelengthoftimerequiredbefore

reenteringausernameandpasswordafteryourGatewayhasbeeninactive.

IntheConfigureaNumberofConcurrentUsersfield,selectthenumberofusers

thatcanaccessyourGatewayatanytime.

4. SelectRemoteAdministrationtoconfiguretheremoteadministrationtoyour

Gateway.

5. IntheManagementApplicationPortssection,changetheprimaryand

secondaryHTTPmanagementports.

6. IntheSystemLoggingsection,configurethefollowingsystemlogoptions:

 EnableLogging–activatessystemlogging.

 LowCapacityNotificationEnabled–activateslowcapacitynotification.This

worksinconjunctionwiththeAllowedCapacitybeforeEmailNotification

andSystemLogBufferSize.

 AllowedCapacitybeforeEmailNotification–specifythecapacitybeforean

emailnotificationissent.

 SystemLogBufferSize–specifythesizeofthesystemlogbuffer.

 RemoteSystemNotifyLevel–specifythetypeofinformation,suchasnone,

error,warning,andinformation,receivedforremotesystemlogging.



Page113



Page114



7. IntheSecurityLoggingsection,configurethefollowingsecurityloggingoptions:

 LowCapacityNotificationEnabled–activateslowcapacitynotification.This

worksinconjunctionwiththeAllowedCapacitybeforeEmailNotification

andSystemLogBufferSize.

 AllowedCapacitybeforeEmailNotification–specifythecapacitybeforean

emailnotificationissent.

 SystemLogBufferSize–specifythesizeofthesystemlogbuffer.

 RemoteSystemNotifyLevel–specifythetypeofinformation,suchasnone,

error,warning,andinformation,receivedforremotesystemlogging.

8. IntheAutoWANDetectionsection,specifytheDHCPtimeout.

9. ClickApplytosavechanges.



EthernetPortConfiguration

EthernetportconfigurationallowsyoutosetuptheEthernetportsaseitherfull‐orhalf‐

duplexports,ateither10Mbps,100Mbps,or1000Mbps.

¾ Toconfiguretheports:

1. SelectPortConfigurationintheAdvancedpage.



Page115



2. Toemulatethespeedandduplexconfigurationoftheportwithwhichit’s

communicating,selectAutoorselecttheportspeedandduplicity.

3. ClickApplytosavechanges.



Page116



Chapter9 MonitoringyourGateway

SystemMonitoringdisplayssysteminformation,includingbasicsettings,systemlog,key

networkdeviceparameters,andnetworktrafficstatistics.

GatewayStatus

YoucanviewthebasicsettingsofyourGateway.

¾ Toviewthebasicsettings:

1. SelectSystemMonitoringintheMainmenu.TheRouterStatuspagedisplays.



Page117



2. Torefreshthepage,clickRefresh.

3. Tocontinuouslyrefreshthepage,clickAutomaticRefreshOn.

AdvancedStatus

Youcanviewthedetailsandstatusof:

• SystemLogging

• FullStatus/SystemwideMonitoringofConnections

• TrafficMonitoring

• BroadbandMonitoring



¾ Toviewtheadvancedstatus:

1. SelectAdvancedStatus.Awarningpagedisplays.

2. ClickYes.TheAdvancedStatuspagedisplays.



3. Toviewthedetailsofthelistedmonitoringoptions,clickthelink.



Page118



SystemLogging

SystemloggingprovidesaviewofthemostrecentactivityofyourGateway.Inaddition,you

canviewadditionallogs,suchasthesecurity,advanced,firewall,WAN,DHCP,andLAN

DHCP.

¾ Toviewthesystemlog:

1. IntheAdvancedStatuspage,clicktheSystemLogginglink.



2. Tomonitoraspecificfeature,clickthelinkintheSystemLogmenuintheleft

column.

3. Toenablelogging,selecttheEnableLoggingcheckboxtomonitorthat

functionality.

4. Toupdatethedata,clickRefresh.



Page119



FullStatus/SystemwideMonitoringofConnections

YoucanviewasummaryofthemonitoreddatacollectedforyourGateway.

¾ ToviewyourGateway’sfullsystemstatus:

1. IntheAdvancedStatuspage,clickFullStatus/SystemwideMonitoringof

Connections.



2. Tomodifytheconnectionproperties,clicktheindividualconnectionlinks.

3. Torefreshthepage,clickRefresh.

4. Tocontinuouslyrefreshthepage,clickAutomaticRefreshOn.



Page120



TrafficMonitoring

YourGatewaycontinuallymonitorstrafficinthelocalareanetworkandbetweenthelocal

networkandtheInternet.Youcanviewuptothesecondstatisticalinformationaboutdata

receivedfromandtransmittedtotheInternetaswellasdatareceivedfromandtransmitted

tocomputersinthelocalnetwork.



¾ Toviewthetrafficmonitoringdata:

1. IntheAdvancedStatuspage,selectTrafficMonitoring.



2. Torefreshthepage,clickRefresh.

3. Tocontinuouslyrefreshthepage,clickAutomaticRefreshOn.



Page121



BandwidthMonitoring

YoucanviewandmonitortherecordedbandwidthusagemeasuredinKbps.



¾ Toviewthebandwidth:

1. IntheAdvancedStatuspage,selectBandwidthMonitoring.



2. Torefreshthepage,clickRefresh.

3. Tocontinuouslyrefreshthepage,clickAutomaticRefreshOn.



Page122



Chapter10 Troubleshooting

ThischapterlistssolutionsforissuesthatmaybeencounteredwhileusingyourGatewayas

wellasfrequentlyaskedquestions.

Note:Theadvancedsettingsshouldonlybeconfiguredbyexperiencednetworktechnicians

toavoidadverselyaffectingtheoperationofyourGatewayandyourlocalnetwork.

TroubleshootingTips

AccessingyourGatewayifyouarelockedout

IfyourGatewayconnectionislostwhilemakingconfigurationchanges,asettingthatlocks

accesstoyourGateway’sGUImayhaveinadvertentlybeenactivated.

ThecommonwaystolockaccesstoyourGatewayare:

• Scheduler

Ifaschedulehasbeencreatedthatappliestothecomputerovertheconnection

beingused,yourGatewaywillnotaccessibleduringthetimessetintheschedule.

• AccessControl

Iftheaccesscontrolsettingforthecomputerissettoblockthecomputer,accessto

yourGatewayisdenied.

Togainaccess,restorethedefaultsettingstoyourGateway.



RestoringyourGateway’sdefaultsettings

TherearetwowaystorestoreyourGateway’sdefaultsettings.Itisimportanttonotethat

afterperformingeitherprocedure,allpreviouslysavesettingsonyourGatewaywillbelost.

• Usingthetipofaballpointpenorpencil,pressandholdtheResetbuttononthe

backofyourGatewayforthreeseconds.

• AccesstheGUIandnavigatetotheAdvancedSettingspage.SelecttheRestore

Defaultsoption.Aftersavingyourconfiguration,ifdesired,clicktheRestore

Defaultsbutton.Foradditionaldetails,refertotheRestoreDefaultssectionofthis

guide.







Page123



LANconnectionfailure

TotroubleshootaLANconnectionfailure:

• VerifyyourGatewayisproperlyinstalled,LANconnectionsarecorrect,andthatthe

Gatewayandcommunicatingnetworkdevicesareallpoweredon.

• ConfirmthatthecomputerandGatewayarebothonthesamenetworksegment.

Ifunsure,letthecomputergettheIPaddressautomaticallybyinitiatingtheDHCP

function,thenverifythecomputerisusinganIPaddresswithinthedefaultrangeof

192.168.1.2through192.168.1.254.

IfthecomputerisnotusinganIPaddresswithinthecorrectIPrange,itwillnot

connecttoyourGateway.

• Verifythesubnetmaskaddressissetto255.255.255.0.



TimeouterroroccurswhenenteringtheURLorIPaddress

Verifythefollowing:

• Allcomputersareworkingproperly.

• IPsettingsarecorrect.

• Gatewayisonandconnectedproperly.

• Gatewaysettingsarethesameasthecomputer.



FrontLightedIndicators

FlashSpeed

• Slowflash–Twotimespersecond

• Fastflash–Fourtimespersecond

Power/InternetLight



• Slowflashwhite Gatewayisstarting

• Solidwhite GatewayispoweredonandconnectedtotheInternet

• Slowflashred Gatewayhasmalfunctioned

• Solidred UnabletoconnecttotheInternet

• Fastflashred Gatewayisoverheating.PleaseverifyyourGatewayis

uprightandhassufficientventilation



Page124



WirelessLight



• Solidwhite Wi‐Fiison

AdditionalFunctionswhenpressingWPSbutton:

• Slowflashwhite WhentheWPSbuttonispressed,theWirelessLight

slowlyflasheswhite,whilewaitingforaWPSdeviceto

connect.Thiscanrequireuptotwominutes.

• Fastflashwhite WhenadevicebeginsconnectingtotheGatewayusing

WPS,theWirelessLightfastflasheswhitefortwo

secondsasestablishingconnection.

• Solidwhite WhenadevicesuccessfullycompletesitsWPS

associationtotheGateway,theWirelessLightreturnsto

solidwhite.

• Fastflashred IfanerroroccursduringWi‐FiProtectedSetup,the

WirelessLightflashesredrapidlyfortwominutes.

RearLightedIndicators

FlashSpeed

• Slowflash–Twotimespersecond

• Fastflash–Fourtimespersecond

WANEthernet

• Unlit IndicatesnoEthernetlink

• Solidgreen Indicatesanetworklink

• Fastflashgreen‐ Indicatesnetworkactivity.Thetrafficcanbeineither

direction.

LANEthernet–UpperLED

• UnlitIndicatesno1Gbpslink

• Solidgreen Indicates1Gbpslink

• Fastflashgreen IndicatesLANactivity.Thetrafficcanbeineither

direction.



Page125



LANEthernet–LowerLED

• UnlitIndicatesno10/100Mbpslink

• Solidgreen Indicates10/100Mbpslink

• Fastflashgreen IndicatesLANactivity.Thetrafficcanbeineither

direction.

LANMoCA

• UnlitIndicatesnoMoCAnetworkconnectiontothedevice

• SolidgreenIndicatesnetworklink

WANMoCA

• UnlitIndicatesnolinktotheupstreamMoCAdevice

• SolidgreenIndicatesnetworklink







Page126



FrequentlyAskedQuestions

I’verunoutofEthernetportsonmyGateway.HowdoIaddmorecomputersordevices?

PlugginginanEthernethuborswitchexpandsthenumberofportsonyourGateway.

• Runastraight‐throughEthernetcablefromtheUplinkportofthenewhubtothe

Gateway.

UseacrossovercableifthereisnoUplinkport/switchonyourhub,useacrossover

cable.

• RemoveanexistingdevicefromtheyellowEthernetportonyourGatewayanduse

thatport.



HowdoIchangethepasswordonmyGatewayGUI?

Tochangethepassword:

1. OntheMainscreen,selectAdvanced,thenselectUsers.

2. IntheUserspage,selectAdmin.TheUserSettingspagedisplays.

3. IntheGeneralsection,changethepassword.



IsthewirelessoptiononbydefaultonmyGateway?

Yes,yourGateway’swirelessoptionisactivatedoutofthebox.



Isthewirelesssecurityonbydefaultwhenthewirelessoptionisactivated?

Yes,withtheuniqueWPA2(Wi‐FiProtectedAccessII)keythatisprintedonthestickeron

thesideofyourGateway.



WhichconnectionspeedsdoesyourGatewaysupport?

TheEthernetWANInternetconnectionsupports100Mbps.TheLANEthernetconnections

support10/100/1000Mbps.The802.11acwirelessconnectionsupportsupto1300Mbps

andthe802.11nsupportsupto450Mbps,dependingonsignalquality.TheMoCA2.0

connectionsupports700Mbps.



AreyourGateway’sEthernetportsauto‐sensing?

Yes.Eitherastraight‐throughorcrossoverEthernetcablecanbeused.



Page127



CanIuseanolderwirelessdevicetoconnecttoyourGateway?

Yes,yourGatewaycaninterfacewith802.11b,g,n,oracdevices.YourGatewaycanbe

setuptohandleonlynwirelesscards,gwirelesscards,bwirelesscards,oranycombination

ofthethree.



Canmywirelesssignalpassthroughfloors,walls,andglass?

ThephysicalenvironmentsurroundingyourGatewaycanhaveavaryingeffectonsignal

strengthandquality.Thedensertheobject,suchasaconcretewallcomparedtoaplaster

wall,thegreatertheinterference.Concreteormetal‐reinforcedstructuresexperiencea

higherdegreeofsignallossthanthosemadeofwood,plaster,orglass.



HowdoIlocatetheIPaddressthatmycomputerisusing?

InWindows7,clicktheWindowsbuttonandselectControlPanel,thenclickViewNetwork

StatusandTasks.Inthenextwindow,clickLocalAreaConnection.IntheLocalArea

NetworkConnectionStatuswindow,clickDetails.

OnMacOSX,openSystemPreferencesandclicktheNetworkicon.TheIPaddressdisplays

nearthetopofthescreen.



MycomputercannotconnecttotheInternetusingMoCA.WhatshouldIdo?

AcomputercannotbeconnecteddirectlyusingaMoCAcable.ItmustgothroughaNIMto

connect.TheNIMconvertstheMoCAsignaltoanEthernetsignalthecomputercan

understand.

First,checktheconnectionandverifyallcablesareconnectedcorrectly.Thenverifythe

NIMisstillconnectedandchecktheEthernetconnectiontotheNIMfromthecomputer.



IusedDHCPtoconfiguremynetwork.DoIneedtorestartmycomputertorefreshmyIP

address?

No.InWindows7,unplugtheEthernetcableorwirelesscard,thenplugitbackin.



IcannotaccessyourGatewayGUI.WhatshouldIdo?

IfyoucannotaccesstheGUI,verifythecomputerconnectedtoyourGatewayissetupto

dynamicallyreceiveanIPaddress.



IhaveaFTPorwebserveronmynetwork.HowcanImakeitavailabletousersonthe

Internet?

Forawebserver,enableportforwardingforport80totheIPaddressoftheserver.Also,

setupthewebservertoreceivethatport.ConfiguringtheservertouseastaticIPaddressis

recommended.



Page128



ForaFTPserver,enableportforwardingforport21totheIPaddressoftheserver.Also,set

upthewebservertoreceivethatport.ConfiguringtheservertouseastaticIPaddressis

recommended.



HowmanycomputerscanbeconnectedthroughmyGateway?

YourGatewayiscapableof254connections,butwerecommendhavingnomorethan45

connections.Asthenumberofconnectionsincrease,theavailablespeedforeachcomputer

decreases.



Page129



Chapter11 Specifications

ThespecificationsforyourFiOSQuantumGatewayareasfollows.Thisincludesstandards,

cablingtypes,andenvironmentalparameters.

Note:Thespecificationslistedinthischapteraresubjecttochangewithoutnotice.

General

ModelNumber

Model:FiOS‐G1100



Standards

IEEE802.3x,802.3u

IEEE802.11b/g/n/ac



IP

IPversions4and6



MoCA

MoCAWAN:1350–1675MHzand975‐1025MHz

MoCALAN:1125–1225MHz



Speed

WiredWAN

WiredLANEthernet:10/100/1000Mbpsauto‐sensing

WirelessLAN:

802.11b–upto11Mbps

802.11g–upto54Mbps

802.11n–upto450Mbps

802.11ac–upto1300Mbps



Page130



CablingType

Ethernet10BaseT:UTP/STPCategory3or5

Ethernet100BaseT:UTP/STPCategory5

Ethernet1000BaseT:UTP/STPCategory5e



Firewall

ICSAcertified



LEDIndicators

FrontPanel

Power/Internet,Wi‐Fi



RearPanel

WANCoax,LANCoax,WANEthernet,andLANEthernet[4]



EnvironmentalParameters

DimensionsandWeight

FiOSQuantumGateway(unitonly)

Size:1.87”widthx10”heightx7.4”depth

Weight:1.56lbs/0.71kg

CompleteSystem(includingpackaging)

Size:9.88”/251mmwidthx3.90”/99mmheightx9.57”/243mmdepth

Weight:2.63lbs/1.19kg



Power

External,12VDC,3.0A



Certifications

FCCPart15,UL60950‐1



Page131



OperatingTemperature

10°Cto40°C(50°Fto104°F)



StorageTemperature

‐20°Cto85°C(‐4°Fto185°F)



OperatingHumidity

8%to95%(non‐condensing)



StorageHumidity

5%to100%(non‐condensing)



Page132



Chapter12 Notices

Thischapterlistsvariouscomplianceandmodificationnotices,aswellastheNEBS

requirementsandGPL.

RegulatoryComplianceNotices

ClassBEquipment

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledand

usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.

Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which

canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto

correcttheinterferencebyimplementingoneormoreofthefollowingmeasures:

• Reorientorrelocatethereceivingantenna

• Increasetheseparationbetweentheequipmentandreceiver

• Connecttheequipmenttoanoutletonacircuitdifferentfromtheonetowhichthe

receiverisconnected

• Consultthedealeroranexperiencedradioortelevisiontechnicianforhelp

Modifications

TheFCCrequirestheusertobenotifiedthatanychangesormodificationsmadetothis

devicethatarenotexpresslyapprovedbyGreenWaveReality,Inc.,mayvoidtheuser’s

authoritytooperatetheequipment.

DeclarationofconformityforproductsmarkedwiththeFCClogo–UnitedStatesonly.

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

• Thisdevicemaynotcauseharmfulinterference

• Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeunwantedoperation



Page133



Note:TocomplywithFCCRFexposurecompliancerequirements,theantennausedforthis

transmittermustbeinstalledtoprovideaseparationdistanceofatleast28cmfromall

personsandmustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.

Foroperationwithinthe5.15~5.25GHzfrequencyrange,thisdeviceisrestrictedtoindoor

environments.ThisdevicemeetsalltheotherrequirementsspecifiedinPart15E,Section

15.407oftheFCCRules.



ForquestionsregardingyourproductortheFCCdeclaration,contact:



GreenWaveReality,Inc

39Parker,suite100,Irvine,CA–92618

USA

tel:+1714805WAVE(9283)

email:na@greenwavereality.com



NEBSRequirements

ThecoaxialcablescreenshieldmustbeconnectedtotheEarthatthebuildingentranceper

ANSI/NFPA70,theNationalElectricalCode(NEC),inparticularSection820.93,“Grounding

ofOuterConductiveShieldofaCoaxialCable,”orinaccordancewithlocalregulation.

Warning!TheWANCoaxPortisintendedforconnectiontoVerizonFiOSonly.Itmustnotbe

connectedtoanyexteriororinteriorcoaxialwiresnotdesignatedforVerizonFiOS.



Page134



GeneralPublicLicense

Thisproductincludessoftwarecodedevelopedbythirdparties,includingsoftwarecode

subjecttotheenclosedGNUGeneralPublicLicense(GPL)orGNULesserGeneralPublic

License(LGPL).

TheGPLCodeandLGPLCodeusedinthisproductaredistributedWITHOUTANYWARRANTY

andaresubjecttothecopyrightsoftheauthors,andtothetermsoftheapplicablelicenses

includedinthedownload.Fordetails,seetheGPLCodeandLGPLCodeforthisproductand

thetermsoftheGPLandtheLGPL.

Verizon Online G1100 FiOS Quantum Gateway User Manual rev

Verizon Online LLC FiOS Quantum Gateway rev

Contents

User manual rev

Navigation menu

Namespaces

Views

Navigation
