ViaSat AT2220 Fixed L-Band satellite modem with WLAN and Bluetooth User Manual Explorer122 QSG Cobham v7x

ViaSat, Inc. Fixed L-Band satellite modem with WLAN and Bluetooth Explorer122 QSG Cobham v7x

Contents

User Manual I

!
EXPLORER 122
Quick Start Guide
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
2!
98-150579-A!
! !
Document number: 98-150579-A
Release date: 29 April 2016
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this
product and the accompanying documentation is disclaimed by Thrane & Thrane
A/S. The information in this manual is provided for information purposes only, is
subject to change without notice and may contain errors or inaccuracies. Manuals
issued by Thrane & Thrane A/S are periodically revised and updated. Anyone
relying on this information should acquire the most current version e.g. from
www.cobham.com/satcom, Service and support, or from the distributor. Thrane &
Thrane A/S is not responsible for the content or accuracy of any translations or
reproductions, in whole or in part, of this manual from any other source. In the
event of any discrepancies, the English version shall be the governing text.
Thrane & Thrane A/S is trading as Cobham SATCOM.
Copyright
© 2016 Thrane & Thrane A/S. All rights reserved.
Trademark acknowledgements
• Google Chrome™ is a trademark or registered trademark of Google, Inc.
• Other product and company names mentioned in this manual may be
trademarks or trade names of their respective owners.
Open Source License Notification
This product incorporates various open source software packages that are
distributed under license terms as described at:
http://www.viasat.com/FOSS-Usage'
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
3!
98-150579-A!
! !
FCC Regulatory Information
Compliance Statement (Part 15.19)
The enclosed hardware device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that
may cause undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by ViaSat could void the user’s
authority to operate the equipment. Manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifications to this equipment.
Industry Canada (IC) Regulatory Information
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Class B Digital Device Notice
This Class B digital apparatus complies with Canadian ICES-003, RSS-Gen and RSS-
210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003, CNR-Gen
et CNR-210 du Canada.
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
4!
98-150579-A!
! !
Warnings, Cautions, and Notes
Safety precautions or important information found in this document will normally
be presented just prior to the point where the hazard is likely to be encountered.
Symbols used to identify the information are defined as follows:
General Safety Precautions
General safety precautions are as follows:
WARNING: There are no user-serviceable parts inside the
terminal. The terminal should only be opened by a technician that
is trained and certified to service the EXPLORER 122.
WARNING: This device emits radio frequency (RF) energy when in
transmit mode. In order to comply with FCC RF Exposure limits,
the unit must be installed in such a way as to ensure that a
minimum separation distance of 44 cm (18 inches) is maintained
between the antenna and any nearby persons.
WARNING: A Warning is an operation or maintenance
procedure that, if not obeyed, can cause injury or death.
CAUTION: A Caution is an operation or maintenance
procedure that, if not obeyed, can cause damage to the
equipment.
NOTE: A Note gives information to help the reader.
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
5!
98-150579-A!
! !
Contents
User Manual!.......................................................................................................!6!
Warranty!.............................................................................................................!6!
Serviceable Parts!...............................................................................................!6!
Customer Support!.............................................................................................!6!
Your EXPLORER 122 Terminal!.........................................................................!7!
Unpacking the Terminal!...................................................................................!7!
Required Tools/Equipment!..............................................................................!8!
Quick Overview!..................................................................................................!8!
Connecting to the Terminal!............................................................................!9!
Setting up a Wired Interface!......................................................................!9!
Setting up a Wireless Interface!...............................................................!10!
Connecting to the Web Interface!............................................................!10!
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
6!
98-150579-A!
! !
User Manual
The Quick Start Guide provides a quick introduction to the basics of the EXPLORER
122.
For more detailed instructions and information please refer to the EXPLORER 122
User Manual which can be found at:
http://www.cobham.com/satcom, select Service and Support > Cobham SATCOM
Service and Support > 24-7 Self Service Center / Technical Downloads.
Warranty
For warranty information and repairs, please contact your service provider.
Serviceable Parts
The EXPLORER 122 terminal contains no user-serviceable parts.
Customer Support
Should your Cobham SATCOM product fail, please contact your dealer or installer,
or the nearest Cobham SATCOM partner. You will find the partner details on
www.cobham.com/satcom where you also find the Cobham SATCOM Self Service
Center web-portal, which may help you solve the problem. Your dealer, installer or
Cobham SATCOM partner will assist you whether the need is user training,
technical support, arranging on-site repair or sending the product for repair. Your
dealer, installer or Cobham SATCOM partner will also take care of any warranty
issue.
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
7!
98-150579-A!
! !
Your EXPLORER 122 Terminal
This quick start guide contains the basic information about getting your EXPLORER
122 Terminal up and running.

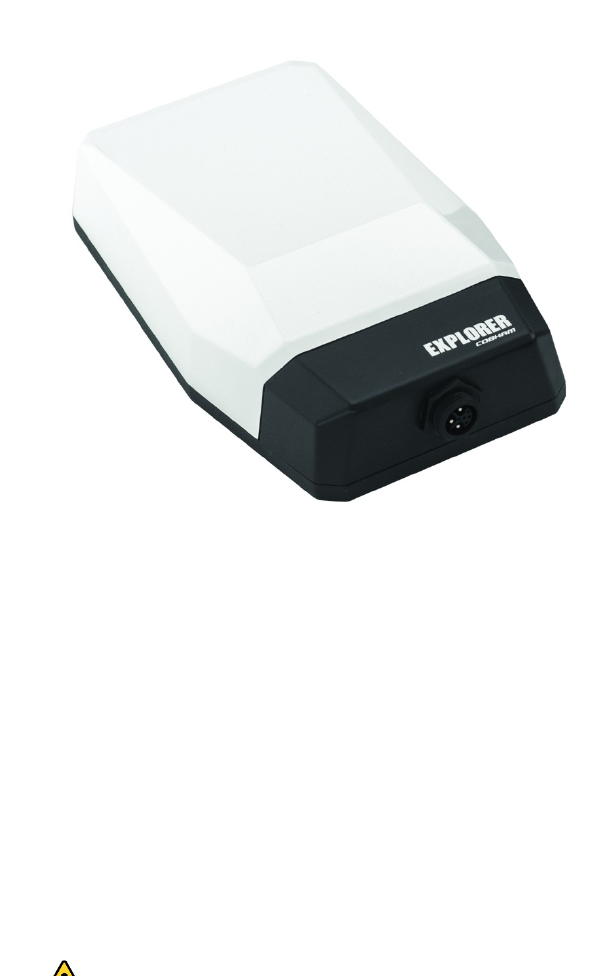

EXPLORER 122 Terminal
Unpacking the Terminal
Unpack the box, inventory the contents, and inspect for shipping damage. Contact
your retailer in case of missing contents or noticeable defects. Your package
should contain:
• EXPLORER 122 Terminal
• Mating Connector (assembly required)
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
8!
98-150579-A!
! !
Installing the Terminal
Refer to the EXPLORER 122 User Manual for detailed installation instructions.
Required Tools/Equipment
To get started, the following items are required:
1. Pre-assembled EXPLORER 122 cable
2. Magnetic mounts
Quick Overview
Installation location on the vehicle should provide the terminal with an
unobstructed line-of-sight to the satellite.
Terminal should be securely fastened to the vehicle using either magnetic
mounting hardware or permanent mounting hardware. Mounting system will vary
based on installation requirements.
Recommended terminal locations and mounting methods are outlined in the
EXPLORER 122 User Manual.
WARNING: Terminal antenna should be kept at least 44 cm
from direct exposure to humans.
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
9!
98-150579-A!
! !
Connecting to the Terminal
Setting up a Wired Interface
The EXPLORER 122 Terminal offers the following wired interfaces via a multi-pin
circular connector:

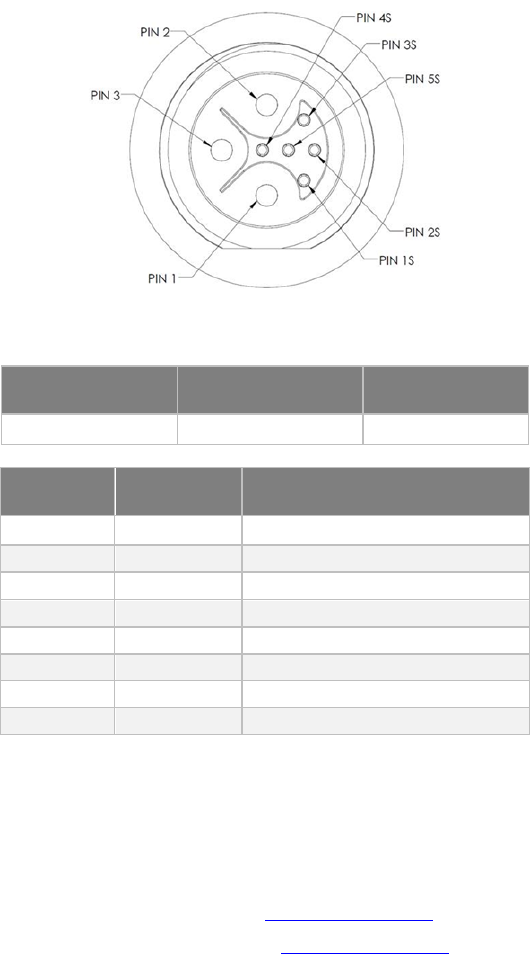

View of EXPLORER 122 Terminal Connector
Manufacturer
Terminal Connector
Part Number
Cable Connector
Part Number
Chogori
23305515-02
23305211-03
Pin
Number
Signal Name
Description
1
VIN
+10 to +30 VDC Power
2
IGNITION
Ignition Sense Line
3
VIN RTN
Power Return
1S
ETH RX+
Ethernet RX (+)
2S
ETH RX-
Ethernet RX (-)
3S
ETH TX+
Ethernet TX (+)
4S
Drain Wire
Ethernet Shield
5S
ETH TX-
Ethernet TX (-)
Refer to Appendix A in the EXPLORER 122 User Manual for detailed cable
instructions.
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
10!
98-150579-A!
! !
Setting up a Wireless Interface
To connect your WLAN-enabled device to the EXPLORER 122 Terminal:
1. Make sure that WLAN feature on your device is turned on and place it near the
terminal.
2. On your device, search for available WLAN networks.
3. The default SSID will be vmt_<FTI>_base where <FTI> should be replaced
with the fixed terminal identifier unique to your terminal.
a. Check the label on the terminal enclosure to obtain the FTI.
4. Select the SSID of your terminal network when it appears on the list.
5. The default password is terminal.
6. The encryption type is WPA2.
Connecting to the Web Interface
The EXPLORER 122 contains a web interface for basic configuration and status. To
access the web interface:
1. On your PC, enable DHCP on the networking device.
2. Use the latest released version of the Google Chrome™ browser.
3. To access the web interface:
a. Via the wired interface, enter http://192.168.100.1/ into the address bar.
b. Via the wireless interface, enter http://192.168.200.1/ into the address
bar.
4. Default username/password is admin/admin.
EXPLORER'122'Terminal'Quick'Start'Guide'
! ! !
11!
98-150579-A!
! !
!
