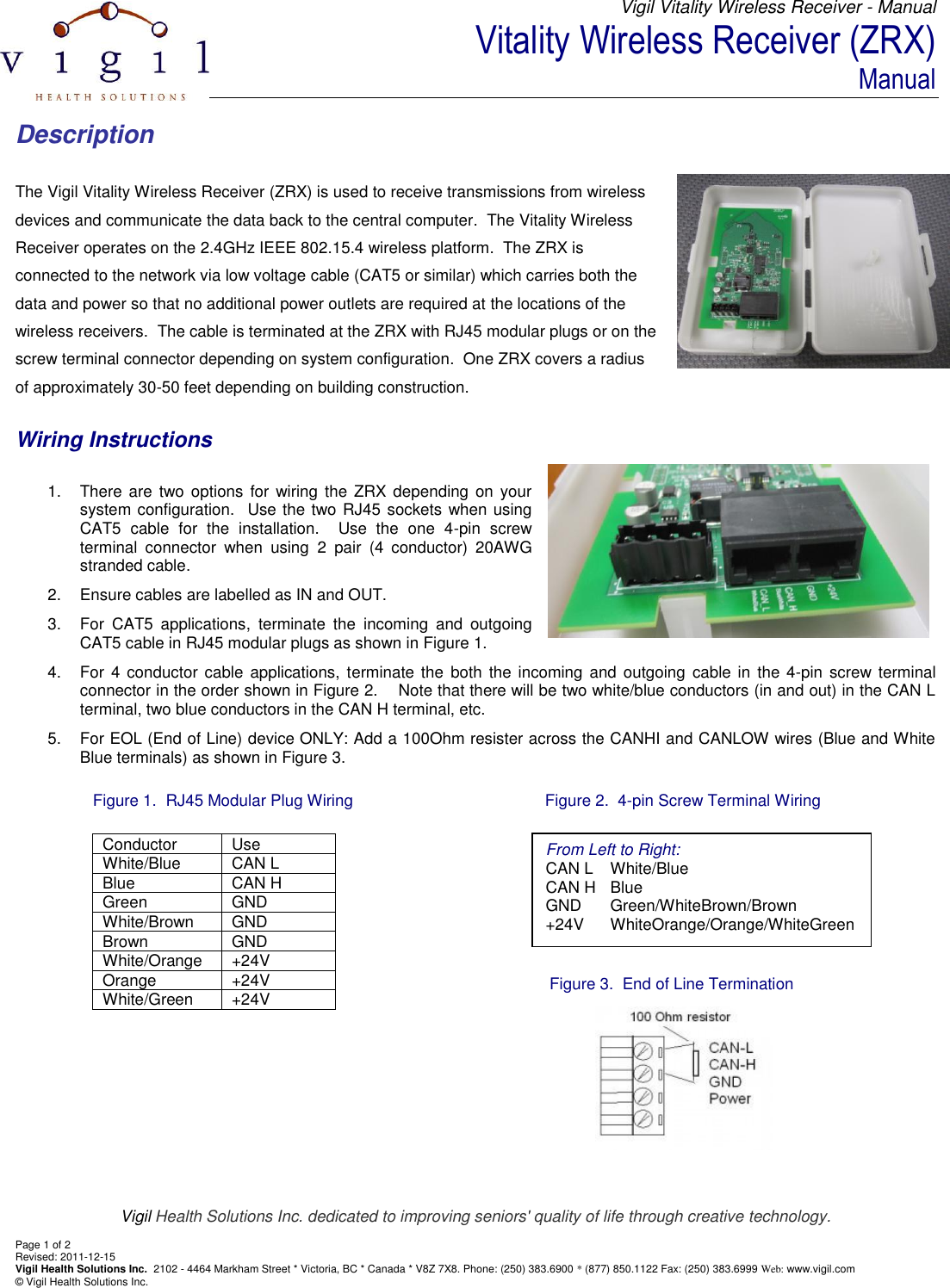

Vigil Vitality Wireless Receiver - Manual Vitality Wireless Receiver (ZRX) Manual Vigil Health Solutions Inc. dedicated to improving seniors' quality of life through creative technology. Page 1 of 2 Revised: 2011-12-15 Vigil Health Solutions Inc. 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8. Phone: (250) 383.6900 * (877) 850.1122 Fax: (250) 383.6999 Web: www.vigil.com © Vigil Health Solutions Inc. Description The Vigil Vitality Wireless Receiver (ZRX) is used to receive transmissions from wireless devices and communicate the data back to the central computer. The Vitality Wireless Receiver operates on the 2.4GHz IEEE 802.15.4 wireless platform. The ZRX is connected to the network via low voltage cable (CAT5 or similar) which carries both the data and power so that no additional power outlets are required at the locations of the wireless receivers. The cable is terminated at the ZRX with RJ45 modular plugs or on the screw terminal connector depending on system configuration. One ZRX covers a radius of approximately 30-50 feet depending on building construction. Wiring Instructions 1. There are two options for wiring the ZRX depending on your system configuration. Use the two RJ45 sockets when using CAT5 cable for the installation. Use the one 4-pin screw terminal connector when using 2 pair (4 conductor) 20AWG stranded cable. 2. Ensure cables are labelled as IN and OUT. 3. For CAT5 applications, terminate the incoming and outgoing CAT5 cable in RJ45 modular plugs as shown in Figure 1. 4. For 4 conductor cable applications, terminate the both the incoming and outgoing cable in the 4-pin screw terminal connector in the order shown in Figure 2. Note that there will be two white/blue conductors (in and out) in the CAN L terminal, two blue conductors in the CAN H terminal, etc. 5. For EOL (End of Line) device ONLY: Add a 100Ohm resister across the CANHI and CANLOW wires (Blue and White Blue terminals) as shown in Figure 3. Conductor Use White/Blue CAN L Blue CAN H Green GND White/Brown GND Brown GND White/Orange +24V Orange +24V White/Green +24V From Left to Right: CAN L White/Blue CAN H Blue GND Green/WhiteBrown/Brown +24V WhiteOrange/Orange/WhiteGreen Figure 1. RJ45 Modular Plug Wiring Figure 2. 4-pin Screw Terminal Wiring Figure 3. End of Line Termination

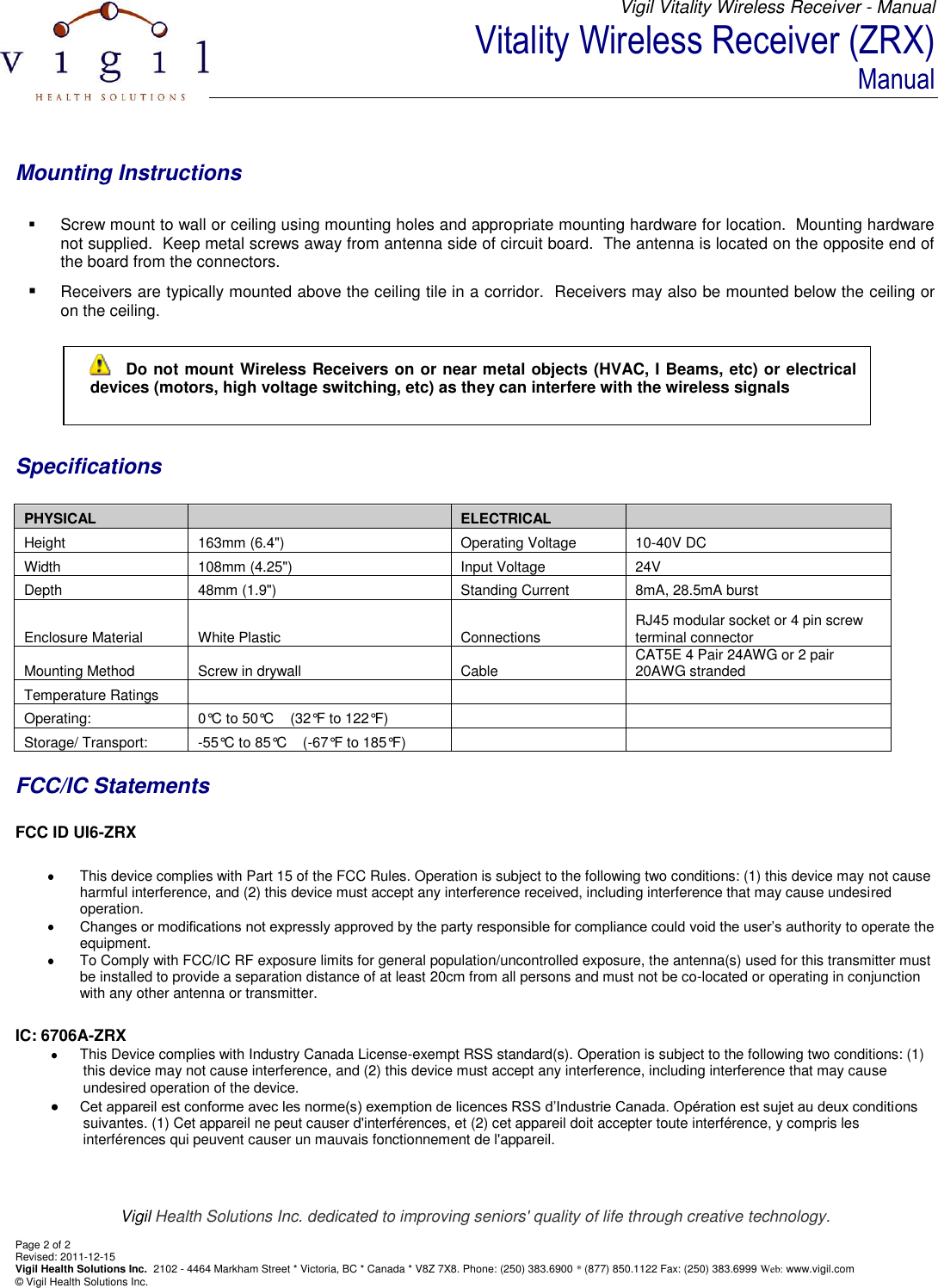

Vigil Vitality Wireless Receiver - Manual Vitality Wireless Receiver (ZRX) Manual Vigil Health Solutions Inc. dedicated to improving seniors' quality of life through creative technology. Page 2 of 2 Revised: 2011-12-15 Vigil Health Solutions Inc. 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8. Phone: (250) 383.6900 * (877) 850.1122 Fax: (250) 383.6999 Web: www.vigil.com © Vigil Health Solutions Inc. Mounting Instructions  Screw mount to wall or ceiling using mounting holes and appropriate mounting hardware for location. Mounting hardware not supplied. Keep metal screws away from antenna side of circuit board. The antenna is located on the opposite end of the board from the connectors.  Receivers are typically mounted above the ceiling tile in a corridor. Receivers may also be mounted below the ceiling or on the ceiling. Specifications PHYSICAL ELECTRICAL Height 163mm (6.4") Operating Voltage 10-40V DC Width 108mm (4.25") Input Voltage 24V Depth 48mm (1.9") Standing Current 8mA, 28.5mA burst Enclosure Material White Plastic Connections RJ45 modular socket or 4 pin screw terminal connector Mounting Method Screw in drywall Cable CAT5E 4 Pair 24AWG or 2 pair 20AWG stranded Temperature Ratings Operating: 0°C to 50°C (32°F to 122°F) Storage/ Transport: -55°C to 85°C (-67°F to 185°F) FCC/IC Statements FCC ID UI6-ZRX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To Comply with FCC/IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. IC: 6706A-ZRX This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec les norme(s) exemption de licences RSS d’Industrie Canada. Opération est sujet au deux conditions suivantes. (1) Cet appareil ne peut causer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. Do not mount Wireless Receivers on or near metal objects (HVAC, I Beams, etc) or electrical devices (motors, high voltage switching, etc) as they can interfere with the wireless signals
