MODULAR IOT GATEWAY

USER MANUAL

“THE CUTTING EDGE MODULAR TECHNOLOGY”

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 2

The information contained in this document is the proprietary information of Volansys Technologies Pvt.,

Ltd. The contents are confidential and any disclosure to persons other than the officers, employees,

agents or subcontractors of the owner or licensee of this document, without the prior written consent of

Volansys, is strictly prohibited.

Further, no portion of this document may be reproduced, stored in a retrieval system, or transmitted in

any form or by any means, electronic or mechanical, including photocopying and recording, without the

prior written consent of Volansys, the copyright holder.

Volansys publishes this document without making any warranty as to the content contained herein.

Further Volansys reserves the right to make modifications, additions and deletions to this document due

to typographical errors, inaccurate information, or improvements to reference design platforms or

products mentioned in the document at any time and without notice. Such changes will, nevertheless be

incorporated into new editions of this document.

Warranty

For details on the Volansys Modular IoT Gateway warranty policy, please visit our website:

www.volansys.com

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 3

TABLE OF CONTENTS

1 REVISION HISTORY ........................................................................................................................................ 7

1.1 REVISION HISTORY ............................................................................................................................................ 7

1.2 REFERENCES ..................................................................................................................................................... 7

2 USING THIS MANUAL .................................................................................................................................... 8

2.1 PURPOSE AND AUDIENCE .................................................................................................................................... 8

2.2 SUMMARY OF CHAPTERS ..................................................................................................................................... 8

3 OVERVIEW ..................................................................................................................................................... 9

3.1 KEY FEATURES ................................................................................................................................................ 10

3.2 USER CASES ................................................................................................................................................... 11

3.3 PROTOCOL SUPPORT ........................................................................................................................................ 11

3.4 ADDRESSES AND PORT NUMBERS ....................................................................................................................... 12

3.4.1 Hardware Address ................................................................................................................................. 12

3.4.2 IP Address .............................................................................................................................................. 12

3.4.3 Port Numbers ......................................................................................................................................... 12

3.5 REFERENCE DESIGN PLATFORM INFORMATION LABEL .............................................................................................. 12

4 REFERENCE DESIGN PLATFORM ARCHITECTURE AND INTERFACES .............................................................. 13

4.1 MEMORY, I/O PORTS AND EXTERNAL PERIPHERAL SUPPORT .................................................................................... 14

4.1.1 DDR3 ...................................................................................................................................................... 14

4.1.2 NAND Flash ............................................................................................................................................ 14

4.1.3 Micro SD Card Slot ................................................................................................................................. 14

4.2 ETHERNET PORT ............................................................................................................................................. 14

4.3 USB PORTS ................................................................................................................................................... 14

4.4 USB DEBUG PORT .......................................................................................................................................... 15

4.5 WI-FI AND BLUETOOTH .................................................................................................................................... 15

4.6 USER INTERFACE SWITCH .................................................................................................................................. 15

4.6.1 Commissioning Switch (SW1) ................................................................................................................. 15

4.6.2 Reset Switch ........................................................................................................................................... 16

4.7 USER LED INDICATIONS ................................................................................................................................... 16

4.8 NFC CONTROLLER ........................................................................................................................................... 16

4.9 MIKROBUS COMPATIBLE HEADERS ..................................................................................................................... 17

4.10 JN5179 ZIGBEE MODULE ................................................................................................................................ 17

4.11 MKW41Z THREAD+BLE MODULE .................................................................................................................... 18

5 INSTALLATION OF GATEWAY ....................................................................................................................... 19

5.1 MODULAR IOT GATEWAY BOX CONTENT ............................................................................................................. 19

5.2 DEVICES INSIDE MODULAR IOT GATEWAY ............................................................................................................ 19

5.3 USER REQUIRED ITEMS ..................................................................................................................................... 19

6 DEMO SETUP OF MODULAR IOT GATEWAY ................................................................................................. 20

7 CONTACT US AND SUPPORT ........................................................................................................................ 21

8 APPENDIX-A ................................................................................................................................................ 22

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 4

8.1 ACRONYMS & GLOSSARY .................................................................................................................................. 22

9 APPENDIX-B ................................................................................................................................................ 23

9.1 COMPLIANCE .................................................................................................................................................. 23

9.2 ROHS, REACH COMPLIANCE ............................................................................................................................ 23

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 5

List of Figures

Figure 1 – Modular IoT Gateway .........................................................................................................9

Figure 2 - Modular IoT Gateway With Inbuilt Peripheral .................................................................... 10

Figure 3 – Modular IoT Gateway With Inbuilt Peripheral ................................................................... 11

Figure 4 – Reference Design platform information Label ................................................................... 12

Figure 5 – Architecture Block Diagram .............................................................................................. 13

Figure 6 – Inside view of Modular IoT Gateway ................................................................................. 13

Figure 7 – Reference design Platform interface details ...................................................................... 14

Figure 8 – Modular IoT Gateway Switches ......................................................................................... 15

Figure 9 - NFC Controller .................................................................................................................. 16

Figure 10 - MikroBUS Header............................................................................................................ 17

Figure 11 - JN5179 Module ............................................................................................................... 17

Figure 12 - MKW41Z Module ............................................................................................................ 18

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 6

List of Tables

Table 1 - Revision History ...................................................................................................................7

Table 2 – References ..........................................................................................................................7

Table 3 - References ...........................................................................................................................8

Table 4 - Gateway USB Configuration ............................................................................................... 14

Table 5 - Terminal Settings ............................................................................................................... 15

Table 6 - User Interface Switch ......................................................................................................... 16

Table 7 - User LED Indications ........................................................................................................... 16

Table 8 – Modular IoT Gateway Reference design platform Content .................................................. 19

Table 9 - Modular IoT Gateway Unit Contents ................................................................................... 19

Table 10 – Other Require Equipment ................................................................................................ 19

Table 11 - Acronyms & Glossary ....................................................................................................... 22

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 7

1 REVISION HISTORY

1.1 Revision History

Rev.

Date

Description

Prepared By

Reviewed By

Approved By

0.1

21-Nov-16

Initial draft version

released

Volansys

0.2

02-March-17

Updated based on

review comments

Volansys

0.3

03-March-17

Updated based on

review comments

Volansys

0.4

12-July-17

Added MKW41Z details

and updated

certification label

details with new

Gateway part#

Volansys

Table 1 - Revision History

1.2 References

Documents

Revision

i.MX6UL Base Board Hardware User Guide

0.4

Datasheet of JN5179 Module

1.1

Datasheet/Product manual of MKW41Z Module

0.4

Quick start Guide of PN7120 NFC Controller Board

1.1

Table 2 – References

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 8

2 USING THIS MANUAL

2.1 Purpose and Audience

This document provides Introduction, key features, Reference design platform Architecture and

interfaces, demo setup and use of Modular IoT Gateway. It is intended for the users who are configuring

this Reference design platform. The user need to use this reference design platform in well controlled

indoor environment.

2.2 Summary of chapters

Chapter No.

Chapter

Description

Overview

Describes Introduction and key features and the protocols it

supports. Includes technical specifications.

Reference Design

Architecture and

Interfaces

Describes Hardware interface idea and wireless technology

support details.

Installation of Gateway

Describe details of List of content in box of Reference design

platform and how to install it on field

Demo Setup of

Modular IoT Gateway

Describes setup and configuration procedure with Wi-Fi and

Ethernet using mobile application.

support

Instructions for contacting Volansys and Technical Support

details

Appendix A

Acronyms and Glossary – Full forms of used short names

Appendix B

Gateway compliance details

Table 3 - References

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 9

3 OVERVIEW

“Modular IoT Gateway” is a smart, modular, customizable, multi-service advance Reference Design

Platform for Internet of Things. It is targeted for multiple use cases in various segments of IoT such as

Smart Home, Buildings and Industries. Powered by industrial leading technologies, the Gateway is

designed with Core features like Modular Hardware Design and Multi-Radio Connectivity (i.e. Wi-Fi, BLE,

ZigBee, Thread and NFC).

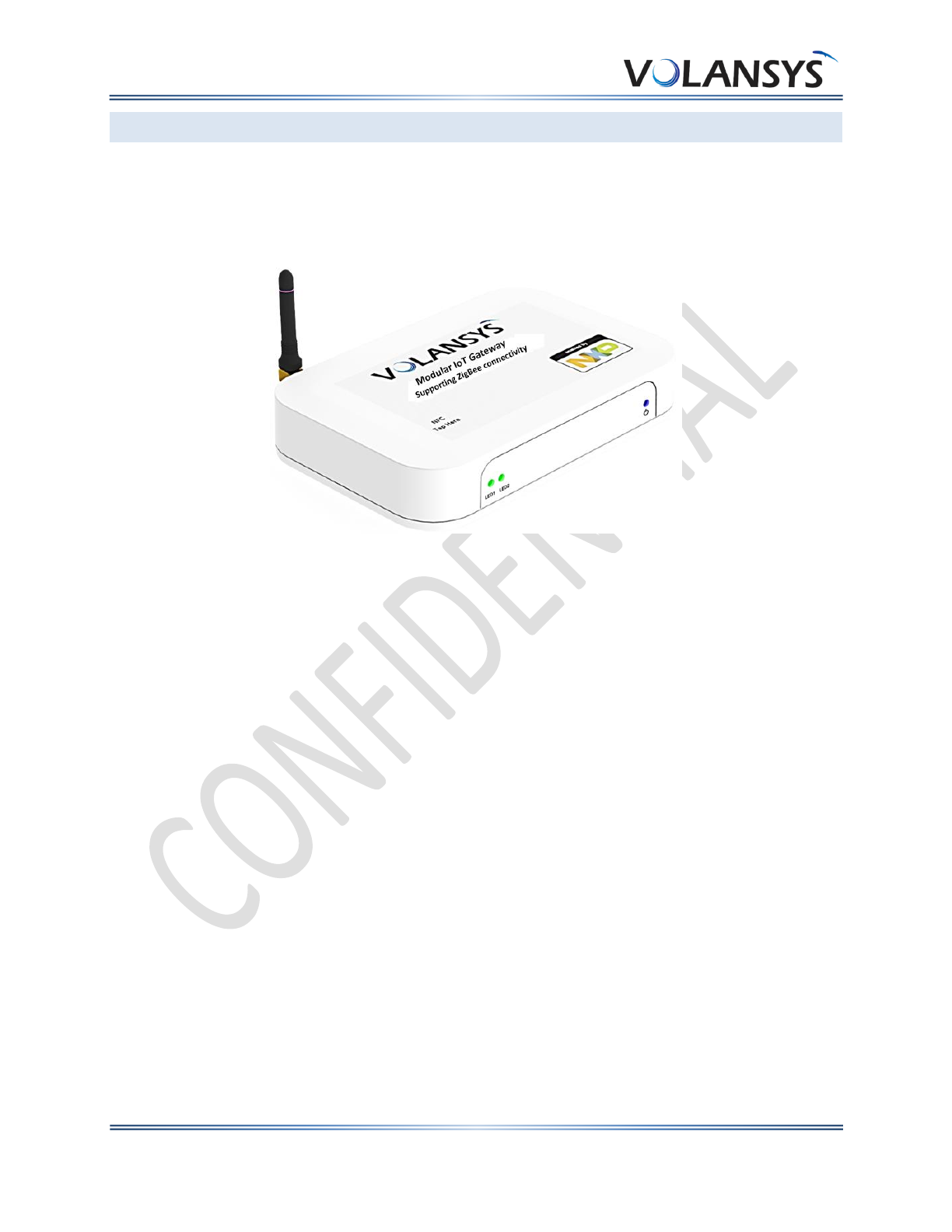

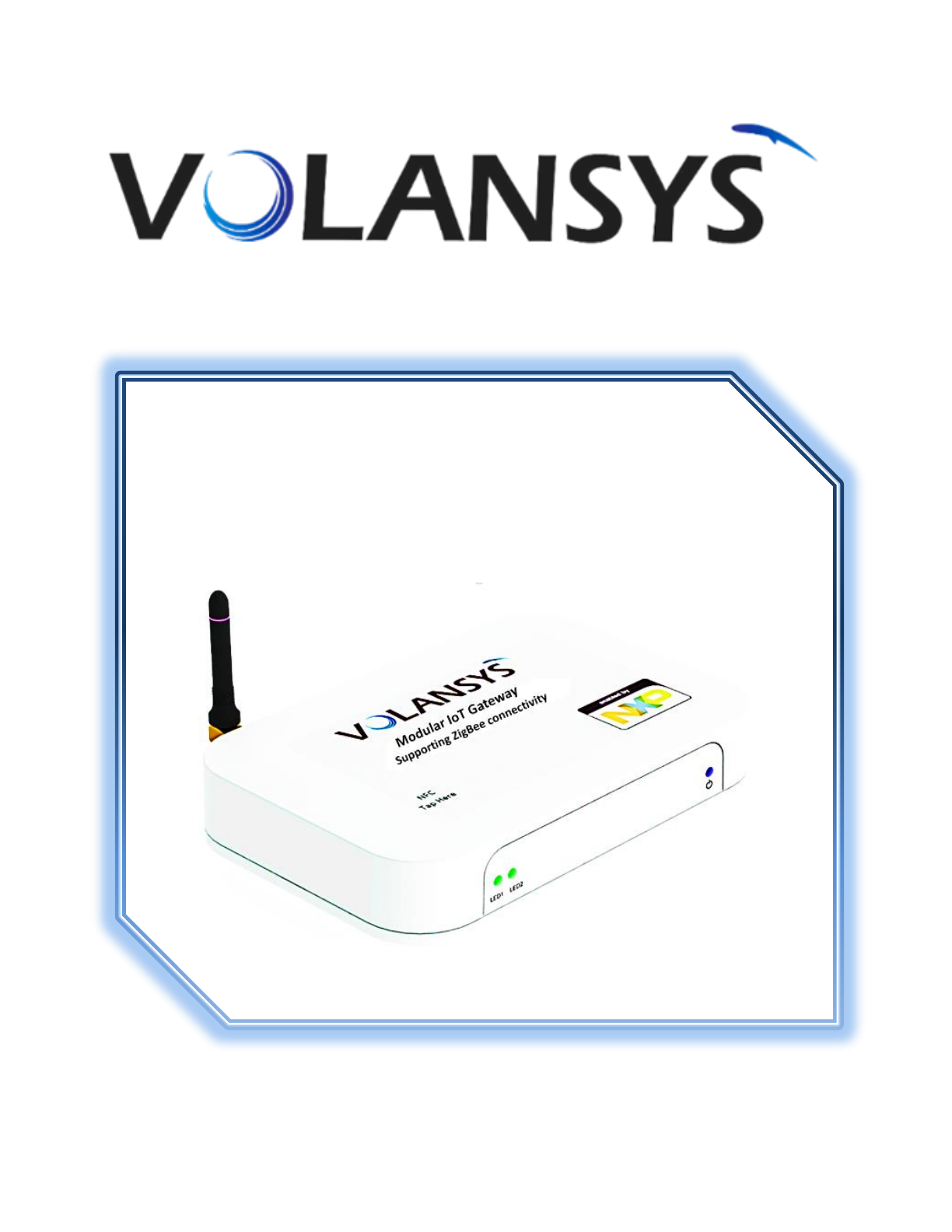

Figure 1 – Modular IoT Gateway

The Modular IoT Gateway, based on advance processor i.MX6UltraLite introduces users to the assembled

version of Gateway carrier and SoM board inside the platform. This gateway will help users to develop

and run their IoT based concept using wireless interfaces like Wi-Fi, BLE, ZigBee, Thread and NFC easily

and operate any supported devices wirelessly. It supports Wi-Fi and Ethernet for communication with

cloud.

The Modular IoT Gateway supports various versatile wireless hardware module through MikroBUS Header

such as Volansys’ RF Modules and other MikroBUS standard supported modules. It also support new

generation features PN7120 base NFC module, KW41Z based Thread+BLE module and NXP JN5179

ZigBee Module.

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 10

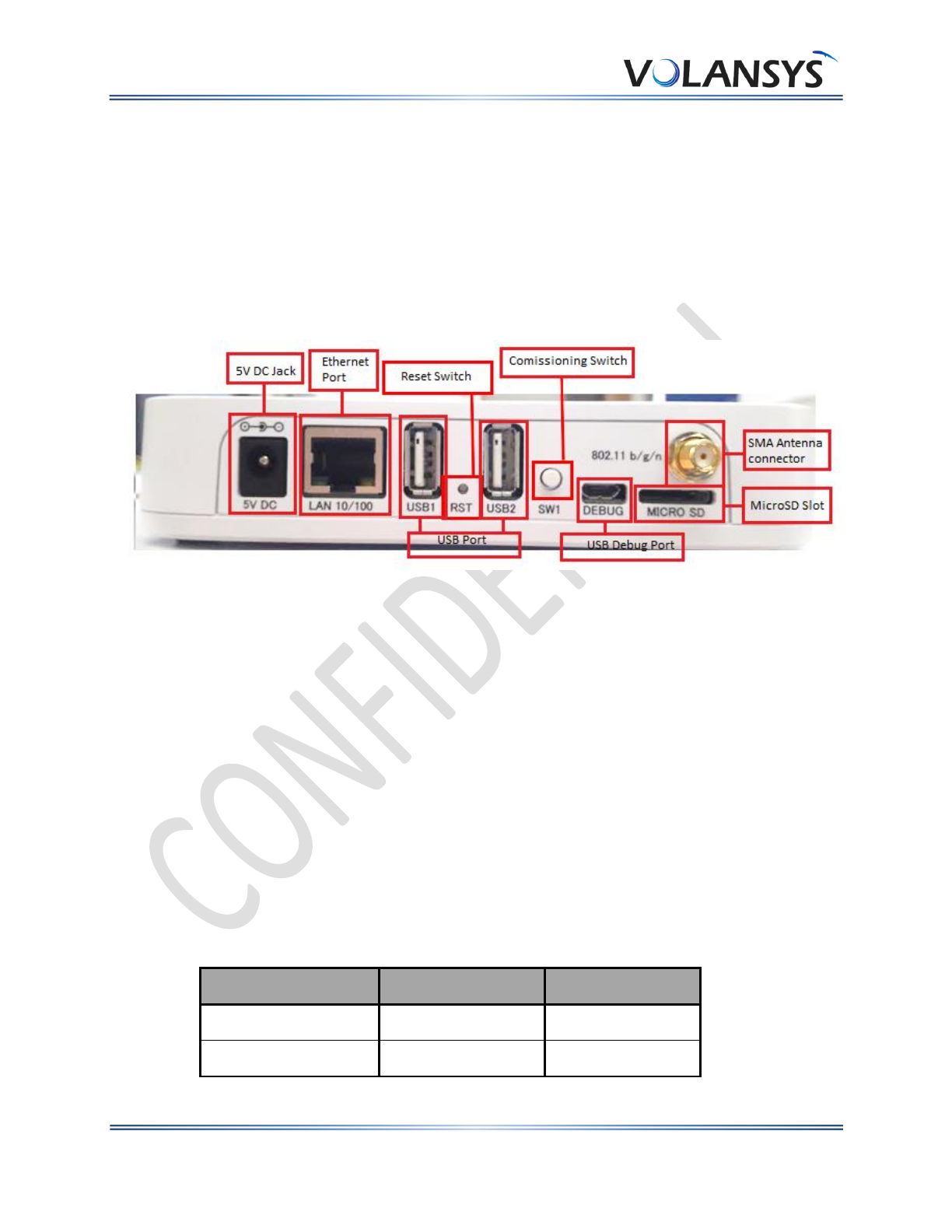

Figure 2 - Modular IoT Gateway With Inbuilt Peripheral

3.1 Key Features

The following specifications are available in the Modular IoT Gateway Reference design platform:

 Power Supply

o DC Jack for Input - 5V/3A from adaptor

 Processor

o i.MX 6UltraLite applications processor with a 528 MHz ARM® Cortex®-A7 core

 Memory

o 256MB DDR3L SDRAM

o 1GB NAND Flash

o Micro SD connector

 Ethernet

o 1x 10/100Mbps Ethernet RJ-45 connector

 USB Port

o 1x USB 2.0 Host connector

o 1x USB 2.0 Host connector (Device mode support)

 Wireless Technology

o Wi-Fi 802.11b/g/n and 802.15.1 BLEv4.0 compatible Wi-Fi + BT module from Murata

o 802.15.4/ZigBee Module JN5179

o NFC module using PN7120 controller for commissioning

o Thread+BLE Module MKW41Z

 Header Support

o MikroBUS compatible header to support mikroBUS compatible Volansys’ RF modules & all

other MikroBUS’ click modules which is universally accepted with same header compatibility

 Other I/O

o 1x Debug port via USB micro-B connector

o 1x Power LED, 2x Status LED

o 1x User Switch (for commissioning), 1x reset Switch

o JTAG connector

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 11

 Dimension

o 146.045 mm x 96.656 mm x 27.537 mm

 Weight

o 250 Grams

 Operating Temperature and Humidity

o 0 to 50 °C, 10% to 80% RH (Non-considering)

 Storage Temperature and Humidity

o -10 to 50 °C, 5% to 80% RH (Non-considering)

3.2 User Cases

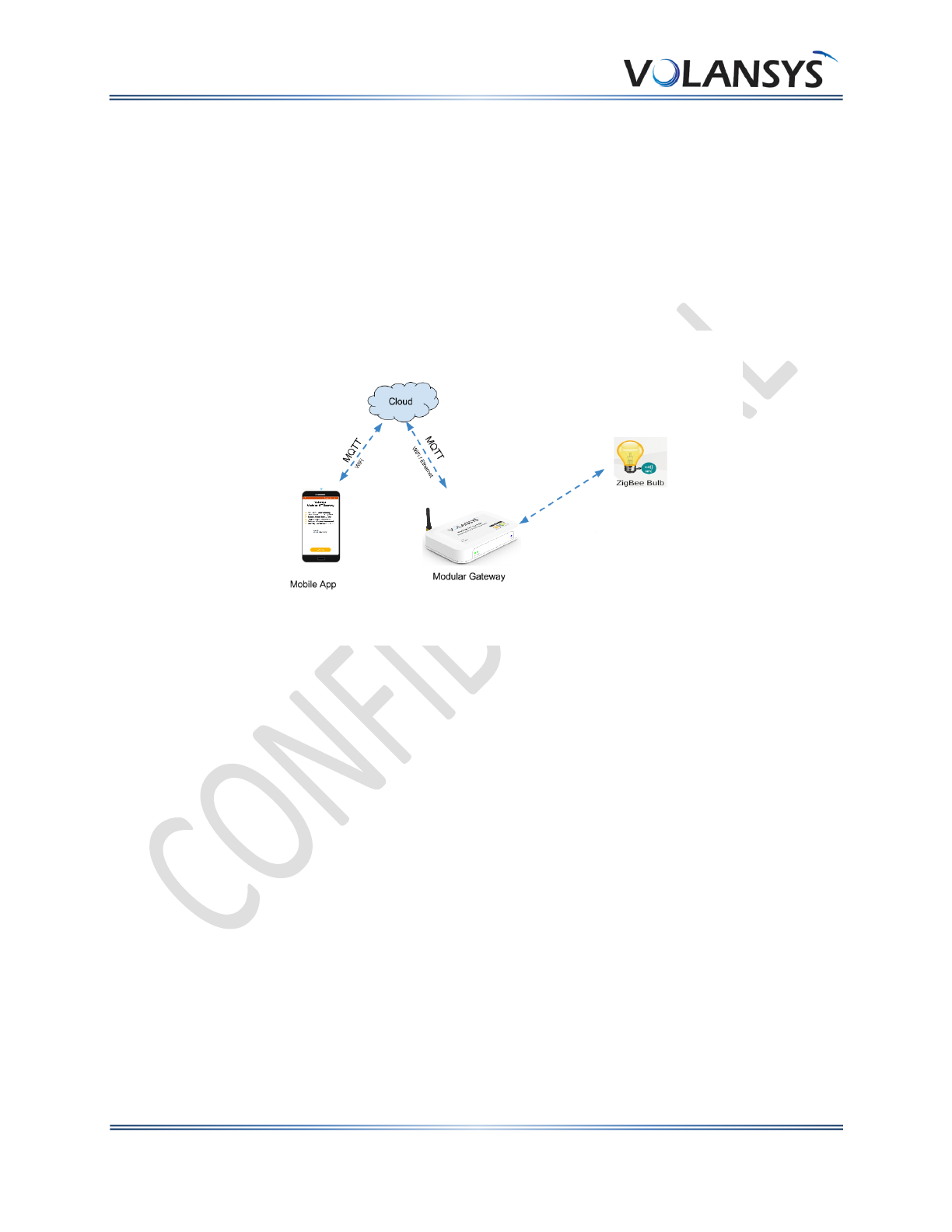

Figure 3 – Modular IoT Gateway With Inbuilt Peripheral

Volansys modular IoT gateway is central device to test gateway out of box. In this demo, user can

control and monitor ZigBee/Thread end devices with help of mobile application. In order to use, Modular

IoT Gateway, user needs to provide Internet connectivity to gateway board. The Gateway board support

Ethernet and Wi-Fi interface for cloud connectivity. Gateway also support NFC commission. Using this NFC

commission method user can provide Wi-Fi credential to Gateway and register them. User can seamlessly

add ZigBee device in Gateway network by NFC commission method. Once End devices are added to

Gateway’s network then user can control them remotely. Here note that the user need to use this

reference design platform in well controlled indoor environment.

3.3 Protocol Support

The Modular IoT Gateway contains a full-featured IP networking and wireless software stack:

 DHCP Client, DHCP Server, DHCPv6 Client

 uPnP (Discovery), LCAP (77FE), SSH, SSLv3/TLSv1, HTTP(S)

 IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS

 WPA/WPA2 Personal

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 12

3.4 Addresses and Port Numbers

3.4.1 Hardware Address

The hardware address is also referred to as the Ethernet address, physical address, or MAC address. The

first three bytes of the Ethernet address are fixed and identify the unit as a volansys reference design

platform. The fourth, fifth, and sixth bytes are unique numbers assigned to each unit. Sample ways

hardware address may be represented:

 00-80-A3-14-1B-18

 00:80:A3:14:1B:18

3.4.2 IP Address

Every device connected to an IP network must have a unique IPv4 address. This address references the

specific unit.

3.4.3 Port Numbers

Every TCP connection is defined by a destination and source IP Address, and a destination and source

port number. For example, a Telnet server commonly uses TCP port number 23.

The following is a list of the default server port numbers running on the Modular IoT Gateway:

 TCP Port 22: SSH Server (Command Mode configuration)

 TCP Port 80: HTTP (Web Manager Configuration)

3.5 Reference design platform information Label

The Reference design platform information label on the device contains the following information about

the specific unit:

 Company Logo

 Model Name

 Platform Part Number

 Serial Number and Barcode

 MAC Address and Barcode

 Power Rating

 FCC and CE certificate details

e.g.:

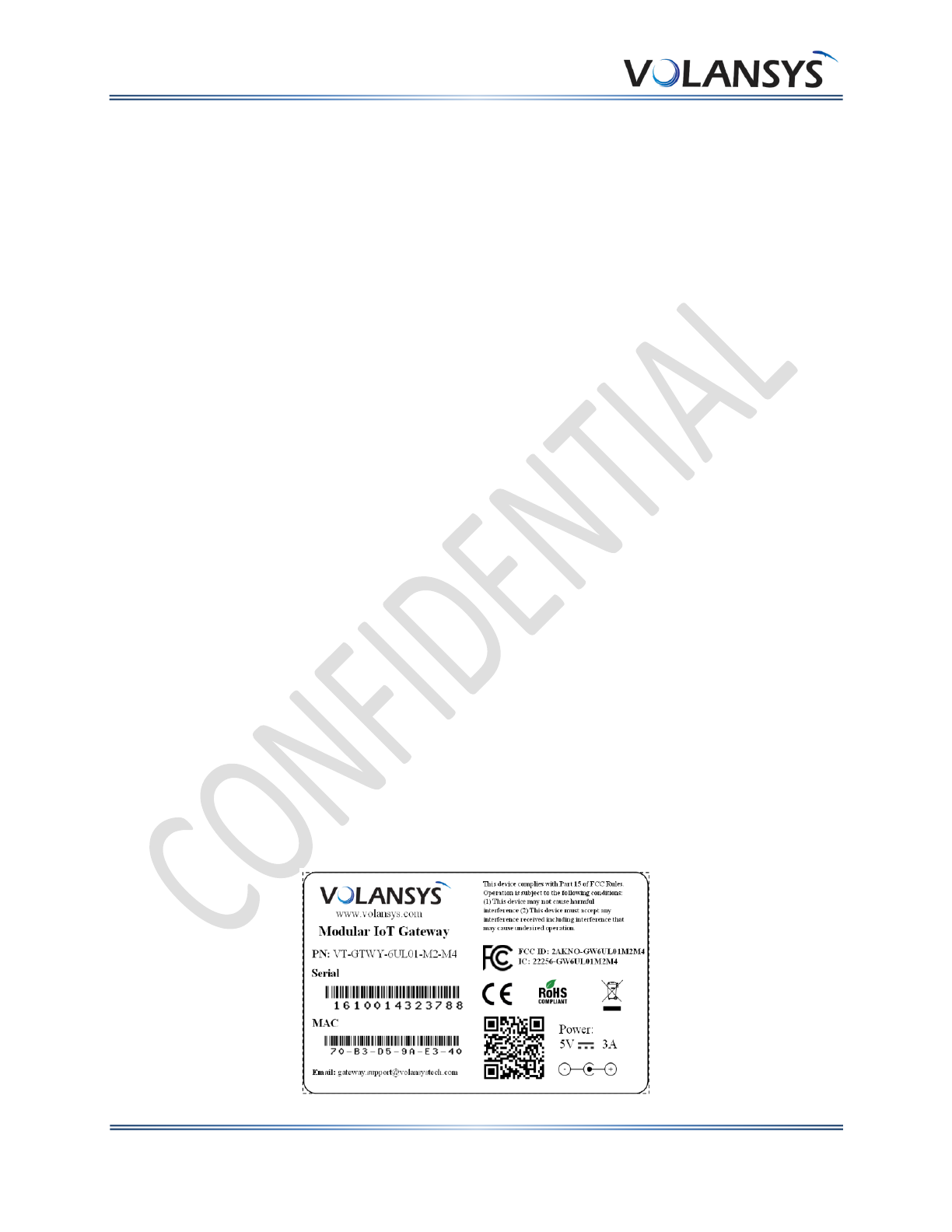

Figure 4 – Reference Design platform information Label

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 13

4 REFERENCE DESIGN PLATFORM ARCHITECTURE AND INTERFACES

Modular IoT Gateway implements a variety of peripheral interfaces to connect with i.MX6UL based SoM

Module. This section provides detailed information about different peripherals of Modular IoT Gateway.

The architecture block diagram of Modular IoT Gateway board is shown as below:

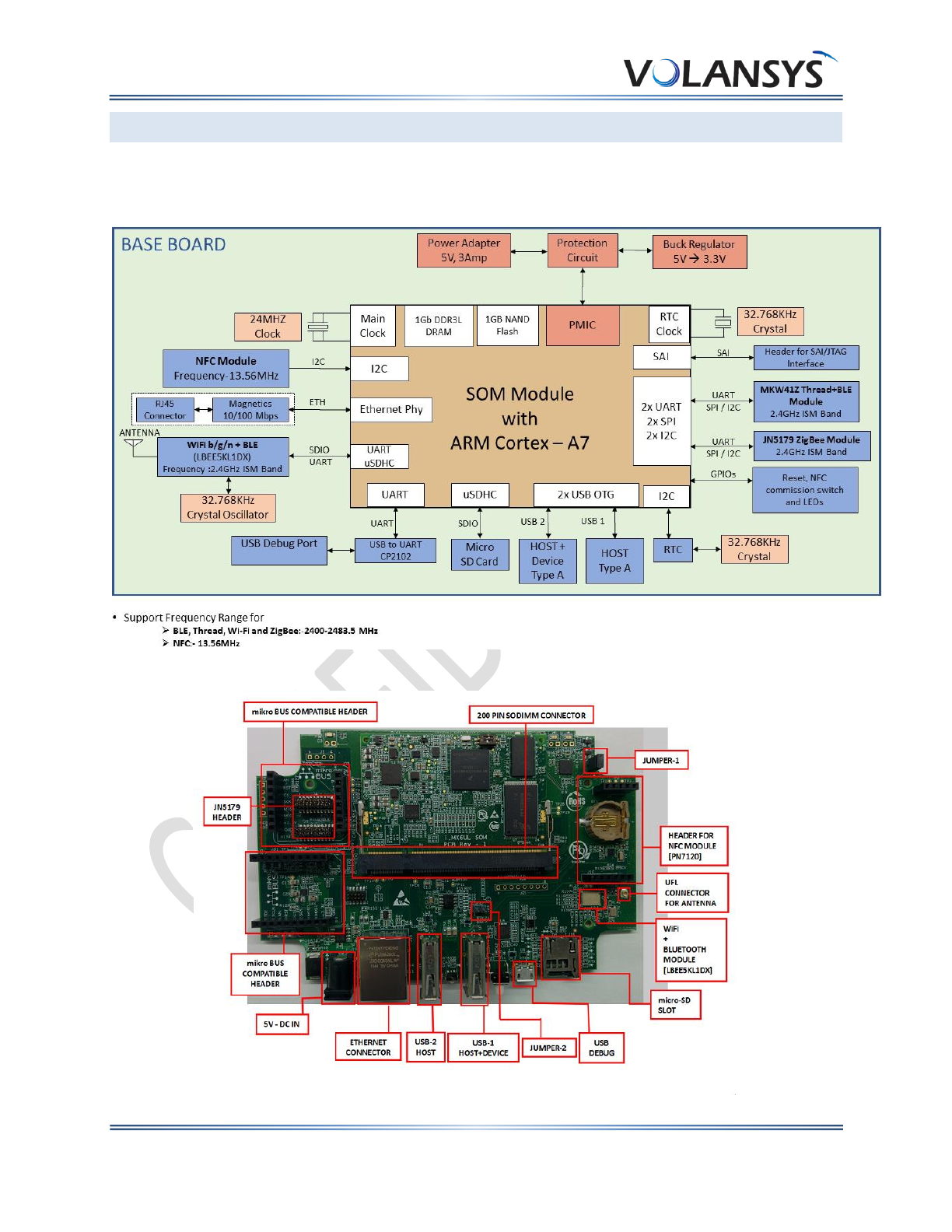

Figure 5 – Architecture Block Diagram

The inside view of Modular IoT Gateway is shown in following figures,

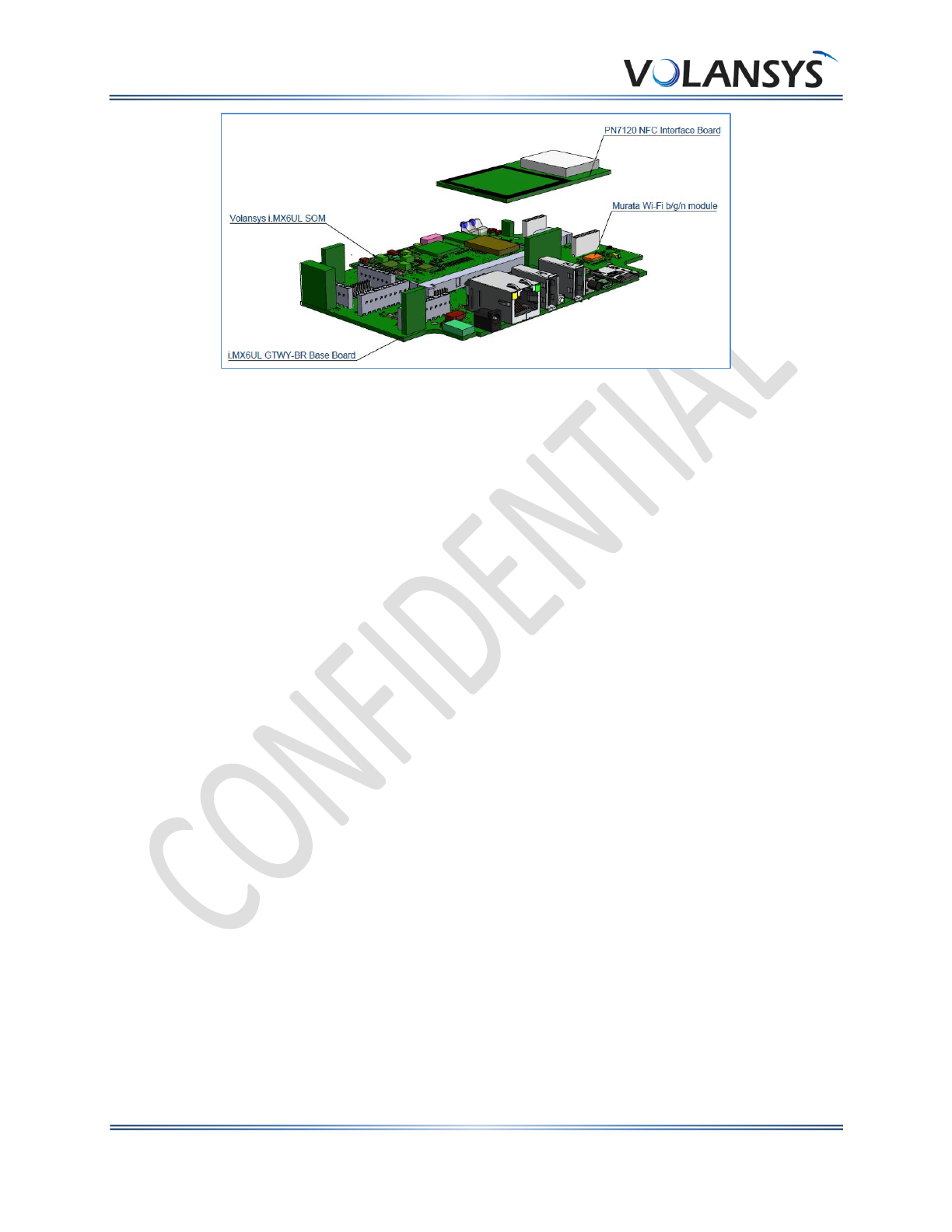

Figure 6 – Inside view of Modular IoT Gateway

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 14

4.1 Memory, I/O Ports and external peripheral support

4.1.1 DDR3

 Modular IoT Gateway is equipped with 256 MB DDR3L Memory which is upgradable up to 1 GB.

4.1.2 NAND Flash

 Gateway is available with on-board NAND (1GB) flash.

4.1.3 Micro SD Card Slot

 Micro SD slot (J18) is provided on Modular IoT Gateway.

 It is connected to USDHC1 interface of i.MX 6UltraLite on SoM Module.

Figure 7 – Reference design Platform interface details

4.2 Ethernet Port

Modular IoT Gateway incorporates a single full-featured 10/100 Ethernet interface, implemented with

the i.MX6UL MAC-NET core in conjunction with a 10/100-Mbit/s MAC coupled with an on-board 10/100

PHY.

The modular IoT Gateway comes with following features:

 Integrated PHY on SoM for 10/100 Mbps

 Auto-negotiation support

 Programmable MAC address

4.3 USB Ports

The USB interface block provides two High speed USB port, which supports USB ver. 2.0. Initially both the

connectors will act as host. User can configure USB-2(J17) port as device also by modifying jumpers

setting. USB-1 (J16) will work as host only.

Jumper setting for USB-2 port host and device mode are shown in below table:

USB-2 HOST

USB-2 DEVICE

JUMPER 1 (J30)

OPEN

JUMPER 2 (J29)

OPEN

Table 4 - Gateway USB Configuration

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 15

When using serial download option for Boot, USB-2(J17) will be used in Device mode. It is required to

change Jumper setting to enable device mode.

4.4 USB Debug Port

The Modular IoT Gateway comes with one microUSB debug port support to simplify debugging

mechanism. A CP2102, USB to serial UART IC is used to convert the UART signals to USB. A micro-B to

standard A USB cable can be used. UART1 port is used as the debug port.

The required terminal settings are shown in the following table:

Baud Rate

115200

Data Bits

Parity

None

Stop Bits

Flow Control

None

Table 5 - Terminal Settings

4.5 Wi-Fi and Bluetooth

Modular IoT Gateway provides support of Single Band (2.4GHz) Wi-Fi and Bluetooth using Murata’s

LBEE5KLDX RF module on Gateway.

The Modular IoT Gateway supports following features:

 Support of single band IEEE 802.11b/g/n Wi-Fi

 Bluetooth ver. 4.1 BLE

 Provides SDIO interface for Wi-Fi and UART interface for Bluetooth operation

 External u.fl connectors is connected with antenna line of module to provide external Whip

antenna support

4.6 User Interface Switch

4.6.1 Commissioning Switch (SW1)

SW1 is used to start/stop NFC commissioning mode. It is also used to power off the gateway board by

long pressing it for more than 15 sec.

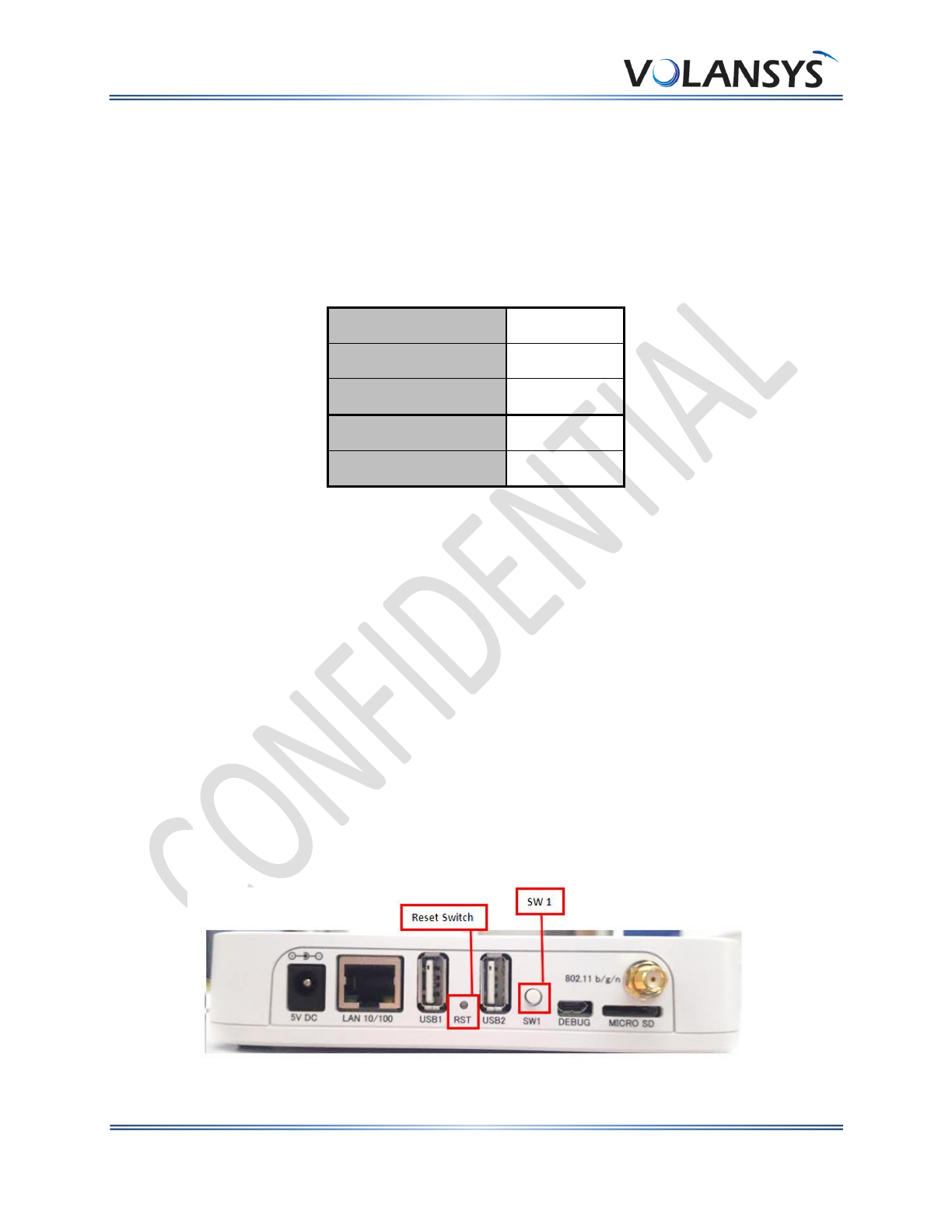

Figure 8 – Modular IoT Gateway Switches

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 16

Different control mechanism for switch is provided as below:

Switch

Control

Last State

Next State

SW1

Short Press

( >5sec &

< 15sec)

NFC Commission Window Off

Start NFC commission window

NFC Commission Window ON

Stop NFC commission window

Long press

(> 15sec)

Any

Power off gateway board

Table 6 - User Interface Switch

4.6.2 Reset Switch

One reset switch is provided for user, to reboot the system without removing power supply. Pressing the

switch will drive logic zero on RESETn signal, which will affects every modules on gateway.

4.7 User LED Indications

Two dual color LEDs are used to provide indication about different Gateway functionalities. Below table

indicates color mark to represent specific events.

LED

Behavior

Represents

LED1

Green

Connected to cloud

Red

Not Connected to cloud

Orange

Connecting to cloud

LED2

Green

Commission window is On

Orange

Commission window is Off

Blink fast for 10 times

ED Commission successful

Blink slow for 5 times

ED Commission failed

Table 7 - User LED Indications

Note: User can change LEDs behavior based on their use case scenario.

4.8 NFC Controller

Modular IoT gateway have NFC Module Header for NFC Connectivity. It’s have PN7120 NFC Controller

from NXP Semiconductor.

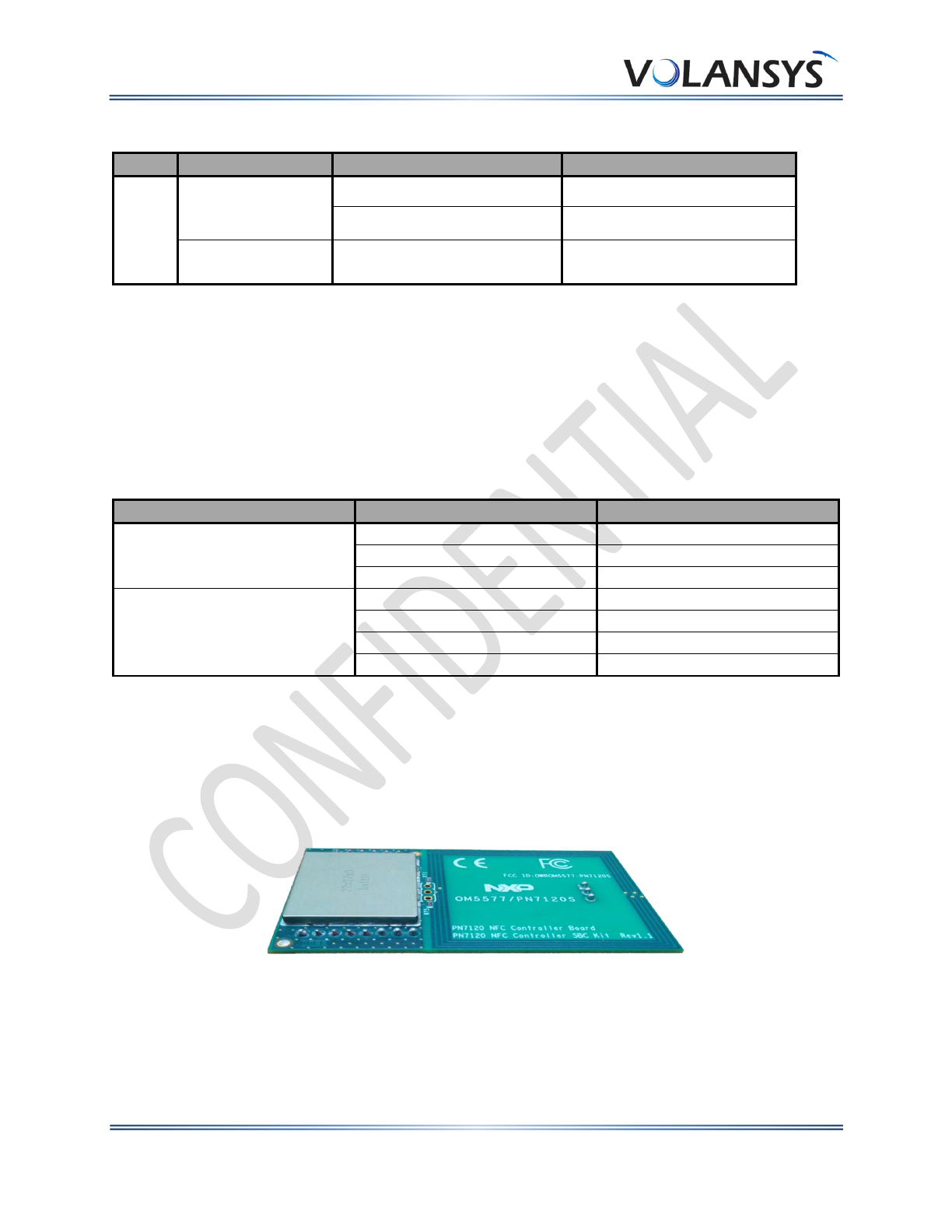

Figure 9 - NFC Controller

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 17

4.9 MikroBus Compatible Headers

Modular IoT Gateway contains two standard MikroBUS header which provides SPI, I2C & UART interface

and other MikroBUS standard support signals. MikroBUS standard click board can be used with Modular

IoT Gateway board. Below figure displays Standard MikroBUS socket position on Modular IoT Gateway

board:

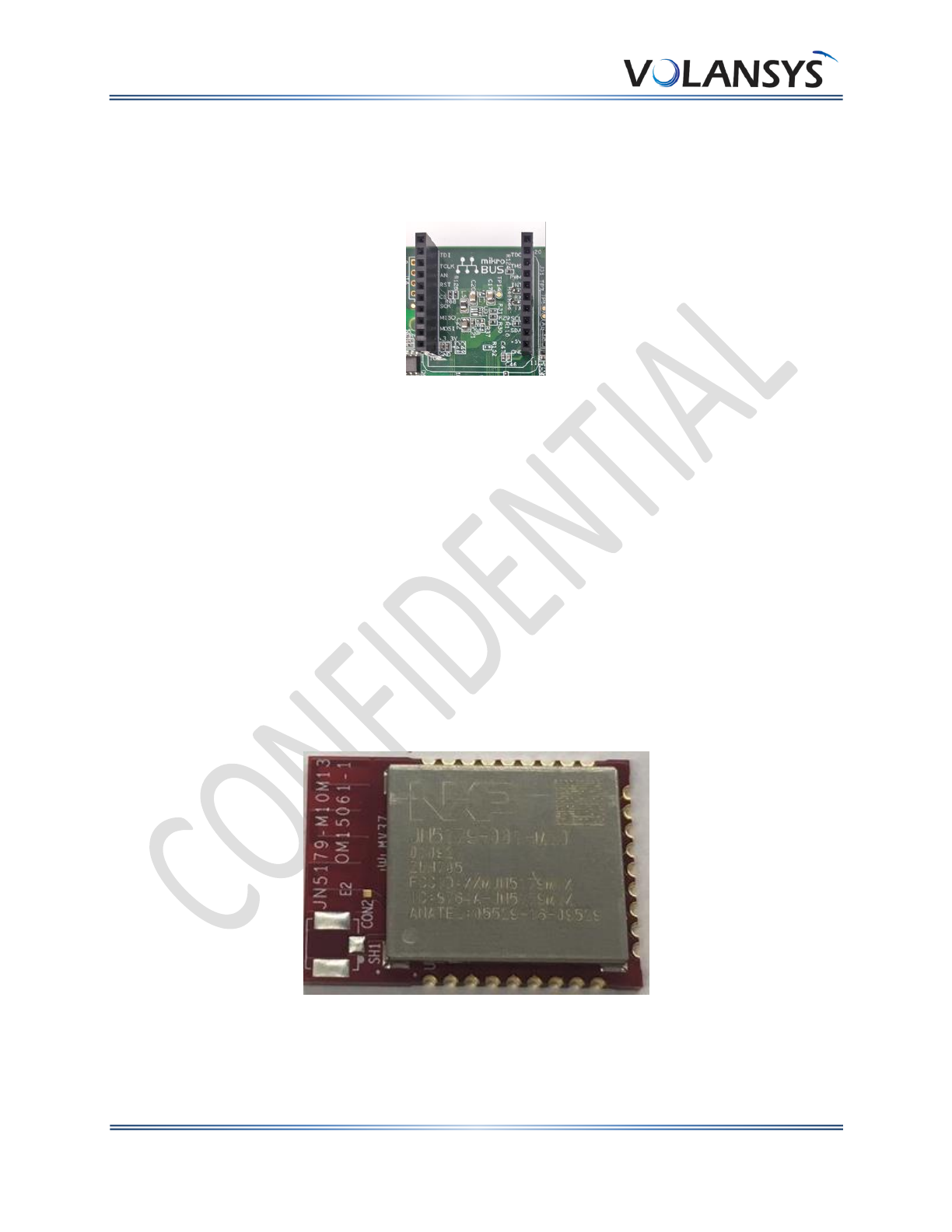

Figure 10 - MikroBUS Header

4.10 JN5179 ZigBee Module

NXP’s ZigBee module have JN5179 wireless controller which was low power supporting for ZigBee

interface.

JN5179 module supports following features:

 2.4GHz IEEE802.15.4 compliant

 512KB Flash

 32KB RAM

 On board PCB Antenna

 Compact size: 14.5mm x 20.5mm

 TX power 8.5 dBm/10 dBm

 Receiver sensitivity –96 dBm

 TX current 24 mA at 10 dBm

 TX current 21.2 mA at 8.5 dBm

 RX current 14.3 mA at maximum input level –2 dBm

 2.0 V/3.6 V operation



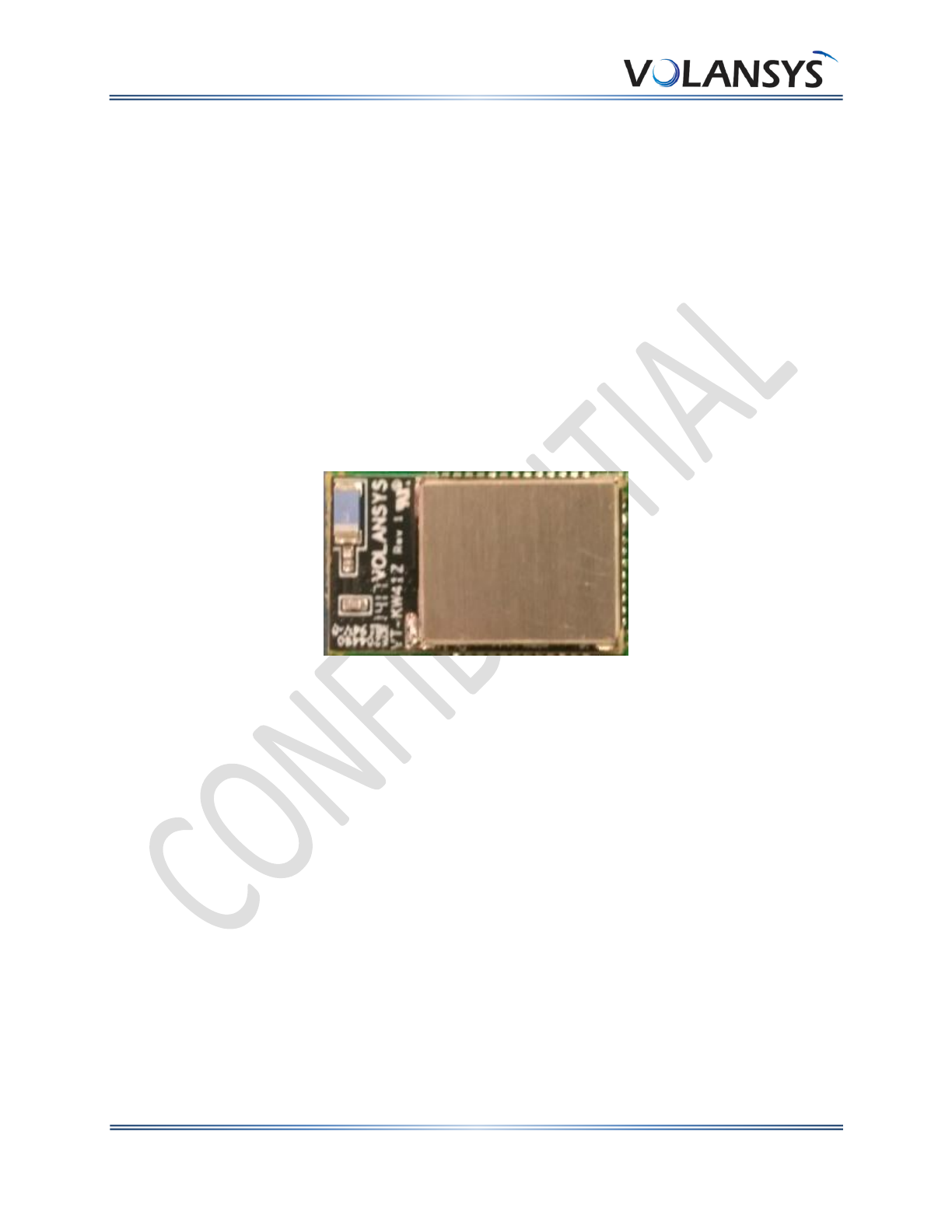

Figure 11 - JN5179 Module

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 18

4.11 MKW41Z Thread+BLE Module

The MKW41Z module is ultra-compact, low power high sensitivity module. It is based on NXP’s

MKW41Z512VHT4 SoC combined with Bluetooth Low energy and IEEE 802.15.4 network stacks like

Thread, ZigBee pro etc.

MKW41Z module supports following features:

 32bit 48MHz ARM® Cortex-M0+ MCU

 64KB SRAM

 512KB Flash

 Integrated chip antenna

 Compact size: 19mm x 11.51mm x 3mm (L x W x H)

 Max Tx power: +3.5 dbm

 Typical Receiver Sensitivity (BLE) = -96 dBm

 Typical Receiver Sensitivity (802.15.4) = -100 dBm

 Integrated DC-DC Buck/boost converter, 0.9 V to 4.2 V operation

 Low Power Mode (VLLS0) Current: ≈180 nA

 On module 32MHz and 32KHz crystal

Figure 12 - MKW41Z Module

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 19

5 INSTALLATION OF GATEWAY

The Modular IoT Gateway comes with its required contents and it is mentioned in below section.

5.1 Modular IoT Gateway Box Content

Modular IoT Gateway comes with following listed items:

Item

Description

Modular IoT

Gateway Unit

Comes with External Antenna attached

Power Adapter

DC 5V, 3A – plug in with Gateway to power up Gateway

Documentation

Quick Start Guide

Table 8 – Modular IoT Gateway Reference design platform Content

5.2 Devices inside Modular IoT Gateway

Modular IoT Gateway has different peripherals support. It contains following peripherals to support

different functionality and all must be installed inside Gateway:

Item

Description

SoM

Based on i.MX6UL processor, 200-pin SO-DIMM

standard supported module

Base Board

Multiple RF interface support with Volansys’ SoM

NFC Module

For commissioning of different modules

JN5179 module

Provides ZigBee interface support

MKW41Z module

Provides Thread+BLE interface support

Table 9 - Modular IoT Gateway Unit Contents

5.3 User required Items

To complete your demo installation you need following items and it is not standard parts of Modular IoT

Gateway. User needs to manage it.

Item

Description

USB Cable

USB Cable (micro B to standard A)

Ethernet Cable

To connect with network using Ethernet

Micro SD Card

Bootable Linux image

NFC Tags

To register/commission on network through Gateway

Internet connectivity

To connect Gateway via Ethernet or Wi-Fi

Mobile Application

To operate Gateway

Windows PC

To update firmware and get EUI-64 of FRDM-KW24D512

Table 10 – Other Require Equipment

Note: Recommended Ethernet cable length is 3mm or less.

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 20

6 DEMO SETUP OF MODULAR IOT GATEWAY

Kindly refer Modular IoT Gateway OOB Demo Setup Guide-v1.1 for Demo setup and configuration.

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 21

7 CONTACT US AND SUPPORT

INDIA Office: USA Office:

Block A - 7th Floor, 3080 Olcott St. Suite D235

Safal Profitaire, Santa Clara CA – 95054.

Corporate Road, Phone: +1 510 358 4310

Prahaladnagar,

Ahmedabad, Gujarat 380015

Phone: + 91-79-40041994.

E-mail: sales@volansys.com

Volansys offers many resources to support our customers and reference design platforms at

Website: www.volansys.com

For instance, you can ask a question and other technical details related to reference design platforms at

our website. At this site you can also find FAQs, bulletins, warranty information, extended support services

and Reference design platform documentation.

To contact technical support or sales, look up your local office at: http://volansys.com/contact/

When you report a problem, please provide the Following information:

 Your name, company name, address, and phone number

 Description of the problem

 Status of the unit when the problem occurred.

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 22

8 APPENDIX-A

8.1 Acronyms & Glossary

The following terms are used in this document

Sr No#

Terms

Definition

BLE/BT

Bluetooth Low Energy/Bluetooth

eMMC

Embedded Multimedia Card

GPIO

General Purpose Input and Output

GPS

Global Positioning System

GSM

Global System for Mobile Communication

I2C

Inter Integrated Circuit

IoT

Internet Of Things

JTAG

Joint Test Action Group

LDO

Low Dropout

10.

LED

Light Emitting Diode

11.

MCU

Microcontroller Unit

12.

NFC

Near Field Communication

13.

PMIC

Power Management Integrated Circuits

14.

SDRAM

Synchronous Dynamic Random Access Memory

15.

SMA

Subminiature version A

16.

SoC

System on Chip

17.

SoM

Systems On Module

18.

SPI

Serial Peripheral Interface

19.

TBD

To Be Define

20.

U.FL

Ultra-Miniature RF Connector

21.

UART

Universal Asynchronous receiver and Transmitter

22.

USB

Universal Serial Bus

Table 11 - Acronyms & Glossary

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 23

9 APPENDIX-B

9.1 Compliance

(According to ISO/IEC Guide and EN 45014)

Reference Design Platform Name Model:

Modular IoT Gateway

Conforms to the following standards or other normative documents:

Safety

 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

Emissions

 CFR Title 47 FCC Part 15, Subpart B, Class A Emissions

 EN55022: 2010, Class A Emissions

 CISPR 22: 2009, Class A Emissions

Immunity

 EN55024: 2010

 EN610000-4-2: 2009

 EN61000-4-3: 2006 + A1: 2008 + A2: 2010

 EN61000-4-4: 2004

 EN61000-4-5: 2005

 EN61000-4-6: 2009

 EN61000-4-8: 2010

 EN61000-4-11: 2004

 CISPR 16-1-4: 2008

 ICES-0003 Issue 6

9.2 RoHS, REACH Compliance

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 24

FCC Regulations:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiated radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by the party responsible for compliance could

void the user‘s authority to operate the equipment.

RF Exposure Information

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In

order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to

the antenna shall not be less than 20cm (8 inches) during normal operation.

ISED Notice

This device complies with Innovation, Science and Economic Development Canada license-exempt RSS

standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation

of the device.

Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada

applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions

suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

IC: 22256-GW6UL01M2M4

Modular IoT Gateway User Manual

August 17, 2017 Volansys Technologies Page | 25

ISED RF Exposure Statement

This device complies with ISED RSS-102 RF exposure limits set forth for an uncontrolled environment. In

order to avoid the possibility of exceeding the IC RSS-102 RF exposure limits, human proximity to the

antenna shall not be less than 20cm (8 inches) during normal operation.

Cet appareil est conforme aux limites d'exposition aux rayonnements de la CNR-102 définies pour un

environnement non contrôlé. Afin d'éviter la possibilité de dépasser les limites d'exposition aux

fréquences radio de la CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8

pouces) pendant le fonctionnement normal.

Volansys Technologies pvt GW6UL01M2M4 Modular IoT Gateway User Manual Proposal

Volansys Technologies pvt ltd Modular IoT Gateway Proposal

User manual

Navigation menu

Namespaces

Views

Navigation
