Users Manual

GGGGGGGGGG

GGGGGG

MODEL PORTI-P40

WOOSIM SYSTEMS Inc.

#501, Daerung Technotown 3th, 448,

Gasan-Dong, GeumChun-Ku, Seoul,

Korea

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

(PANEL PRINTER)

All specifications are subjected to change without notice

GaVVUUG

YWW_TW^TW^G

ࣞउउࢽऐऍंऀआःआऀࣾऑआऌऋऐࢽࣾएंࢽऐऒࣿइंऀऑंँࢽऑऌࢽऀअࣾऋऄंࢽऔआऑअऌऒऑࢽऋऌऑआऀंࢽ

PORTI-P40 panel printer operator’s manual.

The information contained in this manual is the property of Woosim Systems Inc.

And may not be reproduced in whole or in part without the prior written permission of

Woosim System Inc࣋

Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

Caution

Some semiconductor devices are easily damaged by static electricity. You should

turn the printer “OFF”, before you connect or removed the cable on the rear side, in

order to guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer “OFF”

Notice

The contents of this manual are subject to change without notice.

* Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

GaVVUUG

YWW_TW^TW^G



Introduction

The PORTI-P40 is an extremely simple and functional panel printer.

It is the ideal solution for applications which require the immediate printing of data on

a paper, whether they be of an industrial,

professional or laboratory nature.

Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground

analyzer, Chemical analyzer, Metallic analyzer, etc.

The general features of PORTI-P40 printer are as follows:

X Ultra small size rack mount printer.

X Very silent printing thru direct thermal printing method.

X High speed(50mm/sec)

X High resolution(203dpi : 8dots/mm).

X Easier paper loading by CLAMSHELL design.

X Support text and graphic printing.

X Serial(UART, TTL) interface

X Easier maintenance with self-diagnostics.

XFlow control : Software (XON/XOFF)

୔ Hardware flow control not supported in printer.

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio o

television reception, which can be determined by turning the equipment off and on, the use

is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet of a circuit different from that to which the receiver

is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

GaVVUUG

YWW_TW^TW^G

[



Please follow the precautions below to enjoy and maintain the full

performance of the printer.

Using the Printer

Ɣ Be careful not to drop or bump the printer on a hard surface.

Ɣ Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows :

୛ Operating temperature : -10°C to 40 °C

୛ Relative humidity : 10% to 90% (no condensation)

Ɣ Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

ƔDo not remove or reinstall the communication cable during

printing or transmission.

GaVVUUG

YWW_TW^TW^G

CONTENTS

1. Outline ............................................................................................................................................6G

1.1. Model classifications .................................................................................................................6G

1.2. Product Part Number System.....................................................................................................7G

1.3. Specifications ............................................................................................................................8G

2. Setting up the printer ....................................................................................................................9G

2.1. Printer & Accessories ................................................................................................................9G

2.2. Printer Features........................................................................................................................10G

2.3. Installation ...............................................................................................................................11G

2.4. Replacing the paper roll...........................................................................................................12G

2.5. Setting operation mode............................................................................................................14G

2.6. Power supply ...........................................................................................................................17G

3. Interface........................................................................................................................................18G

3.1. Serial Interface.........................................................................................................................18G

4. Using the printer..........................................................................................................................19G

4.1. Control panel ...........................................................................................................................19G

4.2. The self test..............................................................................................................................19G

5. Consumable Parts........................................................................................................................20G

5.1. Recommended paper ...............................................................................................................20G

5.2 Printing position .......................................................................................................................20G

GaVVUUG

YWW_TW^TW^G

]

v











G

XUXUGtGG

PORTI–P

G G OGPGGGOGGGPGGOGGGPG

Model name

Interface

None : Serial(UART or TTL)

Size of roll paper

40 : 57mm wide, 40 Ø

Power

None : DC 9V

GGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGG

GaVVUUG

YWW_TW^TW^G

XUYUGwGwGuGzG

Model name / Interface Spec.

Example) 1. Porti-S40 Serial/Bluetooth Part No. ൽ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ൽ SC30/Z1

S40

SC30

W25

Wired Wireless

A RS-232C 1 Bluetooth

B TTL 2 IrDA

C USB 3 HPIR

D RS-485 0 None

E Parallel

Z None

GaVVUUG

YWW_TW^TW^G

XUZUGzG

Item Specification

Printing method Direct thermal line printing

Characters per line 42cpl

Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]

Resolution 203dpi, 8dots/mm

Print width 2-inch (48mm, 384dots)

Printing speed 50mm/sec

Dimensions 80 * 75 * 40 mm (include PCB )

Weight 153g (including roll paper )

Interface Serial(UART, TTL)

Paper supplied Thermal roll paper (57mm wide, 40ø)

Barcode supplied

PDF417(2-dimension), Code128, Code39, I2/5, Code93

UPC, EAN(KAN, JAN), CODABAR

Receive buffer size 10K bytes

Note

Printing speed may be slower, depending on the data

transmission speed and the combination of control commands.

Input Power 9VDC, Standby 60mA and Max 3A (Standard model)

Temperature -10°C ~ 40°C (operating)

-10°C ~ 70°C (storage)

Environment conditions

Humidity 30% - 80% (operating)

10% - 90% (storage)

Mechanical 37,000,000 lines

MCBF (Mean Cycle

Between failure) Head Approximately 50 Km

GaVVUUG

YWW_TW^TW^G

z











G

G



G

G





G

G













G

YUXUGwGMGhG

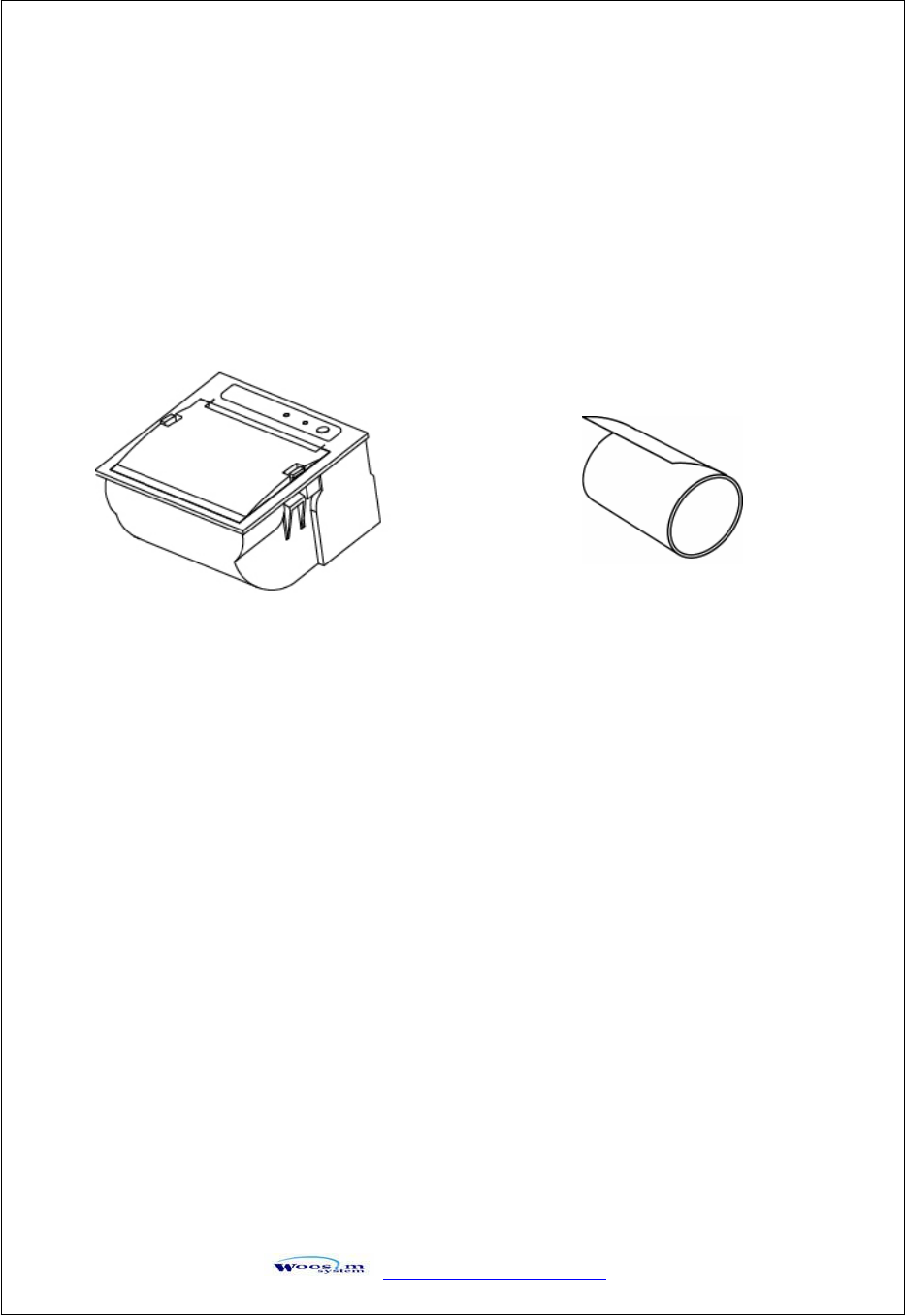

When unpacking your printer box make sure it contains the printer and all accessories.

If any accessories are missing or damage, please contact your dealer for assistanceUG

Roll paper Porti-P40

GaVVUUG

YWW_TW^TW^G

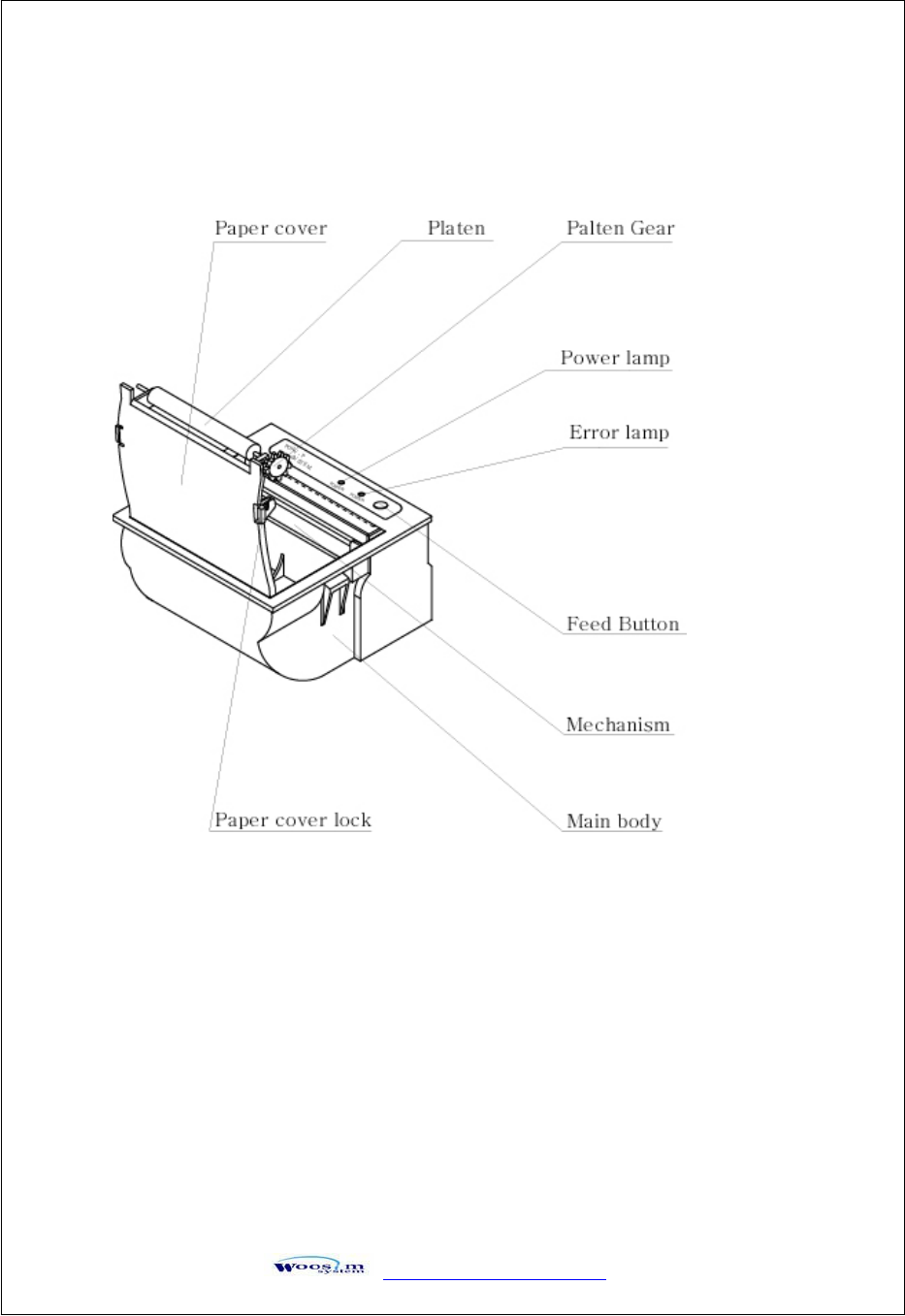

YUYUGwGmG

GaVVUUG

YWW_TW^TW^G

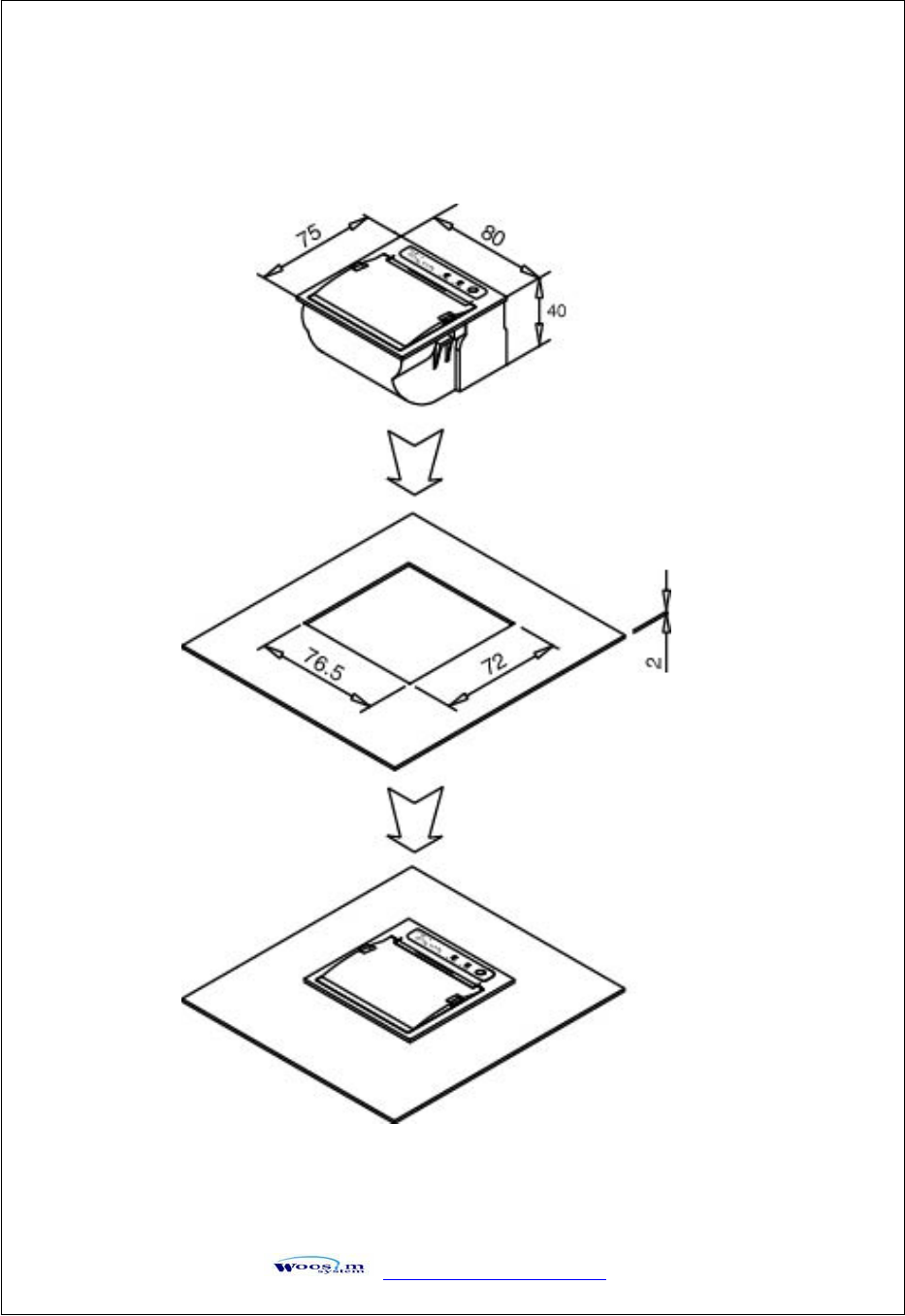

YUZUGpG

GaVVUUG

YWW_TW^TW^G

YU[UGyGGGG

Note : Be sure to use paper rolls that meet the specifications.

Do not use paper rolls that have the paper glued to the

core because the printer cannot detect the paper end

correctly.

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper roll cover by applying your finger on both side of printer,

push it up when the lock is released as shown in the drawing.

3. Remove the used paper roll core if there is one.

4. Insert the paper roll as shown.

GaVVUUG

YWW_TW^TW^G

ˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎˎG

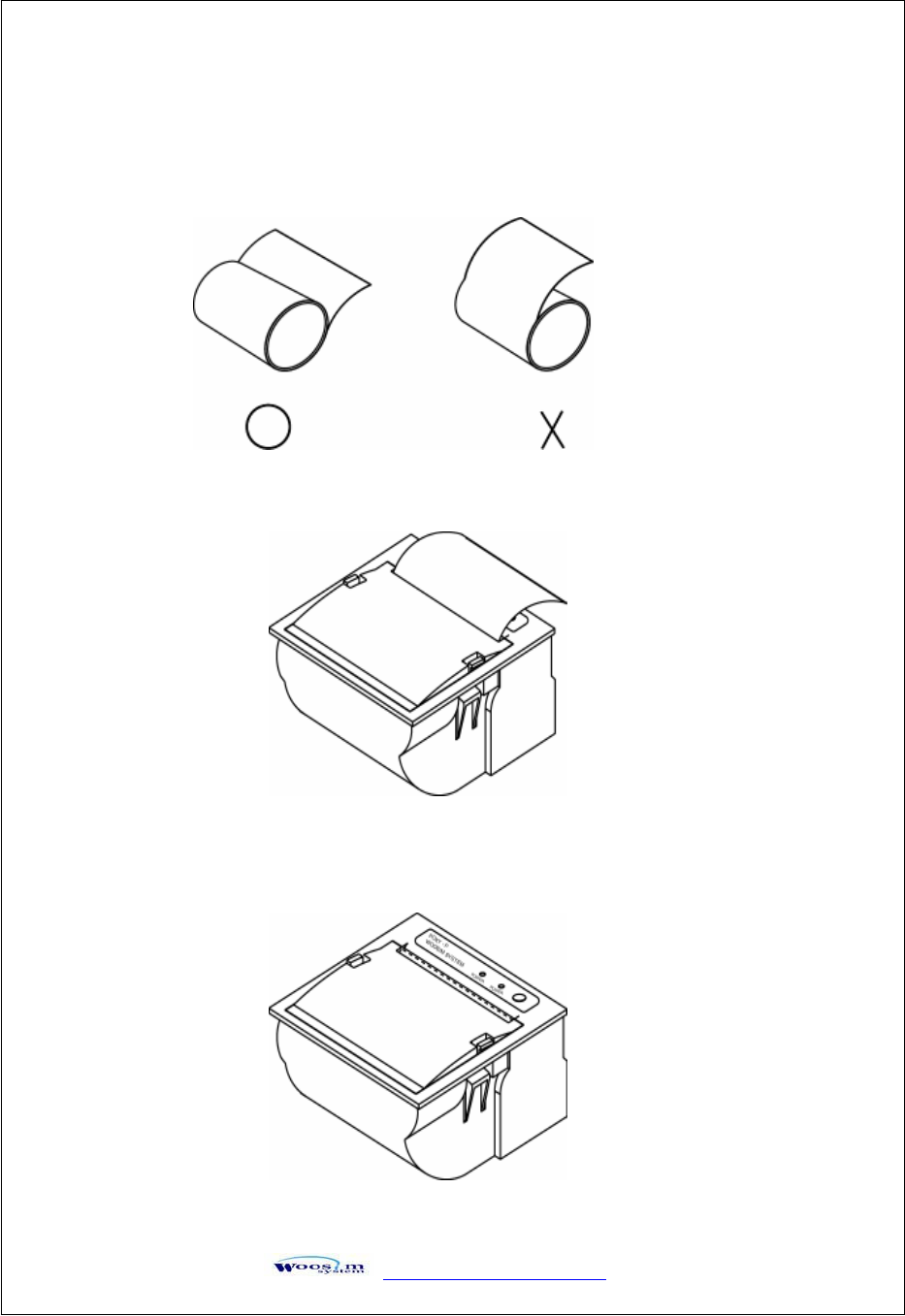

5. Be sure to note the correct direction that the paper comes off the roll.

6. Pull out a small amount of paper and then close the cover as shown.

7. Tear off the paper as shown.

GaVVUUG

YWW_TW^TW^G

YU\UGzGGG

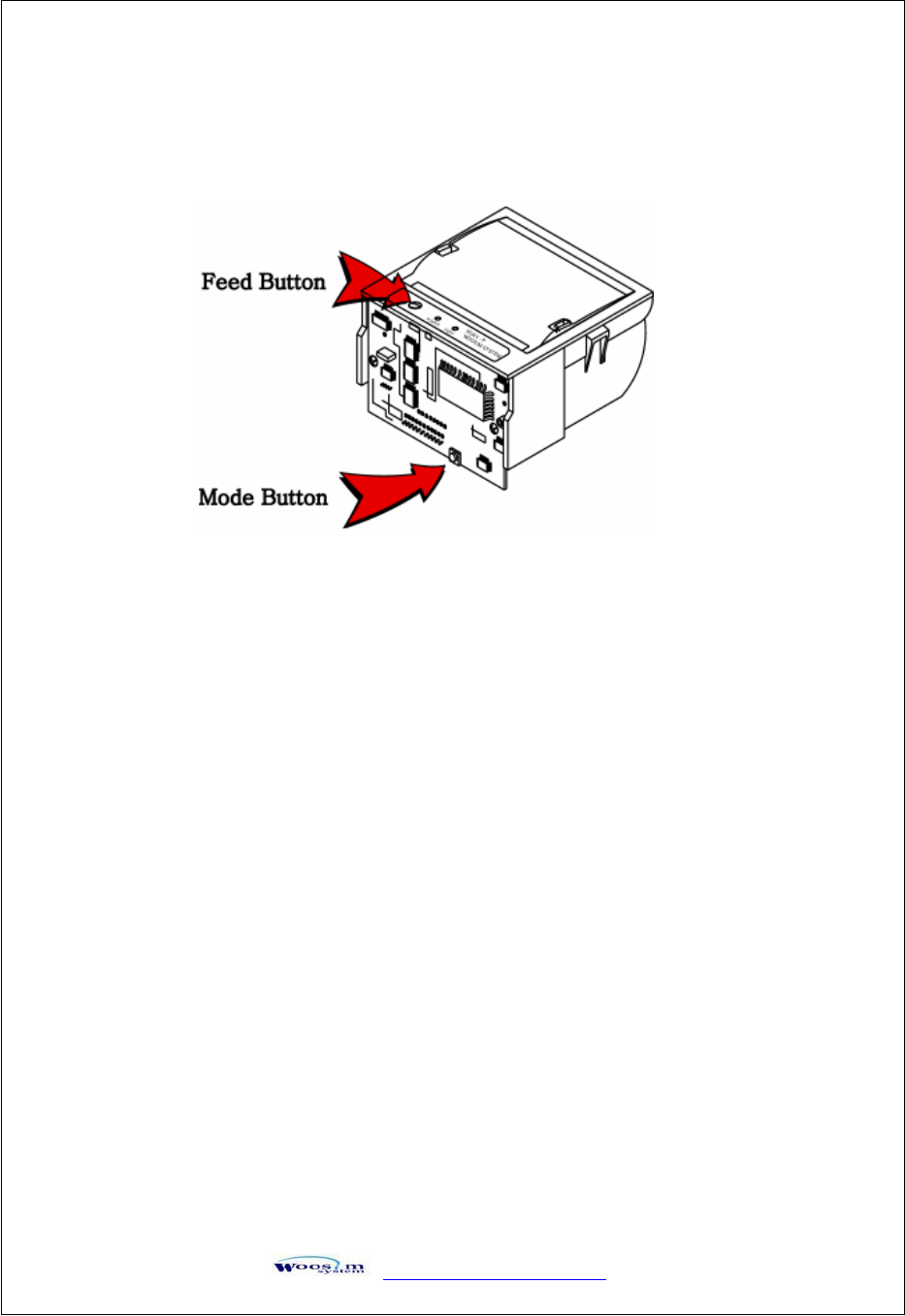

1. Press the MODE Button until the Error Lamp twinkles 5 times.

2. Change the mode and option using the MODE Button according to the MODE (Table1).

zMODE button : use for changing OPTION status. (Error Lamp)

zFEED button : use for changing MODE status. (Power Lamp)

Ex) The defaults of the printer are : UART/ 9600 bps/ 8 data bit / No parity

/ Density Low

If a user wants to modify the defaults with Protocol UART / 38400 bps / 7 data

bit/ even parity/ density high

XPress MODE Button until Error Lamp twinkles 5 times and release the

button.

You will see the Power Lamp twinkles one time and the Error Lamp

twinkles one time.

Press the MODE Button one time and the Error Lamp twinkles twice.

(The interface mode has set to Protocol UART mode.)

GaVVUUG

YWW_TW^TW^G

XPress FEED button one time, Power Lamp twinkles twice and Error Lamp

twinkles one time.

Press the MODE Button two times, and the Error Lamp twinkles three times.

(The baud rate has set to 38,400 bps)

XPress FEED Button one time, Power Lamp twinkles 3 times and Error Lamp

twinkles 2 times.

Press MODE Button one time, Error Lamp twinkles one time.

(The Data Bit has set to 7 Data bit)

XPress FEED Button one time, Power Lamp twinkles 4 times and Error Lamp

twinkles 1 time.

Press MODE Button one time, Error Lamp twinkles two times.

(The Parity bit has set to Odd parity bit)

XPress FEED Button two time, Power Lamp twinkles 6 times and

Error Lamp twinkles 1 time.

Press MODE Button one time, Error Lamp twinkles 2 times after then press

MODE Button again, the Error Lamp will twinkle 3 times.

( The Density has set to High)

If all the mode have set, press the MODE Button and the FEED Button at the same time

after then release the buttons at the same time.

The printer will print out the mode status which has modified.

(Protocol UART / 38400 bps/ 7 Data bit/ Odd parity/ 1 Stop Bit/Density high

/Mark No Use)

If the status is not correct, please try it again according to the procedure.

GaVVUUG

YWW_TW^TW^G

GGGGGG

TABLE 1

POWER Lamp

(Green)

ERROR Lamp

(Red)Option

1UART

Communication

Port 12Protocol UART

19600 bps

219200 bps

338400 bps

457600 bps

Baud Rate 2

5115200 bps

17 Data bit

Data Bit 328 Data bit

1No Parity

2Even Parity

Parity Bit 4

3Odd Parity

11 Stop Bit

Stop Bit 522 Stop Bit

1Density Low

2Density Medium

Density 6

3Density High

1No use

Mark 72Use

1Low

2Medium1

3Medium2

Sensor 8

4High

GaVVUUG

YWW_TW^TW^G

G YU]UGwGG

The following specifications are requested for Power supply.

INPUT :

DC 9V / Max 3A

Avoid using power supply which its power capacity of power current is extremely high.

GaVVUUG

YWW_TW^TW^G

p















G

ZUXUGzGpG G

The Porti-P40 printer has a serial(UART or TTL) serial interface and power

connector is connected by 6 pin female connector.

In the following table, the signals present on the connector are listed:

Applicable connector : MOLEX 5264-06P or equivalent.

Pin no. Signal name Direction Function

1INPUT -9V/3A

2TxD Output Transmit Data

3RxD Input Receive Data

4N.C - -

5N.C - -

6GND -Ground

GWARNING

A wrong connection of power supply connector could be damage the printer.

<CN2>

GaVVUUG

YWW_TW^TW^G

[

|







G

G





G

G













G

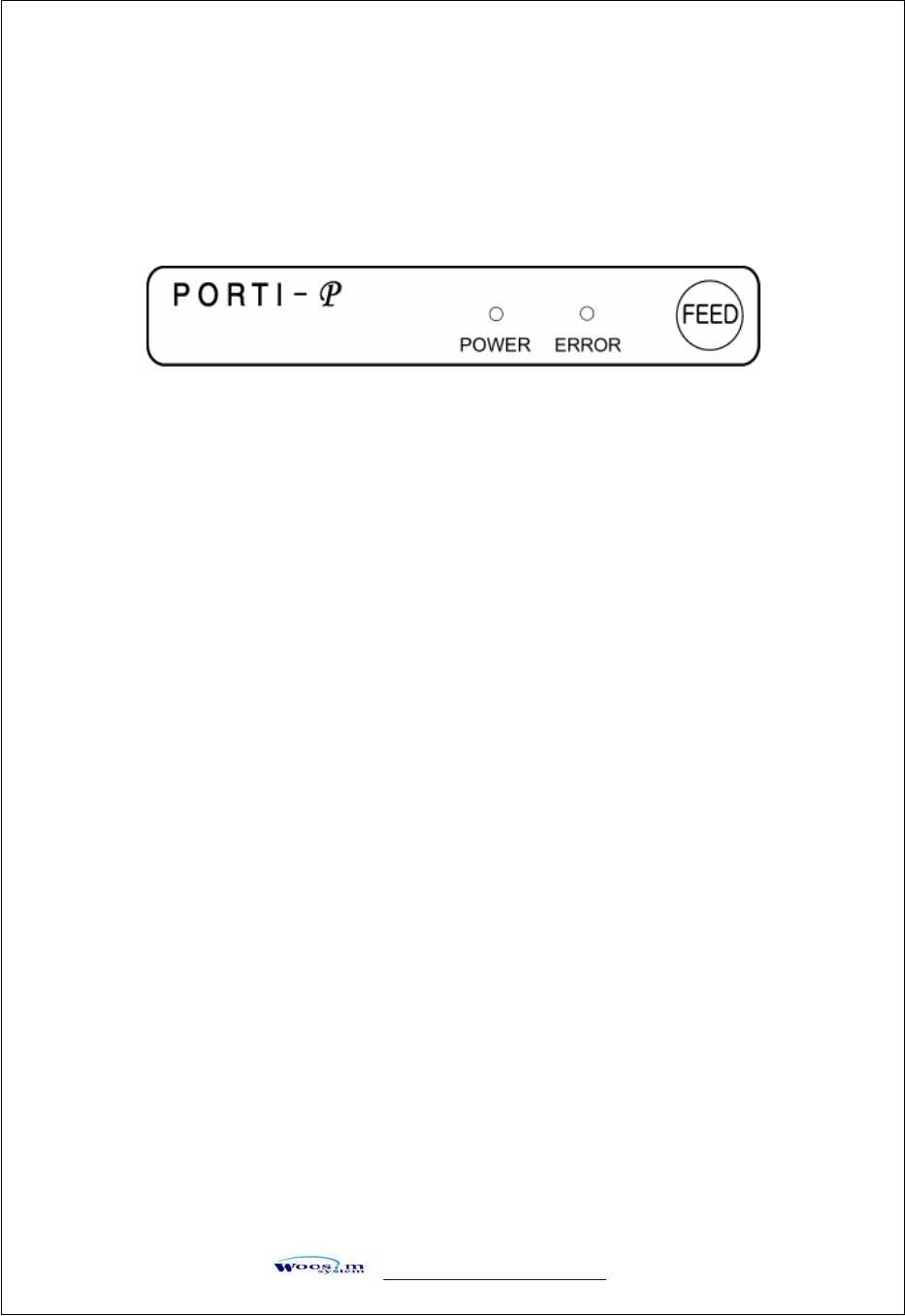

[UXUGjGG

[UYUG{GGG

Button

- FEED : When the printer is on, paper can be feed manually by pressing and

holding the FEED button for more than one second.

Panel Lamp

- POWER(Green) : Printer is ON and ready to receive data.

-ERROR (Red) : Indicates a fault condition or a printer error.

(i.e : no paper, paper cover opened. etc.)

The self test procedure will check most of the printer functions. For self test, turn on

the power while holding down the FEED Button. The Self-Test checks the

following :

1) Make sure paper roll has been installed properly.

2) The Self-Test prints the current printer status, which provides the control

ROM version and the communication method setting.

3) After printing the current printer status, Self-Test will print a pattern using

the built-in character set.

4) The Self-Test automatically ends.

The printer is ready to receive data as soon as it completed the self test.

GaVVUUG

YWW_TW^TW^G

j

















G

w







G

\UXUGyGG

\UYGwGG

Type : Thermal Paper

Paper width : 57mm

Paper thickness : 60±5༁

Outer diameter : Ø40mm

Recording side : Outside of roll

Cautions

1. Do not paste the paper to the core. And the roll paper which has

near end mark printing on its near end is recommended.

2. Chemicals or oil may change the color of paper, or printed characters may fade.

3. Change of paper color starts from approx . 70ఁ.

Pay attention to heat, humidity and sun light.

4. Color of paper may be changed by being scratched by nail or hard metal, etc.

WOOSIM SYSTEMS PORTI-P40 Mobile Printer User Manual

Woosim System Inc. Mobile Printer Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
