WOOSIM SYSTEMS PORTI-SW40 Digital Transmission System User Manual Operator Manual Porti SW40

Woosim System Inc. Digital Transmission System Operator Manual Porti SW40

UserManual.wiki >

WOOSIM SYSTEMS >

PORTI SW40 User Manual HTML Version

Users Manual

http://www.woosim.com

All specifications are subjected to change without notice

MODEL PORTI-SW40

WOOSIM SYSTEMS Inc.

#501, Daerung Technotown 3th,

448, Gasan-Dong, GeumChun-Ku,

Seoul, Korea

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

http://www.woosim.com 2

PORTI-SW40 portable printer operator’s manual.

The information contained in this manual is the property of Woosim Systems Inc. and

may not be reproduced in whole or in part without the prior written permission of

Woosim Systems Inc.

Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

Caution

Some semiconductor devices are easily damaged by static electricity. You should turn

the printer “OFF”, before you connect or removed the cable on the rear side, in order to

guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer “OFF”.

Notice

The contents of this manual are subject to change without notice.

"Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment."

http://www.woosim.com 3



Introduction

The PORTI-SW40 is suitable designed for use with a growing variety of mobile

devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-SW40 the perfect

comrade for applications such as point of transaction warehousing, distribution, point

of sales, hospitality, gaming and healthcare.

The general features of PORTI-SW40 printer are as follows:

X Pocket size (107.5mm x 88.5mm x 45mm).

X Light weight(360g) for true mobility.

X Very silent printing thru direct thermal printing method.

XHigh speed (40mm/sec)

X High resolution (203dpi, 8dot/mm)

X RS-232C or TTL , Bluetooth interface

X Easier paper roll loading by CLAMSHELL design.

X Easier maintenance with self-diagnostic.

X Microsoft Windows 98/ME/XP/2000 compatible.

XSupport bit-image(logo) download.

XFlow control : Software (XON/XOFF)

Hardware flow control not supported in printer.ଖ

http://www.woosim.com 4



Operating Precaution

Please follow the precautions below to enjoy and maintain the full performance of

the printer.

Using the Printer

ƔBe careful not to drop or bump the printer on a hard surface.

ƔDo not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows :

Operating temperature :ଝ-10°C to 40°C

Relative humidity : 10% to ଝ90% (No condensation)

ƔDo not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

ƔDo not open the platen cover during printing .

ƔDo not remove or reinstall the communication cable during printing

or transmission.

ƔDo not touch the connectors of the communication cable and

to close up the Infrared transmitter /receiver during printing.

ƔSwitch the POWER OFF when not in use.

ƔDo not use alcohol or other solvent.

Ɣ The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

ƔWhen the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

http://www.woosim.com 5

XThermal Paper Handling

ƔStore the thermal paper in a cool, dry and dark place.

ƔDo not rub the paper with hard object.

ƔDo not leave the paper with hard object.

ƔDo not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

ƔDo not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

ƔDo not use chemical glue.

Ɣ Always use the clean thermal paper.

Note

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable

protection against farmful interference in a residential installation. Thes equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interfrernce to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause farmful interference to radio or television reception , which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

reciver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to

operated the equipment under FCC rules.

http://www.woosim.com 6

CONTENTS

1. Outline ............................................................................................................................................7G

1.1. Model classifications ............................................................................................................7G

1.2. Product Part Number System................................................................................................7G

1.3. Specifications........................................................................................................................8G

2. Setting up the printer ....................................................................................................................9G

2.1. Printer & Accessories ...........................................................................................................9G

2.2. Printer Features...................................................................................................................10G

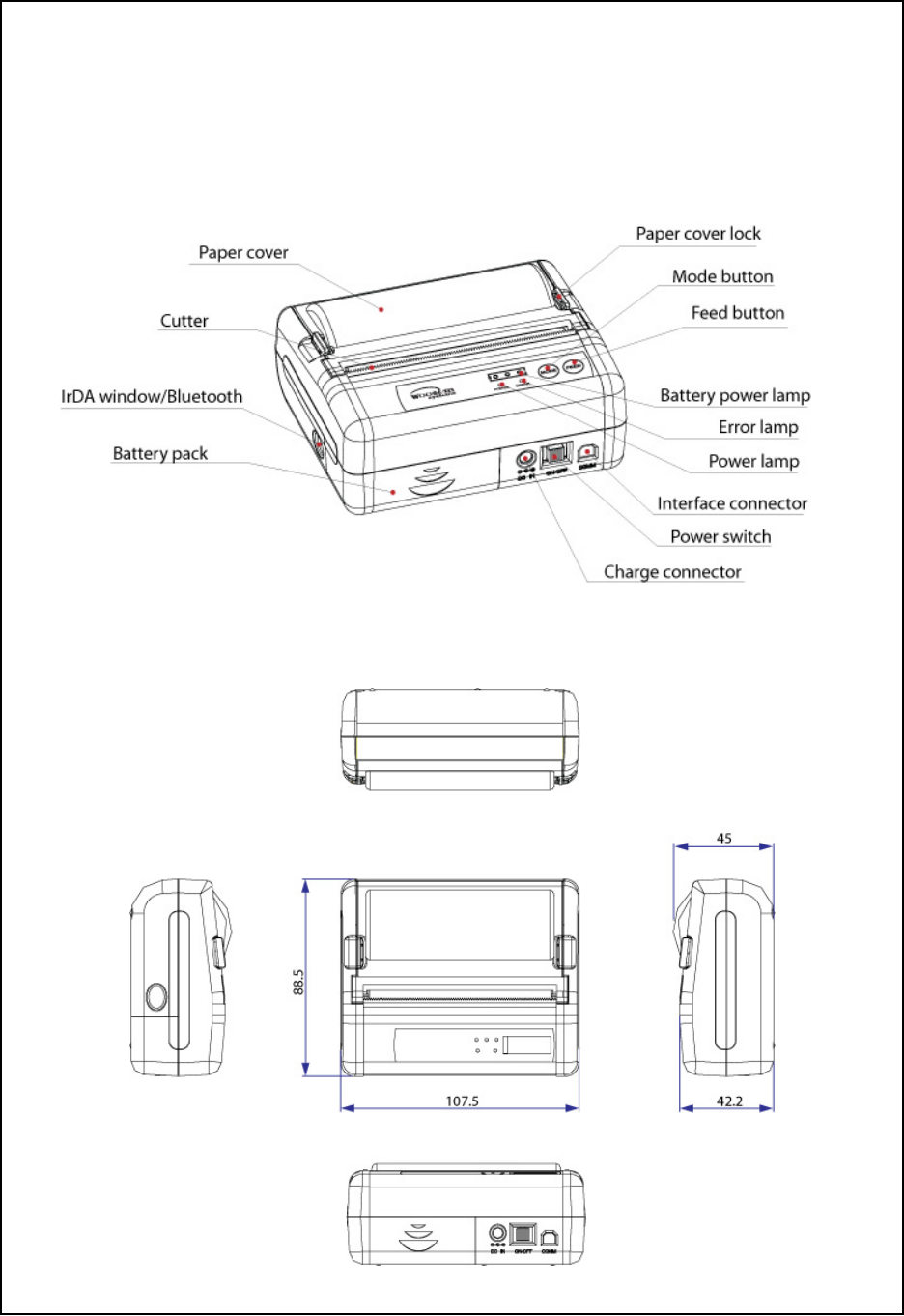

2.2.1. Part name .................................................................................................................10G

2.2.2. Dimensions ..............................................................................................................10G

2.3. Replacing paper roll............................................................................................................11G

2.4. Power supply ......................................................................................................................12G

2.4.1. Internal power supply ..............................................................................................12G

2.4.2. Installing the Battery................................................................................................12G

2.4.3. Recharging the battery pack.....................................................................................13G

2.5. Set operation mode .............................................................................................................14G

3. Interface........................................................................................................................................17G

3.1. RS-232C .............................................................................................................................17G

3.2. Bluetooth ............................................................................................................................18G

4. Using the printer..........................................................................................................................19G

4.1. Control panel ......................................................................................................................19G

4.2. Self test ...............................................................................................................................20G

5. Consumable parts........................................................................................................................21G

5.1. Recommended paper...........................................................................................................21G

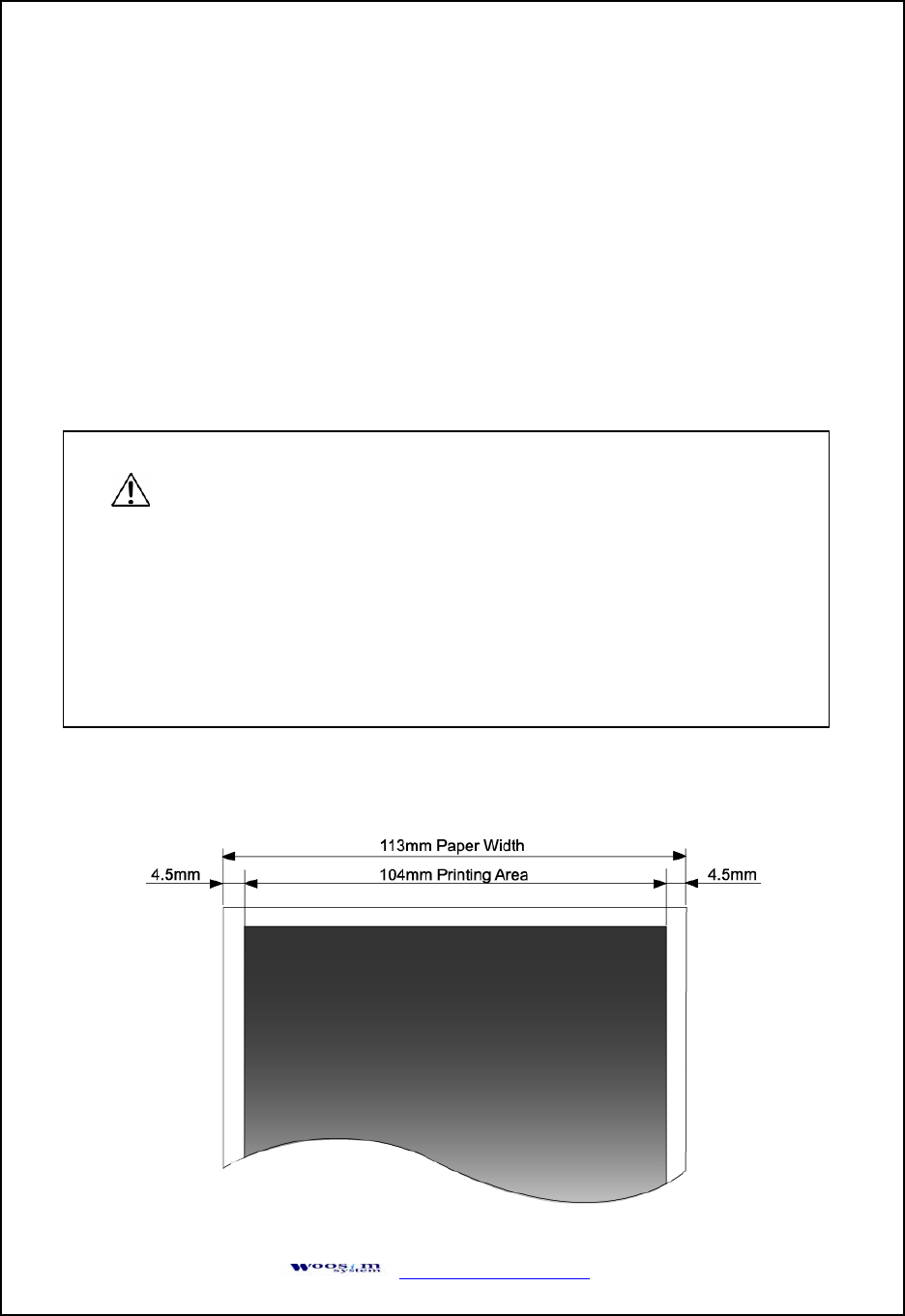

5.2. Printing position..................................................................................................................21G

http://www.woosim.com 7

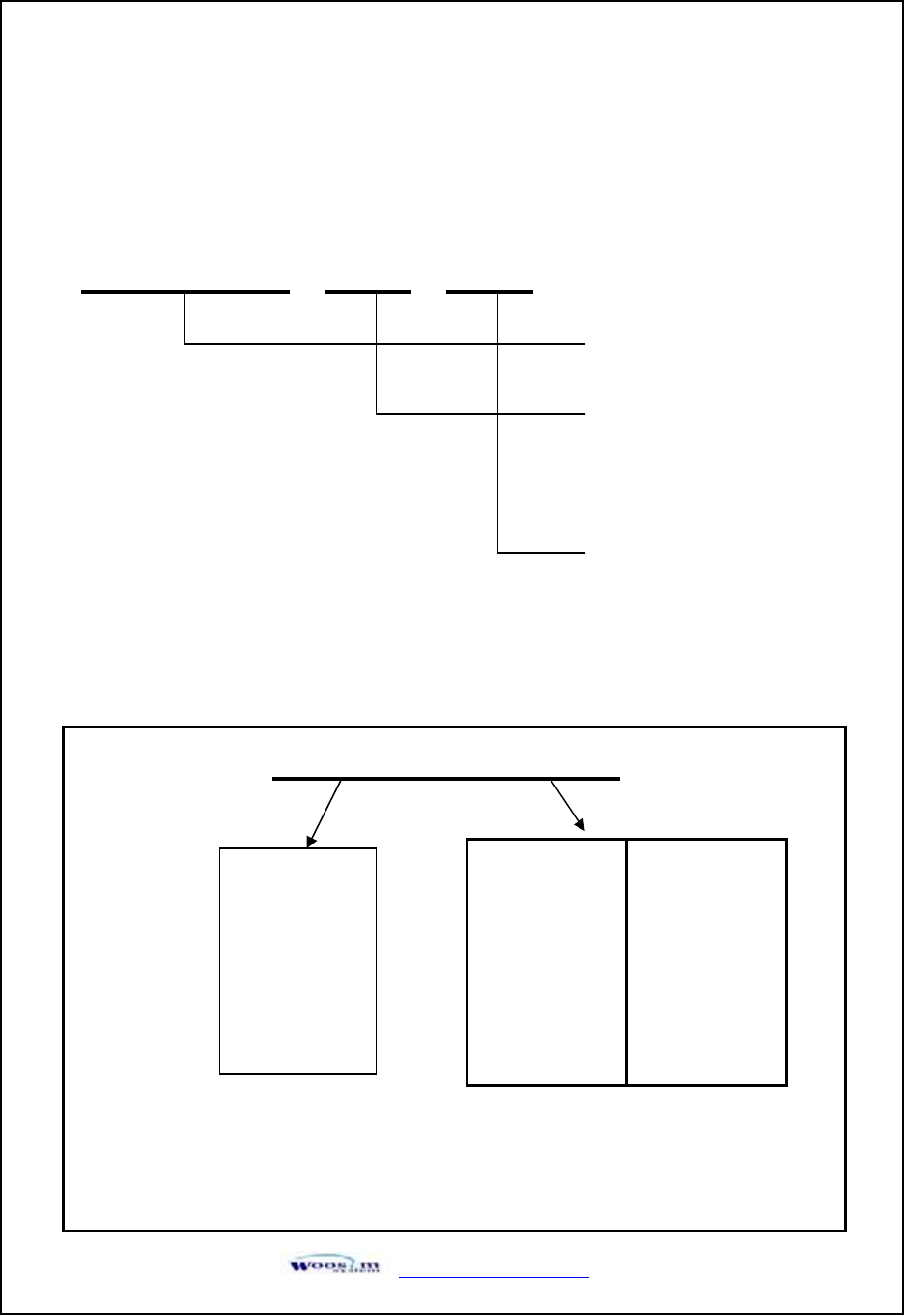

PORTI-SW40 ( ) ( )

Model Name

Interface

None : IrDA/Serial

BT : Bluetooth/Serial

Power

None : DC 8.4V

Model name / Interface Spec.

Example) 1. Porti-S40 Serial/Bluetooth Part No. ൽ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ൽG SC30/Z1

S40

SC30

W25

Wired Wireless

A RS-232C 1 Bluetooth

B TTL 2 IrDA

C USB 3 HPIR

D RS-485 0 None

E Parallel

Z None

http://www.woosim.com 8

Item Specification

Printing method Direct thermal line printing

Characters per line 64cpl

Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]

Resolution 203dpi, 8dots/mm

Print width 3-inch (72mm, 576dots)

Printing speed 40mm / sec

Dimensions 107.5 * 88.5 * 45 mm

Weight 360g (Including battery & roll paper)

Interface RS-232C or TTL / Bluetooth

Paper supplied Thermal roll paper (80mm wide, 38ø)

Barcode supplied PDF417(2-dimension), Code128, Code39, I2/5, Code93

UPC, EAN, KAN, JAN, CODABAR

Receive buffer size 10K bytes

Note Printing speed may be slower, depending on the data

transmission speed and the combination of control commands.

Battery Rechargeable 7.4V DC, 1400mAh(Li-ion)

Battery duration 1 hour continuous printing

Battery Charger Input (100~250VAC, 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

Temperature -10¶C ~ 40¶C (operating)

-10¶C ~ 70¶C (storage)

Environment

Conditions

Humidity

30% - 80% (operating)

10% - 90% (storage)

Mechanical 37,000,000 lines

MCBF (Mean Cycle

Between failure) Head Approximately 50 Km

http://www.woosim.com 9

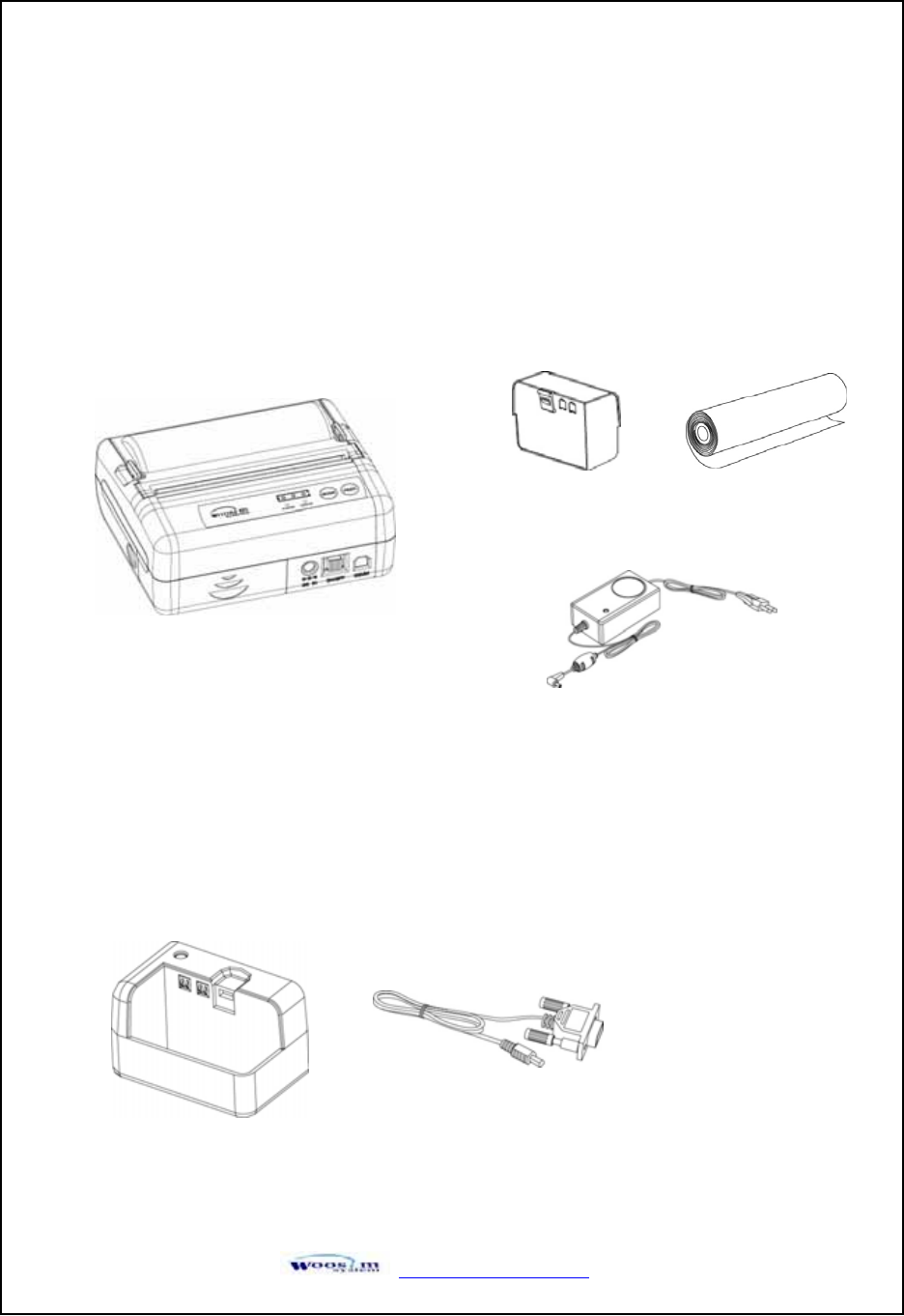

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

PORTI-SW40

Battery Pack Roll Paper

Battery Charger

Communication Cable

̷G

OPTIONAL

Extra Charger

http://www.woosim.com 10

http://www.woosim.com 11

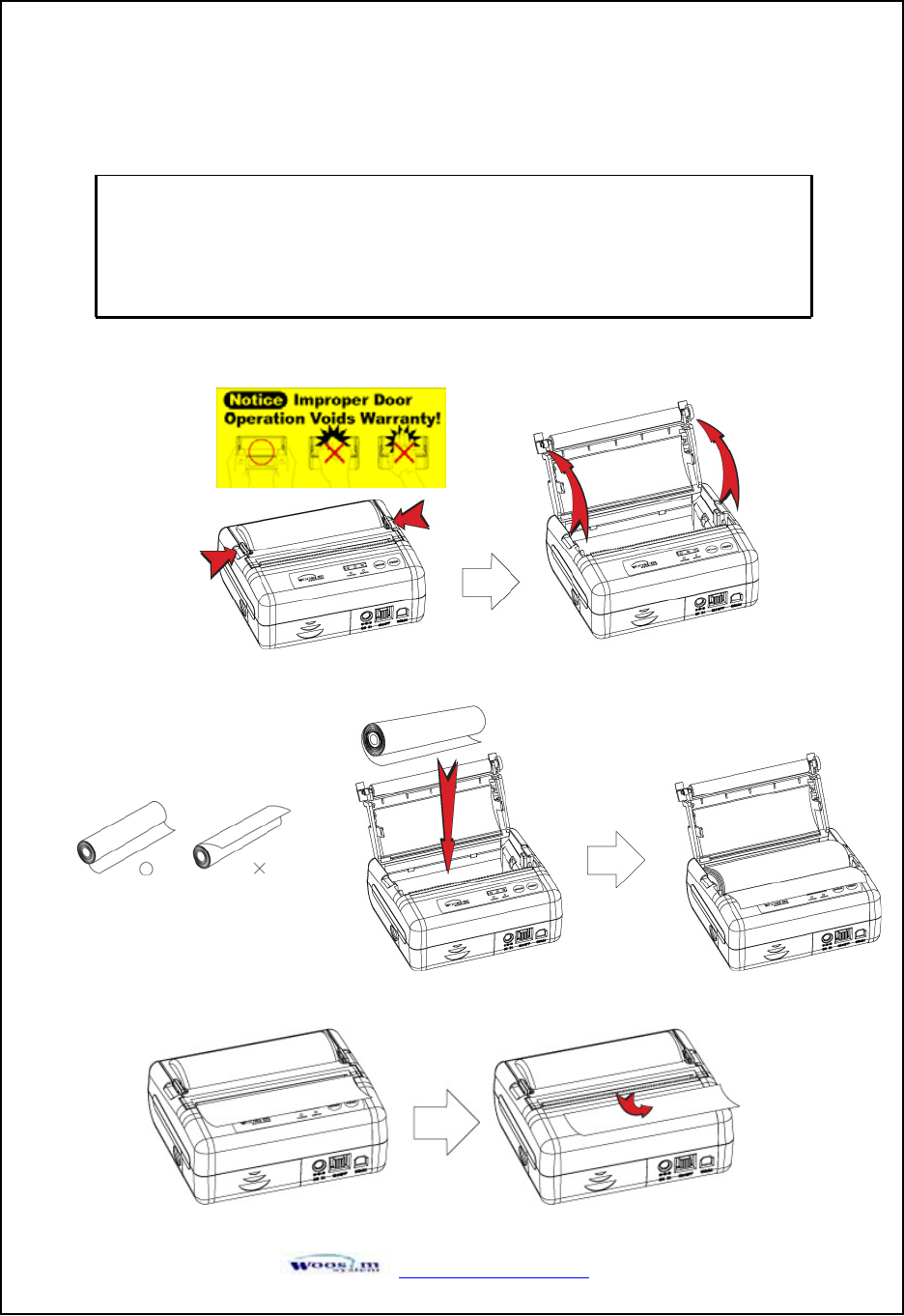

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper cover using finger on both side of printer, and remove the remaining

paper.

3. Insert the paper roll as shown.

4. Tear the excess paper off using the edge of paper door as a tear bar.

Note : Be sure to use paper rolls that meet the specifications.

Do not use paper rolls that have the paper glued to the

core because the printer cannot detect the paper end

correctly.

http://www.woosim.com 12

The following specification is requested for Power supply.

Battery Charger : DC 8.4V/0.8A

Avoid using power supply which its power capacity of power current is extremely high.

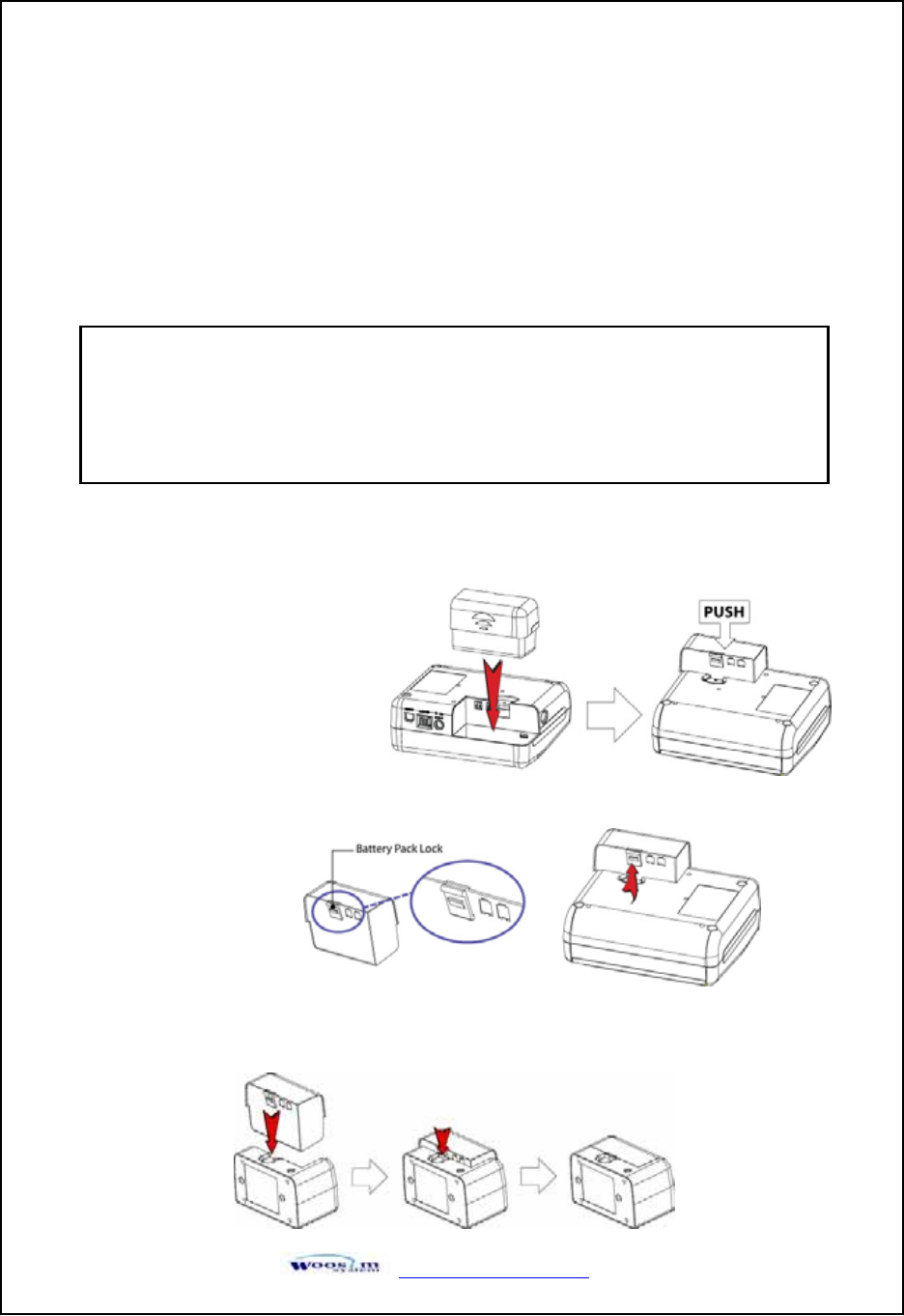

ྙ To install battery pack, proceed as follows:

- Insert the Battery pack in the direction of the arrow.

ྚGRemoving the battery pack

- Turn the printer power off and push the battery pack lock and to lift up the direction of

the arrow.

ྛ The battery pack install into extra charger.

- Insert the Battery pack in the direction of the arrow.

NOTE : Ɣ Before installing or removing the battery pack, ensure the printer is

OFF.

ƔIf the printer is not used for long period of time, remove the battery

pack from the printer.

http://www.woosim.com 13

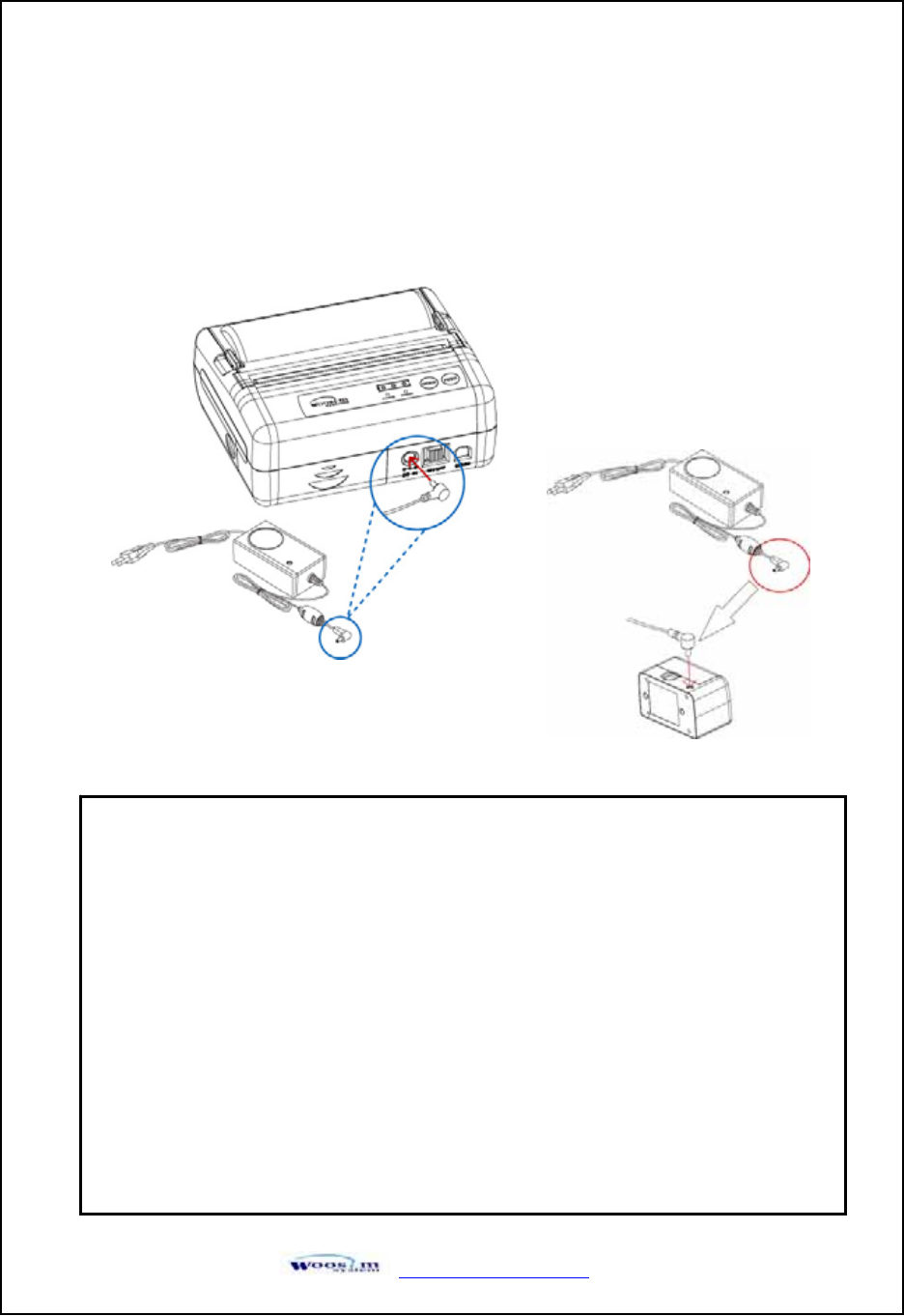

For recharging the battery pack, install the battery pack in the printer or the extra charger.

Insert the Battery Charger to the charge connector of the printer or the extra charger.

NOTE : ƔWhile charging the printer, turn off the printer power.

ƔDo not remove the battery during charging.

ƔThe battery is consumable parts and when purchasing, compared to

the use hour is gradually decreases. (Warranty 6 month)

ƔIf the printer is not used for a long time, unplug the power cord

from the printer and outlet.

ƔThe recharging time depends on the voltage level and ambient

temperature of the battery. Normally, if takes about 4 to 5 hours to

recharge a battery pack.

ƔRed Lamp : charging the battery.

Green Lamp: charging is finished.

http://www.woosim.com 14

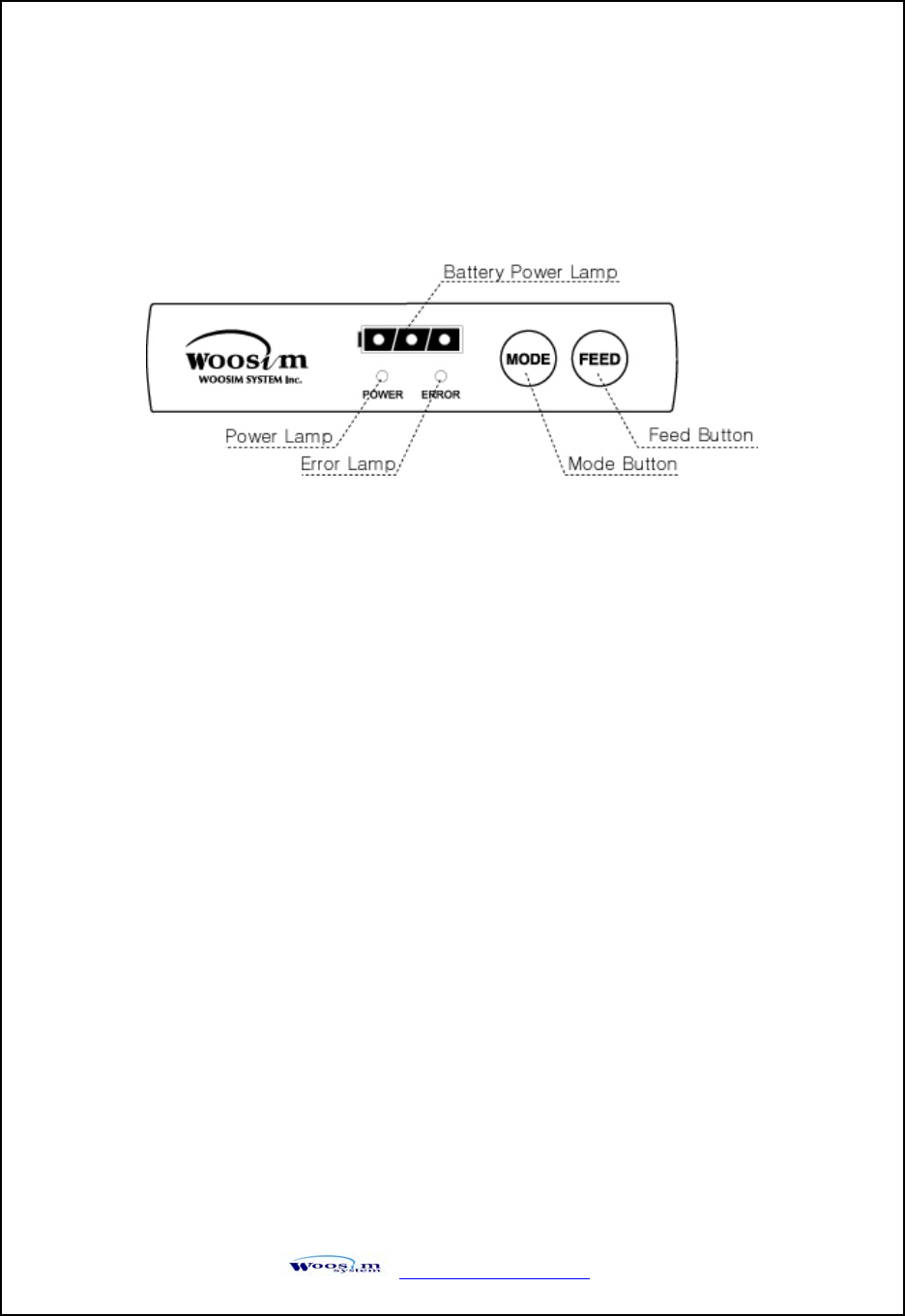

1. Press the MODE Button until the Error Lamp twinkles 5 times.

2. Change the mode and option using the MODE Button according to the MODE

(Table1).

zMODE button : use for changing OPTION status. (Error Lamp)

zFEED button : use for changing MODE status. (Power Lamp)

Ex) The defaults of the printer are : RS-232C/ 9600 bps/ 8 data bit / No parity

/ Density Low

If a user wants to modify the defaults with Protocol IrDA / 38400 bps / 7 data

bit/ even parity/ density high

XPress MODE Button until Error Lamp twinkles 5 times and release the

button.

You will see the Power Lamp twinkles one time and the Error Lamp

twinkles 1 time.

Press the MODE Button one time and the Error Lamp twinkles twice.

(The interface mode has set to Protocol IrDA mode)

XPress FEED button one time, Power Lamp twinkles twice and Error Lamp

twinkles 4 times

Press MODE Button one time, Error Lamp twinkles 5 times and press

the MODE Button one more time, the Error Lamp twinkles 6 times

(The baud rate has set to 38,400 bps)

http://www.woosim.com 15

XPress FEED Button one time, Power Lamp twinkles 3 times and Error Lamp

twinkles 2 times.

Press MODE Button one time, Error Lamp twinkles one time.

(The Data Bit has set to 7 data bit)

XPress FEED Button one time, Power Lamp twinkles 4 times and Error Lamp

twinkles 1 time.

Press MODE Button one time, Error Lamp twinkles 2 times.

(The Parity bit has set to even parity bit)

XPress FEED Button one time, Power Lamp twinkles 5 times and

Error Lamp twinkles 1 time.

Press MODE Button one time, Error Lamp twinkles 2 times after then

press MODE Button again, the Error Lamp will twinkle 3 times.

( The density has set to High)

If all the mode have set, press the MODE Button and the FEED Button at the same time

after then release the buttons at the same time.

The printer will print out the mode status which has modified.

(PROTOCOL IrDA/ 38,400 BAUD/ 7 DATA BIT/ EVEN PARITY/ DENSITY HIGH)

If the status is not correct, please try it again according to the procedure.

http://www.woosim.com 16

(Fig.1.9)

tvklG

POWER Lamp

(Green)

ERROR Lamp

(Red)Option

1RS-232C

2Protocol IrDA / Protocol Bluetooth

Communication

Port 1

3Standard IrDA / Bluetooth

11200 bps

22400 bps

34800 bps

49600 bps

519200 bps

638400 bps

757600 bps

Baud Rate 2

89600 bps

17 Data bit

Data Bit 3

28 Data bit

1No Parity

2Even Parity

Parity Bit 4

3Odd Parity

1Density Low

2Density Medium

Density 5

3Density High

1Default Protocol

Protocol 6

2Lotte Protocol

1No use

Mark 7

2Use

http://www.woosim.com 17

S-

-2

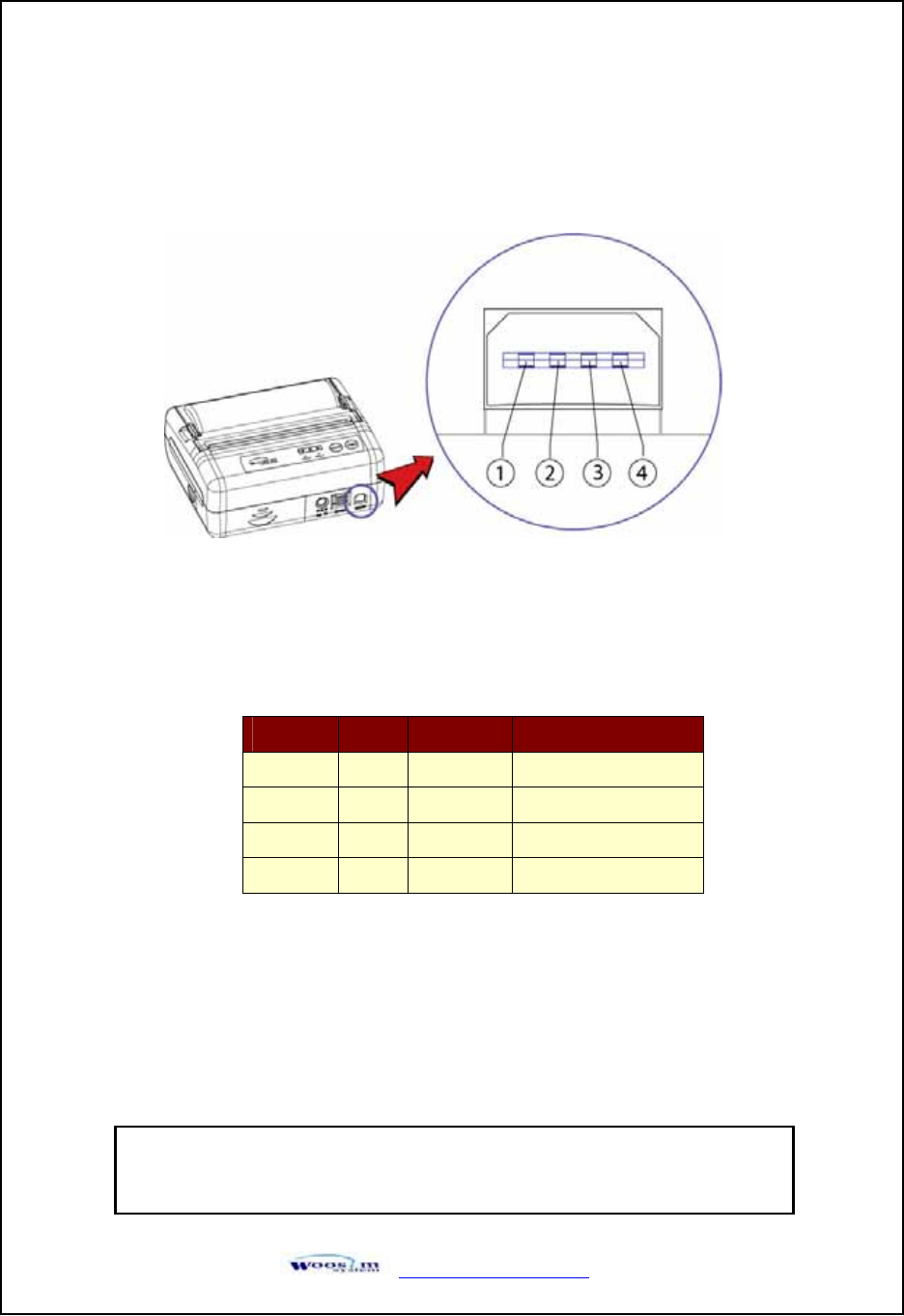

The PORTI-SW40 printer has a RS-232C interface and is connected by means of a

4 pin mini USB socket. In the following table, the signals present on the Mini USB

socket are listed:

* Applicable connector : SUNG KYUNG (CM-720)

Pin No. Name Direction Function

1TxD Output Transmit Data

2RxD Input Receive Data

3CTX - -

4GND -Ground

NOTE : ƔWhen data receiving, when it removes the communication

cable, it loses a data.

http://www.woosim.com 18

The PORTI-SW40 has a serial interface for bi-directional data exchange. The infrared port is the

right side of the front part.

1. To use the PORTI-SW40’s infrared port by

a Computer or a Personal Digital Assistant

(PDA) with IR port is required.

2. Position a PDA conforming to the specifications

in point not more than 50 centimeter away from

the printer’s infrared port. Make sure the two ports

are in front of each other with an angle of not more

than 15° on the four sides.

http://www.woosim.com 2-19

* Notice

Ensure that the two devices (PDA and Printer) are turned on, discoverable, and within close range.

Notice

If the quantity of data what printed at once is more than 20K byte on Bluetooth communication,

it would cause the buffer to overflow and the data to get damaged.

Category Specification

Bluetooth Spec. Bluetooth V1.1 / Class2 (10m)

Frequency Range 2.4GHz ISM BAND

Data Transmission Rate 57600bps Fixed.

Data bit 8 Data bit Fixed.

Parity bit No parity Fixed.

Stop bit 1 Stop bit Fixed.

1) Tap on the Bluetooth icon in

lower-right corner and run Bluetooth

manager.

2) Tap “New” Æ “Connect!”

http://www.woosim.com 20

X Button

- MODE Button

MODE Button is for use to change communication mode.

(Refer to 2.5. ADJUSTMENT AND SETTING for details about mode conversion)

If you want to set to RS-232C Mode, just connect the communication cable to connector of

the printer and then the mode will be changed automatically.

- FEED Button

Press the FEED Button once to advance paper one line. You can also hold down the FEED

Button to feed paper continuously.

X Panel lamp

- Power : This lamp(Green) is on whenever the printer is on.

- Error : This lamp(Red) indicated an error such as paper end, or cover open, or

mode conversion ,etc.

- Battery Power : These lamps(Green) indicated the battery power remaining.

The battery gain in quantity and these lamps are on the decrease.

If so, you must recharge the battery by using the adapter.

http://www.woosim.com 21

The Self-Test checks whether the printer has any problems. If the printer does not function

properly, contact your dealer. For Self-Test, turn on the power while holding down the FEED

Button. The Self-Test checks the following :

1) Make sure paper roll has been installed properly.

2) The Self-Test prints the current printer status, which provides the control ROM

version and the communication method setting.

3) After printing the current printer status, Self-Test will print a pattern using the built-

in character set.

4) The Self-Test automatically ends.

The printer is ready to receive data as soon as it complete the Self-Test.

http://www.woosim.com 22

The driver installation instruction were written for the printer to be used with the Infrared

port and serial port(RS-232C).

Make sure that your PC has built-in infrared device(IrDA Ver1.0).

Printer driver can download by Internet(http://www.woosim.com).

Installing the PORTI-W Printer Driver on Windows 98/ME/2000/XP.

1) You must install new driver after deleting old driver.

- Delete the old driver

- Reboot the computer

* If there is not any installed driver, you can install new driver immediately.

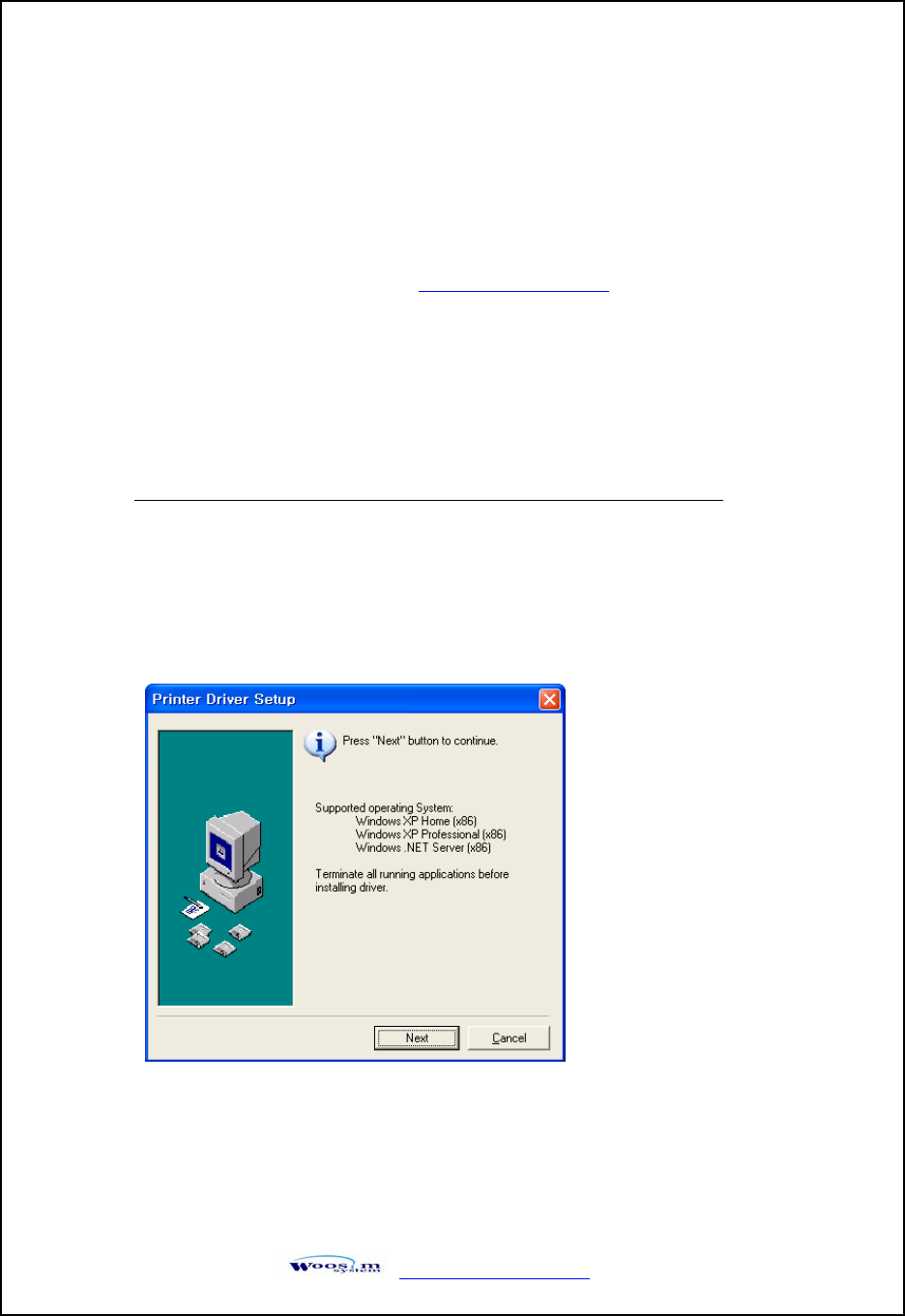

2) Run the setup.exe

Press the “Next” after checking the supported Operating System.

(Fig.4.3.1)

http://www.woosim.com 23

3) Select printer model to install, and press “Next”.

4) Select the port connected to printer, and press “Next”

(Fig.4.3.2)

(Fig.4.3.3)

http://www.woosim.com 24

-i

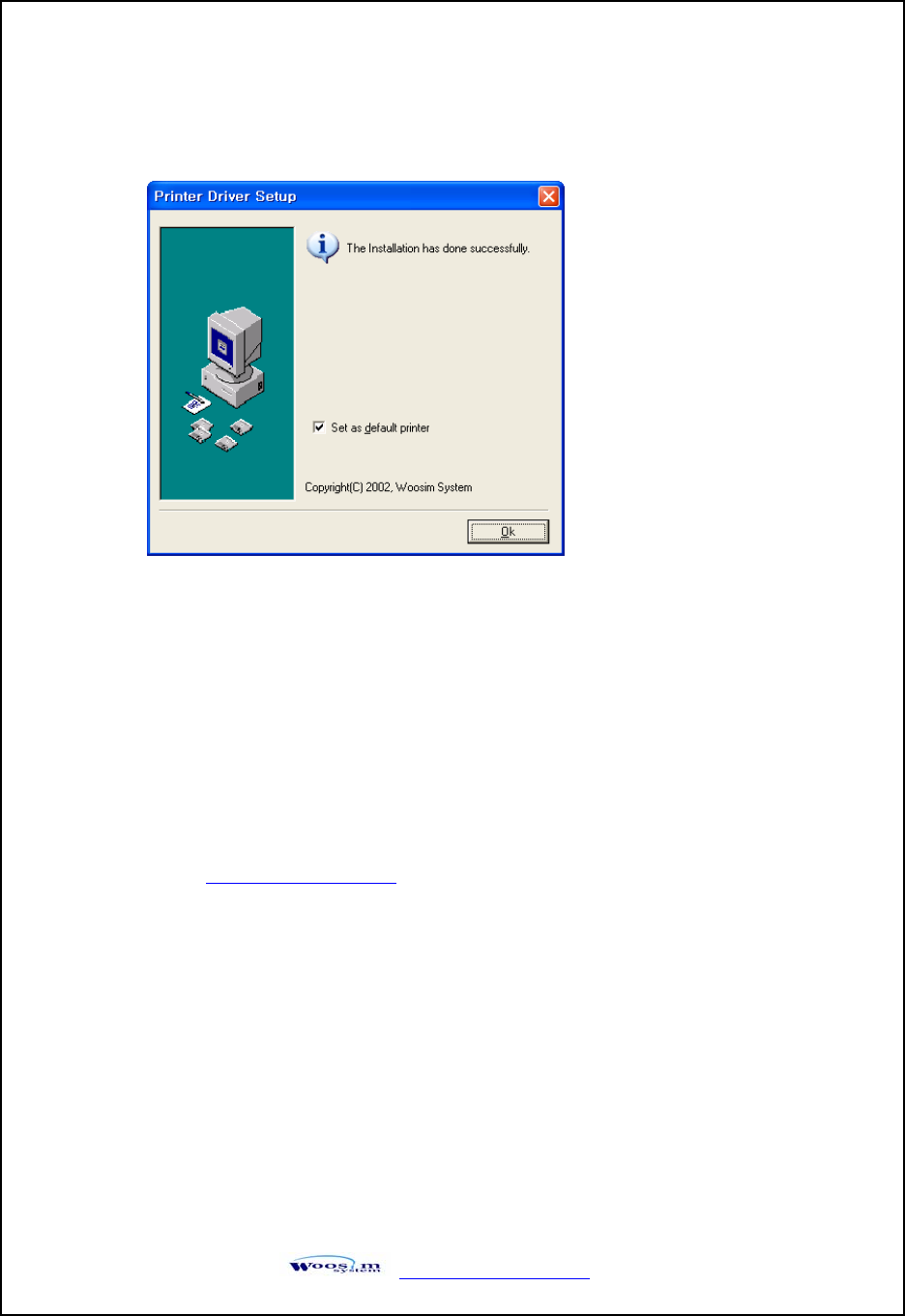

5) If the installation has done successfully, press “OK”.

(Fig.4.3.4)

The PORTI-SW40 Printer supports bit image download to the internal Flash ROM.

The bit image download require the Porti_Download application and PCX file.

- Porti_Download Application : The Porti_Download application can download by

internet( http://www.woosim.com).

- PCX file : The picture must be black or white PCX file and the width of picture must

be x8 pixel.

Refer to Porti_Download manual for details about bit-image download.

You can print out the downloaded picture with referred ESC f command. (See sec. 6.6)

http://www.woosim.com 25

Check the following points before you make a request for repair.

X The power does not turn on.

● AC adapter or battery pack being used?

● AC cable and AC adapter or batter pack is connected.

● AC adapter is connected to the printer correctly?

● Battery pack is fully recharged?

X The printer does not print.

● Interface cable is connected correctly?

● Interface cable that meets the Communication Connector

specification list on page 15 of the Operator’s Manual being used?

● IrDA transmission status is good? (To close up between Infrared

Transmitter / Receiver and the host computer?)

● Transmission conditions of the host computer is correct?

(IrDA port is activated and set-up correctly?)

● Paper is not inserted?

● Paper orientation(top/bottom) is correct?

http://www.woosim.com 26

X Error Lamp of the power Lamp is blinks.

● Paper end or cover open ?

● Battery is almost exhausted? (Recharge the battery by using the power supply.)

X The battery pack is not installed.

● Battery pack correctly oriented?

● Correct battery pack being used?

● Battery pack case damaged?

X The battery runs out soon even if recharged.

● Battery been recharged correctly?

● If the battery is recharged correctly, but does not take a long time, it is almost dead.

Replace if with a new one.

http://www.woosim.com 327

Type : Thermal Paper

Paper width : 113mm

Paper thickness : 70±5 Mm

Outer diameter : Ø38mm or less

Recording side : Outside of roll

Cautions :

1. Do not paste the paper to the core, and the roll paper which has near end mark

printing on its near end is recommended.

2. Chemicals or oil may change the color of paper, or printed characters may

fade.

3. Change of paper color starts from approx. 70 C. Pay attention to heat, humidity

and sun light.

4. Color of paper may be changed by being scratched by nail or hard metal, etc.

WOOSIM SYSTEMS PORTI-SW40 Digital Transmission System User Manual Operator Manual Porti SW40

Woosim System Inc. Digital Transmission System Operator Manual Porti SW40

Users Manual

Navigation menu

Namespaces

Views

Navigation
