WOOSIM SYSTEMS WSP-DT380 POS PRINTER User Manual
Woosim System Inc. POS PRINTER
User Manual
WSP-DT380 Rev. 4.0
http://www.woosim.com
2
Copyright
WSP-DT380 3inch POS printer operator’s manual.
Copyright ⓒ2012 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of
Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written
permission of Woosim Systems Inc.
Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
Caution
Some semiconductor devices are easily damaged by static electricity. You
should turn the printer “OFF”, before you connect or removed the cable on
the rear side, in order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the
printer “OFF”
Notice
The contents of this manual are subject to change without notice.
WSP-DT380 Rev. 4.0
http://www.woosim.com
3
Introduction
The WSP-DT380 is the ideal solution for POS system, kitchen printer,
Electronic scale, Measuring equipment, Lottery etc.
The general features of WSP-DT380 printer are as follows:
Very silent printing thru direct thermal printing method
High speed(170mm/sec, MAX)
USB, Bluetooth(Ver 2.1 + EDR) interface
Auto cutting
Support text and graphic printing
Support Magnetic Stripe Reader
Intuitive LED’s indicate Power(on/off), Error
Easier maintenance with self-diagnostics
Easier paper loading by CLAMSHELL design.
One touch paper cover
In field programming – Update Firmware, Download Fonts and Logos
Microsoft Windows XP / VISTA / 7 / 8 / CE / Linux / Android compatible.
Flow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer
WSP-DT380 Rev. 4.0
http://www.woosim.com
4
Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows:
◆ Operating temperature :-10°C to 50°C
◆ Relative humidity : 30% to 85%
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing
or transmission.
● Do not touch the connectors of the communication during printing.
● Switch the POWER OFF when not in use.
● Do not use alcohol or other solvent.
● When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
Thermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper
for long periods.
● Do not stack the thermal paper with diazo copies immediately
after copying or wet-type copies.
● Do not use chemical glue.
● Always use the clean thermal paper.
WSP-DT380 Rev. 4.0
http://www.woosim.com
5
FCC ID : QDDWSP-DT380
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions; (1)
This device may not cause harmful interference, and (2) this device must accept any interference
received,
including interference that may cause undesired operation.
CAUTION : Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
ㆍReorient or relocate the receiving antenna.
ㆍIncrease the separation between the equipment and receiver.
ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
ㆍConsult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to operated
the equipment under FCC rules.
This Device has been evaluated to comply with RF exposure requirement for general use limit in
portable condition. It is safe to be used in sold condition.
WSP-DT380 Rev. 4.0
http://www.woosim.com
6
CONTENTS
1. Outline. .........................................................................................................................................7
1.1. Model classifications. ...........................................................................................................7
1.2. Product Part Number System .............................................................................................7
1.3. Specifications. ........................................................................................................................8
2. Setting up the printer. ............................................................................................................ 10
2.1. Printer & Accessories ......................................................................................................... 10

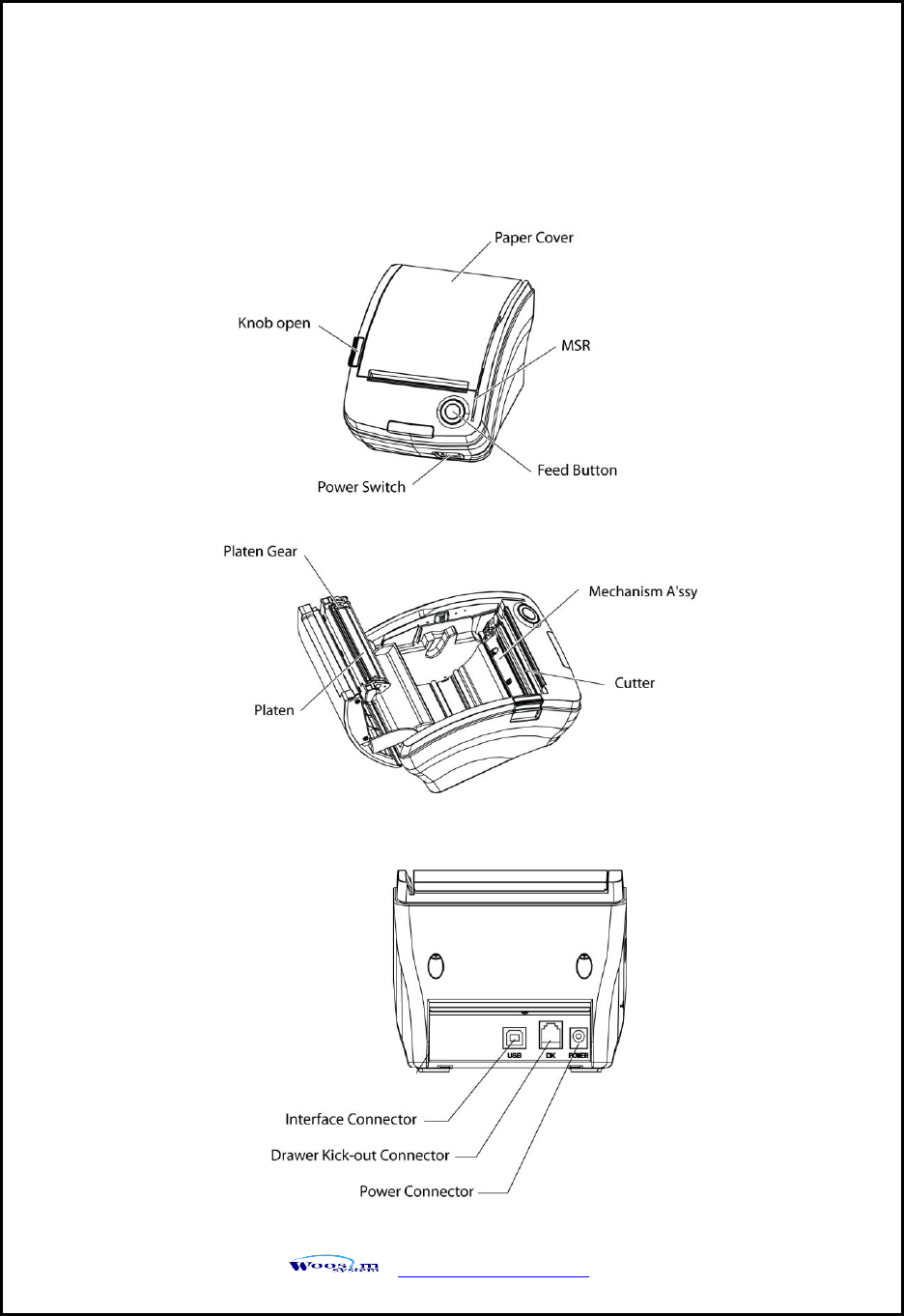

2.2. Printer Features ................................................................................................................... 11
2.3. Replacing paper roll. ........................................................................................................... 13
2.4. Power supply ........................................................................................................................ 14
2.4.1. Specified power supply. .............................................................................................. 14
2.5. Setting the DIP switches .................................................................................................... 14

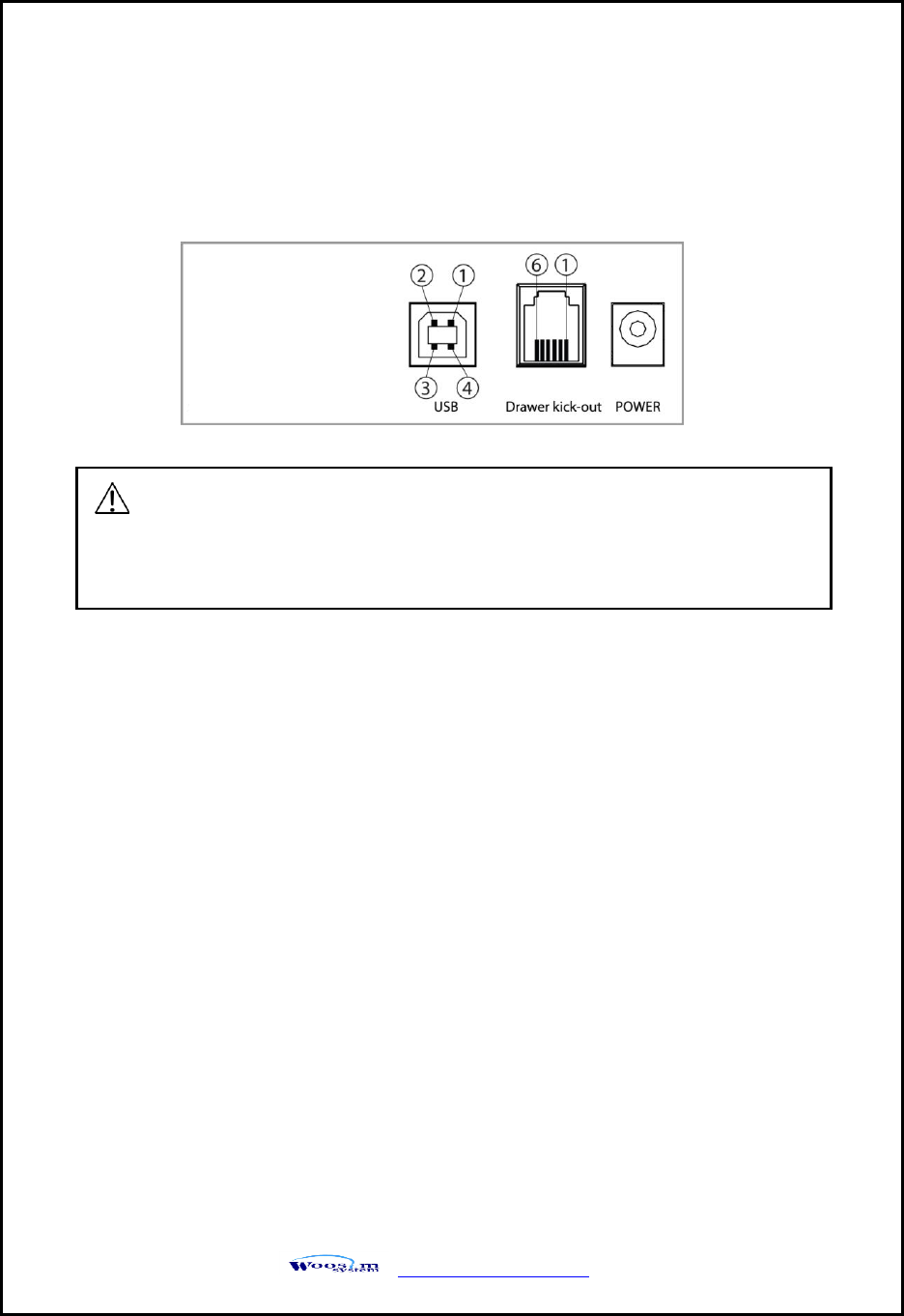

3. Interface ...................................................................................................................................... 16
3.1. USB ........................................................................................................................................ 17
3.2. Bluetooth .............................................................................................................................. 18
3.3. Card Reading ....................................................................................................................... 19
4. Using the printer. ..................................................................................................................... 20

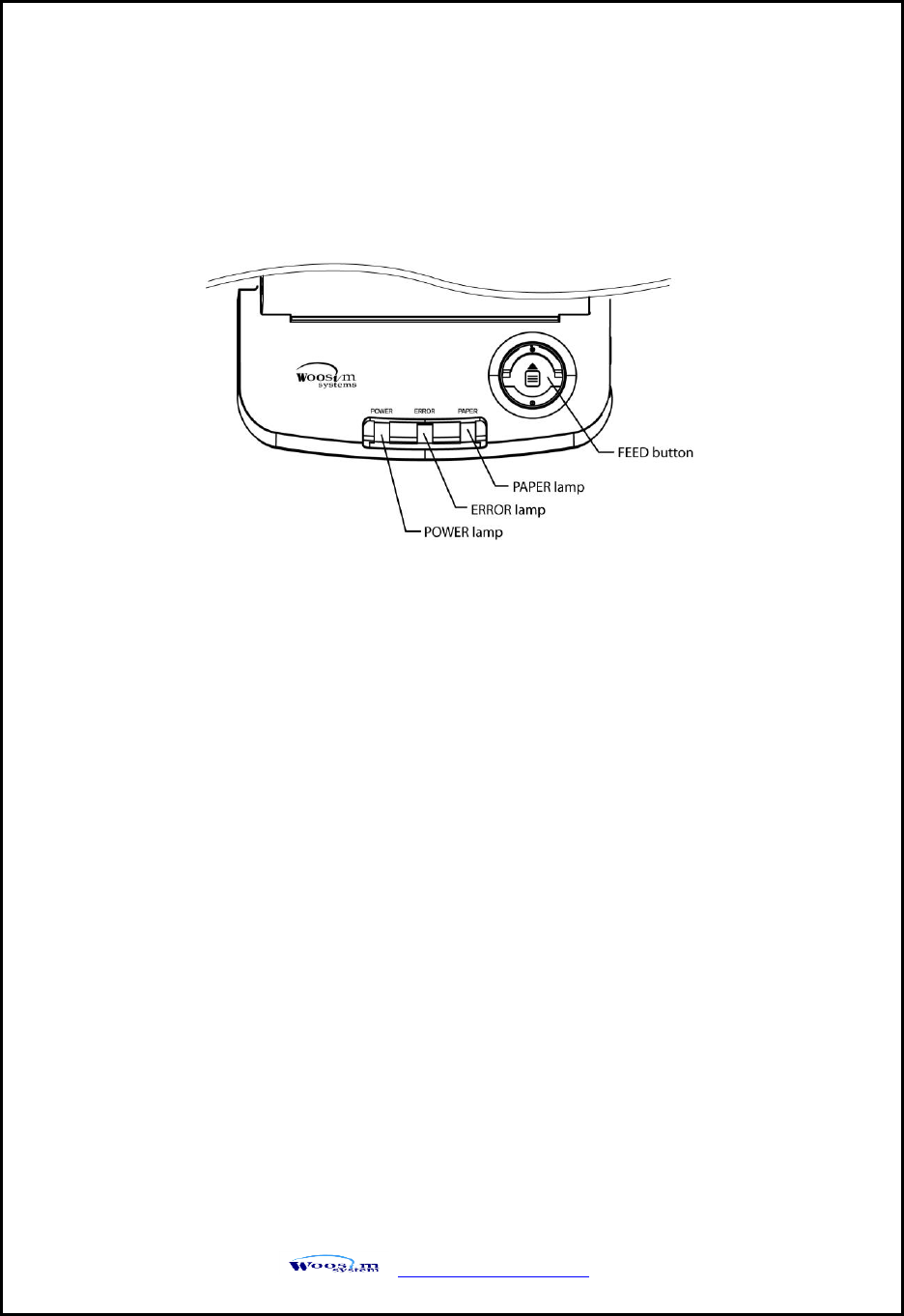

4.1. Control panel. ...................................................................................................................... 20
4.2. The self test. ......................................................................................................................... 21
5. Consumable Parts .................................................................................................................... 22
5.1. Recommended paper ......................................................................................................... 22
5.2. Printing position. ................................................................................................................. 22
WSP-DT380 Rev. 4.0
http://www.woosim.com
7
1
1.
.
O
Ou
ut
tl
li
in
ne
e.
.
1
1.
.1
1.
.
M
Mo
od
de
el
l
c
cl
la
as
ss
si
if
fi
ic
ca
at
ti
io
on
ns
s.
.
1
1.
.2
2.
.
P
Pr
ro
od
du
uc
ct
t
P
Pa
ar
rt
t
N
Nu
um
mb
be
er
r
S
Sy
ys
st
te
em
m
WSP–DT380 ( ) ( )
Model
Interface
A0 : UART
Power
None : DC 24V/2.7A
Model name / Interface Spec.
Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
S40
SC30
W25
.
.
.
Wired
Wireless
A
RS-232C
1
Bluetooth
B
TTL
2
IrDA
C
USB
0
None
D
RS-485
E
Parallel
Z
None
WSP-DT380 Rev. 4.0
http://www.woosim.com
8
1
1.
.3
3.
.
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s.
.
Item
Specifications
Printing method
Thermal dot line printing
Characters per line
64cpl (MAX)
Character size
Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]
Optional Characters
Simplified/Traditional Chinese, Arabic, Cyrillic, Russian,
Turkish, Greek, Japanese, Persian, Latin9 and
Others upon request.
Resolution
W 8dots/mm X H 8 dots/mm
Paper feed pitch
0.0625mm
Print width
3-inch (72mm, 576dots)
Printing speed
170mm / sec (MAX)

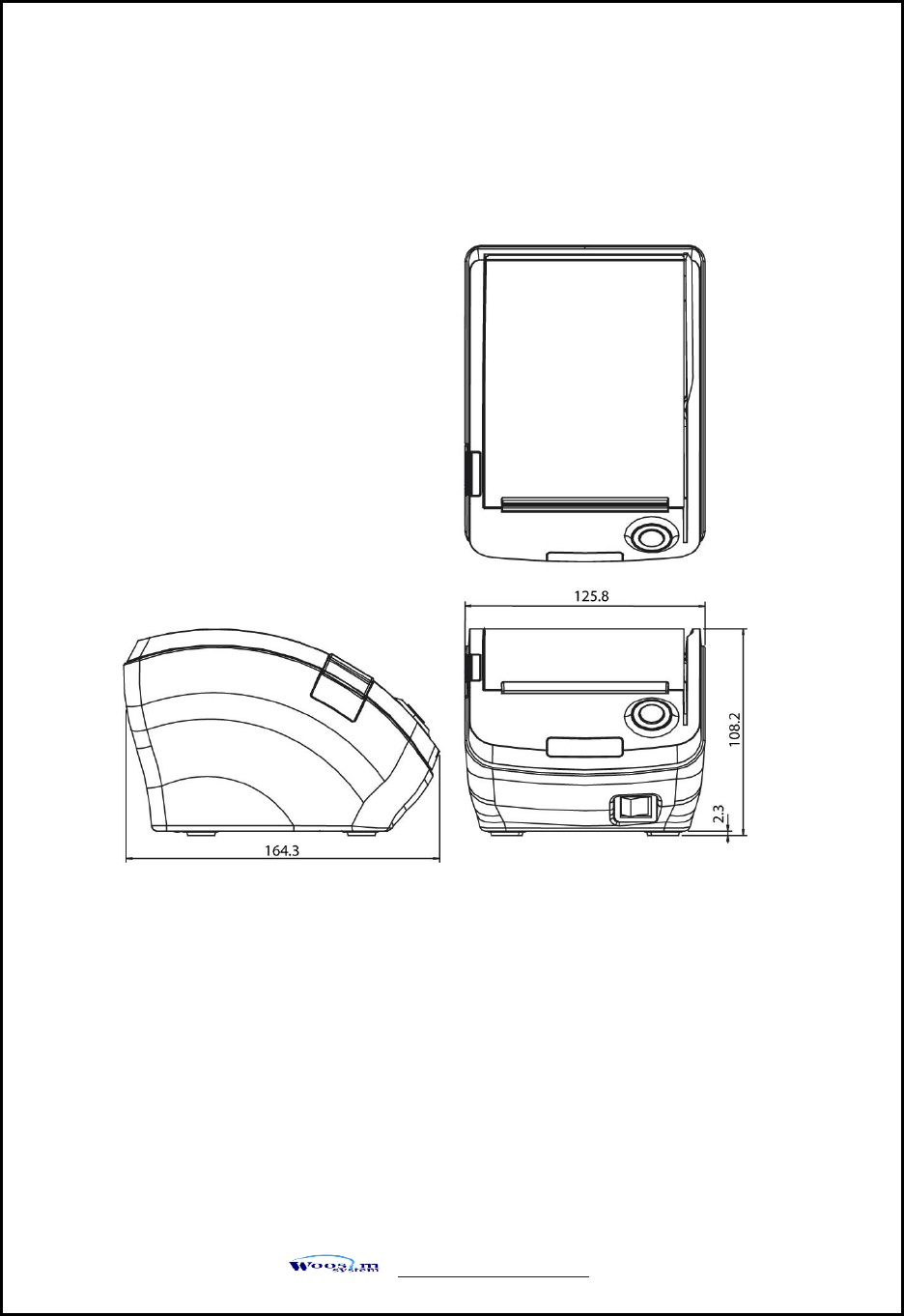

Dimensions
126 * 165.5 * 108.2 mm
Weight
801g
Interface
USB, Bluetooth Ver2.1 + EDR
Paper supplied
Thermal roll paper (80mm wide, 80ø)
Barcode supplied
1-dimension : Code128, EAN 128, Code39, I2/5, Code93
UPC, EAN, KAN,JAN, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix
Driver
Microsoft Widows XP / VISTA / 7 / 8 /
Windows CE, Linux, Android OS driver compatible
H/W Spec.
MCU : 32bit RISC, FLASH : 4 Mbytes, RAM : 8 Mbytes
Receive buffer size
1M bytes
MSR
ISO 7810 / 7811 / 7812 Triple tracks(1&2&3) Reading
Paper cutting method
Slide cutting
Type of paper cutting
Full cut and Partial cut (1.5±0.5mm tab left at the center)
AC adapter
Rated Voltage : AC 100-240V, 50-60Hz
Capable of Supplying : +24VDC at 2.7A
WSP-DT380 Rev. 4.0
http://www.woosim.com
9
Item
Specifications
Environment
conditions
Temperature
-10°C ~ 50°C (operating)
-20°C ~ 60°C (storage)
Humidity
30% - 85% (operating)
Life span
(at 25℃ and rated
energy)
Activation pulse
resistance
100 million pulses or more
Abrasion resistance
100km or more (excluding damage
caused by dust and foreign materials)
Paper cutting
resistance
700,000 cuts or more
WSP-DT380 Rev. 4.0
http://www.woosim.com
10
2
2.
.
S
Se
et
tt
ti
in
ng
g
u
up
p
t
th
he
e
p
pr
ri
in
nt
te
er
r.
.
2
2.
.1
1.
.
P
Pr
ri
in
nt
te
er
r
&
&
A
Ac
cc
ce
es
ss
so
or
ri
ie
es
s

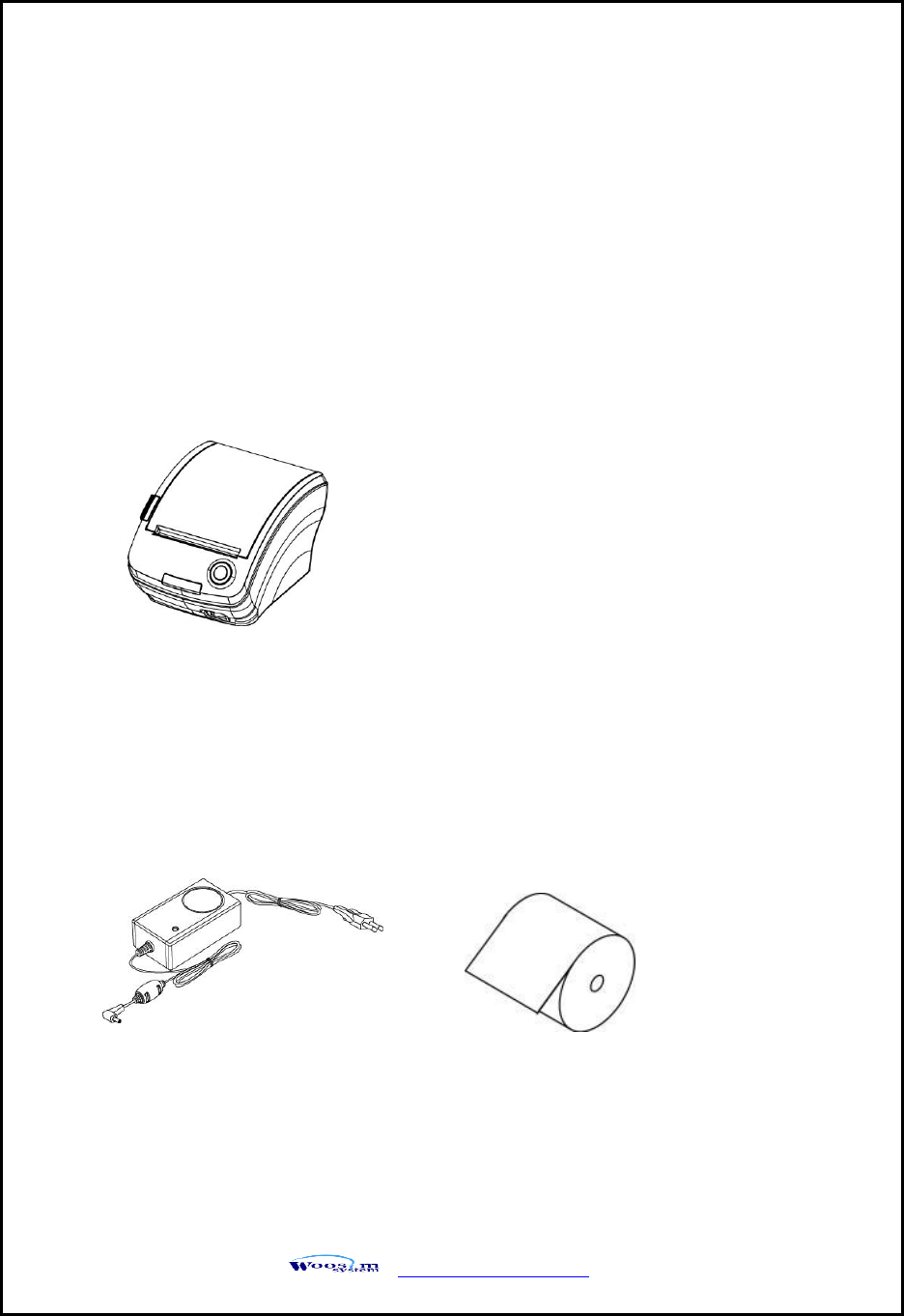

Your printer box should include these items. If any items are damaged or
missing, please contact your dealer for assistance.
WSP-DT380
Thermal roll paper
AC Adapter
WSP-DT380 Rev. 4.0
http://www.woosim.com
13
2
2.
.3
3.
.
R
Re
ep
pl
la
ac
ci
in
ng
g
p
pa
ap
pe
er
r
r
ro
ol
ll
l.
.

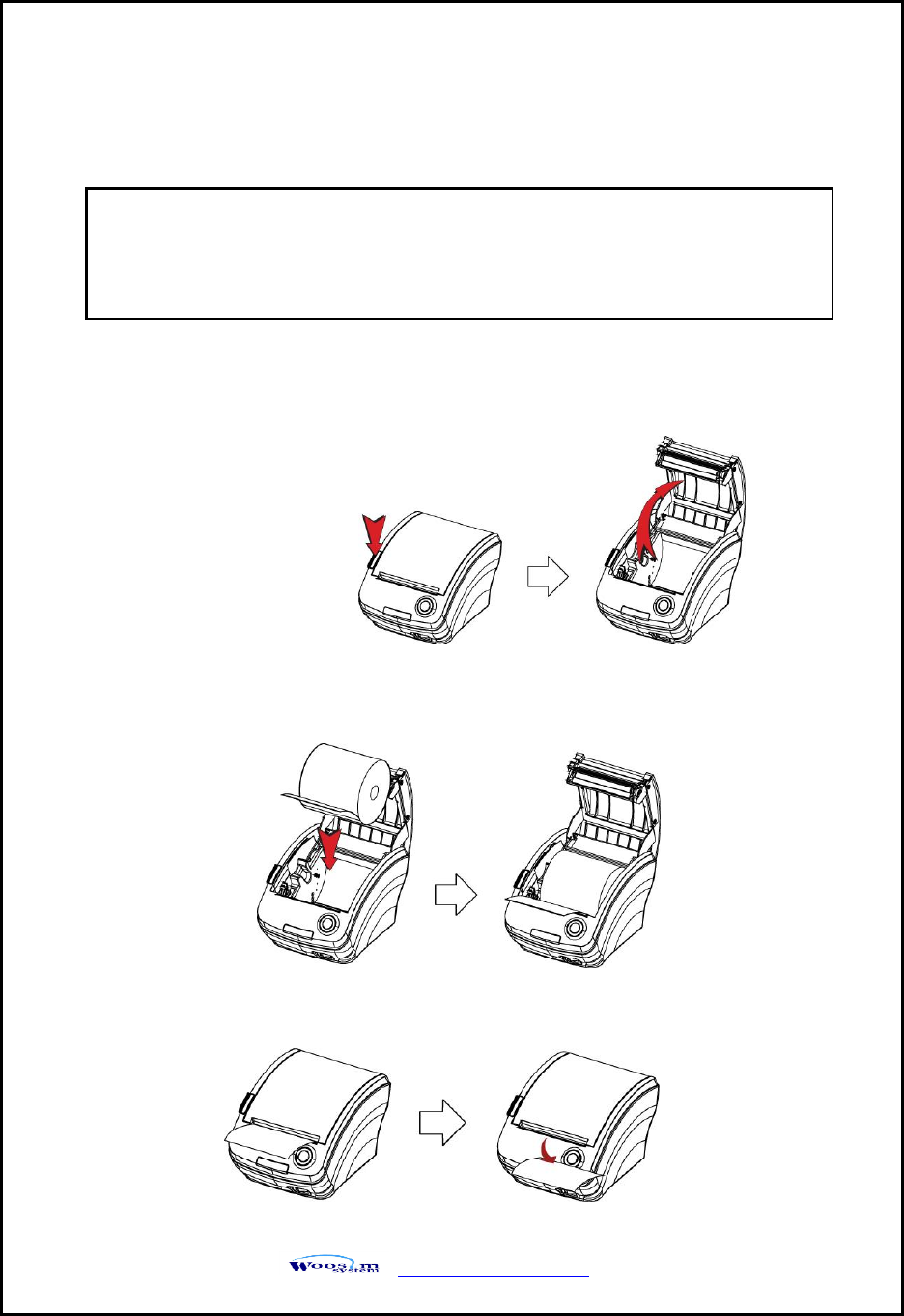

1. Make sure that the printer is not receiving data; otherwise, data may be lost.
2. Open the paper cover as the “One-Touch” way by pressing the button in the arrow
direction like the picture.
3. Insert a new paper roll as shown.
4. Tear the excess paper off using the edge of paper door as a tear bar.
Note : Be sure to use paper rolls that meet the specifications.
Do not use paper rolls that have the paper glued to the core because the
printer can not detect the paper end correctly.
WSP-DT380 Rev. 4.0
http://www.woosim.com
14
2
2.
.4
4.
.
P
Po
ow
we
er
r
s
su
up
pp
pl
ly
y
2
2.
.4
4.
.1
1.
.
S
Sp
pe
ec
ci
if
fi
ie
ed
d
p
po
ow
we
er
r
s
su
up
pp
pl
ly
y.
.
2
2.
.5
5.
.
S
Se
et
tt
ti
in
ng
g
t
th
he
e
D
DI
IP
P
s
sw
wi
it
tc
ch
he
es
s
The following specification is requested for Power supply.
Input : Rated Voltage : AC 100-240V, 50-60Hz
Capable of Supplying : +24VDC at 2.7A
Avoid using power supply which its power capacity of power current is extremely high.

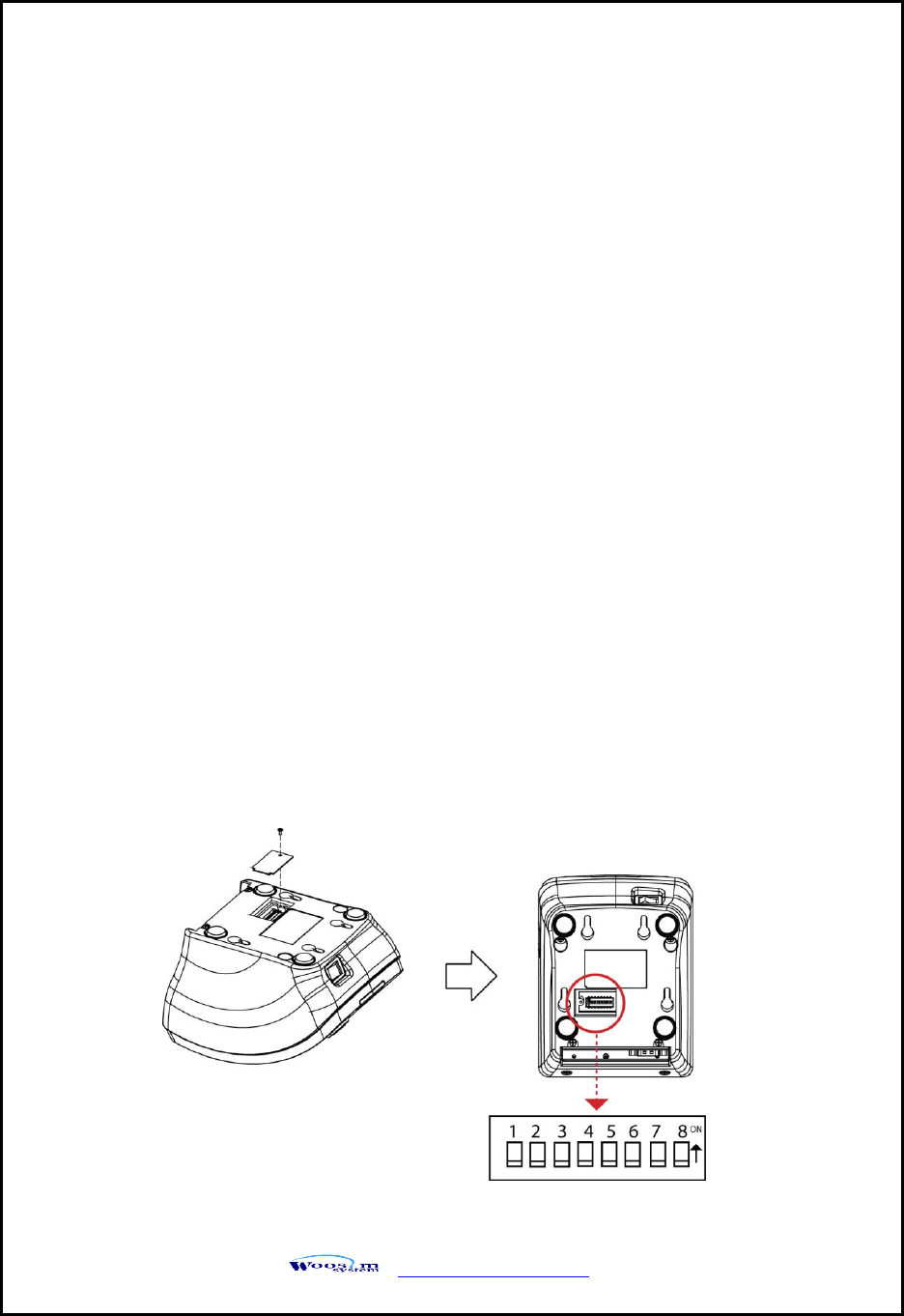

The DIP switches are located on the bottom of the printer. The DIP switches
are used to set the printer to perform various functions. Follow these steps
when changing DIP switches setting :
1. Turn the printer power switch off.
2. Turn the printer over and remove the DIP switch cover.
3. Move the DIP switches using tweezers or another narrow-ended tool.
4. The new setting takes effect when you turn on the printer.
WSP-DT380 Rev. 4.0
http://www.woosim.com
15
No
DIP SWITCH No.
1
1
2
Off
Off
Density High
Off
On
Density Medium
On
Off
Density High
On
On
Density Low
2
3
4
5
Off
Off
Off
1000000 Baud Rate
On
Off
Off
500000 Baud Rate
Off
On
Off
230400 Baud Rate
On
On
Off
115200 Baud Rate
Off
Off
On
57600 Baud Rate
On
Off
On
38400 Baud Rate
Off
On
On
19200 Baud Rate
On
On
On
9600 Baud Rate
3
6
Off
8 Data Bit
On
7 Data Bit
4
7
8
Off
Off
Odd Parity, 1 Stop Bit
Off
On
Even Parity, 1Stop Bit
On
Off
Odd Parity, 1 Stop Bit
On
On
No Parity, 1 Stop Bit
<DIP SWITCH Specification>
NOTE : Always change DIP switch settings when the printer is turned off.
Changes made with the power on have no effect until you turn the printer
off and then on again.
WSP-DT380 Rev. 4.0
http://www.woosim.com
17
3
3.
.1
1.
.
U
US
SB
B
USB
Pin No.
Signal Name
Function
1
USB_VCC
+5V
2
DM
DATA ‘-’
3
DP
DATA ‘+’
4
GND
Ground
< USB (B TYPE)>
Drawer Kick-out
Pin No.
Signal Name
Direction
1
Frame GND
-
2
Drawer Kick-out driver signal 1
Output
3
Drawer open/close signal
Input
4
+12V
-
5
Drawer kick-out drive signal 2
Output
6
Signal GND
-
< MODULAR JACK - DK623PCB6P>
WSP-DT380 Rev. 4.0
http://www.woosim.com
18
3
3.
.2
2.
.
B
Bl
lu
ue
et
to
oo
ot
th
h
Category
Specification
Bluetooth Spec.
Bluetooth Ver2.1 +EDR / Class2 (10m)
Frequency Range
2.4GHz ISM BAND
Data Transmission Rate
57600bps Fixed.
Data bit
8 Data bit Fixed.
Parity bit
No parity Fixed.
Stop bit
1 Stop bit Fixed.
WSP-DT380 Rev. 4.0
http://www.woosim.com
20
4
4.
.
U
Us
si
in
ng
g
t
th
he
e
p
pr
ri
in
nt
te
er
r.
.
4
4.
.1
1.
.
C
Co
on
nt
tr
ro
ol
l
p
pa
an
ne
el
l.
.

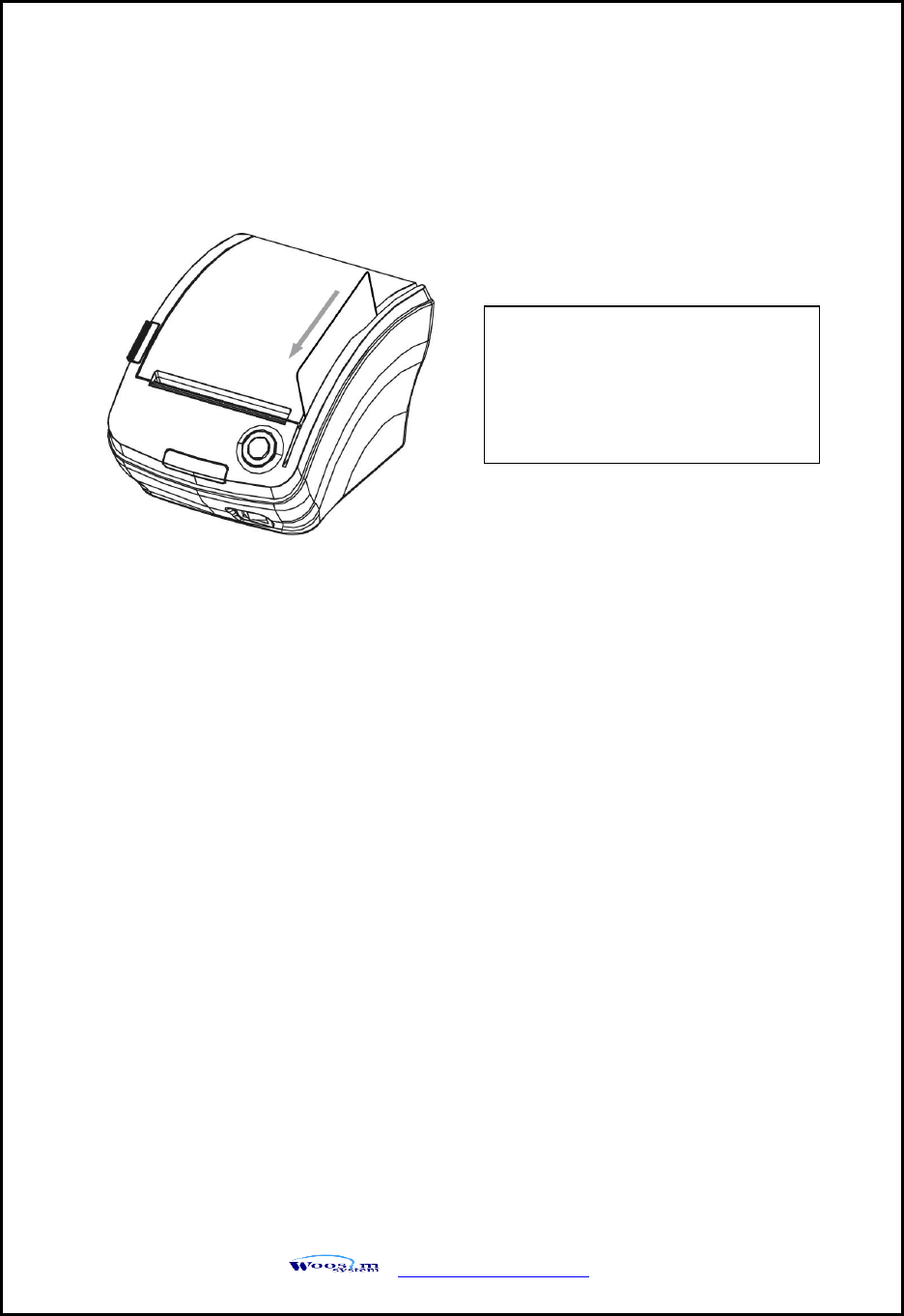

BUTTON
- FEED : When the printer is on, paper can be feed manually by pressing
and holding the FEED button for more than one second.
PANEL LAMP
-POWER (Green) : Printer is ON and ready to receive data.
-ERROR (Red) : Indicates a fault condition or a printer error.
(i.e : no paper, paper cover opened. etc.)
-PAPER (Red) : Indicates the shift time of the paper.
WSP-DT380 Rev. 4.0
http://www.woosim.com
21
4
4.
.2
2.
.
T
Th
he
e
s
se
el
lf
f
t
te
es
st
t.
.
The self test procedure will check most of the printer functions. For self test,
turn on the power while holding down the FEED Button. The Self-Test
checks the following :
1) Make sure paper roll has been installed properly.
2) The Self-Test prints the current printer status, which provides the
control ROM version and the communication method setting.
3) After printing the current printer status, Self-Test will print a pattern
using the built-in character set.
4) The Self-Test automatically ends.
The printer is ready to receive data as soon as it completed the self test.
WSP-DT380 Rev. 4.0
http://www.woosim.com
22
5
5.
.
C
Co
on
ns
su
um
ma
ab
bl
le
e
P
Pa
ar
rt
ts
s
5
5.
.1
1.
.
R
Re
ec
co
om
mm
me
en
nd
de
ed
d
p
pa
ap
pe
er
r
5
5.
.2
2.
.
P
Pr
ri
in
nt
ti
in
ng
g
p
po
os
si
it
ti
io
on
n.
.

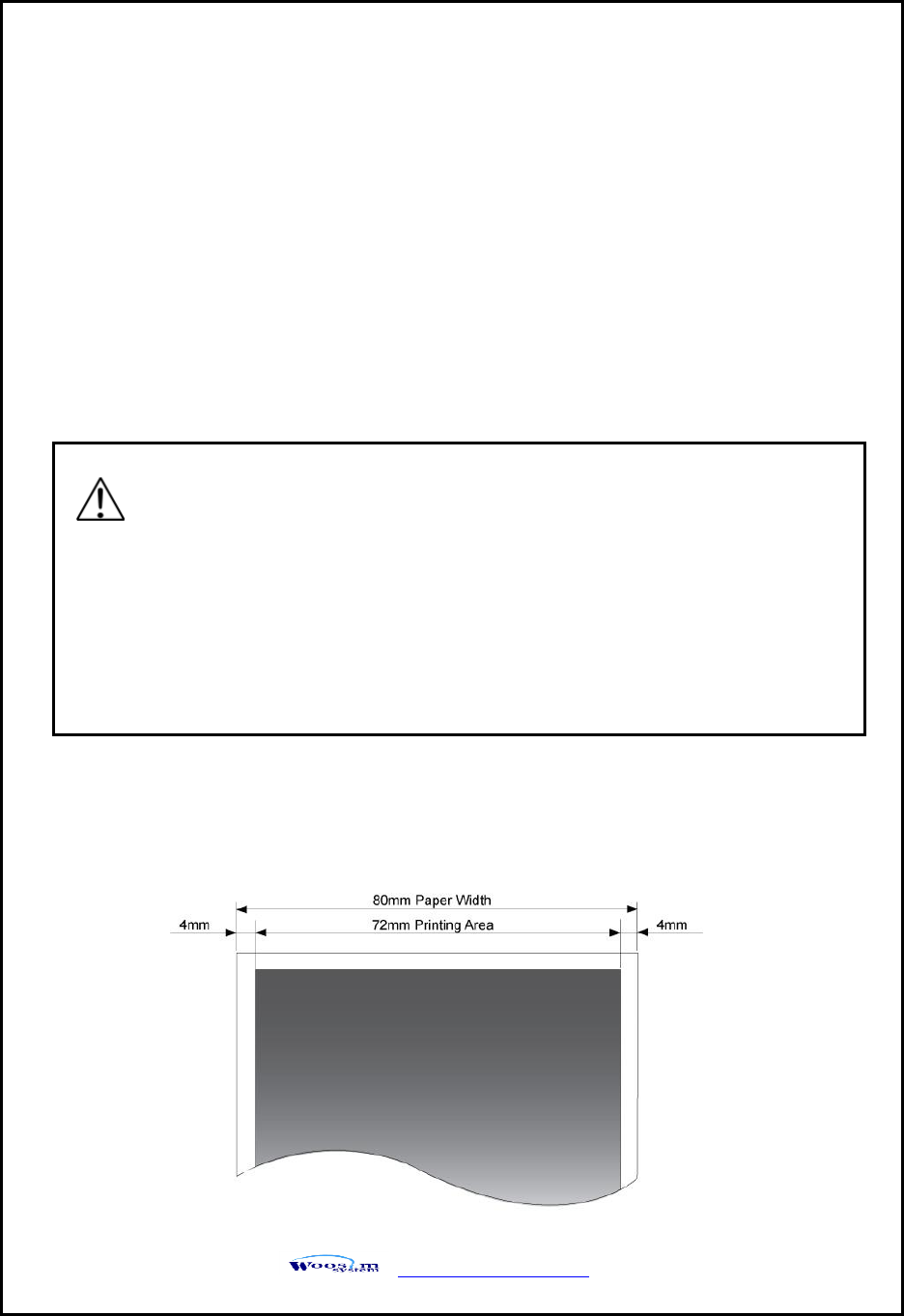

Type : Thermal Paper
Paper width : 80mm
Paper thickness : 60±5㎛
Outer diameter : Ø80mm or less
Recording side : Outside of roll
Cautions
1. Do not paste the paper to the core. And the roll paper which has near end
mark printing on its near end is recommended.
2. Chemicals or oil may change the color of paper, or printed characters may
fade.
3. Change of paper color starts from approx. 70℃.
Pay attention to heat, humidity and sun light.
4. Color of paper may be changed by being scratched by nail or hard metal, etc.
