SC5800 Digital Radio
User Manual
for
5.725 to 5.850-GHz Frequency Band
for Version 2
Document Number: 862-01881: Issue 7.1
Last Revised: September 17, 2001
Wave Wireless Networking
Division of SPEEDCOM Wireless
7020 Professional Parkway East
Sarasota, FL 34240
941-358-9283
941-355-0219 FAX
www.wavewireless.com
SPEEDCOM SC5800 User Manual
1
Issue Status
THIS MANUAL ADDRESS FEATURES SPECIFIC TO VERSION 2 OF THE
SPEEDCOM SC5800. PLEASE IGNORE REFERENCE S TO OTHER
VERSIONS.
The following sections are new additions to Issue 7:
• Added new address on cover page
• Update on Reset Button functionality description (see page 15)
• Interconnection Cable Wiring Description: corrected third columns
for Pins 1 and 2 (see page 32) and added notes on bottom of page
• MIB definition additions (see pages 83 through 97)
• Product receive sensitivity level adjustment (see page 61)
• FCC notice additions and Indoor unit firmware upgrade notice added
(throughout manual)
• MIB elements deprecated such as ResetALLRFPerformanceData
and ResetAllG826 and other modified Groups notified by a “+” (see
pages 83 through 97).
FEDERAL COMMUNICATIONS COMMISSION NOTICE
The equipment has been tested and found to comply with the limits for Class A digital devices,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
SPEEDCOM SC5800 User Manual
2
WARNING- To comply with FCC RF exposure limits, the
antennas for this transmitter must be fix-mounted to
provide a separation distance of 2 meters (6.6 ft) or more
from all persons to satisfy RF exposure requirements.
This equipment must be professionally installed.
Publication Number: 862-01881
Issue 7.1
September 17, 2001
Wave Wireless Networking Copyright Statement
Wave Wireless Networking products are manufactured under a quality system certified to ISO
9001 specifications. All trademarks mentioned in this document are the property of their
respective owners. Wave Wireless Networking and SPEEDCOM Wireless Corporation do not
take responsibility for any damages incurred due to technical inaccuracies in this document.
Contents are subject to change without notification. © 2001 Wave Wireless Networking. All
rights reserved.
Technical Support
For more information, contact Wave Wireless Networking at:
Wave Wireless Networking
7020 Professional Parkway East
Sarasota, FL 34240
Technical Support:
941-358-9283 phone
941-355-0219 fax
www.wavewireless.com
SPEEDCOM SC5800 User Manual
3
Table of Contents
Page
1 INTRODUCTION 9
1.1 SC5800 Description 9
2 TECHNICAL DESCRIPTION 11
2.1 System Overview 11
2.2 Outdoor Unit 11
2.2.1 Frequency plans 12
2.2.2 RF Power Output Options 13
2.2.3 SC5800 Outdoor Unit 13
2.3 Indoor Unit 14
2.3.1 Payload Interface Options 14
2.3.2 Service (Wayside) Serial Data Channel 16
2.3.3 Element Manager Port 16
2.3.4 10BaseT Ethernet RJ45 Port 16
2.3.5 IU/OU Link LED 17
2.3.6 IU/OU Data Interconnect RJ45 17
2.3.7 IU/OU Power Interconnect 17
2.3.8 Auxiliary In/Out Port 17
2.3.9 DC Power Input 17
2.3.10 Fuse Holder 17
2.3.11 ON/OFF Switch 18
2.3.12 Ground Terminal 18
3 PLANNING 19
3.1 System Type Selection 19
3.1.1 Antenna Selection (SC5800) 19
3.2 Site Evaluation 20
3.3 Multipath Effects 20
3.4 Interference Considerations 21
3.5 Micro-cell Backhaul Applications of SC5800 Digital Radios 22
3.5.1 Setting the Transmitted Power Levels 22
3.5.2 Frequency Multiplexing 22
SPEEDCOM SC5800 User Manual
4
3.5.3 Antenna Isolation 22
4 INSTALLATION 23
4.1 Customer Furnished Tools and Equipment 24
4.2 Indoor Unit 25
4.2.1 Introduction 25
4.2.2 Installing the Indoor Unit in a Rack 25
4.2.3 Connecting a DC Power Supply 26
4.2.4 Balanced Payload Data 27
4.2.5 Connecting Auxiliary In/Out (Optional) 28
4.2.6 Connecting the Service (Wayside) Serial Channel (Optional) 29
4.2.7 Connecting the Element Manager Port 29
4.3 Outdoor Unit 30
4.3.1 SC5800 Outdoor Unit 30
4.4 Interconnection Cable Installation 31
4.4.1 INTERCONNECTIO N CABLE WIRING DESCRIPTION 32
5 ANTENNA ALIGNMENT AND SOFTWARE SETUP 33
5.1 Installation Equipment Required 33
5.2 Information Required 33
5.3 Antenna Alignment 33
5.3.1 Introduction 33
5.3.2 Alignment Procedure 34
5.3.3 Set Transmitted Power Level 34
5.4 Software Setup 35
5.5 Functional Test 35
5.5.1 Link Bit Error Rate Performance Test 35
5.6 SC5800 Installation Record 36
5.7 SC5800 Test Record 37
6 NMS SOFTWARE 39
6.1 Introduction to the Network Management System 39
6.2 General Information 39
6.2.1 Microwave Digital Radio 40
6.3 Main Screen 41
6.3.1 Link Elements Areas 42
6.4 NMS Menus 43
SPEEDCOM SC5800 User Manual
5
6.4.1 Main Screen Menus 43
6.4.2 Main Screen Short -cut Buttons 45
6.5 Indoor Unit Configuration 45
6.5.1 Controls 45
6.5.2 Menu Items 48
6.6 Outdoor Unit Configuration 52
6.6.1 Controls 52
6.6.2 Menu Items 52
6.6.3 OU Station Info 53
6.6.4 Outdoor Unit Status 53
6.7 RF Link Error Status Monitoring 54
6.7.1 RF Link Status 54
6.7.2 Packet Error Rate Thresholds 54
6.7.3 RF Link Error Monitor 55
7 MAINTENANCE INFORMATION 57
8 TECHNICAL DATA 59
8.1 Environmental Requirements 59
8.1.1 Outdoor Equipment 59
8.1.2 Indoor Equipment 59
8.2 Mechanical Information for Outdoor Equipment 59
8.2.1 SC5800 Outdoor Unit 59
8.3 Mechanical Information for Indoor Equipment 59
8.4 Power Supply Requirements 59
8.5 Electrical Performance 60
8.5.1 General Characteristics 60
8.5.2 Transceiver Characteristics 60
8.5.3 RF Interface 61
8.5.4 Payload Data Interfaces 61
8.5.5 Auxiliary Input Interface (CONTACT CLOSURE) 62
8.5.6 Auxiliary Output Interface 62
8.5.7 Wayside channel interface 62
8.5.8 Element Manager Port Interface 62
8.5.9 Indoor/Outdoor Unit Interface 62
8.6 Ordering Information 64
SPEEDCOM SC5800 User Manual
6
9 APPENDIX A: ELEMENT MANAGER PORT POINT-TO-POINT SERIAL
COMMUNICATIONS SETUP 67
9.1 Adding a Modem: Windows NT 68
9.2 Adding Dial-up Networking: Windows NT 72
9.2.1 To add dial-up networking 72
9.3 Adding a Modem: Windows 95/98 77
9.4 Adding Dial-up Networking: Windows 95/98 79
10 APPENDIX B: MANAGEMENT OF THE SC5800 81
10.1 SNMP and the SC5800 81
10.2 The MIB Elements – OID (Object ID) DESCRIPTIONS 83
10.3 The MIB elements – TRAP DESCRIPTIONS 97
11 APPENDIX C: SETUP OF A PC (WIN 95, 98, NT) TO ALLOW PINGING OF A
‘REMOTE’-CONFIGURED INDOOR UNIT 101
11.1 IP CONFIGURATION OF THE SC5800 – ROUTING CONFIGURATION 101
11.2 IP CONFIGURATION OF THE SC5800 – BRIDGING AND ROUTING CONFIGURATION
103
12 APPENDIX D: SC5800 HARDWARE VERSION 2.X DIFFERENCES, COMPATIBILITY
SUMMARY 105
13 APPENDIX E: FIXED ANTENNAS 106
SPEEDCOM SC5800 User Manual
7
SPEEDCOM SC5800 User Manual
8
List of Abbreviations
BIT Built-in-Test
AIS Alarm Indication Signal
PER Packet (or Block) Error Rate
DC Direct Current
DCE Data Communications Equipment
DRL Digital Radio Link
DRS Digital Radio Station
DTE Data Terminal Equipment
IU Indoor Unit
ISM Industrial, Scientific and Medical
LED Light Emitting Diode
LOS Loss of signal
Mbps Megabits per second
N.C Normally-closed
N.O Normally-open
NMS Network Management System
OU Outdoor Unit
PC Personal Computer
RF Radio Frequency
RSSI Received Signal Strength Indication
SNMP Simple Network Management Protocol
SPEEDCOM SC5800 User Manual
9
1 INTRODUCTION
1.1 SC5800 Description
The SC5800 is a 5.8 GHz digital radio system that provides short to medium range,
point-to-point digital communication with high data security at rates of E1, 2E1 or
4E1. Alternatively, the radio can be software configured to convey T1, 2T1 or 4T1.
The radio can also be configured to bridge or route IP via a 10BaseT Ethernet port.
The data rates scale depending on the number of enabled E1/T1 tributaries and
whether the data is being bridged or routed. The product makes use of spread
spectrum technology and may be operated license-free in the 5.8 GHz ISM band. It
is ideal for applications such as:
• Telecommunications companies, cellular operators and private carriers.
• Cellular/PCS base station interconnects.
• Internet distribution.
• Video surveillance data distribution.
• Rural communications.
The SC5800 consists of two main parts:
• An Outdoor Unit operating in the 5.8 GHz ISM frequency band.
• An Indoor Unit, available with a Telecommunications (1, 2 or 4E1 or 1, 2 or
4T1) interface and a Data interface (10BaseT Ethernet).
Interconnection between the Outdoor Unit and Indoor Unit is achieved using a low-
cost UV-protected STP (Screened Twisted Pair: 4 pairs) data cable and a UV-
protected 2-core power cable. The SC5800 series product uses a split Indoor Unit
and Outdoor Unit configuration for lowest loss between the antenna and the
transceiver, thereby ensuring optimal long-range performance.
SC5800 Outdoor Unit uses a Type-N RF (female) output connector for connection to
any 5.8 GHz antenna for applications where long range is required.
SPEEDCOM SC5800 User Manual
10
Table 1 lists the SC5800 model variants.
Table 1. SC5800 model variants
Model Number Interfaces Antenna Coupling Antenna Type
SC5801 E1/T1
10BaseT Ethernet
N-type Female Customer
supplied
SC5802 2 x E1 / 2 x T1
10BaseT Ethernet
N-type Female Customer
supplied
SC5804 4 x E1 / 4 x T1
10BaseT Ethernet
N-type Female Customer
supplied
For information about ordering supplies, see Section 8.6, Ordering Information, page
64.
The Network Management System provides control and management of the product.
SNMP support via an SNMP agent in the Indoor Unit ensures open network
management compatibility.
Comprehensive data and RF loop-back functions ensure that the system is easy to
install and maintain.
SPEEDCOM SC5800 User Manual
11
2 TECHNICAL DESCRIPTION
2.1 System Overview
A SC5800 digital radio link (DRL) consists of a pair of SC5800 radio stations.
The SC5800 radio station consists of two main parts:
• An Outdoor Unit operating in the 5.8 GHz ISM frequency band. The Outdoor
Unit provides the radio transceiver functionality by accepting radio link data from
the Indoor Unit and converting it to the 5.8 GHz ISM frequency band using
spread spectrum modulation. The received signal is de-spread and transmitted
to the Indoor Unit in a digital format.
• An Indoor unit, available with 1, 2 or 4 E1 and 1, 2 or 4 T1 data interfaces
(choice of E1 or T1 is software selectable). The Indoor Unit combines nE1 or
nT1 data with Wayside Service Channel serial data and link IP data to be
transmitted across the radio link. The Indoor Unit also provides power to the
Outdoor Unit.
Interconnection between Outdoor Unit and Indoor Unit is achieved using low cost
data and power cables.
2.2 Outdoor Unit
The SC5800 Outdoor Unit makes use of Spread Spectrum modulation technology for
license-free operation in the 5.8 GHz ISM band.
For SC5800 operation, the 5.8 GHz ISM band is divided into upper and lower
frequency sub-bands. An SC5800 ‘High Band’ Outdoor Unit transmits in the higher
frequency sub-band and receives in the lower frequency sub-band, while a ‘Low
Band’ Outdoor Unit transmits in the lower sub-band and receives in the higher sub-
band. An SC5800 radio link will use a ‘Low Band’ Outdoor Unit on one end of the
link to communicate with a ‘High Band’ Outdoor Unit on the other end.
The SC5800 Outdoor Unit uses a Type-N RF output connector for connection to any
5.8 GHz antenna for applications where long range is required.

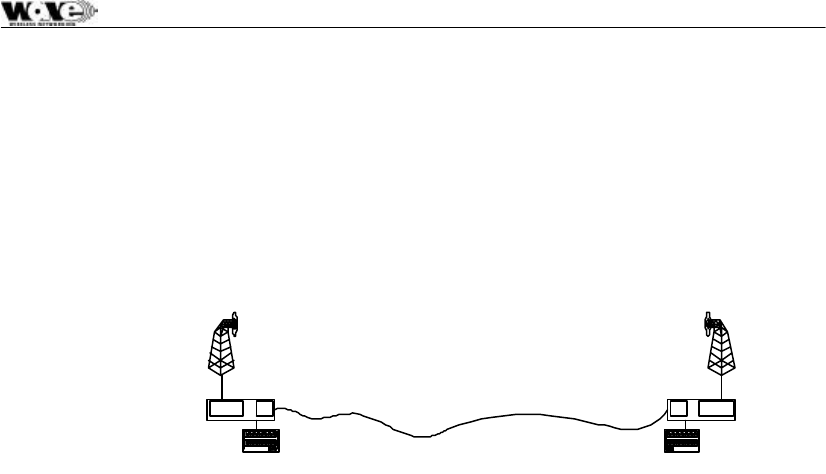

User Data
SC5800 ODU
SC5800 IDU
User Data
SC5800 ODU
SC5800 IDU
SPEEDCOM SC5800 User Manual
12
2.2.1 Frequency plans
The SC5800 Outdoor Units operate in the 5.725 GHz to 5.850 GHz ISM frequency
band. The SC5800 has predefined frequency channel plans (termed A, B, C and D).
2.2.1.1 Frequency Channel Plan A, B and C
Transmit-to-receive channel spacing for frequency channel plans A, B and C is 69
MHz. The channel spacing is based on the bandwidth occupied by the spread
spectrum signal (approximately 17 MHz) and is used to optimize link performance.
In the case of plan A, plan B and C, note that both Outdoor Units of a link must be
set up to the same frequency channel plan (i.e., A, B or C).
C
H
B
H

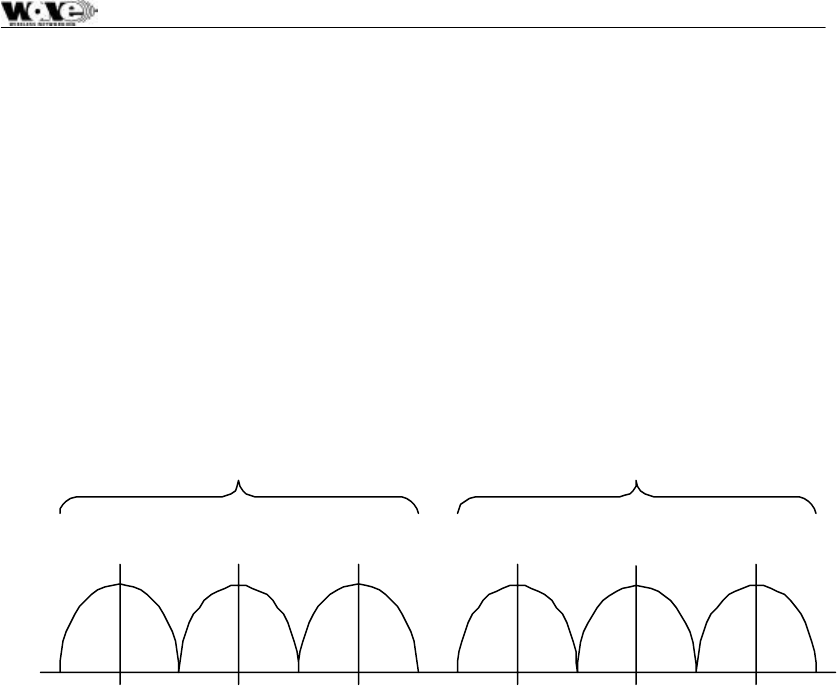

Frequency (MHz)
LOW BAND TRANSMIT HIGH BAND TRANSMIT
A
H
A
L
B
L
C
L
5735 5753 5771 5804 5822 5840
Figure 1. Frequency channel plans A, B and C
SPEEDCOM SC5800 User Manual
13
Frequency Channel Plan D
Frequency plan D allows independent control of transmit and receive frequencies.
This enables a very flexible frequency plan and can be used to overcome interference
in the 5.8 GHz ISM band.
The frequencies that can be used in the lower or upper sub-bands can be selected in
1 MHz increments. Performance degradation can be expected when operating
using channel plan D mode and the chosen frequencies are close to the sub-band
edges, such as a choice of one of the high frequencies in the lower sub-band and
one of the lower frequencies in the upper sub-band.
The allocation of Channel plan D frequencies is shown in Table 2.
Table 2. Channel plan D channel
frequencies
Sub-band Center Frequency (M Hz)
L 5735-5771
H 5804-5840
2.2.2 RF Power Output Options
It is possible to adjust the output power on the OU using the supplied NMS software
or a SNMP Management application.
2.2.3 SC5800 Outdoor Unit
The SC5800 Outdoor Unit transmits and receives RF through a diplexer interfaced
via an RF cable to an external antenna. The unit has a type-N connector for
connection to the RF cable used between the OU and the antenna.
The SC5800 Outdoor Unit houses the following main parts:
• Transmit/Receive Modules
• Baseband Modulator/Demodulator Circuitry
• Microcontroller/Framing & Buffering Circuitry
• Power Amplifier
• Diplexer
SPEEDCOM SC5800 User Manual
14
2.3 Indoor Unit
The Indoor Unit is designed for mounting in a 19” rack, occupying a 1U slot, or can
be tabletop standing.
The Indoor Unit accepts user nE1/nT1 and combines it with Wayside Service Serial
Data and IP data to be transmitted across the radio link.
The Indoor Unit is fitted with a DC power supply. An AC Bench Power supply can be
purchased separately.
2.3.1 Payload Interface Options
The Indoor Unit can be configured for nE1 or nT1 operation.
• 1, 2 or 4 x E1 (2.048 Mbps)
• 1, 2 or 4 x E1 (1.544 Mbps)
For E1 connectivity, bipolar AMI or HDB3 line coding is software selectable.
For T1 connectivity, bipolar AMI or B8ZS line coding is software selectable.

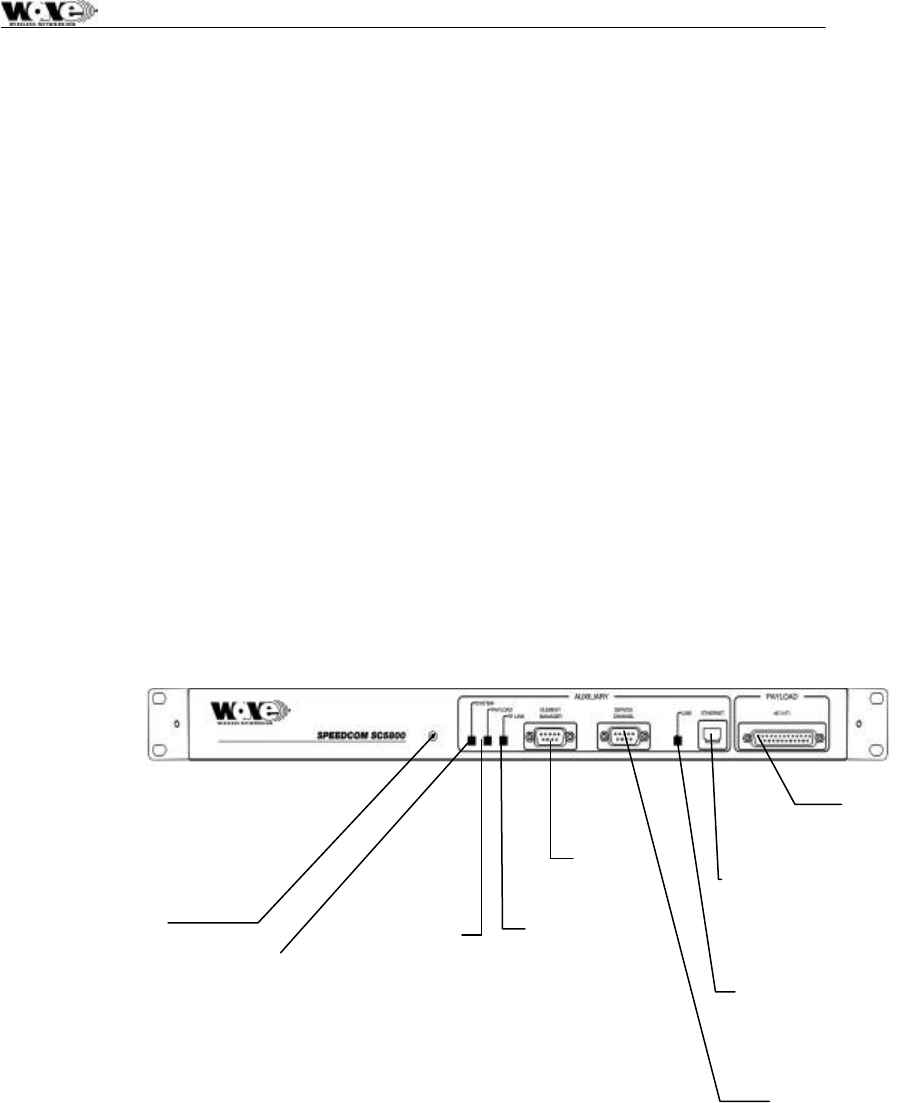

Figure 2. Indoor Unit Front Panel
The Indoor Unit LED functionality is described as follows:
SYSTEM
Green OK, Orange (OU/IU Comms Error), Red (OU/IU Comms Down)
PAYLOAD
Green OK, Orange (AIS Detected), Red (LOS Detected)
RF LINK
Green OK, Orange (FEC Correcting Errors), Red (FEC unable to correct errors)
Reset/Configuration
Button System
LED
Payload
LED
Wayside Service
Serial Channel
nE1/nT1
Connector
RF Link
LED
Element
Manager
Connector
Ethernet Link LED
10BaseT RJ45
Socket
SPEEDCOM SC5800 User Manual
15
Note: In ALL cases flashing red and orange LEDs imply historic alarm
conditions (The alarm can be cleared using the front panel button
‘position 1’: see next section).
Reset/Configuration Button
The Front Panel Button has the following functionality used to set up a radio (as
determined by different LEDs lighting up. ‘Position 1’ being RF Link LED (Green), 2
being Payload LED (Green), 3 being System LED (Green), 4 being RF Link LED
(Orange), 5 being Payload LED (Orange) and 6 being System LED (Orange) etc.
1. Clear Front Panel LEDs (and associated alarms in IU)
2. Clear Event Log in the Indoor Unit
3. Reset the Indoor Unit (don’t reset the non-volatile memory’s store of the IU’s
configuration parameters)
4. Routed Configuration: Reset the IU configuration parameters that are stored in
non-volatile memory (BATTERY-BACKED STATIC RAM) and configure as a ‘Far
Side IU’: (i.e., for a ROUTED IP configuration), set the Ethernet IP address as
10.11.1.2, Element Manager IP address to 10.12.1.2
5. Routed Configuration: Reset the IU configuration parameters that are stored in
non-volatile memory and configure as a ‘Near Side IU’: i.e. for a ROUTED IP
configuration set the Ethernet IP address as 10.2.1.2, Element Manager IP
address to 10.13.1.2
6. Routed Configuration: If you are not sure how the IU is configured (NEAR or
FAR side IU), reset it AS IS i.e. reset the ‘Near Side IU’ or ‘Far Side IU’
configuration parameters depending on how the IU is currently configured.
7. Bridged Configuration: Reset the IU configuration parameters that are stored in
non-volatile memory (BATTERY-BACKED STATIC RAM) and configure as a ‘Far
Side IU’. For a BRIDGED IP configuration, see Appendix C of this document for a
description of the default IP addresses.
8. Bridged Configuration: Reset the IU configuration parameters that are stored in
non-volatile memory and configure as a ‘Near Side IU’. For a BRIDGED IP
configuration, see Appendix C of this document for a description of the default IP
addresses.
9. 9, 10, 11 RESERVED
12. Set up Indoor Unit with E1 tributaries.
13. Set up Indoor Unit with T1 tributaries.
14. Deactivate buttons 4 onwards.
15. NB: All buttons can be REACTIVATED (i.e. undoing a 14 'reset') by doing a
power-on reset while holding the front-panel Reset Button in.
WARNING!
POSITIONS 4, 5, 6, 7 and 8 RESET THE INDOOR UNIT TO FACTORY DEFAULTS – THESE
RESETS ARE TYPICALLY ONLY USED ONCE (THESE CHOICES RESET CERTAIN ADJUSTABLE
PARAMETERS IN NON-VOLATILE MEMORY IN THE INDOOR UNITS). IF CHANGES ARE MADE
TO THE CONFIGURATION PARAMETERS AND THE USER DOES NOT WANT THESE TO
CHANGE WHEN A UNIT IS RESET, THE INDOOR UNIT CAN BE POWER-CYCLED OR POSITION
‘3’ MUST BE USED E.G. THIS TECHNIQUE IS USED IF THE IP ADDRESSES ASSOCIATED WITH
SPEEDCOM SC5800 User Manual
16
THE NETWORK INTERFACES ARE ADJUSTED – THE PROCESSOR NEEDS TO BE RESET TO
ALLOW THE CHANGE/S TO BE IMPLEMENTED.
IF YOU OVER-RUN THE SELECTION YOU REQUIRE, CONTINUE UNTIL THE LEDs GO BLANK –
THEN, START AGAIN (OPTION AVAILABLE WITH RELEASE 2 OF IU FIRMWARE).
2.3.2 Service (Wayside) Serial Data Channel
This port supports asynchronous full duplex, serial data transfer at a speed of
115200 bps.
The interface type is RS -232 configured as DCE (Data Communications Equipment).
Handshaking can be None, Hardware.
2.3.3 Element Manager Port
This port is used for communication with the NMS software or with an SNMP
manager to control the SC5800 system. The port must be connected to a serial port
(configured for a speed of 115200 bps) on a personal computer to use the NMS
software.
The interface type is RS -232 configured as DTE (Data Terminal Equipment).
Hardware handshaking is used.
2.3.4 10BaseT Ethernet RJ45 Port
This port is used for communication with the NMS software or with an SNMP
manager to control the SC5800 system.
The interface type is DTE (Data Terminal Equipment).

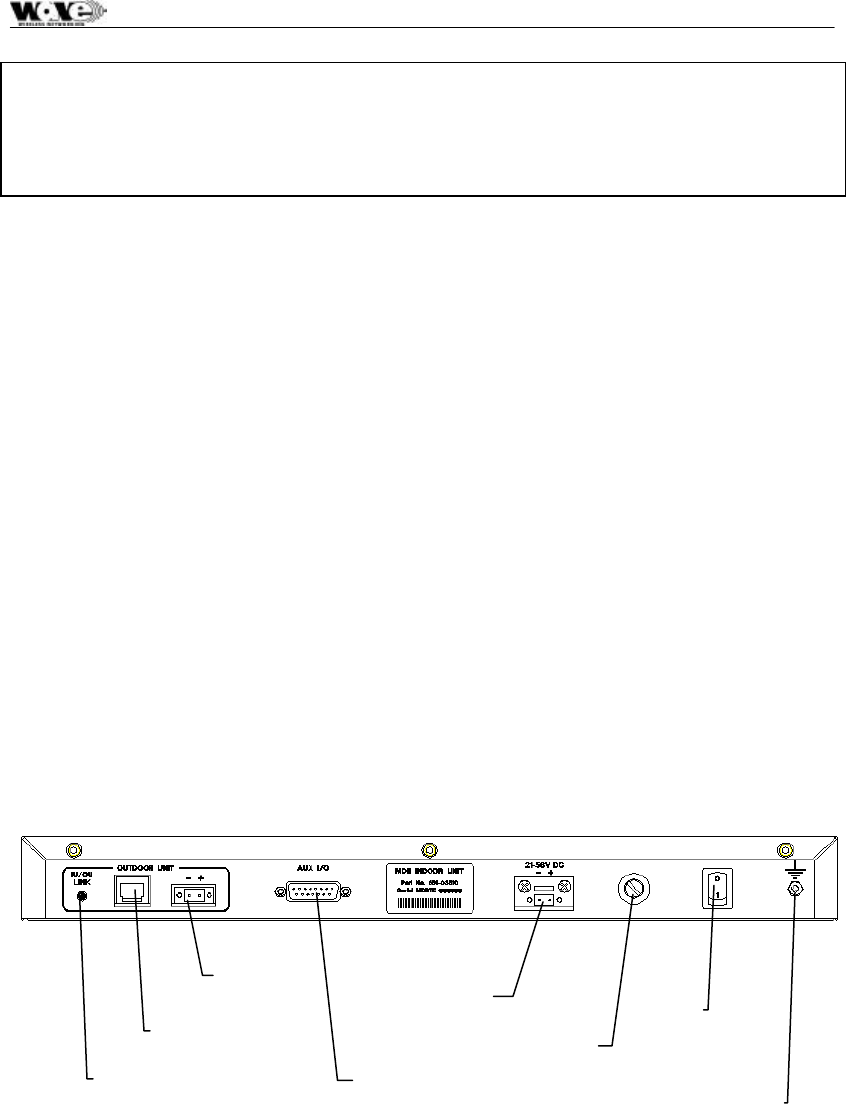

Figure 3. Indoor Unit Rear Panel
IU/OU Data
Interconnect RJ45
IU/OU Power
Interconnect
Auxiliary IO
DC In
Fuse
Holder
ON/OFF
Switch
Ground
Terminal
IU/OU Link LED
SPEEDCOM SC5800 User Manual
17
2.3.5 IU/OU Link LED
This LED indicates if there is a suitable electrical connection between the Indoor and
Outdoor Units1
.
2.3.6 IU/OU Data Interconnect RJ45
This receptacle accepts an RJ45 plug that connects to UV-protected STP (Screened
twisted pair) cable used between the IU and the OU.
2.3.7 IU/OU Power Interconnect
This connector (socket) is used for power interconnection between the IU and the
OU. The connection is made using UV-protected 2-core cable. The cable is
connected to a GREEN connector, (i.e., a plug). The polarity sense (labeled) must
be maintained between the IU and the OU.
2.3.8 Auxiliary In/Out Port
The auxiliary in/out port is used for remote monitoring and control. The following are
provided:
• Two inputs (for sensing contact closure or opening) are provided to sense site
alarm inputs. The states of these alarm inputs can be monitored with NMS,
as well as from an SNMP Management Station.
• Two relay contact outputs, normally-open and normally-closed contacts, are
provided as alarm / auxiliary outputs. Output states are software customized
and controlled. The outputs are used to indicate alarm or other states
selected by the operator via the NMS or a SNMP Management Station.
2.3.9 DC Power Input
This connector (socket) is used for power input to the IU. The connection is made
using 2-core cable. The cable is connected to a gray connector, a plug. The
polarity-sense (labeled) must be observed and implemented.
2.3.10 Fuse Holder
This holder is used to hold a fuse (5A).
1 Note that only the Ethernet Physical interface is checked on V1 hardware with this LED, not the
RS232/485 interface. The integrity of the RS232/485 interface is checked using the front panel
“System LED”.
SPEEDCOM SC5800 User Manual
18
2.3.11 ON/OFF Switch
This switch is used to control power input to the Indoor Unit (and indirectly the
Outdoor Unit).
2.3.12 Ground Terminal
This is used to accept connection to an earth strap, terminated with a crimped earth
lug. For details on wire/earth lug requirements, see Section 4.1, Custom Furnished
Tools & Equipment, page 24.
SPEEDCOM SC5800 User Manual
19
3 PLANNING
This chapter is aimed at management and planning staff to enable them to assess
the requirements for installing an SC5800 digital radio link.
3.1 System Type Selection
! The SC5800 system uses an Outdoor Unit with a type-N RF output for
connec tion to a range of antennas.
! Antenna polarization can used to co-locate multiple SC5800 systems.
! Antenna polarization can be used to overcome interference.
3.1.1 Antenna Selection (SC5800)
The antenna type must be selected before the SC5800 system is to be installed.
The chosen antenna must enable the system to operate with sufficient link fade
margin without excessive cost and allow the user’s ‘link availability requirements’ to
be met.
The main consideration when selecting an antenna is antenna gain measured in dBi.
A path loss analysis is highly recommended to determine the antenna gain needed
for adequate fade margin. The table below shows antenna selection guidelines for
some configurations. The distances are calculated for a 20 dB link fade margin.
Table 3 SC25800 Antenna Selection
Antenna Type Gain
(dBi) Distance (Km) Power level
(dBm)
0.15 m Flat panel 18 9 24
0.3 m Flat panel 24 30 24
0.6 m Flat panel 28 80 24
SPEEDCOM SC5800 User Manual
20
3.2 Site Evaluation
When planning a site for a digital radio link, it is of the utmost importance that you
take the operational environment of the proposed site into account.
The combined effect of atmospheric environmental factors such as rain and lightning,
atmospheric attenuation, signal path obstruction, propagation fading, air temperature
gradients, ice build-up, wind and solar radiation can contribute towards reducing the
level of performance of the system. In the higher frequency bands, rainfall is the
main attenuation mechanism that limits error performance. Ice and snow will have a
similar effect. Severely cold and excessively warm climatic conditions outside the
scope of the operating temperature range can affect the function of the system,
especially the outdoor equipment (see Section 8.1, Environmental Characteristics,
page 59 of this manual).
Also, if masts are not sufficiently rigid, very strong winds can affect the antenna
beam alignment and outdoor equipment reliability due to wind force build-up and/or
vibration of the mast-mounted equipment.
3.3 Multipath Effects
The SC5800 digital radio operates at frequencies close to 5.8 GHz and can be
influenced by the effects of multipath propagation. Understanding these effects will
help when installing an SC5800 digital radio link and maximize the reliability of the
link.
Multipath fading occurs when the receiving antenna receives not only the direct
signal from the transmitting antenna but also a signal from the transmitting antenna
that has reflected off the ground or nearby obstacles. The reflected signal takes a
longer path to reach the receiver and acts as interference since it is not in-phase
with the direct path signal. The amplitude of the interference can be almost equal to
that of the direct path signal, thus degrading the performance of the link.
Multipath propagation is dependent on transmit frequency and the specific geometry
of the link such as antenna heights, distance between the antennas and the local
terrain. To counteract multipath propagation, the installer can change the frequency
at which the link operates or adjust the height of one or both of the antennas.

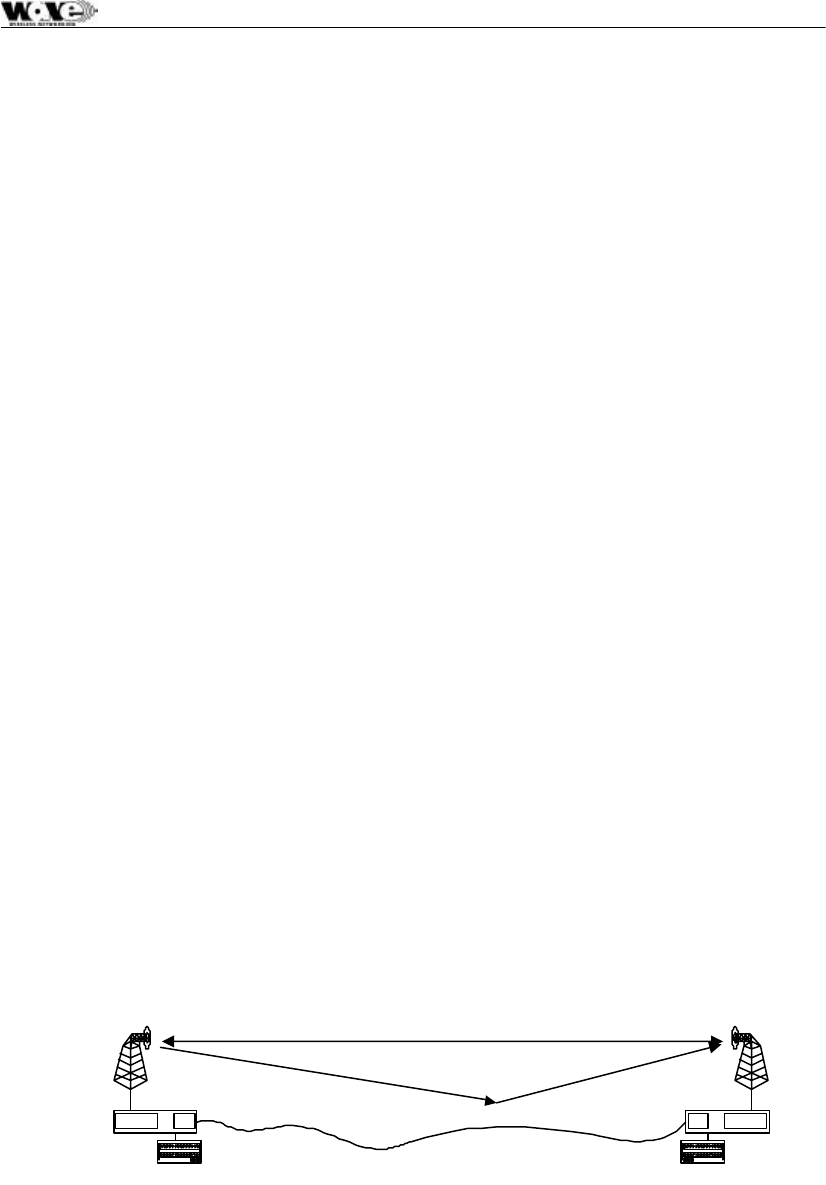

Figure 4. Multipath Effects.
User Data
SC5800 OU
SC5800 IU
User Data
SC5800 OU
SC5800
Direct RF Path
Reflection Path
SPEEDCOM SC5800 User Manual
21
3.4 Interference Considerations
The ISM frequency bands are used by devices that can cause interfe rence to the
SC5800 radio system. Interference can be avoided by careful planning of the
system installation. The available methods for providing isolation from interfering
radiators are the following:
• Frequency diversity
• Antenna polarization
It is recom mended to scan the proposed installation areas (using a spectrum
analyzer) to establish the presence of interference. The frequency spectrum should
be scanned over a sufficient time period to ensure that periodic transmissions are
recorded.
Interferers will cause problems if their amplitudes are not more than 20 dB below the
intended receive power level. A link path loss calculation should be performed to
determine the expected receive power level.
The procedure for selecting the optimum antenna polarization and system frequency
plan is the following:
• Perform a spectral analysis at each site in the link direction using a high gain
antenna.
• Repeat the spectral analysis for vertical and horizontal polarization.
• Select the polarization with the lowest interfering levels as the system
antenna polarization.
• Consult the SC5800 frequency channel plan as shown in Section 2.2.1,
Frequency Plans, page 12. Then, select the frequency plan that would operate
in an interference-free band. Give preference to channel plans A, B and C as
these are optimized for best receiver sensitivity.
• Install the ‘High Band’ and ‘Low Band’ Outdoor Units at the sites where they
would experience the lowest interference in their respective receive bands.
SPEEDCOM SC5800 User Manual
22
3.5 Micro-cell Backhaul Applications of SC5800 Digital
Radios
In applications where more than one independent and separate links, need to radiate from a
central site, a number of parameters can be taken advantage of, to provide isolation and minimize
interference between these links:
• Frequency multiplexing
• Antenna polarization
• Choice of High Antenna Gain
It is important to note that these methods only provide isolation between two radio systems, and
that power levels in the separate systems should be balanced to ensure correc t operation.
3.5.1 Setting the Transmitted Power Levels
To minimize interference, received power levels should be balanced between separate radio links.
This means that transmit power levels should be set to provide similar levels of received power, as
indicated by the RSSI values of the adjacent receivers at the central site.
3.5.2 Frequency Multiplexing
The SC5800 offers four frequency channel plans. A radio link requires two channels (one for
transmit and one to receive) to provide full-duplex operation. Each radio has a high and a low sub-
band, one that it uses for transmission and another for reception. Terminology definition: the
‘High-band Outdoor Unit’ of a system transmits on the higher of the two sub-bands. The ‘Low-
band Outdoor Unit’ of a system transmits on the lower of the two sub-bands. A system (link)
always has one High Band and one Low Band Outdoor Unit. It is important to note that unwanted
transmitted signals in adjacent frequency bands can affect other receivers operating in an
adjacent band if insufficient antenna isolation is provided. A solution is to group high-band or low-
band Outdoor Units at the central site, rather than group high and low-band Outdoor Units
together.
3.5.3 Antenna Isolation
Separate links at a central site will have sufficient isolation when radio systems operate outside
the radiation beamwidth or side lobes of the system antenna. The achievable isolation can be
established by examining the measured radiation patterns of the system antennas. Directional
isolation can be used if the antenna radiation is 15 dB or lower relative to the adjacent main
beam. Antennas with high directionality will allow reduced angular separation of adjacent
systems. Antenna cross-polarization isolation can be used for adjacent radio links, radiating in
the same direction. Typical isolation of 30 dB can be achieved using high quality antennas.
SPEEDCOM SC5800 User Manual
23
4 INSTALLATION
This section describes a recommended installation procedure for the SC5800.
Recommended installation procedure:
1. Install the Indoor Unit.
2. Prepare and connect the cables to the Indoor Unit.
3. Install the Outdoor Unit and antenna.
4. Install the Indoor-to-Outdoor Unit interconnection cables (the power and data
cables).
5. Turn the Indoor Unit power on.
6. Perform the initial software setup using the supplied NMS application
7. Repeat items 1-5 for the remote site.
8. Align the antennas (use the RSSI voltage on the OU or the RSSI value from
the MIB or the NMS Graphic User Interface to assist with the setup).
9. Perform a functional test and commission the link.
10. Connect to user data.
11. Start the system.
Installation of the SC5800 elements is described in the following sections:
• Installing the Indoor Unit.
• Installing the Outdoor Unit and Antenna.
• Installing the interconnection cables.
SPEEDCOM SC5800 User Manual
24
4.1 Customer Furnished Tools and Equipment
The following table lists tools and equipment required to install the SC5800 system.
General, IU-to-OU Interconnect
• Cable cutting and stripping tools.
• Earth lug crimp tools.
• 3 mm flat screwdriver - IU to OU power cable.
• RJ45 crimp tool - IU to OU data cable.
• Earth cable or strap rated at 45A with 5 mm earth lug earthing the Indoor and
Outdoor Units.
• Cable ties, used to secure the cables to the mast at regular intervals.
IU
• Pozi #2 screwdriver - IU mounting in a 19" rack and the earth lug.
• 2.5mm Allen key - To change the position of the IU mounting brackets.
• DC power supply cable: minimum 2.5 mm square conductor, rated for 10 A. For
connection between the power supply and the Indoor Unit DC connector on the
rear panel.
• IU earth lug: 10-4 (10 square mm for wire and hole big enough for M4 thread)
OU
• 13 mm spanner (or Wrench) – used for attachment of OU to mounting bracket.
• 13 mm spanner - used for attachment of OU mounting bracket to pole.
• 2.5 mm Allen key - used to tighten OU connection box cover fasteners.
• OU earth lug: 10-8 (10 square mm for wire and hole big enough for M8 thread)
For details on the data and RF cables, which are also customer furnished
equipment, see Section 7, Maintenance Information, page 57.
SPEEDCOM SC5800 User Manual
25
4.2 Indoor Unit
4.2.1 Introduction
This section describes the recommended installation procedure for the Indoor Unit.
The Indoor Unit is designed for mounting in the DIN 41494 (19") racking standard and
occupies a 1U high slot. Desktop mounting is also possible.
The Indoor Unit’s payload (nE1, nT1 and 10BaseT Ethernet) and Service Channel
(‘Wayside serial’) data interfaces and Element Management interface are located on
the front panel. Input Power, Auxiliary alarm and ‘IU/OU Interconnect’ interfaces are
located on the rear panel, suitable for rack installations.
The recommended installation procedure for the Indoor Unit is the following:
• Install the Indoor Unit in the rack.
• Earth the Indoor Unit.
• Connect the DC power supply.
• Connect Payload data ports (front panel).
• Connect Auxiliary In/Out port (optional).
• Connect Service Channel (Wayside) serial port (optional).
• Connect the Element Manager port using the supplied cable (front panel).
4.2.2 Installing the Indoor Unit in a Rack
1. Slide the Indoor Unit into the 19" rack and secure to the rack using four M6 x
18 mm screws.
2. Earth the Indoor Unit by connecting the earth cable or strap between the
station earth and the earth stud on the Indoor Unit rear panel.
IU/OU Link LED
IU/OU Data
Interconnect RJ45
IU/OU Power
Interconnect
Auxiliary IO
DC In
Fuse
Holder
ON/OFF
Switch
Ground
Terminal
SPEEDCOM SC5800 User Manual
26
4.2.3 Connecting a DC Power Supply
WARNING – See Section 8.4, Power Supply Equipments, page 59 for
specification of the power supply.
1. Observing the polarity of the supply, wire up the supplied power connector
cable plug and connect it to the DC supply (21 to 56 V) through a minimum 5
A circuit breaker.
2. Check the supply voltage using a multimeter.
3. Secure the connector screws to the unit.

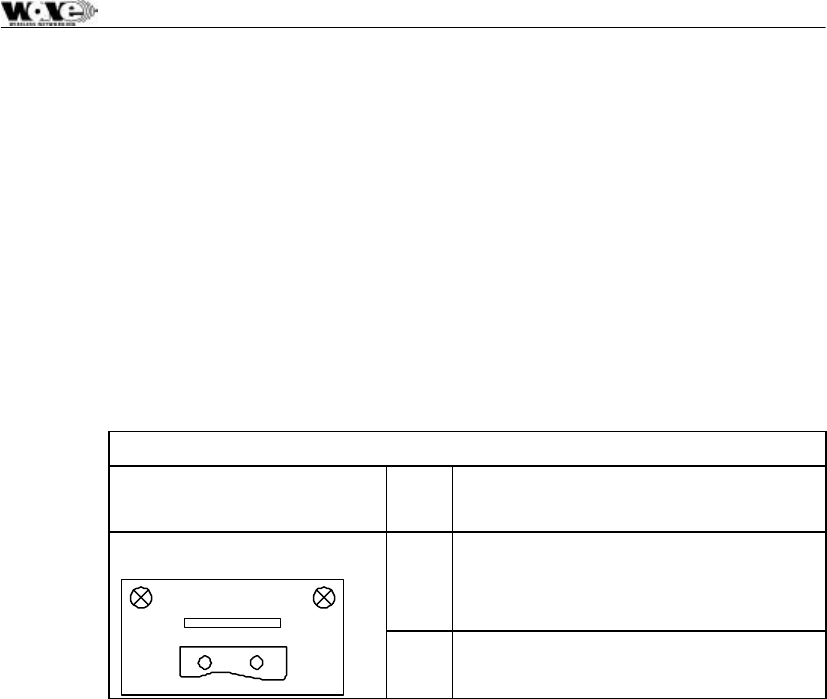

DC Power Connector Pinouts
Indoor unit connector
Gray
Pin
No Signal
+
DC POWER
2-pin Wieland Type 8213
+-
DC
-
DC POWER RETURN
SPEEDCOM SC5800 User Manual
27
4.2.4 Balanced Payload Data
1. Assemble the (nE1) / (nT1) payload data input and output cable. See the
table below for Indoor Unit connector pin assignments.
2. Connect the payload data cable to the DB25 connector on the front panel of
the Indoor Unit.
D-Type
Payload
Data
Connector
Pin #
Pin Name Tributary Direction
1 GND Earth N/A
2 RTIP1 1 RX +
3 RRING1 1 RX -
4 GND Earth N/A
5 TTIP1 1 TX -
6 TRING1 1 TX +
7 GND Earth N/A
8 GND Earth N/A
9 RRING0 0 RX +
10 RTIP0 0 RX -
11 GND Earth N/A
12 TRING0 0 TX -
13 TTIP0 0 TX +
14 TRING2 2 TX -
15 TTIP2 2 TX +
16 GND Earth N/A
17 RRING2 2 RX+
18 RTIP2 2 RX-
19 GND Earth N/A
20 TTIP3 3 TX-
21 TRING3 3 TX+
22 GND Earth N/A
23 RTIP3 3 RX+
24 RRING3 3 RX-
25 GND Earth N/A
SPEEDCOM SC5800 User Manual
28
4.2.5 Connecting Auxiliary In/Out (Optional)
The auxiliary in/out port is used to:
• Monitor switch-closure events using two isolated inputs.
• Control line connections using normally-open and normally-closed relay
outputs.
Connect the port:
1. Assemble an auxiliary in/out cable using a High-density 15 way D-type male
connector according to connector pin assignments shown in Table 4.
2. Connect to the cable Indoor Unit auxiliary in/out connector.
3. Secure the connector using locking screws.
Table 4. Auxiliary In/Out Connector Pin Outs
Indoor unit connector Pin
No Signal
1 OUTPUT 1 COMMON
2 OUTPUT 1 NORMALLY-OPEN
3 OUTPUT 1 NORMALLY-OPEN
4 OUTPUT 1 NORMALLY-CLOSED
5 OUTPUT 1 NORMALLY-CLOSED
6 OUTPUT 1 COMMON
7 OUTPUT 2 COMMON
8 OUTPUT 2 COMMON
9 OUTPUT 2 NORMALLY-OPEN
10 OUTPUT 2 NORMALLY-OPEN
11 OUTPUT 2 NORMALLY-CLOSED
12 INPUT 1
13 INPUT 1 RETURN
14 INPUT 2
15-pin High density D-type female
15
11
15
6
10
15 INPUT 2 RETURN
SPEEDCOM SC5800 User Manual
29
4.2.6 Connecting the Service (Wayside) Serial Channel (Optional)
This ‘clear’ serial channel can transport up to 115,200 bps across the radio link.
This channel does not interfere with the payload data channels. The port is
configured as DCE.
1. Connect the serial data interface cable to the Service channel connector on
the Indoor Unit rear panel. The supplied serial data cable can be used to
connect to this port after the software setup is completed.
2. See the table below for Indoor Unit connector pin assignments when a custom
cable needs to be assembled.
3. Secure the connector using locking screws.

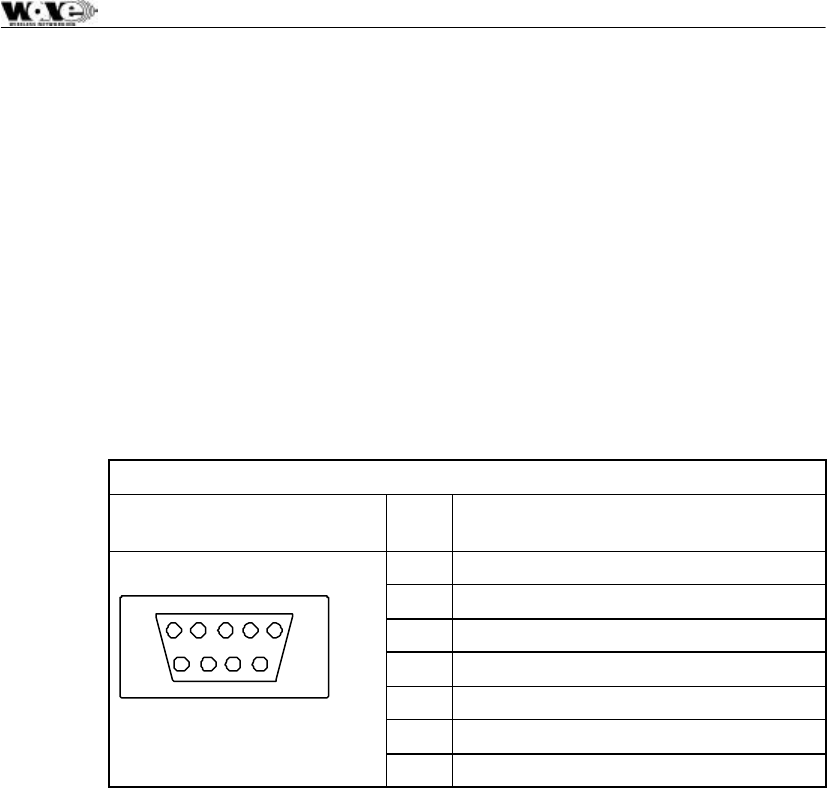

Service Channel Connector Pinouts
Indoor Unit connector Pin
No Signal
2 TD
3 RD
4 DTR
5 GROUND
6 DSR
7 RTS
9-pin D-type Female Connector
15
69
8 CTS
4.2.7 Connecting the Element Manager Port
The Element Manager port is used to connect the Indoor Unit to a PC/Laptop serial
port. This enables the Indoor Unit to be configured using the supplied NMS software
or controlled via a PPP-dialup connection. The port can be connected to using the
supplied serial data cable. The port is configured as DTE.
SPEEDCOM SC5800 User Manual
30
4.3 Outdoor Unit
Before installing the SC5800 Outdoor Unit, ensure that a suitable mast is used for
the antenna and that the Outdoor Unit installation is firmly in position. The pole
diameter must be between 50 and 102 mm.
CAUTION – ENSURE THAT THE POLE IS GROUNDED FOR LIGHTNING
PROTECTION.
4.3.1 SC5800 Outdoor Unit
Follow these steps to install the SC5800 Outdoor Unit:
1. Install the system antenna.
2. Adjust the mounting bracket to be slightly bigger than the pole diameter.
3. Secure the mounting bracket to the pole.
4. Secure the Outdoor Unit to the bracket using the screws on each bracket.
5. Connect the Outdoor Unit to the pole electrically by connecting the earth
cable or strap between the pole earth and the Outdoor Unit earth point.
6. Connect the type-N RF output connector to the system antenna through an
in-line lightning protection unit in areas with lightning activity.
7. Cover the connectors using an ultra violet protective, self-vulcanizing tape.
4.3.1.1 RF Connection
1. The RF port is an N-type female connector.
2. The N-Type connector is used to connect to the antenna, typically using
coaxial transmission line.
3. 1/2" or 5/8” coaxial cables are recommended. Coaxial cable that is 7/8” or
larger can exhibit moding at 5.8 GHz and is not recommended for 5.8 GHz
radios.
4. Do not use right angle N-type connectors with the 5.8 GHz radios: they may
present high loss at 5.8 GHz.
5. Do not use low quality cables. Some cable types, such as RG-8, may have
too high a loss at 5.8 GHz.
SPEEDCOM SC5800 User Manual
31
4.4 Interconnection Cable Installation
Follow these steps to install the Indoor Unit to Outdoor Unit interconnection cables.
CAUTION
- DO NOT OVER TIGHTEN THE CABLE STRAPS ON THE CABLES AND DO
NOT FASTEN THE STRAP LOCKING MECHANISM OF THE CABLE STRAP
ONTO THE CABLES.
1. On the OU side, connect an RJ45 plug to the data cable. Place the RJ45
plug into the RJ45 socket in the Outdoor Unit connection box.
2. On the OU side, connect the DC power leads within the Outdoor Unit
Connection Box. Use the +Ve and Return connections.
18
Return +Ve "Chassis"
RJ45 Socket
3. Close the Outdoor Unit Connection Box Cover using a 2.5mm Allen key.
Make sure the rubber gaskets seal correctly over the power and data cables.
4. Using cable ties, secure the cable to the pole at regular intervals.
5. On the IU side, connect an RJ45 plug to the data cable. Place the RJ45 plug
into the RJ45 socket in the rear of the Indoor Unit.
6. On the IU side, connect the DC power leads to the supplied GREEN Phoenix
plug. Insert this plug into the green socket on the rear-panel of the IU.
7. The user can see that there is a suitable IU/OU data interconnection if the
‘IU/OU Link’ LED on the rear-panel of the IU is lit up green.
CAUTION
- UNDO THE SCREWS OF THE “CONNECTION BOX” IN A UNIFORM
MANNER. THIS ENSURES THAT THE “CONNECTION BOX” GASKET
MATERIAL RELEASES STRESS UNIFORMLY AND DOES NOT LEAD TO
THE SECURING SCREWS BEING BENT DUE TO THE PRESSURE PLACED
ON THE CONNECTION BOX LID.
SPEEDCOM SC5800 User Manual
32

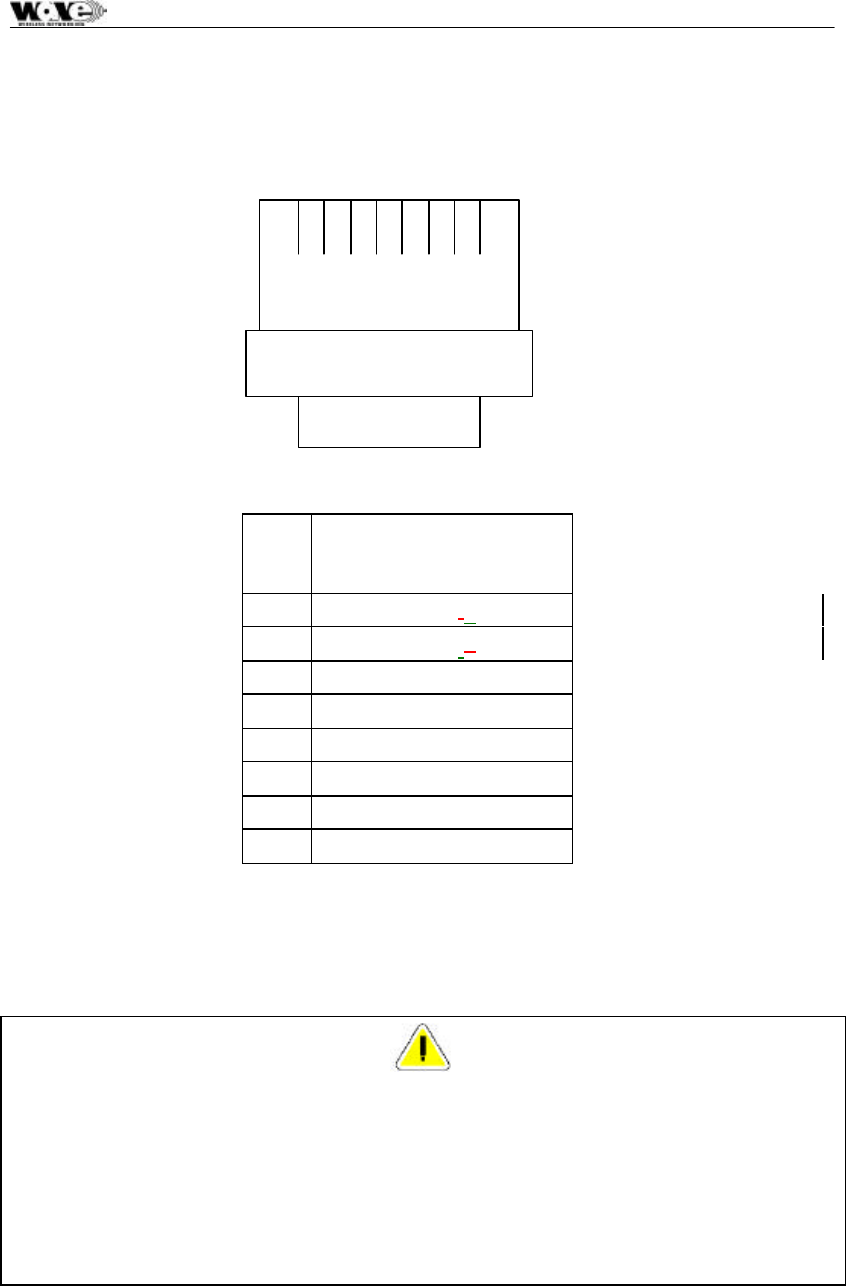

4.4.1 INTERCONNECTION CABLE WIRING DESCRIPTION

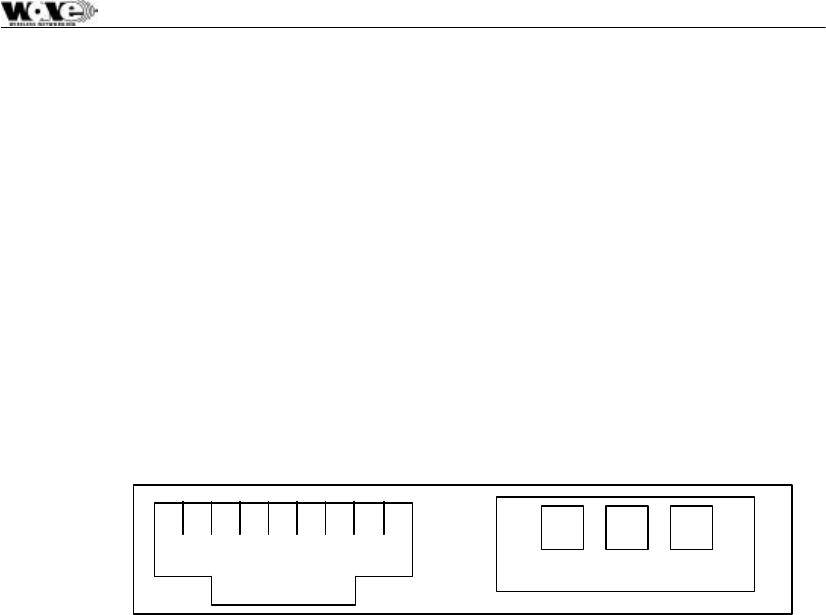

18
TOP VIEW (LOCKING
TAB UNDERNEATH)
RJ-45 PLUG
Pin DTE (on
INDOOR
UNIT)
DCE (on
OUTDOOR UNIT)
1 TxD+ RxD-+
2 TxD- RxD-+
3 RxD+ TxD+
4† TxC+ RxC+
5† TxC- RxC-
6 RxD- TxD-
7† RxC+ TxC+
8† RxC- TxC-
NOTES
• † Version 2 releases of the hardware (indoor and outdoor units) cannot be used
interchangeably. For version 2 IU & OU hardware, use of TxC+, TxC-, RxC+, RxC- falls
away and only two (2) twisted pairs are required.
• The important point is that the interconnect cable is wired as a standard 1-to-1 Ethernet
patch cable.
• Pairs 4/5 and 7/8 are not required or used on Version 2 products.
SPEEDCOM SC5800 User Manual
33
5 ANTENNA ALIGNMENT AND SOFTWARE SETUP
This chapter describes the procedure for software setup and antenna alignment. The
setup is done with a PC running the supplied NMS software. For more information,
see Section 6, NMS Software, page 39.
5.1 Installation Equipment Required
The following tools and instruments are required for software setup and aligning the
antenna:
• RSSI test cable
• Voltmeter
• Spanner, also called a Wrench, (see appropriate details in installation chapter
depending on the antenna being used)
• PC with NMS software and supplied serial data cable.
• Binoculars (optional) used for locating the far end site. This will assist in the
antenna alignment operation.
• GPS or Standard Compass (optional) used for locating the far end site. This
will assist in the antenna alignment operation.
• Bit Error Rate Tester and connecting leads.
5.2 Information Required
You should know:
• Proposed frequency channel plan for each station.
• Expected receive level based on the chosen system configuration and a
pathloss analysis.
5.3 Antenna Alignment
5.3.1 Introduction
The SC5800 should be installed on both sites before alignment starts. Perform the
following steps at both stations:
1. Switch the Indoor Unit power ON.
2. Install and run the SC5800 NMS Software application.
3. Configure the radio channel plan as required.
4. Set the transmitted power to maximum.
5. Perform a RF loopback test at eac h site before starting the alignment
procedure.
SPEEDCOM SC5800 User Manual
34
5.3.2 Alignment Procedure
1. Locate the far site and point the antenna to the antenna at the far site, as
accurately as possible using binoculars or a compass.
2. Connect the multimeter to the RSSI connector on the Outdoor Unit using the
supplied RSSI test cable and set the multimeter to measure volts.
3. Check the RSSI level and refer to the figure below for received power level.
4. Align the antenna until the maximum RSSI is attained.
5. Secure the antenna.
6. Measure the RSSI leve l and record the value (see Section 5.7, SC5800Test
Record, page 37).
7. Compare with the value with that calculated for the link (i.e., using the
pathloss calculation done when planning the link).
Figure 5. Typical Version 2 OU RSSI Voltage as a function of RF input power
level
-80dBm Average 0.436 ± 0.029 V: MIB RSSI 95 ± 1 dBm (see comment below)
-30 dBm Average 1.333 ± 0.047 V: MIB RSSI 54 ± 2 dBm (see comment below)
The MIB lists a dBm value representative of the received signal level. The value
detected is representative of the level that would be measured should a CW signal
be input at the Outdoor Unit's Diplexer RF Port - a Spread Spectrum signal will
appear to be 20 dB lower. The NMS makes an adjustment for this by using a 20 dB
offset (addition to the Indoor Unit MIB-indicated value).
The front panel RF Link LED, the Received Signal Strength Indicators (RSSI : on
NMS, via SNMP or as an Electrical signal on the Outdoor Unit), Carrier-detect
(NMS, SNMP) and Frame Lock (NMS, SNMP) indicators are available to assist with
link installation and alignment.
The front panel RF Link LED, the Received Signal Strength Indicators (RSSI: on
NMS, via SNMP or as an Electrical signal on the Outdoor Unit), Carrier-detect
(NMS, SNMP) and Frame Lock (NMS, SNMP) indicators are available to assist with
link installation and alignment.
5.3.3 Set Transmitted Power Level
It is good practice to match received power levels by adjusting transmitted powers if
co-located systems are being installed. This is important to avoid interference
between co-located systems. An attenuator can be fitted between the Outdoor Unit
and the antenna if the power level cannot be sufficiently reduced. The dBm output at
the OU N-type connector (socket) levels are set via the NMS or using a SNMP
Management application.
SPEEDCOM SC5800 User Manual
35
5.4 Software Setup
Refer to Section 6, NMS Software, page 39, for setting up the following:
• Payload interface.
• Service Channel (Wayside) serial port.
• Auxiliary in/out port.
• General link parameters.
5.5 Functional Test
After completing the physical installation of the Indoor Units, antennas, Outdoor
Units and the interconnection cables, you need to commission the system. This
procedure describes how to set up the minimum requirements for successful
SC5800 system operation.
5.5.1 Link Bit Error Rate Performance Test
To start: when the link is setup correctly, the RF Link LEDs on both IUs on both
sides of the RF link should be GREEN.
When the link has been setup and is running error-free:
1. Clear the Indoor Unit Log using Reset Button Position ‘2’
2. Clear the Indoor Unit Errors using Reset Button Position ‘1’
Perform a link bit error rate performance test as follows:
• Connect a bit error rate tester to the payload interface of the link.
• Run data over the link for a period of 24 hours.
• Record the BER.
• Record the LED statuses.
Check the Indoor Unit Packet Error Results via the NMS or via SNMP access to the
Indoor Unit MIB – for the NMS, right-click on the antennas in the NMS for either side
of the link and select the “Diagnostic/Error Monitor” option. Record the results by
saving the data to a file. For SNMP access, use a MIB Browser and check the
mdrmteRFLinkPerf and mdrmteG826 Performance groups.
Record all results on a test record. See Section 5.7, SC5800 Test Record, page 37
for an example.
SPEEDCOM SC5800 User Manual
36
5.6 SC5800 Installation Record
Parameter Unit Site A Site B
Site Name
Antenna Type
RF cable length Meters
Lightening protection unit Yes/No
Interconnecting cable length Meters
Outdoor Unit serial number
Indoor Unit serial number
Outdoor Unit earthed Yes/No
Indoor Unit earthed Yes/No
Power Supply Volts DC/AC
Date Name Signature
Performed by
Approved by
SPEEDCOM SC5800 User Manual
37
5.7 SC5800 Test Record
Parameter Unit Site A Site B
Frequency channel plan:
Transmit
Receive
A/B/C/D
A/B/C/D
If D – List
Transmit and
Receive
Frequencies
[MHz]
Transmitter output power dBm
Receiver input level (ON) Volts
Receiver input level (ON) dBm
Receiver input level (OFF) Volts
Receiver input level (OFF) dBm
Calculated input level dBm
Fade margin dB
Frame Lock indicator Color
Fixed attenuator dB
BER-test
Hours
BER
Alarm Indicators Clear
(Yes/No)
Date Name Signature
Performed by
Approved by
SPEEDCOM SC5800 User Manual
38
SPEEDCOM SC5800 User Manual
39
6 NMS SOFTWARE
6.1 Introduction to the Network Management System
The purpose of the Network Management System, hereafter called the NMS, is to
allow you to configure, manage or interrogate the following primary functional
elements of a Digital Radio Link (Local or Remote Stations within the link):
• Indoor Unit
• Outdoor Unit
The NMS is a PC-based software package that provides you with a graphical
interface that is used to perform on-site element management of a Microwave Digital
Radio (SC5800) System. It allows you to configure, manage and interrogate the
SC5800 System by selecting various menus and options.
It provides extensive management functions on site and, via the microwave radio link,
can be used to access the remote SC5800 station.
The hardware as well as the software constituting the NMS is collectively called the
NMS Terminal.
The NMS Terminal is the principal system support equipment associated with the
SC5800 System for system installation and commissioning.
It connects to a designated NMS Terminal port (labeled Element Manager) on the
front panel of the Indoor Unit of a SC5800 Station installation, by means of a serial
data interface (this cable is supplied in the IU box).
The NMS communicates with SNMP agent software that is contained in each
SC5800 Indoor Unit. The NMS communicates with the agent’s software: the software
enables a unit to interpret MIB (Management Information Base) commands via SNMP
(Simple Network Management Protocol).
6.2 General Information
1. To select a button/option, simply click the appropriate button/option.
2. Move the mouse pointer to the different areas of the screen. When the pointer
changes into a hand, this indicates that the area can be activated by a left
mouse button click. In some cases (opto inputs, relays, payload interfaces),
hold the mouse hand cursor over the particular area of the screen and a hint
appears indicating the state associated with the selected item. If the pointer
changes to vertical bar, then the field may be edited if clicked.
3. The main screen has pull-down menus that are activated by clicking on the
words of the menu (menu items).
SPEEDCOM SC5800 User Manual
40
4. A general help facility is available by clicking on the Help button on the Main
screen. This opens the help file for the Network Management System. From
here, you can search for a particular topic using the Index facility or you can
use the Find facility to search for key words connected to the specific
information required.

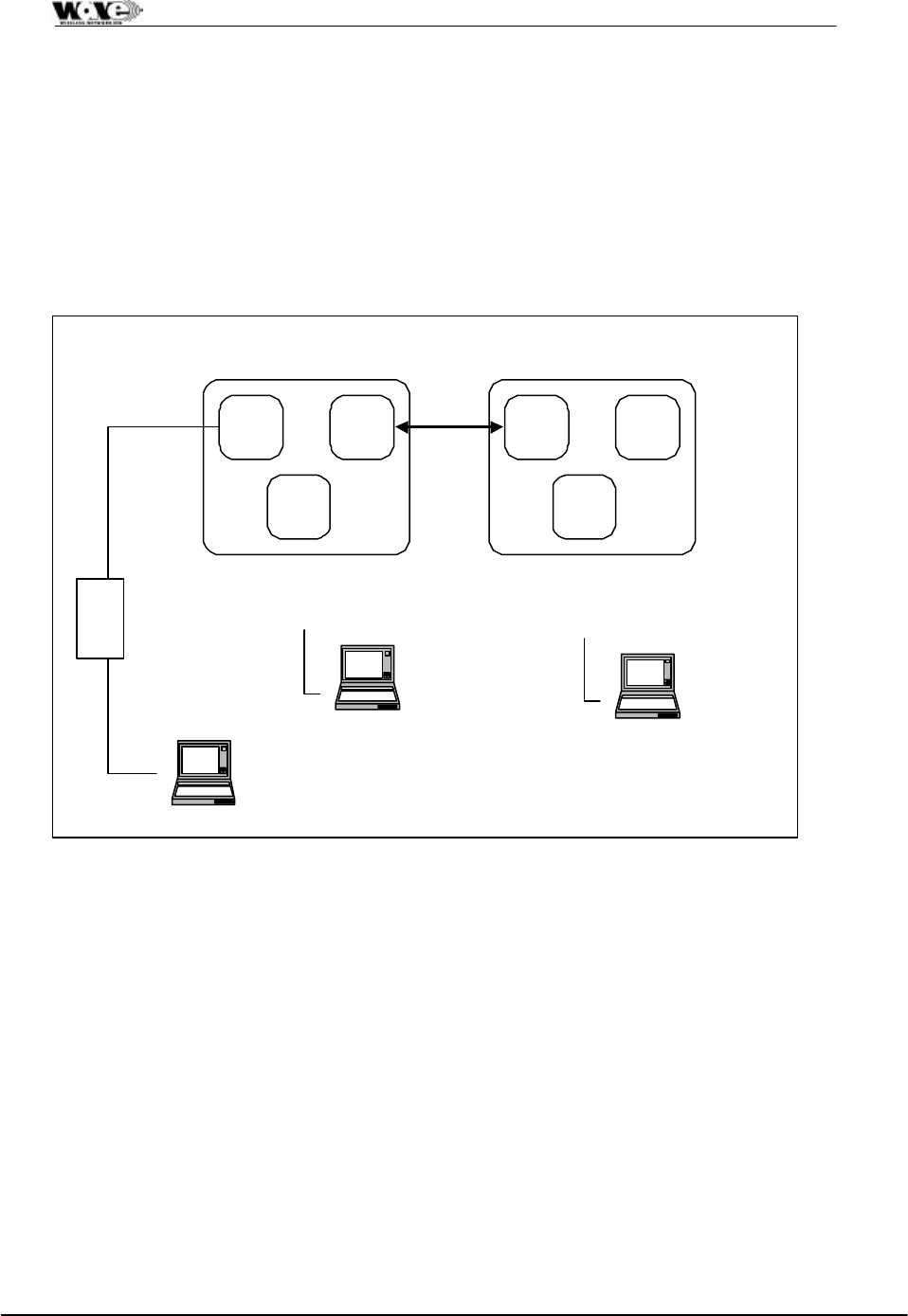

6.2.1 Microwave Digital Radio
A SC5800 link consists of at least one complementary pair of SC5800 stations that
may be extended over longer distances by linking further station pairs in a multiple-
hop configuration. A single SC5800 station comprises an Indoor Unit and an
Outdoor Unit interconnected by a data cable (CAT5) and a 2-core DC supply cable.
SPEEDCOM SC5800 User Manual
41
6.3 Main Screen

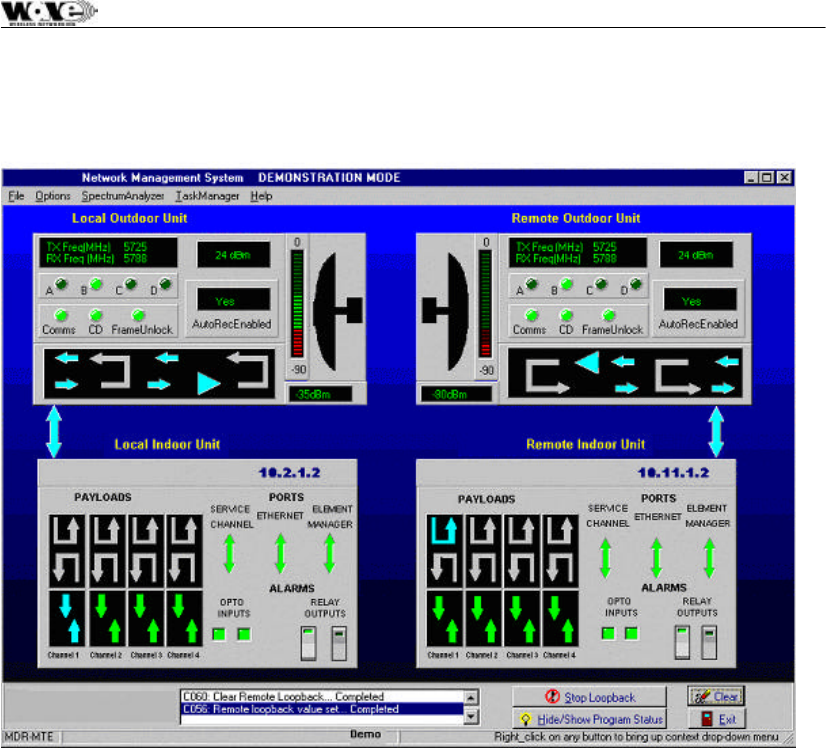

Figure 6. RSSI as a function of RF input level
This screen displays the names of the stations/sites, their IP addresses and allows
you to view or edit the parameters and status for the entire station. Indoor Unit and
Outdoor Unit details are accessed by using the mouse to select the Indoor Unit and
Outdoor Units of the local or remote sites.
Note that if the local Indoor Unit is offline, all controls for both station IUs and OUs
are 'grayed out' and thus unavailable. If the Outdoor Unit is offline and the Indoor
Unit is online, then only the Outdoor Unit controls are 'grayed out' and unavailable.
The Main screen shows a local station on the left hand side of the screen and a
remote station on the right hand side of the screen.
The Main Menu area provides pull-down menus and controls that allow you to
configure and monitor system link parameters and to perform basic tasks.
The station elements are displayed initially with no colors, but the controls in the
blocks change colors when the NMS attempts to communicate with the link’s
primary elements.
The control buttons on the screen are short -cuts to MIB elements in the Indoor
Units.
Move your mouse pointer to the required area of the screen and when the mouse
pointer changes into a 'hand', click the right mouse button to display more detailed
information. Click the left mouse button to activate relays and loopbacks.
SPEEDCOM SC5800 User Manual
42
6.3.1 Link Elements Areas
The Link Elements Areas on the Main Screen show an abbreviated status of the
Indoor and Outdoor Unit interfaces. Move your mouse pointer to each block until a
hand appears and click the right mouse button (right click) to see more information
on each element.
If both Stations are online, the status bar at the bottom of the screen shows that the
stations are being polled. If there is no communication with the remote side, the
remote station will be grayed. If there is no communication with the local side’s
Outdoor Unit, it will be gray.
Display Indicators
• A GREEN status indicator shows that there are no current alarms or errors.
• A YELLOW status indicator shows that there was a historic alarm condition.
• A RED status indicator shows that there is a current alarm condition.
The main screen shows a RSSI (Received Signal Strength Indication) bar graph in
dBm.
SPEEDCOM SC5800 User Manual
43
6.4 NMS Menus
6.4.1 Main Screen Menus
The following pull-down menus are available from the Main menu:
Menu Sub-item Result
File
Exit Exit from NMS.
Communications
Allows setup of which communications port is
used on the PC or Laptop for communication
with the Indoor Unit via the front panel Element
Manager Serial Port.
Local Trib Code It is possible to purchase upgrades for E1/T1
Indoor Units (upgrades to 2E1/T1 or 4E1/T1).
The user contacts the factory and provides the
Indoor Unit Bar Code number details. The
factory then supplies a “Tributary Code”, unique
to the Indoor Unit, which is entered using the
MIB (Version 2 products) or using the NMS
(Version 2 product).
Remote Trib Code See above.
Local User
Configuration Allows the user to set the access control
settings for the local station equipment to allow
the user to log on as an ‘Administrator’ with full
read/write configuration access or with ‘Read-
only’ access. (Note: This option is only available
if the IU firmware has been supplied with secure-
features activated – the default is NOT to have
this feature activated).
Options
Remote User
Configuration Allows the user to set the access control
settings for the remote station equipment to
allow the user to log on as an ‘Administrator’ with
full read/write configuration access or with ‘Read-
only’ access. (Note: This option is only available
if the IU firmware has been supplied with secure-
features activated – the default is NOT to have
this feature activated).
Spectrum
Analyzer Allows the user to examine the RF spectrum
using a RSSI (received signal strength indicator)
value measured in the Outdoor Unit. If
interference exists, this feature allows the user to
examine the spectrum and decide where to set
the transmit and receive frequencies for the local
and remote stations.
SPEEDCOM SC5800 User Manual
44
6.4.1.1 Exiting from the NMS: File/Exit
You can exit from the NMS as follows:
Click on the Exit option from the File pull-down menu on the Main screen.
You are prompted for confirmation of the shutdown – answer OK or Cancel to this
prompt.
6.4.1.2 Communications
This menu item allows you to configure the following NMS communications
parameters:
• Serial Port
• Polling Cycle
The users can either:
Use the Load Defaults option or change to the required settings and then use the
Apply Changes button.
Use the Exit button to exit without any changes being made.
6.4.1.2.1 Serial Port
Configure the serial port as follows:
1. Select Communications from the menu on the main screen.
2. Select the required port: COM1, COM2, COM3 or COM4.
6.4.1.2.2 Polling Cycle
Set the polling cycle (minimum 3 seconds). This determines how often the
information is updated.
6.4.1.3 Local User Configuration
Allows the user to set the access control settings for the local station equipment to
allow the user to log on as an ‘Administrator’ with full read/write configuration access
or with ‘Read-only’ access (only available with “security-enabled” versions of Indoor
Unit firmware).
The user enters a ‘Username’, ‘Password’, ‘Access level’ and activates the user via
an ‘Active’ input field.
With ‘Administrator’ access, the user can add new users.
Use the Apply Changes button once the changes are to be made in the Indoor Unit.
Use the Exit button to exit without any changes being made.
SPEEDCOM SC5800 User Manual
45
6.4.1.4 Remote User Configuration
This applies to the same directions above (that is, Section 6.3.1.3, Local User
Configuration, page 44) but controls access to the remote station’s MIB.
6.4.2 Main Screen Short-cut Buttons
Short-cut buttons are provided to allow quick access to the above menu items.
6.5 Indoor Unit Configuration
The Indoor Units have graphical interface controls that allow you to configure the
following items:
• Payload Data Interface Port
• Service Channel Port
• ‘Loopback to Line’ and ‘loopback to RF Link’
• Opto Inputs
• Relays
Payload is from the user’s ‘line’ equipment to the Indoor Unit Payload Data DB25
connector and RF Link is from Antenna to Antenna.
Right-click on the Indoor Unit to get the following options
• Time/date entry
• Station Status
• Station Properties
• Station Info (Serial number, software version, bootkernel version)
• View Event Log
• Maintenance
6.5.1 Controls
6.5.1.1 Payload Data Interface Port
A label/name can be assigned to any of the payloads.
6.5.1.1.1 E1 Port Line Code
Default setting is HDB3. However, it can be set to either HDB3 or AMI.
SPEEDCOM SC5800 User Manual
46
6.5.1.1.2 T1 Port Line Code
Default setting is B8ZS. However, it can be set to either B8ZS or AMI.
6.5.1.2 Payload Error Monitoring
Term Name Description
AIS Alarm Indication
Signal This is an all 1’s detection, incoming to the
equipment on the payload tributaries. Note that
there is independent monitoring for AIS on each of
the 4 tributaries.
LOS Loss of Signal This is a loss of signal detected on the input to the
payload data port tributaries. Note that there is
independent monitoring for LOS on each of the 4
tributaries.
6.5.1.3 Service Channel Port
The service channel serial port provides a means to send asynchronous data across
the link to the far side service channel port. Service channel ports can be connected
back-to-back (i.e., Remote to Local) at a remote site so as to extend the channel in
a multi-hop network. The service channel data is multiplexed with IP data onto the
RF overhead link. Priority is given to IP data.
• Use the Load Defaults option or change to the required settings and then
use the Apply Changes button.
• Use the Exit button to exit without any changes being made.
6.5.1.3.1 Baud Rate
Default setting is 115200 bit/s (Ver 1, 2).
6.5.1.3.2 Data Width
Default setting is 8 bits.
6.5.1.3.3 Parity
Default setting is None.
6.5.1.3.4 Flow Control
Default setting is None.
6.5.1.3.5 Stop Bits
Default setting is 1 Bit.
6.5.1.4 Relay Scripting (NA for Version 2 releases)
Note: THIS MANUAL ADDRESS FEATURES SPECIFIC TO VERSION 2 OF THE
SPEEDCOM SC5800 PLEASE IGNORE REFERENCES TO OTHER VERSIONS.
SPEEDCOM SC5800 User Manual
47
Configure the various alarms that will switch on Indoor Unit relays as required. There
are two relays on each Indoor Unit. Each relay can be programmed to switch on
based on the occurrence of Payload or RF Link errors detected in the LOCAL/NEAR
and/or REMOTE/FAR Indoor Units. The user can visually select those errors that
will trigger the respective relays.
The following built-in test status can be monitored on a link:
Link Unavailable
Frame Unlock
Minor PER Exceeded
RF Link
ESR Exceeded
LOS Payload Interface
AIS
• Use the Apply Changes button to change settings.
• Use the Exit button to exit without any changes being made.
6.5.1.5 Indoor Unit Loopback Controls
These controls allow you to set the loopbacks on the payload data.
• IU Loopback to Line - Used to loopback the data on the payload interface so
that incoming user payload data is sent straight back to the user. The
payload data does not go out over the RF link.
• IU Loopback to RF Link - Used to loopback the payload (Indoor
Unit)/Outdoor Unit data so that payload data arriving over the RF link is looped
and sent back across the RF link.
Perform a loopback as follows:
1. Select the Loopback Type by choice of arrows on the IU being tested.
2. Select the Loopback Timeout Time (in seconds). If enabled, the Loopback
state will cancel after Time seconds and the unit will return to normal
operation.
3. Click on the Loopback Timeout Enable checkbox.
4. Click on the Apply Changes button.
SPEEDCOM SC5800 User Manual
48
6.5.2 Menu Items
6.5.2.1 Date/Time Entry
In this menu, the user has the option of entering the:
• Date (change date using the calendar display)
• Time (change time using the spin button on the right-hand side of the control or enter
manually).
• The user had the option of ‘fetching’ the date and time from the PC or Laptop and using this
information.
• Use the Apply Changes button once the update in the Indoor Unit is to be made.
6.5.2.2 Station Status
6.5.2.3 General Status Indicators
These errors occur during the phase of continuous error checking. Errors are
latched until the operator clears them on the NMS.
The following is a list of possible error indicators as well as the possible faults and
corrective actions to solve each error.
Error Displayed Possible Faults and Corrective Actions
General Faults
Outdoor Unit Not
Responding • The Outdoor Unit simply doesn't respond to any messages sent to it
by the Indoor Unit. The Outdoor Unit could possibly be damaged or
the cables to the Outdoor Unit are disconnected from the Indoor Unit
or damaged.
Outdoor Unit
Comms Error • Message from Outdoor Unit too long (data corruption).
• Received message frame invalid – the Outdoor Unit messages follow a
strict data link layer frame protocol. There could data corruption.
• Partial message received from Outdoor Unit - remainder did not arrive
in time (Outdoor Unit switched off?).
• CRC Error – data corruption.
• Software queuing/buffering errors in the Indoor Unit firmware.
Wayside Port
Comms Error • Wayside port queue overruns - too high data rates or failed overhead
link.
• Comms Error - errors caused by Rx Overrun (Indoor Unit processor
could not service the received characters fast: too high data rates),
parity error if odd or even parity enabled (data corruption or incorrect
configuration), framing error (no valid stop bit where one was expected
- invalid baud rate or data width or parity configuration or data
corruption) or break detected (line shorted causing permanent break or
corruption).
SPEEDCOM SC5800 User Manual
49
Overhead Link
Comms Error • Overhead PPP link error: the buffering system of the overhead link
cannot process data fast enough and received messages have been
discarded (the software cannot process the data fast enough).
Ethernet Comms
Error • The buffering system of the interface cannot process data fast enough
and received messages have been discarded (the software cannot
handle the data fast enough).
Element Manager
Comms Error • Message from PC or laptop too long (data corruption).
• Software queuing/buffering errors in the NMS firmware.
Alarm 1 on • A digital optically isolated input used for general site alarm monitoring
(Auxiliary Input 1).
Alarm 2 on • A digital optically isolated input used for general site alarm monitoring
(Auxiliary Input 2).
6.5.2.3.1 Power-up Self Test Indicators
The following is a list of errors that can occur during the power-up phase of
operation. These errors may only be cleared by switching the Indoor Unit off and
then on again. The list also describes the possible faults and corrective actions to
solve each error.
Error Possible Faults and Corrective Actions
FLASH The Application FLASH memory test failed. Only a faulty Application Flash
device can cause this fault and the Application Flash device will have to be
replaced.
DRAM Error The DRAM test failed. Only a faulty DRAM device can cause this fault and
the DRAM will have to be replaced.
SRAM Error The battery-backed up SRAM test failed. Only a faulty SRAM device or
battery can cause this fault and the Battery and/or SRAM will have to be
replaced.
Watchdog Reset Software error. Please contact the supplier. Processor triggered a
watchdog restart because watchdog is no longer being toggled by the
application. Either the application has become too overloaded or this is a
software or design fault.
Hard Reset A hardware reset was performed. This is an indication of the last reason for
a reset and does not constitute a fault condition.
Unknown Reset Another reset detected by the Indoor Unit’s microprocessor (other than
Watchdog and Hard Reset) was performed. This is an indication of the last
reason for a reset and does not constitute a fault condition.
Line Interface
Error The line interface transceiver is not responding as expected and is most
likely faulty. The transceiver is programmed for operation and then checked
to see that the values programmed are valid (read correctly).
FPGA The FPGA register interface is not responding correctly and is most likely
faulty. The FPGA is programmed for operation and then checked to see
that the values programmed are valid (read correctly).
Real Time Clock The Real Time Clock (RTC) is not responding correctly and is most likely
faulty. The RTC is programmed for operation and then checked to see that
the values programmed are valid (read correctly).
Note: Use the Clear button to clear alarm indicators.
SPEEDCOM SC5800 User Manual
50
6.5.2.4 Station Properties
In this menu, the user has the option of entering the:
• Indoor Unit Station name
• IP address of the Indoor Unit
• Netmask
Note: Use the Apply Changes button once the update in the Indoor Unit is to be made.
6.5.2.5 Station Info
• This information allows you to view the build state details of the primary
hardware and software components of the selected Indoor Unit. Information
provided is read from the Indoor Unit microprocessor.
• Serial Number (Programmed into the Indoor Unit at time of manufacture),
• Software Version (Programmed into the Indoor Unit during any software
upgrade) and
• Bootkernel Version Number (Programmed into the Indoor Unit at time of
manufacture).
6.5.2.6 Indoor Unit Event Log
This screen is used for the viewing of the event log file. In the event of a pers istent
field fault, it will be useful for you to save the logged data file and send it (with the
faulty unit) to the repair department to assist in the repair of the unit. There is a
maximum of 100 records stored in the Indoor Unit (one filled, earlier records are
discarded in favor of newer records). The event log file is displayed from oldest to
youngest (i.e., ascending order by time). The log file columns are:
• Date – the date of the event dd-mm-yyyy.
• Time – the time of the event in hh:mm:ss.
• Type – the type of event.
• Event – a text description of the event itself.
Notes:
• Use the Clear Log button to clear the log in the Indoor Unit.
• Use the Refresh button to collect the log from the Indoor Unit.
• Use the Save button to save the log on the NMS PC or Laptop platform.
• Use the Exit button to exit the Event Log menu.
SPEEDCOM SC5800 User Manual
51
6.5.2.7 Maintenance
This screen provides the ability to upgrade the Indoor Unit firmware on the local/near
Indoor Unit only.
The user selects the file to be uploaded using the Select File button. A file
selection dialogue is presented which provides a means to retrieve the file from any
directory on any drive.
Once the file is selected, the following information is displayed on the screen:
• Application version - the Indoor Unit application code software version
number as read from the Indoor Unit application).
• Date and time - the Indoor Unit application code software date as read from
the Indoor Unit application.
• Bootkernel version - the Indoor Unit boot kernel code software version
number as read from the boot kernel.
Upload Status box
Used to display the steps being undertaken during the programming and verification
process. As the upload process proceeds, the user is informed of progress.
Verification of upload is done once the file has been uploaded into DRAM.
Thereafter, the data is loaded into ‘Application Flash’. The latest version is uploaded
into one ½ of the flash device. The other half maintains the old version. In this way,
there is an option to revert to the old version should there be an upload problem.
6.5.2.7.1 Programming an Indoor Unit
This procedure allows you to program factory-supplied firmware into the Application
Flash IC on the Indoor Unit. Proceed as follows:
1. Switch off the Indoor Unit. Run the NMS application and connect to the Indoor
Unit via the Element Manager Port.
2. Select the file to be uploaded into the Indoor Unit.
3. Switch on the Indoor Unit.
4. The upload process will proceed and the user is informed of the progress via the
status box.
5. Once complete, the IU verifies the program code is valid.
6. Once verified, the data is transferred into the IU’s Application Flash.
7. Once the code is programmed, the Indoor Unit application is restarted by the
boot kernel.
SPEEDCOM SC5800 User Manual
52
6.6 Outdoor Unit Configuration
6.6.1 Controls
6.6.1.1 Loopback Controls
These controls allow you to set the loopbacks on the payload data.
• OU Baseband Loopback - Used to loopback the data at baseband
processor level in the Outdoor Unit so that incoming user payload data is sent
back to the user via the IU/OU interconnection data cable.
• OU RF Loopback - All RF data sent out of the Local Indoor Unit to the
Outdoor Unit is looped back at the output stage of the Outdoor Unit and
returned to the Indoor Unit.
Perform a loopback as follows:
1. Select the Loopback Type by choice of arrows on the OU being tested.
2. Select the Loopback Timeout Time (in seconds). If enabled, the Loopback state
will cancel after Time seconds and the unit will return to normal operation.
3. Click on the Loopback Timeout Enable checkbox. If not enabled, then only the
NMS can cancel the loopback condition.
4. Click on the Apply Changes button.
6.6.2 Menu Items
6.6.2.1 Station Configure
The current Outdoor Unit parameters for Channel plan, Transmit Power and
Autorecovery are displayed. All Outdoor Unit operational parameters are stored in
the Indoor Unit. The Outdoor Unit is unaware of what it has been programmed to do.
The operational parameters are programmed automatically after a power up.
This screen allows you configure the following Operational Outdoor Unit
parameters:
• Frequency channel Plan.
• Transmit Power.
SPEEDCOM SC5800 User Manual
53
6.6.2.1.1 Frequency Channel Plan
The SC5800 Radios operate in the 5.725 GHz to 5.850 GHz ISM frequency band.
The SC5800 has predefined frequency channel plans (termed A, B, C and D).
6.6.2.1.2 Transmit Power
The Transmit power ranges from 2 to 24 dBm. There is also a mute setting.
6.6.2.1.3 Autorecovery
This feature is used if the user is installing a link from one side and there is no
technical staff assistance on the opposite side of the link. It mitigates against the
link failing and not being able to be re-established.
If autorecovery is enabled, the required operational RF parameters are programmed
into the Outdoor Units by the local and remote Indoor Units. If communication
between the two Indoor Units has not reactivated within 5 seconds, the previous
(working) ‘default’ RF parameters are programmed into the respective Outdoor Units.
6.6.3 OU Station Info
The OU Station Info screen provides a brief report of the build state of the Outdoor
Unit:
• Serial number – loaded into the Outdoor Unit at time of manufacture.
• Software version – loaded into the Outdoor Unit at time of manufacture.
• High Band Transmitter – affects the way the channel plan is implemented on
the Outdoor Unit.
• Low Band Transmitter – affects the way the channel plan is implemented on
the Outdoor Unit.
• FCC Regulations (None, FCC, Other).
6.6.4 Outdoor Unit Status
This screen allows you to view the following Outdoor Unit status information:
• Last Restart. This indicates the reason why the Outdoor Unit restarted (e.g.,
Power On, Watchdog Timeout).
• OU Lock Detect Status: indicates if there is a loss of lock of the IF, Transmit or
Receive path phase-locked oscillators in the OU.
SPEEDCOM SC5800 User Manual
54
6.7 RF Link Error Status Monitoring
Selected by right-clicking the relevant antenna and choosing the Diagnostics/Error
option.
6.7.1 RF Link Status
Link Unavailable The RF Link is considered not available (see Link Availability definition on
next page).
Frame Unlock RF link only. It looks at data received from the link. If the link is quality is
poor ( i.e., high PER at the RF level, ‘Frame Unlock’ is the result). AIS is
sent from the transceiver (from link direction) as long as ‘Frame Unlock’ is
true and no reliable data is available.
Packet Error Rate
Fault The PER Monitoring has been enabled and the Instantaneous PER has
exceeded the configured PER Fault Threshold for the RF link.
ESR Exceeded RF Errored Second Ratio has been exceeded due to Packet errors on the
RF link.
SESR Exceeded RF Seriously Errored Second Ratio has been exceeded due to Packet
errors on the RF link.
BBER Exceeded RF Background Block/Packet Errors Ratio has been exceeded due to
block errors on the RF link.
Default RF
Parameters
Activated
The Operational RF param eters were programmed into the Outdoor Unit by
the local and remote Indoor Units. Communication between the two Indoor
Units has not reactivated within 5 seconds. To recover communication the
Indoor Unit has selected the ‘Default’ RF parameters and programmed the
Outdoor Unit with them.
6.7.2 Packet Error Rate Thresholds
Packet error rate (PER) is calculated as the ratio of the number of uncorrectable
blocks over the number of blocks transmitted per second. Three PER thresholds
are provided for each monitored link, these are:
• Minor PER Threshold – this threshold defaults to 0.0002 and triggers an alarm
if the calculated PER exceeds this value.
• Major PER Threshold – this threshold defaults to 0.02 and triggers an alarm if
the calculated PER exceeds this value.
• Fault PER Threshold – this threshold defaults to 2.0 and triggers an alarm if the
calculated PER exceeds this value.
SPEEDCOM SC5800 User Manual
55
6.7.2.1 G.826 Thresholds
Three G.826 thresholds are provided for each monitored link. Each of these ratios is
calculated once every second and will trigger a fault condition if the ratios exceed the
programmed thresholds that are:
• Errored Second Ratio Threshold – this threshold which defaults to 4 X 10-2
triggers an alarm if the calculated ESR exceeds this value over the measurement
period (Report Time).
• Severely Errored Second Ratio Threshold – this threshold which defaults to 2
X 10-3 triggers an alarm if the calculated SESR exceeds this value over the
measurement period (Report Time).
• Background Block Error – this threshold which defaults to 6.25 X 10-2 triggers
an alarm if the calculated BBER exceeds this value over the measurement period
(Report Time).
6.7.2.2 Link Availability
A period of unavailable time begins at the onset of ten consecutive SES events.
These ten seconds are considered to be part of unavailable time. A new period of
available time begins at the onset of ten consecutive non-SES events. These ten
seconds are considered to be part of available time. The figure below illustrates this
definition.

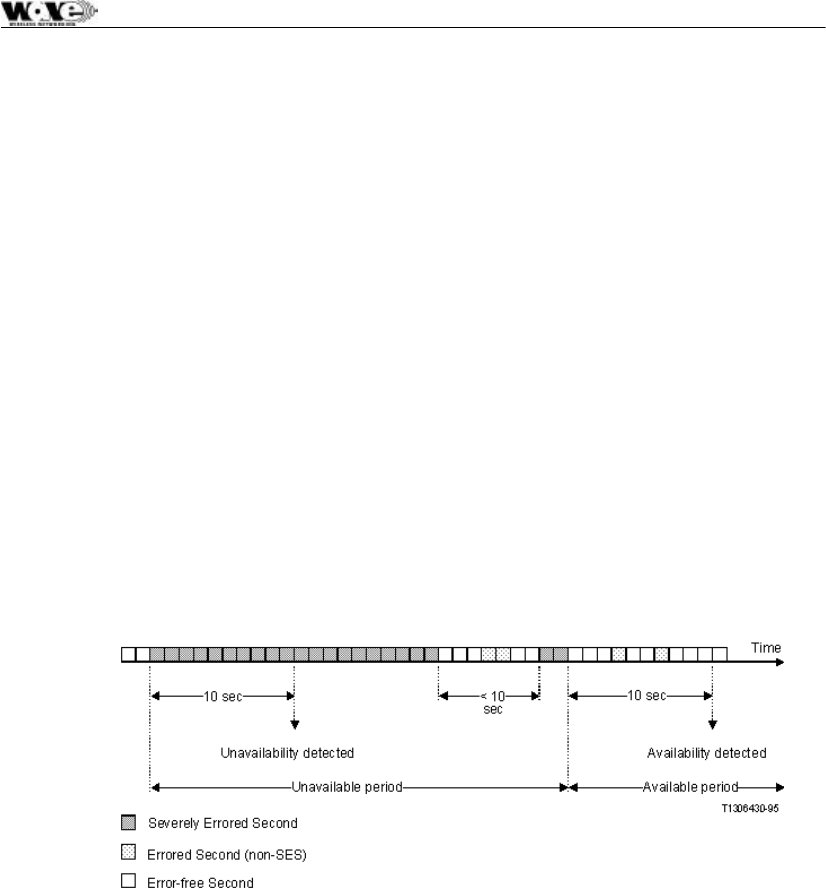

Figure 7. Link Availabity
6.7.3 RF Link Error Monitor
The Link Error Monitor screen provides the user with detailed Packet Error Rate
(PER), G.826 and link availability monitoring for the RF link. There is a status field,
Total Seconds, which applies to the link. Total Seconds is the total number of
seconds since the counts were last cleared. It is used to determine available and
unavailable seconds on a link.
6.7.3.1 General
• Errored Blocks Counter - containing the number of blocks containing errors
accumulated until cleared.
• Errored Seconds Counter - containing the number of seconds containing
errored blocks since the counters were last cleared.
SPEEDCOM SC5800 User Manual
56
• Severely Errored Seconds Counter - a counter containing the number of
seconds containing more than 30% errored blocks since the counters were
last cleared.
• Background Block Errors Counter - a counter containing the number of
blocks received in error excluding those contributing to severely errored
seconds since the counters were last cleared.
• Error Second Ratio – a ratio of the number of errored seconds to the total
number of seconds since the counters were last reset.
• Severely Error Second Ratio – a ratio of the number of Severely errored
seconds to the total number of seconds since the counters were last reset.
• Background Block Error Ratio – a ratio of the number of Background
Blocks in errors to the total number of blocks received since the counters
were last reset.
• Corrected Symbols field shows the number of symbols that have been
corrected by the FEC device within the Indoor Unit.
6.7.3.2 Packet Error Rate
• Instantaneous Ratio - This is the number of errored blocks as determined by
the FEC on the RF Link, divided by the total number of blocks per second for
that link. If the instantaneous PER exceeds the minor or major PER
thresholds, a fault is triggered and a RF Link error is indicated on the Indoor
Unit Front Panel.
• Maximized Ratio - The highest Packet error rate reached since the errors
were last cleared.
6.7.3.3 Link Availability
• Available Seconds – the number of seconds the link has been available
since counts were last cleared.
• Unavailable Seconds – the number of seconds the link has been unavailable
since counts were last cleared.
SPEEDCOM SC5800 User Manual
57
7 MAINTENANCE INFORMATION
1. The user is advised to refer to the Technical Data section for details on IU/OU
interconnection cables (customer-furnished).
2. The “Ordering Information” paragraph in the Technical Data section provides details on
part numbers for items that can be ordered.
3. Section 4 of this manual lists customer furnished equipment that should be used for
installing the SC5800 product.
4. There are two options to control the SC5800 product via SNMP.
a. One uses any open-standard-compliant SNMP Management package (HP
OpenView, SNMPc etc): in this case, one has access to the full compliment of
the product's MIB elements.
b. The NMS application package supplied with the product accesses a subset of
the MIB. It has a graphical user interface carefully designed to assist installation
and maintenance staff.
SPEEDCOM SC5800 User Manual
58
SPEEDCOM SC5800 User Manual
59
8 TECHNICAL DATA
8.1 Environmental Requirements
8.1.1 Outdoor Equipment
Operating temperature: -30°C to +60°C
Relative humidity: 8-100%
Atmospheric pressure: 0.7 to 1.06 kPa
Lightning protection ITU-T K.20
8.1.2 Indoor Equipment
Operating temperature: 0°C to +50°C
Relative humidity: 5-90%
Lightning protection: ITU-T K.20
8.2 Mechanical Information for Outdoor Equipment
8.2.1 SC5800 Outdoor Unit
Dimensions (HxWxD): 335mm x 231mm x 124mm
Weight: 5.9 Kg
8.3 Mechanical Information for Indoor Equipment
Dimensions (HxWxD): 45mm x 480 mm x 265mm
Mounting: 19” Rack, 1U high or Table top
Weight: 2.9 Kg
8.4 Power Supply Requirements
DC power supply: 21 to 56 VDC
DC power supply grounding: Positively or negatively grounded
Power consumption: 35 W typical, 45 W maximum.
SPEEDCOM SC5800 User Manual
60
8.5 Electrical Performance
8.5.1 General Characteristics
Frequency Range: 5725 to 5850 MHz
Data Capacity: E1 (2.048 Mbps), T1 (1.544 Mbps/s)
2E1 : 2T1
4E1 : 4T1
RF Channel Bandwidth: 17 MHz
Go/Return spacing: Can be adjusted, as fixed go-return spacing is
NOT mandatory in the ISM license-free bands.
Modulation: CCK
Processing Gain: 11 dB
Frequency Channel Plan A: 5735 and 5804 MHz
Frequency Channel Plan B: 5753 and 5822 MHz
Frequency Channel Plan C: 5771 and 5840 MHz
Transmission Delay: 600 us maximum for radios only (one-way)
8.5.2 Transceiver Characteristics
8.5.2.1 Frequency Band: Low-band Outdoor Units
Transmit band: 5725 – 5787 MHz
Receive band: 5787 – 5850 MHz
8.5.2.2 Frequency Band: High-band Outdoor Units
Transmit band: 5787 – 5850 MHz
Receive band: 5725 – 5787 MHz
SPEEDCOM SC5800 User Manual
61
8.5.3 RF Interface
Transmitted Power +2 to +24 dBm, software adjustable (incl. mute)
Receiver Sensitivity: 4E1/4T1: -88dBm for PER = 10-6
Maximum Receive Level: -30dBm
8.5.4 Payload Data Interfaces
8.5.4.1 1, 2 or 4 (i.e., nE1) Interface
Data Rate: Full duplex E1 (2.048Mbit/s), 2E1 or 4E 1
Digital Interface: ITU-T G.703
Connectors: Balanced 110 ohm on DB25
Line code: HDB3 or AMI selectable
Jitter and Wander: ITU-T G.823
8.5.4.2 1, 2 or 4 (i.e., nT1) Interface
Data Rate: Full duplex T1 (1.544Mbit/s), 2T1 or 4T1
Digital Interface: DSX-1, G.703 compliant
Connectors: Balanced 110 ohm on DB25
Line code: AMI or B8ZS selectable
Jitter and Wander: ITU-T G.823
SPEEDCOM SC5800 User Manual
62
8.5.5 Auxiliary Input Interface (CONTACT CLOSURE)
Number of Inputs: 2
Maximum voltage: 12V
Logical zero: Short from input to return pin
Logical one: Open input to return pin
8.5.6 Auxiliary Output Interface
Number of outputs: 2
States: Normally -open and normally-closed
Contact rating: DC: 220 V, 1 A, 60 W
AC: 250 V, 1 A, 125 VA
8.5.7 Wayside channel interface
Interface standard: RS232, DCE
Hands haking: None, Hardware
Port rate: 115,200 bps
8.5.8 Element Manager Port Interface
Interface standard: RS232, DTE
Handshaking: Hardware
Data rate: 115,200 bps
8.5.9 Indoor/Outdoor Unit Interface
The physical interface between the Indoor and Outdoor Unit is IEEE802.3 Ethernet.
As such, the same considerations that apply between standard
routers/switches/hubs and PC LAN cards should be adhered to when selecting
lengths of cables between the OU and the IU. Cable lengths of up to 120 meters
have been tested in a laboratory environment.
SPEEDCOM SC5800 User Manual
63
The following table lists information to assist the user to select cables to be used
between the Indoor and Outdoor Units.
Interconnecting cable
Data
General Requirements
STP (FTP) 4 Pairs Solid Cat 5, PVC FR UV protected Polifin H2/J263/904
Outer Black. Outer diameter of cable: 7.3mm ± 0.5mm. (This is an
“upjacketed” STP 4 Pair cable.)
This is a standard FTP
Cat 5 cable that is
‘upjacketed’ with suitable
plastic for FR/UV (Flame
retardant/Ultra Violet)
protection.
Examples:
1. Mohawk CAT5 P/N 57041
2. Superior Essex BBDN CAT 5 cable P/N 04-0010-34 (7.8mm)
3. Superior Essex CAT 5 P/N 18-241-31 18-241-11 (5.1mm)
4. General Cable CAT 5 P/N 2137113 2137114 (5.6mm)
5. Belden CAT 5 P/N BC1002 (6.0mm)
For the cables that have diameters less the required OD, one can use one
or two pieces of heatshrink on the cable where it passes through the
gasket.
Interconnecting cable
Power
General Requirements
Power 1.5mm sq stranded PVC Insulated, PVC FR UV protected Polifin
H2/J263/904 Outer Black 300/500V Temp -20°C to +85°C. Cable outer
diameter: between 7.4mm and 9mm i.e. 8.2mm ± 0.8mm.
Examples:
Superior Essex type SJOOW flexible cable P/N 441821* (7.4mm)
Carol Cable (General Cable) SJOW/SJO P/N 02001 18 gauge 2 conductor
(7.8mm)
SPEEDCOM SC5800 User Manual
64
8.6 Ordering Information
Terminal Information
Terminals* Product
Description
D1-58-HB-5800 651-03853ET1HB SPEEDCOM SC5800 1x T1/E1 (High Band)
D1-58-LB-5801 651-03853ET1LB SPEEDCOM SC5800 1x T1/E1 (Low Band)
D2-58-HB-5802 651-03853ET2HB SPEEDCOM SC5800 2x T1/E1 (High Band)
D2-58-LB-5803 651-03853ET2LB SPEEDCOM SC5800 2x T1/E1 (Low Band)
D4-58-HB-5804 651-03853ET4HB SPEEDCOM SC5800 4x T1/E1 (High Band)
D4-58-LB-5805 651-03853ET4LB SPEEDCOM SC5800 4x T1/E1 (Low Band)
Notes:
• Complete link requires two radios: one must be High Band (HB) and the other a Low
Band (LB).
• SC5800 operates from 21 - 56 VDC. For operation using AC power, please order item #
651-03864 (Bench AC Power Supply).
• Each radio includes a 10Base-T Ethernet interface in addition to the primary payload and
provides a 2 Mb wayside Ethernet channel.
Accessories & Upgrades
Part Number Description
651-03864 Bench Power Supply 110-220VAC to 48VDC
651-03865 SC5800 Upgrade 1xE1/T1 to 2xE1/T1
651-03866 SC5800 Upgrade 2xE1/T1 to 4xE1/T1
651-03867 SC5800 Upgrade 1xE1/T1 to 4xE1/T1
The SC5800 uses standard CAT5 Ethernet cable and RJ-45 connectors for connecting the Indoor
Unit to the Outdoor Unit. A two-wire power cable is also required between the Indoor Unit and the
Outdoor Unit. Note Screened Cat5 cable and UV resistant cables are recommended for long-term
outdoor use.
SPEEDCOM SC5800 User Manual
65
Microwave Digital Radio System Spare Parts for SC5800
Part Number Description
651-03810ET1 SC5800 Indoor Unit 1xE1/T1 - Spare Part
651-03810ET2 SC5800 Indoor Unit 2xE1/T1 - Spare Part
651-03810ET4 SC5800 Indoor Unit 4xE1/T1 - Spare Part
651-03806LB SC5800 Low Band Outdoor Unit - Spare Part
651-03806HB SC5800 High Band Outdoor Unit - Spare Part
651-03868 SC5800 NMS Software Disk - Spare Part
651-03809 SC5800 ODU Pole Mounting Kit - Spare Part
862-01881 SC5800 Digital Radio System User Manual - Spare Part
660-03405 SC5800 Cable Assembly: RSSI Test Loom - Spare Part
SPEEDCOM SC5800 User Manual
66
SC5800 Ordering Information:
Note: For Terminal part numbers, see page 64.
Each SC5800 radio includes the following:
Part No Description QTY
651-03810ET1 or
651-03810ET2 or
651-03810ET4
SC5800 Indoor Unit: 1xE1/T1or 2xE1/T1 or 4xE1/T1 1
651-03806HB
or
651-03806LB
SC5800 Outdoor unit 1
651-03809 SC5800 ODU Pole Mounting Kit 1
862-01881 SC5800 Digital Radio System User Manual 1
651-03868 NMS Software Disks 1
660-03405 RSSI Cable 1
It is possible to purchase upgrades for E1/T1 Indoor Units (upgrades to 2E1/T1 or
4E1/T1). The user contacts the factory and provides the Indoor Unit Bar Code
number details. The factory then supplies a “Tributary Code”, unique to the Indoor
Unit, which is entered using the MIB (Version 2 product) or using the NMS (Version
2 product).
Note: SC5800 only comes in Version 2.
SPEEDCOM SC5800 User Manual
67
9 APPENDIX A: ELEMENT MANAGER PORT POINT-TO-
POINT SERIAL COMMUNICATIONS SETUP
This appendix summarizes how to set up a network connection (using PPP) between a computer
and the SC5800 Indoor Unit’s Element Manager port. It lists how the connection can be setup
and configured to allow data transfer and SNMP-based control of the SC5800 Indoor Unit.
Note: For both NT and Win 95 or 98 machines, check that a Network Adapter is installed.

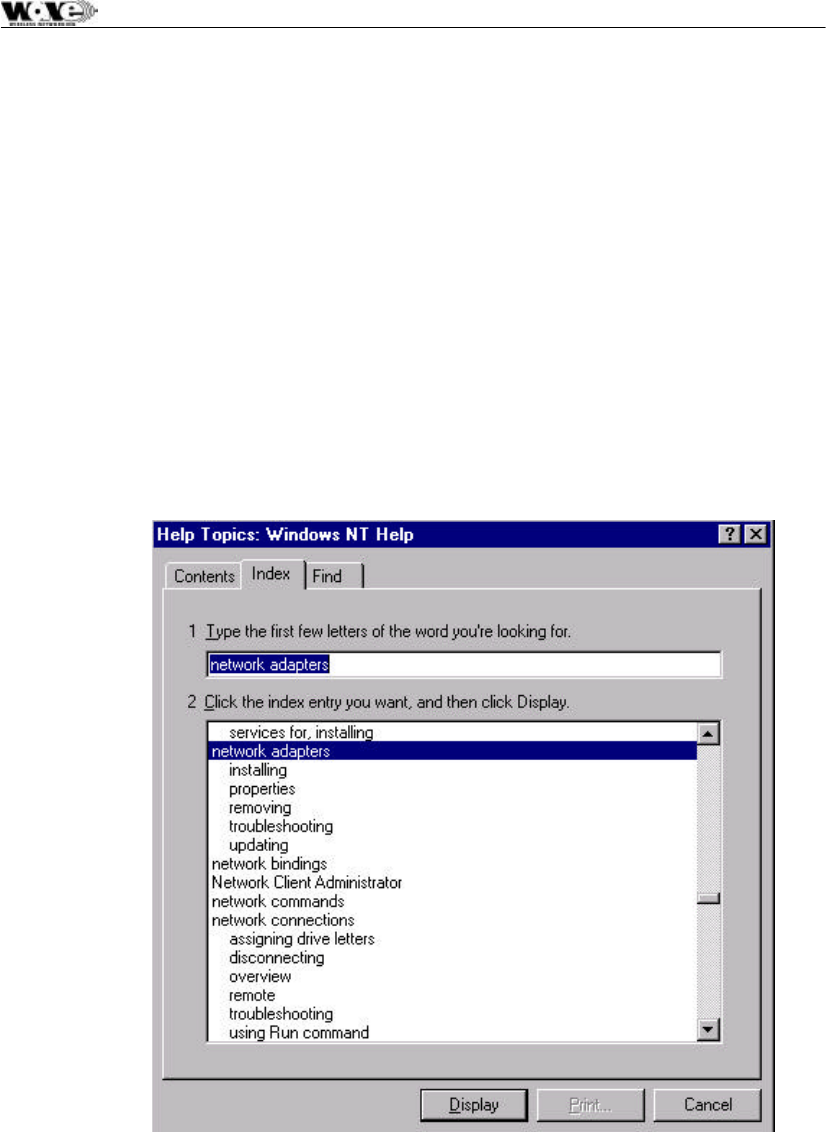

The following screen capture shows the Windows help available to assist setting up
a serial comms network adapter. This screen appears when the Help function is
activated.
SPEEDCOM SC5800 User Manual
68
9.1 Adding a Modem: Windows NT

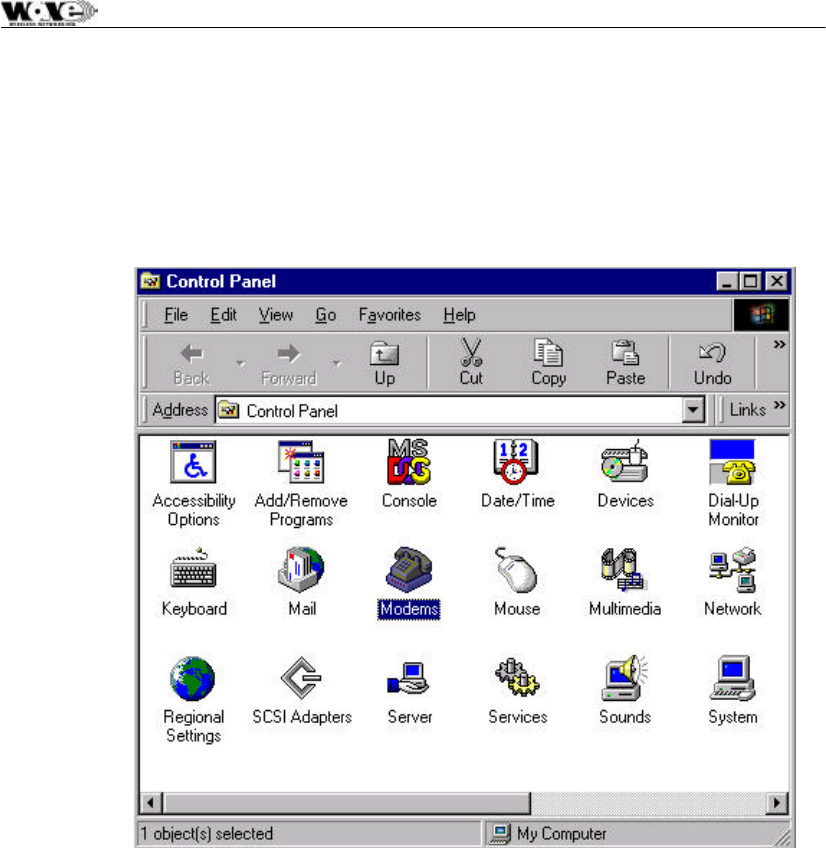

1. When working with a PC running a Windows NT, add a modem using the following
screen as a guideline. Click the Modems icon.
2. Verify your modem, or click Add to include another modem.

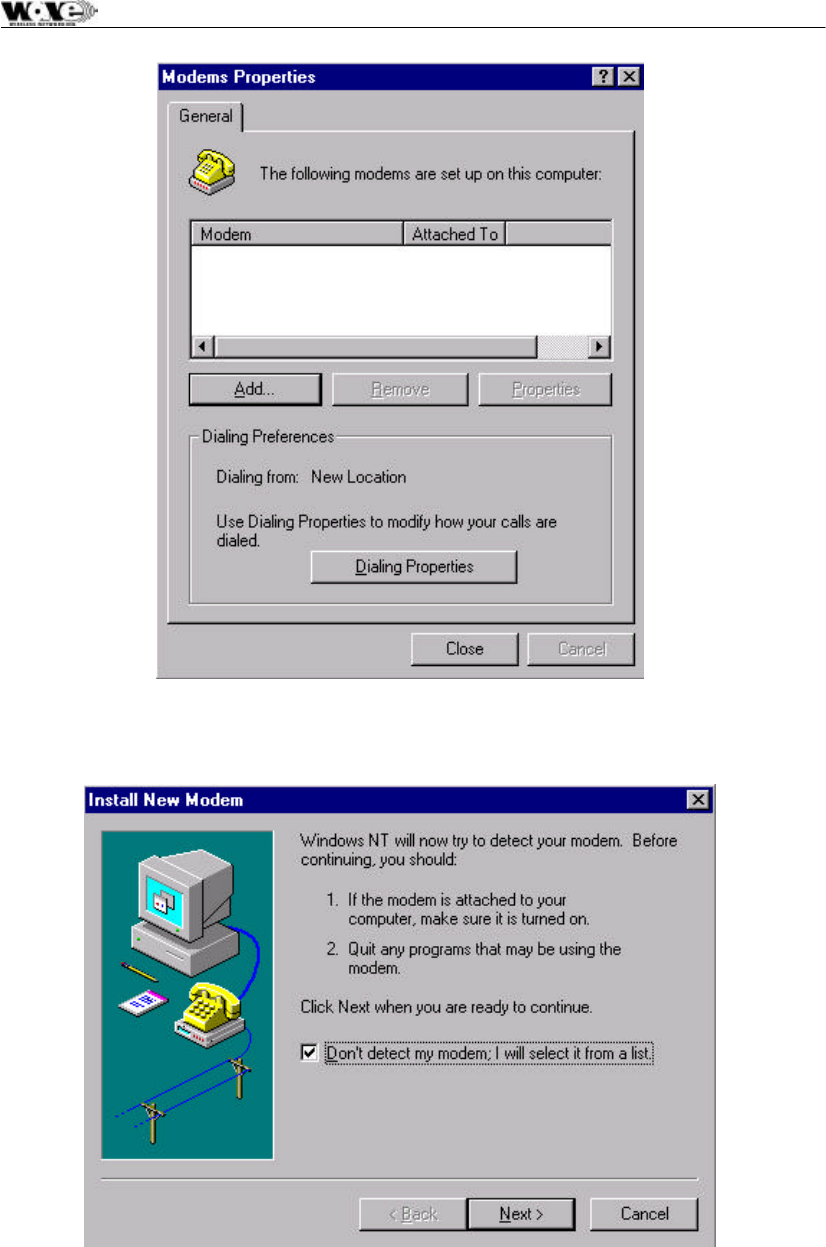

SPEEDCOM SC5800 User Manual
69

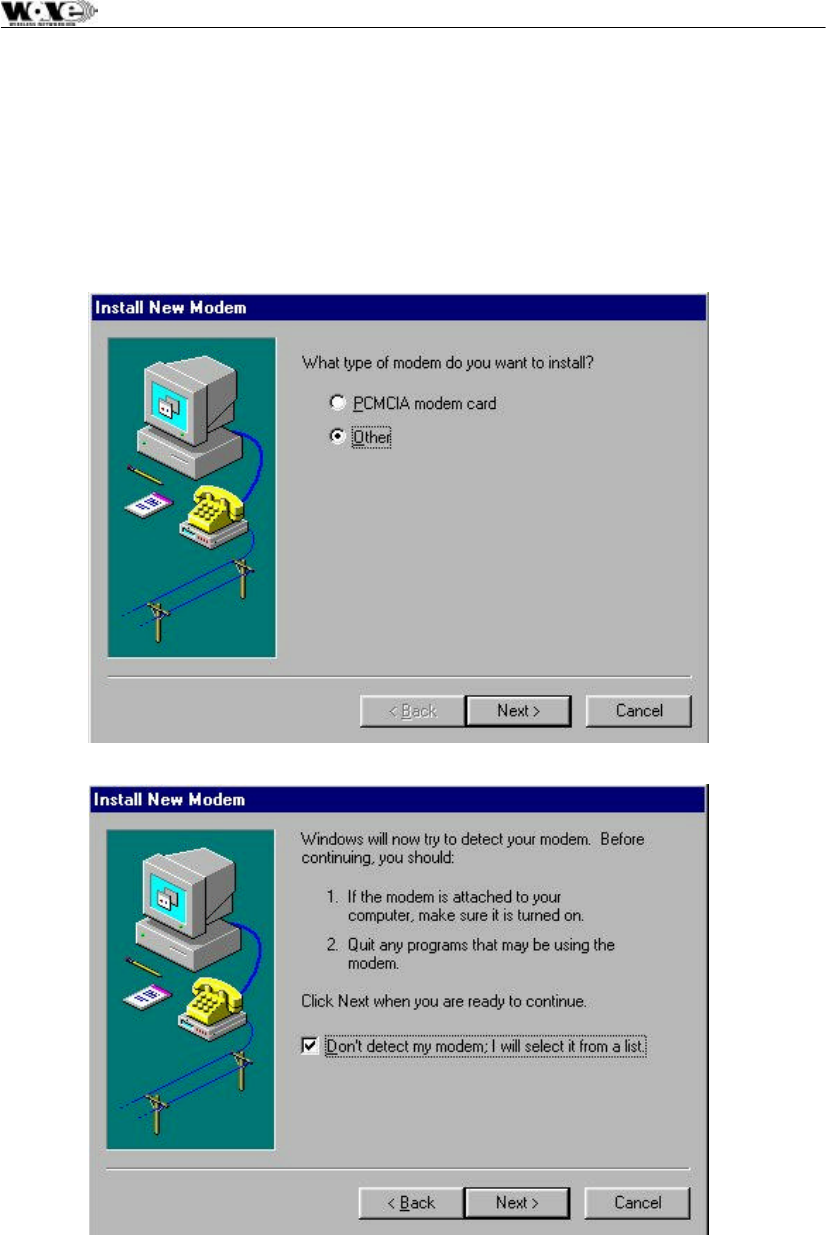

3. Follow the directions in the screen capture below and click Next.

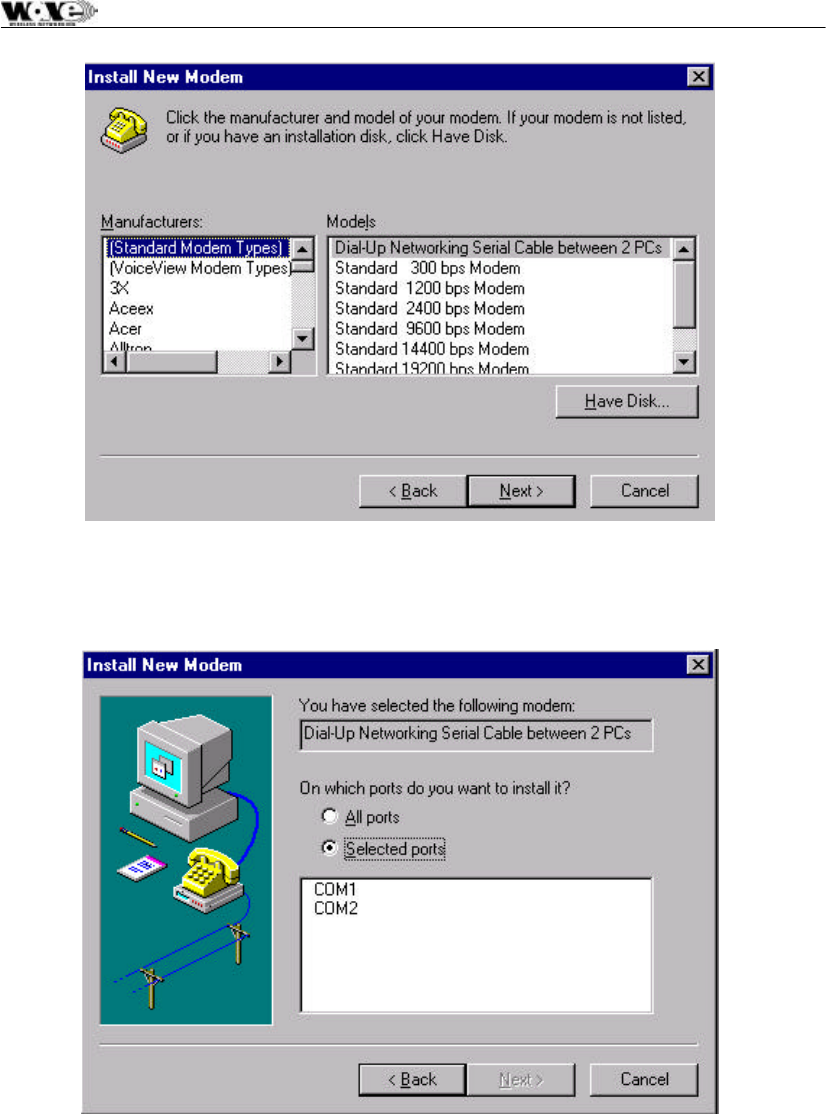

4. Locate the manufacturer and model of your modem and click Next.
SPEEDCOM SC5800 User Manual
70
5. Windows verifies the modem selected. Select the option on which you want to install
the port (i.e., Selected ports option).

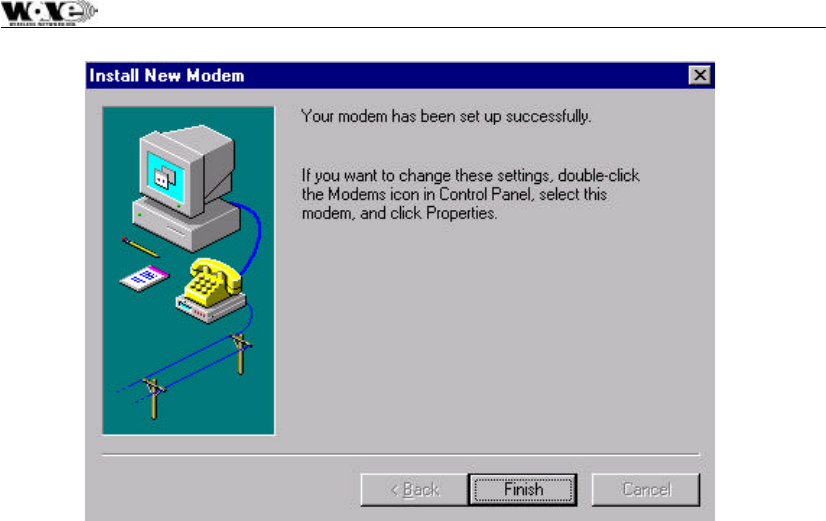

When the COM port has been selected, click Next. When completed, click Finish.
SPEEDCOM SC5800 User Manual
71
SPEEDCOM SC5800 User Manual
72
9.2 Adding Dial-up Networking: Windows NT
9.2.1 To add dial-up networking
1. From the desktop, double-click the My Computer icon. The following screen will be
displayed. Next, double-click the Dial-up Networking icon (as displayed in the screen
capture below).
2. The following windows are displayed:

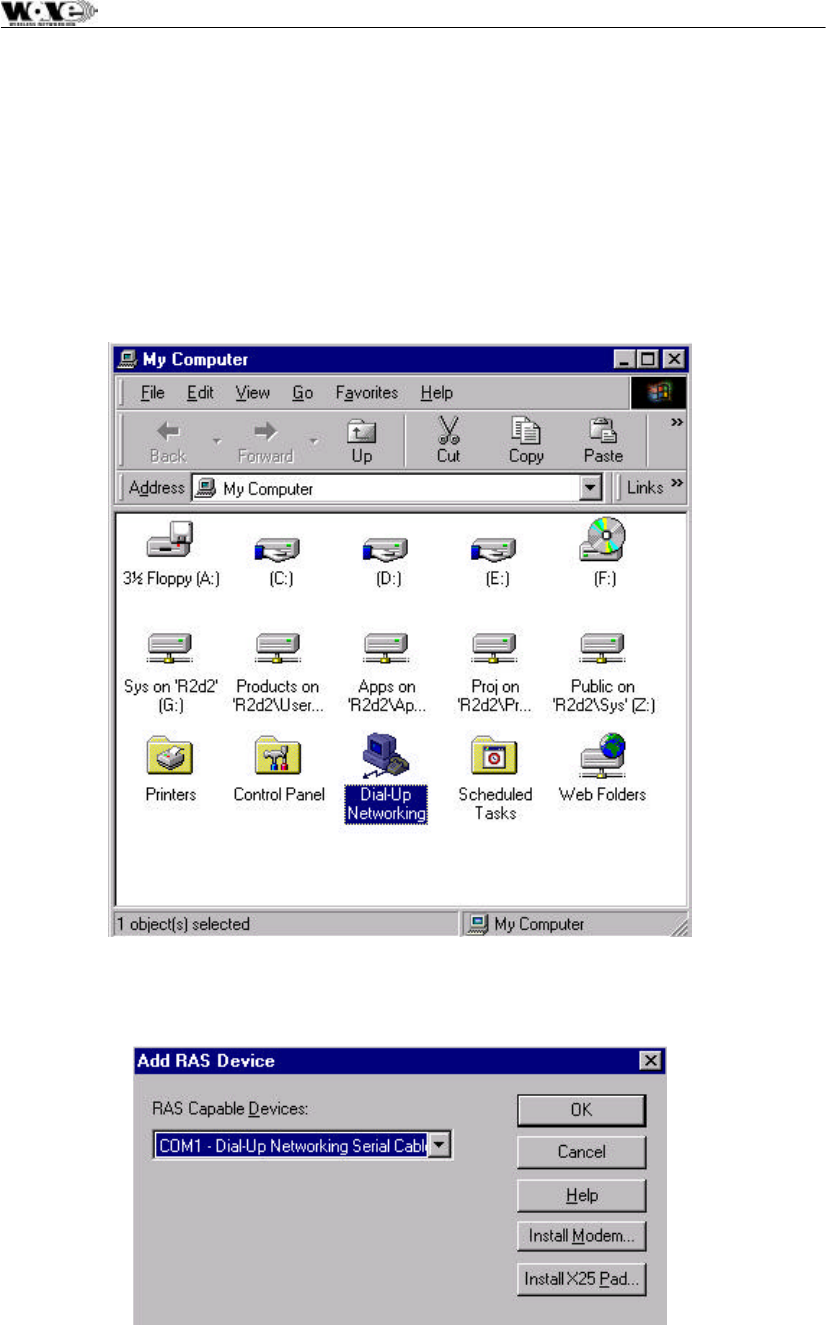

SPEEDCOM SC5800 User Manual
73
3. Whether COM1 or COM2 is selected from the RAS Capable Devices drop-down list
(see previous screen, setup the connection using the following screens as a guideline.
This allows establishment of a PPP connection between the computer and the SC5800
Indoor Unit’s Element Manager port.

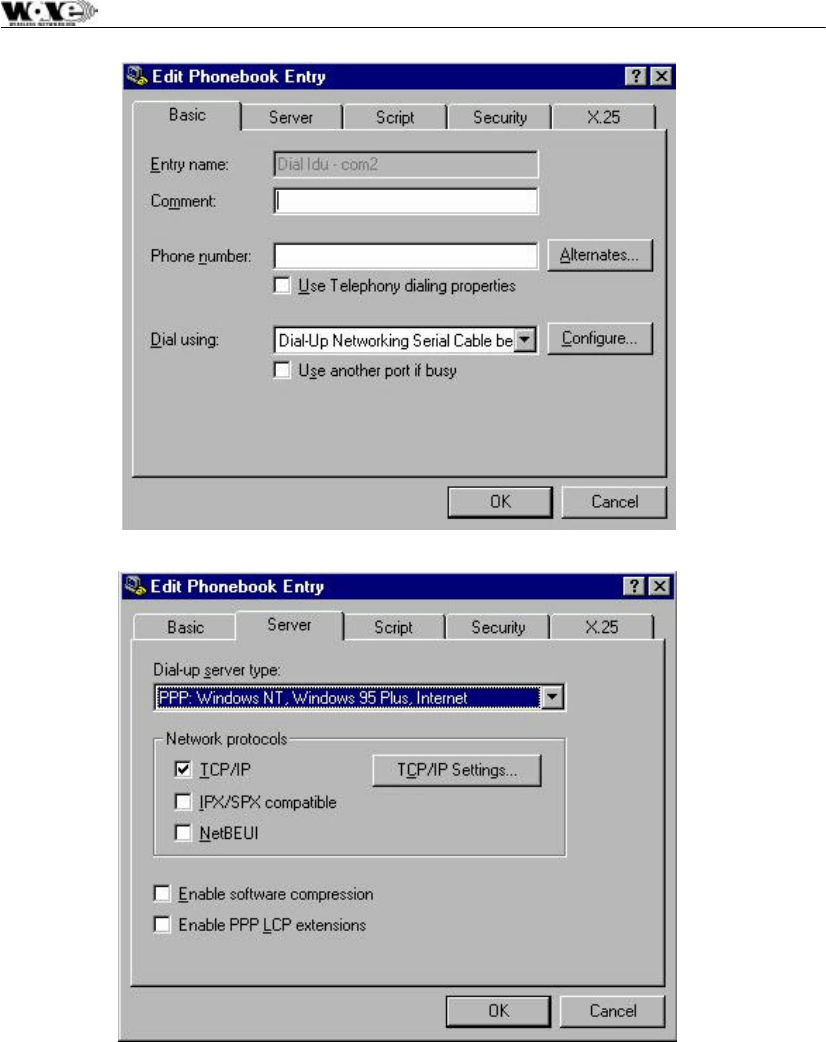

SPEEDCOM SC5800 User Manual
74

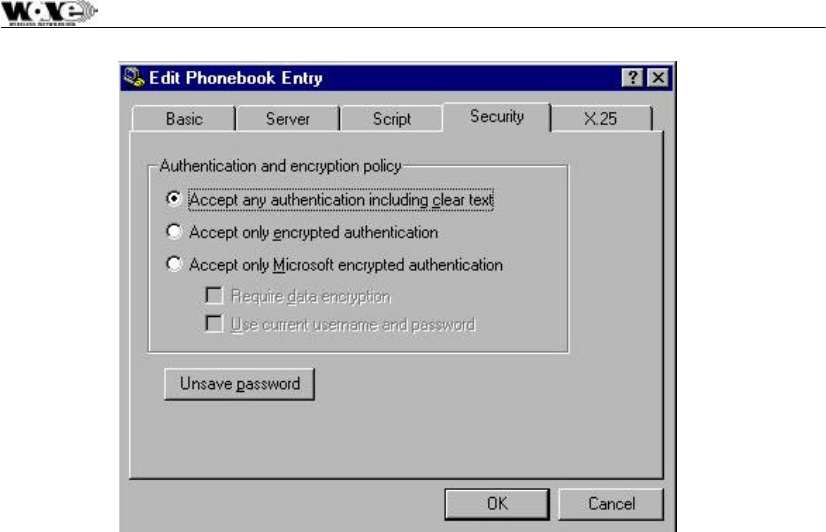

SPEEDCOM SC5800 User Manual
75
SPEEDCOM SC5800 User Manual
76
SPEEDCOM SC5800 User Manual
77
9.3 Adding a Modem: Windows 95/98
1. When working with a PC running a Windows 95/98, add a modem using the following
screens as a guide.

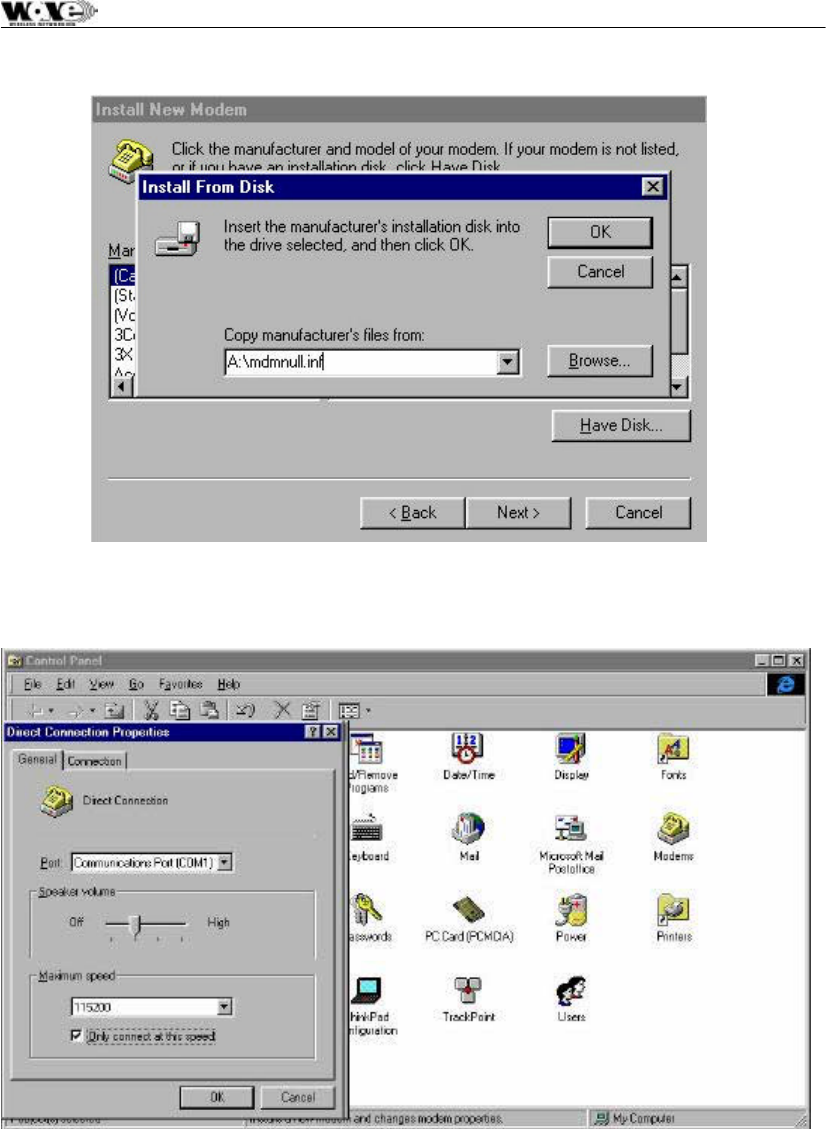

2. Use the mdmnull.inf to add a serial cable modem connection capability to the PC or
laptop.
SPEEDCOM SC5800 User Manual
78
3. Once setup, use the following screens to set up the COM port’s parameters.
SPEEDCOM SC5800 User Manual
79
9.4 Adding Dial-up Networking: Windows 95/98

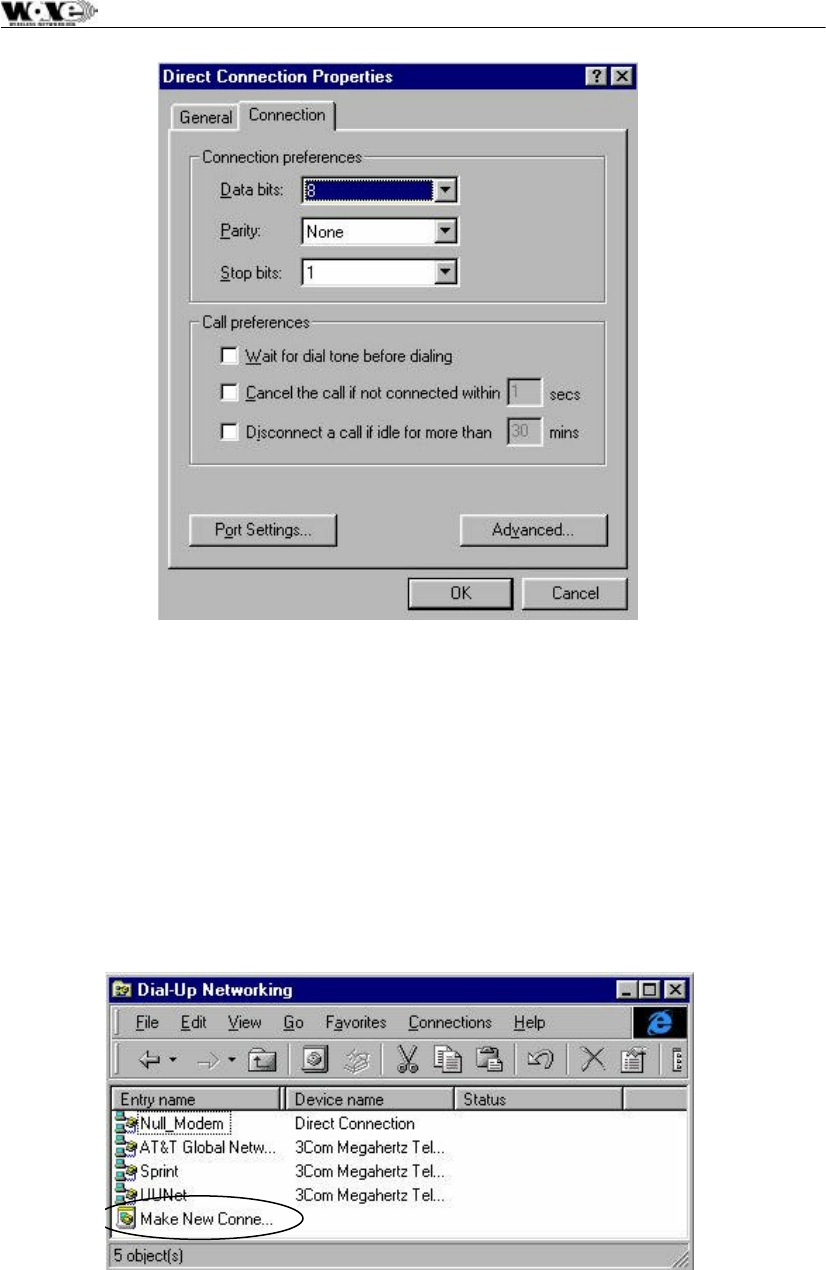

1. After adding the modem, set up the connection properties using the following screens as
a guide. This will allow establishment of a PPP connection between the computer and
the SC5800 Indoor Unit’s Element Manager port. A Null_Modem connection option as
shown below will be created. If one doesn’t exist, double-click the Make New
Connection icon (as circled below).

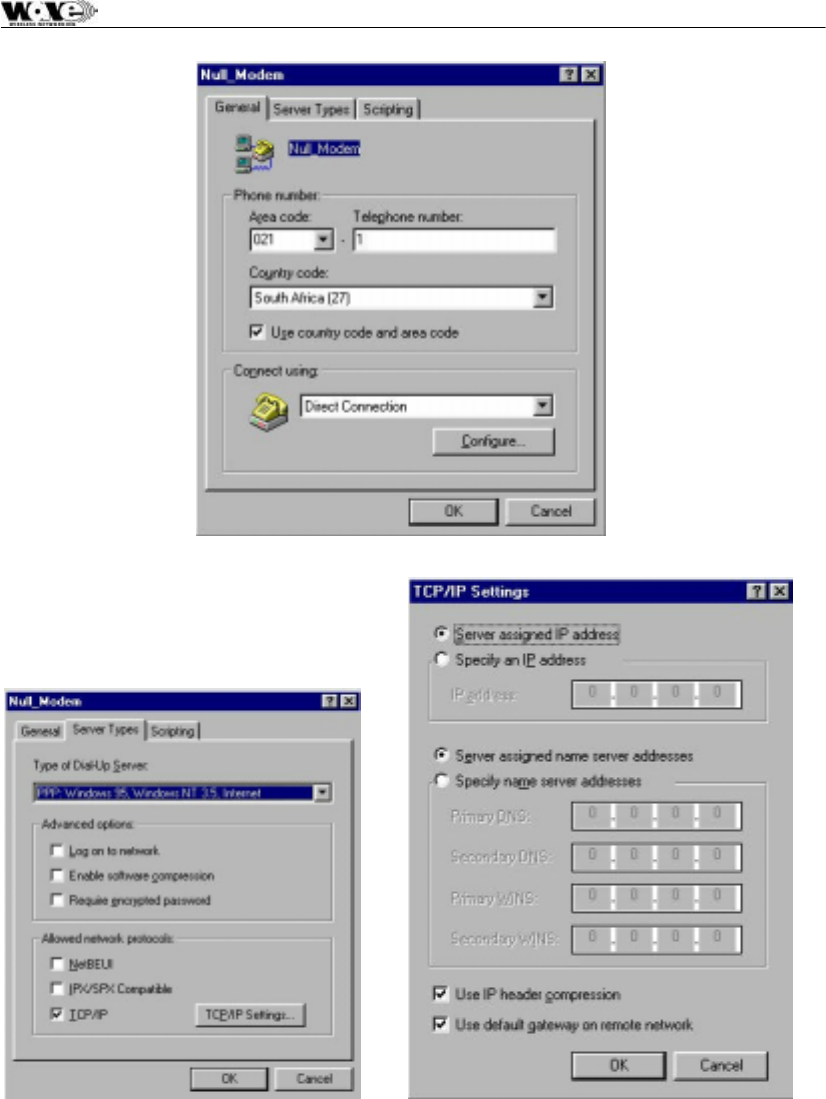

SPEEDCOM SC5800 User Manual
80
SPEEDCOM SC5800 User
Manual
81
10 APPENDIX B: MANAGEMENT OF THE SC5800
All management of the SC5800 product is implemented using SNMP (Simple Network
Management Protocol), an open standard. The SC5800 product can be managed by:
1. Standard SNMP managers such as HP OpenView or SNMPc (i.e., there is Open Network
Management compatibility).
2. For rapid product installation, the NMS GUI Application (hereafter referred to as the NMS-
GA) provides extensive management functions on site and, via the microwave radio link,
can be used to access the SC5800 station on the opposite side of the link. The SC5800
NMS-GA is a software application that runs on a PC workstation such as a laptop or
notebook computer that is connected to an SC5800 Indoor Unit (IU) serial port (DB9 DTE)
or an Ethernet connection (10BaseT DTE) (both accessed via the IU front-panel).
10.1 SNMP and the SC5800
Use of SNMP within the product allows remote: configuration, monitoring of performance,
notification of alarms and firmware upgrades via an IP-network. Within an IP network supporting
routing of IP data, the radios can be supported from any remote location. The product can be
accessed via the Internet if the necessary gateways are provided. A GSM/PCS modem dial-up
capability provides another remote management option.
The SPEEDCOM (SC) Indoor Units have built-in SNMP agents and an extensive MIB
(Management Information Base). The SC5800 product uses SNMP V1 (RFC1155, 1157). The
user has access to an Enterprise MIB (obtainable though customer services) and MIB II (RFC
1213).
Access to the MIB via the IU SNMP agent is via Ethernet (10BaseT interface on the product's
front panel) or PPP (RFC 1661) via the product's serial channel Element Manager port. The use
of SNMP provides flexibility for operators with central equipment monitoring. It provides
management access to radio configuration (all data interfaces), interface status and statistics,
fault and maintenance information.
SNMP security (if enabled) is ensured by using a login and password to give the user
administrator or basic user rights (a standard user rights option limits the ability to SET MIB
variables).
The product has threshold-based alarm generation (there is an extensive SNMP trap list with a
trap filter that is adjustable via SNMP). Network access (wired or wireless (i.e., GSM/PCS
Modem) allows over-the-air remote firmware uploading (FTP) with a load verification (and reversion)
capability.
SPEEDCOM SC5800 User
Manual
82
There are three principle requirements to use SNMP with the SC5800 Radio Stations.
1. A Management Station that runs a SNMP Management Software package that is
installed on a networked or stand-alone PC that can be connected to an Indoor Unit either
using a serial connection or an Ethernet connection. From the Management station, the
agents within the SC5800 Indoor Units can be configured or polled for information.
2. Agent: The agent accepts SNMP GET, SET or GET-NEXT commands from the
Management Application software and collects or adjusts information from the Indoor
Unit's MIB.
3. Management Information Base (MIB): the MIB is a database that is accessed based on
the OID (object ID) the SNMP Manager has chosen. The SPEEDCOM (SC) Indoor Unit
used an Enterprise MIB and a standard MIB (MIB II) to store or allow access to
information relevant to the SPEEDCOM (SC) Link.
SC5800 User Manual
83
10.2 The MIB Elements – OID (Object ID) DESCRIPTIONS
Object ID Group Object Type Access Description
1 Iso
1.3 Org
1.3.6 dod
1.3.6.1 internet
1.3.6.1.4 private
1.3.6.1.4.1 enterprises
1.3.6.1.4.1.1316 Wave Wireless
1.3.6.1.4.1.1316.1 products
1.3.6.1.4.1.1316.1.1 digitalradio
1.3.6.1.4.1.1316.1.1.1 mdrmte
1.3.6.1.4.1.1316.1.1.1.1 mdrmtePerformance
1.3.6.1.4.1.1316.1.1.1.1.1 mdrmtePayloadPerf
1.3.6.1.4.1.1316.1.1.1.1.1.1 mdrmtePpTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.1.1.1.1 mdrmtePpEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.1.1.1.1.
1
mdrmtePpIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.1.1.1.1.
2
MdrmtePpLOS INTEGER read-only A Loss of Signal has been
detected on the input to a
tributary - there are four, one
for each tributary.
1.3.6.1.4.1.1316.1.1.1.1.1.1.1.
3
MdrmtePpAIS INTEGER read-only An Alarm Indication Signal has
been detected on the input to a
tributary - there are four, one
for each tributary.
1.3.6.1.4.1.1316.1.1.1.1.1.2
mdrmteCrcErrors† INTEGER read-only "The number of CRC4 or CRC6
errors seen on the selected
tributary since the last time
errors were cleared."
1.3.6.1.4.1.1316.1.1.1.1.1.3
mdrmteCrcTribSelect† INTEGER Rd-Write "The tributary selected for CRC
checking."
1.3.6.1.4.1.1316.1.1.1.1.1.4
mdrmteCrcLock† INTEGER read-only "Indication of whether the CRC
checking algorithm has locked
onto a CRC frame signature in
the payload data."
1.3.6.1.4.1.1316.1.1.1.1.1.5 MdrmteCrcEbit† INTEGER read-only "Reflects the status of the 'E'
bits in the frame."
1.3.6.1.4.1.1316.1.1.1.1.2 mdrmteRFLinkPerf
1.3.6.1.4.1.1316.1.1.1.1.2.1 mdrmteCarrierDetect INTEGER read-only Indicates if a RF Carrier has
been detected by Outdoor Unit
– if so, the header in the RF
Packet has been identified as a
potential valid packet - note
however, that it could be
received from another
transmitter that uses the same
SC5800 User Manual
84
Object ID Group Object Type Access Description
header format.
1.3.6.1.4.1.1316.1.1.1.1.2.2 MdrmteRSSI †2 Gauge read-only A dBm value representative of
the received signal level. The
value detected is representative
of the level that would be
measured should a CW signal
be input at the Outdoor Unit's
Diplexer RF Port - a Spread
Spectrum signal will appear to
be 20 dB lower. The NMS
makes an adjustment for this
by using a 20 dB offset
(addition to the Indoor Unit MIB-
indicated value).
1.3.6.1.4.1.1316.1.1.1.1.2.3 mdrmteCurrentPER DisplayString read-only This is the current Packet Error
Rate and is based on the
number of uncorrectable
packets/blocks being detected
by the FEC (Forward Error
Correction) circuitry within the
Indoor Unit (based on the
number of errored packets
divided by the total number of
packets transmitted in a
measurement period of
250msec).
1.3.6.1.4.1.1316.1.1.1.1.2.4 mdrmteMaximizedPER DisplayString read-only This is the maximum Packet
Error Rate detected during the
last measurement period, based
number of maximum number of
uncorrectable packets/blocks
detected by the FEC circuitry
within the Indoor Unit.
1.3.6.1.4.1.1316.1.1.1.1.2.5 mdrmteLinkUnavailable INTEGER read-only Based on G.826 criteria, this
MIB element indicates RF Link
Availability/Non-availability.
1.3.6.1.4.1.1316.1.1.1.1.2.6 mdrmteFrameUnlock INTEGER read-only The data that is transmitted
across the RF Link is conveyed
in a frame, compiled within the
Indoor Unit's FPGA. The
received data frame is
examined to see that the frame,
with a suitable format has been
received.
1.3.6.1.4.1.1316.1.1.1.1.2.7 mdrmteRemoteFrameUnlock†
INTEGER read-only Frame-lock
(mdrmteFrameUnlock) as seen
by the other end of the link is
fed back here.
1.3.6.1.4.1.1316.1.1.1.1.2.8 MdrmteErrSecRatioExceeded INTEGER read-only The ESR is a ratio of the
number of Errored seconds (one
second periods within which
uncorrectable packets were
counted by the FEC IC) to the
total time in seconds.
1.3.6.1.4.1.1316.1.1.1.1.2.9 mdrmteSevErrSecRatioExceeded INTEGER read-only The SESR is a ratio of the
number of Severely Errored
seconds (one second periods
within which 30% of packets
over the RF Link had
uncorrectable errors) to the total
time in seconds.
2 † indicates Version 2.00 MIB additions/name changes
SC5800 User Manual
85
Object ID Group Object Type Access Description
1.3.6.1.4.1.1316.1.1.1.1.2.10 mdrmteBkgrndBlkErrRatioExceeded INTEGER read-only The BBER is a ratio of the
number of uncorrectable
blocks/packets received to the
total number of packets
received.
1.3.6.1.4.1.1316.1.1.1.1.2.11 MdrmteMinorPERExceeded INTEGER read-only This parameter indicates if the
minor packet (uncorrectable by
FEC) error rate has been
exceeded based on the defined
threshold listed in the
mdrmteFAULT -
mdrmtePerfTrapThreshold
group. A GH filter is applied to
the calculation. This GH filter
functions as a weighted average
where the GH Average Filter
Fraction is the proportion of the
instantaneous PER used in the
current seconds calculation.
The remainder (1-Fraction(0.7))
is taken from the previous 250
milli-second calculation.
1.3.6.1.4.1.1316.1.1.1.1.2.12 mdrmteMajorPERExceeded INTEGER read-only This parameter indicates if the
major packet (uncorrectable by
FEC) error rate has been
exceeded based on the defined
threshold listed in the
mdrmteFAULT -
mdrmtePerfTrapThreshold
group.
1.3.6.1.4.1.1316.1.1.1.1.2.13 mdrmteCriticalPERExceeded INTEGER read-only This parameter indicates if the
critical packet (uncorrectable by
FEC) error rate has been
exceeded based on the defined
threshold listed in the
mdrmteFAULT -
mdrmtePerfTrapThreshold
group.
1.3.6.1.4.1.1316.1.1.1.1.2.14 mdrmtePrevParamsRestored INTEGER read-only Indicates if “auto recovery” for
the Outdoor Unit settings had to
be invoked due to an unsuitable
choice of frequency or power
settings for the RF link.
1.3.6.1.4.1.1316.1.1.1.1.2.15 Deprecated1 INTEGER write-only Deprecated
1.3.6.1.4.1.1316.1.1.1.1.3 mdrmteG826
1.3.6.1.4.1.1316.1.1.1.1.3.1 mdrmteStatus INTEGER read-only Indicates if 'G.826-like' errored,
severely errored and
unavailable conditions have
been monitored on the RF Link.
1.3.6.1.4.1.1316.1.1.1.1.3.2 mdrmteTotalSeconds Counter read-only Indicates the total number of
seconds, both available and
unavailable.
1.3.6.1.4.1.1316.1.1.1.1.3.3 mdrmteAvailableSeconds Counter read-only A period of unavailable time
begins at the onset of ten
consecutive SES events.
These ten seconds are
considered to be part of
unavailable time. A new period
of available time begins at the
onset of ten consecutive non-
SES ev ents. These ten
seconds are considered to be
part of available time.
SC5800 User Manual
86
Object ID Group Object Type Access Description
1.3.6.1.4.1.1316.1.1.1.1.3.4 mdrmteUnavailableSeconds Counter read-only A period of unavailable time
begins at the onset of ten
consecutive SES events.
These ten seconds are
considered to be part of
unavailable time. A new period
of available time begins at the
onset of ten consecutive non-
SES events. These ten
seconds are considered to be
part of available time.
1.3.6.1.4.1.1316.1.1.1.1.3.5 mdrmteErroredSeconds Counter read-only A one second period with one or
more errored packets
(uncorrectable packets) or at
least one defect.
1.3.6.1.4.1.1316.1.1.1.1.3.6 mdrmteSeverelyErroredSeconds Counter read-only A one-second period which
contains > 30% errored blocks
or at least one defect. SES is a
subset of ES.
1.3.6.1.4.1.1316.1.1.1.1.3.7 mdrmteErroredBlocks Counter read-only A packet that has been
identified as containing
uncorrectable bits by the FEC
circuitry.
1.3.6.1.4.1.1316.1.1.1.1.3.8 mdrmteBackgroundBlockErrors Counter read-only An errored block not occurring
as part of a SES.
1.3.6.1.4.1.1316.1.1.1.1.3.9
mdrmteErroredSecondsRatio DisplayString read-only The ratio of ES to total seconds
in available time during a fixed
measurement interval.
1.3.6.1.4.1.1316.1.1.1.1.3.10 mdrmteSeverelyErroredSecondsRatio DisplayString read-only The ratio of SES to total
seconds in available time during
a fixed measurement interval.
1.3.6.1.4.1.1316.1.1.1.1.3.11 mdrmteBackgroundBlockErrorRatio DisplayString read-only The ratio of Background Block
Errors (BBE) to total blocks in
the available time during a fixed
measurement interval. The
count of total blocks excludes
all blocks during SESs.
1.3.6.1.4.1.1316.1.1.1.1.3.12 Deprecated2 INTEGER write-only Deprecated
1.3.6.1.4.1.1316.1.1.1.1.3.13 mdrmteCorrectedSymbols INTEGER read-only This parameter lists the number
of corrected symbols i.e. those
corrected by the FEC.
1.3.6.1.4.1.1316.1.1.1.1.4 Counters†
1.3.6.1.4.1.1316.1.1.1.1.4.1
mdrmteLostEthRxPkts† COUNTER read-only Indicates the total number of
times an ethernet packet could
not be buffered
1.3.6.1.4.1.1316.1.1.1.1.4.2 MdrmteLostLinkRxPkts† COUNTER read-only Indicates the total number of
times a link packet could not be
buffered
1.3.6.1.4.1.1316.1.1.1.1.4.3 MdrmteLostWaySideTxPkts† COUNTER read-only Indicates the total number of
times a wayside packet could
not be buffered
1.3.6.1.4.1.1316.1.1.1.1.4.4 mdrmteEtherRetries† COUNTER read-only Indicates the total number of
(collisions) packets that were
retransmitted on Ethernet
1.3.6.1.4.1.1316.1.1.1.1.4.5
mdrmteScc1FullCnt† COUNTER read-only Indicates the total number of
times SCC1 was full to capacity
SC5800 User Manual
87
Object ID Group Object Type Access Description
1.3.6.1.4.1.1316.1.1.1.1.4.6
mdrmteScc2FullCnt† COUNTER read-only Indicates the total number of
times SCC2 was full to capacity
1.3.6.1.4.1.1316.1.1.1.1.4.7 mdrmteScc1UnderrunCnt† COUNTER read-only Indicates the total number of
times SCC1 ran out of BDs
1.3.6.1.4.1.1316.1.1.1.1.4.8 mdrmteScc2UnderrunCnt† COU NTER read-only Indicates the total number of
times SCC2 ran out of BDs
1.3.6.1.4.1.1316.1.1.1.1.4.9 mdrmteScc2RxBdAbortCnt† COUNTER read-only Indicates the total number of
times SCC2 received an
aborted frame
1.3.6.1.4.1.1316.1.1.1.1.4.10 mdrmteScc2RxBdNonOctCnt† COUNTER read-only Indicates the total number of
times SCC2 received a Non
octet aligned frame
1.3.6.1.4.1.1316.1.1.1.1.4.11 mdrmteScc2RxBdCrcCnt† COUNTER read-only Indicates the total number of
times SCC2 received
1.3.6.1.4.1.1316.1.1.1.1.5 mdrmteResetAllPerfData INTEGER write-only Reset all parameters associated
with Packet Error and G.826
measurements for the RF Link.
1.3.6.1.4.1.1316.1.1.1.2 mdrmteConfiguration
1.3.6.1.4.1.1316.1.1.1.2.1 MdrmtePayloadConf
1.3.6.1.4.1.1316.1.1.1.2.1.1 MdrmteDataRate INTEGER read-write Configure the tributary data
interface rate - either E1 or T1.
1.3.6.1.4.1.1316.1.1.1.2.1.2 mdrmteLineCodeType INTEGER read-write Defines the line code types for
the tributaries, either HDB3 or
AMI for E1 tributaries or B8ZS
or AMI for T1 tributaries.
1.3.6.1.4.1.1316.1.1.1.2.1.3 mdrmtePcTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.2.1.3.1 mdrmtePcEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.2.1.3.1.
1
mdrmtePcIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.2.1.3.1.
2
mdrmtePcLabel DisplayString read-write E1/T1 Payload configuration
tributary label.
1.3.6.1.4.1.1316.1.1.1.2.1.3.1.
3
mdrmtePcActive INTEGER read-write Defines whether tributaries are
active or inactive.
1.3.6.1.4.1.1316.1.1.1.2.2 mdrmteRFLinkConf
1.3.6.1.4.1.1316.1.1.1.2.2.1 mdrmteTxPower INTEGER read-write Allows setup of the output power
available at the diplexer port of
the Outdoor Unit.
1.3.6.1.4.1.1316.1.1.1.2.2.2 mdrmteBandPlan INTEGER read-write The SC5800 Outdoor Units
operate in the 5.725 GHz to
5.850 GHz ISM frequency band.
The SC5800 has predefined
frequency channel plans
(termed A, B, C and D). Refer
to the User's manual for details
on defined frequencies.
1.3.6.1.4.1.1316.1.1.1.2.2.3 mdrmteTxFrequencyPlanD INTEGER read-write Frequency plan D allows
independent control of transmit
and receive frequencies. This
enables a very flexible
frequency plan and can be used
to overcome interference in the
5.8 GHz ISM band. The
frequencies that can be used in
the lower or upper sub-bands
can be selected in 1 MHz
increments. Performance
SC5800 User Manual
88
Object ID Group Object Type Access Description
degradation can be expected
when operating using channel
plan D mode and the chosen
frequencies are close to the
sub-band edges i.e. a choice of
one of the high frequencies in
the lower sub-band and one of
the lower frequencies in the
upper sub-band. The allocation
of Channel plan D frequencies
is Lower Sub-band - 5735-5771
MHz, Upper Sub-band - 5804-
5840 MHz. The user must take
note of whether the radio is a
high or low band unit before
choosing a set of transmit and
receive frequencies. Note also
that THE TX AND RX
FREQUENCIES MUST BE
SELECTED BEFORE BAND
PLAN D OPTION IS SELECTED
VIA THE MIB.
1.3.6.1.4.1.1316.1.1.1.2.2.4 mdrmteRxFrequencyPlanD INTEGER read-write Refer to the
mdrmteTxFrequencyPlanD
description.
1.3.6.1.4.1.1316.1.1.1.2.2.5 mdrmteTransmitBand INTEGER read-only This value is read from the
Outdoor Unit via the Indoor Unit
and defines whether it transmits
in the Lower Sub-band - 5735-
5771 MHz or Upper Sub-band -
5804-5840 MHz.
1.3.6.1.4.1.1316.1.1.1.2.2.6 MdrmteReserved2 INTEGER
1.3.6.1.4.1.1316.1.1.1.2.2.7 mdrmteRegulations INTEGER This parameter is read from the
Outdoor Unit via the Indoor Unit
and defines regulatory
compliance of the Outdoor Unit.
1.3.6.1.4.1.1316.1.1.1.2.2.8 mdrmteAutoRecovery INTEGER read-only This feature is used if the user
is installing a link from one side
and there is no assistance on
the opposite side of the link. It
mitigates against the link failing
and not being able to be re-
established. If “auto recovery”
is enabled, the required
operational RF parameters are
programmed into the Outdoor
Units by the local and remote
Indoor Units. If communication
between the two Indoor Units
has not reactivated within 5
seconds, the previous (working)
'default' RF parameters are
programmed into the respective
Outdoor Units.
1.3.6.1.4.1.1316.1.1.1.2.2.9 mdrmteOURateOverride INTEGER read-write Deprecated
1.3.6.1.4.1.1316.1.1.1.2.2.10 mdrmteOUDataRate INTEGER read-write A settable rate that allows a
reduced transfer data rate over
the RF Link.
1.3.6.1.4.1.1316.1.1.1.2.2.11 mdrmteTxFrequencyCurrent INTEGER read-only This value [MHz] is read back
from the Outdoor Unit and
defines the transmit frequency
of the Outdoor Unit.
1.3.6.1.4.1.1316.1.1.1.2.2.12 mdrmteRxFrequencyCurrent INTEGER read-only This value [MHz] is read back
from the Outdoor Unit and
SC5800 User Manual
89
Object ID Group Object Type Access Description
defines the receive frequency
of the Outdoor Unit.
1.3.6.1.4.1.1316.1.1.1.2.2.13 mdrmteNonAutoBandPlan INTEGER read-write Same as mdrMTEBandPlan
setting in this MIB group except
“auto recovery” is not enabled -
this allows control of the
Outdoor Unit frequencies
without the “auto recovery”
feature attempting to intervene
and re-establish setup of an
operational RF Link.
1.3.6.1.4.1.1316.1.1.1.2.2.14 mdrmteNonAutoTxFreqPlanD INTEGER read-write Same as mdrTxFrequencyPlanD
setting in this MIB group except
“auto recovery” is not enabled -
this allows control of the
Outdoor Unit Plan D frequencies
without the “auto recovery”
feature attempting to intervene
and re-establish setup of an
operational RF Link.
1.3.6.1.4.1.1316.1.1.1.2.2.15 mdrmteNonAutoRxFreqPlanD INTEGER read-write Same as mdrTxFrequencyPlanD
setting in this MIB group except
“auto recovery” is not enabled -
this allows control of the
Outdoor Unit Plan D frequencies
without the “auto recovery”
feature attempting to intervene
and re-establish setup of an
operational RF Link.
1.3.6.1.4.1.1316.1.1.1.2.2.16 mdrmteNonAutoTxPower INTEGER read-write Same as mdrTxPower setting in
this MIB group except “auto
recovery” is not enabled - this
allows control of the Outdoor
Unit power level setting without
the “auto recovery” feature
attempting to intervene and re-
establish setup of an operational
RF Link.
1.3.6.1.4.1.1316.1.1.1.2.3 mdrmteServiceChannel
1.3.6.1.4.1.1316.1.1.1.2.3.1 mdrmteScDataRate†3 INTEGER read-write Bit rate used across the
wayside service channel link.
1.3.6.1.4.1.1316.1.1.1.2.3.2 mdrmteScDataBits†4 INTEGER read-write The data width - can be 7 or 8
bits.
1.3.6.1.4.1.1316.1.1.1.2.3.3 MdrmteScParity INTEGER read-write Serial channel - set to none, odd
or even.
1.3.6.1.4.1.1316.1.1.1.2.3.4 MdrmteScStopBits INTEGER read-write The number of stop bits can be
set to 1 or 2.
1.3.6.1.4.1.1316.1.1.1.2.3.5 mdrmteScFlowControl INTEGER read-write Either hardware or no flow
control is used.
1.3.6.1.4.1.1316.1.1.1.2.3.6 mdrmteScStatusDump INTEGER read-write Allows the wayside service
(serial) channel to be used as a
diagnostics port [deprecated].
1.3.6.1.4.1.1316.1.1.1.2.4 MdrmteGeneral
1.3.6.1.4.1.1316.1.1.1.2.4.1 MdrmteStationName DisplayString read-write The station name is stored in
the Indoor Unit in non-volatile
3 Fixed at 115.2kbps in Version 1.00 and 2.00, 2.01, 2.02 IU firmware releases.
4 Serial setting – 8 bits, no parity, 1 stop bit
SC5800 User Manual
90
Object ID Group Object Type Access Description
memory - limited to 14
characters in length.
1.3.6.1.4.1.1316.1.1.1.2.4.2 mdrmteIUSerialNumber DisplayString read-only An electronic serial number is
read from the Indoor Unit - this
number is unique for each IU
and is derived from an IC that
is used within the product.
1.3.6.1.4.1.1316.1.1.1.2.4.3 mdrmteIUFirmwareVersion DisplayString read-only The Indoor Unit firmware
version is the version of
application firmware that loaded
into the product's application
Flash.
1.3.6.1.4.1.1316.1.1.1.2.4.4 mdrmteIUBootkernelVersion DisplayString read-only The Indoor Unit bootkernel
version is the version of boot
firmware that loaded into the
product's Boot Flash.
1.3.6.1.4.1.1316.1.1.1.2.4.5 mdrmteOUSerialNumber INTEGER read-only The Outdoor Serial Number is
programmed into the OU at time
of manufacture and is read via
the Indoor Unit.
1.3.6.1.4.1.1316.1.1.1.2.4.6 MdrmteOUPICFirmwareVersion DisplayString read-only The Outdoor Unit PIC firmware
number is programmed into the
OU at time of manufacture and
is read via the Indoor Unit.
1.3.6.1.4.1.1316.1.1.1.2.4.7 mdrmteOUPayloadSupport INTEGER Deprecated.
1.3.6.1.4.1.1316.1.1.1.2.4.8 mdrmteDate DisplayString read-write This is a date record that is
recovered from the Indoor
Unit's Real Time Clock.
1.3.6.1.4.1.1316.1.1.1.2.4.9 mdrmteTime DisplayString read-write This is a time record that is
recovered from the Indoor
Unit's Real Time Clock.
1.3.6.1.4.1.1316.1.1.1.2.4.10 mdrmteNOVRAMInit INTEGER read-write If activated, the Nonvolatile
memory is initialised to a set of
default parameters.
1.3.6.1.4.1.1316.1.1.1.2.4.11 mdrmteFECBypass INTEGER read-write This is primarily a laboratory
test entry used to control
whether the FEC circuitry within
the Indoor Unit is activated. By
default the FEC is not
bypassed i.e. FEC is active.
1.3.6.1.4.1.1316.1.1.1.2.4.12 mdrmteFECCorrectableSymbols INTEGER read-write This is primarily a laboratory
test entry used to control the
FEC correction power - 20 parity
symbols are appended to the
transmit packet - 10 is the
maximum number of symbols
the FEC circuitry can correct.
At a maximum, 20 symbols in
error can be detected but only
10 can be corrected - the higher
the correction power selected,
the greater the improvement in
system gain.
1.3.6.1.4.1.1316.1.1.1.2.4.13 mdrmteTribCode DisplayString read-write This is a text entry code (16
characters) used to allow
activation of tributaries on the
Indoor Units. It is unique to the
Indoor Unit based on a
hardware-dependent serial
number in the IU.
1.3.6.1.4.1.1316.1.1.1.2.4.14 mdrmteIndoorUnitBarCodeNumber† DisplayString read-write This is a text entry code used to
SC5800 User Manual
91
Object ID Group Object Type Access Description
allow storage of the Indoor
Unit's bar code serial number
(as seen on the outside of the
on the outside of product's
housing).
1.3.6.1.4.1.1316.1.1.1.2.4.15
mdrmteIndoorUnitPCBrevision† DisplayString read-write "This is a numeric entry code
used to reflect the PCB revision
number and modification
status."
1.3.6.1.4.1.1316.1.1.1.2.5 mdrmteFirmware
1.3.6.1.4.1.1316.1.1.1.2.5.1 mdrmteFTPServerStatus† INTEGER read-write This allows
activation/deactivation of the
FTP server that runs in the
Indoor Unit and is used to
upload new revisions of
firmware via a routed IP
network.
1.3.6.1.4.1.1316.1.1.1.2.5.2 mdrmteFlashNewFirmware† INTEGER read-write This entry determines the time
when the new version of
firmware will be activated.
1.3.6.1.4.1.1316.1.1.1.3 mdrmteFault
1.3.6.1.4.1.1316.1.1.1.3.1 mdrmteInfo
1.3.6.1.4.1.1316.1.1.1.3.1.1 mdrmteLEDTable SEQUENCE A group of LEDs on the front
panel of the Indoor Unit.
1.3.6.1.4.1.1316.1.1.1.3.1.1.1 mdrmteLEDEntry SYNTAX A LED entry containing objects
describing a particular LED.
1.3.6.1.4.1.1316.1.1.1.3.1.1.1.
1
mdrmteLEDIndex INTEGER A unique value for each LED in
the Indoor Unit. Its value
ranges from 1 to the number of
LEDs on the front panel of the
Indoor Unit.
1.3.6.1.4.1.1316.1.1.1.3.1.1.1.
2
mdrmteLEDLabel DisplayString read-only SYSTEM Green OK, Orange
(OU/IU Comms Error), Red
(OU/IU Comms Down)
PAYLOAD Green OK, Orange
(AIS Detected), Red (LOS
Detected)RF LINK Green OK,
Orange (FEC Correcting Errors),
Red (FEC unable to correct
errors)In ALL cases flashing red
and orange LEDs imply historic
alarm conditions (The alarm can
be cleared using the front panel
button 'position 1': see next
paragraph).
1.3.6.1.4.1.1316.1.1.1.3.1.1.1.
3
mdrmteLEDState INTEGER read-only The current state of the LED -
for a detailed description of
functionality, see the
mdrmteLEDLabel entry.
1.3.6.1.4.1.1316.1.1.1.3.1.1.1.
4
mdrmteLEDColour INTEGER read-only The current colour of the LED -
for a detailed description of
functionality, see the
mdrmteLEDLabel entry.
1.3.6.1.4.1.1316.1.1.1.3.1.2 mdrmteOutdoorUnitComms INTEGER read-only Describes the state of
communication with the Outdoor
unit in terms of whether it is up
or down completely.
Alternatively, if there were
errors, these are identified as
comms errors (based on a CRC
check) or content errors (i.e.
SC5800 User Manual
92
Object ID Group Object Type Access Description
undeclared, unused messages).
1.3.6.1.4.1.1316.1.1.1.3.1.3 mdrmteOutdoorUnitResetType INTEGER read-only This message is read from the
Outdoor Unit and identifies the
last reason for a reset within the
OU.
1.3.6.1.4.1.1316.1.1.1.3.1.4 mdrmteOutdoorUnitLockDetect INTEGER read-only The transmit RF synthesizer,
receive RF synthesizer and IF
phased locked loop lock detect
signals are monitored and
reported via this MIB element.
1.3.6.1.4.1.1316.1.1.1.3.2 mdrmteSelfTest
1.3.6.1.4.1.1316.1.1.1.3.2.1 mdrmteFlash INTEGER read-only Identifies pass/fail status of the
Indoor Unit's application flash.
1.3.6.1.4.1.1316.1.1.1.3.2.2 mdrmteDRAM INTEGER read-only Identifies pass/fail status of the
Indoor Unit's Dynamic RAM.
1.3.6.1.4.1.1316.1.1.1.3.2.3 mdrmteSRAM INTEGER read-only Identifies pass/fail status of the
Indoor Unit's Static RAM.
1.3.6.1.4.1.1316.1.1.1.3.2.4 mdrmteLineInterface INTEGER read-only Identifies pass/fail status of the
Indoor Unit's Line Interface IC.
1.3.6.1.4.1.1316.1.1.1.3.2.5 mdrmteFPGA INTEGER read-only Identifies pass/fail status of the
Indoor Unit's FPGA interface
registers to the microprocessor.
1.3.6.1.4.1.1316.1.1.1.3.2.6 mdrmteFEC INTEGER read-only Identifies pass/fail status of the
Indoor Unit's FEC IC electrical
interface.
1.3.6.1.4.1.1316.1.1.1.3.2.7 mdrmteRealTimeClock INTEGER read-only Identifies pass/fail status of the
Indoor Unit's Real Time Clock.
1.3.6.1.4.1.1316.1.1.1.3.2.8 mdrmteIndoorUnitResetType INTEGER read-only This message is read from the
Indoor Unit and identifies the
last reason for a reset within the
IU.
1.3.6.1.4.1.1316.1.1.1.3.2.9 mdrmteLoopbackMode INTEGER read-write Entry defines the loopback
mode of a radio station in terms
of loopback at either the
payload line interface level,
baseband processor level in an
OU or RF loopback in the OU.
1.3.6.1.4.1.1316.1.1.1.3.2.10 mdrmteLoopbackTimeOut INTEGER read-write This is the number of seconds
the loopback will run for until it
times out.
1.3.6.1.4.1.1316.1.1.1.3.3 mdrmteTrapManagement
1.3.6.1.4.1.1316.1.1.1.3.3.1 mdrmteTrapFilter INTEGER read-write Alarms within the MDR product
are classified as critical, major,
minor or informational. The trap
filter allows screening of alarms
before they are dispatched as
traps.
1.3.6.1.4.1.1316.1.1.1.3.3.2 mdrmteNumberTrapManagers INTEGER read-only This entry shows the number of
trap managers allowed.
1.3.6.1.4.1.1316.1.1.1.3.3.3 mdrmteTrapManagerTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.3.3.3.1 mdrmteTrapManagerEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.3.3.3.1.
1
mdrmteTrapManagerIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.3.3.3.1.
2
mdrmteTrapManagerIP IpAddress read-write This is the IP address of the
management station that is set
up to detect and act upon
SC5800 User Manual
93
Object ID Group Object Type Access Description
received traps.
1.3.6.1.4.1.1316.1.1.1.3.3.3.1.
3
mdrmteTrapManagerComm DisplayString read-write This is the “SNMP community
name” used for dispatch of
traps.
1.3.6.1.4.1.1316.1.1.1.3.3.3.1.
4
mdrmteTrapManagerActive INTEGER read-write Defines whether a particular
Trap Manager is active or
inactive.
1.3.6.1.4.1.1316.1.1.1.3.4 mdrmtePerfTrapThreshold
1.3.6.1.4.1.1316.1.1.1.3.4.1 mdrmteMinorPERThreshold DisplayString read-write Defines the threshold used as a
checking criterion for the Minor
PER (Packet Error Rate).
1.3.6.1.4.1.1316.1.1.1.3.4.2 mdrmteMajorPERThreshold DisplayString read-write Defines the threshold used as a
checking criterion for the Major
PER (Packet Error Rate).
1.3.6.1.4.1.1316.1.1.1.3.4.3 mdrmteCriticalPERThreshold DisplayString read-write Defines the threshold used as a
checking criterion for the Critical
PER (Packet Error Rate).
1.3.6.1.4.1.1316.1.1.1.3.4.4 mdrmteErrSecRatioThreshold DisplayString read-write Defines the threshold used as a
checking criterion for the
Errored Second Ratio.
1.3.6.1.4.1.1316.1.1.1.3.4.5 mdrmteSevErrSecRatioThreshold DisplayString read-write Defines the threshold used as a
checking criterion for the
Severely Errored Second Ratio.
1.3.6.1.4.1.1316.1.1.1.3.4.6 mdrmteBkgrndBlkErrRatioThreshold DisplayString read-write Defines the threshold used as a
checking criterion for the
Background Block Error Ratio.
1.3.6.1.4.1.1316.1.1.1.3.5 mdrmteEventLogTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.3.5.1 mdrmteEventLogEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.3.5.1.1 mdrmteEventIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.3.5.1.2 mdrmteEventDate DisplayString read-only Lists the date on which the
event occurred.
1.3.6.1.4.1.1316.1.1.1.3.5.1.3 mdrmteEventTime DisplayString read-only Lists the time when the event
occurred.
1.3.6.1.4.1.1316.1.1.1.3.5.1.4 mdrmteEventType INTEGER read-only Lists the type of event -
informational, minor, major or
critical.
1.3.6.1.4.1.1316.1.1.1.3.5.1.5 mdrmteEventDescription DisplayString read-only Textual description of the logged
event.
1.3.6.1.4.1.1316.1.1.1.3.6 mdrmteClearEventLog INTEGER write-only This entry is used to clear the
Event Log.
1.3.6.1.4.1.1316.1.1.1.3.7 mdrmteResetAllFaults INTEGER write-only
1.3.6.1.4.1.1316.1.1.1.3.8
mdrmteEnableDebug INTEGER read-write This entry is used to enable test
and debugging features
1.3.6.1.4.1.1316.1.1.1.3.9
mdrmteErrorWindow INTEGER read-write This entry is used to set the
time period in minutes during
which errors are counted, but
not logged.
1.3.6.1.4.1.1316.1.1.1.4 mdrmteAccess
1.3.6.1.4.1.1316.1.1.1.4.1 mdrmteEthernetIPAddress IpAddress read-write The IP address associated with
product's Ethernet port (NOTE :
USE A POWER-ON RESET OR
RESET BUTTON POSITION ‘3’
TO ALLOW ACCEPTANCE OF
THE NEW IP ADDRESS – I.E.
SC5800 User Manual
94
Object ID Group Object Type Access Description
IT IS UPDATED IN NON-
VOLATILE MEMORY AND GETS
ACCEPTED BY THE INDOOR
UNIT’S IP STACK AS A VALID
ADDRESS).
1.3.6.1.4.1.1316.1.1.1.4.2 mdrmteEthernetNetMask IpAddress read-write The netmask associated with
the Ethernet port.
1.3.6.1.4.1.1316.1.1.1.4.3 mdrmteMaxNumUsers INTEGER read-only If the firmware is complied with
the security feature switched
on, users can log into an IU.
This value is read back from the
IU and indicates the maximum
number of users that can
connect to an Indoor Unit.
1.3.6.1.4.1.1316.1.1.1.4.4 mdrmteMaxNumActiveUsers INTEGER read-only If the firmware is built with the
security feature switched on,
users can log into an IU. This
entry defines the maximum
number of active users that can
be connected to an Indoor Unit
using IP.
1.3.6.1.4.1.1316.1.1.1.4.5 mdrmteNumActiveUsers Gauge read-only If the firmware is built with the
security feature switched on,
users can log into an IU. This
entry defines the number of
active users logged into an IU.
1.3.6.1.4.1.1316.1.1.1.4.6 mdrmteUserTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.4.6.1 mdrmteUserEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.4.6.1.1 mdrmteUserIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.4.6.1.2 mdrmteUserName5 DisplayString read-write If the firmware is built with the
security feature switched on,
users can log into an IU. This
entry allows the user to enter a
password associated with their
sign-on name.
1.3.6.1.4.1.1316.1.1.1.4.6.1.3 mdrmteUserPassword DisplayString write-only If the firmware is built with the
security feature switched on,
users can log into an IU – this
entry allows password entry.
1.3.6.1.4.1.1316.1.1.1.4.6.1.4 mdrmteUserAccessLevel INTEGER read-write If the firmware is built with the
security feature switched on,
users can log into an IU. The
access entries that are used are
“read_only” and “administrator”.
An administrator can add and
delete new users, assign
passwords, initialise NOVRAM
via SNMP, enter tributary
codes, adjust FTP server
status, initiate new flash
updates after an FTP upload.
Read_only prevents the ability
of the user to adjust the
SETable variables in the MIB.
1.3.6.1.4.1.1316.1.1.1.4.6.1.5 mdrmteUserActive INTEGER read-write Indicates if a user is active or
not based on password entry.
1.3.6.1.4.1.1316.1.1.1.4.6.1.6 mdrmteUserAdd INTEGER write-only In security-enabled mode,
allows an administrator to add
5 The default build for firmware DOES NOT include a SECURE LOGIN option.
SC5800 User Manual
95
Object ID Group Object Type Access Description
users.
1.3.6.1.4.1.1316.1.1.1.4.6.1.7 mdrmteUserDelete INTEGER write-only In security-enabled mode,
allows an administrator to delete
users.
1.3.6.1.4.1.1316.1.1.1.4.7 mdrmteRFLinkIPAddress IpAddress read-write PPP IP address for the RF Link.
The user need not adjust this
parameter.
1.3.6.1.4.1.1316.1.1.1.4.8 mdrmteRFLinkNetMask IpAddress read-write PPP IP netmask for the RF
Link. The user need not adjust
this parameter.
1.3.6.1.4.1.1316.1.1.1.4.9 mdrmteRemoteIPAddress IpAddress read-write Default PPP IP address for the
other end of the RF link.
1.3.6.1.4.1.1316.1.1.1.4.10 MdrmteElementManagerIPAddress IpAddress read-write Default PPP IP address for the
the element manager port -
10.13.1.1 for a 'local IU' and
10.12.1.1 for a 'remote IU'.
1.3.6.1.4.1.1316.1.1.1.4.11 MdrmteElementManagerNetMask IpAddress read-write IP netmask for the Element
Manager PPP port.
1.3.6.1.4.1.1316.1.1.1.4.12 MdrmteIPNegotiable INTEGER read-write Determines if the local PPP IP
address is negotiable or not -
does not need to be adjusted
by the user.
1.3.6.1.4.1.1316.1.1.1.4.13 MdrmtePPPisDefaultRoute INTEGER read-write Determines if PPP interface is
the default route - does not
need to be adjusted by the user.
1.3.6.1.4.1.1316.1.1.1.4.14 MdrmteStaticRouteTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.4.14.1 MdrmteStaticRouteEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.4.14.1.1 MdrmteStaticRouteIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.4.14.1.2 MdrmteStaticRouteIPAddressDestination IpAddress read-write Ultimate destination.
1.3.6.1.4.1.1316.1.1.1.4.14.1.3 MdrmteStaticRouteIPAddressMask IpAddress read-write net mask, 255.255.255.255 if
destination is host address.
1.3.6.1.4.1.1316.1.1.1.4.14.1.4 mdrmteStaticRouteIPAddressNextHop IpAddress read-write Where to forward.
1.3.6.1.4.1.1316.1.1.1.4.14.1.5 mdrmteStaticRouteInterfaceForNextHop INTEGER read-write Interface (net) for nexthop.
1.3.6.1.4.1.1316.1.1.1.4.15 mdrmteBridgeEnable† INTEGER read-write Determines if the system is to
act as a transparent bridge for
all Ethernet packets received.
1.3.6.1.4.1.1316.1.1.1.4.16 mdrmteEthernetFullDuplex† INTEGER read-write Determines if the Ethernet
interface is full- or half-duplex.
1.3.6.1.4.1.1316.1.1.1.5 mdrmteRelayOutputs
1.3.6.1.4.1.1316.1.1.1.5.1 mdrmteRelay1
1.3.6.1.4.1.1316.1.1.1.5.1.1 mdrmteRelay1Label DisplayString read-write A short, descriptive name
indicating the primary function
of the relay, most probably in
terms of the equipment
connected to it.
1.3.6.1.4.1.1316.1.1.1.5.1.2 mdrmteRelay1OpenStateLabel DisplayString read-write A short, descriptive name
indicating the primary function
of the relay in the open state,
most probably in terms of the
equipment connected to it.
1.3.6.1.4.1.1316.1.1.1.5.1.3 mdrmteRelay1ClosedStateLabel DisplayString read-write A short, descriptive name
indicating the primary function
of the relay in the closed state,
most probably in terms of the
equipment connected to it.
SC5800 User Manual
96
Object ID Group Object Type Access Description
1.3.6.1.4.1.1316.1.1.1.5.1.4 mdrmteRelay1Reserved INTEGER
1.3.6.1.4.1.1316.1.1.1.5.1.5 mdrmteRelay1CurrentState INTEGER read-write The current state of the relay.
Used to activate/deactivate a
relay.
1.3.6.1.4.1.1316.1.1.1.5.1.6 mdrmteRelay1ScriptTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.5.1.6.1 mdrmteRelay1ScriptEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.5.1.6.1.
1
mdrmteRelay1ScriptIndex†6 INTEGER
1.3.6.1.4.1.1316.1.1.1.5.1.6.1.
2
mdrmteRelay1ScriptID INTEGER read-write Defines which of the listed
alarms can cause a relay to
activate.
1.3.6.1.4.1.1316.1.1.1.5.1.6.1.
3
mdrmteRelay1ScriptActiveLocal INTEGER read-write Defines if the script is active or
not for local relay activation.
1.3.6.1.4.1.1316.1.1.1.5.1.6.1.
4
mdrmteRelay1ScriptActiveRemote INTEGER read-write Defines if the script is active or
not for remote relay activation.
1.3.6.1.4.1.1316.1.1.1.5.2 mdrmteRelay2
1.3.6.1.4.1.1316.1.1.1.5.2.1 mdrmteRelay2Label DisplayString read-write A short, descriptive name
indicating the primary function
of the relay, most probably in
terms of the equipment
connected to it.
1.3.6.1.4.1.1316.1.1.1.5.2.2 mdrmteRelay2OpenStateLabel DisplayString read-write A short, descriptive name
indicating the primary function
of the relay in the open state,
most probably in terms of the
equipment connected to it.
1.3.6.1.4.1.1316.1.1.1.5.2.3 mdrmteRelay2ClosedStateLabel DisplayString read-write A short, descriptive name
indicating the primary function
of the relay in the closed state,
most probably in terms of the
equipment connected to it.
1.3.6.1.4.1.1316.1.1.1.5.2.4 mdrmteRelay2Reserved INTEGER
1.3.6.1.4.1.1316.1.1.1.5.2.5 mdrmteRelay2CurrentState INTEGER read-write The current state of the relay.
Used to activate/deactivate a
relay.
1.3.6.1.4.1.1316.1.1.1.5.2.6 mdrmteRelay2ScriptTable SEQUENCE
1.3.6.1.4.1.1316.1.1.1.5.2.6.1 mdrmteRelay2ScriptEntry SYNTAX
1.3.6.1.4.1.1316.1.1.1.5.2.6.1.
1
mdrmteRelay2ScriptIndex INTEGER
1.3.6.1.4.1.1316.1.1.1.5.2.6.1.
2
mdrmteRelay2ScriptID INTEGER read-write Defines which of the listed
alarms can cause a relay to
activate.
1.3.6.1.4.1.1316.1.1.1.5.2.6.1.
3
mdrmteRelay2ScriptActiveLocal INTEGER read-write Defines if the script is active or
not for local relay activation.
1.3.6.1.4.1.1316.1.1.1.5.2.6.1.
4
mdrmteRelay2ScriptActiveRemote INTEGER read-write Defines if the script is active or
not for remote relay activation.
1.3.6.1.4.1.1316.1.1.1.6 mdrmteOptoInputs
1.3.6.1.4.1.1316.1.1.1.6.1 mdrmteOptoInput1
1.3.6.1.4.1.1316.1.1.1.6.1.1 mdrmteOptoInput1Label DisplayString read-write A short, descriptive name
indicating the primary function
of the contact-closure input in
6 Relay scripting is not activated in Versions 1.00 & 2.00, 01, 02 of the IU firmware release.
SC5800 User Manual
97
Object ID Group Object Type Access Description
the closed state, most probably
in terms of the equipment
connected to it.
1.3.6.1.4.1.1316.1.1.1.6.1.2 mdrmteOptoInput1State INTEGER read-only Indicates if the opto input
contact-closure input is active
(on) or not (off).
1.3.6.1.4.1.1316.1.1.1.6.2 mdrmteOptoInput2
1.3.6.1.4.1.1316.1.1.1.6.2.1 mdrmteOptoInput2Label DisplayString read-write A short, descriptive name
indicating the primary function
of the contact-closure input in
the closed state, most probably
in terms of the equipment
connected to it.
1.3.6.1.4.1.1316.1.1.1.6.2.2 mdrmteOptoInput2State INTEGER read-only Indicates if the opto input
contact-closure input is active
(on) or not (off).
10.3 The MIB elements – TRAP DESCRIPTIONS
1 MdrmteTrapUndefined: Informational
2 MdrmteTrapPayloadLOS: Critical Indicates a Loss of Signal identified on the INPUT
TO a tributary.
3 MdrmteTrapPayloadAIS: Critical Indicates an Alarm Indication Signal ' all 1's '
identified/sensed on the INPUT TO a tributary.
4 MdrmteTrapLinkUnavailable: Critical Indicates, based on G.826 criteria if the RF Link
has become unavailable.
5 MdrmteTrapLinkFrameUnlock: Critical Indicates a Frame Unlock condition identified in
the Indoor Unit.
6 MdrmteTrapLinkOuSynthUnlock: Critical Indicates if a synthesizer unlock condition was
identified in the Outdoor Unit.
7 MdrmteTrapLinkMinorPERExceeded: Minor Indicates the minor packet error rate threshold
was exceeded.
8 MdrmteTrapLinkMajorPERExceeded: Major Indicates the major packet error rate threshold
was exceeded.
9 MdrmteTrapLinkCriticalPERExceeded: Critical Indicates the critical packet error rate threshold
was exceeded.
10 MdrmteTrapLinkESRExceeded: Minor Indicates the Link Errored Second Ratio
Threshold limit was exceeded.
11 MdrmteTrapLinkSESRExceeded: Critical Indicates the Link Severely Errored Second Ratio
threshold limit was exceeded.
12 MdrmteTrapLinkBBERExceeded: Minor Indicates the Link Background Block Error Rate
threshold limit was exceeded.
13 MdrmteTrapFTPUploadDone: Informational Indicates FTP Upload done.
SC5800 User Manual
98
14 MdrmteTrapFlashEraseFail: Informational Indicates failure to erase Application flash.
15 MdrmteTrapFirmwareUpgradePass:
Informational
Indicates that firmware was uploaded
successfully.
16 MdrmteTrapFirmwareUpgradeFail:
Informational
Indicates that there was a firmware upload failure.
17 MdrmteTrapInterstationCommsTimeOut: Major Indicates an interstation communications timeout.
18 MdrmteTrapInterstationCommsInvalidRespons
e: Minor
Indicates a communications error on the
interstation overhead link.
19 MdrmteTrapOUCommsTimeOut: Major Indicates an Outdoor Unit communications
timeout.
20 MdrmteTrapOUCommsInvalidResponse: Minor Indicates an Outdoor Unit communications error -
an invalid response was received.
21 MdrmteTrapOUCommsTxFail Indicates Outdoor Unit communications transmit
failure.
22 MdrmteTrapSSPCRCError: Minor Simple Serial Protocol CRC error identified.
23 MdrmteTrapSSPLengthError: Minor Simple Serial Protocol Length error identified.
24 mdrmteTrapOptoInput1Off: Major Contact closure input off state detected - Opto 1.
25 mdrmteTrapOptoInput1On: Major Contact closure input off state detected - Opto 1.
26 mdrmteTrapOptoInput2Off: Major Contact closure input off state detected - Opto 2.
27 mdrmteTrapOptoInput2On: Major Contact closure input on state detected - Opto 2.
28 mdrmteTrapUserLoginFailed: Informational With security MODE ON - indicates a user
attempted to log on and the attempt failed.
29 mdrmteTrapUserLogoutFailed: Informational With security MODE ON - indicates a user
attempted to log out and the attempt failed.
30 MdrmteTrapUserAddFailed: Informational With security MODE ON - indicates there was an
attempt to add a user, but the attempt failed.
31 mdrmteTrapUserDeleteFailed: Informational With security MODE ON - indicates there was an
attempt to remove/delete a user, but the attempt
failed.
32 MdrmteTrapUserLogIn: Informational With security MODE ON - indicates a user logged
in.
33 MdrmteTrapUserLogOut: Informational With security MODE ON - indicates a user logged
out.
34 MdrmteTrapUserAdd: Informational With security MODE ON - indicates a user was
added successfully.
35 MdrmteTrapUserDelete: Informational With security MODE ON - indicates a user was
deleted successfully.
36 MdrmteTrapOUSetBandPlan: Informational Indicates the Outdoor Unit channel/band plan was
changed.
37 mdrmteTrapOUSetTxChannel: Informational Indicates the Outdoor Unit transmit frequency was
changed.
38 mdrmteTrapOUSetRxChannel: Informational Indicates the Outdoor Unit receive frequency was
changed.
SC5800 User Manual
99
39 MdrmteTrapOUEepromWrite: Minor Indicates there was an attempt to write to the
Outdoor Unit EEPROM.
40 mdrmteTrapOUSetTxPower: Informational Indicates there was an attempt to change the
transmit power.
41 MdrmteTrapOUSetPNCode – NA Deprecated.
42 MdrmteTrapOUSetAutoRecovery Indicates there was an attempt to change the
“auto recovery” setting.
43 MdrmteTrapOUProgramConfig Deprecated.
44 mdrmteTrapOUChangeRFLoopback:
Informational
Indicates a change the OU RF Loopback setting
was implemented.
45 mdrmteTrapOUChangeBBPLoopback:
Informational
Indicates a change the Baseband Processor
Loopback setting was implemented.
46 MdrmteTrapOUWriteBBP: Minor Indicates there was an attempt to write to the
Baseband Processor.
47 MdrmteTrapSetDate: Informational Indicates the Indoor Unit date was adjusted.
48 MdrmteTrapSetTime: Informational Indicates the Indoor Unit time was adjusted.
49 MdrmteTrapSynchronizeSwRTC: Informational Indicates the Indoor Unit's time was synchronized
with its real-time clock.
50 MdrmteTrapSetRelayLabel A relay label was changed.
51 MdrmteTrapSetRelayOpenStateLabel A relay open-state label was changed.
52 mdrmteTrapSetRelayClosedStateLabel A relay closed-state label was changed.
53 MdrmteTrapSetRelayDefaultState: NA Deprecated.
54 mdrmteTrapSetRelayCurrentState:
Informational
Relay's current state has changed.
55 mdrmteTrapRelayScriptEnable Relay scripting is enabled.
56 mdrmteTrapRelayScriptDisable Relay scripting is disabled.
57 MdrmteTrapGetEventLog: Informational Indoor Unit's event log is being accessed.
58 MdrmteTrapClearEventLog: Informational Indoor Unit's event log is being cleared.
59 MdrmteTrapSelfTestFailure: Major Indoor Unit's self test failed.
60 MdrmteTrapProcessorReset: Critical There was an Indoor Unit processor reset.
61 MdrmteTrapEtherRx There was an Indoor Unit Receive Ethernet buffer
error.
62 MdrmteTrapTest: Informational Test trap.
63 MdrmteTrapGenericText Test trap.
64 mdrmteTrapGenericText_Data Test trap.
65 mdrmteTrapGenericText_DecData Test trap.
66 mdrmteTrapSocket_Error Test trap.
SC5800 User Manual
101
11 APPENDIX C: SETUP OF A PC (WIN 95, 98, NT) TO ALLOW
PINGING OF A ‘REMOTE’-CONFIGURED INDOOR UNIT
The following diagram shows the default (factory) network IP addresses assigned to the various network
ports on the SC5800 System: ROUTING CONFIGURATION
11.1 IP CONFIGURATION OF SC5800 – ROUTING CONFIGURATION
10.2.1.2 10.10.9.9
10.13.1.1
10.10.9.10 10.11.1.2
10.12.1.1
Ethernet
10-BaseT
PPP
RS232
PPP
WIRELESS
PPP
RS232
Ethernet
10-BaseT
"NEAR" "FAR"
Laptop computer
Browser/NMS
10.2.1.3
Hub
SC5800 - ROUTING CONFIGURATION
Laptop computer
Browser/NMS
10.12.1.2
Laptop computer
Browser/NMS
10.13.1.2
To allow pinging of an IU configured as a "remote unit" (i.e., with an IP address of (10.11.1.2) when the PC
has a 10.2.1.3 IP address, 10.2.1.2 default gateway and netmask 255.255.0.0, create batch files).
Batch file 1 - addroute.bat
route add 10.11.0.0 mask 255.255.0.0 10.2.1.3
Batch file 1 adds a route so that the IP stack on the PC "knows" where to send IP packets destined for
the net 10.11.0.0
If you want to delete the route, use Batch file 2 - delroute.bat
route delete 10.11.0.0
If you want a screen printout of the routes the PC is using, use the command line entry: route print
SC5800 User Manual
102
NOTE
DO NOT ALLOW AN RF LINK TO ESTABLISH BEFORE DOING A PING on the remote IU (with
10.11.1.2 as an IP address) - if the RF link was established before, use the front panel button
"position 3" to reset the IU before attempting to ping.
SC5800 User Manual
103
11.2 IP CONFIGURATION OF SC5800 –
BRIDGING AND ROUTING CONFIGURATION
The following diagram shows the default (factory) network IP addresses assigned to the various network
ports on the SC5800 System: BRIDGING AND ROUTING CONFIGURATION.
10.2.1.2 R
192.168.1.2
B
192.168.4.2
192.168.2.2
192.168.4.3 10.11.1.2 R
192.168.1.3
B
192.168.3.3
Ethernet
10-BaseT
PPP
RS232
PPP
WIRELESS
PPP
RS232
Ethernet
10-BaseT
"NEAR" "FAR"
Laptop computer
Browser/NMS
10.2.1.3 R
192.168.1.4 B
Hub
SC5800 - BRIDGING OR ROUTING DEFAULT
CONFIGURATION
Laptop computer
Browser/NMS
192.168.3.2 B
Laptop computer
Browser/NMS
192.168.2.3 B
Notes: The netmask for all the 192.168.x.x addresses is 255.255.255.0
The netmask for all the 10.x.x.x addresses is 255.255.0.0
R above refers to “IP routing”
B above refers to “Ethernet bridging”
SC5800 User Manual
104
SC5800 User Manual
105
12 APPENDIX D: SC5800 HARDWARE VERSION 2.X
DIFFERENCES, COMPATIBILITY SUMMARY
Version 1 hardware (Indoor and Outdoor Units) is incompatible with Version 2.x hardware. Note: THIS
MANUAL ADDRESS FEATURES SPECIFIC TO VERSION 2 OF THE SPEEDCOM SC5800 PLEASE
IGNORE REFERENCES TO OTHER VERSIONS.
• The Indoor Unit /Outdoor Unit Twisted Pair Data Interconnection for Version 2 hardware uses 2
twisted pair cables to convey payload and Outdoor Unit control signals.
Notes :
• Version 2.x firmware (can be uploaded into the Indoor Unit using the NMS’s Maintenance option).
• Updated RSSI and Power control functionality have been added to Version 2.x hardware and
firmware.
Version 2.x firmware has
1. FTP upload functionality (needs to be activated via the MIB)
2. IP Bridging functionality (half and full duplex – selectable via the MIB)
3. Band Plan C
4. Refer to the MIB section of this manual and look for the † symbol to see what MIB-related
functionality is in place/activated/planned for Version 2.x + firmware.
5. Functional RF Loopback built-in test feature.
Version 2.x NMS has
1. Ability to allow the user to connect to the Indoor Unit using PPP (via a serial cable interface to the
IU’s front panel Element Manager RS232 port) or via Ethernet (via the front panel RJ45 connector:
10BaseT).
2. Graphical Spectrum Analyzer display
By default, firmware provided for the Indoor Units does not provide a secure login feature (thereby limiting a
user’s ability to ‘set’ MIB variables). Suitably adapted firmware versions (dependent on hardware version)
need to be requested from the product manufacturer to allow activation of this feature.
INDOOR UNIT FIRMWARE UPGRADE NOTICE
• Version 2 hardware Indoor Units are identified as have 200+ serial numbers, Outdoor Units have
250+ serial numbers.
• If upgrading Indoor Units to use V2.02+ IU firmware, upgrade the IU firmware on BOTH sides of
the RF Link.
• Note that firmware upgrades of Version 1 Indoor Unit hardware do not require setting up of the
PCB Issue in the MIB (i.e., mdrmteIndoorUnitPCBrevision element.) Upgrade to IU firmware
Version 2+ of Version 1 hardware will NOT give improved RSSI functionality. This is only achieved
with Version 2 hardware or modified version 1 hardware.
• As a standard setting for mdrmteIndoorUnitPCBrevision, use MIB selection Issue_2. HOWEVER,
if an appropriate Indoor PCB modification (made at the factory) has been made to allow Full-
Duplex Ethernet operation, the Issue_2_Mod_A selection option in the MIB MUST be used.
SC5800 User Manual
106
13 APPENDIX E: FIXED ANTENNAS
The table below identifies the distances where the 1mW/cm2 exposure limits may be exceeded during
continuous transmission using the proposed fixed antennas.
Manufacturer Type Model Gain
(dBi)
Numeric
gain
Channel Peak Power
(mW) Calculated
Distance (m)
Minimum RF Exposure
Separation Distance
(m)
Gabriel Dish SSSP2 52B 29.0 794.3 3 239.9 1.2 2
Gabriel Flat
panel
DFPD1-52 23.9 245.5 3 239.9 0.7 2
MTI Flat
panel
MT-20004 28.0 631.0 3 239.9 1.1 2
WARNING: It is the responsibility of the professional installer to ensure that when using the outdoor
antenna kits in the United States (or where FCC rules apply), only these antenna configurations shown in
the table in section 1.4 are used. The use of any antenna other than those listed is expressly forbidden in
accordance to FCC rules CFR47 part 15.204.
FCC Radiation Exposure Statement
i) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment
when installed as directed. This equipment should be installed and operated with fix -mounted
antennas that are installed with a minimum of 2 meters of separation distance between the antenna
and all persons body during normal operation and the antennas as shown above.
