Wavetrend Technologies Limited Tag SlimLine, L-TG500 Product Information Sheet

Contents

Product Information Sheet

Link-it™
Product Information Sheet
Active Tags

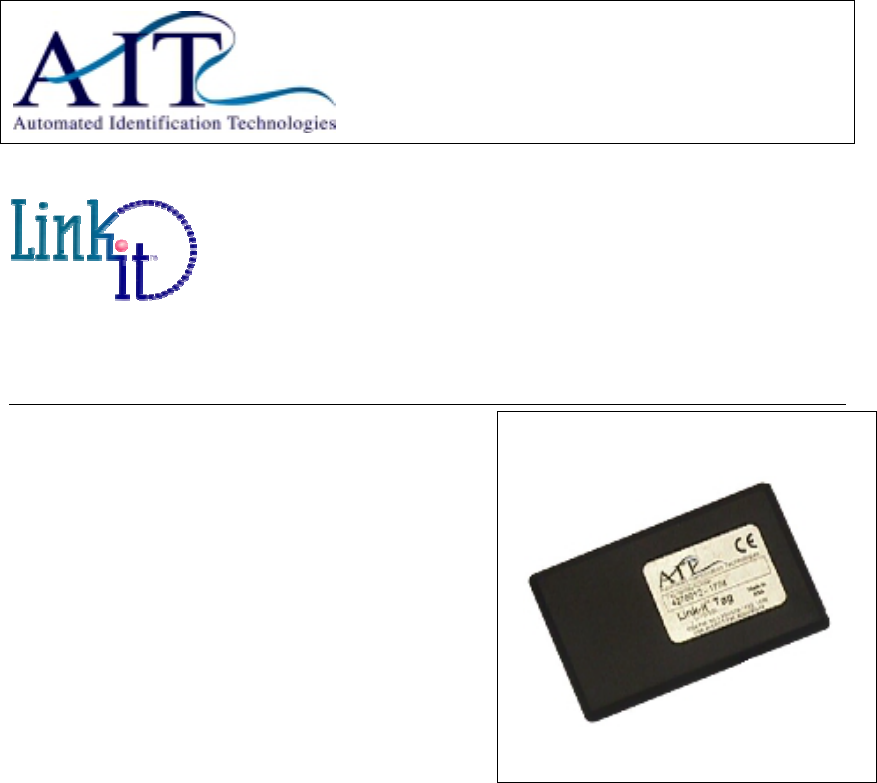

L-TG500 (Slimline Tag)
Description:
The Link-it™ L-TG500 Active Tag is powered
by an internal battery. The Tag will, for the
duration of its life, transmit a Radio Frequency
(RF) signal at a pre-set time-interval. The Tag
life is estimated to be at least 5 years at a
transmission time interval of approximately 15
seconds. The Tag is simply replaced when the
battery has expired. Battery status can be
inferred by interrogating the internal Tag Age
Counter Value.
Tag data that is transmitted includes Site /
Vendor ID, Tag ID, Tag Age Counter Value,
Movement Alarm and Tamper Alarm status.
For protection against adverse environmental conditions, Link-it™ Tags are
encapsulated in a moulded plastic case, which is ultrasonically sealed during the
manufacturing process.
In addition provides a constant RF power output which reduces makes system
calibration easier as well as faster. The L-TG500 Tag is generally used for personnel
tagging, although it may be used in other applications, ie. the external tagging of
Laptop Computers. The mounting and affixing depends on the type of application.
The standard method is by VHB type double sided adhesive tape.
Several unique features of the Tag can be configured.
For example: access control and weigand interfacing
Link-itTM is a registered trademark of AIT. Specifications and product availability subject to change without notice. Tag and
reader communication distances assume optimal orientation between tag and reader. Read distances may vary as a result of the
presence of metal and environmental conditions. Refer to other publications from AIT regarding application practises for RF
tagging.
RSA Patent numbers: 99/1629, 1630, 1631, 1632, 1636, 1673
USA and PCT patents pending
For more information on this and other products and services available contact:
Automated Identification Technologies (Pty) Ltd
2B, The Cloisters Office Park, cnr Rivonia Boulevard & 9th
Avenue, Rivonia
P.O. Box 490, Parklands, 2121, South Africa.
Tel +27 (0)11 807 0911, Fax +27 (0)11 807 0915
Email: sales@linkit.co.za
Internet: ait-linkit.com
Automated Identification Technologies Ltd.
Unit 6, Amber Business Village
Amber Close, Tamworth
Staffordshire, B77 4RP
United Kingdom
Tel +44 1827 311 331 Fax +44 1827 311 661
Revision Date: 02/02/01
Features:
• Configurable settings, including Site / Vendor ID, Tag ID, Transmission
Repetition Interval and Alarm functions.
• Low power consumption. Tag life is estimated to be at least 5 years when
transmitting at a 15-second interval.
• Proprietary Encryption Method
Applications:
Link-it™ Tags can be mounted on a wide variety of items. Where permanent fixing is
required VHB double sided tape is used. Where permanent mounting is not required,
the tags may simply be carried by a person (typically if used as a person identifier)
with a clip attachment, or inserted in a carry pouch and worn around the neck
Specification:
Environmental
Operational temperature -10º C to +60º C
Storage temperature -20º C to +70º C
Humidity 5% to 90% (non condensing)
Physical
Size 86mm x 54mm x 5mm (Slimline Enclosure)
Weight <25gms
Colour Dark Grey (Clariant 04-600 2%)
Type of material PVC (ultrasonically sealed) IP 65
RF Specifications
Frequency 433.92Mhz
RF Output Power < 300µW
Typical Transmission Range 8 Meters (24 feet)
Link-it™
Product Information Sheet
Certification:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if installed and
used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause harmful interference to radio or
television reception, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the computer and receiver.
• Connect the computer into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this
device could void the user’s authority to operate the equipment.
