Westel Wireless Systems CI00059 RF Repeater/Base Station User Manual Manual Eight

Westel Wireless Systems Pty Ltd RF Repeater/Base Station Manual Eight

Manual Eight

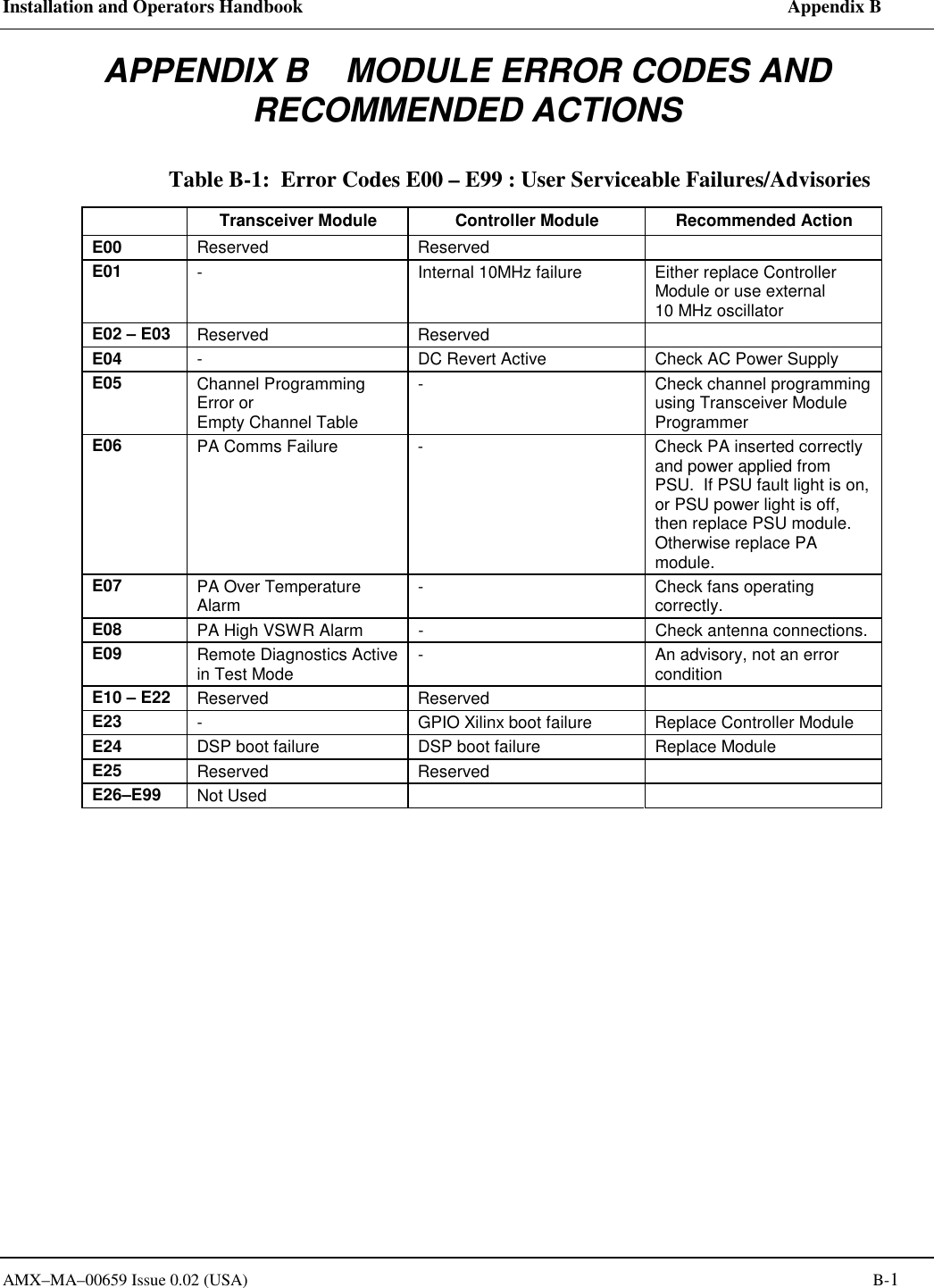

Installation and Operators Handbook Appendix B AMX–MA–00659 Issue 0.02 (USA) B-1 APPENDIX B MODULE ERROR CODES AND RECOMMENDED ACTIONS Table B-1: Error Codes E00 – E99 : User Serviceable Failures/Advisories Transceiver Module Controller Module Recommended Action E00 Reserved Reserved E01 - Internal 10MHz failure Either replace Controller Module or use external 10 MHz oscillator E02 – E03 Reserved Reserved E04 - DC Revert Active Check AC Power Supply E05 Channel Programming Error or Empty Channel Table - Check channel programming using Transceiver Module Programmer E06 PA Comms Failure - Check PA inserted correctly and power applied from PSU. If PSU fault light is on, or PSU power light is off, then replace PSU module. Otherwise replace PA module. E07 PA Over Temperature Alarm - Check fans operating correctly. E08 PA High VSWR Alarm - Check antenna connections. E09 Remote Diagnostics Active in Test Mode - An advisory, not an error condition E10 – E22 Reserved Reserved E23 - GPIO Xilinx boot failure Replace Controller Module E24 DSP boot failure DSP boot failure Replace Module E25 Reserved Reserved E26–E99 Not Used
