Westel Wireless Systems CI00059 RF Repeater/Base Station User Manual DRB25

Westel Wireless Systems Pty Ltd RF Repeater/Base Station DRB25

Manual TC

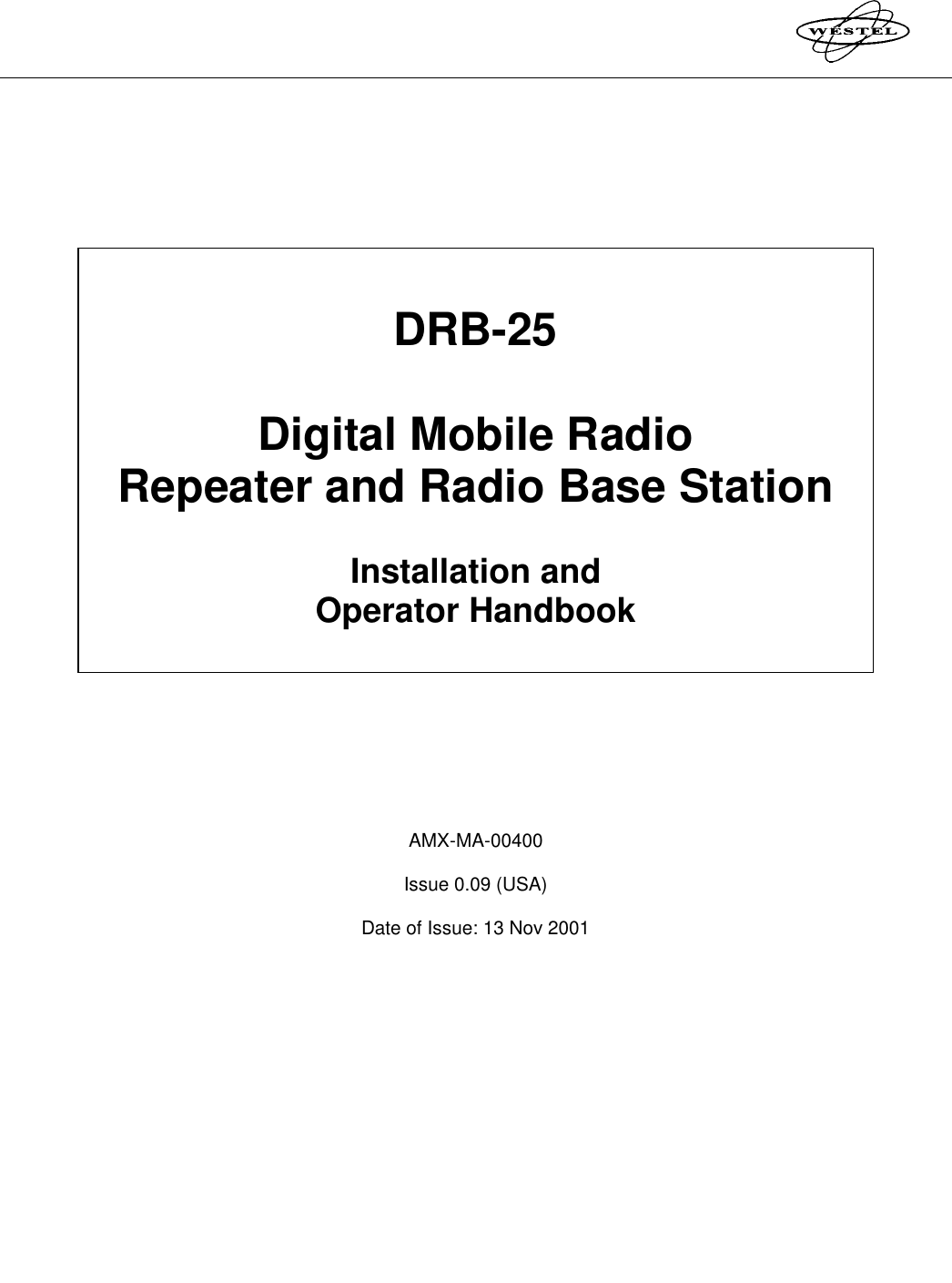

           DRB-25  Digital Mobile Radio Repeater and Radio Base Station  Installation and  Operator Handbook      AMX-MA-00400  Issue 0.09 (USA)  Date of Issue: 13 Nov 2001

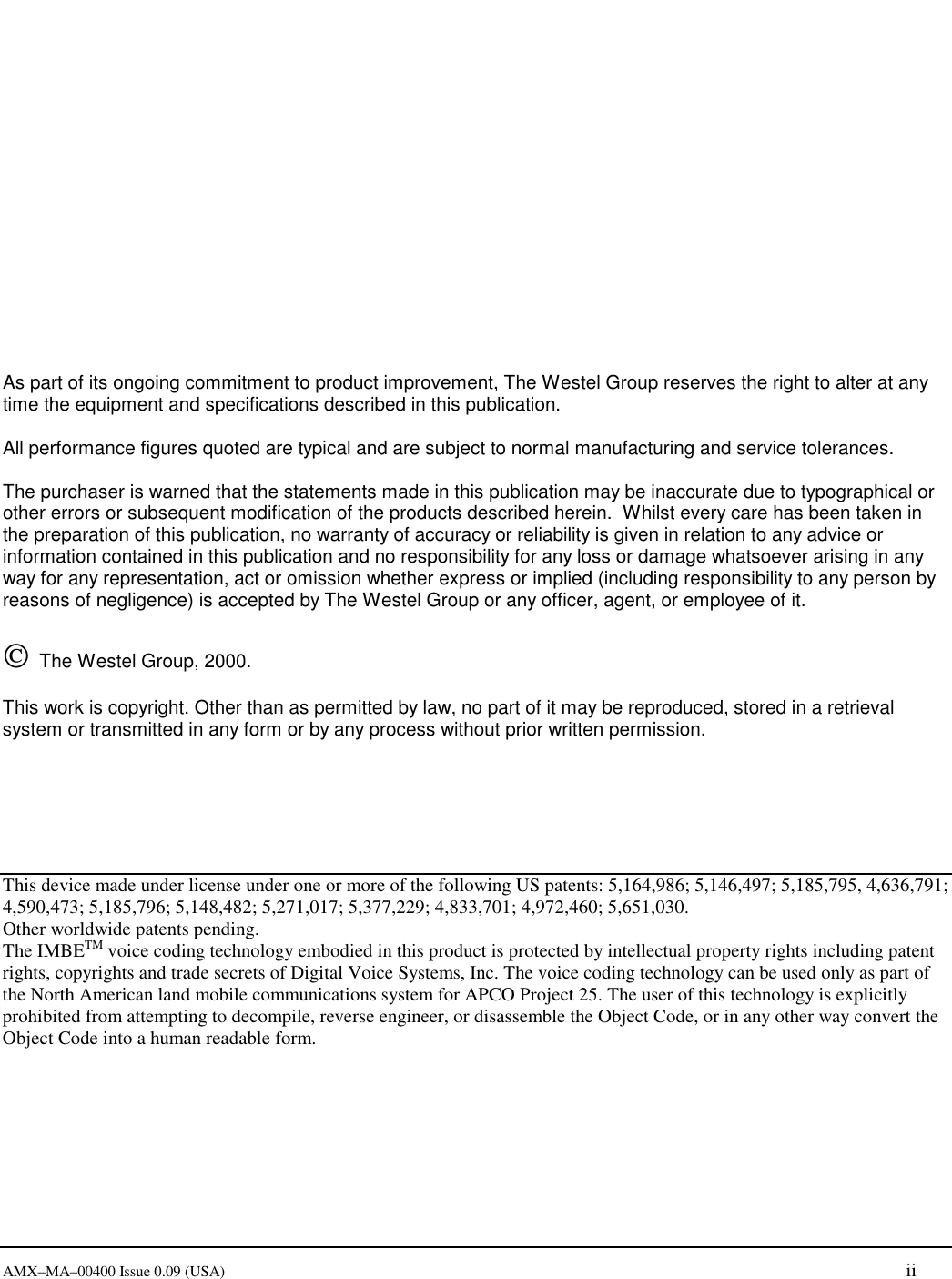

    AMX–MA–00400 Issue 0.09 (USA) ii                 As part of its ongoing commitment to product improvement, The Westel Group reserves the right to alter at any time the equipment and specifications described in this publication.  All performance figures quoted are typical and are subject to normal manufacturing and service tolerances.  The purchaser is warned that the statements made in this publication may be inaccurate due to typographical or other errors or subsequent modification of the products described herein.  Whilst every care has been taken in the preparation of this publication, no warranty of accuracy or reliability is given in relation to any advice or information contained in this publication and no responsibility for any loss or damage whatsoever arising in any way for any representation, act or omission whether express or implied (including responsibility to any person by reasons of negligence) is accepted by The Westel Group or any officer, agent, or employee of it.     The Westel Group, 2000.    This work is copyright. Other than as permitted by law, no part of it may be reproduced, stored in a retrieval system or transmitted in any form or by any process without prior written permission.       This device made under license under one or more of the following US patents: 5,164,986; 5,146,497; 5,185,795, 4,636,791; 4,590,473; 5,185,796; 5,148,482; 5,271,017; 5,377,229; 4,833,701; 4,972,460; 5,651,030. Other worldwide patents pending. The IMBETM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. The voice coding technology can be used only as part of the North American land mobile communications system for APCO Project 25. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human readable form.

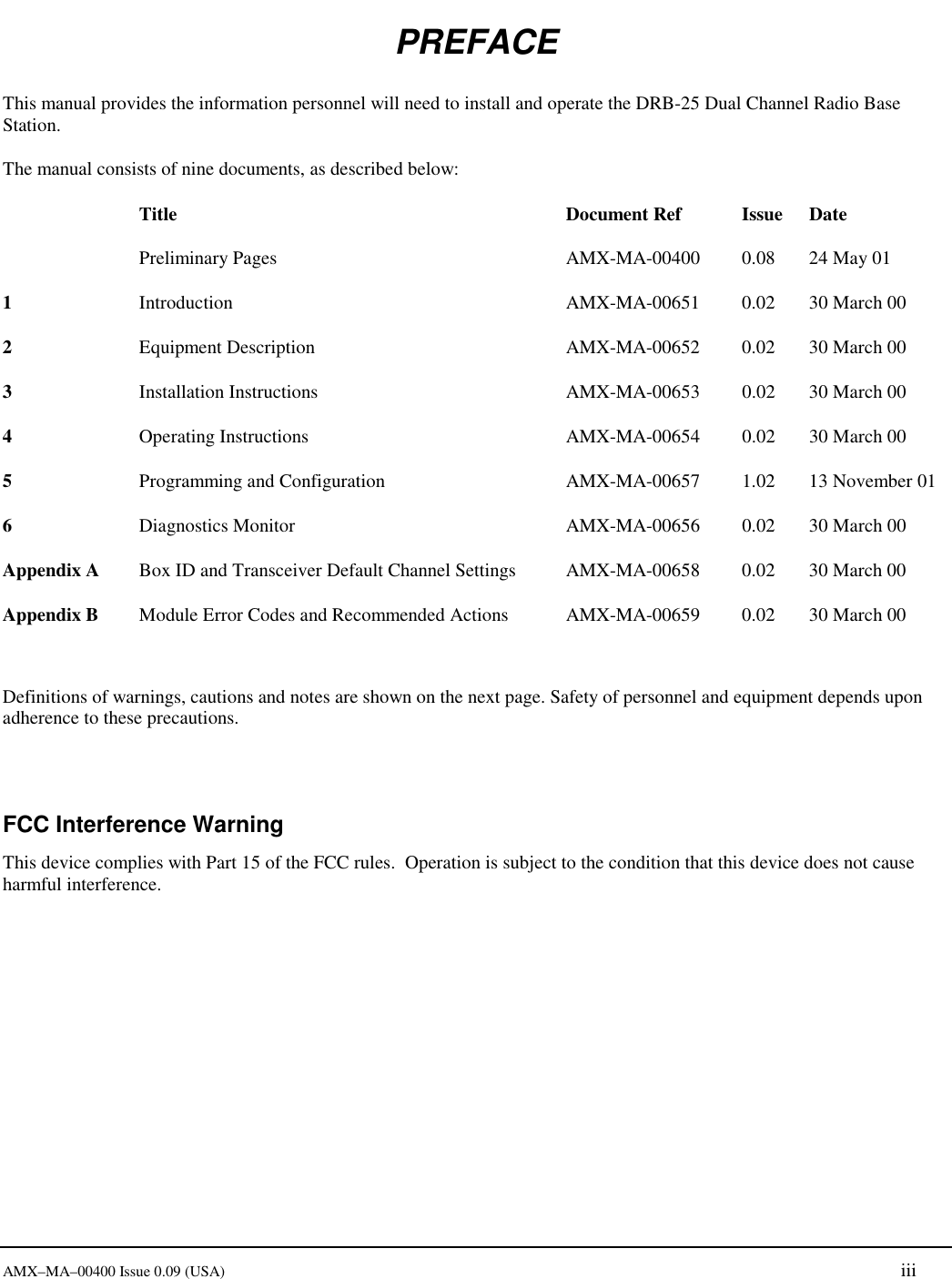

    AMX–MA–00400 Issue 0.09 (USA) iii PREFACE This manual provides the information personnel will need to install and operate the DRB-25 Dual Channel Radio Base Station. The manual consists of nine documents, as described below:  Title  Document Ref Issue Date  Preliminary Pages  AMX-MA-00400  0.08  24 May 01 1  Introduction  AMX-MA-00651  0.02  30 March 00 2  Equipment Description  AMX-MA-00652  0.02  30 March 00 3  Installation Instructions  AMX-MA-00653  0.02  30 March 00 4  Operating Instructions  AMX-MA-00654  0.02  30 March 00 5  Programming and Configuration  AMX-MA-00657  1.02  13 November 01 6  Diagnostics Monitor  AMX-MA-00656  0.02  30 March 00 Appendix A   Box ID and Transceiver Default Channel Settings  AMX-MA-00658  0.02  30 March 00 Appendix B   Module Error Codes and Recommended Actions  AMX-MA-00659  0.02  30 March 00   Definitions of warnings, cautions and notes are shown on the next page. Safety of personnel and equipment depends upon adherence to these precautions.  FCC Interference Warning This device complies with Part 15 of the FCC rules.  Operation is subject to the condition that this device does not cause harmful interference.

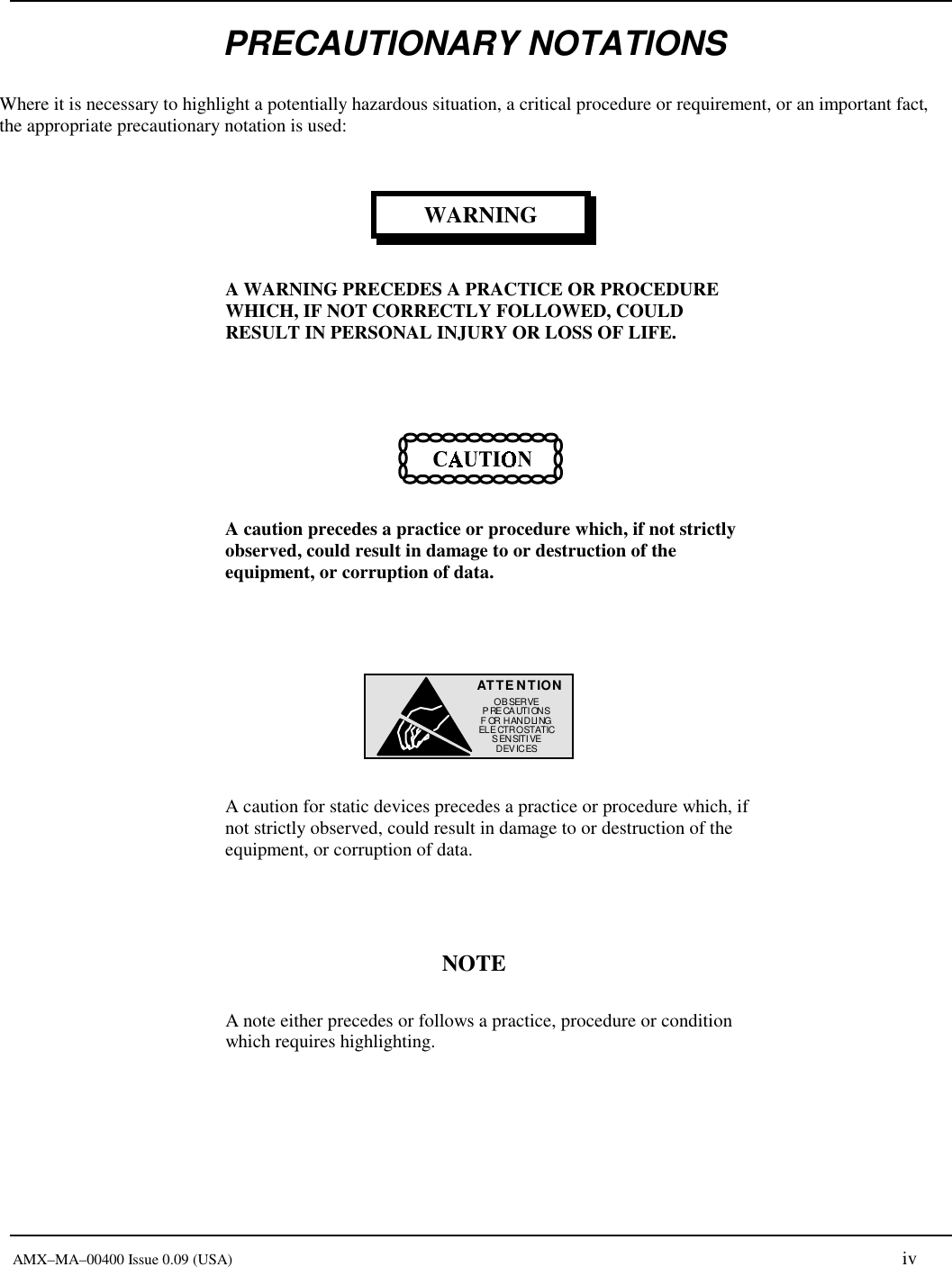

    AMX–MA–00400 Issue 0.09 (USA) iv PRECAUTIONARY NOTATIONS Where it is necessary to highlight a potentially hazardous situation, a critical procedure or requirement, or an important fact, the appropriate precautionary notation is used: WARNING A WARNING PRECEDES A PRACTICE OR PROCEDURE WHICH, IF NOT CORRECTLY FOLLOWED, COULD RESULT IN PERSONAL INJURY OR LOSS OF LIFE.   A caution precedes a practice or procedure which, if not strictly observed, could result in damage to or destruction of the equipment, or corruption of data.  ATTE NTIONOB SERVEPRECAUTIONSFOR HANDLINGELECTROSTATICSENSITIVEDEVICES  A caution for static devices precedes a practice or procedure which, if not strictly observed, could result in damage to or destruction of the equipment, or corruption of data.  NOTE A note either precedes or follows a practice, procedure or condition which requires highlighting.

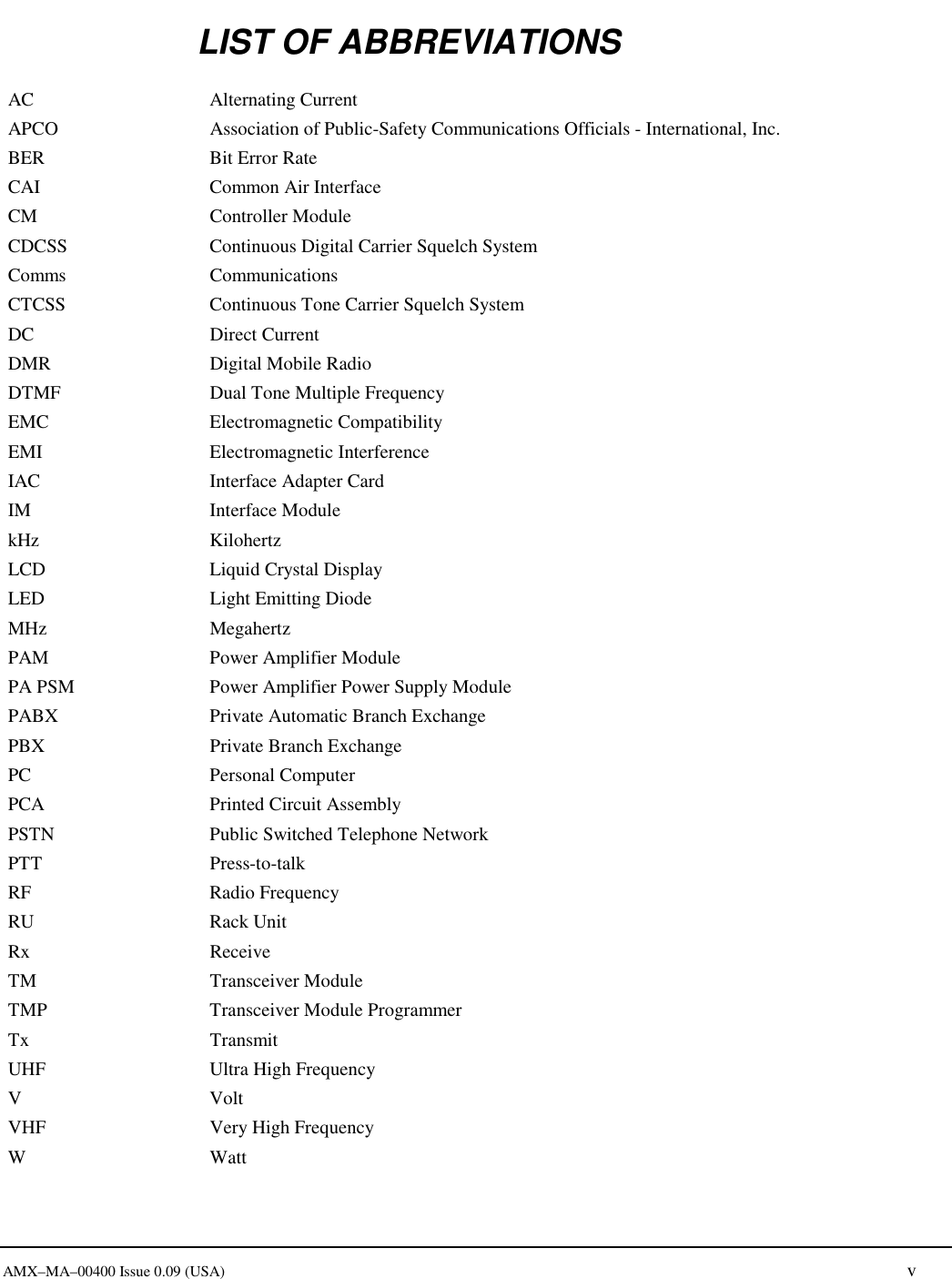

    AMX–MA–00400 Issue 0.09 (USA) v LIST OF ABBREVIATIONS AC Alternating Current APCO  Association of Public-Safety Communications Officials - International, Inc. BER  Bit Error Rate CAI  Common Air Interface CM Controller Module CDCSS  Continuous Digital Carrier Squelch System Comms Communications CTCSS  Continuous Tone Carrier Squelch System DC Direct Current DMR  Digital Mobile Radio DTMF  Dual Tone Multiple Frequency EMC Electromagnetic Compatibility EMI Electromagnetic Interference IAC  Interface Adapter Card IM Interface Module kHz Kilohertz LCD  Liquid Crystal Display LED  Light Emitting Diode MHz Megahertz PAM  Power Amplifier Module PA PSM  Power Amplifier Power Supply Module PABX  Private Automatic Branch Exchange PBX  Private Branch Exchange PC Personal Computer PCA  Printed Circuit Assembly PSTN  Public Switched Telephone Network PTT Press-to-talk RF Radio Frequency RU Rack Unit Rx Receive TM Transceiver Module TMP  Transceiver Module Programmer Tx Transmit UHF  Ultra High Frequency V Volt VHF  Very High Frequency W Watt
