Whirlpool Europe S r l COMBOEMS00 BUILT-IN MICROWAVE OVEN User Manual IV

Whirlpool Europe S.r.l. BUILT-IN MICROWAVE OVEN Users Manual IV

Users Manual IV

If oven does not operate:
Check that circuit breaker is not tripped or
house fuse blown.
See Use and Care Guide for troubleshooting list.
If you need assistance:
If you have questions about operating, cleaning or
maintaining your oven:
Refer to Use and Care Guide.
Call the Consumer Assistance Center: Check
your Use and Care Guide for a toll-free
number to call or call the dealer from whom you
purchased this appliance. The dealer is listed in
the Yellow Pages of your phone directory under
“Appliances — Household — Major — Service
and Repair.”
Part No. 8300655
© 2001 Printed in U.S.A.
Quick Reference
Table of Contents:
Pages

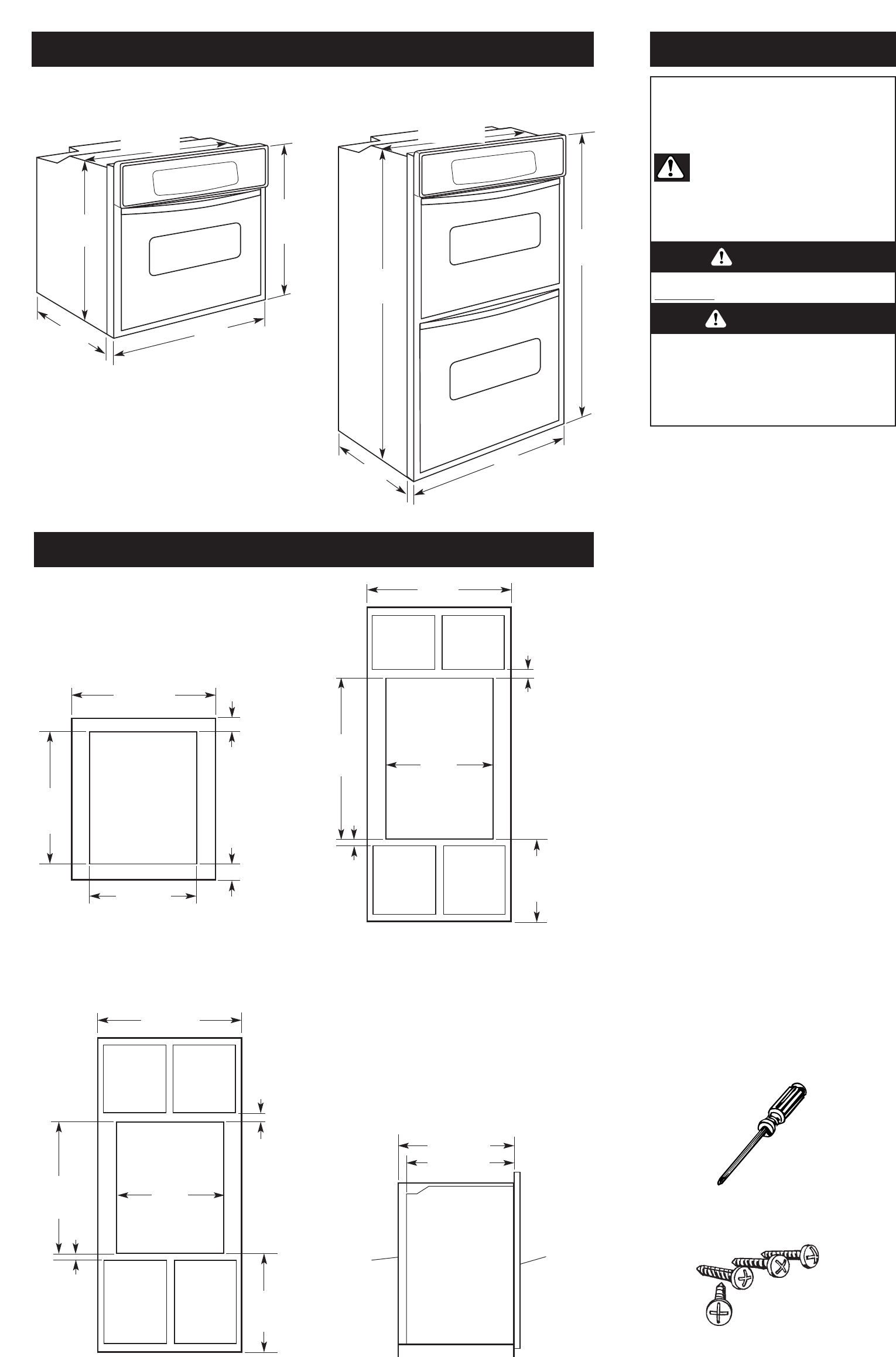

Product dimensions
Cutout dimensions
Before you start
Electrical requirements
Installation steps
If you need assistance:
Check your Use and Care Guide for a toll-free number to call or call
the dealer from whom you purchased this appliance. The dealer is
listed in the Yellow Pages of your phone directory under
“Appliances — Household — Major — Service and Repair.”
Call when you:
Have questions about built-in oven installation or operation.
Need to obtain the name and number of an authorized service
company.
When you call, you will need:
The built-in oven model number.
The built-in oven serial number.
Both numbers are listed on the model/serial rating plate, located on
the oven door or on the oven frame.
1
1
1
2
23
IMPORTANT:
Read and save these instructions.
Installation Instructions
IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference.
Save Installation Instructions for local electrical inspector's use.
Part No.
8300655
27" Electric
Built-in Single and
Double Ovens
If you need service:
Maintain the quality built into your built-in oven by
calling an authorized service company.
To obtain the name and number of an authorized
service company:
Contact the dealer from whom you purchased
your built-in oven; or
Look in the Yellow Pages of your telephone
directory under “Appliances — Household —
Major — Service and Repair” for an authorized
service company; or
Call the Consumer Assistance Center. The toll-
free phone number is listed in your Use and
Care Guide.
When you call, you will need:
The built-in oven model number.
The built-in oven serial number.
Both numbers are listed on the model/serial rating
plate, located on the oven door or on the oven
frame.
Page 1
4 screws (double oven)
Phillips
screwdriver
Product dimensions
Cutout dimensions
Before you start...
49-1/2"
recessed
height
51" max.
overall
height
25-3/8" max.
recessed width
23" max.
recessed
depth
Double oven
Single oven
27-1/2"
recessed
height
25-3/8" max.
recessed
width
23" max.
recessed
29"max.
overall
height
27" min.
cabinet
1" top of cutout
to bottom of
upper cabinet
door
27" min.
cabinet width
27" min.
cabinet width
25-1/2"
cutout
width
25-1/2"
cutout
width
49-3/4"
min.
cutout
height
14-3/4"
bottom
of cutout
to floor
1-1/2" min.
bottom of
cutout to top of
cabinet door
25-1/2"
cutout width 5-1/4" bottom of
cutout to floor
27-3/4"
min.
cutout
height
1-1/2" min.
top of cutout
to underside
of countertop
1" top of cutout
to bottom of
upper cabinet
door
1-1/2"
min.
bottom of
cutout to
top of
cabinet
door
32"
bottom of
cutout to
floor
Single oven
undercounter
(without cooktop
installed above)
Double oven
Cabinet side view
Single oven
27-3/4"
min.
cutout
height
23-1/4" min.
cutout depth
23" recessed
oven depth
recessed
oven
cabinet oven
front
Important: Observe all governing codes
and ordinances.
Proper installation is your responsibility.
Have a qualified technician install this oven.
Oven location should be away from strong draft
areas, such as windows, doors and strong
heating vents.
Cabinet opening dimensions that are shown
must be used. Given dimensions provide
minimum clearance.
Recessed installation area must provide
complete enclosure around the recessed portion
of the oven.
Electrical ground is required. See “Electrical
requirements.”
Electrical supply junction box should be located
3 inches maximum below the support surface
when oven is installed in a wall cabinet. Drill a
1-inch minimum diameter hole in the right rear
or left rear corner of the support surface to pass
the appliance cable through to the junction box.
For undercounter installation, it is recommended
that the junction box be located in the adjacent
right or left cabinet. If installing the junction box
on rear wall behind oven, junction box must be
recessed and located in the upper or lower right
or left corner of cabinet.
Oven support surface MUST be solid, level and
flush with bottom of cabinet cutout.
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Tool needed:
Parts supplied:
26-3/4"
overall width
26-3/4"
overall width
It is the customer’s responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation is
adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 — latest edition*,
and all local codes and ordinances.
Your safety and the safety of others are
very important.
We have provided many important safety
messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards
that can kill or hurt you and others.
All safety messages will follow the safety alert
symbol and either the word “DANGER” or
“WARNING”. These words mean:
All safety messages will tell you what the potential
hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the
instructions are not followed.
You can be killed or seriously injured if you don’t
immediately follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
WARNING
DANGER
Page 2

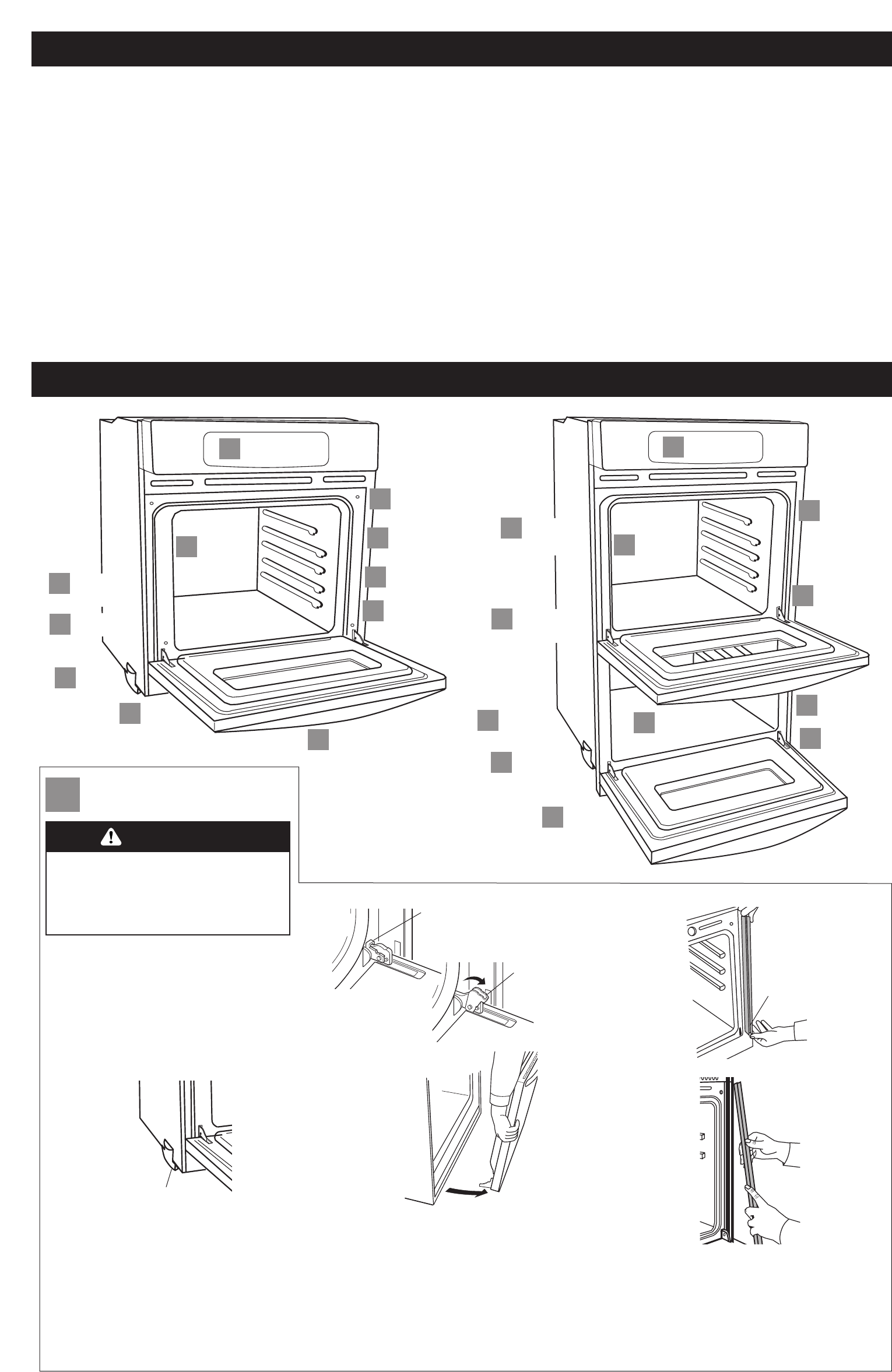

Electrical requirements
Installation Steps
A time-delay fuse or circuit breaker is
recommended.
Connect directly to the fused disconnect (or
circuit breaker box) through flexible, armored
or non-metallic sheathed, copper cable (with
grounding wire).
Flexible armored cable from appliance should
be connected directly to junction box.
Fuse both sides of the line.
A U.L.-listed conduit connector must be
provided at the junction box.
Do Not cut the conduit.
Wire sizes and connections must conform with the
rating of the appliance and to the requirements of
the National Electrical Code, ANSI/NFPA 70 — latest
edition (*, See Page 1) and all local codes and
ordinances.
Preparation
A
A
C
A
A
B
Remove
oven door.
ARemove trim
screws.
ARemove
oven doors.
CReattach side
trim.
CReattach side
trim.
Remove side
trim.
ARemove
trim screws.
ARemove side
trim.
CRemove
shipping
feet.
CRemove
shipping
feet.
Remove
oven racks. ARemove
oven racks.
ARemove
oven racks.
CUse screws to attach
oven to cabinet.
CUse screws to
attach oven to
cabinet.
CGrasp oven
frame to lift
oven.
CGrasp oven
frame to lift
oven.
DCheck oven
operation. DCheck oven
operation.
Replace
oven door.
CReplace
oven doors.
power
supply cable
Bpower
supply cable
3. Remove trim screws attaching right and
left side trim to oven. Grasp the bottom end of
trim and pull away from oven. Slide top end of
trim downward to remove trim from oven. Take
care not to scratch other surfaces with ends of
trim. Set trim and screws aside on protected
surface.
Remove trim screw.
Pull trim out.
Pull top of trim
down.
If codes permit and a separate grounding wire is
used, it is recommended that a qualified electrician
determine that the grounding path and wire gauge
are in accordance with local codes.
Do Not ground to a gas pipe.
Check with a qualified electrician if you are not
sure oven is properly grounded.
Do Not have a fuse in the neutral or grounding
circuit.
Important: Use both hands to remove oven
doors.
Do Not use handle or any portion of the front
frame or trim for lifting.
Before moving oven across floor, check that oven
is on shipping base or slide oven onto cardboard
or hardboard.
Do Not remove shipping feet at the front lower
corners of oven.
1. Turn power supply off. Move oven close to
final position.
• Remove and discard shipping materials, tape
and protective film from the oven. Do Not
remove shipping base or shipping feet at the
front lower corners of oven. The shipping feet
will protect the lower oven trim until oven is
inserted into cabinet.
• Remove and set aside racks and other parts
from inside oven.
Do Not
remove
shipping feet.
Oven must be connected to the proper electrical
voltage and frequency as specified on the
model/serial rating plate. (The model/serial rating
plate is located on the oven door or on the oven
frame.)
Models rated from 7.3 to 9.6 kW at 240 volts
(5.5 to 7.2 kW at 208 volts) require a separate
40-ampere circuit. Models rated at 7.2 kW and
below at 240 volts (5.4 kW and below at 208
volts) require a separate 30-ampere circuit.
If the house has aluminum wiring, follow the
procedure below.
a.) Connect the aluminum wiring to the copper wire
using special connectors designed and
Underwriters Laboratories-listed for joining
copper to aluminum. Follow the electrical
connector manufacturer’s recommended
procedure.
b.) Aluminum/copper connection must conform
with local codes and industry-accepted wiring
practice.
Excessive Weight Hazard
Use two or more people to move and
install oven.
Failure to follow this instruction can
result in back or other injury.
WARNING
2. Completely open oven door. In both back
corners of the door you will see door latches in the
locked position. Rotate both latches forward to the
unlocked position.
Grasp outside edges of door with both hands.
• Begin closing door, at the moment the door
stops closing, lift and pull door toward you.
• Set door aside on a protective surface.
latch on the hinge
in locked position –
door free to open
and close
latch on the hinge
in unlocked
position – door
ready for removal
This oven is manufactured with white (neutral)
power supply wire and a cabinet-connected bare
grounding wire twisted together.

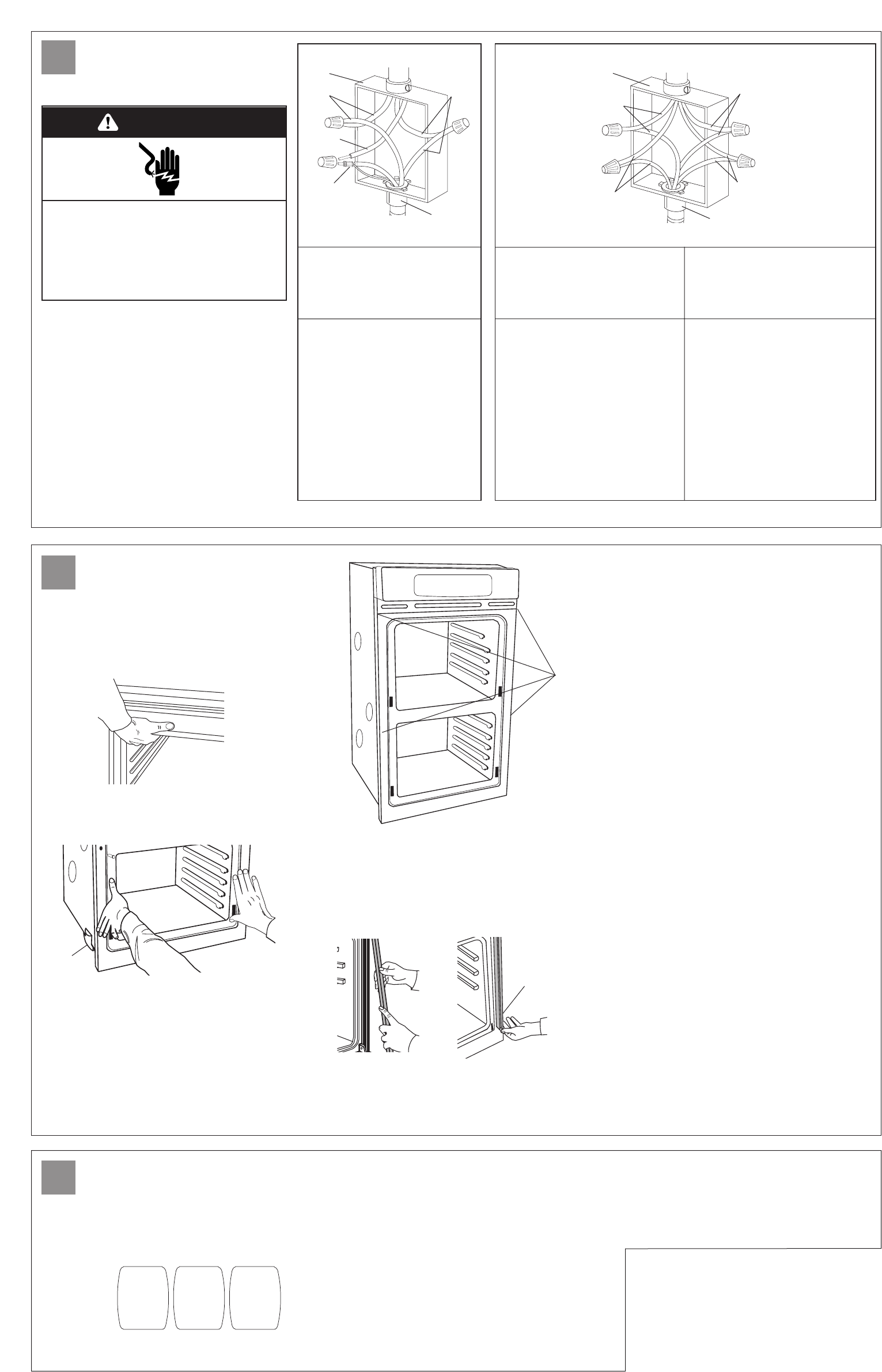

4. Feed oven cable through opening in
the cabinet. Make electrical connection
following the steps needed for your installation.
1. Disconnect the power supply.
2. Remove the junction box cover.
3. Connect oven cable to junction box through the
U.L.-listed conduit connector.
4. Connect the two black wires together with
twist-on connectors.
5. Connect the two red wires together with
twist-on connectors.
6. Complete electrical connection according to
local codes and ordinances.
Figure 1
junction
box
red
wires
white
wire
white and bare
grounding oven
cable wires —
factory crimped
cable from
power supply
black
wires
cable from
oven
U.L.-listed
conduit
connector
Figure 2
cable from
power supply
cable from
oven
junction
box
U.L.-listed conduit
connector
red
wires
white
wires
black wires
bare grounding
wires
If local codes PERMIT
connecting cabinet-grounding
conductor to neutral white
wire in junction box:
If local codes DO NOT PERMIT
connecting cabinet-grounding
conductor to neutral white
wire in junction box:
If connecting to a
four-wire electrical system:
7. Connect the factory-crimped
bare and white oven cable wires
to the neutral (white) wire in
junction box. See Figure 1.
8. Replace junction box cover.
7. Separate the factory-crimped
bare and white oven cable wires.
8. Connect white oven cable wire to
neutral (white) wire in junction
box. See Figure 2.
9. Connect the bare grounding
oven cable wire to a grounded
wire in the junction box. See
Figure 2.
10. Replace junction box cover.
7. Separate bare and white oven
cable wires.
8. Connect white oven cable wire
to neutral (white) wire in
junction box. See Figure 2.
9. Connect the bare grounding
oven cable wire to the green
grounding wire in junction box.
Do Not connect bare grounding
wire to neutral (white) wire in
junction box. See Figure 2.
10. Replace junction box cover.
Page 3
Electrical connection
B
To get the most efficient use
from your new oven, read your
Use and Care Guide. Keep Installation
Instructions
and Guide close to oven
for easy reference.
Carefully push against seal area of oven front
frame when pushing oven into cabinet.
Do Not push against outside edges.
10. Turn on power supply. The display
panel will light up briefly. “PF” should appear in
the temperature display.
11.
Check the operation of your single oven.
Press the “BROIL” pad. “BROIL” will appear in
Attachment
C
Check operation
D
5. Lift oven into cabinet cutout using the
oven opening as an area to grip.
Push against seal area of front frame to push
oven into cabinet until shipping feet almost
contact cabinet. Use a Phillips screwdriver to
remove screws attaching shipping feet. Remove
and discard shipping feet.
Push oven completely into cabinet and center
oven in cabinet cutout.
Push trim
into place.
Replace
trim screw.
4 screws
Slide top
of trim up.
BAKE BROIL CLEAN
the display. Press the “START” pad. Make sure the
oven door is closed and the “ON” light is shown in
the display area. After 2 minutes, partially open
oven door. You should feel heat from the oven.
Press the “CANCEL” pad.
Check the operation of your double oven.
Press the “Upper Oven” pad. Press the “BROIL”
pad. “BROIL” will appear in the display. Press the
“START” pad. Make sure the oven door is closed
and the “ON” light is shown in the display area.
After 2 minutes, partially open oven door. You
should feel heat from the oven. Press the
“CANCEL” pad.
Press the “Lower Oven” pad and repeat the steps
you completed for checking the upper oven.
If your oven does not heat or an “F”, followed
by a number, appears in the display, contact
your dealer or check the “If you need service...”
section of this Installation Instructions.
shipping
foot
8. Replace oven racks.
6. Important: Securely fasten oven to cabinet
using the screws provided (two screws for a single
oven or four screws for a double oven). Insert the
screws through holes in mounting rails. Do Not
overtighten screws.
Important: Replace the door with the model/serial
rating plate on the upper oven.
On some models, the construction of this door is
designed to withstand self-cleaning temperatures.
7. Slide top end of each trim upward onto oven
side rails. Push each trim into place at bottom of
trim. Use screws to attach each trim to oven. Take
care not to scratch other surfaces with ends of trim.
Electrical Shock Hazard
Turn power supply off before connecting wires.
Use 8 gauge solid copper wire.
Electrically ground range.
Failure to follow these instructions can result
in death, fire, or electrical shock.
WARNING
If your house has aluminum wiring, see
“Electrical requirements”, Page 2.
9. Reinstall the oven door by inserting ends
of hinges into hinge slots in the oven frame. Push
hinges in as far as they will go. Open the door
(you will feel the door drop into place) and rotate
both hinge latches back to the locked position.
Close and open the door to check that the door
closes and opens completely. If door does not
close or open completely, repeat the door
removal step and reinstall door as described
above.
Repeat for lower oven door.
If oven does not operate:
Check that circuit breaker is not tripped or
house fuse blown.
See Use and Care Guide for troubleshooting list.
If you need assistance:
If you have questions about operating, cleaning or
maintaining your oven:
Refer to Use and Care Guide.
Call the Consumer Assistance Center: Check
your Use and Care Guide for a toll-free
number to call or call the dealer from whom you
purchased this appliance. The dealer is listed in
the Yellow Pages of your phone directory under
“Appliances — Household — Major — Service
and Repair.”
Part No. 8300655
© 2001 Printed in U.S.A.
Quick Reference
Table of Contents:
Pages
Product dimensions
Cutout dimensions
Before you start
Electrical requirements
Installation steps
If you need assistance:
Check your Use and Care Guide for a toll-free number to call or call
the dealer from whom you purchased this appliance. The dealer is
listed in the Yellow Pages of your phone directory under
“Appliances — Household — Major — Service and Repair.”
Call when you:
Have questions about built-in oven installation or operation.
Need to obtain the name and number of an authorized service
company.
When you call, you will need:
The built-in oven model number.
The built-in oven serial number.
Both numbers are listed on the model/serial rating plate, located on
the oven door or on the oven frame.
1
1
1
2
23
IMPORTANT:
Read and save these instructions.
Installation Instructions
IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference.
Save Installation Instructions for local electrical inspector's use.
Part No.
8300655
27" Electric
Built-in Single and
Double Ovens
If you need service:
Maintain the quality built into your built-in oven by
calling an authorized service company.
To obtain the name and number of an authorized
service company:
Contact the dealer from whom you purchased
your built-in oven; or
Look in the Yellow Pages of your telephone
directory under “Appliances — Household —
Major — Service and Repair” for an authorized
service company; or
Call the Consumer Assistance Center. The toll-
free phone number is listed in your Use and
Care Guide.
When you call, you will need:
The built-in oven model number.
The built-in oven serial number.
Both numbers are listed on the model/serial rating
plate, located on the oven door or on the oven
frame.

Navigation menu
