User Manual

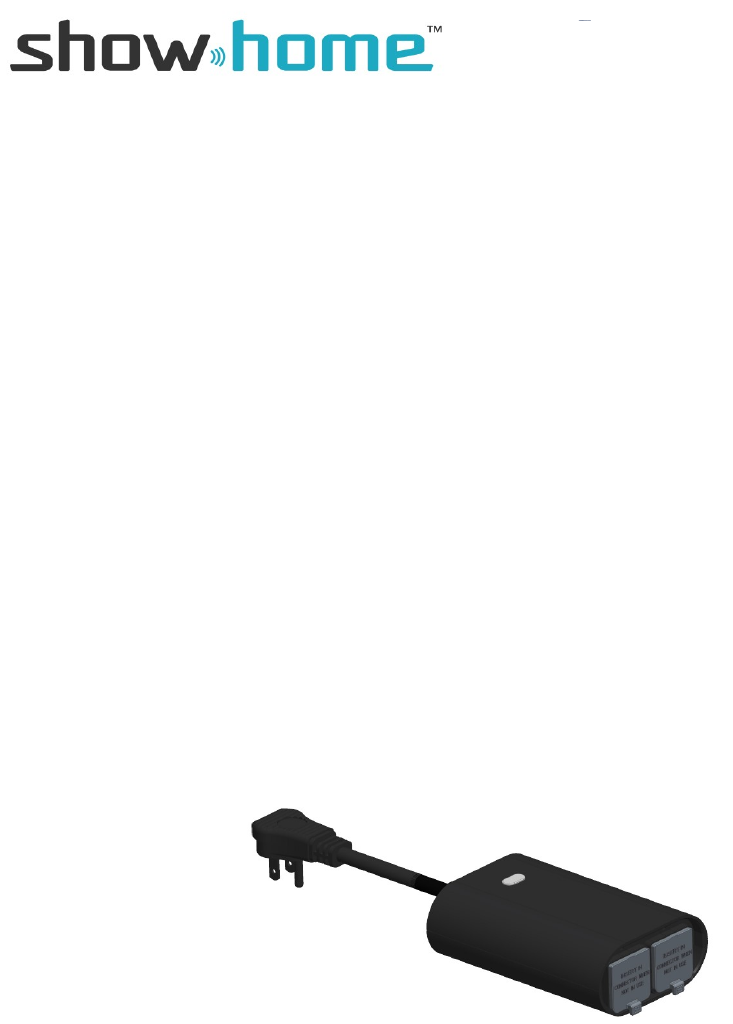

ZW97 Z-Wave 2-Channel OutDoor Smart Plug

Introduction:

Thank you for choosing the ZW97 Z-Wave control product.ZW97 enabled product allows users to remotely

control lighting, home appliance, and make home control easy with low installation and maintenance costs.

You may begin with a few Z-Wave enabled devices as well as some of our products to build up acomplete

home automation system.

The ZW97 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network.Each

module is designed to act as a repeater,which will re-transmit a radio frequency (RF),signal by routing the

signal around obstacles and radio dead spots to ensure that the signal is received at its intended destination.

Basic Operation:

The ZW97 can control two channel outlet outputs separately

Press the button one times controller all outlet ON/OFF

Press the button two times controller left outlet ON/OFF

Press the button three times controller right outlet ON/OFF

Follow this 2-step procedure to add your new ShowHome device to your Z-Wave network:

1 Put your Z-Wave controller into inclusion mode. Consult your controller manual if you’re unsure how to do this.

2 Press the button five times. This will take a few moments to complete.

MANUAL RESET

- To be used only in the event that the network primary controller is lost or otherwise inoperable.)

MANUAL RESET

- To be used only in the event that the network primary controller is lost or otherwise inoperable.)

1）power off

2 ) hold on 5 seconds when turn on the power of ZW97

-----B: ON/OFF/PROG Push button

-----C: Z-Wave controlled left outlet

-----D: Z-Wave controlled right outlet

-----Node: There are LED instructions below the button

White LED indicates ON/OFF

RED LED indicates temperature alarm

Include ZW97 to/from a Z-Wave Gateway with supporting Security the ZW97 can support the Primary Controller that implemented the security S2.

Refer to your primary controller instructions to process the Secure Inclusion.The Below listed Command Class are all supported the Security S2

COMMAND_CLASS_ZWAVEPLUS_INFO,

COMMAND_CLASS_VERSION,

COMMAND_CLASS_MANUFACTURER_SPECIFIC,

COMMAND_CLASS_DEVICE_RESET_LOCALLY,

COMMAND_CLASS_ASSOCIATION,

COMMAND_CLASS_ASSOCIATION_GRP_INFO,

COMMAND_CLASS_POWERLEVEL,

COMMAND_CLASS_SWITCH_BINARY,

COMMAND_CLASS_SWITCH_ALL,

COMMAND_CLASS_CONFIGURATION,

COMMAND_CLASS_NOTIFICATION_V8,

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2,

COMMAND_CLASS_TRANSPORT_SERVICE_V2,

COMMAND_CLASS_SECURITY,

COMMAND_CLASS_SECURITY_2,

COMMAND_CLASS_SUPERVISION

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Support for Association Groups

ZW97 supports 3 association groups. A maximum of 5 node ID.

-Association group_1:

Association group_1 is default to associate with the primary controller (Gateway/Hub/Controller) for ZW97 Status change report,

refer to below for report details:

1. ZW97 will trigger AUTO report function if the Output status had been changed.

2. Device Reset Locally Notification(Only report when the ZW97 has been triggered the RESET TO DEFAULT)

-Association group_2:

After receiving a basic set command from a local switch or gateway, On (0xFF) or Off (0x00), the ZW97 of left outlet will automatically

send out a related basic set command, On (0xFF) or Off (0x00) to its associated group.

-Association group_3:

After receiving a basic set command from a local switch or gateway, On (0xFF) or Off (0x00), the ZW97 of right outlet will automatically

send out a related basic set command, On (0xFF) or Off (0x00) to its associated group.

LED indicator setting：

1）manual setting：

Default lamp on, indicate LED ON

Hlod button 5S lamp on, indicate LED OFF

Hlod button 10S No Work

2）Parameter setting：

Parameter=1, Size=1byte, Value=00(Default) lamp ON, indicate LED ON

Parameter=1, Size=1byte, Value=01 lamp ON, indicate LED OFF

Parameter=1, Size=1byte, Value=02 LED OFF, NO Work

Countdown off setting:

Parameter =2, Size=2byte, value=xx xx left outlet Countdown(Default00 00，MAX 36000 S)

Parameter =3, Size=2byte, value=xx xx right outlet Countdown(Default00 00，MAX 36000 S)

Temperature alarm

When the temperature is greater than 105 degrees Celsius, equipment protection, stop output, send high temperature alarm.

SPECIFICATIONS

Power Requirements 120v / 60 Hz

Max Load 15Amp Max Smart Outlet1,15Amp Max Smart Outlet2, Total 15Amp MAX .

Z-Wave Frequency 908.42 MHz

Range 100 ft. (open air)

Certifications UL (US, Canada), FCC, Z-Wave Plus

FCCCaution.



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.



AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.



Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



*RFwarningforMobiledevice:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm

betweentheradiator&yourbody.


