Wilson Electronics, LLC Mobile Wireless Single Band Amplifier Users Manual

Contents

Users Manual

Amplifier
Installation
Guide
Mobile Wireless
Single Band
Cellular
Amplier
PART/MODEL# 801101
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1
How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installing a Wilson Outside Antenna · · · · · · · · · · · · · · · 4
Installing a Wilson Amplier · · · · · · · · · · · · · · · · · · · · · · 5
Installing a Wilson Inside Antenna (Wireless) · · · · · · · · 6
Installing a Wilson Inside Antenna (Attached) · · · · · · · · 7
Powering Up a Wilson Amplier · · · · · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · · 9

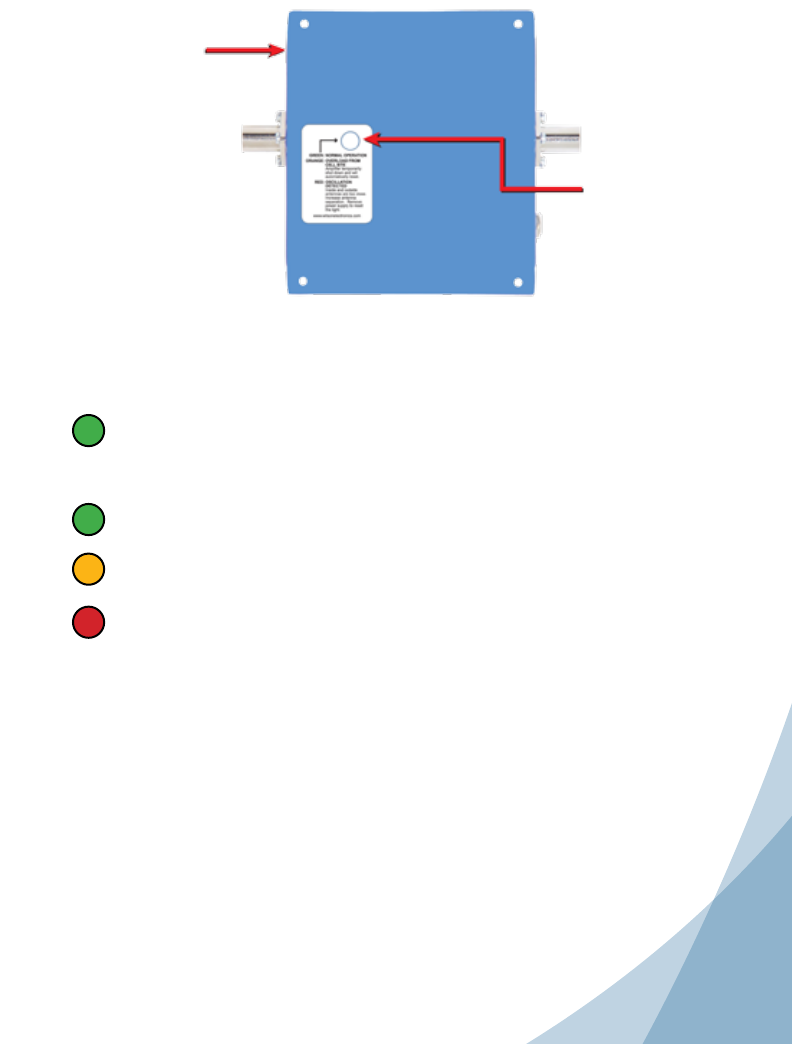

Understanding the Amplier Lights · · · · · · · · · ·· · · · · · · 10
Amplier Specications · · · · · · · · · · · · · · · · · · Back Cover
Wilson
®
Electronics, Inc.
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplier.
!
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics ampliers are warranted for one (1) year against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Ampliers may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any ampliers determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2006 Wilson Electronics, Inc. All rights reserved.
2
Installation Instructions for the Following Wilson Ampliers:
Mobile Wireless Single Band Amplier
Model #801101
FCC ID: PWO824WV IC: 4726A-824WV
The term “IC” before the radio certication number only signies that
Industry Canada technical specications were met.
Inside this Package
How it Works
Your new Wilson amplier has been carefully engineered to signicantly improve the
performance of your cell phone or cellular data card in mobile applications. Together with
an outside antenna (sold separately), the amplier’s state-of-the-art technology is designed
to increase your signal up to 10 times, reduce disconnects and dropouts, and increase data
communication rates needed for 3G technologies.
The outside antenna will collect the cell tower signal and send it through the cable to the
amplier. The signal is then boosted and sent through the extension cable to the inside
antenna or to the universal connector, depending on your application. Your cell phone or
data card then communicates with the improved signal. When the cell phone or data card
transmits, the signal goes through the inside antenna or the universal connector and the
extension cable, is boosted by the amplier and broadcast back to the cell tower through the
outside antenna.
Wilson Electronics manufactures a wide variety of antennas to help you customize your
amplier for your specic application. Several are shown below. See your dealer or visit
www.wilsonelectronics.com.
Wireless
amplier DC plug-in
power cable
Universal
connector
(Option B - see p. 7)
6‘ extension
cable
NMO
Mount
Magnet
Mount Trucker
Mount
Mini
Magnet Marine
Antenna
Low-prole
antenna
(Option A - see p. 6)
NOTE: Use of this amplier with an
antenna gain higher than 5.12 dBi
is in violation of FCC regulations
for which the offender is fully
liable. All Wilson mobile
antennas are 5.12 dBi or less
in the 800 MHz band.
3
Before Getting Started
This guide will help you properly install Wilson’s single-band, mobile wireless amplier. It is
important to read through all of the installation steps for your particular application
prior to installing any equipment. Read through the instructions, visualize where all the
equipment will need to be installed and do a soft installation before mounting any equipment.
If you do not understand the instructions in full, seek professional help, or contact Wilson
Technical Support at 866-294-1660.
Warning: In a wireless installation,
do not plug the amplier directly into the
cell phone or data card using an antenna
adapter. It will damage the amplier.
!
Outside
Antenna
Inside
Antenna
Amplier
DC Power
Supply
Cell Phone
PDA
Notebook
Outside
Antenna
Amplier
DC Power
Supply
Cell Phone, PDA or
Notebook with
universal connector
attached
Installation Diagram
Inside Antenna
Warning: In a wireless installation,
do not plug the amplier directly into the
cell phone or data card using an antenna
adapter. It will damage the amplier.
!
Installation Diagram
Universal Connector
4

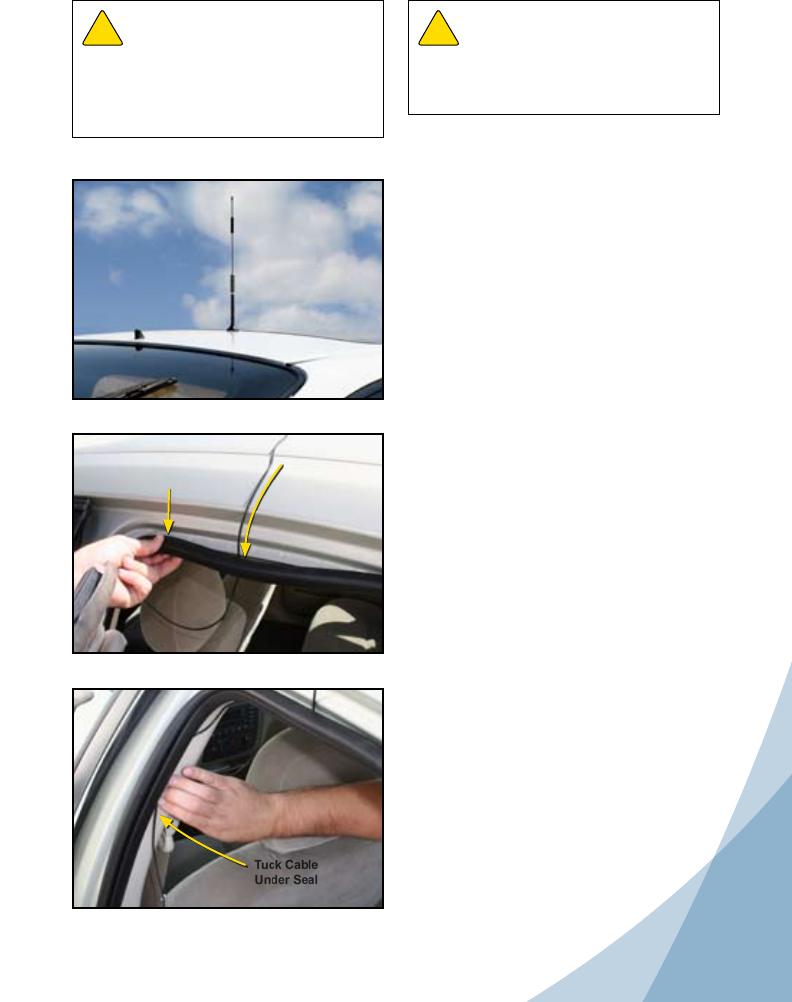

Installing a Wilson Outside Antenna
To receive the best cell signal, select a location in the center of the vehicle’s roof at least
12 inches away from any other antennas and free of obstructions.
Follow the specic antenna installation instructions included with the outside antenna
(sold separately).
The outside antenna must be installed
vertically. Signal performance will be
degraded if the antenna is not vertical.
The antenna cable may be run through the
door to the amplier.
The antenna cable is small enough to easily
tuck under the door seal or plastic molding.
For a more professional-looking installation,
the antenna cable may be run under the
door seal. Carefully pull down the door
seal. Run the cable through the seal
and push the seal back into place. This
prevents constant wear and tear on the
cable as the door opens and closes.
Warning: Do not use any type of glass-
mount antenna with this amplier. The outside
and inside antennas must be shielded from
each other to prevent oscillation.
!
Optional Magnet-
Mount Antenna
Shown
Part #301103
Carefully
Pull Down
Door Seal
Run Cable
Under
Seal
Tuck Cable
Under Seal
Warning: The outside antenna must
be installed with a separation of at least 20
inches from any of the vehicle’s occupants or
nearby persons and must not be located or
operating in conjuction with any other antenna
or amplier.
!
5

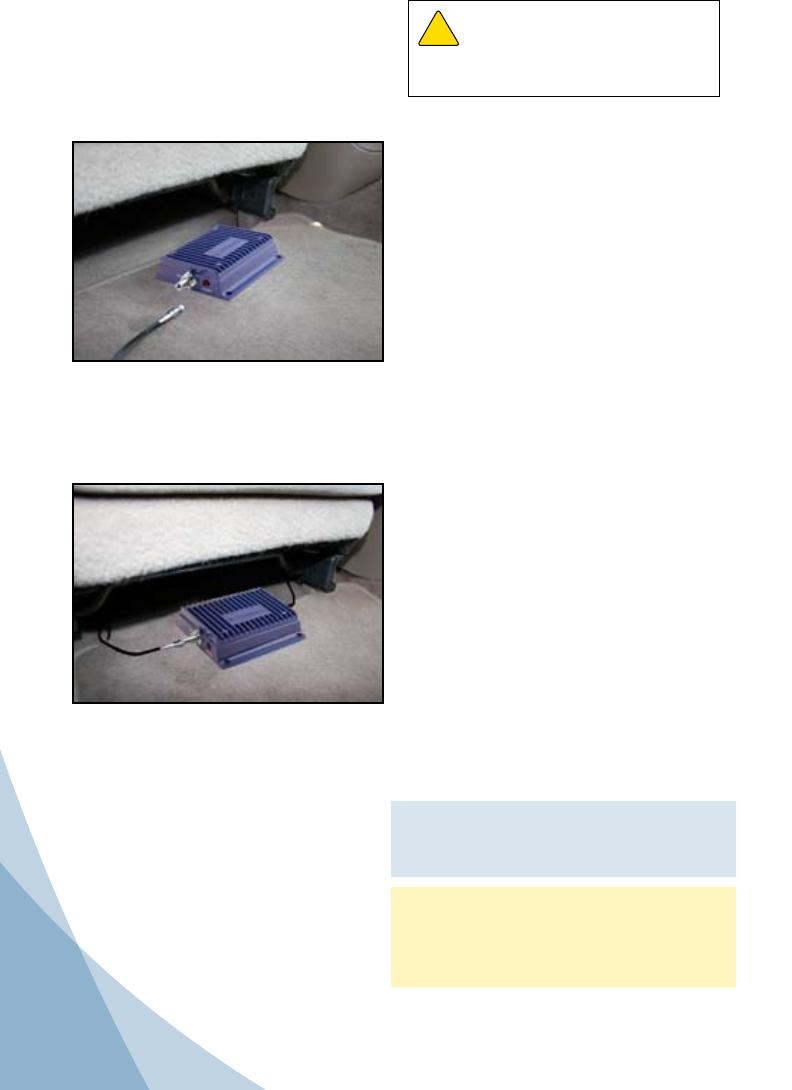

Installing a Wilson Amplier
Warning: Do not plug in the DC power
supply until the outside and inside antenna
cables are attached to the amplier.
!
Wilson offers two options of improved signal
inside a vehicle:
Option A (Wireless) - offers the
convenience of no physical connection to
the cell phone or cellular data card.
Option B (Attached) - places the universal
connector directly on the cell phone or
cellular data card for maximum signal
performance.
Select a location to install the amplier that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• Under the seat
• In the trunk
• Under the dash
Run the cable from the outside antenna and
attach it to the FME-Male connector labeled
“outside antenna” on the amplier.
Attach the inside antenna cable to the FME-
Male connector labeled “inside antenna” on
the amplier.
6
Installing a Wilson Inside Antenna
Install the low-prole inside antenna 8-12
inches from where the cell phone or cellular
data card will be used.
Place the inside antenna on the side of the
driver’s seat for maximum performance.
Install the inside antenna at least eight
inches, but not more than 12 inches, from
where the cell phone or cellular data card
will be used.
Install the inside antenna at the same angle
as the cell phone when held in use, or place
next to the laptop’s cellular data card. This
will maximize the signal strength.
For a more professional-looking installation,
the low-prole antenna may be slid under
the seat cover or leather, high on the
driver’s seat.
Warning: Do not install the low-prole
antenna within four inches of metal. (Metal
found inside the vehicle’s seat will not affect
the antenna’s performance.)
!
Amplier
Warning: The inside antenna must
be installed with a separation of at least
eight inches from all persons and must not
be located in conjunction with any other
antenna or amplier.
!
Low-prole
Antenna
Option A (Wireless)
7

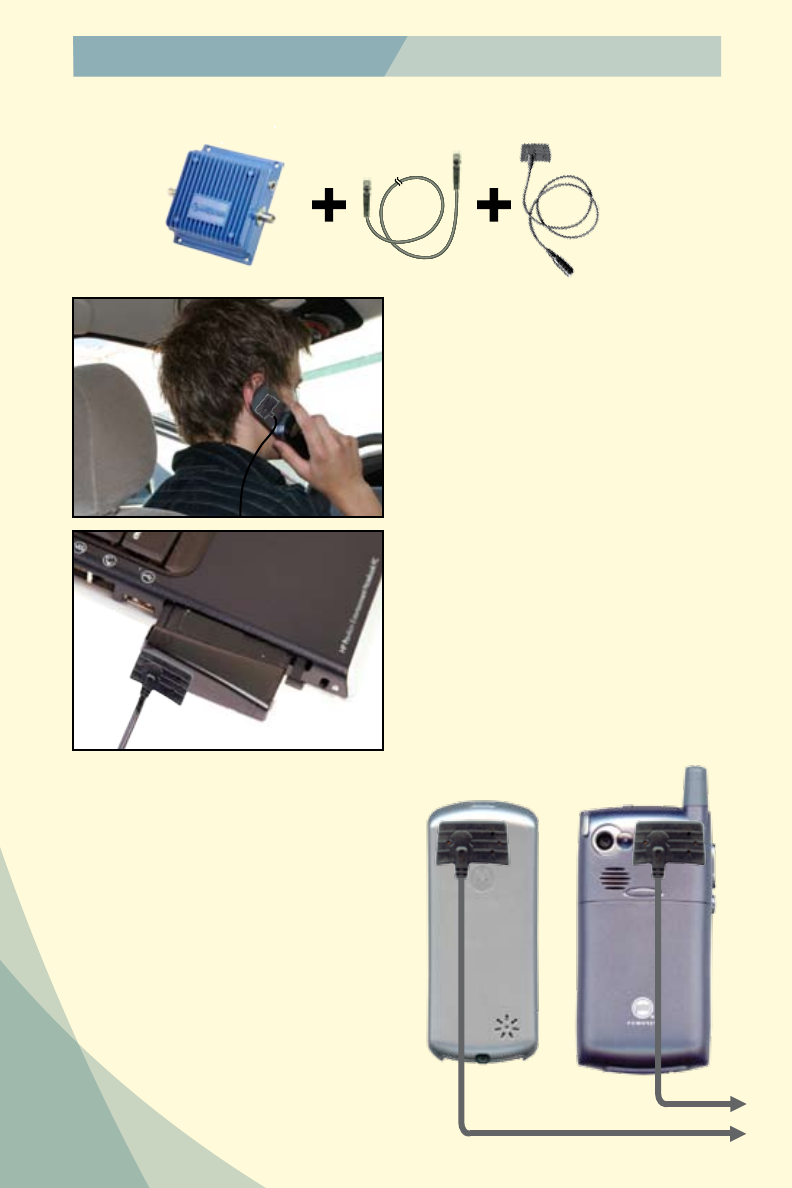

Installing a Wilson Universal Connector
The universal connector must be placed
directly on the cell phone or cellular data
card to work properly. Attach the universal
connector to the cell phone or cellular data
card with the VELCRO® included in the
package.
The universal connector and extension
cable included in the package are long
enough to reach the amplier location. This
allows for ease and convenience of use.
To adjust the universal connector for the
best signal, go to a weak signal location
where your cell phone registers only 1-
2 bars without the universal connector
connected. Then, attach the universal
connector to the phone and you should see
a signal improvement of 2 or more bars.
NOTE: Many phones take up to 20 seconds
to reset the bar indicator.
To maximize performance, attach the
universal connector as close as possible to
the original antenna on your cell phone or
cellular data card.
For cell phones with an internal antenna,
place the universal connector on the back,
upper left-hand corner of the phone. (Figure
1) NOTE: Certain phones, such as the
Motorola RAZR, have internal antennas at
the base, rather than the top, in which case
the universal connector should be attached
at the bottom rear of the phone.
For cell phones with an external antenna,
place the universal connector directly below
the phone’s original antenna. (Figure 2)
If you have any questions as to the location
of the antenna on your phone, call Wilson
Technical Support at 866-294-1660 or visit
www.wilsonelectronics.com.
Amplier 6’ Extension
Cable Universal
Connector
Figure 1 Figure 2
To Amplier
Option B (Attached)
Cellular data card
8
Powering up a Wilson Amplier
Make sure both the outside and inside
antenna cables are connected before
powering up the amplier.
Connect the DC plug-in power supply
cable to the amplier marked “Power” and
insert the large end into DC power socket
(the cigarette lighter outlet.)
The amplier may remain on all the time.
However, leaving the amplier on in a
vehicle when it is not running can discharge
the battery in a day or two.
A good option is to power the amplier
through the ignition switch so the amplier
is turned on and off with the vehicle.
NOTE: The aluminum casing of a Wilson amplier will adjust very quickly to the ambient
temperature of its environment. For example, in the summer, when the inside of a car can
reach 140 degrees Fahrenheit, the amplier temperature may be 150 degrees or higher.
The casing will be hot to the touch, similar to a metal door handle or a steering wheel. Such
high temperatures will not damage the amplier, nor do they pose a re risk to the vehicle.
As recommended in these instructions, install the amplier in a location with adequate
ventilation, such as under the seat, in the trunk or under the dashboard. Keep the area free
of items that could block air ow to the amplier.
Separation of inside and outside antennas is very important. The metal roof of the vehicle
acts as a barrier and helps shield the two antennas from each other, preventing oscillation.
If the vehicle has a sunroof, it is important to separate the inside and outside antennas by at least
ve feet. This prevents the amplier from overloading or oscillating.
IMPORTANT: Do not power up the ampli-
er unless antenna cables are attached to
amplier.
Distance between antennas
through a sunroof must be
5 feet or more.
Carefully insert the power cable. Warning: Use only the power
supply cable provided in this package.
The power supply must be 12 V DC.
!
9
Warnings and Recommendations
Warning: In a wireless installation, do not plug the amplier directly into
the cell phone or cellular data card using an antenna adapter. It
will damage the cell phone or cellular data card.
Warning: Do not install the inside antenna within four inches of metal.
(Metal found inside the vehicle’s seat will not affect antenna
performance.)
Warning: Do not use any type of glass-mount antenna with this amplier.
The outside and inside antennas must be shielded from each
other to prevent oscillation.
Warning: Do not plug in the DC power supply until the outside and inside
antenna cables are attached to the amplier.
Warning: RF Safety: The inside antenna must be installed with a
separation of at least eight inches from all persons and must not
be located in conjunction with any other antenna or amplier.
Warning: RF Safety: The outside antenna must be installed with a
separation of at least 20 inches from any of the vehicle’s
occupants or nearby persons and must not be located or
operating in conjunction with any other antenna or amplier.
All roof-mount antennas should be centrally located on the
roof of the vehicle. Mirror-mount antennas should be at least
six inches from the ground and leave at least 20 inches of
separation from any persons near or around the vehicle. Use
of a cellular amplier with an antenna gain higher than 5.12 dBi
is in violation of FCC regulations for which the offender is fully
liable. All Wilson mobile antennas are 5.12 dBi or less in the
800 MHz band.
Recommended amplier installation locations are:
• Under the seat
• In the trunk
• Under the dash
Install the low-prole antenna 8-12 inches from where the cell phone or cellular
data card will be used.
Power the amplier through the ignition switch so the amplier is turned on and
off with the vehicle.
If the vehicle has a sunroof, it is important to separate the inside and outside
antennas by at least ve feet. This prevents the amplier from overloading or
oscillating.
10
Understanding the Amplier Lights
Power Indicator Light
Shows green when the unit is turned on.
Signal Indicator Light
A green light indicates normal operation.
An orange light indicates overload from the cell site. The amplier has
temporarily shut down and will automatically reset.
A red light indicates that oscillation has been detected. The inside and
outside antennas are too close to one another. Increase the antenna
separation distance, then remove and replace the DC power cable to reset
the light. If it still shows red, repeat the procedure.
Power Indicator Light
(located on the side)
Signal Indicator Light
(located on the back)
Wilson® Electronics, Inc.
Phone: 866-294-1660 www.wilsonelectronics.com Fax: 435-656-2432
AIG SBMW 018 / 11.09.06
Amplier Specications
Single Band
800 MHz Specications
Model Number 801101
Connectors FME-Male
Impedance (input/output) 50 ohms
Dimensions 5.5 x 4.3 x 1.4 inch or 14 x 10.8 x 3.5 cm
Weight 1.32 lbs or 0.6 kg
Frequency 824-894 MHz
1Passband Gain (nominal)
(uplink/downlink) 43 dB / 43 dB
220 dB Bandwidth (nominal)
(uplink/downlink) 50 MHz / 50 MHz
3Power output for single cell phone (uplink)
CDMA +33.3 dBm
GSM +32.0 dBm
EDGE +31.5 dBm
AMPS +31.6 dBm
4Power output (uplink) for multiple
cell phones:
Number of
cell phones Maximum Power
2 +20.3 dBm
3 +16.8 dBm
4 +14.3 dBm
5+12.3 dBm
6 +10.8 dBm
Power output for single received channel
(downlink)
CDMA +2.7 dBm
GSM -5.2 dBm
EDGE -3.1 dBm
AMPS -5.0 dBm
4Power output for multiple received
channels (downlink). The maximum
power is reduced by the number of
channels:
Number of
channels
Maximum Power
2-2.5 dBm
3 -6.0 dBm
4-8.5 dBm
5 -10.5 dBm
6-14.5 dBm
Noise Figure (typical) 3 dB nominal
Isolation (uplink/downlink) > 90 dB
Power Requirements
Amplier Usage 12 V, .5 A - 1.5 A (subject to uplink power)
FCC ID: PWO824WV
5IC: 4726A-824WV
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplication is 20 dB
lower than the passband amplication. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier
signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can
cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.
5. The term “IC” before the radio certication number only signies that Industry Canada technical specications were met.

Navigation menu
