Wireless Cables AB5C1 Bluetooth Module User Manual FCC request

Wireless Cables Inc. Bluetooth Module FCC request

Contents

OEM installation guide

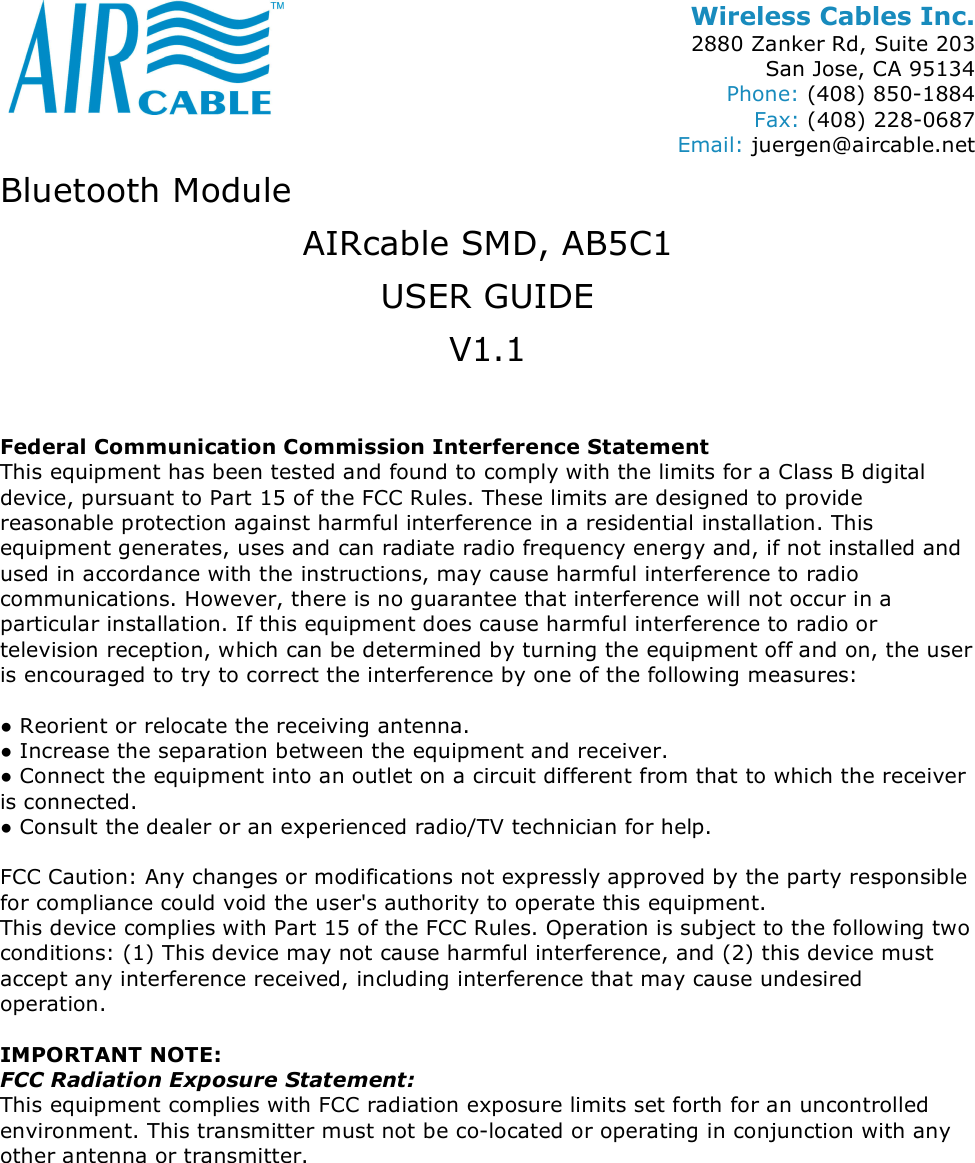

Wireless Cables Inc. 2880 Zanker Rd, Suite 203 San Jose, CA 95134 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: juergen@aircable.net Bluetooth Module AIRcable SMD, AB5C1 USER GUIDE V1.1  Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

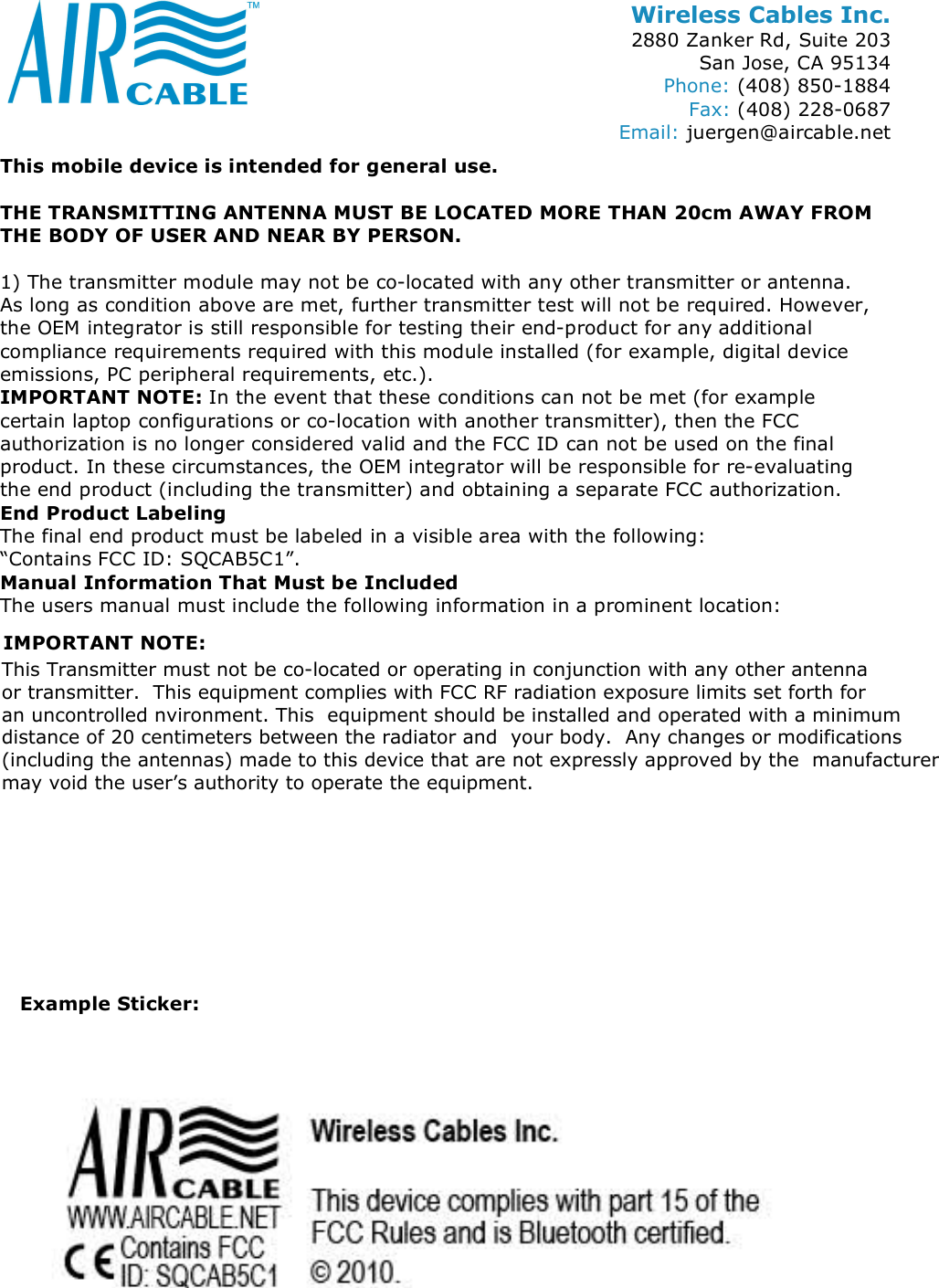

Wireless Cables Inc. 2880 Zanker Rd, Suite 203 San Jose, CA 95134 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: juergen@aircable.net This mobile device is intended for general use.  THE TRANSMITTING ANTENNA MUST BE LOCATED MORE THAN 20cm AWAY FROM THE BODY OF USER AND NEAR BY PERSON.  1) The transmitter module may not be co-located with any other transmitter or antenna. As long as condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following:  “Contains FCC ID: SQCAB5C1”. Manual Information That Must be Included The users manual must include the following information in a prominent location:   Example Sticker: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled nvironment. This  equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and  your body.  Any changes or modifications (including the antennas) made to this device that are not expressly approved by the  manufacturermay void the user’s authority to operate the equipment. IMPORTANT NOTE:

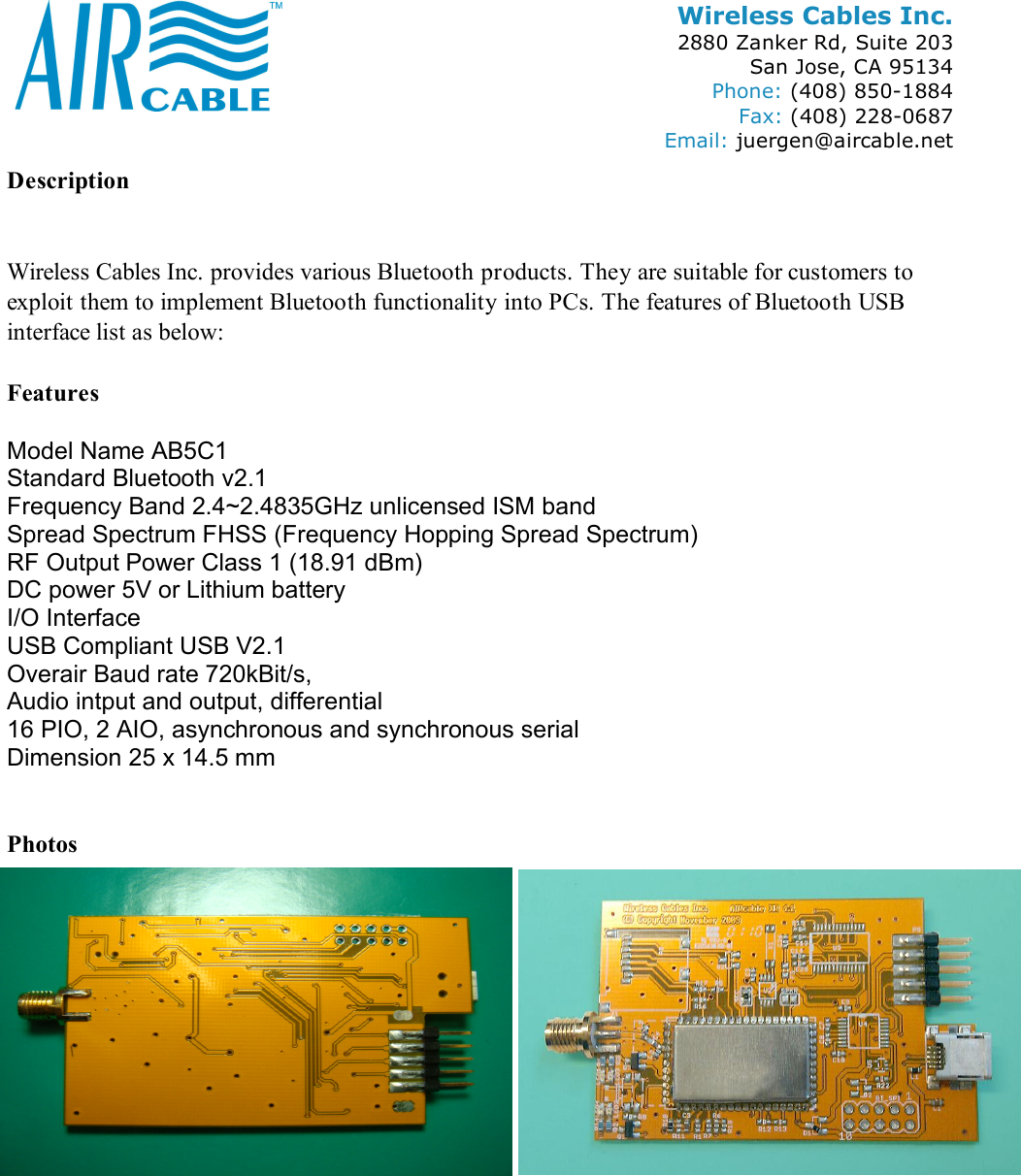

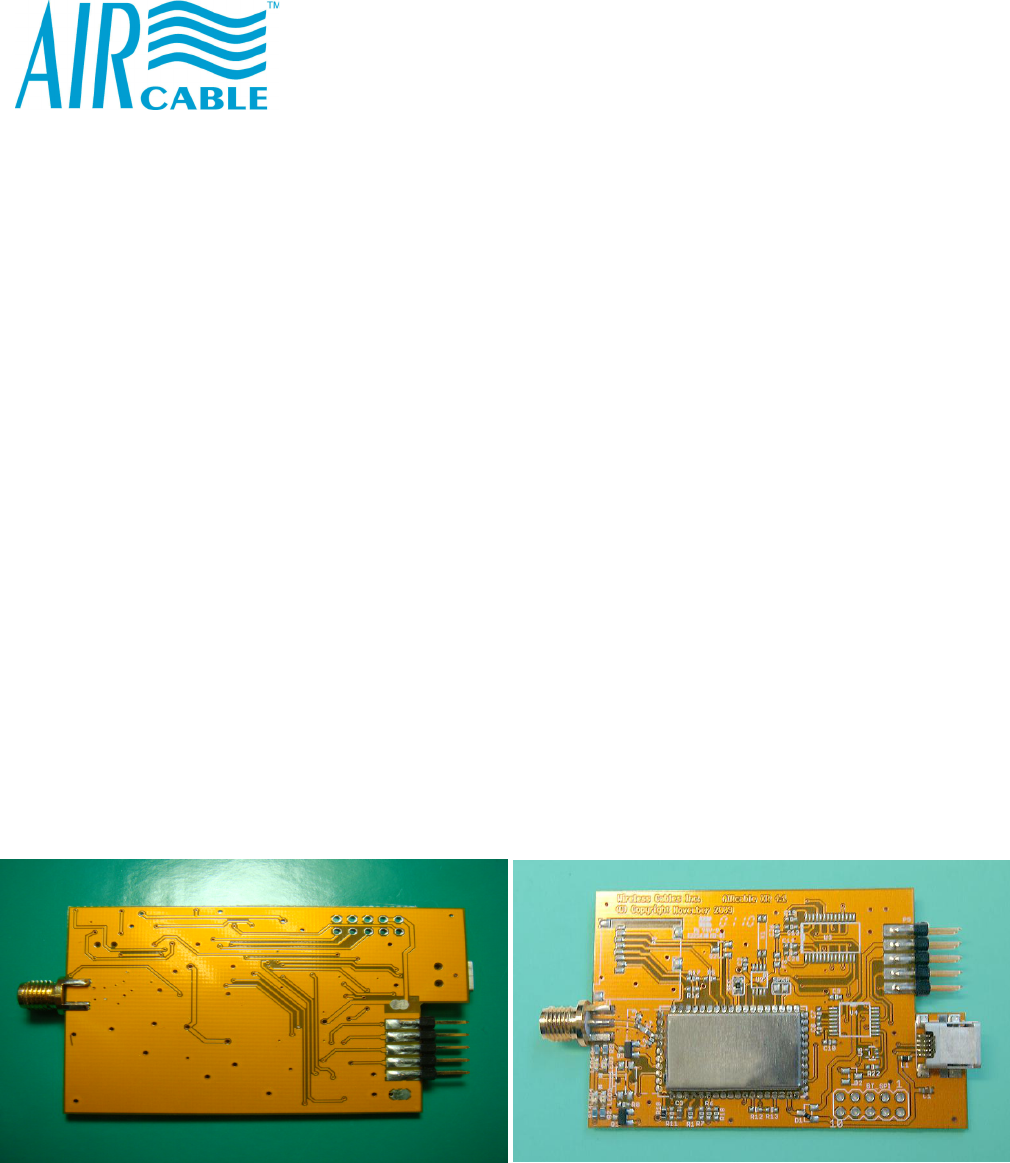

Wireless Cables Inc. 2880 Zanker Rd, Suite 203 San Jose, CA 95134 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: juergen@aircable.net Description   Wireless Cables Inc. provides various Bluetooth products. They are suitable for customers to exploit them to implement Bluetooth functionality into PCs. The features of Bluetooth USB interface list as below:  Features  Model Name AB5C1 Standard Bluetooth v2.1 Frequency Band 2.4~2.4835GHz unlicensed ISM band Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) RF Output Power Class 1 (18.91 dBm) DC power 5V or Lithium battery I/O Interface USB Compliant USB V2.1 Overair Baud rate 720kBit/s,  Audio intput and output, differential 16 PIO, 2 AIO, asynchronous and synchronous serial Dimension 25 x 14.5 mm   Photos
Wireless Cables Inc. 2880 Zanker Rd, Suite 203 San Jose, CA 95134 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: juergen@aircable.net

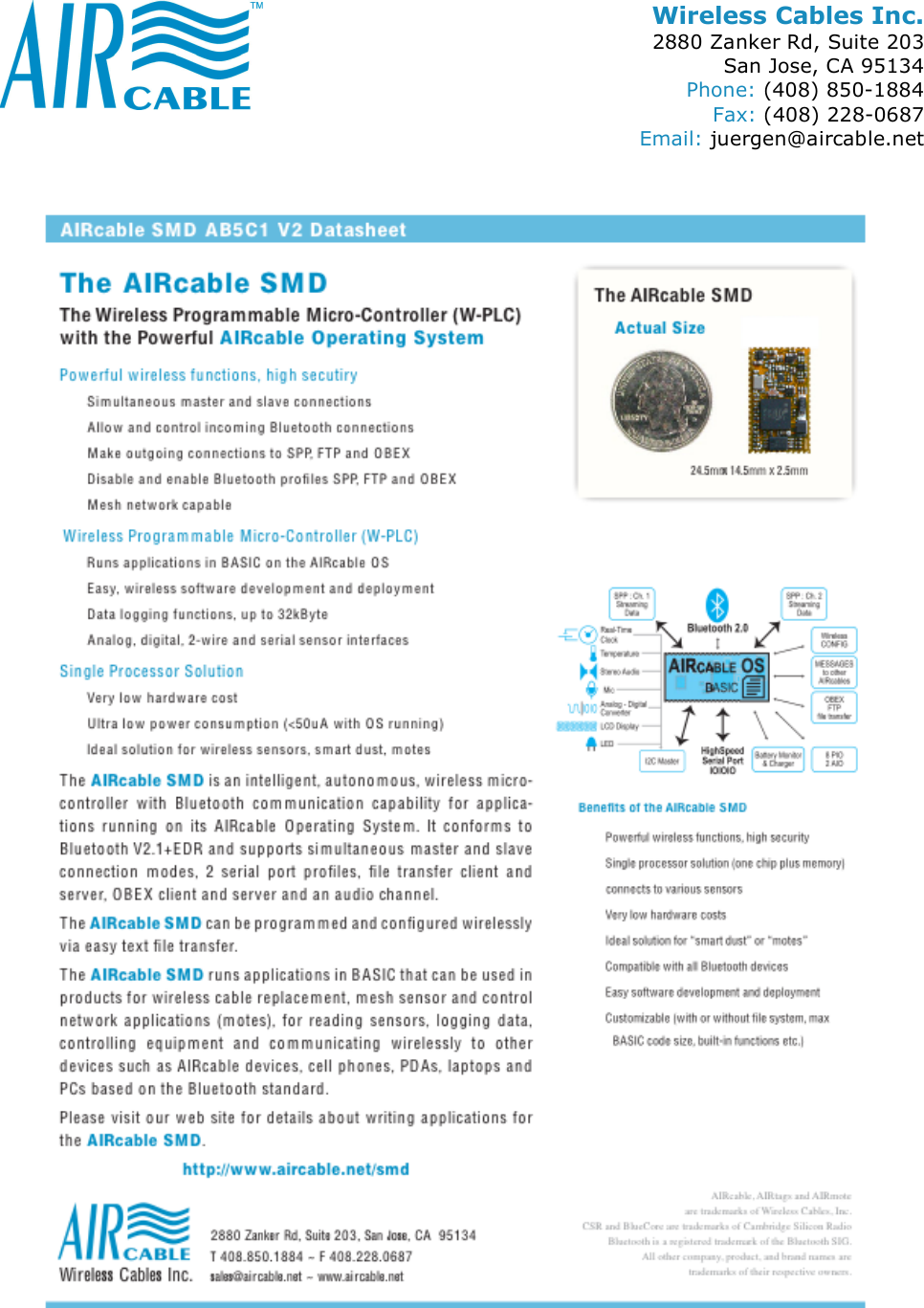

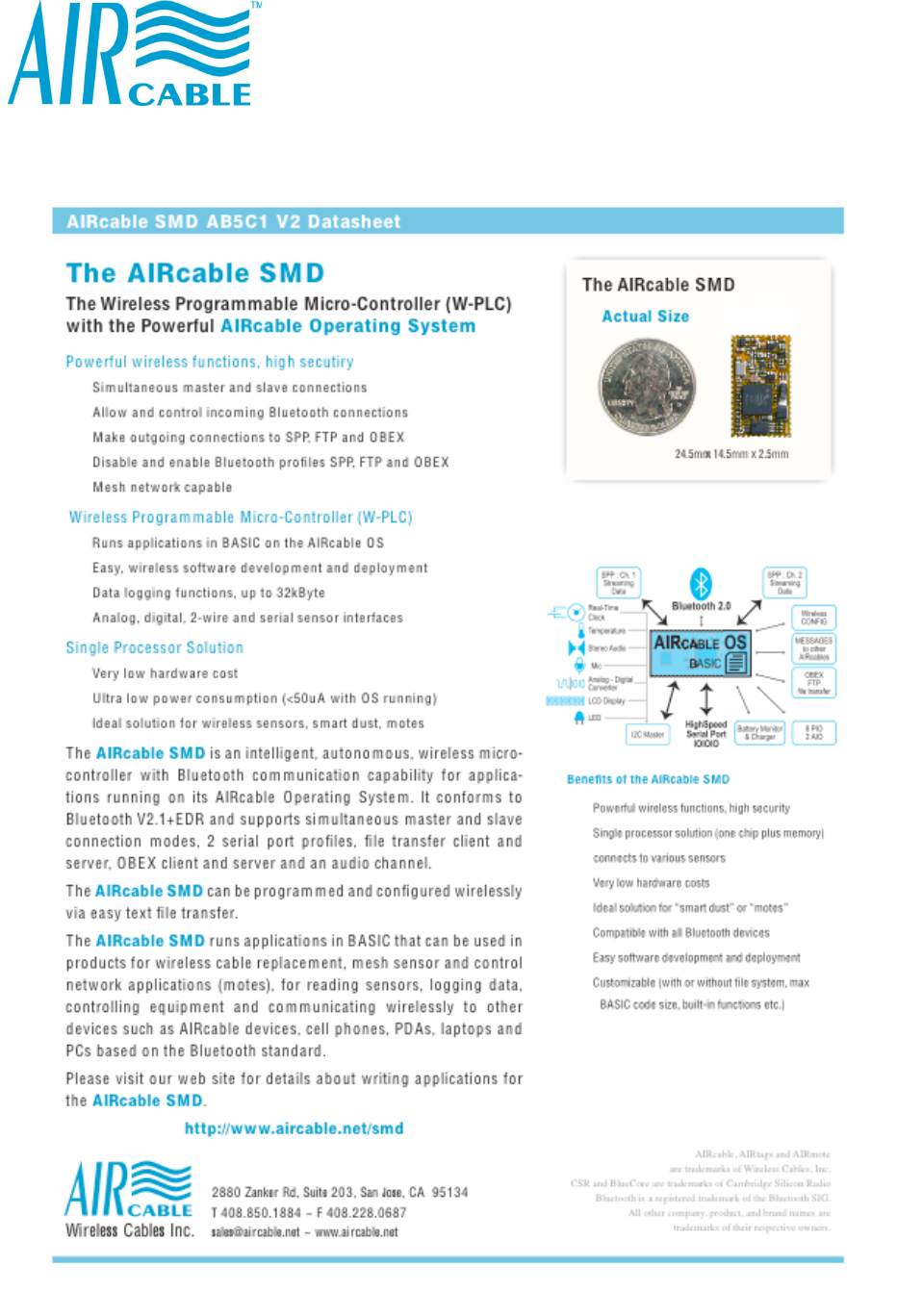

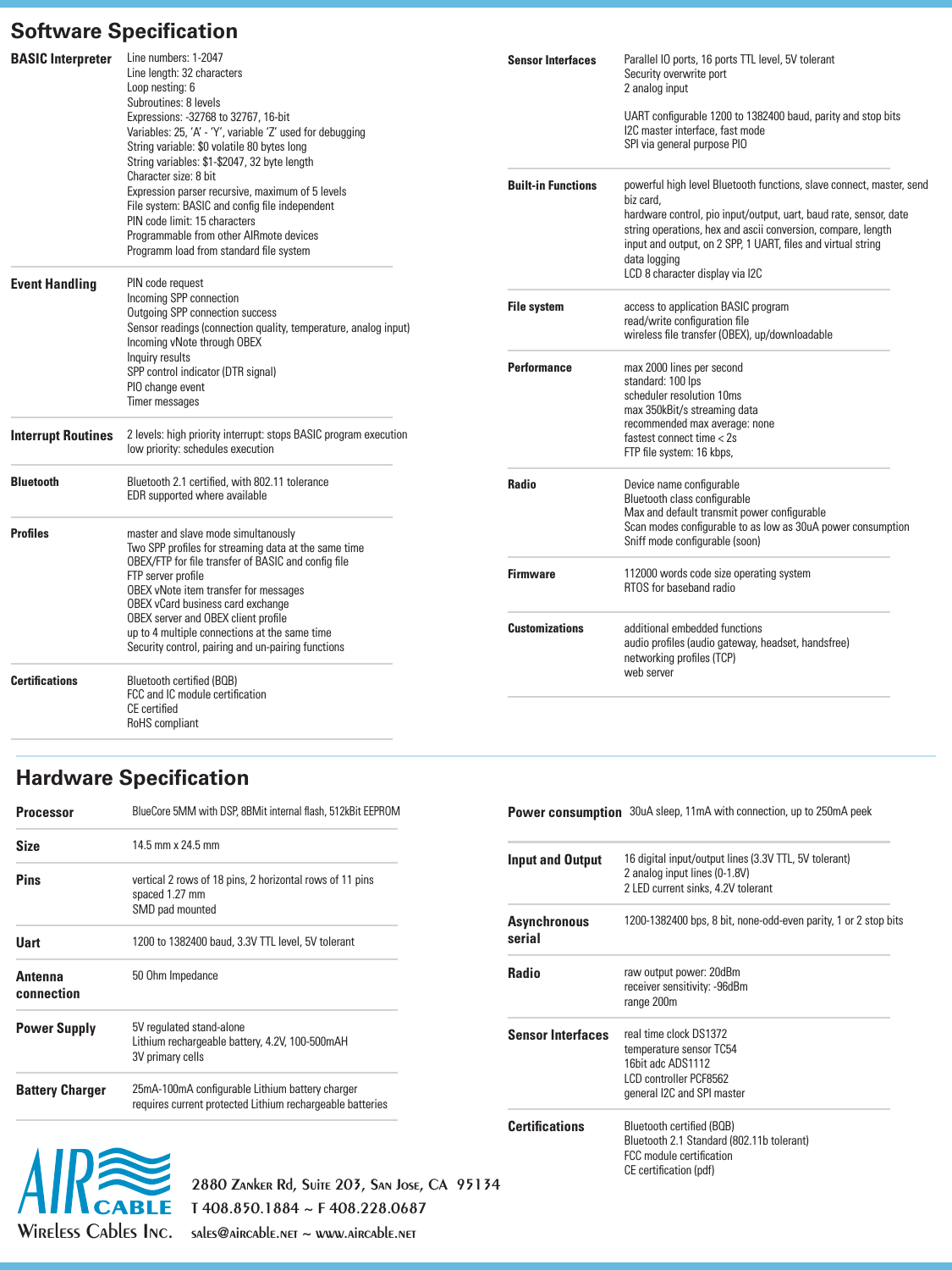

Wireless Cables Inc.2880 Zanker Rd, Suite 203, San Jose, CA  95134T 408.850.1884 ~ F 408.228.0687sales@aircable.net ~ www.aircable.netSoftware SpecificationHardware SpecificationBASIC Interpreter Line numbers: 1-2047Line length: 32 charactersLoop nesting: 6Subroutines: 8 levelsExpressions: -32768 to 32767, 16-bitVariables: 25, ‘A’ - ‘Y’, variable ‘Z’ used for debuggingString variable: $0 volatile 80 bytes longString variables: $1-$2047, 32 byte lengthCharacter size: 8 bitExpression parser recursive, maximum of 5 levelsFile system: BASIC and config file independentPIN code limit: 15 charactersProgrammable from other AIRmote devicesProgramm load from standard file systemEvent Handling PIN code requestIncoming SPP connectionOutgoing SPP connection successSensor readings (connection quality, temperature, analog input)Incoming vNote through OBEXInquiry resultsSPP control indicator (DTR signal)PIO change eventTimer messagesInterrupt Routines 2 levels: high priority interrupt: stops BASIC program executionlow priority: schedules executionBluetooth Bluetooth 2.1 certified, with 802.11 toleranceEDR supported where availableProfiles master and slave mode simultanouslyTwo SPP profiles for streaming data at the same timeOBEX/FTP for file transfer of BASIC and config fileFTP server profileOBEX vNote item transfer for messagesOBEX vCard business card exchange OBEX server and OBEX client profileup to 4 multiple connections at the same timeSecurity control, pairing and un-pairing functionsCertifications Bluetooth certified (BQB)FCC and IC module certificationCE certifiedRoHS compliantSensor Interfaces Parallel IO ports, 16 ports TTL level, 5V tolerantSecurity overwrite port2 analog inputUART configurable 1200 to 1382400 baud, parity and stop bitsI2C master interface, fast modeSPI via general purpose PIOBuilt-in Functions powerful high level Bluetooth functions, slave connect, master, send biz card, hardware control, pio input/output, uart, baud rate, sensor, datestring operations, hex and ascii conversion, compare, lengthinput and output, on 2 SPP, 1 UART, files and virtual stringdata loggingLCD 8 character display via I2CFile system access to application BASIC programread/write configuration filewireless file transfer (OBEX), up/downloadablePerformance max 2000 lines per secondstandard: 100 lpsscheduler resolution 10msmax 350kBit/s streaming datarecommended max average: nonefastest connect time < 2sFTP file system: 16 kbps, Radio Device name configurableBluetooth class configurableMax and default transmit power configurableScan modes configurable to as low as 30uA power consumptionSniff mode configurable (soon)Firmware  112000 words code size operating systemRTOS for baseband radioCustomizations additional embedded functionsaudio profiles (audio gateway, headset, handsfree)networking profiles (TCP)web serverProcessorBlueCore 5MM with DSP, 8BMit internal flash, 512kBit EEPROMSize 14.5 mm x 24.5 mm Pins vertical 2 rows of 18 pins, 2 horizontal rows of 11 pinsspaced 1.27 mmSMD pad mountedUart 1200 to 1382400 baud, 3.3V TTL level, 5V tolerantAntenna connection50 Ohm Impedance Power Supply 5V regulated stand-aloneLithium rechargeable battery, 4.2V, 100-500mAH3V primary cellsBattery Charger 25mA-100mA configurable Lithium battery chargerrequires current protected Lithium rechargeable batteriesPower consumption   30uA sleep, 11mA with connection, up to 250mA peek Input and Output 16 digital input/output lines (3.3V TTL, 5V tolerant)2 analog input lines (0-1.8V)2 LED current sinks, 4.2V tolerantAsynchronous serial1200-1382400 bps, 8 bit, none-odd-even parity, 1 or 2 stop bitsRadio raw output power: 20dBmreceiver sensitivity: -96dBmrange 200mSensor Interfaces real time clock DS1372temperature sensor TC5416bit adc ADS1112LCD controller PCF8562general I2C and SPI masterCertifications Bluetooth certified (BQB)Bluetooth 2.1 Standard (802.11b tolerant)FCC module certificationCE certification (pdf)
