Antenna Data

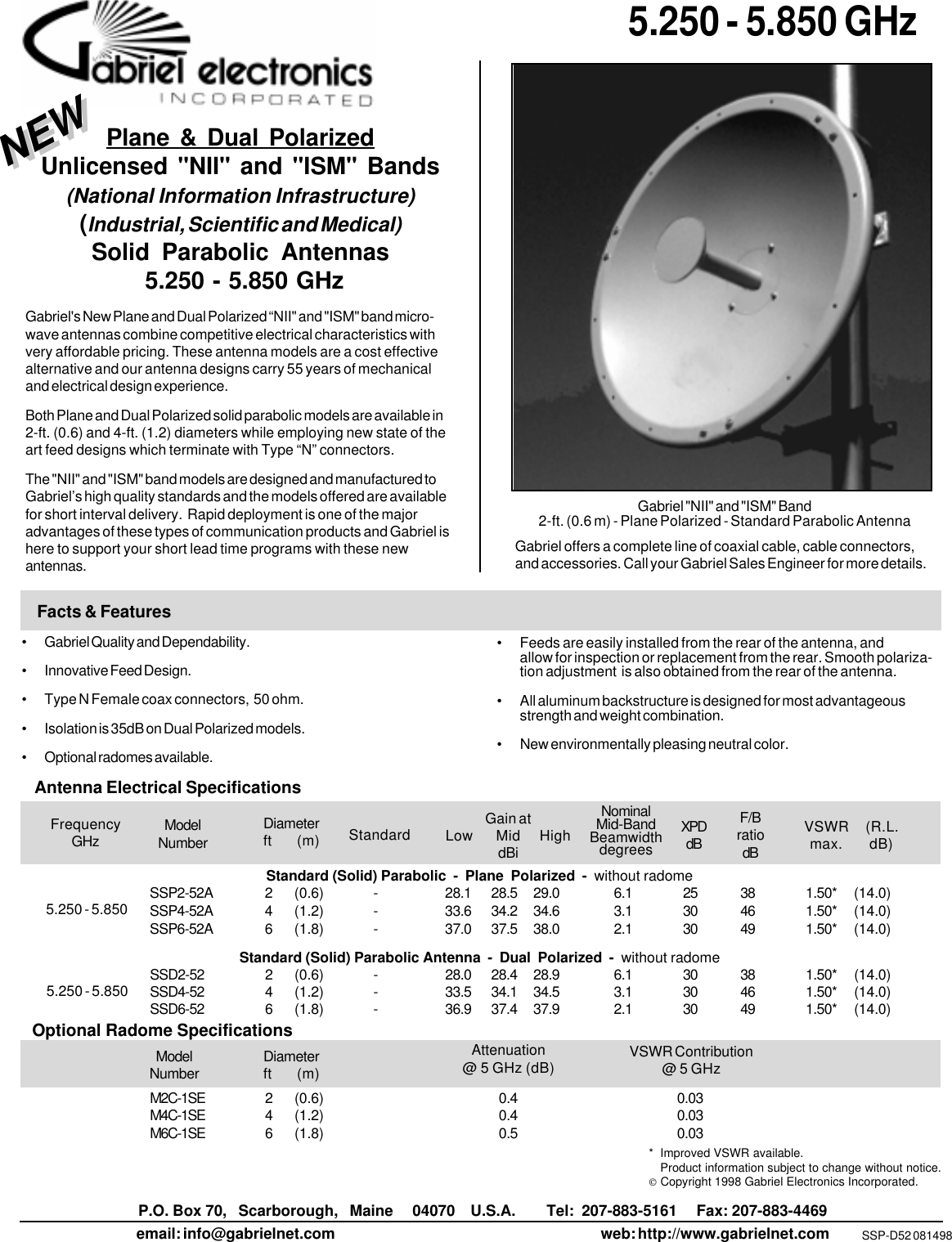

P.O. Box 70, Scarborough, Maine 04070 U.S.A. Tel: 207-883-5161 Fax: 207-883-4469email: info@gabrielnet.com web: http://www.gabrielnet.comStandard (Solid) Parabolic - Plane Polarized - without radomeSSP2-52A 2 (0.6) - 28.1 28.5 29.0 6.1 25 38 1.50* (14.0)SSP4-52A 4 (1.2) - 33.6 34.2 34.6 3.1 30 46 1.50* (14.0)SSP6-52A 6 (1.8) - 37.0 37.5 38.0 2.1 30 49 1.50* (14.0)Standard (Solid) Parabolic Antenna - Dual Polarized - without radomeSSD2-52 2 (0.6) - 28.0 28.4 28.9 6.1 30 38 1.50* (14.0)SSD4-52 4 (1.2) - 33.5 34.1 34.5 3.1 30 46 1.50* (14.0)SSD6-52 6 (1.8) - 36.9 37.4 37.9 2.1 30 49 1.50* (14.0)M2C-1SE 2 (0.6) 0.4 0.03M4C-1SE 4 (1.2) 0.4 0.03M6C-1SE 6 (1.8) 0.5 0.03 5.250 - 5.850 GHzSSP-D52 081498Gabriel offers a complete line of coaxial cable, cable connectors,and accessories. Call your Gabriel Sales Engineer for more details.Facts & Features• Gabriel Quality and Dependability.• Innovative Feed Design.• Type N Female coax connectors, 50 ohm.• Isolation is 35dB on Dual Polarized models.• Optional radomes available.ModelNumberDiameterft (m) VSWR (R.L.max. dB)Gain atLow Mid HighdBiXPDdBF/BratiodBNominalMid-BandBeamwidthdegrees StandardFrequencyGHzAntenna Electrical Specifications5.250 - 5.850• Feeds are easily installed from the rear of the antenna, andallow for inspection or replacement from the rear. Smooth polariza-tion adjustment is also obtained from the rear of the antenna.• All aluminum backstructure is designed for most advantageousstrength and weight combination.• New environmentally pleasing neutral color.Plane & Dual PolarizedUnlicensed "NII" and "ISM" Bands(National Information Infrastructure)(Industrial, Scientific and Medical)Solid Parabolic Antennas 5.250 - 5.850 GHzGabriel's New Plane and Dual Polarized “NII" and "ISM" band micro-wave antennas combine competitive electrical characteristics withvery affordable pricing. These antenna models are a cost effectivealternative and our antenna designs carry 55 years of mechanicaland electrical design experience.Both Plane and Dual Polarized solid parabolic models are available in2-ft. (0.6) and 4-ft. (1.2) diameters while employing new state of theart feed designs which terminate with Type “N” connectors.The "NII" and "ISM" band models are designed and manufactured toGabriel’s high quality standards and the models offered are availablefor short interval delivery. Rapid deployment is one of the majoradvantages of these types of communication products and Gabriel ishere to support your short lead time programs with these newantennas.* Improved VSWR available.Product information subject to change without notice.Copyright 1998 Gabriel Electronics Incorporated.Optional Radome SpecificationsModelNumber Diameterft (m)Attenuation@ 5 GHz (dB) VSWR Contribution@ 5 GHzGabriel "NII" and "ISM" Band2-ft. (0.6 m) - Plane Polarized - Standard Parabolic AntennaNEWNEW5.250 - 5.850
