Antenna Data
P.O. Box 70, Scarborough, Maine 04070 U.S.A. Tel: 207-883-5161 Fax: 207-883-4469
email: info@gabrielnet.com web: http://www.gabrielnet.com
Standard (Solid) Parabolic - Plane Polarized - without radome
SSP2-52A 2 (0.6) - 28.1 28.5 29.0 6.1 25 38 1.50* (14.0)
SSP4-52A 4 (1.2) - 33.6 34.2 34.6 3.1 30 46 1.50* (14.0)
SSP6-52A 6 (1.8) - 37.0 37.5 38.0 2.1 30 49 1.50* (14.0)
Standard (Solid) Parabolic Antenna - Dual Polarized - without radome
SSD2-52 2 (0.6) - 28.0 28.4 28.9 6.1 30 38 1.50* (14.0)
SSD4-52 4 (1.2) - 33.5 34.1 34.5 3.1 30 46 1.50* (14.0)
SSD6-52 6 (1.8) - 36.9 37.4 37.9 2.1 30 49 1.50* (14.0)
M2C-1SE 2 (0.6) 0.4 0.03
M4C-1SE 4 (1.2) 0.4 0.03
M6C-1SE 6 (1.8) 0.5 0.03
5.250 - 5.850 GHz
SSP-D52 081498
Gabriel offers a complete line of coaxial cable, cable connectors,
and accessories. Call your Gabriel Sales Engineer for more details.
Facts & Features
• Gabriel Quality and Dependability.
• Innovative Feed Design.
• Type N Female coax connectors, 50 ohm.
• Isolation is 35dB on Dual Polarized models.
• Optional radomes available.
Model
Number
Diameter
ft (m) VSWR (R.L.
max. dB)
Gain at
Low Mid High
dBi
XPD
dB
F/B
ratio
dB
Nominal
Mid-Band
Beamwidth
degrees
Standard
Frequency
GHz
Antenna Electrical Specifications
5.250 - 5.850
• Feeds are easily installed from the rear of the antenna, and
allow for inspection or replacement from the rear. Smooth polariza-
tion adjustment is also obtained from the rear of the antenna.
• All aluminum backstructure is designed for most advantageous
strength and weight combination.
• New environmentally pleasing neutral color.
Plane & Dual Polarized
Unlicensed "NII" and "ISM" Bands
(National Information Infrastructure)
(
Industrial, Scientific and Medical)
Solid Parabolic Antennas
5.250 - 5.850 GHz
Gabriel's New Plane and Dual Polarized “NII" and "ISM" band micro-
wave antennas combine competitive electrical characteristics with
very affordable pricing. These antenna models are a cost effective
alternative and our antenna designs carry 55 years of mechanical
and electrical design experience.
Both Plane and Dual Polarized solid parabolic models are available in
2-ft. (0.6) and 4-ft. (1.2) diameters while employing new state of the
art feed designs which terminate with Type “N” connectors.
The "NII" and "ISM" band models are designed and manufactured to
Gabriel’s high quality standards and the models offered are available
for short interval delivery. Rapid deployment is one of the major
advantages of these types of communication products and Gabriel is
here to support your short lead time programs with these new
antennas.
* Improved VSWR available.
Product information subject to change without notice.
Copyright 1998 Gabriel Electronics Incorporated.
Optional Radome Specifications
Model
Number Diameter
ft (m)
Attenuation
@ 5 GHz (dB) VSWR Contribution
@ 5 GHz
Gabriel "NII" and "ISM" Band

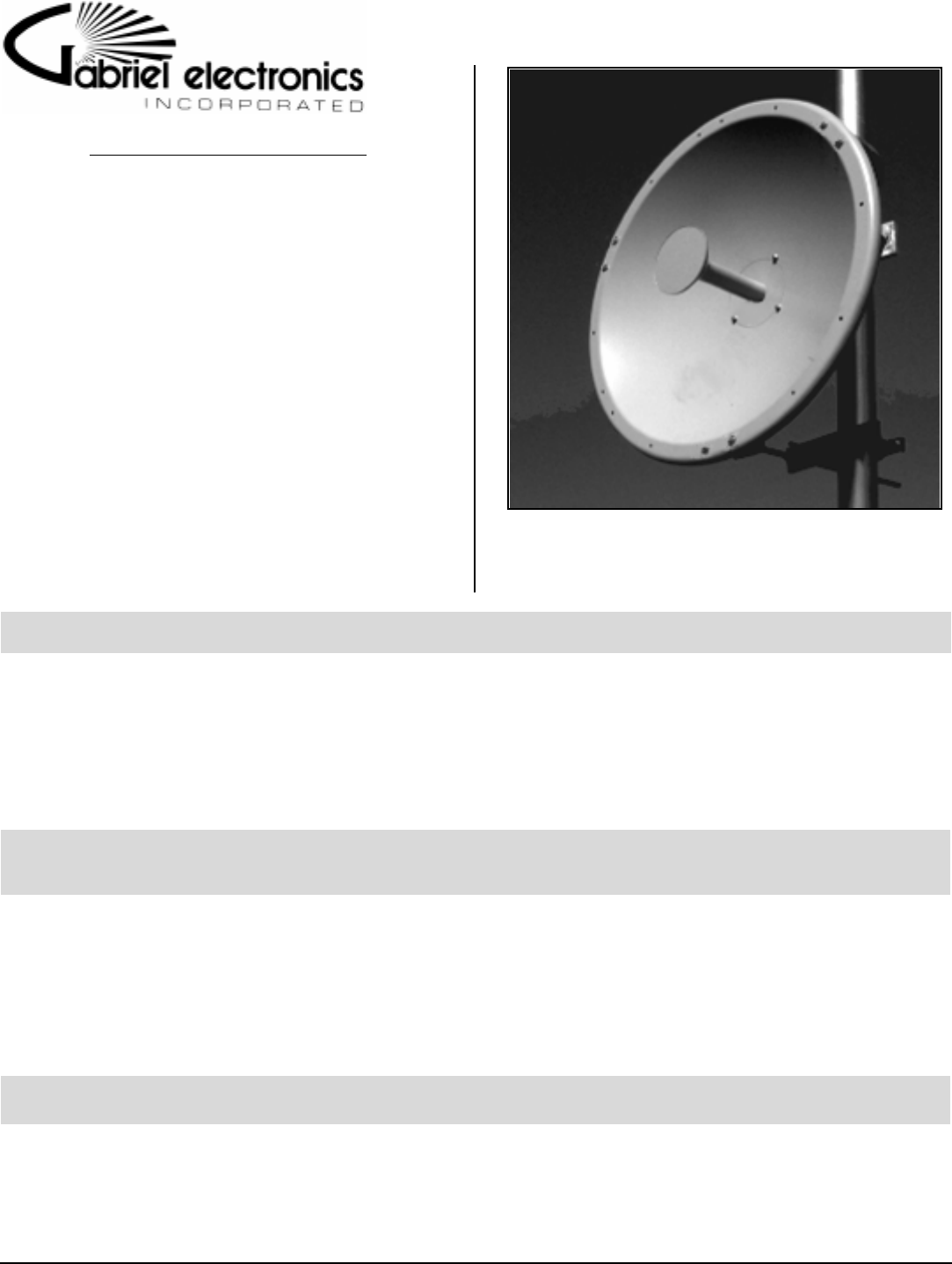

2-ft. (0.6 m) - Plane Polarized - Standard Parabolic Antenna
NEW
NEW
5.250 - 5.850
